Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 267

12 - Bow
13 - Sunroof Shade

❑ Removing and installing. Refer to

⇒ “1.16.3 Sunroof Shade, Removing and Installing, Wagon”, page 292

 .

14 - Tilting Mechanism

❑ For front glass panel, with control cables

15 - Supporting Bracket
16 - Tension Spring
17 - Wind Deflector

❑ Removing and installing. Refer to

⇒ “1.5.3 Wind Deflector, Removing and Installing, Wagon”, page 219

 .

18 - Power Sunroof Control Module - J245-

❑ Removing and installing. Refer to

⇒ “1.13.3  Power Sunroof Control Module J245 , Removing and Installing, Wagon”, page 269

 .

❑ Initialization. Refer to

⇒ “1.17  Power Sunroof Control Module J245 , Programming”, page 297

 .

19 - Connectors
20 - Trim
21 - Bolt

❑ 7 Nm
❑ Quantity: 8

22 - Sunroof Panel

❑ Removing and installing. Refer to

⇒ “1.6.4 Glass Panel, Removing and Installing, Wagon”, page 233

 .

❑ Adjusting. Refer to

⇒ “1.8.2 Glass Panel, Adjusting, Wagon”, page 243

 .

23 - Outer Seal

❑ Removing and installing. Refer to

⇒ “1.15.3 Sunroof Frame Seal, Removing and Installing, Wagon”, page 276

 .

1.3

Overview - Sunroof Shade

⇒ “1.3.1 Overview - Sunroof Shade, Sedan through 02/2015”,

page 201
⇒ “1.3.2 Overview - Sunroof Shade, Sedan from 03/2015”,

page 202
⇒ “1.3.3 Overview - Sunroof Shade, Wagon”, page 203

1.3.1

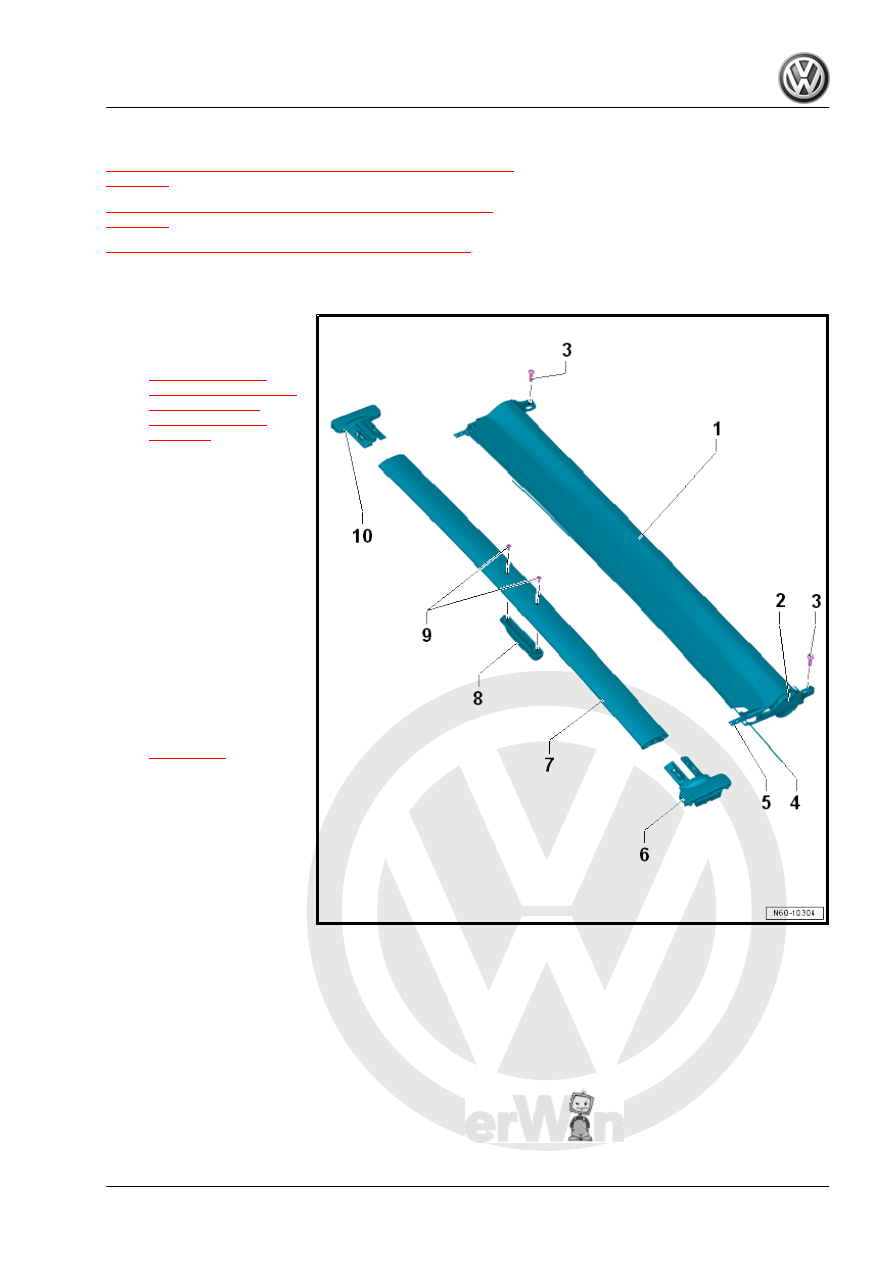

Overview - Sunroof Shade, Sedan through 02/2015

1 - Sunroof Shade

❑ Removing and instal‐

ling. Refer to

⇒ “1.16.1 Sunroof

Shade, Removing and

Installing, Sedan

through 02/2015”,

page 279

 .

2 - Mount

❑ For the sunroof shade

fabric

3 - Screw

❑ 2 Nm
❑ Quantity: 2

4 - Tension Wire

❑ For attaching the mate‐

rial in the tension bow

5 - Drive Plate
6 - Slider
7 - Tension Bow

❑ Removing and instal‐

ling. Refer to

⇒ page 286

 .

8 - Handle
9 - Screw

❑ 1 Nm
❑ For the handle
❑ Quantity: 2

10 - Slider

1.3.2

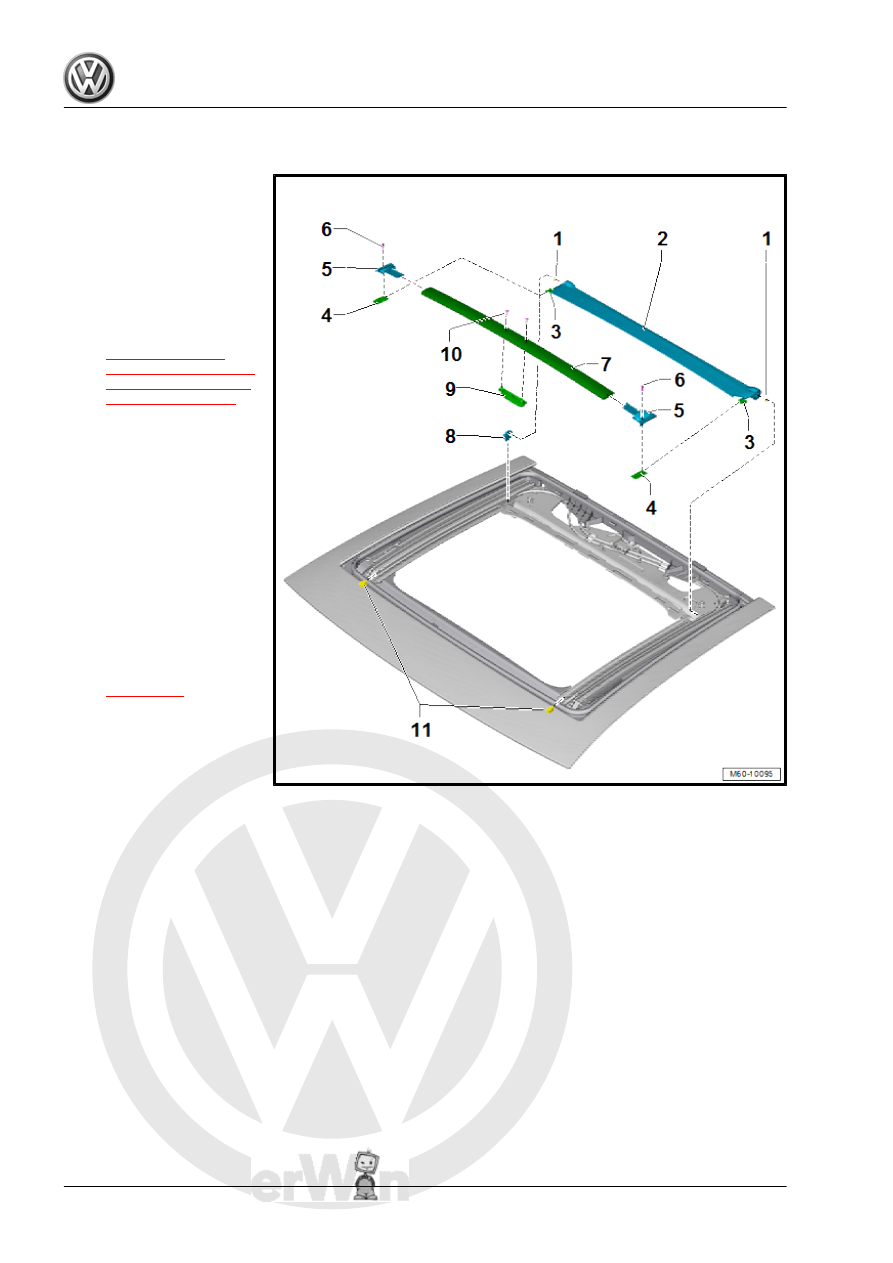

Overview - Sunroof Shade, Sedan from 03/2015

1 - O-Ring

❑ Quantity: 2
❑ Note the position

2 - Sunroof Shade

❑ With tension wire for at‐

taching the material to

the tension bow

❑ Removing and Instal‐

ling. Refer to

⇒ “1.16.2 Sunroof

Shade, Removing and

Installing, Sedan from

03/2015”, page 288

 .

3 - Steel Band Carrier

❑ For the sunroof shade

fabric

4 - Slider Lower Section

❑ Attached to the steel

band carrier

5 - Slider Upper Section
6 - Bolt

❑ 2 Nm
❑ Quantity: 2

7 - Tension Bow

❑ Removing and Instal‐

ling. Refer to

⇒ page 291

 .

8 - Clip

❑ Quantity: 1

9 - Handle
10 - Bolt

❑ 1 Nm
❑ For the handle
❑ Quantity: 2

11 - Stop Buffer

❑ For shade

1.3.3

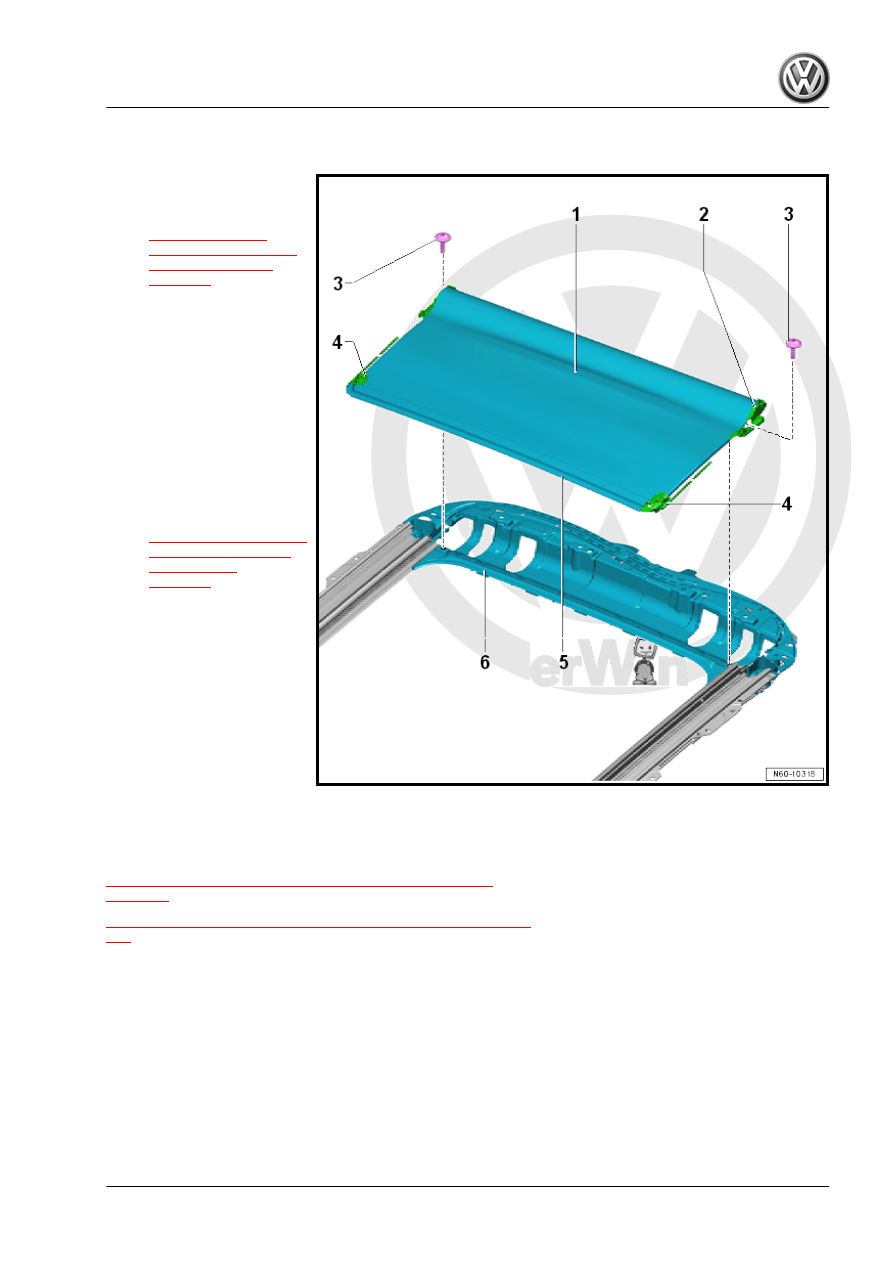

Overview - Sunroof Shade, Wagon

1 - Sunroof Shade

❑ Removing and instal‐

ling. Refer to

⇒ “1.16.3 Sunroof

Shade, Removing and

Installing, Wagon”,

page 292

 .

2 - Mount

❑ For the sunroof shade

fabric

3 - Bolt

❑ 2 Nm
❑ Quantity: 2

4 - Drive Plate
5 - Tension Bow
6 - Sunroof Frame

❑ Removing and instal‐

ling. Refer to

⇒ “1.4.2 Sunroof Frame,

Removing and Instal‐

ling, Wagon”,

page 212

 .

1.4

Sunroof Frame, Removing and Instal‐

ling

⇒ “1.4.1 Sunroof Frame, Removing and Installing, Sedan”,

page 203
⇒ “1.4.2 Sunroof Frame, Removing and Installing, Wagon”, page

212

1.4.1

Sunroof Frame, Removing and Instal‐

ling, Sedan

Special tools and workshop equipment required
♦ Double Cartridge Gun - VAS5237-
♦ Window Cutter - VAG1561A-
♦ Blade, L-shaped, 19 mm - VAG 561/21-
