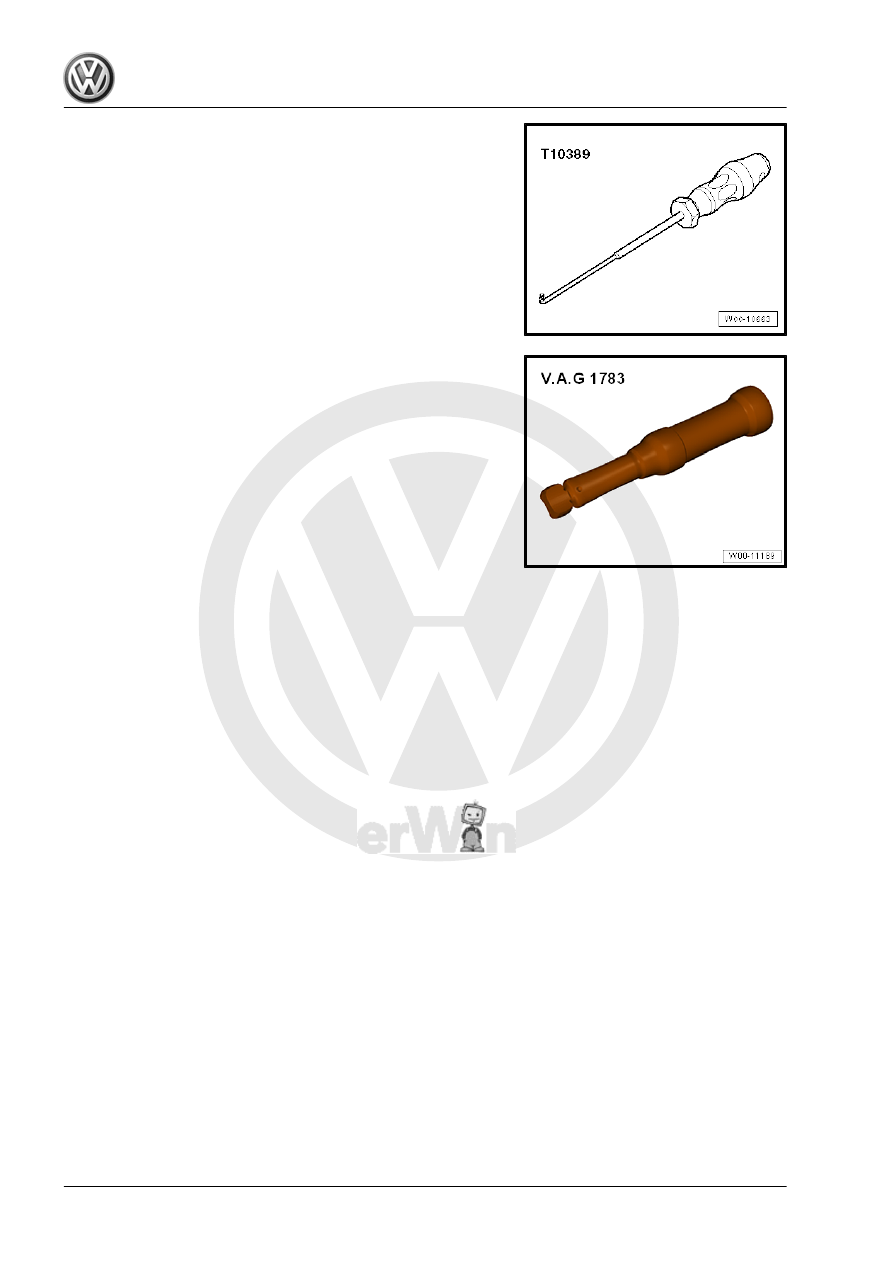

♦ Lock Cylinder Housing Assembly Tool - T10389-

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

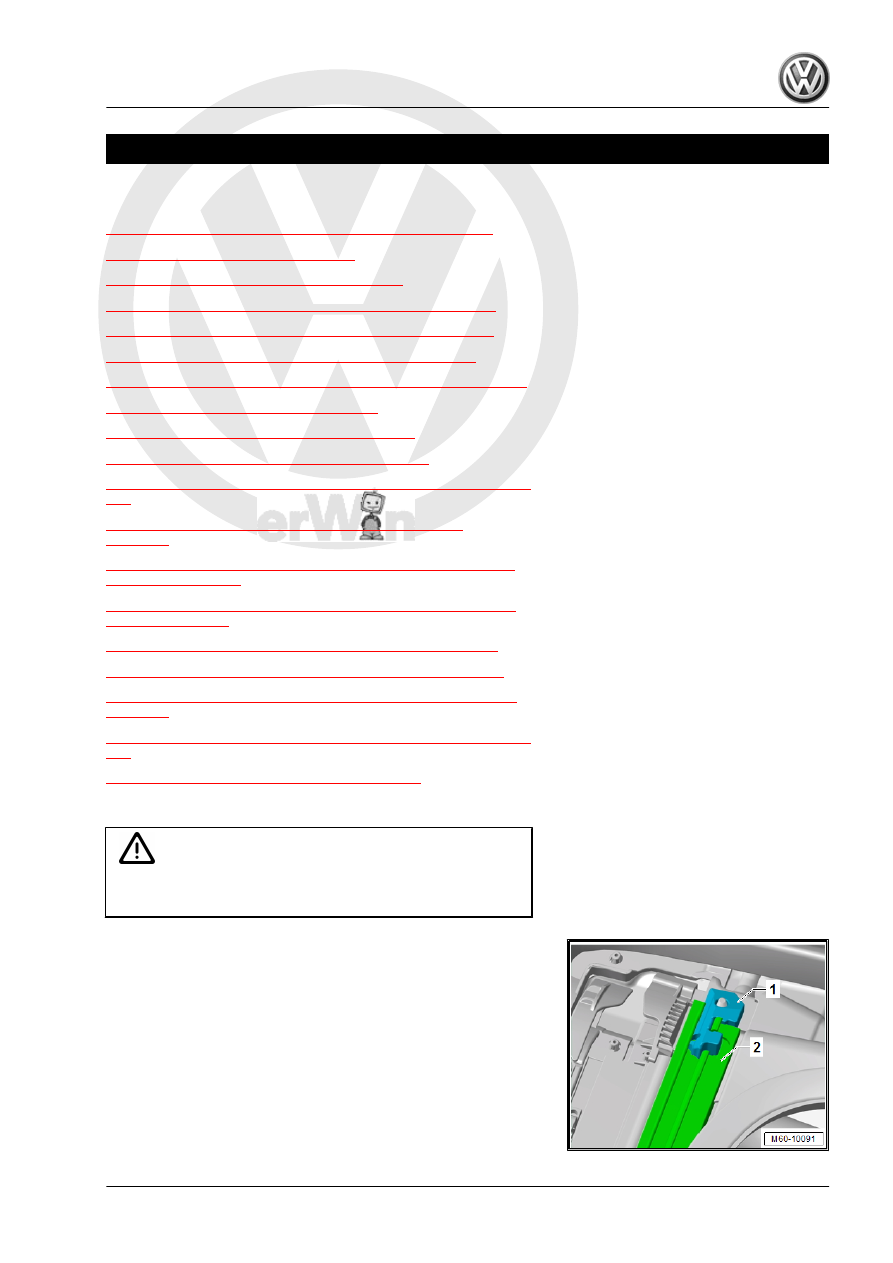

60 – Sunroof

1

Sunroof

⇒ “1.1 Characteristics - Sliding Sunroof, Sedan”, page 193
⇒ “1.2 Overview - Sunroof”, page 194
⇒ “1.3 Overview - Sunroof Shade”, page 201
⇒ “1.4 Sunroof Frame, Removing and Installing”, page 203
⇒ “1.5 Wind Deflector, Removing and Installing”, page 215
⇒ “1.6 Glass Panel, Removing and Installing”, page 223
⇒ “1.7 Rear Sunroof Panel, Removing and Installing”, page 237
⇒ “1.8 Glass Panel, Adjusting”, page 241
⇒ “1.9 Rear Glass Panel, Adjusting”, page 244
⇒ “1.10 Height Adjustment, Checking”, page 245
⇒ “1.11 Slotted Guide Rail Guide, Removing and Installing”, page

246
⇒ “1.12 Sunroof Front Trim, Removing and Installing”,

page 254
⇒ “1.13  Power Sunroof Control Module J245 , Removing and

Installing”, page 261
⇒ “1.14  Roof Shade Control Module J394 , Removing and In‐

stalling”, page 272
⇒ “1.15 Sunroof Seals, Removing and Installing”, page 273
⇒ “1.16 Sunroof Shade, Removing and Installing”, page 279
⇒ “1.17  Power Sunroof Control Module J245 , Programming”,

page 297
⇒ “1.18  Roof Shade Control Module J394 , Programming”, page

298
⇒ “1.19 Operating without Electricity”, page 299

1.1

Characteristics - Sliding Sunroof, Sedan

Caution

A visual inspection when the sliding sunroof is open on the

vehicle is essential to order the correct replacement part.

Vehicles through 11/2014
1 - Shade Stop Buffer
2 - Guide Rail

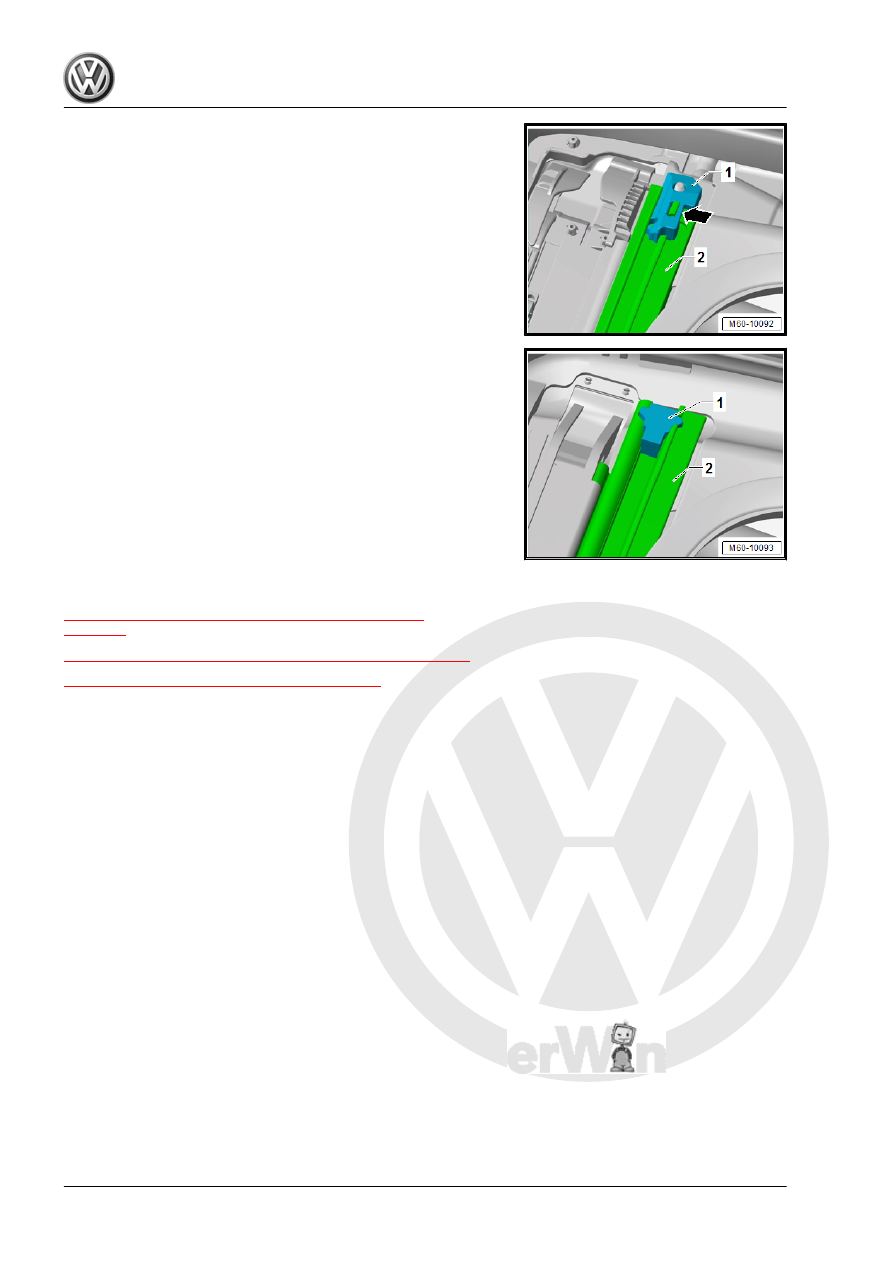

Vehicles from 11/2014 through 02/2015
1 - Shade Stop Buffer with Reinforcement -arrow-
2 - Guide Rail

Vehicles from 03/2015
1 - Shade Stop Buffer
2 - Guide Rail

1.2

Overview - Sunroof

⇒ “1.2.1 Overview - Sunroof, Sedan through 02/2015”,

page 194
⇒ “1.2.2 Overview - Sunroof, Sedan from 03/2015”, page 197
⇒ “1.2.3 Overview - Sunroof, Wagon”, page 199

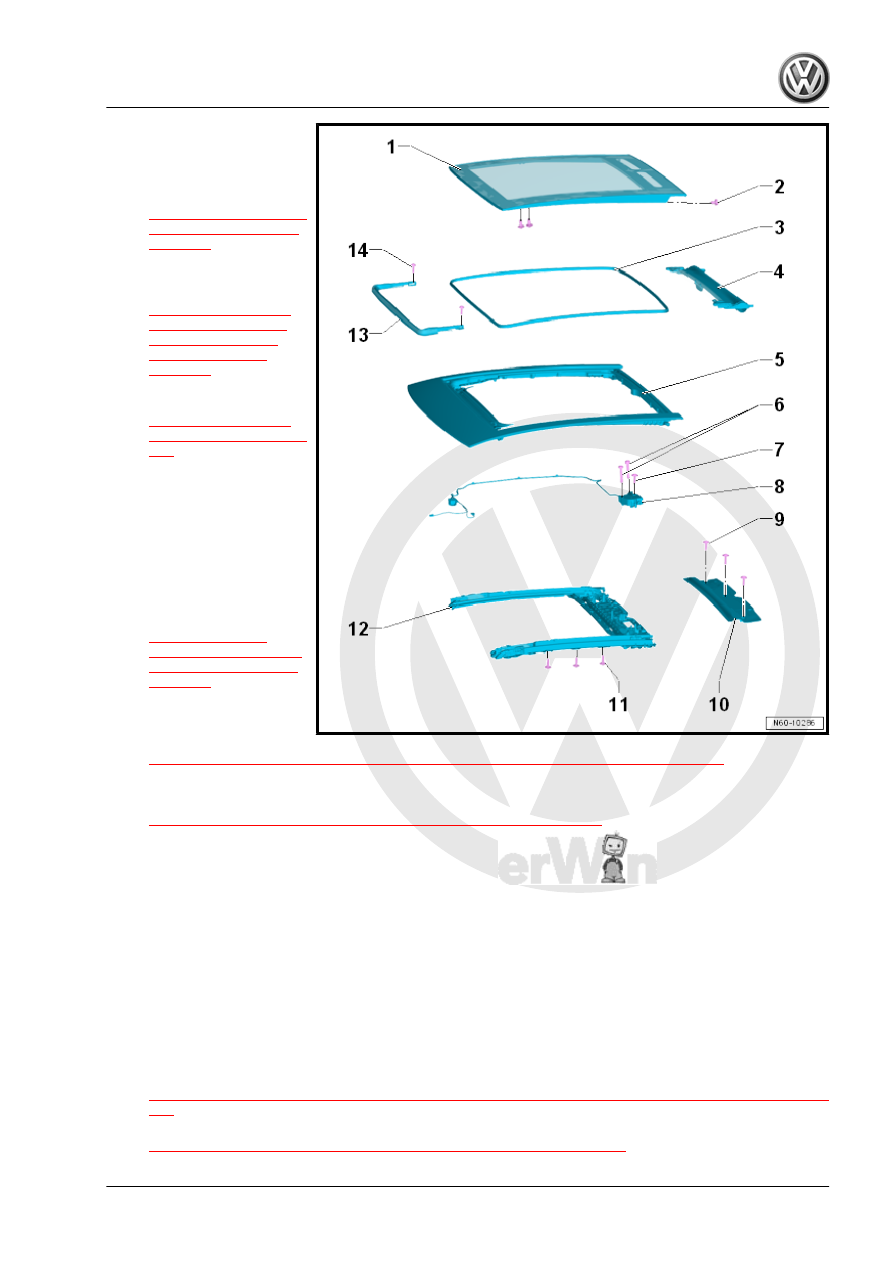

1.2.1

Overview - Sunroof, Sedan through 02/2015

1 - Panorama Sunroof Glass

Panel (One-Piece Safety

Glass)

❑ Glass panel, removing.

Refer to

⇒ “1.6 Glass Panel, Re‐

moving and Installing”,

page 223

 .

❑ Glass panel, removing,

defective drive motor.

Refer to

⇒ “1.6.3 Glass Panel,

Removing, Defective

Drive Motor, Sedan

through 02/2015”,

page 232

 .

❑ Glass panel, adjusting.

Refer to

⇒ “1.8.1 Glass Panel,

Adjusting, Sedan”, page

241

 .

2 - Bolt

❑ 5.5 Nm
❑ Replace after removing
❑ Microencapsulated
❑ Quantity: 6

3 - Sunroof Frame Seal

❑ Removing and instal‐

ling. Refer to

⇒ “1.15.1 Sunroof

Frame Seal, Removing

and Installing, Sedan”,

page 273

 .

4 - Sunroof Shade

❑ Removing and instal‐

ling. Refer to

⇒ “1.16.1 Sunroof Shade, Removing and Installing, Sedan through 02/2015”, page 279

 .

5 - Sunroof Frame

❑ Sunroof frame, removing and installing. Refer to

⇒ “1.4.1 Sunroof Frame, Removing and Installing, Sedan”, page 203

 .

❑ If necessary, use only special Grease - G 060 751 A2- to grease the guide channels, otherwise the

function cannot be guaranteed.

6 - Bolt

❑ 4 Nm
❑ For the sunroof motor
❑ Quantity: 2

7 - Bolt

❑ 4 Nm
❑ For the sunroof motor
❑ Quantity: 1

8 - Power Sunroof Control Module - J245-

❑ Control module, removing and installing. Refer to

⇒ “1.13.1  Power Sunroof Control Module J245 , Removing and Installing, Sedan through 02/2015”, page

261

 .

❑ Control module, adapting. Refer to

⇒ “1.17  Power Sunroof Control Module J245 , Programming”, page 297

 .
