3.5

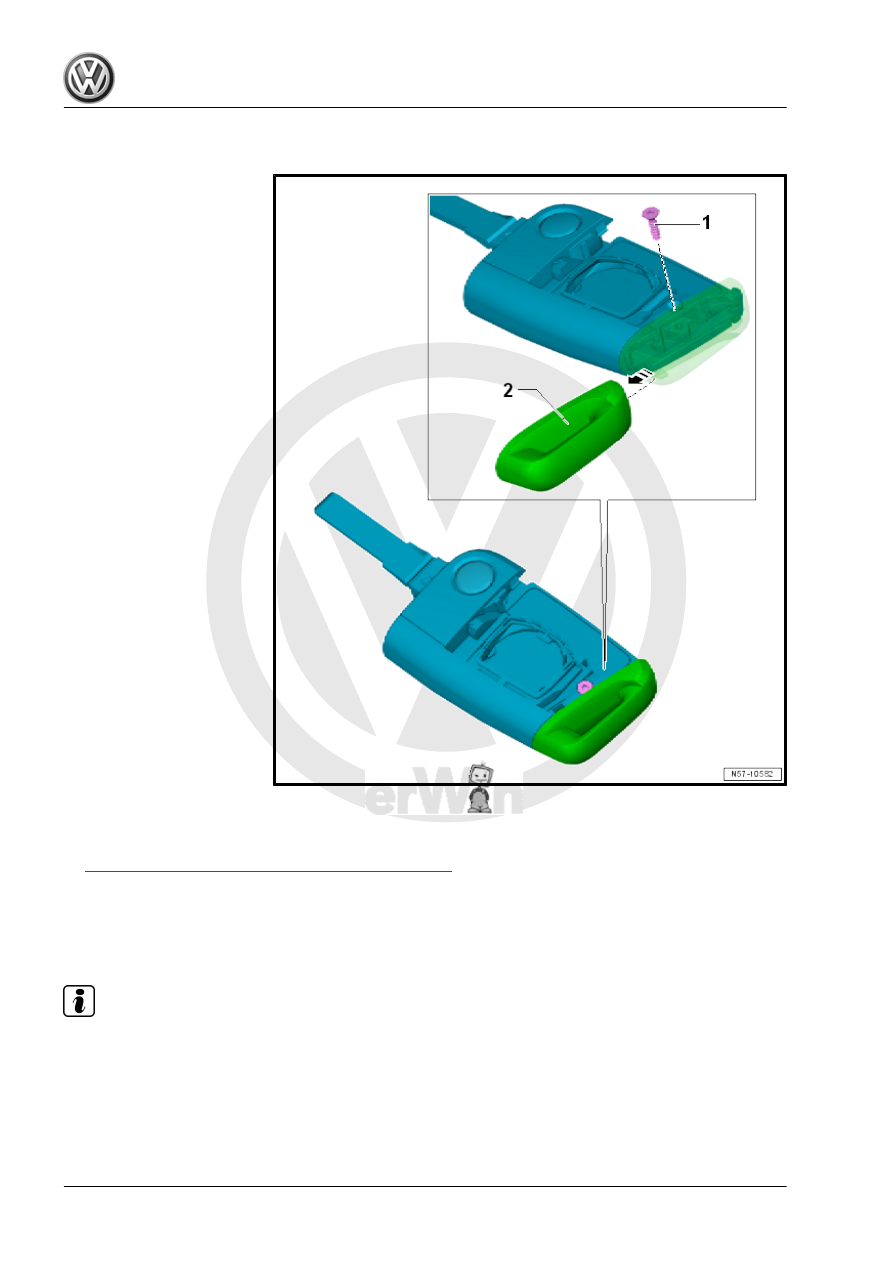

Ignition Key Cap, Removing and Installing

Removing
– Lift up the battery compartment cover. Refer to

⇒ “3.4 Key Battery, Removing and Installing”, page 137

 .

– Remove the bolt -1-.
– Remove the cap -2- at the side from the ignition key in direction

of -arrow-.

Installing

Note

The threads for a new cap are cut in by the screw -1-.

– Push the cap -2- sideways onto the ignition key.
– Install the screw -1-.
– Push on the battery compartment cover.

4

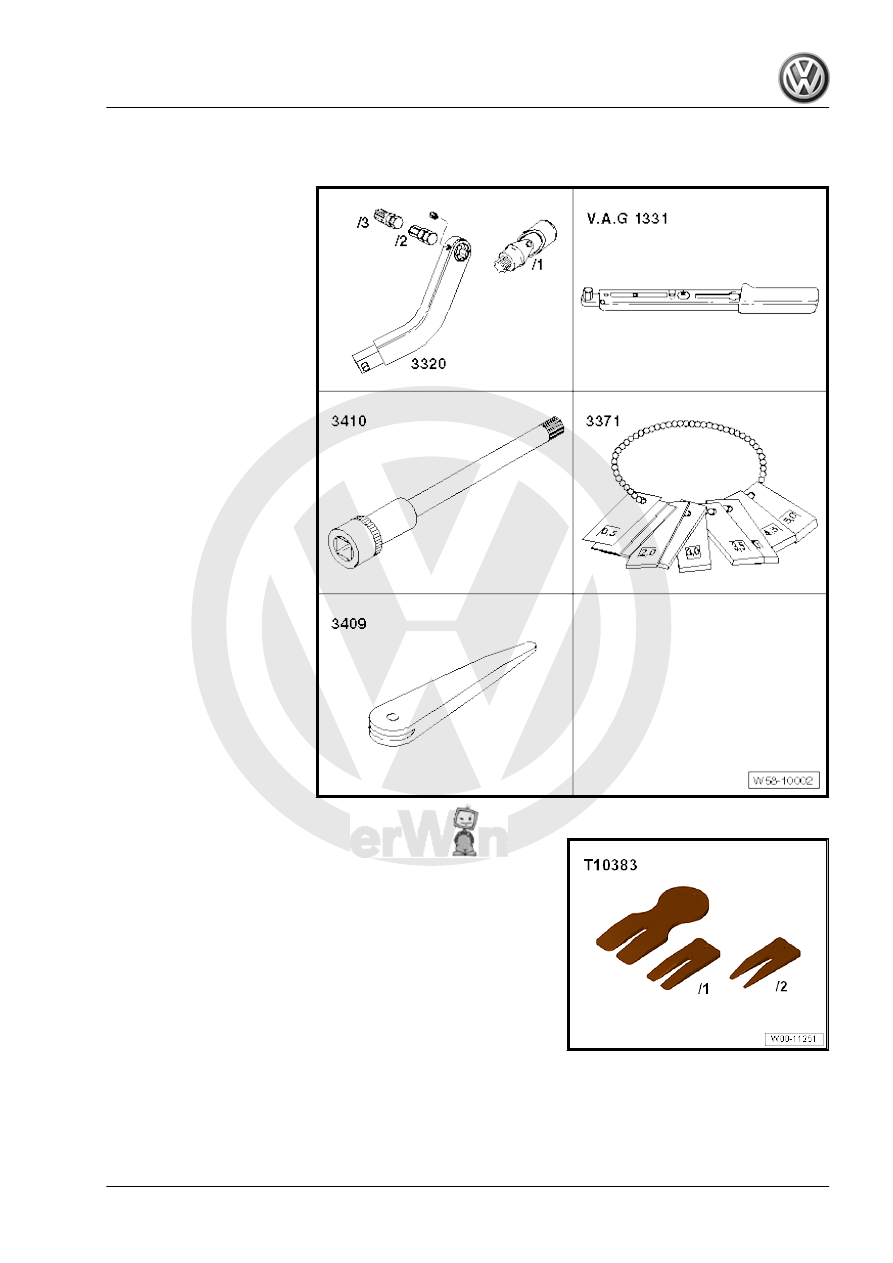

Special Tools

Special tools and workshop

equipment required
♦ Wrench - Door Adjusting -

3320-

♦ Door Adjusting Wrench -

Joint - 3320/1-

♦ Wrench - Door Adjusting -

Box Wrench - 3320/2-

♦ Wrench - Door Adjusting -

Box Wrench - 3320/3-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Cylinder Head Bolt Socket -

3410-

♦ Gauge - Gap Adjustment -

3371-

♦ Trim Removal Wedge -

3409-

♦ Wedge Set - T10383-

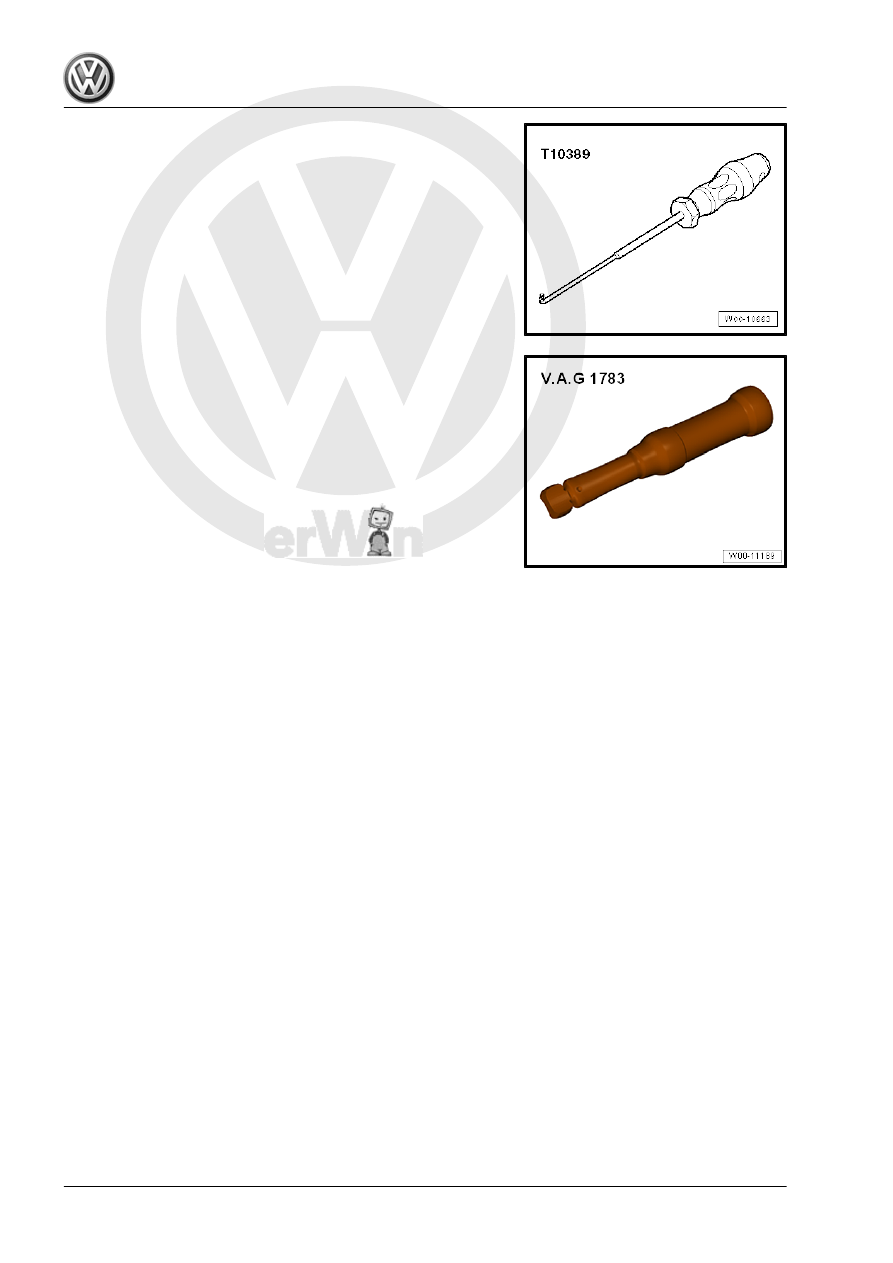

♦ Lock Cylinder Housing Assembly Tool - T10389-

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

58 – Rear Doors

1

Door

⇒ “1.1 Overview - Door”, page 143
⇒ “1.2 Door, Removing and Installing”, page 145
⇒ “1.3 Door, Adjusting”, page 149
⇒ “1.4 Catch, Adjusting”, page 151
⇒ “1.5 Door Arrester, Removing and Installing”, page 152
⇒ “1.6 Inner Door Seal, Removing and Installing”, page 154
⇒ “1.7 Outer Door Seal, Removing and Installing”, page 157

1.1

Overview - Door

Note

♦

The illustration shows the left side. The right side is identical.

♦

After replacing the B-pillar, the bolts -2 and 5- as well as -14 and 17- are to be tightened to another tightening

specification.
