3

Central Locking

⇒ “3.1 Component Location Overview - Central Locking”,

page 132
⇒ “3.2  Driver Door Control Module J386 and Front Passenger

Door Control Module J387 , Removing and Installing”,

page 137
⇒ “3.3  Driver Side Rear Window Regulator Motor Control Module

J1016 and Front Passenger Side Rear Window Regulator Motor

Control Module J1017 , Removing and Installing”, page 137
⇒ “3.4 Key Battery, Removing and Installing”, page 137
⇒ “3.5 Ignition Key Cap, Removing and Installing”, page 140

3.1

Component Location Overview - Central

Locking

⇒ “3.1.1 Component Location Overview - Central Locking, Se‐

dan”, page 132
⇒ “3.1.2 Component Location Overview - Central Locking, Wag‐

on”, page 135

3.1.1

Component Location Overview - Central Locking, Sedan

1 - Alarm Horn - H12-

❑ Removing and instal‐

ling. Refer to ⇒  Electri‐

cal Equipment; Rep. Gr.

96 ; Anti-theft Alarm

System; Alarm Horn

H12, Removing and In‐

stalling .

2 - Front Passenger Door Con‐

trol Module - J387-

❑ Installed separately

from the window regula‐

tor motor in the door.

❑ Removing and instal‐

ling. Refer to

⇒ “3.2  Driver Door Con‐

trol Module J386 and

Front Passenger Door

Control Module J387 ,

Removing and Instal‐

ling”, page 137

 .

3 - Right Front Door Lock

❑ The door lock is attach‐

ed to the door inner pan‐

el

❑ The power central lock‐

ing system is integrated

in the door lock

❑ Removing and instal‐

ling. Refer to

⇒ “2.13 Door Lock, Re‐

moving and Installing”,

page 119

 .

4 - Connector Station

❑ Component location:

right B-pillar

❑ Loosen the boot on the pillar to disconnect the connector

5 - Front Passenger Side Rear Window Regulator Motor Control Module - J1017-

❑ Removing and installing. Refer to

⇒ “3.3  Driver Side Rear Window Regulator Motor Control Module J1016 and Front Passenger Side Rear

Window Regulator Motor Control Module J1017 , Removing and Installing”, page 137

 .

6 - Right Rear Door Lock

❑ The door lock is attached to the door inner panel
❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 179

 .

7 - Rear Lid Latch

❑ Component location: bolted to the rear lid
❑ Removing and installing. Refer to

⇒ “2.6 Latch, Removing and Installing”, page 58

 .

8 - Right Rear Lid Connector Station

❑ Component location: behind the C-pillar trim panel
❑ Removing and installing. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Passenger Compartment Trim; C-Pillar

Trim Panel, Removing and Installing .

9 - Operating Cable with Button

❑ Component location: bolted into the rear lid
❑ Removing and installing. Refer to

⇒ “2.7 Actuator, Removing and Installing”, page 60

 .

10 - Left Rear Lid Connector Station

❑ Component location: behind the C-pillar trim panel
❑ Removing and installing. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Passenger Compartment Trim; C-Pillar

Trim Panel, Removing and Installing .

11 - Left Rear Door Lock

❑ The door lock is attached to the door inner panel
❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 179

 .

12 - Driver Side Rear Window Regulator Motor Control Module - J1016-

❑ Removing and installing. Refer to

⇒ “3.3  Driver Side Rear Window Regulator Motor Control Module J1016 and Front Passenger Side Rear

Window Regulator Motor Control Module J1017 , Removing and Installing”, page 137

 .

13 - Connector Station

❑ Component location: left B-pillar
❑ Loosen the boot on the pillar to disconnect the connector

14 - Left Front Door Lock

❑ The door lock is attached to the door inner panel
❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 119

 .

15 - Driver Door Control Module - J386-

❑ Installed separately from the window regulator motor in the door.
❑ Removing and installing. Refer to

⇒ “3.2  Driver Door Control Module J386 and Front Passenger Door Control Module J387 , Removing

and Installing”, page 137

 .

16 - Window Regulator Central Switch

❑ Component location: installed in the door trim panel
❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  96 ; Controls; Component Location

Overview - Controls in Front Doors .

17 - Central Locking Button

❑ Component location: installed in the door trim panel
❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  96 ; Controls; Component Location

Overview - Controls in Front Doors .

18 - Connector Station

❑ Component location: left A-pillar
❑ Loosen the boot on the pillar to disconnect the connector

19 - Vehicle Electrical System Control Module - J519-

❑ Component location: under the instrument panel on the driver side
❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  97 ; Control Modules; Vehicle Elec‐

trical System Control Module - J519- , Removing and Installing .

20 - Connector Station

❑ Component location: right A-pillar
❑ Loosen the boot on the pillar to disconnect the connector

21 - Engine Hood Contact Switch - F266-

❑ Contact switch for anti-theft alarm system
❑ Component location: on the latch
❑ Removing and installing. Refer to

⇒ “1.5 Latch, Removing and Installing”, page 31

 .

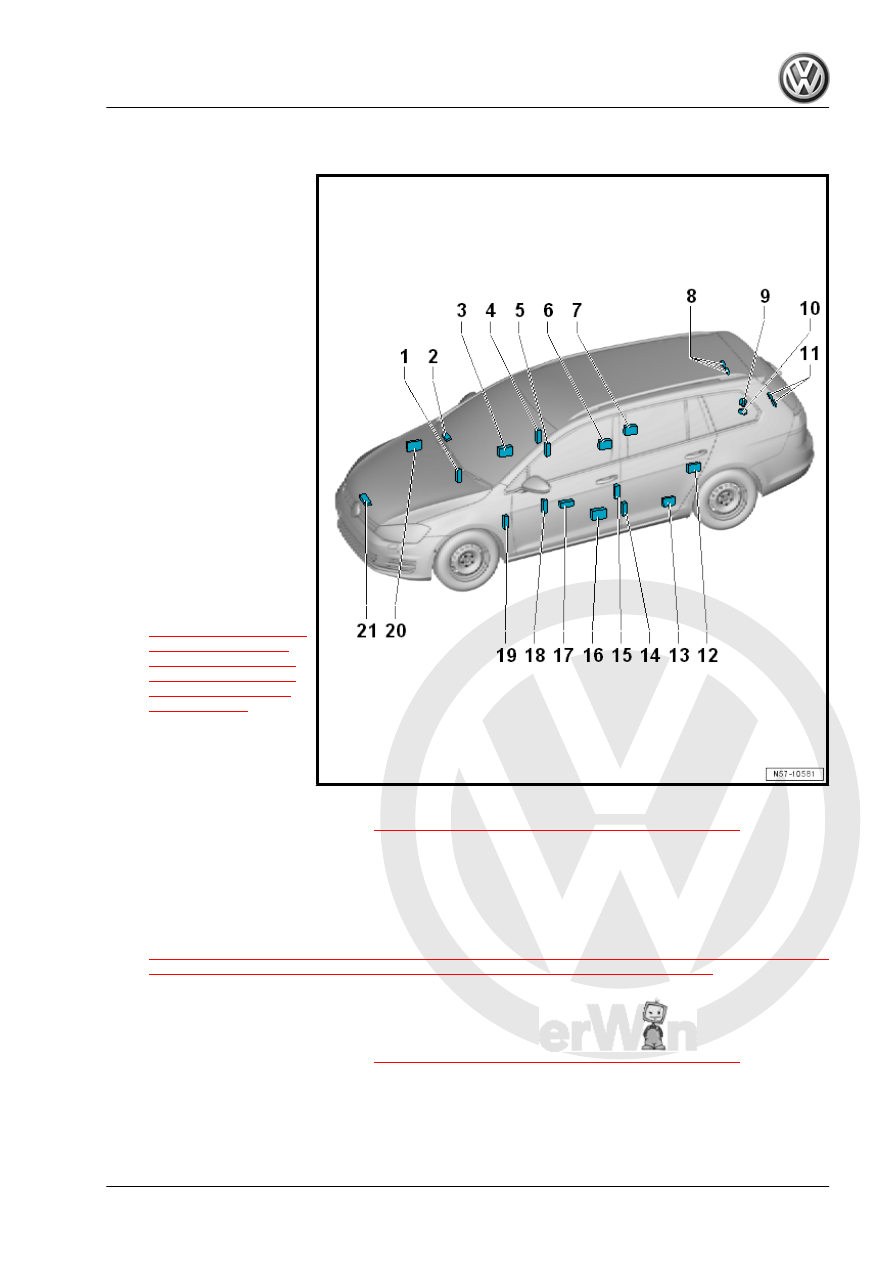

3.1.2

Component Location Overview - Central Locking, Wagon

1 - Connector Station

❑ Component location:

right A-pillar

❑ Loosen the boot on the

pillar to disconnect the

connector

2 - Vehicle Electrical System

Control Module - J519-

❑ Component location:

under the instrument

panel on the driver side

❑ Removing and instal‐

ling. Refer to ⇒  Electri‐

cal Equipment; Rep. Gr.

97 ; Control Modules;

Vehicle Electrical Sys‐

tem Control Module -

J519- , Removing and

Installing .

3 - Front Passenger Door Con‐

trol Module - J387-

❑ Installed separately

from the window regula‐

tor motor in the door.

❑ Removing and instal‐

ling. Refer to

⇒ “3.2  Driver Door Con‐

trol Module J386 and

Front Passenger Door

Control Module J387 ,

Removing and Instal‐

ling”, page 137

 .

4 - Right Front Door Lock

❑ The door lock is attach‐

ed to the door inner pan‐

el

❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 119

 .

5 - Connector Station

❑ Component location: right B-pillar
❑ Loosen the boot on the pillar to disconnect the connector

6 - Front Passenger Side Rear Window Regulator Motor Control Module - J1017-

❑ Removing and installing. Refer to

⇒ “3.3  Driver Side Rear Window Regulator Motor Control Module J1016 and Front Passenger Side Rear

Window Regulator Motor Control Module J1017 , Removing and Installing”, page 137

 .

7 - Right Rear Door Lock

❑ The door lock is attached to the door inner panel
❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 179

 .

8 - Right Rear Lid Connector Station

❑ Component location: behind the D-pillar trim panel
❑ Removing and installing. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Passenger Compartment Trim; D-Pillar

Trim Panel, Removing and Installing .
