Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 227

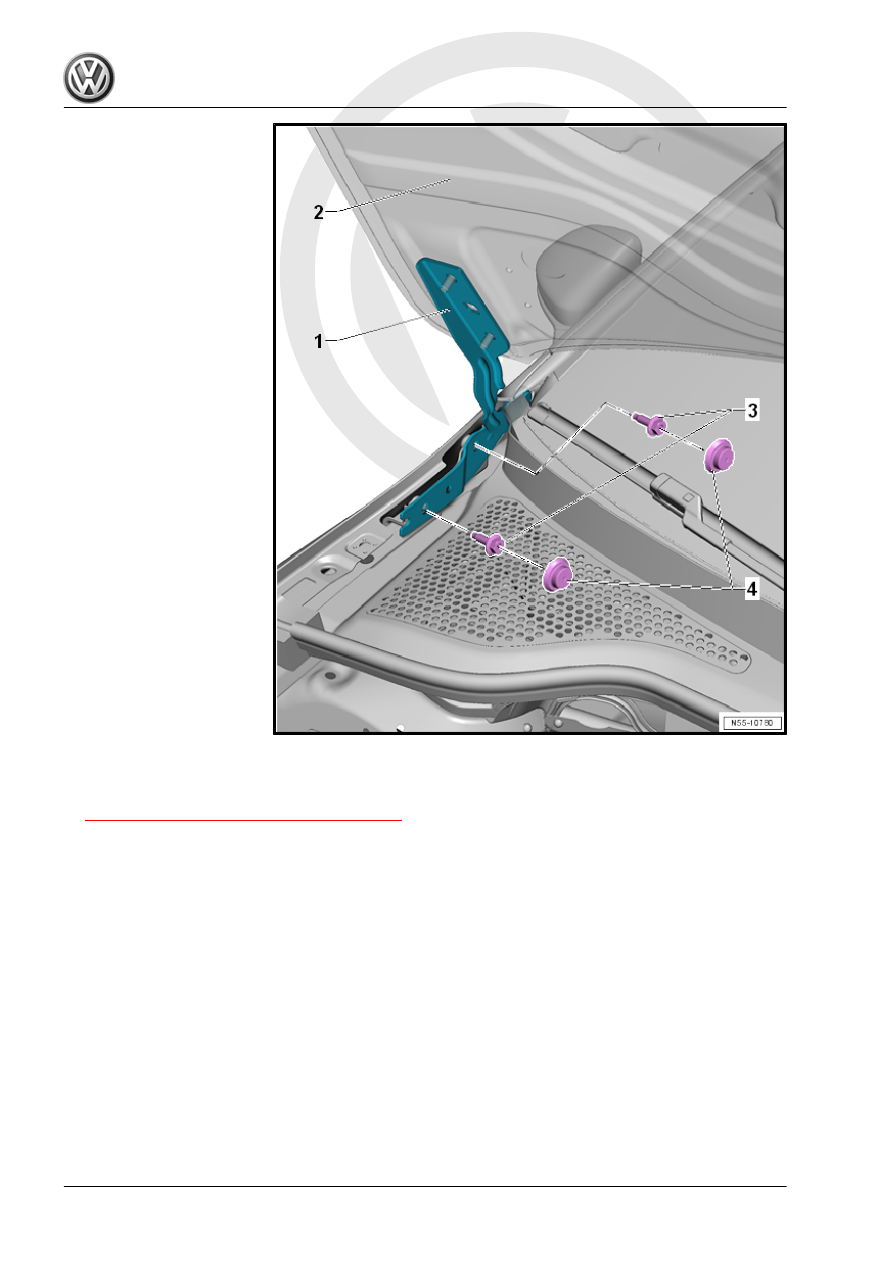

Removing
– Remove the hood -2-. Refer to

– If equipped, remove the caps -4-.
– Remove the bolts -3-.
– Remove the hinge -1-.

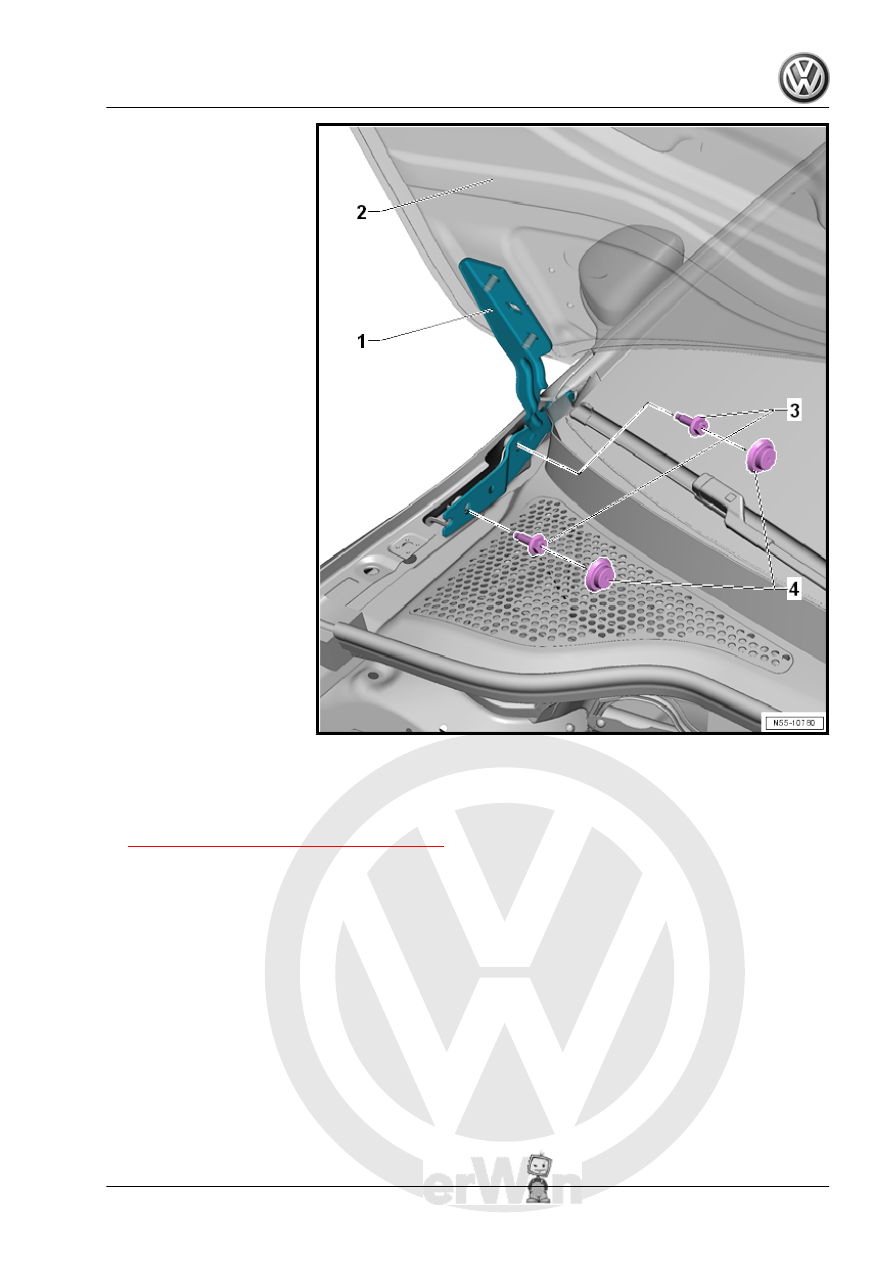

Installing
Install the hinge -1- in reverse order of removal.
– Install the hood -2-. Refer to

Tightening Specifications

1.11

Insulation, Removing and Installing

Special tools and workshop equipment required
♦ Pry Lever - 80-200-

Removing

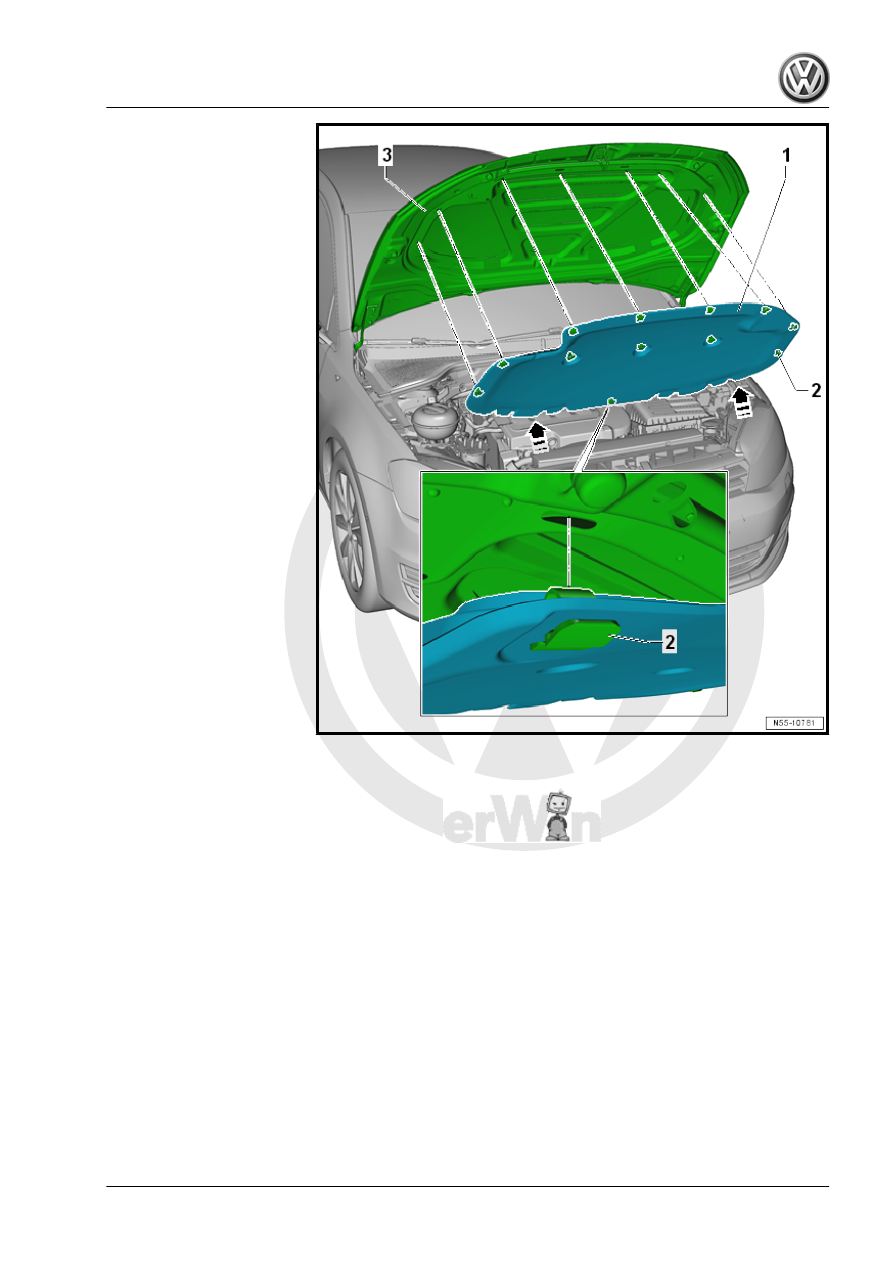

– Pry the clips -2- out of the hood -3- using the Pry Lever -

80-200- .

– Remove the insulation -1- from the oblong holes in direction

of -arrows-.

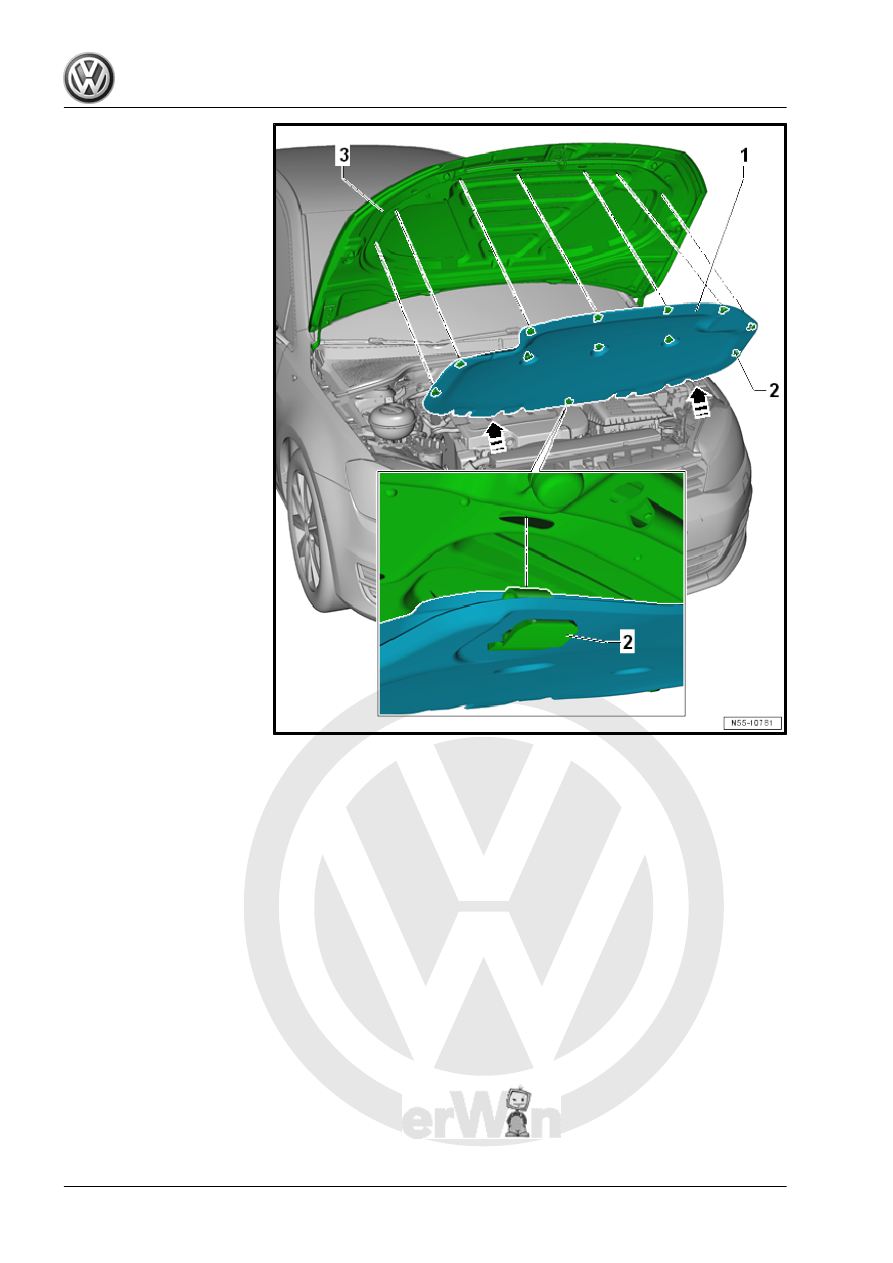

Installing
– Slide the insulation -1- with the mounting tabs -arrows- into the

oblong holes.

– Lock all of the clips -2- into the hood -3-.
