Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 78

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the footwell cover on the driver side. Refer to ⇒ Body

Interior; Rep. Gr. 68 ; Storage Compartments and Covers;

Driver Side Footwell Cover, Removing and Installing .

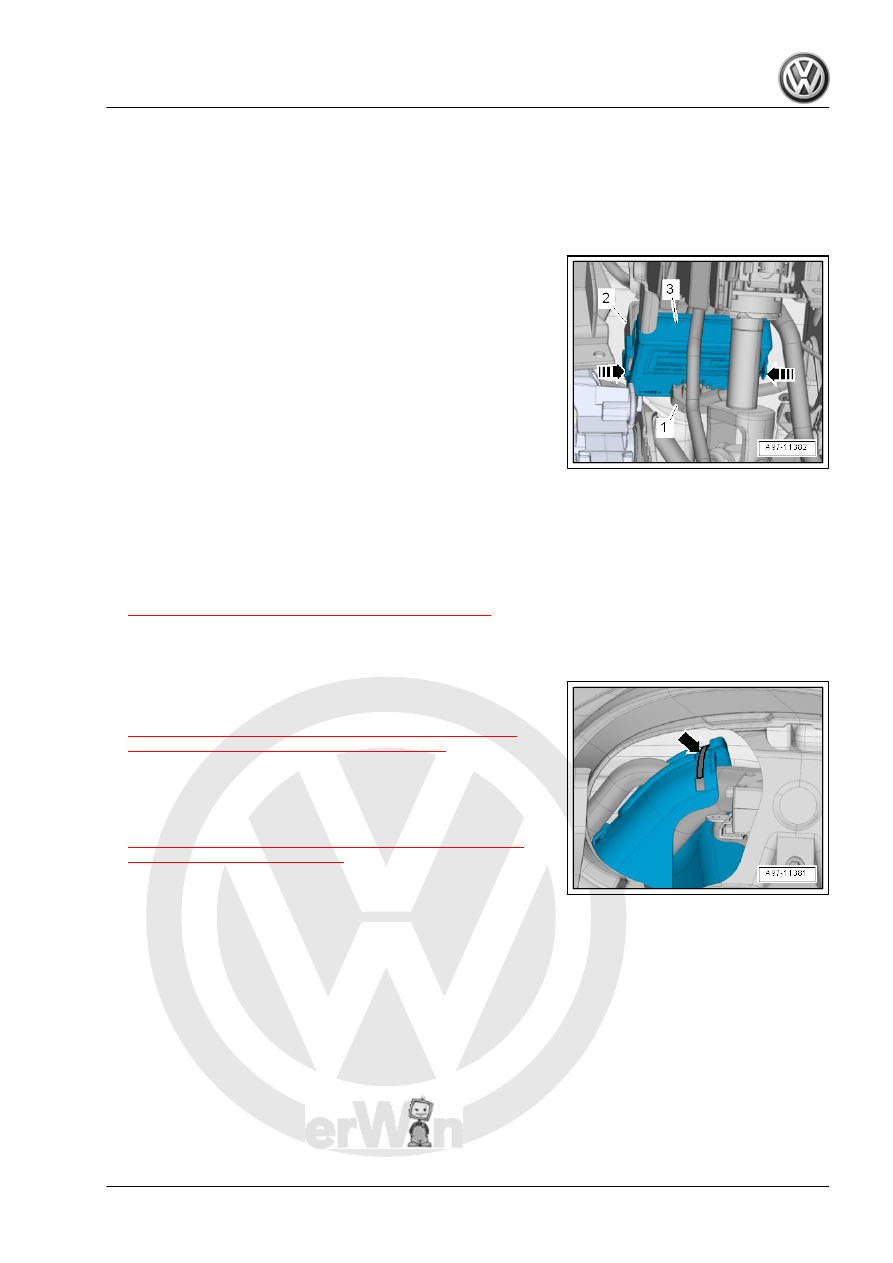

– Release the connector -1- and disconnect, to do this grasp

upward behind the pedal bracket.

– To disconnect the connector press the circlip and remove the

connector.

– Release the retainers in direction of -arrows-.
– Remove the Data Bus On Board Diagnostic Interface - J533-

-3- downward from the bracket -2-.

Installing
Install in reverse order of removal.

2.6

Vehicle Electrical System Control Mod‐

ule - J519- Bracket, Removing and In‐

stalling

Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

– Remove the instrument panel. Refer to ⇒ Body Interior; Rep.

Gr. 70 ; Instrument Panel; Instrument Panel, Removing and

Installing .

– Cut the cable tie -arrow-.
– Disengage the fuse panel C and press aside. Refer to

⇒ “1.4 Relay and Fuse Carrier Behind Instrument Panel on

Driver Side, Removing and Installing”, page 294

– Release and disconnect the connector from the Front Parking

Aid Warning Buzzer - H22- .

– Release and disconnect the connector on the Vehicle Electri‐

cal System Control Module - J519- . Refer to

⇒ “2.4 Vehicle Electrical System Control Module J519 , Re‐

moving and Installing”, page 299

– Release and disconnect the connector on the Parking Aid

Control Module - J446- / Parallel Parking Assistance Control

Module - J791- .

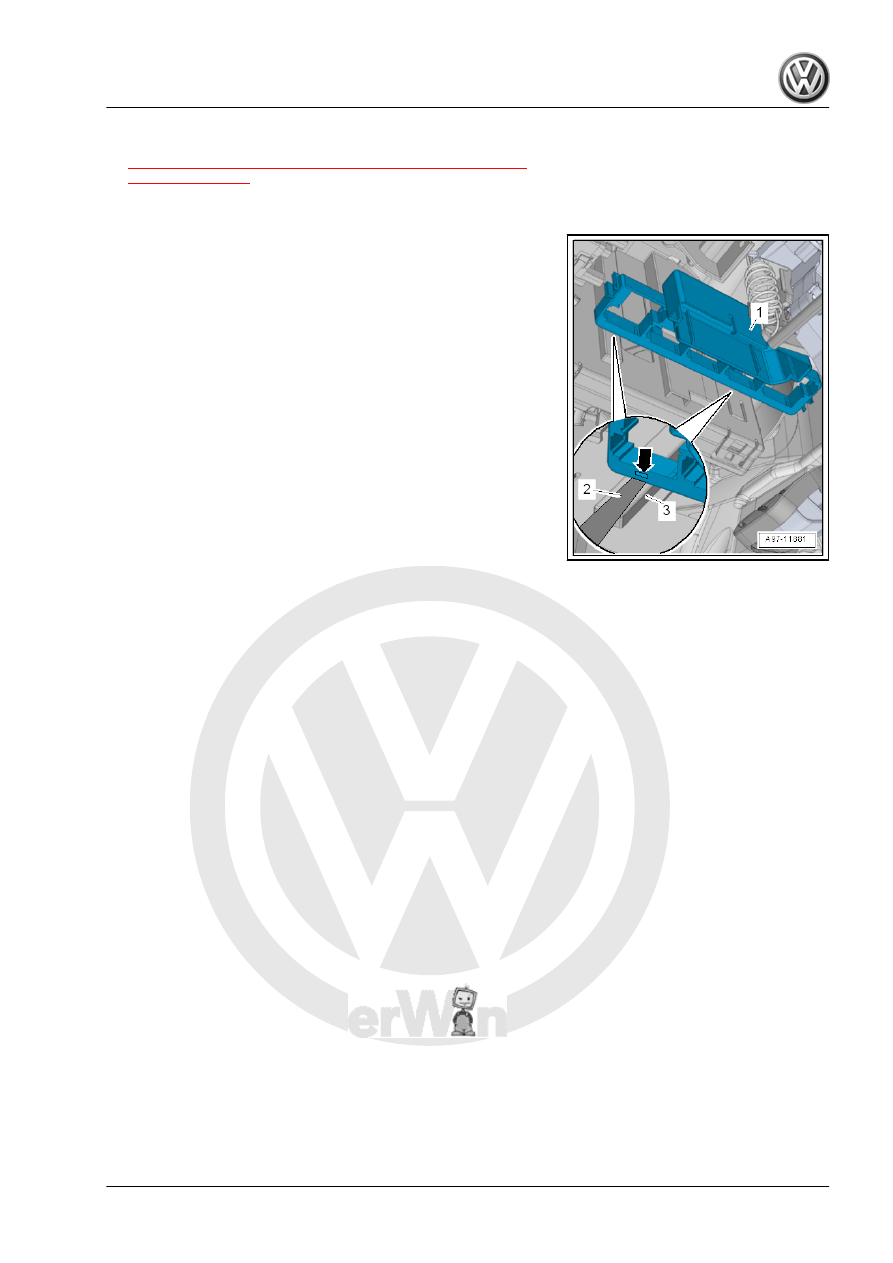

– Remove the diagnostic connector, to do this release the lock‐

ing mechanism on the bracket and remove the bracket out‐

ward.

– Remove the bolts -2, 3, and 6-.

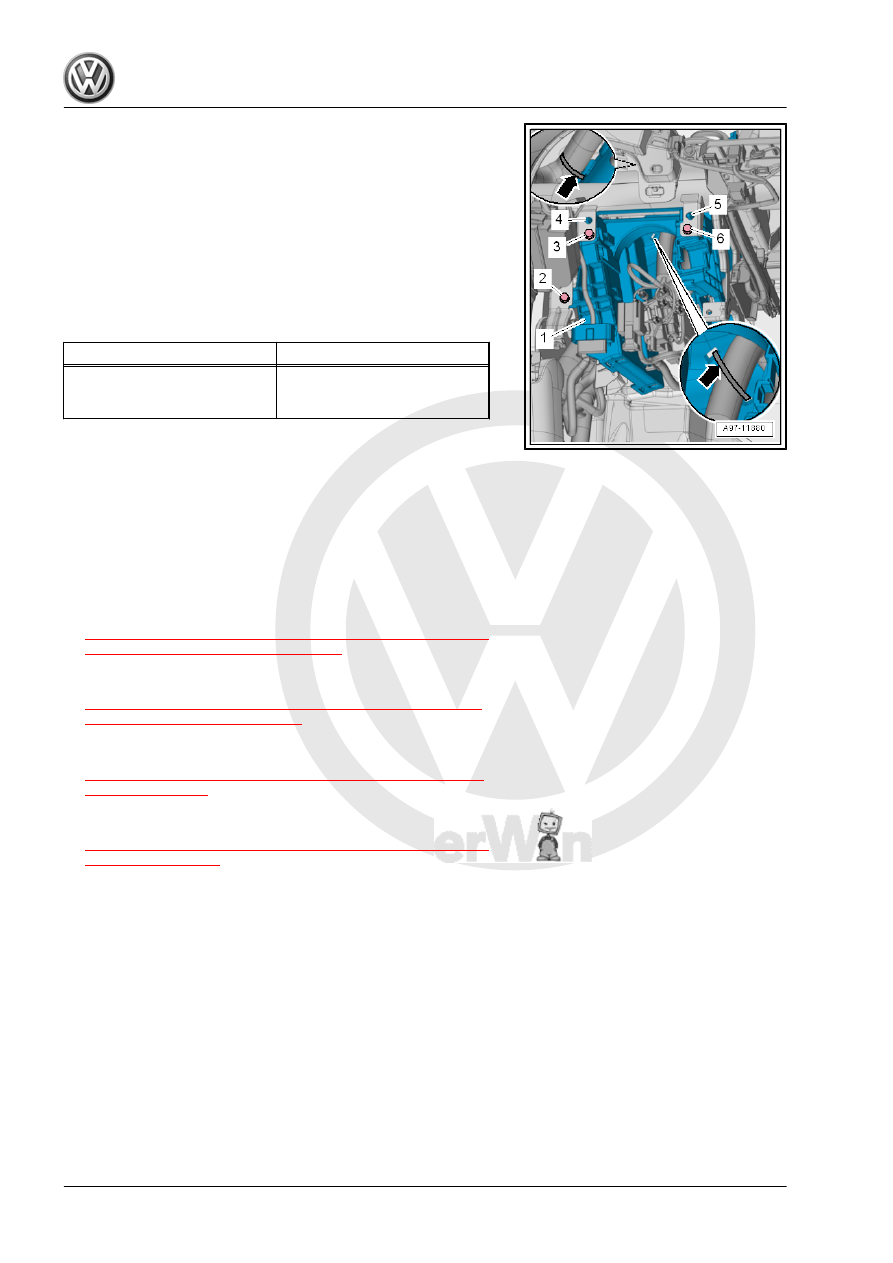

– Push the bracket -1- as far as possible out of the central tube

until the alignment pins -4- and -5- are disengaged.

– Cut the cable ties -arrows-.
– Free up the wiring harness on the mount.
– Remove the bracket to the vehicle interior.
Installing
Install in reverse order of removal.
Tightening Specifications

Component

Tightening Specification

Bracket for Vehicle Electrical

System Control Module - J519-

to central tube

4.5 Nm

2.7

Vehicle Electrical System Control Mod‐

ule - J519- Bracket, Replacing

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the Vehicle Electrical System Control Module - J519-

bracket. Refer to

⇒ “2.6 Vehicle Electrical System Control Module J519 Brack‐

et, Removing and Installing”, page 301

– Remove the Vehicle Electrical System Control Module -

J519- . Refer to

⇒ “2.4 Vehicle Electrical System Control Module J519 , Re‐

moving and Installing”, page 299

– Remove the Parking Aid Control Module - J446- / Parallel

Parking Assistance Control Module - J791- . Refer to

⇒ “9.2 Parking Aid Control Module J446 , Removing and In‐

stalling”, page 200

– Remove the Front Parking Aid Warning Buzzer - H22- . Refer

⇒ “9.3 Front Parking Aid Warning Buzzer H22 , Removing and

Installing”, page 201

Installing
Install in reverse order of removal.

2.8

Parking Aid Control Module - J446- /

Parallel Parking Assistance Control

Module - J791- Bracket, Removing and

Installing

Special tools and workshop equipment required
♦ Feeler Gauge
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
