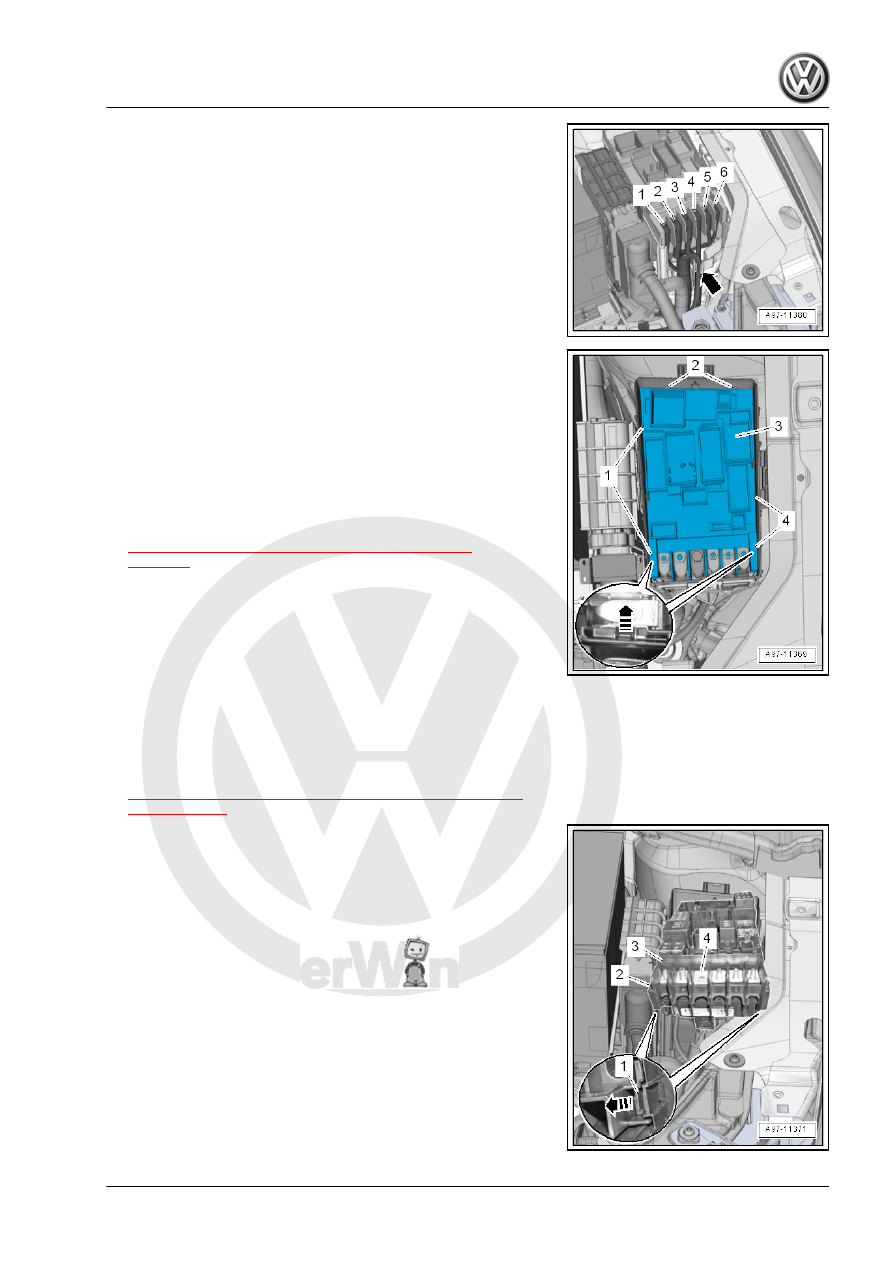

– Remove the nuts -1, 2, 4, 5 and 6-.
– Remove the bolt -3-.
– Free up the wire -arrow-.
– Cut the lower cable ties on the wiring harness.

– Release the retainers -1, 2 and 4- in direction of -arrow-, re‐

move the Fuse Panel B - SB- -3- and set it aside.

Installing
Install in the reverse order of removal while paying attention to

the following:
– Attach and tighten the wires according to the markings on

Fuse Panel A - SA- .

Tightening Specifications
♦ Refer to

⇒ “1.1.1 Relay Carriers, Fuse Panels and E-Boxes”,

page 288

1.3.2

Fuse Panel A - SA- , Removing and In‐

stalling

Removing
– Remove the Fuse Panel B - SB- . Refer to

⇒ “1.3 E-Box Relay and Fuse Panels, Removing and Instal‐

ling”, page 292

 .

– Remove the mounting bracket -4- upward from the Fuse Panel

B - SB- .

– Release the mounting tab -1- in direction of -arrow- and fuse

panel A -2- downward from the fuse panel B -3-.

Installing
Install in reverse order of removal.

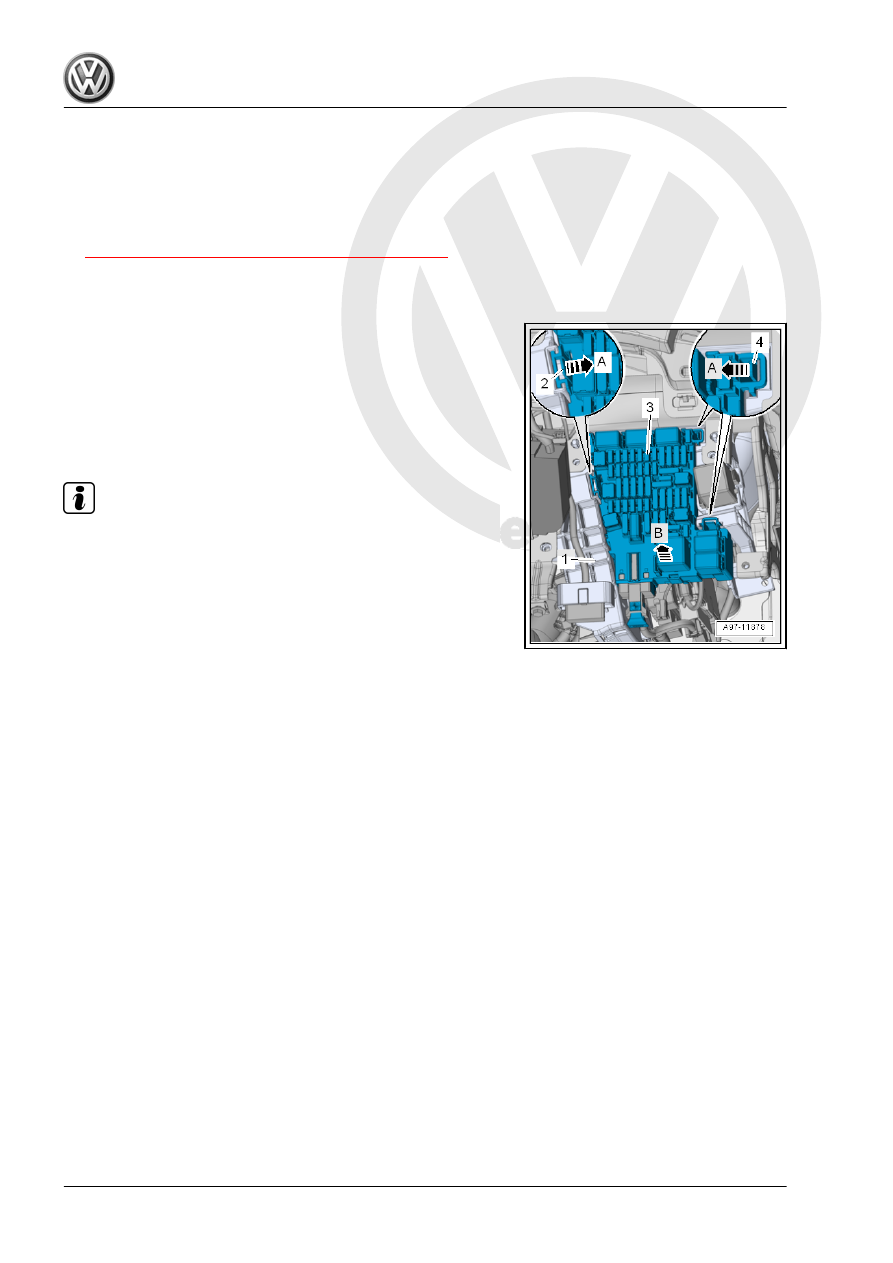

1.4

Relay and Fuse Carrier Behind Instru‐

ment Panel on Driver Side, Removing

and Installing

Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

– Remove the instrument panel. Refer to ⇒  Body Interior; Rep.

Gr.  70 ; Instrument Panel; Instrument Panel, Removing and

Installing .

– Release the mounting tab -2 and 4- -A arrows-.
– Remove fuse panel C -3- to the rear from the bracket -1-

-arrow B-.

– Remove the wires.
The exact assignment can be found the applicable wiring dia‐

gram. Refer to ⇒ Wiring diagrams, Troubleshooting & Component

locations.

Note

Take photos of the alignment.

Installing
Install in reverse order of removal.

2

Control Modules

⇒ “2.1 Component Location Overview - Control Modules”,

page 295
⇒ “2.2 Overview - Control Modules”, page 298
⇒ “2.3 Overview - Data Bus On Board Diagnostic Interface”, page

299
⇒ “2.4  Vehicle Electrical System Control Module J519 , Removing

and Installing”, page 299
⇒ “2.5  Data Bus On Board Diagnostic Interface J533 , Removing

and Installing”, page 300
⇒ “2.6  Vehicle Electrical System Control Module J519 Bracket,

Removing and Installing”, page 301
⇒ “2.7  Vehicle Electrical System Control Module J519 Bracket,

Replacing”, page 302
⇒ “2.8  Parking Aid Control Module J446 / Parallel Parking As‐

sistance Control Module J791 Bracket, Removing and Installing”,

page 302

2.1

Component Location Overview - Control

Modules

⇒ “2.1.1 Component Location Overview - Front Control Modules”,

page 295
⇒ “2.1.2 Component Location Overview - Rear Control Modules”,

page 297

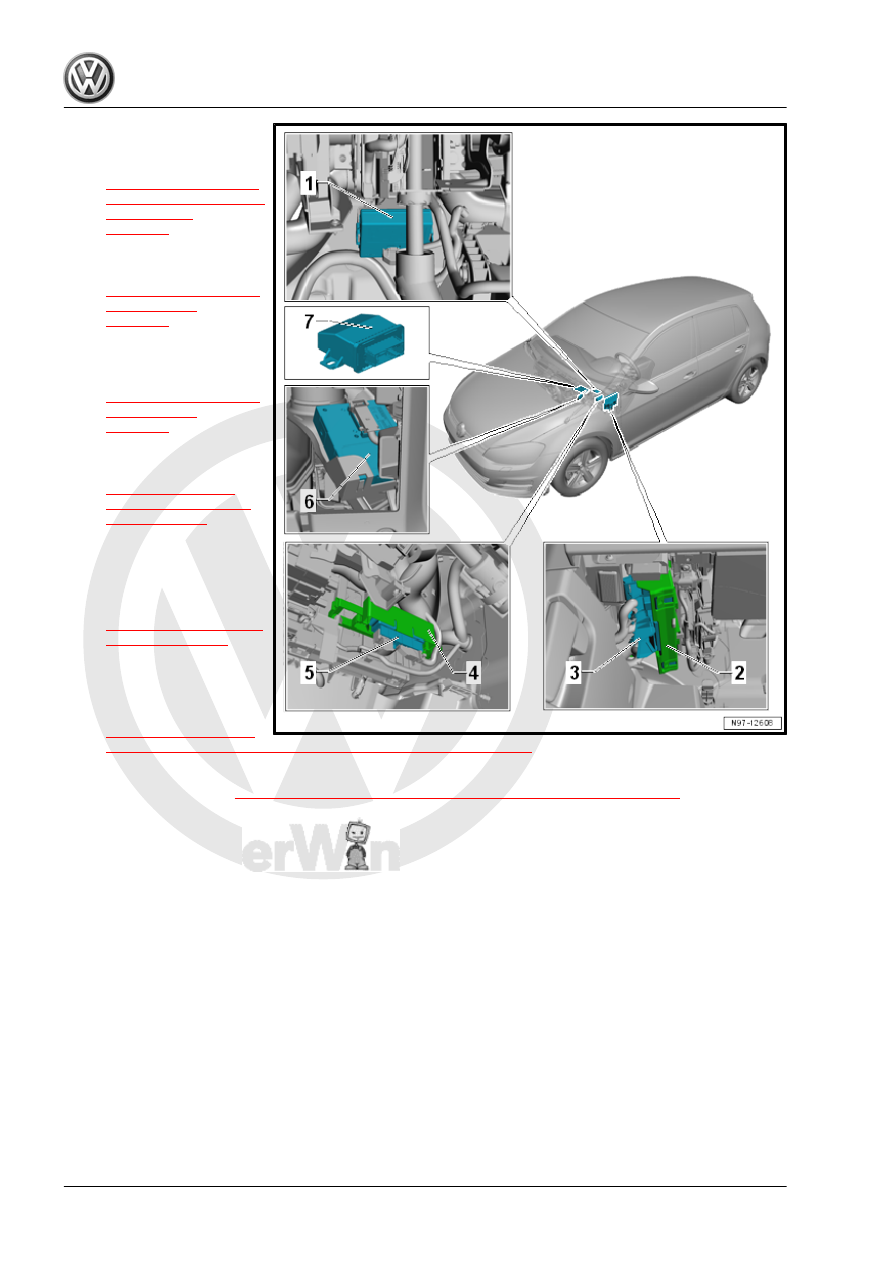

2.1.1

Component Location Overview - Front Control Modules

Note

The component locations for the Sedan are shown. The component locations for the Wagon are identical.

1 - Data Bus On Board Diag‐

nostic Interface - J533-

❑ Overview. Refer to

⇒ “2.3 Overview - Data

Bus On Board Diagnos‐

tic Interface”,

page 299

 .

2 - Bracket

❑ Overview. Refer to

⇒ “2.2 Overview - Con‐

trol Modules”,

page 298

 .

3 - Vehicle Electrical System

Control Module - J519-

❑ Overview. Refer to

⇒ “2.2 Overview - Con‐

trol Modules”,

page 298

 .

4 - Bracket

❑ Overview. Refer to

⇒ “9.1.2 Overview -

Rear Parking Aid, Se‐

dan”, page 199

 .

5 - Parking Aid Control Module

- J446- / Parallel Parking As‐

sistance Control Module -

J791-

❑ Overview. Refer to

⇒ “9.1 Overview - Park‐

ing Aid”, page 197

 .

6 - Access/Start System Inter‐

face - J965-

❑ Component location

overview. Refer to

⇒ “7.1 Component Lo‐

cation Overview - Access/Start Authorization System”, page 166

 .

7 - Headlamp Range Control Module - J431- / Cornering Lamp and Headlamp Range Control Module - J745-

❑ Overview. Refer to

⇒ “11.1 Overview - Automatic Headlamp Range Control”, page 209

 .
