Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 74

5.2

Cigarette Lighter - U1- , Removing and

Installing

All instructions and information on this chapter. Refer to ⇒  Elec‐

trical Equipment General Information; Rep. Gr.  96 ; Cigarette

Lighter and Socket .

5.3

Socket Illumination Bulb - L42- , Remov‐

ing and Installing

All instructions and information on this chapter. Refer to ⇒  Elec‐

trical Equipment General Information; Rep. Gr.  96 ; Cigarette

Lighter and Socket .

5.4

Rear Cigarette Lighter Illumination Bulb

- L32- , Removing and Installing

All instructions and information on this chapter. Refer to ⇒  Elec‐

trical Equipment General Information; Rep. Gr.  96 ; Cigarette

Lighter and Socket .

5.5

Socket - U- , Removing and Installing

All instructions and information on this chapter. Refer to ⇒  Elec‐

trical Equipment General Information; Rep. Gr.  96 ; Cigarette

Lighter and Socket .

5.6

Converter with Socket, 12 V-230 V -

U13- , Removing and Installing

Special tools and workshop equipment required
♦ Trim Removal Wedge - 3409-

WARNING

There is a danger of electric shock.

♦ The Converter with Socket, 12 V-230 V - U13- housing

contains condensers that can be charged with residual

voltage.

♦ The Converter with Socket, 12 V-230 V - U13- housing

must not be opened under any circumstances.

♦ No repairs may be performed on the harness connector,

on the wires and the 230 V-outlet.

♦ If there is a fault at harness connector, at wires, at 230 V-

socket or in the converter, the complete unit must always

be replaced.

Caution

Risk of damaging the component surfaces.

♦ When positioning a prying tool, put commercially available

adhesive tape over the component in the visible area.

Removing:
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.

– Remove the right luggage compartment side trim panel. Refer

to ⇒  Body Interior; Rep. Gr.  70 ; Luggage Compartment Trim

Panels; Luggage Compartment Side Trim Panel, Removing

and Installing .

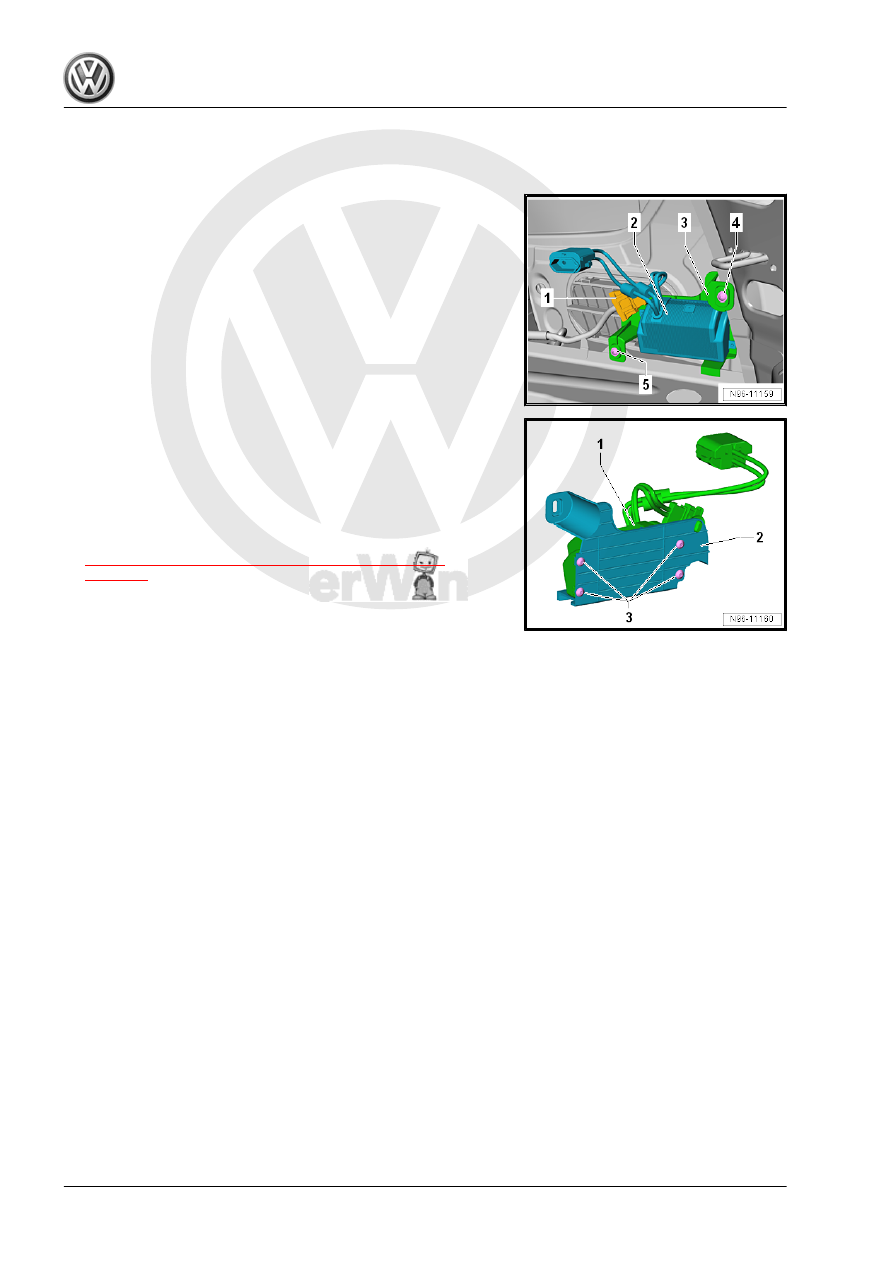

– Release and disconnect the connector -1-.
– Remove the screws -4 and 5-.
– Remove the Converter with Socket, 12 V-230 V - U13- -2- with

the bracket -3-.

– Remove the bolts -3-.

– Remove the Converter with Socket, 12 V-230 V - U13- -1- from

the bracket -2-.

Installing:
Install in reverse order of removal.
Tightening Specifications
♦ Refer to

⇒ “5.1 Overview - Converter with Socket, 12 V-230 V”,

page 284

6

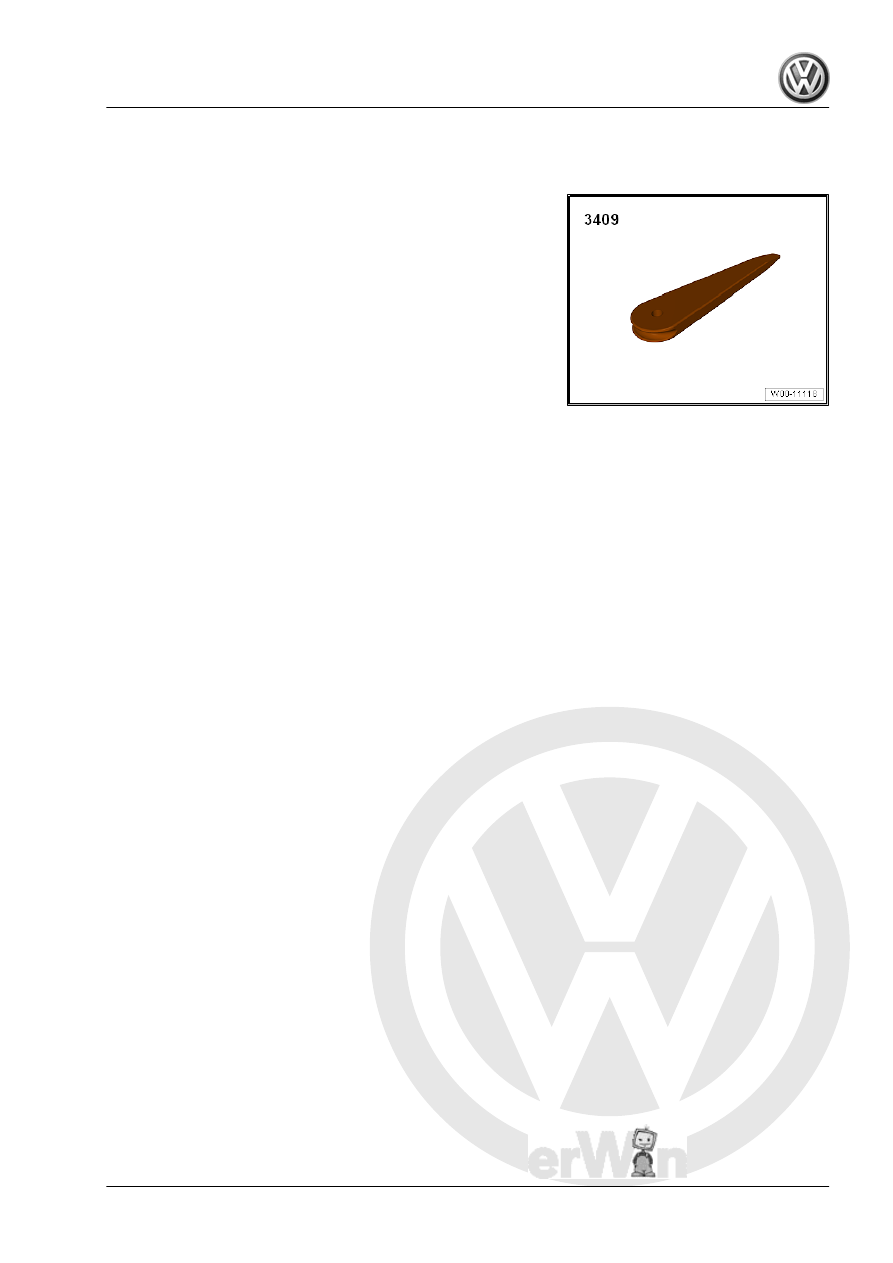

Special Tools

Special tools and workshop equipment required
♦ Trim Removal Wedge - 3409-

97 – Wiring

1

Relay Carriers, Fuse Panels and E-

Boxes

⇒ “1.1 Component Location Overview - Relay Carriers, Fuse

Panels and E-Boxes”, page 288
⇒ “1.2 E-Box, Removing and Installing”, page 290
⇒ “1.3 E-Box Relay and Fuse Panels, Removing and Installing”,

page 292
⇒ “1.4 Relay and Fuse Carrier Behind Instrument Panel on Driver

Side, Removing and Installing”, page 294

1.1

Component Location Overview - Relay

Carriers, Fuse Panels and E-Boxes

⇒ “1.1.1 Relay Carriers, Fuse Panels and E-Boxes”, page 288
⇒ “1.1.2 Relay Carrier and Instrument Panel/A-Pillar Fuse Panel”,

page 290

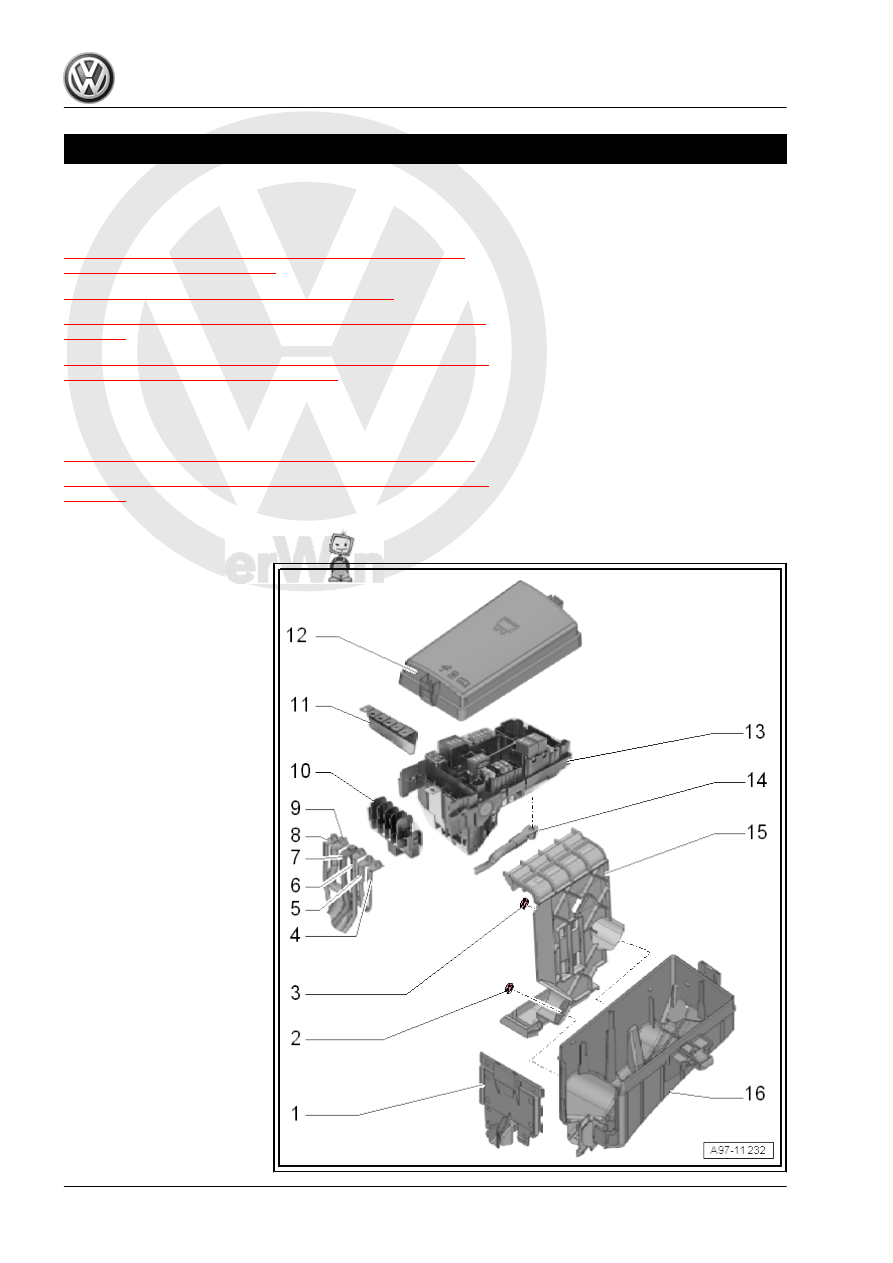

1.1.1

Relay Carriers, Fuse Panels and E-Boxes

1 - Front Cover

❑ For engine compart‐

ment E-box

2 - Nut

❑ 9 Nm

3 - Nut

❑ 9 Nm

4 - Wire

❑ 5 Nm
❑ Coolant fan

5 - Wire

❑ 5 Nm
❑ Terminal 30

6 - Wire

❑ 5 Nm
❑ Electro-mechanical

power steering

7 - Wire

❑ 6 Nm
❑ Battery positive

8 - Wire

❑ 5 Nm
❑ Terminal 30

9 - Wire

❑ 6 Nm
❑ Generator - C-

10 - Fuse Panel A - SA-

❑ Removing and instal‐
