Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 62

1.5

Component Location Overview - Lug‐

gage Compartment Lamps

⇒ “1.5.1 Component Location Overview - Luggage Compartment

Lamps, Sedan”, page 237
⇒ “1.5.2 Component Location Overview - Luggage Compartment

Lamps, Wagon”, page 238

1.5.1

Component Location Overview - Luggage Compartment Lamps, Sedan

1 - Luggage Compartment

Lamp - W3-

❑ Removing and instal‐

ling. Refer to

⇒ “1.20.1  Luggage

Compartment Lamp

W3 , Removing and In‐

stalling, Sedan”,

page 248

 .

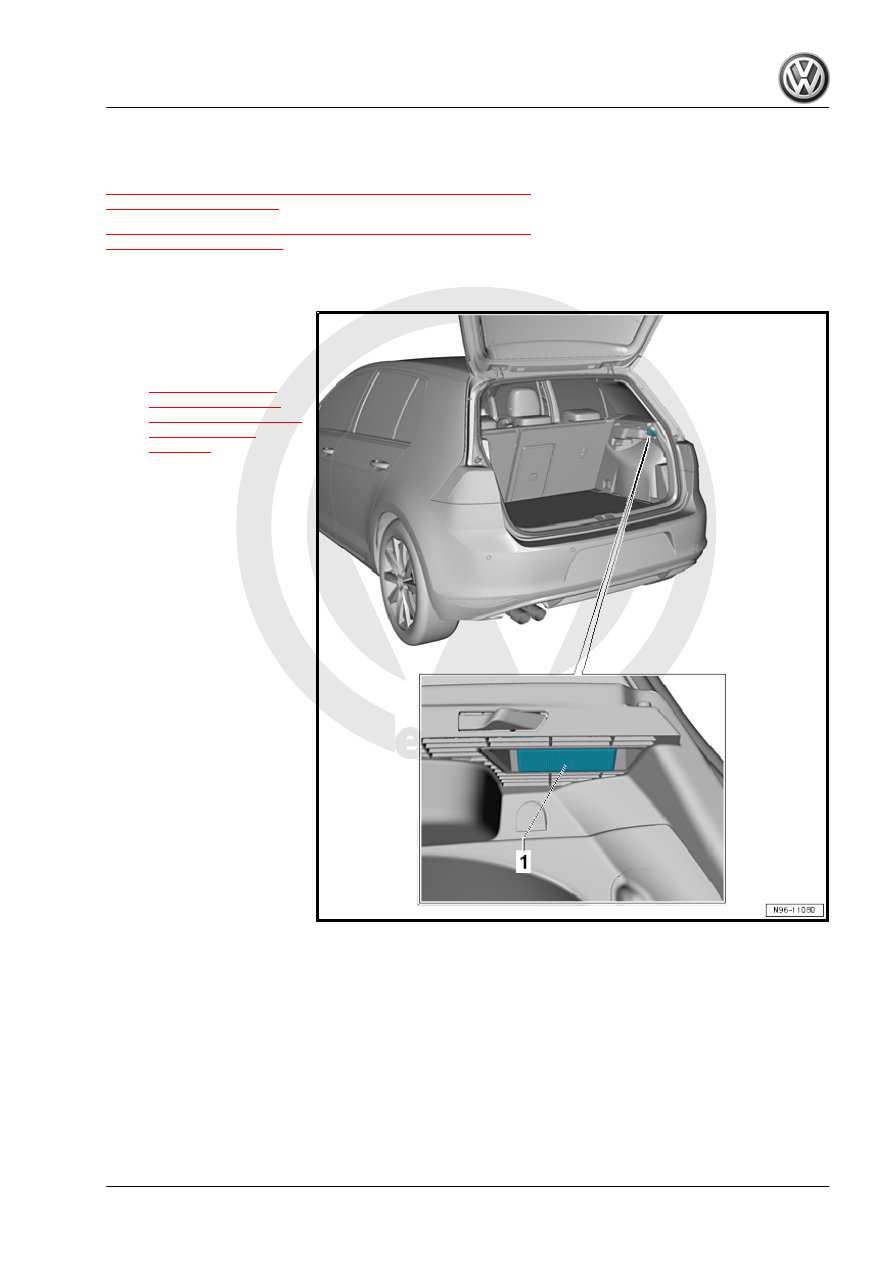

1.5.2

Component Location Overview - Luggage Compartment Lamps, Wagon

1 - Luggage Compartment

Lamp - W3-

❑ Removing and instal‐

ling. Refer to

⇒ “1.20.2  Luggage

Compartment Lamp

W3 , Removing and In‐

stalling, Wagon”,

page 249

 .

1.6

Component Location Overview - Roof

Trim Panel Lamps

⇒ “1.6.1 Component Location Overview - Roof Trim Panel Lamps,

Sedan”, page 239
⇒ “1.6.2 Component Location Overview - Roof Trim Panel Lamps,

Wagon, without Panorama Roof”, page 240
⇒ “1.6.3 Component Location Overview - Roof Trim Panel Lamps,

Wagon, with Panorama Roof”, page 241

1.6.1

Component Location Overview - Roof Trim Panel Lamps, Sedan

1 - Driver Vanity Mirror Lamp -

W20-

❑ Removing and instal‐

ling. Refer to

⇒ “1.22 Driver/Front

Passenger Vanity Mirror

Lamp W20 / W14 , Re‐

moving and Installing”,

page 250

 .

2 - Rear Interior Lamp - WX2-

❑ With Left Rear Reading

Lamp - W11- / Right

Rear Reading Lamp -

W12-

❑ Removing and instal‐

ling. Refer to

⇒ “2.31 Rear Interior

Lamp/Reading Lamp,

Removing and Instal‐

ling”, page 275

 .

❑ Bulb for Rear Interior

Lamp - W43- , Remov‐

ing and installing. Refer

to

⇒ “1.25  Rear Interior

Lamp W43 Bulb, Re‐

moving and Installing”,

page 253

 .

❑ Bulb for Left Rear Read‐

ing Lamp - W11- / Right

Rear Reading Lamp -

W12- , Removing and

installing. Refer to

⇒ “1.25  Rear Interior

Lamp W43 Bulb, Re‐

moving and Installing”,

page 253

 .

3 - Front Passenger Vanity Mir‐

ror Lamp - W14-

❑ Removing and installing. Refer to

⇒ “1.22 Driver/Front Passenger Vanity Mirror Lamp W20 / W14 , Removing and Installing”, page 250

 .

4 - Front Interior Lamp - WX1-

❑ With Driver Reading Lamp - W19- and Front Passenger Reading Lamp - W13-
❑ Removing and installing. Refer to

⇒ “2.30 Front Interior Lamp/Reading Lamp, Removing and Installing”, page 275

 .

❑ Bulb for Front Interior Lamp - WX1- , Removing and installing. Refer to

⇒ “1.24  Front Interior Lamp W1 Bulb, Removing and Installing”, page 252

 .

❑ Bulb for Driver Reading Lamp - W19- / Front Passenger Reading Lamp - W13- , Removing and installing.

Refer to

⇒ “1.24  Front Interior Lamp W1 Bulb, Removing and Installing”, page 252

 .

1.6.2

Component Location Overview - Roof Trim Panel Lamps, Wagon, without

Panorama Roof

1 - Driver Vanity Mirror Lamp -

W20-

❑ Removing and instal‐

ling. Refer to

⇒ “1.22 Driver/Front

Passenger Vanity Mirror

Lamp W20 / W14 , Re‐

moving and Installing”,

page 250

 .

2 - Front Passenger Vanity Mir‐

ror Lamp - W14-

❑ Removing and instal‐

ling. Refer to

⇒ “1.22 Driver/Front

Passenger Vanity Mirror

Lamp W20 / W14 , Re‐

moving and Installing”,

page 250

 .

3 - Rear Interior Lamp - WX2-

❑ With Left Rear Reading

Lamp - W11- / Right

Rear Reading Lamp -

W12-

❑ Removing and instal‐

ling. Refer to

⇒ “2.31 Rear Interior

Lamp/Reading Lamp,

Removing and Instal‐

ling”, page 275

 .

❑ Bulb for Rear Interior

Lamp - W43- , Remov‐

ing and installing. Refer

to

⇒ “1.25  Rear Interior

Lamp W43 Bulb, Re‐

moving and Installing”,

page 253

 .

❑ Bulb for Left Rear Read‐

ing Lamp - W11- / Right Rear Reading Lamp - W12- , Removing and installing. Refer to

⇒ “1.25  Rear Interior Lamp W43 Bulb, Removing and Installing”, page 253

 .

4 - Luggage Compartment Lamp - W3-

❑ Removing and installing. Refer to

⇒ “1.20.2  Luggage Compartment Lamp W3 , Removing and Installing, Wagon”, page 249

 .

5 - Front Interior Lamp - WX1-

❑ With Driver Reading Lamp - W19- and Front Passenger Reading Lamp - W13-
❑ Removing and installing. Refer to

⇒ “1.24  Front Interior Lamp W1 Bulb, Removing and Installing”, page 252

 .

❑ Bulb for Front Interior Lamp - WX1- , Removing and installing. Refer to

⇒ “1.24  Front Interior Lamp W1 Bulb, Removing and Installing”, page 252

 .

❑ Bulb for Driver Reading Lamp - W19- / Front Passenger Reading Lamp - W13- , Removing and installing.

Refer to

⇒ “1.24  Front Interior Lamp W1 Bulb, Removing and Installing”, page 252

 .
