Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 61

⇒ “1.26 Left/Right Rear Reading Lamp W11 / W12 , Removing

and Installing”, page 254
⇒ “1.27 Left/Right Rear Interior Lamp W47 / W48 , Replacing”,

page 254

1.1

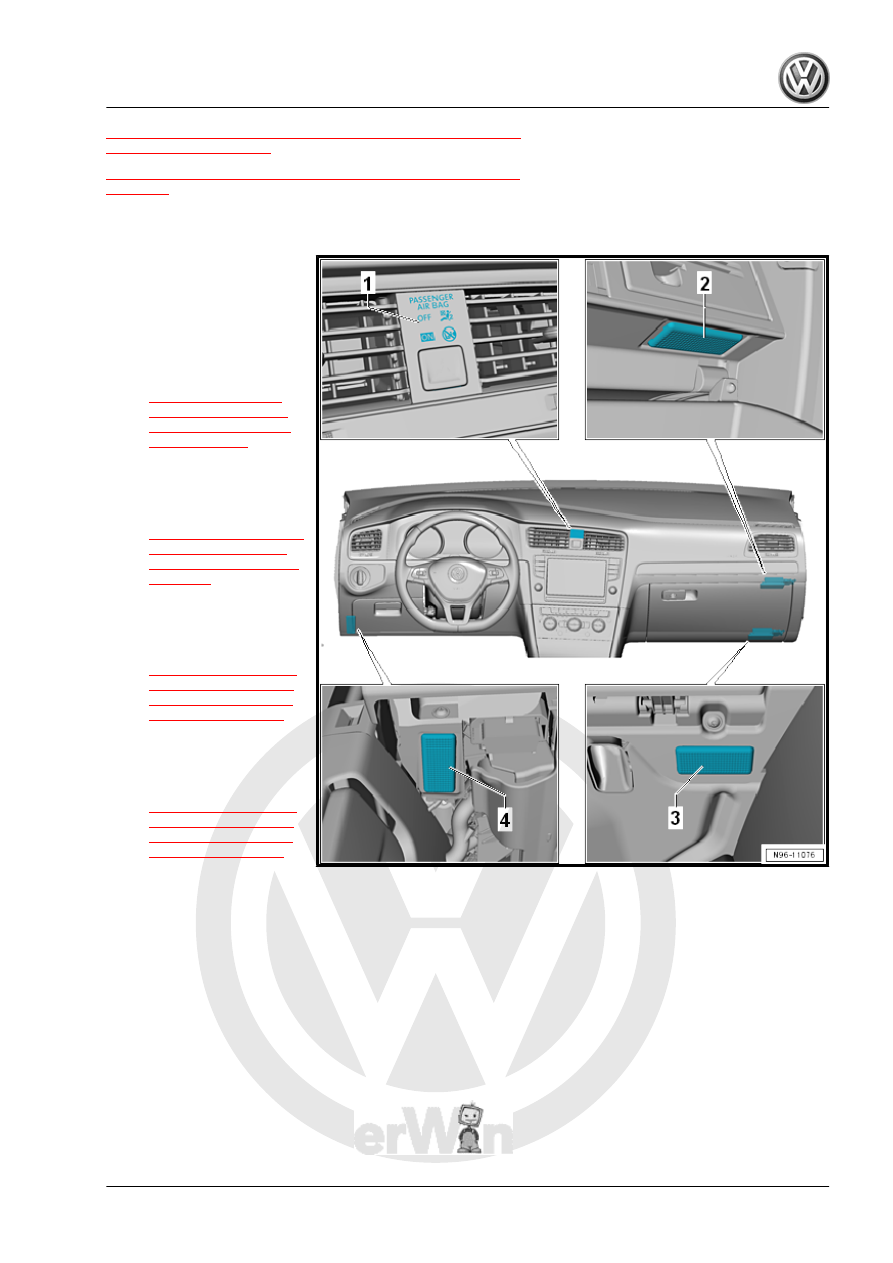

Component Location Overview - Instrument Panel Lamps

1 - Passenger Airbag Indicator

Lamp - K145-

❑ Is removed together

with the Emergency

Flasher Switch - EX3- .

❑ Emergency Flasher

Switch - EX3- removing.

Refer to

⇒ “2.15  Emergency

Flasher Switch EX3 ,

Removing and Instal‐

ling”, page 268

 .

2 - Glove Compartment Lamp

- W6-

❑ Removing and instal‐

ling. Refer to

⇒ “1.7  Glove Compart‐

ment Lamp W6 , Re‐

moving and Installing”,

page 241

 .

3 - Right Front Footwell Lamp

- K269-

❑ Removing and instal‐

ling. Refer to

⇒ “1.9 Left/Right Front

Footwell Lamp K268 /

K269 , Removing and

Installing”, page 243

 .

4 - Left Front Footwell Lamp -

K268-

❑ Removing and instal‐

ling. Refer to

⇒ “1.9 Left/Right Front

Footwell Lamp K268 /

K269 , Removing and

Installing”, page 243

 .

1.2

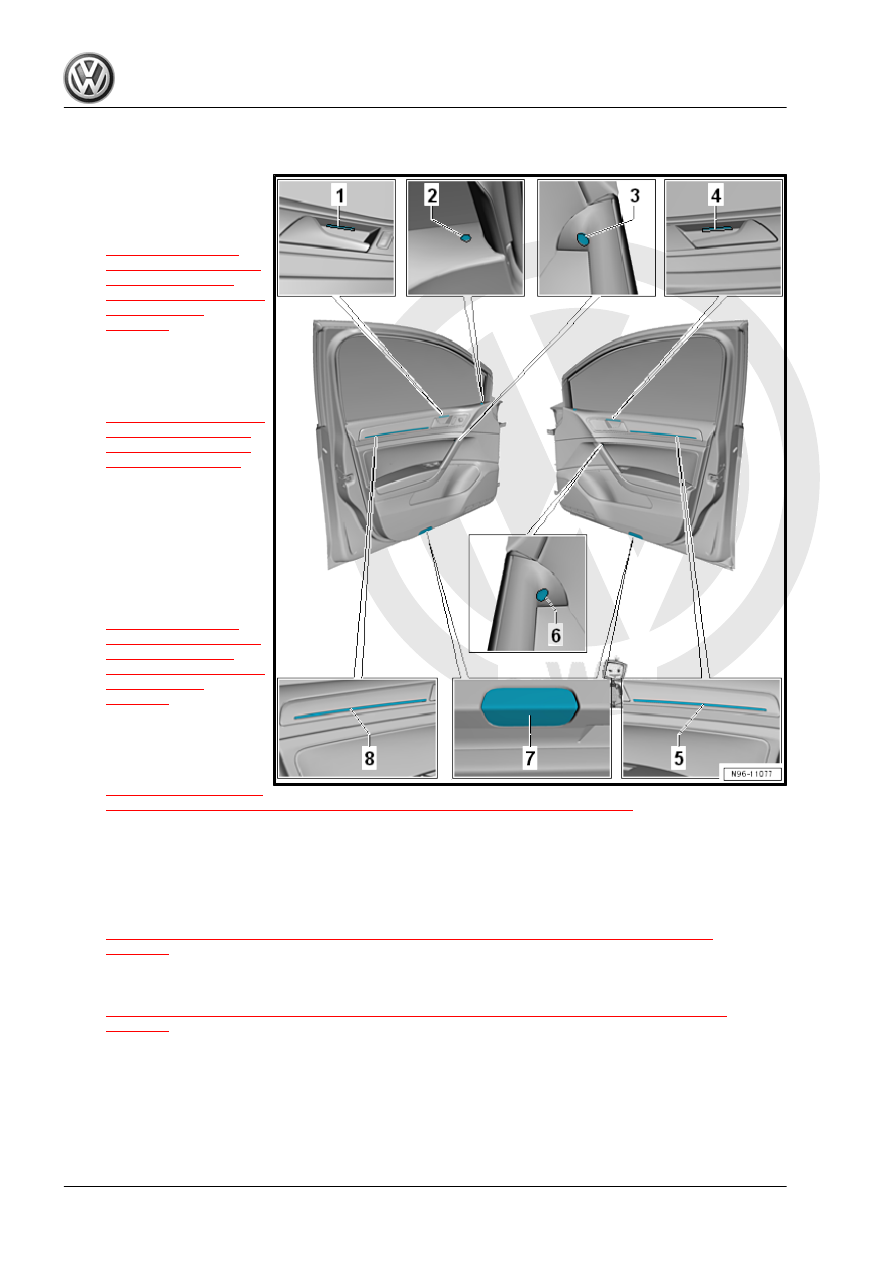

Component Location Overview - Front Door Lamps

1 - Driver Door Opener Illumi‐

nation Bulb - L108-

❑ Removing and instal‐

ling. Refer to

⇒ “1.15 Driver/Front

Passenger Door Open‐

er Illumination Bulb

L108 / L109 , Removing

and Installing”,

page 246

 .

2 - Central Locking -Safe- Indi‐

cator Lamp - K133-

❑ Removing and instal‐

ling. Refer to

⇒ “1.11  Central Locking

-Safe- Indicator Lamp

K133 , Removing and

Installing”, page 244

 .

3 - Driver Side Interior Door

Handle Illumination Lamp -

L219-
4 - Front Passenger Door

Opener Illumination Bulb -

L109-

❑ Removing and instal‐

ling. Refer to

⇒ “1.15 Driver/Front

Passenger Door Open‐

er Illumination Bulb

L108 / L109 , Removing

and Installing”,

page 246

 .

5 - Right Front Door Ambient

Lighting Bulb 2 - L204-

❑ Removing and instal‐

ling. Refer to

⇒ “1.16 Left/Right Front

Door Ambient Lighting Bulb 2 L203 / L204 , Removing and Installing”, page 247

 .

6 - Passenger Side Interior Door Handle Illumination Lamp - L220-
7 - Door Warning Lamp and Entry Lamp

❑ Driver Door Warning Lamp - W30- / Passenger Side Entry Lamp - W93-
❑ Front Passenger Door Warning Lamp - W36- / Driver Side Entry Lamp - W92-
❑ Removing and installing. Refer to

⇒ “1.14 Driver/Front Passenger Door Warning Lamp W30 / W36 , Removing and Installing”,

page 246

 .

8 - Left Front Door Ambient Lighting Bulb 2 - L203-

❑ Removing and installing. Refer to

⇒ “1.16 Left/Right Front Door Ambient Lighting Bulb 2 L203 / L204 , Removing and Installing”,

page 247

 .

1.3

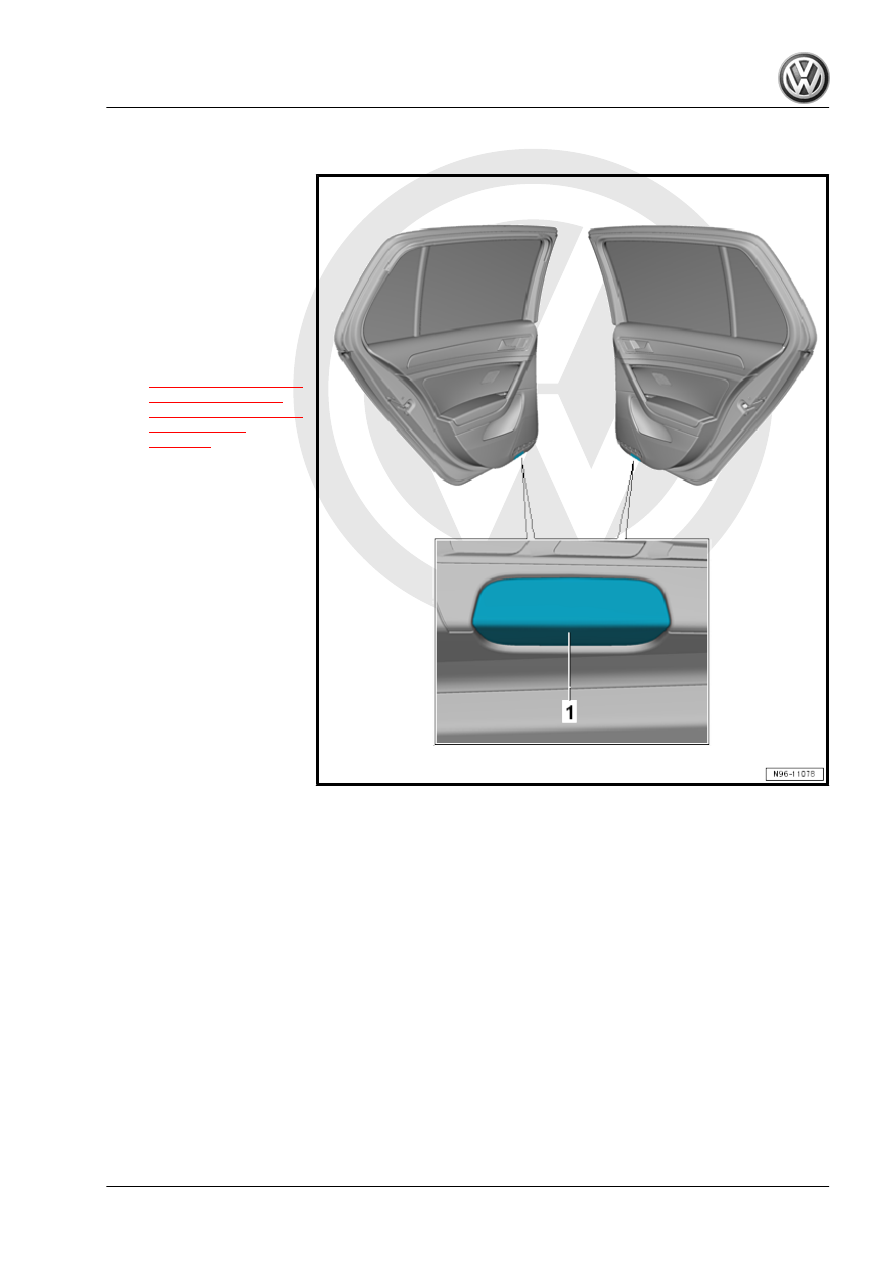

Component Location Overview - Rear Door Lamps

1 - Door Warning Lamp and

Entry Lamp

❑ Left Rear Door Warning

Lamp - W37- / Driver

Side Rear Entry Lamp -

W83-

❑ Right Rear Door Warn‐

ing Lamp - W38- / Pas‐

senger Side Rear Entry

Lamp - W84-

❑ Removing and instal‐

ling. Refer to

⇒ “1.18 Left/Right Rear

Door Warning Lamp

W37 / W38 , Removing

and Installing”,

page 248

 .

1.4

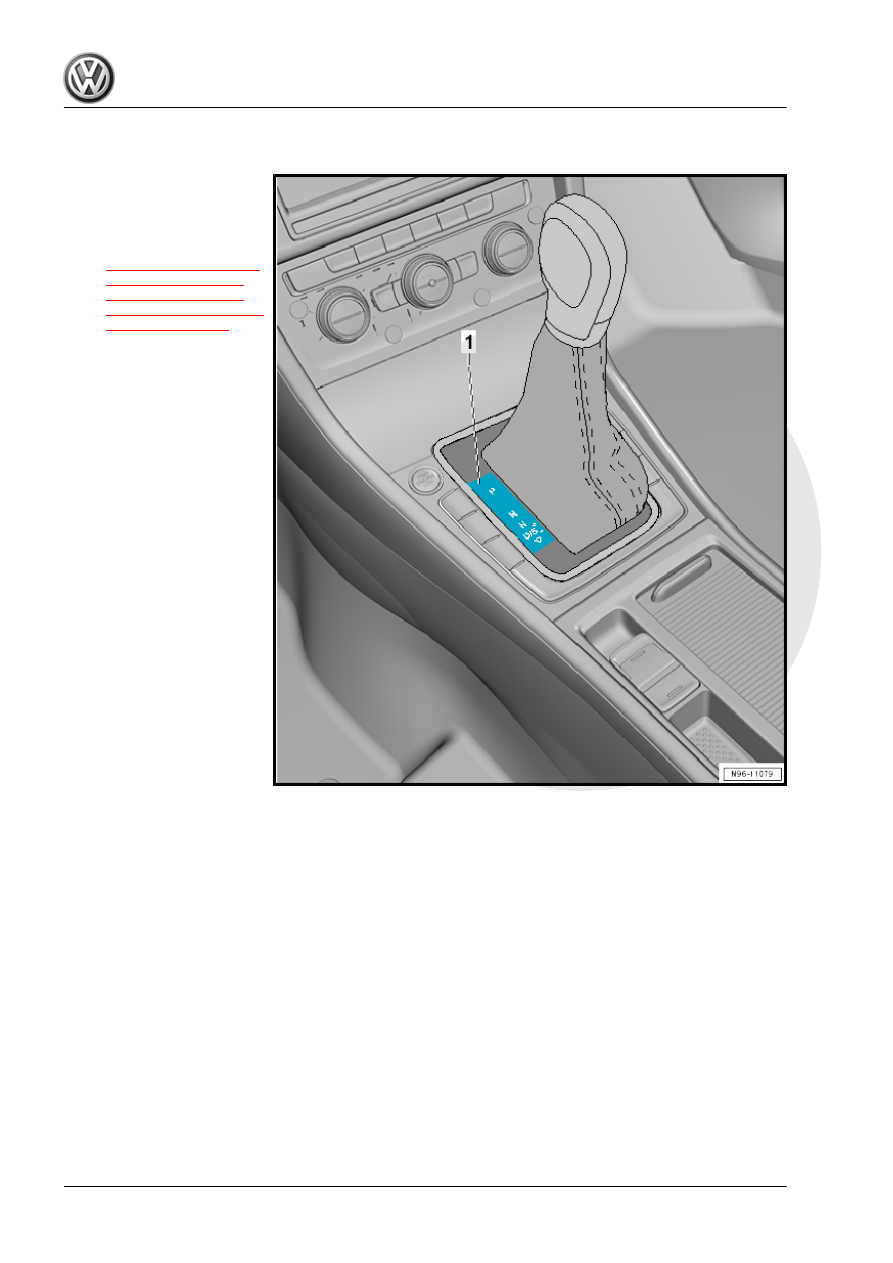

Component Location Overview - Center Console Lamps

1 - Selector Lever Transmis‐

sion Range Position Display

Unit - Y26-

❑ Removing and instal‐

ling. Refer to

⇒ “1.19  Selector Lever

Transmission Range

Position Display Unit

Y26 , Removing and In‐

stalling”, page 248

 .
