Blind Spot Detection

⇒ “13.1 Overview - Blind Spot Detection”, page 217
⇒ “13.2 Blind Spot Detection Warning Lamp in Left/Right Exterior

Mirror K303 / K304 , Removing and Installing”, page 219
⇒ “13.3  Blind Spot Detection Control Module J1086 / Blind Spot

Detection Control Module 2 J1087 , Removing and Installing”,

page 220
⇒ “13.4 Blind Spot Detection, Calibrating”, page 222

13.1

Overview - Blind Spot Detection

⇒ “13.1.1 Overview - Blind Spot Detection, Sedan”, page 217
⇒ “13.1.2 Overview - Blind Spot Detection, Wagon”, page 218

13.1.1

Overview - Blind Spot Detection, Sedan

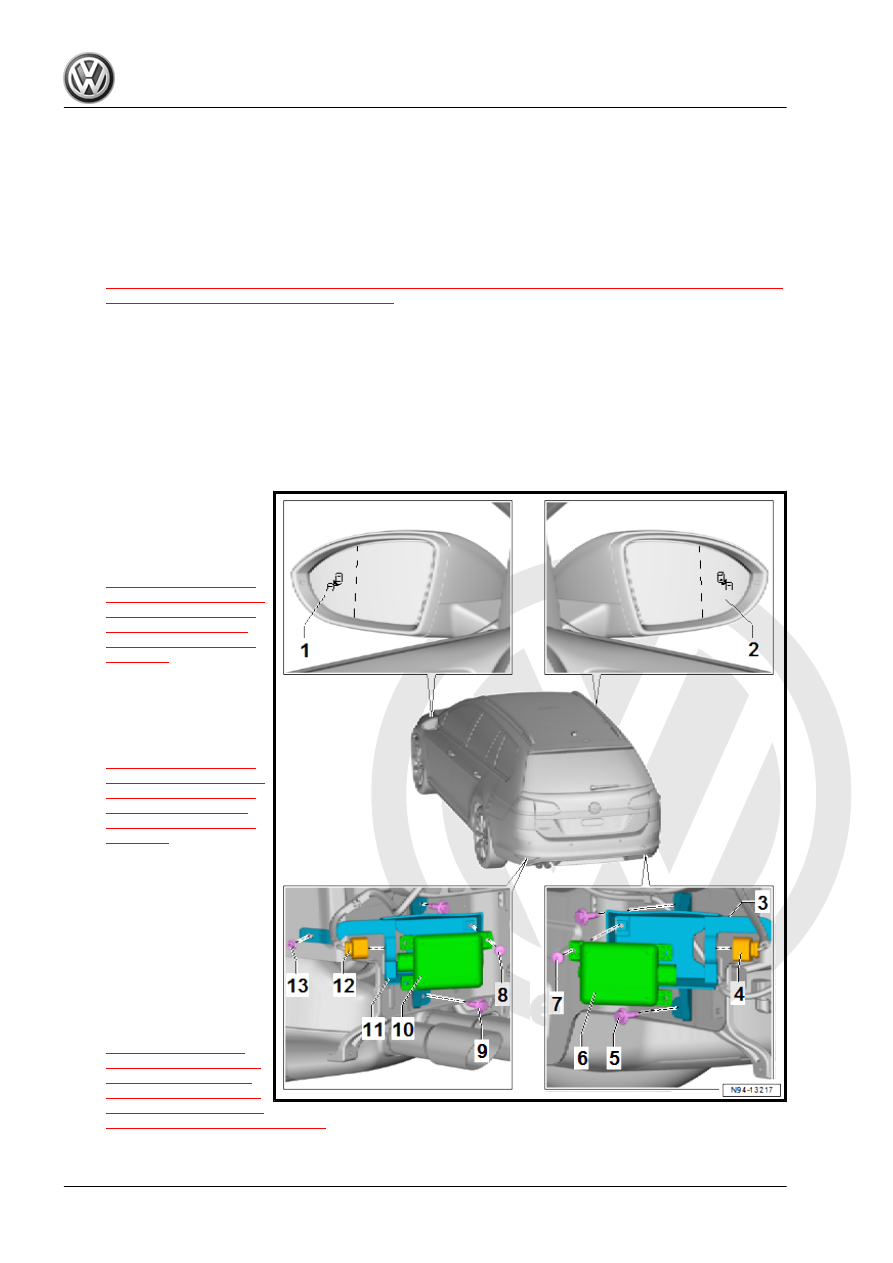

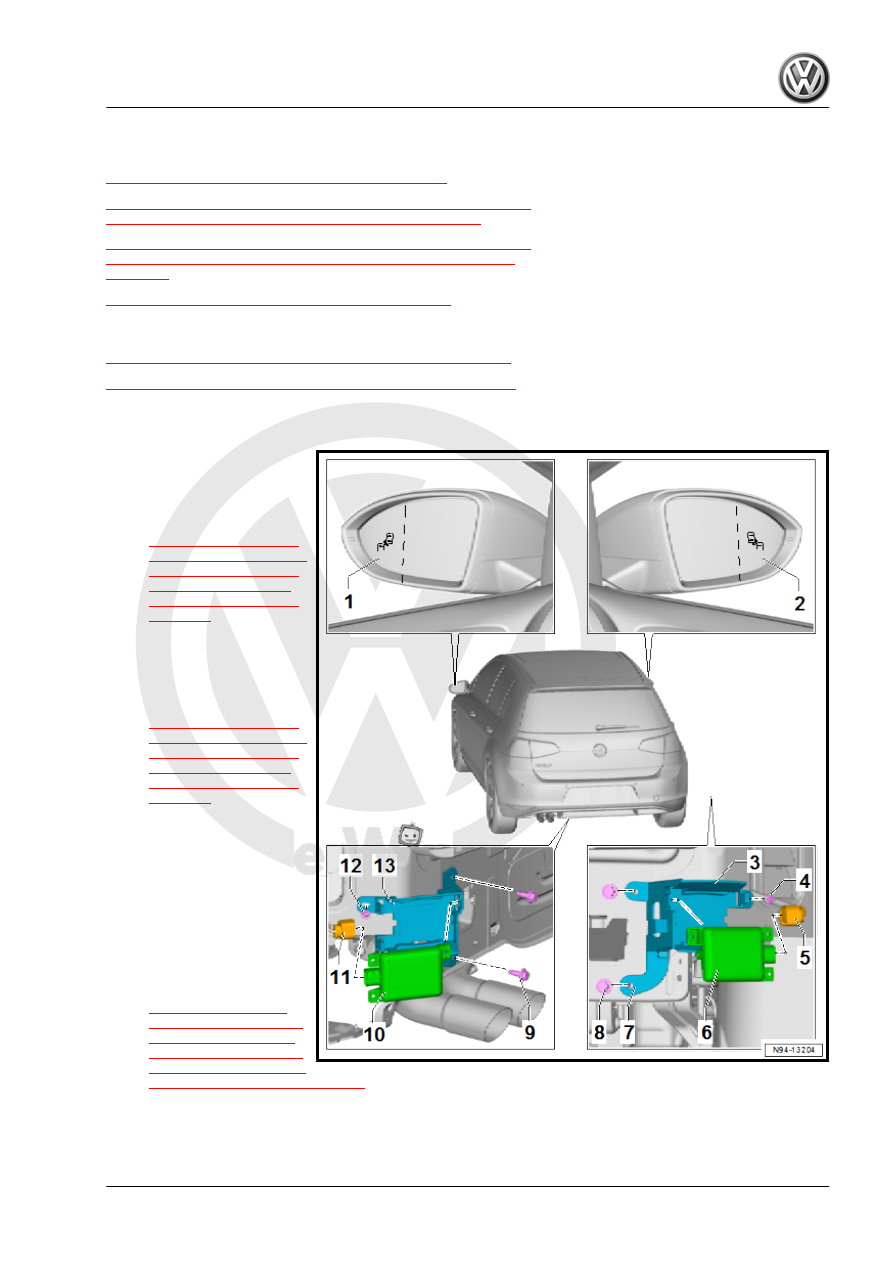

1 - Blind Spot Detection Warn‐

ing Lamp in Left Exterior Mirror

- K303-

❑ Removing and instal‐

ling. Refer to

⇒ “13.2 Blind Spot De‐

tection Warning Lamp in

Left/Right Exterior Mir‐

ror K303 / K304 , Re‐

moving and Installing”,

page 219

 .

2 - Blind Spot Detection Warn‐

ing Lamp in Right Exterior Mir‐

ror - K304-

❑ Removing and instal‐

ling. Refer to

⇒ “13.2 Blind Spot De‐

tection Warning Lamp in

Left/Right Exterior Mir‐

ror K303 / K304 , Re‐

moving and Installing”,

page 219

 .

3 - Bracket
4 - Nut

❑ 6 Nm

5 - Connector
6 - Blind Spot Detection Con‐

trol Module - J1086-

❑ Master
❑ Removing and instal‐

ling. Refer to

⇒ “13.3.1  Blind Spot

Detection Control Mod‐

ule J1086 / Blind Spot

Detection Control Mod‐

ule 2 J1087 , Removing

and Installing, Sedan”, page 220

 .

7 - Bracket

❑ Lower attachment point

8 - Screw

❑ 2 Nm

9 - Screw

❑ 2 Nm

10 - Blind Spot Detection Control Module 2 - J1087-

❑ Slave
❑ Removing and installing. Refer to

⇒ “13.3.1  Blind Spot Detection Control Module J1086 / Blind Spot Detection Control Module 2 J1087 ,

Removing and Installing, Sedan”, page 220

 .

11 - Connector
12 - Nut

❑ 2 Nm

13 - Bracket

13.1.2

Overview - Blind Spot Detection, Wagon

1 - Blind Spot Detection Warn‐

ing Lamp in Left Exterior Mirror

- K303-

❑ Removing and instal‐

ling. Refer to

⇒ “13.2 Blind Spot De‐

tection Warning Lamp in

Left/Right Exterior Mir‐

ror K303 / K304 , Re‐

moving and Installing”,

page 219

 .

2 - Blind Spot Detection Warn‐

ing Lamp in Right Exterior Mir‐

ror - K304-

❑ Removing and instal‐

ling. Refer to

⇒ “13.2 Blind Spot De‐

tection Warning Lamp in

Left/Right Exterior Mir‐

ror K303 / K304 , Re‐

moving and Installing”,

page 219

 .

3 - Bracket
4 - Connector
5 - Bolt

❑ 2 Nm

6 - Blind Spot Detection Con‐

trol Module - J1086-

❑ Master
❑ Removing and instal‐

ling. Refer to

⇒ “13.3.2  Blind Spot

Detection Control Mod‐

ule J1086 / Blind Spot

Detection Control Mod‐

ule 2 J1087 , Removing

and Installing, Wagon”, page 221

 .

7 - Nut

❑ 6 Nm

8 - Nut

❑ 6 Nm

9 - Bolt

❑ 2 Nm

10 - Blind Spot Detection Control Module 2 - J1087-

❑ Slave
❑ Removing and installing. Refer to

⇒ “13.3.2  Blind Spot Detection Control Module J1086 / Blind Spot Detection Control Module 2 J1087 ,

Removing and Installing, Wagon”, page 221

 .

11 - Bracket
12 - Connector
13 - Nut

❑ 6 Nm

13.2

Blind Spot Detection Warning Lamp in

Left/Right Exterior Mirror - K303- / -

K304- , Removing and Installing

The Blind Spot Detection Warning Lamp in Left Exterior Mirror -

K303- / Blind Spot Detection Warning Lamp in Right Exterior

Mirror - K304- is located in the mirror glass and cannot be re‐

placed separately.
– Removing and installing the mirror glass. Refer to ⇒  Body

Exterior; Rep. Gr.  66 ; Exterior Rearview Mirror; Mirror Glass,

Removing and Installing .

13.3

Blind Spot Detection Control Module -

J1086- / Blind Spot Detection Control

Module 2 - J1087- , Removing and In‐

stalling

⇒ “13.3.1  Blind Spot Detection Control Module J1086 / Blind Spot

Detection Control Module 2 J1087 , Removing and Installing, Se‐

dan”, page 220
⇒ “13.3.2  Blind Spot Detection Control Module J1086 / Blind Spot

Detection Control Module 2 J1087 , Removing and Installing,

Wagon”, page 221

13.3.1

Blind Spot Detection Control Module -

J1086- / Blind Spot Detection Control

Module 2 - J1087- , Removing and In‐

stalling, Sedan

Removing

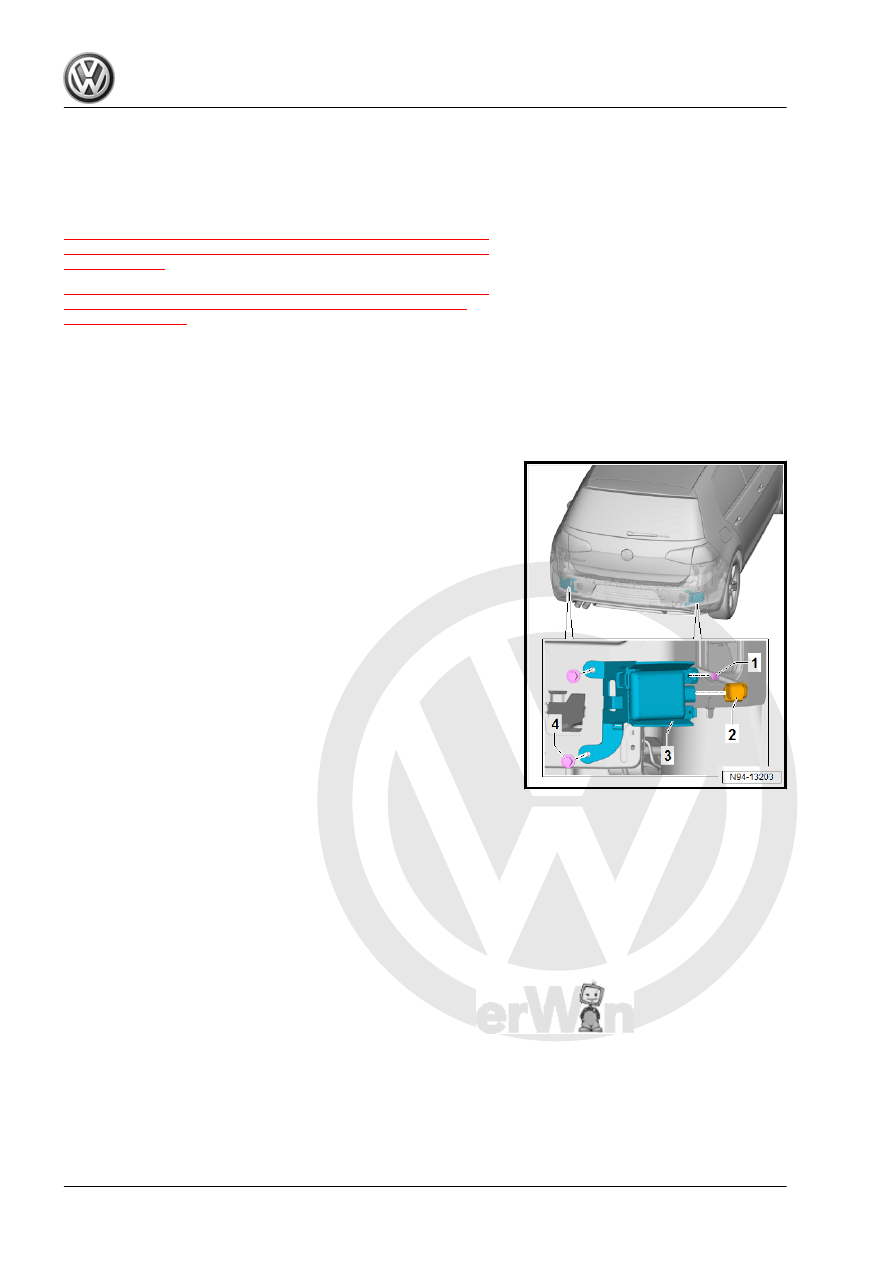

– Disconnect the connector -2-.
– Remove the nut -1- and the screws -4- for the bracket.
