9

Parking Aid

⇒ “9.1 Overview - Parking Aid”, page 197
⇒ “9.2  Parking Aid Control Module J446 , Removing and Instal‐

ling”, page 200
⇒ “9.3  Front Parking Aid Warning Buzzer H22 , Removing and

Installing”, page 201
⇒ “9.4  Rear Parking Aid Warning Buzzer H15 , Removing and

Installing”, page 202
⇒ “9.5 Front Parking Aid Sensor, Removing and Installing”, page

203
⇒ “9.6 Rear Parking Aid Sensor, Removing and Installing”,

page 205

9.1

Overview - Parking Aid

⇒ “9.1.1 Overview - Front Parking Aid”, page 197
⇒ “9.1.2 Overview - Rear Parking Aid, Sedan”, page 199
⇒ “9.1.3 Overview - Rear Parking Aid, Wagon”, page 200

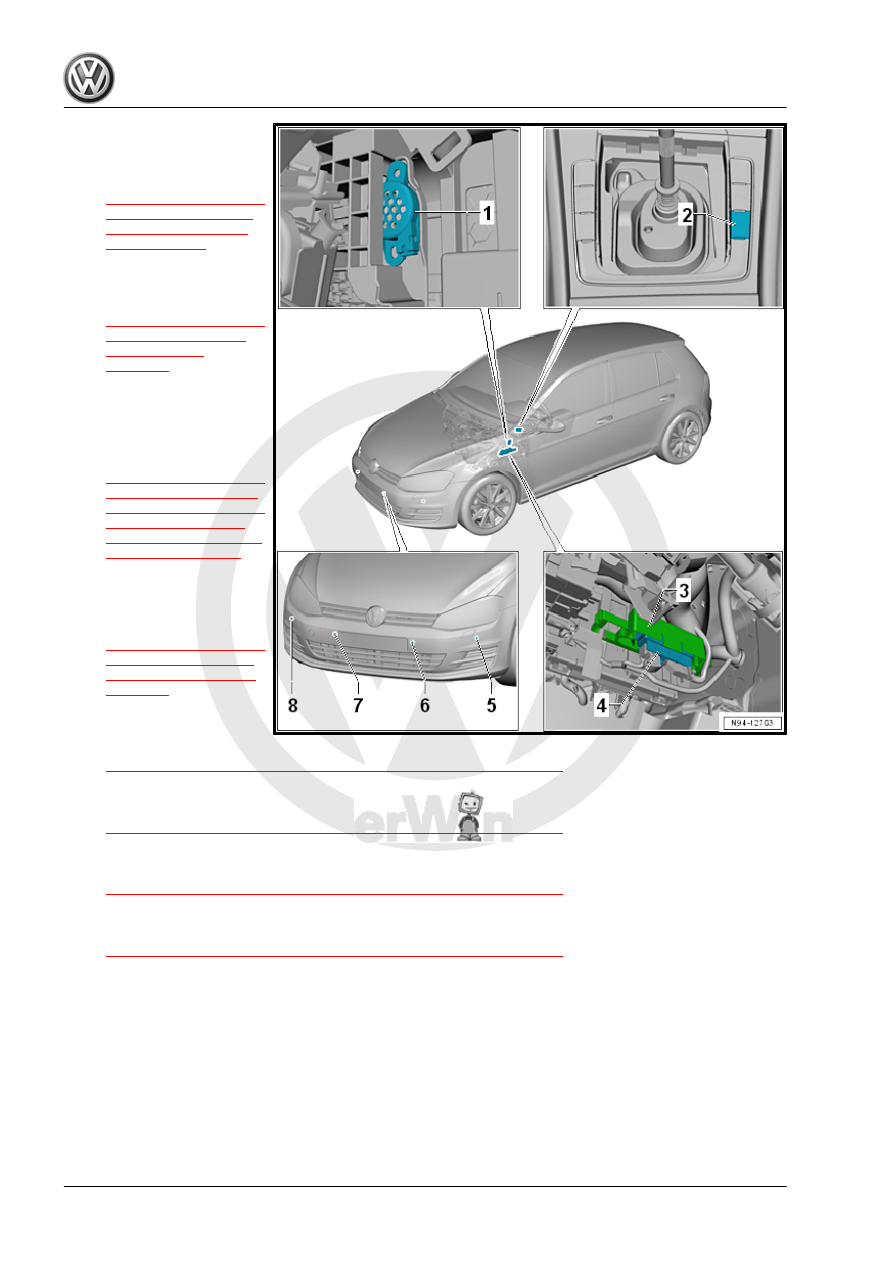

9.1.1

Overview - Front Parking Aid

Note

The Sedan is shown. The Wagon is identical.

1 - Front Parking Aid Warning

Buzzer - H22-

❑ Removing and instal‐

ling. Refer to

⇒ “9.3  Front Parking Aid

Warning Buzzer H22 ,

Removing and Instal‐

ling”, page 201

 .

2 - Parking Aid Button - E266-

❑ Removing and instal‐

ling. Refer to

⇒ “2.12  Parking Aid But‐

ton E266 , Removing

and Installing”,

page 266

 .

3 - Bracket

❑ For the Parking Aid

Control Module - J446-

❑ Removing and instal‐

ling. Refer to

⇒ “2.8  Parking Aid Con‐

trol Module J446 / Par‐

allel Parking Assistance

Control Module J791

Bracket, Removing and

Installing”, page 302

 .

4 - Parking Aid Control Module

- J446-

❑ Removing and instal‐

ling. Refer to

⇒ “9.2  Parking Aid Con‐

trol Module J446 , Re‐

moving and Installing”,

page 200

 .

5 - Left Front Parking Aid Sen‐

sor - G255-

❑ Removing and installing. Refer to

⇒ “9.5 Front Parking Aid Sensor, Removing and Installing”, page 203

 .

6 - Left Front Center Parking Aid Sensor - G254-

❑ Removing and installing. Refer to

⇒ “9.5 Front Parking Aid Sensor, Removing and Installing”, page 203

 .

7 - Right Front Center Parking Aid Sensor - G253-

❑ Removing and installing. Refer to

⇒ “9.5 Front Parking Aid Sensor, Removing and Installing”, page 203

 .

8 - Right Front Parking Aid Sensor - G252-

❑ Removing and installing. Refer to

⇒ “9.5 Front Parking Aid Sensor, Removing and Installing”, page 203

 .

9.1.2

Overview - Rear Parking Aid, Sedan

1 - Connector
2 - Expanding Clip
3 - Rear Parking Aid Warning

Buzzer - H15-

❑ Removing and instal‐

ling. Refer to

⇒ “9.4.1  Rear Parking

Aid Warning Buzzer

H15 , Removing and In‐

stalling, Sedan”,

page 202

 .

4 - Expanding Clip
5 - Right Rear Parking Aid Sen‐

sor - G206-

❑ Removing and instal‐

ling. Refer to

⇒ “9.6 Rear Parking Aid

Sensor, Removing and

Installing”, page 205

 .

6 - Right Rear Center Parking

Aid Sensor - G205-

❑ Removing and instal‐

ling. Refer to

⇒ “9.6 Rear Parking Aid

Sensor, Removing and

Installing”, page 205

 .

7 - Left Rear Center Parking

Aid Sensor - G204-

❑ Removing and instal‐

ling. Refer to

⇒ “9.6 Rear Parking Aid

Sensor, Removing and

Installing”, page 205

 .

8 - Left Rear Parking Aid Sen‐

sor - G203-

❑ Removing and installing. Refer to

⇒ “9.6 Rear Parking Aid Sensor, Removing and Installing”, page 205

 .

9 - Parking Aid Control Module - J446-

❑ Removing and installing. Refer to

⇒ “9.2  Parking Aid Control Module J446 , Removing and Installing”, page 200

 .

10 - Bracket

❑ For the Parking Aid Control Module - J446-
❑ Removing and installing. Refer to

⇒ “2.8  Parking Aid Control Module J446 / Parallel Parking Assistance Control Module J791 Bracket,

Removing and Installing”, page 302

 .

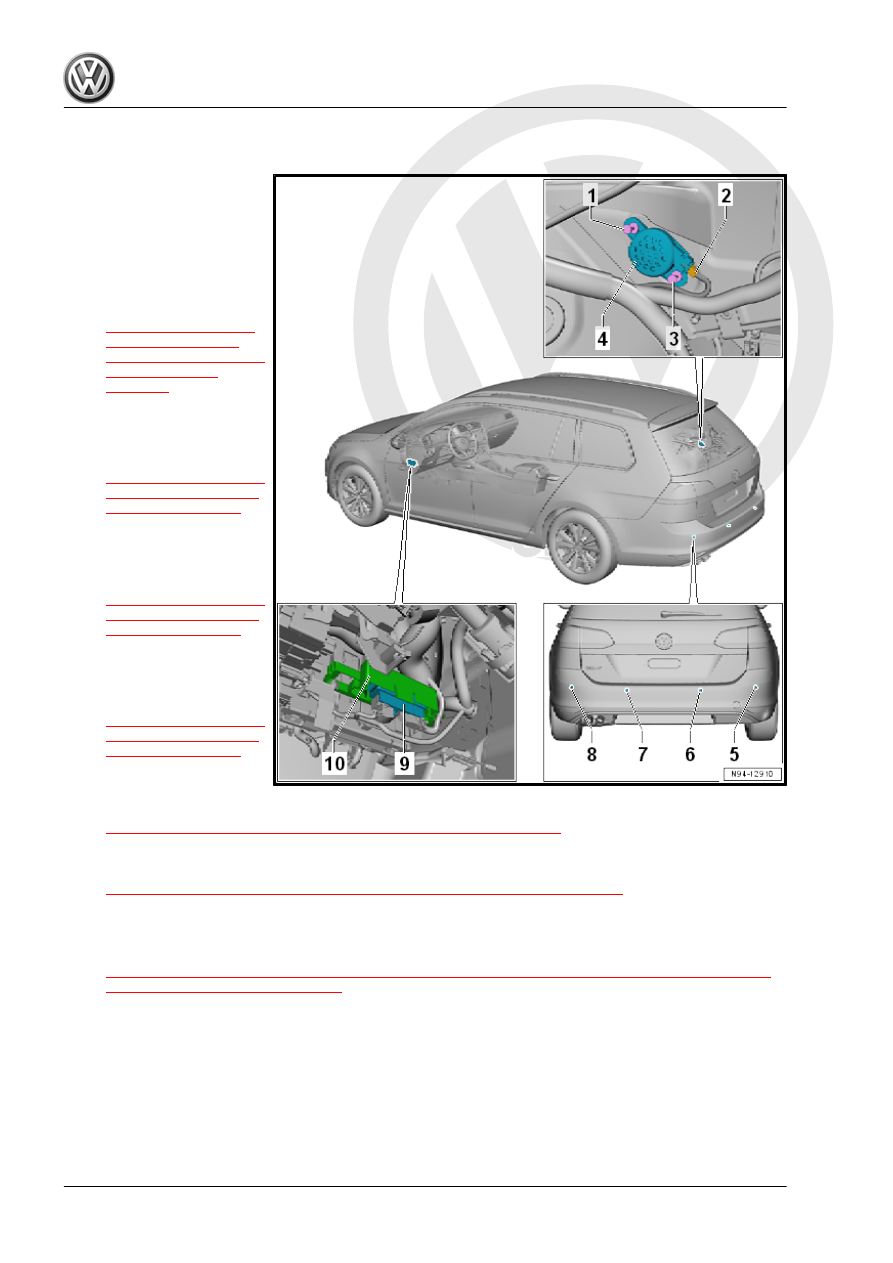

9.1.3

Overview - Rear Parking Aid, Wagon

1 - Expanding Clip
2 - Connector
3 - Expanding Clip
4 - Rear Parking Aid Warning

Buzzer - H15-

❑ Removing and instal‐

ling. Refer to

⇒ “9.4.2  Rear Parking

Aid Warning Buzzer

H15 , Removing and In‐

stalling, Wagon”,

page 202

 .

5 - Right Rear Parking Aid Sen‐

sor - G206-

❑ Removing and instal‐

ling. Refer to

⇒ “9.6 Rear Parking Aid

Sensor, Removing and

Installing”, page 205

 .

6 - Right Rear Center Parking

Aid Sensor - G205-

❑ Removing and instal‐

ling. Refer to

⇒ “9.6 Rear Parking Aid

Sensor, Removing and

Installing”, page 205

 .

7 - Left Rear Center Parking

Aid Sensor - G204-

❑ Removing and instal‐

ling. Refer to

⇒ “9.6 Rear Parking Aid

Sensor, Removing and

Installing”, page 205

 .

8 - Left Rear Parking Aid Sen‐

sor - G203-

❑ Removing and installing. Refer to

⇒ “9.6 Rear Parking Aid Sensor, Removing and Installing”, page 205

 .

9 - Parking Aid Control Module - J446-

❑ Removing and installing. Refer to

⇒ “9.2  Parking Aid Control Module J446 , Removing and Installing”, page 200

 .

10 - Bracket

❑ For the Parking Aid Control Module - J446-
❑ Removing and installing. Refer to

⇒ “2.8  Parking Aid Control Module J446 / Parallel Parking Assistance Control Module J791 Bracket,

Removing and Installing”, page 302

 .

9.2

Parking Aid Control Module - J446- , Re‐

moving and Installing

If the control module is being replaced, use the Vehicle Diagnostic

Tester and select the “Replacing” function for the respective con‐

trol module in “Guided Fault Finding”.
