Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 51

8.7.2

Turn Signal Switch - E2- , Removing and

Installing, Valeo

Turn Signal Switch - E2- , Cruise Control Switch - E45- and the

Windshield Wiper Intermittent Mode Switch - E22- together make

up the Steering Column Combination Switch - E595- .
The switch cannot be separated. If an individual switch is faulty

the Steering Column Combination Switch - E595- must be re‐

placed.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the Steering Column Electronics Control Module -

J527- . Refer to

⇒ “8.6  Steering Column Electronics Control Module J527 ,

Removing and Installing”, page 187

 .

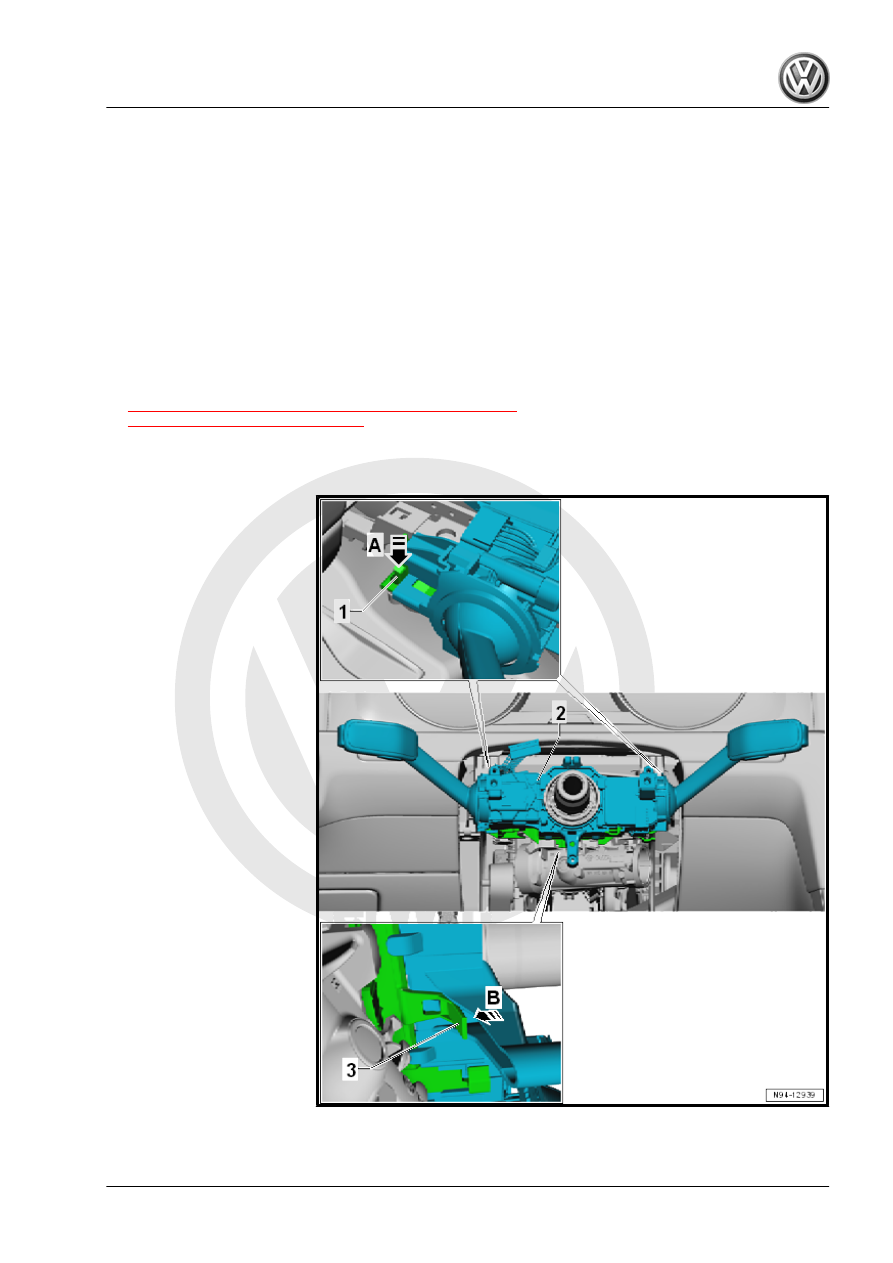

– Push the release -1- on both sides in the direction of the

-arrow A-.

– Slightly remove the Steering Column Combination Switch -

E595- -2-.

– Push the release -3- in the direction of the -arrow B-.
– Remove the Steering Column Combination Switch - E595-

-2-.

Installing
Install in reverse order of removal.

8.8

Cruise Control Switch - E45- , Removing

and Installing

Turn Signal Switch - E2- , Cruise Control Switch - E45- and the

Windshield Wiper Intermittent Mode Switch - E22- together make

up the Steering Column Combination Switch - E595- .
The switch cannot be separated. If an individual switch is faulty

the Steering Column Combination Switch - E595- must be re‐

placed.
– Turn Signal Switch - E2- , Removing and installing. Refer to

⇒ “8.7  Turn Signal Switch E2 , Removing and Installing”, page

192

 .

8.9

Windshield Wiper Intermittent Mode

Switch - E22- , Removing and Installing

Turn Signal Switch - E2- , Cruise Control Switch - E45- and the

Windshield Wiper Intermittent Mode Switch - E22- together make

up the Steering Column Combination Switch - E595- .
The switch cannot be separated. If an individual switch is faulty

the Steering Column Combination Switch - E595- must be re‐

placed.
– Turn Signal Switch - E2- , Removing and installing. Refer to

⇒ “8.7  Turn Signal Switch E2 , Removing and Installing”, page

192

 .

8.10

Anti-Theft Immobilizer Reader Coil -

D2- , Removing and Installing

⇒ “8.10.1  Anti-Theft Immobilizer Reader Coil D2 , Removing and

Installing, Vehicles with Ignition Key”, page 194
⇒ “8.10.2  Anti-Theft Immobilizer Reader Coil D2 , Removing and

Installing, Vehicles with Keyless Access”, page 194

8.10.1

Anti-Theft Immobilizer Reader Coil -

D2- , Removing and Installing, Vehicles

with Ignition Key

The Anti-Theft Immobilizer Reader Coil - D2- is integrated in the

lock cylinder and cannot be replaced separately.
– Lock cylinder, removing and installing. Refer to

⇒ “8.2 Lock Cylinder, Removing and Installing”, page 179

 .

8.10.2

Anti-Theft Immobilizer Reader Coil -

D2- , Removing and Installing, Vehicles

with Keyless Access

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.

– Position the steering wheel as far back as possible. Use the

entire adjustment range of the steering column adjustment for

this.

– Remove the lower steering column trim panel. Refer to ⇒  Body

Interior; Rep. Gr.  68 ; Storage Compartments and Covers;

Lower Steering Column Trim Panel, Removing and Installing .

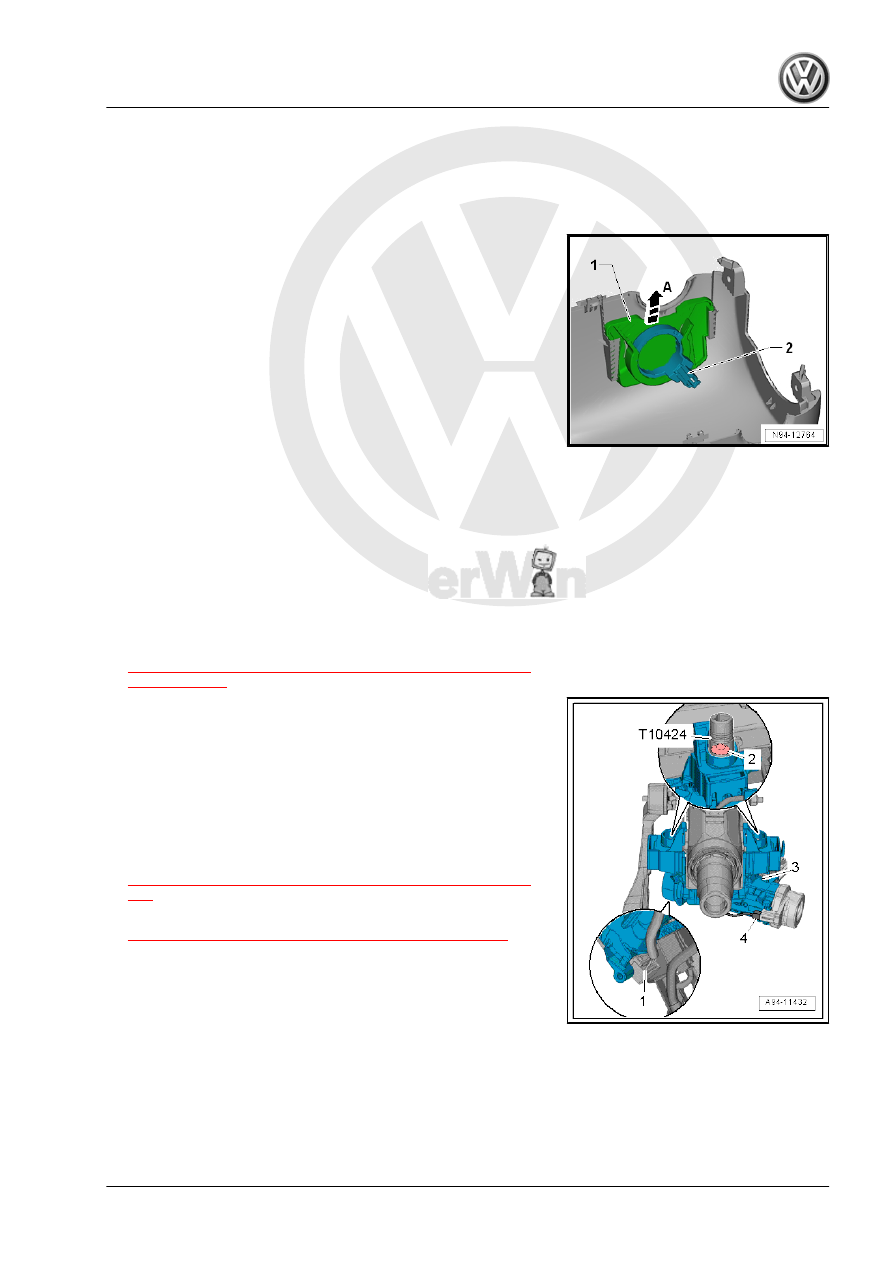

– Remove the Anti-Theft Immobilizer Reader Coil - D2- -2- in the

direction of the -arrow A- from the mount -1-.

Installing
Install in the reverse order of removal while paying attention to

the following:
– Push in the Anti-Theft Immobilizer Reader Coil - D2- until it

engages audibly in the mount.

8.11

Steering Lock Housing, Removing and

Installing

Special tools and workshop equipment required
♦ 7/16 Inch Extractor - T10424US-
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the steering column switch module. Refer to

⇒ “8.5 Steering Column Switch Module, Removing and Instal‐

ling”, page 182

 .

– Disconnect the connectors -1 and 4-.
If the shear bolt cannot be removed using the -T10424US- , use

an angled hand drill and 8.5 mm diameter bit to drill it out.
– Remove the shear bolt -2- using the -T10424US- .
– Remove the steering lock housing -3-.
To replace the steering lock housing, the Ignition/Starter Switch -

D- and lock cylinder must be removed.
– Remove the Ignition/Starter Switch - D- . Refer to

⇒ “8.4 Ignition/Starter Switch, Removing and Installing”, page

181

 .

– Remove lock cylinder. Refer to

⇒ “8.2 Lock Cylinder, Removing and Installing”, page 179

 .

Installing
Install in the reverse order of removal while paying attention to

the following:

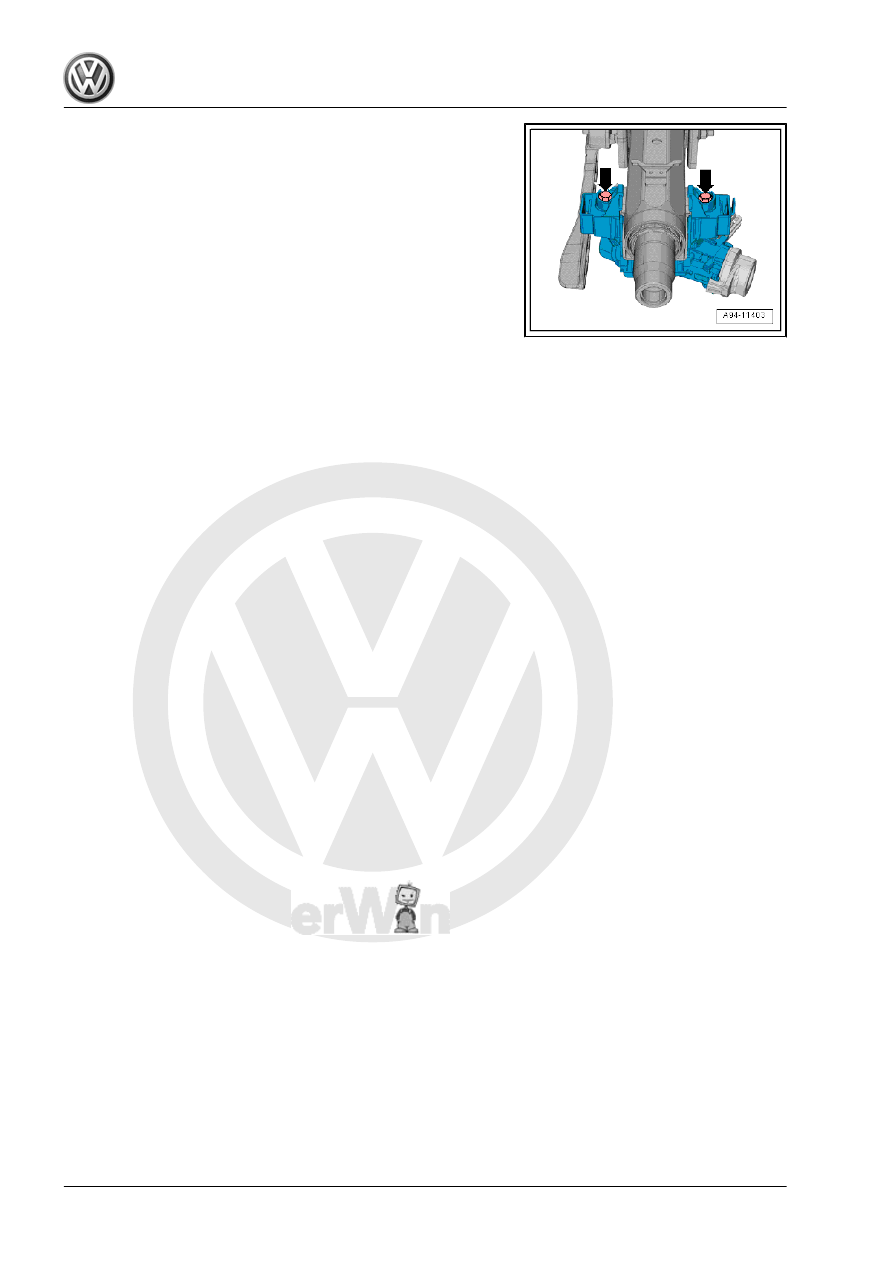

– Tighten the new bolts -arrows- until the head shears off.
