integrated in the exterior door handle and cannot be replaced in‐

dividually if faulty.
– Door handle removing and installing. Refer to ⇒ Body Exterior;

Rep. Gr. 57 ; Door Components; Door Handle, Removing and

Installing .

7.5

Access/Start System Antenna 1 in Ve‐

hicle Interior - R138- , Removing and

Installing

Special tools and workshop equipment required
♦ Pry Lever - 80-200-
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the center console insert. Refer to ⇒ Body Interior;

Rep. Gr. 68 ; Center Console; Center Console Insert, Re‐

moving and Installing .

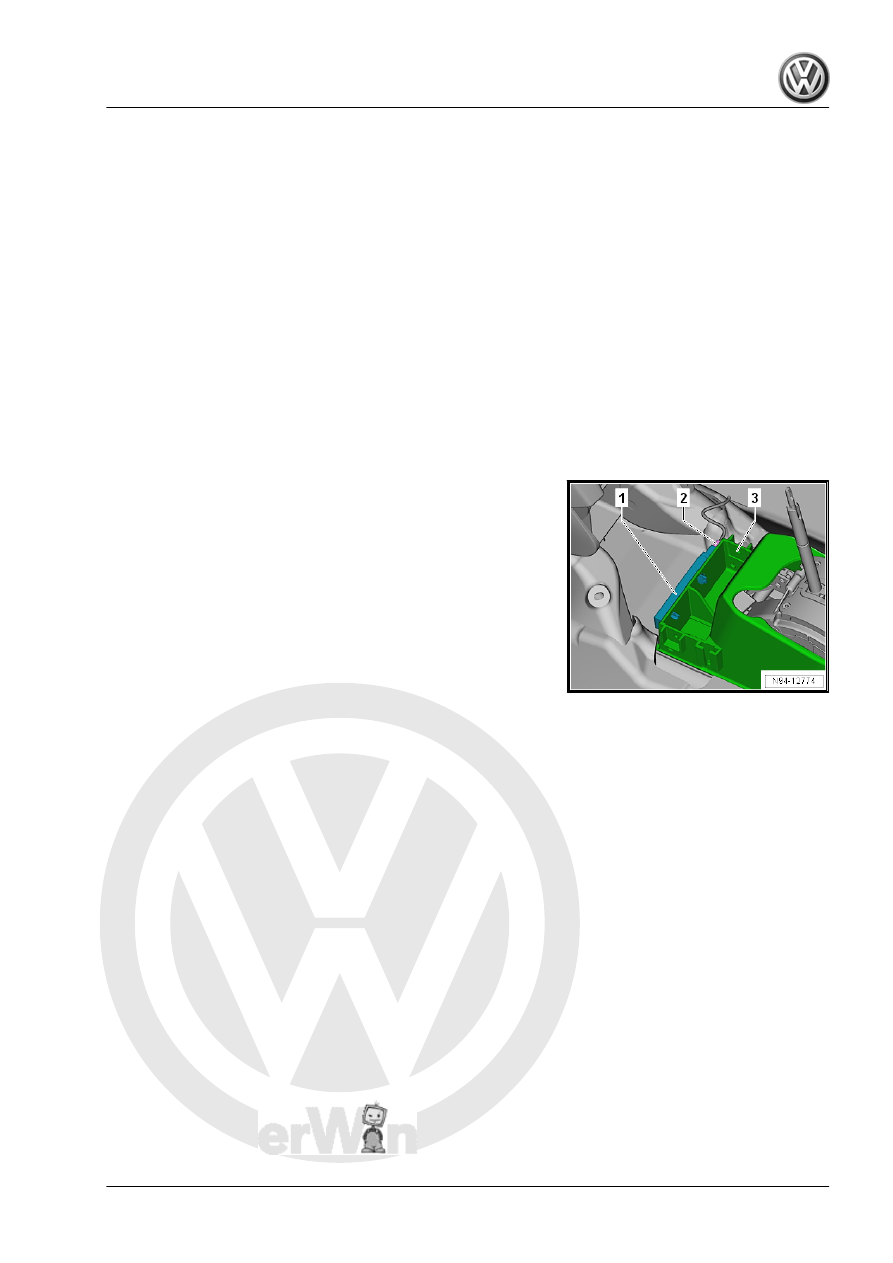

– Pry the Access/Start System Antenna 1 in Vehicle Interior -

R138- -1- using the -80-200- from the bracket -3-.

– Release and disconnect the connector -2-.
Installing
Install in reverse order of removal.

7.6

Driver Access/Start System Antenna -

R134- , Removing and Installing

The Driver Access/Start System Antenna - R134- is integrated

into the exterior door handle and cannot be replaces separately

if faulty.
– Door handle removing and installing. Refer to ⇒ Body Exterior;

Rep. Gr. 57 ; Door Components; Door Handle, Removing and

Installing .

7.7

Front Passenger Access/Start System

Antenna - R135- , Removing and Instal‐

ling

The Front Passenger Access/Start System Antenna - R135- is

integrated into the exterior door handle and cannot be replaces

separately if faulty.
– Door handle removing and installing. Refer to ⇒ Body Exterior;

Rep. Gr. 57 ; Door Components; Door Handle, Removing and

Installing .

7.8

Access/Start System Antenna in Lug‐

gage Compartment - R137- , Removing

and Installing

⇒ “7.8.1 Access/Start System Antenna in Luggage Compartment

R137 , Removing and Installing, Sedan”, page 174
⇒ “7.8.2 Access/Start System Antenna in Luggage Compartment

R137 , Removing and Installing, Wagon”, page 174

7.8.1

Access/Start System Antenna in Lug‐

gage Compartment - R137- , Removing

and Installing, Sedan

Gr. 72 ; Rear Seats; Bench Seat/Single Seat, Removing and

Installing .

– Fold back the carpet.

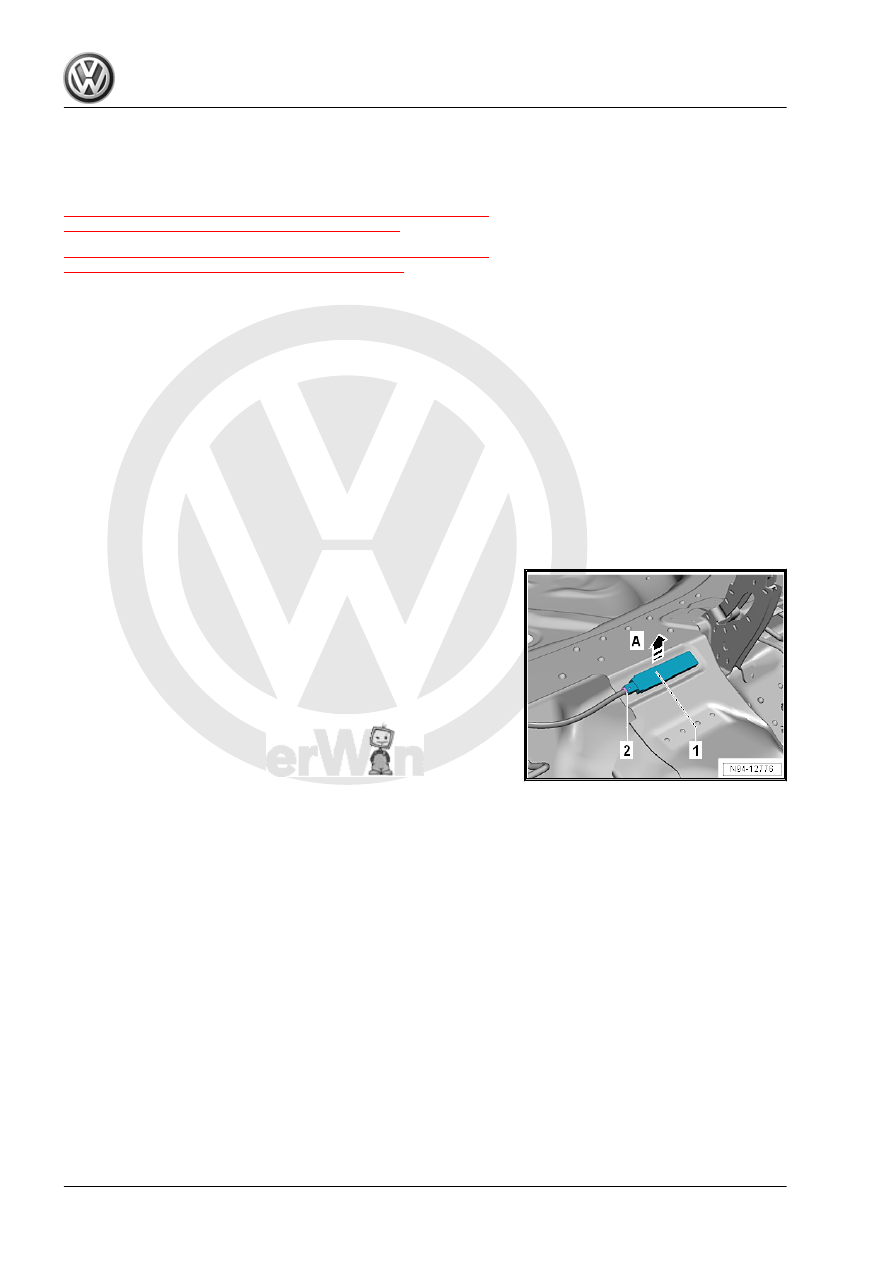

– Pry the Access/Start System Antenna in Luggage Compart‐

ment - R137- -1- using the -80-200- in the direction of the

-arrow A- from the body.

– Release and disconnect the connector -2-.
Installing
Install in reverse order of removal.

7.8.2

Access/Start System Antenna in Lug‐

gage Compartment - R137- , Removing

and Installing, Wagon

Special tools and workshop equipment required
♦ Pry Lever - 80-200-
Removing
– Remove the luggage compartment floor covering. Refer to ⇒

Rep. Gr. 70 ; Luggage Compartment Trim Panels; Overview

- Luggage Compartment Floor .

– Pry out the antenna -1- with the -80-200- in the direction of the

-arrow A- from the body.

– Disconnect the connector -2-.
Installing
Install in reverse order of removal.

7.9

Access/Start System Antenna in Rear

Bumper - R136- , Removing and Instal‐

ling

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the rear bumper cover. Refer to ⇒ Body Exterior;

Rep. Gr. 63 ; Rear Bumper; Bumper Cover, Removing and

Installing .

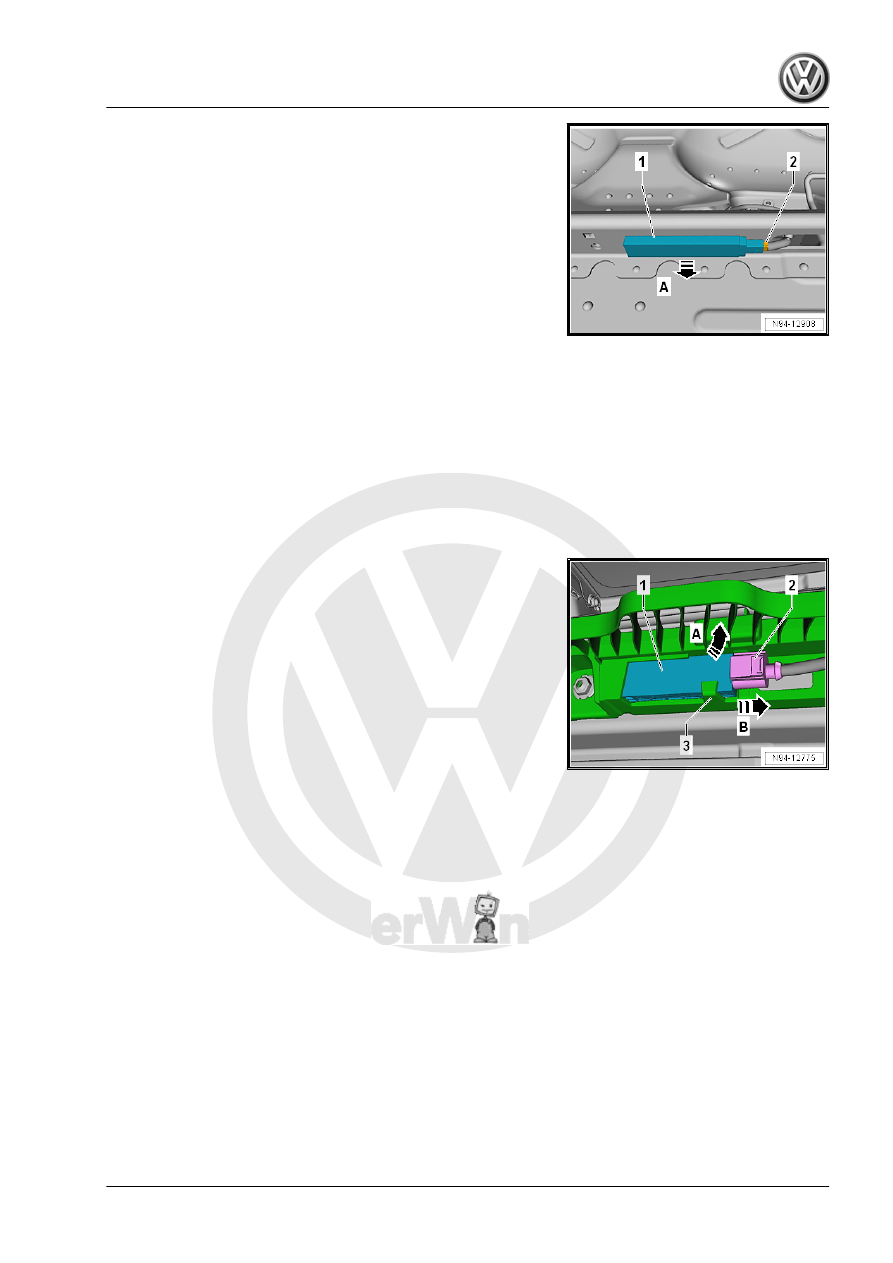

– Pry the Access/Start System Antenna in Rear Bumper - R136-

-1- slightly in the direction of the -arrow A-.

– Remove the Access/Start System Antenna in Rear Bumper -

R136- -1- in the direction of the -arrow B- from the mount -3-.

– Release and disconnect the connector -2-.
Installing
Install in reverse order of removal.
