❑ Screws: 2 Nm
❑ Left Daytime Running Lamp and Position Lamp Control Module - J860-
❑ Right Daytime Running Lamp and Position Lamp Control Module - J861-
❑ Removing and installing. Refer to

⇒ “1.19 Left/Right Daytime Running Lamp and Position Lamp Control Module J860 / J861 , Removing

and Installing”, page 122

14 - Cornering Lamp and Headlamp Range Control Module - J745-

❑ Removing and installing. Refer to

⇒ “11.2 Control Module for Headlamp Range/Cornering Lamp and Headlamp Range, Removing and

Installing”, page 211

15 - Level Control System Sensor

❑ Removing and installing. Refer to ⇒ Suspension, Wheels, Steering; Rep. Gr. 43 ; Level Control System

Sensor .

16 - Impact Screw

❑ For adjusting the headlamp parallel to the hood edge

17 - Bolt

❑ 4 Nm
❑ With banjo bolt
❑ For the headlamp height adjustment

1.1.4

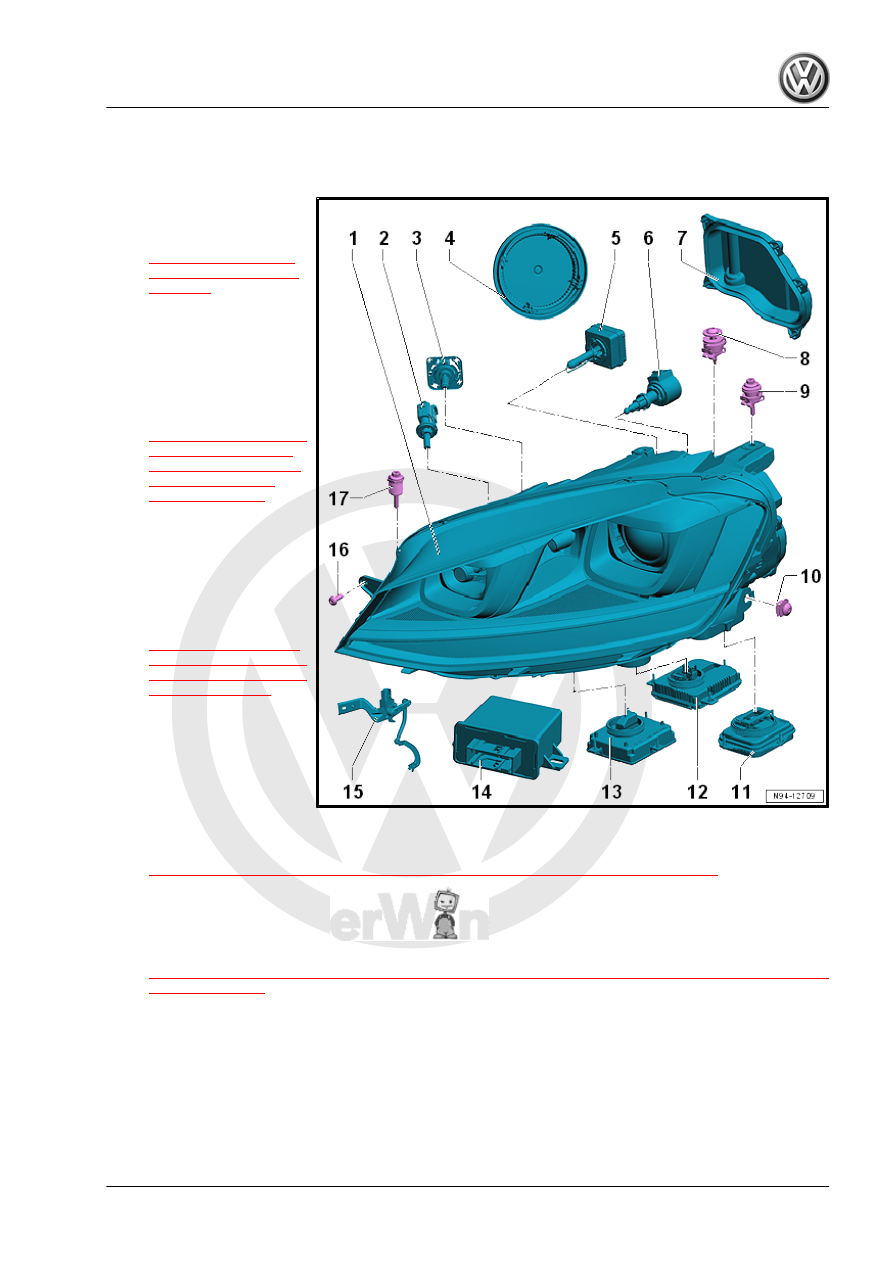

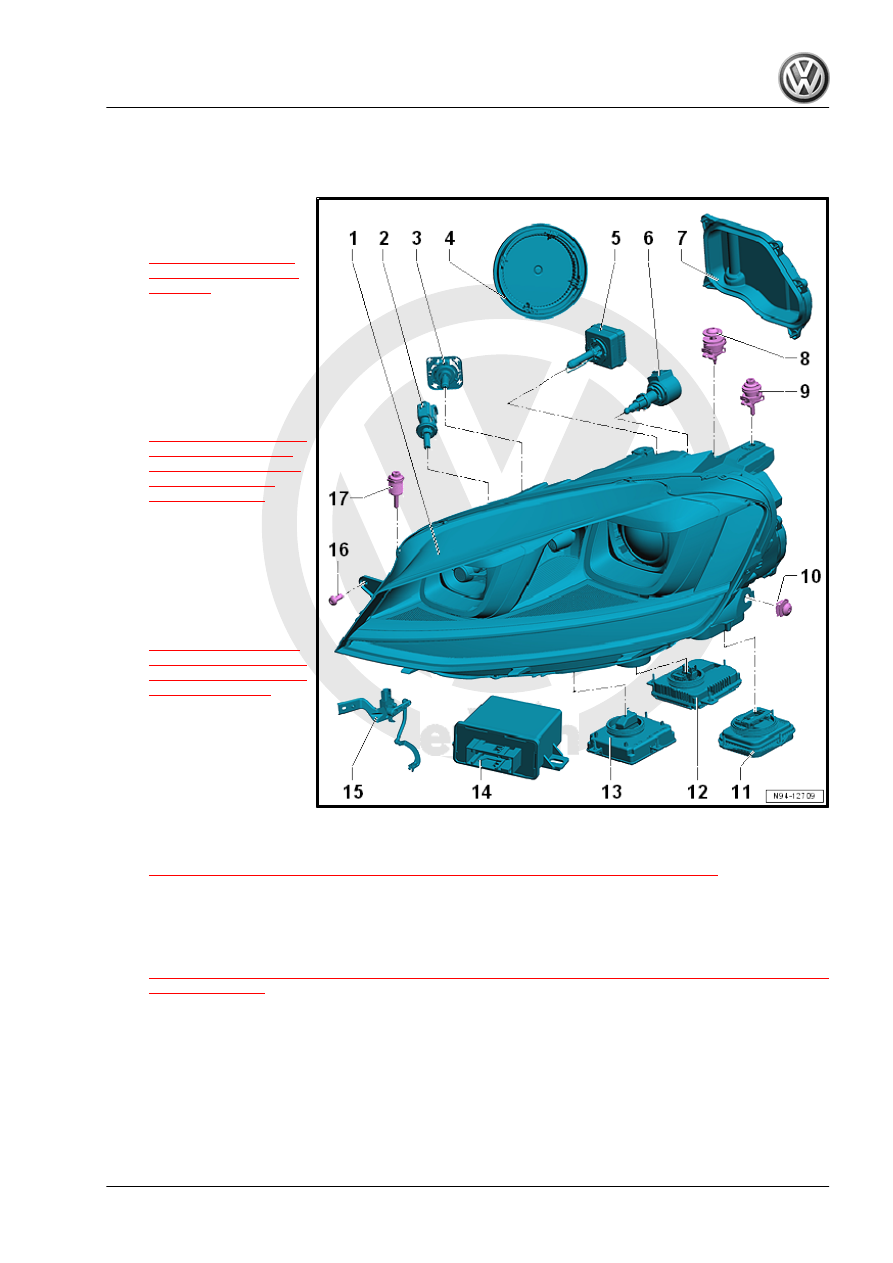

Overview - HID Headlamp with Dynamic High Beam Control and LED-Day‐

time Running Lamps

1 - Headlamp

❑ Removing and instal‐

ling. Refer to

⇒ “1.2 Headlamp, Re‐

moving and Installing”,

page 101

2 - Front Turn Signal Bulb

❑ Left Front Turn Signal

Bulb - M5-

❑ Right Front Turn Signal

Bulb - M7-

❑ Removing and instal‐

ling. Refer to

⇒ “1.5.2 Left/Right Front

Turn Signal Bulb M5 /

M7 , Removing and In‐

stalling, HID Head‐

lamps”, page 108

3 - Cornering Lamp Bulb

❑ Left Cornering Lamp

Bulb - L148-

❑ Right Cornering Lamp

Bulb - L149-

❑ Removing and instal‐

ling. Refer to

⇒ “1.16 Left/Right Cor‐

nering Lamp Bulb L148 /

L149 , Removing and In‐

stalling”, page 119

4 - Housing Cover
5 - HID Headlamp Bulb

❑ With integrated ignition

coil

❑ Left HID Headlamp Bulb

- L13-

❑ Right HID Headlamp Bulb - L14-
❑ Removing and installing. Refer to

⇒ “1.11 Left/Right HID Headlamp Bulb L13 / L14 , Removing and Installing”, page 115

6 - Headlamp Beam Adjustment Motor

❑ Left Headlamp Beam Adjustment Motor - V48-
❑ Right Headlamp Beam Adjustment Motor - V49-
❑ Removing and installing. Refer to

⇒ “1.8.2 Left/Right Headlamp Beam Adjustment Motor V48 / V49 , Removing and Installing, HID Head‐

lamps”, page 112

7 - Housing Cover

❑ 2 Nm
❑ With screws
❑ Quantity: 5

8 - Bolt

❑ 4 Nm
❑ With balancing element

9 - Bolt

❑ 8 Nm
❑ With balancing element

10 - Bolt

❑ 4 Nm

11 - Headlamp Power Output Stage

❑ Screws: 2 Nm
❑ Left Headlamp Power Output Stage - J667-
❑ Right Headlamp Power Output Stage - J668-
❑ Removing and installing. Refer to

⇒ “1.18 Left/Right Headlamp Power Output Stage J667 / J668 , Removing and Installing”, page 121

12 - HID Headlamp Control Module

❑ Screws: 2 Nm
❑ Left HID Headlamp Control Module - J343-
❑ Right HID Headlamp Control Module - J344-
❑ Removing and installing. Refer to

⇒ “1.17 Left/Right HID Headlamp Control Module J343 / J344 , Removing and Installing”, page 120

13 - Daytime Running Lamp and Position Lamp Control Module

❑ Screws: 2 Nm
❑ Left Daytime Running Lamp and Position Lamp Control Module - J860-
❑ Right Daytime Running Lamp and Position Lamp Control Module - J861-
❑ Removing and installing. Refer to

⇒ “1.19 Left/Right Daytime Running Lamp and Position Lamp Control Module J860 / J861 , Removing

and Installing”, page 122

14 - Cornering Lamp and Headlamp Range Control Module - J745-

❑ Removing and installing. Refer to

⇒ “11.2 Control Module for Headlamp Range/Cornering Lamp and Headlamp Range, Removing and

Installing”, page 211

15 - Level Control System Sensor

❑ Removing and installing. Refer to ⇒ Suspension, Wheels, Steering; Rep. Gr. 43 ; Level Control System

Sensor .

16 - Impact Screw

❑ For adjusting the headlamp parallel to the hood edge

17 - Bolt

❑ 4 Nm
❑ With banjo bolt
❑ For the headlamp height adjustment
