❑ For vehicles with a headlamp washer system
❑ With Windshield Washer Fluid Level Sensor - G33- Cannot be replaced separately if faulty.
❑ Removing and installing. Refer to

⇒ “2.2 Washer Fluid Reservoir, Removing and Installing”, page 72

9 - Filler Tube

Caution

Risk of leaks!
Cannot be separated

from the washer fluid

reservoir.

❑ For the washer fluid reservoir

10 - Filler Tube

Caution

Risk of leaks!
Cannot be separated

from the filler tube.

❑ For the washer fluid reservoir

11 - Screen
12 - Cap

❑ For the filler neck

2.1.2

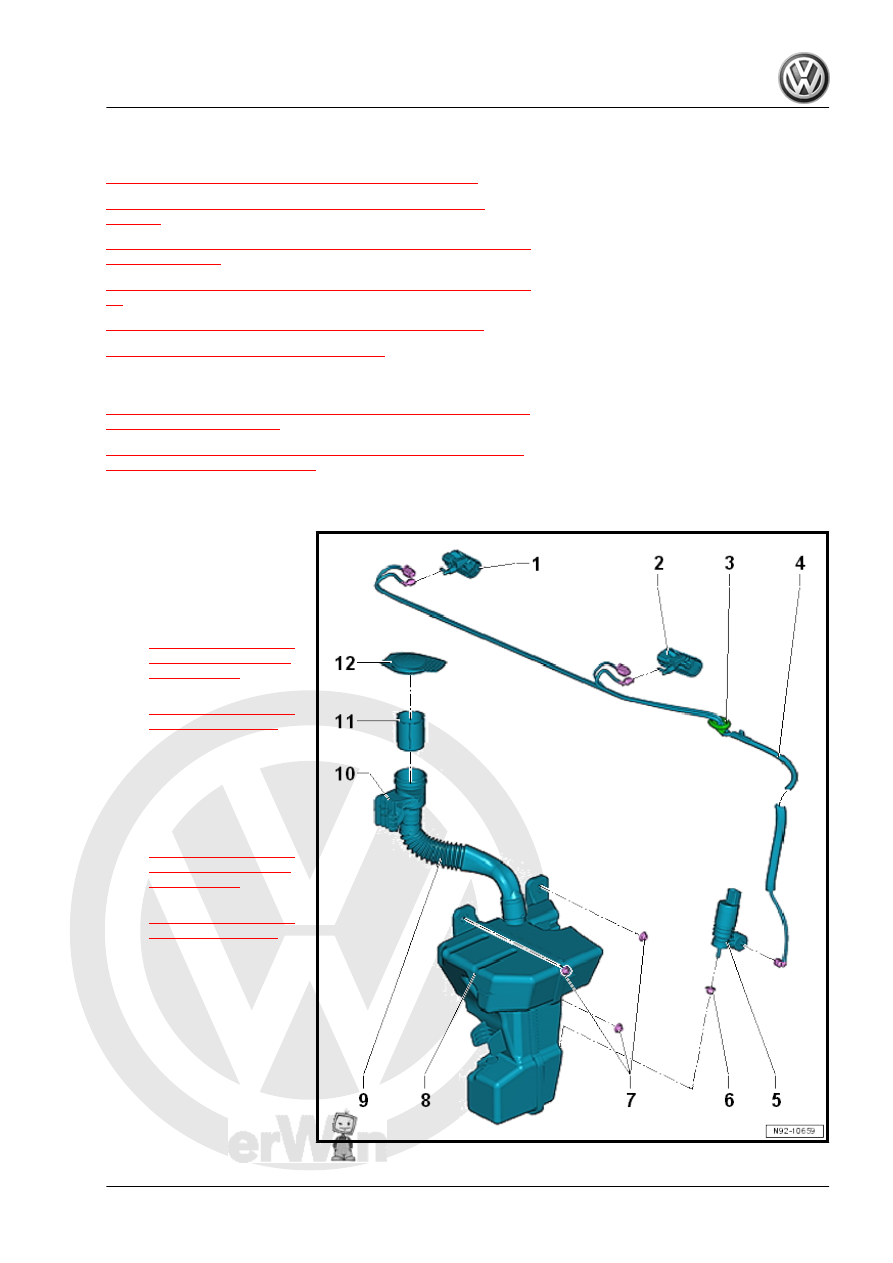

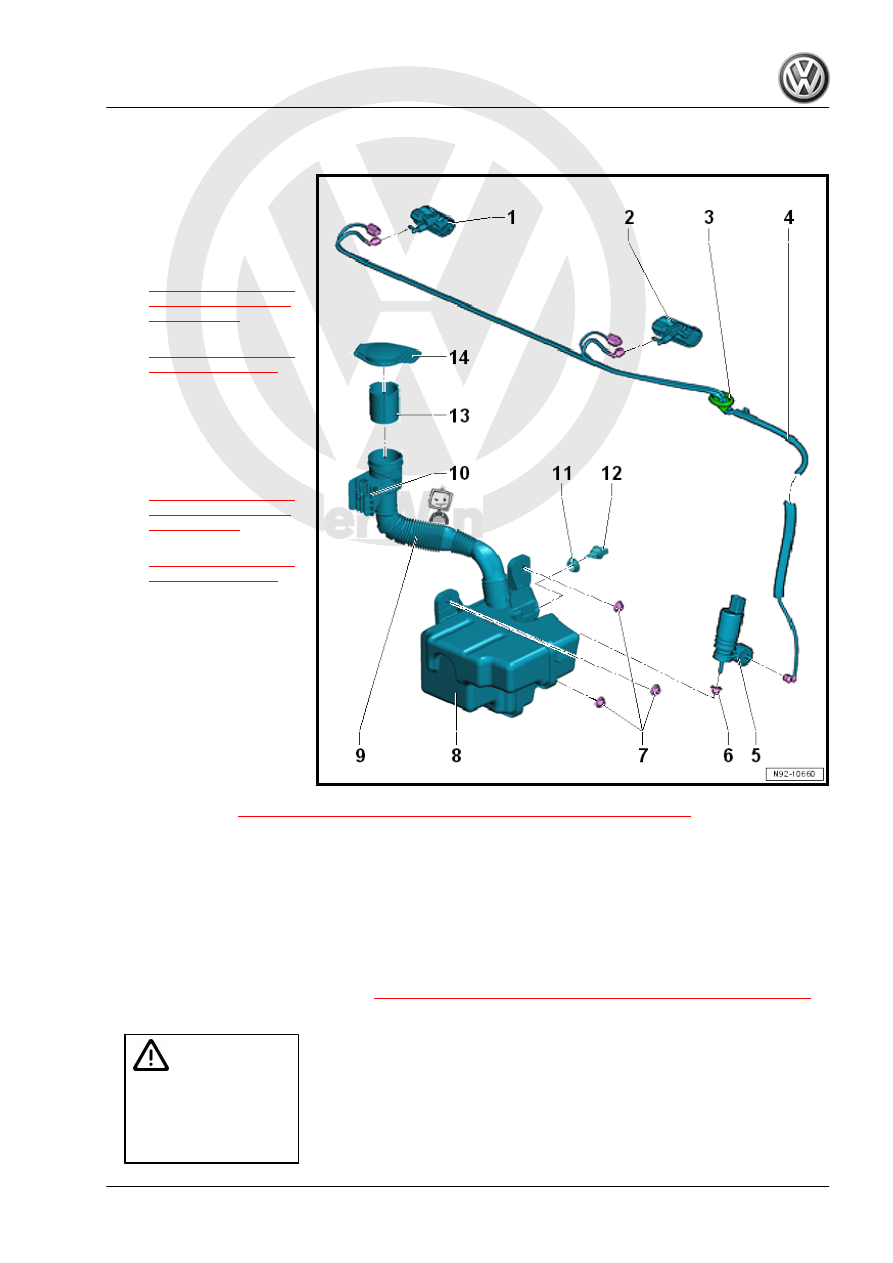

Overview - Windshield Washer System, without Headlamp Washer System

1 - Right Spray Nozzle

❑ Vehicle equipment ver‐

sion with Right Washer

Nozzle Heater - Z21-

❑ Removing and instal‐

ling. Refer to

⇒ “2.5 Spray Nozzles,

Removing and Instal‐

ling”, page 74

❑ Adjusting. Refer to

⇒ “2.6 Spray Nozzles,

Adjusting”, page 75

2 - Left Spray Nozzle

❑ Vehicle equipment ver‐

sion with Left Washer

Nozzle Heater - Z20-

❑ Removing and instal‐

ling. Refer to

⇒ “2.5 Spray Nozzles,

Removing and Instal‐

ling”, page 74

❑ Adjusting. Refer to

⇒ “2.6 Spray Nozzles,

Adjusting”, page 75

3 - Grommet

❑ For the windshield

washer fluid hose inside

the hood

4 - Washer Fluid Hose

❑ For the windshield

washer system

❑ Black color identification

5 - Windshield and Rear Win‐

dow Washer Pump - V59-

❑ Removing and instal‐

ling. Refer to

⇒ “2.4 Windshield Washer Pump, Removing and Installing”, page 74

6 - Grommet

❑ Replace if damaged.

7 - Nut

❑ 8 Nm
❑ Quantity: 3

8 - Washer Fluid Reservoir

❑ For vehicles without a headlamp washer system
❑ Removing and installing. Refer to

⇒ “2.2 Washer Fluid Reservoir, Removing and Installing”, page 72

9 - Filler Tube

Caution

Risk of leaks!
Cannot be separated

from the washer fluid

reservoir.

❑ For the washer fluid reservoir

10 - Filler Tube

Caution

Risk of leaks!
Cannot be separated

from the filler tube.

❑ For the washer fluid reservoir

11 - Seal
12 - Windshield Washer Fluid Level Sensor - G33-

❑ Removing and installing. Refer to

⇒ “2.3 Windshield Washer Fluid Level Sensor, Removing and Installing”, page 73

13 - Screen
14 - Cap

❑ For the filler neck

2.2

Washer Fluid Reservoir, Removing and

Installing

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Drip Tray
The removal and installation of the washer fluid reservoir with

headlamp washer system is described. Removing and installing

a washer fluid reservoir without a headlamp washer system is

identical.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the front bumper cover. Refer to ⇒ Body Exterior;

Rep. Gr. 63 ; Front Bumper; Bumper Cover, Removing and

Installing .

– Remove the left headlamp. Refer to

⇒ “1.2 Headlamp, Removing and Installing”, page 101

– Place a drip tray under the washer fluid reservoir.
– If necessity remove the Headlamp Washer Pump - V11- . Re‐

fer to

⇒ “5.3 Headlamp Washer Pump V11 , Removing and Instal‐

ling”, page 86
