Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 11

3.1.4

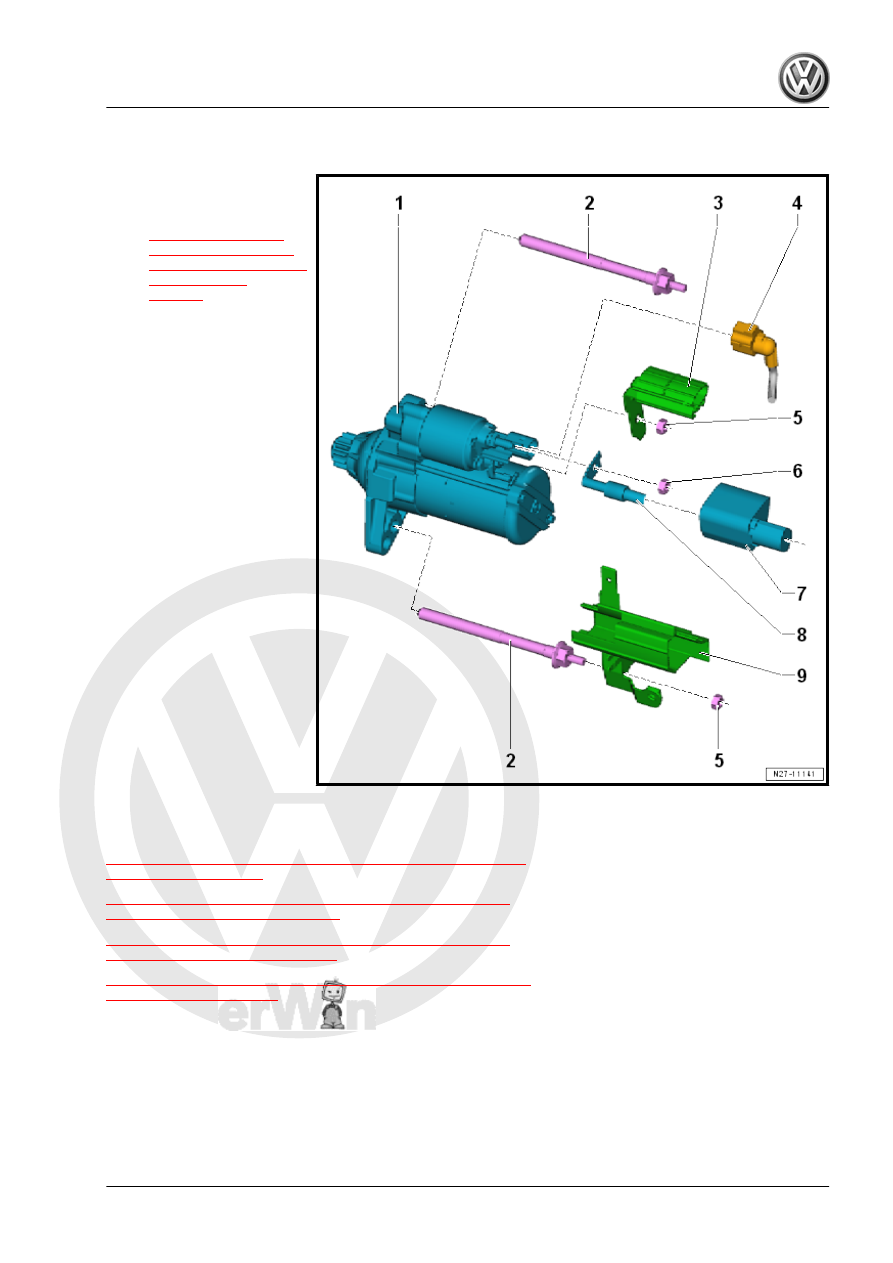

Overview - Starter, Vehicles with Automatic Transmission

1 - Starter - B-

❑ Removing and instal‐

ling. Refer to

⇒ “3.2.4 Starter, Re‐

moving and Installing,

Vehicles with Automatic

Transmission”,

page 37

 .

2 - Double Bolt

❑ 80 Nm
❑ Quantity: 2

3 - Bracket

❑ For the wiring harness

4 - Connector
5 - Nut

❑ 20 Nm
❑ Quantity: 2

6 - Nut

❑ 20 Nm

7 - Cap
8 - Terminal 30/B+
9 - Bracket

❑ For the wiring harness

3.2

Starter, Removing and Installing

⇒ “3.2.1 Starter, Removing and Installing, Vehicles with Manual

Transmission”, page 33
⇒ “3.2.2 Starter, Removing and Installing, Vehicles with DSG

Transmission DQ200–7F”, page 35
⇒ “3.2.3 Starter, Removing and Installing, Vehicles with DSG

Transmission DQ250-6F”, page 36
⇒ “3.2.4 Starter, Removing and Installing, Vehicles with Automat‐

ic Transmission”, page 37

3.2.1

Starter, Removing and Installing, Vehi‐

cles with Manual Transmission

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-

Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  66 ; Noise Insulation; Overview - Noise Insulation .

– If necessary, remove the air filter housing. Refer to ⇒  Rep.

Gr.  23 ; Air Filter; Air Filter Housing, Removing and Installing

or ⇒  Rep. Gr.  24 ; Air Filter; Air Filter Housing, Removing and

Installing .

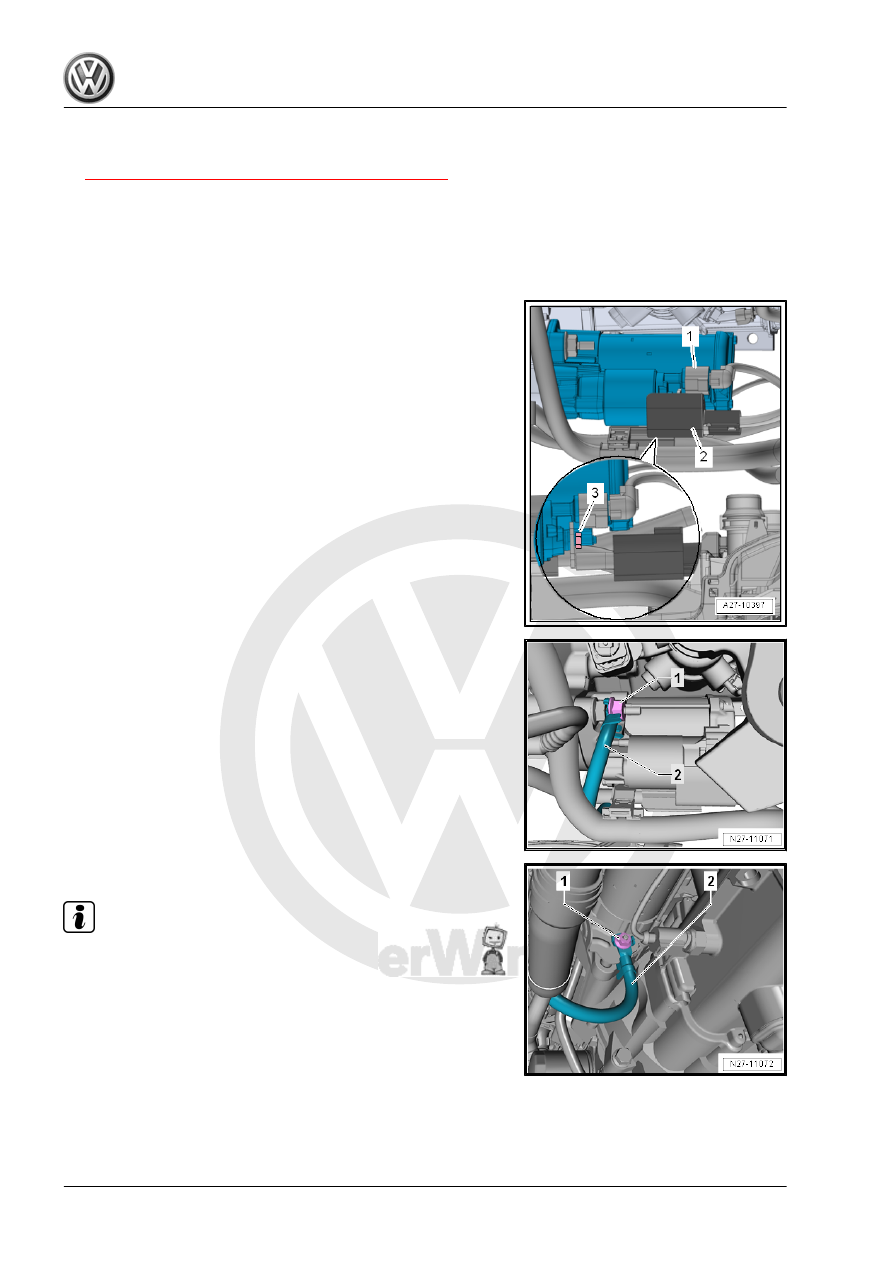

– Release and disconnect the connector -1-.
– Remove the cap -2-.
– Remove the nuts -3-, and terminal 30/B+.

– If equipped remove the nut -1- from the Starter - B- upper bolt.
– If equipped remove the ground cable -2-.
– If equipped remove the nut -1- from the Starter - B- lower bolt.

– If equipped remove the ground cable -2-.

Note

The wires remain connected.

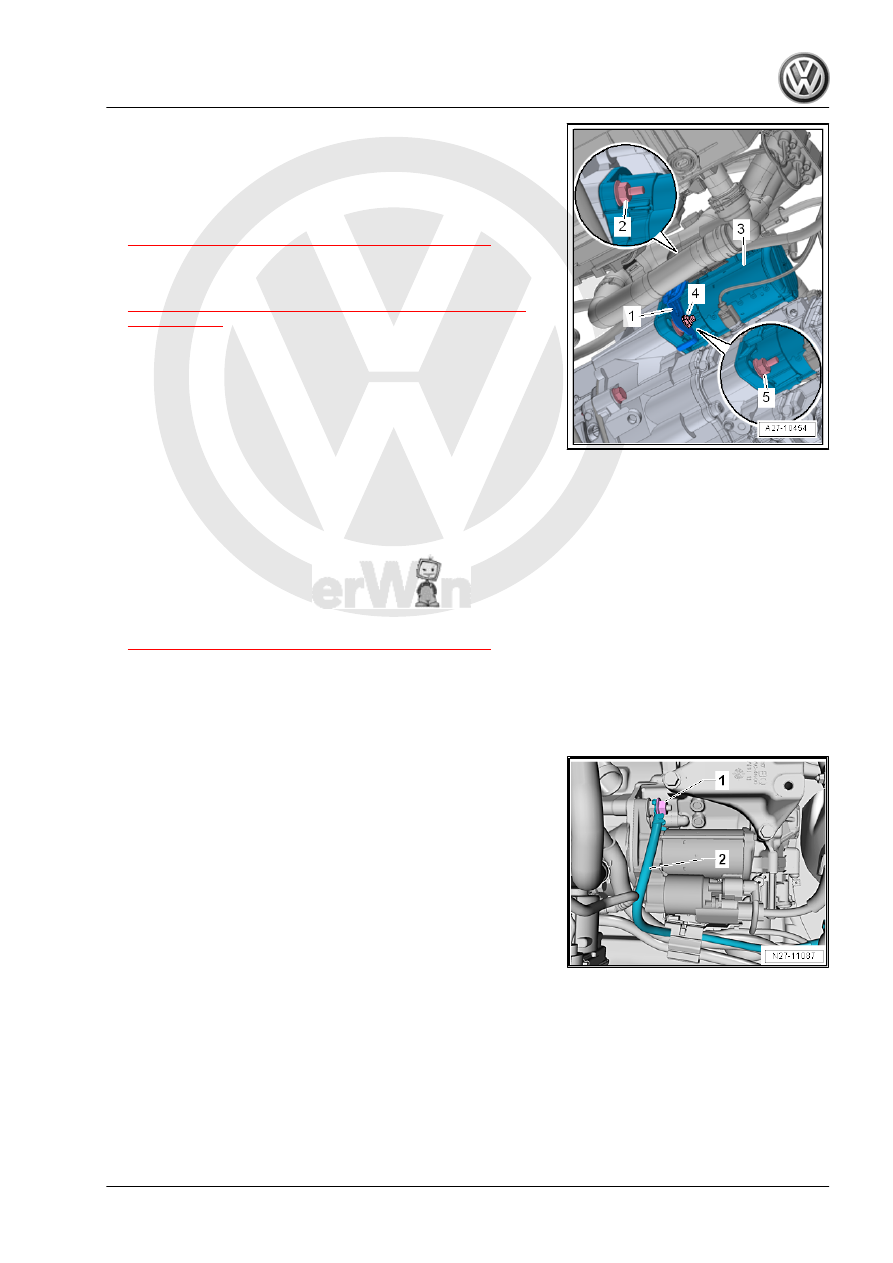

– Remove the nut -4- and remove the wiring harness bracket

-1-.

– Remove the Starter - B- -3- bolts -2 and 5- .

– Remove the Starter - B- -3- downward.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Connect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

Tightening Specifications
♦ Refer to

⇒ “3.1.1 Overview - Starter, Vehicles with Manual Transmis‐

sion”, page 30

3.2.2

Starter, Removing and Installing, Vehi‐

cles with DSG Transmission DQ200–7F

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

– If necessary, remove the air filter housing. Refer to ⇒  Rep.

Gr.  23 ; Air Filter; Air Filter Housing, Removing and Installing

or ⇒  Rep. Gr.  24 ; Air Filter; Air Filter Housing, Removing and

Installing .

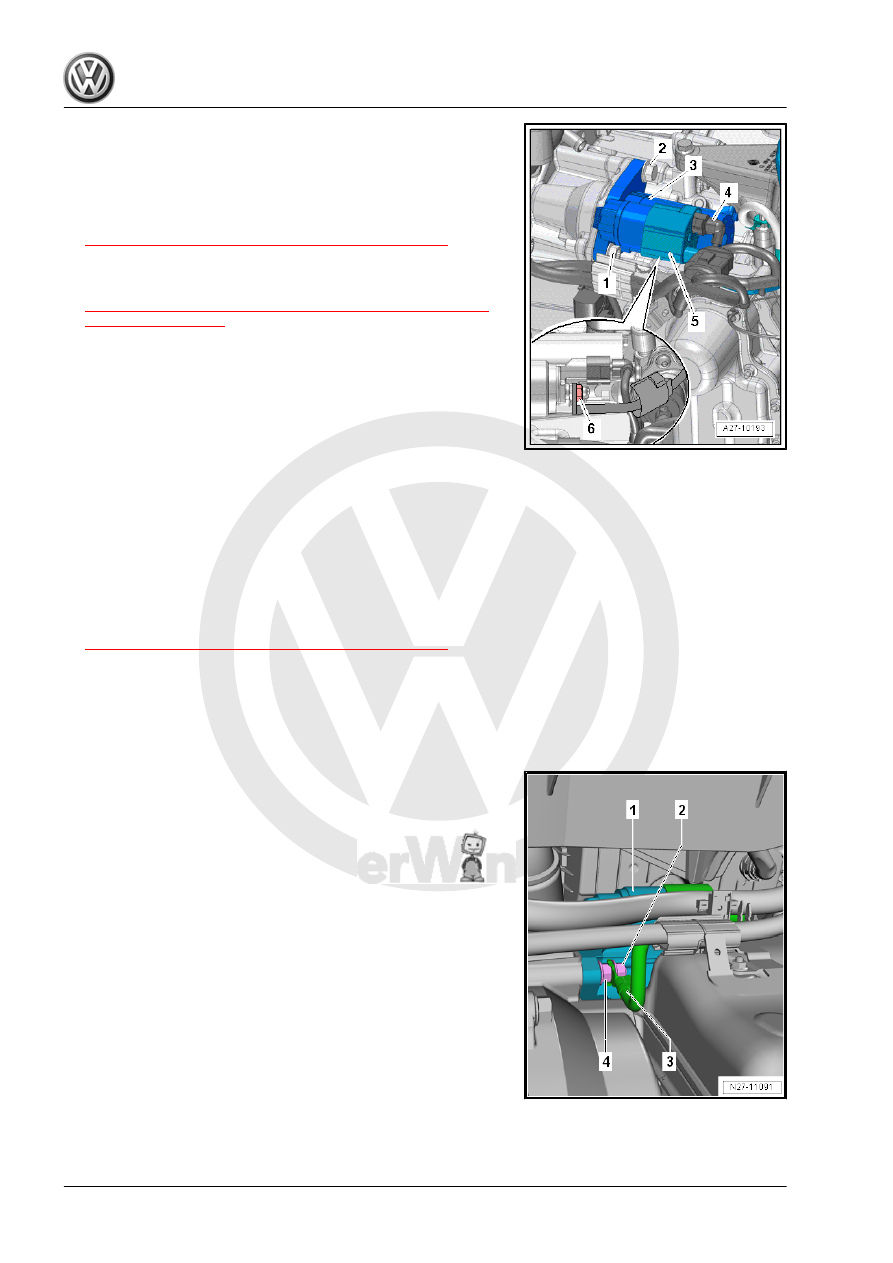

– Remove the nut -1- from the upper bolt of the Starter - B- .
– Remove the ground cable -2-.
– Disconnect the connector -4-.
– Remove the cap -5-.
– Remove the nut -6- and terminal 30/B+.
– Remove the Starter - B- -3- bolts -1 and 2-.

– Remove the Starter - B- -3- upward.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Connect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

Tightening Specifications
♦ Refer to

⇒ “3.1.2 Overview - Starter, Vehicles with DSG Transmission

DQ200–7F”, page 31

3.2.3

Starter, Removing and Installing, Vehi‐

cles with DSG Transmission DQ250-6F

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

– If necessary, remove the air filter housing. Refer to ⇒  Rep.

Gr.  23 ; Air Filter; Air Filter Housing, Removing and Installing

or ⇒  Rep. Gr.  24 ; Air Filter; Air Filter Housing, Removing and

Installing .

– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  66 ; Noise Insulation; Overview - Noise Insulation .

– Remove the nut -2- from the lower bolt for the Starter - B-

-1-.

– Remove the ground cable -3-.
– Remove the Starter - B- -1- bolt -4-.
– Disconnect the connector -3-.
– Remove the cap -4-.
– Remove the nut -5- and terminal 30/B+.
– Remove the bolt -1- for the Starter - B- -2-.
