80-30
Prerequisites: Adjusting Fig. 3 Central flap cable, Central flap lever correctly adjusted
Page 80-21 ,
Fig. 1
Heating and ventilation controls are installed. Connecting duct removed

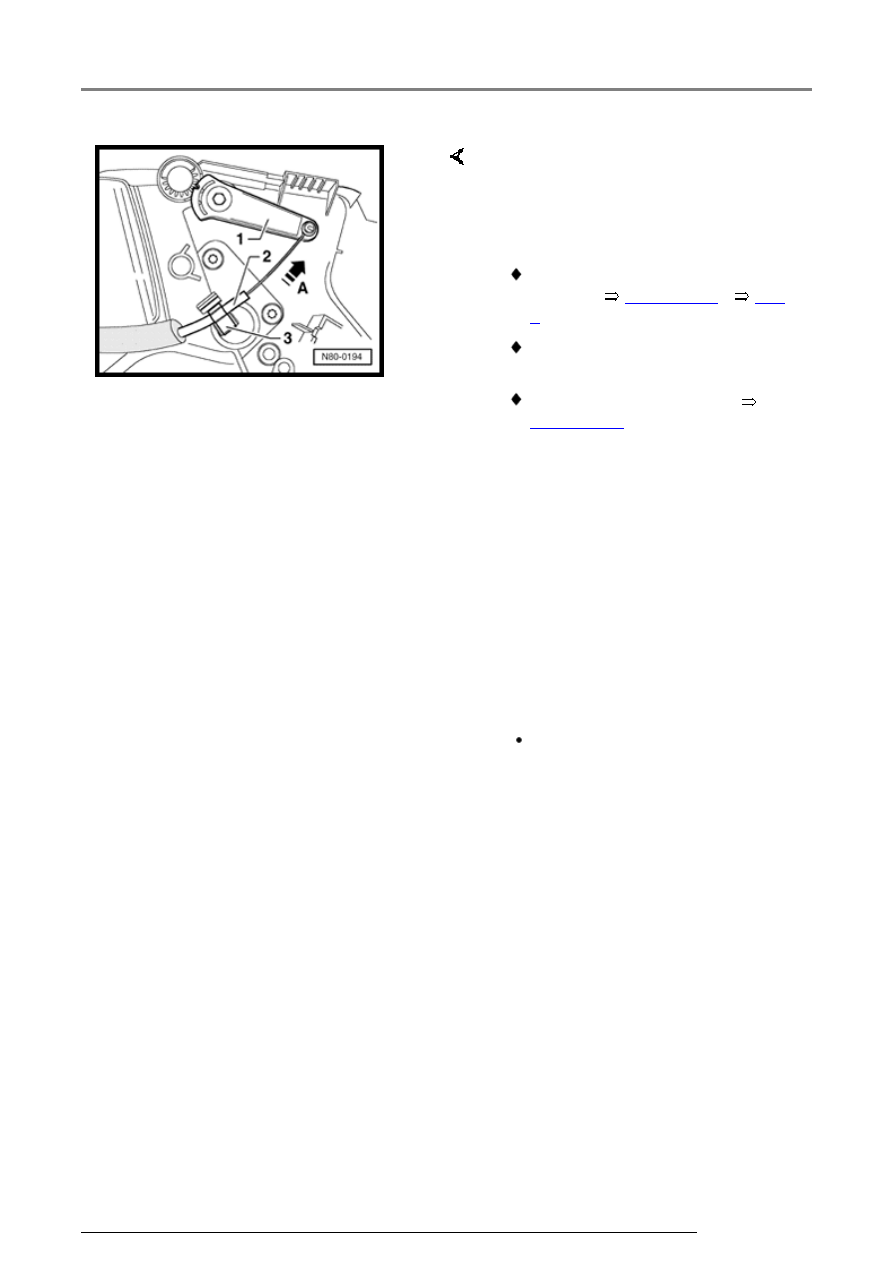

Page 80-10 . - Turn air distribution rotary control knob to left onto stop. - Attach center wire of cable -2- to central flap lever -1- . - Push central flap lever to stop - arrow A- and attach outer cable - - Turn air distribution rotary control knob to left and right onto stops. When turning the rotary control knob both end stops must be Heating and ventilation system, servicing 13/2/2005 |
