Volkswagen Golf / Golf GTI / Jetta. Manual - part 805

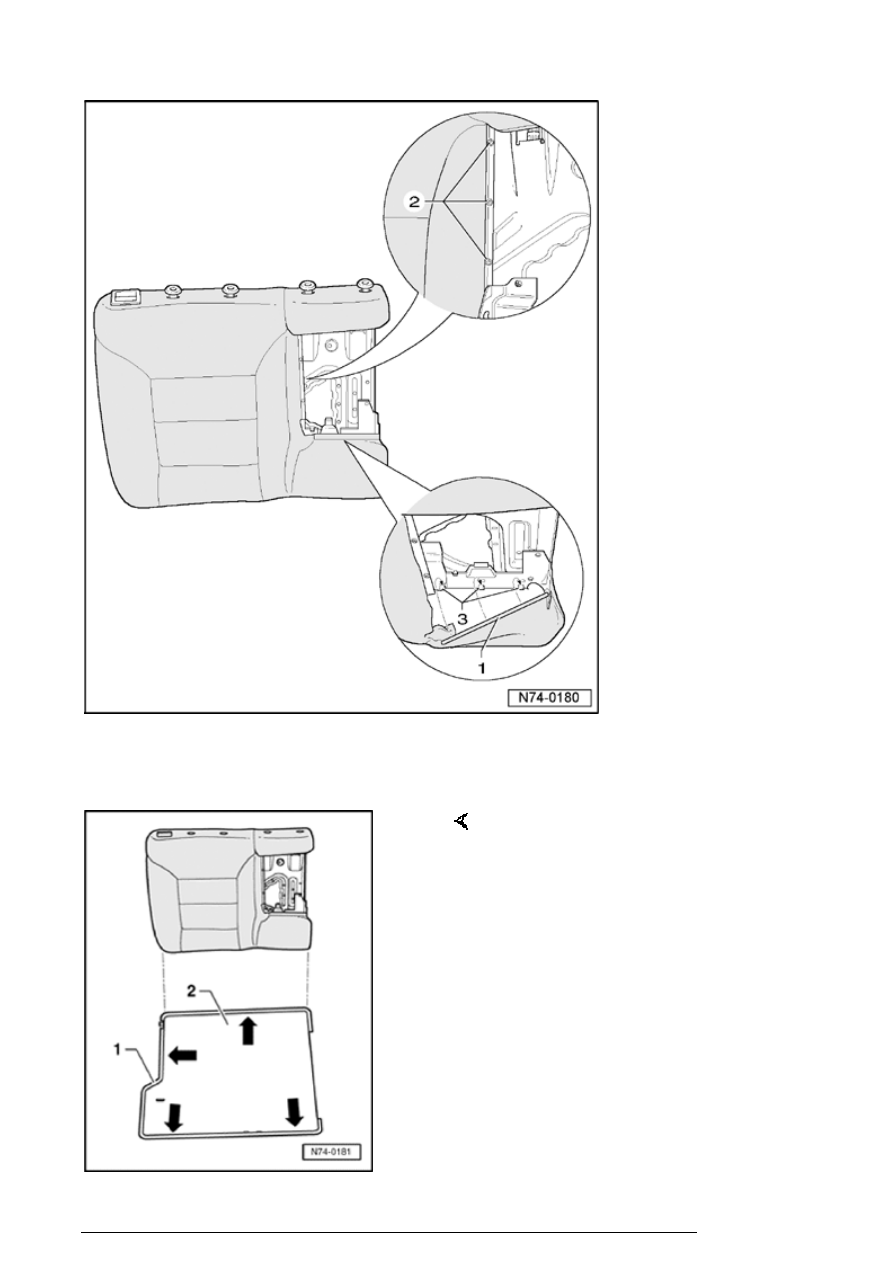

- Remove beading - 1 - from locking
hooks - 3 - .

Rear seat upholstery and cover

13/2/2005



- Pull up cover - 1 - all around and remove from backrest
frame - 2 - - arrows - .

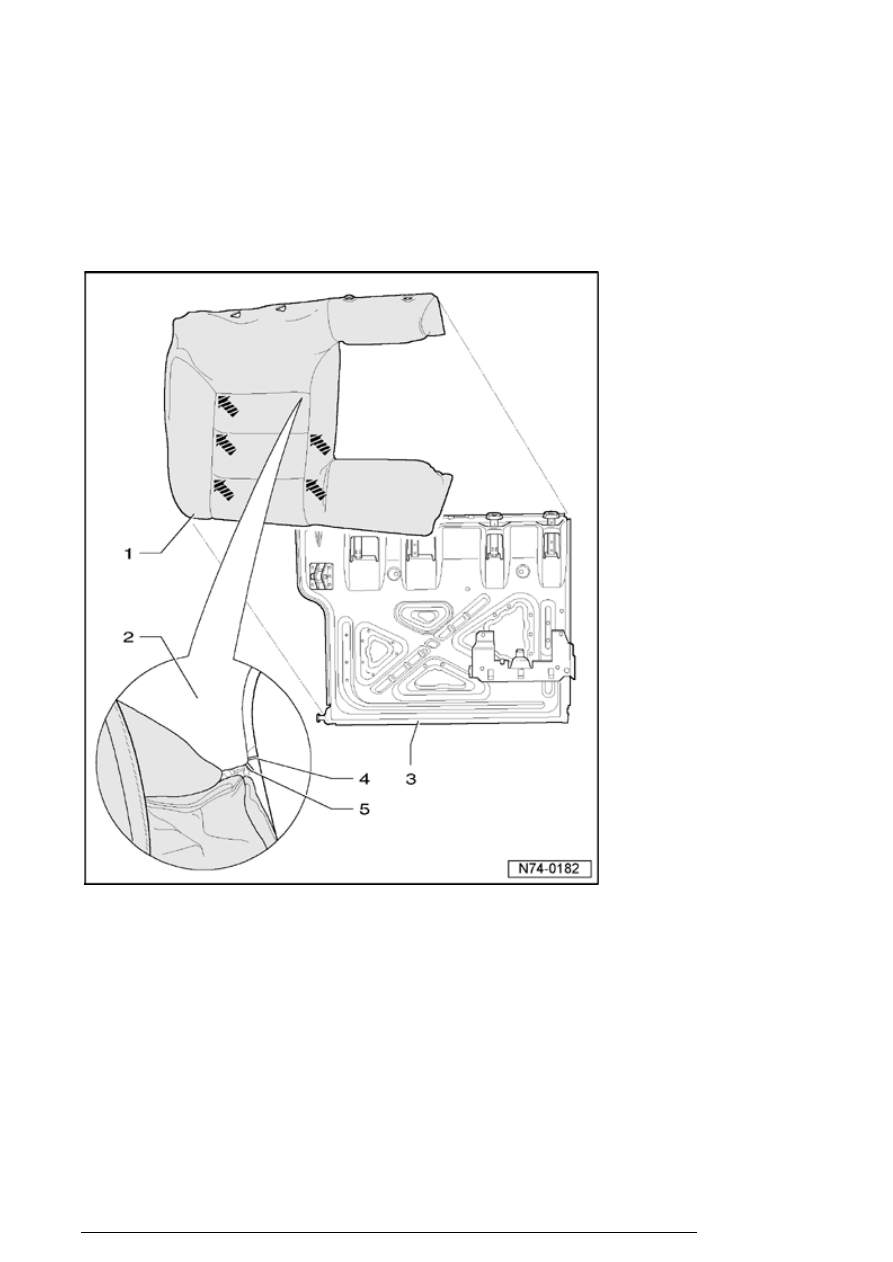

- Remove cover - 1 - and cushion - 2 -
from backrest frame - 3 - .

- Separate tension wire - 4 - and
upholstery wire - 5 - - arrows - .

- Remove cover - 1 - from cushion - 2 - .

Installing

- Installation is reverse of removal.
