Seatbelts



Safety precautions for seatbelt tensioners



n

Testing, removing, installing and servicing may ONLY
be performed by qualified personnel.



n

NEVER open or attempt to repair belt tensioner
components; always use new parts (danger of injury).



n

Seatbelt tensioner units that have been hit with any
force or have fallen to floor, must not be installed in a
vehicle.



n

Always replace belt tensioner units which have
experienced mechanical damage (dents, cracks).



n

Storage and transportation of belt tensioners must
comply with Explosives Act. .



n

distributor or importer is responsible for disposal of
non-ignited units.



n

ALWAYS install belt tensioner units in vehicle, as
soon as y are removed from packaging.



n

NEVER use impact wrenches to remove belt
tensioners.



n

If installation work is interrupted, IMMEDIATELY
return belt tensioner unit to its original packaging.



n

NEVER leave a belt tensioner unattended.



n

NEVER treat a belt tensioner unit with grease,
cleaning products or anything similar. Do NOT expose
belt tensioner unit to temperatures above 212   F
(100   C) even for a few seconds.



n

pyrotechnic ignition charge does not have an
expiration date, i.e. it has an infinite shelf life and is
maintenance free.



n

Belt tensioners that have ignited can be disposed of
as normal scrap. It is recommended, however, that
deployed seat belt tensioners be recycled.

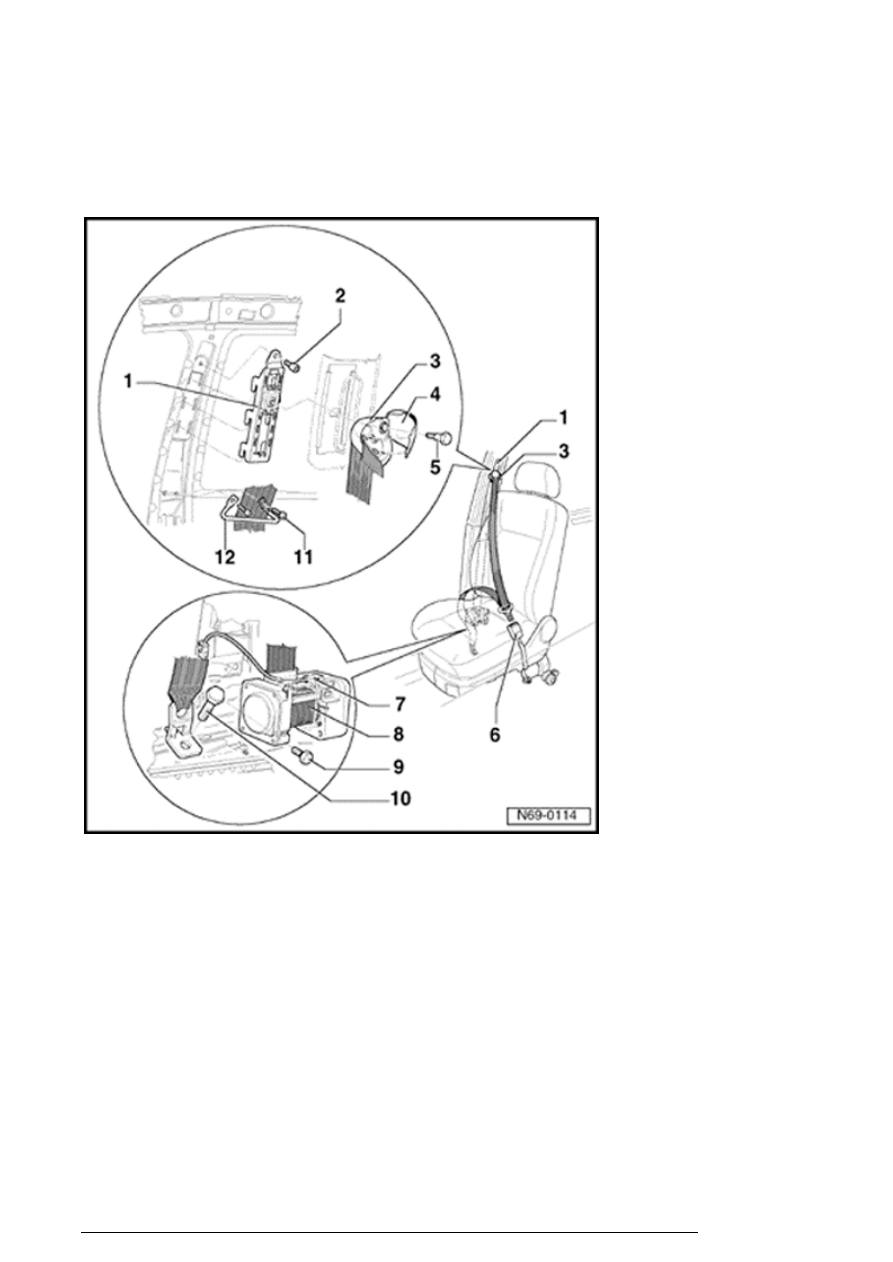

Front seatbelt, assembly overview (with belt
tensioner)



Seatbelts

13/2/2005



Caution!

Before beginning disassembly, straightening or or
body repair work, belt tensioning units must be
removed.

1. Seatbelt height adjuster

¡

To remove height adjustment
mechanism, upper B-pillar trim
must be removed first



2. Cylinder bolt

¡

23 Nm



3. Belt relay

4. Concealment cap

5. Hex bolt

Seatbelts

13/2/2005

¡

40 Nm



6. Belt latch

7. Connector

¡

Only with electrical belt
tensioners



8. Seatbelt with belt tensioner

¡

Removing



69-1, Front

seatbelts, removing and
installing





9. Hex bolt

¡

40 Nm



10. Hex bolt

¡

40 Nm



11. Screws

¡

Qty. 2, 1.5 Nm



12. Belt guide

Front seatbelts, removing and installing



Note:

n

Removal and installation is described for right side of
vehicle. same instructions apply for removal and
installation for left-hand side.



n

Two different belt tensioners are installed: Belt
tensioners with electrical igniters in vehicles with side
airbag and belt tensioners with mechanical igniters in
vehicles without side airbag.



Removing



- Disconnect vehicle battery



Seatbelts

13/2/2005





Repair Manual, Electrical Equipment, Repair Group 27,

disconnecting and connecting battery



- Remove lower B-pillar trim



70-3, Lower B-pillar trim,

removing and installing

 .

- Remove sill panel trim:

n

2door



68-3, Sill panel trim, removing and installing

(2-door)

 .



n

4door



68-3, Sill panel trim, removing and installing

(4-door)

 .



Caution!

Observe safety precautions for belt tensioners



69-1,

Safety precautions for seatbelt tensioners

 .

- Remove bolt - 10 - (40 Nm) and remove
belt mount from body.

- Remove screw - 9 - (40 Nm) and remove
automatic belt retractor - 8 - off B-pillar.

Caution!



Electrostatic charges may result in
involuntary deployment of belt
tensioner. Therefore, mechanic must
be electrostatically discharged before
disconnecting ignition- and Ground
(GND) wires. This is done e.g. by
briefly grasping chassis or door
striker.

- Disconnect harness connector - 7 - .

- Remove two bolts - 11 - (1.5 Nm) and
remove belt guide - 12 - .

- Clip on cover cap - 4 - for belt relay - 3 -
.
