- Fasten spoiler using a screw on each of outer holes
drilled.

Tightening torque (1.5 Nm)


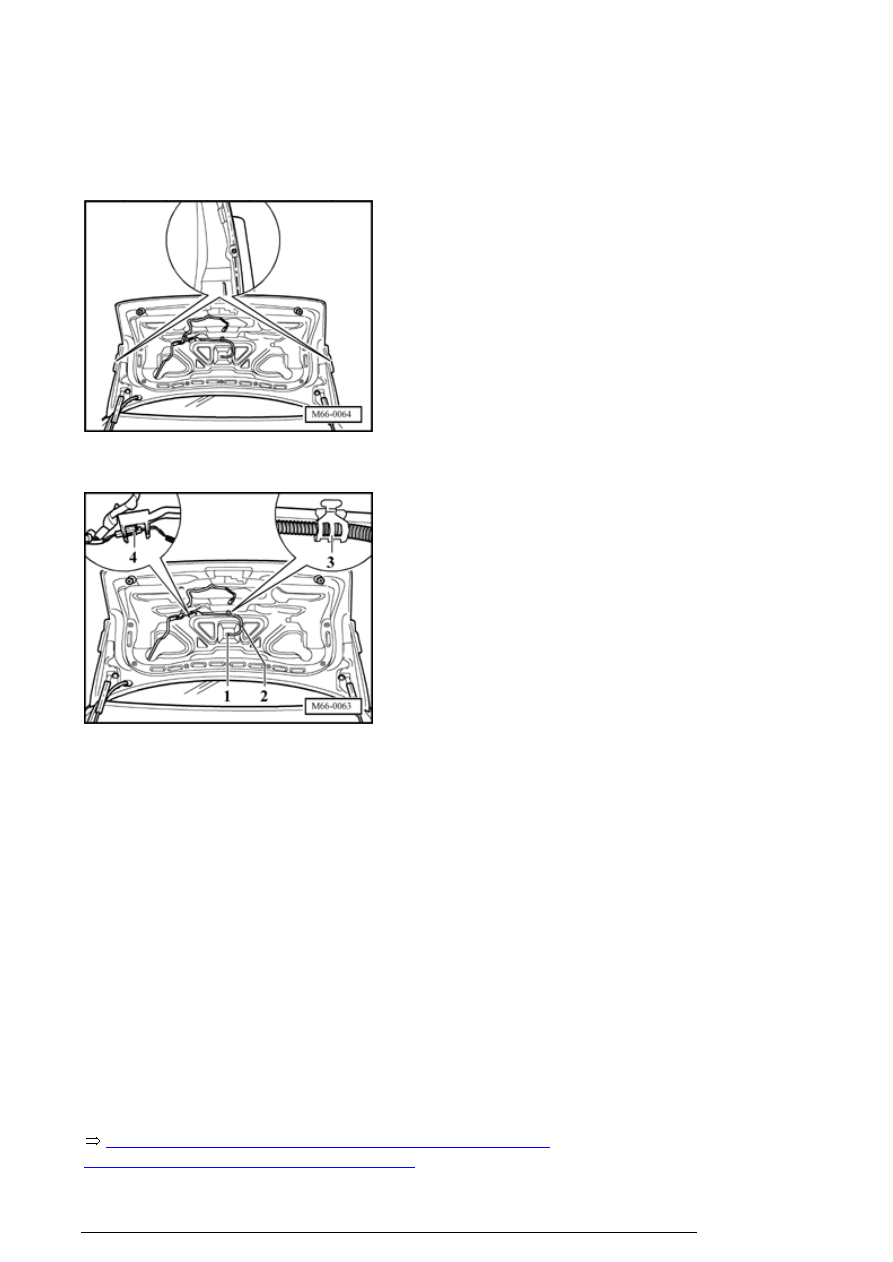

- Pass cable through center rectangular hole inside rear lid
- 1 -

- Apply electrical terminals and connectors following Wiring
harness repair kit VAS 1978 instructions

- Insert wiring into hose - 2 -

- Attach cable into clip - 3 -

- Connect terminal into harness connector and attach into
connector holder - 4 -

Note:

To complete rear lid instalation observe following
information:






Repair Manual, Body Interior, Repair Group 70, Rear lid

trim, Rear lid trim, removing and installing



Rear spoiler with integrated stoplight

13/2/2005










Repair Manual, Body Exterior, Repair Group 55, Hood,

Lids; Rear lid (Jetta)



Removing



Note:

To remove observe instructions on



66-7, Removing





Rear spoiler without rear lid change,
removing and installing



Removing



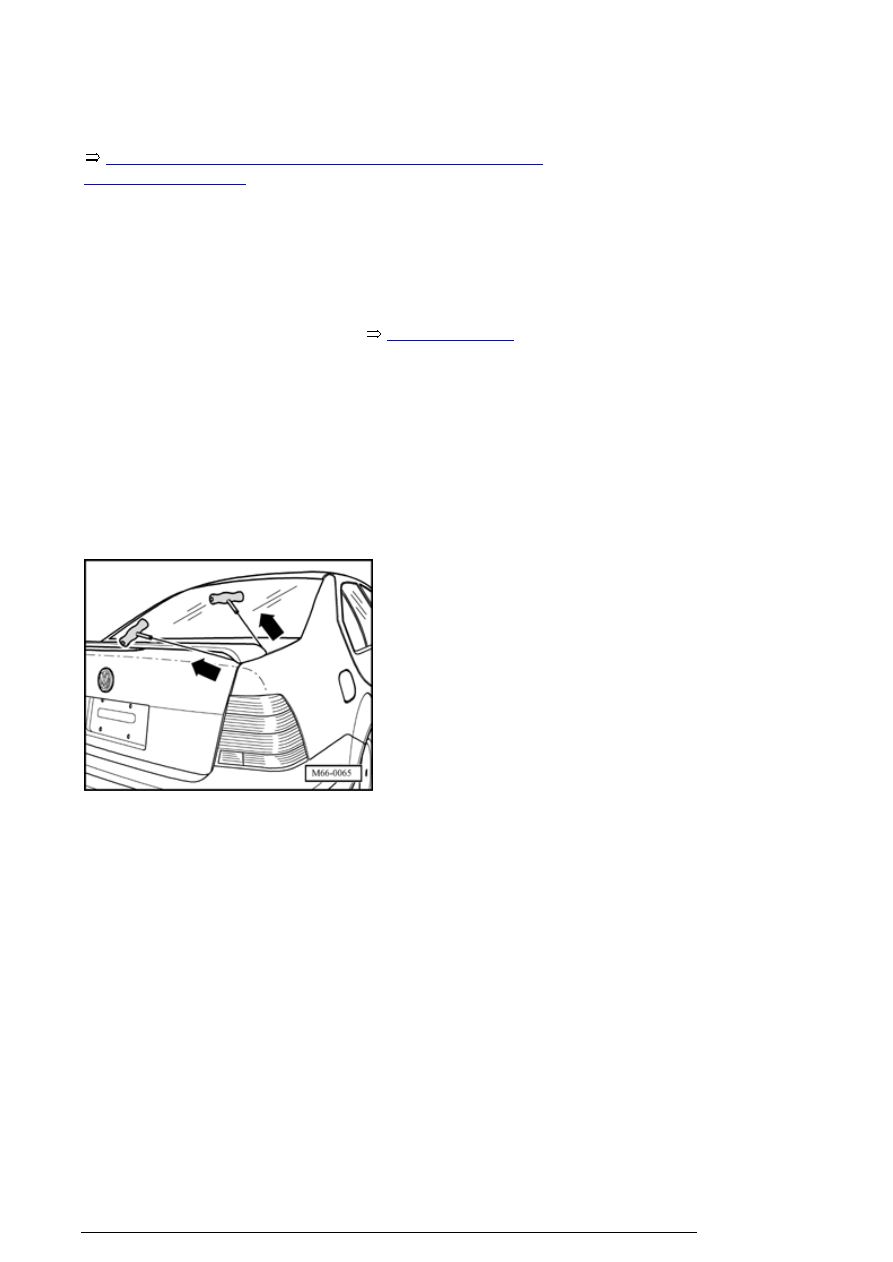

- Pull cutting wire sideways underneath spoiler as well as
into two pulling handles from Cutting tool V.A.G1351

- Cut spoiler free following direction of - arrows - , until
cutter reaches screws on external drilled holes

- On center of spoiler base, cut without restraints

- Remove attaching screws

Installing



Note:

When reusing an undamaged rear lid, avoid removing all
adhesive residual material on lid

Residual material acts as an adhesive base for newly
applied adhesive sealant


Rear spoiler with integrated stoplight

13/2/2005

- Install stoplight into spoiler



66-7, Stoplight, removing

and installing



- Install spoiler



66-7, Installing



Rear spoiler with integrated stoplight

13/2/2005

66 - 8



Special components of Golf "GTI 337
Edition"/Jetta GLI Sport and Golf R32



Safety precautions



These components have been developed specifically for
technical requirements of Golf "GTI 337 Edition" and Jetta
GLI Sport and R32. Each of these components must be
replaced in any case with corresponding original part.

Without these components, vehicle may not be driven in
open traffic.


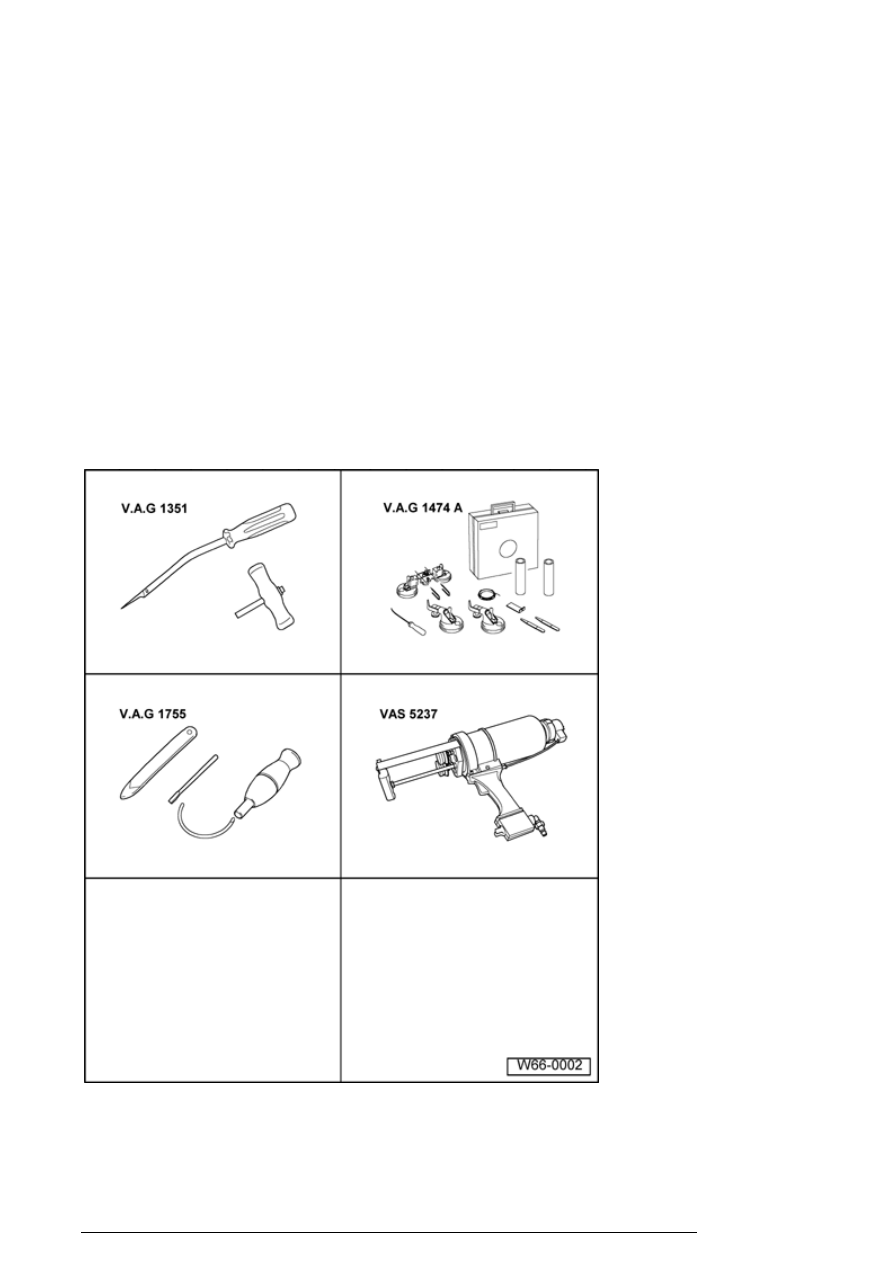

Tools



Special tools, testers and auxiliary items
required

Cutting tools for glass V.A.G1351

Special components of Golf "GTI 337 Edition"/Jetta GLI Sport and Golf R32

13/2/2005
