39-31







If the size of shim required is larger
than that listed in the table, insert
two shims totalling the correct
figure.





Varying tolerances make it possible
by measuring the shims to obtain the
exact shim thickness required.



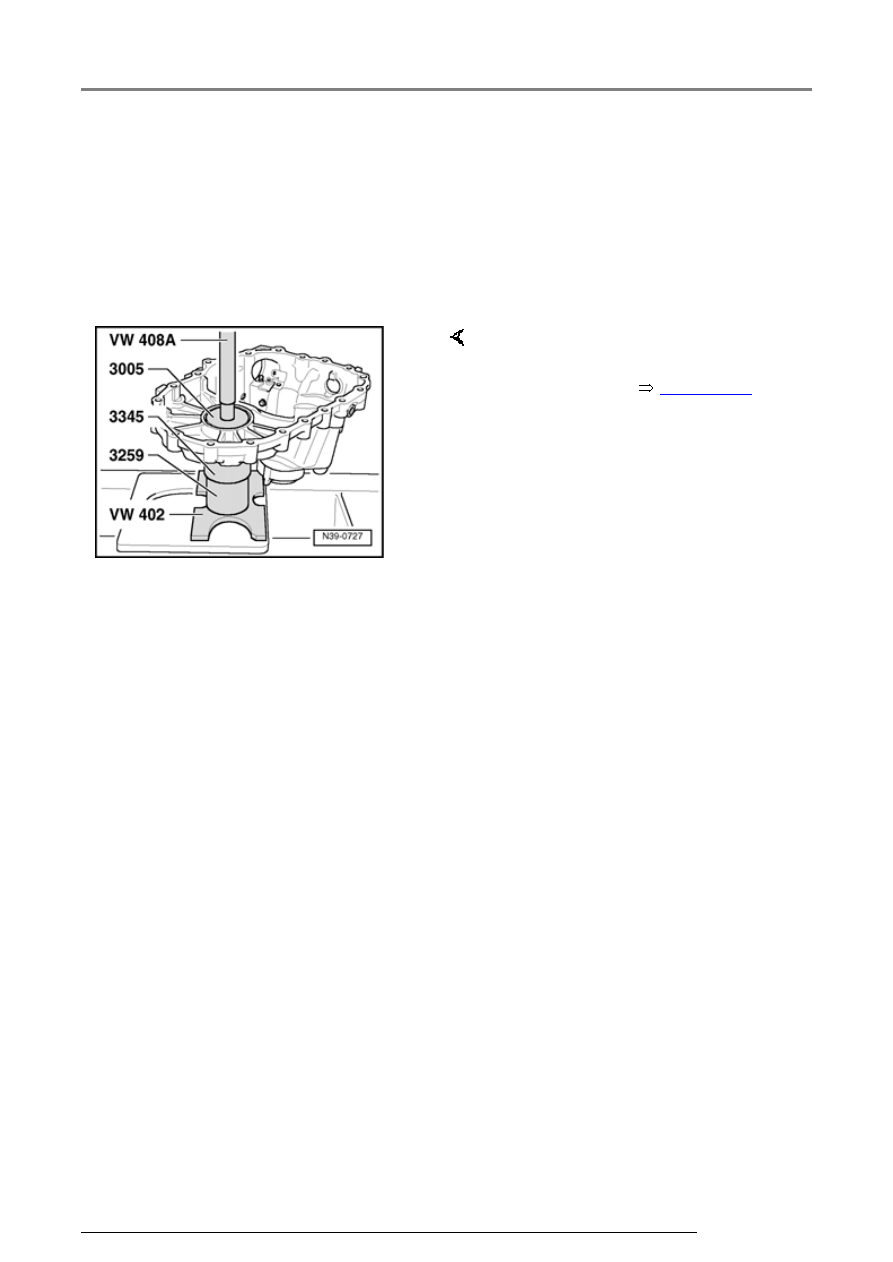

-  Press outer race in again and

tighten transmission housing to
torque setting



Page 34-60

 item

13 .

Differential, adjusting

Select a topic



01 - On Board Diagnostic (OBD)



ABS ITT Mark 20 IE On Board Diagnostic (OBD)



Function



Identifying characteristics



Safety precautions



On Board Diagnostic (OBD) with V.A.G 1551 Scan Tool or Tester
VAS 5051 (flow chart)



Electrical/electronic components and locations



Diagnostic Trouble Codes (DTC) displayed by warning lights  -K14-, -
K47- and -K118-



ABS ITT Mk 20 IE On Board Diagnostic (OBD) program



V.A.G 1551 Scan Tool, connecting and selecting function



Diagnostic Trouble Code (DTC), memory



Automatic test sequence



Vehicle Diagnosis, Testing and Information System VAS 5051,
connecting and selecting ABS control module



Diagnostic Trouble Code (DTC) table



Diagnostic Trouble Code (DTC) memory, erasing and ending output



ABS control module, coding



Measured value block, reading



Safety precautions



Output Diagnostic Test Mode (DTM)



Basic setting, initiating



ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical
check



Multi-pin connector with contact assignment



Test table



Brake light switch, adjusting



ABS Mark 60 On Board Diagnostic (OBD), vehicles from my
10.00



Function



Arrangement of ABS MARK 60



Safety precautions and fundamental points regarding
troubleshooting



Troubleshooting with V.A.G 1551 scan tool or tester VAS 5051 on
ABS Mark 60 (flow chart)



Electrical/electronic components and installing locations



Diagnostic Trouble Codes (DTCs) displayed by warning lights  -
K47-, -K118- and -K155-



On Board Diagnostic (OBD), performing



Test prerequisites for OBD



Safety precautions



Brake System On Board Diagnostic (OBD)

Scan tool, connecting



V.A.G 1551 scan tool, connecting and selecting function



List of selectable functions



Automatic test sequence



Diagnostic Trouble Code (DTC) memory, checking



Output Diagnosic Test Mode (DTM)



Diagnostic Trouble Code (DTC) table



Diagnostic Trouble Code (DTC) memory, erasing and ending output



ABS control module, coding



Vehicle data label



Measured value block, reading



Output Diagnosic Test Mode (DTM)



Basic setting, initiating



Login procedure



Electrical check of Mark 60



Multi-pin connector with contact assignments



Test table (test steps 1 - 16)



Test table (test steps 17 - 23)



Definitions



Additional Information

System Overviews

Other Topics

CAN-BUS Operation



ESP Operation



VAS 5234 Setup and Operation



Brake System On Board Diagnostic (OBD)

01-1







ABS ITT Mark 20 IE On
Board Diagnostic (OBD)





Function





   Since the control modules are

interconnected with CAN-bus, always begin
OBD by checking the Diagnostic Trouble
Code (DTC) memories of all the control
modules in the vehicle.



   This occurs in the Automatic test sequence

and is activated with key function 00.



   When doing this, check to see if there are

DTCs stored which may influence the ABS.



   On Board Diagnostic (OBD) relates to the

electrical/electronic part of the ABS, i.e. only
malfunctions via the electrical connection to
the control module are recognized (e.g.
speed sensor open circuit).



   The 25-pin ABS Control Module (w/EDL) -

J104- forms with the hydraulic unit a
compact unit. The unit is located on the left
in the engine compartment. The control
module is equipped with a DTC memory.
The diagnostic connection is located in the
center console below the heating/air
conditioning controls.



   The control module recognizes malfunctions

during vehicle operation and stores them in
a permanent memory, the contents of which
remain even during periods of no battery
voltage.

ABS ITT Mark 20 IE On Board Diagnostic (OBD)
