34-71





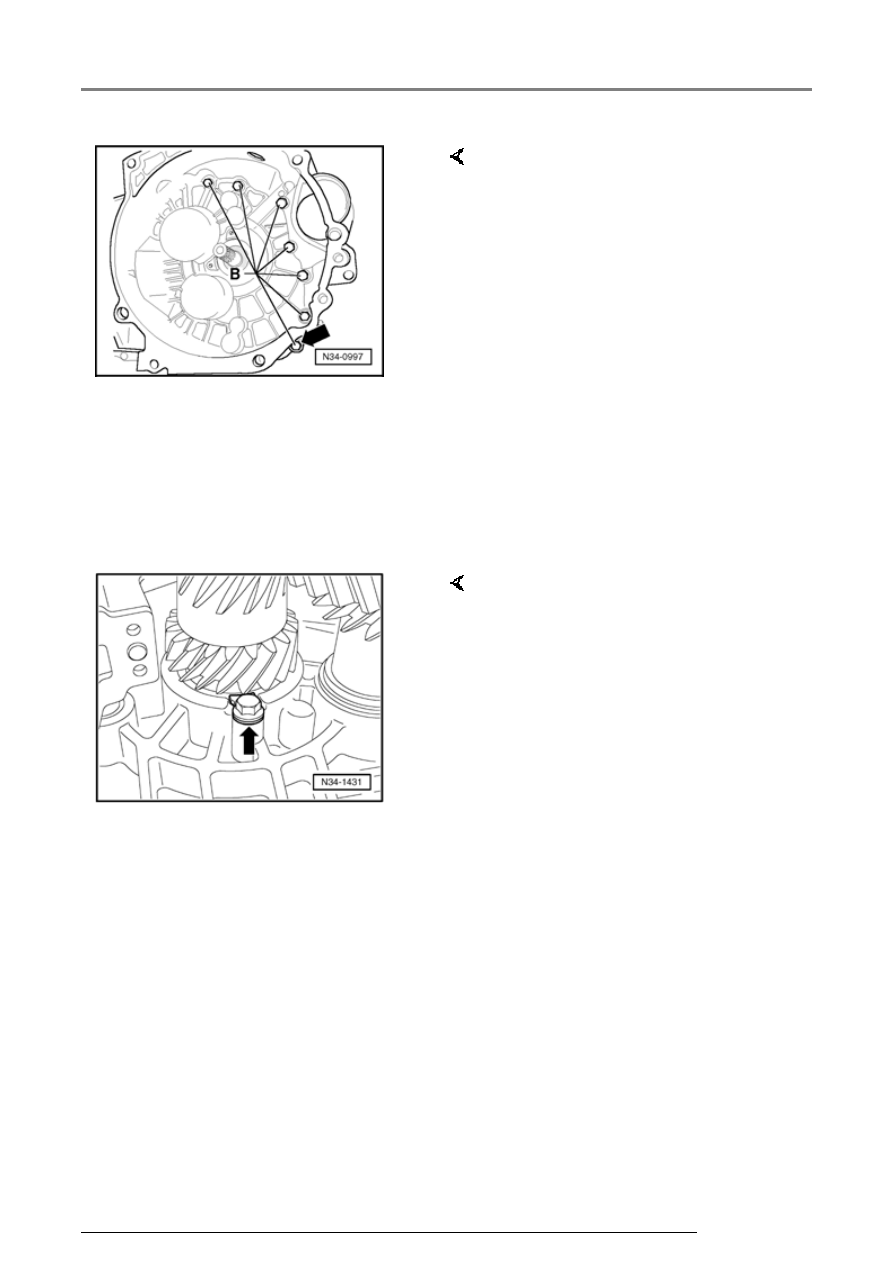

Note:

The hex bolt (arrow) is located
outside the bolting flange. It is
installed with a washer.

For transmissions from build date
06 04 0

-  Remove bolts -B- inside clutch

housing for securing clutch
housing to transmission housing.

-  Take off transmission housing. If

necessary, carefully pry up all
around and alternating between
sides on protruding flange taking
care not to damage sealing
surfaces.



-  Unscrew locking plate bolt (arrow)

(outer race/tapered roller bearing
from input shaft).

-  Remove locking plate.

Transmission, disassembling and assembling

34-72







Continued for all transmissions



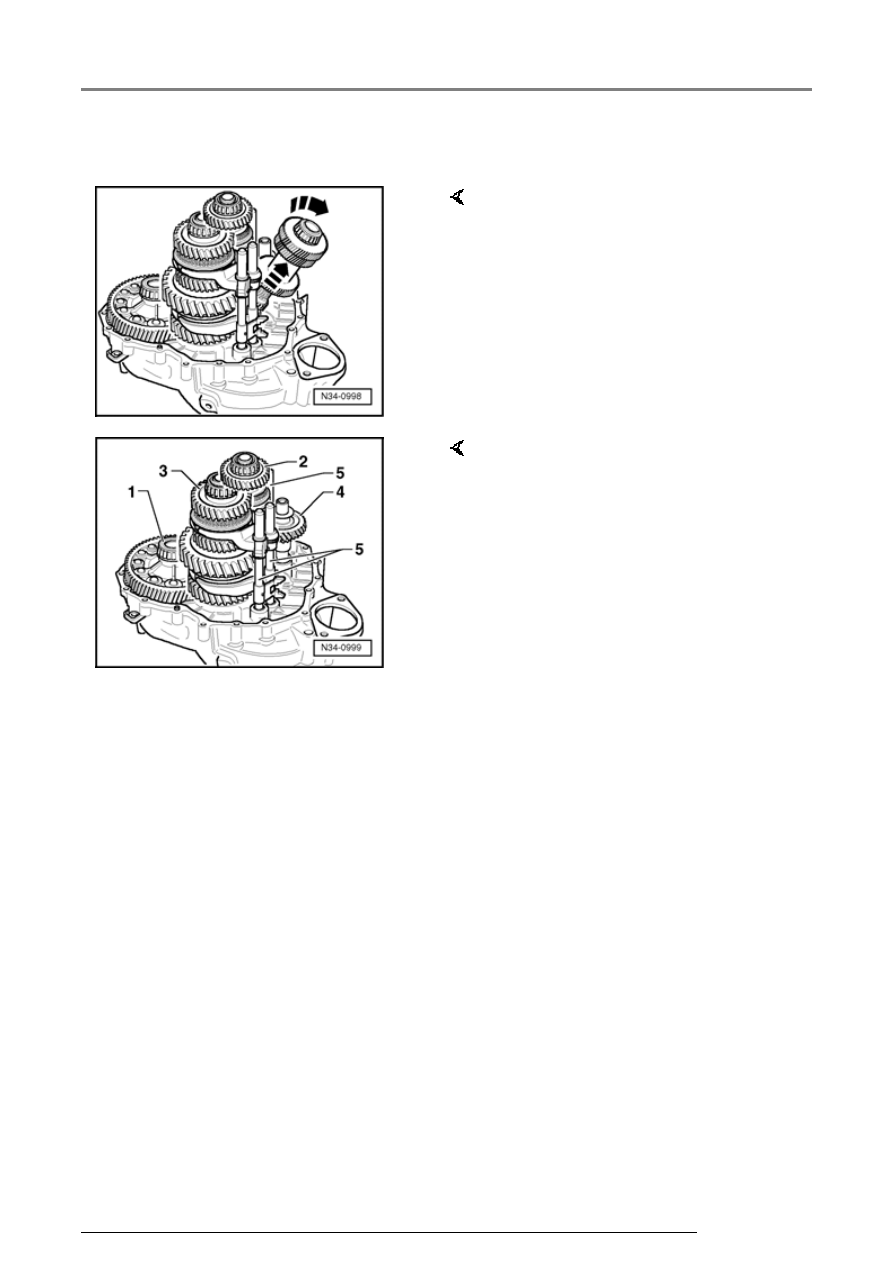

-  Swing input shaft in direction of

arrow and take off.

-  Remove speedometer drive.



-  With help of a second technician,

remove differential -1-, output
shafts -2- and -3-, reverse shaft -
4- and selector rods -5- together
from clutch housing.

-  Drive out input shaft oil seal with

sleeve 30-21.

Transmission, disassembling and assembling

34-73

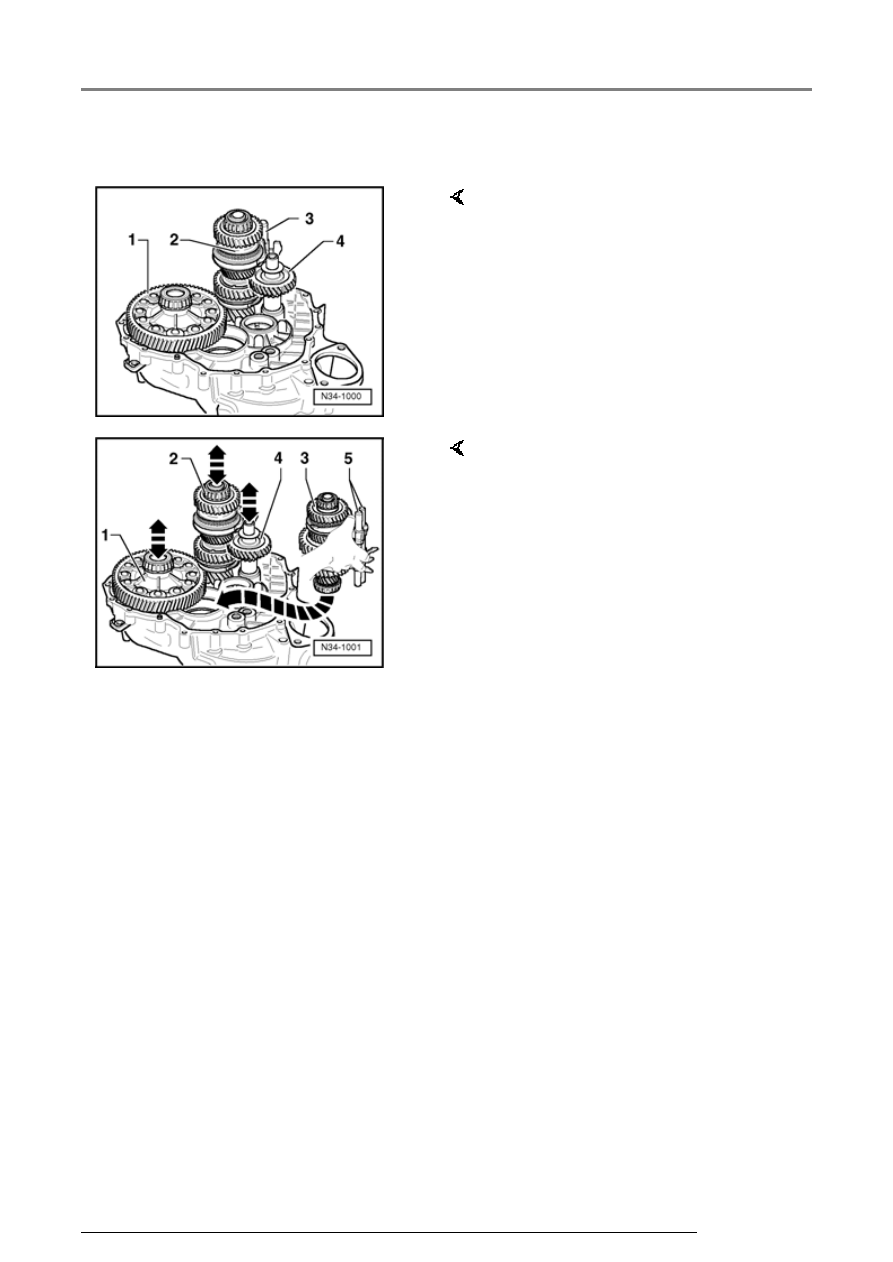

Assembling



-  Install differential -1-.

-  Install 5th, 6th and reverse gear

output shaft -2- together with
reverse selector fork, 5th, 6th and
reverse gear selector rod -3- and
reverse shaft -4-.



-  Take 1st-4th gear output shaft -3-

with selector rods -5- in right hand
as illustrated.

-  With left hand, lift differential

slightly.

-  At same time, have a second

technician slightly lift 5th, 6th and
reverse gear output shaft together
with reverse shaft -4-.

-  Insert 1st-4th gear output shaft in

direction of arrow.

   Toothing of output shafts and final

drive gear/differential must mesh.

Transmission, disassembling and assembling

34-74

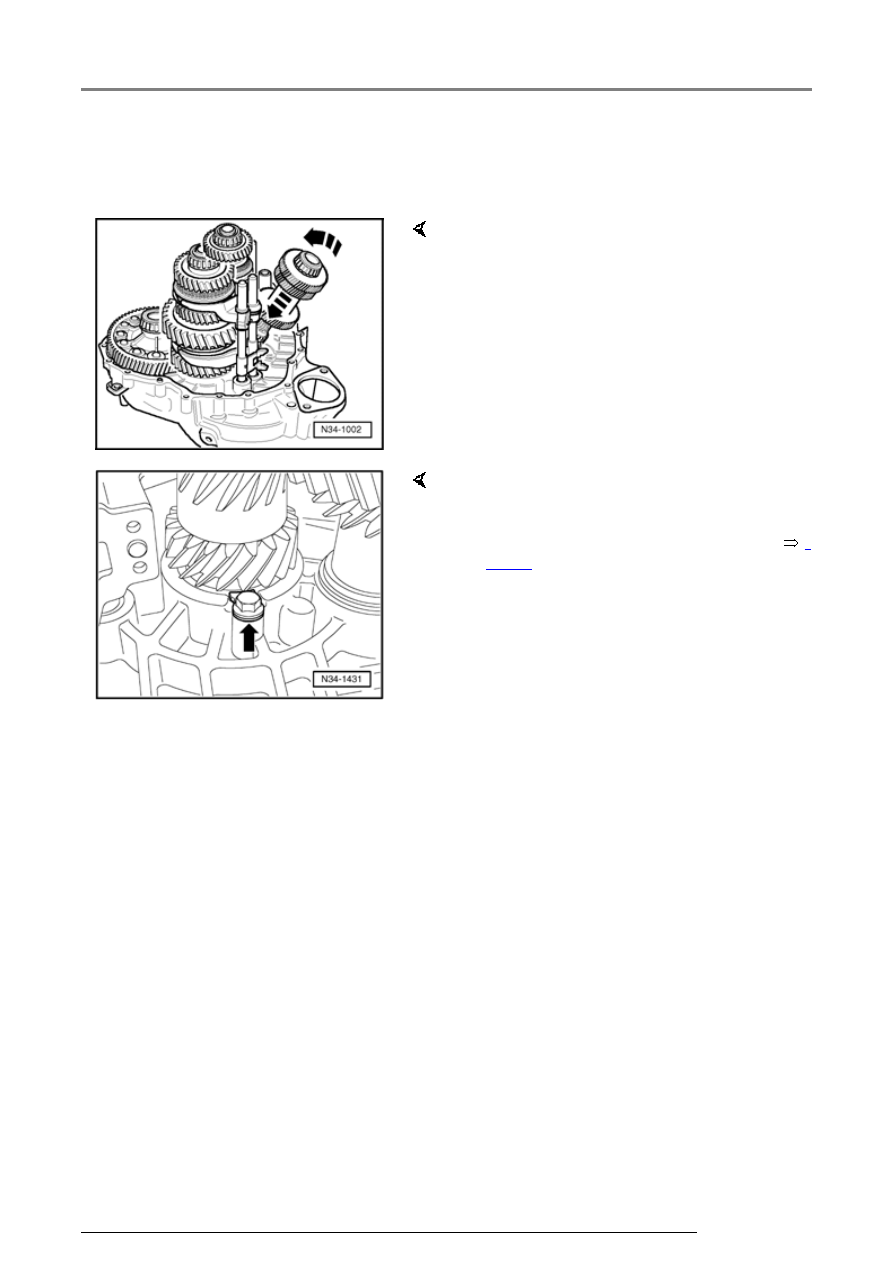

-  Together with second technician, place shafts in

their bearing seats.



For transmissions from build date 06 04 0

-  Set input shaft in clutch housing and swing in

(arrow).

-  Install transmission housing.



Continued for all vehicles

-  Insert locking plate (arrow) in outer race/tapered

roller bearing recess for input shaft.

-  Tighten new bolt to tightening torque



Page

34-62

 , item 11

-  Install transmission housing.

Transmission, disassembling and assembling
