Volkswagen Golf / Golf GTI / Jetta. Manual - part 136





01-123





If no electrical or wiring concerns are
found:

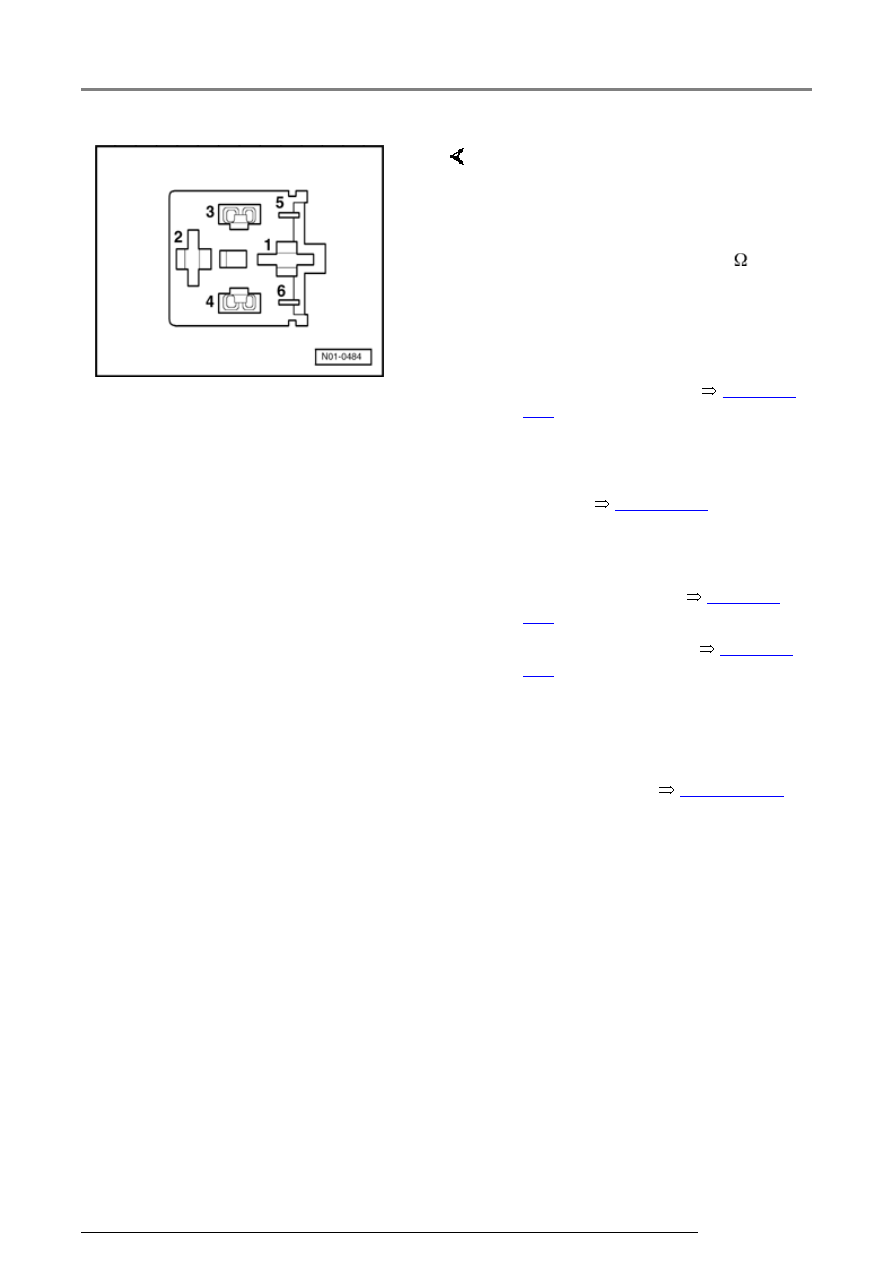

-  Check wire for open circuit

between test box socket 46 and
terminal 4 on relay plate referring
to Electrical Wiring Diagrams.

   Wire resistance: max. 1.5



-  Replace Motronic Engine Control

Module (ECM) -J220-



Page 24-

173

 .

-  Check DTC memory, repair

Diagnostic Trouble Codes (DTCs)
if necessary and then erase DTC
memory



Page 01-23

 , DTC

memory, checking and erasing.

-  Erase learned values and adapt

Motronic Engine Control Module
(ECM) -J220- again



Page 24-

182

 .

-  Read readiness code



Page 01-

146

 . If the DTC memory has

been erased or the Motronic
Engine Control Module (ECM) -
J220- was disconnected from
battery (B+) positive, the
readiness code must be
generated again



Page 01-149

 .

Output Diagnosis Test Mode (DTM)

01-124







4. Activating Intake Manifold
Change-Over Valve -N156-:






-  Press

 button.

Output Diagnosis Test Mode

Intake Manifold Change-Over Valve -N156-

     Indicated on display:

Note:

If there is sufficient vacuum the
Intake Manifold Change-Over Valve
-N156- activates the intake manifold
change-over valve actuator. The
change-over valve is located below
the intake manifold, on right next to
the Secondary Air Injection (AIR)
Solenoid Valve. Checking variable
intake manifold change-over



Page

24-117

 .

If the valve does not click:

   The Intake Manifold Change-Over

Valve must click until the next
final control element is activated
by pressing

button.



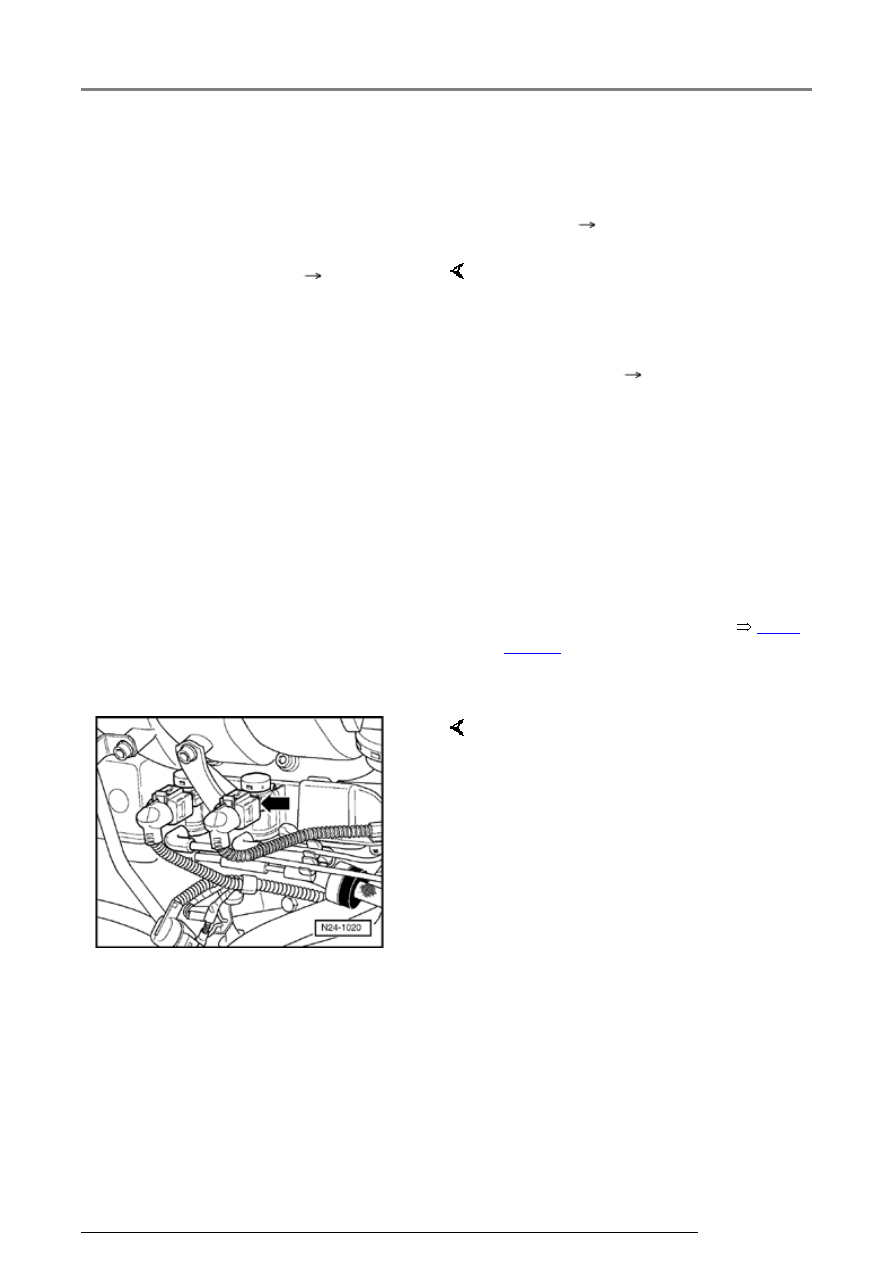

-  Disconnect 2-pin connector from

Intake Manifold Change-Over
Valve -N156- (arrow).

Output Diagnosis Test Mode (DTM)

01-125





LED flashes:

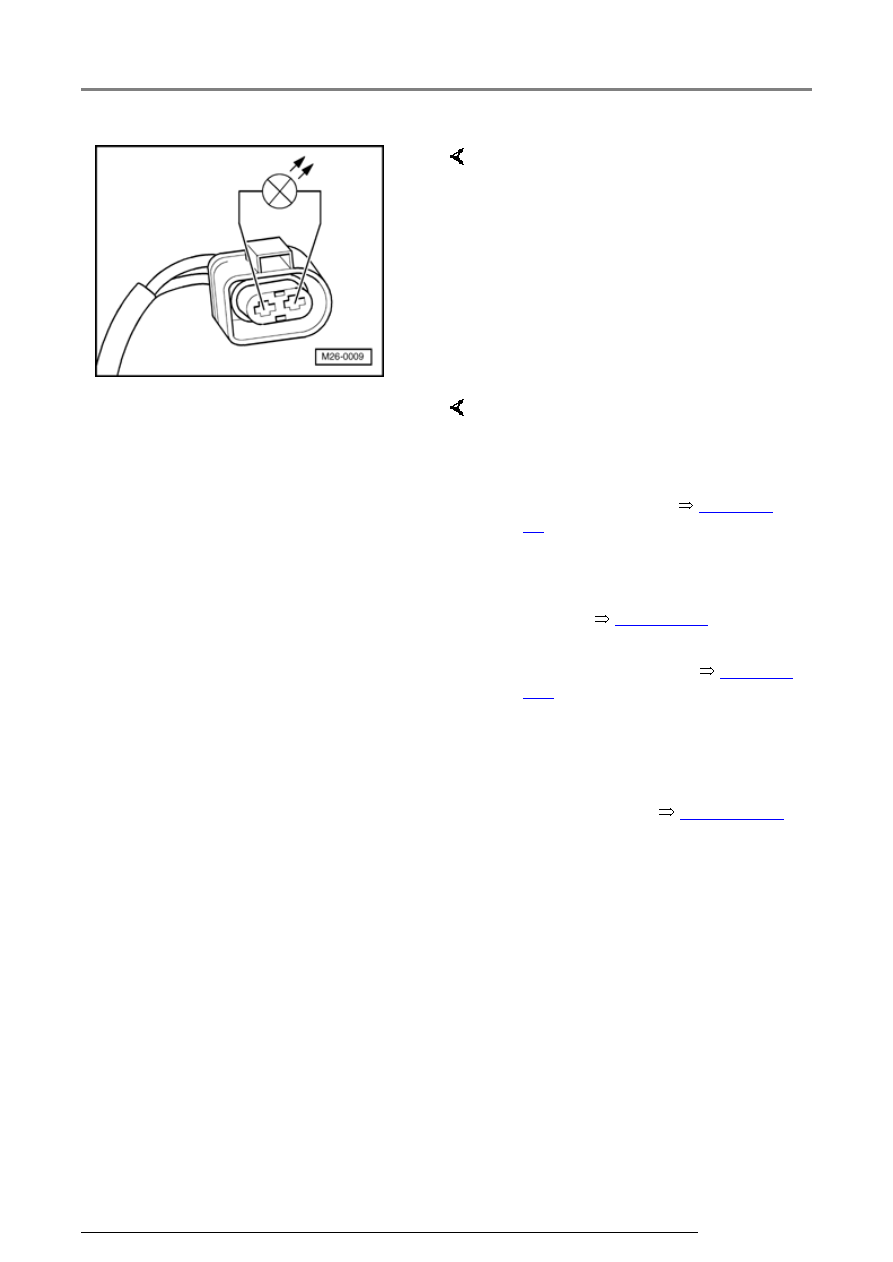

-  Connect LED test light VAG 1527

to detached connector using
adapter cables from VAG 1594.

   LED must flash (bright/darker)

-  Press -C- button to abort output

Diagnosis Test Mode (DTM).

Output Diagnosis Test Mode was aborted

     Indicated on display:

-  Switch off ignition.

-  Replace Intake Manifold Change-

Over Valve -N156-



Page 24-

12

 , item 2 .

-  Check DTC memory, repair

Diagnostic Trouble Codes (DTCs)
if necessary and then erase DTC
memory



Page 01-23

 , DTC

memory, checking and erasing.

-  Read readiness code



Page 01-

146

 . If the DTC memory has

been erased or the Motronic
Engine Control Module (ECM) -
J220- was disconnected from
battery (B+) positive, the
readiness code must be
generated again



Page 01-149

 .

Output Diagnosis Test Mode (DTM)

01-126







LED does not flash:





-  Press -C- button to abort output Diagnosis Test

Mode (DTM).

Output Diagnosis Test Mode was aborted

     Indicated on display:



Repair Manual, Electrical Equipment; Repair

Group 92



-  Switch off ignition.

-  Remove wiper arms and cowl panel:



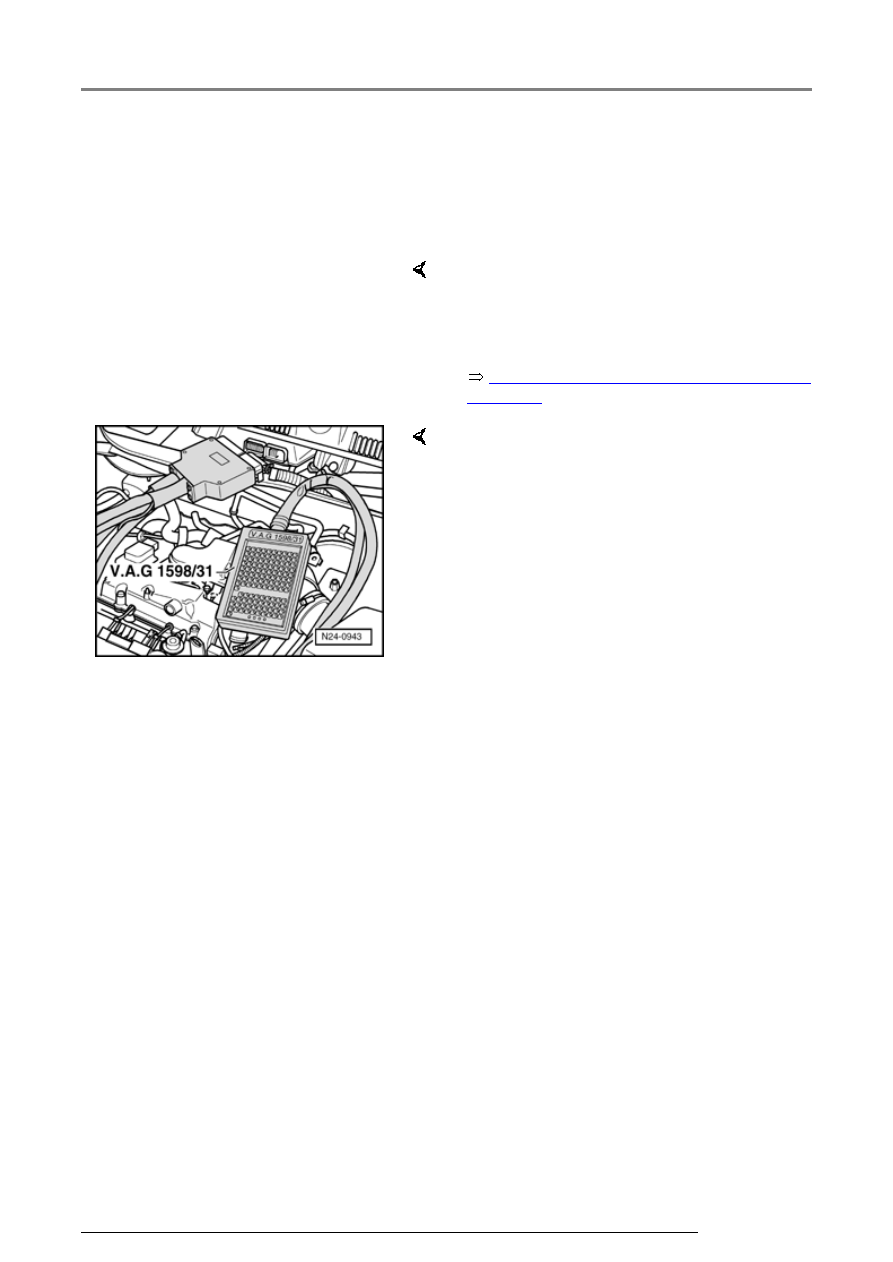

-  Connect test box VAG 1598/31 to control

module wiring harness. Engine Control Module
(ECM) -J220- remains disconnected.

Output Diagnosis Test Mode (DTM)
