Volkswagen Golf / Golf GTI / Jetta. Manual - part 1227

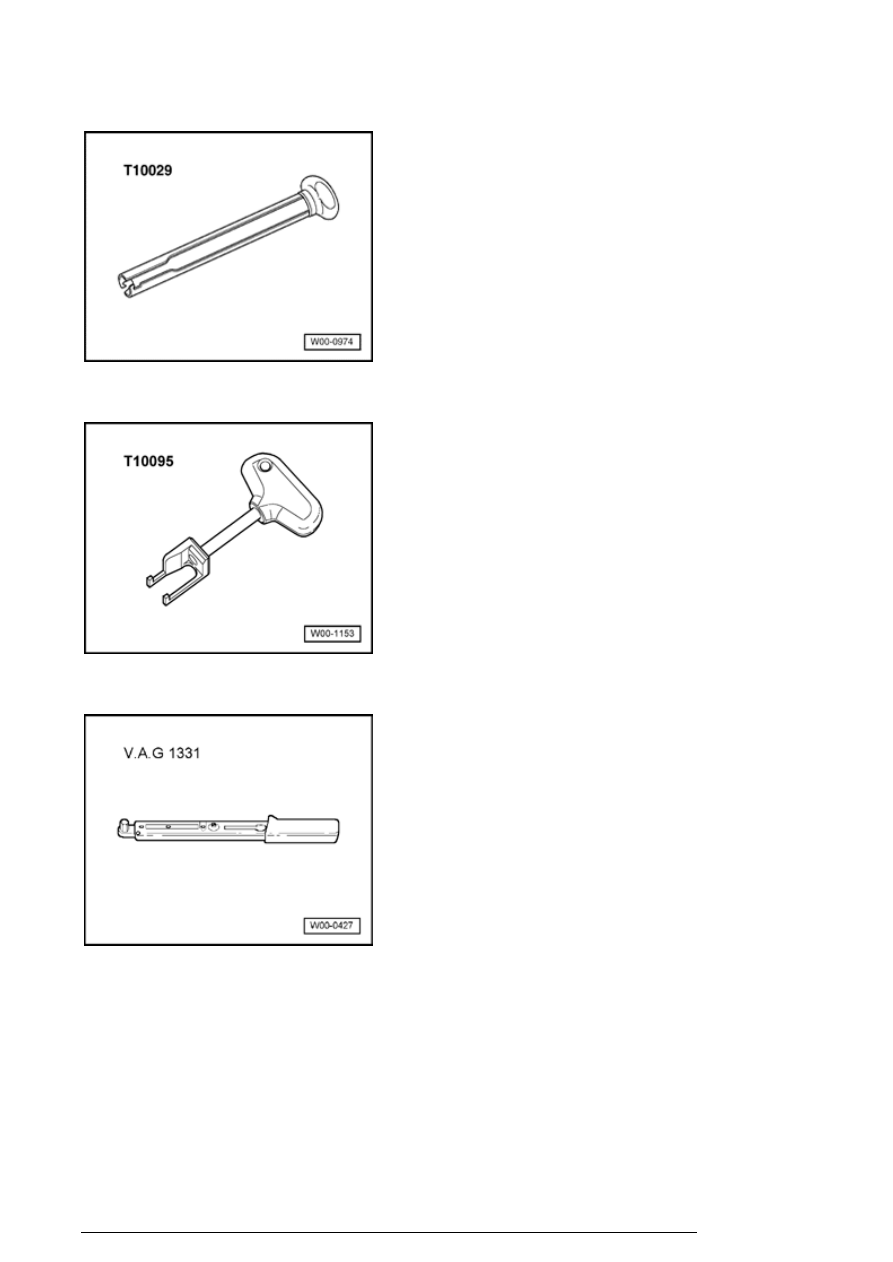

Removal/Installation tool T10029

Puller T10095

Torque wrench V.A.G 1331/ (5 - 50 Nm)

Engine code(s) AEG, AVH, AZG, BBW, BEV

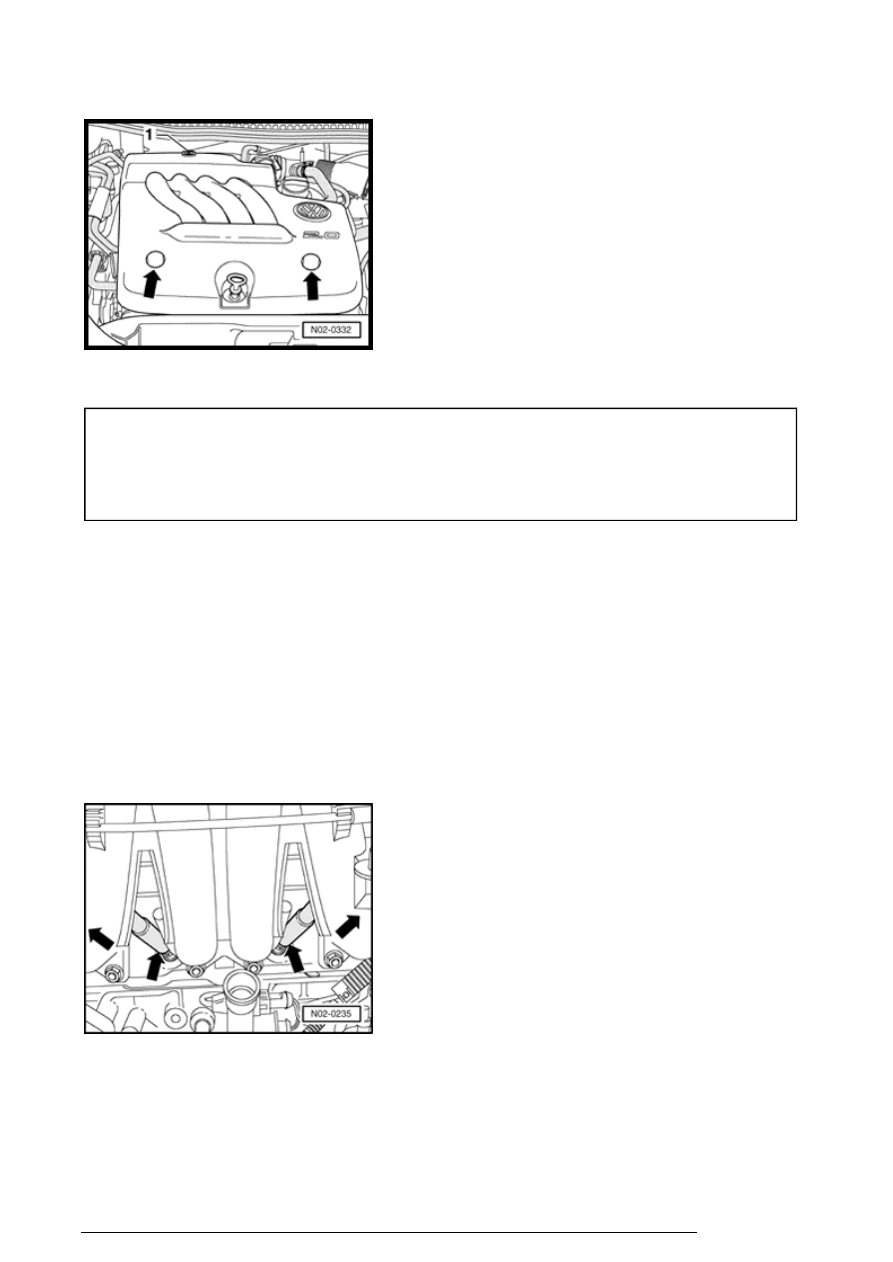

- Pry out plugs - arrows - and remove nuts underneath.

- Remove nut - 1 -

- Pull out oil dipstick.

Description of work (part 2 of 2)

13/2/2005

- Remove engine cover.

Spark plugs

VW Part No.

101 000 033 AA

Manufacturer designation

BKUR 6 ET 10 (NGK)

Spark gap

0.9 to 1.1 mm

Tightening torque

30 Nm

- Remove spark plug connector - arrows - using tool
T10029.

- Remove spark plug using Spark plug wrench VAS 3122B
- arrow -

- Install spark plugs with Spark plug wrench VAS 3122B .

- Install spark plug connectors using Removal/Installation
tool T10029

- Check that ignition wiring and spark plug connectors are
seated securely.

- Install engine compartment cover.

Engine code BJS

Perform the following work sequence:

Description of work (part 2 of 2)

13/2/2005

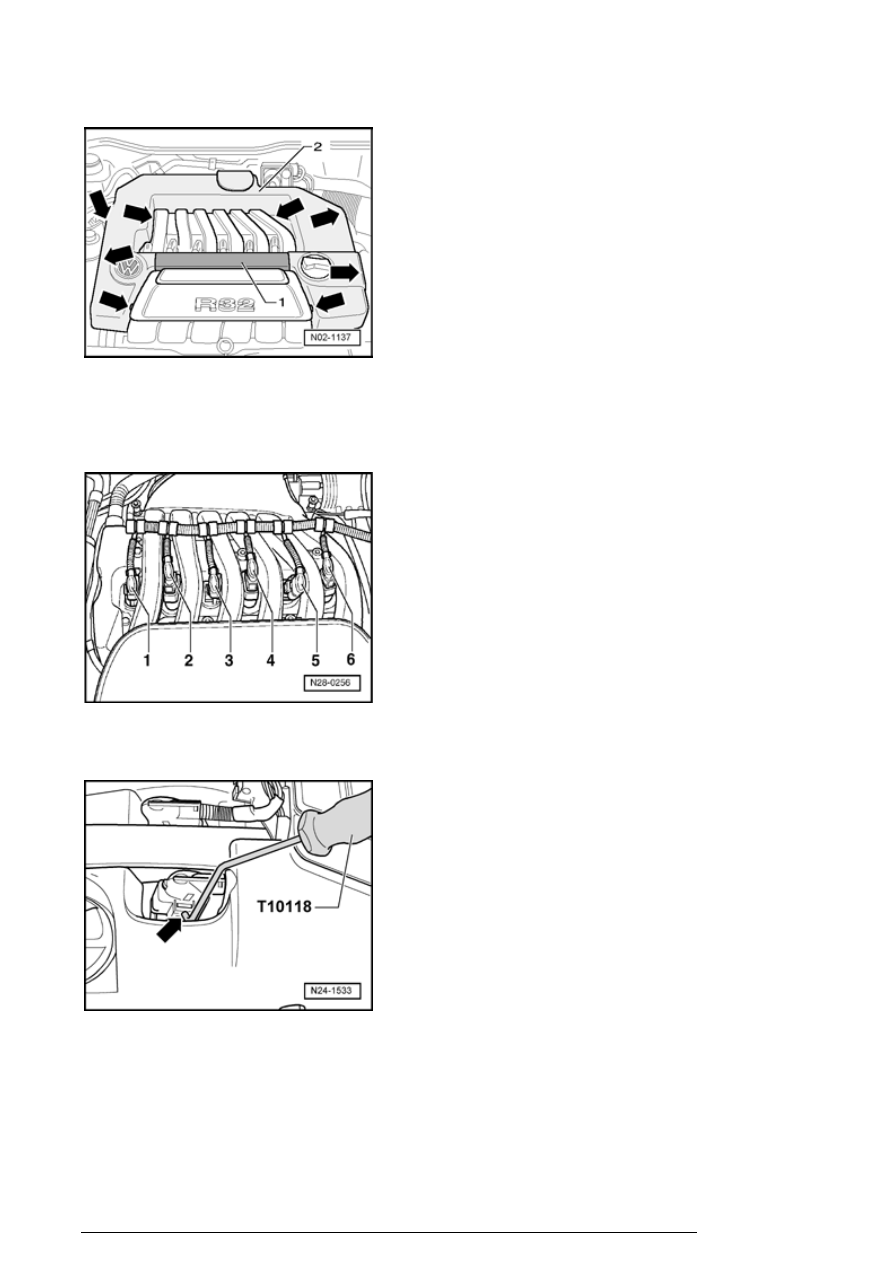

- Unclip and remove cover for wiring guides - 1 - .

- Remove engine cover - 2 - at the indicated points -
arrows - and remove upward.

- Remove connectors for ignition coils with power output
stages - arrows - .

- Unlock the connector locating device with the Assembly
tool T10118 .

- Place the Assembly device T10118 on the connector
locating device - arrow - , and carefully pull the connector
off.

Description of work (part 2 of 2)

13/2/2005

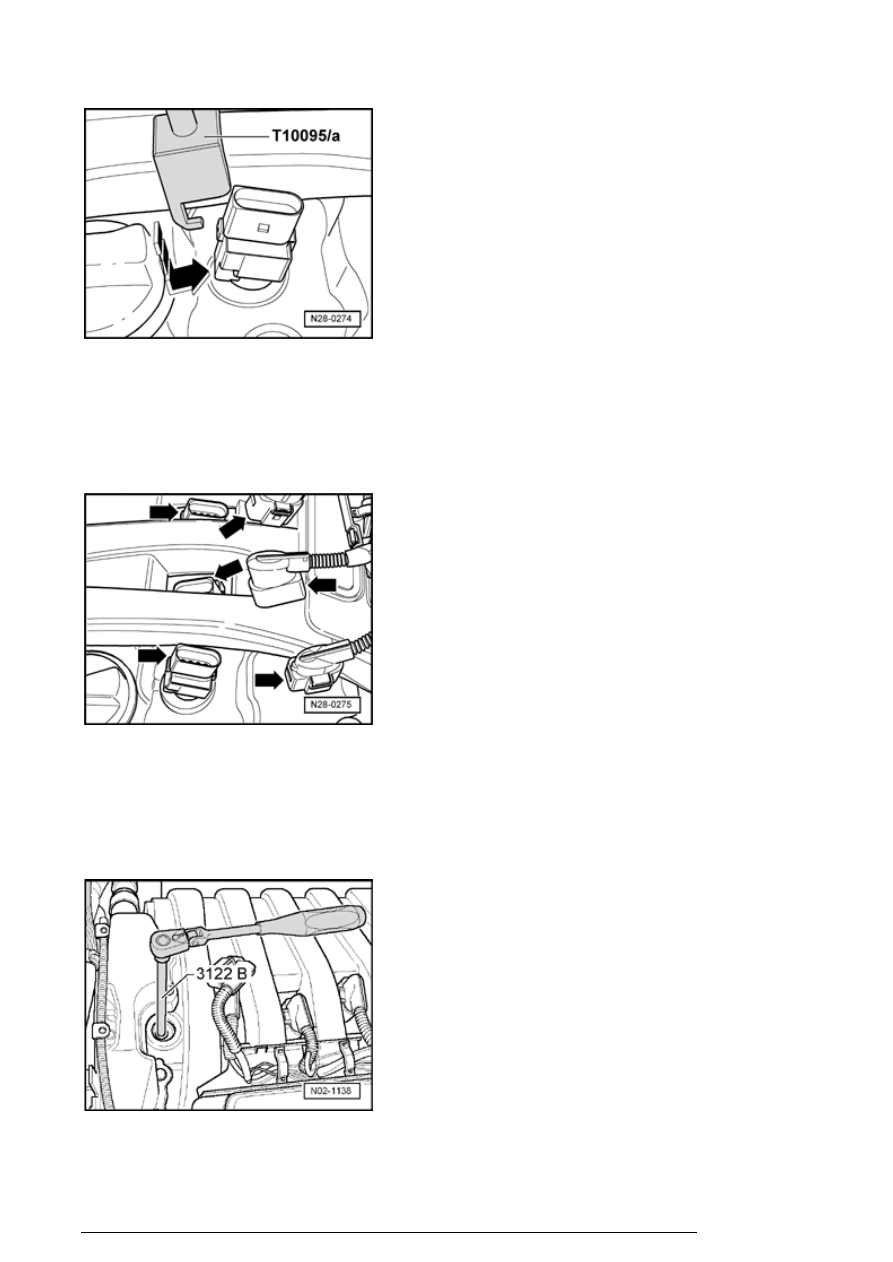

- Push the Remover T10095/a from the straight connector
side, in the direction of the - arrow - , on the ignition coil
with power output stage

- Pull the ignition coil with power output stage up
perpendicularly and out.

- Observe the installed locations of the ignition coils with
power output stages to the connectors, before they are
removed - arrows - .

The straight side of the connector must fit to the straight
side of the ignition coil with power output stage.

- Remove spark plugs with Spark plug wrench VAS 3122B .
