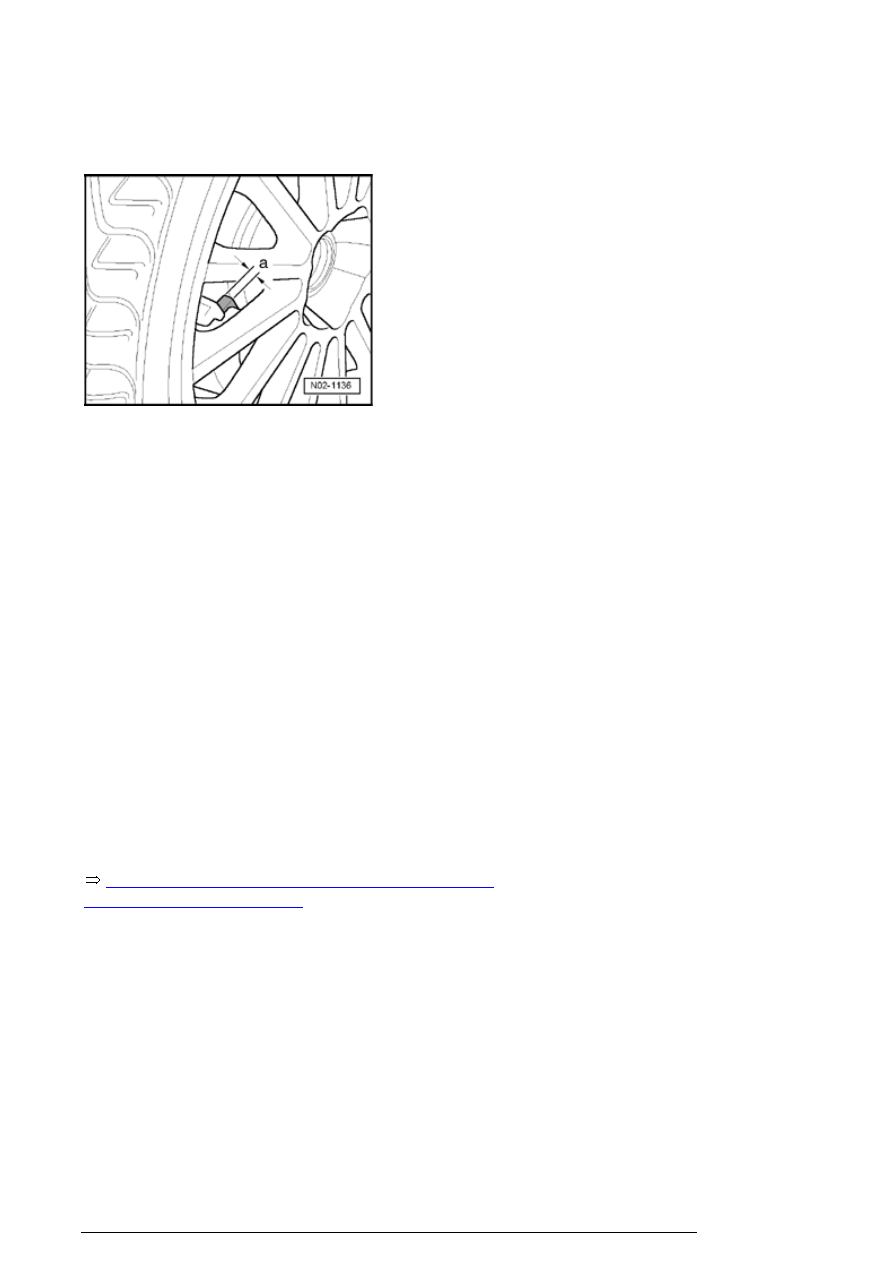

- Measure inner and outer pad thickness.

a - Pad thickness, not including backing plate



Wear limit: 2 mm



Continued for all vehicles



With pad thickness (not including backing plate) of 2 mm,
the brake pads have reached their wear limit and must be
replaced (repair procedure). Inform customer!

Note:

If replacing the brake pads, check the brake discs for wear.
Checking and if necessary replacing brake discs is a repair
measure.


- Check brake discs for wear






Repair Manual, Brake System, Repair Group 46,

servicing rear wheel brakes



- If necessary install wheel covers.

Underbody protection, perform visual check
for damage





During the visual inspection, check the floor, wheel
housings, rocker panels and especially all equipped sealing
caps for damage!

Description of work (part 2 of 2)

13/2/2005

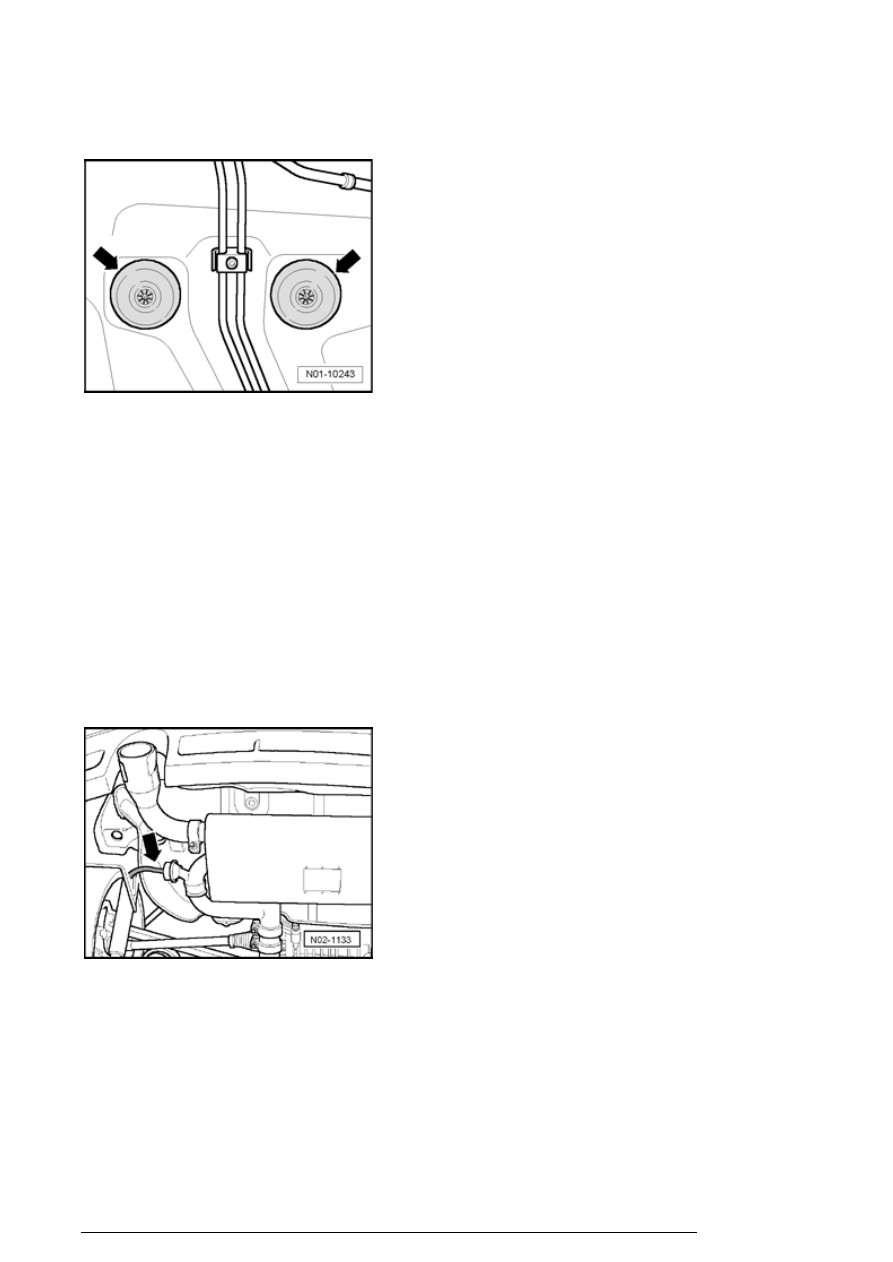

Pay special attention to any cracks, detachments and
corrosion of the underbody protection when inspecting the
caps - arrows - .

Note:

Malfunctions found must be repaired (repair measure). This
inhibits corrosion and rusting through.


Exhaust system, perform visual inspection
for leaks, attachment, and damage

Additional visual inspection Golf R32



On the Golf R32, there is an exhaust flap with a vacuum
set element attached to the rear muffler of the exhaust
system - arrow - . The exhaust flap is controlled by the
exhaust flap valve 1 N321 .

- Check the vacuum line from the exhaust flap valve 1
N321 to the vacuum set element.

Description of work (part 2 of 2)

13/2/2005

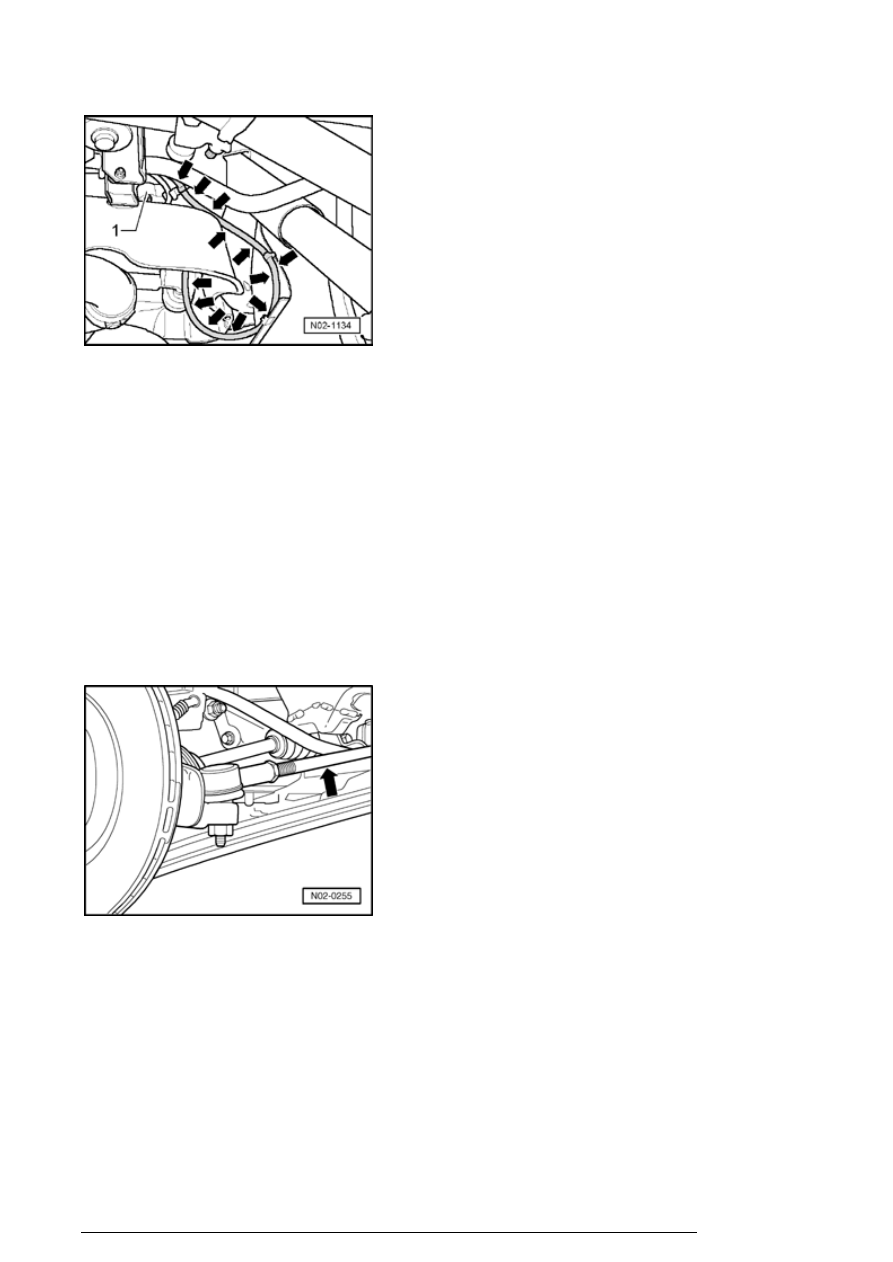

- The exhaust flap valve 1 N321 is located above the rear
muffler shield, behind the stabilizer bar fastening point  - 1 -
.

- Check the vacuum line - arrow - for proper routing and
damage (Ex. tears, abrasions, porosity).

Note:

Malfunctions found must be repaired (repair measure).


Tie rod ends, check play and joint boots



Perform the following work sequence:

- With vehicle raised (wheels off ground) check tie rods by
moving tie rods - arrow - and wheels. Play: zero play

- Check mountings.

- Check boots (left of - arrow - ) for damage and proper
installation.

Ball joints, visual inspection



Perform the following work sequence:

Description of work (part 2 of 2)

13/2/2005

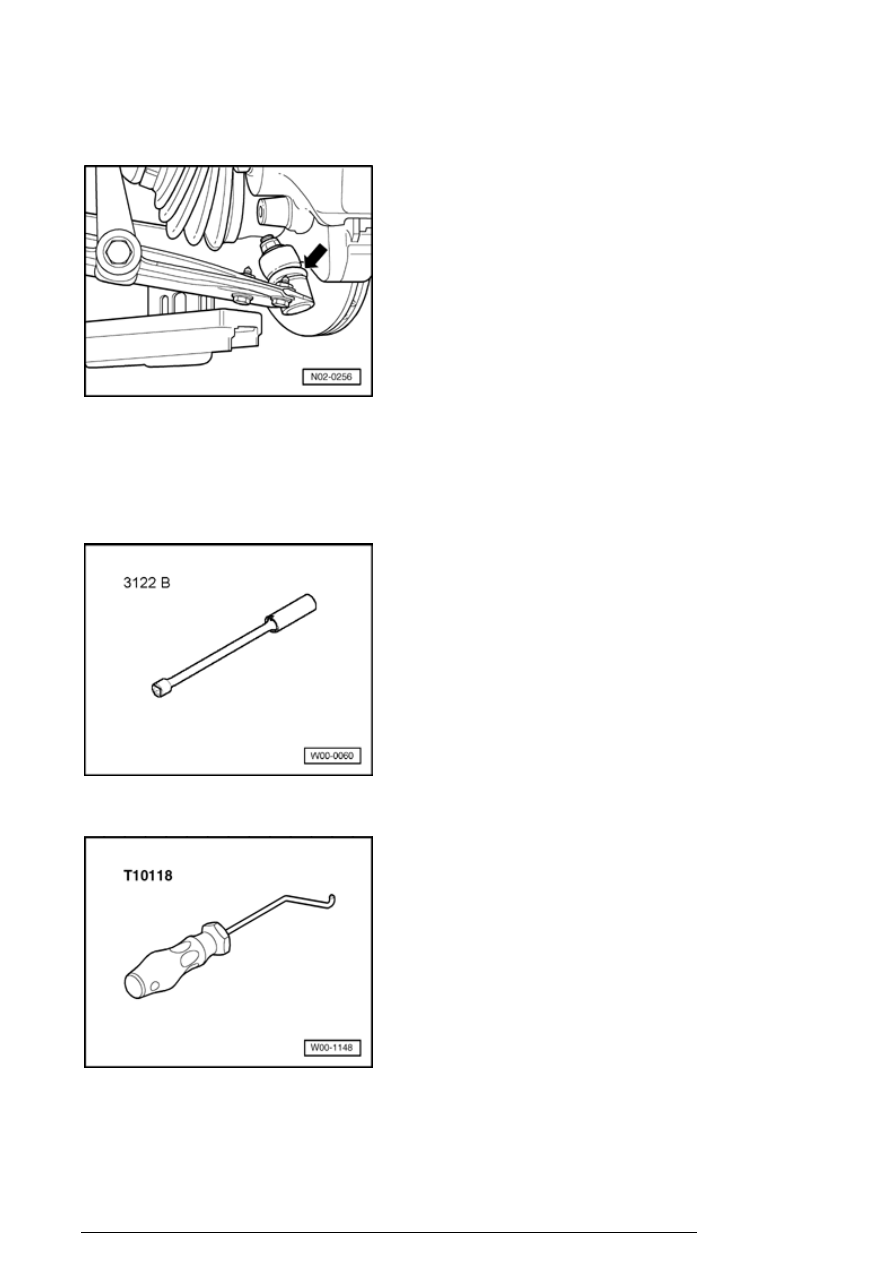

- Check ball joint boots - arrow - for leaks and damage.

Spark plugs, replace



Special tools, testers and auxiliary items required

Spark plug wrench VAS 3122B


Seal puller T10018
