91-42







Speaker system





General information





   A 168 mm low-range/bass speaker is

located in the lower portion of each front
and rear door.



   High-range speakers (domed tweeters) are

integrated into the forward window trim on
both front doors. Tweeters are integrated
into the rear door handle trim next to the
power window switches.



   Note:



   Vehicles equipped with "Monsoon" sound

systems include high power handling
speakers specifically designed for the
"Monsoon" system. Always confirm radio
system installed and check with the parts
department for proper replacement speaker
applications.

Speaker system

13/2/2005

91-43







High-range speaker (domed tweeter) in
front doors, removing







The high-range speaker is integrated into the
forward window trim (by the outside mirror
mounting) on both front doors. The trim and
speaker are constructed as a single unit and
cannot be separated.





Removing





-  Remove front door panel



Repair Manual,

Body Interior, Repair Group 70

 .





-  Disconnect electrical harness connection to

speaker.



CAUTION!



To avoid damage, do not pull or pry out window
trim. Only push upwards to disengage the inner
locating tab.



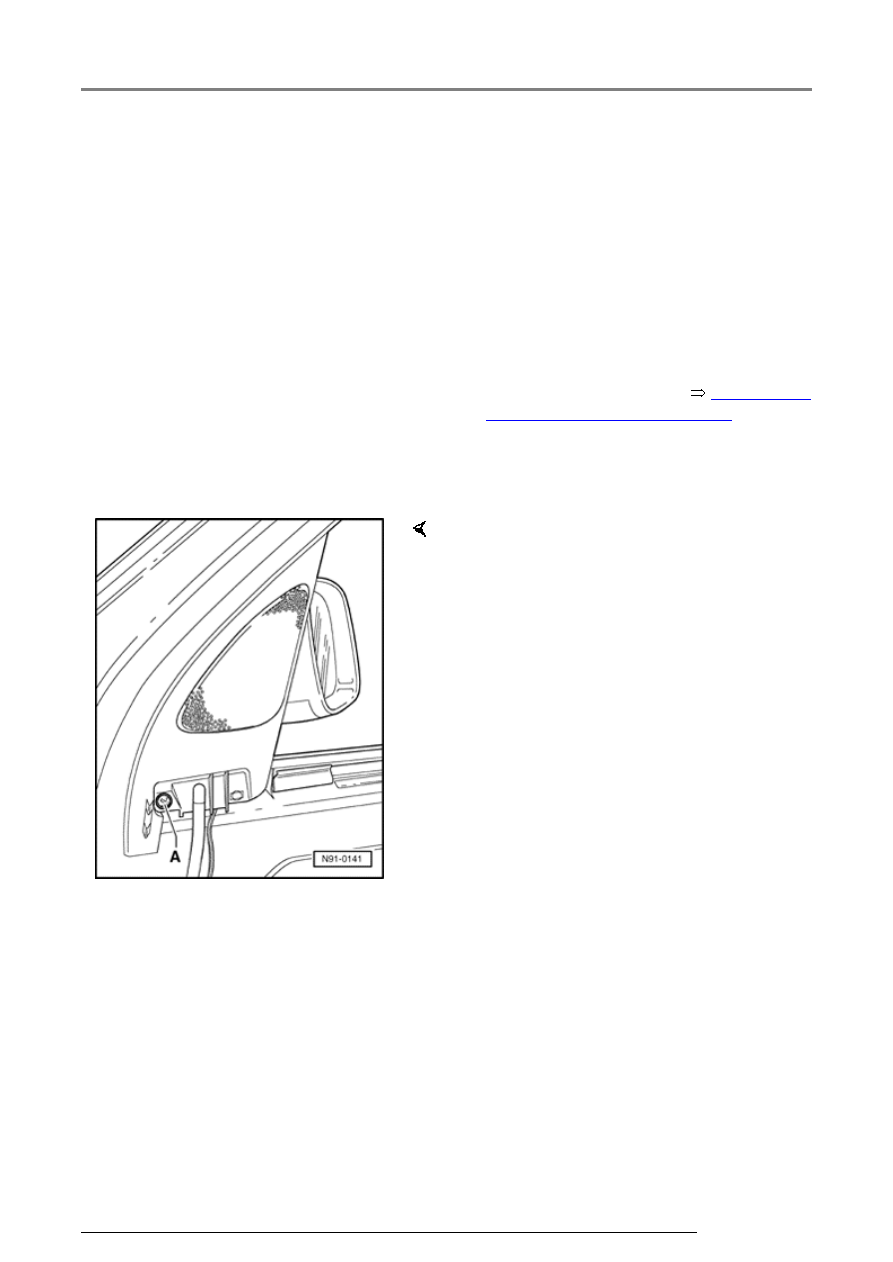

-  Remove screw -A-

-  Carefully push trim upward and remove

trim/speaker.

Speaker system

13/2/2005

91-44







High-range speaker (domed tweeter) in
rear doors, removing





   The high-range speaker is integrated into the

inside door handle trim on both rear doors. The
trim and speaker are constructed as a single unit
and cannot be separated.



   Removing





-  Remove rear door panel and inside door handle

trim



Repair Manual, Body Interior, Repair

Group 70

 .





-  Disconnect electrical harness connections to

speaker and power window switch.





-  Unclip power window switch from door handle

trim and remove trim/speaker.

Speaker system

13/2/2005

91-45







Mid-range/bass speakers in front and
rear doors, removing







Removing





-  Remove door panel



Repair Manual, Body

Interior, Repair Group 70

 .





-  Disconnect electrical harness connection to

speaker.





-  Unclip power window switch from door handle

trim and remove trim/speaker.



CAUTION!



Installing

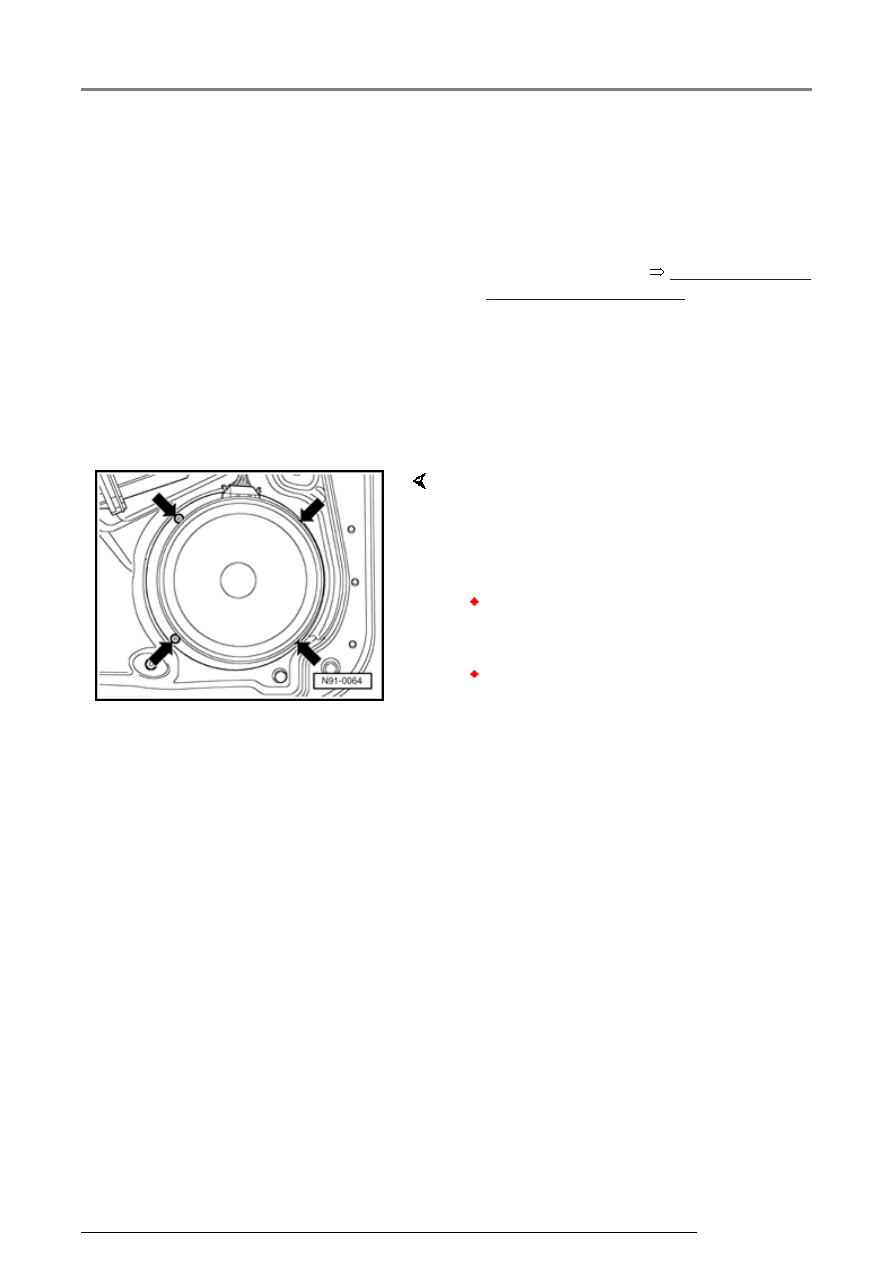

-  Carefully drill out rivets at speaker frame

arrows- and remove speaker from opening.



To prevent corrosion, ensure that all metal
particles from drilling are removed from
inside the door.





If paint on door frame is damaged during
drilling, touch-up immediately.



-  Mount speaker with locally available rivets of the

proper dimension.

-  Reconnect all electrical connections and reinstall

all door panel trim, making sure the foam gasket
between the speaker and door panel is in place.

Speaker system

13/2/2005
