91-34







Anti-theft security code, inputting





   The security code is "fixed", meaning the radio is

programmed by the radio manufacturer to accept
only one code. This code must be input during
the new vehicle delivery inspection, into newly
installed or existing units that have been
removed and reinstalled.



   Prerequisites:





 Obtain security code, either from code card or

from customer.





 Radio power supply fuse OK (according to

wiring diagram)



   Inputting code / cancelling electronic lock-up





-  Switch on radio





 "SAFE" appears in radio display, followed by

"1000" approximately 3 seconds later.





-  Input the security code found on the radio card

using the station preset buttons on the radio.
Button "1" corresponds to the first number in the
security code, "2" the second and so on. Press
the applicable button repeatedly until the desired
number appears in the display (E.g.: press
button "1" three times if the first number in the
code is 3).





-  When the entire code has been input and

appears on the display, either press the upper
portion of the "Seek" button ("s") or the "Scan"
button for longer than 2 seconds until an audible
signal is heard.

Radio, Premium VI and Premium VI - Monsoon

13/2/2005

91-35





   The code is input properly when the display

either indicates a radio frequency, or
"LSM" (ready for use). When the radio is
switched off and the ignition key removed, a
flashing LED on the radio faceplate confirms
the radio is security protected.



   Incorrect code number



   If an incorrect code is entered, "SAFE" will

appear in the display (first blinking and then
continuous) and the radio will not function.
The entire coding procedure can only be
repeated one more time immediately (the
number of attempts is displayed).



   If during the second attempt an incorrect

code is entered, the radio will lock-up for
approximately one hour. Leave key in
ignition, radio switched on for 1 hour and
attempt coding again when the number of
attempts on display goes out (ensure proper
code is available).



   Cycle: 2 attempts - 1 hour lock-up still

applies.

Radio, Premium VI and Premium VI - Monsoon

13/2/2005

91-36







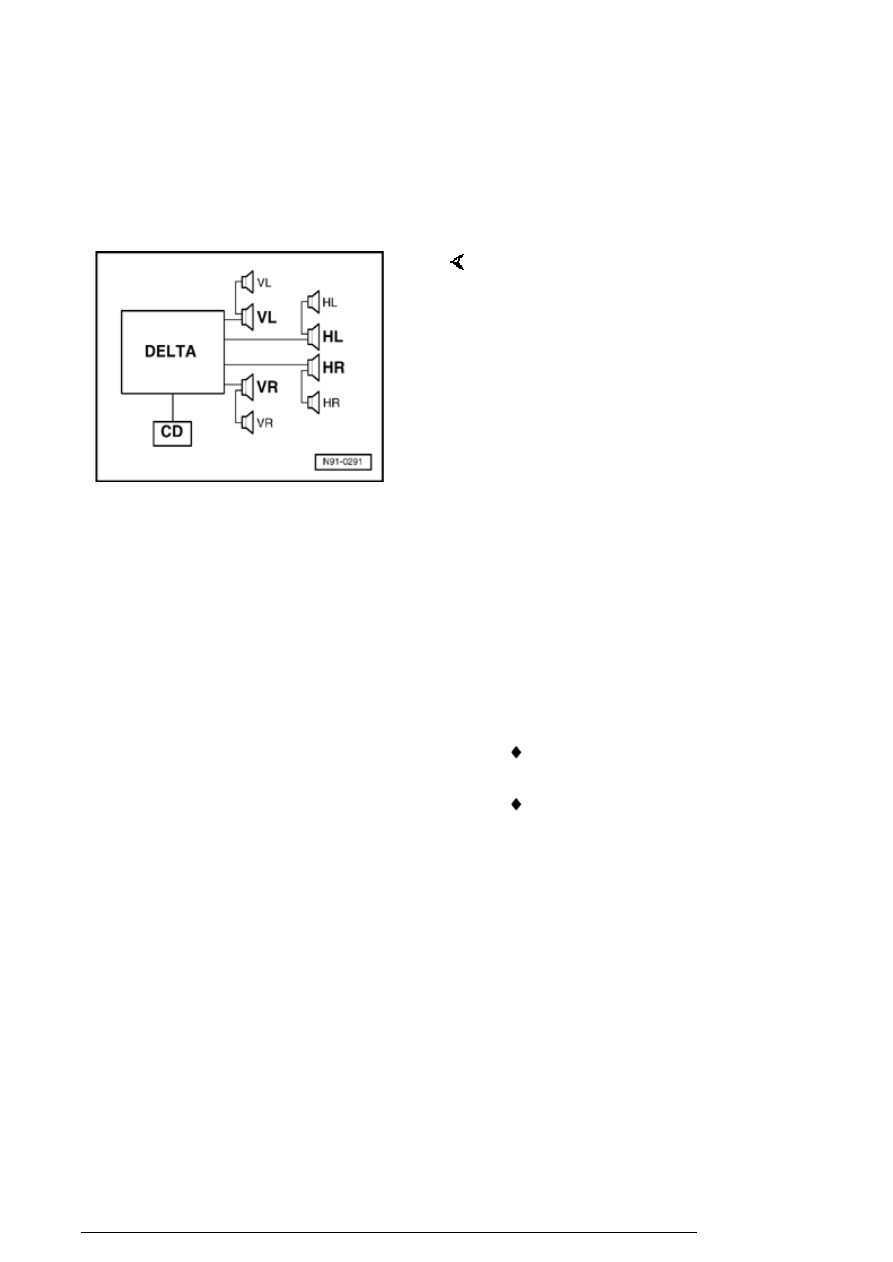

Amplifier system -
"Monsoon"





General information



     The optional "Premium V -

Monsoon" and "Premium VI -
Monsoon" systems consist of the
"Premium" receiver/tape unit
supplemented by a separate high
power amplifier mounted in the
luggage compartment.

High power handling speakers
specifically designed for the
"Monsoon" system are located in the
front and rear doors.

Before troubleshooting or servicing,
technicians must be familiar with the
functions and operation specifics of
the applicable standard or optional
radio system. Always read the radio
owner's manual and review all radio,
tape player and CD Changer
functions.

Amplifier locations

Note:

Always confirm radio system
installed and check with the parts
department for proper replacement
radio unit, amplifier and speaker
applications.

 Golf & GTI: Behind left luggage

compartment storage flap.

 Jetta: Under parcel shelf, right.

Amplifier system - Monsoon

13/2/2005

91-37







On Board Diagnostic (OBD),
function





   Amplifier functions are monitored by

applicable radio system OBD.





 "Premium V - Monsoon" OBD



Page

01-1







 "Premium VI - Monsoon" OBD



Page

91-27

 .

Amplifier system - Monsoon
