15-31







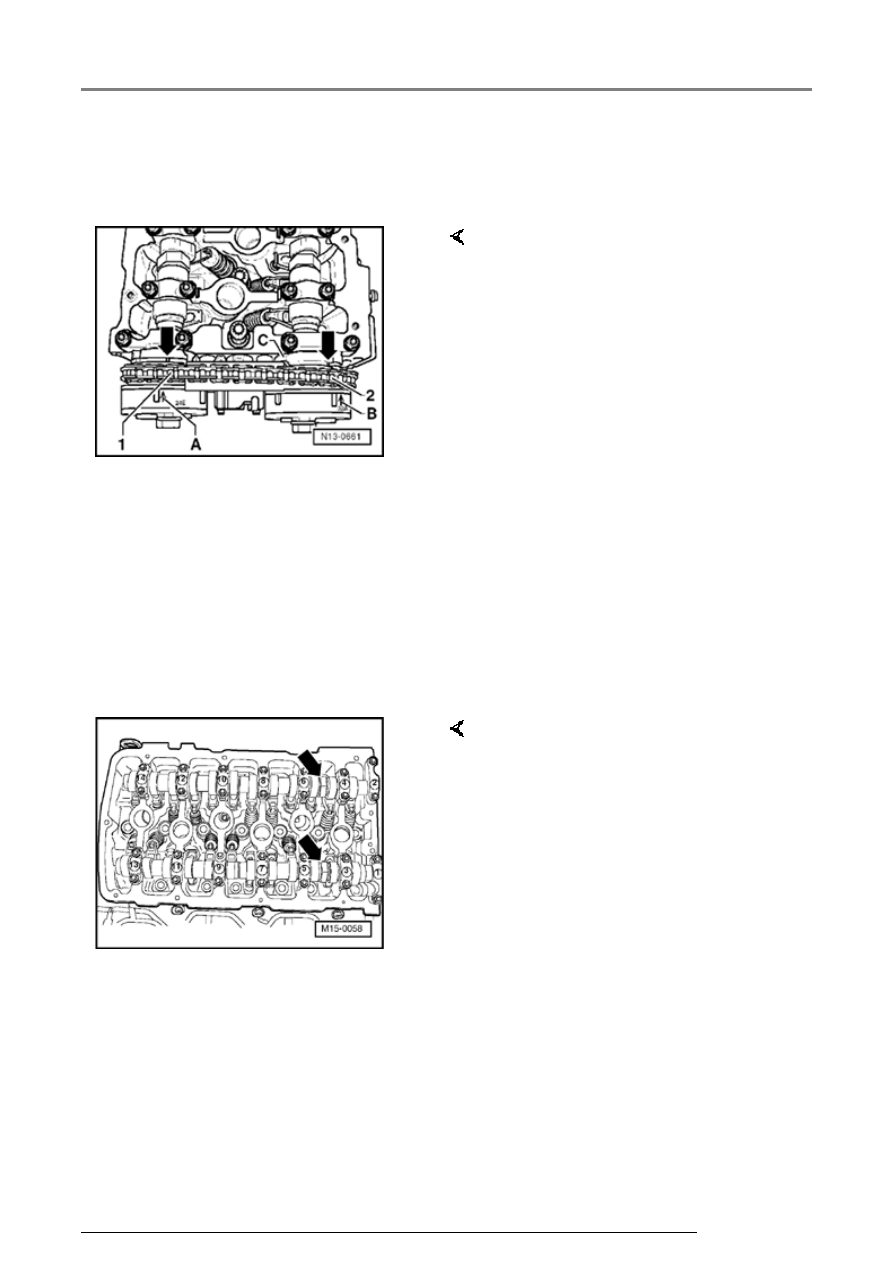

Check setting marks of camshaft
timing adjusters with marks on
control housing:



Note:

Illustration shows a cover which has
been removed.

Note:

   Marks -A and B- on camshaft

timing adjusters must align with
notches (arrows) on control
housing -C-.

   Distance between tooth -1- and

tooth -2- of camshaft timing
adjuster must be exactly 16
rollers of camshaft roller chain.

-  First remove exhaust camshaft

timing adjuster.

-  Remove camshaft timing adjuster

together with camshaft roller
chain from intake camshaft.

     Counter support on camshaft with a

32 mm open end wrench (arrow).
Camshaft bar T10068 must not be
installed when loosening or
tightening camshaft timing adjuster.

Cylinder head, servicing

15-32





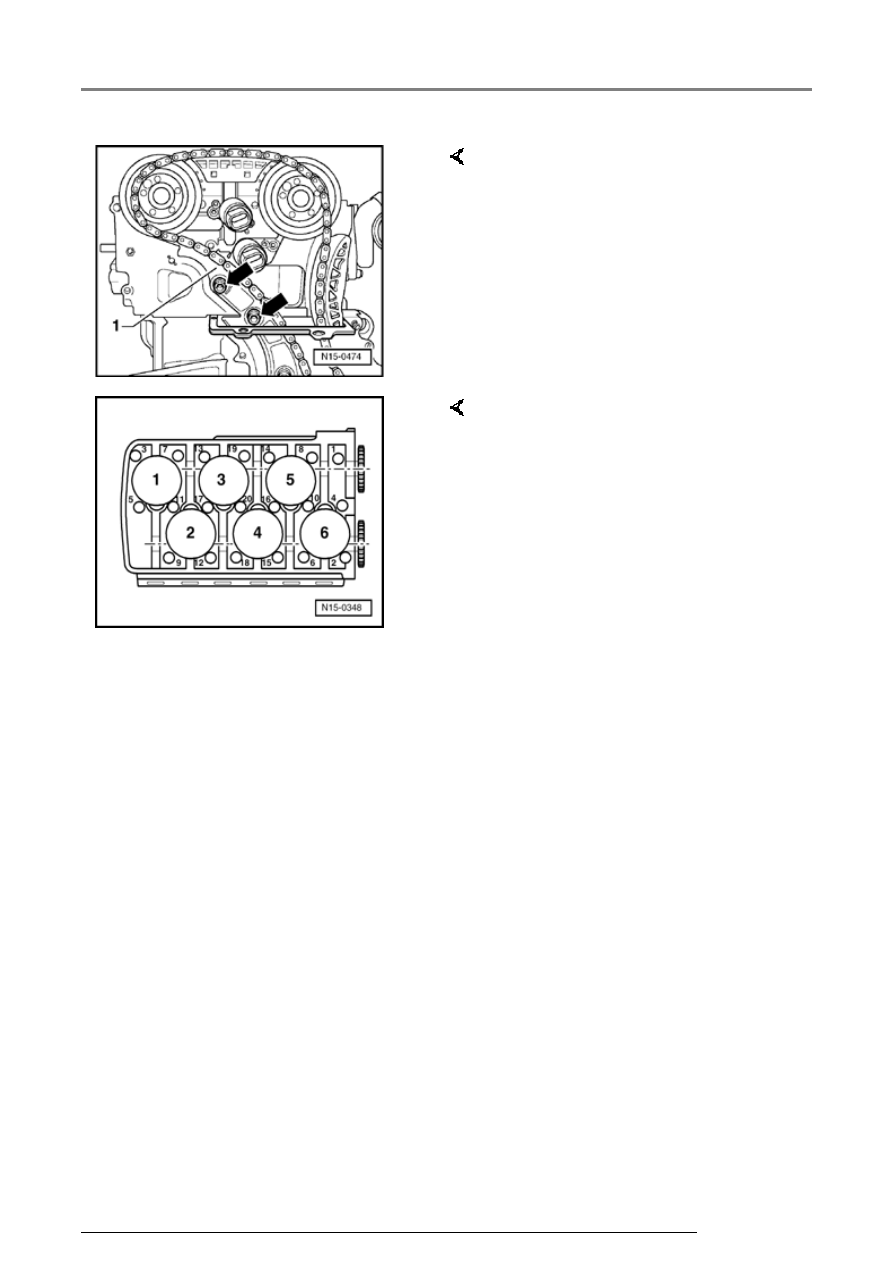

-  Remove guide rail securing bolts

(arrow) and remove guide rail -1-.

-  Place camshaft roller chain to

side.



Note:

Use tool 3452 for Polydrive cylinder
head bolts.

-  Loosen socket head bolts in

sequence given and then remove.

-  Carefully lift cylinder head off.

Cylinder head, servicing

15-33







Installing





-  Place a clean cloth into cylinders so that no dirt

or emery cloth particles can get in between
cylinder wall and piston.





Note:





Also prevent dirt and emery cloth particles from
getting into coolant.





-  Carefully clean cylinder head and cylinder block

sealing surfaces. Ensure that no scoring or
scratches are formed (when using abrasive
paper, grade must not be less than 100).





-  Carefully remove metal particles, emery remains

and cleaning cloths.





If the piston for No. 1 cylinder is not at TDC:



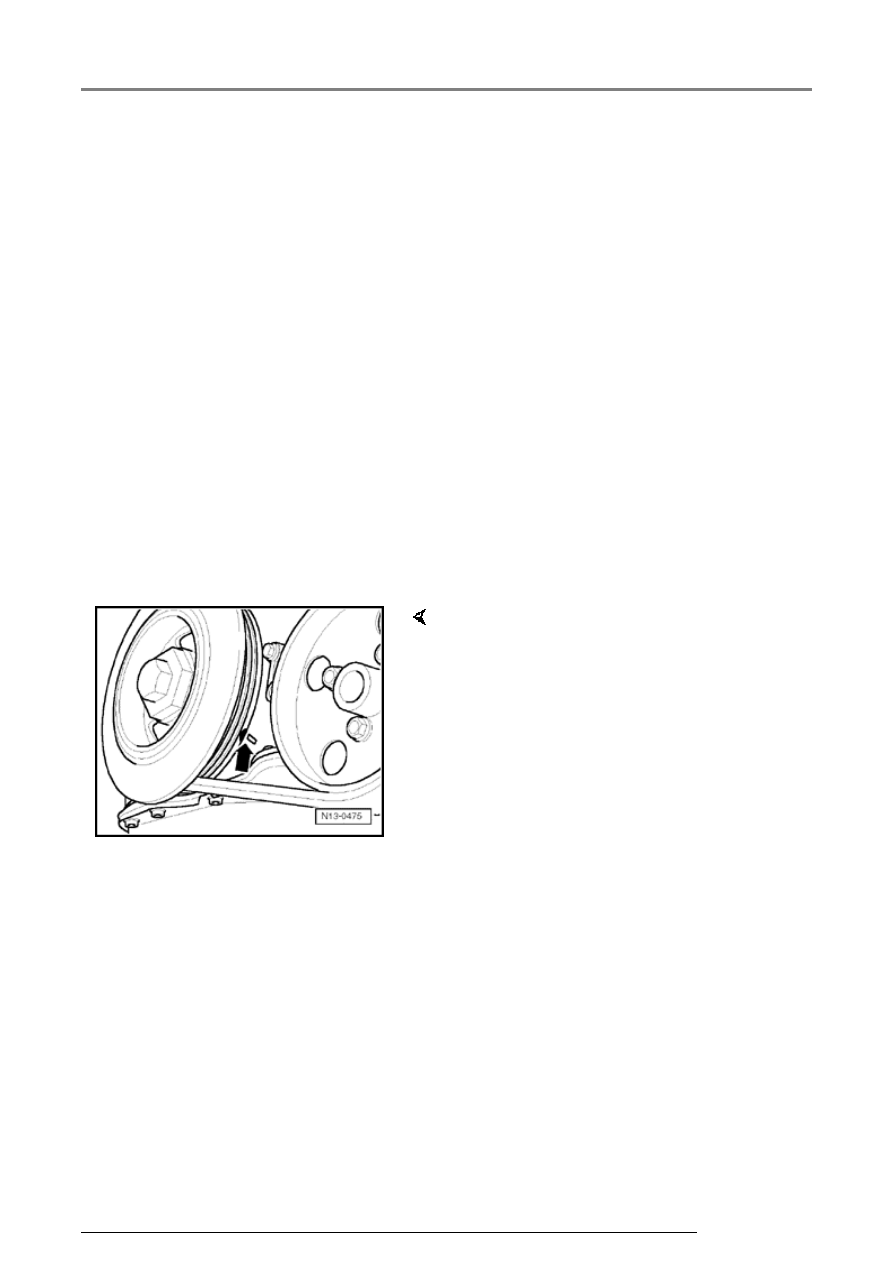

-  Turn crankshaft on vibration damper securing

bolt in engine direction of rotation (arrow).

Cylinder head, servicing

15-34







Note:





 Only remove the new cylinder head gasket from

its packing immediately before installing.





 Handle the new gasket with extreme care.

Damage will lead to leaks.





-  Install new cylinder head gasket. Inscription

(Part No.) must be legible.



Camshaft bar has been removed

-  Ensure that dowel sleeves are inserted into

cylinder block holes 12 and 20 and that cylinder
head gasket is seated.

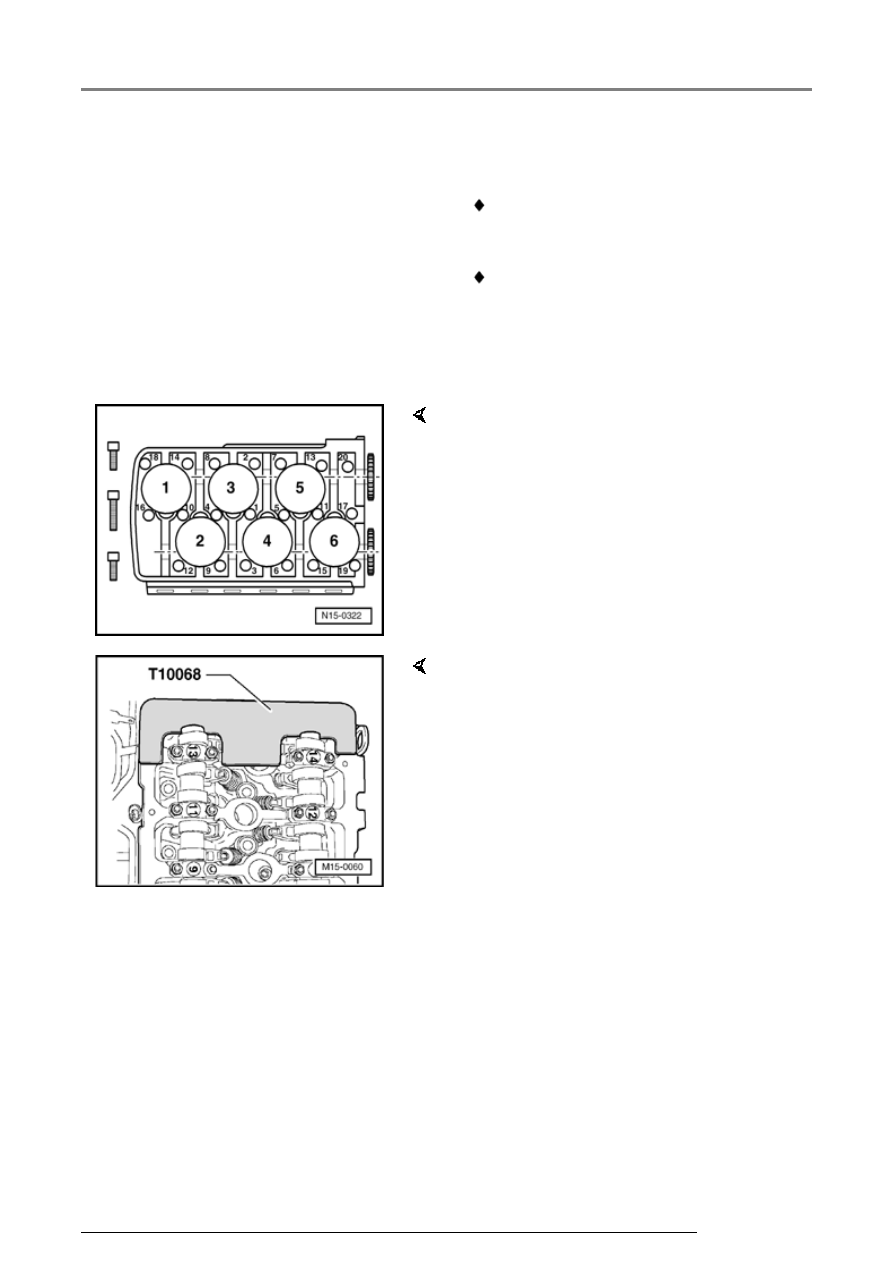

-  Position camshafts in cylinder head to TDC No.

1 cylinder.



Note:

If the camshaft bar cannot be installed, turn engine
over (in engine direction of rotation) past TDC No.
1 and then turn back onto TDC No. 1 cyl.

   Camshaft bar T10068 must engage in both shaft

grooves.

Cylinder head, servicing
