10-15





   Models with a manual transmission





-  Install gear selector mechanism:







Repair Manual, 5 & 6 Spd. Manual

Transmission 02M, Repair Group 34







-  If necessary adjust gear selector cables:







Repair Manual, 5 & 6 Spd. Manual

Transmission 02M, Repair Group 34







-  Install hydraulic line to hydraulic clutch slave

cylinder:







Repair Manual, 5 & 6 Spd. Manual

Transmission 02M, Repair Group 30







-  Bleed clutch system:







Repair Manual, 5 & 6 Spd. Manual

Transmission 02M, Repair Group 30





   Models with an automatic transmission





-  Install gate selector lever cable on transmission,

adjust if necessary:







Repair Manual, 5 Spd. Automatic

Transmission 09A, Repair Group 37



Engine, removing and installing

10-16





   Continuation for all vehicles





-  Install power steering pump:







Repair Manual, Suspension, Wheels,

Steering, Repair Group 48







-  Install intake manifold



Page 15-16

 , Removing

and installing cylinder head cover.





-  Install air cleaner with intake hose:





 Repair Manual, 2.8 Liter VR6 4V Engine

Mechanical, Engine Code(s): BDF, Repair Group
24





-  Install battery and battery retainer.





-  Install ribbed belt



Page 13-19

 .





-  Check electrical connections and routing:







Repair Manual, Electrical Equipment, Repair

Group 97







-  Install center, left and right insulation trays:







Repair Manual, Body Exterior, Repair Group

50







-  Top up coolant level



Page 19-15

 .





-  Perform test drive and check DTC memory:







Repair Manual, 2.8 Liter VR6 4V Fuel Injection

& Ignition, Engine Code(s): BDF, Repair Group
01



Engine, removing and installing

10-17







-  Adapt (match) engine control module to throttle

valve control module:





 Repair Manual, 2.8 Liter VR6 4V Engine

Mechanical, Engine Code(s): BDF, Repair Group
24





-  Perform work sequence "Procedure after

interrupting voltage supply":





 Repair Manual, 2.8 Liter VR6 4V Engine

Mechanical, Engine Code(s): BDF, Repair Group
24





-  Read readiness code:







Repair Manual, 2.8 Liter VR6 4V Fuel Injection

& Ignition, Engine Code(s): BDF, Repair Group
01







-  If DTC memory has been erased or engine

control module separated from permanent
positive supply, generate readiness code again:







Repair Manual, 2.8 Liter VR6 4V Fuel Injection

& Ignition, Engine Code(s): BDF, Repair Group
01





   Models with an automatic transmission





-  Perform adaptation for Transmission Control

Module (TCM):







Repair Manual, 5 Spd. Automatic

Transmission 09A On Board Diagnostic (OBD),
Repair Group 01



Engine, removing and installing

10-18







Aligning engine and
transmission mountings







Special tools and equipment



WARNING!



Before loosening bolts, secure
assembly using support device
10-222A.

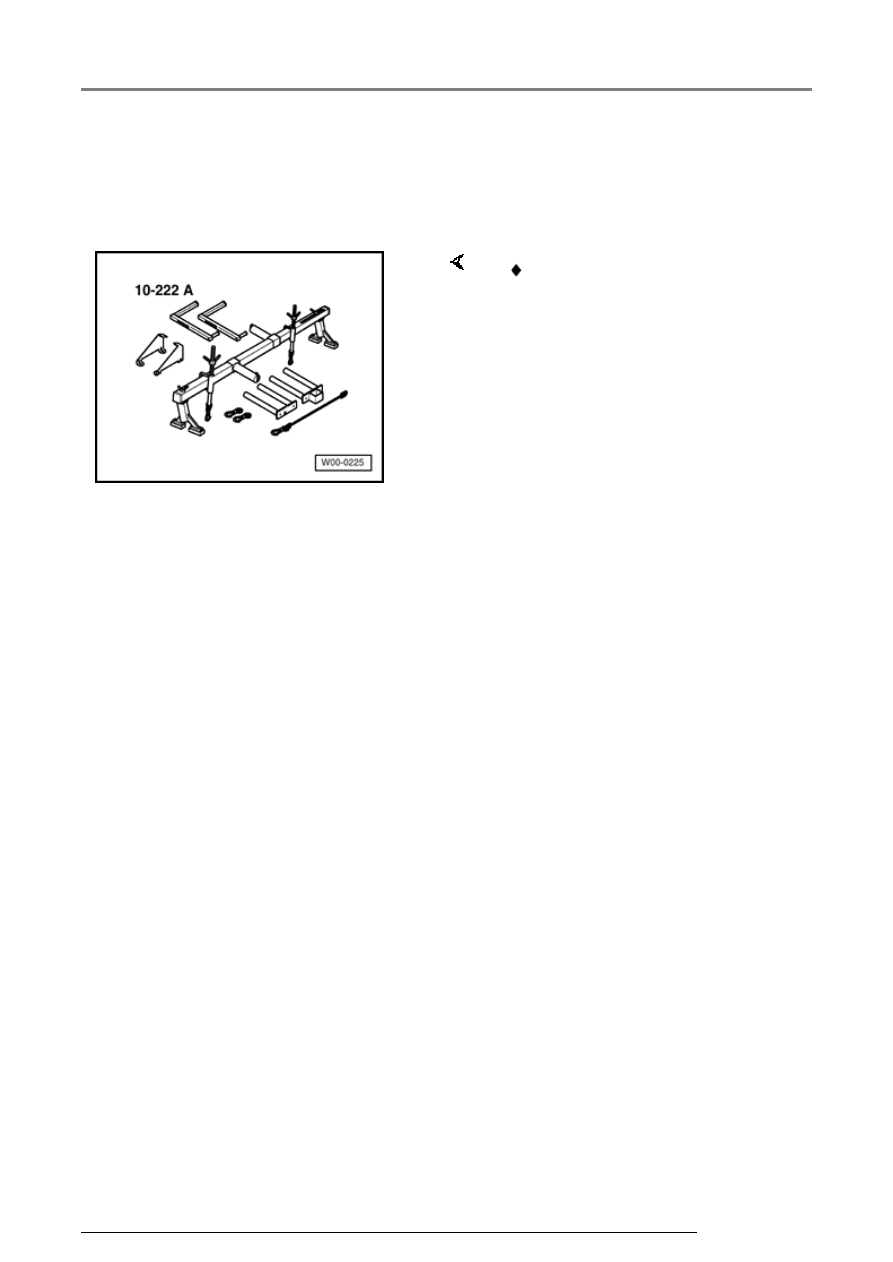

 Support device 10-222 A with

legs 10-222 A/1 and adapter 10-
222 A/3

Engine, removing and installing
