– Brake fluid: replace

♦ for Europe on vehicles model ▸2007 and except Europe on vehicles model ▸2008

⇒ page 90

3 years after the delivery inspection; then, every 2 years

Supplementary services

Page

– Headlights: adjust the beams

♦ for Europe in model 2008▸ vehicle and in model 2009▸ vehicles elsewhere

⇒ page 94

– Poly-V belt: check condition: In vehicles without automatic tensioning element, adjust

tension.

♦ for Europe in model 2008▸ vehicle and in model 2009▸ vehicles elsewhere

⇒ page 65

– Mechanical transmission: check oil level.

♦ for Europe in model 2008▸ vehicle and in model 2009▸ vehicles elsewhere

⇒ page 66

– Brake fluid: replace

♦ for Europe in model 2008▸ vehicle and in model 2009▸ vehicles elsewhere

⇒ page 90

– Carry out an exhaust gas inspection/additional work with separate payment!

♦ in function of the country's legislation

⇒ page 99

– Sunroof: check operation, clean the guide rails and lubricate them with Special

grease -G 000 450 02-

♦ for vehicles with kilometers traveled over 60,000 km, within a 3-year period and, then,

every 2 years.

♦ for Europe in model 2008▸ vehicle and in model 2009▸ vehicles elsewhere

⇒ page 46

– Body and paintwork: check for damage.

♦ for vehicles with kilometers traveled over 60,000 km, within a 3-year period and, then,

every 2 years.

♦ for Europe in model 2008▸ vehicle and in model 2009▸ vehicles elsewhere



At every 4 years

Supplementary services

Page

– Air cleaner: replace the filtering element and clean the filter case.

♦ identification letters BAH and BLH
♦ for vehicles with kilometers traveled over 60,000 km, within a 4-year period.

⇒ page 86

– Air cleaner: replace the filtering element and clean the filter case.

♦ Engine identification letters ASY, BKR, BNM, and BMD.
♦ for vehicles with kilometers traveled over 60,000 km, within a 4-year period.

⇒ page 87

– Spark plugs: replace

♦ for vehicles with kilometers traveled over 60,000 km, within a 4-year period.
♦ Checking data, spark plugs ⇒  Ignition system; Rep. Gr.  28 ; Ignition system

⇒ page 79

FOX 2004 ➤

2. Service plans

21

General remarks

3.1

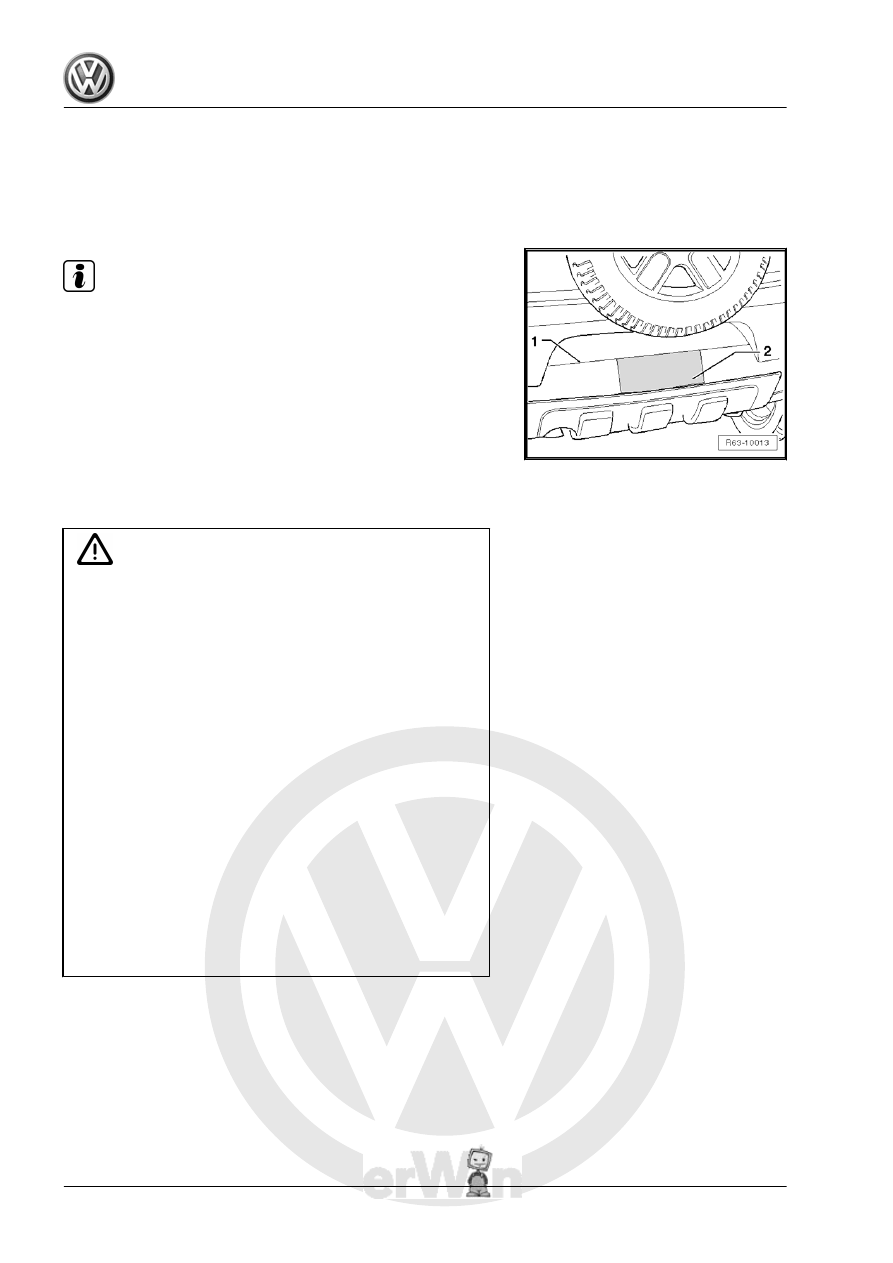

Rear license plate (only CrossFox Eu‐

rope) - install

Note

For the “CrossFox”Europe versions, position the license plate

aligned with the line -1- in the rear protector and fasten the plate

-2- to this position

3.2

Lifting the vehicle with a workshop lift

and jack

WARNING

♦ Before positioning the vehicle onto a lift, it is necessary to

make sure that there is enough space between the lift and

the lower body parts.

♦ The vehicle may only be lifted in the support points indi‐

cated in illustration, in order to avoid damaging the vehicle

floor and prevent the vehicle from tipping.

♦ Never start the engine and engage a gear with the vehicle

lifted, even if only one drive wheel is on the floor. If these

guidelines are not followed, there will be risk of an acci‐

dent!

♦ When it is necessary to work under the vehicle, it must be

supported onto appropriate stands.

♦ Before placing a vehicle on an lift, make sure that the ve‐

hicle weight does not exceed the authorized load capacity

of the lift.

♦ To prevent damage, always use a suitable rubber or

wooden support.

♦ Under no circumstances must the vehicle be lifted by the

oil crankcase, transmission, front or rear axles.

♦ The vehicle must not be lifted by the vertical reinforcement

of the longitudinal member.

FOX 2004 ➤

22

    3. General remarks

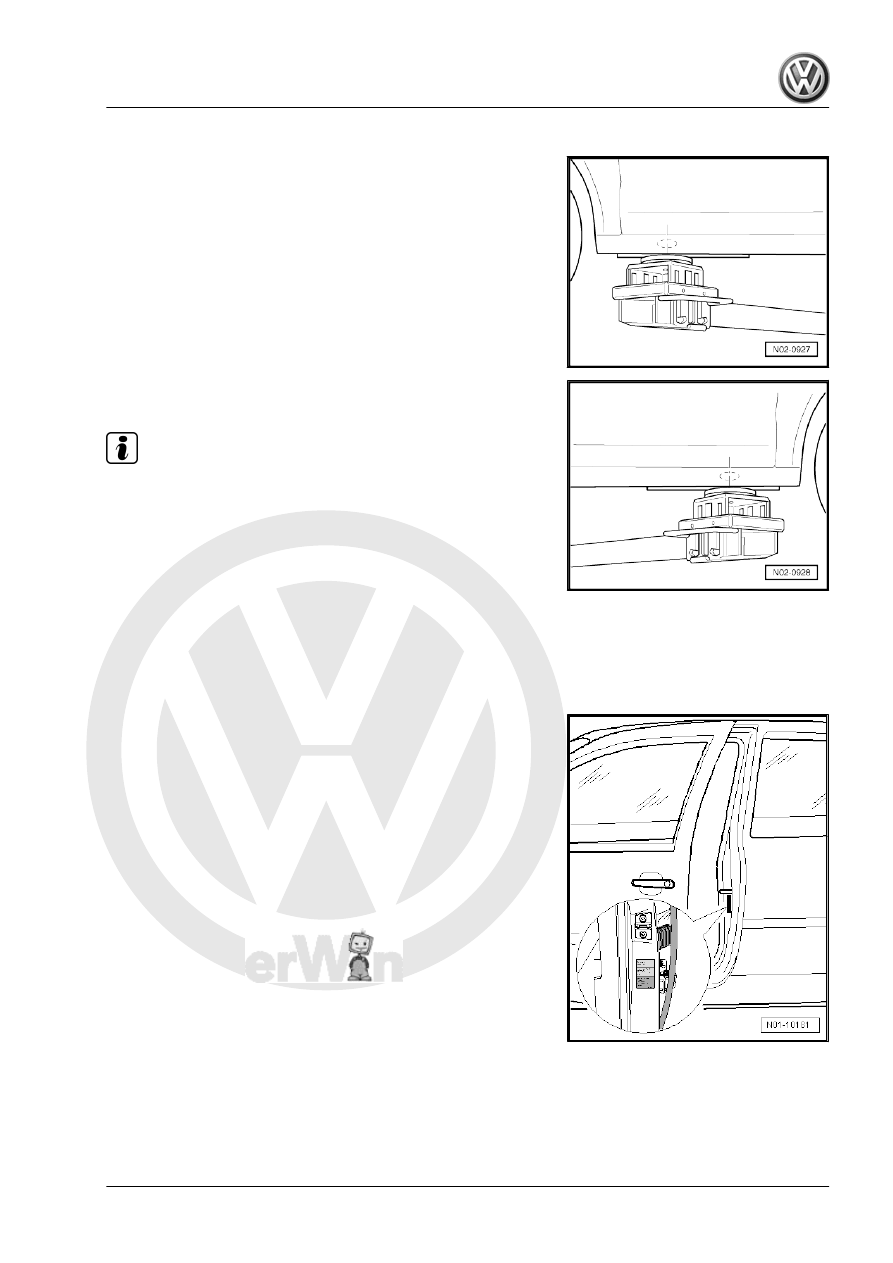

Support points for workshop lift and jack

Front section: In the longitudinal reinforcement of the central lon‐

gitudinal member.

Rear section: In the welded flange reinforcement of the lower lon‐

gitudinal member.

Note

To anchor the CrossFox, using electrical-hydraulic lifts, refer to

the Tools and Equipment Manual.

3.3

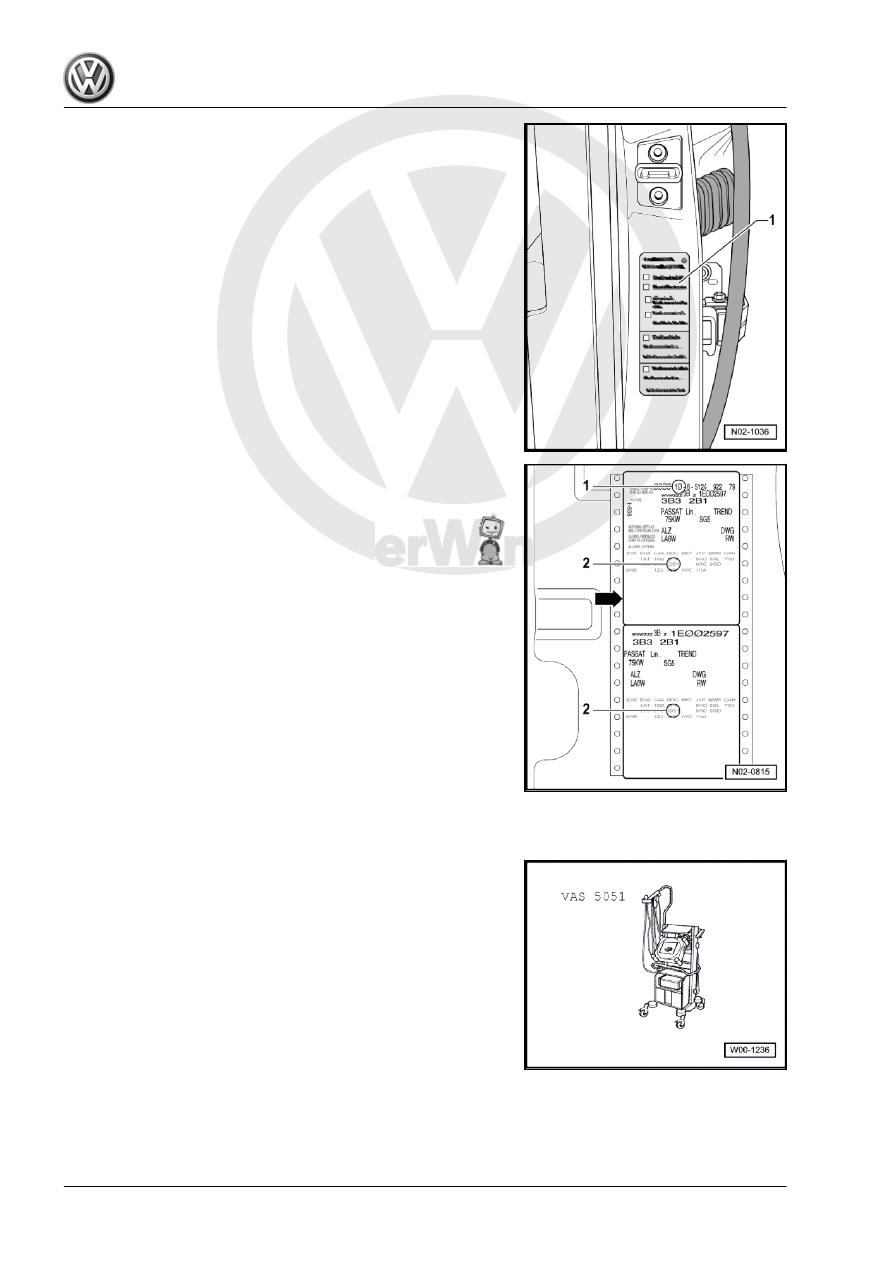

Service tag

3.3.1

Stick the tag “Next service” (upon Deliv‐

ery inspection)

– Write on the service tag the date of the next service (including

brake fluid change) and attach the tag to the left side of the

command panel or to the left door pillar (B).

The stamp or tag may also be attached to the left lower corner

(internal side) of the Windscreen, with the “FRONT” facing outside

the vehicle (check instructions in the Service Organization Man‐

ual).

3.3.2

Stick the tag “Next service” (upon Oil

Change Service or Inspection Service)

– On the service tag “Next service”: Mark the Oil Change Service

or Inspection Service (whichever occurs first) and write down

the date and mileage traveled.

FOX 2004 ➤

3. General remarks

23

driver's door pillar (pillar B).

The stamp or tag may also be attached to the left lower corner

(internal side) of the Windscreen, with the “FRONT” facing outside

the vehicle (check instructions in the Service Organization Man‐

ual).

3.3.3

Paste the “data holder” on the customer

service plan (in the delivery inspection):

– Please paste the upper data holder on both -arrow-.
1 - planning week.
2 - PR number.

3.4

Self-diagnosis - refer to the fault memo‐

ry of all systems

3.4.1

Refer to the fault memory of all systems

with the Diagnosis, Measurement and

Information System

Special tools and workshop equipment required
♦ Diagnosis, Measurement and Information System
♦ Diagnosis cable -VAS 5051/3- or - VAS 5051/6-

FOX 2004 ➤

24

    3. General remarks
