Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

14.2

Removing

– Separate bonded areas -1- between lock reinforcing and

wheel housing liner.

– Separate original joint of lock reinforcing to inner C-pillar.

Passat 2011 ➤ , Passat Variant 2011 ➤

14. Renewing outer wheel housing liner (Variant)

361

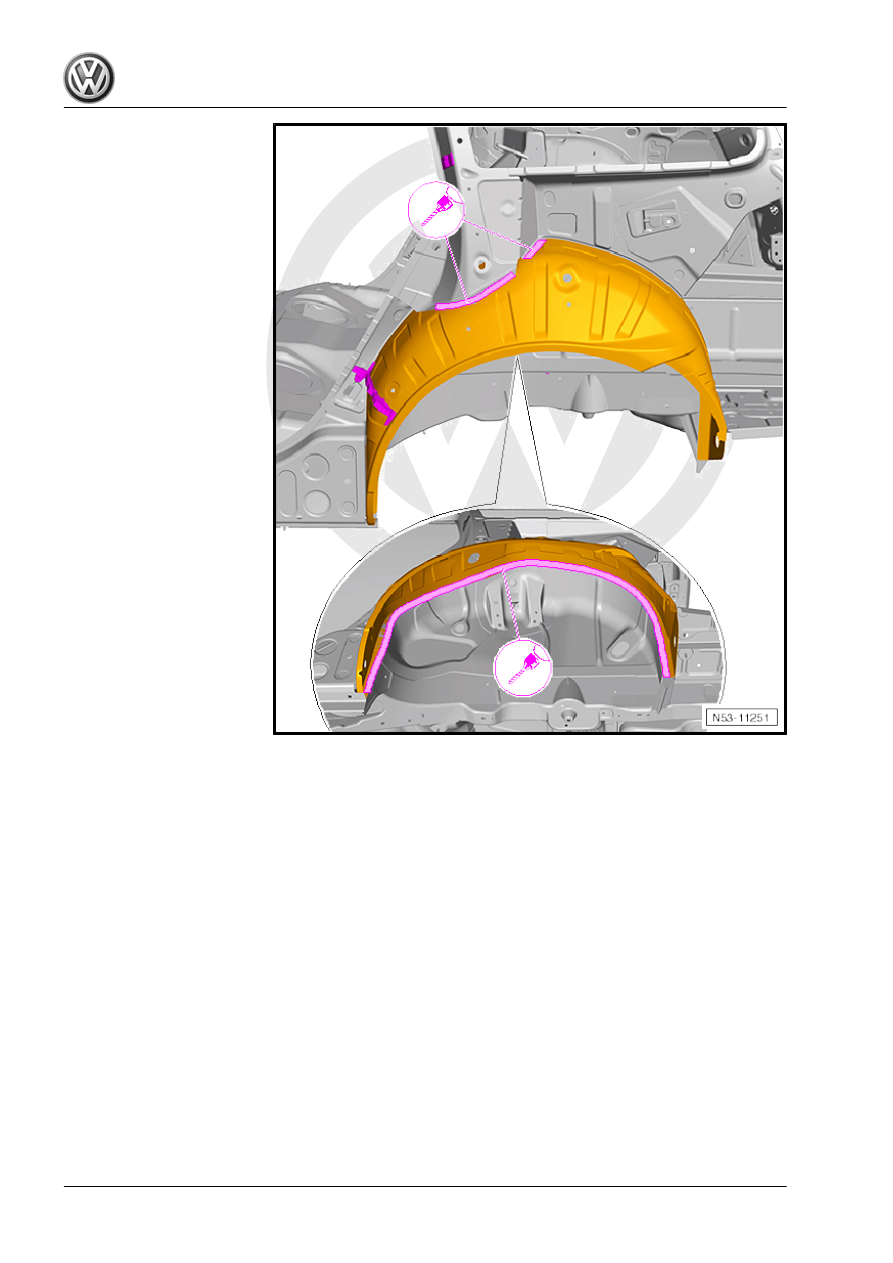

housing liner.

Passat 2011 ➤ , Passat Variant 2011 ➤

362

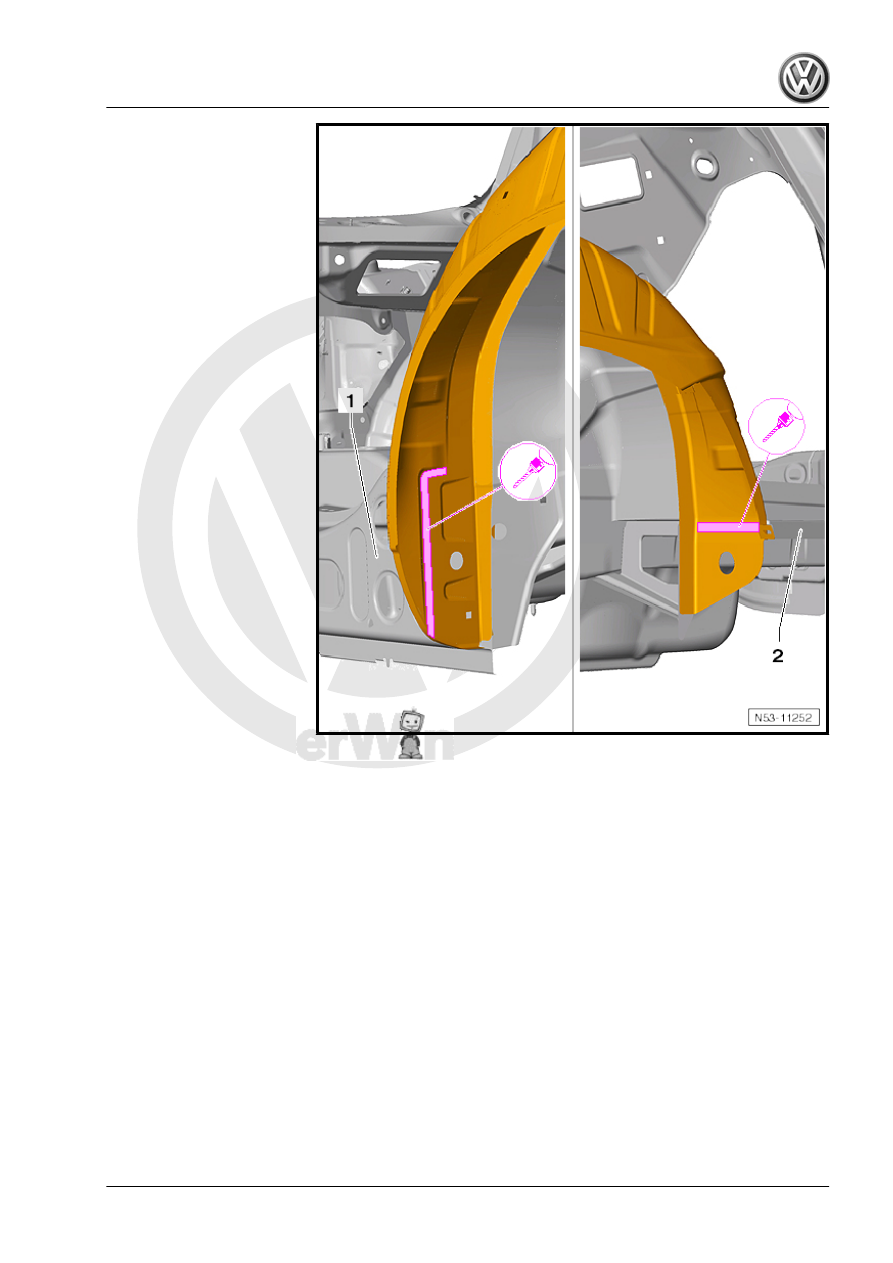

-1- and to rear connecting plate -2-.

Passat 2011 ➤ , Passat Variant 2011 ➤

14. Renewing outer wheel housing liner (Variant)

363

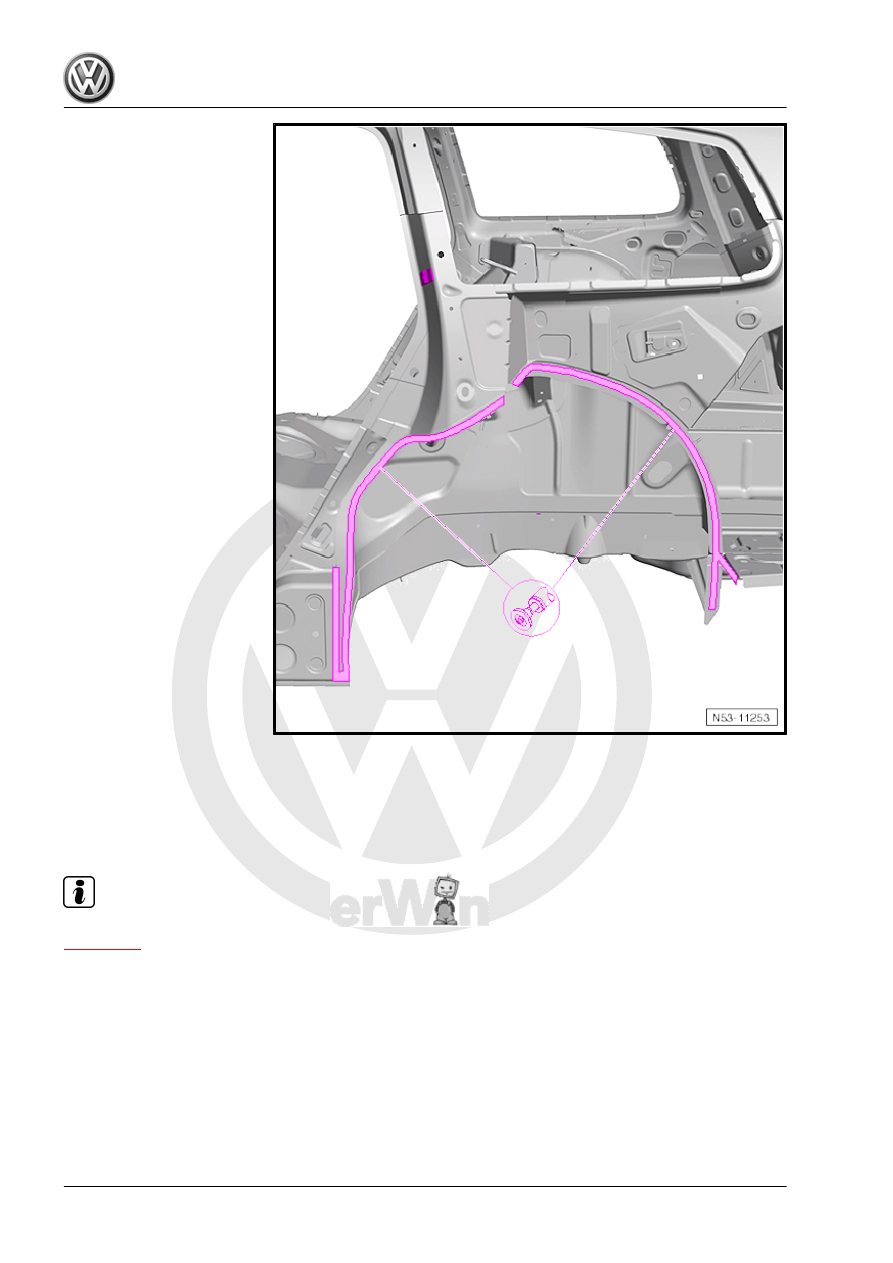

surface back to bare metal.

14.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 361

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

364
