Volkswagen Passat / Passat Variant (2011 year). Manual - part 73

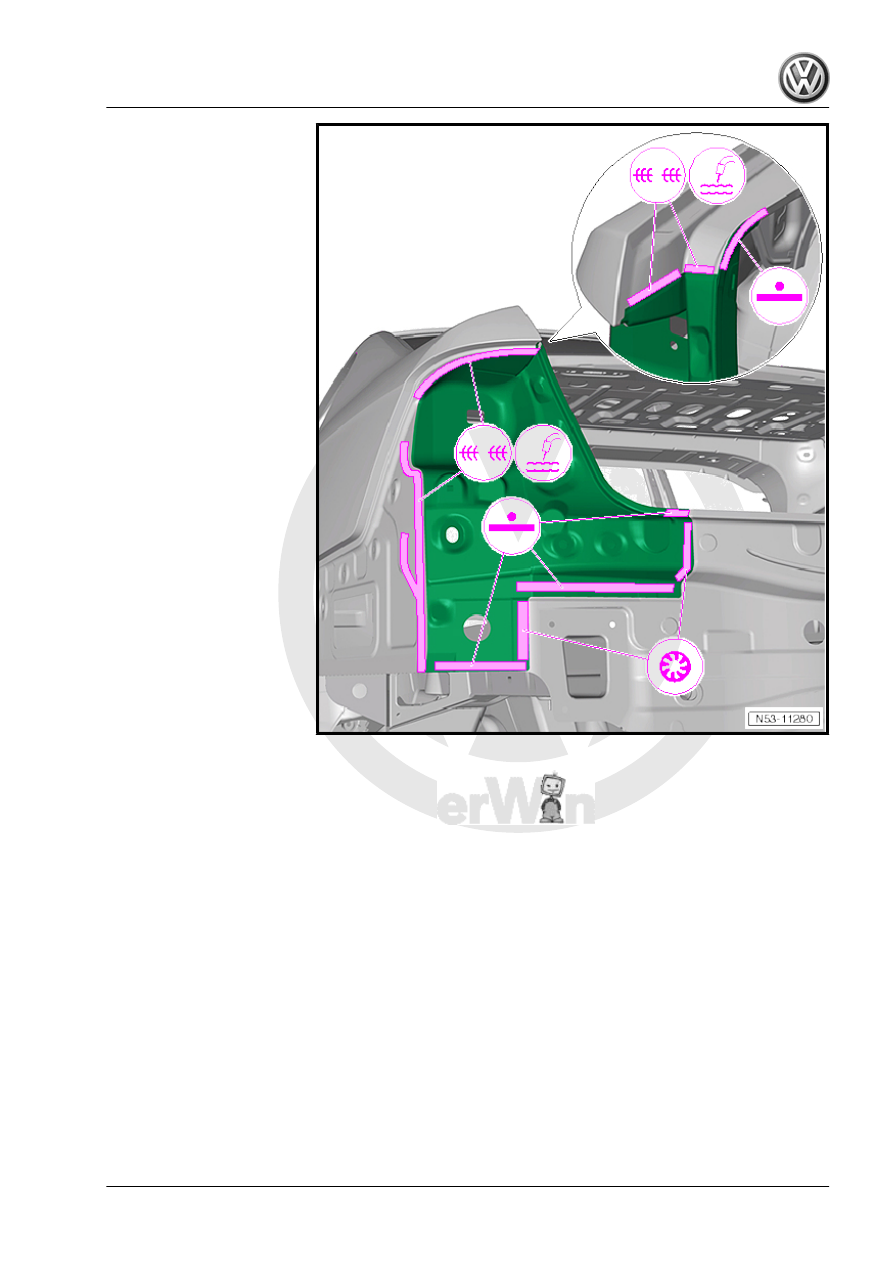

staggered continuous weld seam or MIG staggered continu‐

ous weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

4. Renewing tail light mounting

289

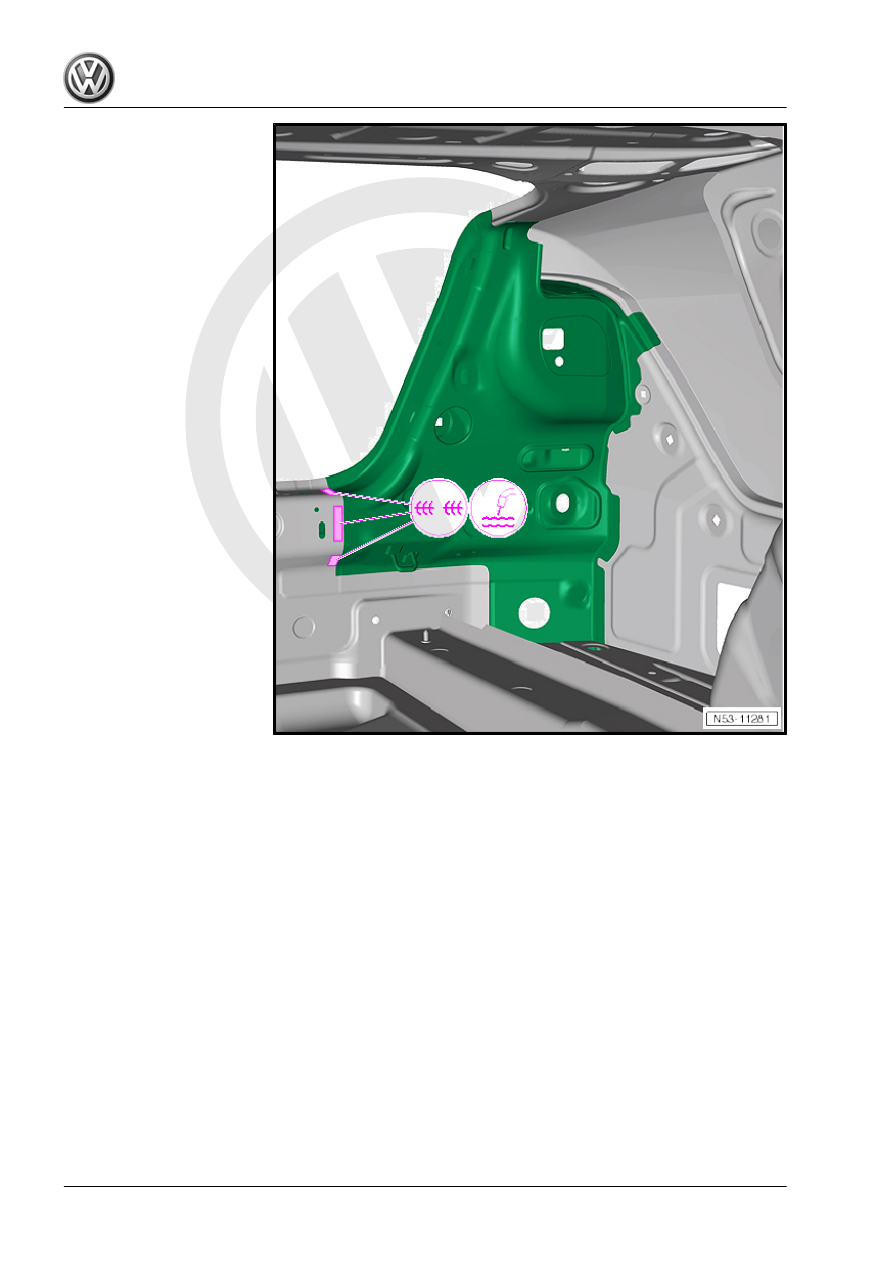

uous weld seam or MIG staggered continuous weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

290

Renewing tail light mounting (Var‐

iant)

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Side panel already removed

1 - Tail light mounting
2 - Sealing channel
3 - Cross panel

Passat 2011 ➤ , Passat Variant 2011 ➤

5. Renewing tail light mounting (Variant)

291

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒ ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

5.2

Removing

– Separate original joint.

Passat 2011 ➤ , Passat Variant 2011 ➤

292
