Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

4.2

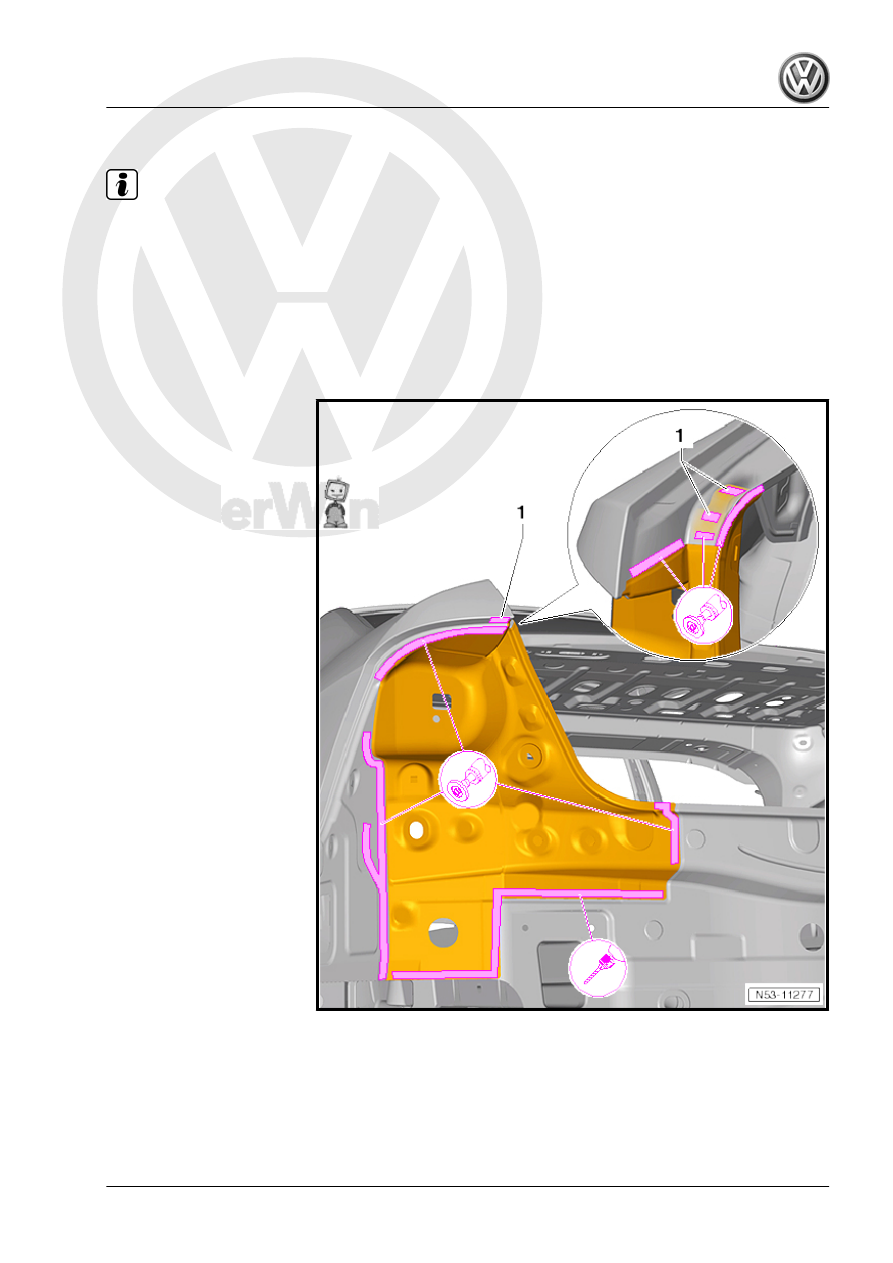

Removing

– Separate original outer joint.

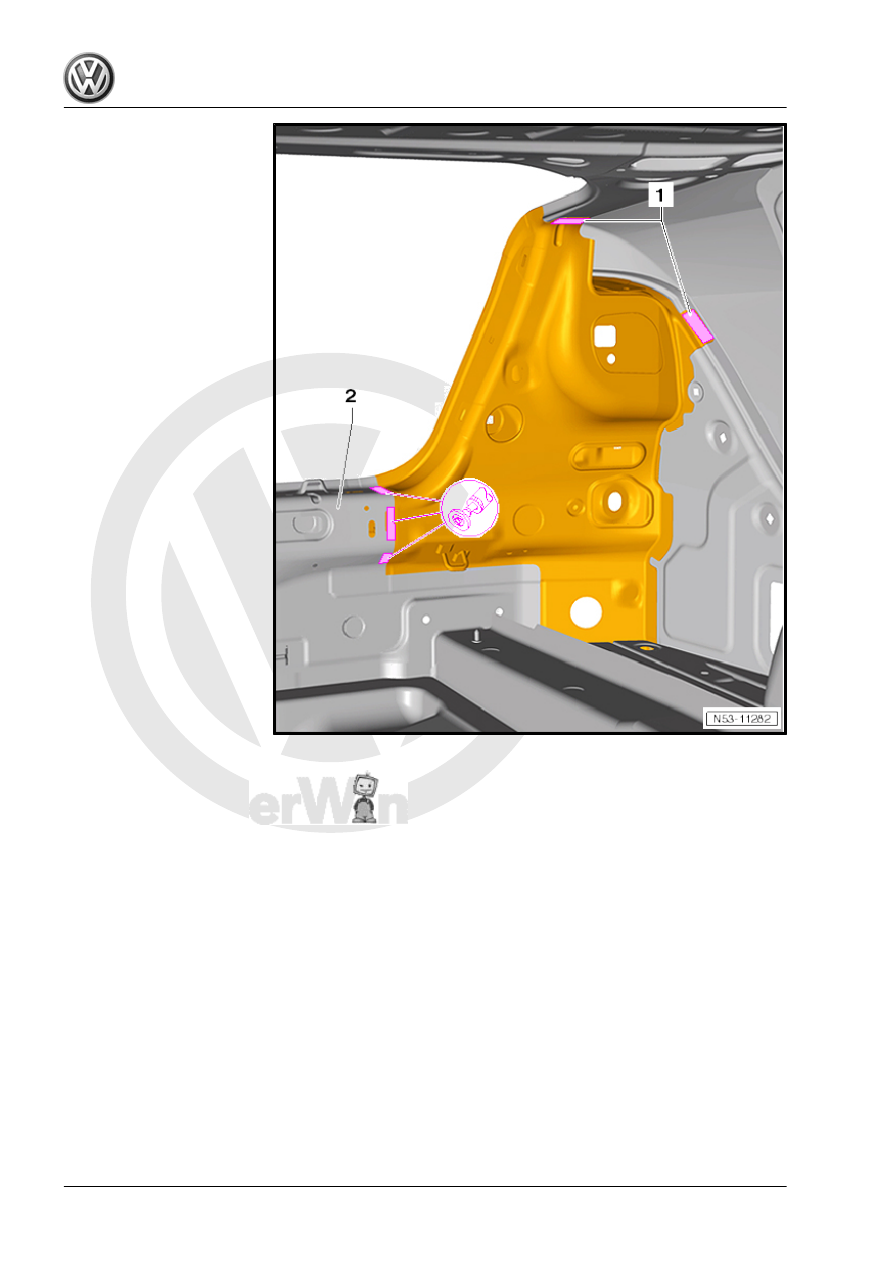

– Separate bonded areas -1- on sealing channel.

Passat 2011 ➤ , Passat Variant 2011 ➤

4. Renewing tail light mounting

285

Passat 2011 ➤ , Passat Variant 2011 ➤

286

surface back to bare metal.

4.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 285

 .

4.3.1

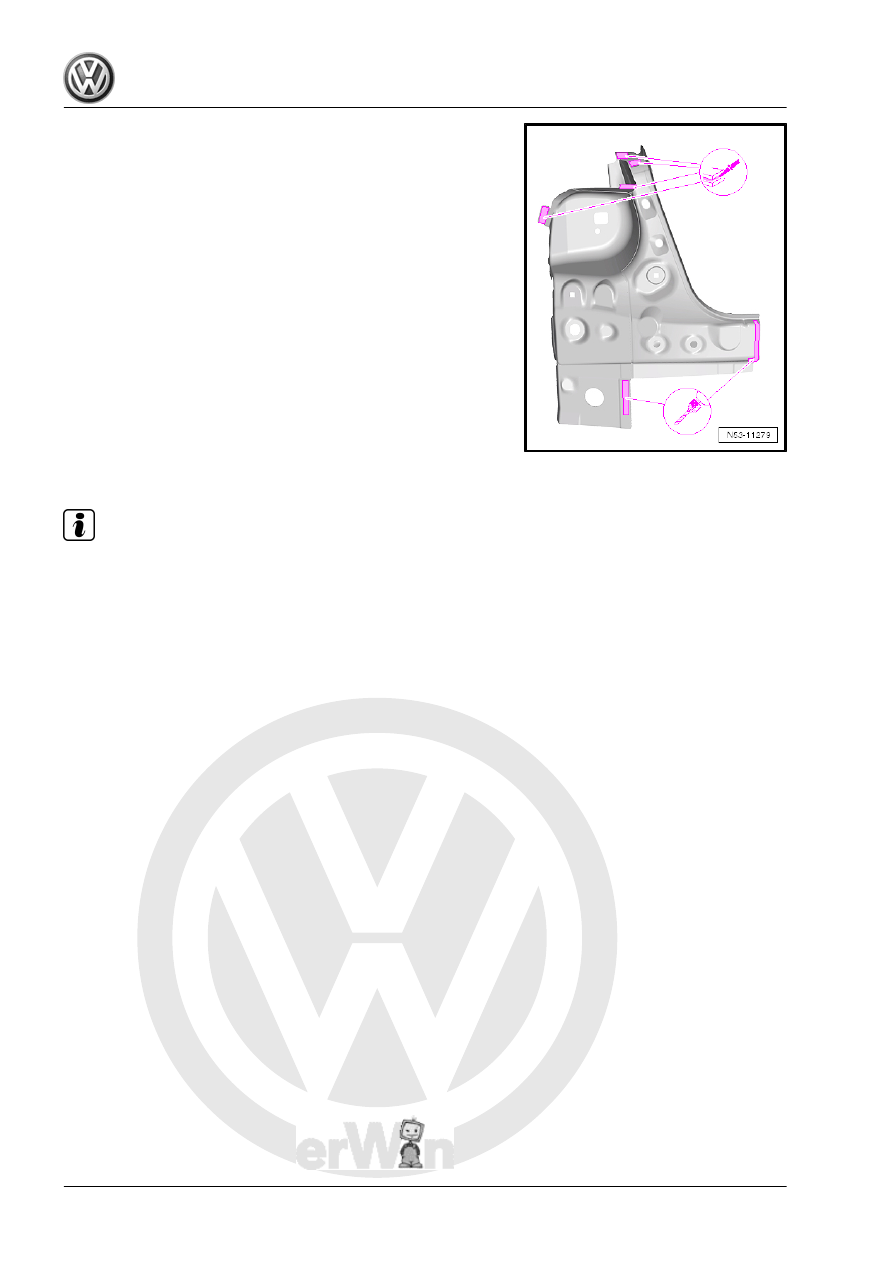

Preparing new part

New part
♦ Tail light mounting
♦ 2K body adhesive -D 180 KD3 A2-

Passat 2011 ➤ , Passat Variant 2011 ➤

4. Renewing tail light mounting

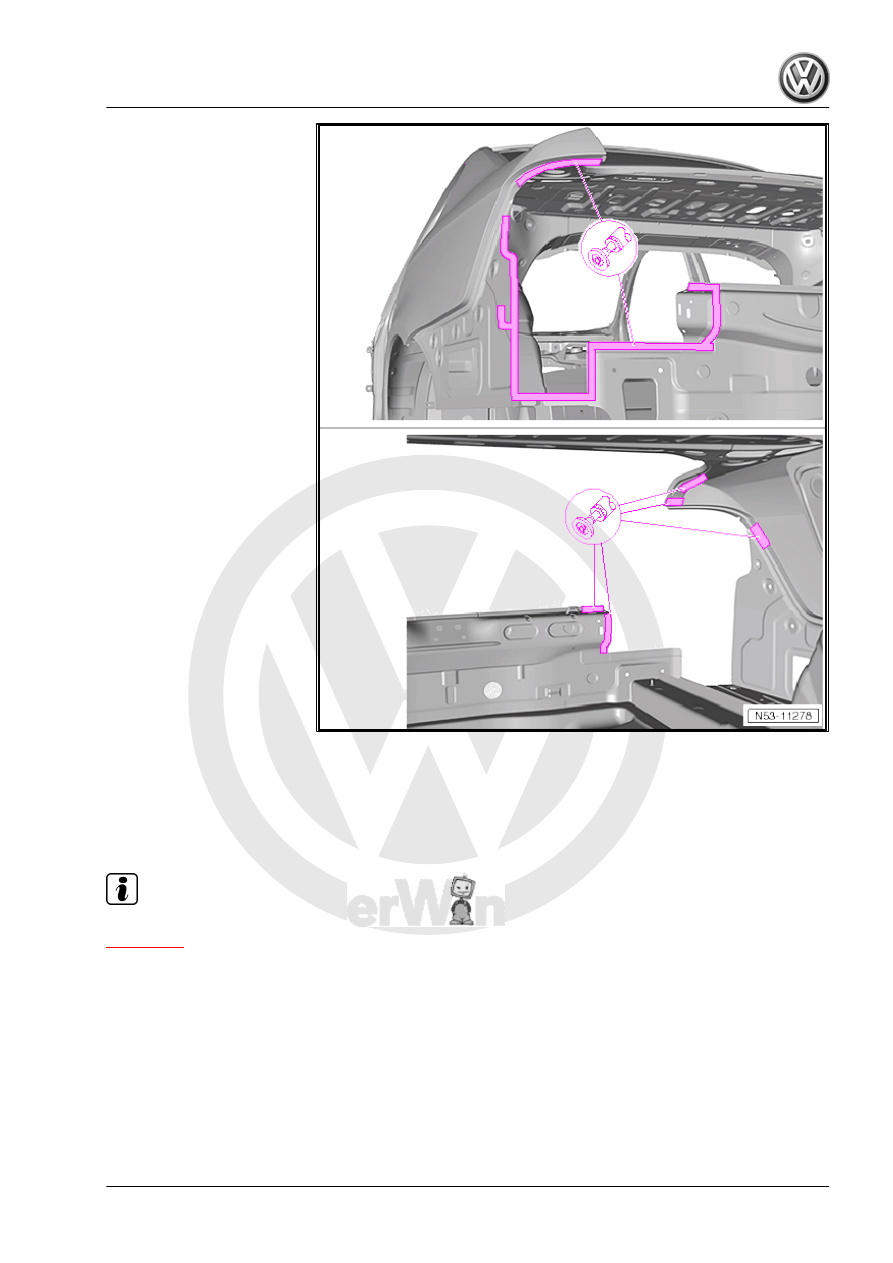

287

the factory.

4.3.2

Welding in

Note

The new part must be welded in within 90 minutes, or adhesion

of adhesive will be impaired.

– Adapt new part with vehicle standing on its wheels or align‐

ment bracket set and fix in position.

– Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤
