Volkswagen Passat / Passat Variant (2011 year). Manual - part 23

seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

9. Renewing front longitudinal member - part section

89

Note

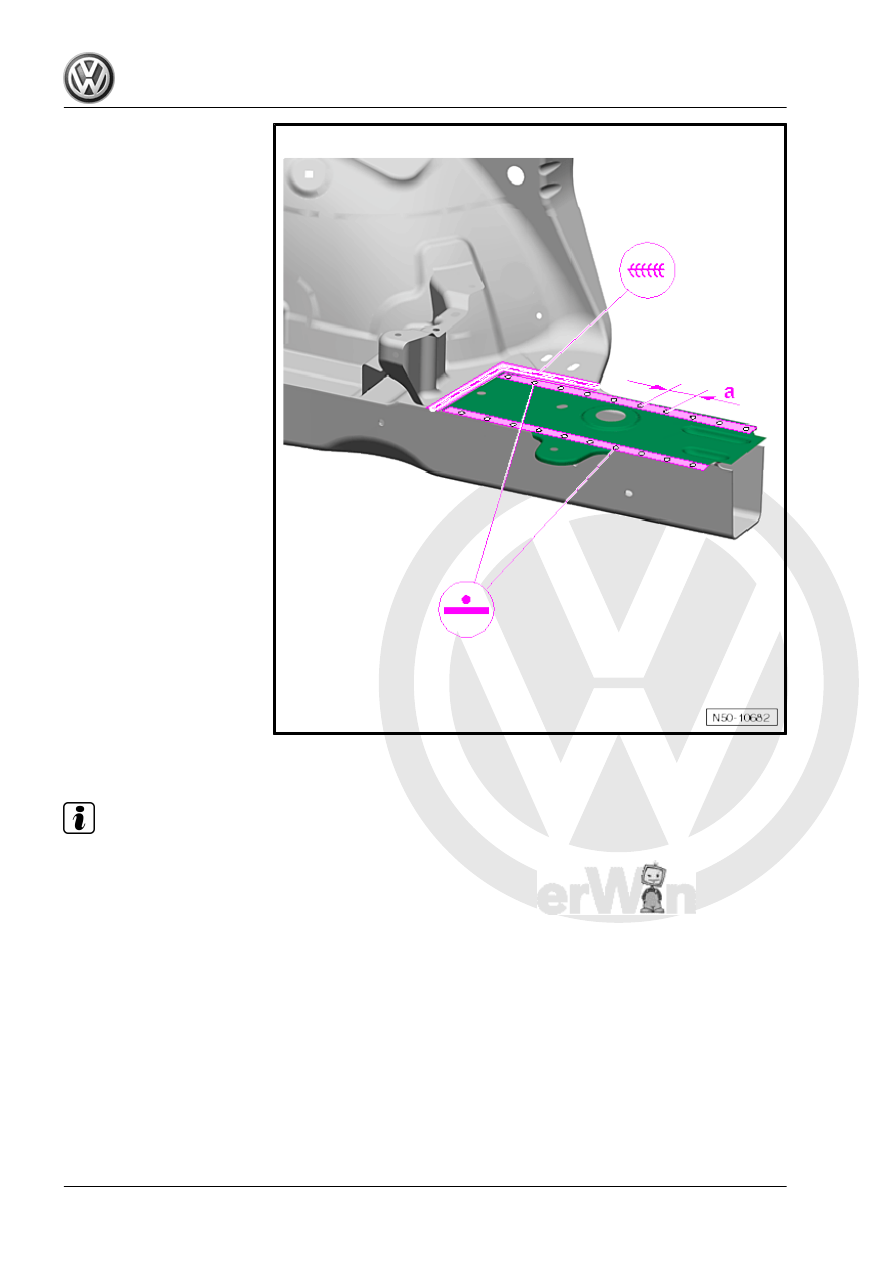

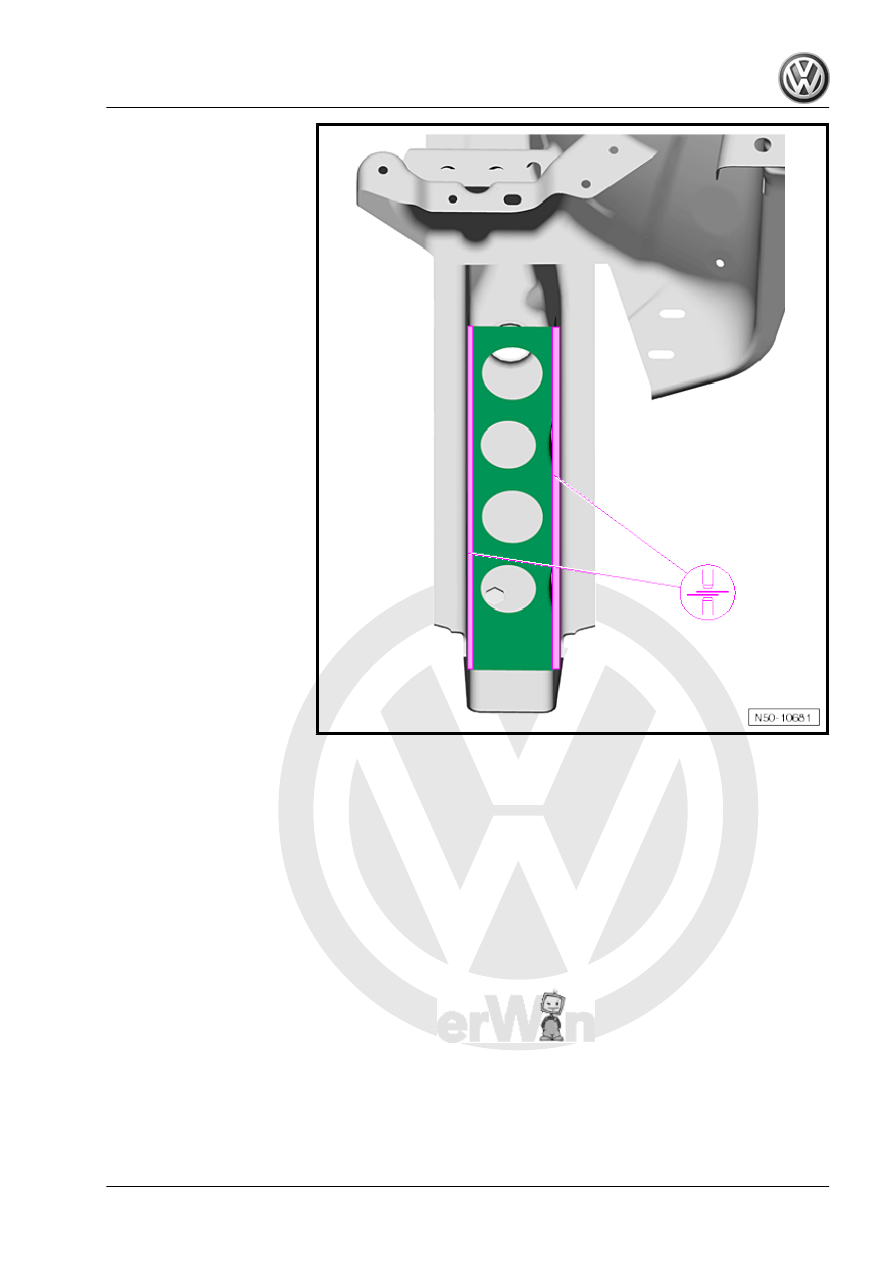

Distance between weld points -a- approx. 35-40 mm

– Weld in cover plate parting cut, SG continuous weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

90

RO: 51 03 55 00

1

Renewing roof

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

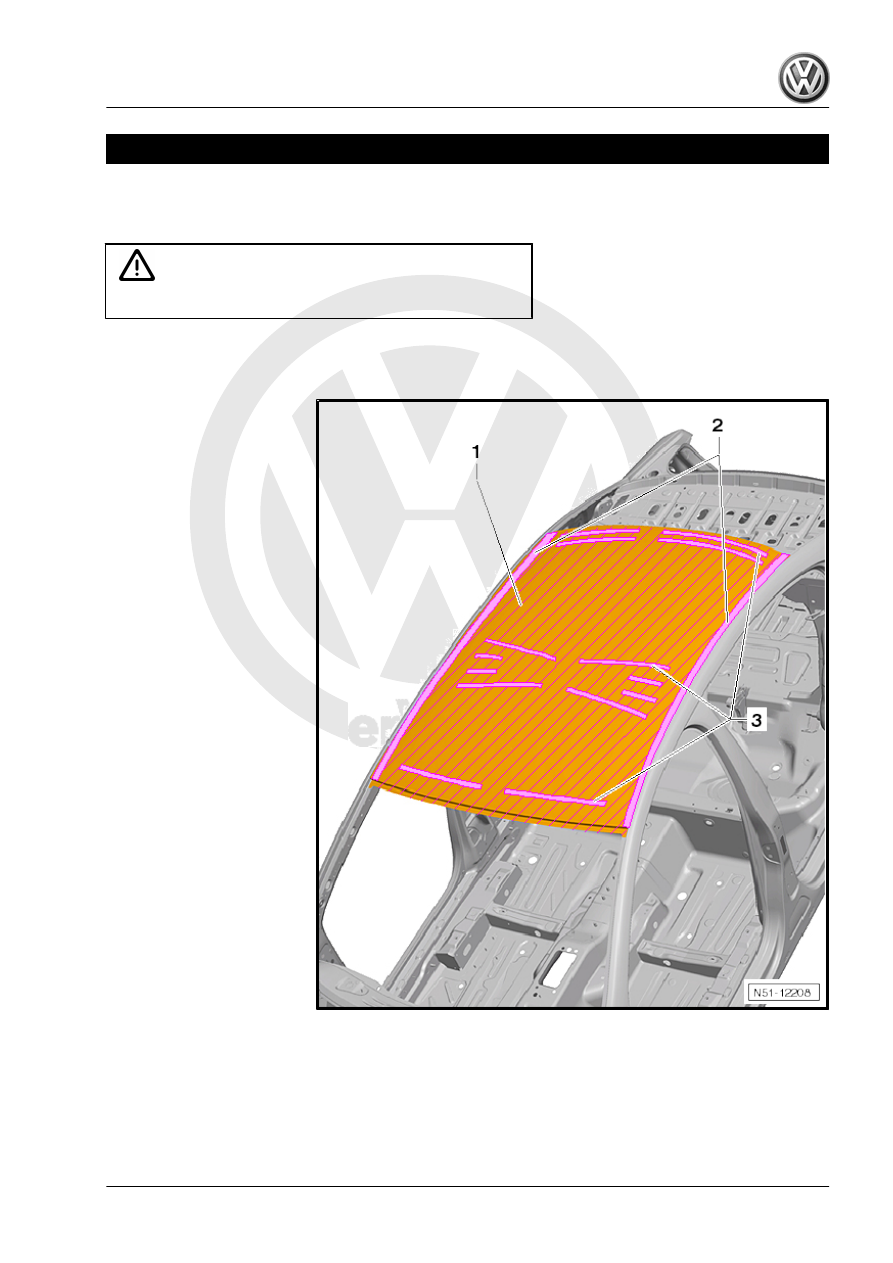

1 - Roof
2 - Laser solder seam
3 - Bonded areas

Passat 2011 ➤ , Passat Variant 2011 ➤

1. Renewing roof

91

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Special tools and workshop equipment required

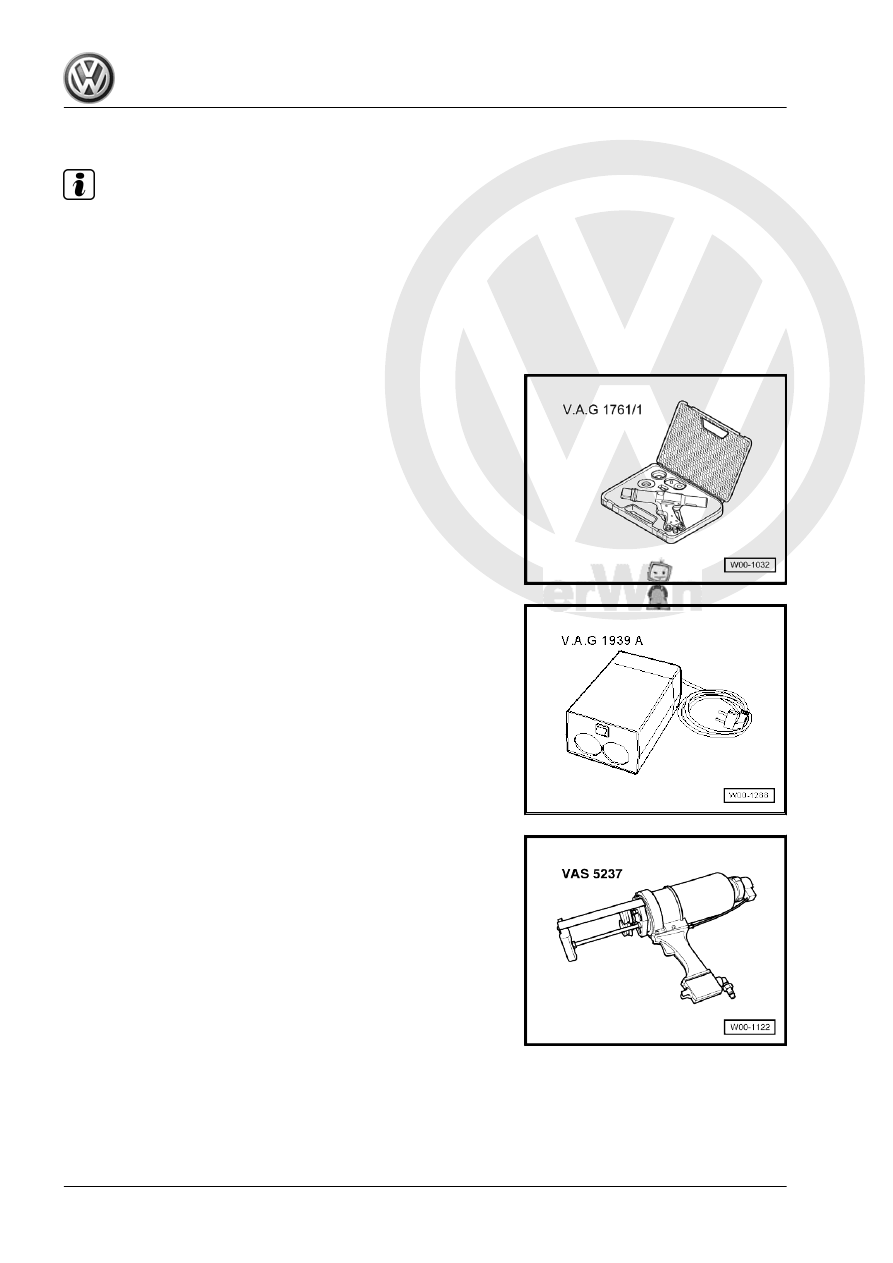

♦ Pneumatic cartridge gun -V.A.G 1761/1-

♦ Cartridge heater -V.A.G 1939 A-

♦ Double-cartridge gun -VAS 5237-
