Note

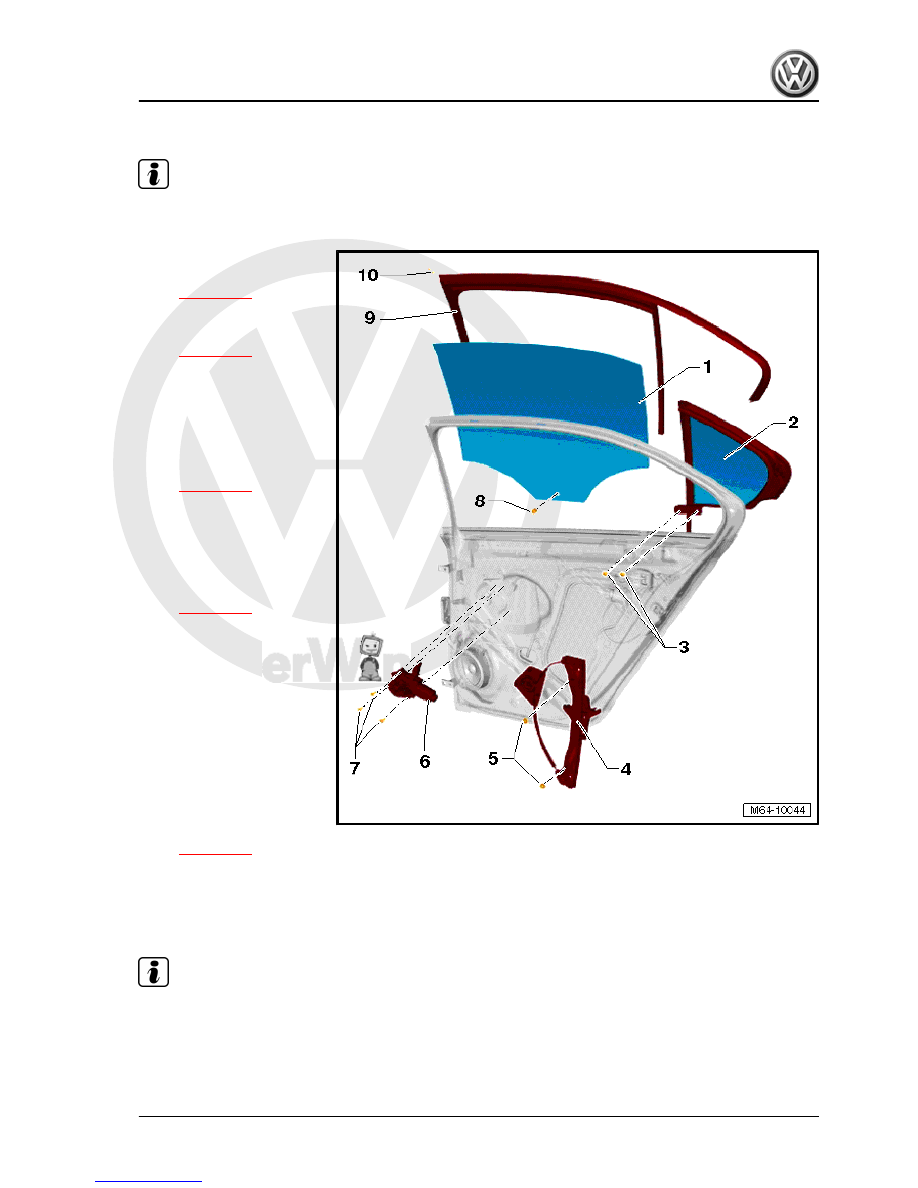

The right side is shown. The left side is similar.

1 - Door window

❑ Removing and installing

⇒ page 221

2 - Fixed door window

❑ Removing and installing

⇒ page 232

3 - Bolt

❑ Qty. 2.
❑ Specified torque: 5.5

Nm

4 - Window regulator

❑ Removing and installing

⇒ page 227

5 - Nut

❑ Qty. 2.
❑ Specified torque: 8 Nm

6 - Window regulator motor

❑ Removing and installing

⇒ page 225

7 - Bolt

❑ Qty. 3.
❑ Specified torque: 4 Nm

8 - Spreader plug with spread‐

er pin

❑ For fastening the door

window -1-

❑ Always renew when

working on door window

-1-.

9 - Window channel

❑ Removing and installing

⇒ page 230

10 - Retaining clip

3.3

Removing and installing door window

Note

♦

Removal and installation are described only for the right door

window. The removal and installation of the left door window

is similar.

♦

Do not bend the window slot seals when lifting off!

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Rear door window

221



gr.  70 ; Door trim .

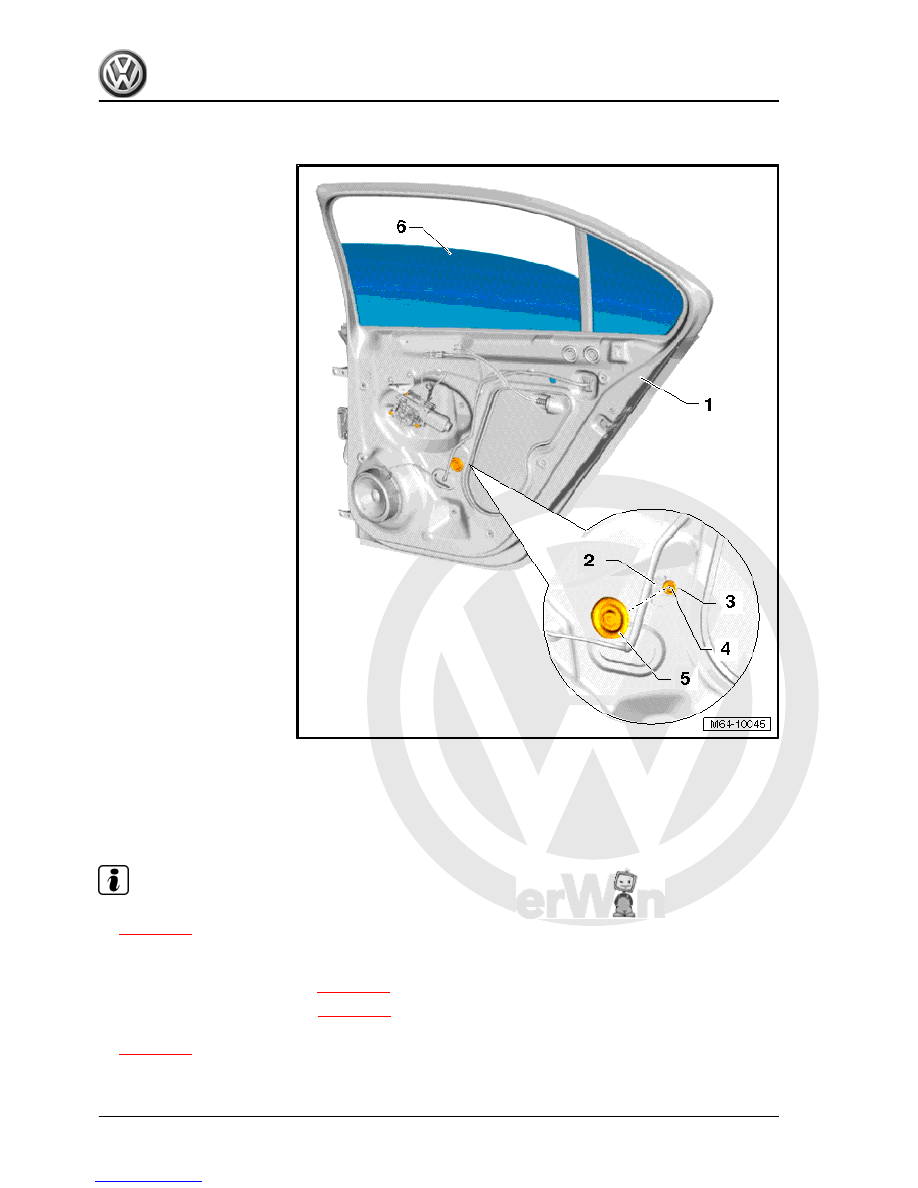

– Lower door window -6- as far as stop.

Note

♦

If this part of the work cannot be done due to a fault in window regulator motor -7-, the latter can be removed

⇒ page 225

 .

♦

The window can then be pushed to required working position.

– Remove window slot inner seal

⇒ page 145

 .

– Remove window slot outer seal

⇒ page 148

 .

– Remove front part of window channel (at B-pillar)

⇒ page 230

 .

– Lever off cap -5-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

222



– Screw a 5 mm bolt (approx. 70 mm long) in the spreader pin

-4- and pull bolt out of spreader plug -3-.

– Screw an 8 mm bolt (approx. 80 mm long) into spreader plug

-3-.

Note

When screwing bolt into spreader plug, do not apply excessive pressure on plug. It otherwise falls inwards into

door.

– Pull spreader plug -3- out of window regulator guide and thus

out of door window.

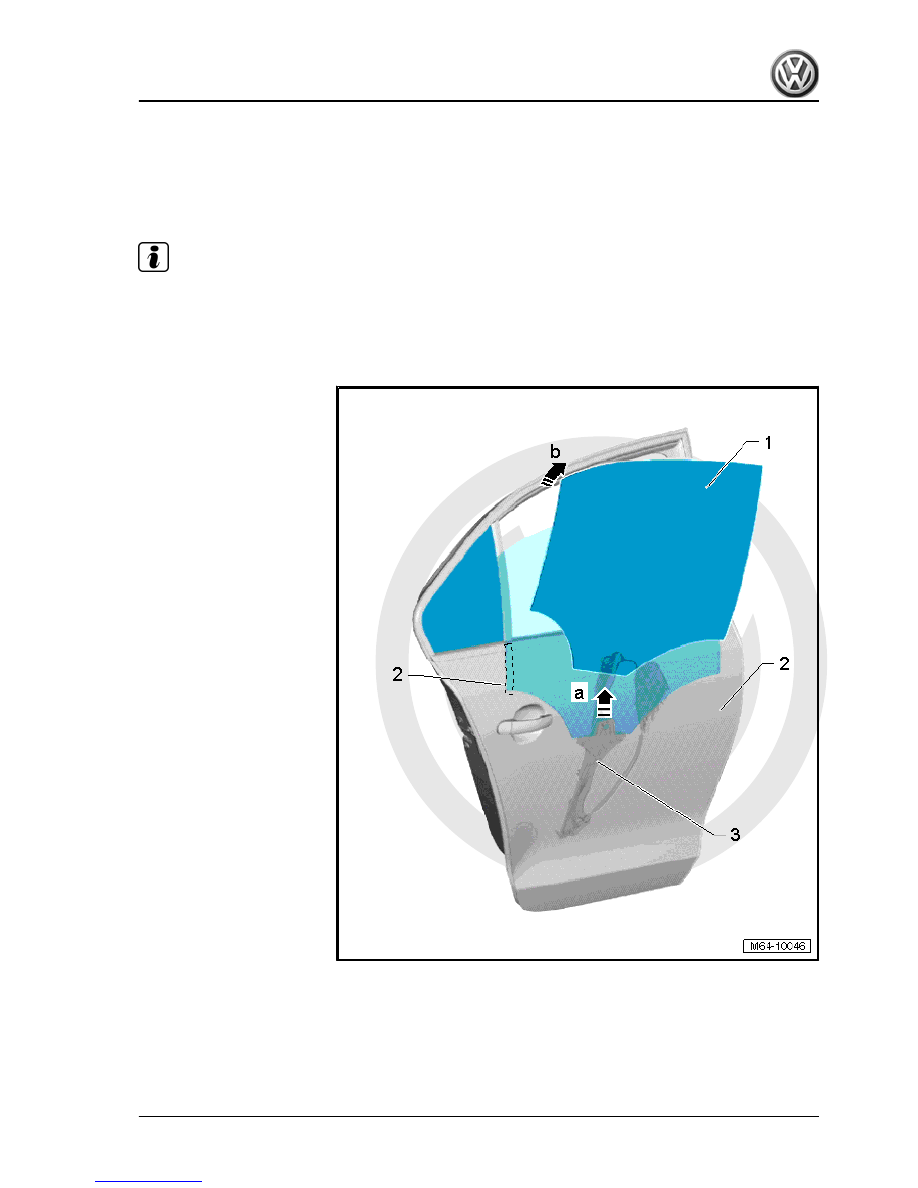

– Lift door window -1- upwards out of window regulator -3-

-arrows a-.

– Pull door window -1- upwards at an angle -arrows b- out of

window slot.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Rear door window

223



Note

♦

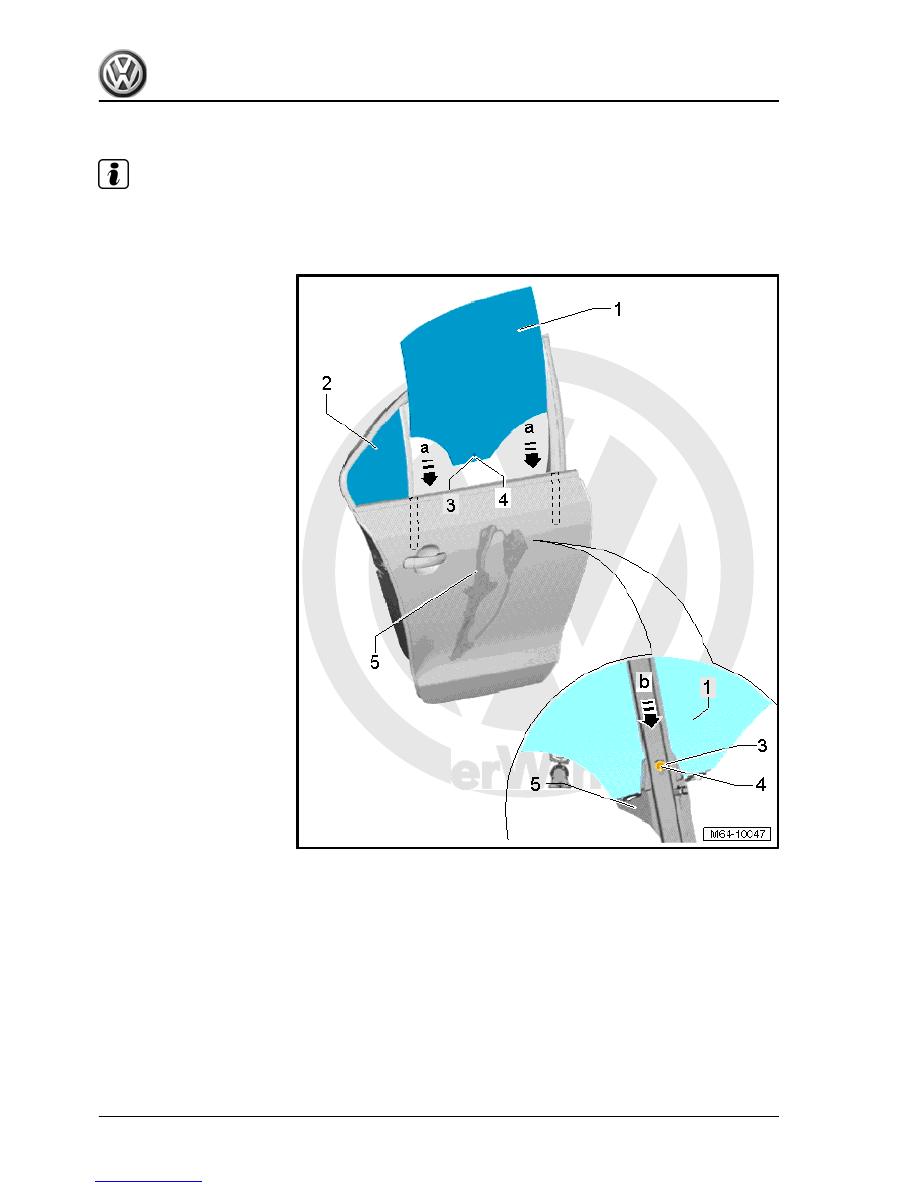

When installing door window, always renew spreader plug -3- and spreader pin -4-.

♦

Before inserting spreader plug -3- and spreader pin -4-, check window -1- for damage.

Carry out following work:
– Insert and centre spreader plug -3- in the middle with the door

window removed -1- .

– Press spreader pin -4- flush into spreader plug -3-.
– Guide door window -1- into door -2- -arrows a- and insert door

window into slot of window regulator guide -5-.

– With light pressure from above -arrows b-, engage window

-1- in window regulator -5-.

Further installation is performed in the reverse order of removal.
