nel

Note

♦

Removal and installation is described only for the right window

channel. The removal and installation of the left window chan‐

nel is similar.

♦

Do not bend the window slot seals when lifting off!

2.6.1

Removing

Carry out following work:
– Remove door window

⇒ page 206

 .

– Remove window slot inner seal

⇒ page 105

 .

– Remove window slot outer seal

⇒ page 108

 .

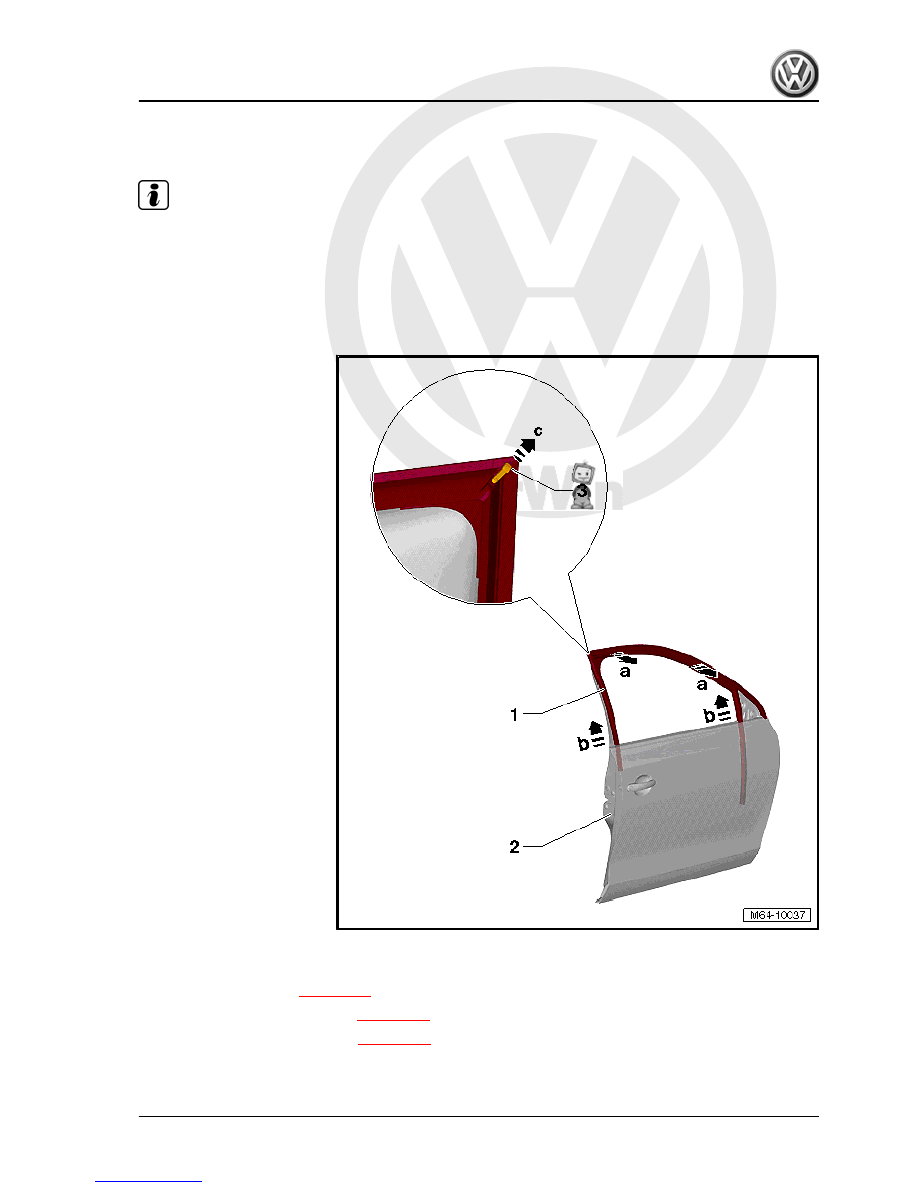

– Pull out retaining clip -3- -arrow c-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Front door window

217



– Pull window channel -1- -arrows a- off flange -2- uniformly all

around it.

– Pull window channel -1- out of mountings -arrows b-.

2.6.2

Installing

Carry out following work:

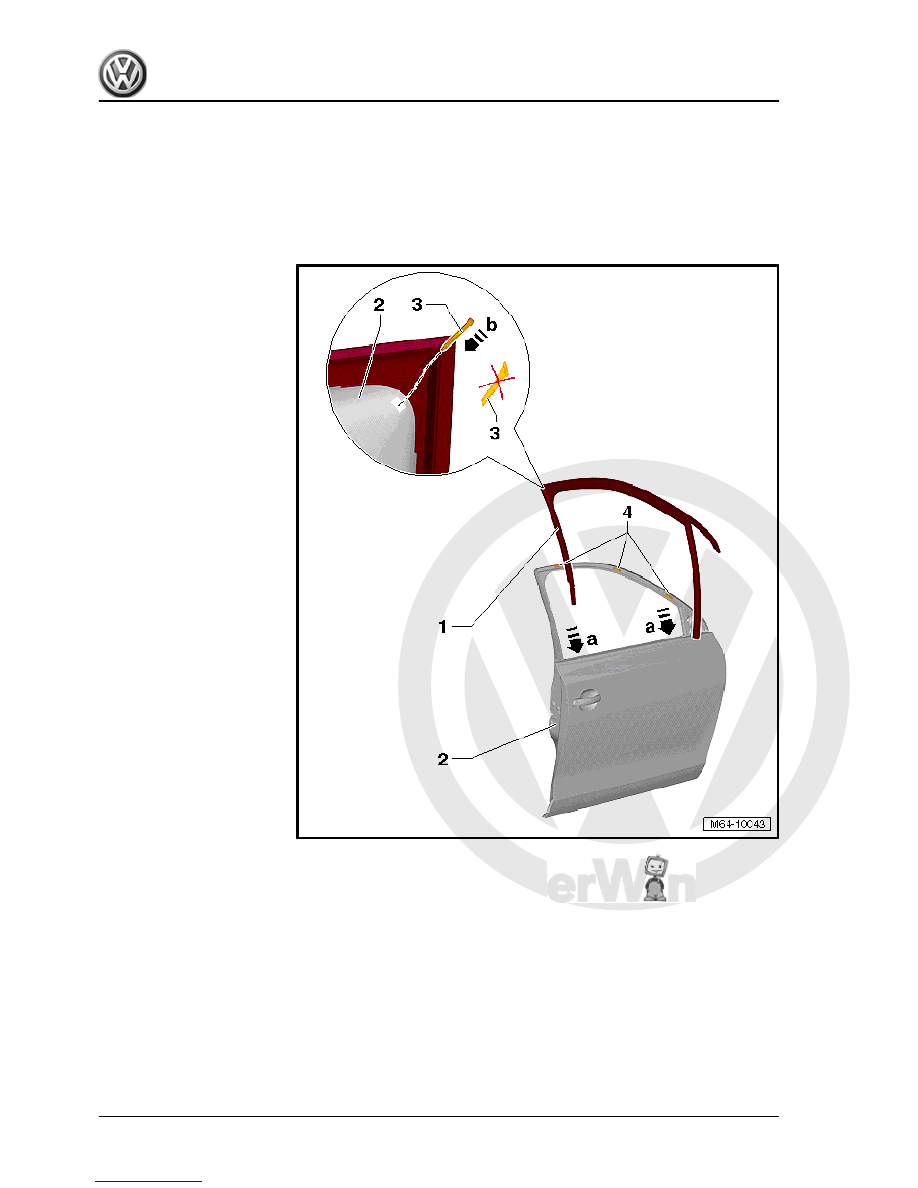

– Openings -4- beneath window channel are masked off with

textile adhesive tape.

Adhesive tape dimensions: height = approx. 10 mm, width = ap‐

prox. 40 mm.
– Spray window channel with soapy water to facilitate installa‐

tion.

– Push window channel -1- into mountings -arrows a-.
– Push window channel -1- evenly all around onto the door

flange -2-.

– Fold sealing lip of window channel onto door flange from the

inside.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

218



– Push in retaining clip -3- -arrow c-.

Note

♦

Retaining clip inclination must point to inner side of vehicle (vehicle interior).

♦

If retaining clip inclination points to outer side of vehicle -scored through in red-, retaining clip must be turned

around.

Further installation is performed in the reverse order of removal.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Front door window

219



3.1

Tools

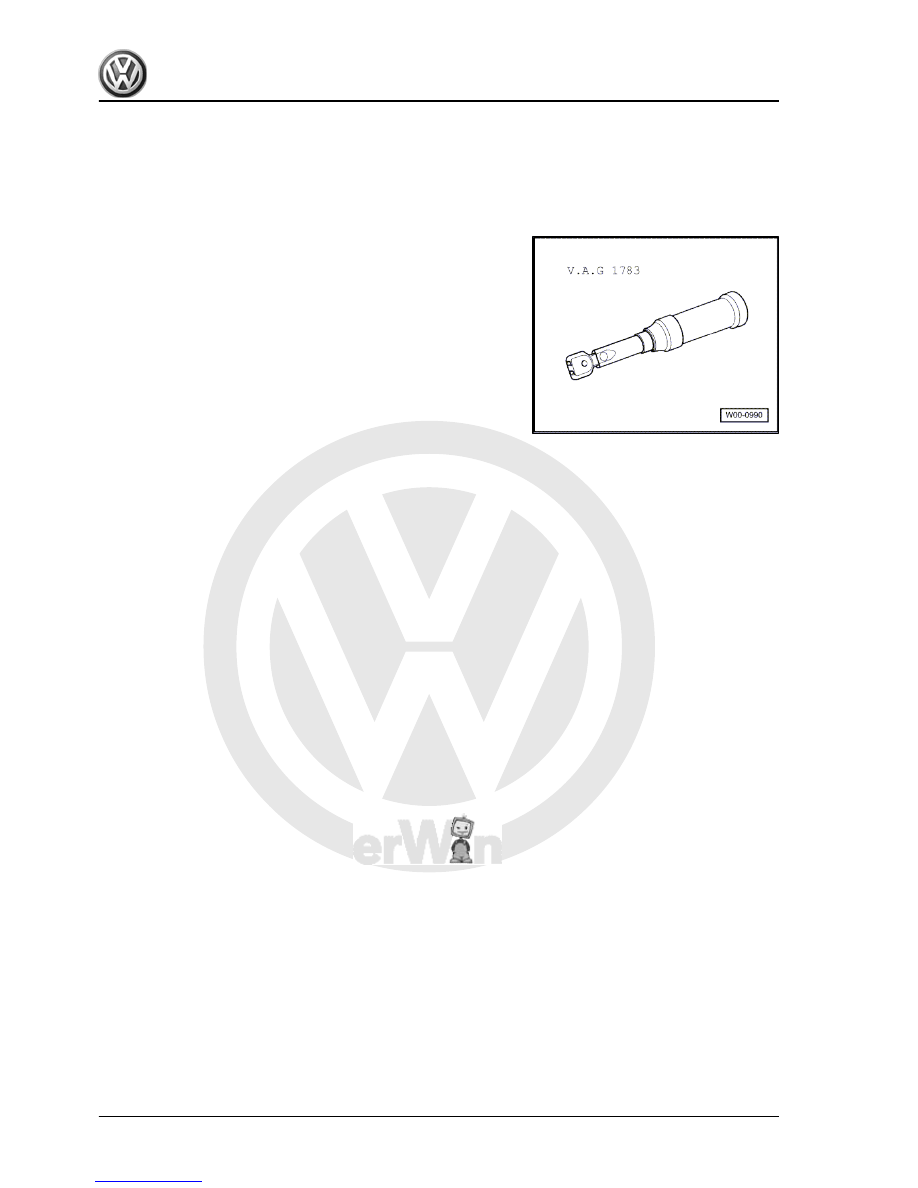

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
