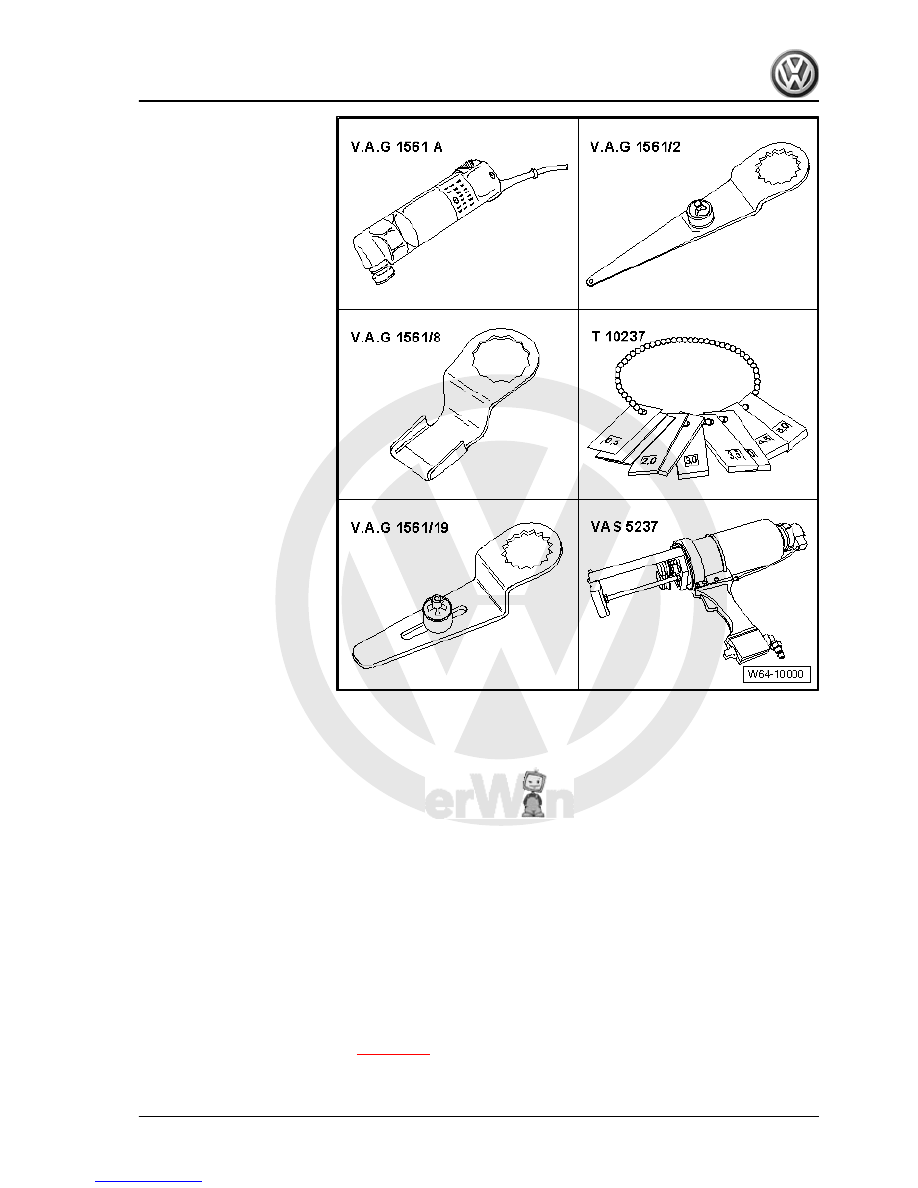

♦ Cutting blade -

V.A.G 1561/2-

♦ Cutting blade -

V.A.G 1561/8-

♦ Assembly tool set -T10237-
♦ Cutting blade -

V.A.G 1561/19-

♦ Double cartridge gun -

VAS 5237-

1.2

Materials

♦ 2K glass adhesive

DA 004 600 A2

1



2



3)

♦ 1K glass adhesive

DH 009 100 A2

1)



2)



4)



5)

♦ Activator

D 181 801 A1

1)

♦ Glass primer/paint primer

D 009 200 02

1)

♦ Cleaning solution

D 009 401 04

1)

♦ Primer applicator

D 009 500 25

1)

♦ Adhesive remover

D 002 000 10

1)

♦ Cutting cord

357 853 999 A

1)

 Observe instructions for use on the information sheet provided

by the manufacturer.

2)

 Observe minimum curing period

⇒ page 203

 .

3)

 Double cartridge gun -VAS 5237- must be used to apply these

materials.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Flush bonded windows

193



heater -V.A.G 1939- .

5)

 Small cartridge, 180 ml, for sealing and/or when a 400 ml dou‐

ble cartridge alone is not sufficient.

1.3

Repairing windscreen

Note

♦

If windscreen is damaged, determine whether glass can be

repaired before replacing.

♦

Damaged windscreens can be repaired with the window repair

kit -VAS 6092- .

♦

This damage must not exceed a certain size or position.

♦

Each window repair kit comes with a set of instructions.

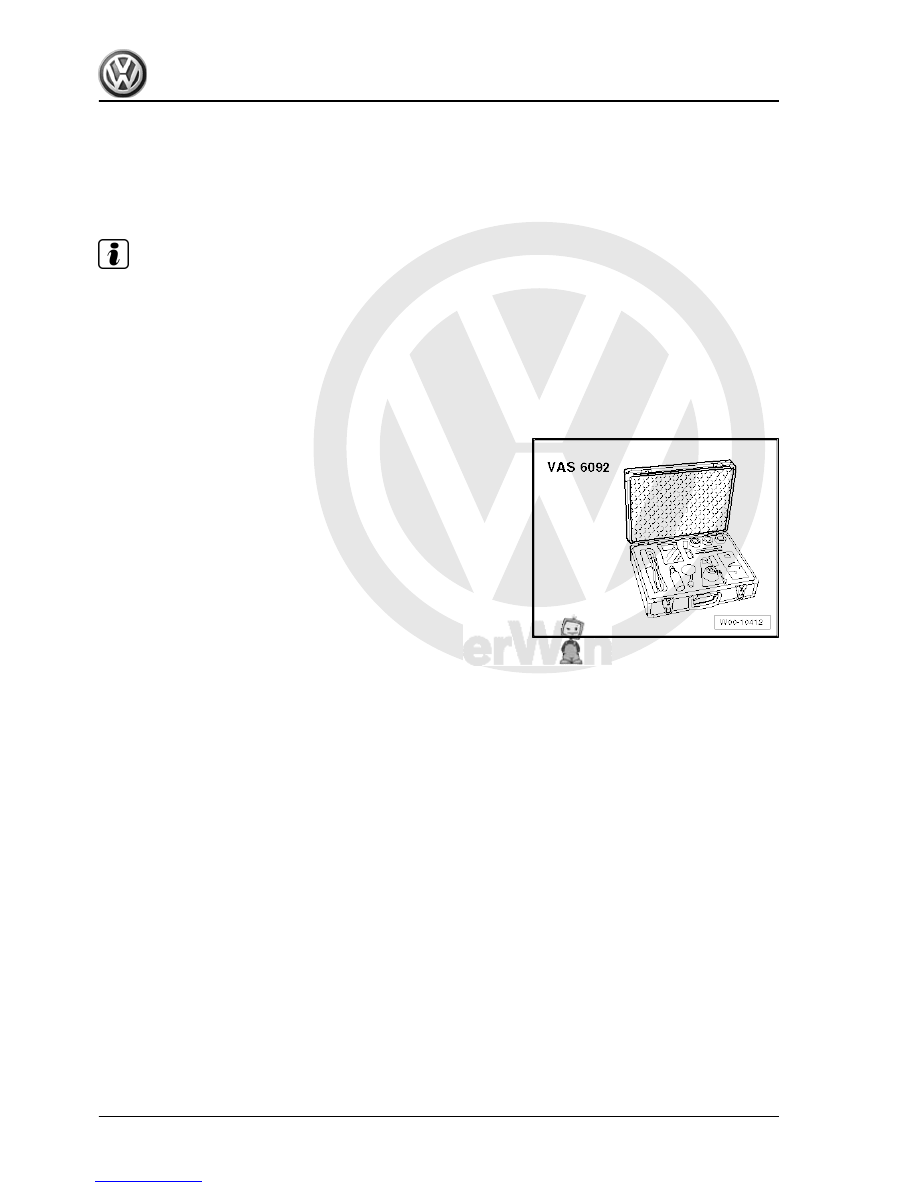

Special tools and workshop equipment required
♦ Window repair kit -VAS 6092-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

194

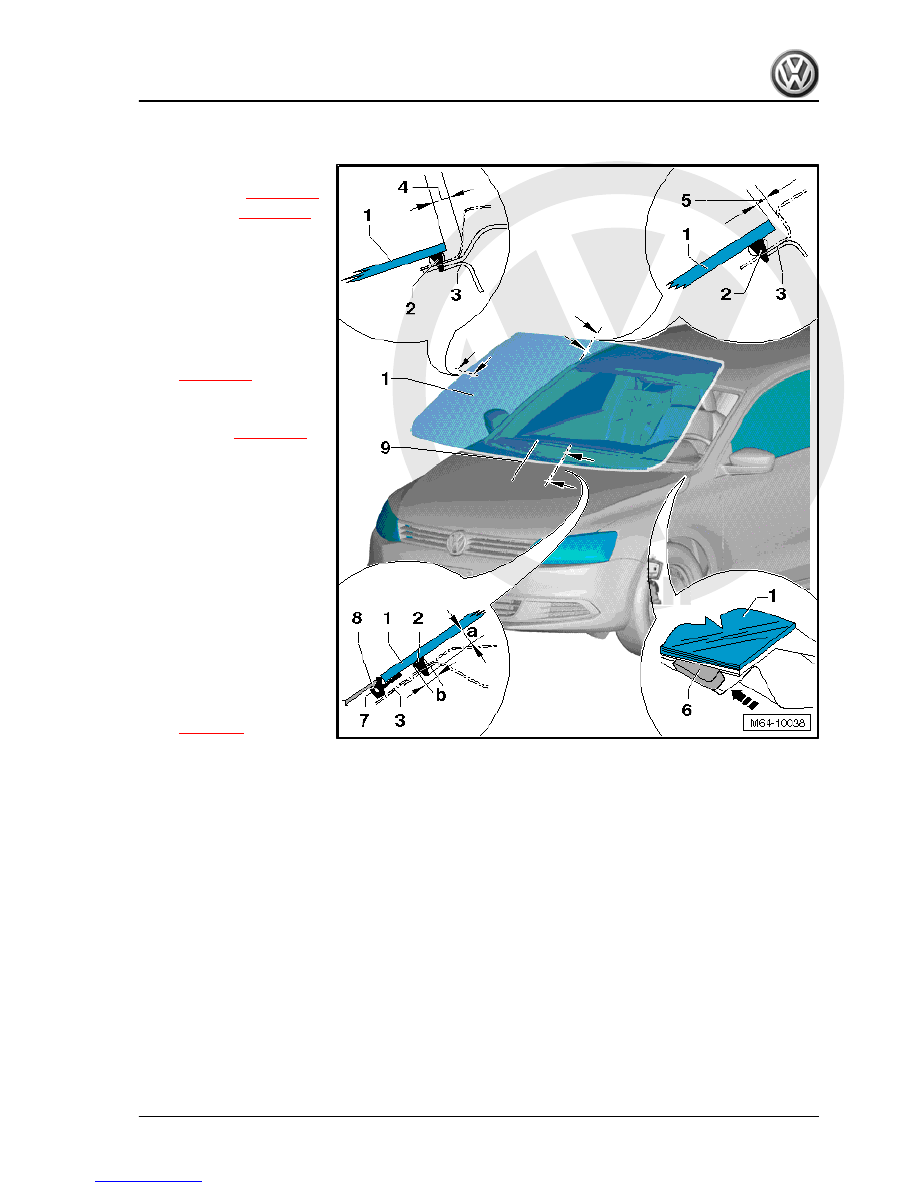

1 - Windscreen

❑ Removing

⇒ page 195

❑ Installing

⇒ page 197

 .

2 - PUR adhesive sealant

❑ Cross section of bead:

-width b- = 7.5 mm,

-height a- = 12 mm (in‐

cluding precoating, re‐

sidual material on win‐

dow glass and window

flange).

❑ Minimum curing period

⇒ page 203

 .

3 - Body flange

❑ Touch up paintwork

damage

⇒ page 203

 .

4 - Gap

❑ Must be uniform on left

and right

5 - Gap

❑ Must be uniform

6 - Windscreen adjuster

❑ 443 845 631 A

7 - Windscreen seal

❑ Is part of windscreen.

8 - Plenum chamber cover

❑ Must be removed from

windscreen seal by

hand only.

❑ Removing and installing

⇒ page 17

9 - Adhesive bead butt end

❑ The butt end of the adhesive bead should be located here.

1.5

Removing windscreen

Carry out following work:
– Remove A-pillar upper trims on left and right ⇒  General body

moving A-pillar trim .

– Removing left and right sun visors ⇒  General body repairs,

interior; Rep. gr.  68 ; Compartments, covers and trims; Re‐

moving and installing sun visor .

gr.  68 ; Interior mirror

– Remove moulded headliner in area of windscreen ⇒  General

body repairs, interior; Rep. gr.  70 ; Roof trim .

– Moulded headliner can now be lowered sufficiently to allow

windscreen to be cut out without damage occurring to moulded

headliner.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Flush bonded windows

195



 .

– Removing plenum chamber cover

⇒ page 17

 .

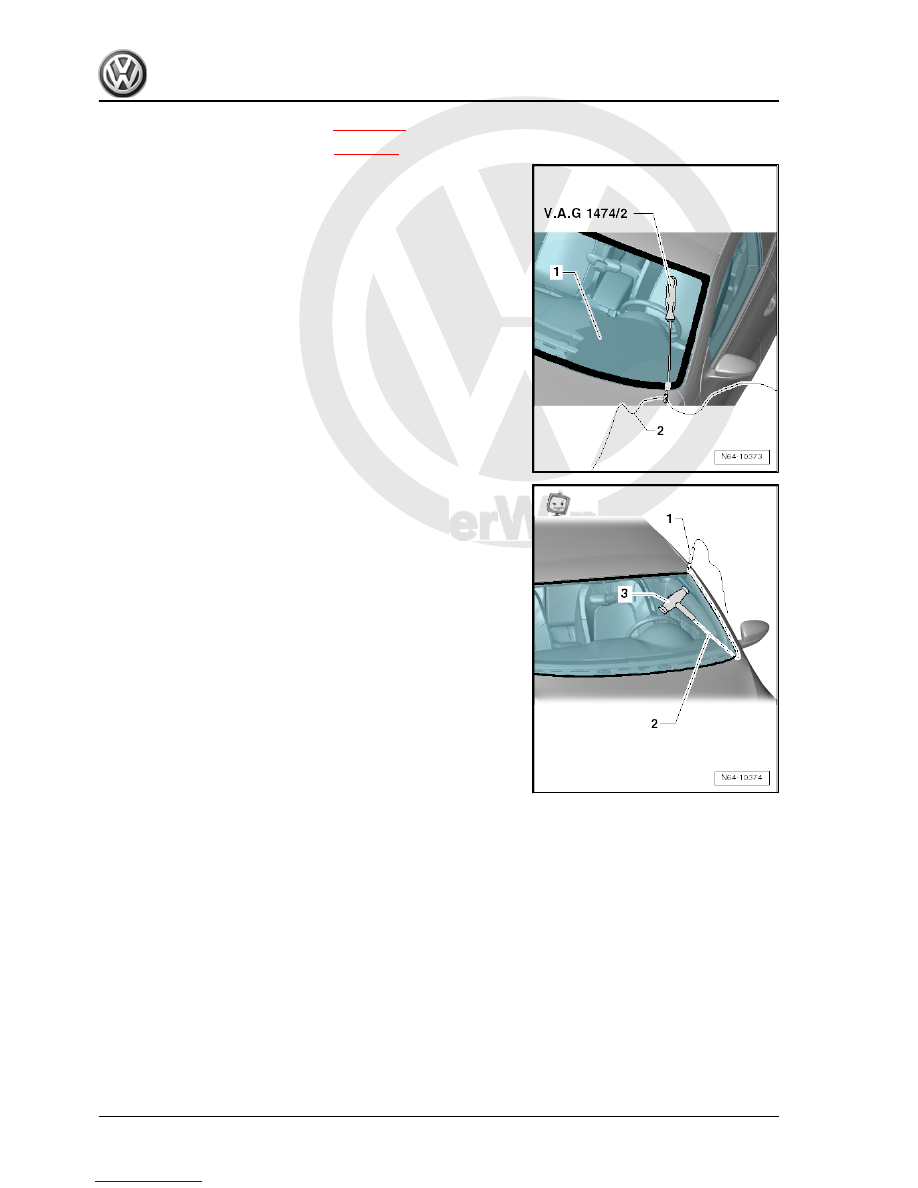

– Slide protective backing -V.A.G 1474/8- -1- between front

windscreen and dash panel.

– Pull cutting cord -2- through adhesive sealing material into in‐

side of vehicle using awl -V.A.G 1474/2- .

– Secure inside end of cutting cord against falling out using Pull

toggle -V.A.G 1351/1- -3-.

– Insert cutting cord -2- into window flange using tube -1-.
– Place cutting cord around the front windscreen.
– Ensure that cutting cord lies under front windscreen in corners.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

196
