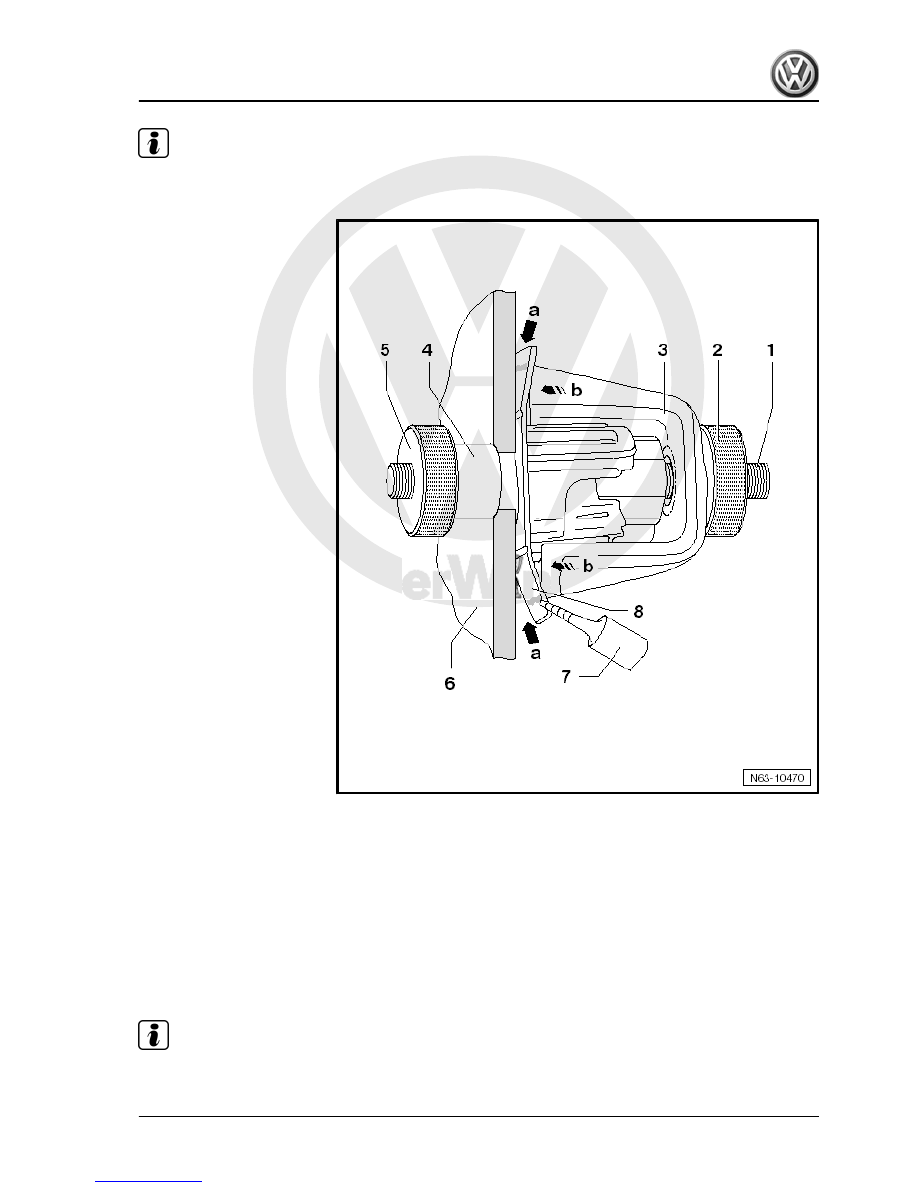

– Lightly sand inside of bumper cover -6- and clean thoroughly.
– Apply primer to bumper cover and bracket and allow to air for

10 minutes.

– Push bracket -8- onto centring pin -1- and through bumper

cover -6-.

– Push counterhold -4- on and gently tighten knurled nut -5-.
– Push clip -3- on and then place knurled nut -2- in position but

do not tighten it.

– All the brackets are prepared by this stage.

Note

The adhesive must not run into the angle.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Rear bumper cover

185



– Remove all centring pins after minimum curing period, mini‐

mum curing period

⇒ page 186

2.3.4

Minimum curing period

Do not carry out any further work on bumper cover or brackets

until the minimum curing period of 30 minutes has expired.
In this time, the bumper cover must remain where it is and should

not be moved.

2.4

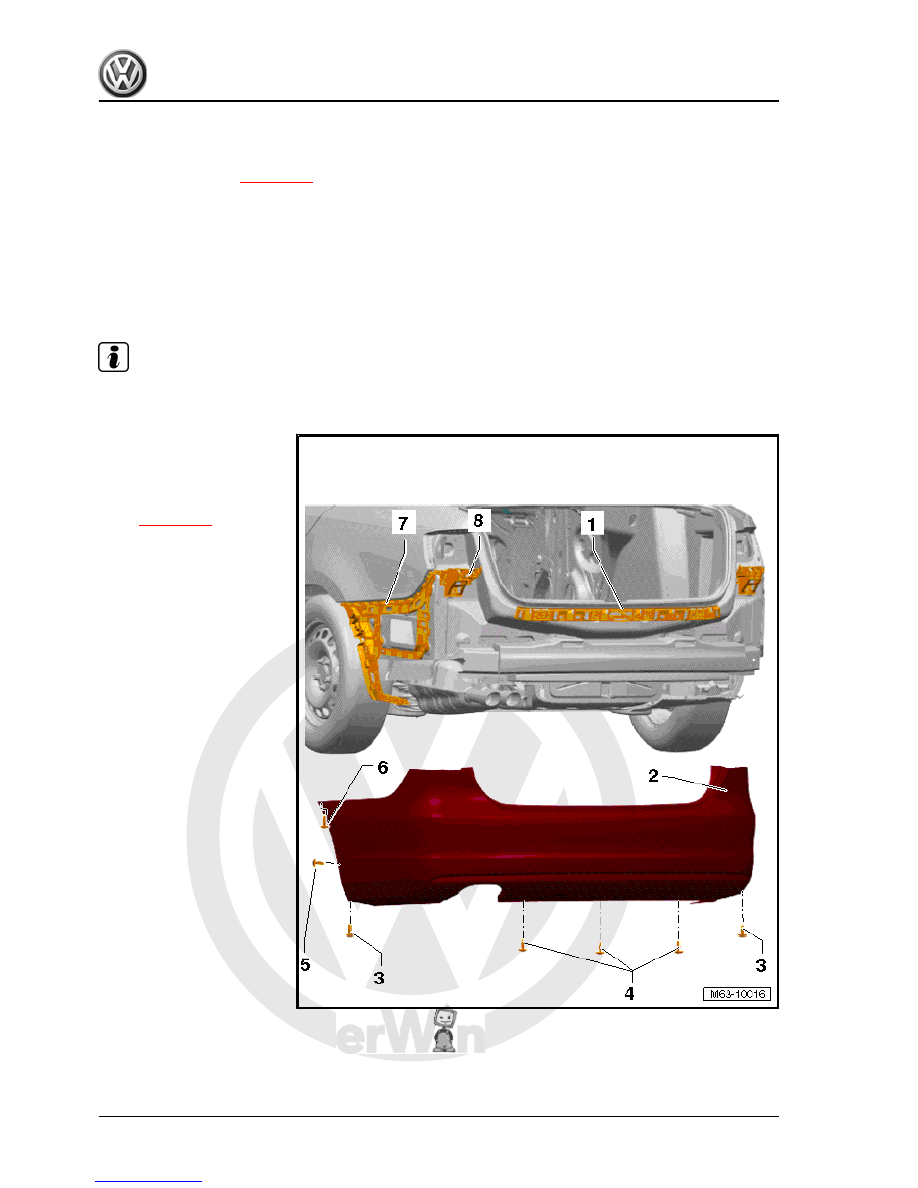

Assembly overview - rear bumper cover

Note

Depending on the vehicle model, minor differences may be encountered in the rear bumper cover.

1 - Centre guide
2 - Rear bumper cover

❑ Material PP/EPDM.
❑ Removing and installing

⇒ page 187

3 - Bolt

❑ Qty. 1 on each side.
❑ Specified torque: 2.7

Nm

4 - Bolt

❑ Qty. 3.
❑ Specified torque: 2.7

Nm

5 - Bolt

❑ Qty. 1 on each side.
❑ Specified torque: 2.7

Nm

6 - Bolt

❑ Qty. 1 on each side.
❑ Specified torque: 2.7

Nm

7 - Guide section at side

❑ Left and right.

8 - Retaining bracket

❑ Left and right.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

186



cover

Note

The removal and installation procedures for rear bumper cover

may have to be revised slightly depending on model variations.

2.5.1

Removing

94 ; Tail lamps; Removing and installing tail lights in side pan‐

el .

– Loosen/release wheel housing liner in area of bumper cover

⇒ page 240

 .

– Undo and remove bolts -5- in wheel housing on left and right.
– Remove bolts -3- and -4- from below.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Rear bumper cover

187

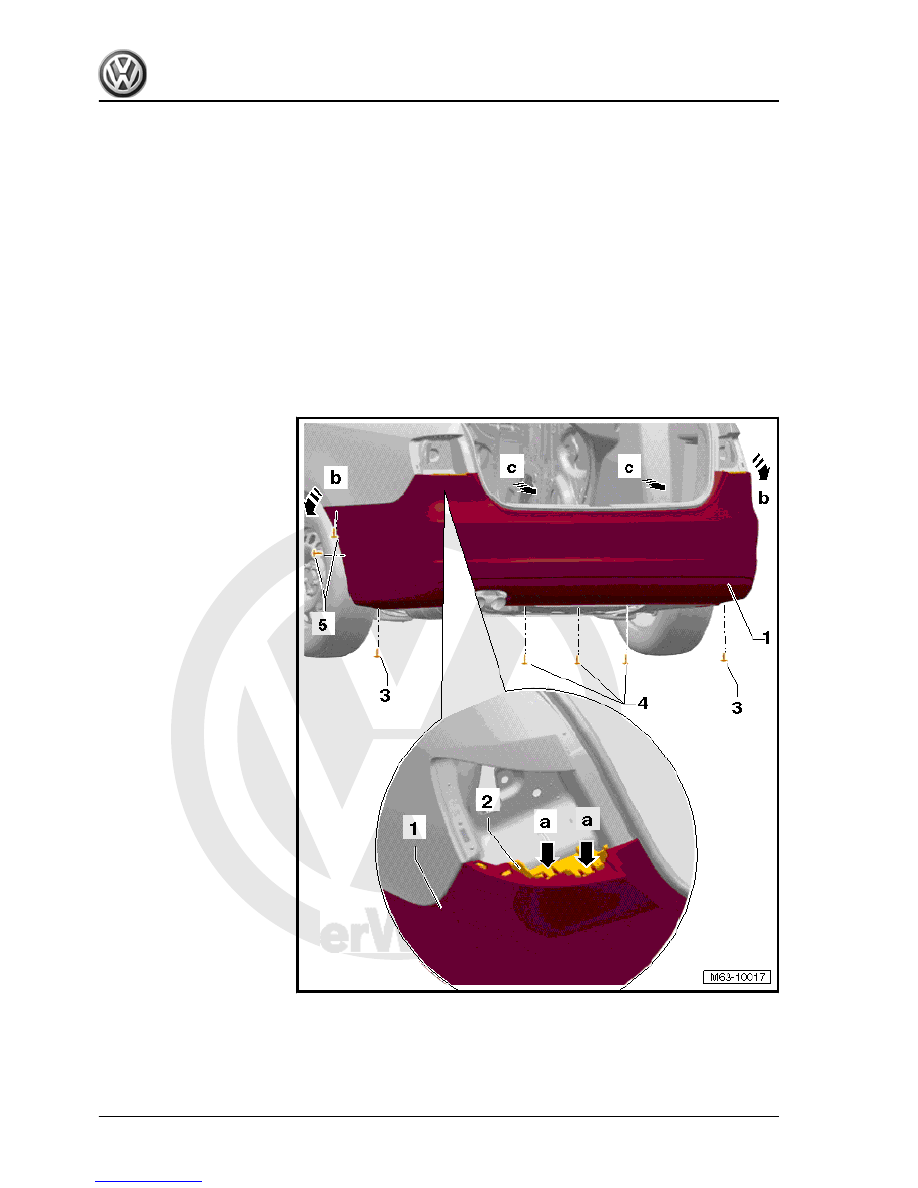

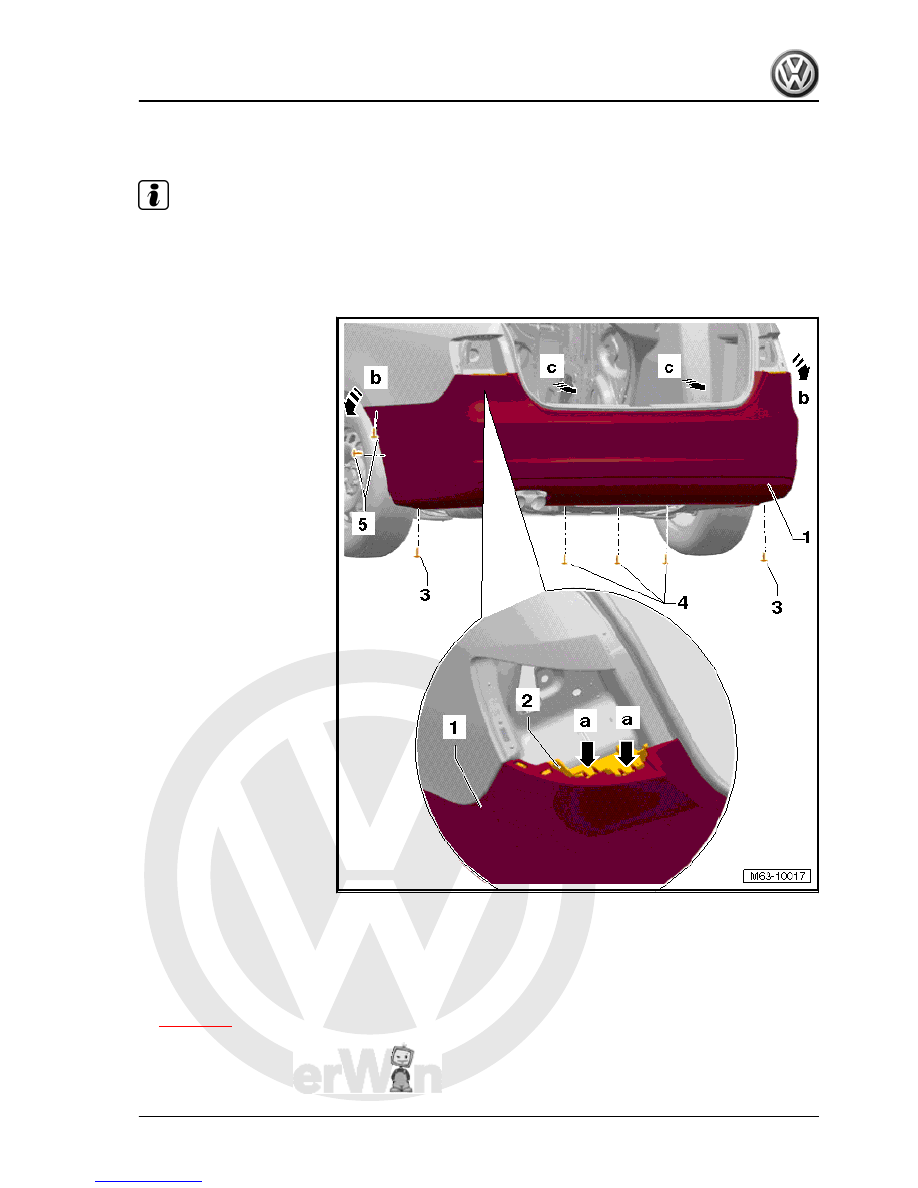

Further dismantling requires the assistance of a second mechan‐

ic.
– Pull rear bumper cover -1- out of fasteners of guides on left

and right of side panel -arrows b-.

– Release fasteners -arrows a- on retaining brackets -2- on left

and right.

– With the aid of a second mechanic, pull rear bumper cover

-1- parallel -arrows c- off vehicle.

– Remove connectors of all installed electrical components.
Notes and work instructions for the parking aid can be found in ⇒

Electrical system; Rep. gr.  94

2.5.2

Installing

Carry out following work:
– Connect connectors of all installed electrical components.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

188
