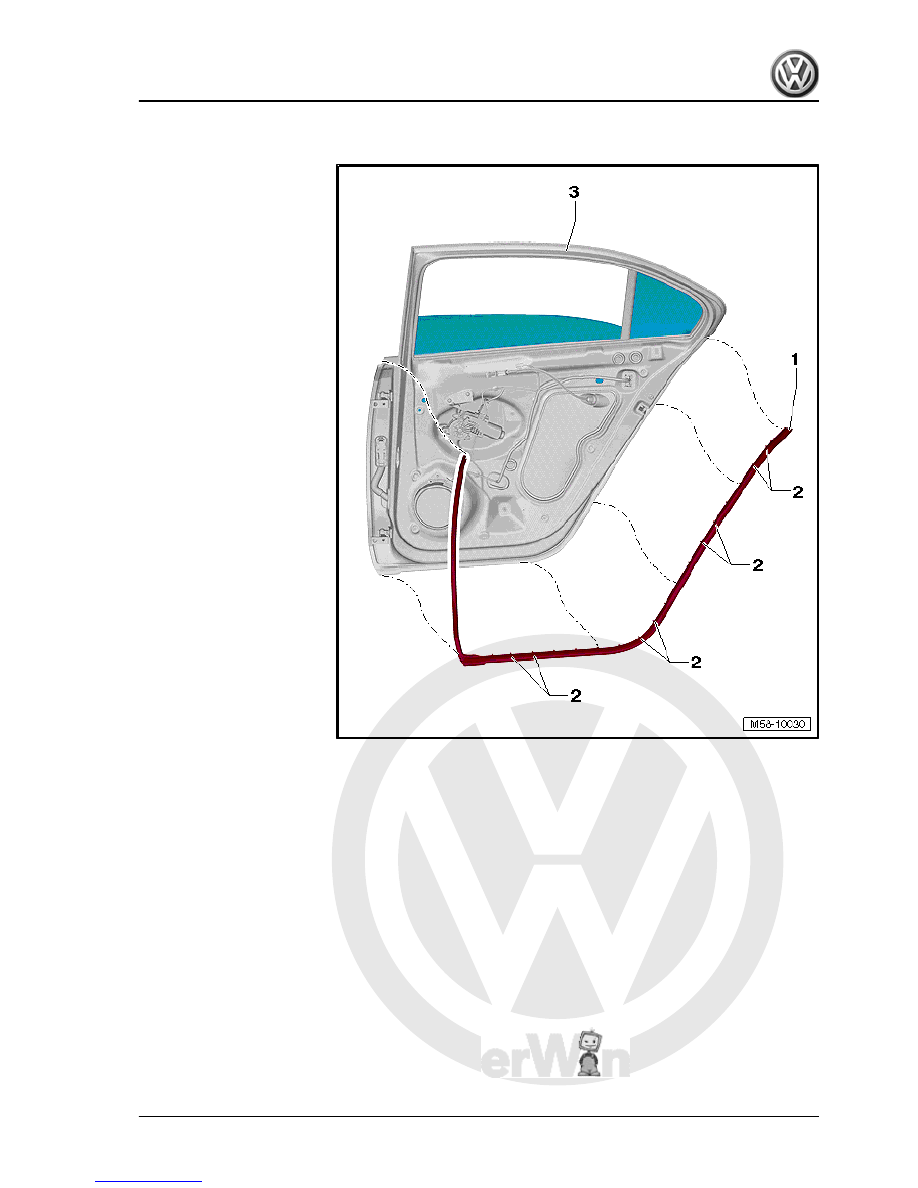

Carry out following work:
• The clips -2- are not damaged, otherwise renew.
– Press door outer seal -1- onto door -3-, starting at B-pillar.
– Then, press door outer seal -1- complete with clips -2- onto

door -3-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

153

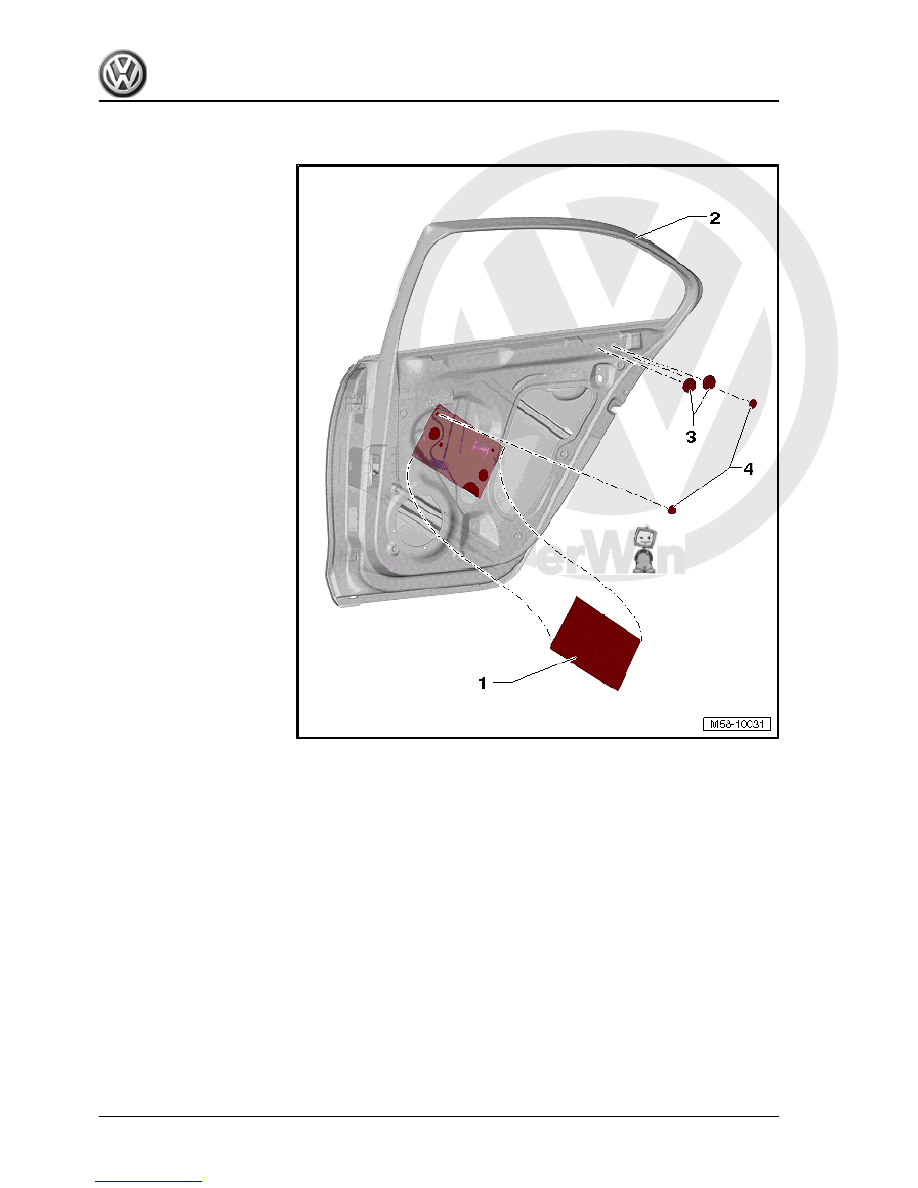

1 - Insulation

❑ Self-adhesive.
❑ Installing:
– Cut to size if necessary.

– Warm using hot air

blower -V.A.G 1416-

and push on to outer

door panel with force.

2 - Door
3 - Sticker

❑ ∅ 40 mm
❑ If necessary, manufac‐

ture using commercially

available textile adhe‐

sive tape.

4 - Sticker

❑ ∅ 20 mm
❑ If necessary, manufac‐

ture using commercially

available textile adhe‐

sive tape.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

154



Sunroof with glass panel

1.1

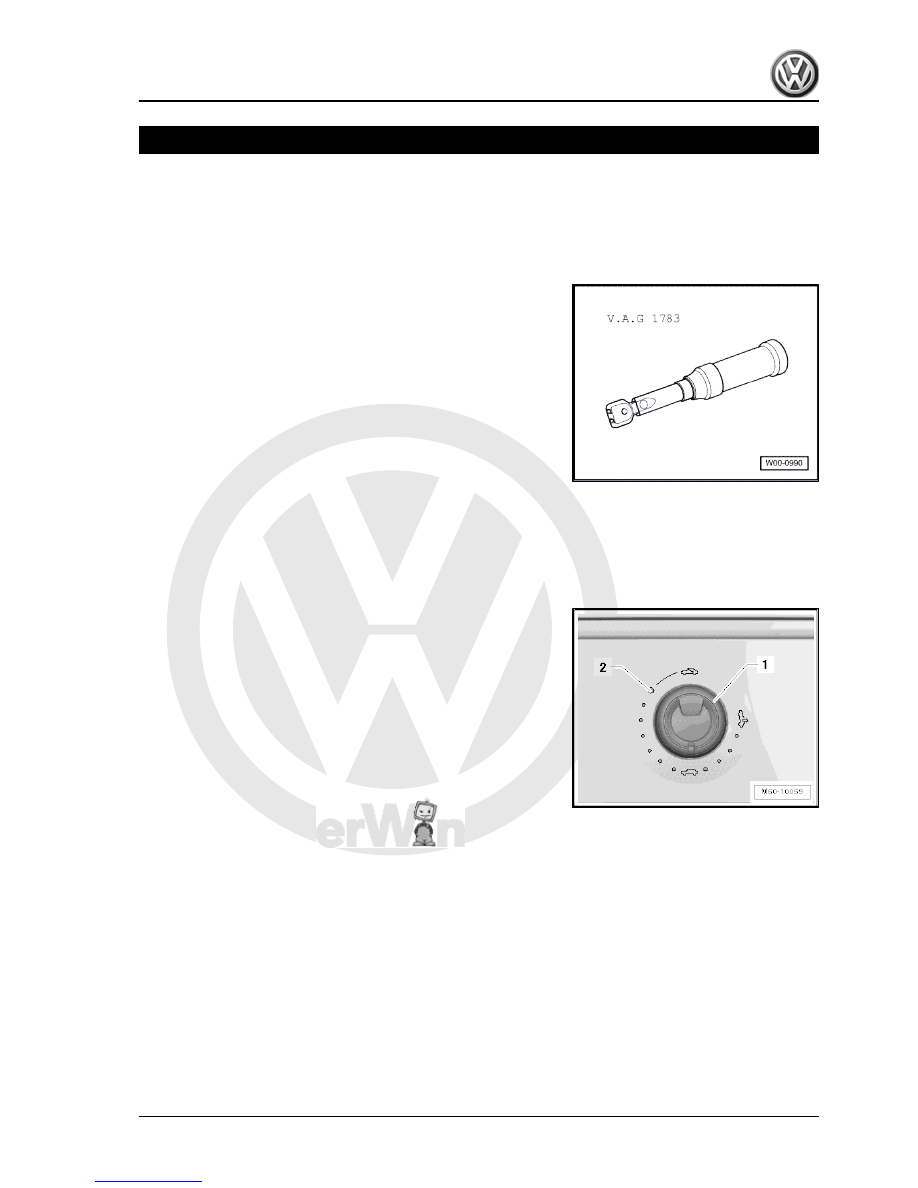

Tools

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

1.2

Function

All actions of the sliding/tilting roof can be performed with ignition

switched on.
After the ignition is switched off, actions can be performed until

either the driver or front passenger door is opened.
Opening of glass panel can be preselected using rotary switch

-1-.
Opening glass panel to the so called comfort position -2-, pre‐

vents to a large extent wind noise while driving, which can occur

when roof is fully open.
Glass panel can be tilted and closed using pull and push function

on rotary switch.
The sunroof is equipped with a force limitation (anti-trap) mech‐

anism for the sliding function. If the sunroof encounters an ob‐

struction while closing, it will open automatically.
In addition, there is an emergency closure function. If problems

occur during closure, sliding/tilting roof can be forced to close by

pulling rear end of rotary switch. Rotary switch must thus be in

“Sliding sunroof closed” position.
The roll-back function is disabled when the emergency closure

function is active.
The sliding sunroof motor is equipped with an overheating pro‐

tection, whose activation depends on various parameters. The

sliding sunroof motor is functional again after a cooling-off phase.
In the event of power failure, the sunroof can be moved using a

crank directly on the drive.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Sunroof with glass panel

155

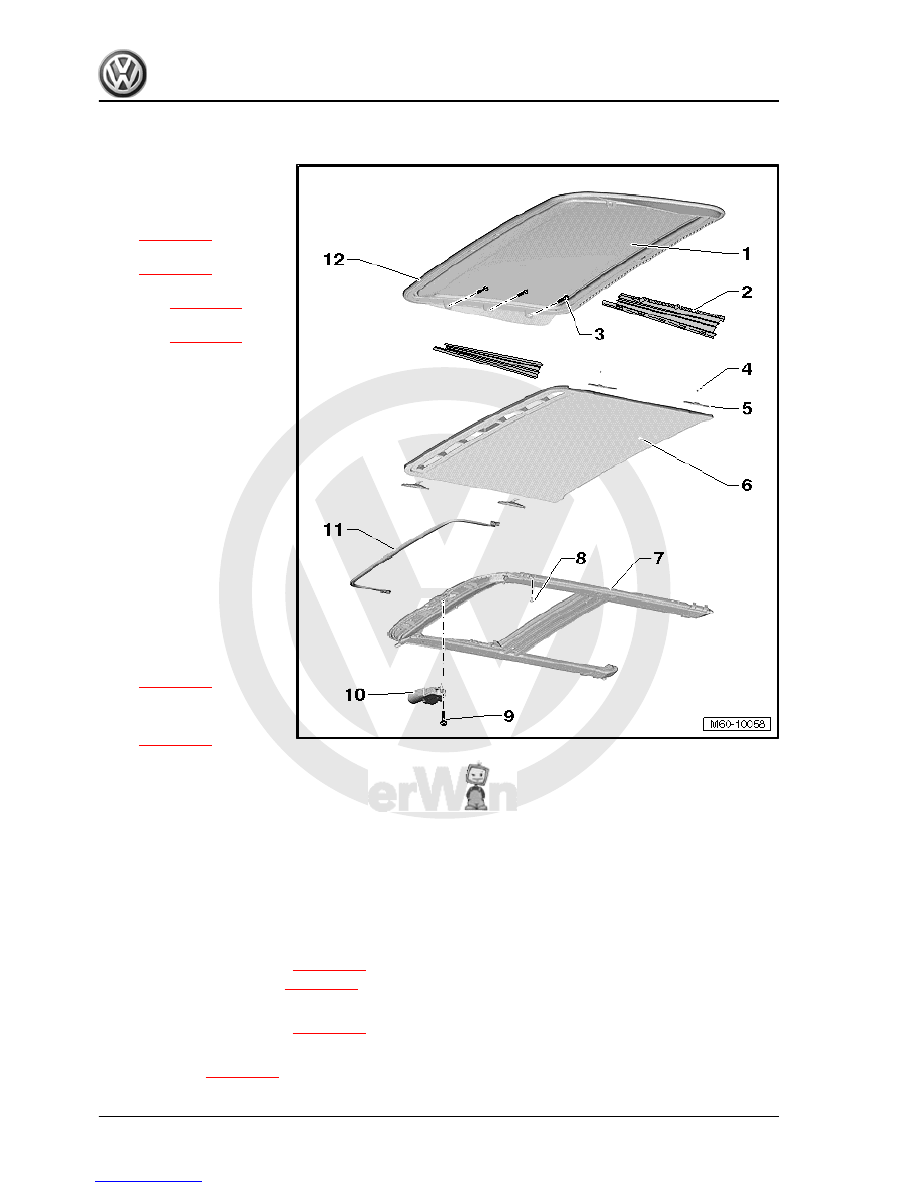

1 - Glass panel for sliding/tilting

sunroof (single pane safety

glass)

❑ Removing and installing

⇒ page 157

❑ Height adjustment

⇒ page 158

❑ Checking parallel run‐

ning

⇒ page 159

❑ Adjusting parallel run‐

ning

⇒ page 160

2 - Boot

❑ Left and right.
❑ To cover guide plate.

3 - Bolt

❑ Qty. 3 on each side.
❑ Specified torque: 7 Nm

4 - Bolt

❑ Qty. 2 on each side.
❑ Specified torque: 1 Nm
❑ For attaching slide to

sliding headlining.

5 - Slide

❑ Qty. 2 on each side.
❑ For sliding headlining.

6 - Sliding headlining

❑ Removing and installing

⇒ page 161

7 - Carrier unit

❑ Removing and installing

⇒ page 165

❑ U-frame (with guide channels): Grease guide channels as required with special grease G 000 450 02

only. Otherwise correct operation cannot be guaranteed.

8 - Bolt

❑ Qty. 12.
❑ Specified torque: 8 Nm
❑ For attaching carrier unit to roof

9 - Bolt

❑ Qty. 3.
❑ Specified torque: 4 Nm

10 - Drive for sliding/tilting sunroof

❑ Removing and installing

⇒ page 162

❑ Adjusting ("0" position)

⇒ page 163

 .

11 - Wind deflector

❑ Removing and installing

⇒ page 160

12 - Panel seal

❑ Renewing

⇒ page 160

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
