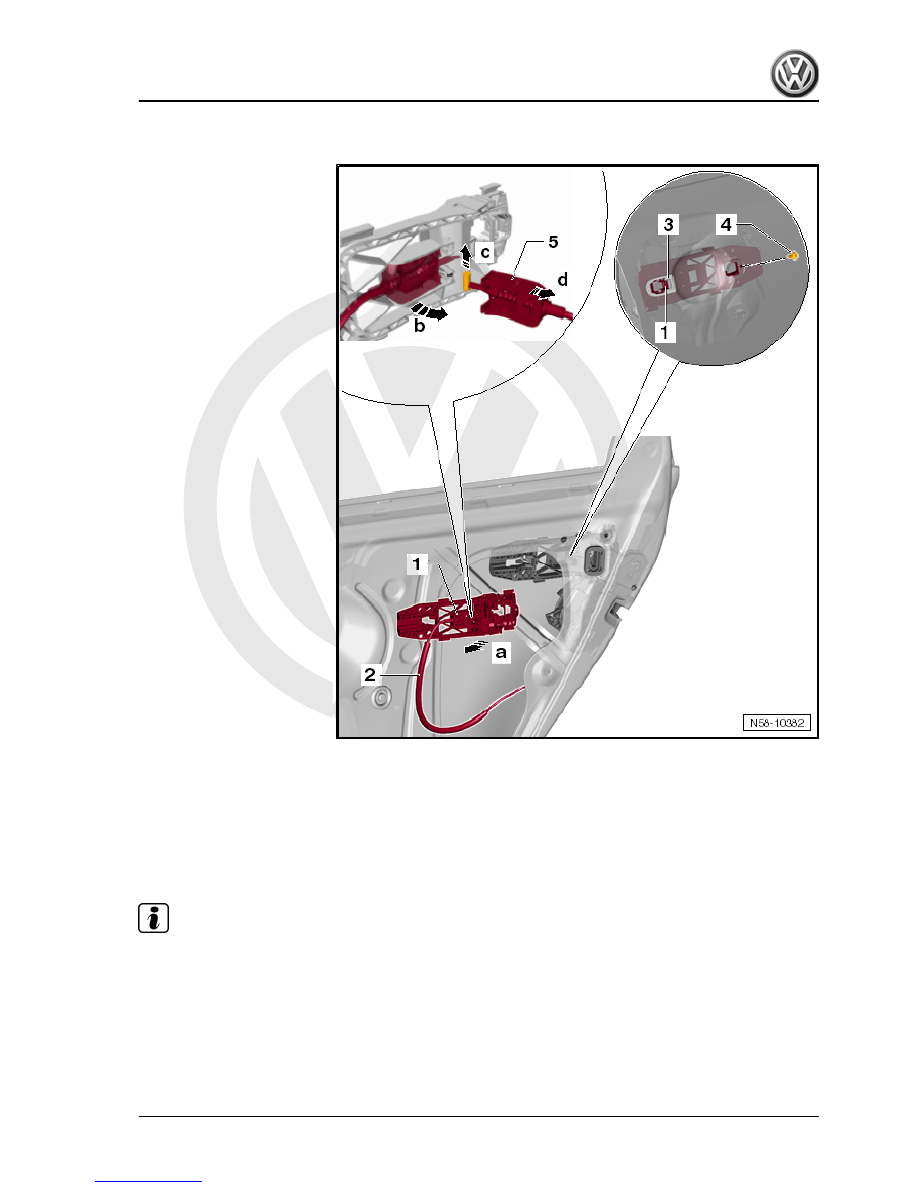

Carry out following work:
Install in reverse order of removal.
Specified torque for bolt -4-: 1 Nm.

2.11

Removing and installing window slot in‐

ner seal

Note

♦

Removal and installation are described only for the window

slot inner seal on the right. Removal and installation of the

window slot inner seal on the left are analogous.

♦

Pull up seal equally and without distorting or bending it.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

145



gr.  70 ; Door trim .

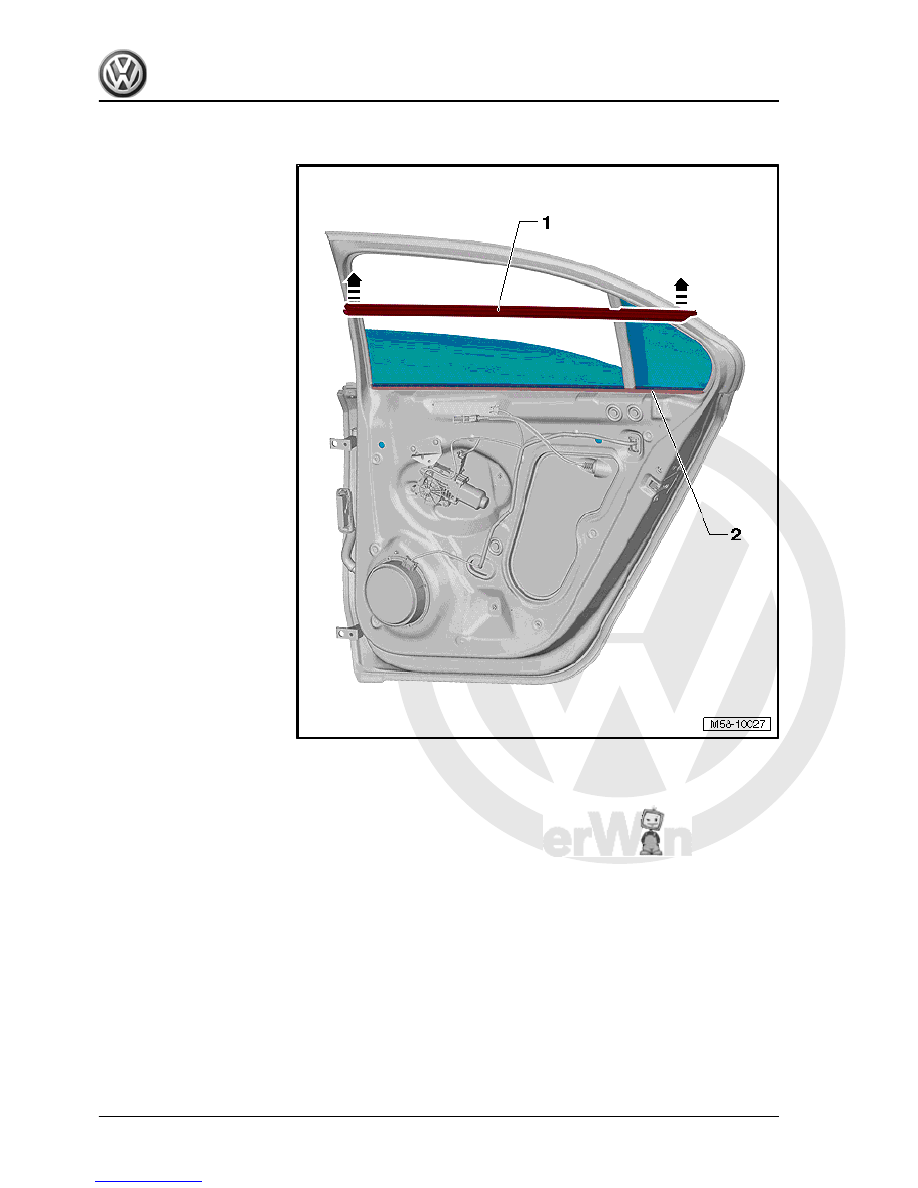

– Pull seal -1- uniformly -arrows- off flange -2-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

146



Carry out following work:

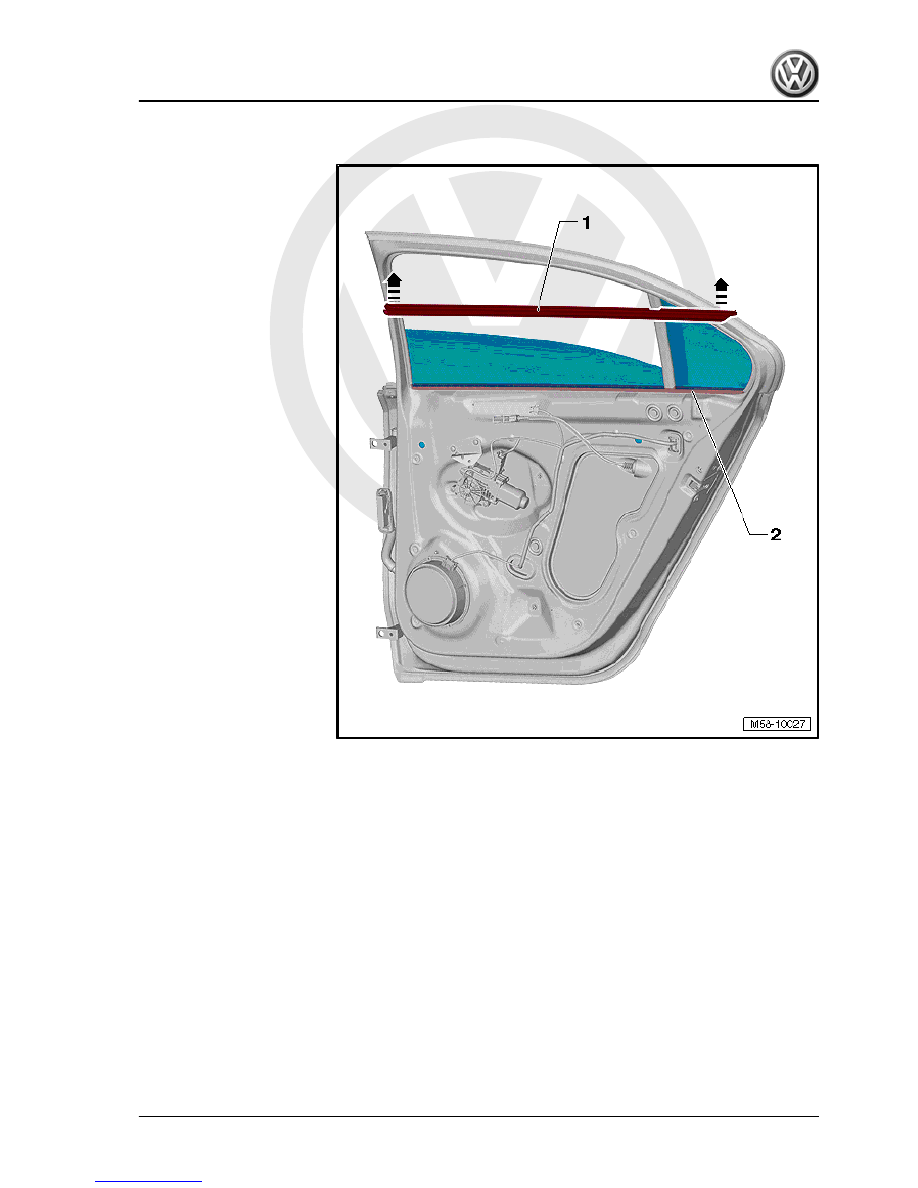

– Push seal -1- evenly onto door flange -2- by hand, starting from

B-pillar.

70 ; Door trims .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Door components

147



outer seal

2.12.1

Removing

Note

♦

The core of the seal is a metal insert. If this is bent, the seal

can no longer be straightened out. It will remain “wavy”.

♦

Therefore, the seal must be pulled off and pressed on evenly,

without bending or distorting it.

♦

The removal and installation sequence is only for the window

slot outer seal on the right. Removal and installation of the

window slot outer seal on the left are analogous.

Carry out following work:

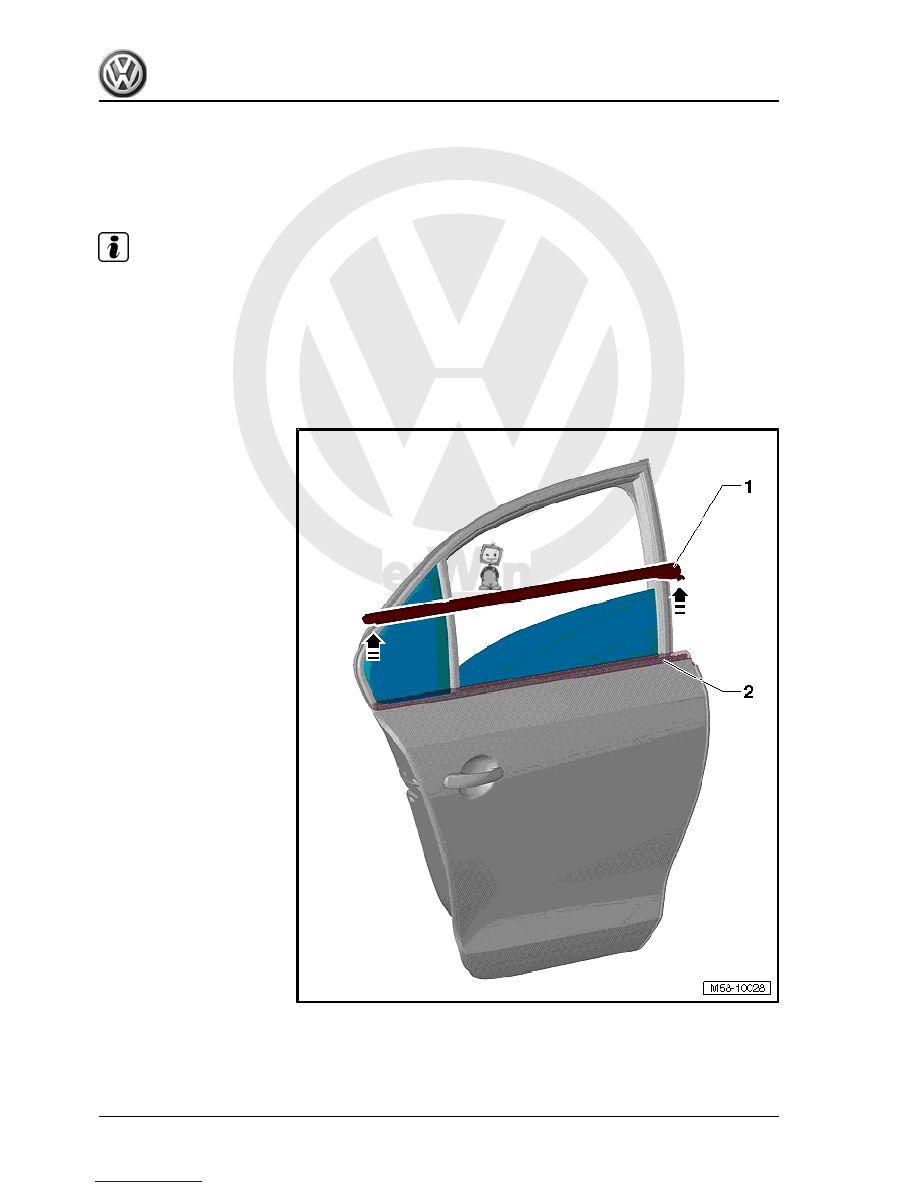

– Pull seal -1- uniformly -arrows- off flange -2-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

148
