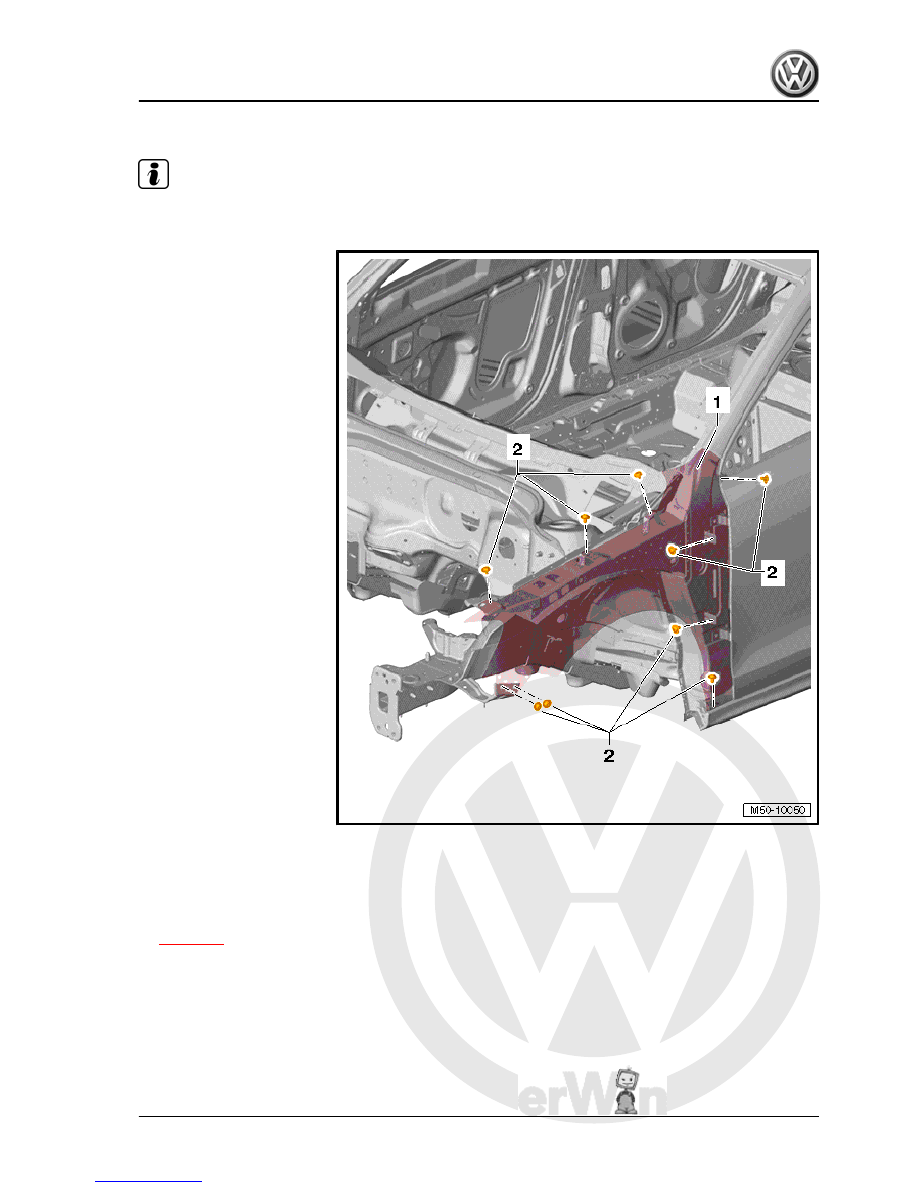

Note

Install wing -1- without subjecting it to tensile stress.

Carry out following work:
Installation of the wing -1- is carried out in reverse order of re‐

moval.
– Insulation, foam parts and specified torques for bolts -2-

⇒ page 11

 .

– Ensure joints are parallel and shut lines are equal ⇒ Body Re‐

pairs; Rep. gr.  00 ; Body gaps; Body, front .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Wing

13

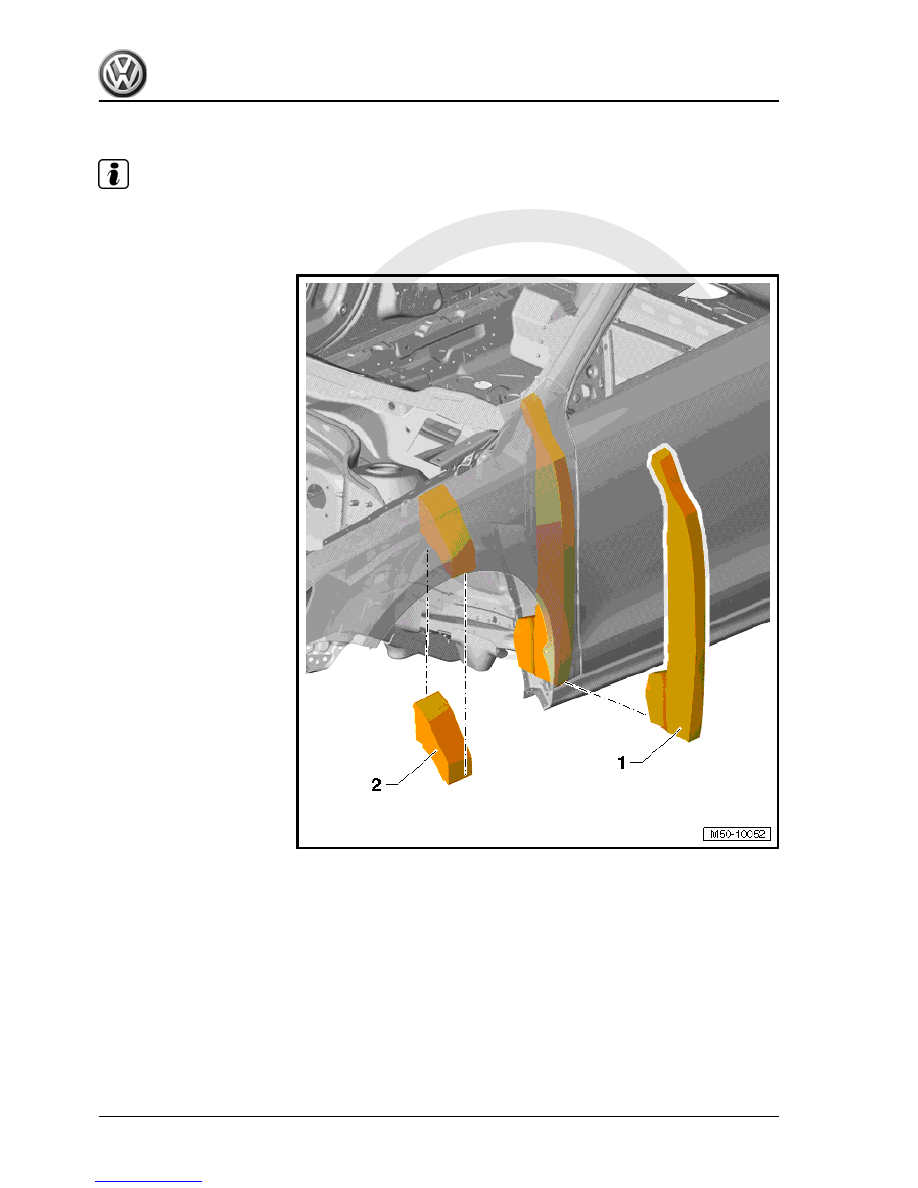

Note

♦

Only the left side is shown. The right side is similar.

♦

Different forms of insulation and foam parts may have been installed.

1 - Insulation of wing end plate

❑ Placed in front of wing

end plate

❑ Not installed in all model

versions

2 - Foam element

❑ Inserted between wing

and longitudinal mem‐

ber for top of wheel arch

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

14

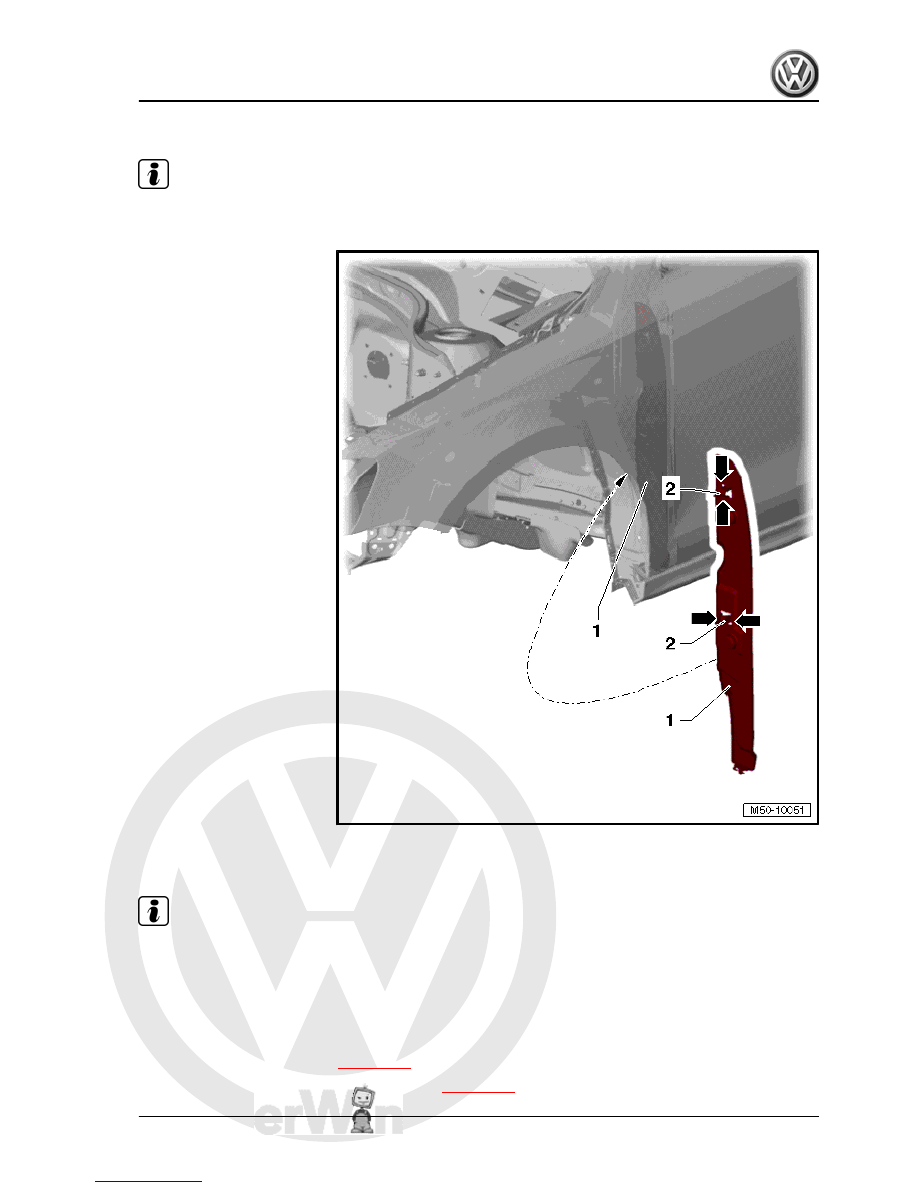

Note

Only the left side is shown. The right side is similar.

1 - Wing end plate

❑ Placed in front of wing

web plate

❑ When installing, ensure

correct seating of posi‐

tioning lug in hole of side

member

2 - Locking lug

❑ Qty. 2.
❑ Press together -arrows-

to remove wing end

plate

2.6

Removing and installing wing bracket

Note

The removal and installation sequence is described for the left

wing bracket. The removal and installation of the right wing brack‐

et is similar.

2.6.1

Removing

Carry out following work:
– Remove front bumper cover

⇒ page 175

 .

– Remove guide at side for front bumper cover

⇒ page 179

 .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Wing

15



 .

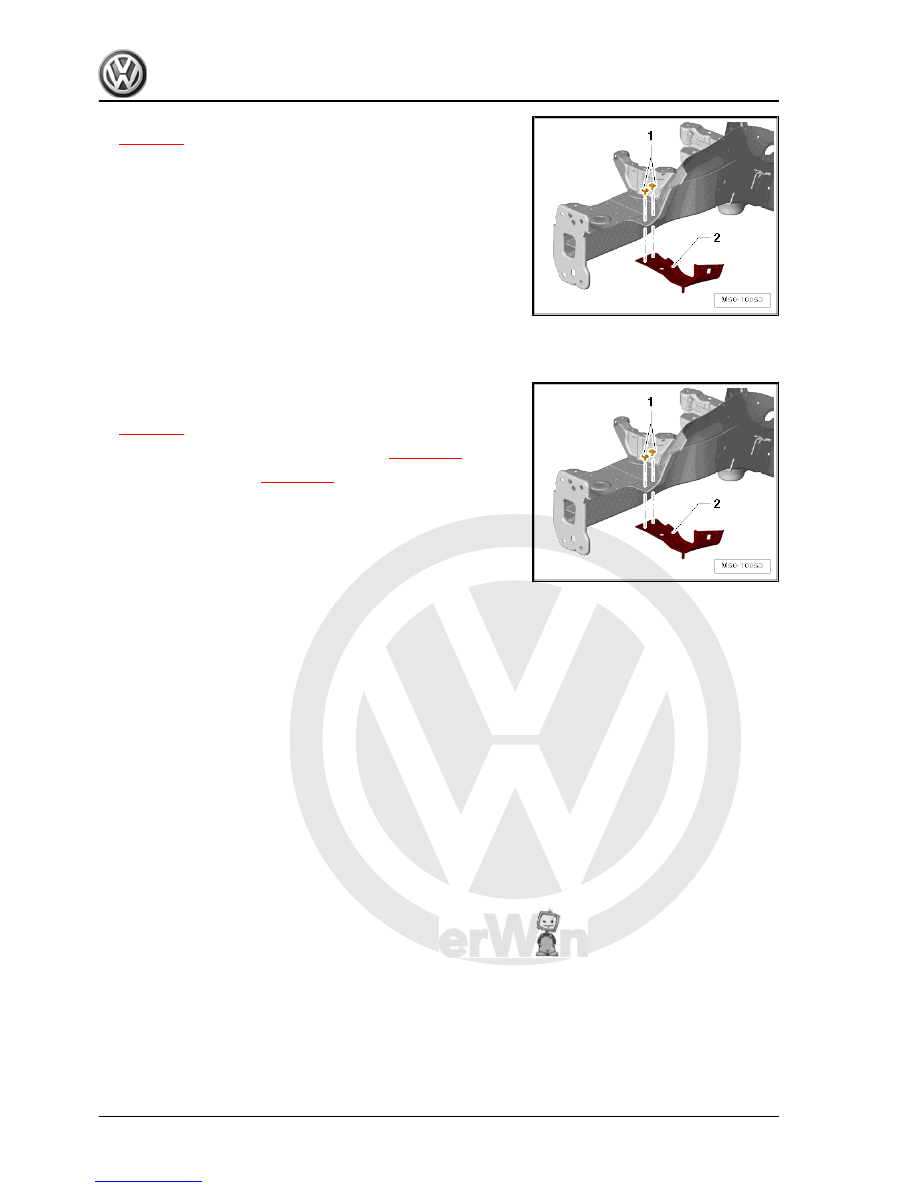

– Undo bolts -1- and remove wing bracket -2-.

2.6.2

Installing

Carry out following work:
– Fit wing bracket -2-.
– Screw in bolts for fastening front wing to wing bracket -2-

⇒ page 11

 .

– Mount guide at side for front bumper cover

⇒ page 179

 .

– Fit front bumper cover

⇒ page 175

 .

– Wing bracket is fitted together with wing to bonnet and bumper

⇒ Body Repairs; Rep. gr.  00 ; Body panel gaps/shut lines;

Body - front .

Specified torque for bolts -2-: 6 Nm.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
