3-2. Opening, closing and locking the doors

3

Before

driving

■

Using the kick sensor (vehi-
cles with Hands Free Power
Sliding Doors)

The Hands Free Power Sliding
Door enables automatic opening
and closing of the power sliding
door by putting your foot under
the portion with a label on the
rocker moulding and moving it
away from the rocker moulding.
When operating the Hands Free
Power Sliding Door, make sure
that the front door (the same
side of the sliding door you
open) is closed, the kick sensor
operation is enabled (



P.112)

and you are carrying an elec-
tronic key.

1

While carrying an electronic
key, stand within the smart
key system operation range,
approximately 11.8 to 19.7 in.
(30 to 50 cm) from the rocker
moulding.

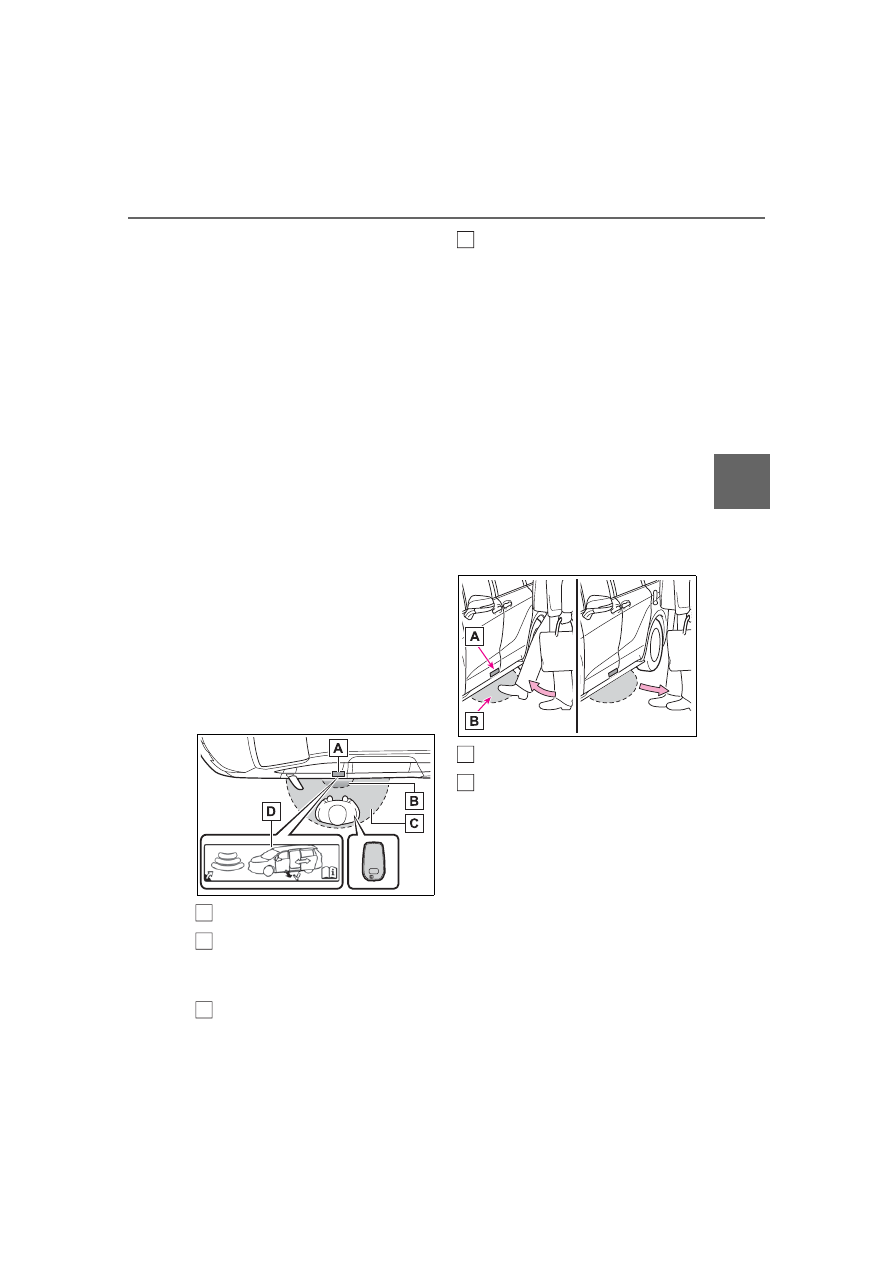

Kick sensor

Hands Free Power Sliding
Door operation detection
area

Smart key system operation
detection area (



P.165)

Label

2

Perform a kick operation by
moving your foot to within
approximately 3.9 in. (10 cm)
of the rocker moulding and
then pulling it back.

Perform the entire kick operation

within approximately 1 second.
The sliding door will not start oper-

ating while a foot is detected under

the rocker moulding.
Operate the Hands Free Power

Sliding Door without contacting the

rocker moulding with your foot.
If another electronic key is in the

cabin or luggage compartment, it

may take slightly longer than nor-

mal for the operation to occur.

Kick sensor

Hands Free Power Sliding
Door operation detection
area

3

When the kick sensor detects
that your foot is pulled back,
a buzzer will sound and the
sliding door will automati-
cally fully open/close.

If a foot is moved under the rocker

moulding while the sliding door is

opening/closing, the sliding door

will stop moving.
If a foot is moved under the rocker

A

B

C

D

A

B

142

3-2. Opening, closing and locking the doors

moulding again during the halted

operation, the sliding door will per-

form the reverse operation.

The sliding door cannot be
opened by the inside door han-
dle and the second seat sliding
door switch when the lock is set.

1

Unlock

2

Lock

These locks can be set to prevent
children from opening the sliding
doors. Push down on each sliding
door switch to lock that sliding door.

■

The power sliding door can be

operated when

●

Open operation: The shift lever is

in P or the vehicle speed is below

1.9 mph (3 km/h).

●

The power sliding door system is

enabled.

●

The power sliding door is

unlocked. (Except for the wireless

remote control operation or smart

key system operation.)

●

The sliding door child-protector

lock is not set. (However, the

switch for the front occupants and

the outside handle still operate the

power sliding door.)

■

Power sliding doors

●

The power sliding doors can be

opened/closed manually when the

power sliding door function is can-

celed with the main switch.

●

If the sensor detects jamming of a

person or an object while the

power sliding door is automatically

opening/closing, a buzzer will

beep and the power sliding door

will stop after reversing approxi-

mately 3.9 in. (10 cm). When the

power sliding door is operated

again after the stop, the door will

be operated as follows.

To operate the door reversely:
• Pull the outside door handle, or

press the switch of the sliding door

handle or using the kick sensor.

To operate the door in open direc-
tion:
• Pull the inside door handle in

open direction, or press the

“OPEN” side of the power sliding

door switch.

To operate the door in close direc-
tion:
• Pull the inside door handle in

close direction or press the

“CLOSE” side of the power sliding

door switch.

After the jam protection function
operates, the power sliding door
cannot be operated even if the
switch to open and close the sliding
door on the electronic key is
pressed.

■

The situations in which the slid-

ing door does not open com-

pletely

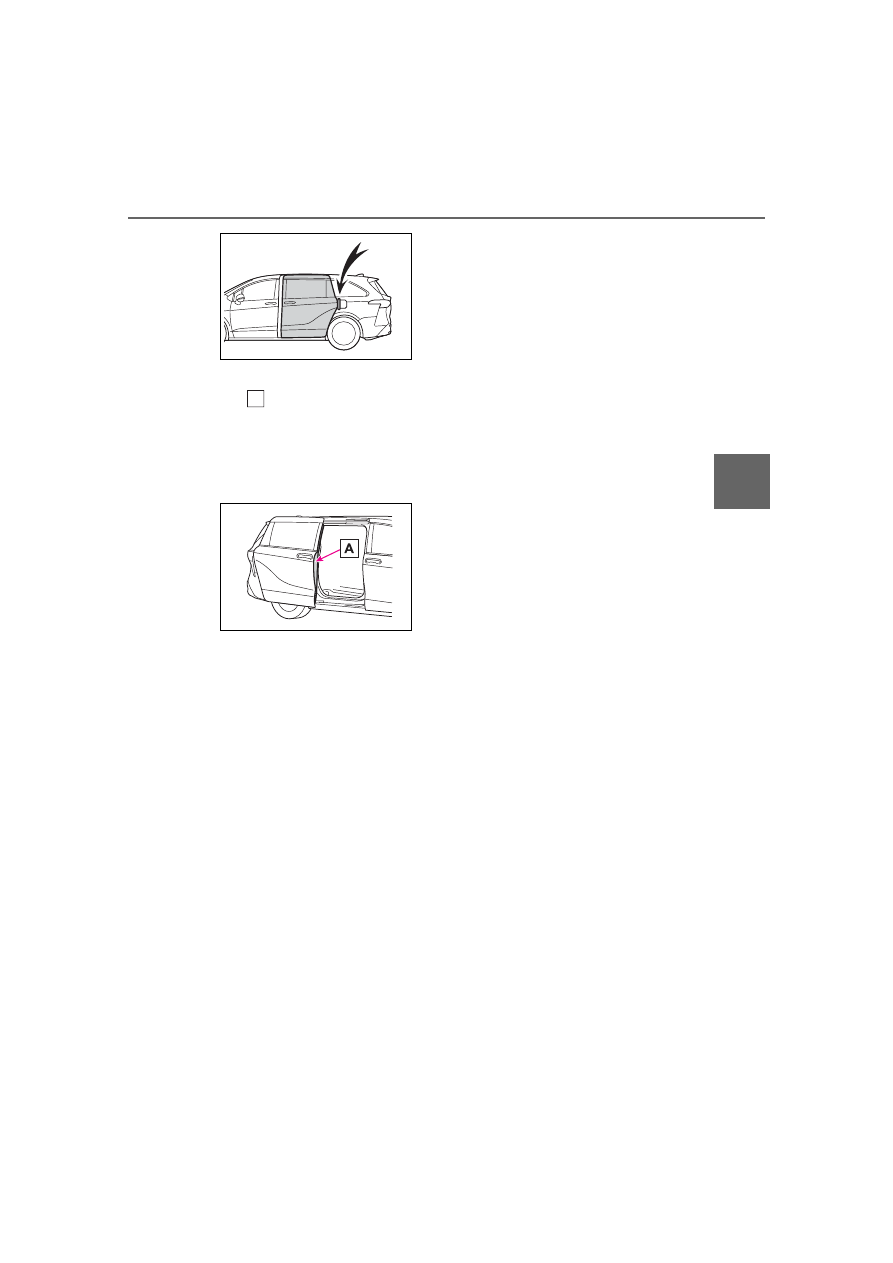

The left side sliding door does not

open completely when the fuel filler

door is opened.

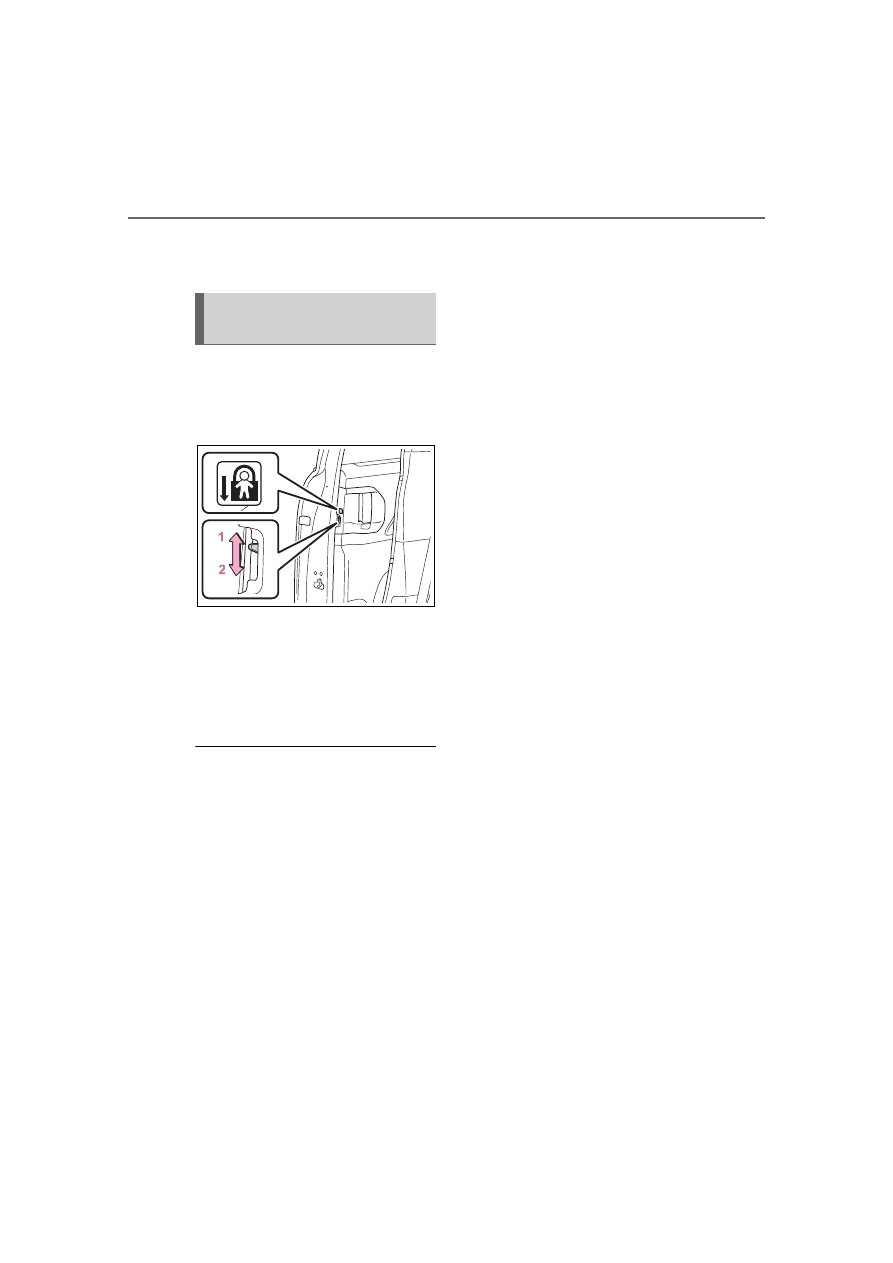

Sliding door child-protec-
tor locks

143

3-2. Opening, closing and locking the doors

3

Before

driving

■

Jam protection function

Sensor

 is attached to the front

edge of the power sliding door. If

any object obstructs the power slid-

ing door when closing, the power

sliding door will stop after reversing

approximately 3.9 in. (10 cm).

■

Sliding door reserve lock func-

tion

This function is a function which

reserves locking of all doors before-

hand, when the power sliding door

is open.
When the following procedure is

performed, all the doors except the

power sliding door are locked and

then power sliding door will also be

locked at the same time it is closed.

1

Close all doors, except the

power sliding door.

2

During the power sliding door

closing operation, lock the doors

using the smart key system from

the front doors (



P.132) or the

wireless remote control.

(



P.132)

A buzzer sounds and the emer-

gency flashers flash to indicate that

all the doors have been closed and

locked.

●

If the electronic key is placed

inside the vehicle after starting a

close operation via the door

reserve lock function, the elec-

tronic key may become locked

inside the vehicle. Make sure to

always carry the electronic key on

your person.

●

If the power sliding door does not

fully close due to the operation of

the jam protection function, etc.,

while the sliding door is automati-

cally closing after a door reserve

lock operation is performed, the

door reserve lock function is can-

celed and all the doors will unlock.

●

Before leaving the vehicle, make

sure that all the doors are closed

and locked.

■

Power sliding door brake func-

tion

When the power sliding door

detects an abnormality and stops

operating, power sliding door brake

function may be activated. When

brake function is activated, door

movement is restricted by the brake

and motion may appear to be not

smooth. This is not malfunction.

Move the door to fully closed posi-

tion to reset the system and normal

power sliding door function will

resume.

■

Sliding door closer

In the event that the sliding door is

left slightly open, the sliding door

closer will automatically close it to

the fully closed position.

■

Power sliding door operation

Wireless remote control: Even if the

door is locked, pressing and holding

the sliding door buttons will unlock

all doors and start open operation.

■

If the power sliding door is

inoperative

When the power sliding door

detects an abnormality and stops

opening and can not be completely

closed manually, turn the inside lock

button to “LOCK” position to cancel

the function and close the door

manually. After that, have the vehi-

A

144

3-2. Opening, closing and locking the doors

cle inspected and repaired by your

Toyota dealer.

■

Kick sensor operating condi-

tions (vehicles with Hands Free

Power Sliding Doors)

The Hands Free Power Sliding Door

will open/close automatically when

the following conditions are met:

●

The kick sensor operation is

enabled (



P.112)

●

The front door (the same side of

the sliding door you open) is

closed.

●

The electronic key is within the

operational range. (



P.165)

●

A foot is put under the portion with

a label on the rocker moulding

and moved away from the rocker

moulding.

The power sliding door may also

be operated by putting a hand, an

elbow, a knee, etc. under the por-

tion with a label on the rocker

moulding and moving it away from

the rocker moulding. Make sure to

put it close enough to the center

part of the rocker moulding.

■

Situations in which the Hands

Free Power Sliding Door may

not operate properly (vehicles

with Hands Free Power Sliding

Doors)

In the following situations, the

Hands Free Power Sliding Door

may not operate properly:

●

When a foot remains under the

rocker moulding

●

If the rocker moulding is strongly

hit with a foot or is touched for a

while

If the rocker moulding has been
touched for a while, wait for a short
time before attempting to operate
the Hands Free Power Sliding Door
again.

●

When operated while a person is

too close to the rocker moulding

●

When an external radio wave

source interferes with the commu-

nication between the electronic

key and the vehicle (



P.166)

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Sliding Door, such as

a pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When a large amount of water is

applied to the rocker moulding,

such as when the vehicle is being

washed or in heavy rain

●

When mud, snow, ice, etc. is

attached to the rocker moulding

●

When the vehicle has been

parked for a while near objects

that may move and contact the

rocker moulding, such as plants

●

When an accessory is installed to

the rocker moulding

If an accessory has been installed,
turn the Hands Free Power Sliding
Door (kick sensor) operation setting
off.

■

Preventing unintentional opera-

tion of the Hands Free Power

Sliding Door (vehicles with

Hands Free Power Sliding

Doors)

When an electronic key is in the

operation range, the Hands Free

Power Sliding Door may operate

unintentionally, so be careful in the

following situations.

●

When a large amount of water is

applied to the rocker moulding,

such as when the vehicle is being

washed or in heavy rain

●

When dirt is wiped off the rocker

moulding

●

When a small animal or small

145

3-2. Opening, closing and locking the doors

3

Before

driving

object, such as a ball, moves

under the rocker moulding

●

When an object is moved from

under the rocker moulding

●

If someone is swinging their legs

while sitting on the rocker mould-

ing

●

If the legs or another part of some-

one’s body contacts the rocker

moulding while passing by the

vehicle

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Sliding Door, such as

a pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When the vehicle is parked in a

place where objects such as

plants are near the rocker mould-

ing

●

If luggage, etc. is set near the

rocker moulding

●

If accessories or a vehicle cover is

installed/removed near the rocker

moulding

●

When the vehicle is being towed

To prevent unintentional operation,
turn the Hands Free Power Sliding
Door (kick sensor) operation setting
off. (



P.112)

■

Automatic car washes



P.400

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



P.166

■

Customization

Settings (e.g. opening and closing

operation) can be changed. (Cus-

tomizable features:



P.545)

WARNING

■

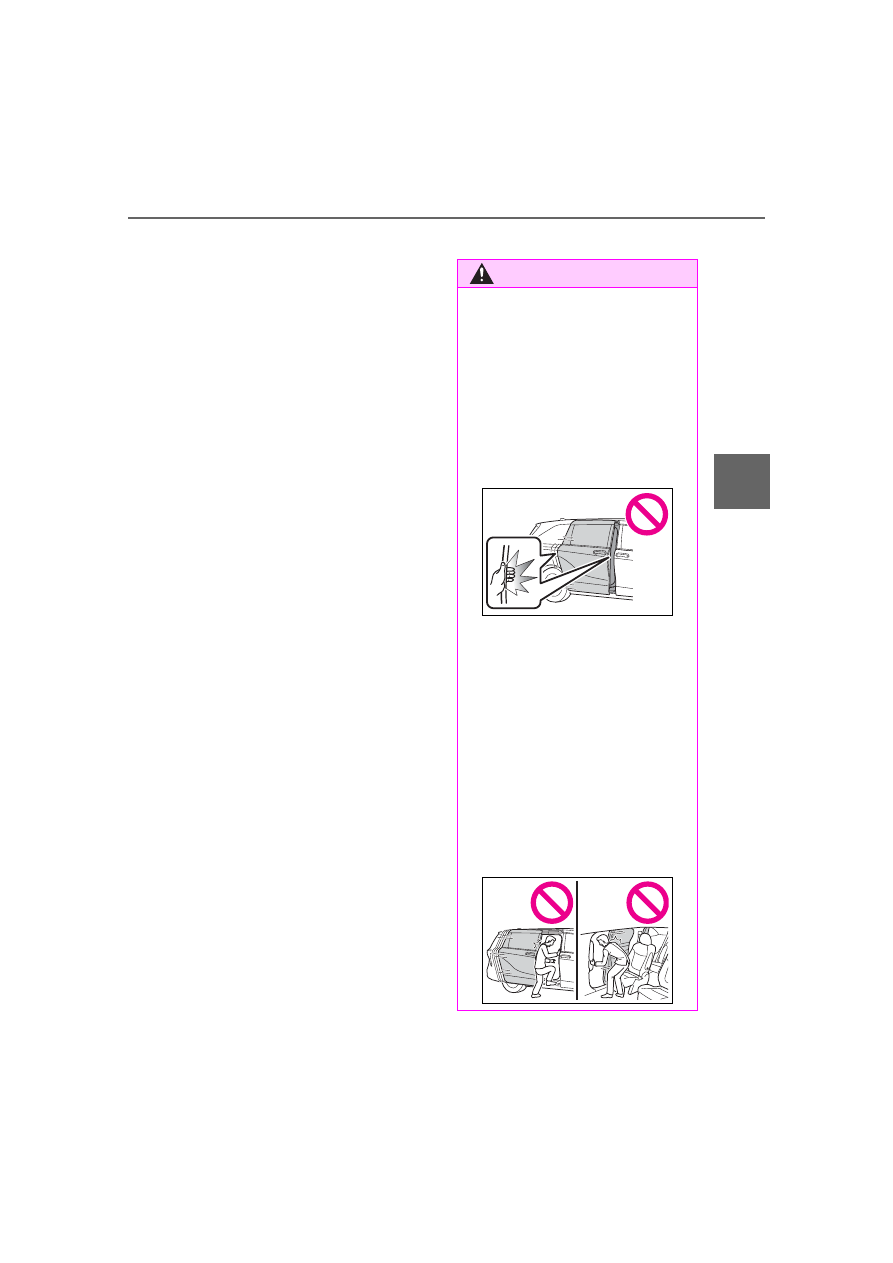

Sliding door closer

●

In the event that the sliding door

is left slightly open, the sliding

door closer will automatically

close it to the fully closed posi-

tion. It takes several seconds

before the sliding door closer

begins to operate. Be careful

not to catch fingers or anything

else in the sliding door, as this

may cause bone fractures or

other serious injuries.

●

Use caution when using the

sliding door closer. The sliding

door closer operates even when

the power sliding door system is

canceled.

■

Power sliding doors

Observe the following precautions

when the power sliding door sys-

tem is enabled. Failure to do so

may cause death or serious

injury.

●

Do not get in and out of the

vehicle while the power sliding

door is being operated.

146

3-2. Opening, closing and locking the doors

WARNING

●

When using the door handle to

open or close the power sliding

door, remove your hand from

the door handle immediately

after starting power sliding door

operation. If you leave your

hand on the door handle during

operation, your hand, fingers,

wrist etc. may be subjected to

an excessive amount of force.

●

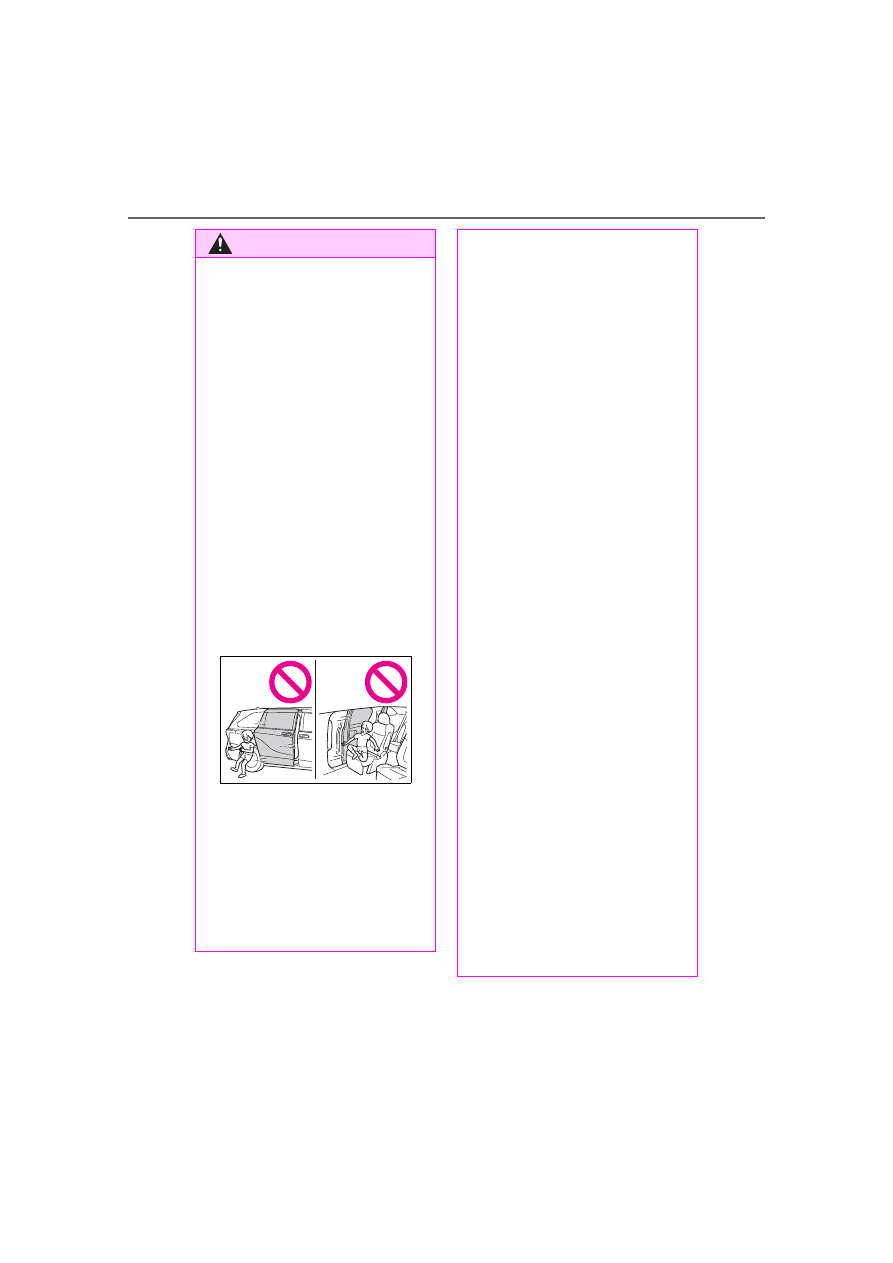

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the sliding door is

about to open or close. Also, do

not operate the power sliding

door if anyone inside or outside

the vehicle is leaning against

the vehicle in the area around

the sliding door.

●

If the power sliding door system

is disabled with the main switch

while the sliding door is operat-

ing automatically, the automatic

operation is stopped. The slid-

ing door then has to be oper-

ated manually. Take extra care

when on an incline, as the slid-

ing door may open or close

unexpectedly.

●

If the operating conditions of the

power sliding door are no longer

met, a buzzer may sound and

the sliding door may stop open-

ing or closing. The sliding door

then has to be operated manu-

ally. Take extra care when on

an incline, as the sliding door

may open or close abruptly.

●

On an incline, a sliding door

may close by itself after it opens

automatically. Make sure the

sliding door is fully open and

secure.

●

In the following situations, the

power sliding door may detect

an abnormality and automatic

operation may be stopped. In

this case, the sliding door has to

be operated manually. Take

extra care when on an incline,

as the sliding door may open or

close abruptly.

• When the sliding door contacts

an obstacle

• When the 12-volt battery volt-

age suddenly drops, such as

when the power switch is turned

to ON or the hybrid system is

started during automatic opera-

tion

●

Do not attach any accessories

other than genuine Toyota parts

to the power sliding door. The

power sliding door may not

operate, causing itself to mal-

function, or the power sliding

door may close again after it is

opened.

●

When the sliding door child-pro-

tector locks are set, make sure

to disable the power sliding door

system with the main switch in

order to totally disable the sys-

tem.

147

3-2. Opening, closing and locking the doors

3

Before

driving

WARNING

■

Jam protection function

Observe the following precau-

tions. Failure to do so may cause

death or serious injury.

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

caught just before the power

sliding door fully closes. Be

careful not to catch fingers or

anything else.

●

The jam protection function may

not work depending on the

shape of the object that is

caught. Be careful not to catch

fingers or anything else.

■

Hands Free Power Sliding

Doors (if equipped)

Observe the following precautions

when operating the Hands Free

Power Sliding Door. Failure to do

so may cause death or serious

injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

Do not leave the electronic key

within the effective range

(detection area) of the power

sliding door.

NOTICE

■

Sliding door

Make sure magazines are not

bent or protruding from the sliding

door pockets. Do not insert any-

thing too big so that the shape of

the sliding door pockets is dis-

torted. Such objects may obstruct

the opening/closing of the sliding

doors, damage the sliding door

pockets or the vehicle body, and

may result in a malfunction.

■

Sliding door closer

●

Do not apply excessive force to

the sliding door while the sliding

door closer is operating.

●

The sliding door closer may not

operate when you repeat open-

ing/closing in a short period of

time. To operate again, open

the power sliding door once and

then close after a while.

■

To prevent damage to your

vehicle

●

Do not apply excessive force

when the sliding door is operat-

ing.

●

Do not place your hand or foot

near door hinges or rollers when

the sliding door is operating.

●

Avoid forcibly opening the left

side sliding door fully when the

fuel filler door is opened. Other-

wise, the fuel filler door may be

damaged.

148

3-2. Opening, closing and locking the doors

The power sliding door system
can be enabled/disabled by
using the power sliding door

NOTICE

●

Take care not to damage the

sensors (installed on the front

edge of the power sliding door)

with a knife or other sharp

object.

●

Make sure there is nothing in

the doorway before closing.

●

Do not close the sliding door by

applying the brakes. Doing so

could cause the sliding door to

be damaged.

■

Hands Free Power Sliding

Doors precautions (if

equipped)

The kick sensors are located

behind the portions with labels on

the rocker mouldings. Observe

the following to ensure that the

Hands Free Power Sliding Door

function operates properly:

●

Keep the portions with labels on

the rocker mouldings clean at all

times.

If the portions with labels on the

rocker mouldings are dirty or

covered with snow or mud, the

kick sensors may not operate.

In this situation, clean off the dirt

or snow, move the vehicle from

the current position and then

check if the kick sensors oper-

ate.

If they do not operate, have the

vehicle inspected by your

Toyota dealer.

●

Do not apply coatings that have

a rain clearing (hydrophilic)

effect, or other coatings, to the

portions with labels on the

rocker mouldings.

●

Do not park the vehicle near

objects that may move and con-

tact portions with labels on the

rocker mouldings, such as

grass or trees.

If the vehicle has been parked

for a while near objects that

may move and contact the por-

tions with labels on the rocker

mouldings, such as grass or

trees, the kick sensors may not

operate. In this situation, move

the vehicle from the current

position and then check if the

kick sensors operate. If they do

not operate, have the vehicle

inspected by your Toyota

dealer.

●

Do not subject the kick sensors

or their surrounding areas to a

strong impact.

If the kick sensors or their sur-

rounding areas have been sub-

jected to a strong impact, the

kick sensors may not operate

properly. If the kick sensors do

not operate in the following situ-

ations, have the vehicle

inspected by your Toyota

dealer.

• The kick sensors or their sur-

rounding areas have been sub-

jected to a strong impact.

• The portions with labels on the

rocker mouldings are scratched

or damaged.

●

Do not disassemble the rocker

mouldings.

●

Do not attach an accessory con-

taining metal or apply metallic

paint to the rocker mouldings.

Canceling the power slid-
ing door system

149

3-2. Opening, closing and locking the doors

3

Before

driving

main switch or on the multi-infor-
mation display. However, when
the power sliding door system is
disabled by the main switch, the
setting of the power sliding door
system cannot be changed on
the multi-information display.

■

Using the multi-information
display

The power sliding door system
can be enabled/disabled on the
multi-information display.
(



P.112)

■

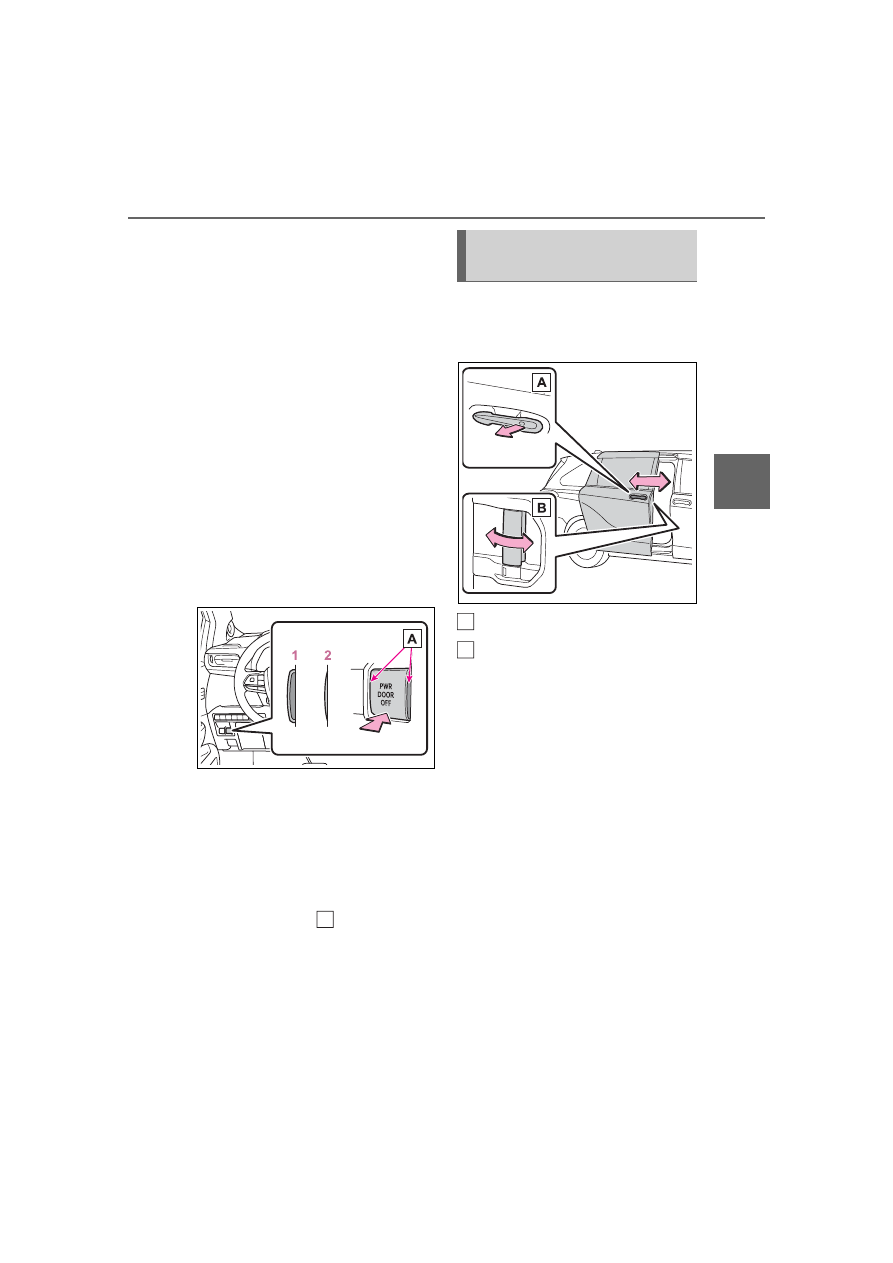

Using the power sliding
door main switch

Use the main switch to disable
the power sliding door system.

1

The power sliding door sys-
tem is enabled.

*

2

The power sliding door sys-
tem is disabled.

The sliding doors can only be
opened and closed manually.

*

: The orange line

 of the switch

indicates that the power sliding
door system is enabled.

Operate the sliding door handle
or inside door handle, when the
power sliding door system is off.

Sliding door handle

Inside door handle

A

Opening/closing the slid-
ing door manually

A

B

150

3-2. Opening, closing and locking the doors

Back door

The back door can be
locked/unlocked and
opened/closed by the fol-
lowing procedures.

WARNING

■

Before driving

Make sure that the back door is

fully closed.

If the back door is not fully closed,

it may open unexpectedly while

driving and hit near-by objects or

luggage in the luggage compart-

ment may be thrown out, causing

an accident.

■

When children are in the vehi-

cle

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked

in the luggage compartment,

they could get heat exhaustion

or other injuries.

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to operate unexpectedly,

or cause the child’s hands,

head, or neck to be caught by

the closing back door.

■

Caution while driving

●

Keep the back door closed

while driving.

If the back door is left open, it

may hit near-by objects or lug-

gage in the luggage compart-

ment may be thrown out,

causing an accident.

●

Never let anyone sit in the lug-

gage compartment.

In the event of sudden braking,

sudden swerving or a collision,

they are susceptible to death or

serious injury.

■

Back door handle

Do not hang any object to the

back door handle.

If any object is hung, the back

door may suddenly shut, causing

parts of the body to be caught,

resulting in death or serious

injury.

■

Operating the back door

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in death or serious injury.

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

151

3-2. Opening, closing and locking the doors

3

Before

driving

■

Using the entry function (if
equipped)

Carry the electronic key to
enable this function.

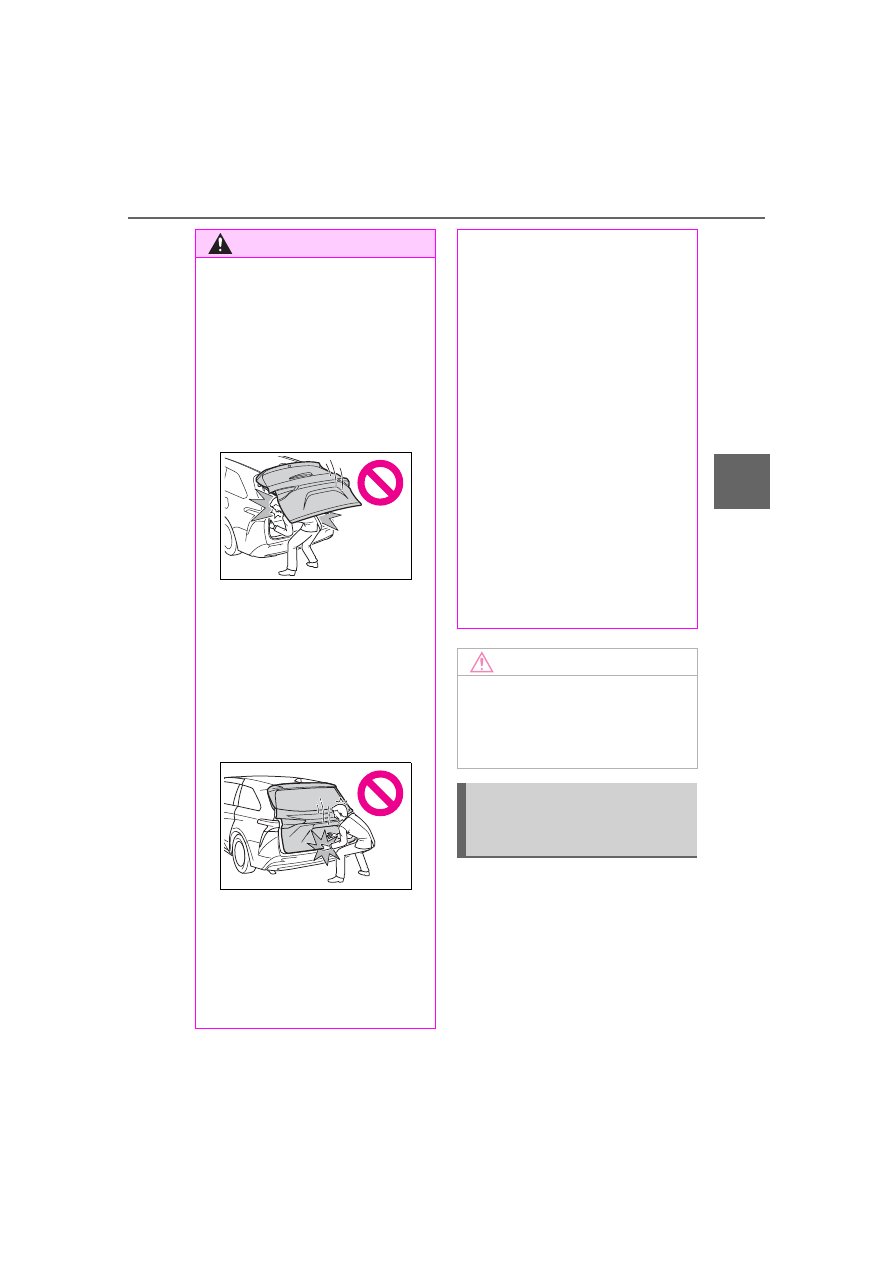

WARNING

●

Vehicles without power back

door: The back door may sud-

denly shut if it is not opened

fully. It is more difficult to open

or close the back door on an

incline than on a level surface,

so beware of the back door

unexpectedly opening or closing

by itself. Make sure that the

back door is fully open and

secure before using the luggage

compartment.

●

Vehicles with power back door:

The back door may suddenly

shut if it is not opened fully,

while on a steep incline. Make

sure that the back door is

secured before using the lug-

gage compartment.

●

When closing the back door,

take extra care to prevent your

fingers, etc. from being caught.

●

Vehicles without power back

door: When closing the back

door, make sure to press it

lightly on its outer surface. If the

back door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

●

Do not pull on the back door

damper stay (vehicles without

power back door) (



P.153) or

back door spindle (vehicles with

power back door) (



P.161) to

close the back door, and do not

hang on the back door damper

stay (vehicles without power

back door) or back door spindle

(vehicles with power back door).

Doing so may cause hands to

be caught or the back door

damper stay (vehicles without

power back door) or back door

spindle (vehicles with power

back door) to break, causing an

accident.

●

Do not attach a heavy acces-

sory part to the back door. If a

bicycle carrier or similar heavy

object is attached to the back

door, it may suddenly shut

again after being opened, caus-

ing someone’s hands, head or

neck to be caught and injured.

NOTICE

■

Operating the back door

Do not attach a heavy accessory

part to the back door. Doing so

may cause the back door to be

damaged.

Unlocking and locking the
back door from the out-
side

152

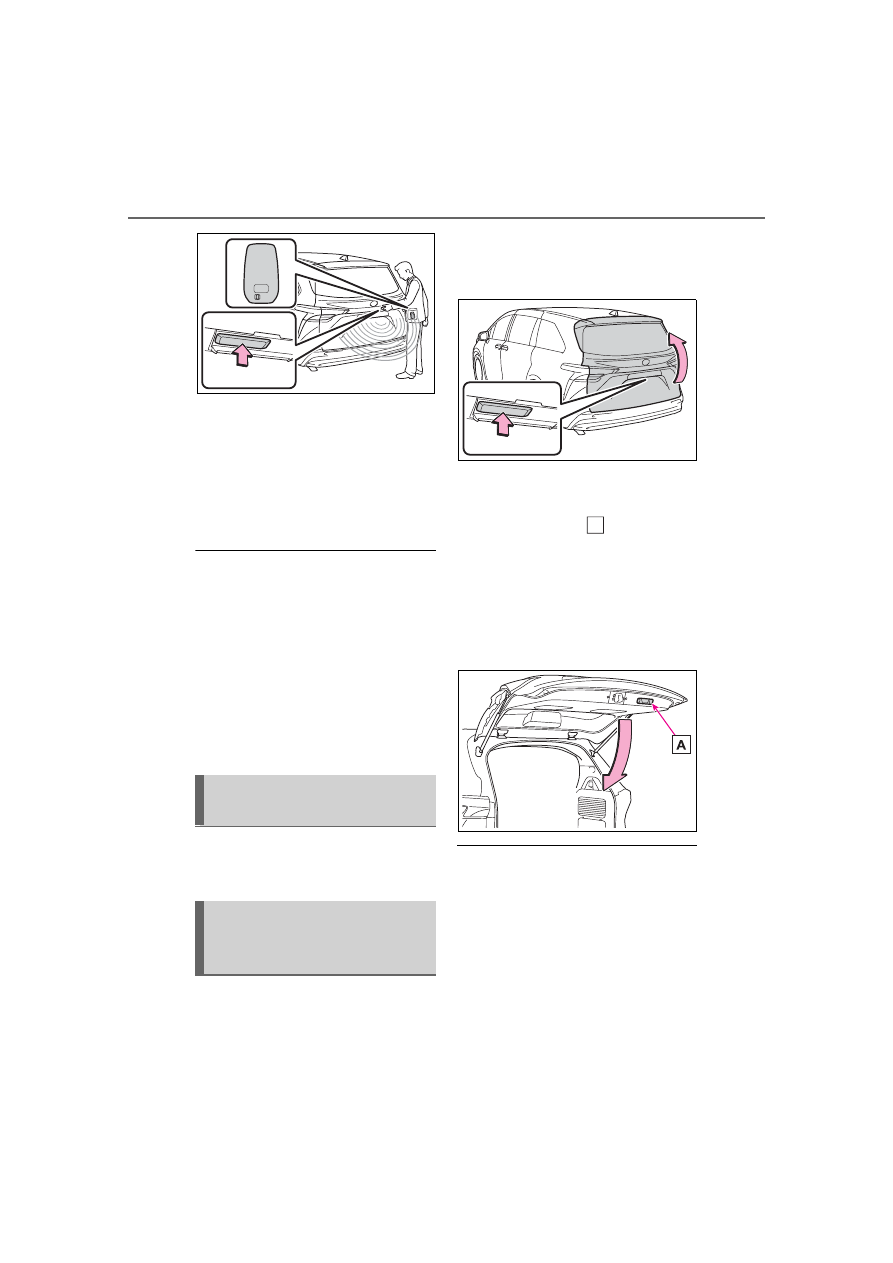

3-2. Opening, closing and locking the doors

Unlocks all the doors

The doors cannot be unlocked for 3
seconds after the doors are locked.

■

Using the wireless remote
control



P.132

■

Operation signals

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked. (Locked: once;

Unlocked: twice)

■

Security feature

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked, the security fea-

ture automatically locks the vehicle

again.

■

Using the door lock switch



P.135

■

Open

Raise the back door while

pressing up the back door
opener to release the lock to
open the back door.

■

Close

Lower the back door using the
back door handle

, and make

sure to push the back door
down from the outside to close
it.

Be careful not to pull the back door
sideways when closing the back
door with the handle.

■

Luggage compartment light



P.156

■

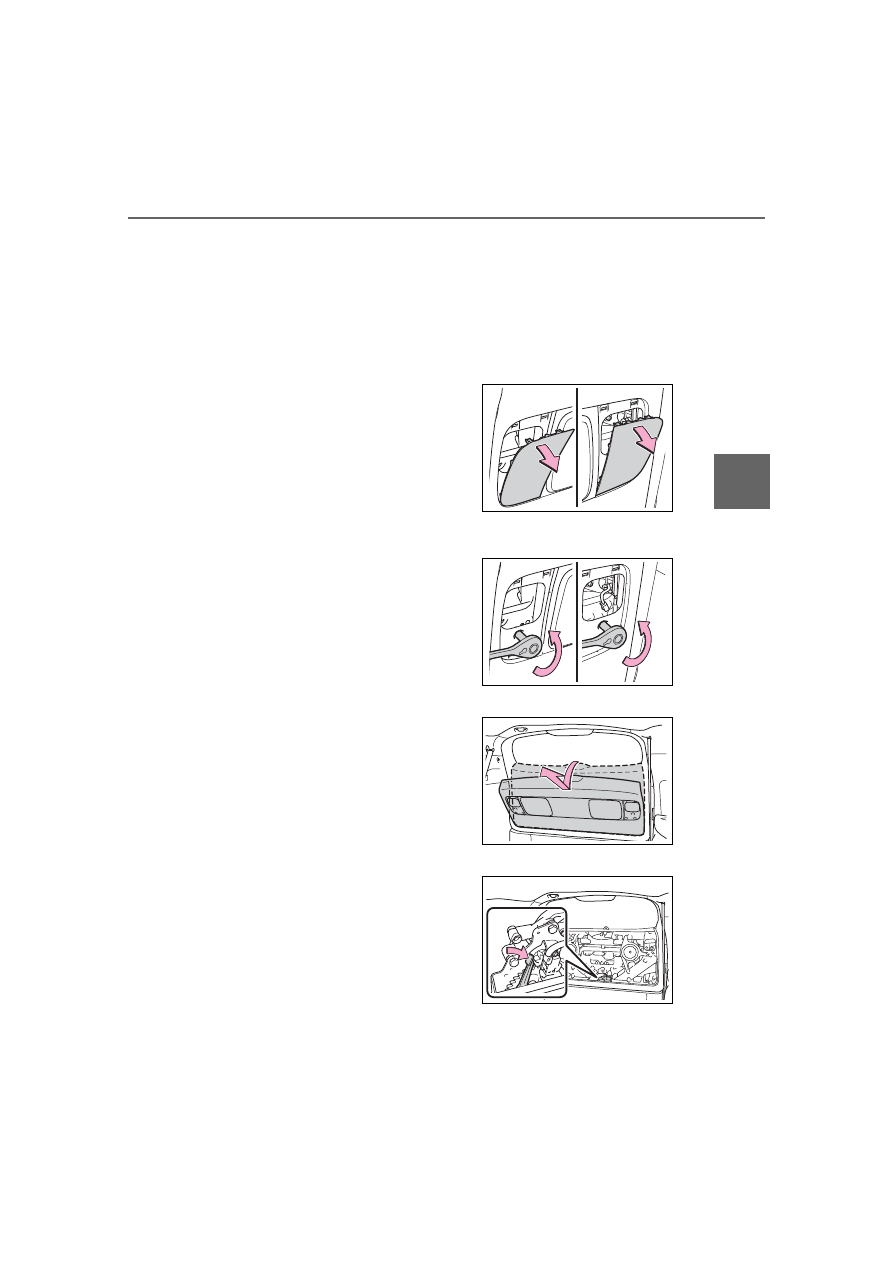

If the back door opener is inop-

erative

The back door can be unlocked

from the inside.

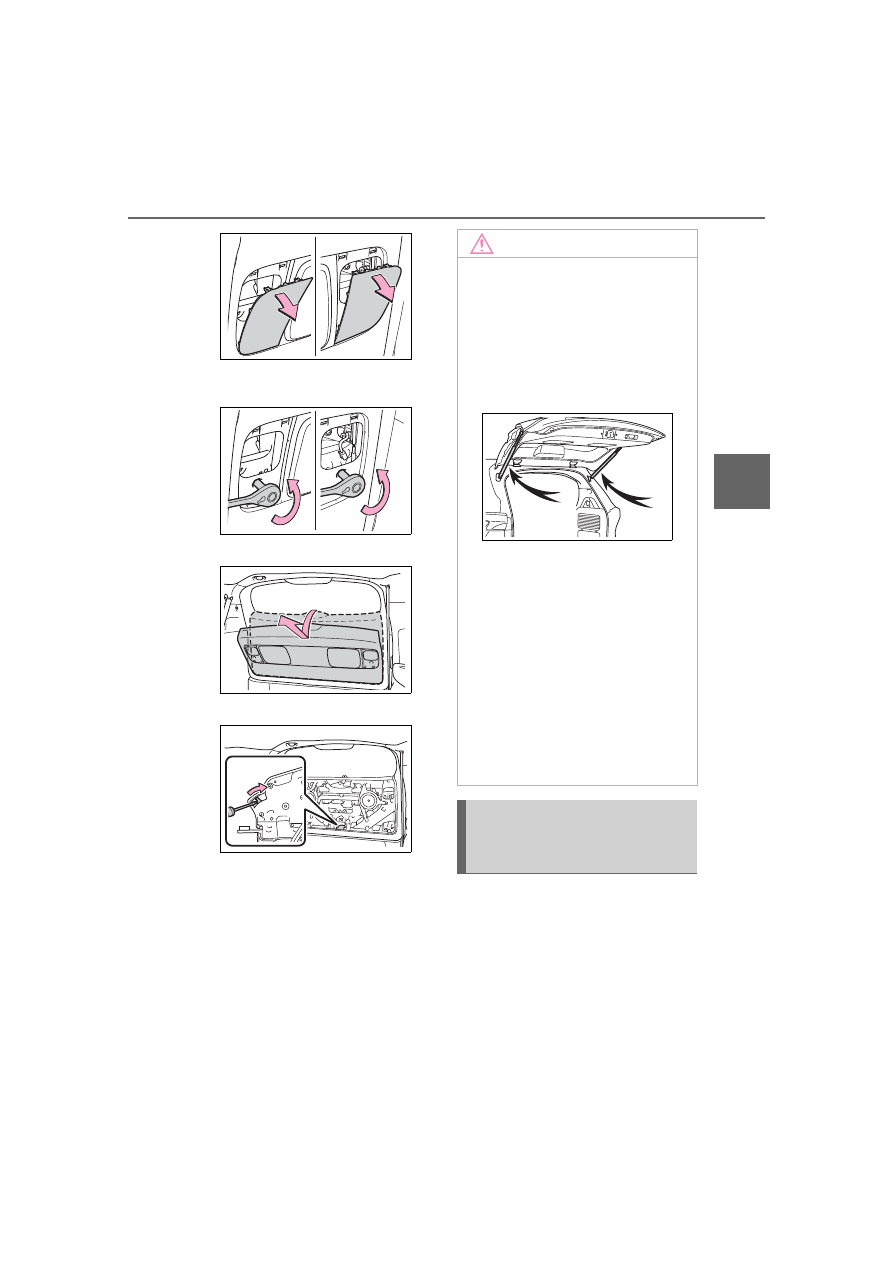

1

Remove the both side covers.

Unlocking and locking the
back door from the inside

Opening/closing the back
door (vehicles without
power back door)

A

153

3-2. Opening, closing and locking the doors

3

Before

driving

2

Remove the bolts with a socket

wrench of an appropriate size.

3

Remove the inside panel.

4

Move the lever.

■

Open door warning buzzer



P.136

■

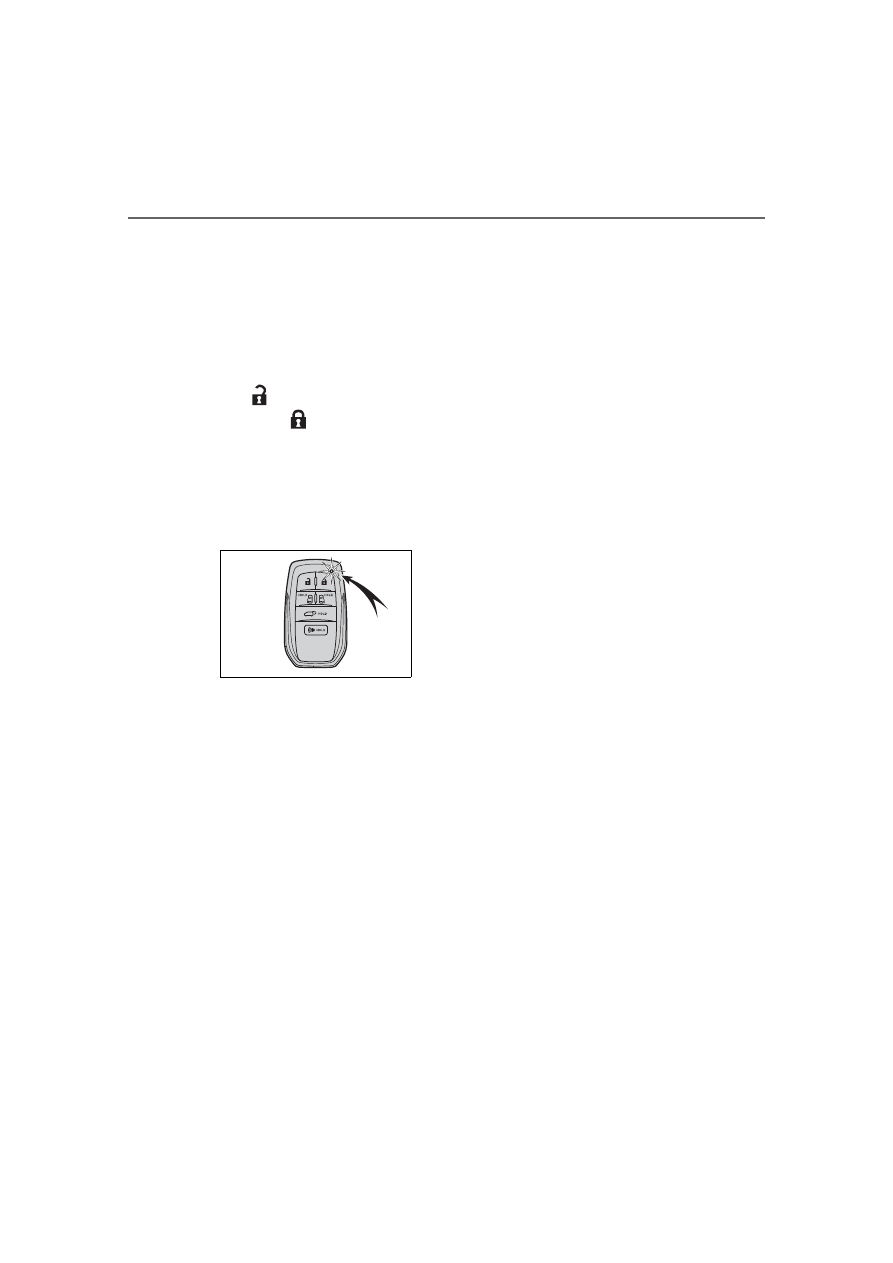

Using the wireless remote
control

Press and hold the switch.

The power back door automatically
opens/closes.
Pressing the switch again while the
power back door is operating will

NOTICE

■

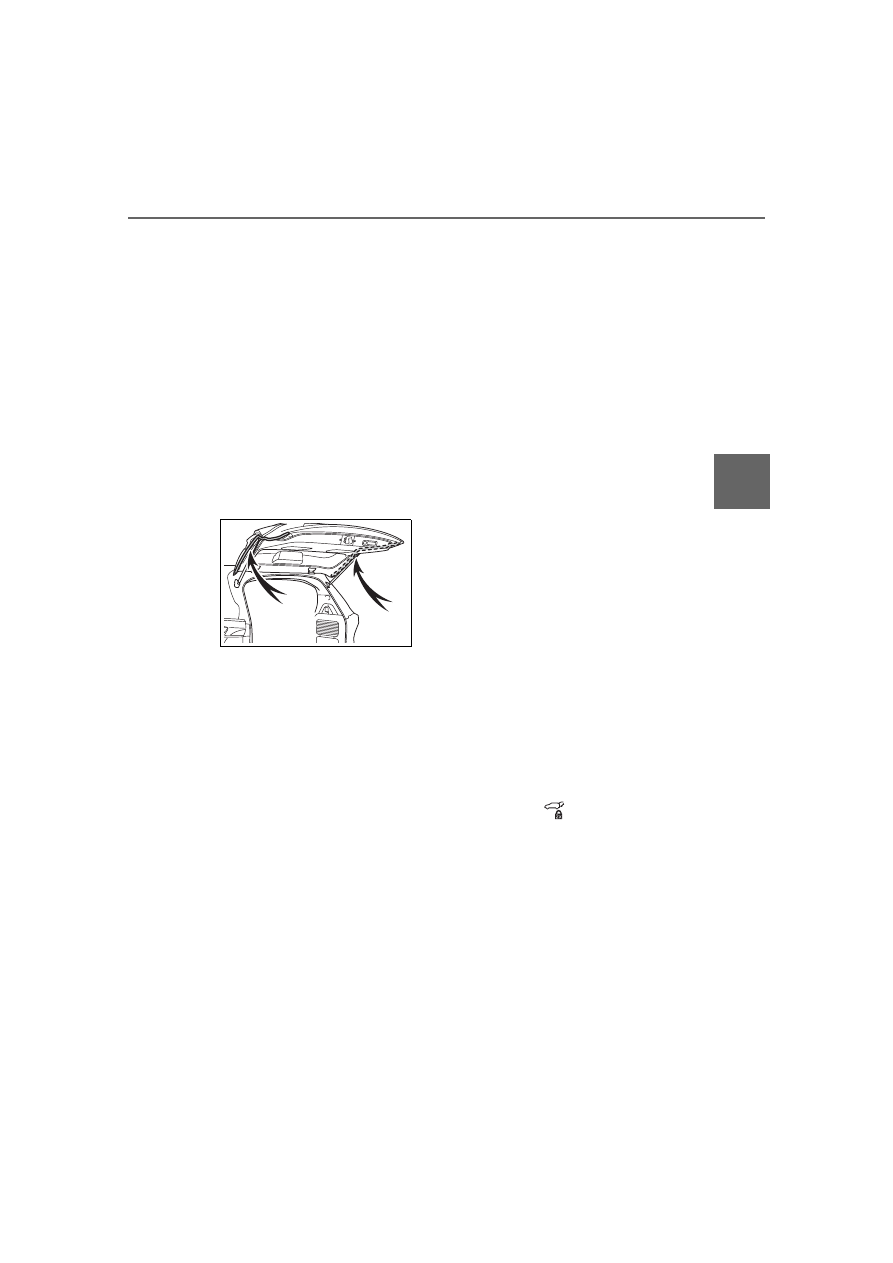

Back door damper stays

The back door is equipped with

damper stays that hold the back

door in place.

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door damper stay,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

damper stay rod.

●

Do not touch the damper stay

rod with gloves or other fabric

items.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

damper stay or apply lateral

forces to it.

Opening/closing the back
door (vehicles with power
back door)

154

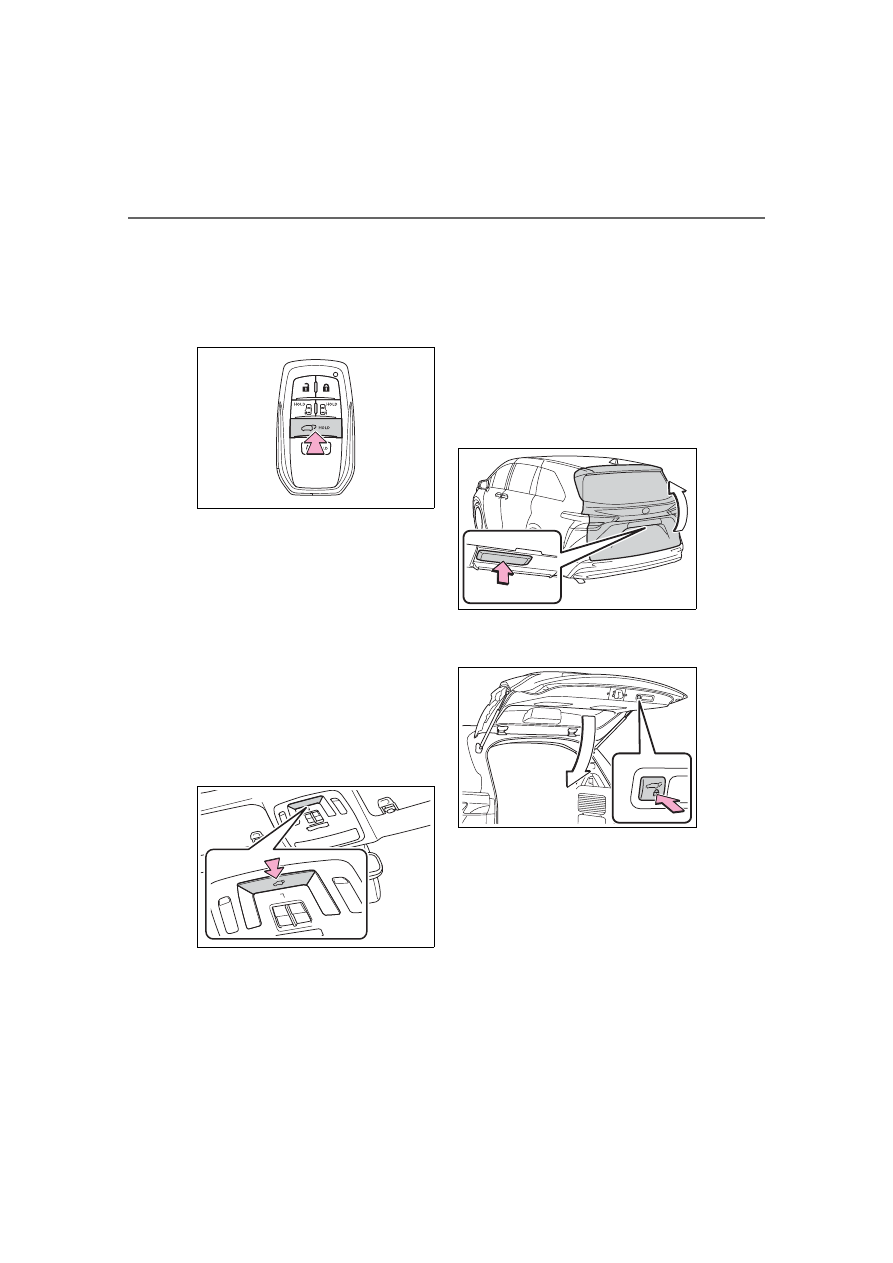

3-2. Opening, closing and locking the doors

cause the operation to reverse.
However, the reverse operation
cannot be performed for the first
second after automatic operation
starts, even if the wireless remote
control switch is pressed again.

■

Using the power back door
switch from front seats

Press and hold the switch to
open/close the back door.
Pressing the switch again while
the power back door is closing
will cause it to open again.
However, the reverse operation
cannot be performed for the first
second after automatic opera-
tion starts even if the switch is
pressed again.

■

Using the back door opener
switch

When the back door is
unlocked: Press the back door

opener switch.
When the back door is locked:
While carrying the electronic key
on your person, press and hold
the back door opener switch.

The power back door automatically
opens.
Pressing the switch while the power
back door is opening/closing stops
the operation.

■

Using the power back door
switch on the back door



Close

Press the switch.
The power back door automatically
closes.
Pressing the switch while the power
back door is operating will stop the
operation.
When the switch is pressed again
during the halted operation, the
back door will perform the reverse

155

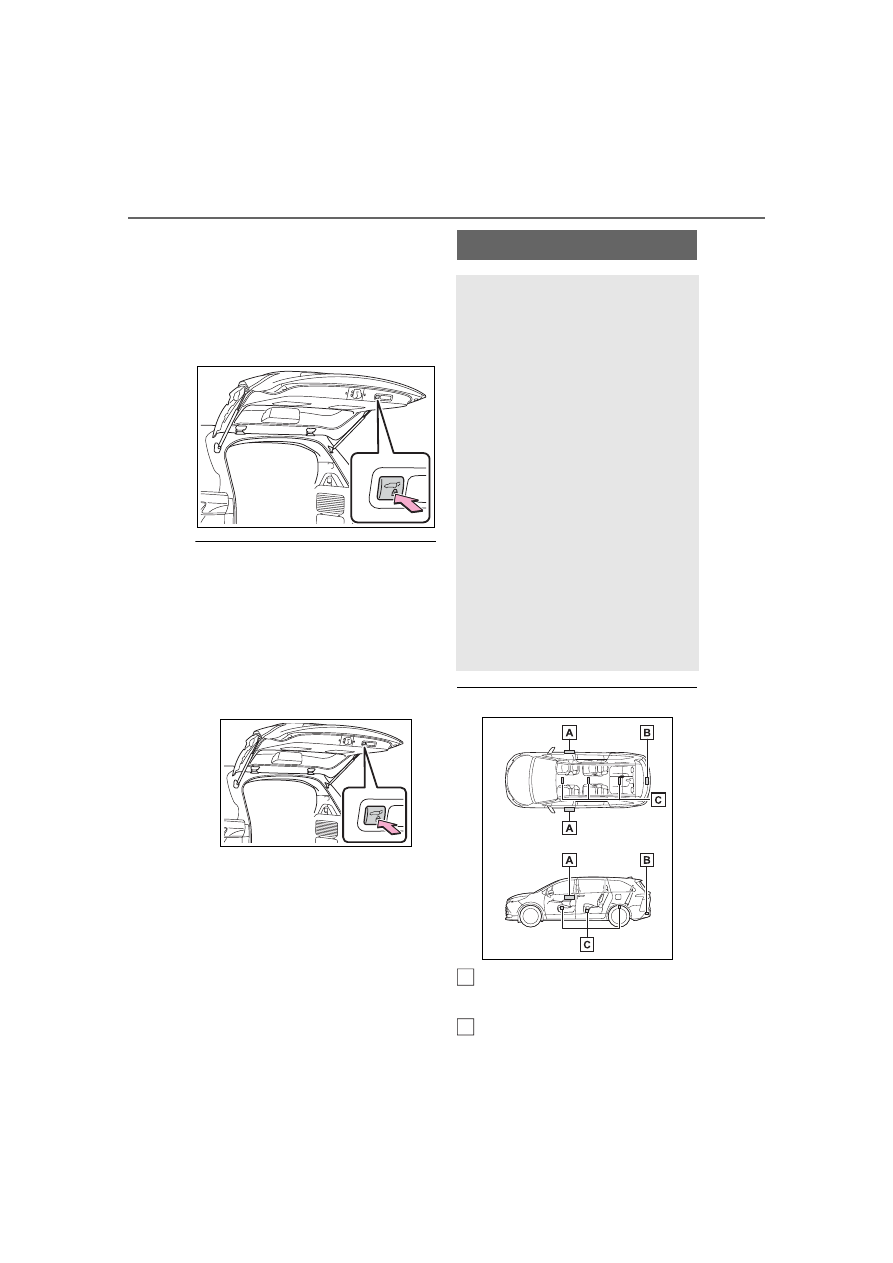

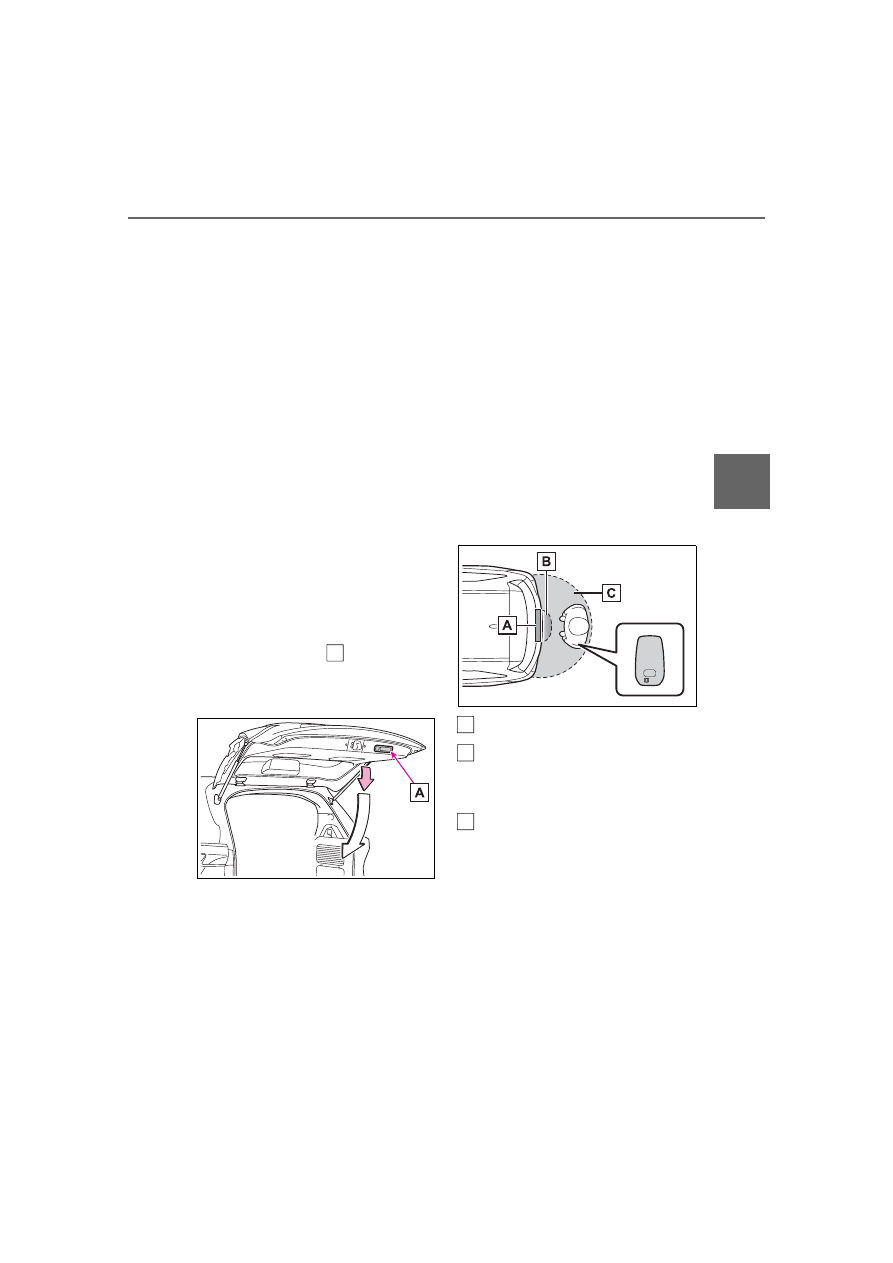

3-2. Opening, closing and locking the doors

3

Before

driving

operation.



Close the back door and lock
all doors (close & lock func-
tion)

Press the switch twice.
A different buzzer than the normal
one will sound and the power back
door will begin closing automati-
cally. When the power back door is
closed, all of the doors will lock
simultaneously and operation sig-
nals will indicate that all of the
doors have been locked.
If the switch is pressed while the
power back door is closing, the
operation will stop.
Pressing the switch again will close
the power back door automatically.

■

Using the back door handle

Lower the back door using the
back door handle

, then a

buzzer sounds and the back
door automatically closes.

■

Using the kick sensor (vehi-
cles with Hands Free Power
Back Door)

The Hands Free Power Back
Door enables automatic opening
and closing of the power back
door by putting your foot near

the lower center part of the rear
bumper and moving it away
from the rear bumper. When
operating the Hands Free
Power Back Door, make sure
that the power switch is in OFF,
the kick sensor operation is
enabled (



P.112) and you are

carrying an electronic key.

1

While carrying an electronic
key, stand within the smart
key system operation range,
approximately 11.8 to 19.7 in.
(30 to 50 cm) from the rear
bumper.

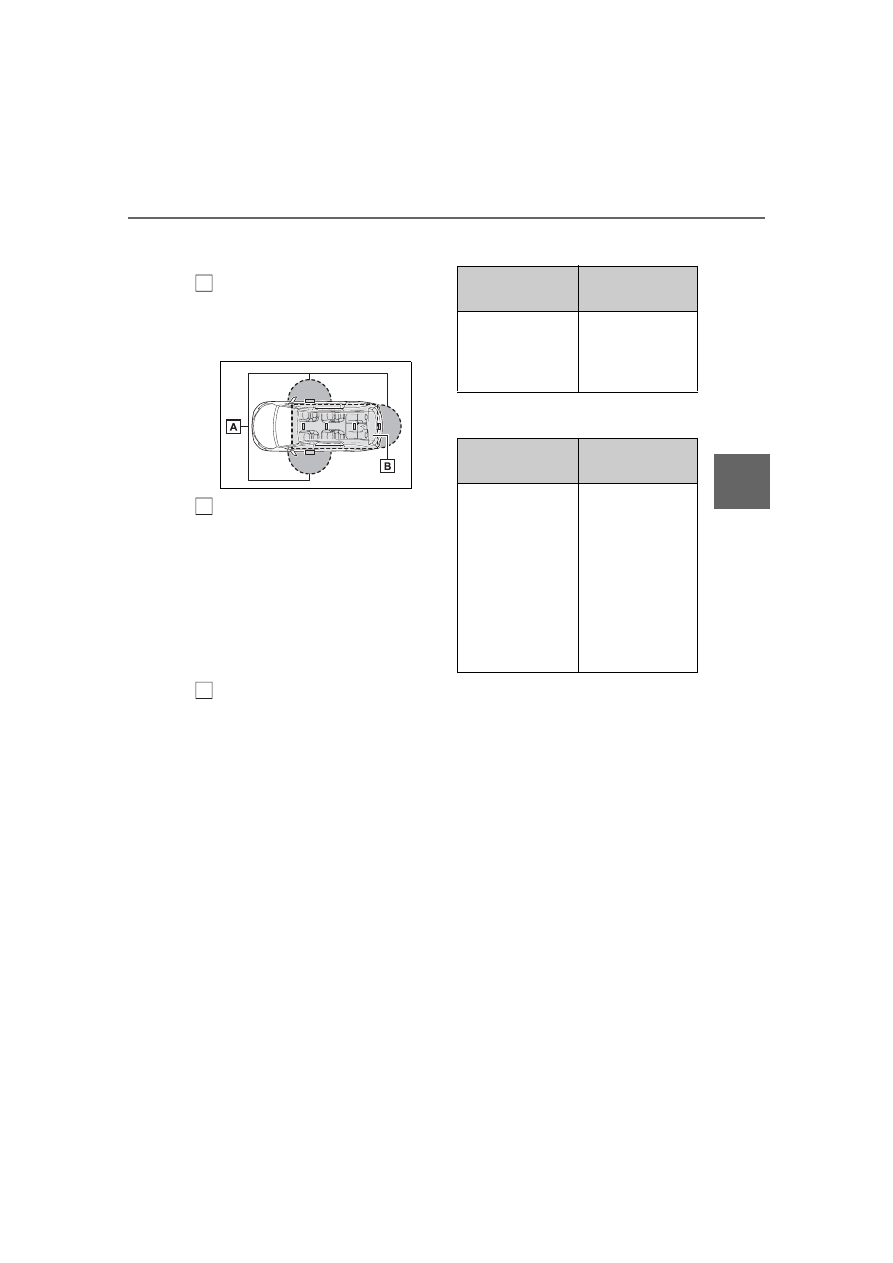

Kick sensor

Hands Free Power Back
Door operation detection
area

Smart key system operation
detection area (



P.165)

2

Perform a kick operation by
moving your foot to within
approximately 3.9 in. (10 cm)
of the rear bumper and then
pulling it back.

Perform the entire kick operation

within approximately 1 second.
The back door will not start operat-

ing while a foot is detected under

A

A

B

C

156

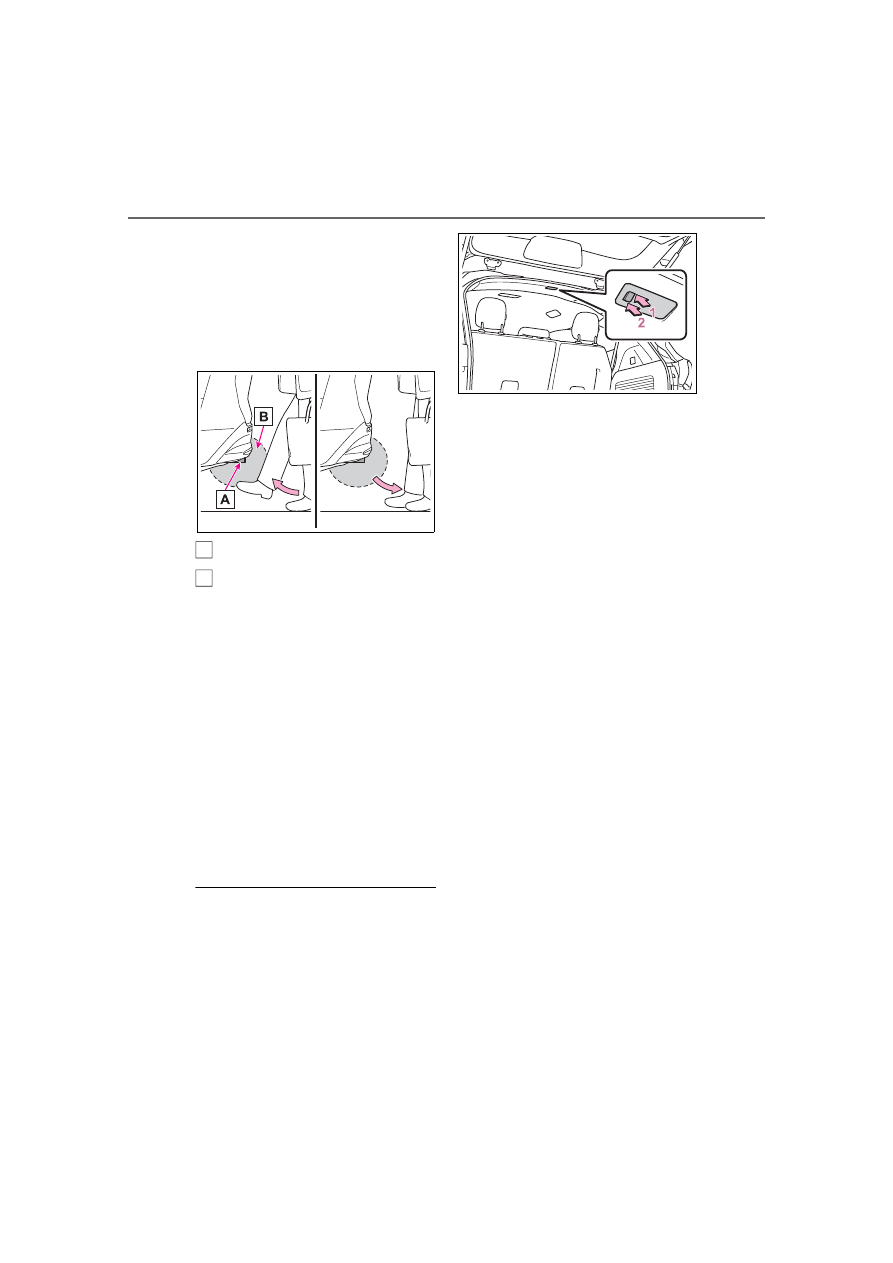

3-2. Opening, closing and locking the doors

the rear bumper.
Operate the Hands Free Power

Back Door without contacting the

rear bumper with your foot.
If another electronic key is in the

cabin or luggage compartment, it

may take slightly longer than nor-

mal for the operation to occur.

Kick sensor

Hands Free Power Back
Door operation detection
area

3

When the kick sensor detects
that your foot is pulled back,
a buzzer will sound and the
back door will automatically
fully open/close.

If a foot is moved under the rear

bumper while the back door is

opening/closing, the back door will

stop moving.
If a foot is moved under the rear

bumper again during the halted

operation, the back door will per-

form the reverse operation.

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened with the luggage compart-

ment light switch on.
When the power switch is turned to

OFF, the light will go off automati-

cally after 20 minutes.

1

On

2

Off

■

Back door closer

In the event that the back door is left

slightly open, the back door closer

will automatically close it to the fully

closed position.
Whatever the state of the power

switch, the back door closer oper-

ates.

■

Power back door operating con-

ditions

The power back door can automati-

cally open and close under the fol-

lowing conditions:

●

When the power back door sys-

tem is enabled. (



P.112)

●

When the back door is unlocked.

Vehicles with entry function: How-

ever, if the back door opener switch

is pressed and held while carrying

the electronic key on your person,

the power back door will be oper-

ated even if the back door is locked.

(



P.154)

●

When the power switch is in ON,

in addition to the above for the

opening operations, the back door

operates for any of the following

conditions:

• Parking brake is engaged

• The brake pedal is depressed

• The shift lever is in P.

■

Operation of the power back

door

●

A buzzer sounds and the emer-

gency flashers flash twice to indi-

A

B

157

3-2. Opening, closing and locking the doors

3

Before

driving

cate that the back door is

opening/closing.

●

When the power back door sys-

tem is disabled, the power back

door does not operate but it can

be opened and closed by hand.

●

When the power back door auto-

matically opens, if an abnormality

due to people or objects is

detected, operation will stop.

■

Jam protection function

Sensors are equipped on both sides

of the power back door. If anything

obstructs the power back door while

it is closing, the back door will auto-

matically operate in the opposite

direction or stop.

■

Fall-down protection function

While the power back door is open-

ing automatically, applying exces-

sive force to it will stop the opening

operation to prevent the power back

door from suddenly shutting.

■

Back door reserve lock function

This function is a function which

reserves locking of all doors, before-

hand, when the power back door is

open.
When the following procedure is

performed, all the doors except the

power back door are locked and

then power back door will also be

locked at the same time it is closed.

1

Close all doors, except the back

door.

2

During the power back door clos-

ing operation, lock the doors

using the smart key system from

the front doors (



P.132) or the

wireless remote control.

(



P.132)

A buzzer sounds and the emer-

gency flashers flash to indicate that

all the doors have been closed and

locked.

●

If the electronic key is placed

inside the vehicle after starting a

close operation via the door

reserve lock function, the elec-

tronic key may become locked

inside the vehicle.

●

If the power back door does not

fully close due to the operation of

the jam protection function, etc.,

while the back door is automati-

cally closing after a door reserve

lock operation is performed, the

door reserve lock function is can-

celed and all the doors will unlock.

●

Before leaving the vehicle, make

sure that all the doors are closed

and locked.

■

Close & lock function

When the power back door is open,

this function closes the power back

door and then locks all of the doors

simultaneously.
When the following procedures are

performed and there are no elec-

tronic keys for the vehicle within the

vehicle, all of the doors will lock

when the power back door is com-

pletely closed.

1

Close all of the doors except the

power back door.

2

While carrying an electronic key,
press the

 switch twice on the

lower part of the power back

door (



P.154).

A different buzzer than the normal

one will sound and then the power

back door will begin closing auto-

matically. When the power back

door is closed, all of the doors will

lock simultaneously and operation

signals will indicate that all of the

doors have been locked.

158

3-2. Opening, closing and locking the doors

■

Situations in which the close &

lock function may not operate

properly

In the following situations, the close

& lock function may not operate

properly:

●

If the

 switch on the lower part

of the power back door (



P.154)

is pressed by a hand which is

holding an electronic key

●

If the

 switch on the lower part

of the power back door (



P.154)

is pressed when the electronic key

is in a bag, etc. that is placed on

the ground

●

If the

 switch on the lower part

of the power back door (



P.154)

is pressed with the electronic key

not near the vehicle

■

Kick sensor operating condi-

tions (vehicles with Hands Free

Power Back Door)

The Hands Free Power Back Door

will open/close automatically when

the following conditions are met:

●

The kick sensor operation is

enabled (



P.112)

●

The electronic key is within the

operational range. (



P.165)

●

A foot is put near the lower center

part of the rear bumper and

moved away from the rear

bumper.

The power back door may also be

operated by putting a hand, an

elbow, a knee, etc. near the lower

center part of the rear bumper and

moving it away from the rear

bumper. Make sure to put it close

enough to the center part of the

rear bumper.

■

Situations in which the Hands

Free Power Back Door may not

operate properly (vehicles with

Hands Free Power Back Door)

In the following situations, the

Hands Free Power Back Door may

not operate properly:

●

When a foot remains under the

rear bumper

●

If the rear bumper is strongly hit

with a foot or is touched for a while

If the rear bumper has been touched
for a while, wait for a short time
before attempting to operate the
Hands Free Power Back Door
again.

●

When operated while a person is

too close to the rear bumper

●

When an external radio wave

source interferes with the commu-

nication between the electronic

key and the vehicle (



P.166)

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Back Door, such as a

pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When a large amount of water is

applied to the rear bumper, such

as when the vehicle is being

washed or in heavy rain

●

When mud, snow, ice, etc. is

attached to the rear bumper

●

When the vehicle has been

parked for a while near objects

that may move and contact the

rear bumper, such as plants

●

When an accessory is installed to

the rear bumper

If an accessory has been installed,
turn the Hands Free Power Back
Door (kick sensor) operation setting
off.

159

3-2. Opening, closing and locking the doors

3

Before

driving

■

Preventing unintentional opera-

tion of the Hands Free Power

Back Door (vehicles with Hands

Free Power Back Door)

When an electronic key is in the

operation range, the Hands Free

Power Back Door may operate unin-

tentionally, so be careful in the fol-

lowing situations.

●

When a large amount of water is

applied to the rear bumper, such

as when the vehicle is being

washed or in heavy rain

●

When dirt is wiped off the rear

bumper

●

When a small animal or small

object, such as a ball, moves

under the rear bumper

●

When an object is moved from

under the rear bumper

●

If someone is swinging their legs

while sitting on the rear bumper

●

If the legs or another part of some-

one’s body contacts the rear

bumper while passing by the vehi-

cle

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Back Door, such as a

pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When the vehicle is parked in a

place where objects such as

plants are near the rear bumper

●

If luggage, etc. is set near the rear

bumper

●

If accessories or a vehicle cover is

installed/removed near the rear

bumper

●

When the vehicle is being towed

To prevent unintentional operation,

turn the Hands Free Power Back
Door (kick sensor) operation setting
off. (



P.112)

■

If the back door opener is inop-

erative

The back door can be unlocked

from the inside.

1

Remove the both side covers.

2

Remove the bolts with a socket

wrench of an appropriate size.

3

Remove the inside panel.

4

Move the lever.

160

3-2. Opening, closing and locking the doors

■

Customization

Settings (e.g. power back door

opening angle) can be changed.

(Customizable features:



P.546)

WARNING

■

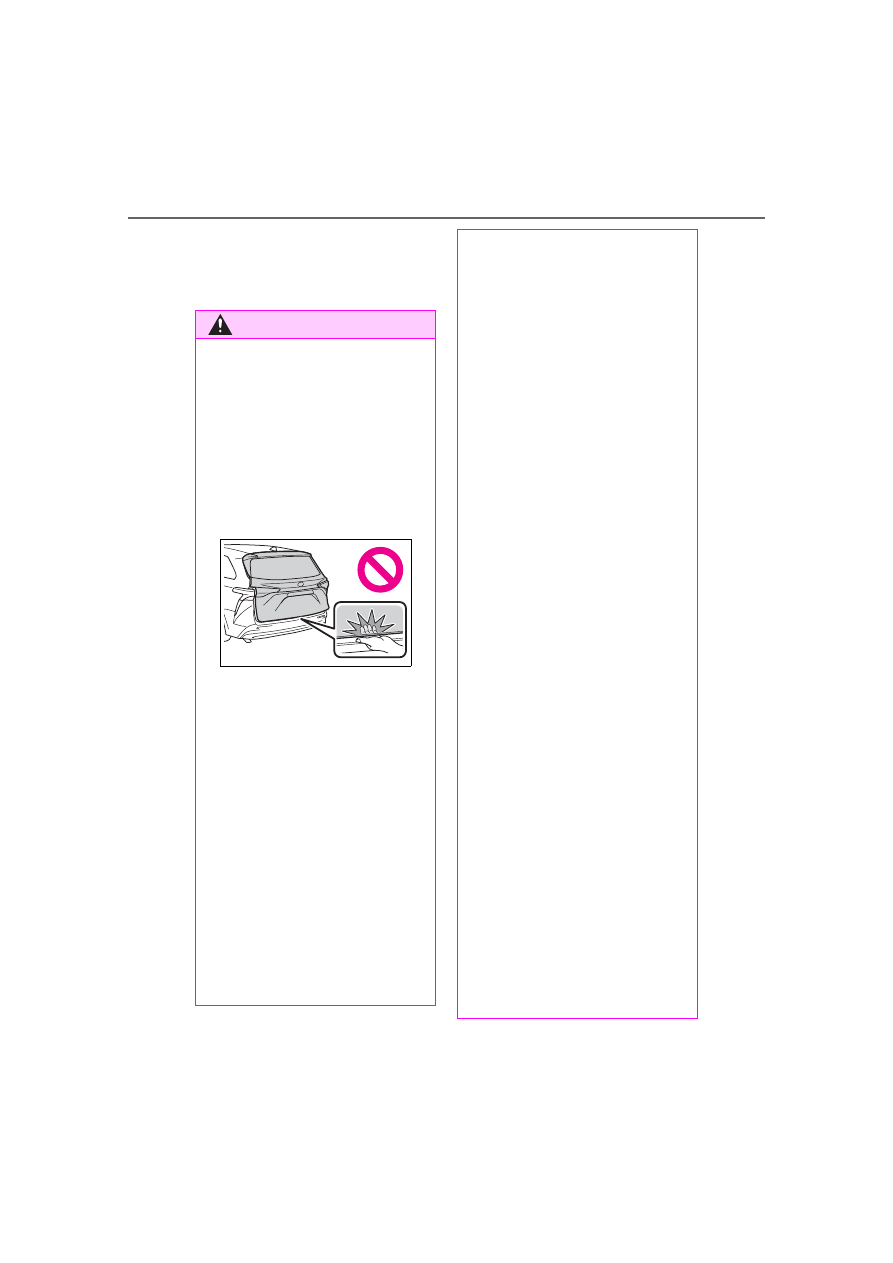

Back door closer

●

In the event that the back door

is left slightly open, the back

door closer will automatically

close it to the fully closed posi-

tion. It takes several seconds

before the back door closer

begins to operate. Be careful

not to catch fingers or anything

else in the back door, as this

may cause bone fractures or

other serious injuries.

●

Use caution when using the

back door closer as it still oper-

ates when the power back door

system is canceled.

■

Power back door

Observe the following precautions

when operating the power back

door.

Failure to do so may cause death

or serious injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

If the power back door system is

disabled while the back door is

operating automatically, the

automatic operation is stopped.

The back door then has to be

operated manually. Take extra

care when on an incline, as the

back door may open or close

unexpectedly.

●

If the operating conditions of the

power back door are no longer

met, a buzzer may sound and

the back door may stop opening

or closing. The back door then

has to be operated manually.

Take extra care when on an

incline, as the back door may

open or close abruptly.

●

On an incline, the back door

may suddenly shut after it

opens. Make sure the back door

is fully open and secure.

●

In the following situations, the

power back door may detect an

abnormality and automatic

operation may be stopped. In

this case, the back door has to

be operated manually. Take

extra care when on an incline,

as the back door may open or

close abruptly.

• When the back door contacts an

obstacle

• When the 12-volt battery volt-

age suddenly drops, such as

when the power switch is turned

to ON or the hybrid system is

started during automatic opera-

tion

■

Jam protection function

Observe the following precau-

tions.

Failure to do so may cause death

or serious injury.

●

Never use any part of your body

to intentionally activate the jam

protection function.

161

3-2. Opening, closing and locking the doors

3

Before

driving

WARNING

●

The jam protection function may

not work if something gets

caught just before the back door

fully closes. Be careful not to

catch fingers or anything else.

●

The jam protection function may

not work depending on the

shape of the object that is

caught. Be careful not to catch

fingers or anything else.

■

Hands Free Power Back Door

(if equipped)

Observe the following precautions

when operating the Hands Free

Power Back Door.

Failure to do so may cause death

or serious injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

When putting your foot near the

lower center part of the rear

bumper and moving it from the

rear bumper, be careful not to

touch the exhaust pipes until

they have cooled down suffi-

ciently, as touching hot exhaust

pipes can cause burns.

●

Do not leave the electronic key

within the effective range

(detection area) of the luggage

compartment.

NOTICE

■

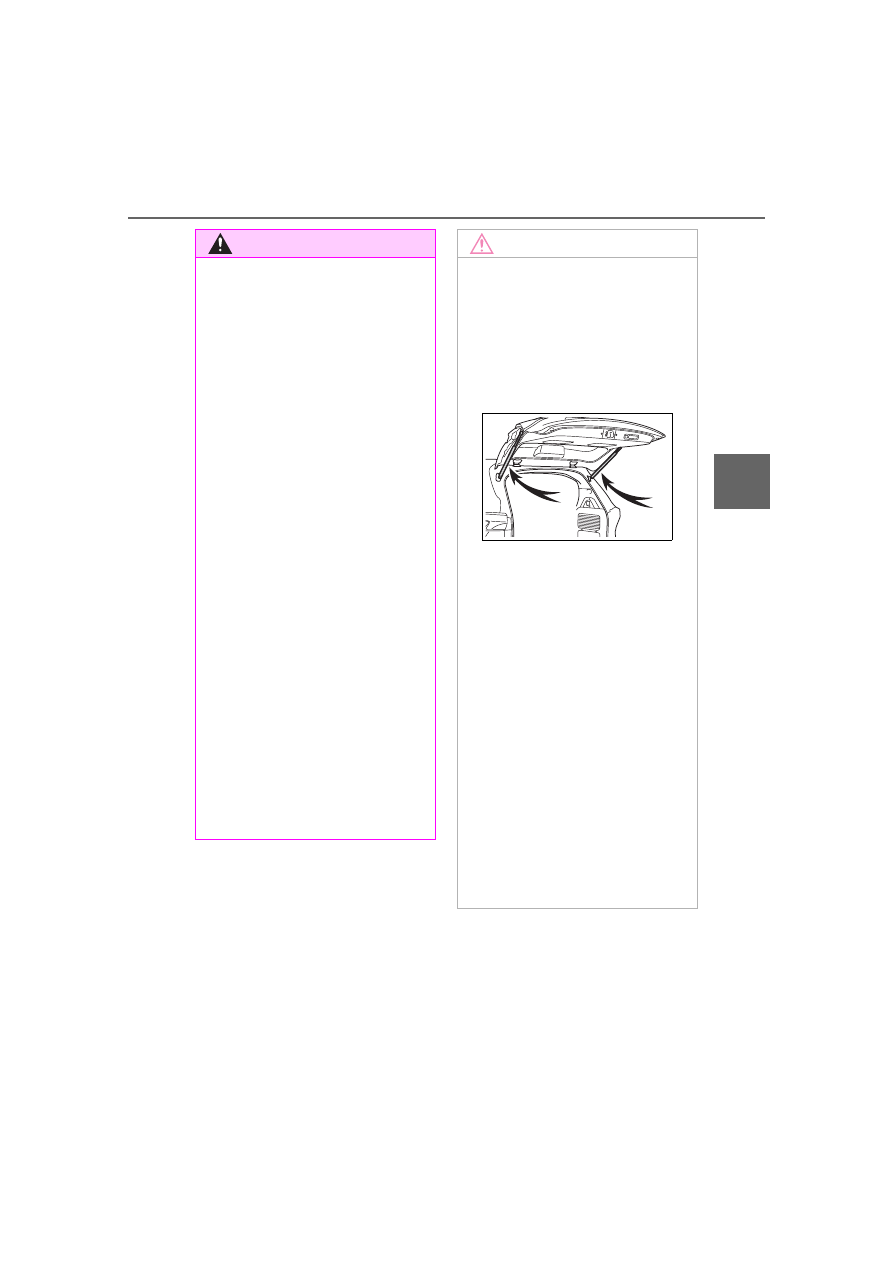

Back door spindles

The back door is equipped with

spindles that hold the back door in

place.

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door spindle,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

spindle rod.

●

Do not touch the spindle rod

with gloves or other fabric items.

●

Do not attach heavy accesso-

ries to the back door. When

attaching, ask your Toyota

dealer for details.

●

Do not place your hand on the

spindle or apply lateral forces to

it.

■

To prevent back door closer

malfunction

Do not apply excessive force to

the back door while the back door

closer is operating. Applying

excessive force may cause the

back door closer to malfunction.

162

3-2. Opening, closing and locking the doors

NOTICE

■

To prevent damage to the

power back door

●

Make sure that there is no ice

between the back door and

frame that would prevent move-

ment of the back door. Operat-

ing the power back door when

excessive load is present on the

back door may cause a mal-

function.

●

Do not apply excessive force to

the back door while the power

back door is operating.

●

Take care not to damage the

sensors (installed on the right

and left edges of the power

back door) with a knife or other

sharp object. If the sensor is

disconnected, the power back

door will not close automati-

cally.

■

Close & lock function

When closing the power back

door using the close & lock func-

tion, a different buzzer than the

normal one will sound before the

operation begins.
To check that the operation has

started correctly, check that a dif-

ferent buzzer than the normal one

has sounded.
Additionally, when the power back

door is fully closed and locked,

operation signals will indicate that

all of the doors have been locked.
Before leaving the vehicle, make

sure that the operation signals

have operated and that all of the

doors are locked.

■

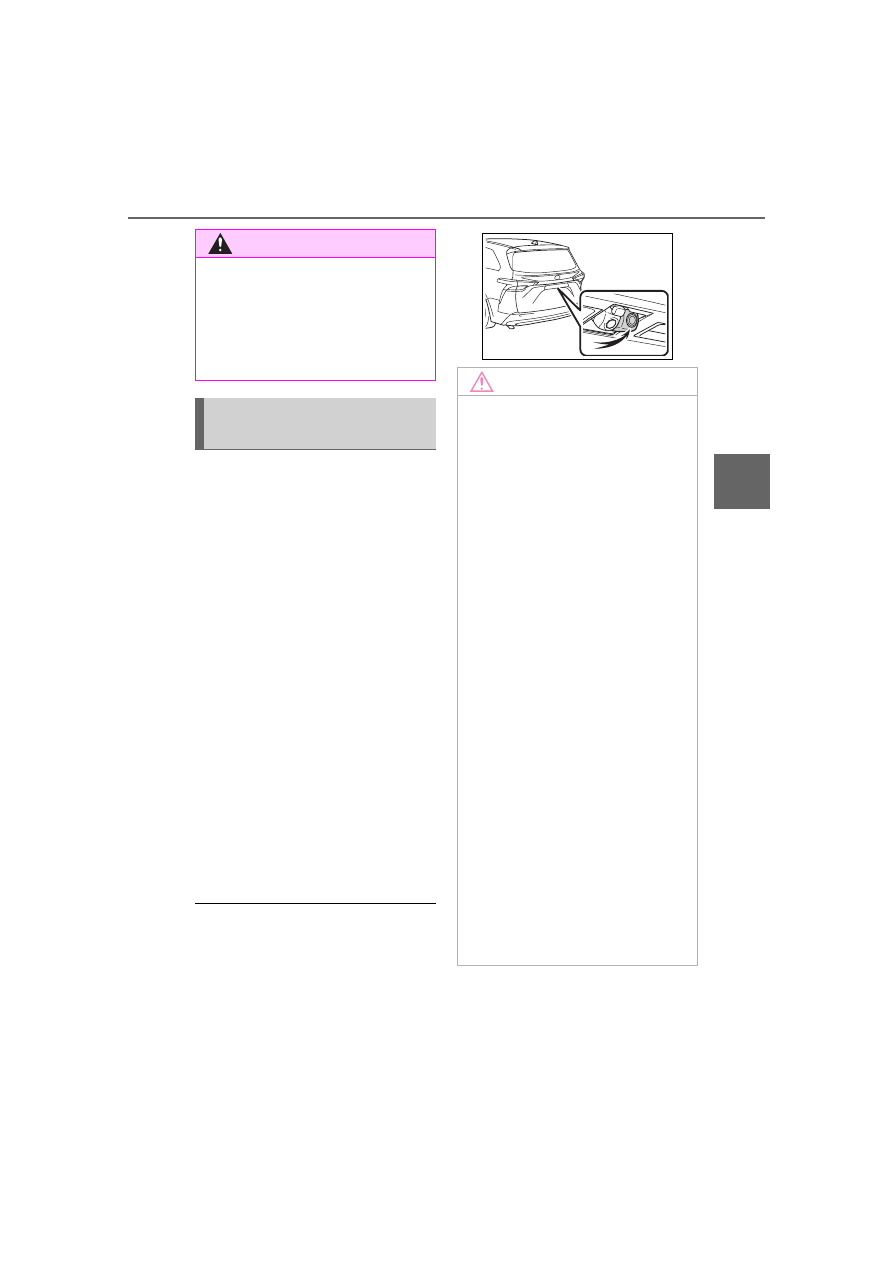

Hands Free Power Back Door

precautions (if equipped)

The kick sensor is located behind

lower center part of the rear

bumper. Observe the following to

ensure that the Hands Free

Power Back Door function oper-

ates properly:

●

Keep the lower center part of

the rear bumper clean at all

times.

If the lower center part of the

rear bumper is dirty or covered

with snow or mud, the kick sen-

sor may not operate. In this situ-

ation, clean off the dirt or snow,

move the vehicle from the cur-

rent position and then check if

the kick sensor operates.

If it does not operate, have the

vehicle inspected by your

Toyota dealer.

●

Do not apply coatings that have

a rain clearing (hydrophilic)

effect, or other coatings, to the

lower center part of the rear

bumper.

●

Do not park the vehicle near

objects that may move and con-

tact the lower center part of the

rear bumper, such as grass or

trees.

If the vehicle has been parked

for a while near objects that

may move and contact the

lower center part of the rear

bumper, such as grass or trees,

the kick sensor may not oper-

ate. In this situation, move the

vehicle from the current position

and then check if the kick sen-

sor operates. If it does not oper-

ate, have the vehicle inspected

by your Toyota dealer.

163

3-2. Opening, closing and locking the doors

3

Before

driving

The power back door system
can be enabled/disabled on the
multi-information display.
(



P.112)

If the power back door is dis-
abled, it will remain disabled
unless it is enabled on the multi-
information display. (It will not
be enabled even when the
power switch is turned off and
then back to ON.)

The Hands Free Power Back
Door (kick sensor) can be
enabled/disabled on the multi-
information display. (



P.112)

If the Hands Free Power Back
Door is disabled, it will remain
disabled unless it is enabled on
the multi-information display. (It
will not be enabled even when
the power switch is turned off
and then back to ON.)

The power back door open posi-
tion can be adjusted by using
the power back door switch on
the back door or on the multi-
information display.

■

Using the multi-information
display

The power back door open posi-
tion can be adjusted on the
multi-information display.
(



P.112)

■

Using the power back door
switch on the back door

1

Stop the back door in the
desirable position. (



P.153)

2

Press and hold the power
back door switch on the back

NOTICE

●

Do not subject the kick sensor

or its surrounding area to a

strong impact.

If the kick sensor or its sur-

rounding area has been sub-

jected to a strong impact, the

kick sensor may not operate

properly. If the kick sensor does

not operate in the following situ-

ations, have the vehicle

inspected by your Toyota

dealer.

• The kick sensor or its surround-

ing area has been subjected to

a strong impact.

• The lower center part of the rear

bumper is scratched or dam-

aged.

●

Do not disassemble the rear

bumper.

●

Do not attach an accessory con-

taining metal or apply metallic

paint to the rear bumper.

Canceling the power back
door system (vehicles
with power back door)

Canceling the Hands Free
Power Back Door (vehi-
cles with kick sensor)

Adjusting the open posi-
tion of the back door
(vehicles with power back
door)

164

3-2. Opening, closing and locking the doors

door for approximately 2 sec-
onds.

When the settings are completed,

the buzzer sounds 4 times.
When opening the back door the

next time, the back door will stop at

that position.

■

Canceling the adjusted open

position of the back door

Press and hold the power back door

switch on the back door for approxi-

mately 7 seconds.
After the buzzer sounds 4 times, it

sounds twice more. When the

power back door does the opening

operation the next time, the door will

open to the initial settings position.

■

Customization

The opening position can be set

with the multi-information display.

(



P.546)

Priority for the stop position is given

to the last position set by either the

power back door switch on the back

door or multi-information display.

■

Antenna location

Antennas outside the cabin
(vehicles with entry function)

Antenna outside the luggage

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the front
doors (vehicles with entry
function) (



P.132)



Locks and unlocks the slid-
ing doors (vehicles with
entry function) (



P.138)



Locks and unlocks the back
door (vehicles with entry
function) (



P.151)



Starts the hybrid system
(



P.231)

A

B

165

3-2. Opening, closing and locking the doors

3

Before

driving

compartment (vehicles with entry
function)

Antennas inside the cabin

■

Effective range (areas within

which the electronic key is

detected)

When locking or unlocking the
doors (vehicles with entry func-
tion)

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of the outside front door
handles or back door opener switch.
(Only the doors detecting the key
can be operated.)

When starting the hybrid system
or changing power switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

■

If an alarm sounds or a warning

message is displayed

An alarm sounds and warning mes-

sage displays shown on the multi-

information display are used to pro-

tect against unexpected accidents

or theft of the vehicle resulting from

erroneous operation. When a warn-

ing message is displayed, take

appropriate measures based on the

displayed message.
When only an alarm sounds, cir-

cumstances and correction proce-

dures are as follows.

●

When an exterior alarm sounds

once for 5 seconds

●

When an interior alarm pings con-

tinuously

■

Battery-saving function (vehi-

cles with entry function)

The battery-saving function will be

activated in order to prevent the

electronic key battery and the 12-

volt battery from being discharged

while the vehicle is not in operation

for a long time.

●

In the following situations, the

smart key system may take some

time to unlock the doors.

• The electronic key has been left in

an area of approximately 11.5 ft.

(3.5 m) of the outside of the vehi-

cle for 2 minutes or longer.

• The smart key system has not

been used for 5 days or longer.

●

If the smart key system has not

been used for 14 days or longer,

the doors cannot be unlocked at

any doors except the driver’s

door. In this case, take hold of the

driver’s door handle, or use the

C

A

B

Situation

Correction pro-

cedure

An attempt was
made to lock the
vehicle while a
door was open.

Close all of the
doors and lock
the doors again.

Situation

Correction pro-

cedure

The power
switch was
turned to ACC
while the driver’s
door was open
(or the driver’s
door was opened
while the power
switch was in
ACC).

Turn the power
switch to OFF
and close the
driver’s door.

166

3-2. Opening, closing and locking the doors

wireless remote control or the

mechanical key, to unlock the

doors.

■

Turning an electronic key to

battery-saving mode

●

When battery-saving mode is set,

battery depletion is minimized by

stopping the electronic key from

receiving radio waves.

Press

 twice while pressing

and holding

.

Confirm that the electronic key indi-
cator flashes 4 times.
While the battery-saving mode is
set, the smart key system cannot be
used. To cancel the function, press
any of the electronic key buttons.

●

Electronic keys that will not be

used for long periods of time can

be set to the battery-saving mode

in advance.

■

Conditions affecting operation

The smart key system uses weak

radio waves. In the following situa-

tions, the communication between

the electronic key and the vehicle

may be affected, preventing the

smart key system, wireless remote

control and immobilizer system from

operating properly.

(Ways of coping:



P.504)

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When the electronic key is in con-

tact with, or is covered by the fol-

lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless key (that

emits radio waves) is being used

nearby

●

When carrying the electronic key

together with the following devices

that emit radio waves

• Portable radio, cellular phone,

cordless phone or other wireless

communication devices

• Another vehicle’s electronic key or

a wireless key that emits radio

waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window

●

When the electronic key is placed

near a battery charger or elec-

tronic devices

●

When parking in a coin-operated

parking lot (Radio waves used to

detect vehicles may affect the

smart key system.)

■

Note for the entry function

●

Even when the electronic key is

within the effective range (detec-

tion areas), the system may not

operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-

dle, near the ground, or in a high

place when the doors are locked

or unlocked.

• The electronic key is on the instru-

ment panel, or floor, or in the door

pockets or glove box when the

167

3-2. Opening, closing and locking the doors

3

Before

driving

hybrid system is started or power

switch modes are changed.

●

Do not leave the electronic key on

top of the instrument panel or near

the door pockets when exiting the

vehicle. Depending on the radio

wave reception conditions, it may

be detected by the antenna out-

side the cabin and the door will

become lockable from the outside,

possibly trapping the electronic

key inside the vehicle.

●

As long as the electronic key is

within the effective range, the

doors may be locked or unlocked

by anyone. However, only the

doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not

inside the vehicle, it may be possi-

ble to start the hybrid system if the

electronic key is near the window.

●

The doors may unlock if a large

amount of water splashes on the

door handle, such as in the rain or

in a car wash when the electronic

key is within the effective range.

(The doors will automatically be

locked after approximately 60 sec-

onds if the doors are not opened

and closed.)

●

If the wireless remote control is

used to lock the doors when the

electronic key is near the vehicle,

there is a possibility that the door

may not be unlocked by the entry

function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock sensor

while wearing gloves may delay or

prevent lock operation. Remove

the gloves and touch the lock sen-

sor again.

●

When the lock operation is per-

formed using the lock sensor, rec-

ognition signals will be shown up

to two consecutive times. After

this, no recognition signals will be

given.

●

If the door handle becomes wet

while the electronic key is within

the effective range, the door may

lock and unlock repeatedly. In that

case, follow the following correc-

tion procedures to wash the vehi-

cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from

the vehicle. (Take care to ensure

that the key is not stolen.)

• Set the electronic key to battery-

saving mode to disable the smart

key system. (



P.166)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

message may be shown on the

multi-information display and a

buzzer will sound outside the vehi-

cle. To turn off the alarm, lock all

the doors.

●

The lock sensor may not work

properly if it comes into contact

with ice, snow, mud, etc. Clean

the lock sensor and attempt to

operate it again, or use the lock

sensor on the lower part of the

door handle.

●

A sudden approach to the effec-

tive range or door handle may pre-

vent the doors from being

unlocked. In this case, return the

door handle to the original position

and check that the doors unlock

before pulling the door handle

again.

●

If there is another electronic key in

the detection area, it may take

slightly longer to unlock the doors

after the door handle is gripped.

■

When the vehicle is not driven

for extended periods

●

Vehicles with entry function: To

prevent theft of the vehicle, do not

leave the electronic key within 6 ft.

(2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



P.544)

●

Battery-saving mode can reduce

the power consumption of elec-

tronic keys. (



P.166)

168

3-2. Opening, closing and locking the doors

■

To operate the system properly

Make sure to carry the electronic

key when operating the system. Do

not get the electronic key too close

to the vehicle when operating the

system from the outside of the vehi-

cle.
Depending on the position and hold-

ing condition of the electronic key,

the key may not be detected cor-

rectly and the system may not oper-

ate properly. (The alarm may go off

accidentally, or the door lock pre-

vention may not operate.)

■

If the smart key system does

not operate properly

●

If the doors cannot be locked or

unlocked, perform the following.

• Bring the electronic key close to

the door handle and perform a

lock or unlock operation.

• Use the wireless remote control.
If the doors cannot be locked or

unlocked by perform the above, use

the mechanical key. (



P.504)

However, if the mechanical key is

used while the alarm system is set,

the warning will sound. (



P.83)

●

If the hybrid system cannot be

started, refer to P.505

■

Customization

Settings (e.g. smart key system)

can be changed.

(Customizable features:



P.544)

If the smart key system has been

deactivated in a customized setting,

refer to the explanations for the fol-

lowing operations.

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (



P.132, 504)

●

Starting the hybrid system and

changing power switch modes:



P.505

●

Stopping the hybrid system:



P.233

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

maintain a reasonable distance

between themselves and the

smart key system antennas.

(



P.164)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your

Toyota dealer for details, such

as the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

169

3-3. Adjusting the seats

3

Before

driving

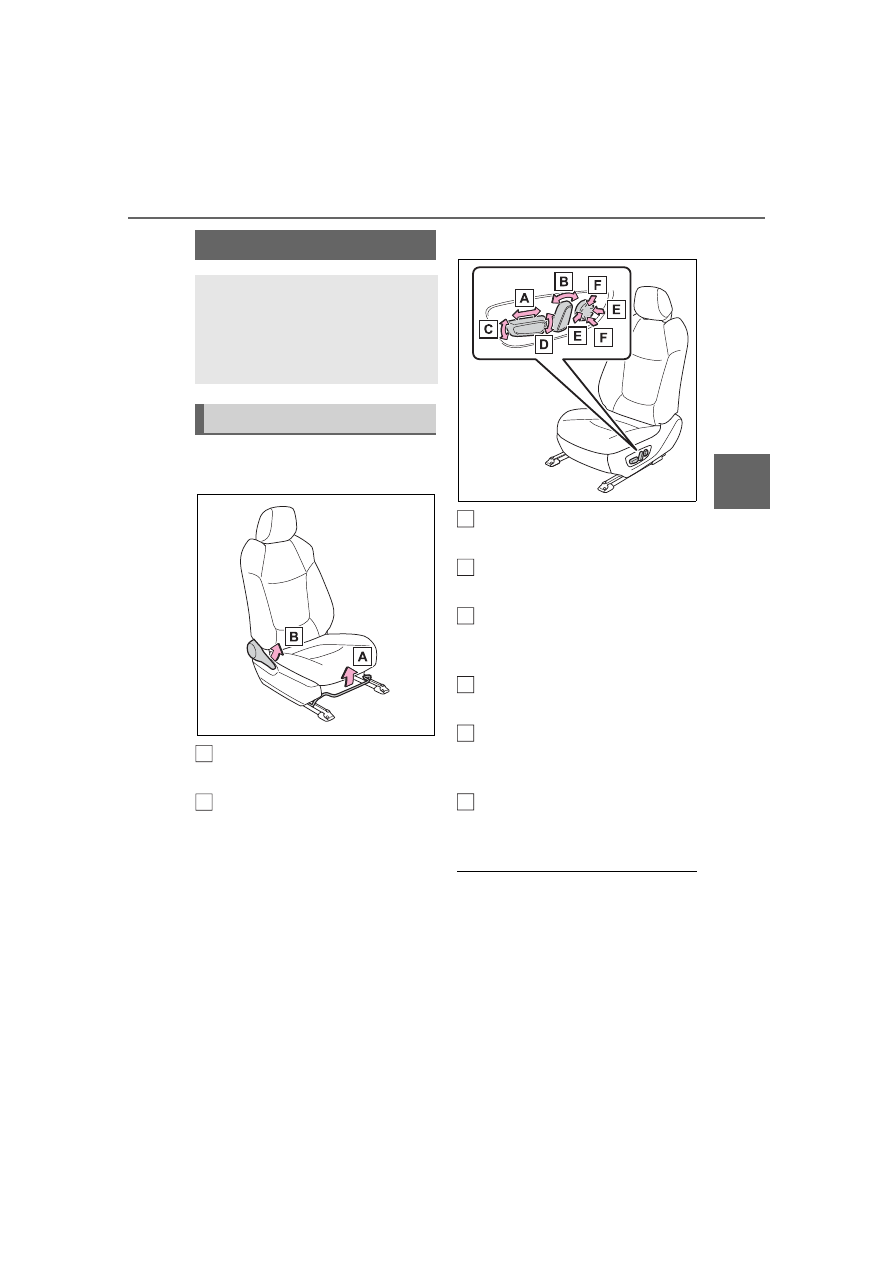

3-3.Adjusting the seats



Manual seat (passenger’s
side only)

Seat position adjustment
lever

Seatback angle adjustment
lever



Power seat

Seat position adjustment
switch

Seatback angle adjustment
switch

Seat cushion (front) angle
adjustment switch (driver’s
side only)

Vertical height adjustment
switch (driver’s side only)

Lumbar support adjustment
switch (driver’s side only) (if
equipped)

Pelvic support adjustment
(driver’s side only) (if
equipped)

■

When adjusting the seat

●

Make sure that any surrounding

passengers or objects are not

contacting the seat.

●

Take care when adjusting the seat

so that the head restraint does not

touch the ceiling.

Front seats

The seats can be adjusted
(longitudinally, vertically,
etc.). Adjust the seat to
ensure the correct driving
posture.

Adjustment procedure

A

B

A

B

C

D

E

F

170

3-3. Adjusting the seats

■

Power easy access system (if

equipped)

The driver’ seat and steering wheel

move in accordance with power

switch mode and the driver’ seat

belt condition. (



P.178)

■

Jam protection function (vehi-

cles with driving position mem-

ory)

While the driving position is recalled

or the power easy access system is

operating, if an object is stuck

behind the front seat, the front seat

will stop and then slightly move for-

ward.
When the jam protection function

operates, the seat stops at a posi-

tion other than the set seat position.

Check the seat position.

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

■

Seat adjustment

●

To reduce the risk of sliding

under the lap belt during a colli-

sion, do not recline the seat

more than necessary.

If the seat is too reclined, the lap

belt may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt,

increasing the risk of death or

serious injury in the event of an

accident.

Adjustments should not be

made while driving as the seat

may unexpectedly move and

cause the driver to lose control

of the vehicle.

●

Manual seat only: After adjust-

ing the seat, make sure that the

seat is locked in position.

171

3-3. Adjusting the seats

3

Before

driving

■

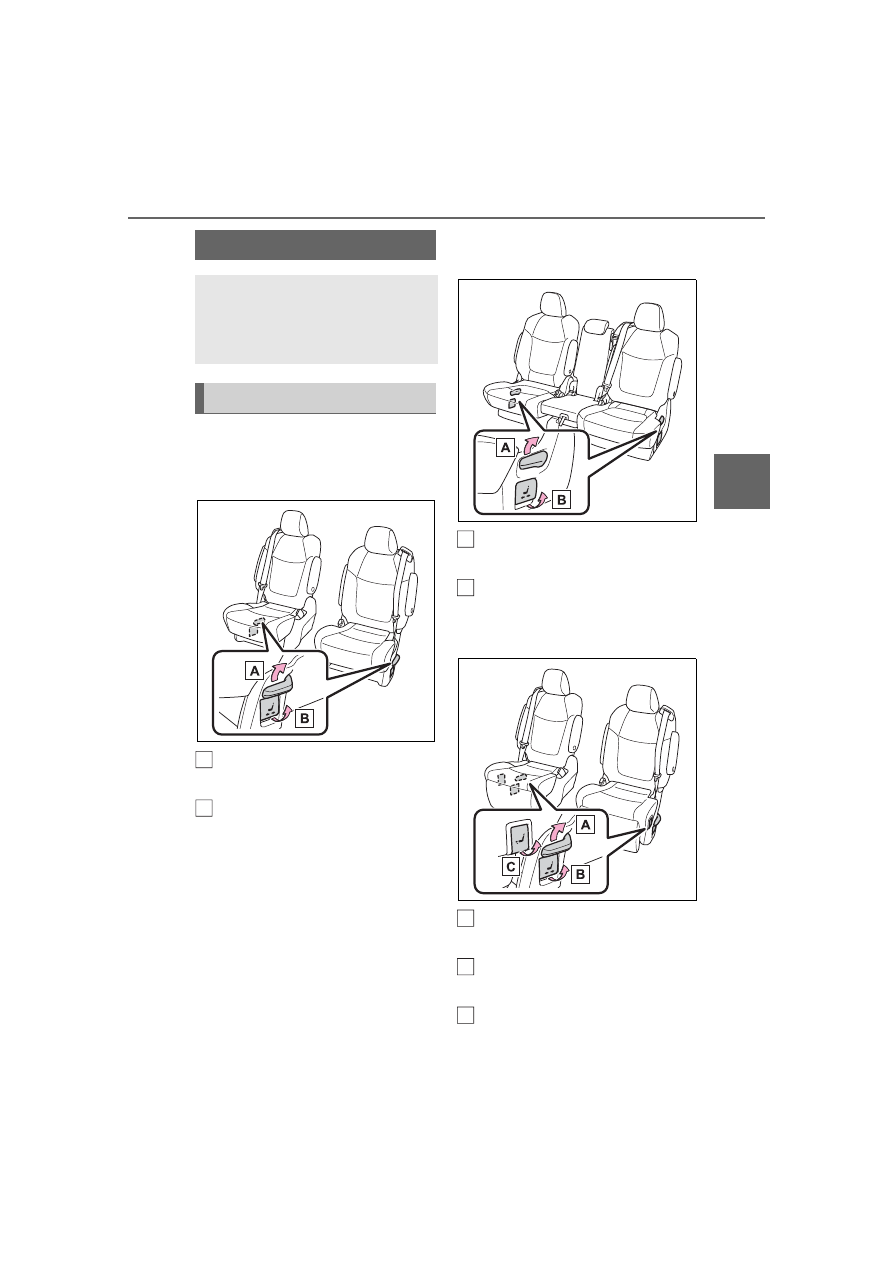

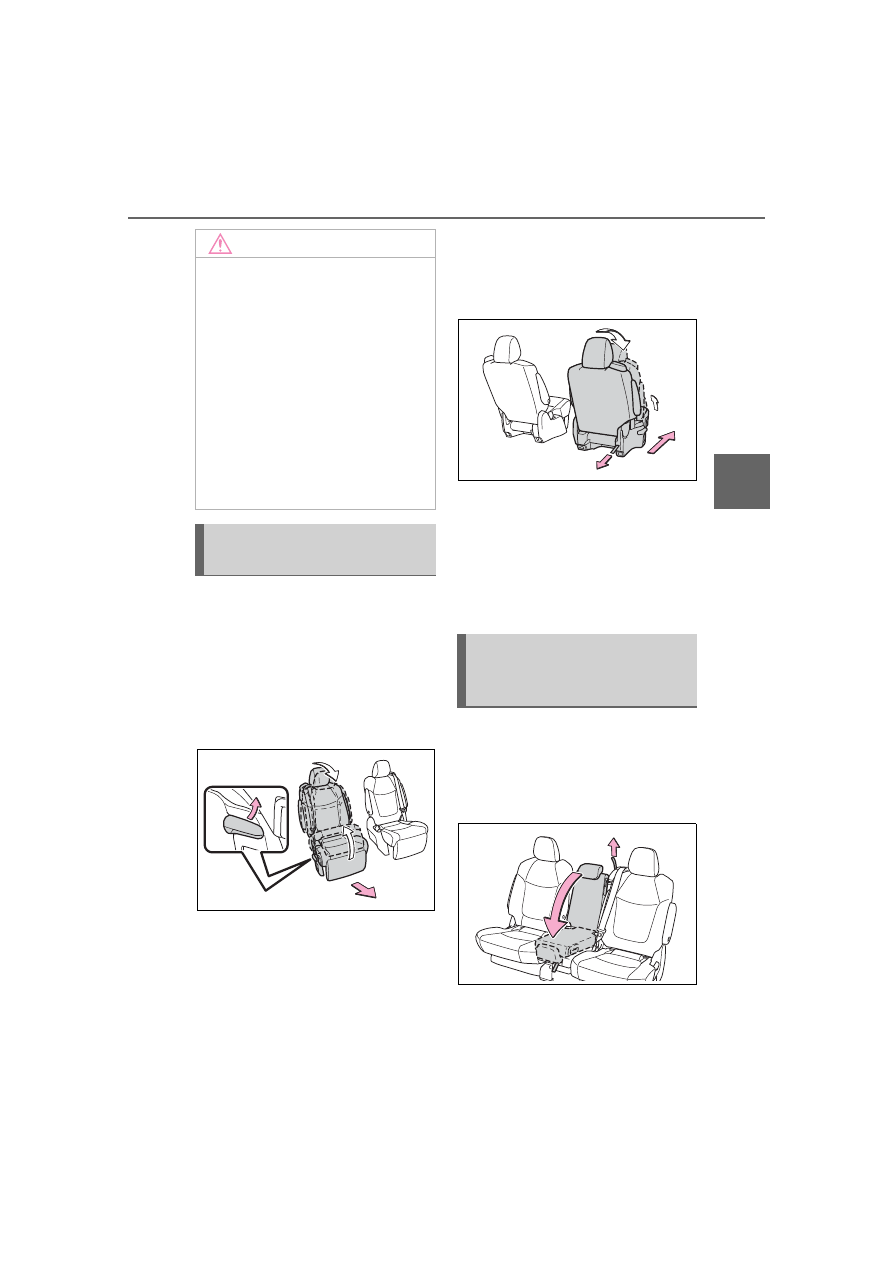

Second seat



Except ottoman seat (7-pas-
senger models)

Seatback angle adjustment
lever

Seat position adjustment
lever



Except ottoman seat (8-pas-
senger models)

Seatback angle adjustment
lever

Seat position adjustment
lever



Ottoman seat

Seatback angle adjustment
lever

Seat position adjustment
lever

Ottoman angle adjustment

Rear seats

Reclining adjustments and
folding the seatbacks can
be done with lever opera-
tion.

Adjustment procedure

A

B

A

B

A

B

C

172

3-3. Adjusting the seats

lever

■

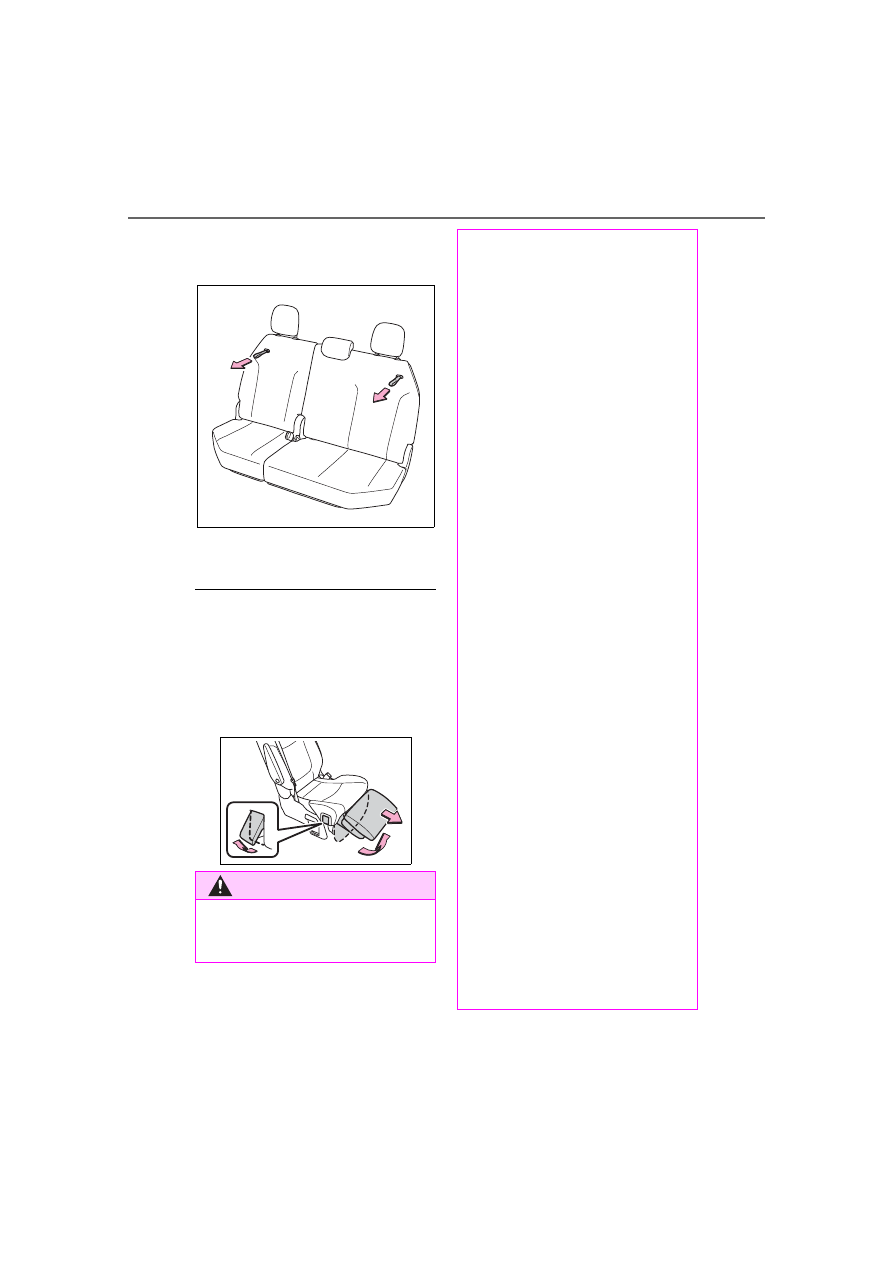

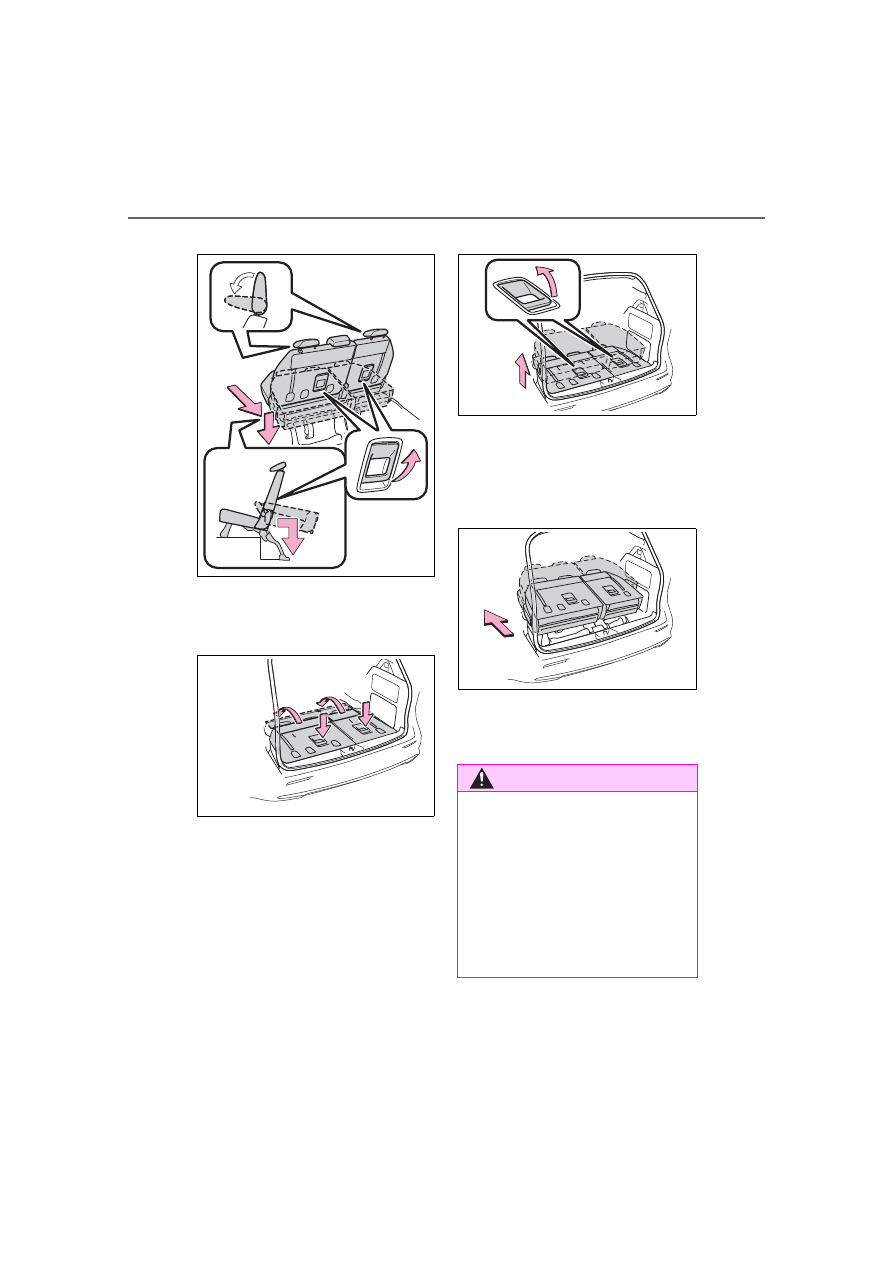

Third seats

Seatback angle adjustment
strap

■

When using the ottoman seats

(vehicles with ottoman seats)

Adjust the angle of the cushion

while pulling the ottoman angle

adjustment lever.
If necessary, slide the cushion to

adjust the ottoman to the desired

position.

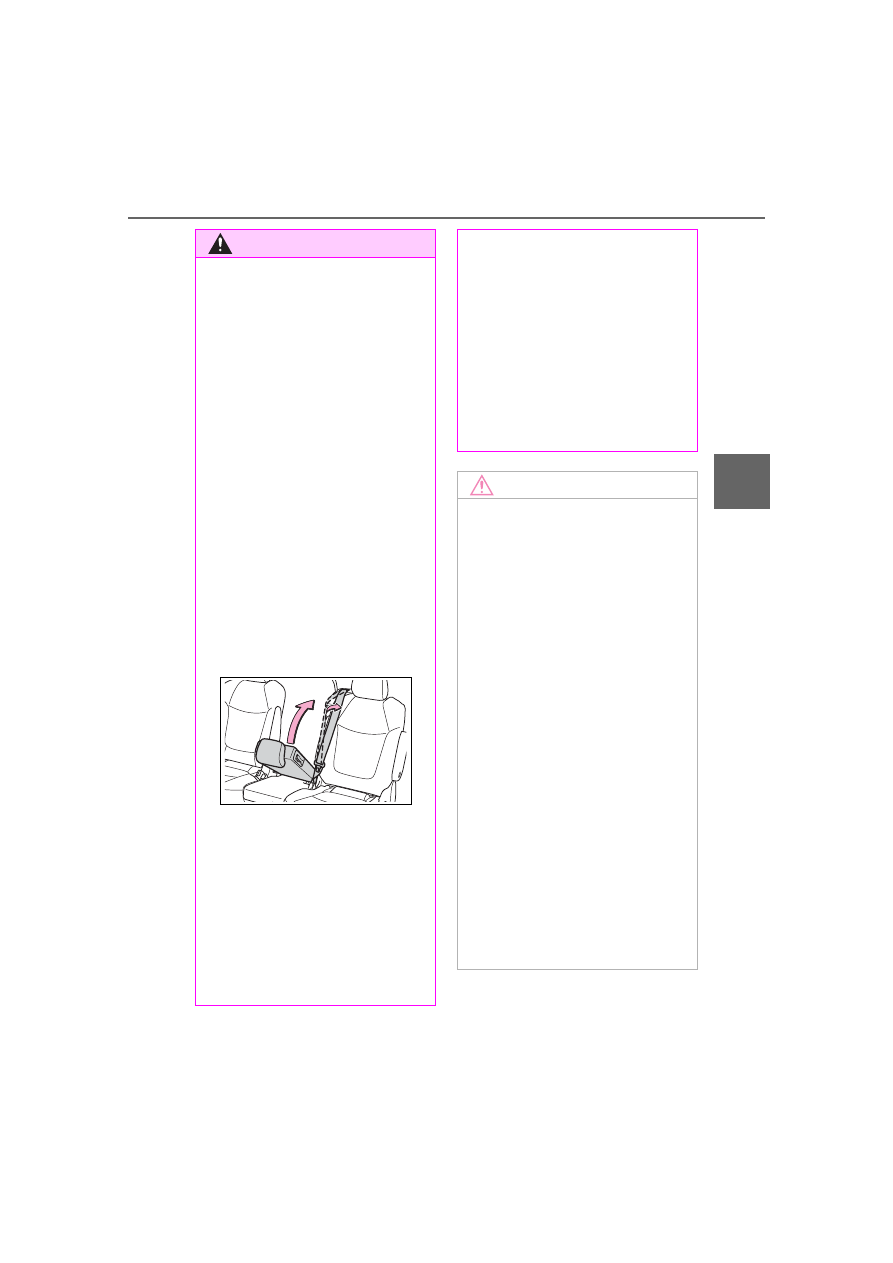

WARNING

■

Seat adjustment

●

Be careful that the seat does

not hit passengers or luggage.

●

To reduce the risk of sliding

under the lap belt during a colli-

sion, do not recline the seat

more than necessary. If the seat

is reclined too far, the lap belt

may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt,

increasing the risk of death or

serious injury in the event of an

accident.

Adjustments should not be made
while driving as the seat may
unexpectedly move and cause
the driver to lose control of the
vehicle.

■

When adjusting the seat posi-

tion or the ottoman (vehicles

with Ottoman seats)

Make sure to leave enough space

around the feet so as not to get

them caught.

■

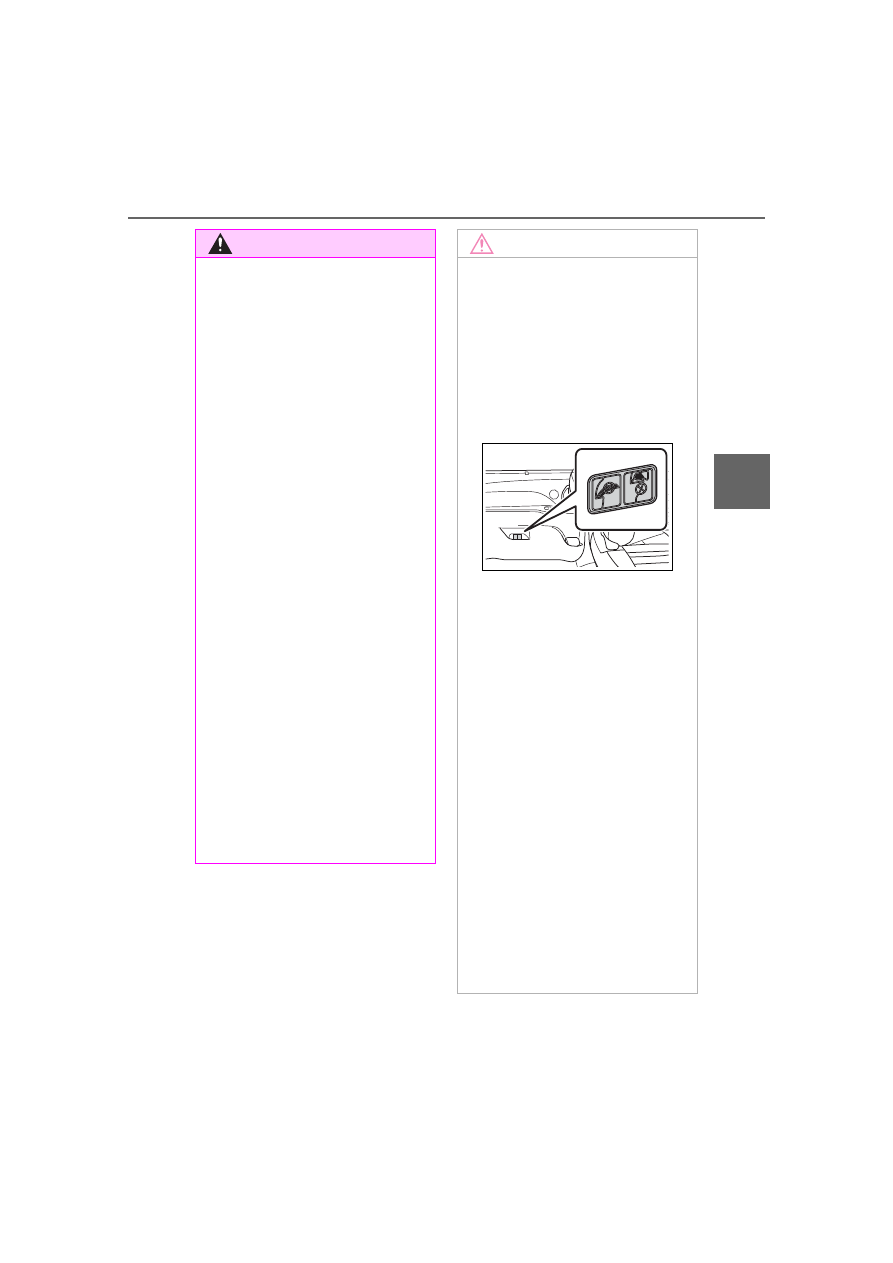

When using the ottoman

(vehicles with Ottoman seats)

●

Do not sit on the ottoman. Seat

belts may not be properly worn

which may result in death or

serious injury.

●

Stow the ottoman when you get

in and out of the vehicle or when

the ottoman is not in use to

avoid stumbling over it.

●

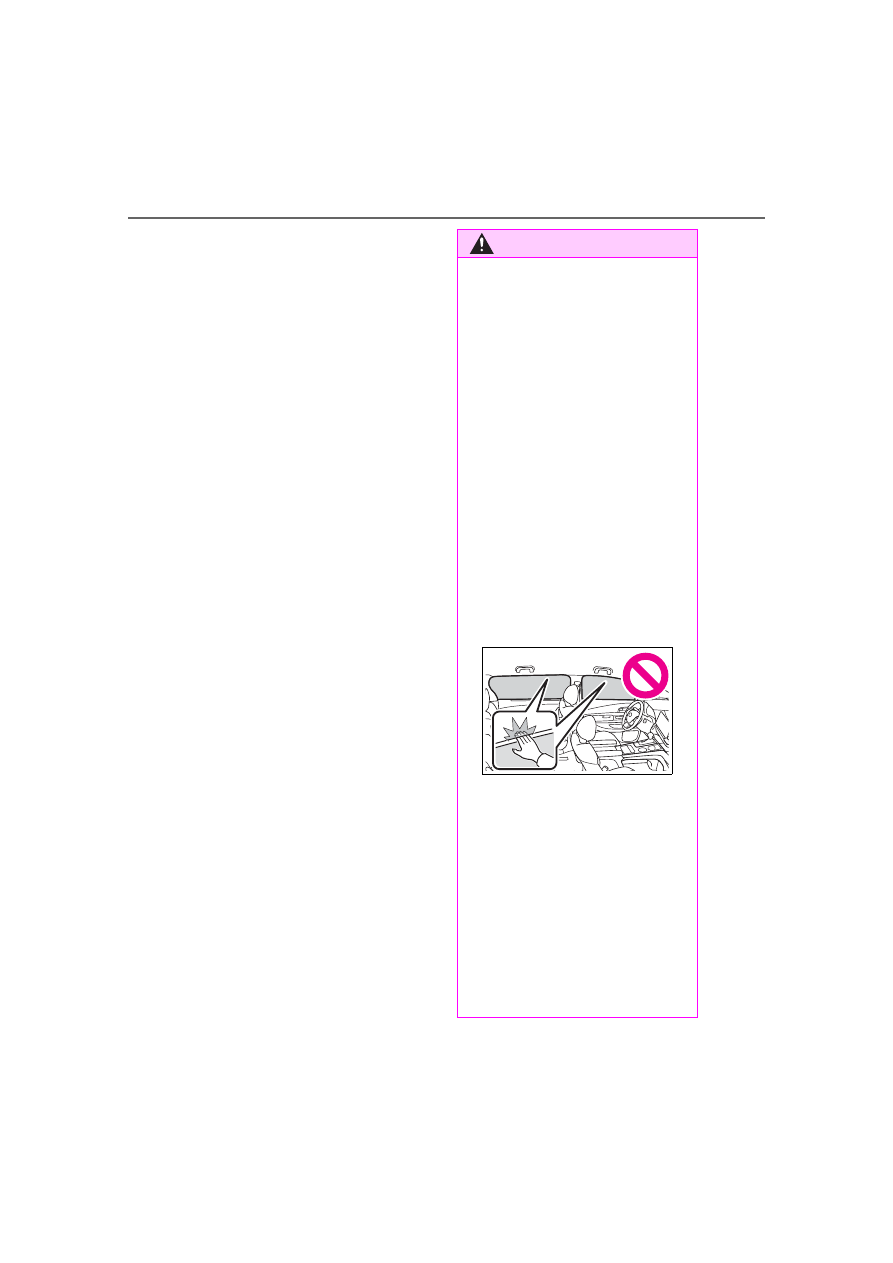

Do not use the ottoman feature

when the vehicle is in motion.

The ottoman feature should

only be used when the vehicle

is stationary. If the ottoman fea-

ture is in use during an accident

the lap belt may slide past the

hips. This could also result in

restraint forces being applied to

the abdomen or your neck may

contact the shoulder belt,

increasing the risk of death or

serious injury.

173

3-3. Adjusting the seats

3

Before

driving

■

Getting in the vehicle

Pull the seatback angle adjust-
ment lever and fold down the
seatback. The cushion will tip
up. The seat can slide forward.
Move the seat to the frontmost
position.

■

Getting out of the vehicle

Pull the strap and fold down the
seatback. The seat can slide for-
ward. The cushion will tip up.
Move the seat to the frontmost

position.

Make sure that no passenger is
seated on the second seat before
pulling the strap.

■

After passengers have
entered/exited the vehicle

Lift up the seatback. Either fold
cushion down or pull slide lever
to slide seat backward until it
locks.

1

Pull the lock release strap
and fold down the second
center seatback.

Make sure that the head restraint is

in the lowest position.

NOTICE

■

To prevent an ottoman mal-

function (vehicles with Otto-

man seats)

●

Do not place any objects in the

second passenger footwell that

could prevent the operation of

the ottoman.

●

Do not place heavy luggage on

the ottoman.

●

Do not place anything under the

ottoman when in use. There is a

possibility that something may

get caught and cause damage

when stowing the ottoman.

Moving a second seat for
third seat access

Removing the second
center seat (8-passenger
models)

174

3-3. Adjusting the seats

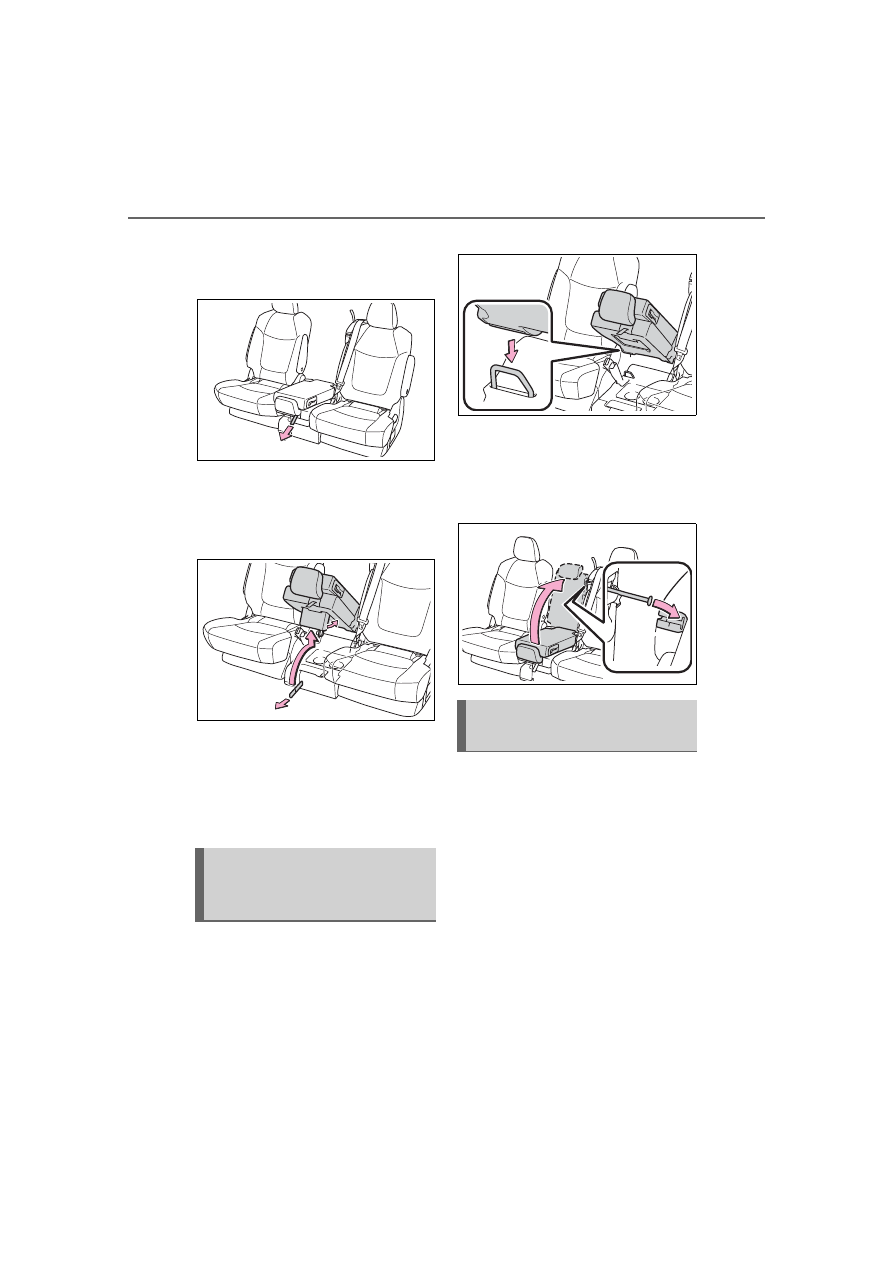

2

Pull the lock release strap in
front of the cushion to
release the rear latch.

3

Pull the lock release strap
under the seat to remove the
seat.

Retract the cushion leg.

4

After detaching the second
center seat, remove it from
the vehicle or store it
securely in the luggage com-
partment.

1

Latch the buckles onto the
anchors.

The cushion leg opens by itself.

2

Unfold the seatback and lock
it.

Make sure the seat is locked in

place by trying to shake the seat-

back and lift up the seat cushion.

■

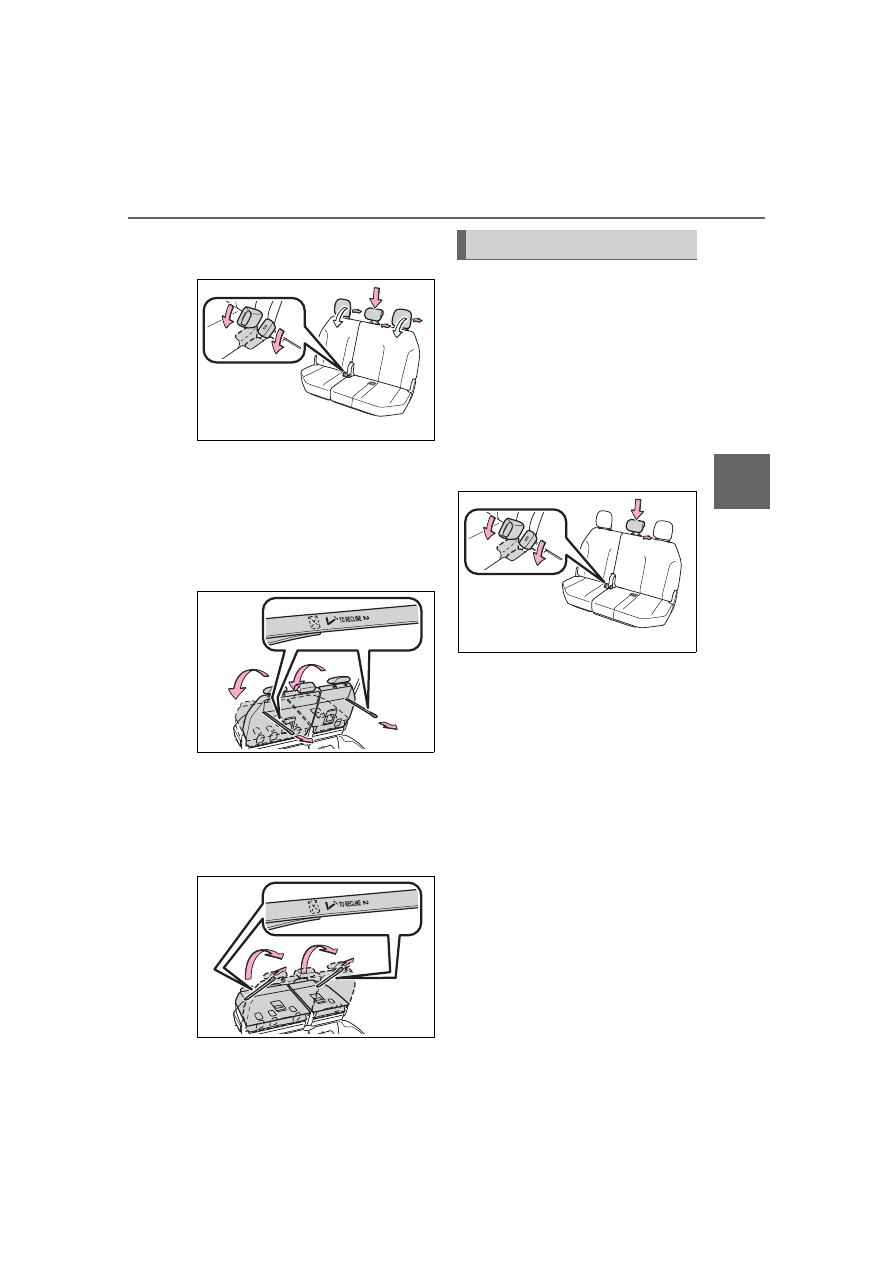

Before folding the third
seats

1

Fold the outside head
restraints and lower the cen-
ter head restraint to the low-

Installing the second cen-
ter seat (8-passenger
models)

Folding down the third
seats

175

3-3. Adjusting the seats

3

Before

driving

est position (



P.182) and

stow the seat belt buckles.

2

Stow the center seat belt.
(



P.38)

■

Folding down the third seat-
backs

Pull the “TO RECLINE” strap
and fold down the seatback.

■

Returning the third seat-
backs

Pull the “TO RECLINE” strap,
and raise the seatback and the
outside head restraints.

Before stowing or returning third
seat, remove any items from the
floor area to prevent interfer-
ence with moving parts.

■

Before stowing the third
seats

1

Lower the center head
restraint to the lowest posi-
tion (



P.182) and stow the

seat belt buckles.

2

Stow the center seat belt.
(



P.38)

■

Stowing the third seats

1

Pull the handle to move the
seat rearward. Then push the
seat down.

The outside head restraints are

Stowing the third seats

176

3-3. Adjusting the seats

folded automatically.

2

Push the seat against the
floor.

Open the flaps.

■

Before returning the third
seats

Be sure to move the second
seats forward from the rearmost
position, as they may interfere
with the third seats returning
operation.

■

Returning the third seats

1

Return the flaps.

Pull the handle and lift up the seat

rearward.

2

Push the seat forward and
then engage the front leg
locks.

Make sure the front and rear legs

are locked securely.

3

Raise the seatback and the
outside head restraints.
(



P.174)

WARNING

■

When folding the rear seat-

backs down

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not fold the seatbacks down

while driving.

●

Stop the vehicle on level

ground, set the parking brake

and shift the shift lever to P.

177

3-3. Adjusting the seats

3

Before

driving

WARNING

●

Do not allow anyone to sit on a

folded seatback or in the lug-

gage compartment while driv-

ing.

●

Do not allow children to enter

the luggage compartment.

●

Be careful not to get any part of

your body pinched by a seat.

■

After returning the rear seat-

backs or installing seats

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Make sure the seatback is

securely locked by pushing it

forward and rearward on the

top.

●

Check that the seat belts are

not twisted or caught in the

seatback. If the seat belt gets

caught between the seatback’s

securing hook and latch, the

seat belt may be damaged.

●

Make sure the seat is locked in

place by trying to shake the

seatback and lift up the seat

cushion.

■

After removing the second

center seat (8-passenger

models)

●

Remove the second center seat

from the vehicle or store it

securely in the luggage com-

partment.

●

Do not sit on or place anything

on a seat that has been

removed from the vehicle.

■

Stowing the third seats

●

Make sure that the seat path is

clear before moving the seat.

Otherwise, injury may result

from contact with, or by being

pinched by parts of the seat.

●

Do not sit on the third seat when

it is in the stowed position with

the seatback upright.

NOTICE

■

To prevent damage to the

seat

●

Avoid putting heavy loads on a

folded seat that is being used as

a temporary table.

●

Do not sit on or put heavy loads

on the second center seat that

has been removed from the

vehicle. The metal tips of the

seat leg may be damaged, pre-

venting reinstallation of the

seat.

●

The second center seat must be

reinstalled in its original position

(8-passenger models). If it is

installed in the wrong position,

the seat locks or bezels will be

damaged.

●

Make sure that the path the seat

will move through is clear before

stowing or returning the third

seat.

●

8-passenger models: Be sure to

raise the stowed second center

seat above the outer trim, when

removing from the storage box

of the luggage room.

178

3-3. Adjusting the seats

*

: If equipped

When all of the following have
been performed, the driver’s
seat and steering wheel are
automatically adjusted to a posi-
tion that allows driver to enter
and exit the vehicle easily.

NOTICE

■

Stowing the seat belt

The seat belts and the buckles

must be stowed before you fold

down the rear seatbacks.

Driving position mem-

ory

*

This feature automatically
adjusts the positions of the
driver’s seat, steering
wheel, outside rear view
mirrors and head-up display
(if equipped) to make enter-
ing and exiting the vehicle
easier or to suit your prefer-
ences.
Two different driving posi-
tions can be recorded into
memory.
Each electronic key can be
registered to recall your pre-
ferred driving position.

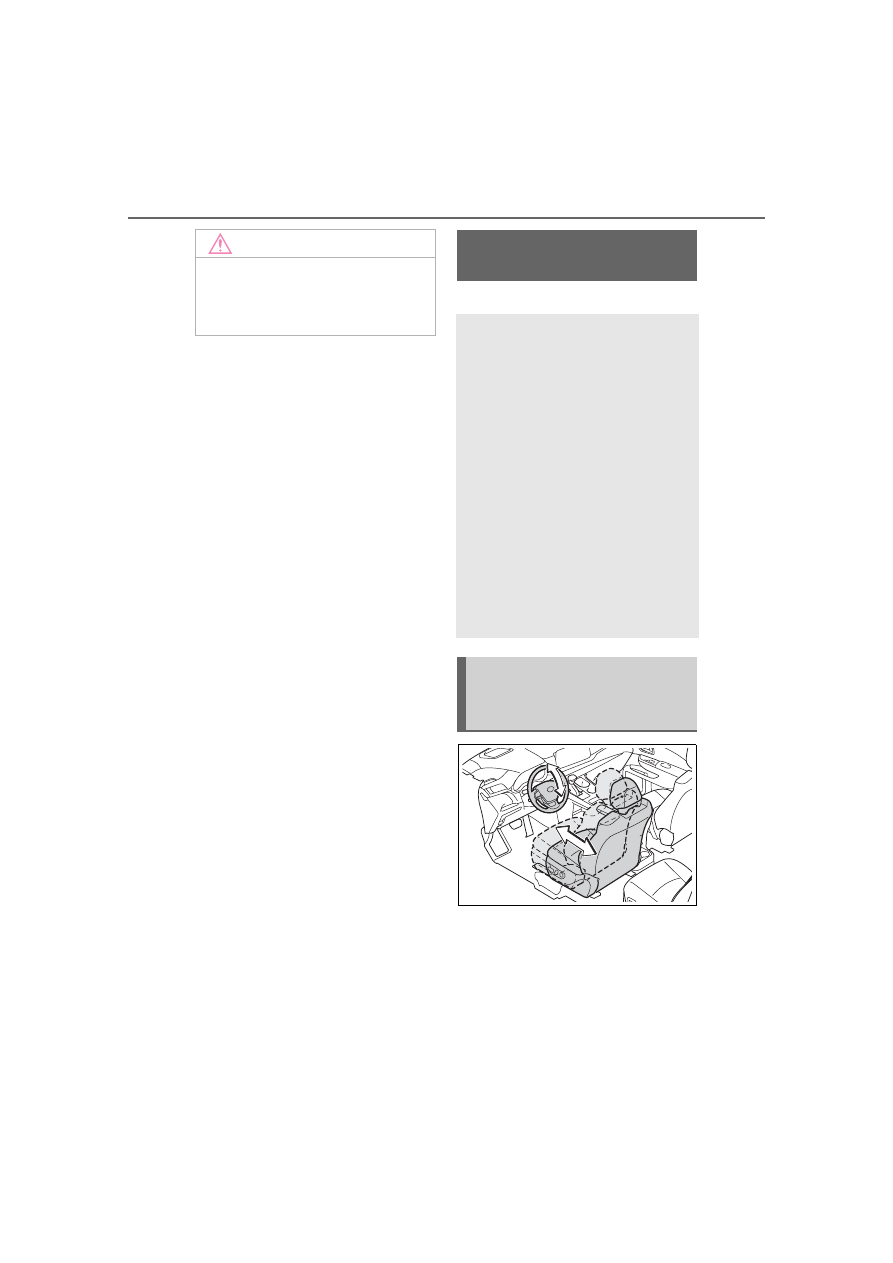

Enabling easier driver
entry and exit (power easy
access system)

179

3-3. Adjusting the seats

3

Before

driving



The shift lever has been
shifted to P.



The power switch has been
turned off.



The driver’ seat belt has been
unfastened.

When any of the following has
been performed, the driver’ seat
and steering wheel automati-
cally return to their original posi-
tions.



The power switch has been
turned to ACC or ON.



The driver’ seat belt has been
fastened.

■

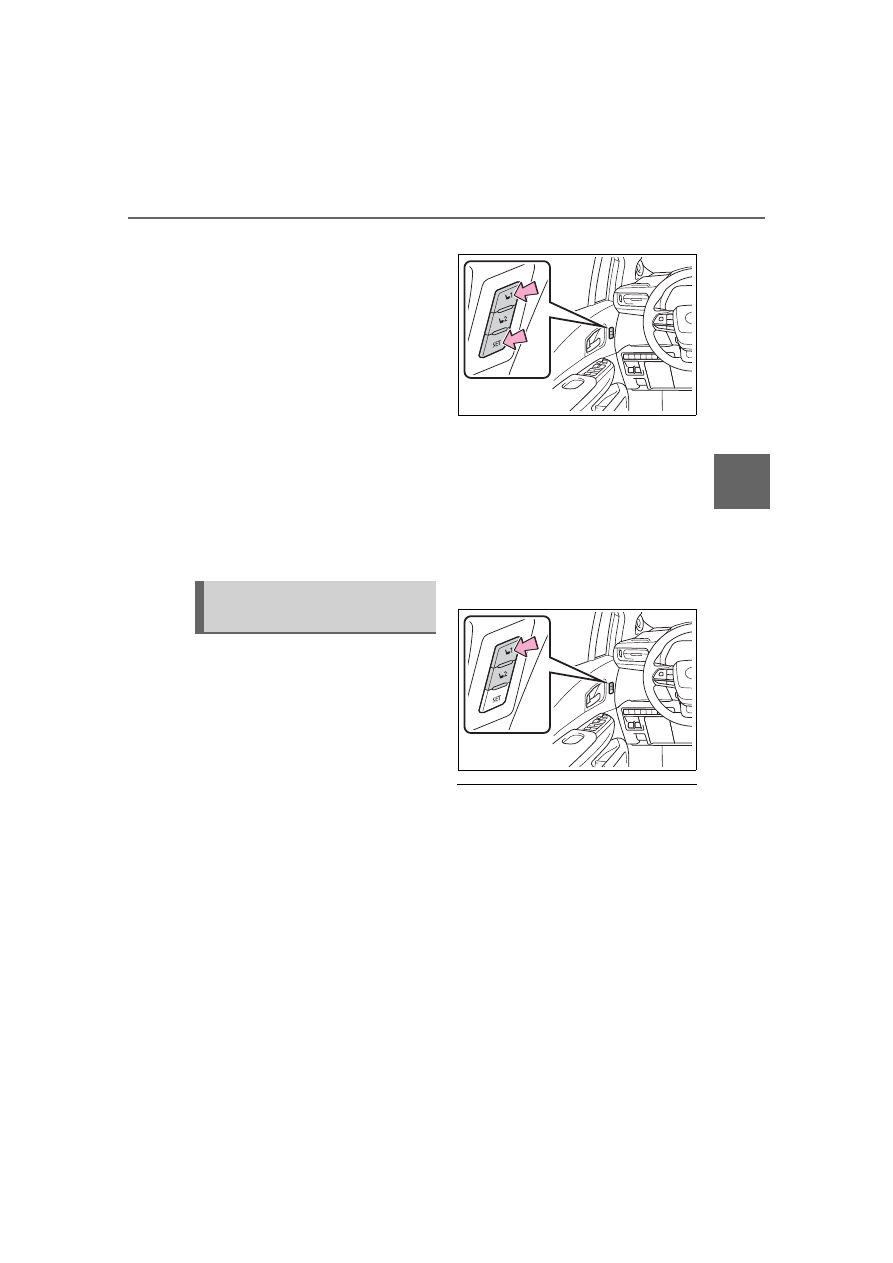

Recording procedure

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

Adjust the driver’s seat,
steering wheel, outside rear
view mirrors and head-up
display (if equipped) to the
desired positions.

4

While pressing the “SET” but-
ton, press button “1” or “2”
until the buzzer sounds.

If the selected button has already

been preset, the previously

recorded position will be overwrit-

ten.

■

Recall procedure

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

Press one of the buttons for
the driving position you want
to recall until the buzzer
sounds.

■

To stop the position recall oper-

ation part-way through

Perform any of the following:

●

Press the “SET” button.

●

Press button “1” or “2”.

●

Operate any of the seat adjust-

ment switches (only cancels seat

position recall).

●

Operate the tilt and telescopic

steering control switch (only can-

cels steering wheel position

recall).

Recording/recalling a
driving position

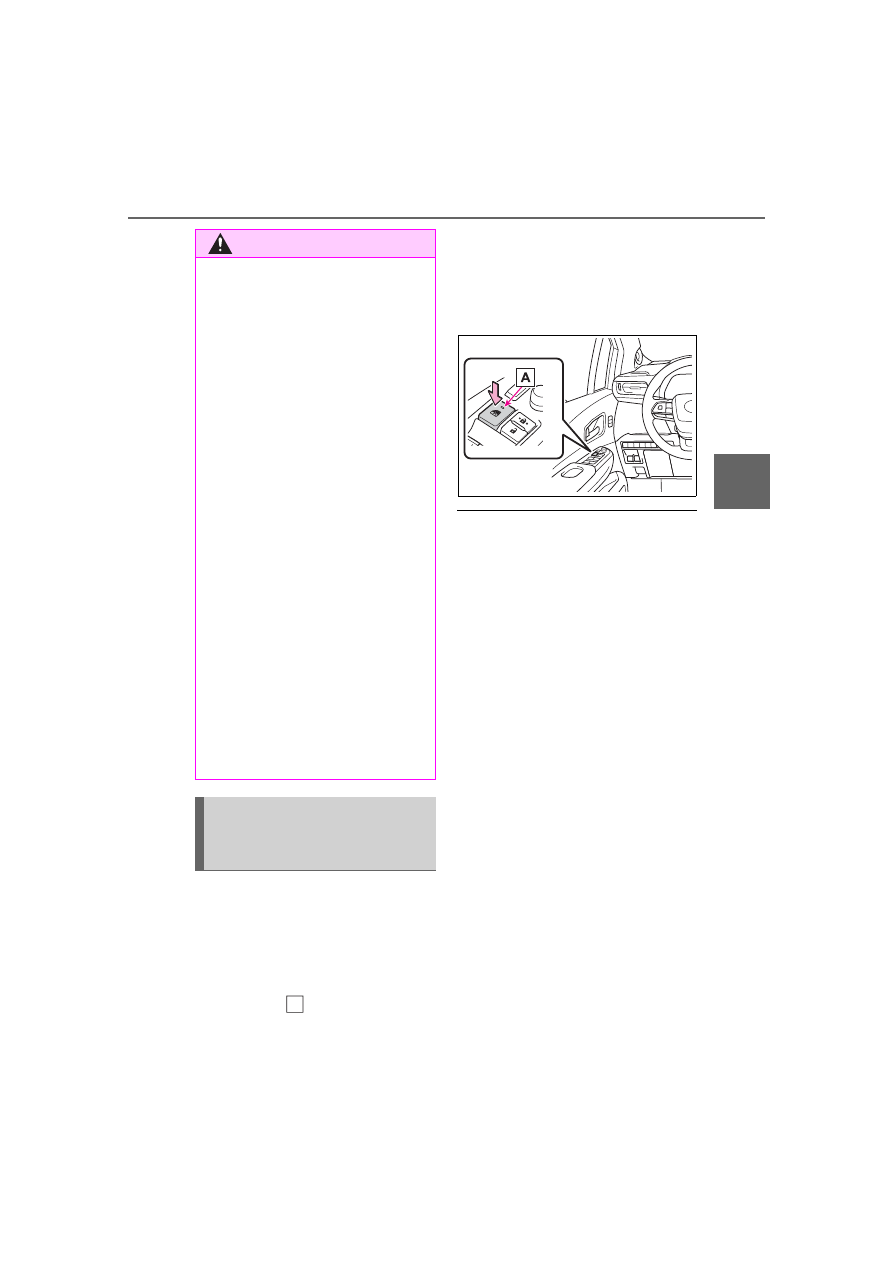

180

3-3. Adjusting the seats

■

Seat positions that can be

memorized (



P.169)

The adjusted positions other than

the position adjusted by lumbar sup-

port switch can be recorded.

■

Operating the driving position

memory after turning the power

switch to OFF

Recorded seat positions can be

activated up to 180 seconds after

the driver’s door is opened and

another 60 seconds after it is closed

again.

■

In order to correctly use the

driving position memory func-

tion

If a seat position is already in the

furthest possible position and the

seat is operated in the same direc-

tion, the recorded position may be

slightly different when it is recalled.

■

When recalling the driving posi-

tion

Take care when recalling the driving

position so that the head restraint

does not touch the ceiling.

■

If the 12-volt battery is discon-

nected

The memorized positions are

erased.

■

Registering procedure

Record your driving position to
button “1” or “2” before perform-
ing the following:
Carry only the key you want to
register, and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be recorded properly.

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

Recall the driving position
that you want to record.

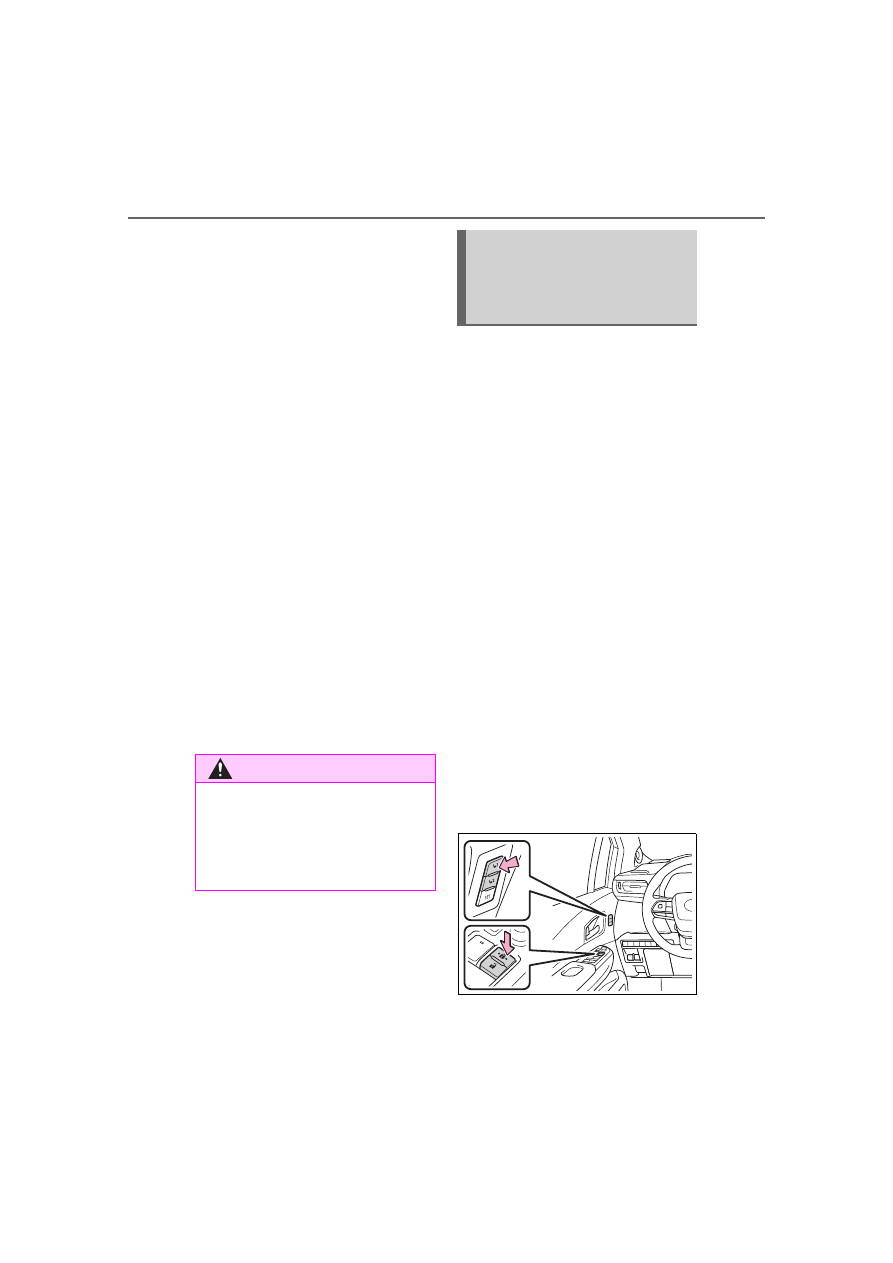

4

While pressing the recalled
button, press and hold the
door lock switch (either lock
or unlock) until the buzzer
sounds.

If the button could not be regis-

tered, the buzzer sounds continu-

ously for approximately 3 seconds.

WARNING

■

Seat adjustment caution

Take care during seat adjustment

so that the seat does not strike

the rear passenger or squeeze

your body against the steering

wheel.

Registering/recall/cancel-
ing a driving position to
an electronic key (mem-
ory recall function)

181

3-3. Adjusting the seats

3

Before

driving

■

Recall procedure

1

Make sure that the doors are
locked before recalling the
driving position.Carry the
electronic key that has been
registered to the driving posi-
tion, and then unlock and
open the driver’s door using
the smart key system or wire-
less remote control.

The driving position will move to the

recorded position (not including the

steering wheel and head-up display

[if equipped]). However, the seat

will move to a position slightly

behind the recorded position in

order to make entering the vehicle

easier.

If the driving position is in a position

that has already been recorded, the

seat will not move.

2

Turn the power switch to
ACC or ON, or fasten a seat
belt.

The seat, steering wheel and head-

up display (if equipped) will move to

the recorded position.

■

Cancelation procedure

Carry only the key you want to
cancel and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be canceled properly.

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

While pressing the “SET” but-
ton, press and hold the door
lock switch (either lock or

unlock) until the buzzer
sounds twice.

If the button could not be canceled,

the buzzer sounds continuously for

approximately 3 seconds.

■

Recalling the driving position

using the memory recall func-

tion

●

Different driving positions can be

registered for each electronic key.

Therefore, the driving position that

is recalled may be different

depending on the key being car-

ried.

●

If a door other than the driver’s

door is unlocked with smart key

system, the driving position can-

not be recalled. In this case, press

the driving position button which

has been set.

■

Customization

Settings (e.g. the unlock door set-

tings of the memory recall function)

can be customized. (Customizable

features:



P.547)

182

3-3. Adjusting the seats

■

Front and second outside
seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button

.

■

Second center

*

 and third

center seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button

.

*

: 8-passenger models only

■

Third outside seats

1

To use

Pull the head restraints up.

2

To fold

Press the button.

■

Adjusting the height of the head

restraints (Front and second

outside seats)

Make sure that the head restraints

are adjusted so that the center of

the head restraint is closest to the

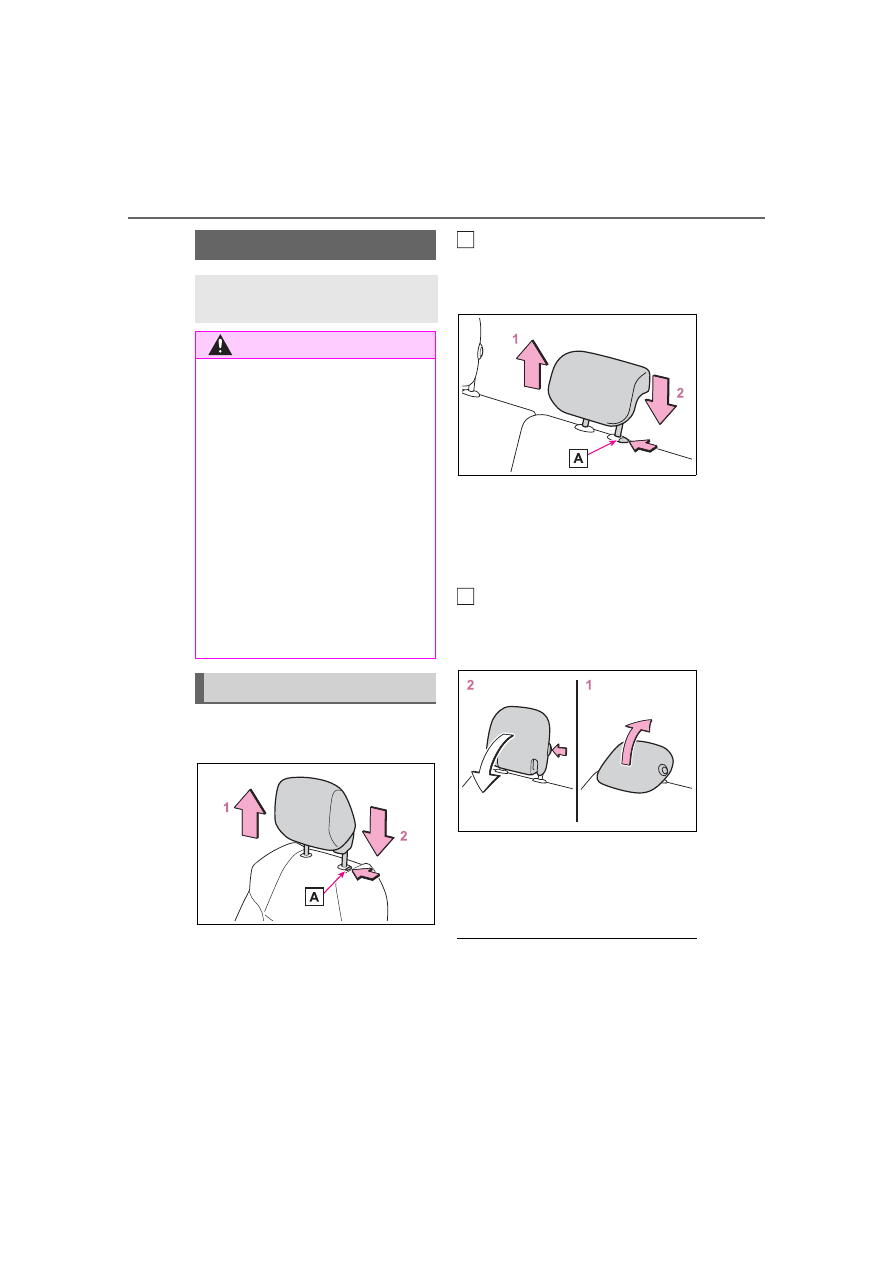

Head restraints

Head restraints are pro-
vided for all seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in

death or serious injury.

●

Use the head restraints

designed for each respective

seat.

●

Adjust the head restraints to the

correct position at all times.

●

After adjusting the head

restraints, push down on them

and make sure they are locked

in position.

●

Do not drive with the head

restraints removed.

Vertical adjustment

A

A

183

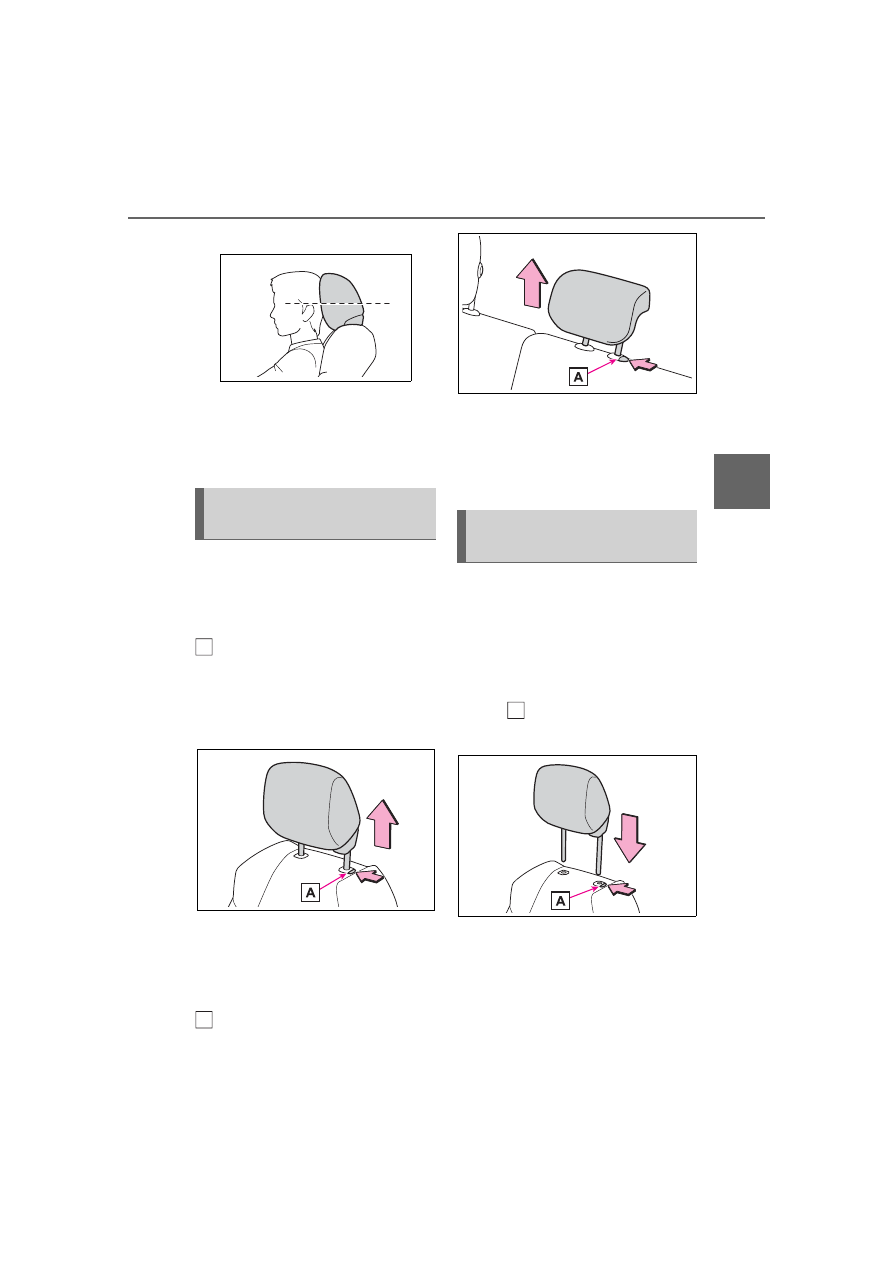

3-3. Adjusting the seats

3

Before

driving

top of your ears.

■

Adjusting the center seat head

restraint

Always raise the head restraint one

level from the stowed position when

using.

■

Front and second outside
seats

Pull the head restraint up while
pressing the lock release button

.

If the head restraint touches the
ceiling, making the removal difficult,
change the seat height or angle.
(



P.169)

■

Second center

*

 and third

center seats

Pull the head restraint up while
pressing the lock release button

.

*

: 8-passenger models only

■

Third outside seats

The head restraint cannot be
removed.

■

Front and second outside
seats

Align the head restraint with the
installation holes and push it
down to the lock position.
Press and hold the lock release
button

 when lowering the

head restraint.

■

Second center

*

 and third

center seats

Align the head restraint with the
installation holes and push it
down to the lowest lock position.

Removing the head
restraints

A

A

Installing the head
restraints

A

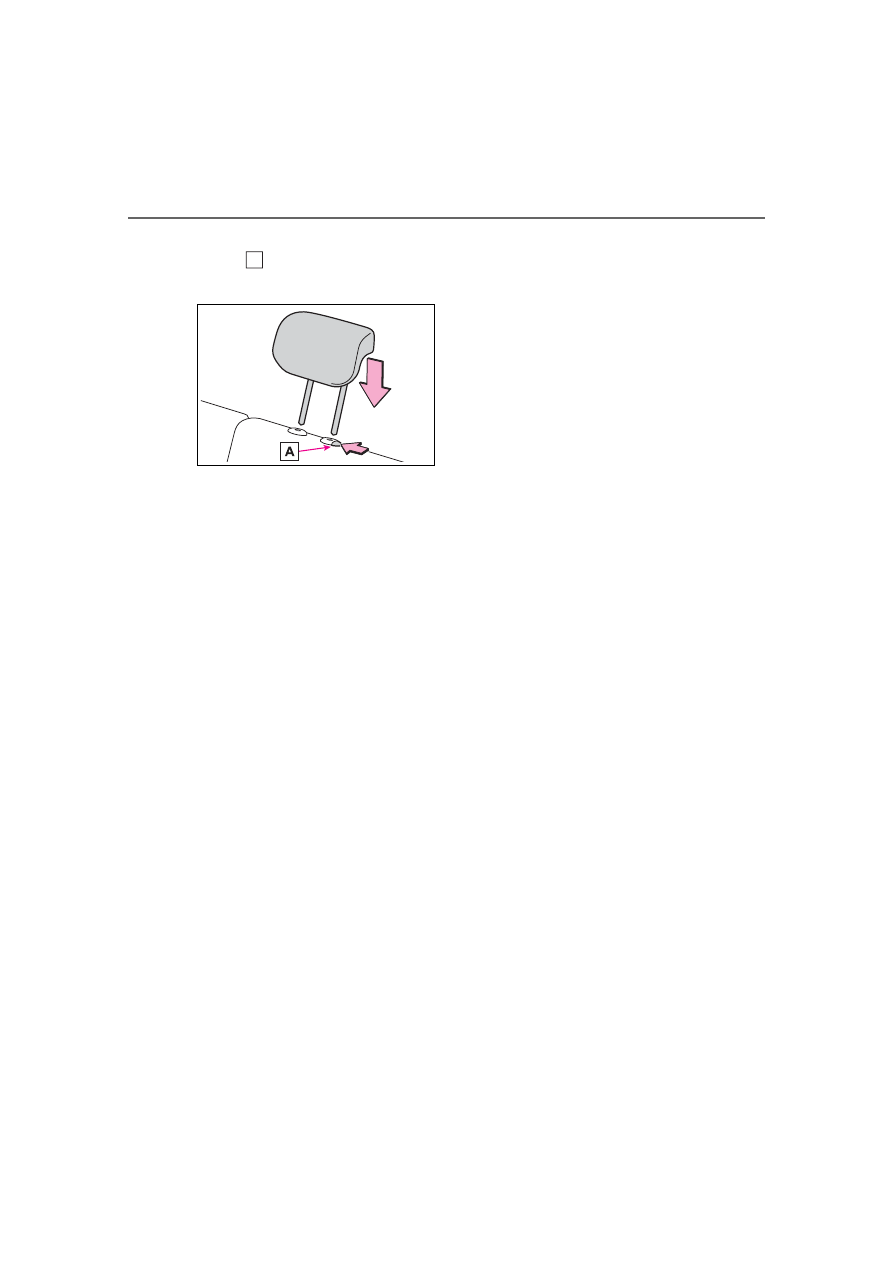

184

3-3. Adjusting the seats

Press and hold the lock release
button

 when lowering the

head restraint.

*

: 8-passenger models only

A

185

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

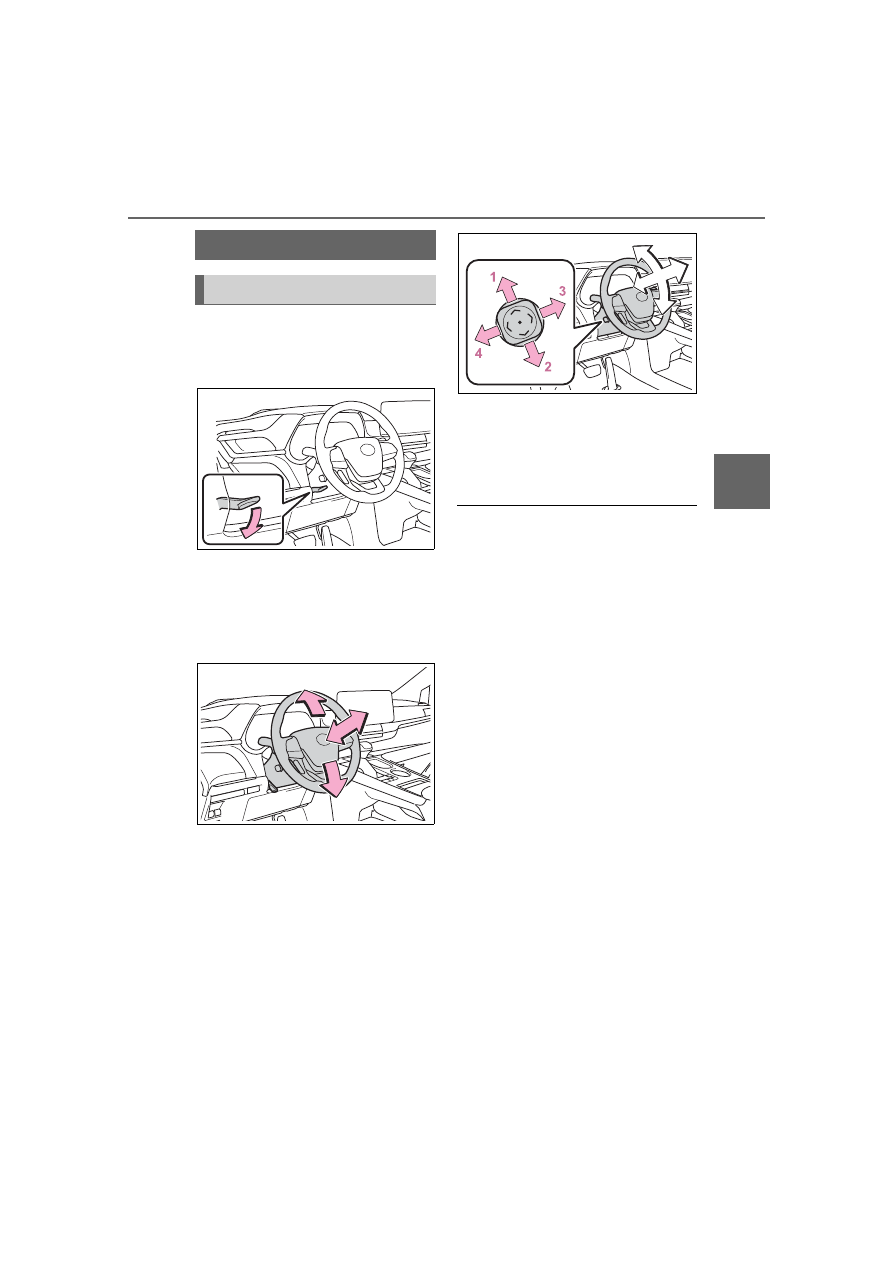

3-4.Adjusting the steering wheel and mirrors



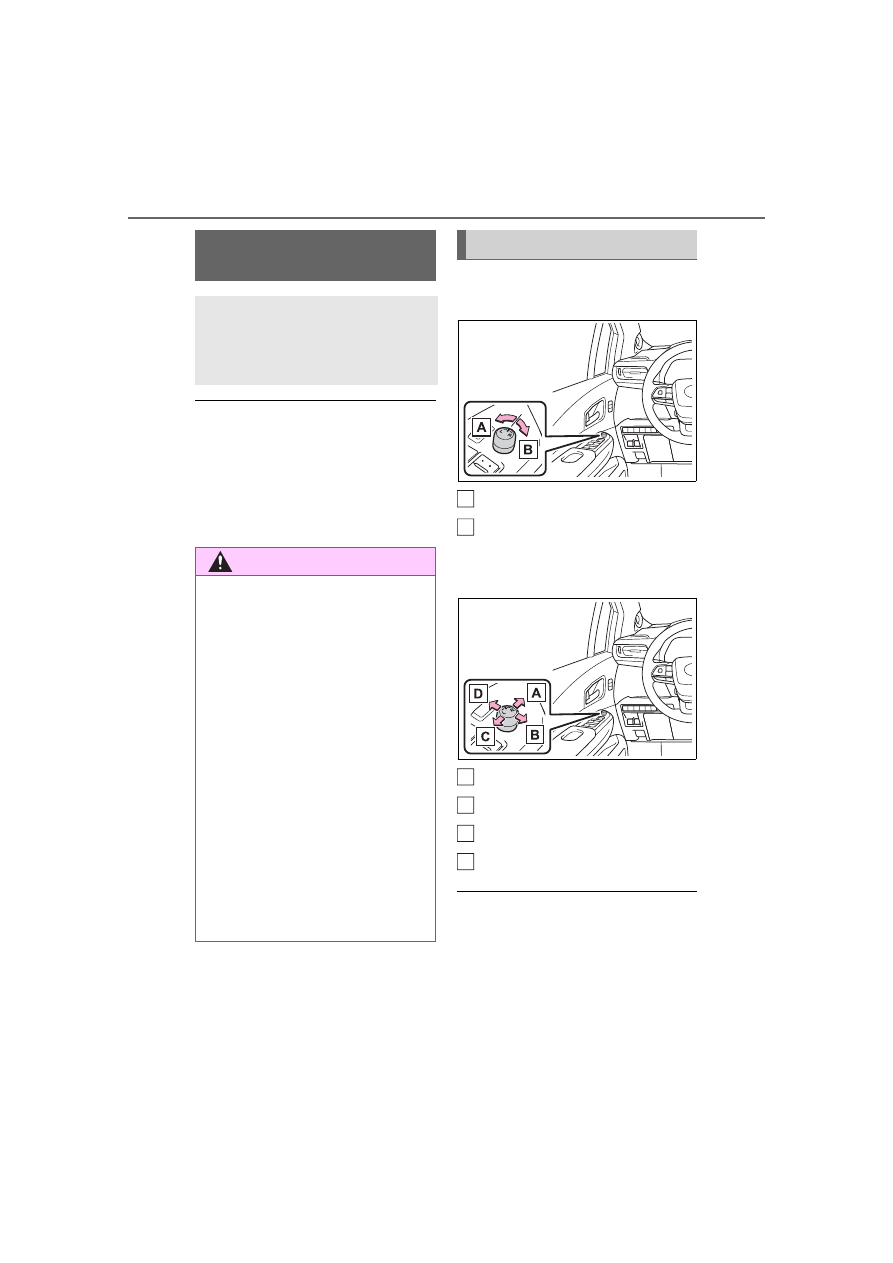

Manual type

1

Hold the steering wheel and
push the lever down.

2

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever up

to secure the steering wheel.



Power type

Operating the switch moves the
steering wheel in the following
directions:

1

Up

2

Down

3

Toward the driver

4

Away from the driver

■

The steering wheel (power type)

can be adjusted when

The power switch is in ACC or ON

*

.

*

: If the driver’ seat belt is fastened,

the steering wheel can be
adjusted regardless of power
switch mode.

■

Automatic adjustment of the

steering position (power type)

A desired steering position can be

entered to memory and recalled

automatically by the driving position

memory system. (



P.178)

■

Power easy access system (if

equipped)

The steering wheel and driver’ seat

move in accordance with power

switch mode and the driver’ seat

belt condition. (



P.178)

■

After adjusting the steering

wheel (manual type)

Make sure that the steering wheel is

securely locked.

Steering wheel

Adjustment procedure

186

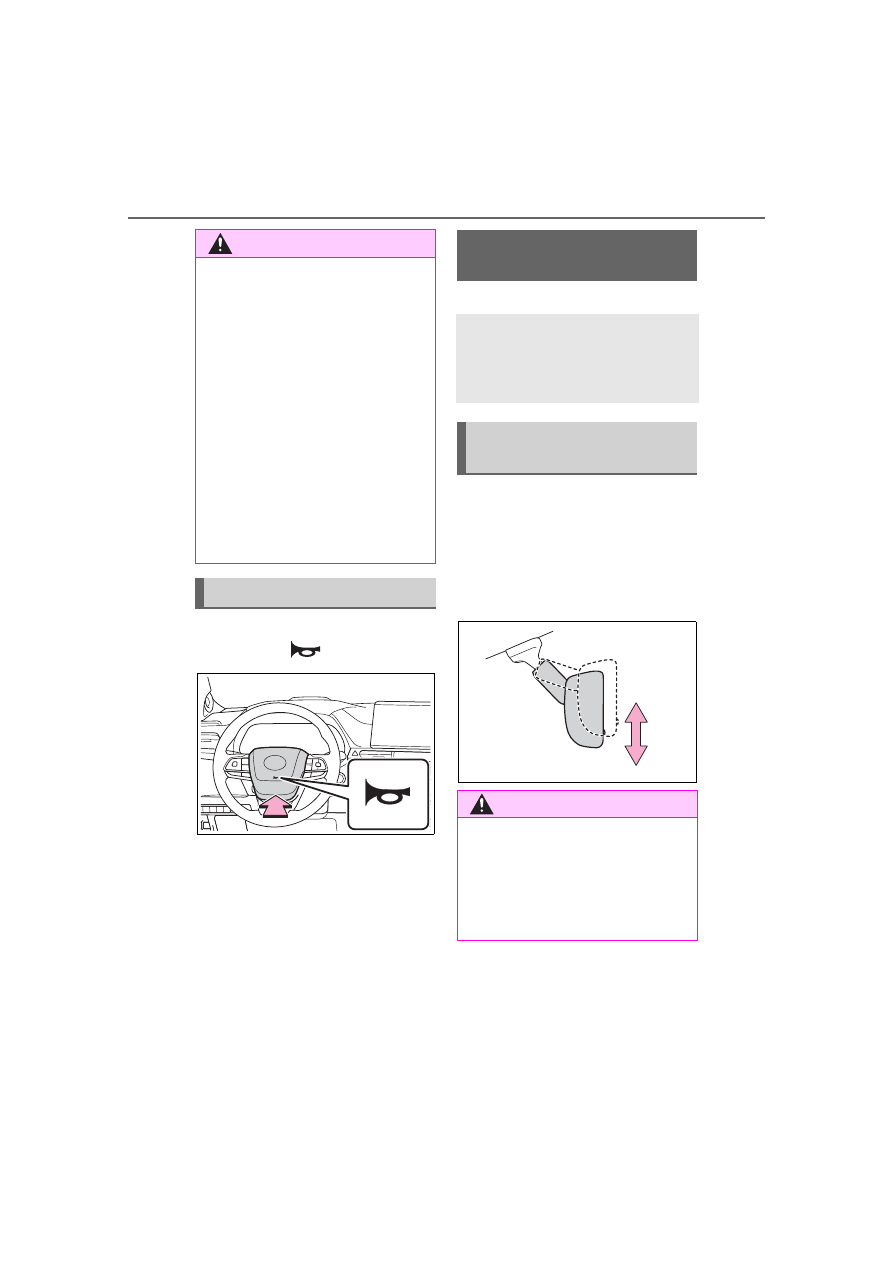

3-4. Adjusting the steering wheel and mirrors

To sound the horn, press on or
close to the

 mark.

*

: If equipped

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Adjust the height of the rear
view mirror by moving it up and
down.

WARNING

■

Caution while driving

Do not adjust the steering wheel

while driving.

Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

■

After adjusting the steering

wheel (manual type)

Make sure that the steering wheel

is securely locked.

Otherwise, the steering wheel

may move suddenly, possibly

causing an accident, and resulting

in death or serious injury. Also,

the horn may not sound if the

steering wheel is not securely

locked.

Sounding the horn

Inside rear view mir-

ror

*

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

Adjusting the height of
rear view mirror

WARNING

■

Caution while driving

Do not adjust the position of the

mirror while driving.

Doing so may lead to mishandling

of the vehicle and cause an acci-

dent, resulting in death or serious

injury.

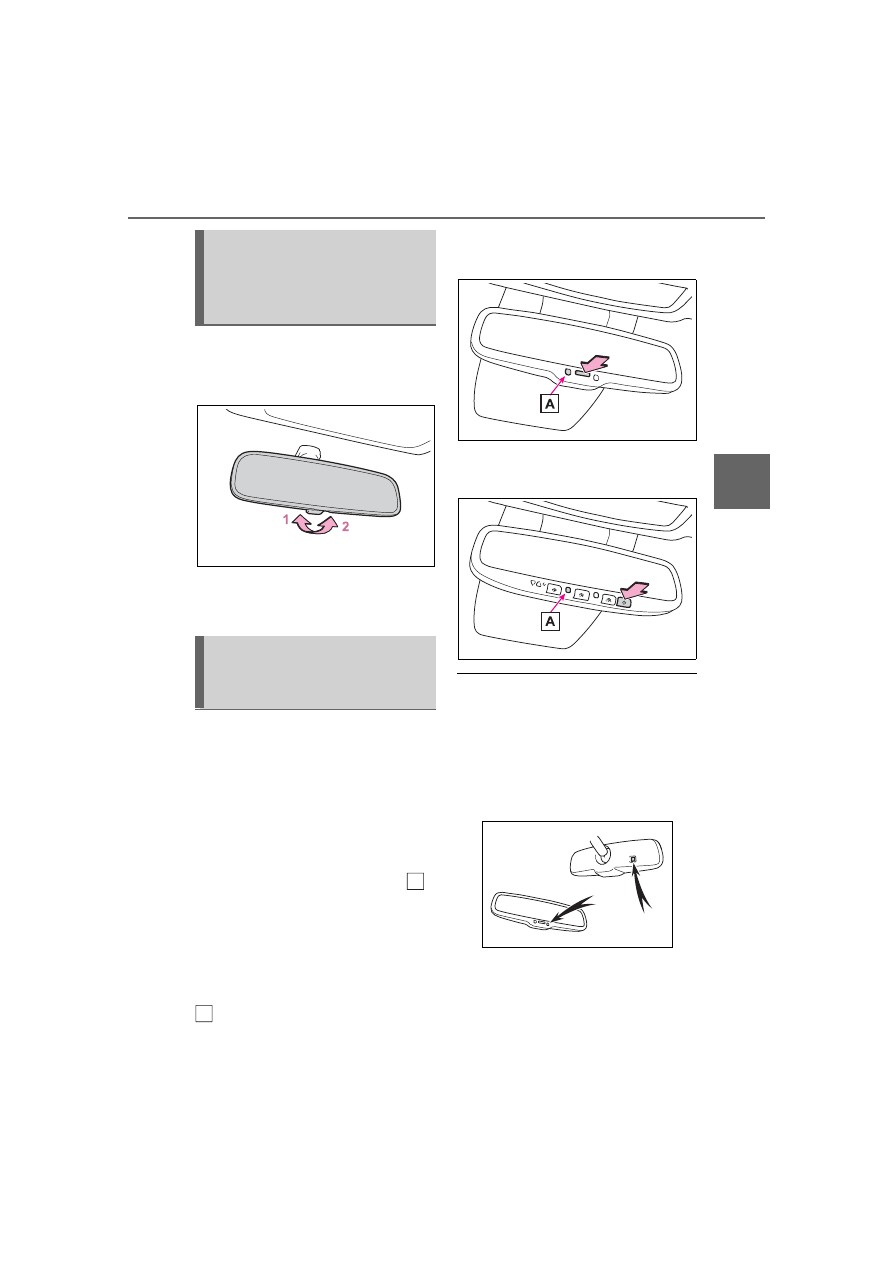

187

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

Reflected light from the head-
lights of vehicles behind can be
reduced by operating the lever.

1

Normal position

2

Anti-glare position

Responding to the level of
brightness of the headlights of
vehicles behind, the reflected
light is automatically reduced.
Changing automatic anti-glare
function mode on/off

When the automatic anti-glare func-
tion is in ON mode, the indicator



illuminates.
The function will set to ON mode
each time the power switch is
turned to ON.
Pressing the button turns the func-
tion to OFF mode. (The indicator

 also turns off.)



Vehicles without garage door
opener



Vehicles with garage door
opener

■

To prevent sensor error (vehi-

cles with auto anti-glare inside

rear view mirror)

To ensure that the sensors operate

properly, do not touch or cover

them.



Vehicles without garage door

opener

Anti-glare function (vehi-
cles with manual anti-
glare inside rear view mir-
ror)

Anti-glare function (vehi-
cles with auto anti-glare
inside rear view mirror)

A

A

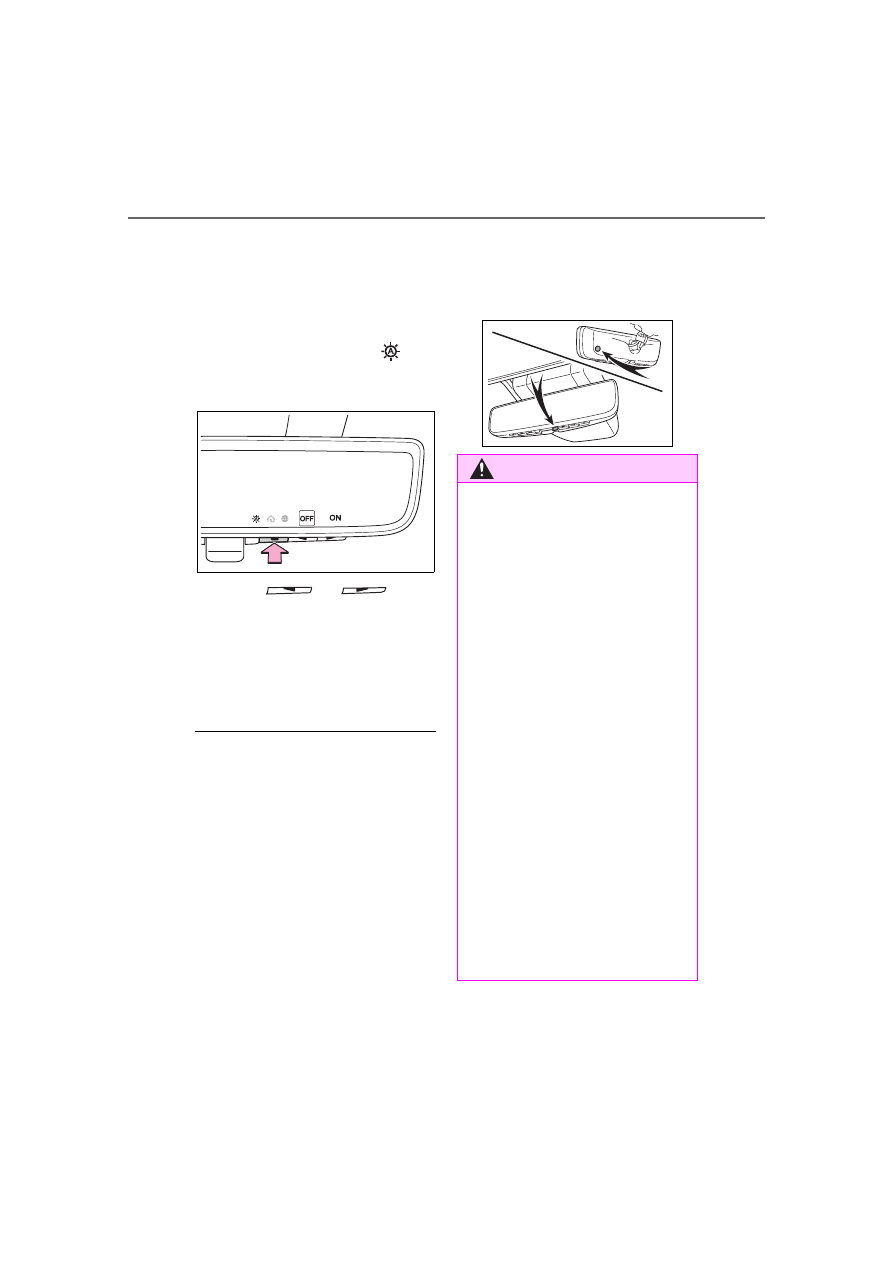

188

3-4. Adjusting the steering wheel and mirrors



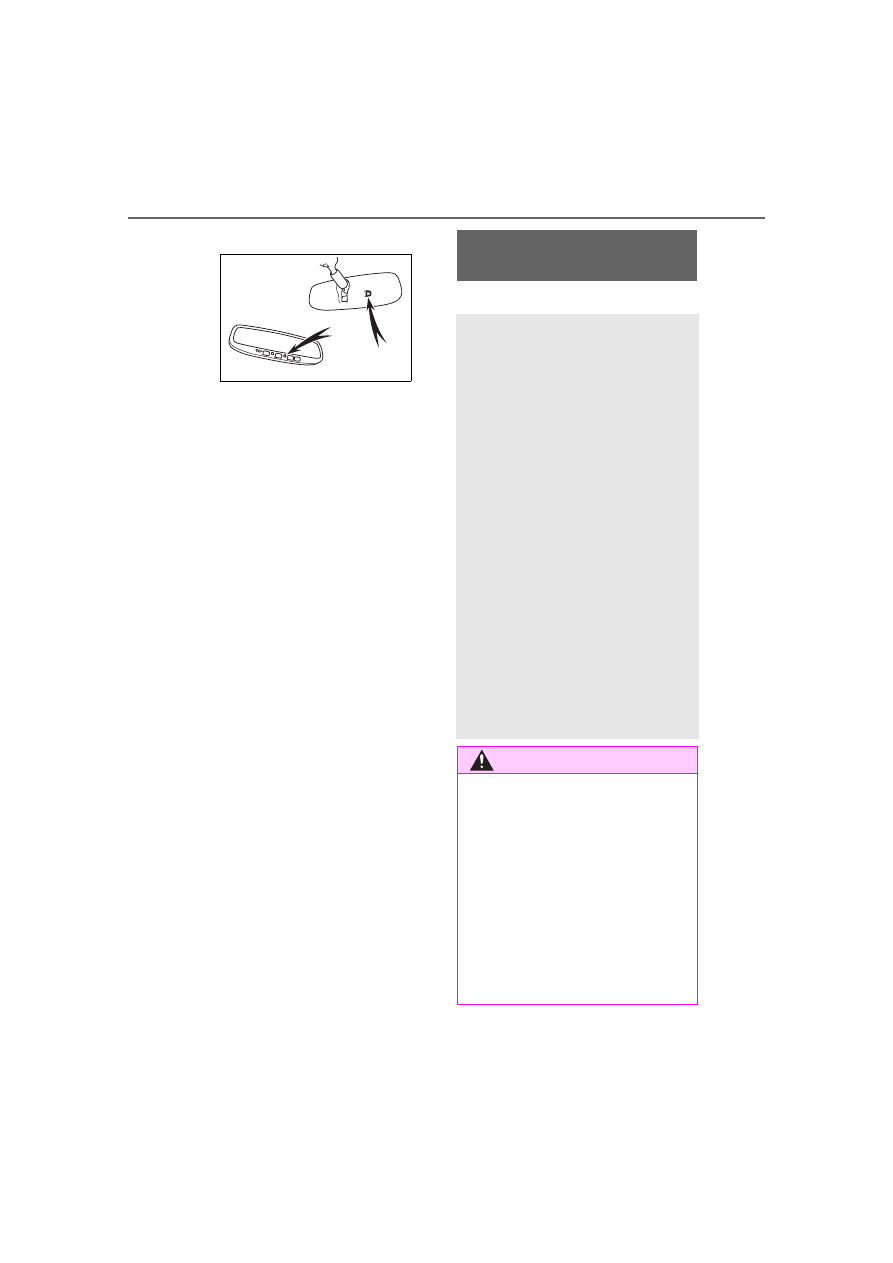

Vehicles with garage door opener

*

: If equipped

Digital Rear-view Mir-

ror

*

The Digital Rear-view Mirror
is a system that uses the
camera on the rear of the
vehicle and displays its
image on the display of the
Digital Rear-view Mirror.
The Digital Rear-view Mirror
can be changed between
optical mirror mode and dig-
ital mirror mode by operat-
ing the lever.
The Digital Rear-view Mirror
allows the driver to see the
rear view despite obstruc-
tions, such as the head
restraints or luggage,
ensuring rear visibility.
Also, the rear seats are not
displayed and privacy of the
passengers is enhanced.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before using the Digital Rear-

view Mirror

●

Make sure to adjust the mirror

before driving. (



P.190)

• Change to optical mirror mode

and adjust the position of the

Digital Rear-view Mirror so that

the area behind your vehicle

can be viewed properly.

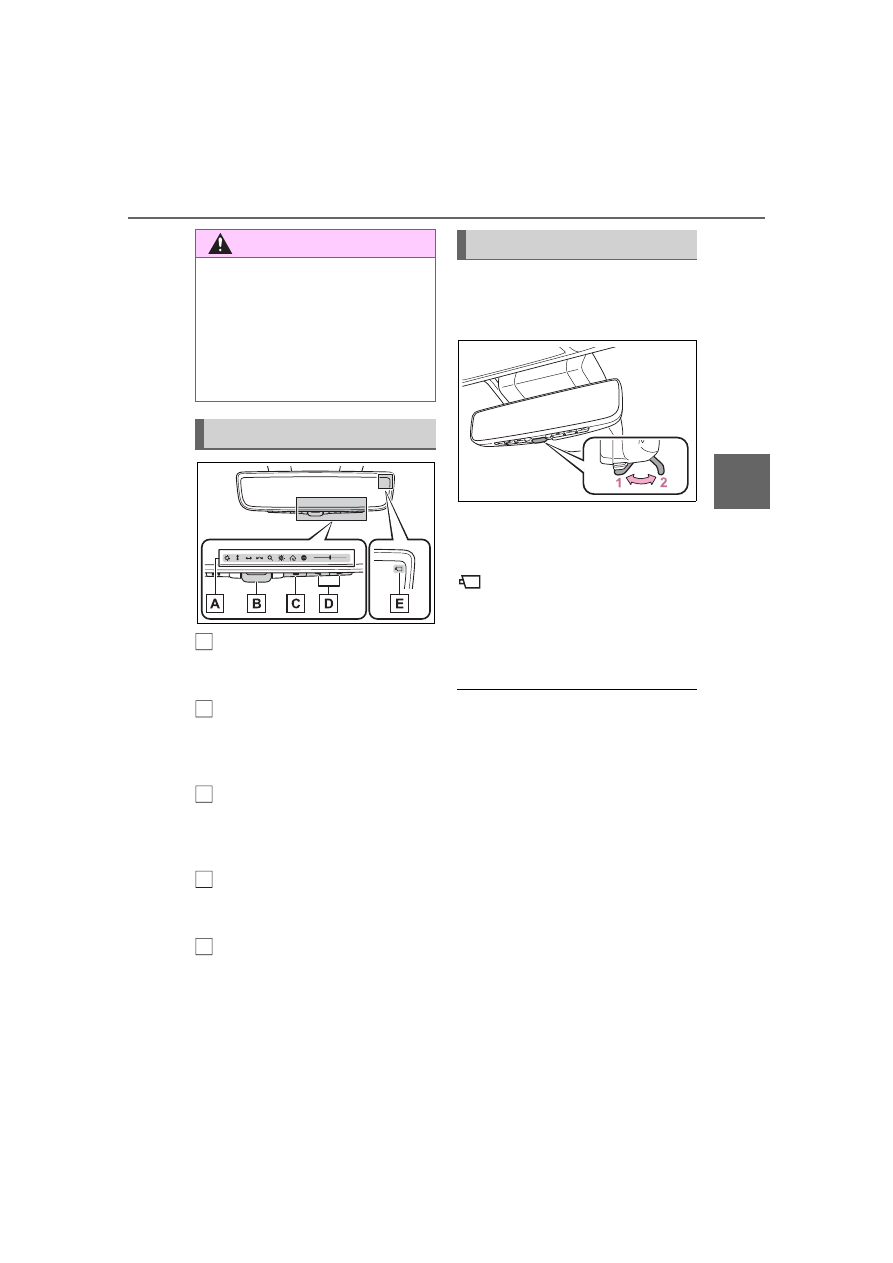

189

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

Icon display area

Displays icons, adjusting gauge,
etc. (



P.190)

Lever

Operate to change between digital
mirror mode and optical mirror
mode.

Menu button

Press to display the icon display
area and select the item you want
to adjust.

Select/adjust button

Press to change the setting of the
item you want to adjust.

Camera indicator

Indicates that the camera is operat-
ing normally.

Operate the lever to change
between digital mirror mode and
optical mirror mode.

1

Digital mirror mode

Displays an image of the area
behind the vehicle.

 will illuminate in this mode.

2

Optical mirror mode

Turns off the display of the Digital
Rear-view Mirror allows it to be
used as an optical mirror.

■

Digital mirror mode operating

condition

The power switch is turned to ON.
When the power switch is changed

from ON to OFF or ACC, the image

will disappear after several seconds.

■

When using the Digital Rear-

view Mirror in digital mirror

mode

●

If it is difficult to see the displayed

image due to light reflected off the

Digital Rear-view Mirror, the cam-

era being dirty or covered with

water droplets, or if lights of a

vehicle behind your vehicle or the

displayed image are bothering

you, change to optical mirror

mode.

●

When the back door is open, the

Digital Rear-view Mirror image

may not display properly. Before

WARNING

• Change to digital mirror mode

and adjust the display settings.

●

As the range of the image dis-

played by the Digital Rear-view

Mirror is different from that of

the optical mirror, make sure to

check this difference before

driving.

System components

A

B

C

D

E

Changing modes

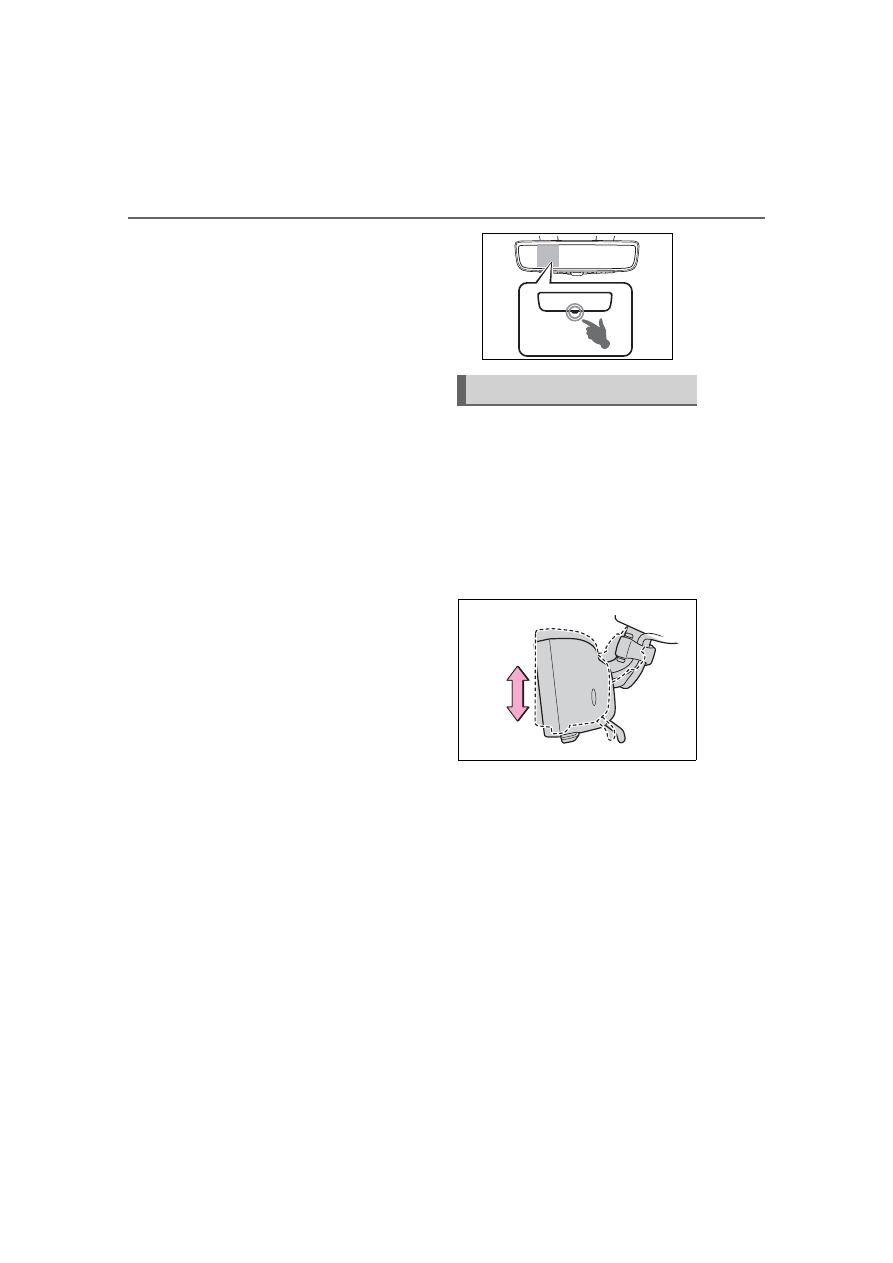

190

3-4. Adjusting the steering wheel and mirrors

driving, make sure the back door

is closed.

●

If the display is difficult to see due

to reflected light, close the sun-

shade for the moon roof (if

equipped).

●

Any of the following conditions

may occur when driving in the

dark, such as at night. None of

them indicates that a malfunction

has occurred.

• Colors of objects in the displayed

image may differ from their actual

color.

• Depending on the height of the

lights of the vehicle behind, the

area around the vehicle may

appear white and blurry.

• Automatic image adjustment for

brighter surrounding image may

cause flickering.

If it is difficult to see the displayed

image or flickering bothers you,

change to optical mirror mode.

●

The Digital Rear-view Mirror may

become hot while it is in digital

mirror mode.

This is not a malfunction.

●

Depending on your physical con-

dition or age, it may take longer

than usual to focus on the dis-

played image. In this case,

change to optical mirror mode.

●

Do not let passengers stare at the

displayed image when the vehicle

is being driven, as doing so may

cause motion sickness.

■

When the system malfunctions

If the symbol shown in the illustra-

tion is displayed when using the

Digital Rear-view Mirror in digital

mirror mode, the system may be

malfunctioning. The symbol will dis-

appear in a few seconds. Operate

the lever, change to optical mirror

mode and have the vehicle

inspected by your Toyota dealer.

■

Adjusting the mirror height

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Change to optical mirror mode,
adjusting the height of the rear
view mirror by moving it up and
down.

■

Display settings (digital
mirror mode)

Settings of the display in the dig-
ital mirror mode, on/off opera-
tion of the automatic anti-glare
function, etc. can be changed.

1

Press the menu button.

Adjusting the mirror

191

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

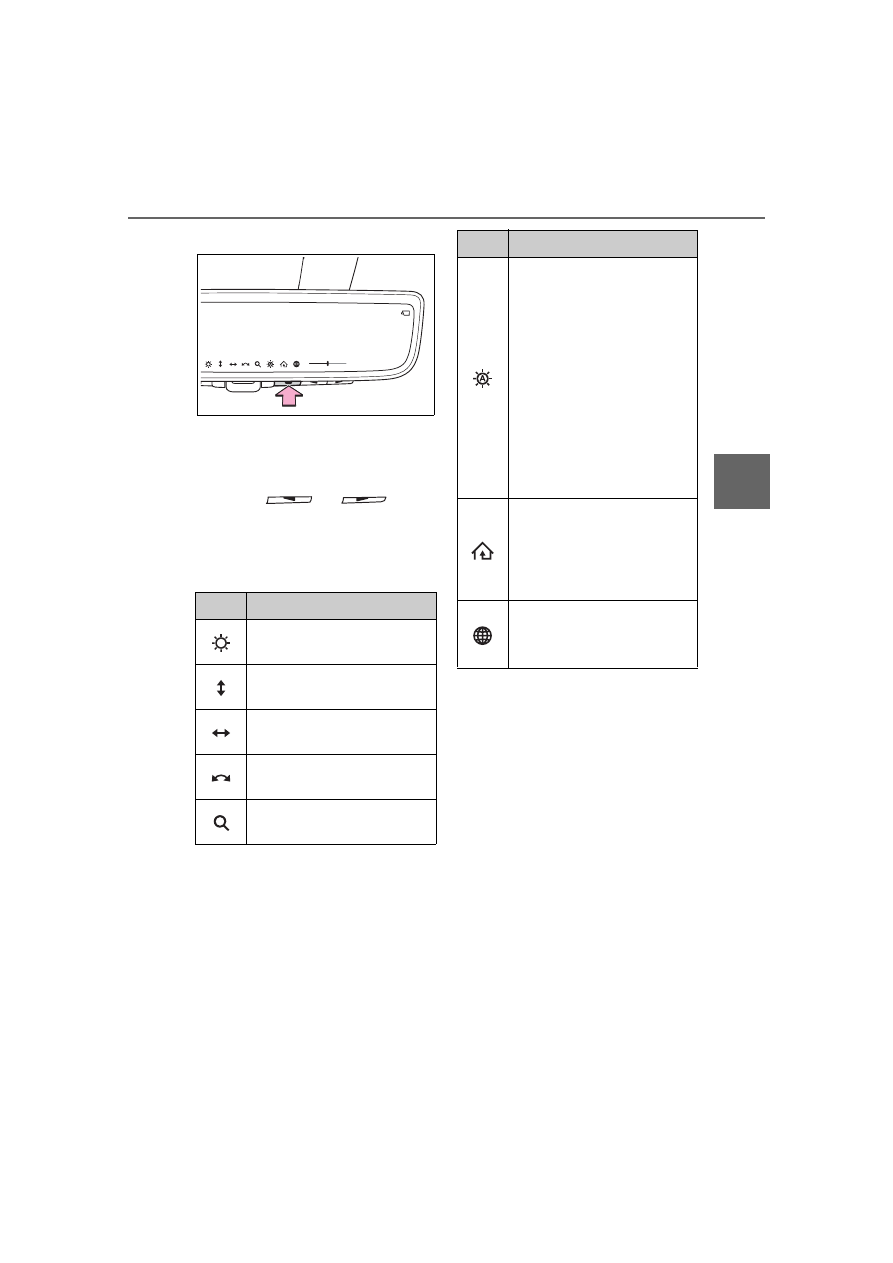

The icons will be displayed.

2

Press the menu button
repeatedly and select the
item you want to adjust.

3

Press

 or

 to

change the setting.

The icons will disappear if a button

is not operated for approximately 5

seconds or more.

*

: This is a function for the optical

mirror mode, however, the setting
can also be changed while using
the digital mirror mode.

■

Enabling/disabling the
automatic anti-glare func-
tion (optical mirror mode)

The automatic anti-glare func-
tion in the optical mirror mode
can be enabled/disabled. The
setting can be changed in both
the digital mirror mode and the
optical mirror mode.



When using the digital mirror
mode



P.190

Icons

Settings

Select to adjust the bright-
ness of the display.

Select to adjust the area
displayed up/down.

Select to adjust the area
displayed to the left/right.

Select to adjust the angle of
the displayed image.

Select to zoom in/out the
displayed image.

Select to enable/disable the
automatic anti-glare func-
tion.

*

Responding to the bright-
ness of the headlights of
vehicles behind, the
reflected light is automati-
cally adjusted.
The automatic anti-glare
function is enabled each
time the power switch is
changed to ON.

Select to display
HomeLink

®

 Training Tuto-

rial to assist customers to
train their Garage Door
Opener System. (



P.392)

Select to change the lan-
guage of the Homelink

®



Training Tutorial.

Icons

Settings

192

3-4. Adjusting the steering wheel and mirrors



When using the optical mirror
mode

1

Press the menu button.

The icons will be displayed.

2

Press the menu button
repeatedly and select

.

The setting display will be dis-

played.

3

Press

 or

 to

enable (ON)/disable (OFF)
the automatic anti-glare func-
tion.

The icons will disappear if a button

is not operated for approximately 5

seconds or more.

■

Adjusting the display (digital

mirror mode)

●

If the displayed image is adjusted,

it may appear distorted. This is not

a malfunction.

●

If the brightness of the Digital

Rear-view Mirror is set too high, it

may cause eye strain. Adjust the

Digital Rear-view Mirror to an

appropriate brightness. If your

eyes become tired, change to

optical mirror mode.

●

The brightness of the Digital Rear-

view Mirror will change automati-

cally according to the brightness

of the area in front of your vehicle.

■

To prevent the light sensors

from malfunctioning

To prevent the light sensors from

malfunctioning, do not touch or

cover them.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

While driving

●

Do not adjust the position of the

Digital Rear-view Mirror or

adjust the display settings while

driving.

Stop the vehicle and operate

the Digital Rear-view Mirror

control switches.

Failure to do so may cause a

steering wheel operation error,

resulting in an unexpected acci-

dent.

●

Always pay attention to the

vehicle’s surroundings.

The size of the vehicles and other

objects may look different when in

digital mirror mode and optical

mirror mode.

When backing up, make sure to

directly check the safety of the

area around your vehicle, espe-

cially behind the vehicle.

Additionally, if a vehicle

approaches from the rear in the

dark, such as at night, the sur-

rounding area may appear dim.

193

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

■

Cleaning the mirror surface

If the mirror surface is dirty, the
image on the display may be dif-
ficult to see.
Clean the mirror surface gently
using a soft dry cloth.

■

Cleaning the camera

If the camera lens is dirty or cov-
ered with foreign matter, such
as water droplets, snow, mud,
etc., the displayed image may
not be clear. In this case, rinse
the camera lens with a large
quantity of water and then wipe
it clean with a soft cloth damp-
ened with water.
Dirt on the camera lens can be
cleaned by operating the dedi-
cated camera cleaning washer.
(



P.257)

■

The camera

The camera for the Digital Rear-

view Mirror is located as shown.

WARNING

■

To prevent causes of fire

If the driver continues using the

Digital Rear-view Mirror while

smoke or odor comes from the

mirror, it may result in fire. Stop

using the system immediately and

contact your Toyota dealer.

Cleaning the Digital Rear-
view Mirror

NOTICE

■

To prevent the Digital Rear-

view Mirror from malfunction-

ing

●

Do not use detergents, such as

thinner, benzene, and alcohol to

clean the mirror. They may dis-

color, deteriorate or damage the

mirror surface.

●

Do not smoke, use matches,

use cigarette lighters or allow

open flames near the mirror. It

may damage the mirror or

cause a fire.

●

Do not remove, disassemble or

modify the mirror.

■

To prevent the camera from

malfunctioning

●

Observe the following precau-

tions, otherwise the Digital

Rear-view Mirror may not oper-

ate properly.

• Do not strike or hit the camera

or subject it to a strong impact,

as the camera installation posi-

tion and angle may be changed.

• Do not remove, disassemble or

modify the camera.

• Do not allow an organic solvent,

car wax, window cleaner or

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

194

3-4. Adjusting the steering wheel and mirrors

If you notice any of the following symptoms, refer to the following
table for the likely cause and the solution.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

NOTICE

• When washing the camera,

rinse it with a large quantity of

water and then wipe it clean

with a soft cloth dampened with

water.

Do not strongly rub the camera

lens, as it may be scratched and

will not be able to transmit a

clear image.

• Do not apply hot water to the

camera in cold weather, as the

sudden change of temperature

may cause the camera to not

operate properly.

• When using a high pressure

washer to wash the vehicle, do

not directly spray the camera

and its surrounding area, as

doing so may cause the camera

to not operate properly.

●

Do not subject the camera to a

strong impact as this could

cause a malfunction.

If this happens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

If you notice any symptoms

195

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

Symptom

Likely cause

Solution

The image is difficult to
see.

The mirror surface is
dirty.

Clean the mirror surface
gently, using a soft dry
cloth.

Sunlight or headlights
are shining directly into
the Digital Rear-view
Mirror.

Change to optical mirror
mode.
(If the light is coming
through the moon roof [if
equipped], close the
sunshade.)

• The vehicle is in a dark

area.

• The vehicle is near a

TV tower, broadcast-
ing station, electric
power plant, or other
location where strong
radio waves or electri-
cal noise may be pres-
ent.

• The temperature

around the camera is
extremely high/low.

• The ambient tempera-

ture is extremely low.

• It is raining or humid.
• Sunlight or headlights

are shining directly into
the camera lens.

• The vehicle is under

fluorescent lights,
sodium lights, mer-
cury lights, etc.

• Exhaust gas is

obstructing the cam-
era.

Change to optical mirror
mode.
(Change back to digital
mirror mode when the
conditions have
improved.)

196

3-4. Adjusting the steering wheel and mirrors

The image is difficult to
see.

Foreign matters (such as
water droplets, snow,
mud, etc.) is on the cam-
era lens.

• Operate the dedicated

camera cleaning
washer and clean the
camera lens.

• Change to optical mir-

ror mode.

• Rinse the camera with

a large quantity of
water, wipe it clean
with a soft cloth damp-
ened with water, and
then change back to
digital mirror mode.

The image is out of
alignment.

The back door is not fully
closed.

Fully close the back
door.

The camera or its sur-
rounding area has
received a strong
impact.

Change to optical mirror
mode and have the vehi-
cle inspected by your
Toyota dealer.

The display is dim and

 is displayed.

The system may be mal-
functioning.

Change to optical mirror
mode and have the vehi-
cle inspected by your
Toyota dealer.

 goes off.

Symptom

Likely cause

Solution

197

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

 is displayed.

The Digital Rear-view
Mirror is extremely hot.
(The display will gradu-
ally become more dim. If
the temperature contin-
ues to increase, the Digi-
tal Rear-view Mirror will
turn off.)

Reducing the cabin tem-
perature is recom-
mended to reduce the
temperature of the mir-
ror.
(

 will disappear when

the mirror becomes
cool.)

If

 does not disap-

pear even though the
mirror is cool, have the
vehicle inspected by
your Toyota dealer.

The lever cannot be
operated properly.

The lever may be mal-
functioning.

Change to optical mirror
mode and have the vehi-
cle inspected by your
Toyota dealer.
(To change to optical
mirror mode, press and
hold the menu button for
approximately 10 sec-
onds.)

Symptom

Likely cause

Solution

198

3-4. Adjusting the steering wheel and mirrors

■

Defogging the mirrors (if

equipped)

The outside rear view mirrors can

be cleared using the mirror defog-

gers. Turn on the rear window

defogger to turn on the outside rear

view mirror defoggers.

(



P.350)

1

To select a mirror to adjust,
press the switch.

Left

Right

2

To adjust the mirror, press
the switch.

Up

Right

Down

Left

■

Mirror angle can be adjusted

when

The power switch is in ACC or ON.

■

Auto anti-glare function (if

equipped)

When the anti-glare inside rear view

mirror is set to automatic mode, the

outside rear view mirrors will acti-

Outside rear view mir-

rors

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

WARNING

■

Important points while driving

Observe the following precautions

while driving.

Failing to do so may result in loss

of control of the vehicle and cause

an accident, resulting in death or

serious injury.

●

Do not adjust the mirrors while

driving.

●

Do not drive with the mirrors

folded.

●

Both the driver and passenger

side mirrors must be extended

and properly adjusted before

driving.

■

When the mirror defoggers

are operating (if equipped)

Do not touch the rear view mirror

surfaces, as they can become

very hot and burn you.

Adjustment procedure

A

B

A

B

C

D

199

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

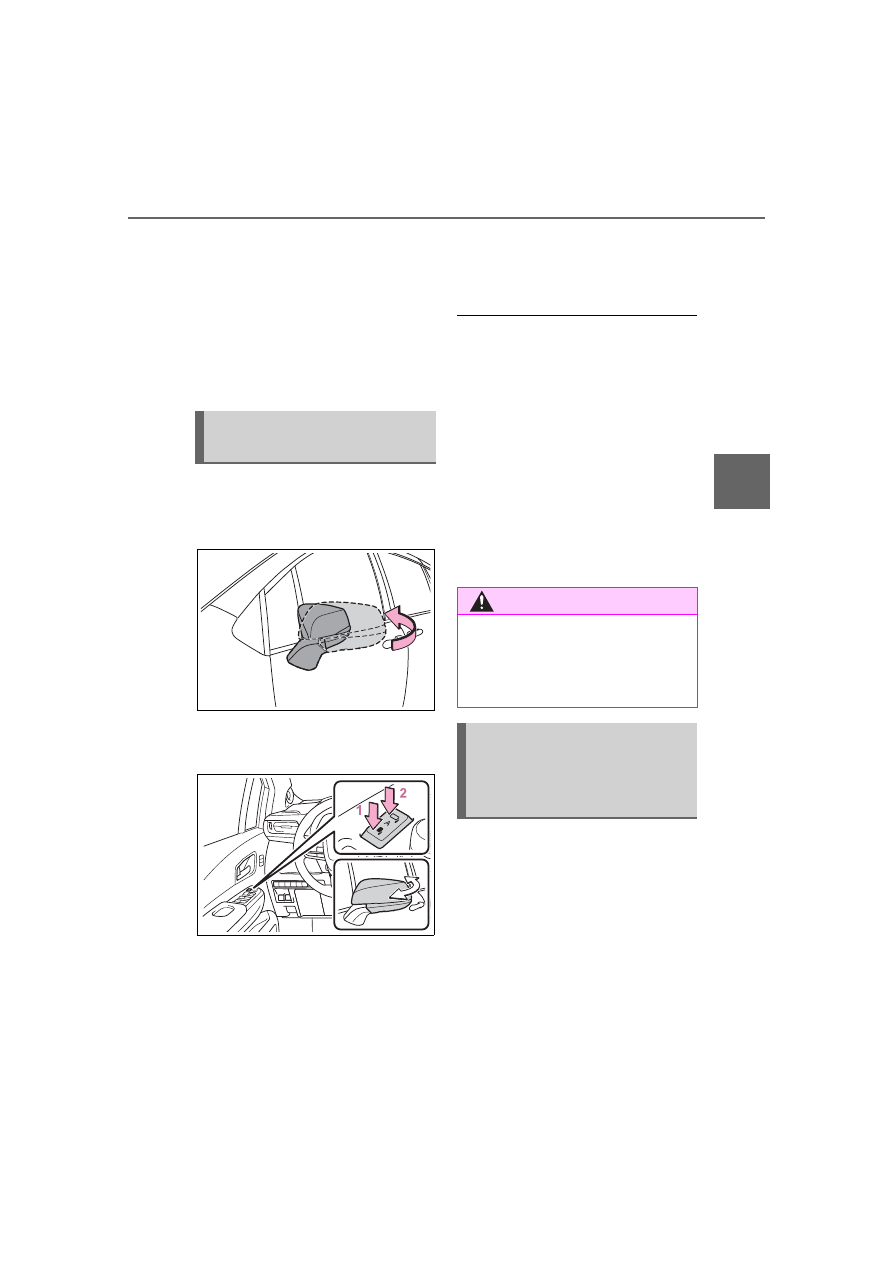

vate in conjunction with the anti-

glare inside rear view mirror to

reduce reflected light.

■

Automatic adjustment of the

mirror angle (vehicles with driv-

ing position memory)

A desired mirror face angle can be

entered to memory and recalled

automatically by the driving position

memory. (



P.178)



Manual type

Push the mirror back in the
direction of the vehicle’s rear.



Power type

Press the switch.

1

Folds the mirrors

2

Extends the mirrors

Putting the outside rear view mirror
folding switch in the neutral position
sets the mirrors to automatic mode.

Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.

■

Using automatic mode in cold

weather (power type)

When automatic mode is used in

cold weather, the door mirror could

freeze up and automatic stowing

and return may not be possible. In

this case, remove any ice and snow

from the door mirror, then either

operate the mirror using manual

mode or move the mirror by hand.

■

Customization

The automatic mirror folding and

extending operation can be

changed.
(Customizable features:



P.547)

When the mirror select switch is
in the L or R position, the out-
side rear view mirrors will auto-
matically angle downwards
when the vehicle is reversing in
order to give a better view of the
ground.
To disable this function, move
the mirror select switch to the
neutral position (between L and

Folding and extending the
mirrors

WARNING

■

When a mirror is moving

To avoid personal injury and mir-

ror malfunction, be careful not to

get your hand caught by the mov-

ing mirror.

Linked mirror function
when reversing (vehicles
with driving position
memory)

200

3-4. Adjusting the steering wheel and mirrors

R).

■

Adjusting the mirror angle
when the vehicle is revers-
ing

With the shift lever in R, adjust
the mirror angle at a desired
position. The adjusted angle will
be memorized and the mirror
will automatically tilt to the mem-
orized angle whenever the shift
lever is shifted to R from next
time.
The memorized downward tilt
position of the mirror is linked to
the normal position (angle
adjusted with the shift lever in
other than R). Therefore, if the
normal position is changed after
adjustment, the tilt position will
also change.
When the normal position is
changed, readjust the angle in
reversing.

201

3-5. Opening, closing the windows and moon roof

3

Before

driving

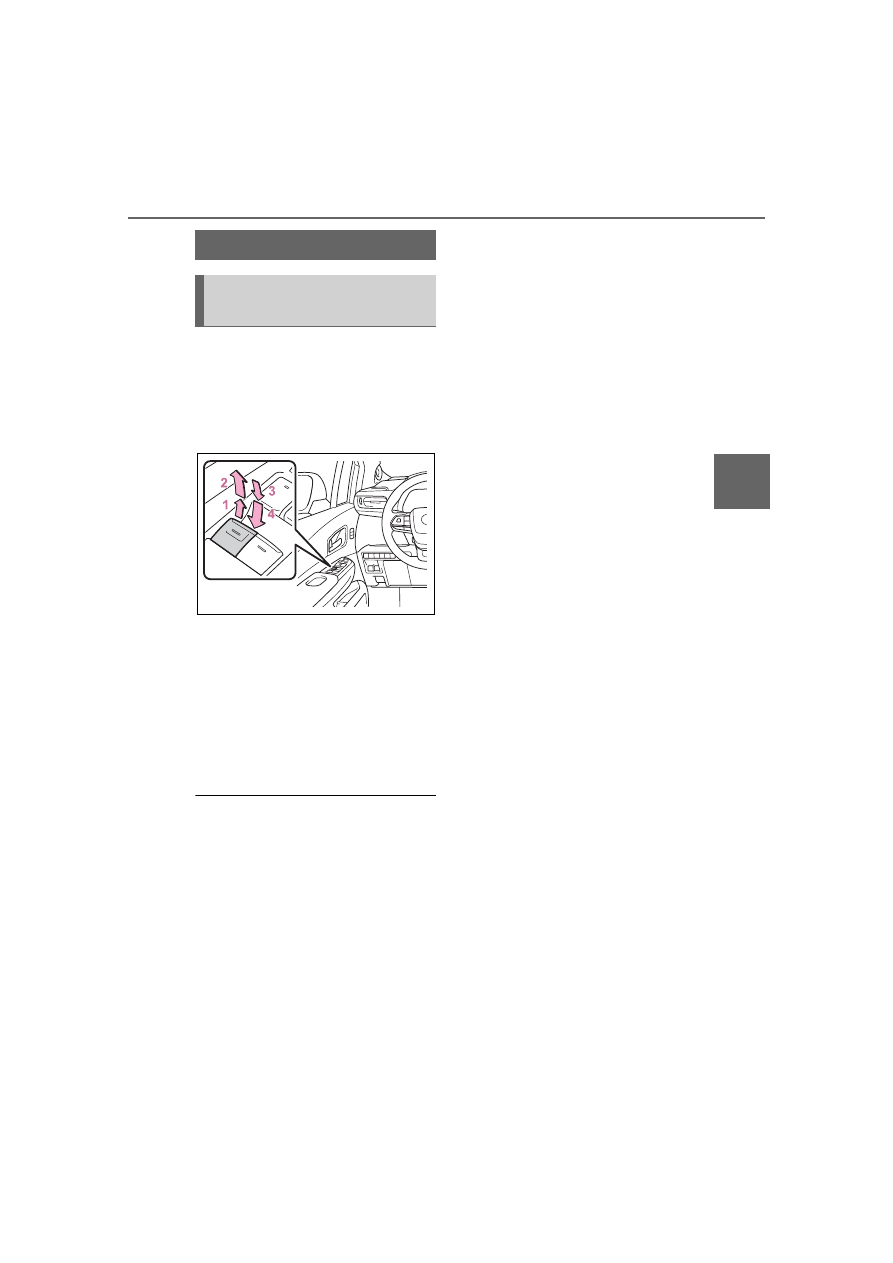

3-5.Opening, closing the windows and moon roof

The power windows can be
opened and closed using the
switches.
Operating the switch moves the
side windows as follows:

1

Closing

2

One-touch closing

*

3

Opening

4

One-touch opening

*

*

: To stop the side window partway,

operate the switch in the opposite
direction.

■

The power windows can be

operated when

The power switch is in ON.

■

Operating the power windows

after turning the hybrid system

off

The power windows can be oper-

ated for approximately 45 seconds

even after the power switch is

turned to ACC or OFF. They cannot,

however, be operated once either

front door is opened.

■

Jam protection function

If an object becomes jammed

between the side window and the

window frame while the side window

is closing, side window movement is

stopped and the side window is

opened slightly.

■

Catch protection function

If an object becomes caught

between the door and side window

while the side window is opening,

side window movement is stopped.

■

When the power window cannot

be opened or closed

When the jam protection function or

catch protection function operates

unusually and the side window can-

not be opened and closed, perform

the following operations with the

power window switch of that door.

●

Stop the vehicle. With the power

switch in ON, within 4 seconds of

the jam protection function or

catch protection function activat-

ing, continuously operate the

power window switch in the one-

touch closing direction or one-

touch opening direction so that the

side window can be opened and

closed.

●

If the side window cannot be

opened and closed even when

performing the above operations,

perform the following procedure

for function initialization.

1

Turn the power switch to ON.

2

Pull and hold the power window

switch in the one-touch closing

direction and completely close

the side window.

3

Release the power window

switch for a moment, resume

pulling the switch in the one-

touch closing direction, and hold

it there for approximately 6 sec-

onds or more.

4

Press and hold the power win-

dow switch in the one-touch

opening direction. After the side

window is completely opened,

continue holding the switch for

an additional 1 second or more.

Power windows

Opening and closing the
power windows

202

3-5. Opening, closing the windows and moon roof

5

Release the power window

switch for a moment, resume

pushing the switch in the one-

touch opening direction, and

hold it there for approximately 4

seconds or more.

6

Pull and hold the power window

switch in the one-touch closing

direction again. After the side

window is completely closed,

continue holding the switch for a

further 1 second or more.

If you release the switch while the

side window is moving, start again

from the beginning.

If the side window reverses and

cannot be fully closed or opened,

have the vehicle inspected by your

Toyota dealer.

■

Door lock linked power window

operation

●

The power windows can be

opened and closed using the
mechanical key.

*

 (



P.504)

●

The power windows can be

opened using the wireless remote
control.

*

 (



P.132)

●

Vehicles with alarm: The alarm

may be triggered if the alarm is set

and the power window is closed

using the door lock linked power

window operation function.

(



P.89)

*

: These settings must be custom-

ized at your Toyota dealer.

■

Power window open reminder

function

The buzzer sounds and a message

is shown on the multi-information

display when the power switch is

turned to OFF and the driver’s door

is opened with the power windows

open.

■

Customization

Settings (e.g. linked door lock oper-

ation) can be changed. (Customiz-

able features:



P.547)

WARNING

Observe the following precau-

tions.

Failing to do so may result in

death or serious injury.

■

Closing the power windows

●

The driver is responsible for all

the power window operations,

including the operation for the

passengers. In order to prevent

accidental operation, especially

by a child, do not let a child

operate the power windows. It is

possible for children and other

passengers to have body parts

caught in the power window.

Also, when riding with a child, it

is recommended to use the win-

dow lock switch. (



P.203)

●

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when a power

window is being operated.

●

When using the wireless remote

control, key or mechanical key

and operating the power win-

dows, operate the power win-

dow after checking to make

sure that there is no possibility

of any passenger having any of

their body parts caught in the

side window. Also, do not let a

child operate the power window

by the wireless remote control,

key or mechanical key. It is pos-

sible for children and other pas-

sengers to get caught in the

power window.

203

3-5. Opening, closing the windows and moon roof

3

Before

driving

This function can be used to
prevent children from acciden-
tally opening or closing a pas-
senger window.
Press the switch.

The indicator

 will come on and

the passenger windows will be

locked.
The passenger windows can still be
opened and closed using the
driver’s switch even if the lock
switch is on.

■

The window lock switch can be

operated when

The power switch is in ON.

WARNING

●

When exiting the vehicle, turn

the power switch to OFF, carry

the key and exit the vehicle

along with the child. There may

be accidental operation, due to

mischief, etc., that may possibly

lead to an accident.

■

Jam protection function

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

jammed just before the side

window is fully closed. Be care-

ful not to get any part of your

body jammed in the side win-

dow.

■

Catch protection function

●

Never use any part of your body

or clothing to intentionally acti-

vate the catch protection func-

tion.

●

The catch protection function

may not work if something gets

caught just before the side win-

dow is fully opened. Be careful

not to get any part of your body

or clothing caught in the side

window.

Preventing accidental
operation (window lock
switch)

A

204

3-5. Opening, closing the windows and moon roof

*

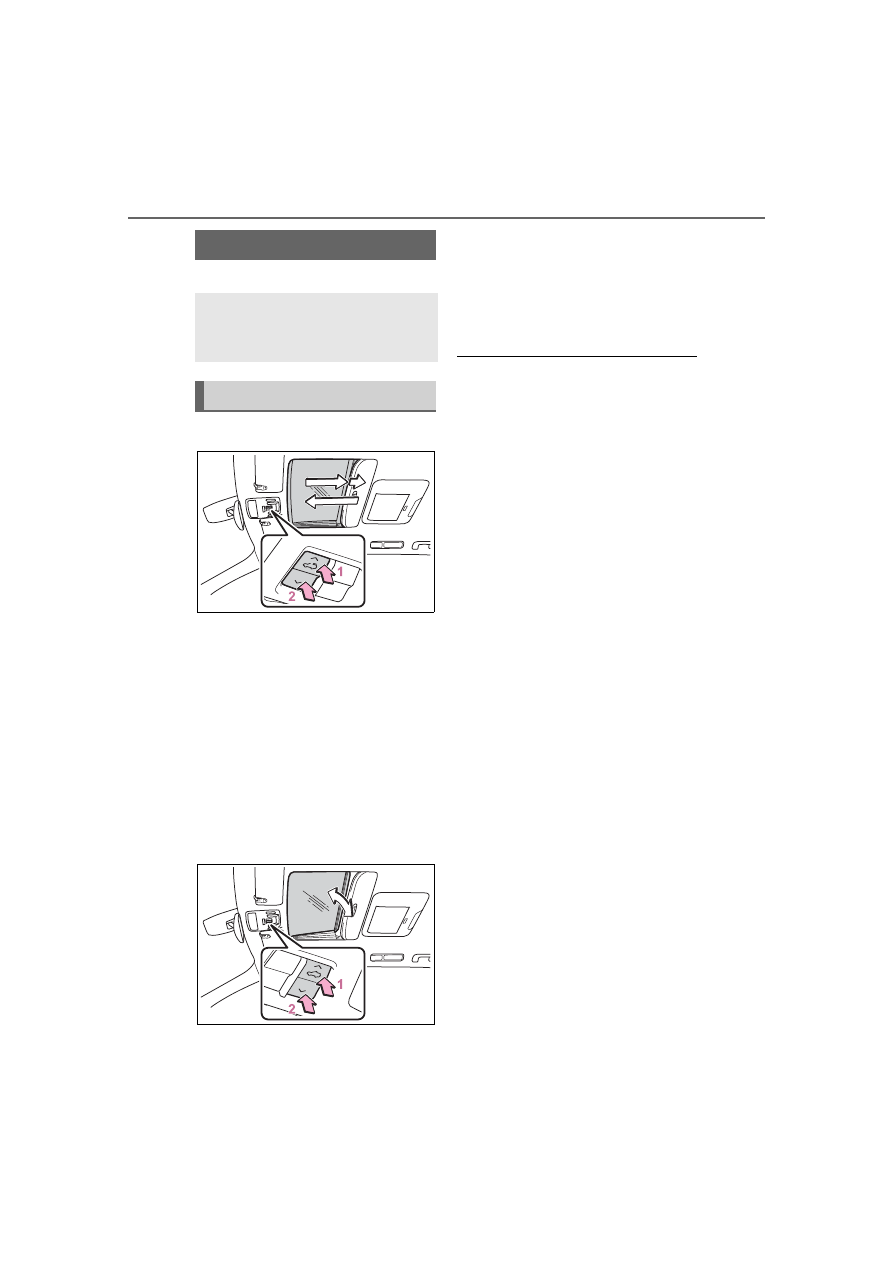

: If equipped

■

Opening and closing

1

Opens the moon roof

*

The moon roof stops slightly before
the fully open position to reduce
wind noise.
Press the switch again to fully open
the moon roof.

2

Closes the moon roof

*

*

: Lightly press either side of the

moon roof switch to stop the
moon roof partway.

■

Tilting up and down

1

Tilts the moon roof up

*

2

Tilts the moon roof down

*

*

: Lightly press either side of the

moon roof switch to stop the
moon roof partway.

■

The moon roof can be operated

when

The power switch is in ON.

■

Operating the moon roof after

turning the hybrid system off

The moon roof can be operated for

approximately 45 seconds after the

power switch is turned to ACC or

OFF. It cannot, however, be oper-

ated once either front door is

opened.

■

Jam protection function

If an object is detected between the

moon roof and the frame while the

moon roof is closing or tilting down,

travel is stopped and the moon roof

opens slightly.

■

Sunshade

The sunshade can be opened and

closed manually. However, the sun-

shade will open automatically when

the moon roof is opened.

■

Door lock linked moon roof

operation

●

The moon roof can be opened

and closed using the mechanical
key.

*

 (



P.504)

●

The moon roof can be opened
using the wireless remote control.

*



(



P.132)

●

Vehicles with alarm: The alarm

may be triggered if the alarm is set

and the moon roof is closed using

the door lock linked moon roof

operation function. (



P.89)

*

: These settings must be custom-

ized at your Toyota dealer.

Moon roof

*

Use the overhead switches
to open and close the moon
roof and tilt it up and down.

Operating the moon roof
