3. Instrument cluster

*

1

: If

 is pressed and held while this item is displayed, the information is

reset.

*

2

: This item is reset each time the hybrid system starts.

*

3

: This value is not displayed if electricity needed for EV driving is not remain-

ing.

*

4

: When the air conditioning system is operating, the icon display changes to

  and  the  driving  range  with  the  air  conditioning  system  on  is  dis-

played.

*

5

: The  EV  driving  range  may  shorten  even  when  not  driving  due  to  power

consumption by the system.

 Mileage display

 Average fuel consumption display

1

ODO (Odometer)

Total mileage

Average fuel consumption since
last reset

Average fuel  consumption  since
last reset

*

1

2

TRIP A (Trip meter A)

Mileage since last reset

*

1

TRIP A average fuel consumption

Average fuel  consumption  since
TRIP A was reset

*

1

3

TRIP B (Trip meter B)

Mileage since last reset

*

1

TRIP B average fuel consumption

Average fuel  consumption  since
TRIP B was reset

*

1

4

 (Mileage since hybrid sys-

tem was started)

Mileage  since  hybrid  system
started

*

2

Average  fuel  consumption  after
hybrid system started

Average fuel  consumption  since
hybrid system was started

*

2

5

 (Distance to empty)

Approximate  distance  vehicle
can  travel  based  on  current
remaining fuel amount

Blank screen

6

 (EV driving range)

Approximate driving range using
only  the  electric  motor  (traction
motor) (



P. 108)

*

3, 4, 5

Blank screen

7

Blank screen

Blank screen

1

2

PRIUS PRIME_OM_OM47D71U_(U)

215

3. Instrument cluster

3

Instrument clus

ter

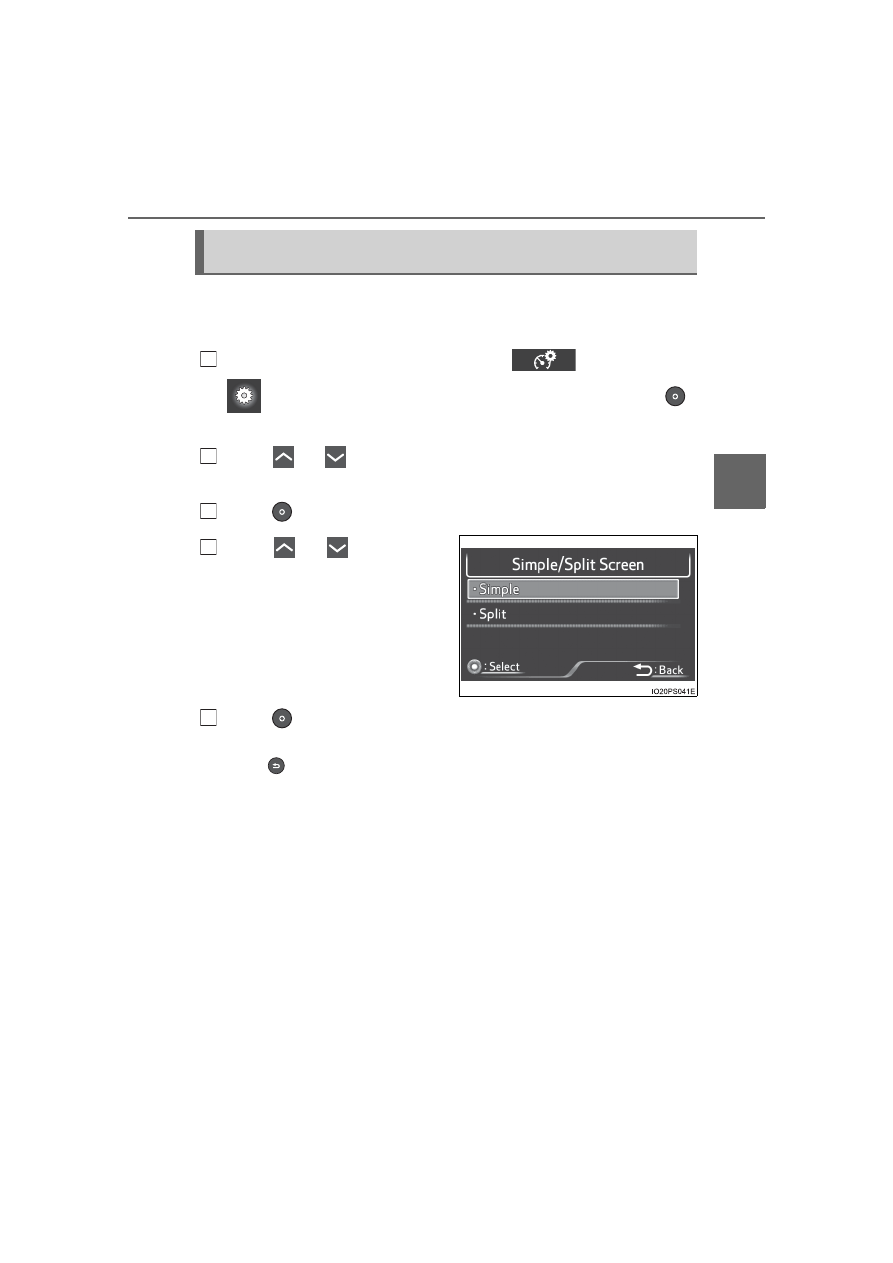

Simple screen or split screen can be selected for the main display.

When split screen is selected, a variety of information can be displayed on
a sub-screen in addition to the contents of the simple screen.

Select the “Meter Customize” settings (

 ) screen on the

 screen of the multi-information display, and then press

.

(



P. 246)

Press

 or

  of the meter  control switches to select  “Simple/

Split Screen”.

Press

 to display the setting screen.

Press

  or

  of  the  meter

control switches to select a dis-
play mode.

Press

.

The contents of the main display switch to the selected display mode.
Press

 to return to the previous screen.

Switching  the  display  mode  (vehicles  without  RSA  [Road  Sign
Assist])

1

2

3

4

5

216

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster



Vehicles without RSA (Road Sign Assist)

When split screen is selected for the main display, display contents on
the sub-screen can be selected.



Vehicles with RSA (Road Sign Assist)

When  RSA  (Road  Sign Assist)  is  off,  display  contents  on  the  sub-
screen can be selected.

Press

  or

  of  the

meter  control  switches  and
select the sub-screen.

When the sub-screen is selected,

  is  displayed  on  the  sub-

screen.

Press

 or

 of the meter control switches to select the dis-

play item.

One of the following 4 items can be displayed.

Switching contents displayed on the sub-screen

1

2

PRIUS PRIME_OM_OM47D71U_(U)

217

3. Instrument cluster

3

Instrument clus

ter

Display contents

Detail

Hybrid System Indicator

A convenient Hybrid System Indicator is displayed.
Refer to P. 225 for details on how to read the Hybrid
System Indicator.

Current electricity consumption

When  in  EV/EV  auto  mode,  the  current  electricity
consumption during driving is displayed.

• The

 mark indicates the total average electric-

ity  consumption  since  last  reset  until  it  is  reset
again.

• When “Electricity Consumption Reset” (



P. 250)

is performed, the data of the total average elec-
tricity consumption is deleted and the

 mark is

reset to 0.

Current fuel consumption

When  in  HV  mode,  the  current  fuel  consumption
during driving is displayed.

• The

 mark indicates the value displayed in the

average  fuel  consumption  display  (



P.  213).

Switching  the  average  fuel  consumption  display
also changes the position of the

 mark.

• When the average fuel consumption is reset, the

position of the

 mark is reset to 0.

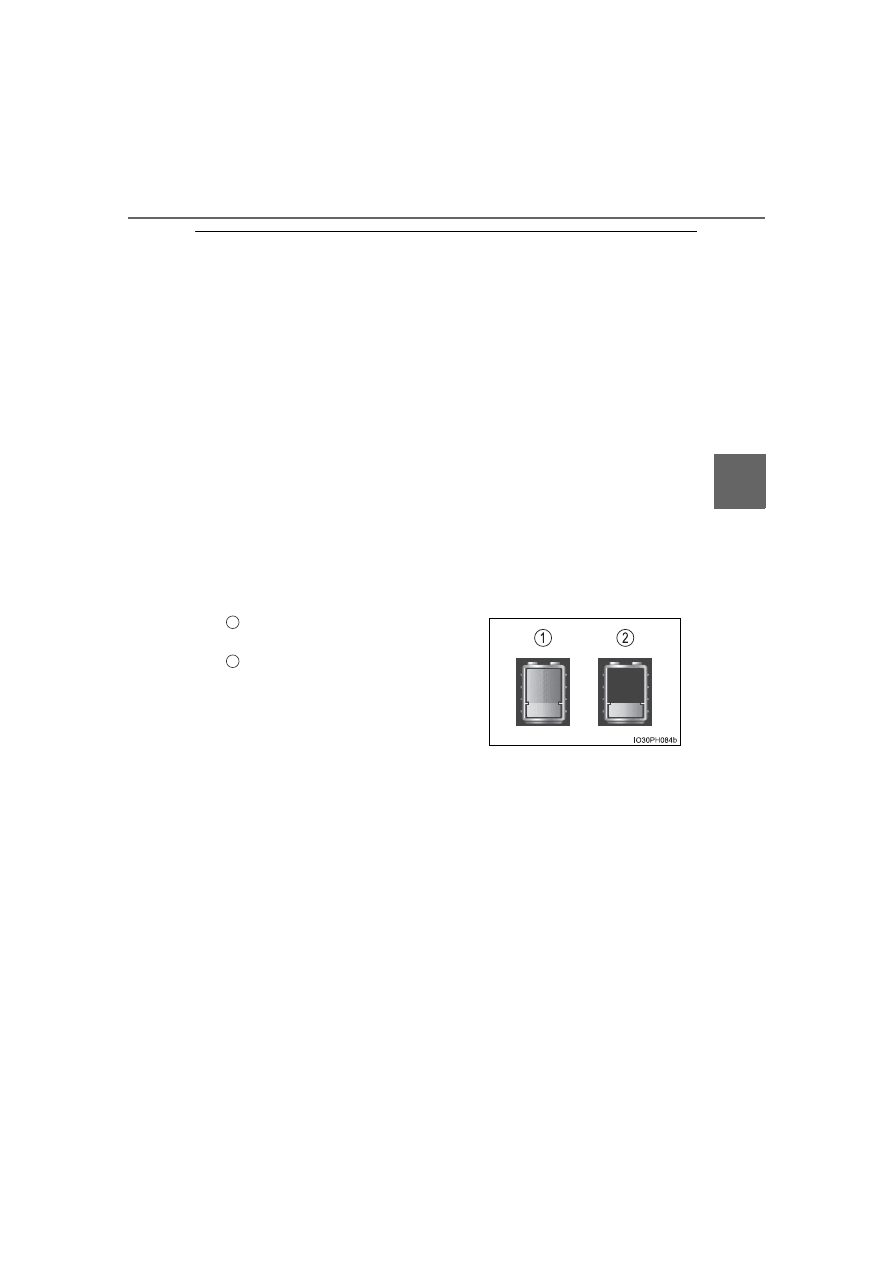

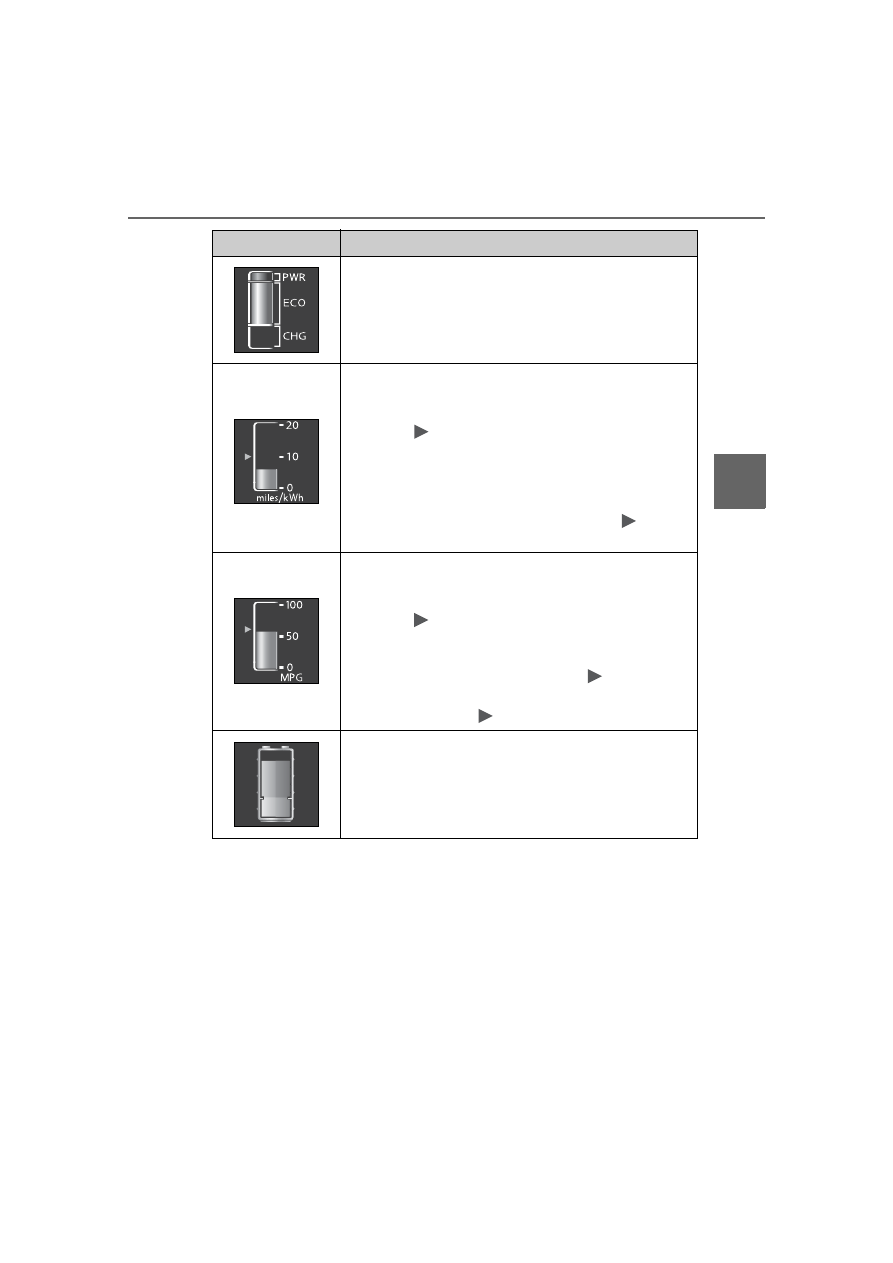

Hybrid battery (traction battery) status

The  same  contents  as  the  hybrid  battery  (traction
battery)  status  on  the  Hybrid  System  Indicator  are
displayed. (



P. 225)

218

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.

■

Electricity consumption

When the unit is set to “MPH”:
Electricity  consumption  is  the  consumption  rate  of  the  electricity  when  EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles.  For  this  vehicle,  driven  distance  per  kWh  of  electricity  consumed
(“miles/kWh”) is displayed as electricity consumption on each screen.
When the unit is set to “km/h”:
Electricity  consumption  is  the  consumption  rate  of  the  electricity  when  EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on each screen.

■

EV driving range



P. 108

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.

PRIUS PRIME_OM_OM47D71U_(U)

219

3. Instrument cluster

3

Instrument clus

ter

■

Switching the driving mode (



P. 430)

*

: The animation displayed when the driving mode is switched can be turned

off in the “Meter Customize” settings. (



P. 248)

When  the  driving  mode  is  switched,  the
driving  mode  indicator  changes  and  an
animation

*

 is displayed on the multi-infor-

mation display.
Also,  the  background  color  of  the  main
display,  energy  monitor  (



P.  223)  and

Hybrid  System  Indicator  (



P.  225)

change as follows.

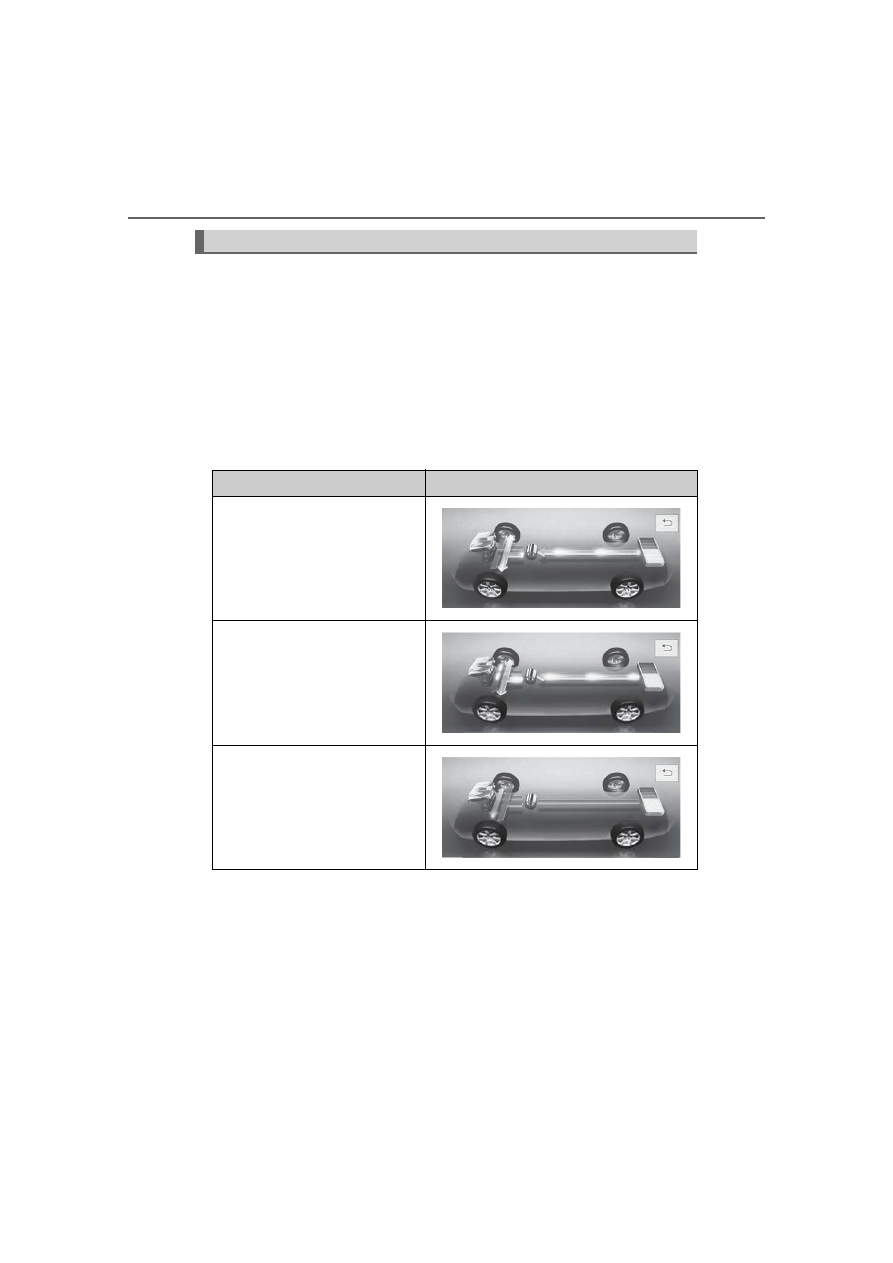

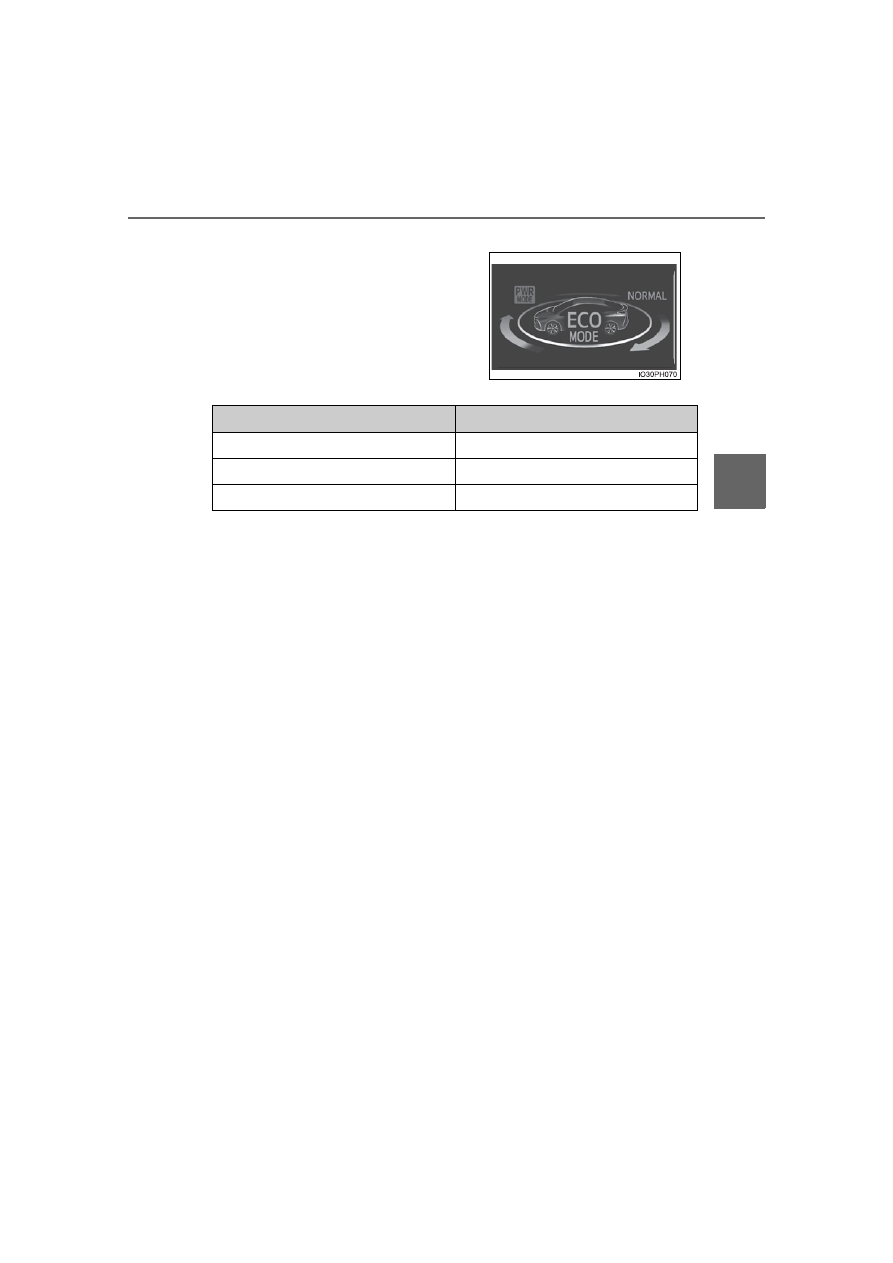

Driving modes

Background color

Normal mode

Green

Power mode

Red

Eco drive mode

Blue

220

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

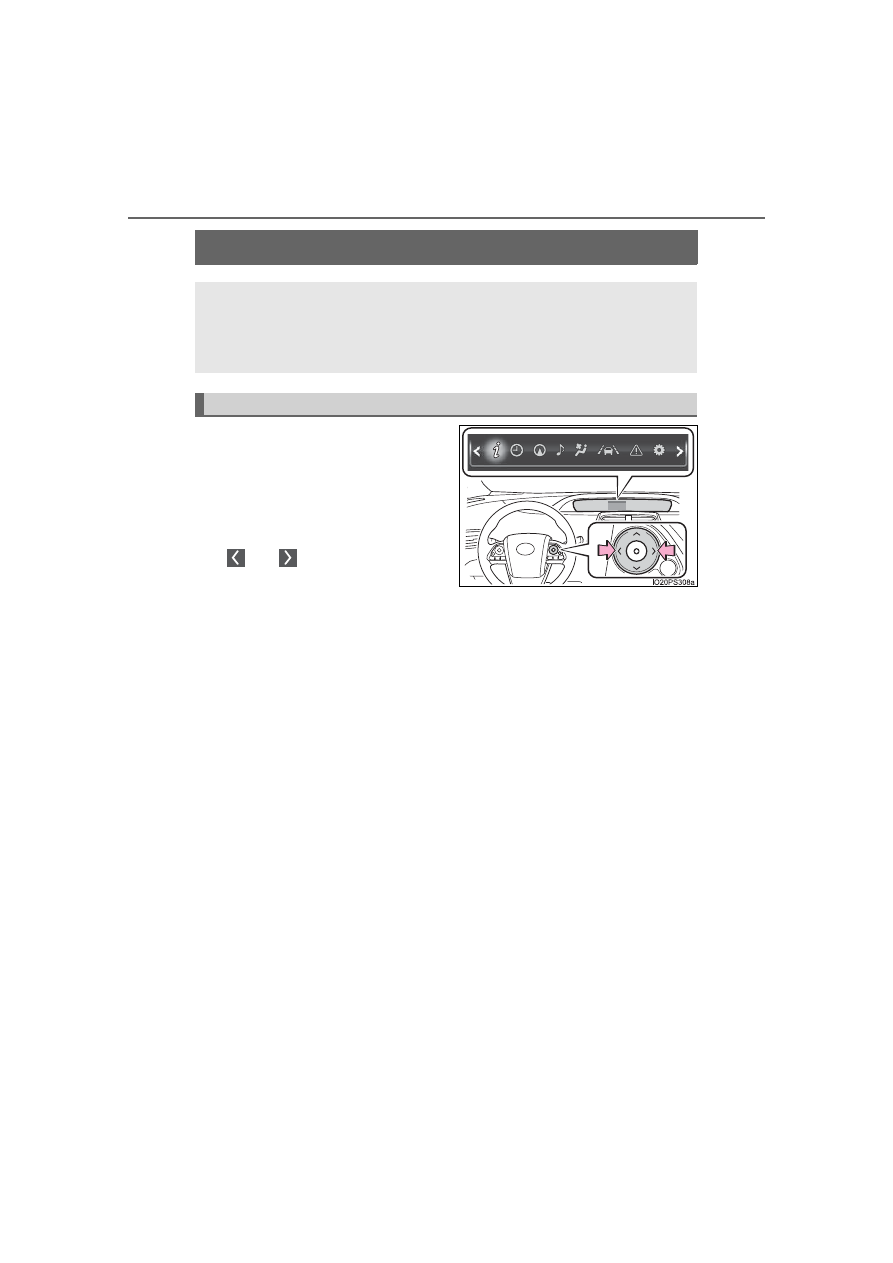

Multi-information display

Information  related  to  each  icon
on the upper portion of the multi-
information  display  can  be  dis-
played  by  operating  the  meter
control switches to select the icon.

Icons are displayed when pressing

  or

  of  the  meter  control

switches  and  turn  off  shortly  after
pressing the switch.
Screens  linked  with  vehicle  functions  may  be  automatically  displayed
according to the operation status of the corresponding functions.

A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.

Display contents

PRIUS PRIME_OM_OM47D71U_(U)

221

3. Instrument cluster

3

Instrument clus

ter

*

: When there is a warning message that can be displayed, the color of

changes to amber.

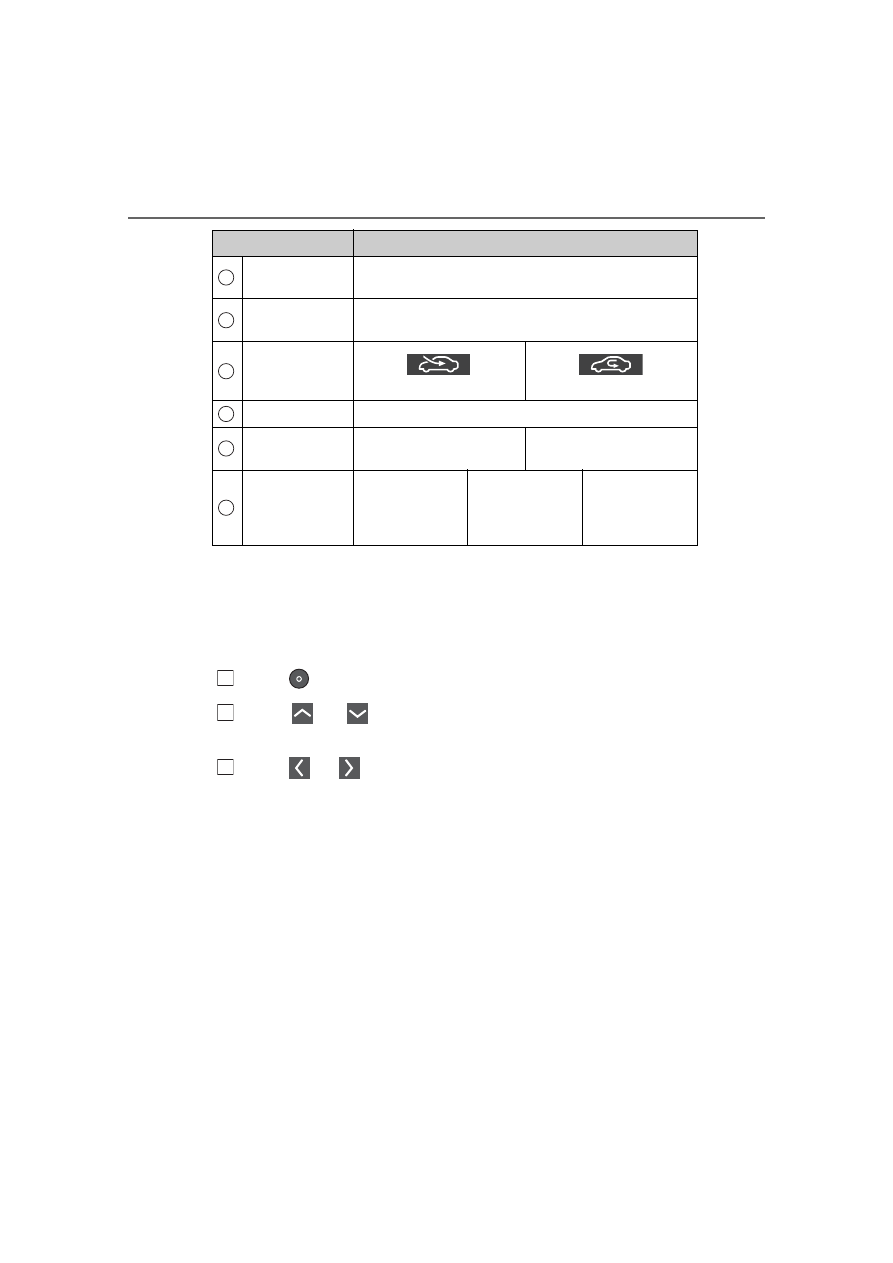

Menu icons

Contents

Pages

Drive information

The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion  such  as  electricity  consumption  and  fuel
consumption are displayed.

P. 222

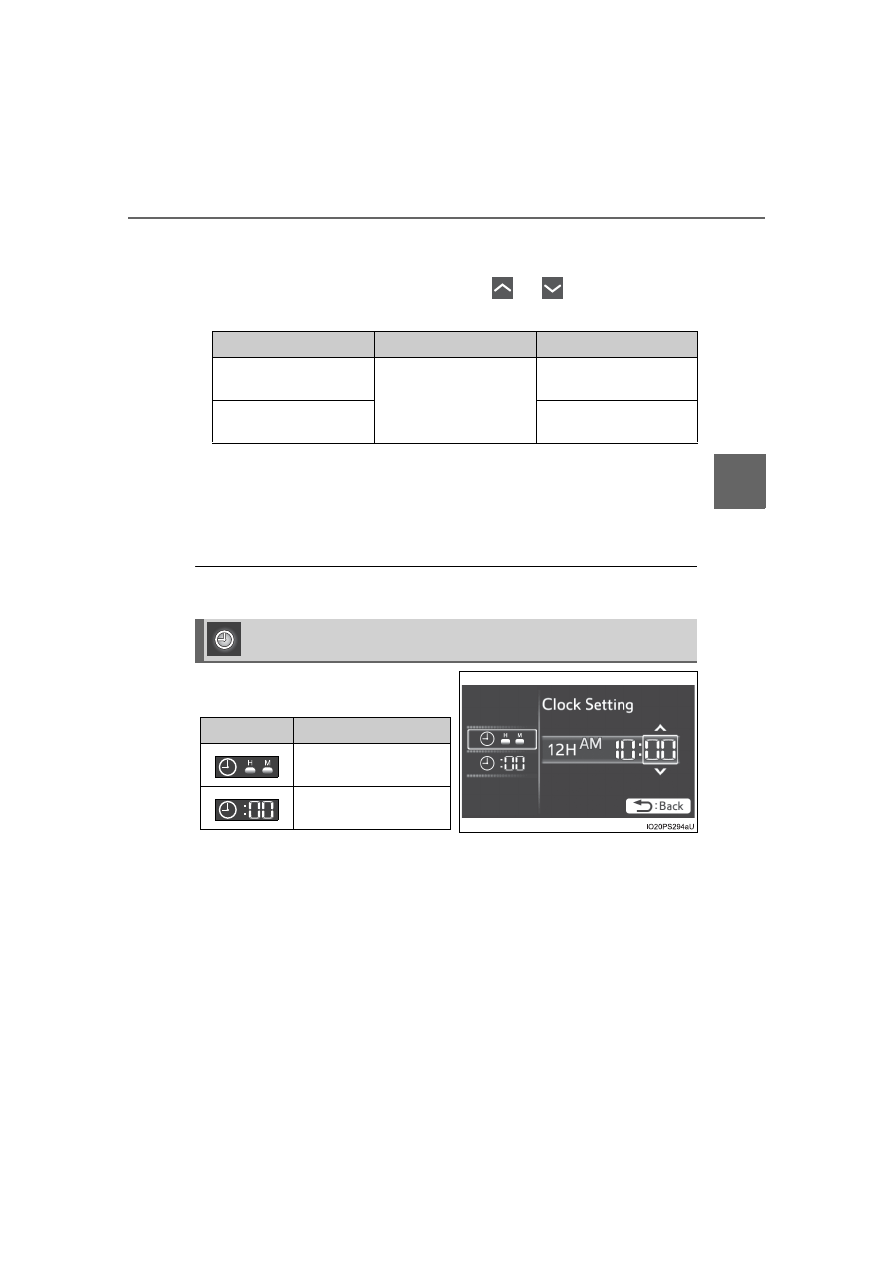

Clock setting display

The clock settings can be changed.

P. 239

Navigation

system-linked

display

(if

equipped)

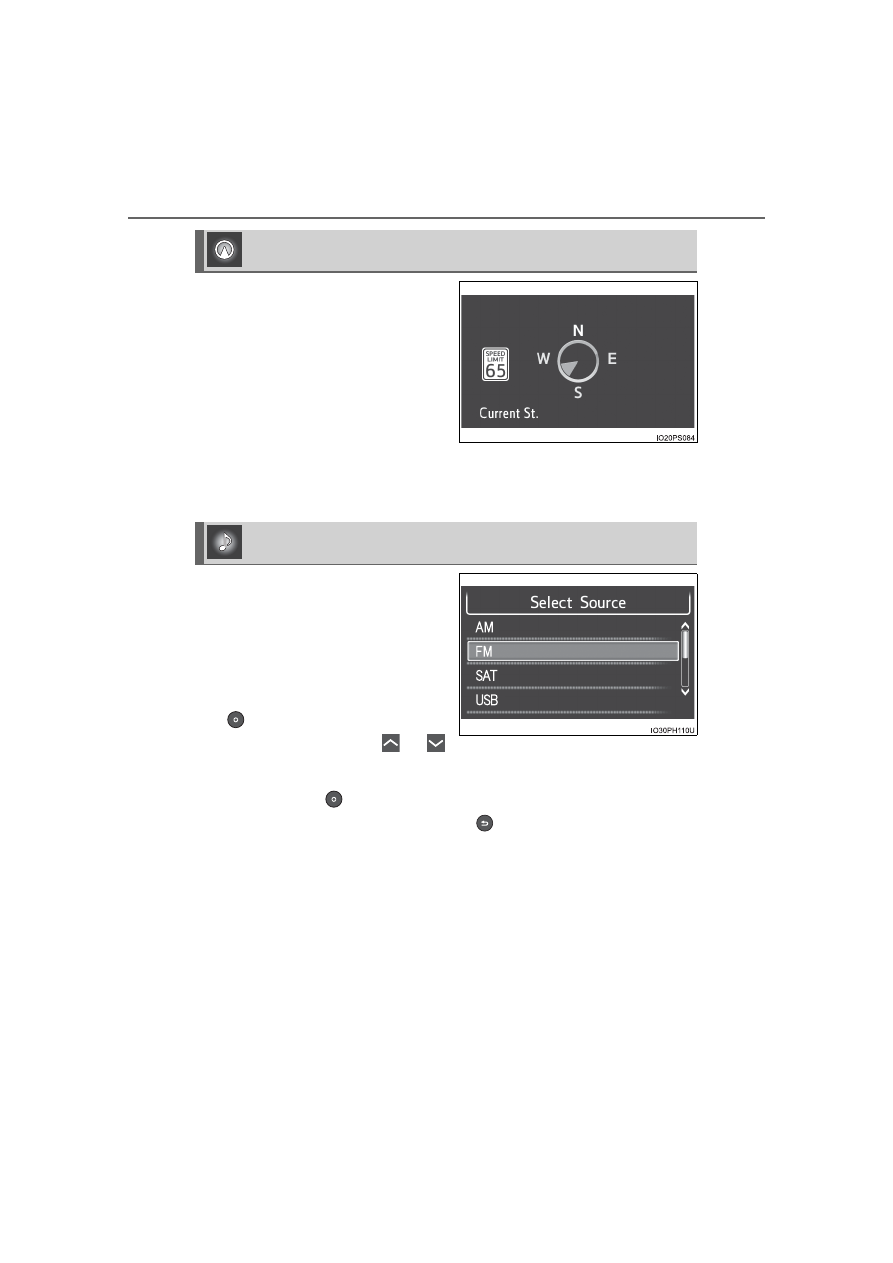

The information related to the navigation sys-
tem is displayed.

P. 240

Audio system-linked display

The audio system settings can be changed.

P. 240

Air conditioning system settings screen

The  air  conditioning  system  settings  can  be
changed.

P. 241

Driving assist system information

The  information  related  to  driving  assist  sys-
tems  such  as  the  LTA  (Lane  Tracing Assist)
and  dynamic  radar  cruise  control  with  full-
speed range is displayed.

P. 245

Warning message display

*

The warning messages are displayed.

P. 245

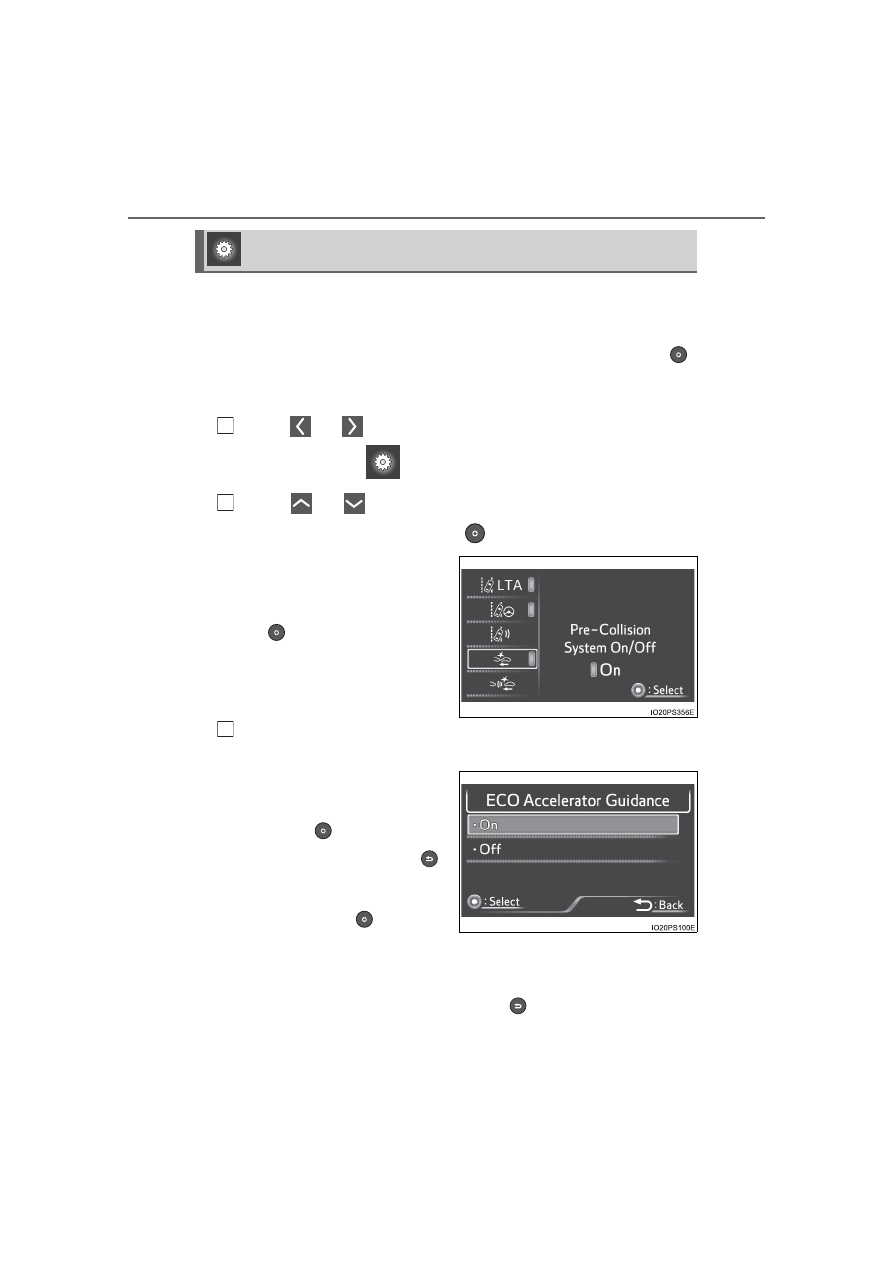

Settings display

The  settings  of  the  vehicle  functions,  meter
display, etc. can be changed.

P. 246

222

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

Press

 or

 of the meter control switches and select the icon

of the desired item.

The selected icon is highlighted and the display switches to the information
screen.
When split screen display is selected for the main display or RSA (Road
Sign  Assist)

*

  is  off,  the  sub-screen  of  the  main  display  can  also  be

selected. (



P. 216)

*

: If equipped

Press

 or

 of the meter control switches to switch the con-

tents of the display.
Press

  on  screens  where  it

is  necessary  to  select  or  con-
firm an item.

On  screens  with  tab  displays,
pressing

  selects  the  tab  dis-

play, and the screen display can be
changed by pressing

 or

 of

the meter control switches.

Press

 to return to the previous screen.

When

 is selected, the following information can be displayed by

pressing

 or

 of the meter control switches.

●

Energy monitor (



P. 223)

●

Hybrid System Indicator (



P. 225)

●

“Fuel Consumption Record” (



P. 233)

●

“Drive Monitor” (



P. 236)

●

“Drive Monitor 2” (



P. 237)

●

“Eco-Diary” (



P. 238)

Basic Operations

1

2

Tab display

3

 Drive information

4

PRIUS PRIME_OM_OM47D71U_(U)

223

3. Instrument cluster

3

Instrument clus

ter

◆

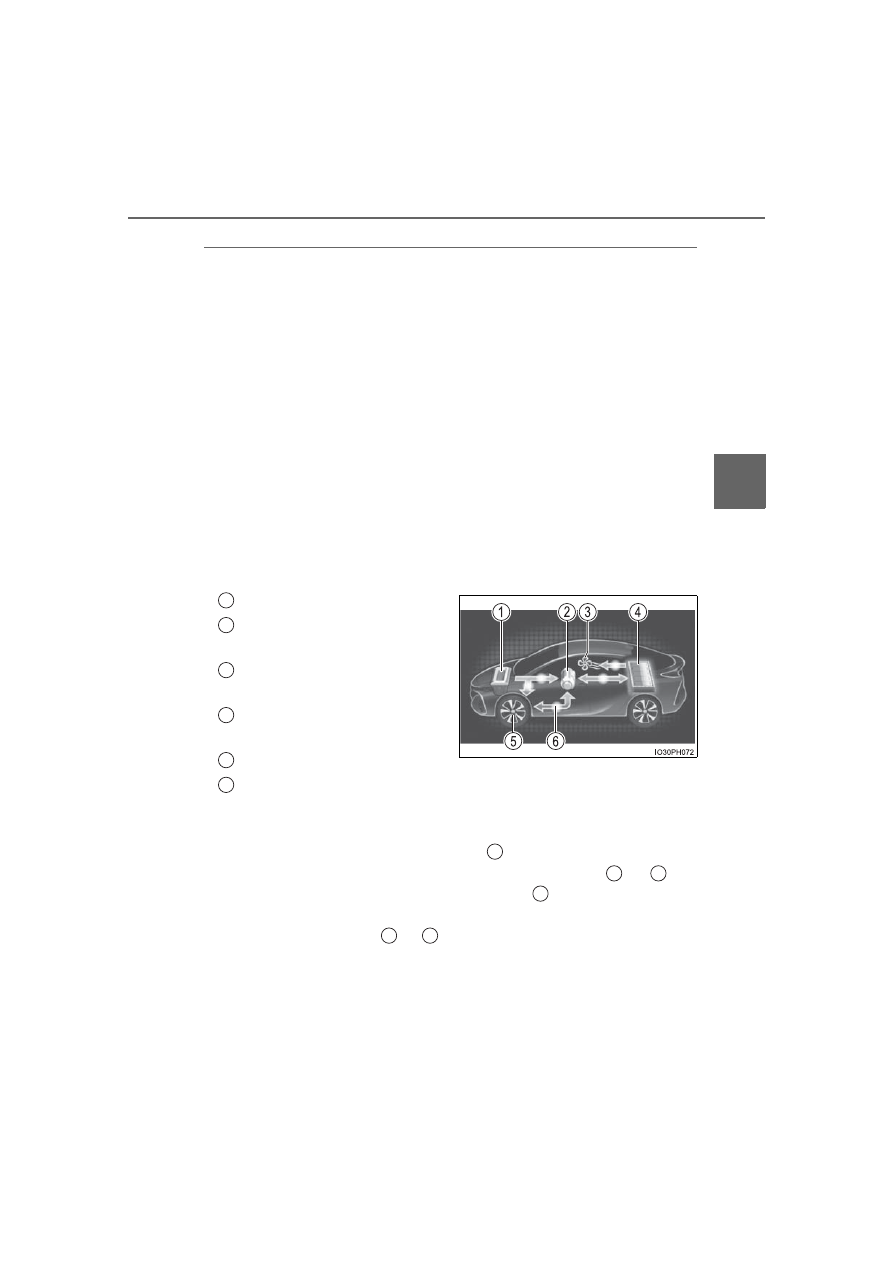

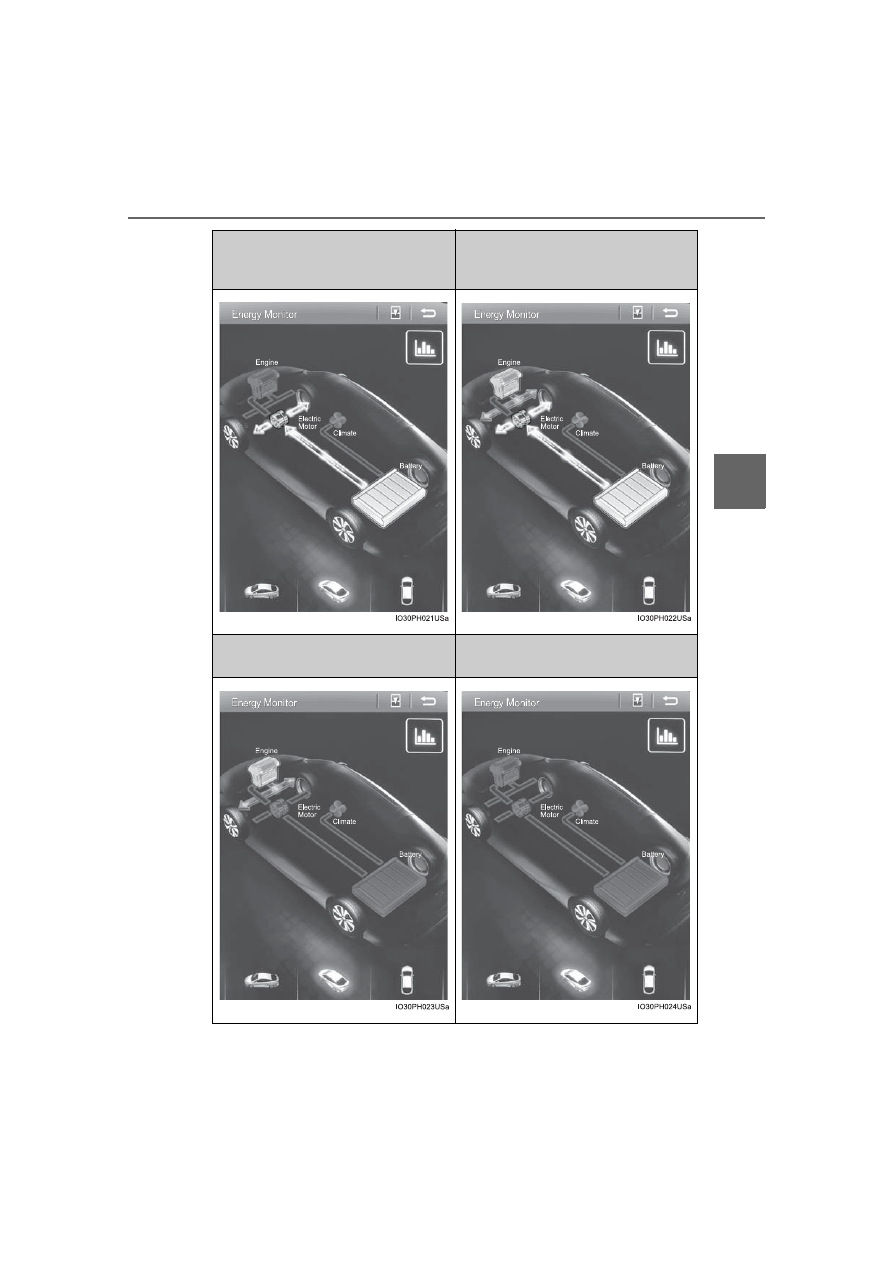

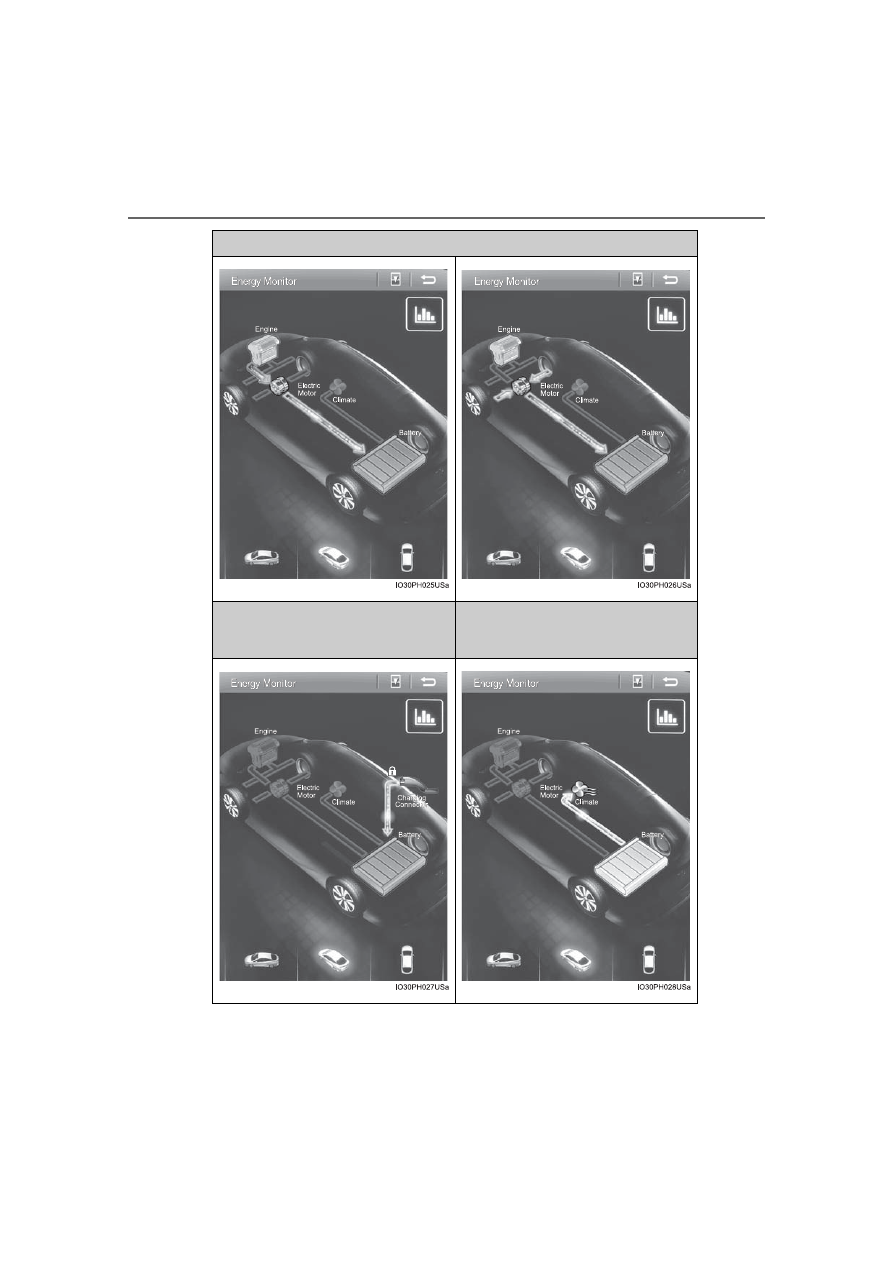

Energy monitor

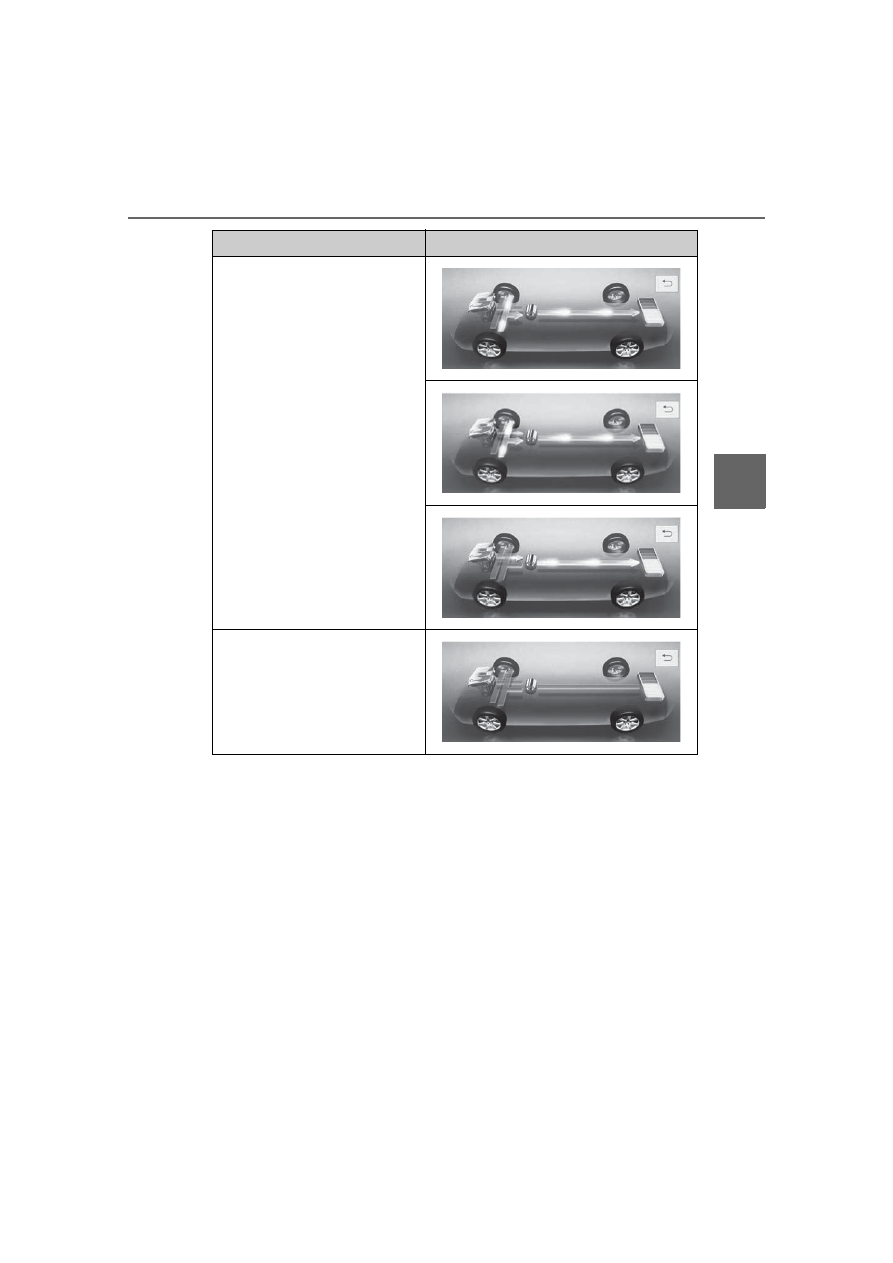

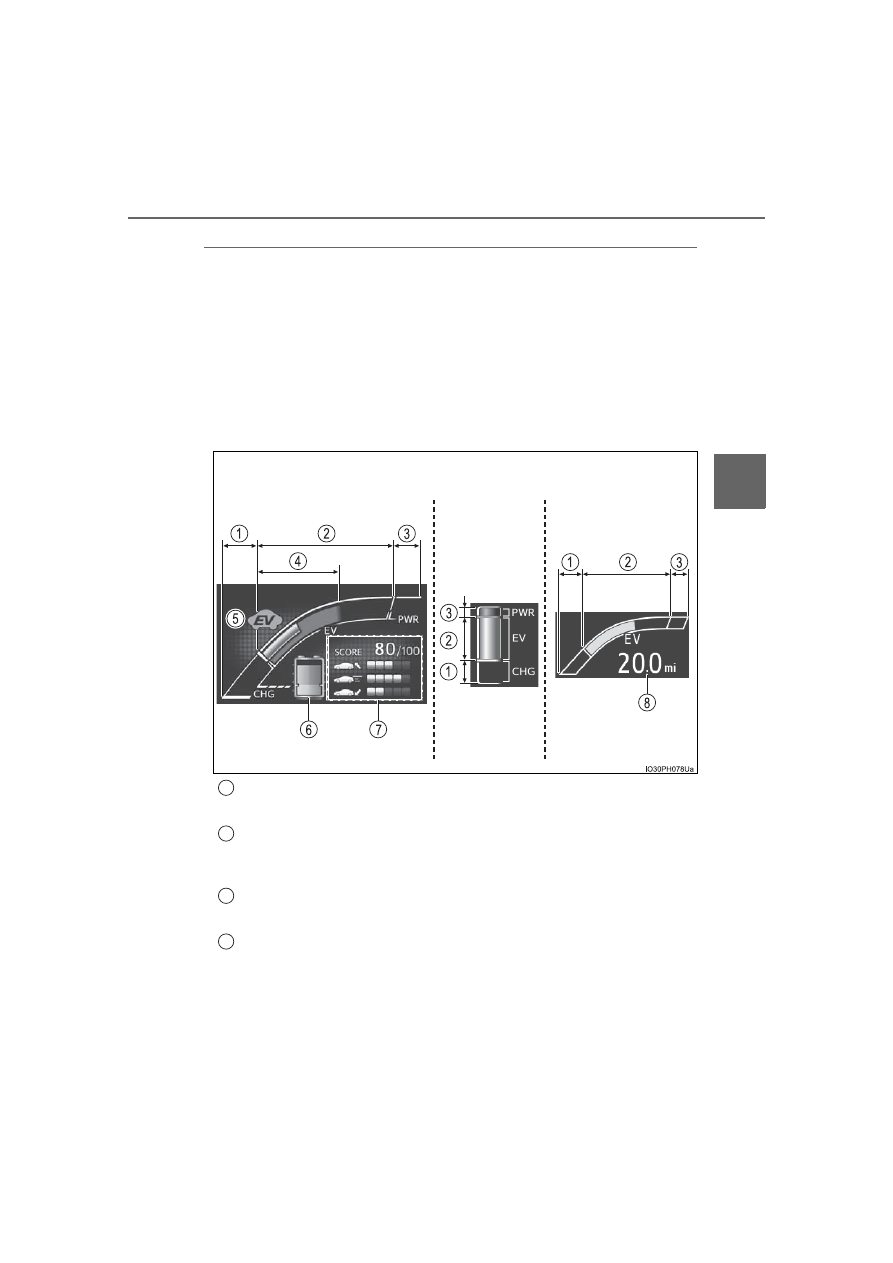

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.

While  charging  from  the  external  power  source,  the  flow  of  electrical
energy while charging is displayed.

When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.

●

The arrows from the image of the engine to that of the electric
motor (traction motor) or tires are displayed in red.

●

The arrow indicating energy consumption is displayed in yellow,
and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the color around the image of the hybrid
battery (traction battery) is changed.

As an example, all arrows are shown in the illustration, but the actual
contents of the display will differ.

■

Except when charging

Gasoline engine
Electric motor
(traction motor)
Air conditioning system oper-
ation

*

1

Hybrid battery
(traction battery)
Tire
Bright point of light showing the flow of energy

(Display example)

●

When the hybrid battery (traction battery) is being charged, the
bright point of light moves towards

.

●

During driving, the bright point of light moves from

 or

 (or

both depending on the situation) towards

.

*

2

●

When the air conditioning compressor is operating, a bright point
of light moves from

 to

.

●

During driving, the image of the tires rotates.

*

1

: It is displayed while the air conditioning system is operating.

*

2

: The display may differ depending on the driving status.

1
2

3

4

5
6

4

1

2

5

4

3

224

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

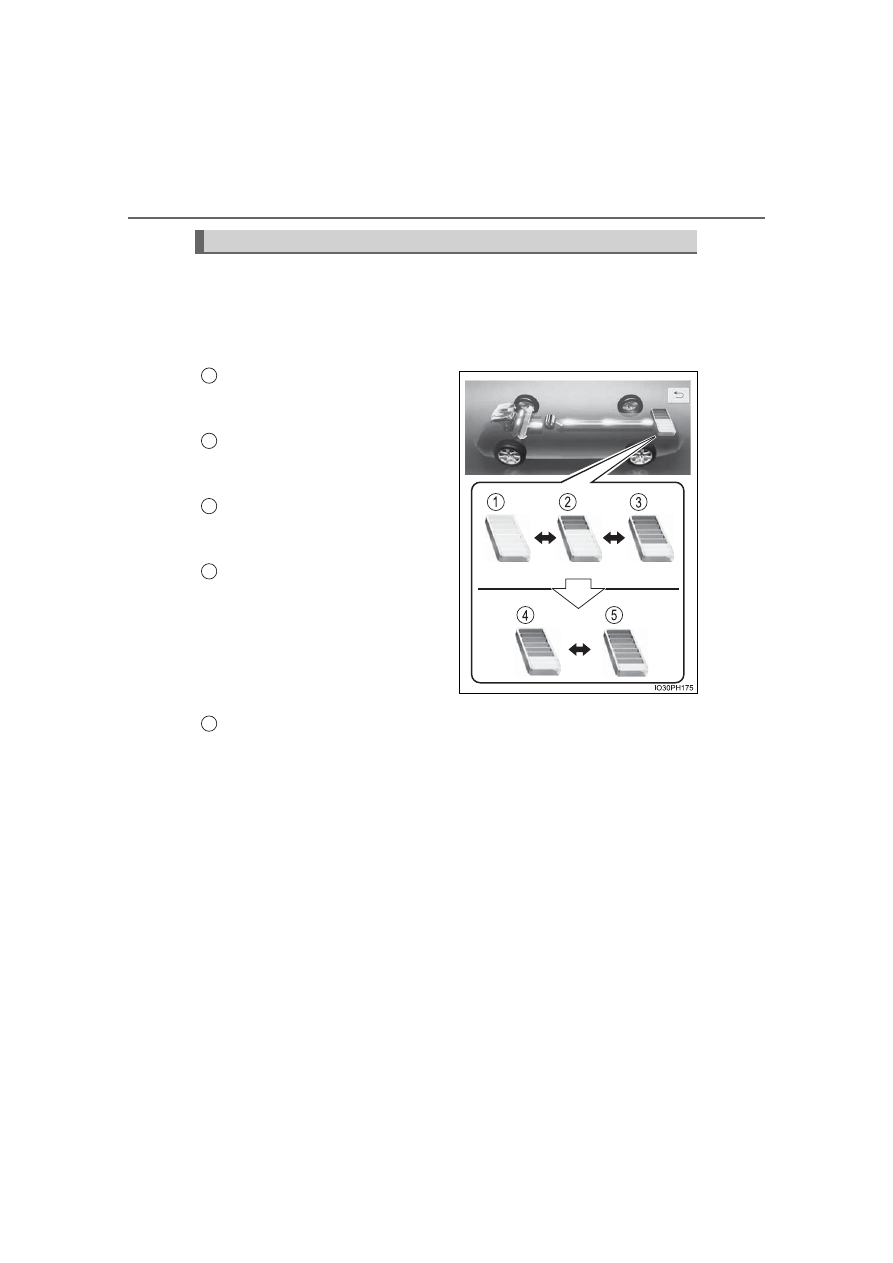

While charging

Hybrid  battery  (traction  bat-
tery)
Charging connector

(Display example)

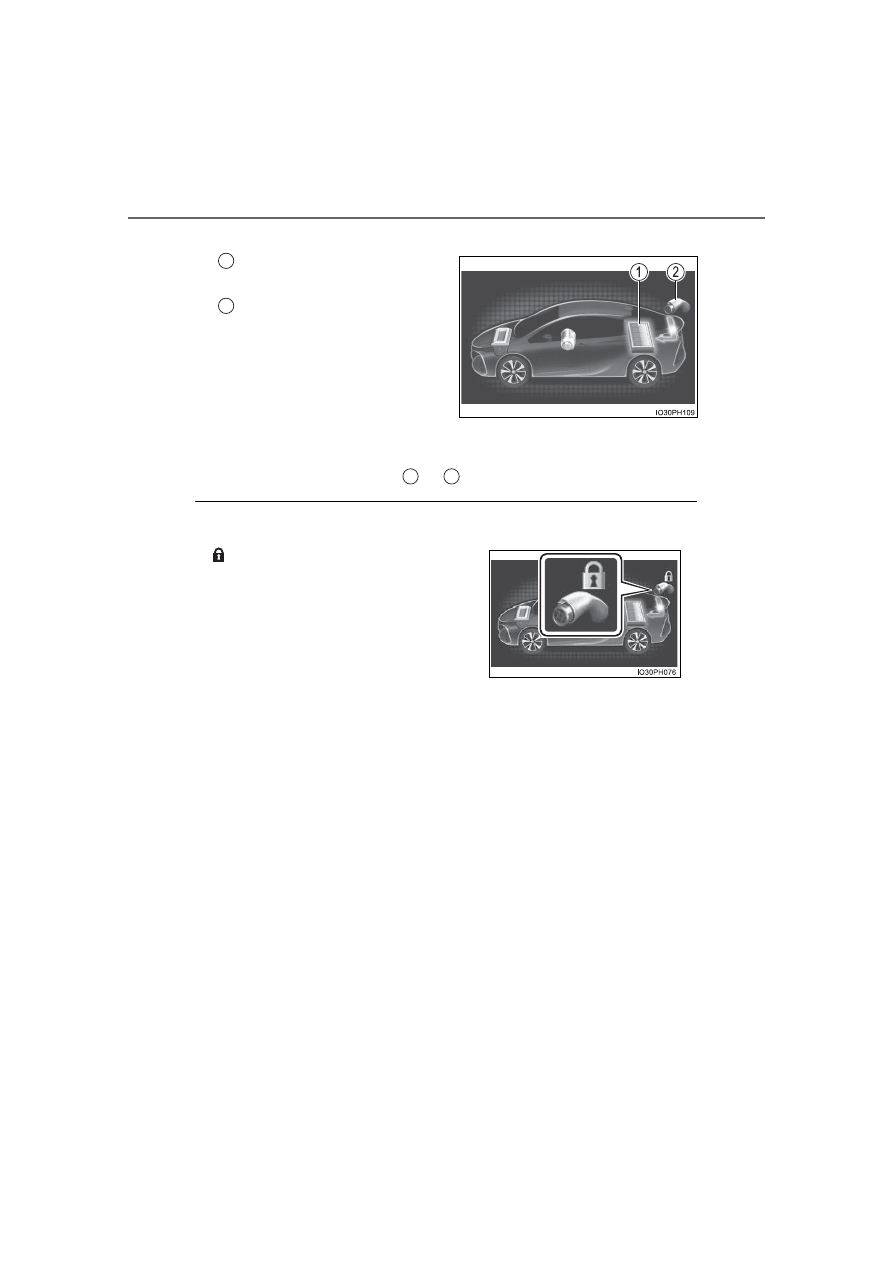

When the hybrid battery (traction battery) is being charged, a bright
point of light moves from

 to

.

■

When the charging connector is locked (vehicles with smart lid & con-
nector locking system) (



P. 148)

1

2

 is displayed in the charging connector

display portion on the energy monitor.

2

1

PRIUS PRIME_OM_OM47D71U_(U)

225

3. Instrument cluster

3

Instrument clus

ter

◆

Hybrid System Indicator

The display changes according to accelerator pedal operation and
displays the current driving status and energy regeneration status.

The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.
The Hybrid System Indicator can be displayed on the sub-screen of the
main display (



P. 217) and the head-up display (if equipped)

(



P. 254).

■

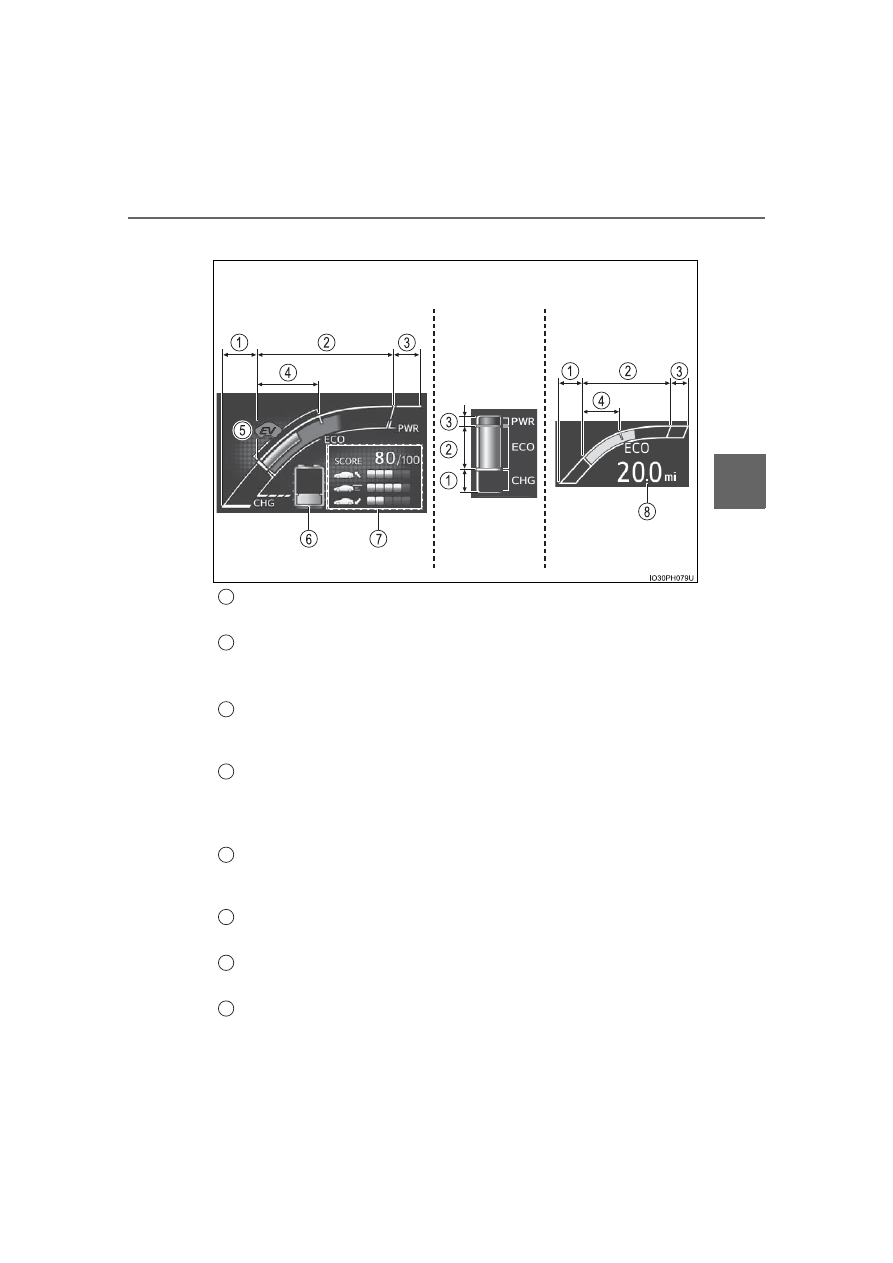

How to read the display



In EV mode

Charge area

Shows that energy is being recovered via the regenerative charging.

EV driving area

Shows that the vehicle is driven using only the electric motor (traction
motor).

Gasoline engine running area

Shows that the gasoline engine is used as auxiliary power.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (



P. 228)

*

1

Head-up display

(if equipped)

Sub-screen

Multi-information

display

1

2

3

4

226

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

EV indicator

*

1, 2

The  EV  indicator  comes  on  when  the  vehicle  is  driven  using  only  the
electric motor (traction motor) or the gasoline engine is stopped.

Hybrid battery (traction battery) status



P. 231

Eco score



P. 229

EV driving range



P. 254

●

By keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.

●

Charge  area  indicates  regeneration

*

3

  status.  Regenerated

energy will be used to charge the hybrid battery (traction battery).

*

1

: Not displayed on the sub-screen or head-up display.

*

2

: The  EV  indicator  function  can  be  turned  off  in  the  “Meter  Customize”

settings. (



P. 248)

*

3

: When  used  in  this  manual,  “regeneration”  refers  to  the  conversion  of

energy created by the movement of the vehicle into electrical energy.

5

6

7

8

PRIUS PRIME_OM_OM47D71U_(U)

227

3. Instrument cluster

3

Instrument clus

ter



In HV mode

Charge area

Shows that energy is being recovered via the regenerative charging.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (



P. 228)

*

1

Power area

Shows that an Eco-friendly driving range is being exceeded (during full
power driving etc.)

Hybrid Eco area

*

2

Shows that gasoline engine power is not being used very often.
The  gasoline  engine  will  automatically  stop  and  restart  under  various
conditions.

EV indicator

*

1, 3

The  EV  indicator  comes  on  when  the  vehicle  is  driven  using  only  the
electric motor (traction motor) or the gasoline engine is stopped.

Hybrid battery (traction battery) status



P. 231

Eco score



P. 229

EV driving range



P. 254

Head-up display

(if equipped)

Sub-screen

Multi-information

display

1

2

3

4

5

6

7

8

228

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

●

By keeping the indicator within Eco area, more Eco-friendly driv-
ing can be achieved.

●

Charge  area  indicates  regeneration

*

4

  status.  Regenerated

energy will be used to charge the hybrid battery (traction battery).

*

1

: Not displayed on the sub-screen or head-up display.

*

2

: Not displayed on the sub-screen.

*

3

: The  EV  indicator  function  can  be  turned  off  in  the  “Meter  Customize”

settings. (



P. 248)

*

4

: When  used  in  this  manual,  “regeneration”  refers  to  the  conversion  of

energy created by the movement of the vehicle into electrical energy.

■

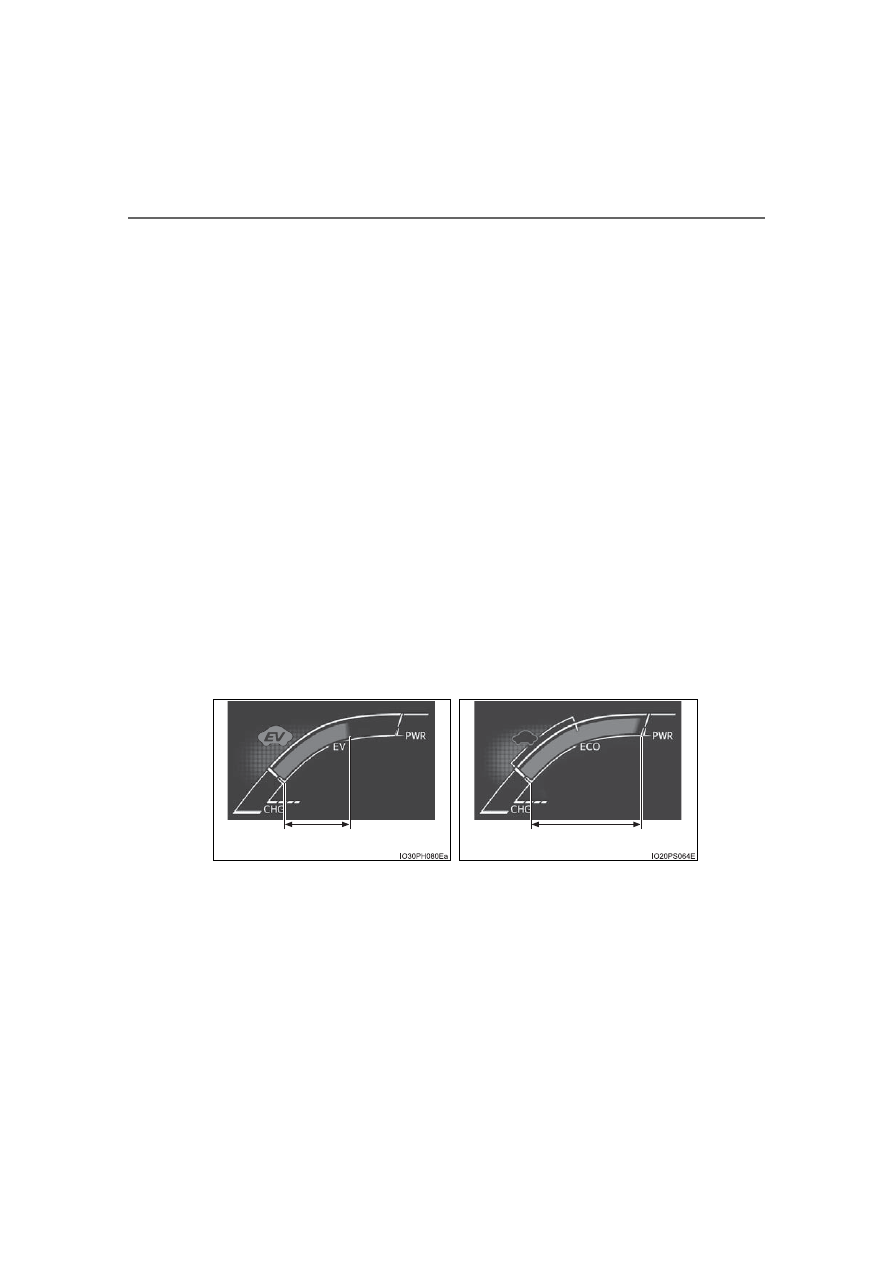

“ECO Accelerator Guidance”

A blue zone is displayed in the Eco area which can be used as a
reference operation range for using the accelerator pedal according
to driving conditions such as starting off and cruising.

The “ECO Accelerator Guidance” display changes according to the driv-
ing status, such as when starting off or cruising.
It is easier to drive in an Eco-friendly manner by driving according to the
display showing the accelerator pedal operations and staying within the
“ECO Accelerator Guidance” range. (



P. 322)

The  “ECO  Accelerator  Guidance”  function  can  be  turned  off  in  the
“Meter Customize” settings. (



P. 248)



In EV mode



In HV mode

“ECO Accelerator Guidance”

“ECO Accelerator Guidance”

PRIUS PRIME_OM_OM47D71U_(U)

229

3. Instrument cluster

3

Instrument clus

ter

■

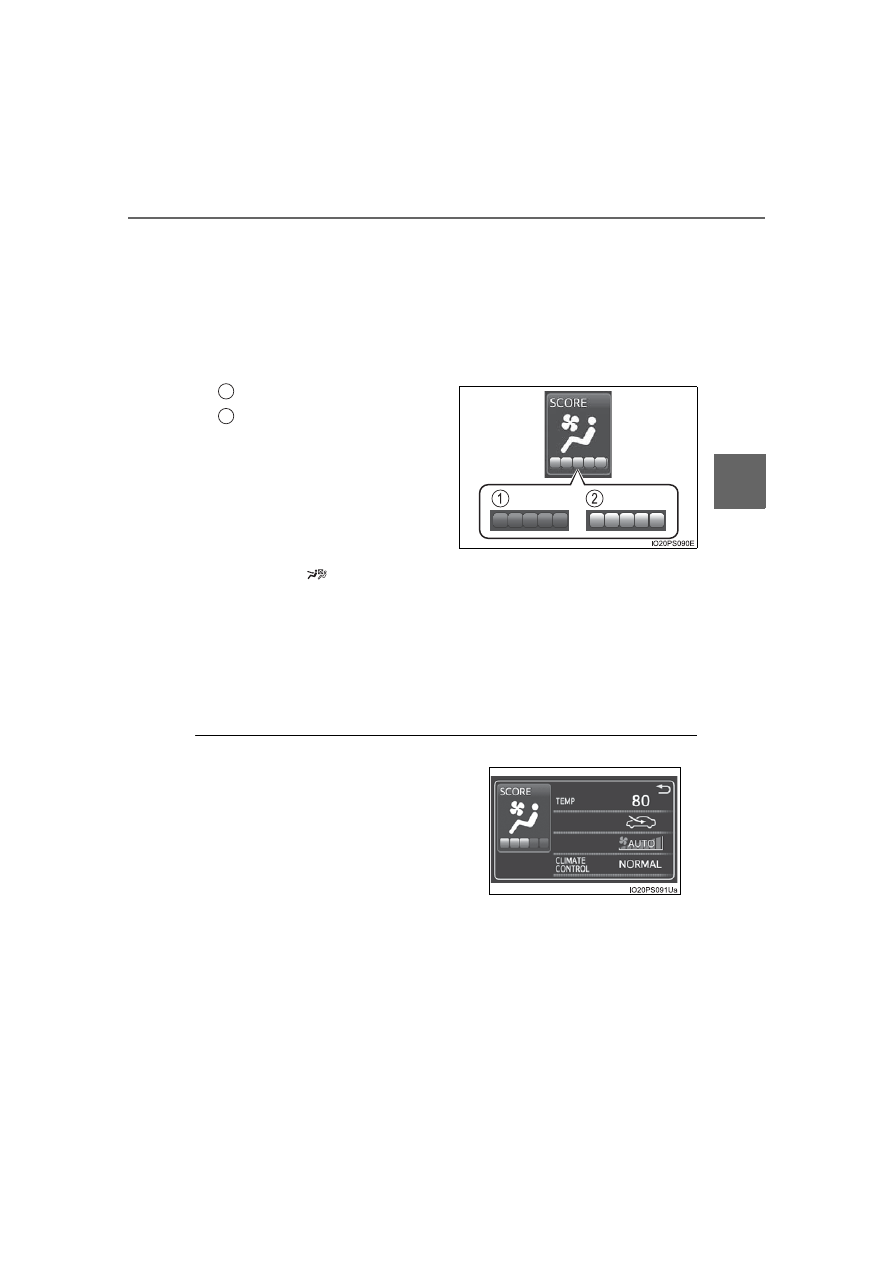

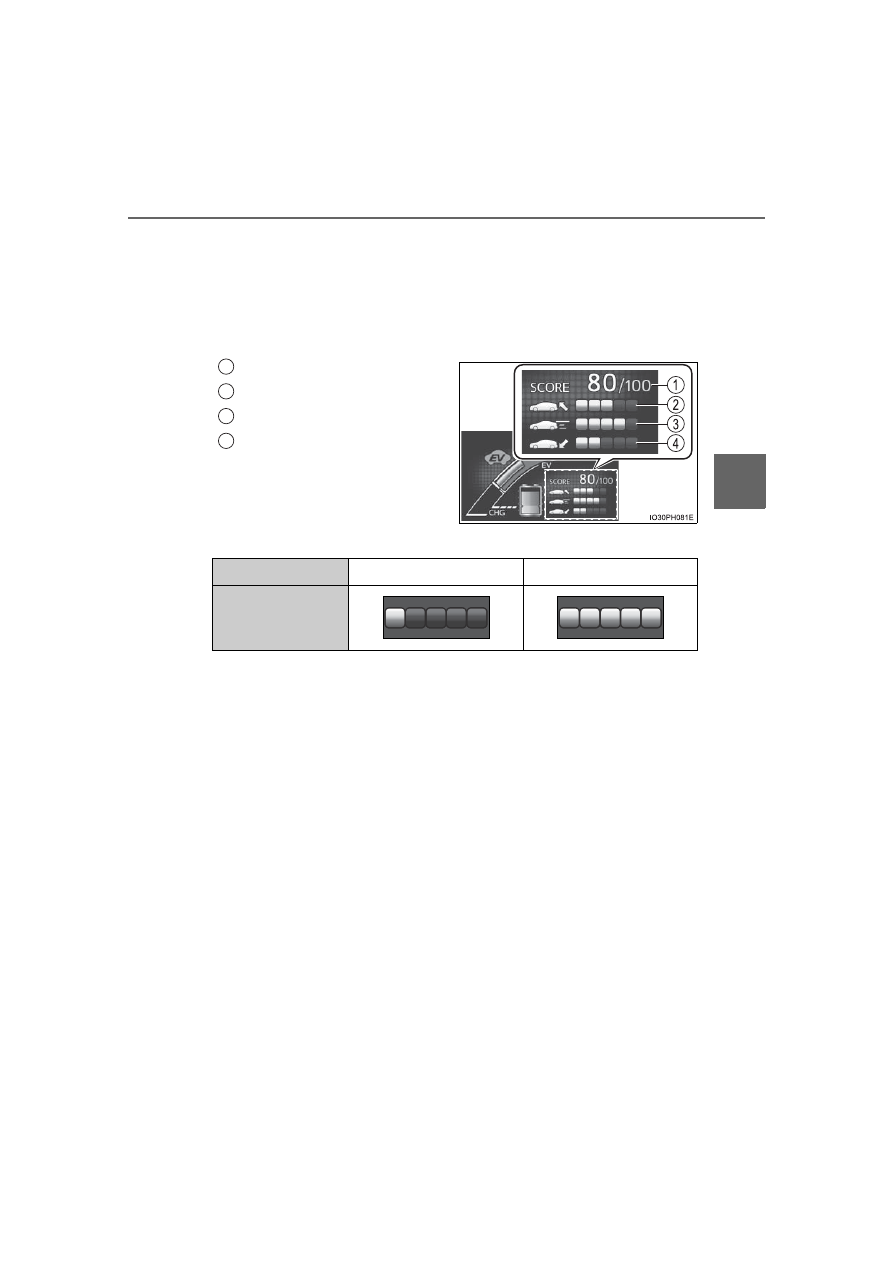

Eco score

The driving status for the following 3 situations are evaluated in 5
levels:  Smooth  start-off  acceleration  (“Eco-Start”),  driving  without
sudden  acceleration  (“Eco-Cruise”)  and  smooth  stopping  (“Eco-
Stop”). Each time the vehicle is stopped, a score result is displayed
out of a perfect score of 100 points.

Score result
“Eco-Start” status
“Eco-Cruise” status
“Eco-Stop” status

How to read the bar display:

*

: For items not currently evaluated, the display reads 0.

●

The Eco score is reset each time the vehicle starts off to start a new
evaluation.

●

When  the  shift  position  is  P,  only  the  Eco  score  display  area  is
enlarged and displayed. When the shift position is shifted from P,
the display returns to normal.

●

When  the  hybrid  system  stops,  the  current  total  score  result  and
advice on how to increase the score are displayed. (



P. 196)

1
2
3
4

Score

Low

*

High

Bar display

230

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Information display of EV driving

One of the following 2 information in the items of “HV System Indi-
cator” in “Meter Customize” settings can be selected to display in
the left upper corner of the Hybrid System Indicator. (



P. 248)



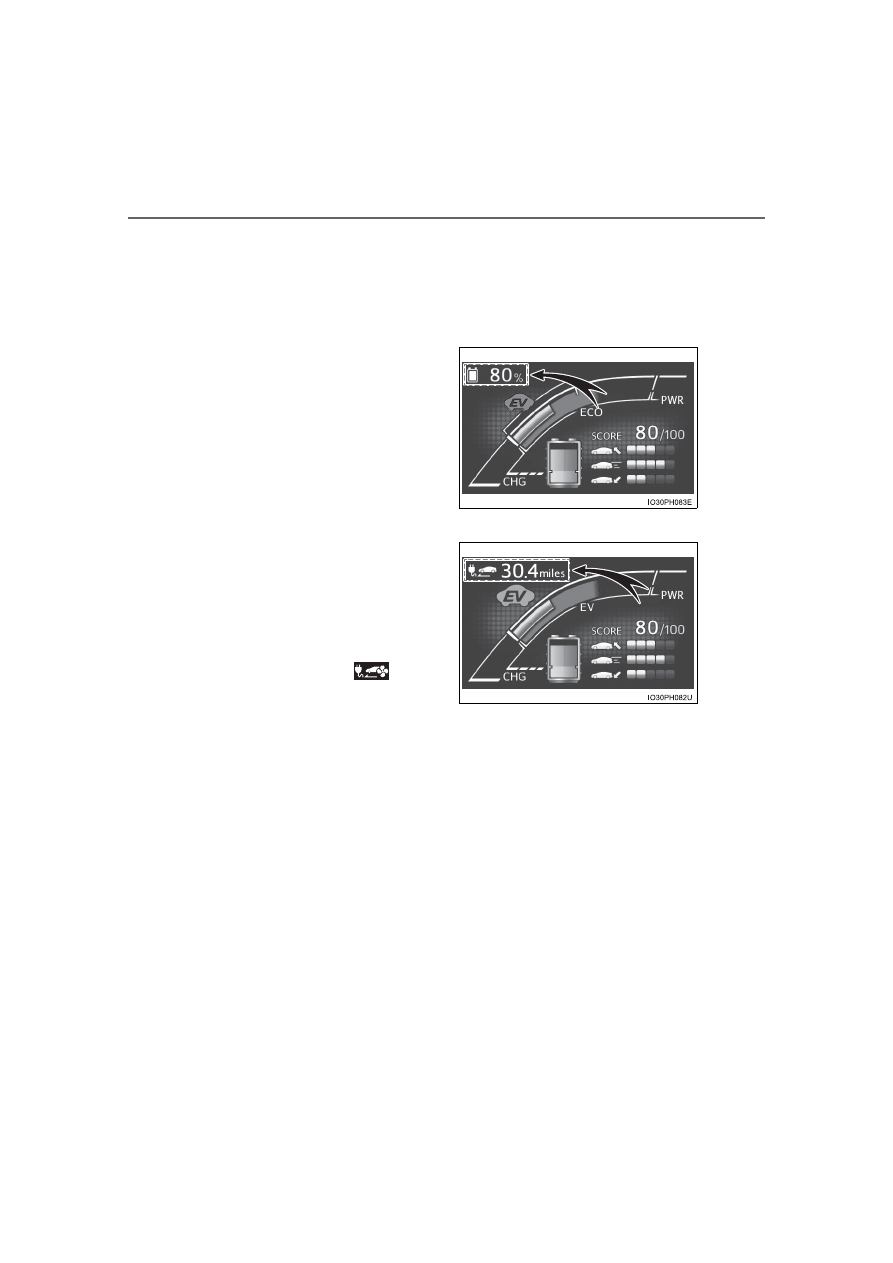

“EV Energy”

The  percentage  of  the  remain-
ing  hybrid  battery  (traction  bat-
tery)  that  can  be  used  for  EV
driving is displayed.

Becomes 100% when the hybrid
battery  (traction  battery)  is  fully
charged.



“EV Distance”

The  approximate  distance  that
can  be  driven  using  only  the
electric motor (traction motor).
(



P. 108)

When  the  air  conditioning  sys-
tem  is  operating,  the  icon  dis-
play  changes  to

  and  the

driving range with the air condi-
tioning system on is displayed.

PRIUS PRIME_OM_OM47D71U_(U)

231

3. Instrument cluster

3

Instrument clus

ter

■

When operation of each function stops

●

The Hybrid System Indicator stops operating in the following situations.
• The “READY” indicator is not illuminated.
• The shift position is not D or B.

●

The Eco score and “ECO Accelerator Guidance” stop operating in the fol-
lowing situations.
• The Hybrid System Indicator is not operating.
• Dynamic radar cruise control with full-speed range is being used.

■

Display of the remaining hybrid battery (traction battery)

●

The current amount of the remaining hybrid battery (traction battery) is dis-
played in the Hybrid System Indicator or the sub-screen on the main display.
(



P. 217)

• The remaining battery for EV driving in EV mode is displayed in green,

and the remaining battery used in HV mode is displayed in blue.

• The amount of the remaining battery displayed decrease as the vehicle is

driven and increase when the hybrid battery (traction battery) is charged,
electrical energy is regenerated using the regenerative braking (



P. 94)

or electricity is generated by the gasoline engine.

• If the remaining battery is not displayed in green, HV mode is automati-

cally  selected  and  EV  mode  cannot  be  used.  To  enable  EV  driving,
charge the hybrid battery (traction battery). (



P. 110)

●

The amount of the hybrid battery (traction battery) in HV mode is automati-
cally controlled by the hybrid system. The amount of remaining hybrid battery
(traction battery) in HV mode may not reach the top line

*

 even if electrical

energy is regenerated using the regenerative braking (



P. 94) or electricity

is generated by the gasoline engine. However, this does not indicate a mal-
function. Also,  even  if  the  display  of  the  remaining  hybrid  battery  (traction
battery) exceeds the top line, the display is shown in blue until the vehicle
returns to EV mode.

*

: The position of the boundary line between EV mode and HV mode on the

display of the remaining hybrid battery (traction battery).

●

Depending  on  the  charging  situation,  when  the  display  of  the  remaining
hybrid battery (traction battery) is shown during charging, charging contin-
ues even after the display of the remaining hybrid battery (traction battery)
shows a fully charged state. However, this does not indicate a malfunction.
Please wait until charging is finished.

The hybrid battery (traction battery)
is fully charged
The hybrid battery (traction battery)
for EV mode is not remaining

1

2

232

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains  without  charging  while  the  shift  position  is  in  N,  or  the  remaining
charge amount drops below a certain level.
If  the  remaining  charge  amount  drops  further,  the  buzzer  sounds  continu-
ously.

●

When a warning message is shown on the multi-information display and the
buzzer  sounds,  follow  the  instructions  displayed  on  the  screen  to  perform
troubleshooting.

■

About the Eco score

●

After  starting  off,  Eco  score  display  does  not  start  until  the  vehicle  speed
exceeds approximately 19 mph (30 km/h).

●

In addition to the vehicle driving status, the Eco score also evaluates the air
conditioning system usage condition (



P. 243). The score displayed when

the  hybrid  system  stops  is  the  total  result  of  the  driving  status  after  the
hybrid system starts and the air conditioning usage condition.

■

“EV Energy” and “EV Distance” display

The  rate  at  which  the  “EV  Energy”  and  “EV  Distance”  remaining  amount
decreases  depends  on  the  driving  conditions  of  the  vehicle. Also,  the  “EV
Energy” and “EV Distance” remaining amount may decrease due to system
power consumption even though the vehicle is not being driven.

■

Predictive Efficient Drive (Predictive Deceleration Support)
(vehicles with 11.6-inch display)

When a predictive deceleration support point registered in the navigation sys-
tem  is  approached,  the  system  turns  off  the  Eco  accelerator  guide  and
informs the driver of releasing the accelerator pedal early.
For details about Predictive Efficient Drive (Predictive Deceleration Support),
refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.

PRIUS PRIME_OM_OM47D71U_(U)

233

3. Instrument cluster

3

Instrument clus

ter

◆

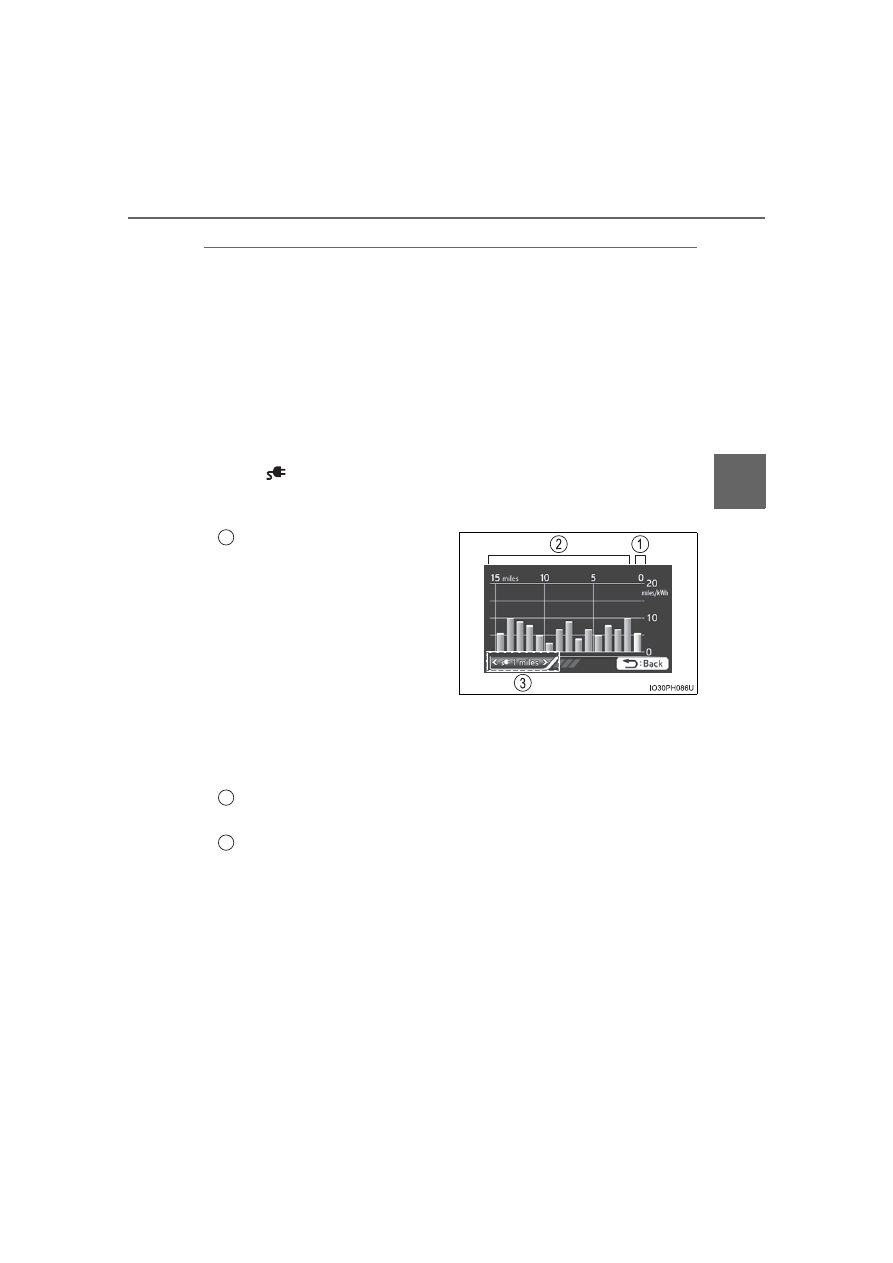

“Fuel Consumption Record”



When the unit is set to “MPH”

The  transitions  of  the  average  fuel  consumption  after  the  hybrid
system starts can be checked in units of 1 mile (1.6 km) or 5 miles
(8 km) of driving.



When the unit is set to “km/h”

The  transitions  of  the  average  fuel  consumption  after  the  hybrid
system starts can be checked in units of 1 km (0.6 mile) or 5 km
(3.1 miles) of driving.

■

How to read the screen

The “

 1  miles” display is shown as an example. However, the

basic method for how to read the screen is the same for each fuel
consumption history screen.

Current  average  electricity
and  fuel consumption  record
(yellow display)

When the unit is set to “MPH”:
When  the  recorded  unit  is
exceeded (every 1 mile [1.6 km]
or  5  miles  [8  km]  the  currently
displayed

history

moves

towards the left side and the old-
est record is deleted.
When the unit is set to “km/h”:
When the recorded unit is exceeded (every 1 km [0.6 mile] or 5 km [3.1
miles]) the currently displayed history moves towards the left side and
the oldest record is deleted.

Past average electricity and fuel consumption record (green dis-
play)
Tab display

Displays types of “Fuel Consumption Record”.

1

2

3

234

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Types of “Fuel Consumption Record”



When the unit is set to “MPH”

*

: This record is reset each time the hybrid system stops.



When the unit is set to “km/h”

*

: This record is reset each time the hybrid system stops.

Tab display

Recorded contents

Recorded range

“



1 miles”

Average  electricity  con-
sumption  of  every  1  mile
(1.6 km) driven

*

The last 15 miles (24.1 km)
driven

“



5 miles”

Average  electricity  con-
sumption of every 5 miles (8
km) driven

*

The last 30 miles (48.3 km)
driven

“



1 miles”

Average  fuel  consumption
of  every  1  mile  (1.6  km)
driven

*

The last 15 miles (24.1 km)
driven

“



5 miles”

Average  fuel  consumption
of  every  5  miles  (8  km)
driven

*

The last 30 miles (48.3 km)
driven

Tab display

Recorded contents

Recorded range

“



1 km”

Average  electricity  con-
sumption  of  every  1  km
(0.6 mile) driven

*

The  last  15  km  (9.3  miles)
driven

“



5 km”

Average  electricity  con-
sumption  of  every  5  km
(3.1 miles) driven

*

The last 30 km (18.6 miles)
driven

“



1 km”

Average  fuel  consumption
of  every  1  km  (0.6 mile)
driven

*

The  last  15  km  (9.3  miles)
driven

“



5 km”

Average  fuel  consumption
of  every  5  km  (3.1 miles)
driven

*

The last 30 km (18.6 miles)
driven

PRIUS PRIME_OM_OM47D71U_(U)

235

3. Instrument cluster

3

Instrument clus

ter

■

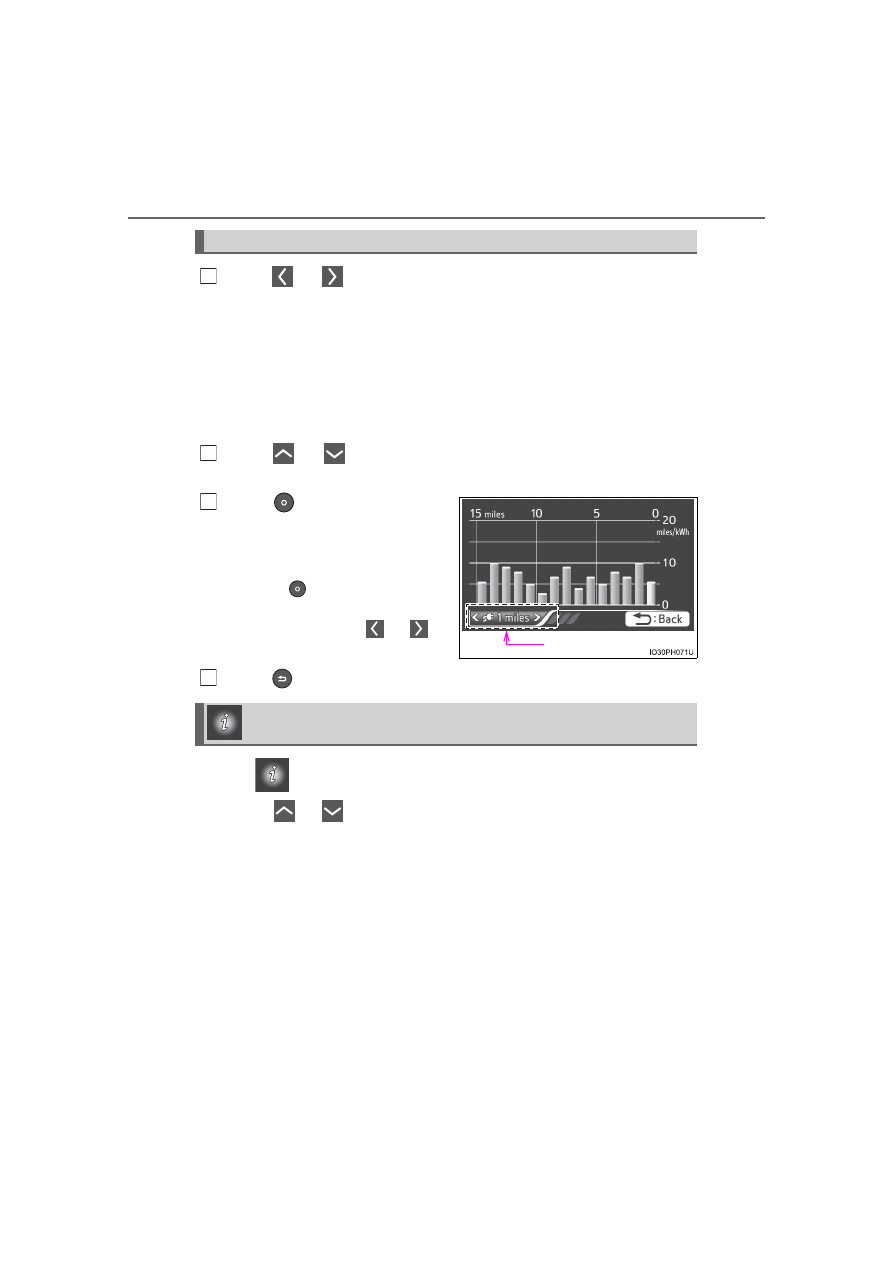

Switching the electricity and fuel consumption history screen

While the “Fuel Consumption Record” screen is displayed, press

.

The tab display is selected and it is possible to switch the contents of
the display.

Press

 or

 of the meter control switches to switch the con-

tents of the display.

Each time

 is pressed, the display switches in the following order:



When the unit is set to “MPH”

“



1 miles”, “



5 miles”, “



1 miles” and “



5 miles”

*

1

. When

is pressed, it switches in the reverse order.



When the unit is set to “km/h”

“



1  km”,  “



5  km”,  “



1  km”  and  “



5  km”

*

2

.  When

  is

pressed, it switches in the reverse order.

*

1

: After “



5 miles”, the display returns to “



1 miles”.

*

2

: After “



5 km”, the display returns to “



1 km”.

1

2

236

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

◆

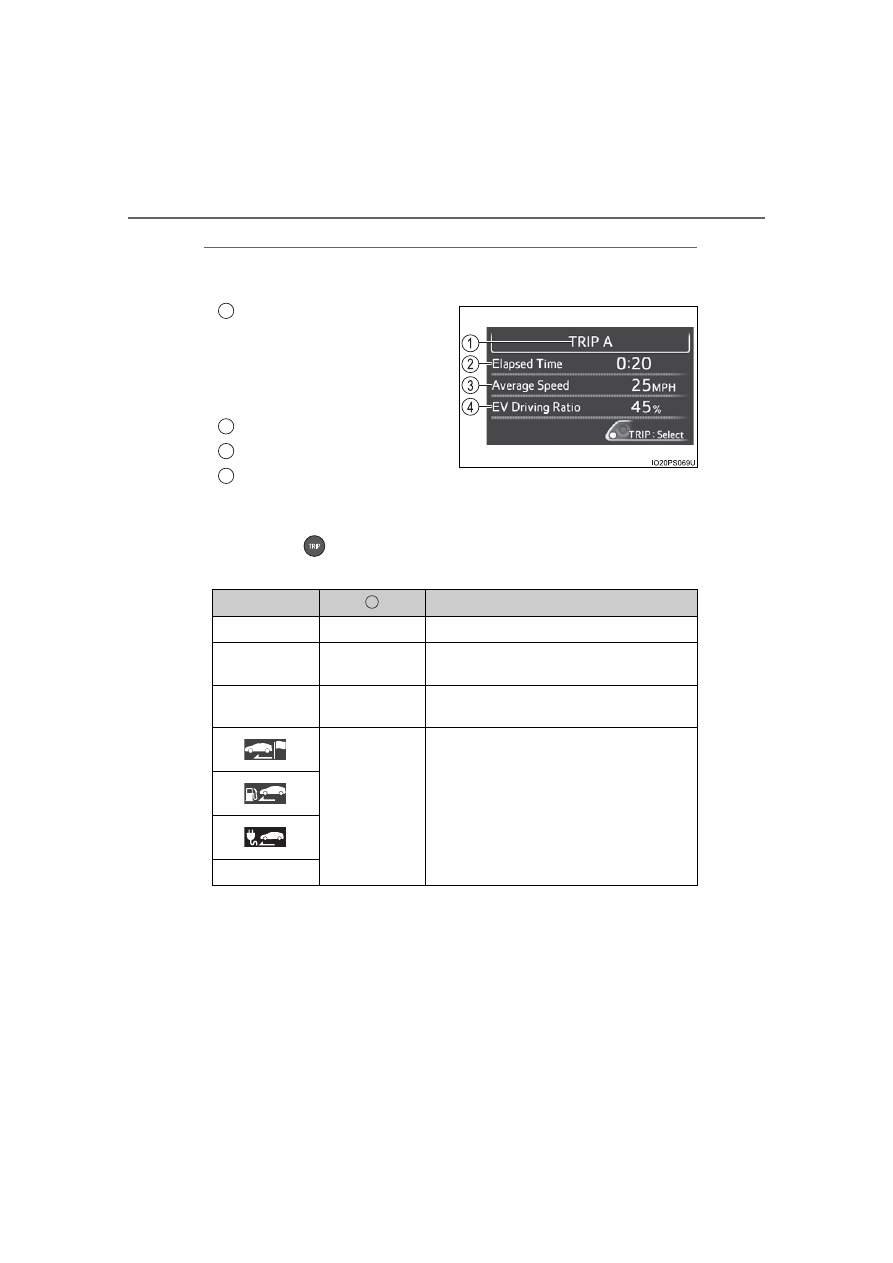

“Drive Monitor”

Displays information such as the driving time and average vehicle
speed, which are linked with the current mileage display. (



P. 213)

Current  contents  of  the  dis-
play

Displayed  information  shows
which  driving  record  the  cur-
rently  displayed  contents  are
based on.

“Elapsed Time”
“Average Speed”
“EV Driving Ratio”

For the displayed distance of the mileage display, the percent traveled
using only electric motor power is displayed.

Each time

 is pressed, the mileage display (



P. 213) switches

and the contents of the “Drive monitor” change as follows.

*

1

: When the average fuel consumption is reset (



P. 214), the “Drive monitor”

display is also reset.

*

2

: When the trip meter is reset (



P. 214), the “Drive monitor” display is also

reset.

*

3

: This item is reset each time the hybrid system starts.

1

2
3
4

Mileage display

Contents of the “Drive monitor”

ODO

After Reset

Information since last reset

*

1

TRIP A

TRIP A

Information  based  on  driving  record  of
TRIP A

*

2

TRIP B

TRIP B

Information  based  on  driving  record  of
TRIP B

*

2

After Start

Information  since  hybrid  system  was
started

*

3

Blank screen

1

PRIUS PRIME_OM_OM47D71U_(U)

237

3. Instrument cluster

3

Instrument clus

ter

◆

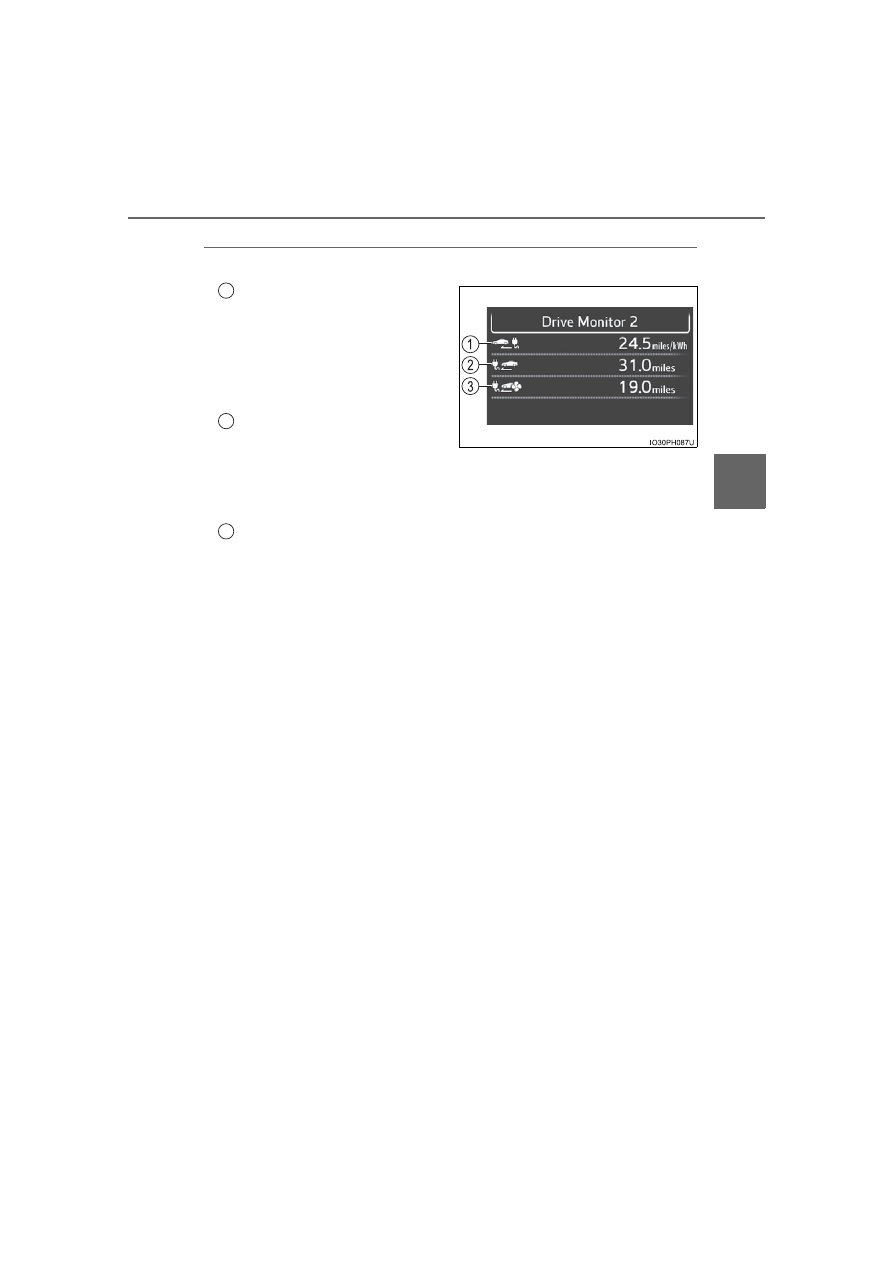

“Drive Monitor 2”

The following information of EV driving is displayed.

Total average electricity con-
sumption
Indicates  the  total  average
electricity  consumption  since
last  reset  until  it  is  reset
again.

*

1

EV  driving  range  (without
using  the  air  conditioning
system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery). (



P. 108)

*

2

EV driving range (with using the air conditioning system)
Indicates the estimated distance that can be driven using the cur-
rent remaining hybrid battery (traction battery) while using the air
conditioning system.

*

2

*

1

: When “Electricity Consumption Reset” (



P. 250) is performed, the data

of the total average electricity consumption is deleted.

*

2

: The EV driving range may shorten even when not driving due to power

consumption by the system.

1

2

3

238

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

◆

“Eco-Diary”

The history of the average electricity consumption, air conditioning
system load ratio (“A/C Load Ratio”)

*

, distance traveled and aver-

age fuel consumption can be displayed in a table according to day
(“Daily”) or month (“Monthly”) units.

*

: It indicates the percentage of the electricity consumed from the hybrid

battery (traction  battery) that is  consumed  by the air conditioning sys-
tem.

■

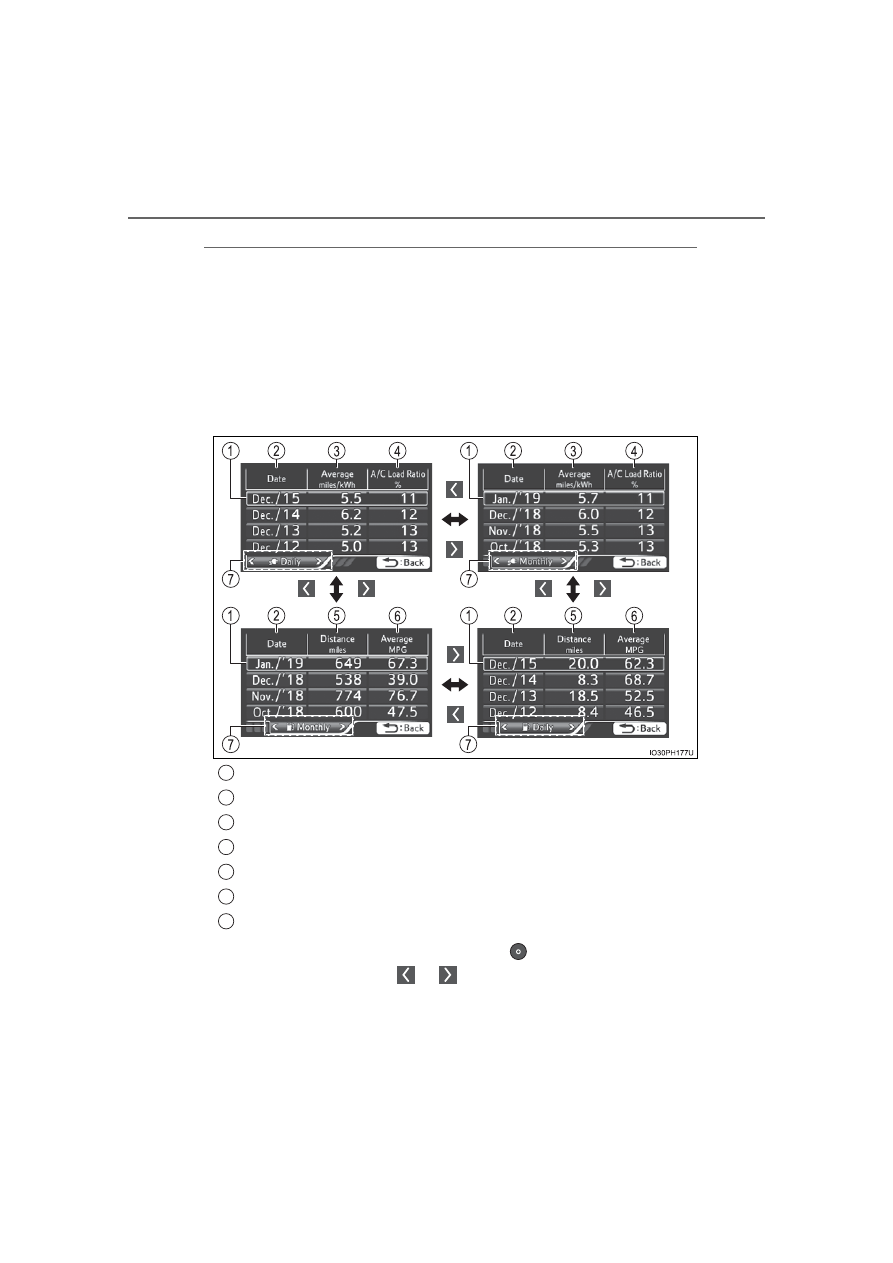

How to read the display

Record of the day/month
Date/month of stored information
Average electricity consumption of the day/month
“A/C Load Ratio” of the day/month
Total distance traveled for the day/month
Average fuel consumption of the day/month
Tab display

The display can be switched by pressing

 to enter the select condi-

tion, and then operating

 or

 of the meter control switches.

1
2
3
4
5
6
7

PRIUS PRIME_OM_OM47D71U_(U)

239

3. Instrument cluster

3

Instrument clus

ter

■

Checking history

When  each  screen  is  selected,  past  records  from  the  following

ranges can be displayed by pressing

 or

 of the meter con-

trol switches.

●

If the above number of records is exceeded, the oldest informa-
tion is deleted.

●

To reset the history, perform “History Reset” in the “Meter Cus-
tomize”  settings  (



P.  248).  (“Daily”  and  “Monthly”  information

can be reset independently.)

■

Calendar setting



P. 251

The  clock  settings  can  be
changed.

Displayed screen

Displayed information

Stored information

“Daily”

4 reports

Up to 32 reports

(8 screens)

“Monthly”

Up to 12 reports

(3 screens)

 Clock setting display

Item

Setting result

Adjusts the clock.
(



P. 197)

Sets  the  minutes  to
“00”. (



P. 198)

240

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

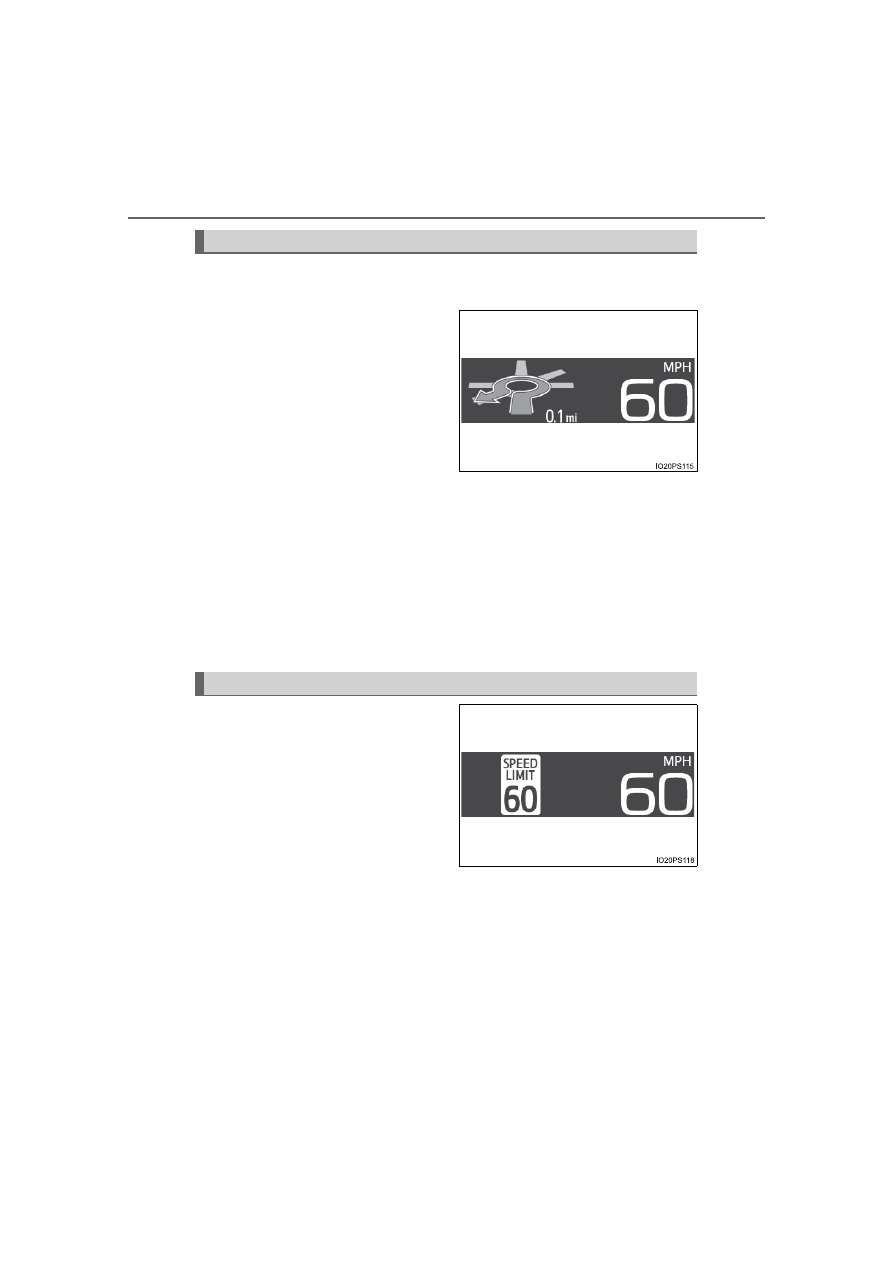

Displays  a  compass  linked  with
the navigation system. Also, when
the navigation system is perform-
ing  intersection  guidance  during
destination  guidance,  the  inter-
section guidance is also displayed
on the multi-information display.

The illustration is only an example
and  may  differ  from  the  actual
screen.
For  details  on  how  to  set  the  destination  and  switch  the  map  direction,
refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.

The  information  about  the  cur-
rently  selected  audio  source  is
displayed.

The illustration is only an example
and  may  differ  from  the  actual
screen.
To  switch  the  audio  source,  press

  to  display  the  audio  source

selection  screen,  press

  or

of  the  meter  control  switches  and
select  the  desired  audio  source,
and then press

.

To  stop  audio  source  selection,  press

  on  the  audio  source  selection

screen.

 Navigation system-linked display (if equipped)

 Audio system-linked display

PRIUS PRIME_OM_OM47D71U_(U)

241

3. Instrument cluster

3

Instrument clus

ter

The condition of the air conditioning system settings can be checked
on  the  screen  and  the  air  conditioning  system  settings  can  be
changed using the meter control switches.

On the air conditioning settings screen, press

 or

 of the meter con-

trol switches to switch the contents of the display.
For details regarding the air conditioning system function, refer to P. 512
and 524.

■

Screen display and setting items that can be changed

 Air conditioning system settings screen

242

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

*

1

: “LO” is displayed if the temperature is adjusted to the lowest setting, and

“HI” is displayed if the temperature is adjusted to the highest setting.

*

2

: The selectable modes differ depending on whether a passenger is present.

(



P. 514, 526)

■

Adjusting the settings

Press

 to display the cursor.

Press

  or

  of  the  meter  control  switches  to  select  the

desired item to set.

Press

 or

 of the meter control switches to select the set-

ting item or setting value.

The  air  conditioning  system  cannot  be  stopped  by  performing  opera-
tions on the air conditioning settings screen. Please use the air condi-
tioning switch or navigation system

*

 to stop the air conditioning system.

*

: Vehicles with 11.6-inch display only

Item

Settings

Eco score
(A/C score)



P. 243

Temperature
setting

Changes according to operation of the meter control

switches

*

1

Outside air and
recirculated  air
modes



(Outside air mode)

(Recirculated air mode)

Fan speed

1 to 7

“CLIMATE
CONTROL”

“NORMAL”

“ECO”

Front seat
concentrated
airflow

mode

(S-FLOW)

“On (Driver

Priority)”

*

2

“On (Fr Seat

Only)”

*

2

“Off (All seat)”

1

2

3

4

5

6

1

2

3

PRIUS PRIME_OM_OM47D71U_(U)

243

3. Instrument cluster

3

Instrument clus

ter

■

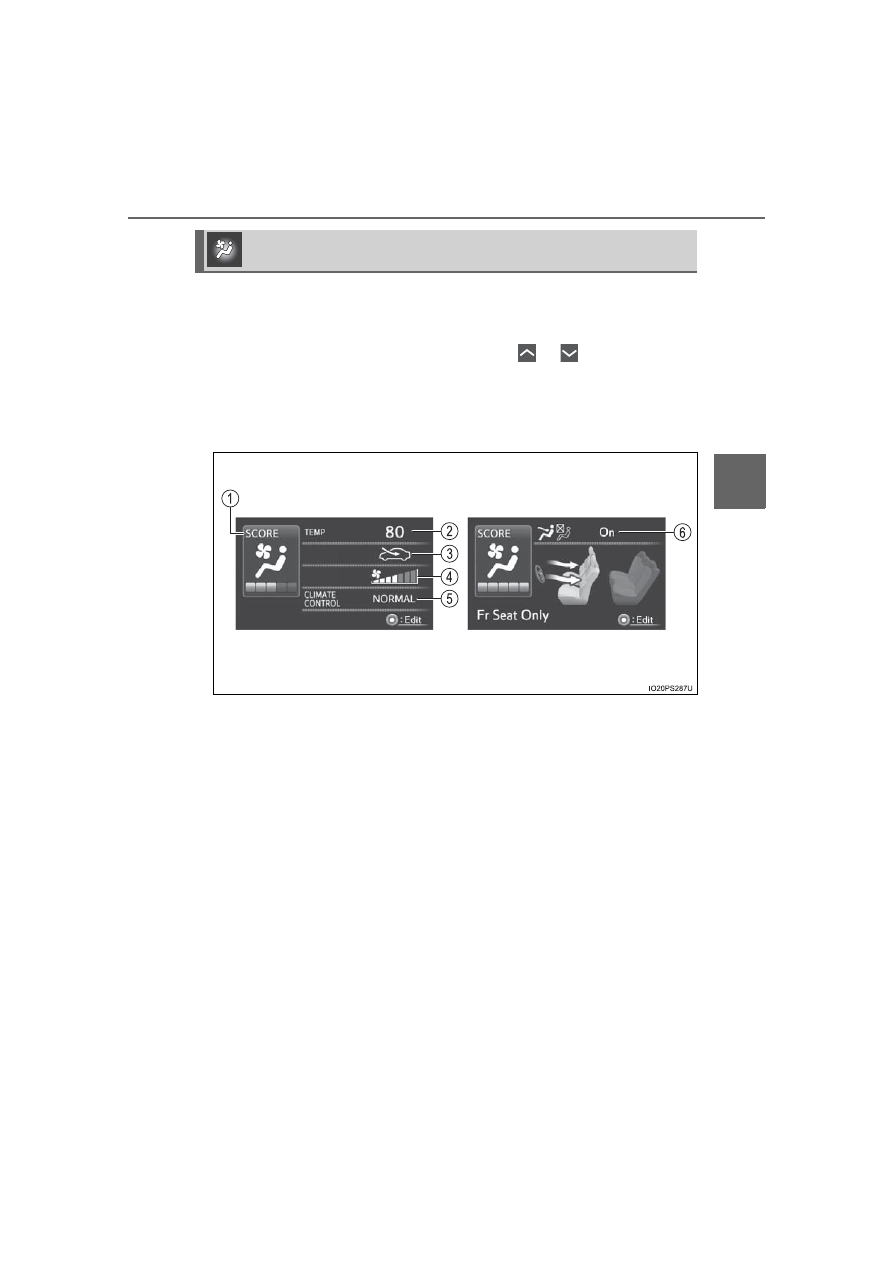

Eco score (A/C score)

The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The  evaluation  changes  according  to  the  air  conditioning  system
usage status. When the power switch is turned off, the current total
driving  score

*

1

  and  advice

*

2

  related  to  using  the  air  conditioning

system are displayed. (



P. 196)

Low score

*

3

High score

Avoiding  excessive  use  of  the
air  conditioning  system  and
using  the  air  conditioning  sys-
tem  at  the  appropriate  setting
according  to  the  ambient  tem-
perature and number of passen-
gers  and  with  the  front  seat
concentrated  airflow  mode  (S-
FLOW)  (

)  and  “CLIMATE

CONTROL”  will  result  in  a  high
evaluation.

*

1

: The Eco score (A/C score) is not evaluated for approximately 1 minute

after the power switch is turned to ON mode.

*

2

: This advice may not be displayed depending on the situation.

*

3

: For  items  not  evaluated  with  an  Eco  score  (A/C  score),  the  display

reads 0.

■

Operating switches of the air conditioning system operation panel

●

The pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. (



P. 248)

1
2

●

When  the  air  conditioning  system
switches are operated to change the air
conditioning  settings  while  a  screen
other  than  the  air  conditioning  system
settings screen is displayed on the multi-
information display, a pop-up display for
the  air  conditioning  settings  contents  is
displayed.  However,  air  conditioning
system  settings  cannot  be  changed  on
the pop-up display.

244

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Eco score (A/C score)

●

The  setting  status  of  the  following  air  conditioning  system  functions  are
reflected in the score.
• Temperature setting
• Fan speed setting
• Outside air and recirculated air modes
• “A/C” button
• Front seat concentrated airflow mode (S-FLOW)
• “CLIMATE CONTROL”

●

The Eco score (A/C score) is evaluated according to the ambient tempera-
ture  and  cabin  temperature.  Accordingly,  even  if  the  same  settings  are
always  used  for  the  air  conditioning  system,  the  evaluation  will  change
according to such factors as the season and weather.

●

When the air conditioning system is not being used or the airflow mode is
set to

 or

, the Eco score (A/C score) is not evaluated. (While the

air conditioning system is not evaluated, its usage status is not reflected in
the total Eco score result.)

●

The Eco score (A/C score) is a function that helps select an air conditioning
system setting which reduces electricity and fuel consumption, not a func-
tion that satisfies both comfortability and low fuel consumption.

PRIUS PRIME_OM_OM47D71U_(U)

245

3. Instrument cluster

3

Instrument clus

ter

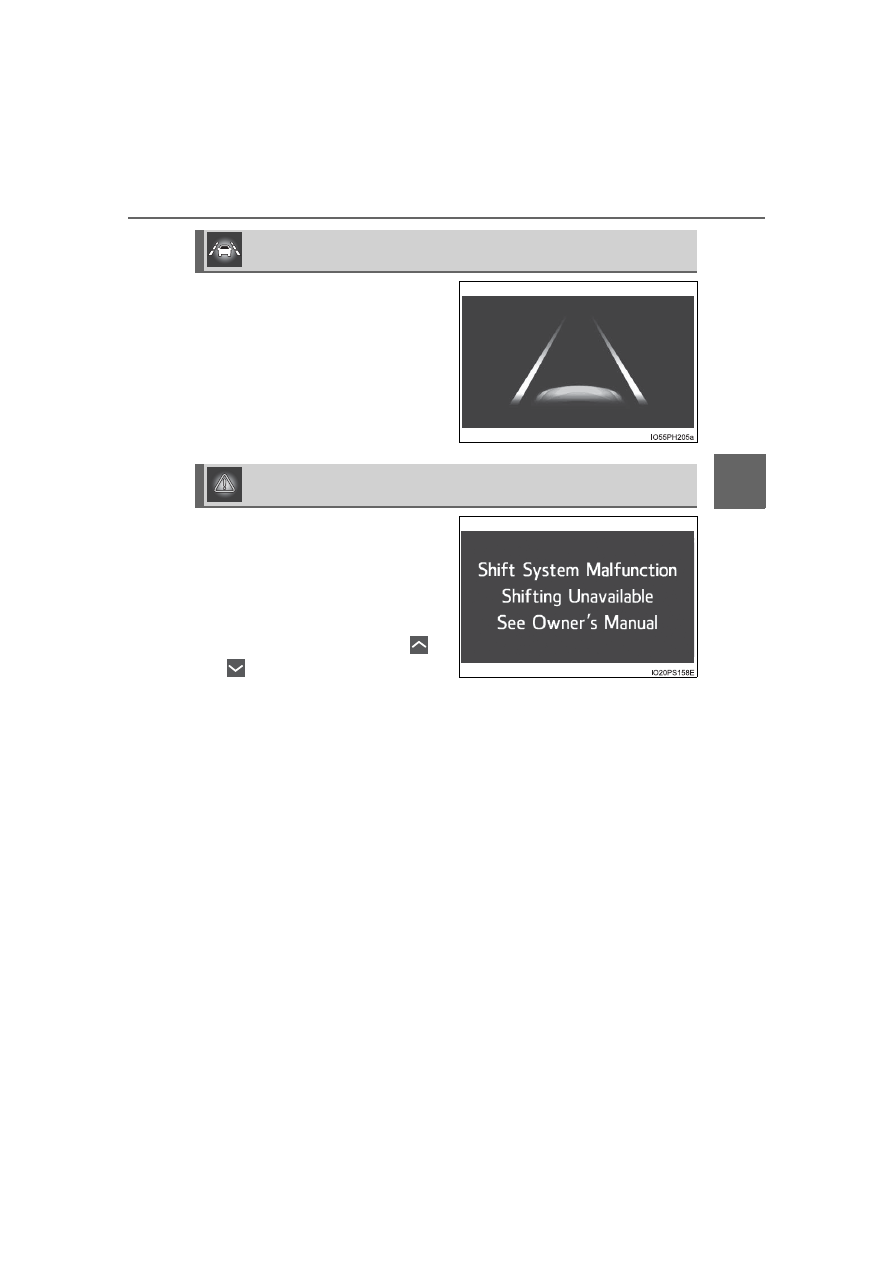

The  operation  status  of  driving
support  system  such  as  the  LTA
(Lane

Tracing  Assist)

and

dynamic  radar  cruise  control  with
full-speed  range  and  warning
information are displayed.

For  details  regarding  the  driving
support functions, refer to the page
for the corresponding function.

The warning messages that have
been  displayed  since  the  power
switch  was  turned  to  ON  mode
can be checked.

When  multiple  warning  messages
have  been  displayed,  the  display
can be switched by pressing

 or

 of the meter control switches.

Warning  messages  that  have  been  currently  cleared  and  some  warning
messages are not displayed. Also, when there are no warning messages
that can be checked, the display indicates that there are no messages.

 Driving assist system information

 Warning message display

246

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

The  operation  contents  of  the  driving  support  systems  and  settings
related to the combination meter display can be changed.

Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot  Monitor  (if  equipped)  is  turned  on  and  off  by  simply  pressing

.

Make sure not to cancel the systems accidentally.

■

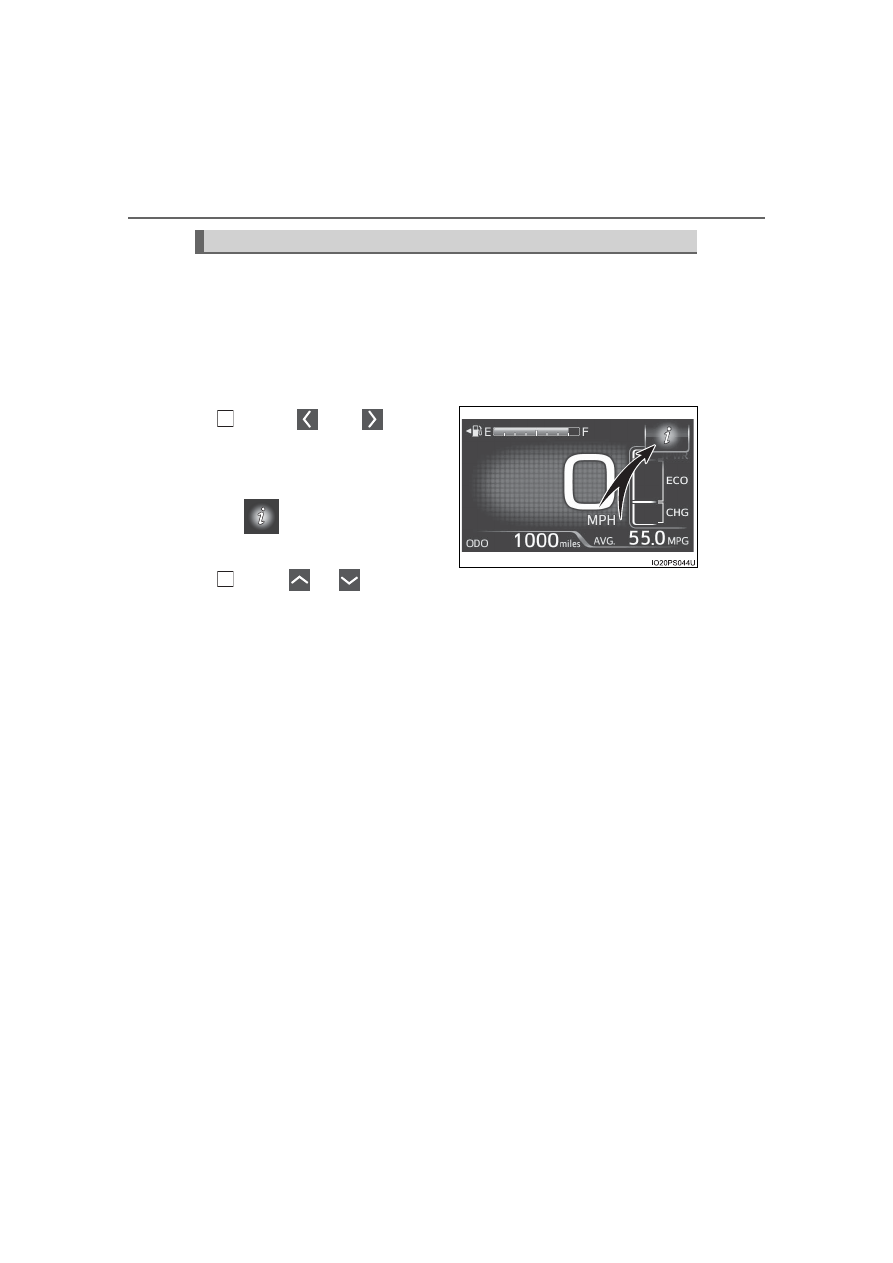

Setting procedure

Press

 or

 of the meter control switches on the steering

wheel and select

.

Press

  or

  of  the  meter  control  switches  and  select  the

item to change, and then press

.

If  the  function  is  turned  on  and
off  or  the  sensitivity,  etc.  is
changed  on  the  setting  screen,
the setting is changed each time
the

 is pressed.

For  functions  that  allow  opera-
tion  contents,  display  contents,
etc., of a function to be selected,
the setting screen is displayed.

When  the  setting  screen  is  displayed,  select  the  setting  or
desired value (time, etc.) with the meter control switches.

*

1, 2

For  selectable  operation  con-
tents  and  setting  values,  select
the desired setting or value, and
then press

.

To stop the selection, press

.

When  the  setting  check  screen
is  displayed,  select  proceed  or
cancel and press

.

*

1

: Depending on the items, a subsequent setting screen may be displayed

after selecting an item.

*

2

: For items which set the adjustment level or time, after the item is set,

the setting screen remains displayed until

 is pressed.

 Settings display

1

2

3

PRIUS PRIME_OM_OM47D71U_(U)

247

3. Instrument cluster

3

Instrument clus

ter

■

Settings table

Item

Settings

Setting result

“On”

Turns  the  LTA  (Lane  Tracing  Assist)  lane
centering function on and off. (



P. 395)

“Off”

“On”

Turns the LTA (Lane Tracing Assist) steer-
ing assist function on and off. (



P. 395)

“Off”

“High”

Switches  the  LTA  (Lane  Tracing  Assist)
alert sensitivity. (



P. 395)

“Standard”

“On”

Turns  the  PCS  (Pre-Collision  System)  on
and off. (



P. 388)

“Off”

Early

Switches  the  PCS  (Pre-Collision  System)
warning timing. (



P. 388)

Middle

Late

*

“On”

Turns the Intuitive parking assist on and off.
(



P. 445)

“Off”

*

“On”

Turns  the  Parking  Support  Brake  function
on and off. (



P. 456)

“Off”

*

“On”

Turns the Blind Spot Monitor on and off.
(



P. 433)

“Off”

“On”

Turns the LTA (Lane Tracing Assist) vehicle
sway warning on and off. (



P. 395)

“Off”

“High”

Switches  the  LTA  (Lane  Tracing  Assist)
vehicle sway warning sensitivity. (



P. 395)

“Standard”

“Low”

248

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

*

: If equipped

■

“Meter Customize” settings (

 )

*

Height

Changes  the  display  position  and  bright-
ness of the head-up display. (



P. 256)

Brightness

*

“On”

Turns  the  RSA  (Road  Sign Assist)  on  and
off. (



P. 410)

“Off”

“km/h”

Switches the speed unit used by the screen
display.

“MPH”

“Meter Customize” settings:



P. 248

“Vehicle Settings” settings:



P. 753

Item

Settings

Setting result

Item

Settings

Setting result

“Simple/Split
Screen”

*

1

“Simple”

Switches  the  display  mode  of
the main display. (



P. 215)

“Split”

“Screen
OFF”

*

2

“Yes”

Turns the multi-information dis-
play off.

“No”

“HV System
Indicator”
(



P. 225)

“ECO  Acceler-
ator Guidance”

“On”

Turns  the  “ECO  Accelerator
Guidance” on and off.

“Off”

“EV Indicator
Light On/Off”

“On”

Turns the  EV indicator on and
off.

“Off”

“EV Drive
Monitor”

“EV
Energy”

Switches  the  information  dis-
play in the left upper corner of
the  Hybrid  System  Indicator.
(



P. 230)

“EV
Dis-
tance”

“Blank”

PRIUS PRIME_OM_OM47D71U_(U)

249

3. Instrument cluster

3

Instrument clus

ter

“Pop-up  Display
On/Off”

“Navigation”

*

1

“On”

Turns the pop-up display of the
selected  item  on  the  multi-
information display on and off.

“Off”

“Instrument
Panel Light”

“On”

“Off”

“Climate
Settings”

“On”

“Off”

“Cruise
Control
Operation
Display”

“On”

“Off”

“HUD
Settings”

*

1

“On”

“Off”

“Driving  Mode
Select”

“On”

“Off”

“Multimedia
Menu”

*

1

“On”

“Off”

“Traction
Battery
Cooler”

“On”

“Off”

“Speed
Limit”

*

1, 3

(



P. 258)

“Off”

Switches  the  operation  con-
tents  of  the  speed  limit  func-
tion.

“Only Display”

“With Caution”

“Language”

“English” (English)

Switches  the  language  dis-
played on the screen.

“Français” (French)

“Español” (Spanish)

“Calendar”

Month/Day/Year

*

4

Changes the date used for the
electricity  and  fuel  consump-
tion  record  and  the  charging
schedule function.

Day/Month/Year

*

5

Item

Settings

Setting result

250

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

*

1

: If equipped

*

2

: When  the  screen  is  turned  off,  pressing

  displays  the  setting  screen

again.

*

3

: U.S.A. only

*

4

: Except for Canada

*

5

: For Canada

“History
Reset”

“Eco-Diary
(Daily)”

“Yes”

Deletes  data  of  “Eco-Diary
(Daily)”. (



P. 238)

“No”

“Eco-Diary
(Monthly)”

“Yes”

Deletes  data  of  “Eco-Diary
(Monthly)”. (



P. 238)

“No”

“Electricity
Consumption
Reset”

“Yes”

Deletes  the  data  of  the  total
average  electricity  consump-
tion. (



P. 217, 237)

“No”

“Initialization”

“Yes”

Returns the combination meter
settings to their initial settings.

“No”

Item

Settings

Setting result

PRIUS PRIME_OM_OM47D71U_(U)

251

3. Instrument cluster

3

Instrument clus

ter

■

Setting items

●

“Meter  Customize”  and  “Vehicle  Settings”  setting  items  are  not  selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Calendar setting

Calendar  setting  contents  are  linked  to  the  recorded  information  of  “Eco-
Diary” (



P. 238). When the calendar date is changed, “Eco-Diary” record is

processed as follows:

*

: Month/date information not recorded is set to “0” or “0.0”.

Contents of date change

“Eco-Diary” record

Date changed to future date

Not cleared

*

Date changed to before last month

All cleared

Date  changed  to  earlier  date  within
current month

Only “Daily” data cleared

252

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

WARNING

■

Cautions while setting up the display

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

253

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

3

Instrument clus

ter

Head-up display



The units used on the display may differ depending on the target region.



: If equipped

The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can display
various types of information to assist the driver.

Operation switches and display contents

254

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

Meter control switches

These switches are used when adjusting the display position and bright-
ness of the head-up display. (



P. 256)

“HUD” (Head-up display) switch

 (



P. 255

)

Vehicle speed display
Cruise control display

 (



P. 414

)

Hybrid System Indicator (



P. 225)

The  display  contents  of  the  Hybrid  System  Indicator  are  different  in  EV
mode and HV mode.

EV driving range

Indicates  the  estimated  distance  that  can  be  driven  using  the  current
remaining hybrid battery (traction battery). (



P. 108)

When the air conditioning system is operating, the driving range with the
air conditioning system on is displayed.
The  EV  driving  range  may  shorten  even  when  not  driving  due  to  power
consumption by the system.

Insert display

 (



P. 257

)

This display inserts information from each driving support system accord-
ing to driving conditions.

Route guidance display (



P. 258)

This  display  is  automatically  shown  when  the  navigation  system  is  per-
forming route guidance.

1

2
3
4
5

6

7

8

PRIUS PRIME_OM_OM47D71U_(U)

255

3. Instrument cluster

3

Instrument clus

ter

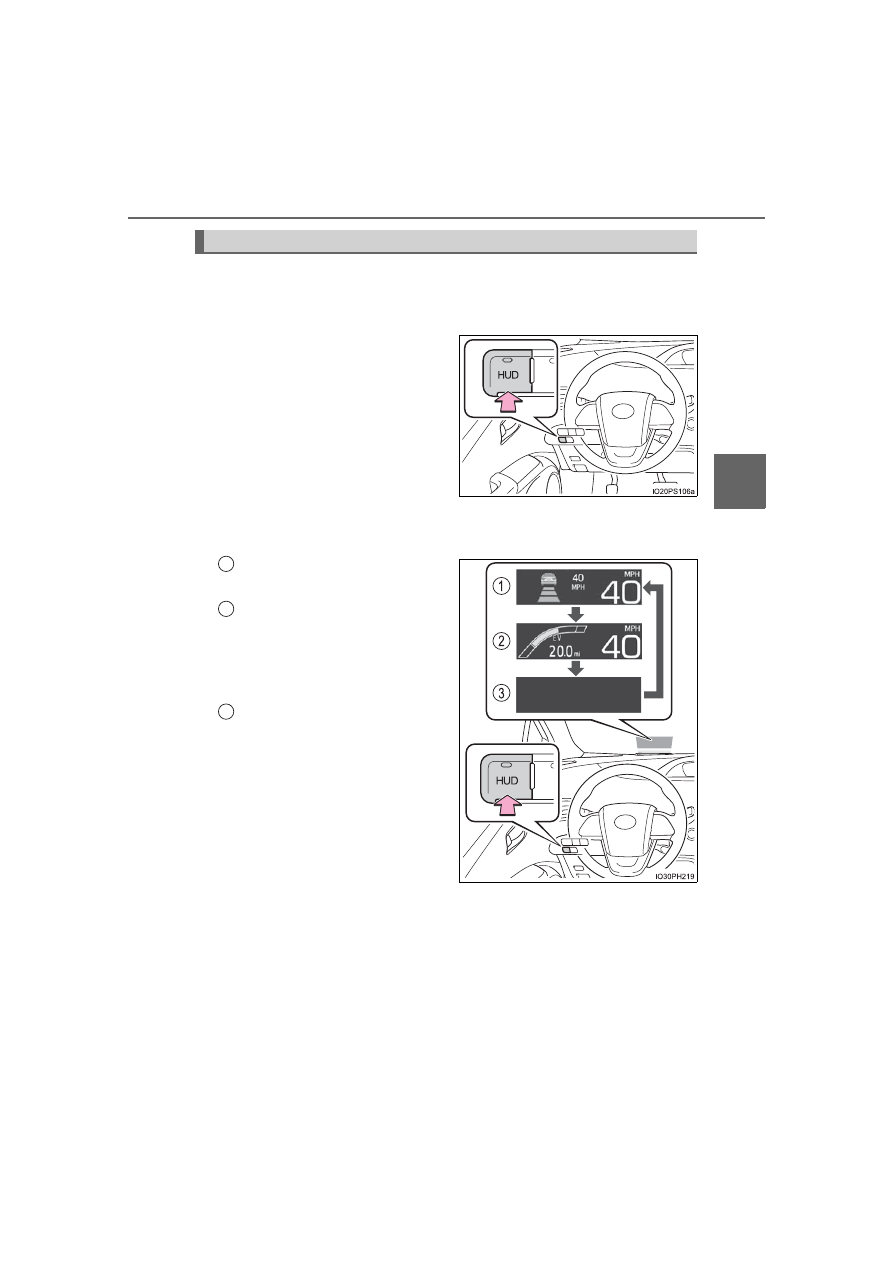

The “HUD” switch can be used to turn the head-up display on and off,
or switch the display contents.

■

When the head-up display is off

Pressing  the  “HUD”  switch
turns  the  head-up  display  on
and starts the display.

The indicator light on the “HUD”
switch comes on.
The display  position and  bright-
ness adjustment screen is auto-
matically displayed on the multi-
information display. (



P. 256)

■

When the head-up display is on

Display items can be switched by pressing the “HUD” switch.

Vehicle  speed  display  and
cruise control display

*

1

Vehicle  speed  display/Hybrid
System Indicator

*

1, 2

/EV driv-

ing range

Refer to P. 225 for details of the
Hybrid System Indicator.

No  display  (head-up  display
is off)

The indicator light on the “HUD”
switch turns off.

*

1

: When the insert display of each

driving  support  system  is  dis-
played,  the display  is temporar-
ily turned off.

*

2

: The  display  contents  of  the

Hybrid System Indicator are dif-
ferent  in  EV  mode  and  HV
mode.

“HUD” (Head-up display) switch

1

2

3

256

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

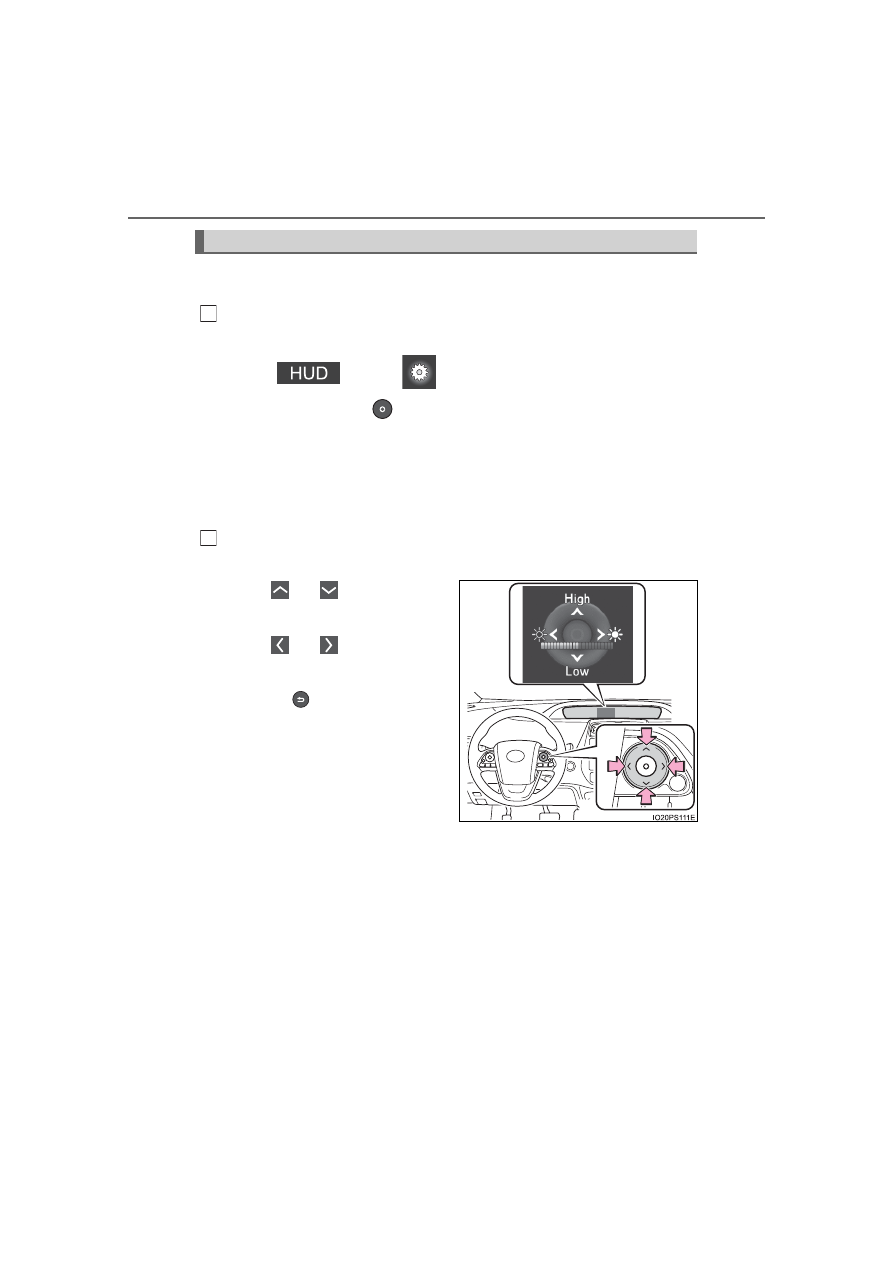

In  order  to  improve  the  visibility  of  the  head-up  display,  the  display
position and brightness can be adjusted.

Displaying the adjustment screen on the multi-information display.
When the head-up display is on:

Select

 on  the

 screen  of  the multi-information dis-

play, and then press

. (



P. 246)

When the head-up display is off:
When the “HUD” switch is pressed, the adjustment screen for the
head-up display automatically displays.

*

1

If an adjustment operation is not performed for approximately 6 seconds

*

2

,

the multi-information display automatically returns to the previous screen.

Adjusting  the  display  position  and  brightness  by  operating  the
meter control switches.

When

  or

  is  pressed,  the

position  of  the  head-up  display
changes.
When

  or

  is  pressed,  the

brightness  of  the  head-up  display
changes.
When the

 is pressed, the multi-

information  display  returns  to  the
previous screen.

*

1

: This function can be turned off. (



P. 248)

*

2

: The adjustment screen may suddenly be canceled if it is interrupted by a

warning message shown on the display.

Display position and brightness adjustment

1

2

PRIUS PRIME_OM_OM47D71U_(U)

257

3. Instrument cluster

3

Instrument clus

ter

■

Insert displays of the driving support systems

Insert  displays  are  linked  with  the  operation  of  the  following  sys-
tems and used to show some of the information shown on the multi-
information display on the head-up display.

*

: If equipped

■

Master warning light insert display

When  the  master  warning  light
(



P.  677)  is  illuminated  or

flashing,  an  insert  display  is
shown  on  the  head-up  display
to inform the driver.

When  the  master  warning  light
is  illuminated  or  flashing,  check
the  message  displayed  on  the
multi-information  display  and
perform the corresponding trou-
bleshooting procedure.
(



P. 684)

Insert display

System

Displayed information

PCS (Pre-Collision System) (



P. 384)

Pre-collision warning

LTA (Lane Tracing Assist) (



P. 395)

Lane  departure  alert  function
display

Hands off steering wheel warn-
ing

Vehicle  sway  warning  function
display

Dynamic  radar  cruise  control  with  full-
speed range (



P. 414)

Approach warning display

RSA (Road Sign Assist) (



P. 410)

Road signs

Parking Support Brake function

*



(



P. 455)

Operation display
(symbol display)

258

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

When the navigation system route guidance is set, convenient route
guidance is displayed.
When  approaching  an  intersec-
tion, the shape of the intersection
and the remaining distance to the
intersection

*

1

 are displayed.

Once the vehicle is within a fixed
distance from the intersection, an
arrow  animation

*

2,  3

  is  displayed

to inform the driver of which direc-
tion to proceed in.

*

1

: While the animation is displayed, the remaining distance to the intersec-

tion is hidden.

*

2

: When the distance unit of the navigation system is “km” or “mile”, the ani-

mation does not display.

*

3

: If  the  vehicle  is  stopped  while  the  animation  is  displayed,  the  arrow

begins flashing.

The route guidance display can be switched on and off as necessary.
(



P. 753)

Displays  the  speed  limit  for  the
current road.

The speed limit display settings can be changed. (



P. 248)

Route guidance display

Speed limit display (if equipped) (U.S.A. only)

PRIUS PRIME_OM_OM47D71U_(U)

259

3. Instrument cluster

3

Instrument clus

ter

■

Enabling/disabling of the head-up display

When the head-up display is turned off with the “HUD” switch, it is not dis-
played until the “HUD” switch is used to turn the head-up display on again.
(Operation of the head-up display is not linked with the power switch.)

■

Display brightness

●

The brightness of the head-up display is automatically adjusted according to
the operation status of the headlights (on/off) and the brightness of the sur-
roundings.

●

When the brightness of the head-up display is adjusted to a certain level or
higher, the display automatically dims when the vehicle is stopped. Once the
vehicle  starts  off  and  the  vehicle  speed  reaches  approximately  3.1 mph
(5 km/h)  or  more,  the  display  automatically  returns  to  its  previous  bright-
ness.

■

Vehicle speed display

In extremely cold environments, the display of the speedometer and the vehi-
cle speed of the head-up display may slightly differ.

■

Head-up display

The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.

■

When the 12-volt battery is disconnected

The customize settings of the head-up display will be reset.

■

Route guidance display

The route guidance is not displayed on both the head-up display and multi-
information display simultaneously. When the route guidance is displayed on
the head-up display, the multi-information display does not display the route
guidance even if the navigation system-linked display (



P. 240) is selected

on the multi-information display.

260

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

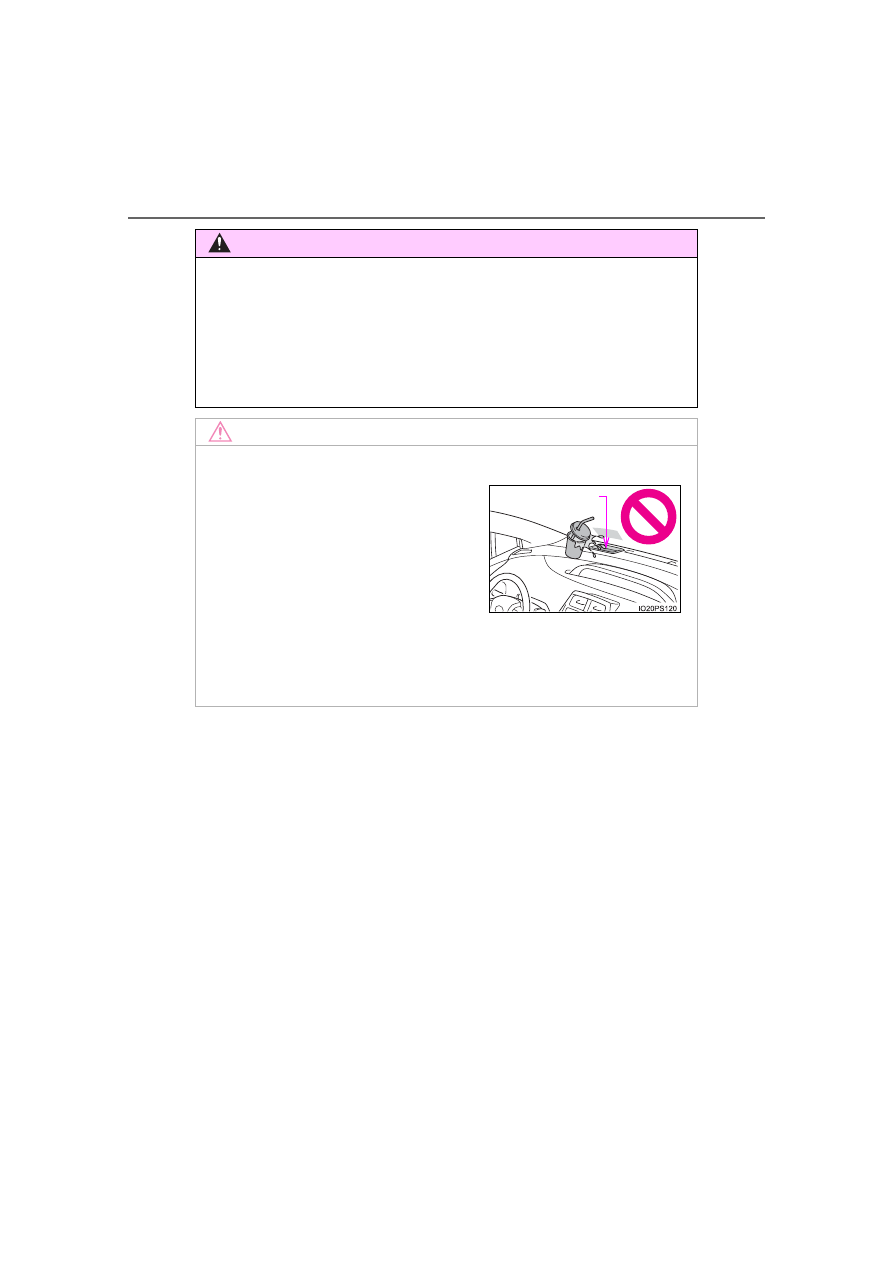

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or  brightness  may  obstruct  the  driver’s  view  and  lead  to  an  accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

NOTICE

■

To prevent damage to components

●

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing  so  could  interrupt  head-up  dis-
play indications.

●

Do not touch the inside of the head-up
display  projector  or  thrust  sharp  edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

Display projector

261

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

3

Instrument clus

ter

Energy monitor/consumption screen (vehi-

cles with 7-inch display)

◆

Multi-information display



P. 220

◆

Audio system screen

Display the energy monitor, trip information or history screen

Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

You can view the status of your vehicle on the multi-information
display and the audio system screen

*

.

*

: For multimedia system

1

2

3

262

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Function summary

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.

■

Flow of energy and display details

When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
If  a  screen  other  than  “Energy  monitor”  is  displayed,  select
“Energy”.

How to read the energy monitor

Audio system screen

When the vehicle is powered by
the  electric  motor  (traction
motor)

When the vehicle is powered by
both  the  gasoline  engine  and
the  electric  motor  (traction
motor)

When the vehicle is powered by
the gasoline engine

PRIUS PRIME_OM_OM47D71U_(U)

263

3. Instrument cluster

3

Instrument clus

ter

These images are examples only, and may vary slightly from actual
conditions.

When  the  vehicle  is  charging
the hybrid battery (traction bat-
tery)

When there is no energy flow

Audio system screen

264

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

The current remaining charge in the hybrid battery (traction battery) is
displayed on the energy monitor screen.
The system automatically switches to the HV mode when the neces-
sary  amount  of  battery  charge  for  EV  driving  in  EV  mode  is  insuffi-
cient.

The hybrid battery (traction bat-
tery)  for  EV  mode  is  fully
charged
There is a remaining charge in
the hybrid battery (traction bat-
tery).
The hybrid battery (traction bat-
tery) for EV mode is not remain-
ing
The hybrid battery (traction bat-
tery)  for  HV  mode  is  fully
charged

When  the  hybrid  battery  (traction
battery)  charge  for  EV  mode  is
depleted,  the  hybrid  battery  (trac-
tion battery) charge for HV mode is
displayed.

The hybrid battery (traction battery) is not remaining

The  image  is  an  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

Display of the remaining hybrid battery (traction battery)

1

2

3

4

5

PRIUS PRIME_OM_OM47D71U_(U)

265

3. Instrument cluster

3

Instrument clus

ter

■

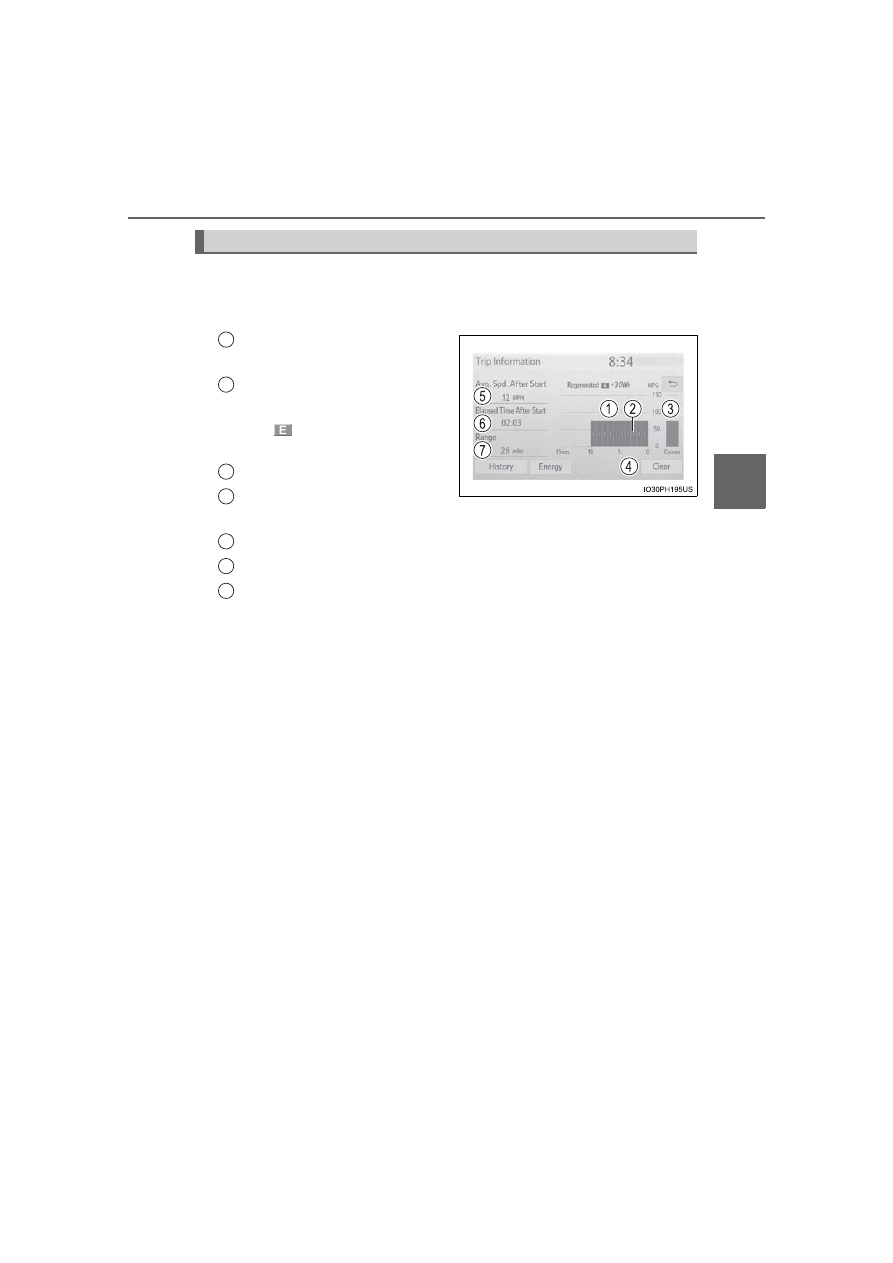

Trip information

If  a  screen  other  than  “Trip  information”  is  displayed,  select  “Trip
information”.

Fuel consumption in the past
15 minutes
Regenerated  energy  in  the
past 15 minutes

One

 symbol indicates 30 Wh.

Up to 5 symbols are shown.

Current fuel consumption
Resetting  the  consumption
data
Average vehicle speed since the hybrid system was started
Elapsed time since the hybrid system was started
Cruising range

Average  fuel  consumption  for  the  past  15  minutes  is  divided  by
color  into  past  averages  and  averages  attained  since  the  power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The  image  is  an  example  only,  and  may  vary  slightly  from  actual
conditions.

Fuel consumption

1

2

3
4

5
6
7

266

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

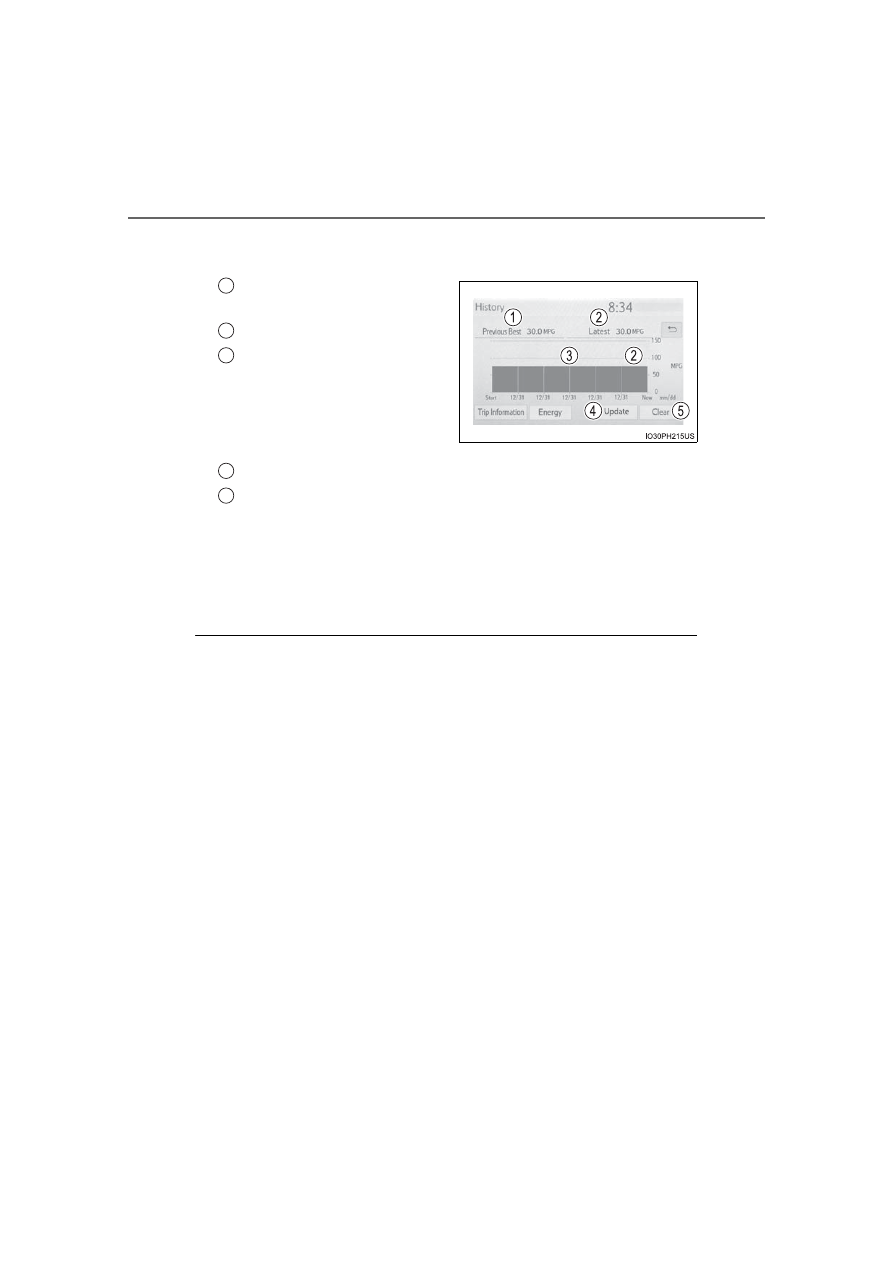

History

If a screen other than “History” is displayed, select “History”.

Best recorded fuel consump-
tion
Latest fuel consumption
Previous  fuel  consumption
record

Displays  the  daily  average  fuel
consumption.  (Instead  of  the
date, “Trip 1” through “Trip 5” will
be displayed.)

Updating the latest fuel consumption data
Resetting the history data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The  image  is  an  example  only,  and  may  vary  slightly  from  actual
conditions.

■

Updating the history data

Update the latest fuel consumption by selecting “Update” to measure the cur-
rent fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

1

2
3

4
5

267

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

3

Instrument clus

ter

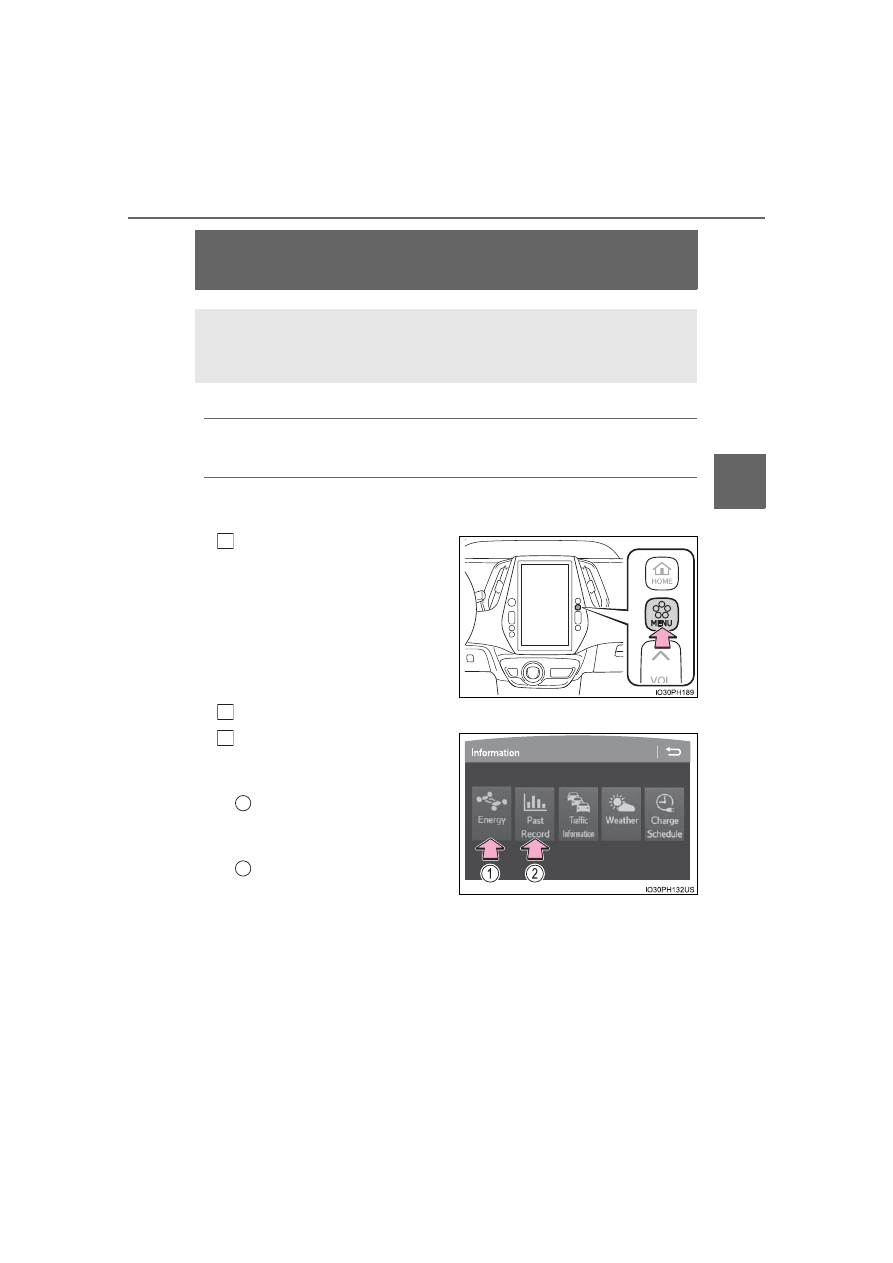

Energy monitor/consumption screen/detail

screen (vehicles with 11.6-inch display)

◆

Multi-information display



P. 220

◆

Audio system screen

■

Display  the  energy  monitor,  trip  information  or  past  record
screen

Press the “MENU” button.

Select “Info” on the screen
Display the “Energy monitor”,
“Trip  information”  or  “Past
record” screen.

“Energy Monitor”:
Select  “Energy”  on  the
screen.
“Trip  Information”  or  “Past
Record” screen:
Select  “Past  Record”  on
the screen.

“Trip Information” or “Past Record” screen will be displayed.

Press  the  “HOME”  button  and  select  “Info”  on  the  screen.  You  can
select “Energy” and “Past Record”.

You can view the status of your vehicle on the multi-information
display and the audio system screen

*

.

*

: For navigation system

1

2

3

1

2

268

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

Display the detail screen (



P. 273)

Display “Energy Monitor” screen.

Select

 on the upper right screen.

■

Function summary

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
The  flow  of  electric  energy  during  charging  is  displayed  when
charging from an external power source.
For vehicles equipped with a solar charging system, a guide for the
state of the solar charging system is displayed.

■

Flow of energy and display details

When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.

●

The  display  when  the  engine  is  operating  is  in  blue  while  the
engine is being warmed up and yellow afterwards.

●

The arrow from the engine to the motor and tires is displayed in
red.

●

The arrow indicating energy consumption is displayed in yellow
and the arrow indicating energy regeneration or charging is dis-
played  in  green.  Also,  the  hybrid  battery  (traction  battery)
changes color accordingly.

●

There are icons

,

,

 on the lower side of the

screen.  The  screen  switches  to  each  point  of  view  when  you
select it.

●

When you select

, this screen is displayed in the lower half of

the  screen,  it  will  be  displayed  together  with  the  navigation
screen.

●

These  images  are  examples  only,  and  may  vary  slightly  from
actual conditions.

How to read the energy monitor

1

2

PRIUS PRIME_OM_OM47D71U_(U)

269

3. Instrument cluster

3

Instrument clus

ter

When the vehicle is powered by the
electric motor (traction motor)

When  the  vehicle  is  powered  by
both  the  gasoline  engine  and  the
electric motor (traction motor)

When the vehicle is powered by the
gasoline engine

When there is no energy flow

270

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

*

: When the air conditioning compressor is not operating, an arrow does not

appear and the bright point of light are not displayed.

When the vehicle is charging the hybrid battery (traction battery)

When  the  vehicle  is  charging  the

hybrid battery (traction battery) from

external power source

Air Conditioning System use

*

PRIUS PRIME_OM_OM47D71U_(U)

271

3. Instrument cluster

3

Instrument clus

ter

■

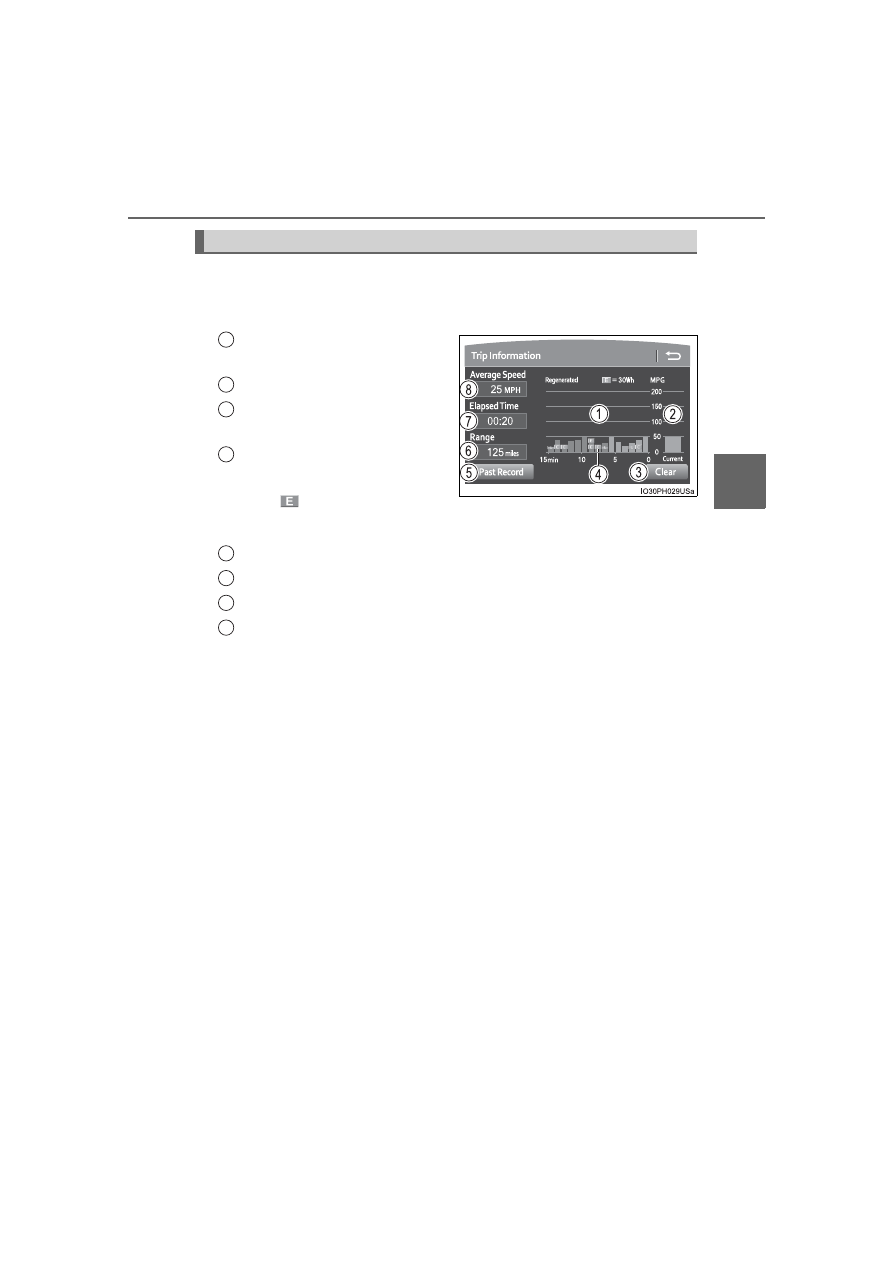

Trip information

If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.

Previous  fuel  consumption
per minute
Current fuel consumption
Reset  the  trip  information
data
Regenerated  energy  in  the
past 15 minutes

One

  symbol  indicates  30

Wh.
Up to 5 symbols are shown.

“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed

Average  fuel  consumption  for  the  past  15  minutes  is  divided  by  color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumption as
a reference.
The image is an example only, and may vary slightly from actual condi-
tions.

Fuel consumption

1

2
3

4

5
6
7
8

272

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

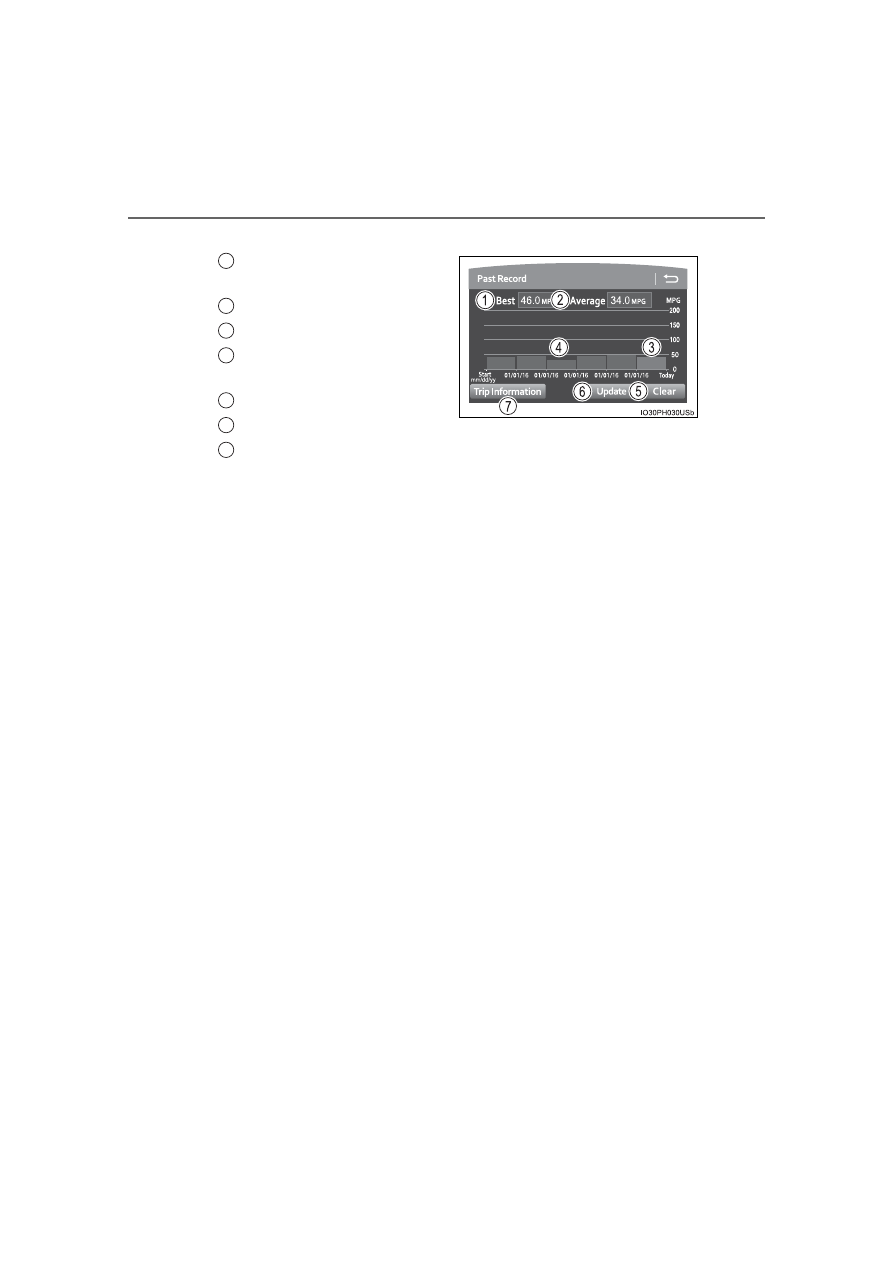

Past record

Best recorded fuel consump-
tion
Average fuel consumption
Current fuel consumption
Previous  fuel  consumption
record
Reset the past record data
Update the past record data
“Trip Information” screen appears

The  image  is  an  example  only,  and  may  vary  slightly  from  actual
conditions.

1

2
3
4

5
6
7

PRIUS PRIME_OM_OM47D71U_(U)

273

3. Instrument cluster

3

Instrument clus

ter

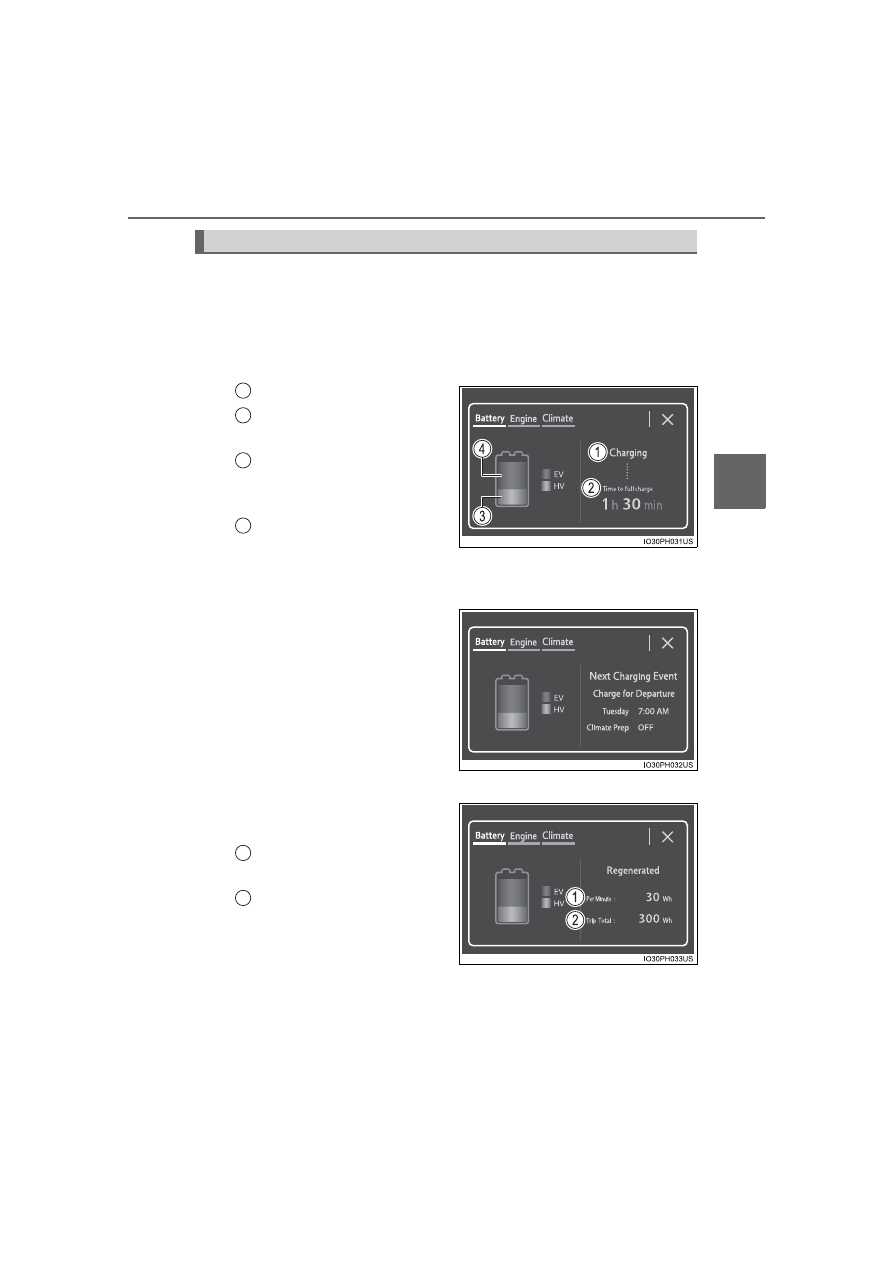

Displays information about each selected item.
When you select the “



”, and close the screen.

■

Select “Battery”

●

Display of battery charging state
Displayed when charging from an external power supply.

Display of charge status
The  remaining  time  until
the charging completed
The  remaining  hybrid  bat-
tery

(traction

battery)

capacity of the HV mode
The  remaining  hybrid  bat-
tery

(traction

battery)

capacity of the EV mode

●

Display the “Next Charging Event”
It appears when the charging
schedule  function  is  waiting
to charge the external power
source.

●

Regenerated amount of energy
It  appears  during  driving  or
parked.

Shows  the  energy  regen-
erated every minute.
Shows  the  energy  being
regenerated  while  hybrid
system is operating.

Every  time  the  power  switch
is  turned  to  off,  the  value  is
reset.

How to see the detail screen

1
2

3

4

1

2

274

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

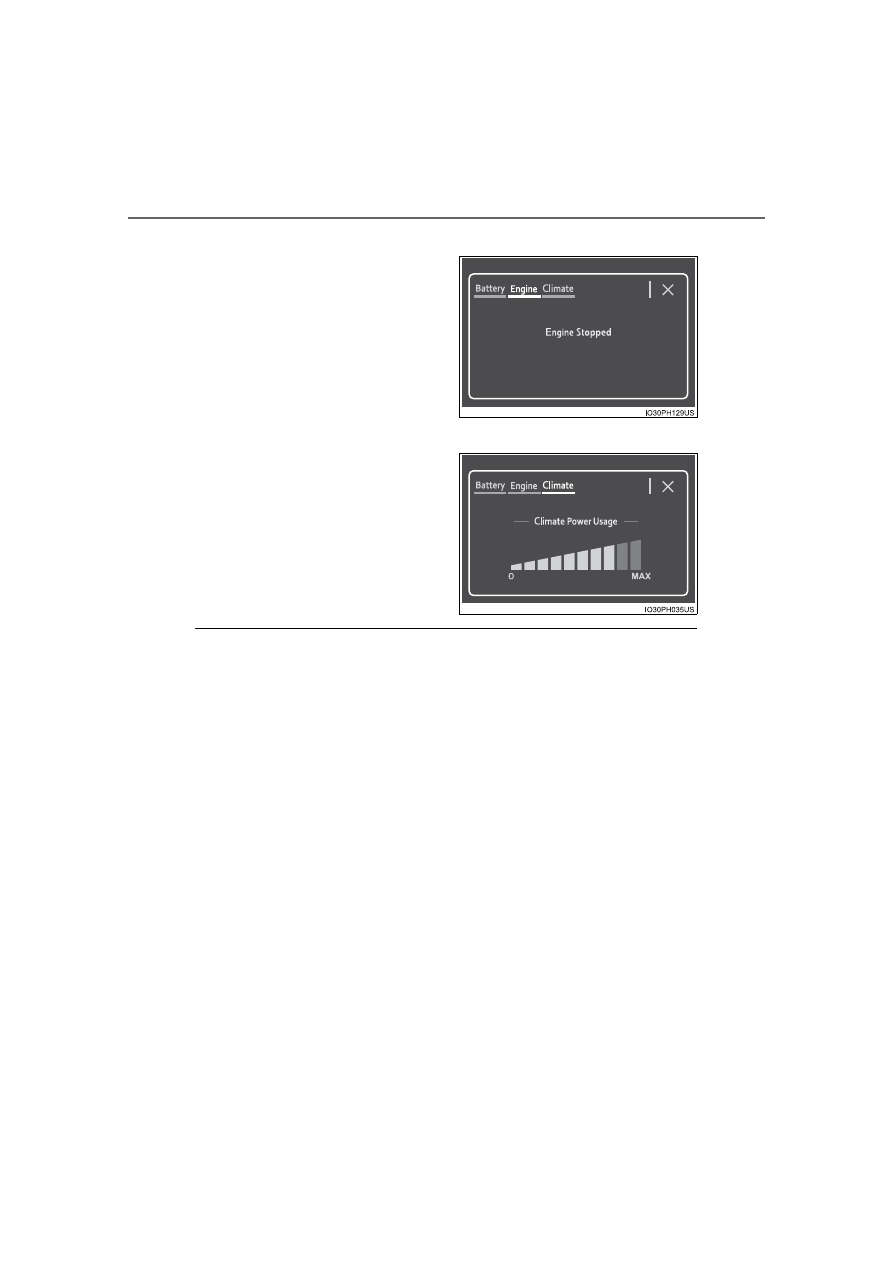

Select “Engine”

Display of the engine status.

■

Select “Climate”

Display  the  power  consump-
tion of the air conditioner

■

Resetting the data

●

Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.

●

Selecting  “Clear”  on  the  “Past  Record”  screen  will  reset  the  past  record
data.

■

Updating the past record data

Selecting “Update” on the “Past Record” screen will update the past record
data.
Also, the average fuel consumption displayed in the multi-information display
will be reset at the same time.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

■

Display of navigation screen during charging

After  the  power  switch  is  turned  to  ON  mode  during  charging,  the  power
switch will automatically turn off after approximately 100 seconds.

275

PRIUS PRIME_OM_OM47D71U_(U)

4

Operation of

each component

4-1. Key information

Keys .................................. 276

4-2. Opening, closing and

locking the doors

Side doors......................... 281
Back door.......................... 287
Smart key system ............. 292

4-3. Adjusting the seats

Front seats ........................ 301
Rear seats......................... 303
Head restraints.................. 305

4-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 308
Inside rear view mirror ...... 310
Outside rear view

mirrors............................. 312

4-5. Opening and closing the

windows

Power windows ................. 314

276

PRIUS PRIME_OM_OM47D71U_(U)

4-1. Key information

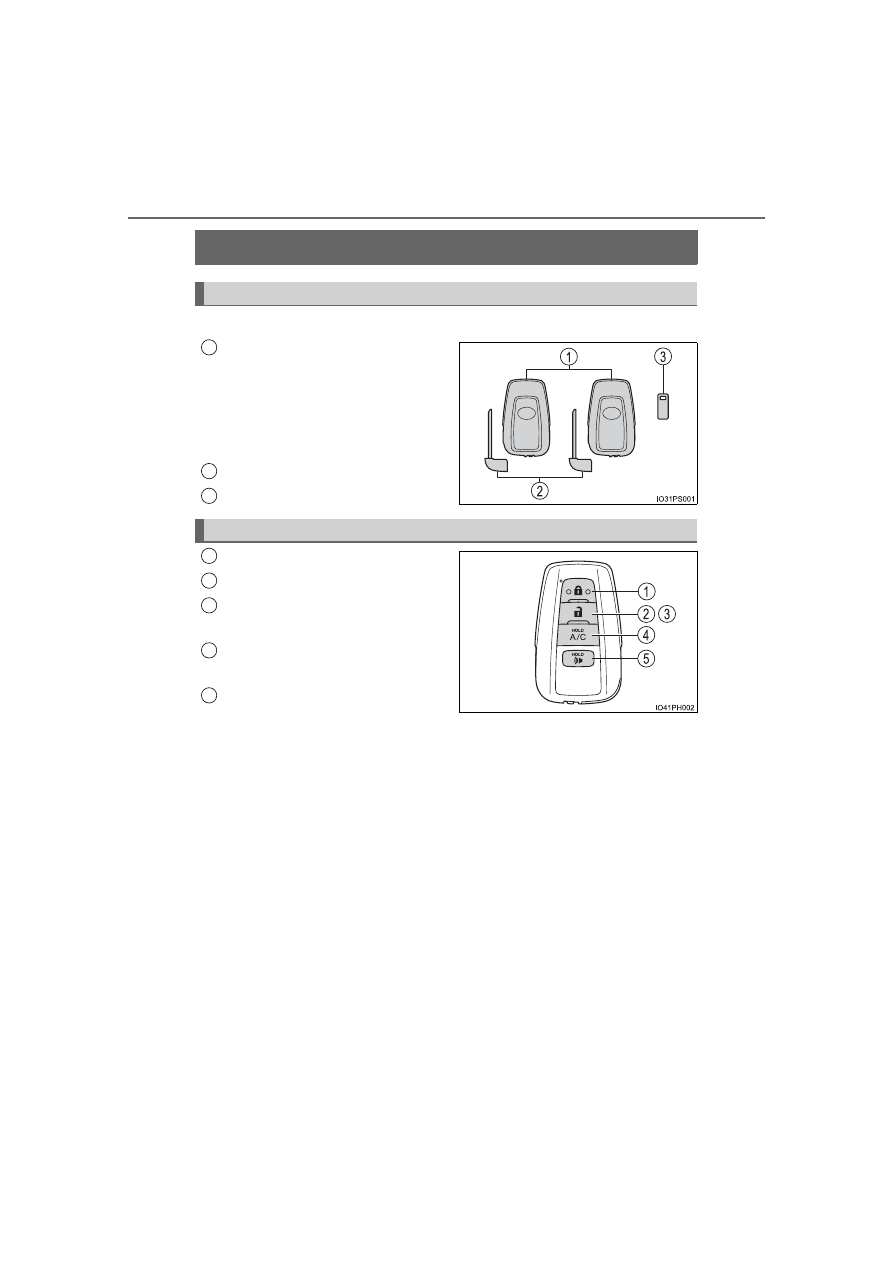

Keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(



P. 292)

• Operating  the  wireless  remote

control function

• Operating  the  Remote Air  Con-

ditioning System (



P. 535)

Mechanical keys
Key number plate

Locks all the doors (



P. 282)

Unlocks all the doors (



P. 282)

Opens the side windows

*



(



P. 282)

Operates  Remote  Air  Condi-
tioning System (



P. 535)

Sounds the alarm (



P. 277)

*

: This setting must be customized at your Toyota dealer.

The keys

1

2
3

Wireless remote control

1
2
3

4

5

PRIUS PRIME_OM_OM47D71U_(U)

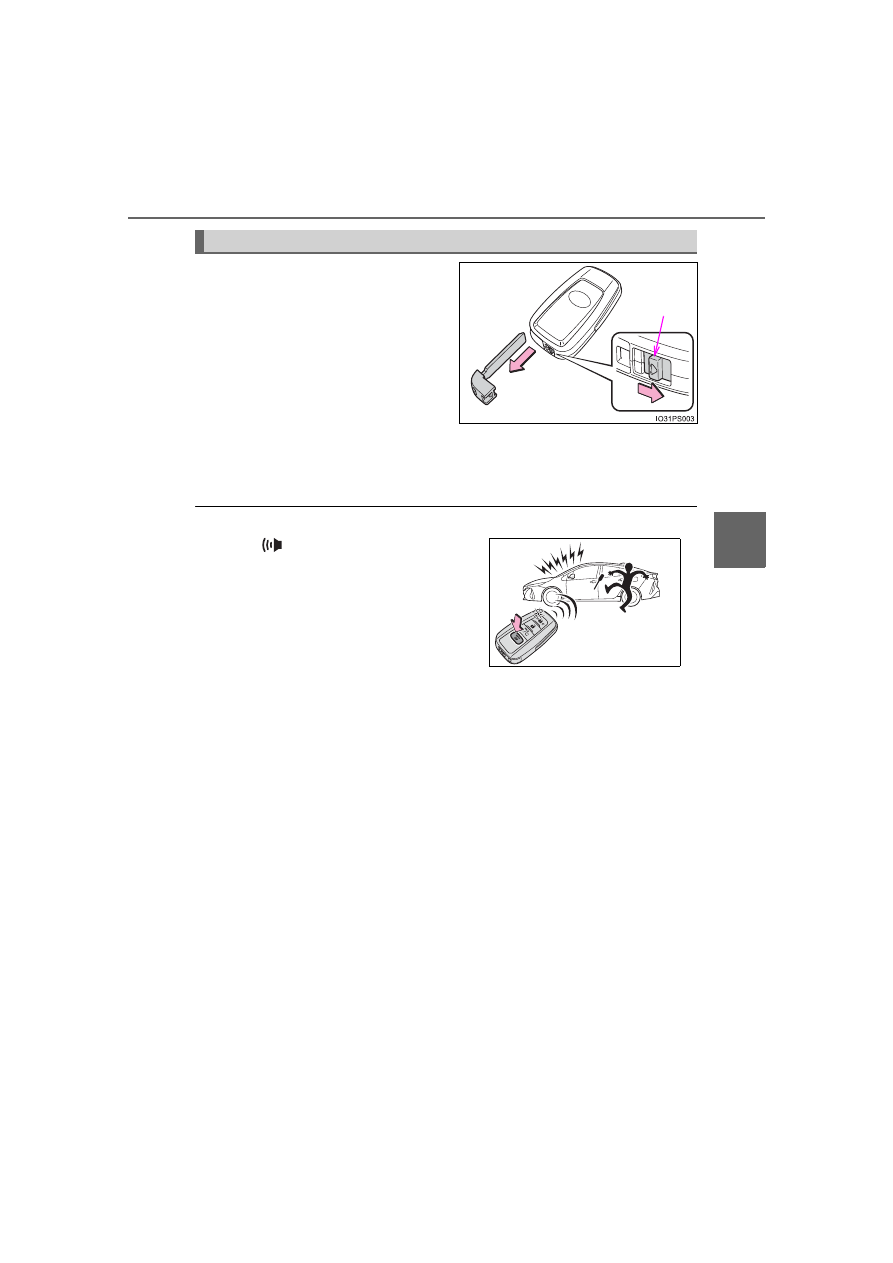

277

4-1. Key information

4

Op
eration

 o

f each

 compo

nen
t

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (



P. 711)

■

Panic mode

■

If you lose your mechanical keys

New  genuine  mechanical  keys  can  be  made  by  your  Toyota  dealer  using
another mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any  buttons  on  the  electronic  key  while  inside  the  aircraft  cabin.  If  you  are
carrying an electronic key  in your bag etc., ensure that the buttons  are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.

Using the mechanical key

Release
lever

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

IO41PH003
