Toyota Prius Prime (2021 year). Manual in english - part 3

150

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

To prevent electrical shock, be sure to remove by following the proce-
dures below.

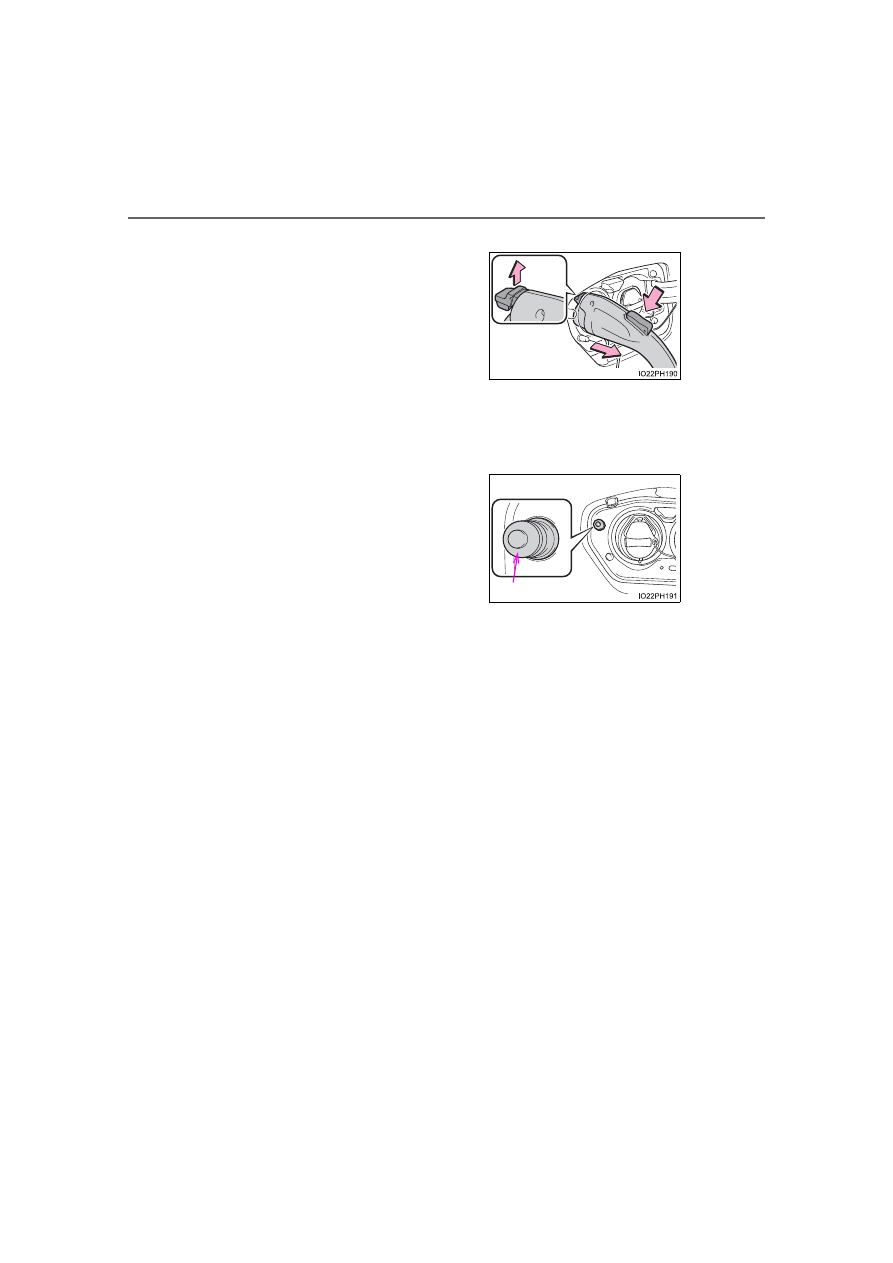

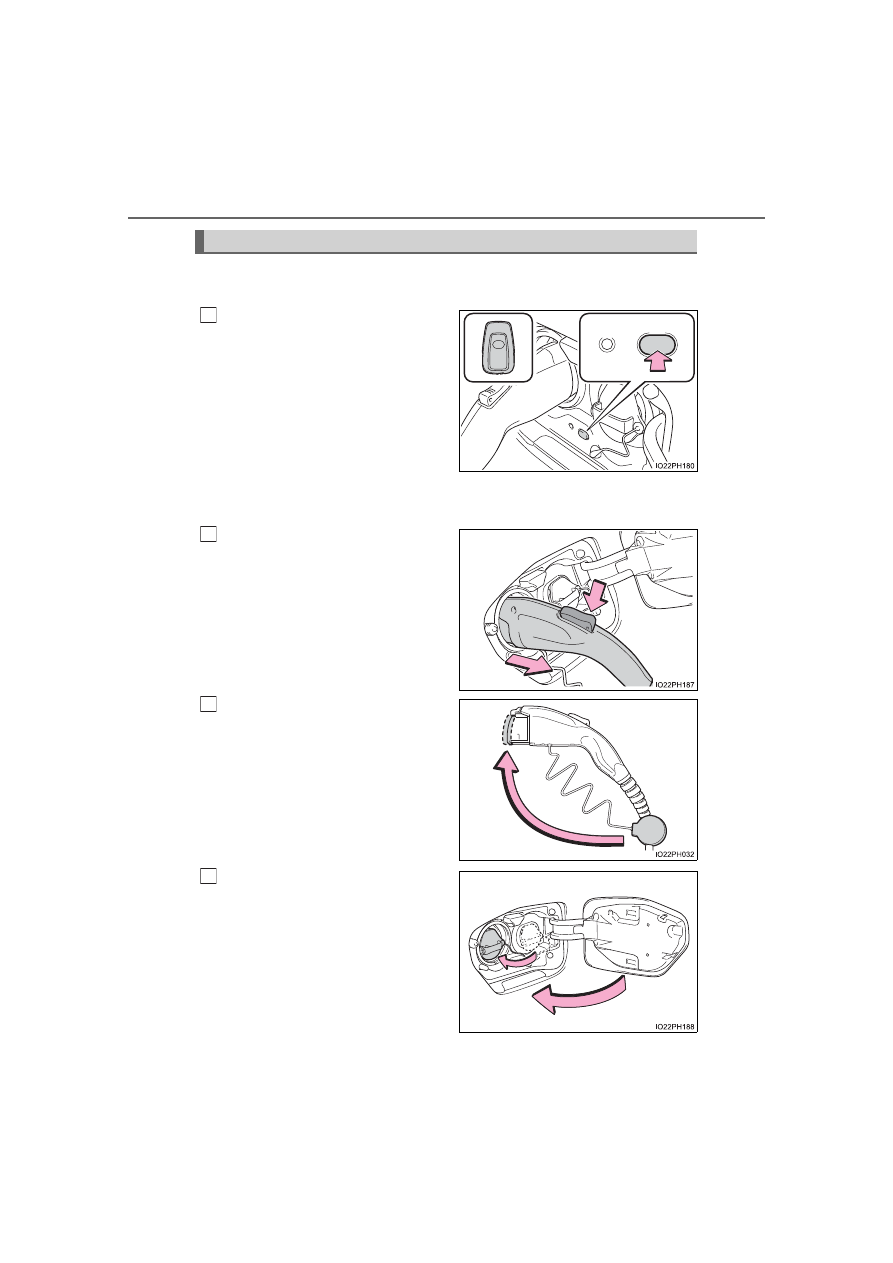

Vehicles  with  smart  lid  &  con-
nector locking system:
When the charging connector is
locked,  carry  an  electronic  key
and press the charging connec-
tor lock switch.

The

charging

connector

is

unlocked  by  the  smart  lid  &  con-
nector locking system.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.

Pull  the  charging  connector
towards you while pressing the
latch release button.

If  the  latch  release  button  is
pressed during charging (while the
charging  indicator  is  on),  charging
will be interrupted.

Attach  the  charging  connector
cap.

Attach  the  charging  inlet  cap
and close the charging port lid.

After charging

1

2

3

4

PRIUS PRIME_OM_OM47D71U_(U)

151

2-2. Charging

2

Plug-

in hybrid system

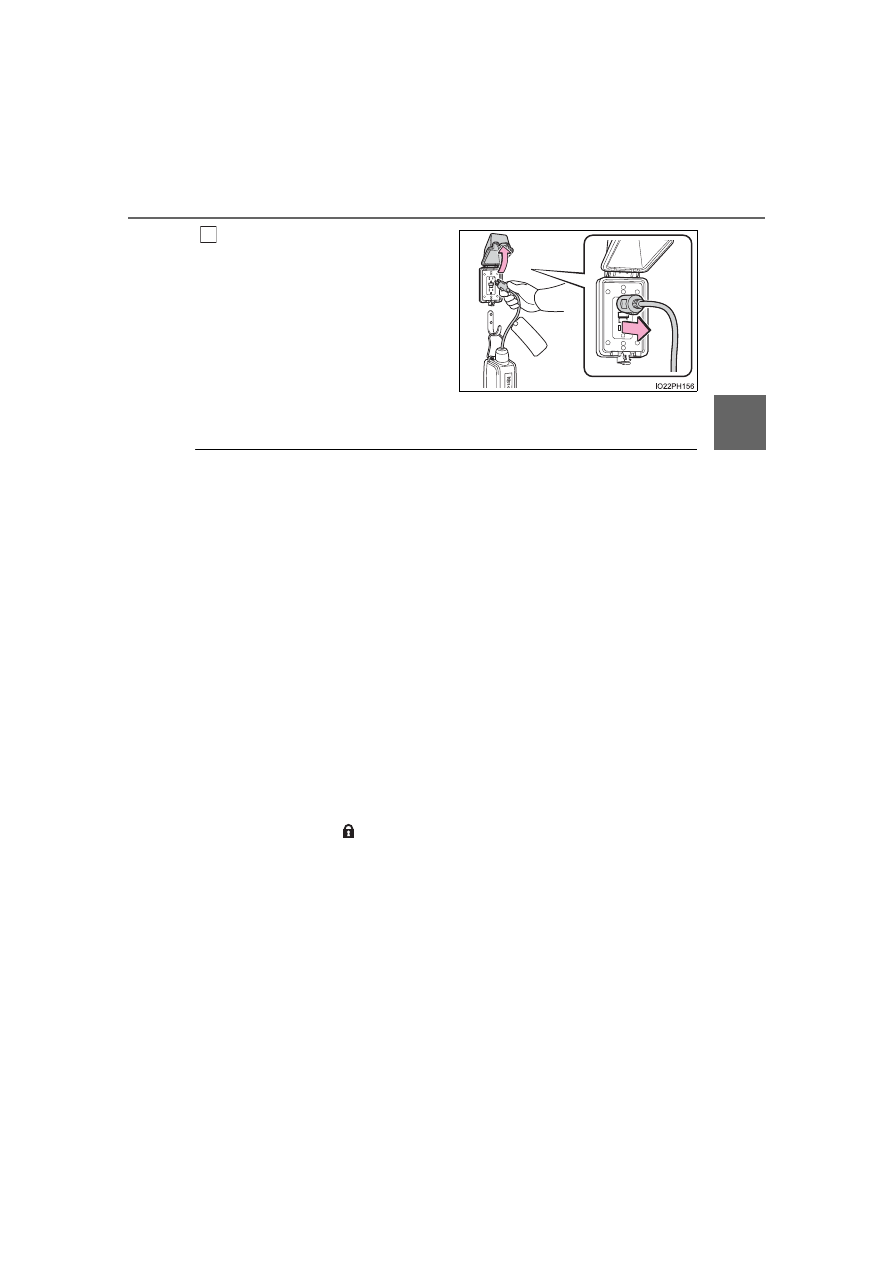

Remove the plug from the out-
let  when  the  charging  equip-
ment  will  not  be  used  for  a
prolonged period of time.

Hold  the  body  of  the  plug  when
removing.
Make  sure  to  put  the  cable  away
immediately  after  disconnecting.
(



P. 155)

When  leaving  the  plug  inserted,  inspect  the  plug  and  connector  once  a
month to check if dirt or dust has accumulated.

■

Charging time



P. 134

■

Safety function

If  the  latch  release  button  is  pressed,  charging  will  not  begin  even  if  the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging,  reinsert the
charging connector after pulling it out, and check that the charging indicator
illuminates.

■

When the outside temperature is low or high

The level shown on the remaining charge display (



P. 231) may drop slightly

when the power switch is turned to ON mode, even if charging has been com-
pleted and the hybrid battery (traction battery) is fully charged. However, this
does not indicate a malfunction.

■

Charging time may increase



P. 135

■

While charging

When  the  power  switch  is  turned  to  ON  mode  and  the  energy  monitor  dis-
plays, the charging connector is displayed on the energy monitor and the flow
of electricity during charging is displayed (



P. 223). Also, when the charging

connector is locked,

 is displayed.

*

*

: Vehicles with smart lid & connector locking system only

■

If the charging cable cannot be unlocked



P. 128

5

152

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

When removing the charging connector

■

Push lifter (vehicles with smart lid & connector locking system)

Press the latch release button, check that
the  lever  raises  up,  and  then  pull  the
charging connector towards you.
Vehicles  with  smart  lid  &  connector  lock-
ing system: If the lever does not raise up
even  after  the  latch  release  button  is
pressed,  the  charging  connector  is
locked.  If  this  occurs,  carry  an  electronic
key  and  press  the  charging  connector
lock  switch  to  unlock  the  charging  con-
nector.

When the charging port lid is open, make
sure  not  to  touch  the  push  lifter.  If  it  is
touched accidentally, the charging port lid
or connector lock may operate.
If they are accidentally operated, carry an
electronic  key  or  unlock  the  doors,  and
then  press  the  charging  connector  lock
switch to unlock.

Push lifter

PRIUS PRIME_OM_OM47D71U_(U)

153

2-2. Charging

2

Plug-

in hybrid system

WARNING

■

When charging

Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.

●

Connect to a power source suitable for charging. (



P. 131)

●

Before charging, check that the charging inlet does not have deformations,
damage,  corrosion,  dust  or  other  foreign  materials  such  as  snow  or  ice
adhering  to  it.  If  anything  is  adhering  to  the  inlet,  be  sure  to  completely
remove the material before connecting the charging connector.

●

Do not let the terminals of the charging inlet get wet.

●

Make sure that the charging cable, plug and socket are free of foreign mat-
ter and not deformed or damaged.

●

Only use outlets where the plug can be securely inserted.

●

Do not charge if the charging cable is coiled or bundled.

●

Wrapping 120 V charging cable while in-use is not recommended because
cable  may  overheat.  Failure  to  rewrap  charging  cable  when  not  in-use
could result in strangulation or tripping hazard.

●

Do  not  touch  the  terminals  of  the  charging  connector  and  charging  inlet
with a sharp metal objects (needles etc.) or hands, or short them with for-
eign objects.

●

When charging outdoors, make sure to connect to a weatherproof outlet
for outdoor use.

●

If any heat, smoke, odors, noise or other abnormalities are noticed during
charging, stop charging immediately.

●

Do not insert the plug if the outlet is submerged in water or snow.

●

When charging during rain or snow, do not pull out or insert the plug with
wet hands. Also, do not get the electrical socket and plug wet.

●

Do not charge the vehicle during a lightning storm.

●

Do not let the wheels on the charging cable, plug, charging connector and
CCID (Charging Circuit Interrupting Device).

●

Firmly insert the plug into the outlet.

●

Do not use an extension cord and converting adaptor.

●

After  connecting the charging  cable, confirm that it  is  not  wound around
anything.

●

If the power indicator light does not illuminate after plugging the charging
cable into the socket-outlet, unplug it immediately.

154

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

WARNING

■

If the error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) illuminates or flashes during charging

There may be an electrical leakage in the power source path, or there may
be a malfunction in the charging cable or CCID (Charging Circuit Interrupt-
ing Device). Refer to P. 118 and follow the correction procedure. If the error
warning indicator does not turn off even after performing the correction pro-
cedure, immediately stop charging, remove the charging cable and contact
your Toyota dealer. Continuing to charge the vehicle in that condition may
lead to unforeseen accidents or serious injury.

■

After charging

Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or outlet, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.

■

Onboard traction battery charger

The onboard traction battery charger is located under the rear seats. Make
sure  to  observe  the  following  precautions  regarding  the  onboard  traction
battery charger. Failure to observe these precautions may result in death or
serious injury such as burns and electric shocks.

●

The onboard traction battery charger is hot during charging. Do not touch
the onboard traction battery charger, as doing so may result in burns.

●

Do not disassemble, repair or modify the onboard traction battery charger.
When the onboard traction battery charger needs to be repaired, consult
your Toyota dealer.

■

Charging inlet

Do  not  disassemble,  repair  or  modify  the  charging  inlet.  It  may  lead  to
unforeseen accidents or serious injury. When the charging inlet needs to be
repaired, consult your Toyota dealer.

PRIUS PRIME_OM_OM47D71U_(U)

155

2-2. Charging

2

Plug-

in hybrid system

NOTICE

■

When use the charging cable and related parts

To prevent damage to the charging cable and related parts, observe the fol-
lowing precautions.

●

When interrupting or canceling charging, remove the charging connector
before removing the plug.

●

Vehicles  with  smart  lid  &  connector  locking  system:  When  removing  the
charging cable, check that the charging connector is unlocked.

●

Do not forcefully pull the connector cap and charging inlet cap.

●

Do not apply a vibration to the charging connector while charging.
Charging may be stopped.

●

Do not insert anything but the charging connector.

●

When inserting the plug into or removing the plug from the outlet, make
sure to hold the body of the plug.

●

Do not damage the charging inlet cap with a sharp object.

●

Do not forcefully pull the charging cable that is caught or entangled.
If the cable is entangled, disentangle it before using.

●

When charging from the external device, use the charging cable equipped
with the vehicle.

■

When charging

Do not insert the plug into the charging inlet.
The charging inlet may be damaged.

■

After charging

●

Store the charging cable out of reach from infants and children.

●

After disconnecting the charging connector from the charging inlet, make
sure to put on the charging inlet cap and close the charging port lid.
If the charging inlet cap is not put on, water or foreign objects may enter
the charging inlet, which could lead to vehicle damage.

●

After removing the plug from the outlet, keep it in a safe place free from
moisture and dust.
The charging cable or plug may be damaged if the cable is stepped on or
ridden over by the vehicle.

156

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

NOTICE

■

Using private power generator

Do not use private power generators as a power source for charging.
Doing so may make charging unstable, the voltage may be insufficient, and
the  error  warning  indicator  on  the  CCID  (Charging  Circuit  Interrupting
Device) of the charging cable may flash.

■

Charging station

Due to the environment in which the power equipment is located, charging
may be unstable due to noise, the voltage may be insufficient, and the error
warning indicator on the CCID (Charging Circuit Interrupting Device) of the
charging cable may flash.

157

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

2

Plug-

in hybrid system

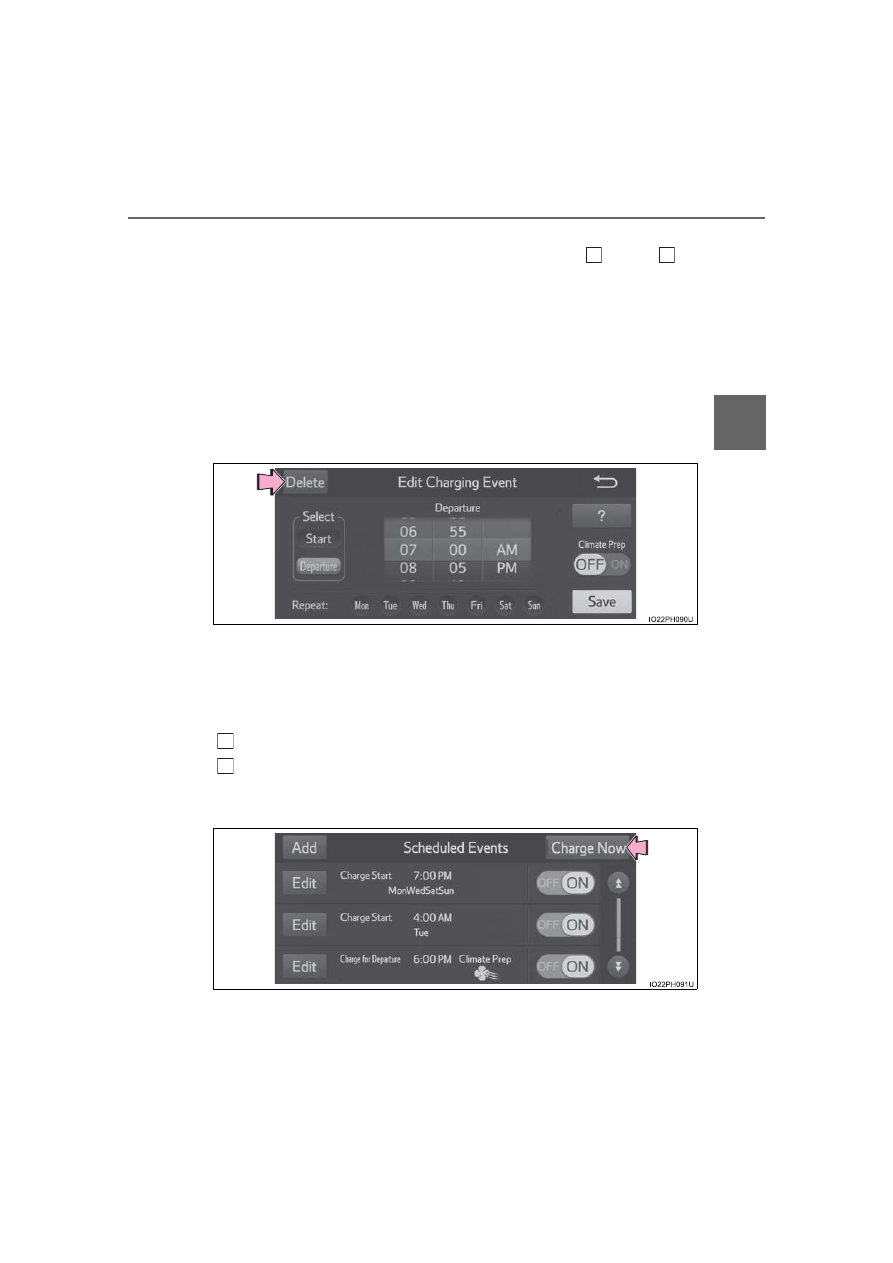

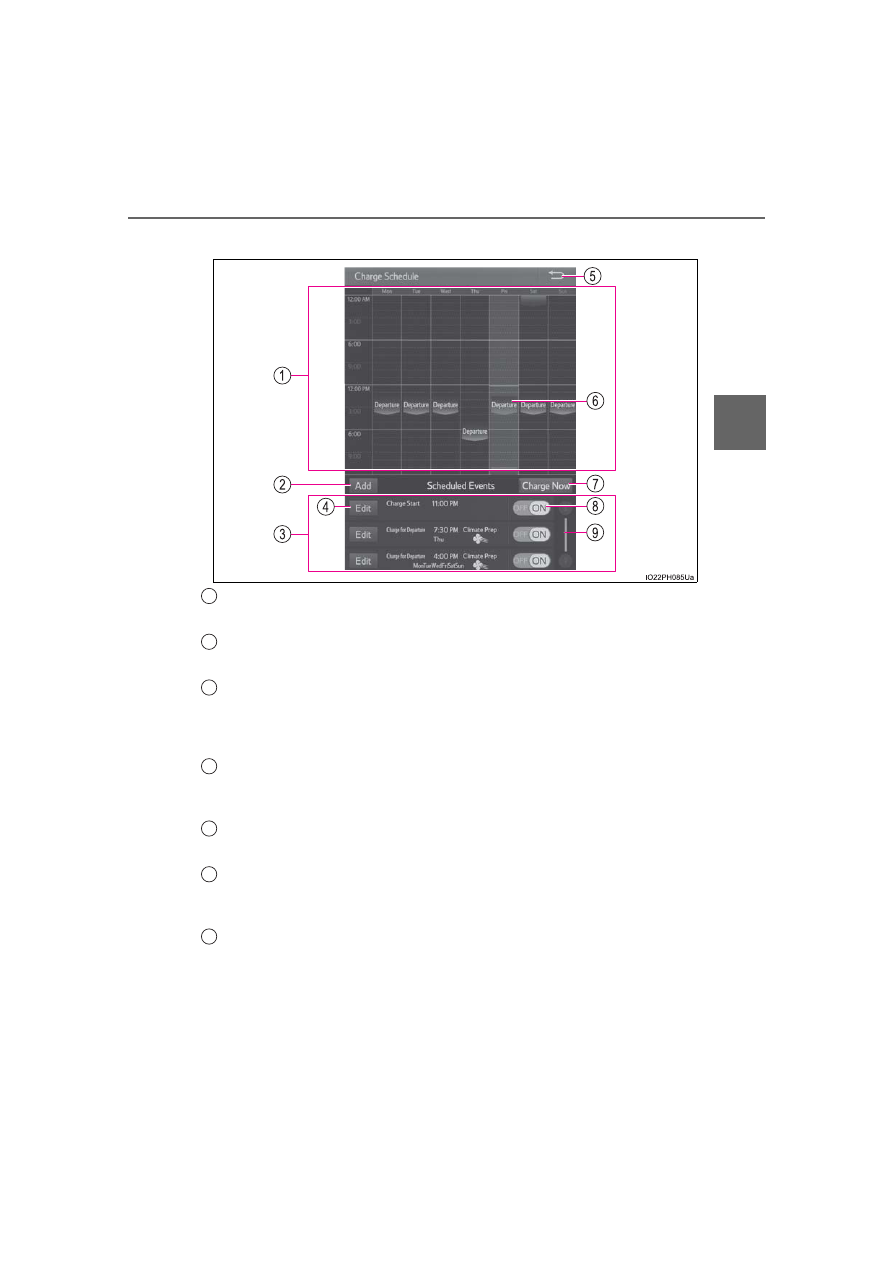

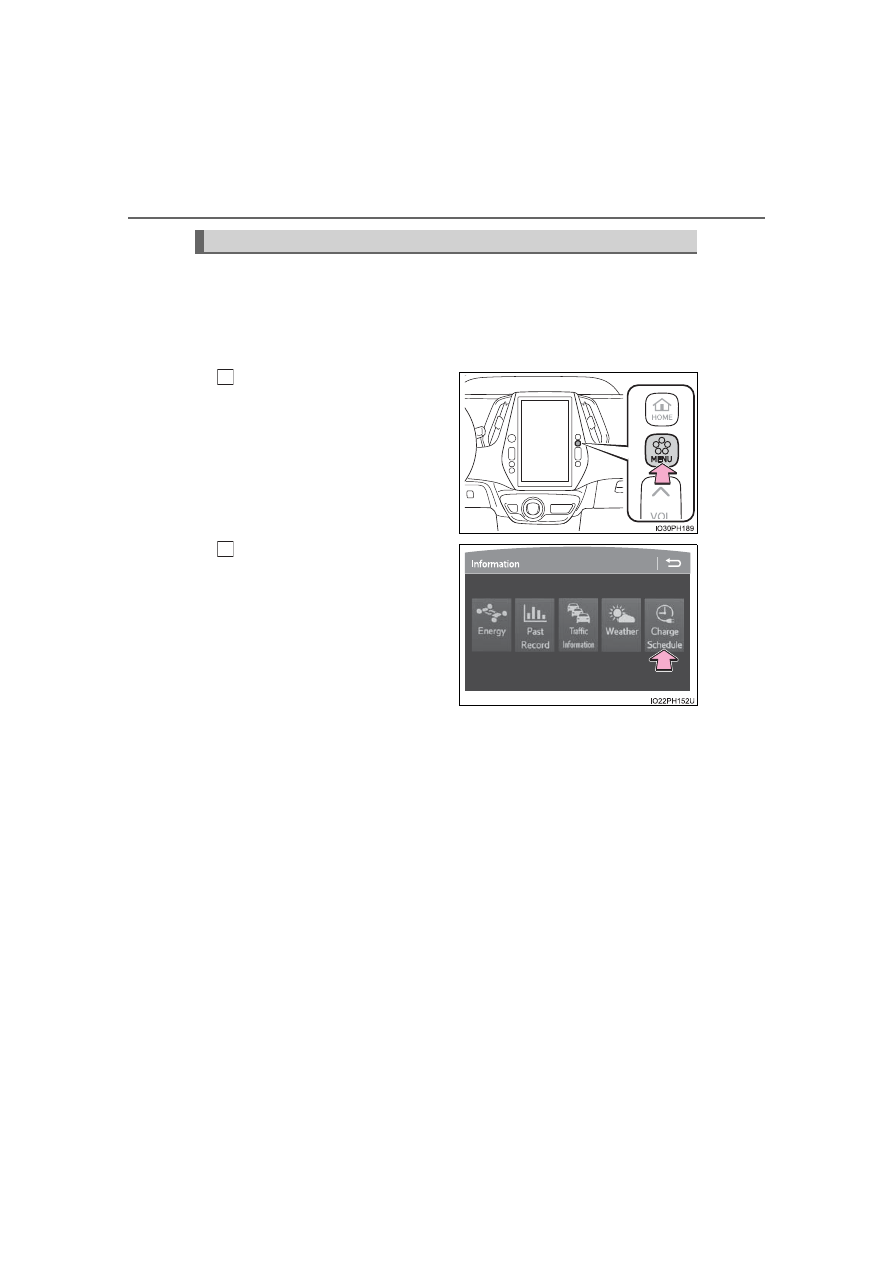

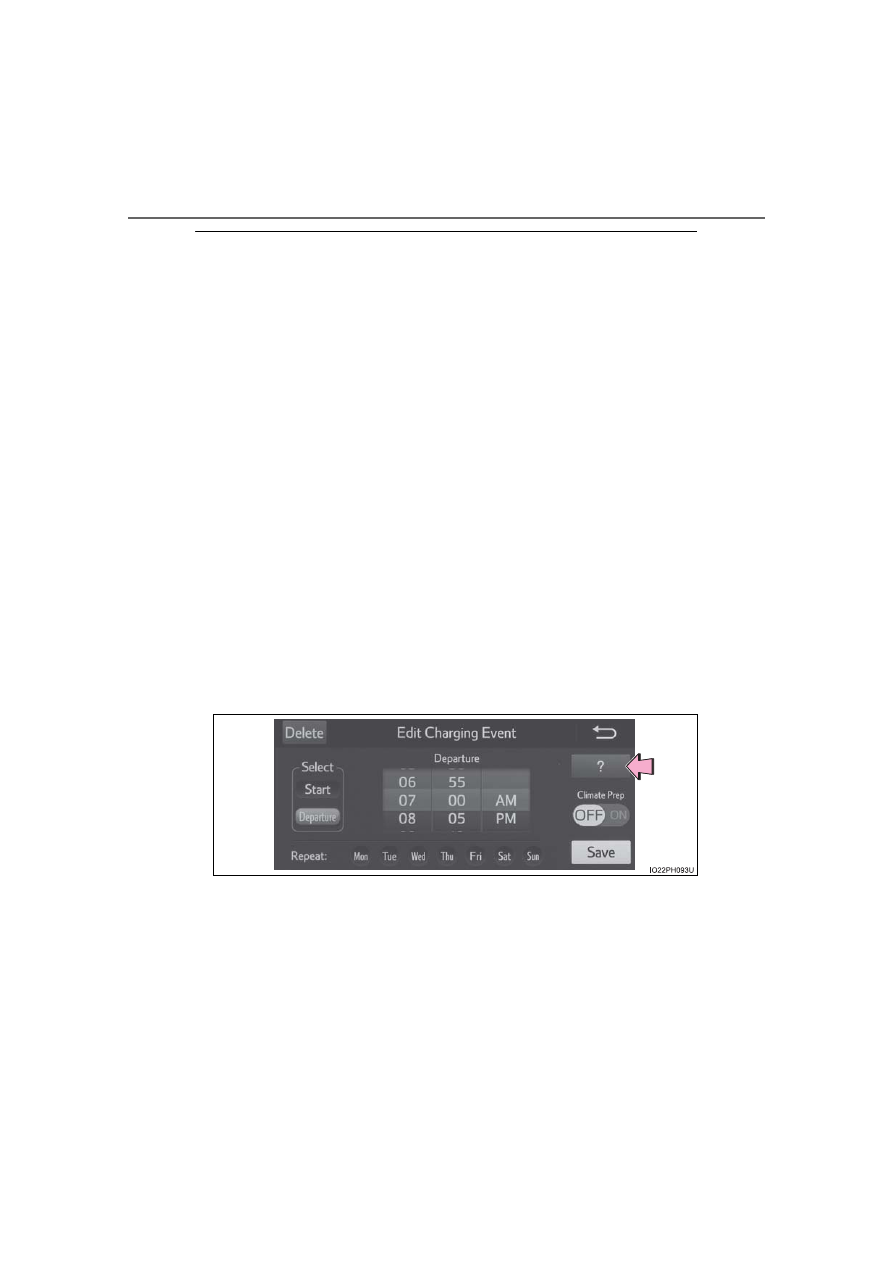

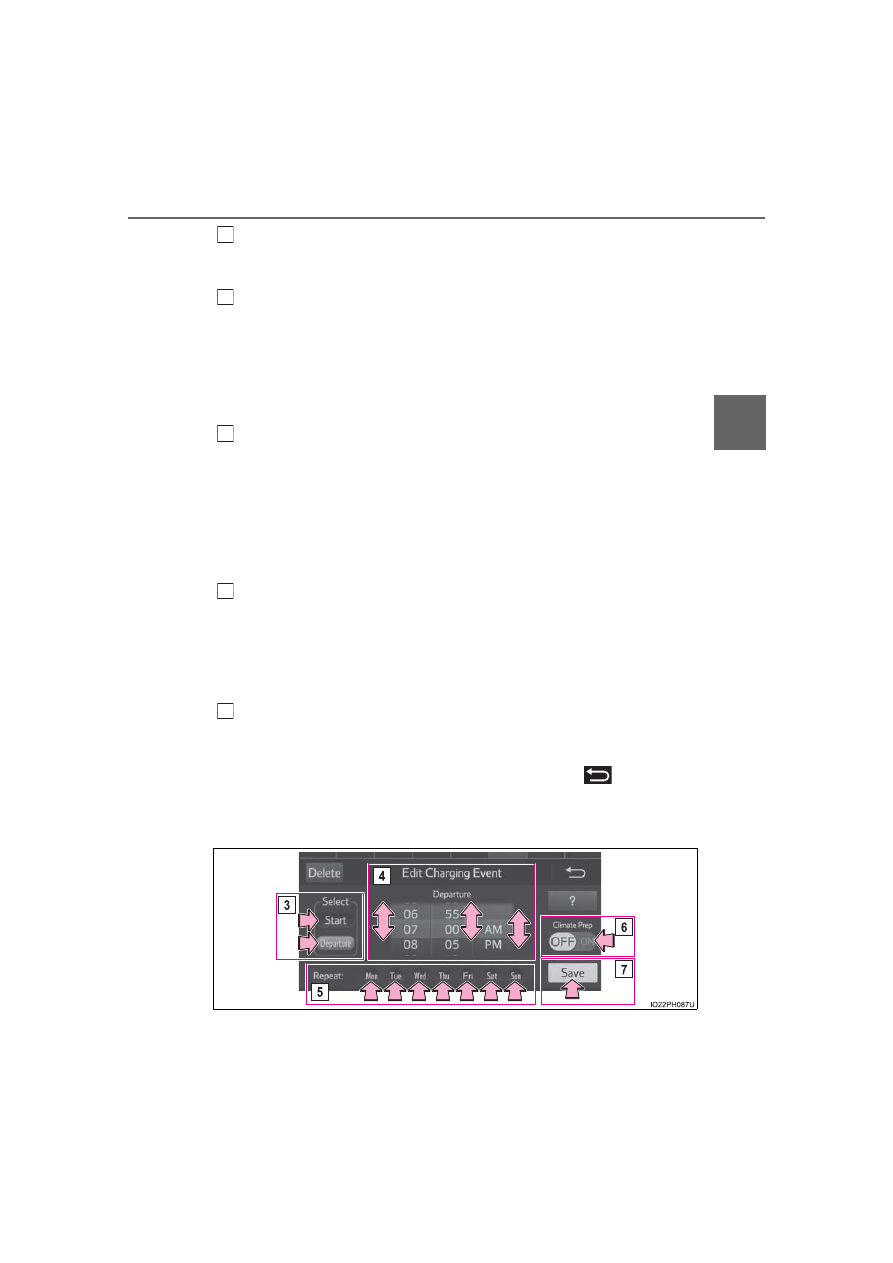

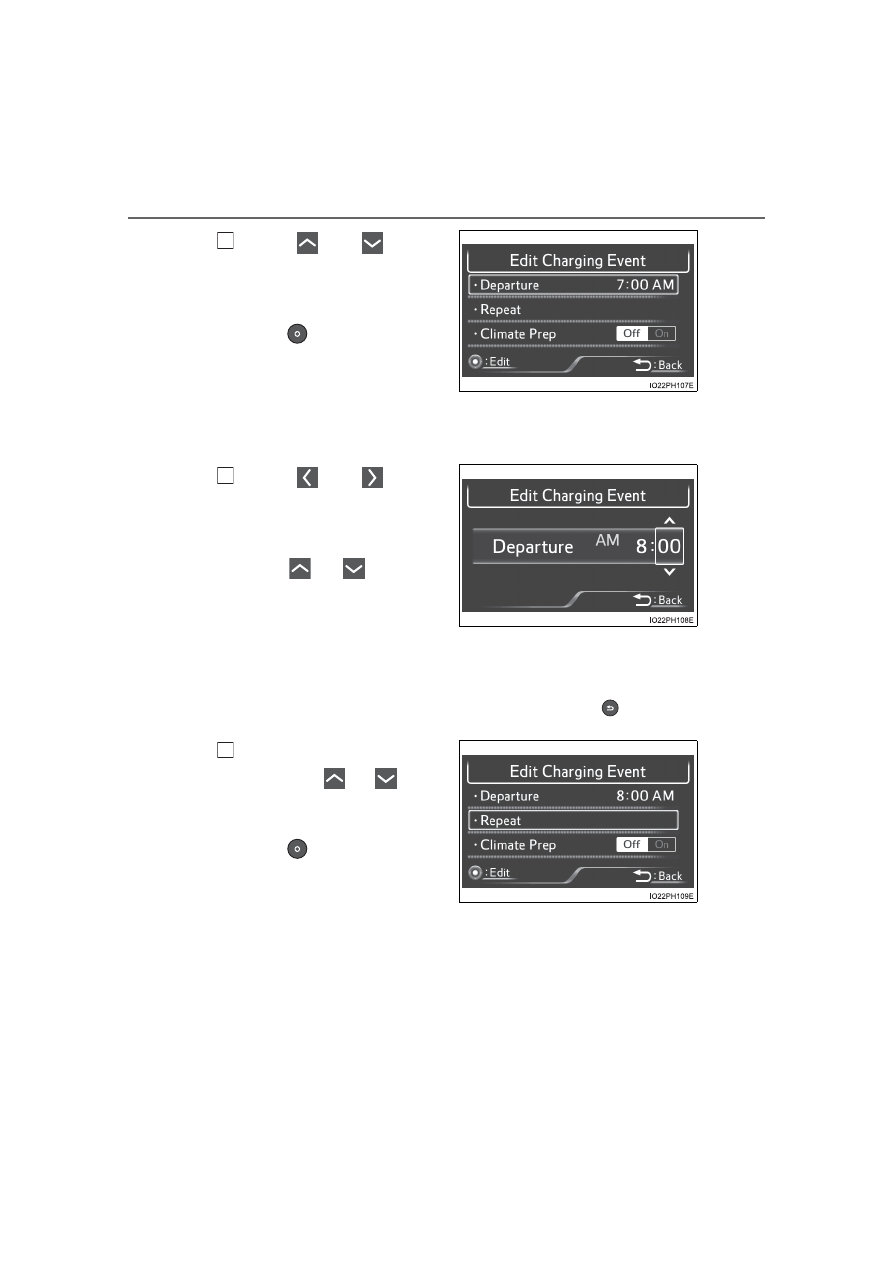

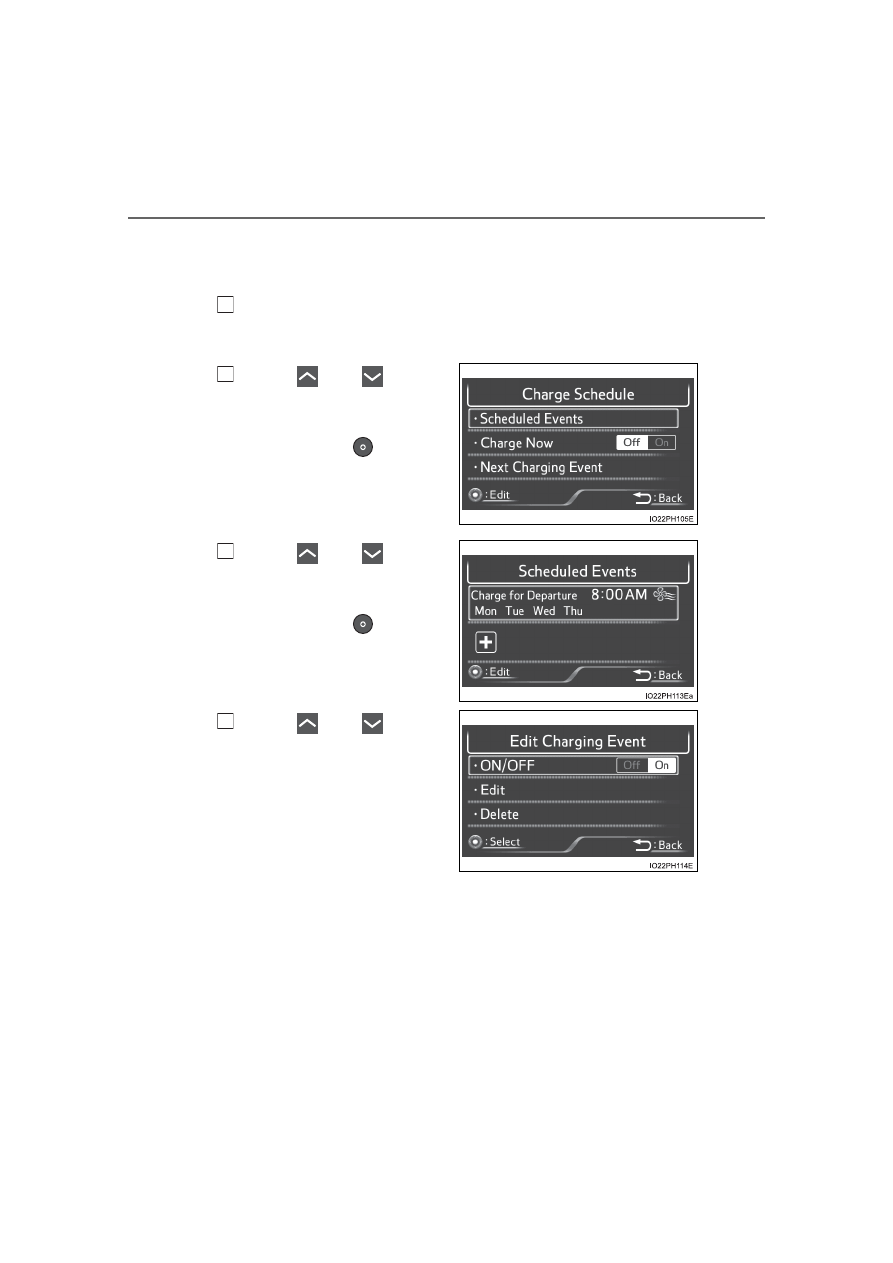

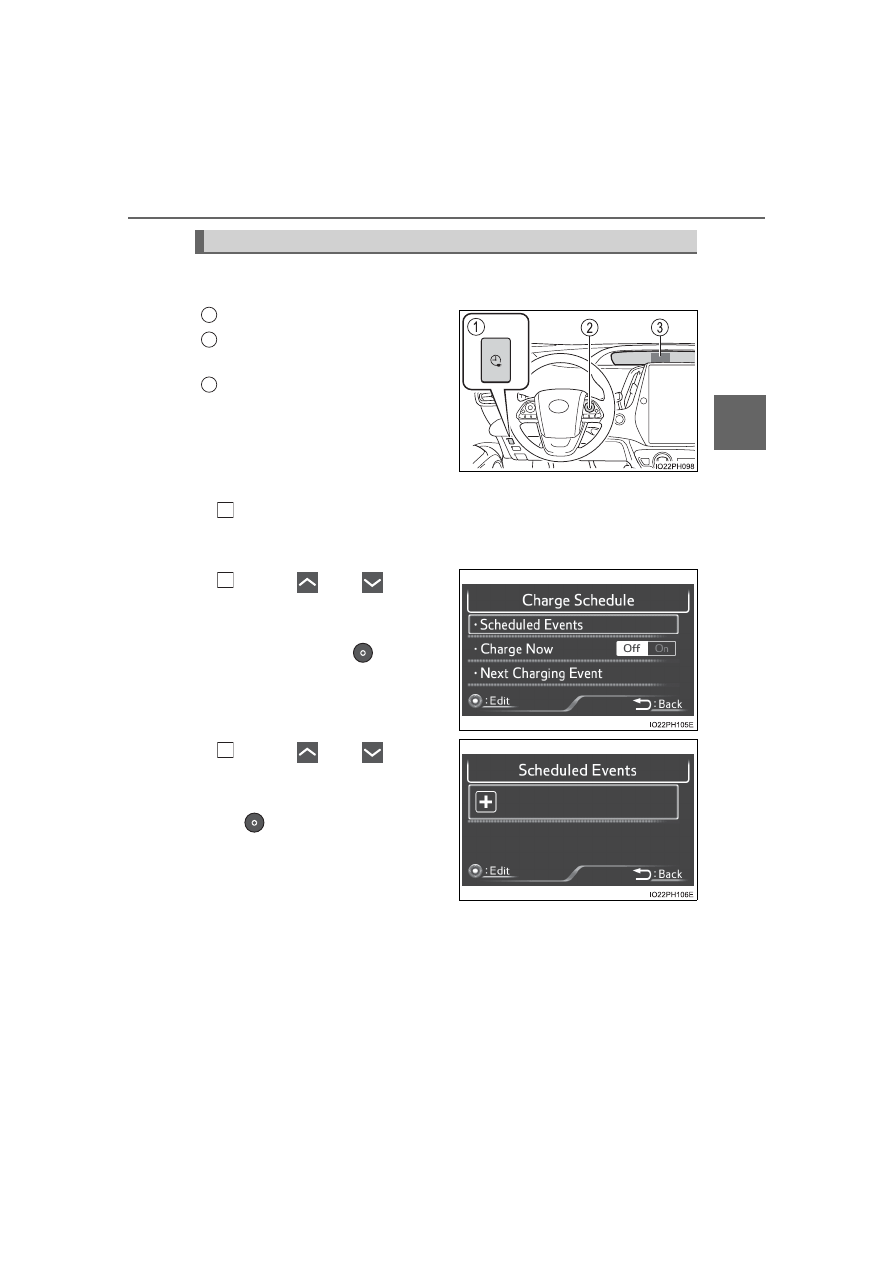

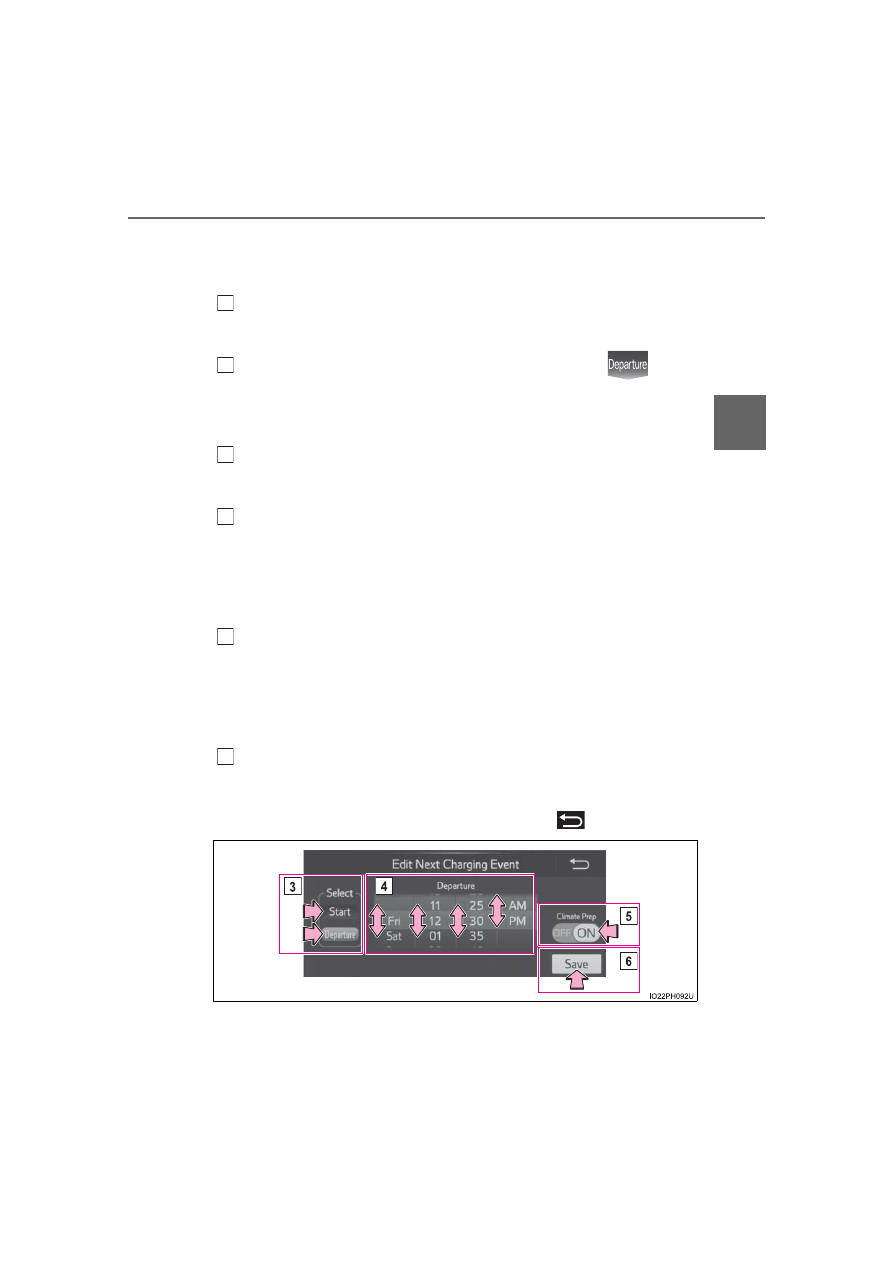

Using the charging schedule function

When registering the charge schedule, the following settings can be
changed.

■

Select the charging mode

One of the two following charging modes can be selected.

*

1

: Charging schedule function is performed in accordance with the clock in

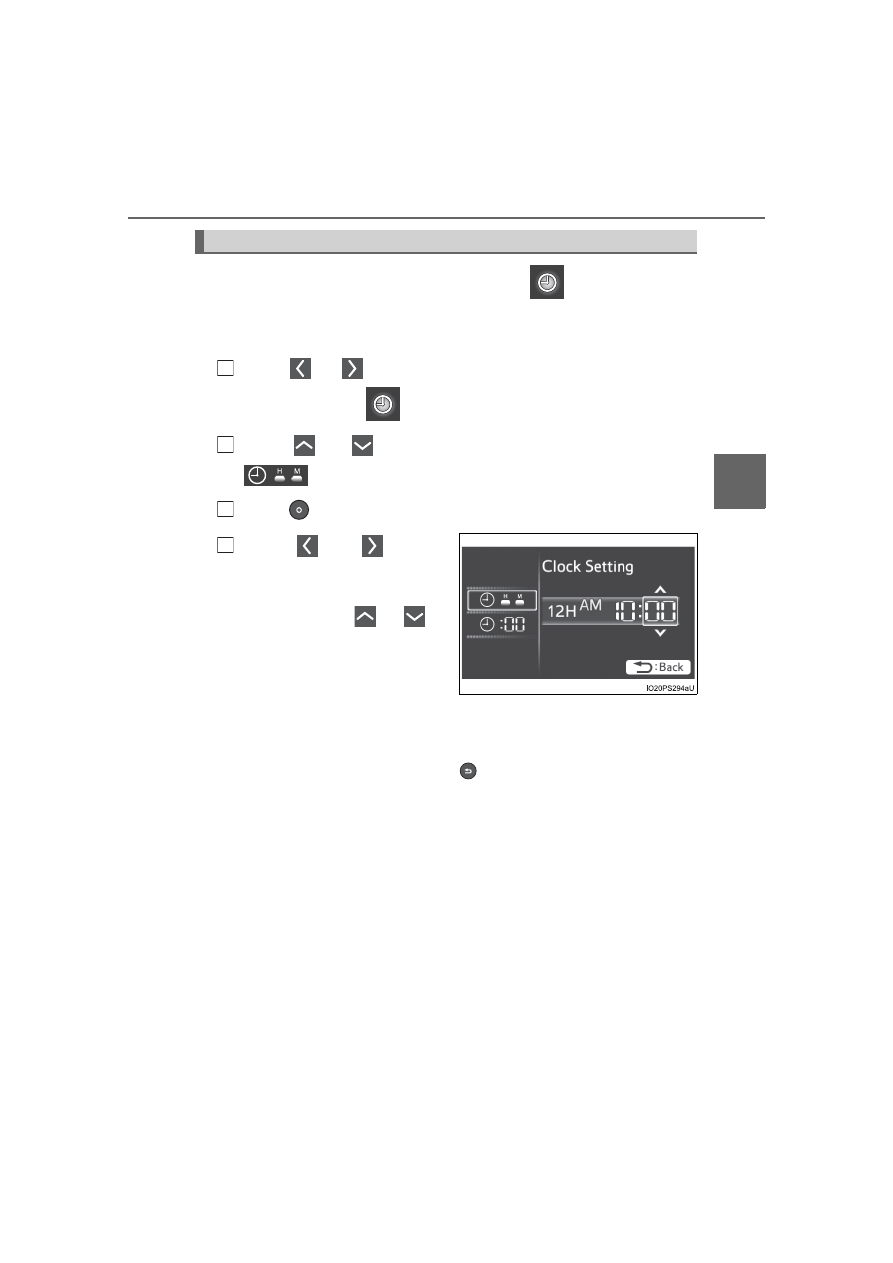

the instrument cluster. Before registering the charge schedule, check the
clock settings to the proper time.

*

2

: There might be a slight error in the timing when charging starts due to the

state of the hybrid battery (traction battery).

■

Repeated setting

The  periodic  charging  schedule  can  be  set  by  selecting  your
desired day of the week.

■

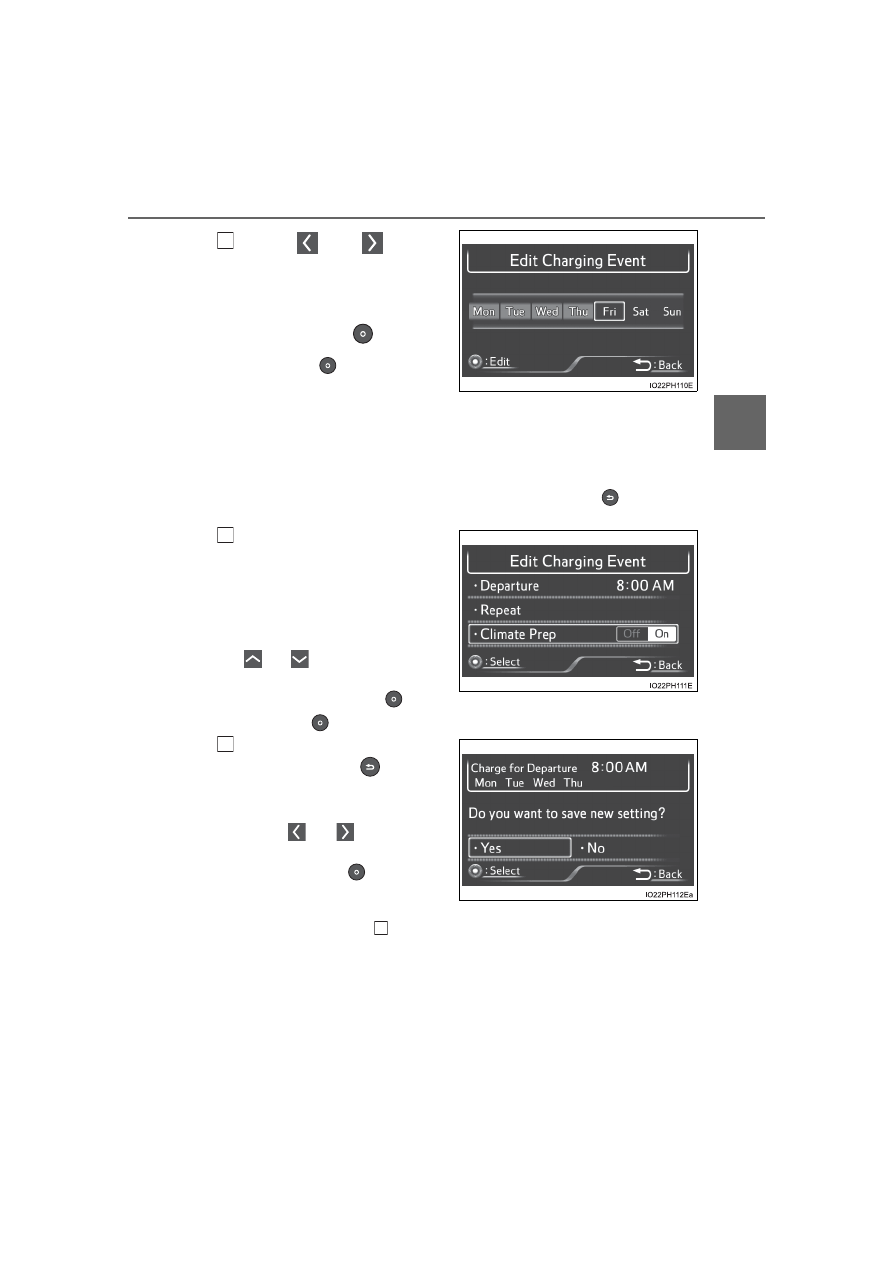

Air conditioning-linked setting (“Climate Prep”)

When the charging mode is set to “Departure”, the vehicle air condi-
tioning system (



P. 512, 524) can be set to automatically operate*

according to the set time.

By adjusting the cabin temperature in advance, passengers can enjoy a
pleasant interior immediately after entering the vehicle.

*

: Operation starts approximately 10 minutes before the set departure time.

Charging  can  be  carried  out  at  the  desired  time  by  registering
the  charge  schedule.  Also,  it  is  possible  to  set  the  charging
schedule  to  one’s  preferences,  such  as  having  charging  com-
plete by a certain departure time or be carried out at the same
time on certain days.

Settings of the charging schedule function

Charging mode

Operation description

“Start”

Starts  charging  at  the  set  time

*

1

  and  finishes

charging when fully charged.

*

2

“Departure”

Starts charging to finish at the set time.
When  this  setting  is  selected,  the  air  conditioning-
linked function can be used.

158

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

Turning “Charge Now” on and off

If even one charge schedule is registered, charging does not start
until  the  set  time,  even  if  the  charging  cable  is  connected  to  the
vehicle.  To  start  charging  without  changing  the  charge  schedule
setting,  turn  “Charge  Now”  on  to  temporarily  cancel  the  charge
schedule and enable charging after connecting the charging cable.

■

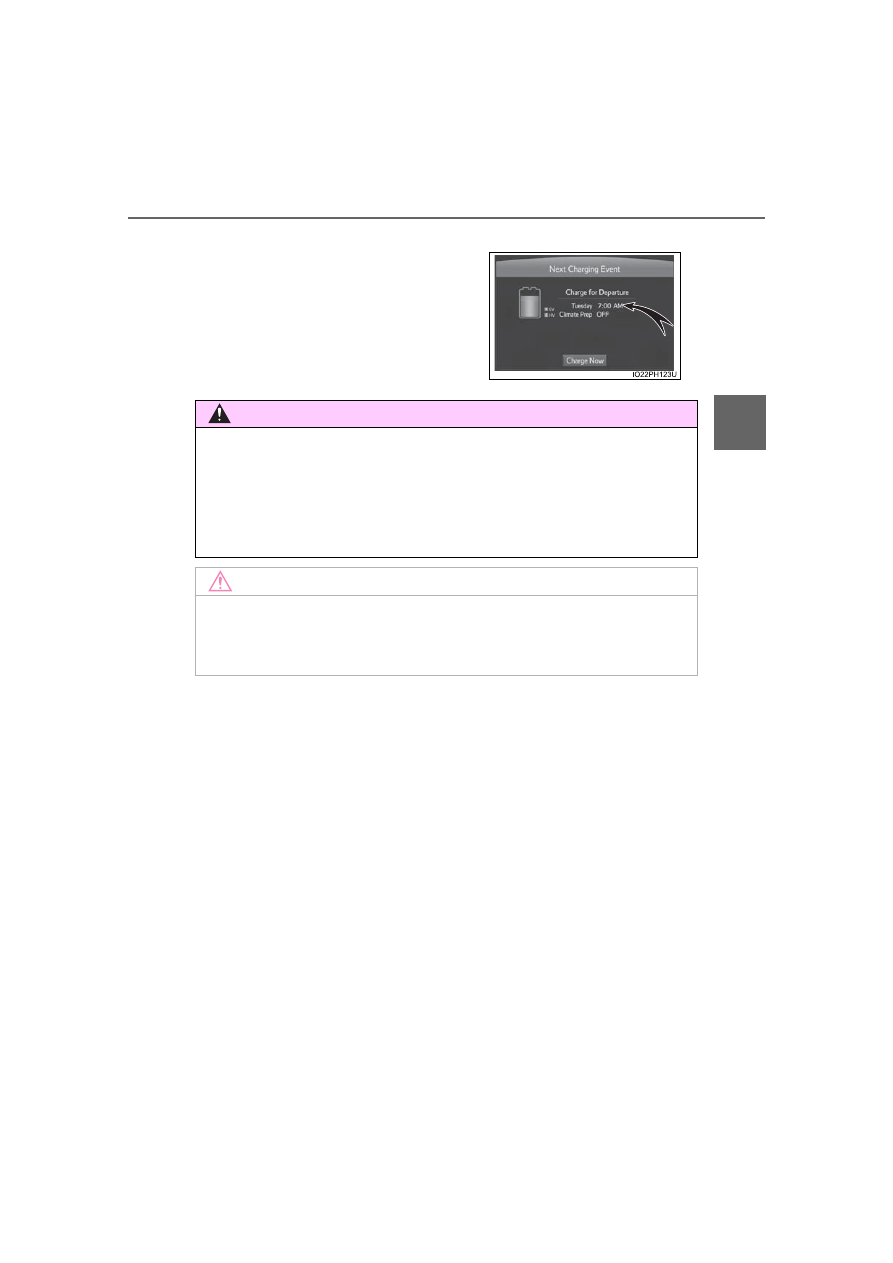

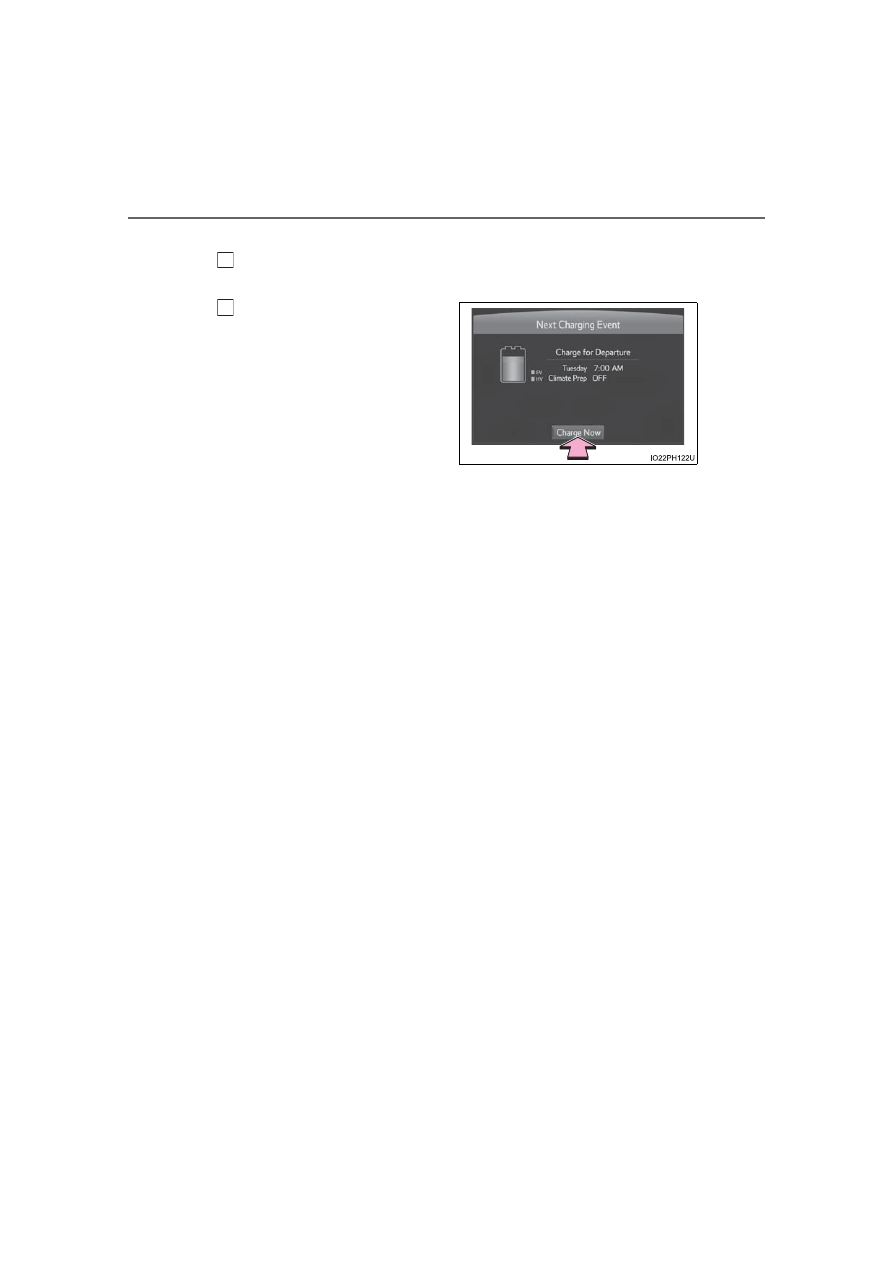

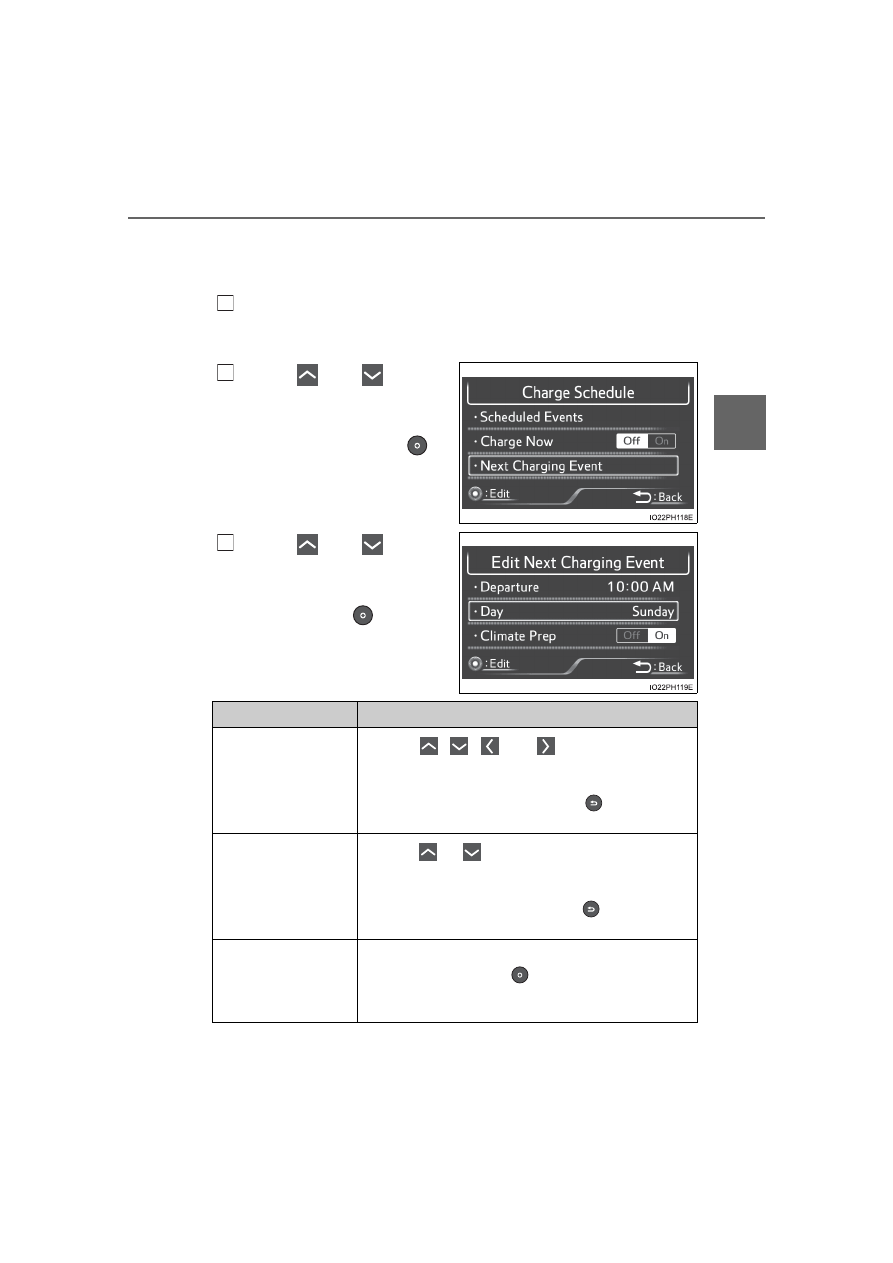

Changing “Next Charging Event”

*

1

It  is  possible  to  temporarily  set  the  time  of  the  next  scheduled
charge without changing the registered repeated setting.

*

2

*

1

: The “Next Charging Event” refers to the closest charge schedule from the

current time among the registered charge schedules. Charging schedule is
performed based on the “Next Charging Event”.

*

2

: When “Next Charging Event” is changed, the current charge schedule will

be temporarily ignored and charging will not be carried out until the time
specified  by  “Next  Charging  Event”.  (For  example,  when  “Next Charging
Event” is set for 2 days later, even if items are registered on the charge
schedule, charging will not be carried out until the time specified by “Next
Charging Event”.)

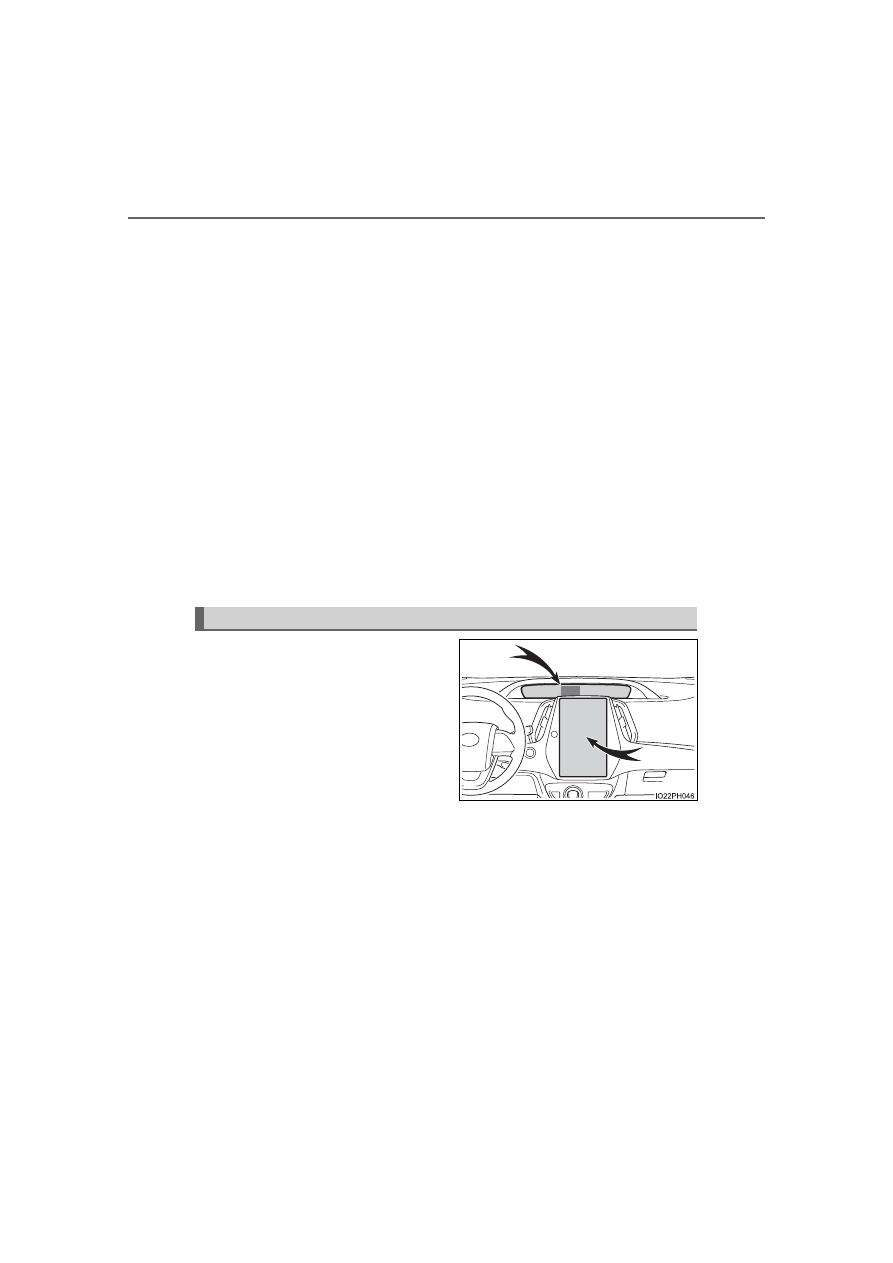

The charge schedule can be reg-
istered  on  the  multi-information
display  or  11.6-inch  display  (if
equipped).

●

Multi-information display opera-
tion:



P. 161

●

11.6-inch  display  operation  (if
equipped):



P. 170

Registering the charge schedule

PRIUS PRIME_OM_OM47D71U_(U)

159

2-2. Charging

2

Plug-

in hybrid system

■

Charging schedule

●

The charge schedule cannot be set while driving.

●

A maximum of 15 charge schedules can be registered.

■

To make sure that the charging schedule function operates correctly

Check the following items.

●

Adjust the clock to the correct time (



P. 197)

●

The calendar is set to the correct date (



P. 199)

●

Check that the power switch is turned off

●

After registering the charge schedule, connect the charging cable
The charging start time is determined based on the charge schedule at the
time that the charging cable was connected.

●

After  connecting  the  charging  cable,  check  that  the  charging  indicator
flashes (



P. 114)

●

Do not use an outlet that has a power cut off function (including a timer func-
tion)
Use  an  outlet  that  constantly  supplies  electricity.  For  outlets  where  the
power is cut off due to a timer function, etc., charging may not be carried
out according to plan if the power is cut off during the set time.

■

When the charging cable remains connected to the vehicle

Even  if  multiple  consecutive  charge  schedules  are  registered,  the  next
charge  will  not  be  carried  out  according  to  the  charging  schedule  until  the
charging cable is removed and reconnected after charging completes. Also,
when the hybrid battery (traction battery) is fully charged, charging according
to the charging schedule will not be carried out.

■

“Climate Prep”

●

When  the  air  conditioning-linked  setting  is  turned  on,  the  air  conditioning
operates until the set departure time. Therefore, the air conditioning will con-
sume electricity and charging may not complete by the set departure time.

●

If the hybrid battery (traction battery) is fully charged, charging will not be
carried out, even if the charge schedule is set. However, if “Climate Prep” is
turned on, the air conditioning will operate only once when it nears the time
set in “Departure”. If this occurs, the air conditioning will consume electricity
and  the  remaining  charge  of  the  hybrid  battery  (traction  battery)  when
departing may be decreased.

●

When the doors are unlocked, the air conditioning system does not operate.

■

Smartphone-linked operation (vehicles with 11.6-inch display)

After applying to Entune App Suite, it is possible to use the smartphone appli-
cation to change charging schedule settings.
For details about Entune App Suite, refer to http://www.toyota.com/entune/.

160

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

When charging schedules are ignored

When the following operations are performed while the charging schedule is
on  standby,  charging  schedule  is  temporarily  canceled  and  charging  is
started.

●

When the Remote Air Conditioning System (



P. 535) is operated

●

When turning “Charge Now” on (



P. 166, 175)

●

When  an  operation  that  temporarily  cancels  charging  using  the  charging
schedule is performed (



P. 149)

■

Effects of outside temperature

When  the  charging  mode  is  set  to  “Departure”,  charging  schedule  may  be
ignored due to the outside temperature and charging may start.

■

“Traction Battery Cooler” (



P. 136)

When charging is carried out using the charging schedule, the hybrid battery
(traction battery) cooling function may operate according to the temperature
of the hybrid battery (traction battery).

●

When the charging mode is set to “Start”, cooling starts at the set charging
start time.

●

When the charging mode is set to “Departure”, cooling starts approximately
30 minutes before the charging start time. However, if there is no time to fin-
ish charging by the charging schedule, the hybrid battery (traction battery)
cooling time may be shortened and “Traction Battery Cooler” may not oper-
ate.

PRIUS PRIME_OM_OM47D71U_(U)

161

2-2. Charging

2

Plug-

in hybrid system

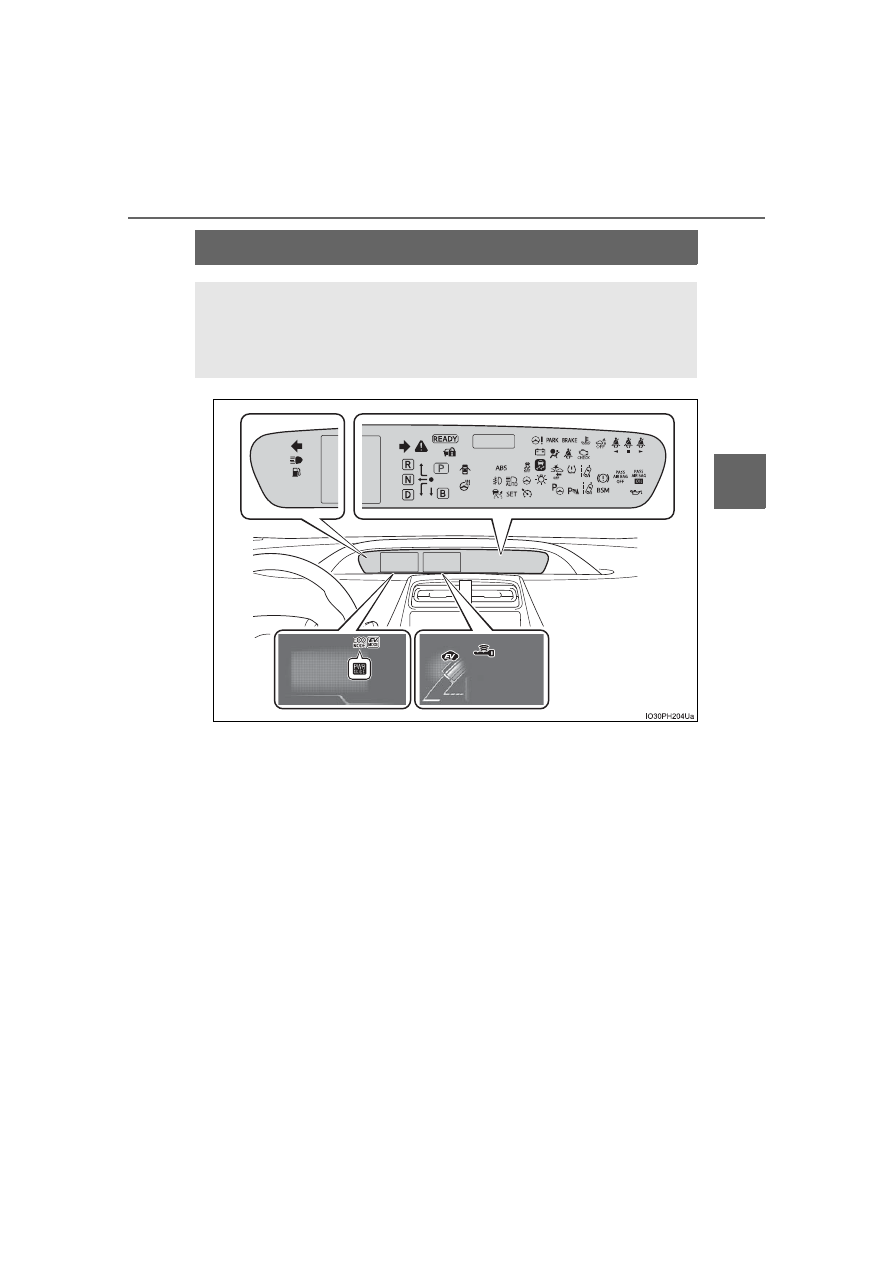

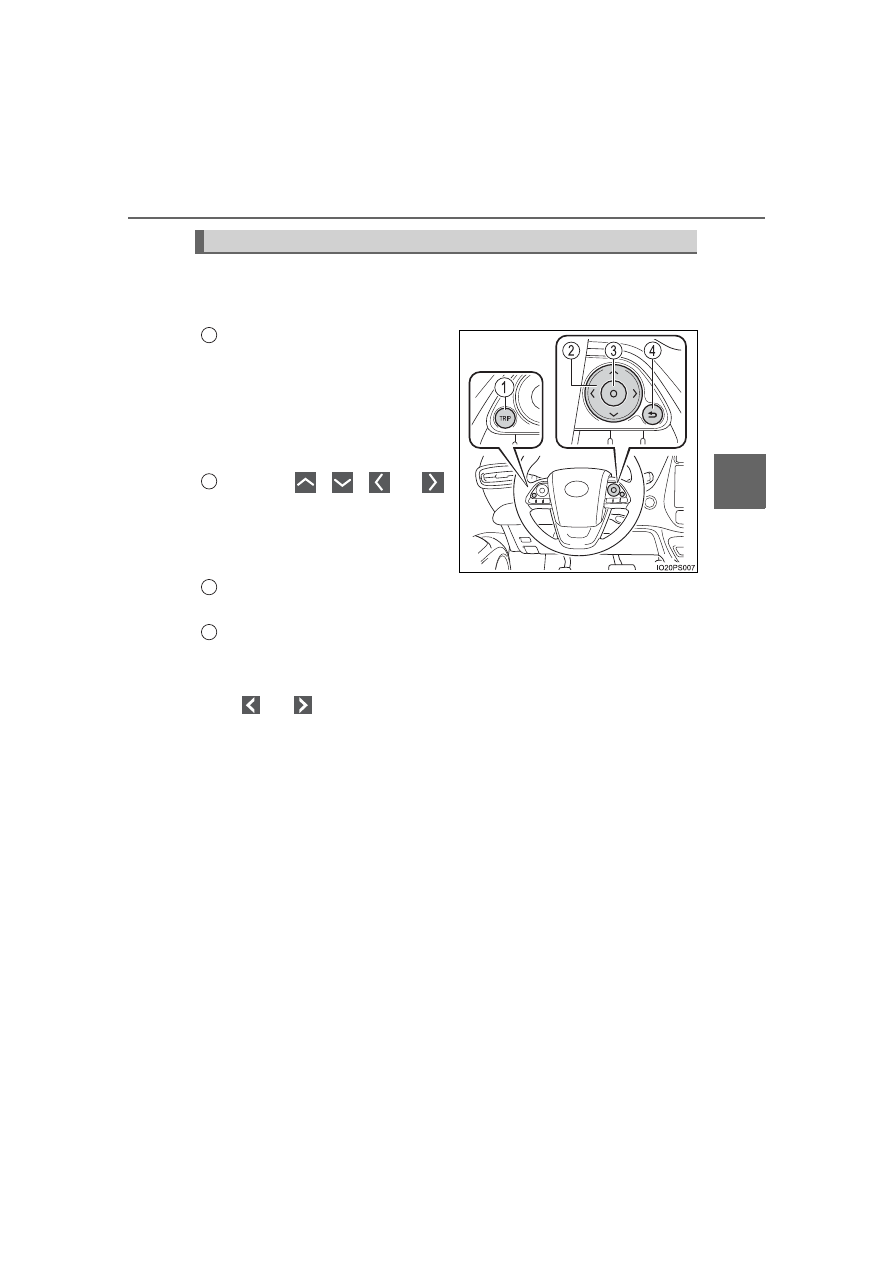

When operating charging schedule, use the charging schedule switch
and meter control switches.

Charging schedule switch
Meter control switches
(



P. 193)

Multi-information display

■

Registering the charge schedule

Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

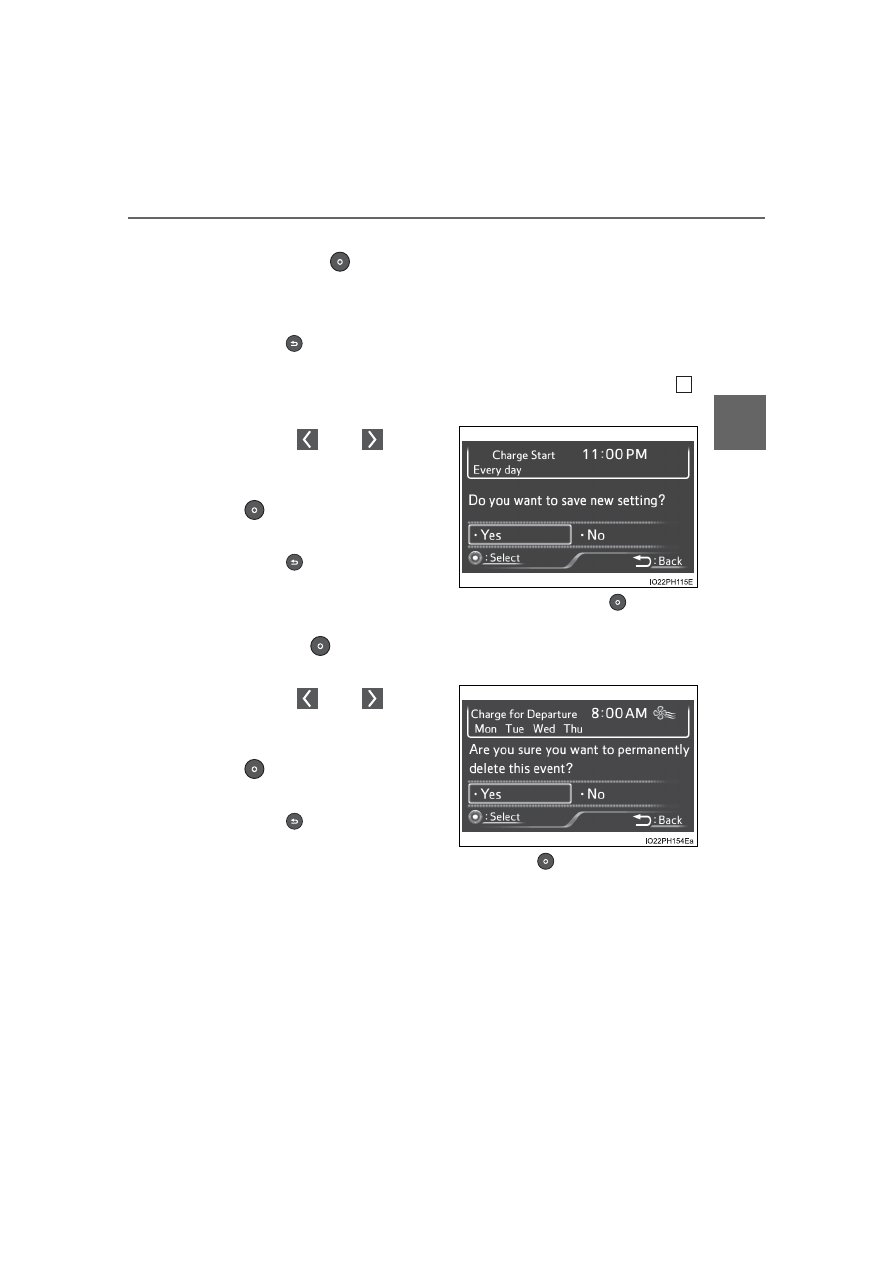

Press

  or

  of  the

meter  control  switches  to
select  “Scheduled  Events”,
and then press

.

The “Scheduled  Events” screen
will display.

Press

  or

  of  the

meter  control  switches  to
select  “+”,  and  then  press

.

The  “Edit  Charging  Event”
screen will display.

Setting operations on multi-information display

1
2

3

1

2

3

162

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

Press

  or

  of  the

meter  control  switches  to
select  the  charging  mode/
time  settings  row,  and  then
press

.

The  charging  mode/time  set-
tings screen will display.
The  clock  display  (12-hour  dis-
play/24-hour  display)  changes
according  to  the  clock  settings.
(



P. 197)

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  change
with  the  cursor,  and  then
press

  or

  to  change

the setting.

Set  the  desired  charging  mode
and charging start (or departure)
time.
When  the  charging  mode  is  “Start”,  this  sets  the  charging  start  time.
When it is “Departure”, this sets the charging end time.
After changing the settings to the desired settings, press

 to return to

the previous screen.

To activate the repeated set-
ting, press

 or

 of the

meter  control  switches  to
select  “Repeat”,  and  then
press

.

A  screen  where  the  repeated
day can be selected will display.

4

5

6

PRIUS PRIME_OM_OM47D71U_(U)

163

2-2. Charging

2

Plug-

in hybrid system

Press

  or

  of  the

meter  control  switches  to
select the desired day to acti-
vate for the repeated setting,
and then press

.

Each  time

  is  pressed,  the

repeated

setting

switches

between on and off.
When set to on, the selected day is highlighted and the charging sched-
ule is repeated on that day. It is possible to set more than one day to on.
If no days are set to on, charging is only carried out once according to
the charging schedule for the next 24 hours.
After changing the settings to the desired settings, press

 to return to

the previous screen.

When  the  charging  mode  is
set  to  “Departure”,  set  the
“Climate  Prep”  (



P.  157)  to

on or off.

To turn the function on and oper-
ate  the  air  conditioning,  press

  or

  of  the  meter  control

switches  to  select  “Climate
Prep”, and then press

.

Each time

 is pressed, the function switches between on and off.

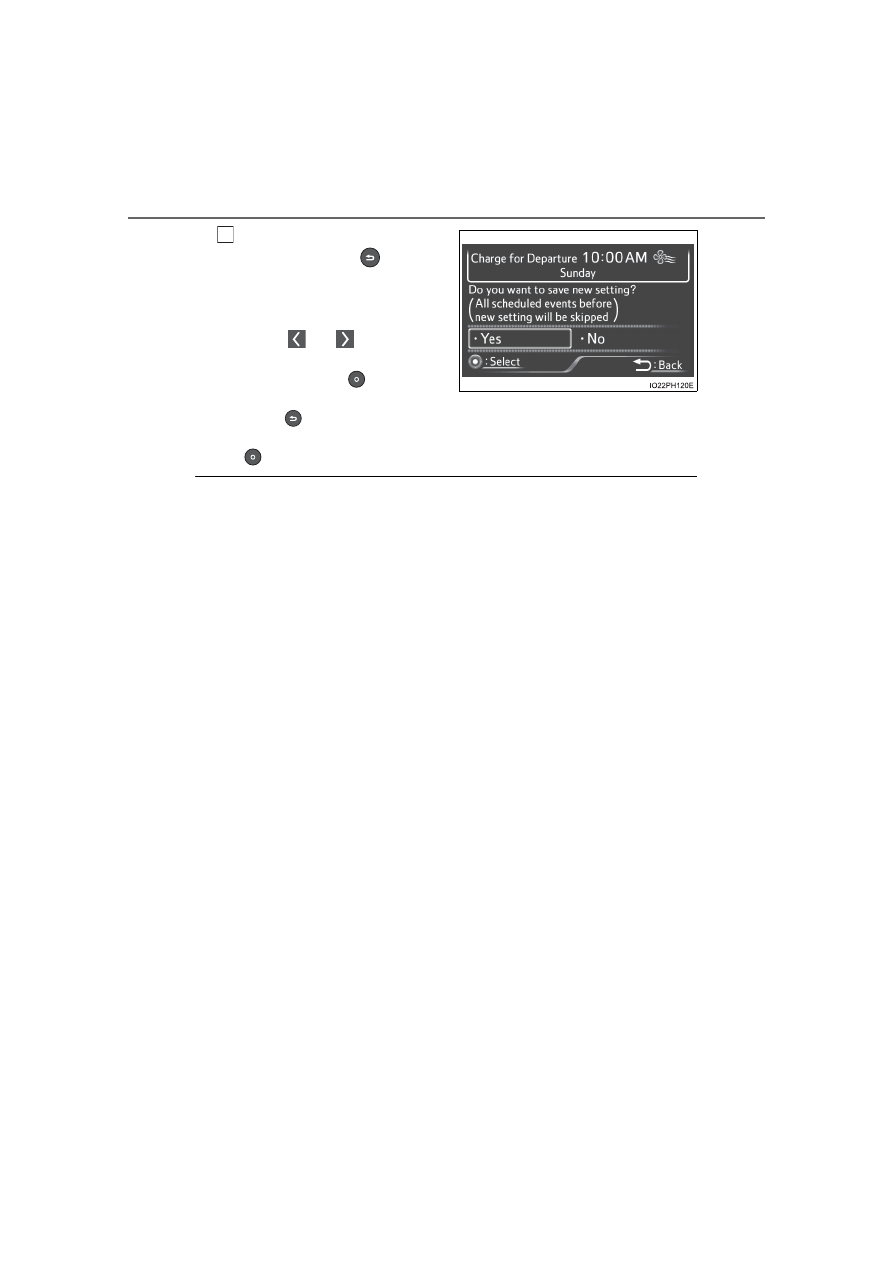

After  setting  operations  are
complete, press

.

A screen where the settings can
be saved will display.

Press

  or

  of  the  meter

control switches to select “Yes”,
and  then  press

  to  save  the

settings.
If you wish to change the settings, select “No” and perform the setting
procedure from step   again.
After setting operations are complete, when the charging cable is con-
nected  to  the  vehicle,  charging  will  be  carried  out  according  to  the
charging schedule settings.

7

8

9

3

164

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

Changing the registered charge schedules

The registered charge schedules can be turned on, off, deleted or
modified.

Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

Press

  or

  of  the

meter  control  switches  to
select  “Scheduled  Events”,
and then press

.

The “Scheduled  Events” screen
is  displayed,  which  displays  a
list  of  the  registered  charge
schedule.

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  change,
and then press

.

The  “Edit  Charging  Event”
screen will display.

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  operate
and  perform  the  necessary
operation.

1

2

3

4

PRIUS PRIME_OM_OM47D71U_(U)

165

2-2. Charging

2

Plug-

in hybrid system

●

“ON/OFF”
Each  time

  of  the  meter  control  switch  is  pressed,  the

selected charge schedule switches between “On” and “Off”.

When set to “Off”, a charging schedule is ignored and charging accord-
ing to the charging schedule is not carried out.
When

 is pressed, setting is complete.

●

“Edit”
Change the desired settings as described starting from step
of the “Registering the charge schedule” procedure. (



P. 161)

Press

  or

  of  the

meter  control  switches  to
select  “Yes”,  and  then  press

  to  save  the  charging

schedule.

Press

 to return to the previ-

ous screen.
When canceling any changes, select “No” and then press

.

●

“Delete”
Pressing

 of the meter control switch displays a deletion con-

firmation screen.

Press

  or

  of  the

meter  control  switches  to
select  “Yes”,  and  then  press

  to  delete  the  selected

charge schedule.

Press

 to return to the previ-

ous screen.
To cancel deletion, select “No” and then press

.

4

166

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

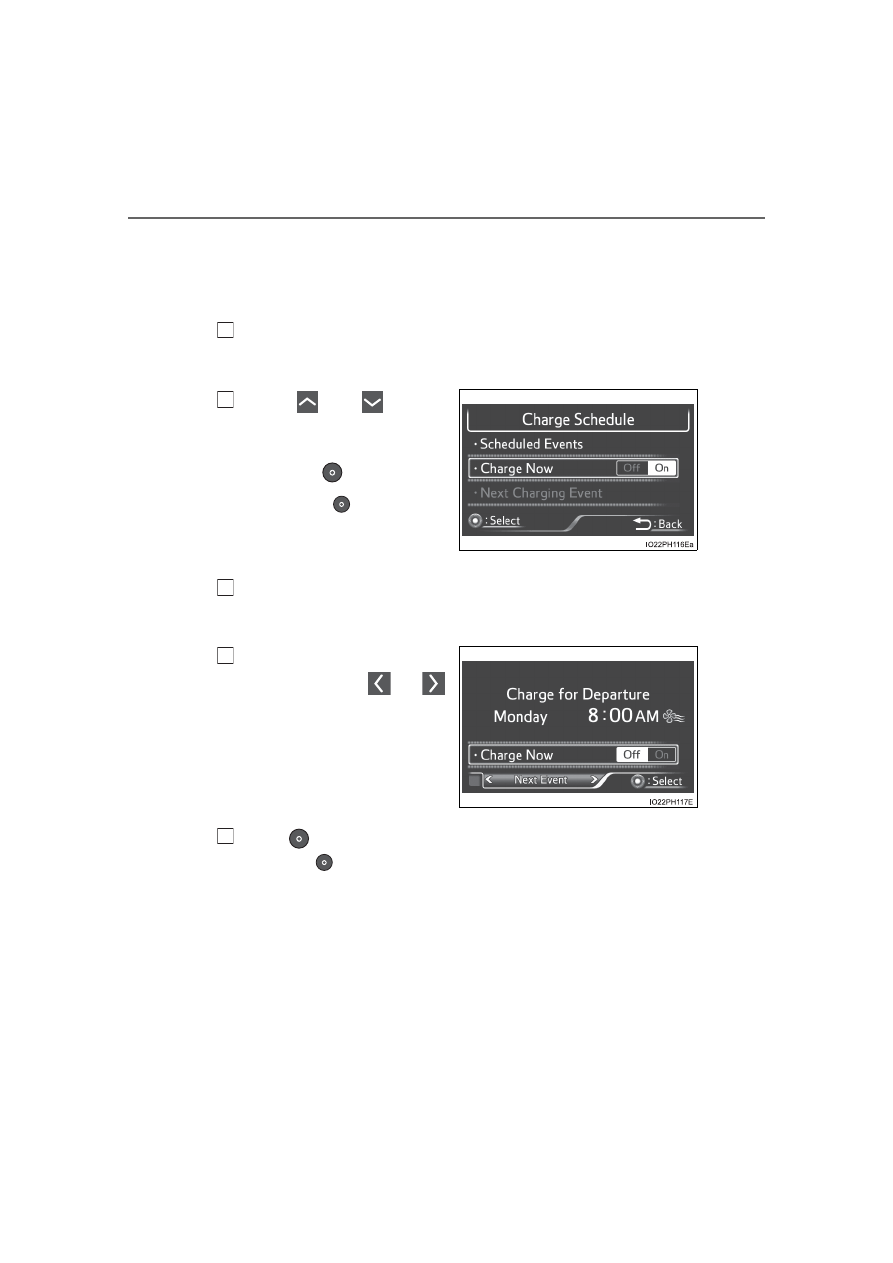

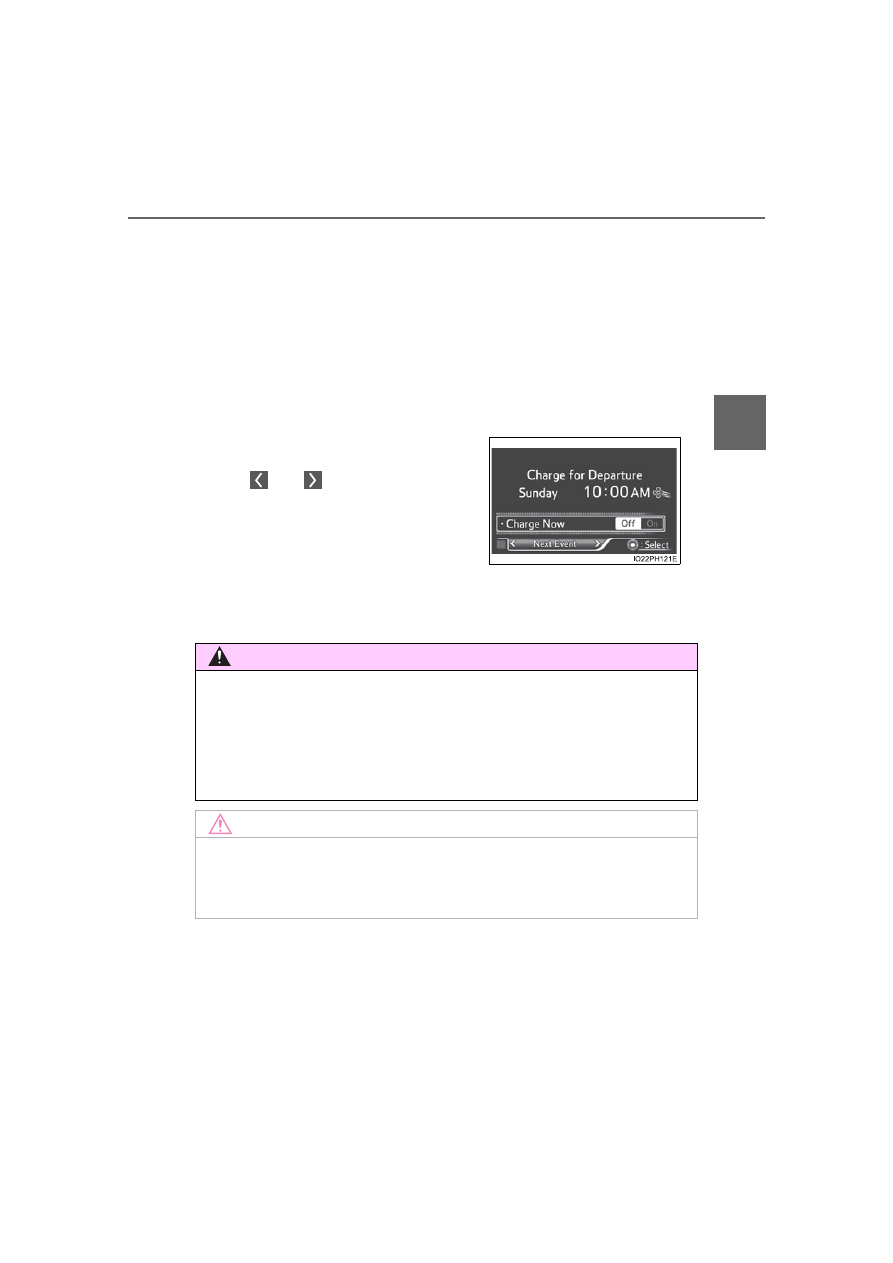

Setting “Charge Now” to “On”

The “Charge Now” setting can be changed by performing one of the
two following procedures.



Operation on “Charge Schedule” screen
Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

Press

  or

  of  the

meter  control  switches  to
select  “Charge  Now”,  and
then press

.

Each  time

  is  pressed,

“Charge Now” switches between
“On” and “Off”.



Operation on “Ending” screen
Turn the power switch off.

The “Ending” screen is displayed on the multi-information display.
(



P. 196)

While the  “Ending”  screen  is
displayed,  press

  or

of the meter control switches
to  display  the  “Next  Event”
screen.

*

*

: When the power switch is turned

off,  the  “Charge  Now”  setting
screen may be displayed.

Press

 to set “Charge Now” to “On”.

Each  time

  is  pressed,  “Charge  Now”  switches  between  “On”  and

“Off”.

After  setting  operations  are  complete,  charging  starts  when  the
charging cable is connected. (



P. 146)

1

2

1

2

3

PRIUS PRIME_OM_OM47D71U_(U)

167

2-2. Charging

2

Plug-

in hybrid system

■

Changing “Next Charging Event”

*

*

: When “Charge Now” is set to “On” etc., it is not possible to change the reg-

istered “Next Charging Event”.

Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

Press

  or

  of  the

meter  control  switches  to
select

“Next

Charging

Event”, and then press

.

The “Edit  Next  Charging  Event”
screen will display.

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  change,
and then press

.

Change  the  registered  settings
in accordance with the following
table.

1

2

3

Setting

Operation

Charging Mode/Time

Operate

,

,

 and

 of the meter control

switches  to  set  the  charging  mode  (“Start”  or
“Departure”) and charging start (or departure) time.
After changing the settings, press

 to return the

previous screen.

“Day”

Operate

 or

 of the meter control switches to

select the day to carry out charging according to the
charging schedule.
After  changing  the  setting,  press

  to  return  the

previous screen.

“Climate Prep”

This  can  be  set  when  the  charging  mode  is  set  to
“Departure”. Each time

 is pressed, air condition-

ing-linked  operation  switches  between  “On”  and
“Off”.

168

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

After  setting  operations  are
complete, press

.

A confirmation screen of chang-
ing  “Next  Charging  Event”  will
display.

Press

  or

  of  the  meter

control switches to select “Yes”,
and  then  press

  to  save  the

charging schedule.
Press

 to return to the previous screen.

When canceling the “Next Charging Event”, select “No” and then press

.

■

Charging schedule switch

●

The  charging  schedule  switch  functions  regardless  of  the  condition  of  the
power switch.
However,  when  the  charging  schedule  switch  is  pressed  while  the  power
switch is not turned to ON mode, if the meter control switches are not oper-
ated for a certain amount of time after the charging schedule setting screen
is displayed, the display automatically turns off.

●

The charging schedule switch cannot be used while driving.

■

When charging schedule setting operations are canceled

When  the  vehicle  is  in  the  following  conditions,  charging  schedule  setting
operations are canceled.

●

A message is displayed while performing a setting operation

●

The power switch is operated before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority than that of the charging schedule setting is
shown

■

Charging schedule

The “Charge Schedule” screen can be displayed and setting operations can
be performed from the “Vehicle Settings” setting on the multi-information dis-
play. (



P. 753)

■

“Next Charging Event”

After charging completes, the “Next Charging Event” displayed on the multi-
information display will not change until the charging cable is removed, even
after charging is performed according to the “Next Charging Event” schedule.

4

PRIUS PRIME_OM_OM47D71U_(U)

169

2-2. Charging

2

Plug-

in hybrid system

■

To return to original setting after changing “Next Charging Event” set-
ting

Turning the setting of “Charge Now” on and then off can return the setting of
“Next Charging Event” to its original setting.

■

When “Next Charging Event” is changed while charging

●

When the charging mode is “Departure”, the current charging is interrupted
or  continued  depending  on  the  remaining  time  until  the  charging  is  com-
pleted.

●

When the charging mode is “Start”, the current charging is interrupted, the
next charging will start at the set time.

■

When the power switch is turned off

*

2

: When the power switch is turned off, the “Next Charging Event” confirma-

tion screen may be displayed.

It  is  possible  to  check  the  next  charge
schedule (“Next Charging Event”) by oper-
ating

  or

  of  the  meter  control

switches while the power switch is turned

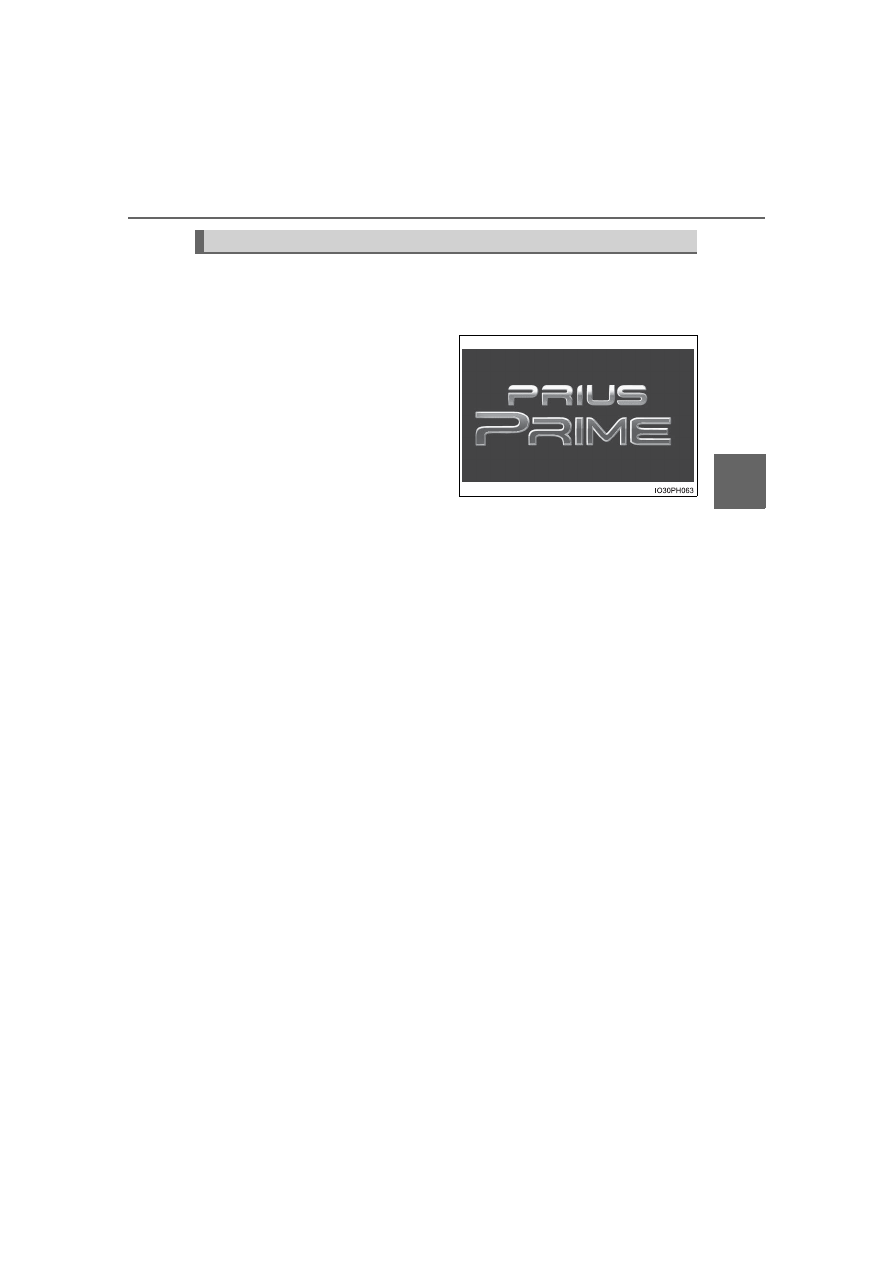

off and the “Ending” screen

*

1

 (



P. 196) is

displayed.

*

2

*

1

: The  “Ending”  screen  may  not  be  dis-

played during charging.

WARNING

■

Cautions while performing the setting operation

When performing the setting operation while the hybrid system is operated,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While performing the setting operation

When performing the setting operation while the hybrid system is stopped,
be careful that the 12-volt battery will not be discharged.

170

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

Setting operations related to the charging schedule are performed on
the “Charge Schedule” screen.

For details on how to operate the 11.6-inch display, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.

■

Displaying the “Charge Schedule” screen

Press  the  “MENU”  button  to
display the menu screen.

Select  “Info”  and  “Charge
Schedule”, in that order.

The  “Charge  Schedule”  screen
will display.

Setting operations on the 11.6-inch display (if equipped)

1

2

PRIUS PRIME_OM_OM47D71U_(U)

171

2-2. Charging

2

Plug-

in hybrid system

■

How to read the “Charge Schedule” screen

Charge schedules (calendar display)

Displays the week-long registered charge schedule in a list using icons.

“Add” button

Press to add a new item to the charge schedule. (



P. 172)

Charge schedules (list display)

A list of items on the registered charge schedule is displayed. If there are
more  than  3  registered  items,  the  list  can  be  scrolled  up  and  down  to
change the displayed items.

“Edit” button

Press to change or delete registered items on the charge schedule.
(



P. 174)

Return button

Press to close the “Charge Schedule” screen.

Charge schedules (icon display)

When an item is registered on the charge schedule, an icon is displayed
on the calendar.

“Charge Now” button

Press to set “Charge Now” to on. (



P. 175)

1

2

3

4

5

6

7

172

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

“ON”/“OFF” button

The  charge  schedule  switches  between  “ON”  and  “OFF”  each  time  this
button is pressed. (



P. 174)

Scroll bar

When  the  number  of  registered  charge  schedules  exceeds  3,  the  dis-
played contents can be changed by operating the button.

Main content displayed on the calendar:

*

1

: A row with a red line indicates the current time.

*

2

: While a registered setting is being changed, the icon of the related setting

is highlighted (except when the icon overlaps with another icon).

*

3

: When “Charge Now” (



P. 175) is set to on, the orange icon moves to the

position of the red line and changes to display “Charge Now”.

*

4

: The content of the charge schedule that corresponds to the “Next Charging

Event” is not displayed in the list.

■

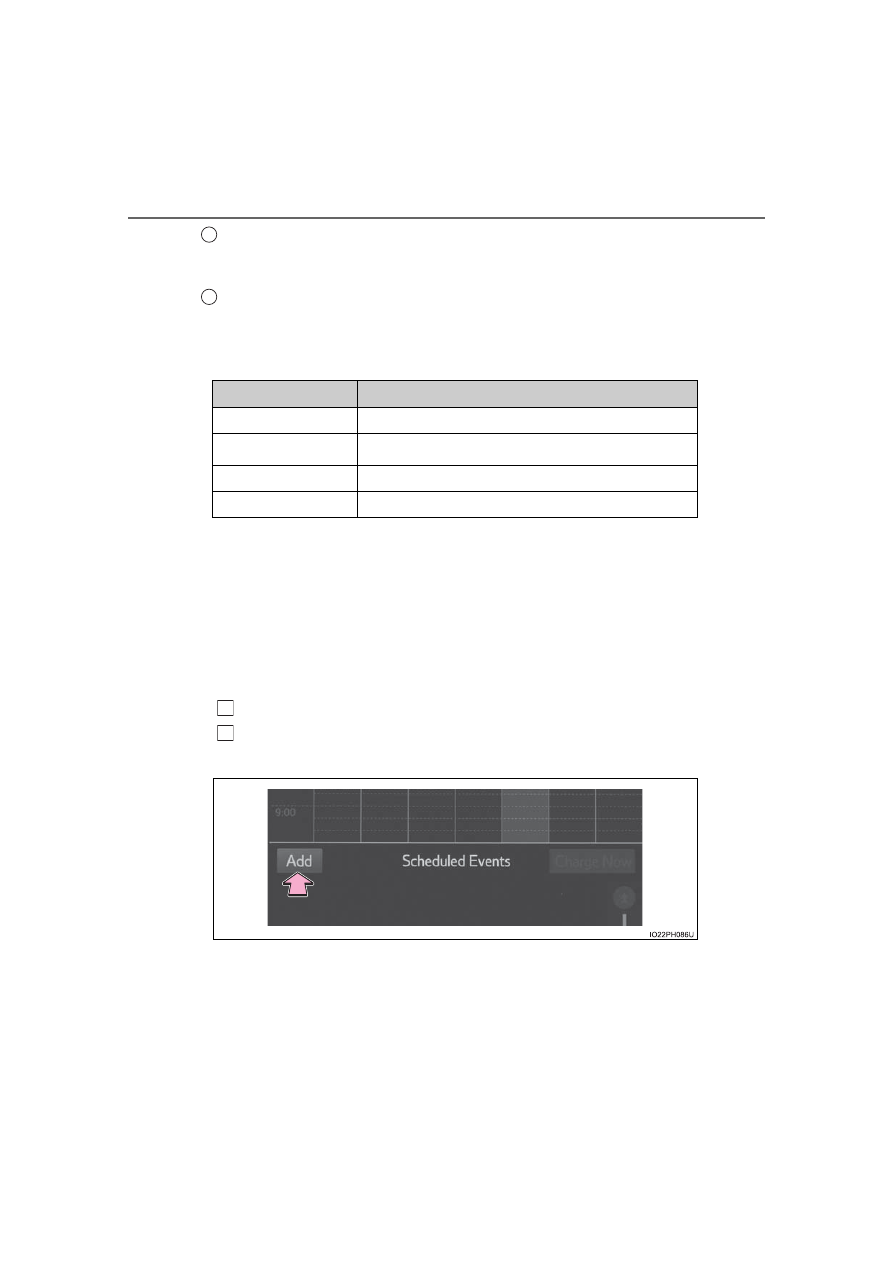

Registering the charge schedule

Display the “Charge Schedule” screen. (



P. 170)

Press “Add”.

The settings screen will display on the bottom of the screen.

8

9

Display

Content

Red line

*

1

Current time

Orange icon

*

2, 3

Charge schedule for “Next Charging Event”

*

4

Green icon

*

2

The charging mode is set to “Departure”

Blue icon

*

2

The charging mode is set to “Start”

1

2

PRIUS PRIME_OM_OM47D71U_(U)

173

2-2. Charging

2

Plug-

in hybrid system

Select the charging mode.

Press “Start” or “Departure” to turn the button (charging mode) on and
highlight the button.

Operate  the  time  setting  wheel  to  set  the  start  (or  departure)
time.

When  the  charging  mode  is  “Start”,  set  the  charging  start  time  (start
time).  When  it  is  “Departure”,  set  the  charging  end  time  (departure
time).
Operate the each wheel up and down to display the desired time in the
center.

When activating the repeated settings, press the desired day but-
ton.

Each time the button is pressed, the repeated setting for the selected
day switches between on and off.
When turned on, the button is highlighted and the charging schedule is
repeated on that day. It is possible to turn more than one day on.
If no buttons are turned on, charging is only carried out once according
to the charging schedule for the next 24 hours.

When the charging mode is set to “Departure”, set the “Climate
Prep” (



P. 157) to on or off.

To operate the air conditioning, press the “Climate Prep” button to set
the function to “ON”.
Each  time  the  button  is  pressed,  the  function  switches  between  “ON”
and “OFF”.

After setting operations are complete, press “Save”.

The charge schedule is added to the list and an icon is added to the cal-
endar.
To cancel registration of the charging schedule, press

.

After setting operations are complete, when the power switch is turned
off and the charging cable is connected to the vehicle, charging is car-
ried out according to the charging schedule settings.

3

4

5

6

7

174

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

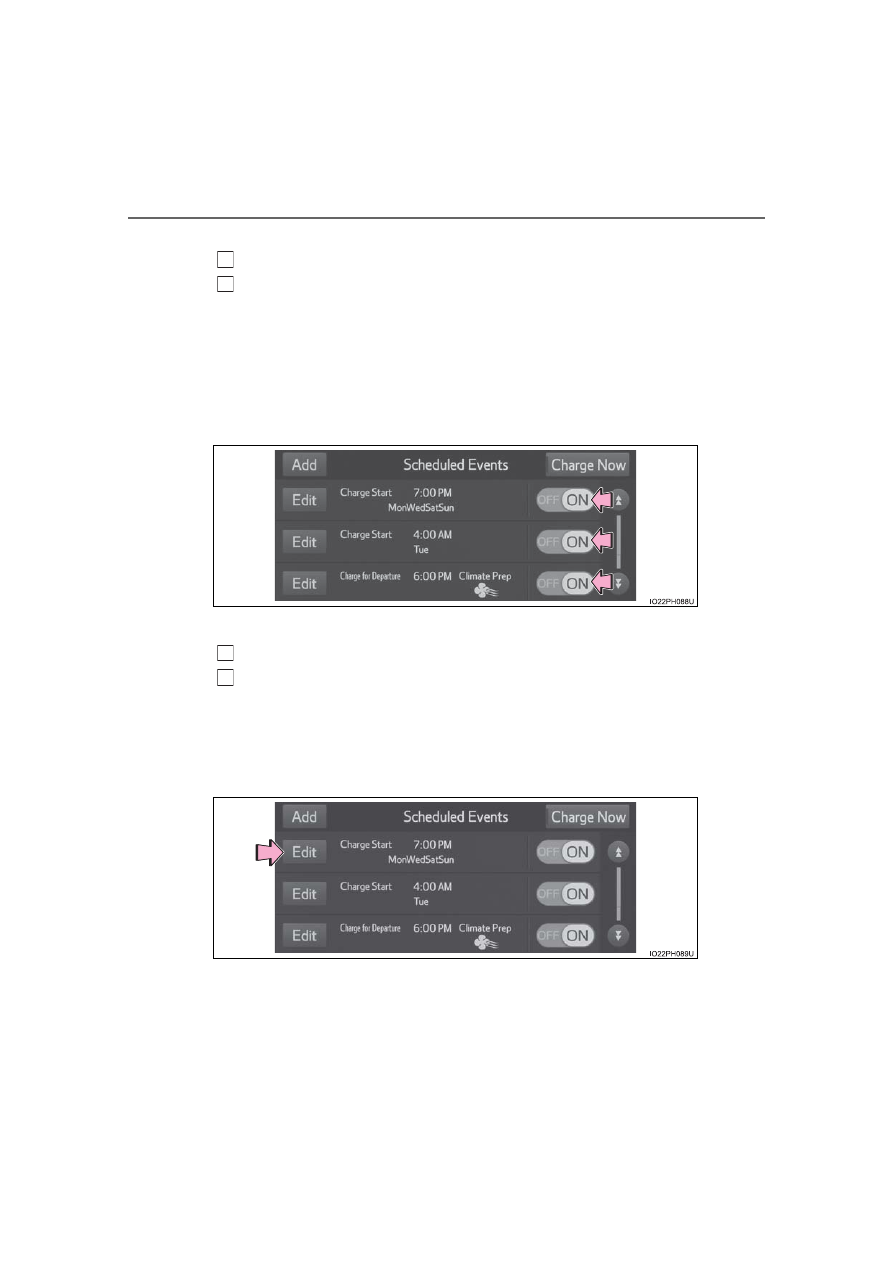

Switching charge schedules between “ON” and “OFF”

Display the “Charge Schedule” screen. (



P. 170)

From the items in the list displayed on the bottom of the screen,
press “ON” or “OFF” in the row of the charge schedule you wish
to change.

Setting “ON” or “OFF” is possible by sliding the bar to the left or right.
If the charge schedule you wish to change is not displayed on the bot-
tom of the screen, scroll the list up and down to display it.
Each time the button is pressed, the charge schedule switches between
“ON” and “OFF”.

■

Changing the registered charge schedules

Display the “Charge Schedule” screen. (



P. 170)

From  the  items  displayed  on  the  bottom  of  the  screen,  press
“Edit” in the row of the charge schedule you wish to change.

The settings screen will display on the bottom of the screen.
It is also possible to display the settings screen by pressing the icon of
the  charge  schedule  you  wish  to  change  from  those  displayed  on  the
calendar.

1

2

1

2

PRIUS PRIME_OM_OM47D71U_(U)

175

2-2. Charging

2

Plug-

in hybrid system

●

Changing registered items:
Change the desired settings as described in step

 to step

 of

the “Registering the charge schedule” procedure. (



P. 172)

When a setting is changed, its icon on the calendar also changes.

●

Deleting registered items:
Press “Delete”.

A deletion confirmation message will display.
Press “Yes” to delete the selected charge schedule.
To cancel deletion, press “No”.
When a charge schedule is deleted, its icon is also deleted from the cal-
endar.

■

Turning “Charge Now” on

The “Charge Now” setting can be changed by performing one of the
two following procedures.



Operations on “Charge Schedule” screen
Display the “Charge Schedule” screen. (



P. 170)

Press “Charge Now”.

Each  time  the  button  is  pressed,  “Charge  Now”  switches  between  on
and off and the indicator on the button turns on and off.

3

7

1

2

176

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging



Operation on ending screen
Turn the power switch off.

The ending screen is displayed on the 11.6-inch display.

While  the  ending  screen  is
displayed,  press  “Charge
Now”.

Each time the button is pressed,
“Charge Now” switches between
on  and  off  and  the  indicator  on
the button turns on and off.

After  setting  operations  are  complete,  charging  starts  when  the
charging cable is connected. (



P. 146)

1

2

PRIUS PRIME_OM_OM47D71U_(U)

177

2-2. Charging

2

Plug-

in hybrid system

■

Changing “Next Charging Event”

*

*

: When  “Charge  Now”  is  turned  on  etc.,  the  registered  “Next  Charging

Event” cannot be changed.

Display the “Charge Schedule” screen. (



P. 170)

“Next  Charging  Event”  is  displayed  on  the  “Charge  Schedule”  screen
with an orange icon.

To change “Next Charging Event”, press the orange

.

*

The settings screen will display on the bottom of the screen.

*

: Icons are displayed differently according to the type of charging mode.

(



P. 172)

Select the desired charging mode.

Press “Start” or “Departure” to turn the button (charging mode) on and
highlight the button.

Operate  the  day  setting  wheel  and  time  setting  wheels  up  and
down to set the charging day and start (or departure) time.

Operate each wheel up and down to display the desired date and time
in the center.
When the charging mode is “Start”, set the charging start time. When it
is “Departure”, set the charging end time.

When the charging mode is set to “Departure”, set the “Climate
Prep” (



P. 157) to on or off.

To operate the air conditioning, press the “Climate Prep” button to set
the function to “ON”.
Each  time  the  button  is  pressed,  the  function  switches  between  “ON”
and “OFF”.

After setting operations are complete, press “Save”.

The charging schedule settings are saved and icons are added to the
charge schedule.
To cancel changing “Next Charging Event”, press

.

1

2

3

4

5

6

178

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

■

When charging schedule setting operations are canceled

When  the  vehicle  is  in  the  following  conditions,  charging  schedule  setting
operations are canceled.

●

The power switch is turned off before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority than that of the charging schedule setting is
shown

■

“Next Charging Event”

After charging completes, the “Next Charging Event” displayed on the display
will  not  change  until  the  charging  cable  is  removed,  even  after  charging  is
performed according to the “Next Charging Event” schedule.

■

To return to original setting after changing “Next Charging Event” set-
ting

Turning the setting of “Charge Now” on and then off can return the setting of
“Next Charging Event” to its original setting.

■

When “Next Charging Event” is changed while charging

●

When the charging mode is “Departure”, the current charging is interrupted
or  continued  depending  on  the  remaining  time  until  the  charging  is  com-
pleted.

●

When the charging mode is “Start”, the current charging is interrupted, the
next charging will start at the set time.

■

Displaying advice related to charge schedule settings

When  “?”  is  pressed  on  the  “Edit  Charging  Event”  screen  (



P.  173),  an

explanation of the setting item on the “Edit Charging Event” screen will dis-
play.

PRIUS PRIME_OM_OM47D71U_(U)

179

2-2. Charging

2

Plug-

in hybrid system

■

When the power switch is turned off

The  next  charge  schedule  (“Next
Charging Event”) can be checked on the
ending screen

*

 that is displayed when the

power switch is turned off.

*

: The  ending  screen  may  not  be  dis-

played during charging.

WARNING

■

Cautions performing the setting operation

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While performing the setting operation

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

180

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

When normal charging cannot be carried

out

Refer  to  the  following  table  and  carry  out  the  appropriate  correction
procedure.

When  charging  does  not  start,  even  though  the  normal  proce-
dure is followed, check each of the following items.

If a message is shown on the multi-information display, also refer to
P. 185.

When normal charging cannot be carried out

Likely cause

Correction procedure



The  power source indicator  on the  CCID  (Charging Circuit  Interrupting
Device)  does  not  illuminate,  even  though  the  plug  is  connected  to  an
external power source.

Plug  is  not  properly  con-
nected to outlet

Check that the plug is properly connected to
the outlet.

Power is out

After  power  is  restored,  carry  out  the
charging procedure again.

Building  breaker  is  tripped
and power is cut off

Check that the breaker is connected and if
there is no malfunction, check if the vehicle
can be charged through another outlet.
If  charging  is  possible,  the  first  outlet  may
have a malfunction. Contact the building or
facility manager, or an electrician.

Short  circuit  between  CCID
(Charging Circuit Interrupting
Device) and plug

Immediately stop charging and contact your
Toyota dealer.

PRIUS PRIME_OM_OM47D71U_(U)

181

2-2. Charging

2

Plug-

in hybrid system



The  error  warning  indicator  on  the  CCID  (Charging  Circuit  Interrupting
Device) flashes.

Electrical  leakage  detection
function  or  self-  diagnostic
function operates and power
is cut off

When  the  voltage  is  insufficient,  the  error
warning  indicator  may  flash  when  there  is
noise interference. Perform a reset and con-
nect to a proper power source. (



P. 118)

If charging does not start, immediately stop
charging and contact your Toyota dealer.



Charging indicator does not illuminate, even though charging connector
is connected.

The plug is not properly con-
nected to the outlet

Check  whether  the  plug  is  properly  con-
nected to the outlet.

Charging  connector  is  not
securely

connected

to

charging inlet

Check the connection status of the charging
connector.
• When  connecting  the  charging  connec-

tor,  make  sure  not  to  touch  the  latch
release  button.  Insert  the  charging  con-
nector securely until you hear a click. The
charging connector may not be connected
correctly  if  the  latch  release  button  is
pressed while inserting.

• After  connecting  the  charging  connector,

check that the latch release button is not
pressed  and  the  charging  indicator  is
turned on.

If the charging indicator does not illuminate,
even  though  the  charging  connector  is
securely  connected,  there  may  be  a  mal-
function  in  the  system.  Immediately  stop
charging and contact your Toyota dealer.

Hybrid  battery  (traction  bat-
tery) is already fully charged

When the hybrid battery (traction battery) is
fully charged, charging is not performed.

The  charger  does  not  oper-
ate

Please  contact  the  facility  manager  when
there is a problem with charger.

Likely cause

Correction procedure

182

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

*

: Refer  to  P.  114  for  details  regarding  charging  indicator  illumination  and

flashing.

Refer  to  the  following  table  and  carry  out  the  appropriate  correction
procedure.



Charging indicator flashes and charging cannot be carried out.

When  charging  indicator
flashes

*

:

Charge  schedule  is  regis-
tered

When  you  wish  to  charge  according  to  the
charging schedule, wait until the set time.
To start charging, set “Charge Now” to “On”.
(



P. 166, 175)

When charging indicator rap-
idly flashes

*

:

Malfunction  occurred  in  an
external power source or the
vehicle

Start  the  hybrid  system  and  follow  the
instructions  displayed  by  the  message  on
the multi-information display. (



P. 185)

When charging schedule function does not operate normally

Likely cause

Correction procedure



Cannot charge at desired time

Vehicle  clock  is  not  properly
adjusted

Check the clock settings and adjust it to the
proper time. (



P. 197)

The  vehicle  calendar  is  not
set correctly.

Check the calendar setting and set it to the
correct date. (



P. 199)

Charging  cable  is  not  con-
nected to vehicle

Before  using  the  charging  schedule,  con-
nect the charging cable.

Incorrect  charging  mode
selected

Check the charging mode setting. (



P. 157)

When the charging mode is “Start”, charging
starts at the set time, but when it is “Depar-
ture”, charging is completed by the set time.
(The  charging  start  time  is  automatically
controlled by the system.)



Cannot  change  charging  schedule  from  smartphone  application  (vehi-
cles with 11.6-inch display)

*

Smartphone  is  outside  its
coverage area

Check  the  signal  strength.  If  the  smart-
phone is outside its coverage area, move to
a place with a better signal.

Likely cause

Correction procedure

PRIUS PRIME_OM_OM47D71U_(U)

183

2-2. Charging

2

Plug-

in hybrid system



Charging starts, even though charge schedule is registered

“Charge Now” is set to “On”

When  charging  according  to  the  charging
schedule, set “Charge Now” to “Off”.
(



P. 166, 175)

Charge  schedule  is  set  to
“Off”

Check  that  charge  schedule  is  not  set  to
“Off”. (



P. 164, 174)

Charging  mode  is  set  to
“Departure”  and  schedule
departure  time  is  close  to
current time

When  the  system  determines  that  there  is
no time to finish charging by the set sched-
uled  departure  time,  it  starts  charging.
Check the charge schedules.

Charging

cable

was

removed

and

reinserted

while  charging indicator  was
flashing

If  the  charging  cable  is  removed  and  rein-
serted while the charging indicator is flashing,
the charging schedule is canceled (



P. 149).

Temporarily remove the charging cable, and
then reconnect it.

The Remote Air Conditioning
System was operated

When the Remote Air Conditioning System
is  operated,  the  system  will  start  charging,
even if the charge schedule is registered. To
carry  out  charging  using  the  charging
schedule, stop the Remote Air Conditioning
System,  and  then  reconnect  the  charging
cable.

“Traction  Battery  Heater”
(



P. 135) operated

When  the  charging  mode  is  set  to  “Depar-
ture”, “Traction Battery Heater” may operate
before charging starts. Check the status of
the charging indicator. (



P. 114)

Outside  temperature  is  low
and  hybrid  battery  (traction
battery)  warming  control
(



P. 136) operated

(Alaska and Canada only)

When  hybrid  battery  (traction  battery)
warming  control  operates,  the  charging
schedule are ignored and charging starts. In
order  to  protect  the  hybrid  battery  (traction
battery), allow charging to continue.

Likely cause

Correction procedure

184

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

*

: In  order  to  use  the  smartphone  application,  it  is  necessary  to  apply  to

Entune App Suite.
For details about Entune App Suite, refer to http://www.toyota.com/entune/.



Charging ends earlier than time set in “Departure”

Charging  end  time  does  not
match  estimated  end  time
due  to  condition  of  power
source  or  outside  tempera-
ture

If  sudden  changes  in  temperature  or
changes  in  the  condition  of  the  power
source occur while charging, charging may
end  earlier  than  the  time  estimated  by  the
system.



Charging is not complete, even though it is time set in “Departure”

“Climate Prep” is set to “On”

When “Climate Prep” is set to “On”, the air
conditioning operates until the set departure
time. Therefore, charging may not complete
by the set time due to charging conditions.
To have the hybrid battery (traction battery)
fully charged, allow charging to continue.

Charging  end  time  does  not
match  estimated  end  time
due  to  condition  of  power
source  or  outside  tempera-
ture

If  sudden  changes  in  temperature  or
changes  in  the  condition  of  the  power
source occur while charging, charging may
not end exactly at the time estimated by the
system.



Charging does not start, even though it is time set in “Start”

Charging  cable  was  con-
nected after set time

Connect the charging cable before the time
set in “Start”.

Likely cause

Correction procedure

PRIUS PRIME_OM_OM47D71U_(U)

185

2-2. Charging

2

Plug-

in hybrid system

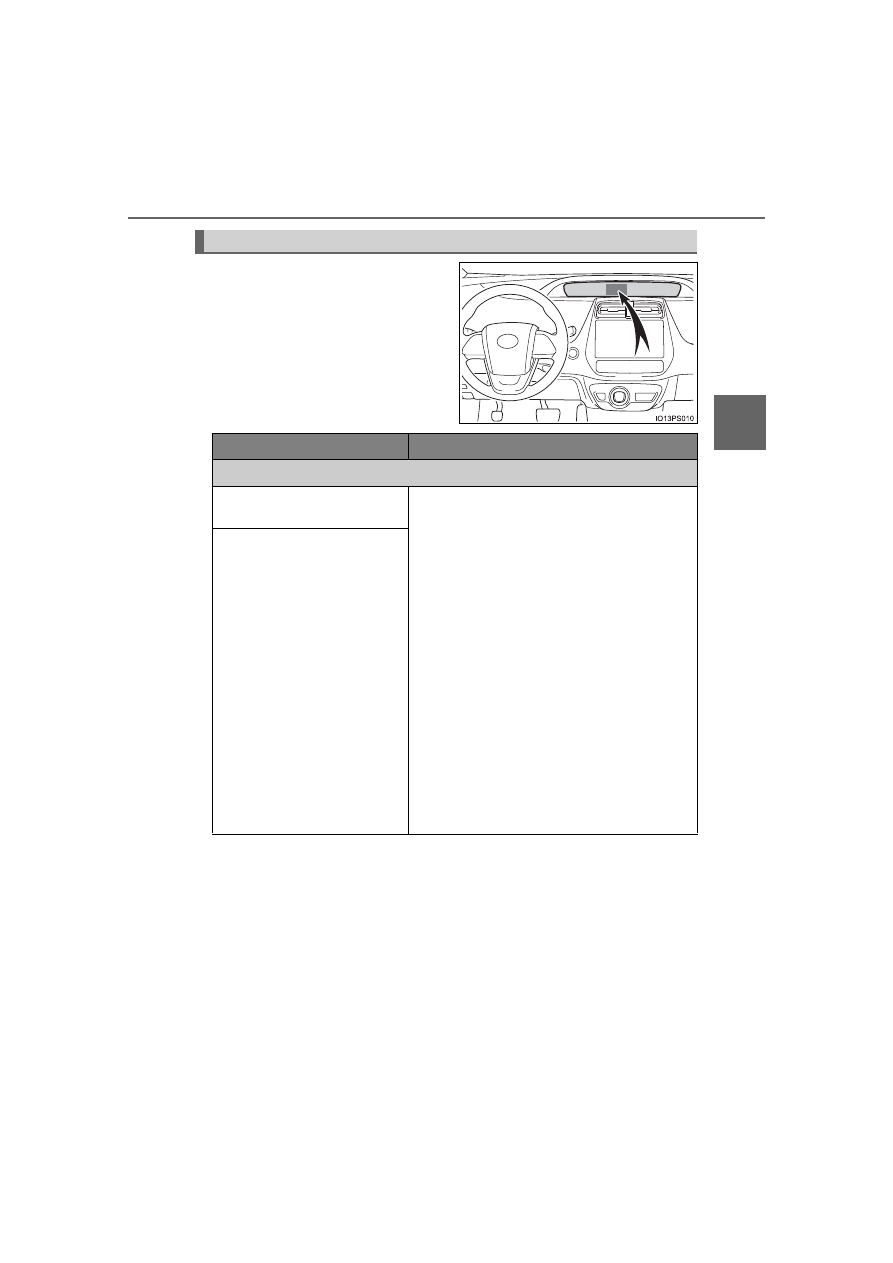

When the hybrid system is started
after  charging,  a  message  is  dis-
played in the multi-information dis-
play.

When  this  occurs,  follow  the
instructions  displayed  on  the
screen.

When charging-related message is displayed

Likely cause

Correction procedure



If “Charging Stopped Due to Pulled Charging Connector” is shown

Charging

connector

is

removed while charging

When  the  charging  connector  is  removed
while charging, charging stops. If you want
to  fully  charge  the  hybrid  battery  (traction
battery), reconnect the charging connector.

After the hybrid battery (trac-
tion battery) is fully charged,
the  charging  connector  is
removed  while  the  hybrid
battery  (traction  battery)  is
being

recharged

again

because  electricity-consum-
ing  functions

*

  have  been

used  and  the  remaining
charge is now reduced.

*

:Electricity  is  consumed

when  operating  “Traction
Battery Heater” (



P. 135),

the  air  conditioning-linked
function  (



P.  157)  or

Remote  Air  Conditioning
System (



P. 535).

186

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging



If “Charging Stopped Due to Pulled Charging Connector” is shown

Charging  connector  is  not
securely connected

Check the connection status of the charging
connector.
• When  connecting  the  charging  connec-

tor,  make  sure  not  to  touch  the  latch
release  button.  Insert  the  charging  con-
nector securely until you hear a click. The
charging connector may not be connected
correctly  if  the  latch  release  button  is
pressed while inserting.

• After  connecting  the  charging  connector,

check that the latch release button is not
pressed  and  the  charging  indicator  is
turned on.

If  charging  cannot  be  carried  out,  even
though  the  proper  procedures  were  fol-
lowed,  have  the  vehicle  inspected  by  your
Toyota dealer.

Latch  release  button  of
charging

connector

was

pressed while charging

When  the  latch  release  button  is  pressed
while charging, charging stops. To continue
charging, reconnect the charging connector.



If “Charging Complete Limited Due to Battery Temp” is shown

Charging  was  stopped  to
protect  the  hybrid  battery
(traction battery) as it contin-
ued  to  remain  hot  for  a  cer-
tain period of time.

Allow the hybrid battery (traction battery) to
cool down and perform charging again if the
charging  amount  has  not  reached  the
desired amount.

Likely cause

Correction procedure

PRIUS PRIME_OM_OM47D71U_(U)

187

2-2. Charging

2

Plug-

in hybrid system



If “Charging Stopped Check Charging Source” is shown (1)

Problem  in  power  supply
from external power source

Check the following items.
• Plug is not disconnected
• Power  source  indicator  on  the  CCID

(Charging  Circuit  Interrupting  Device)  is
illuminated

• The circuit breaker has not tripped
If there is no problem with any of the above
items, there may be a problem with the out-
let  of  the  building.  Contact  an  electrician
and  request  an  inspection.  (Contact  the
facility  manager  of  the  charging  station
when there is a problem with charging sta-
tion.)
If  charging  cannot  be  carried  out,  even
though  there  is  no  problem  with the  power
source path, there may be a malfunction in
the  system.  Have  the  vehicle  inspected  by
your Toyota dealer.
Furthermore,  if  the  error  warning  indicator
on  the  CCID  (Charging  Circuit  Interrupting
Device) is flashing, there may be an electri-
cal leakage. Consult your Toyota dealer.

Charger

has

stopped

charging

• Charging may be canceled by an interrup-

tion of power supply depending on specifi-
cations  of  a  charger.  Refer  to  the
instructions of the charger.
• When  charging  is  stopped  using  the

charger

• Equipment with charging schedule func-

tion

• Equipment  that  is  not  compatible  with

the  charging  schedule  function  of  the
vehicle

• Check  if  it  is  possible  to  charge  with  the

charging cable equipped to the vehicle.
If  charging  cannot  be  carried  out,  even
when  using  the  genuine  charging  cable,
consult your Toyota dealer.

Likely cause

Correction procedure

188

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging



If “Charging Stopped Check Charging Source” is shown (2)

Charger  is  not  compatible
with vehicle

Check  if  it  is  possible  to  charge  with  the
charging cable equipped to the vehicle.
If  charging  cannot  be  carried  out,  even
when  using  the  genuine  charging  cable,
consult your Toyota dealer.

Charger

has

stopped

charging



If “Charging Stopped Check Charging Source” is shown (3)

Problem  in  power  supply
from external power source

Check the following items.
• Plug is securely inserted
• Extension  cord  is  not  used  and  outlet  is

not overloaded

• Connected to a dedicated power line
• Electrical leakage has occurred or not
If there is no problem with any of the above
items, there may be a problem with the out-
let of the building. Contact an electrician to
request an inspection.
If  charging  cannot  be  carried  out,  even
though  there  is  no  problem  with the  power
source path, there may be a malfunction in
the  system.  Have  the  vehicle  inspected  by
your Toyota dealer.

Charger

has

stopped

charging

Check  if  it  is  possible  to  charge  with  the
charging cable equipped to the vehicle.
If  charging  cannot  be  carried  out,  even
when  using  the  genuine  charging  cable,
consult your Toyota dealer.

Likely cause

Correction procedure

PRIUS PRIME_OM_OM47D71U_(U)

189

2-2. Charging

2

Plug-

in hybrid system



If “Charging Stopped High Energy Use See Owner’s Manual” is shown

Power is being consumed by
electrical  components  of
vehicle

Check  the  following  items,  and  then  carry
out charging again.
• If the headlights and audio are turned on,

turn them off.

• Turn the power switch off.
If charging cannot be carried out, even after
performing  the  above,  the  auxiliary  battery
may  not  be  sufficiently  charged.  Operate
the hybrid system for approximately 15 min-
utes or more to charge the auxiliary battery.



If “Charging System Malfunction See Owner’s Manual” is shown

Malfunction

occurred

in

charging system

Have the vehicle inspected by your
Toyota dealer.



If “The Traction Battery became low temperature System put priority on
charging  to  preserve  battery  condition”  is  shown  (Alaska  and  Canada
only)

The  Hybrid  battery  (traction
battery) warming control was
operated (



P. 136)

When  the  hybrid  battery  (traction  battery)
warning  control  operates,  the  charging
schedule  is  not  used  and  charging  is  per-
formed.  This  is  a  control  to  protect  the
hybrid  battery  (traction  battery),  and  not  a
malfunction.

Likely cause

Correction procedure

190

PRIUS PRIME_OM_OM47D71U_(U)

2-2. Charging

191

PRIUS PRIME_OM_OM47D71U_(U)

Instrument cluster

3

3.

Instrument cluster

Combination meter............ 192
Warning lights and

indicators ........................ 201

Main display ...................... 209
Multi-information

display............................. 220

Head-up display ................ 253
Energy monitor/

consumption screen
(vehicles with 7-inch
display) ........................... 261

Energy monitor/

consumption screen/
detail screen (vehicles
with 11.6-inch display) .... 267

192

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

Combination meter

The units used on the display may differ depending on the target region.

Main display (



P. 209)

The main display shows basic information related to driving, such as the
vehicle speed and remaining fuel amount.

Multi-information display (



P. 220)

The multi-information display shows information which makes the vehicle
convenient-to-use, such as the hybrid system operation condition, electric-
ity consumption and fuel consumption history. Also, the operation contents
of the driving support systems and the combination meter display settings
can be changed by switching to the settings screen.

Warning lights and indicators (



P. 201)

The warning lights and indicators comes on or flashes to indicate problems
with the vehicle or to show the operation status of the vehicle’s systems.

Clock (



P. 197)

The large meter uses 2 liquid crystal displays to display informa-
tion such as the vehicle condition, driving status, electricity con-
sumption and fuel consumption.

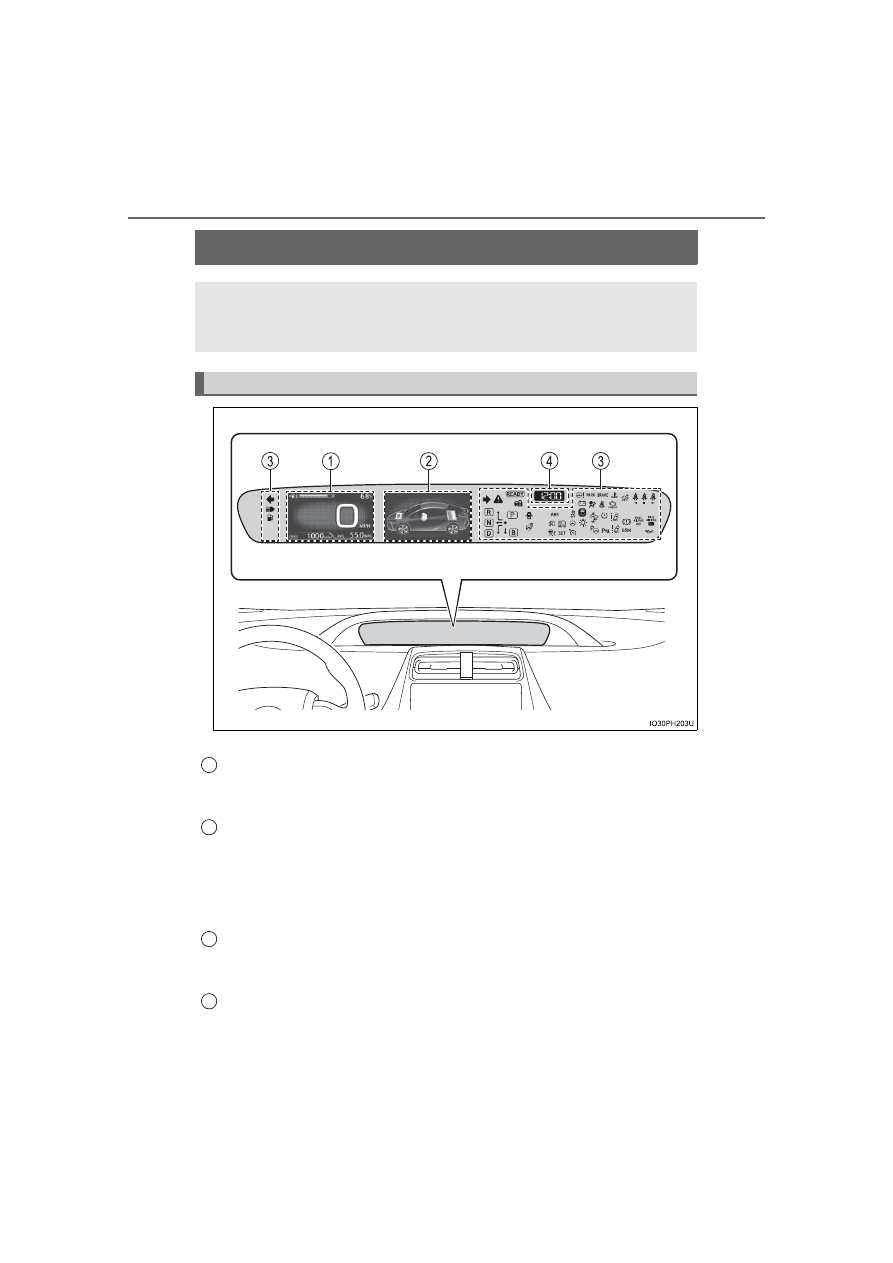

Combination meter layout

1

2

3

4

PRIUS PRIME_OM_OM47D71U_(U)

193

3. Instrument cluster

3

Instrument clus

ter

The  meter  control  switches  equipped  on  the  steering  wheel  can  be
used to switch the screen display and change settings related to func-
tions displayed on the screen.

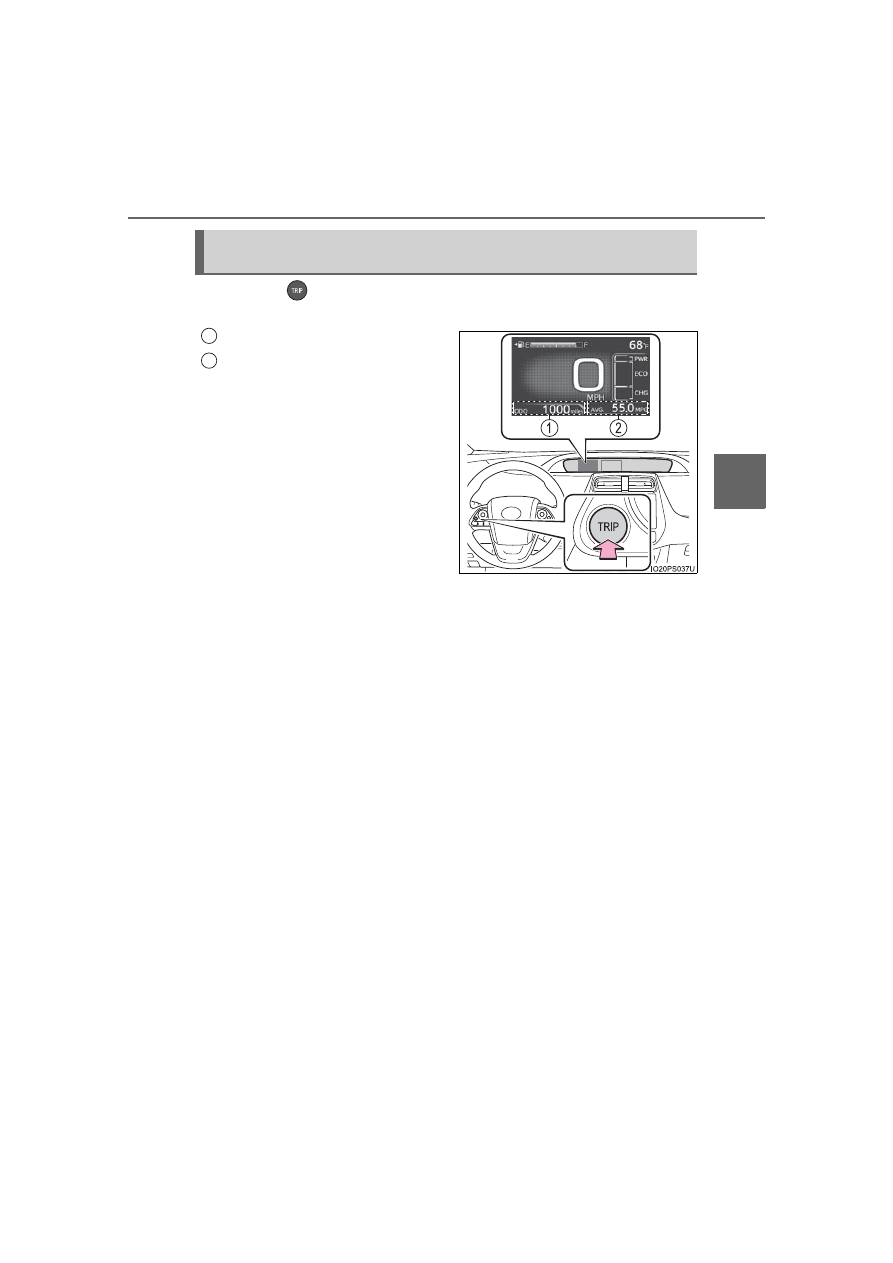

Each  time  the  button  is
pressed,  the  mileage  display
switches  among  odometer,  trip
meters,  etc.,  and  the  fuel  con-
sumption  information  for  each
distance switches as well.
(



 P. 213)

Pressing

,

,

  or

performs  such  operations  as
scrolling the screen

*

, switching

the contents of the display

*

 and

moving the cursor.
This button is used to perform such operations as selecting the cur-
rent item or switching between on and off.
When pressed, the display returns to the previous screen.

*

: On  screens  where  the  screen  can  be  scrolled  and  the  display  can  be

switched, marks are displayed to indicate the direction of operation (such
as

 and

).

Operations related to the combination meter

1

2

3

4

194

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

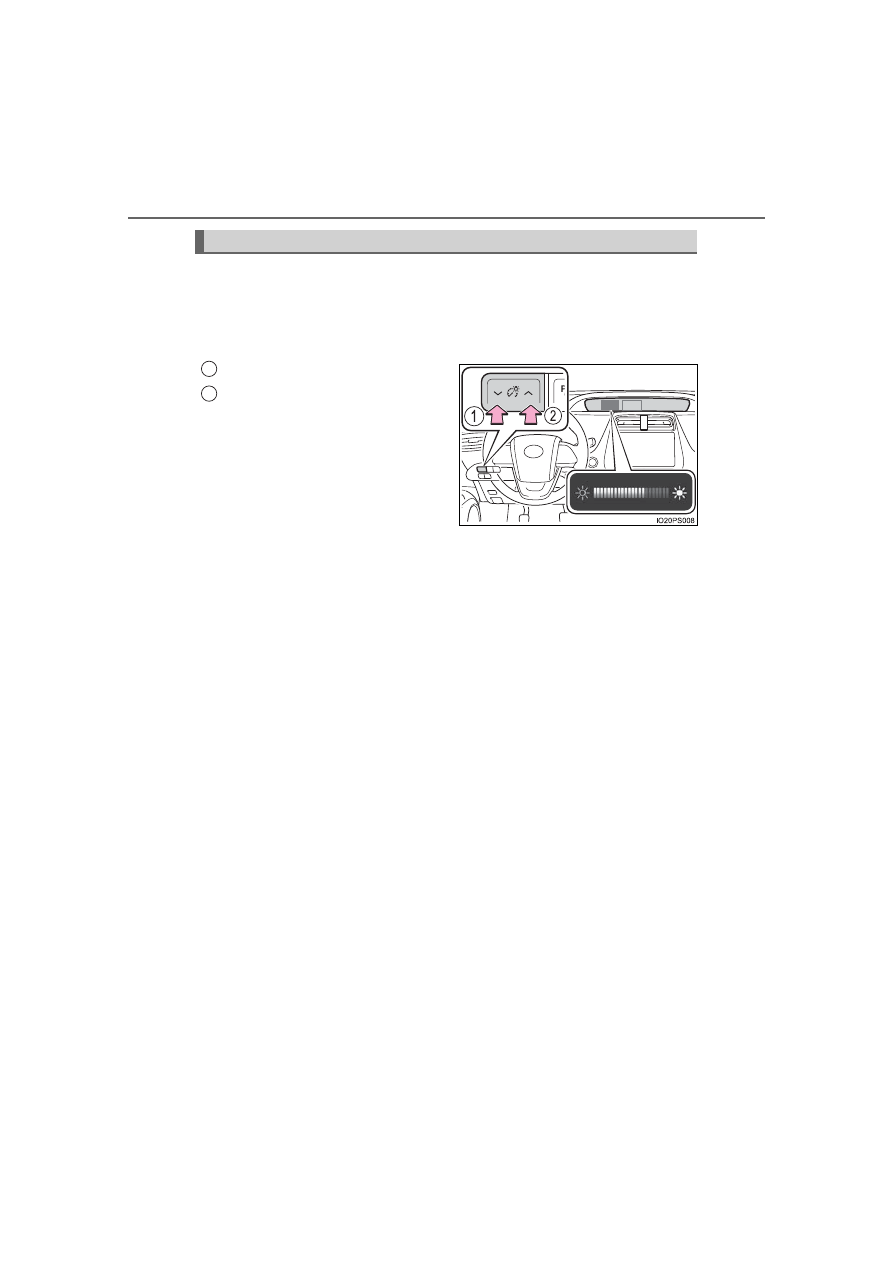

When the switches are pressed, the instrument cluster light changes
as follows.

The  instrument  cluster  brightness  levels  that  can  be  selected  differ
depending on whether the tail lights are on and surrounding brightness lev-
els. (



P. 199)

Darker
Brighter

When  the  switches  are  pressed,
the  adjustment  level  check  screen
(pop-up  display

*

)  is  displayed  on

the main display.
When the instrument cluster light is
adjusted,  the  brightness  of  the
instrument

panel

light

also

changes.

*

: A short time after the operation is completed, the pop-up display turns off.

Furthermore,  the  pop-up  display  can  be  turned  on  and  off  in  the  “Meter
Customize” settings. (



P. 248)

Instrument cluster light control

1
2

PRIUS PRIME_OM_OM47D71U_(U)

195

3. Instrument cluster

3

Instrument clus

ter

Some information will be displayed automatically according to power
switch operation, vehicle condition, etc.

■

When starting the hybrid system

When the hybrid system starts,
an  opening  animation  is  dis-
played on the main display.

After  the  animation  ends,  the
screens  switch  to  the  normal
screen.
The  opening  animation  will  be
stopped  in  any  of  the  following
situations.

• When the shift position is changed to other than P
• When the Simple Advanced Parking Guidance System (if equipped)

is turned on

■

When the driving assist systems are operating

When  using  driving  assist  systems  such  as  the  dynamic  radar
cruise control with full-speed range (



P. 414) and LTA (Lane Trac-

ing Assist) (



P. 395), information related to each system is auto-

matically  displayed  on  the  multi-information  display  depending  on
the situation.

For details regarding the displayed information and the contents of the
display, refer to the explanation page of each system.

■

When there is information to be notified about the vehicle

When a shift position is mistakenly selected or a problem occurs in
a  vehicle  system,  a  warning  message  (or  image)  is  displayed  on
the multi-information display.

When a warning message is displayed, follow the instructions displayed
on the display. (



P. 684)

Information automatically displayed

196

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

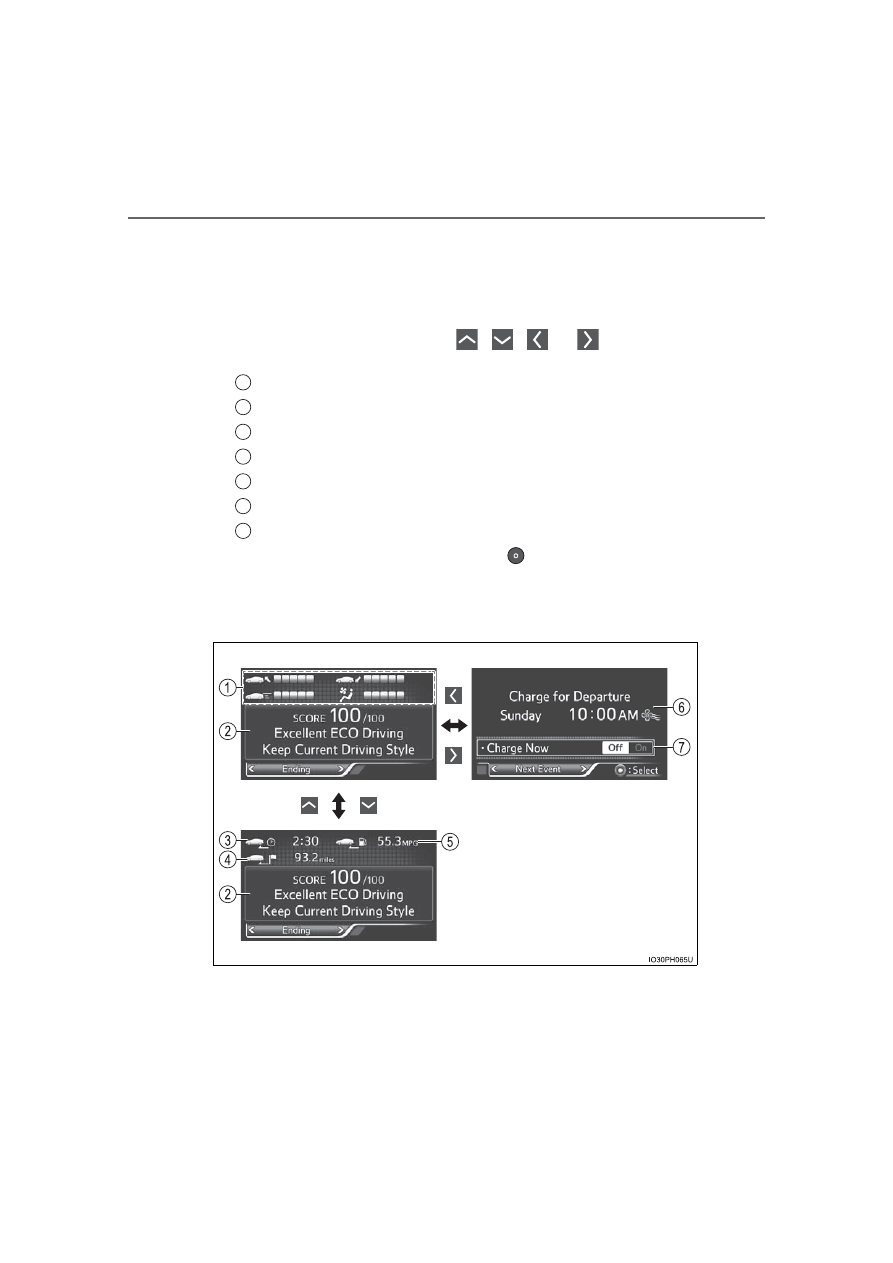

When stopping the hybrid system

●

When the hybrid system is stopped, the “Ending” screen is dis-
played  on  the  multi-information  display  (for  approximately  30
seconds

*

1

).

While the “Ending” screen is displayed, the following information
can be displayed by pressing

,

,

 or

 of the meter

control switches.

Score for each Eco score items (



P. 229, 243)

Eco score result and advice
Driving time since the hybrid system started
Distance traveled since the hybrid system started
Average fuel consumption after the hybrid system started
Information for next charge schedule

*

2

On/off setting for “Charge Now” (



P. 166)

The setting can be switched each time

 is pressed.

*

1

: The screen will be turned off immediately if the doors are locked.

*

2

: It can be displayed when the charge schedules are registered.

(



P. 157)

●

A  check  screen  for  “Traction  Battery  Cooler”  may  be  displayed
when the hybrid system is stopped. (



P. 136)

1
2
3
4
5
6
7

PRIUS PRIME_OM_OM47D71U_(U)

197

3. Instrument cluster

3

Instrument clus

ter

To adjust the time, perform operations on the

 screen (



P. 239)

of the multi-information display.

■

Adjusting the time

Press

 or

 of the meter control switches on the steering

wheel and select

.

Press

  or

  of  the  meter  control  switches  and  select

.

Press

 to display the cursor.

Press

  or

  of  the

meter  control  switches  to
adjust  the  cursor  position,

and then press

 or

 to

change the setting.

When  the  12-hour  display  is
selected,  “12H”  is  displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When  adjusting  minutes,  operation  automatically  starts  from  00  sec-
onds.
After changing the settings, press

 to return to the previous screen.

Clock adjustment

1

2

3

4

198

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

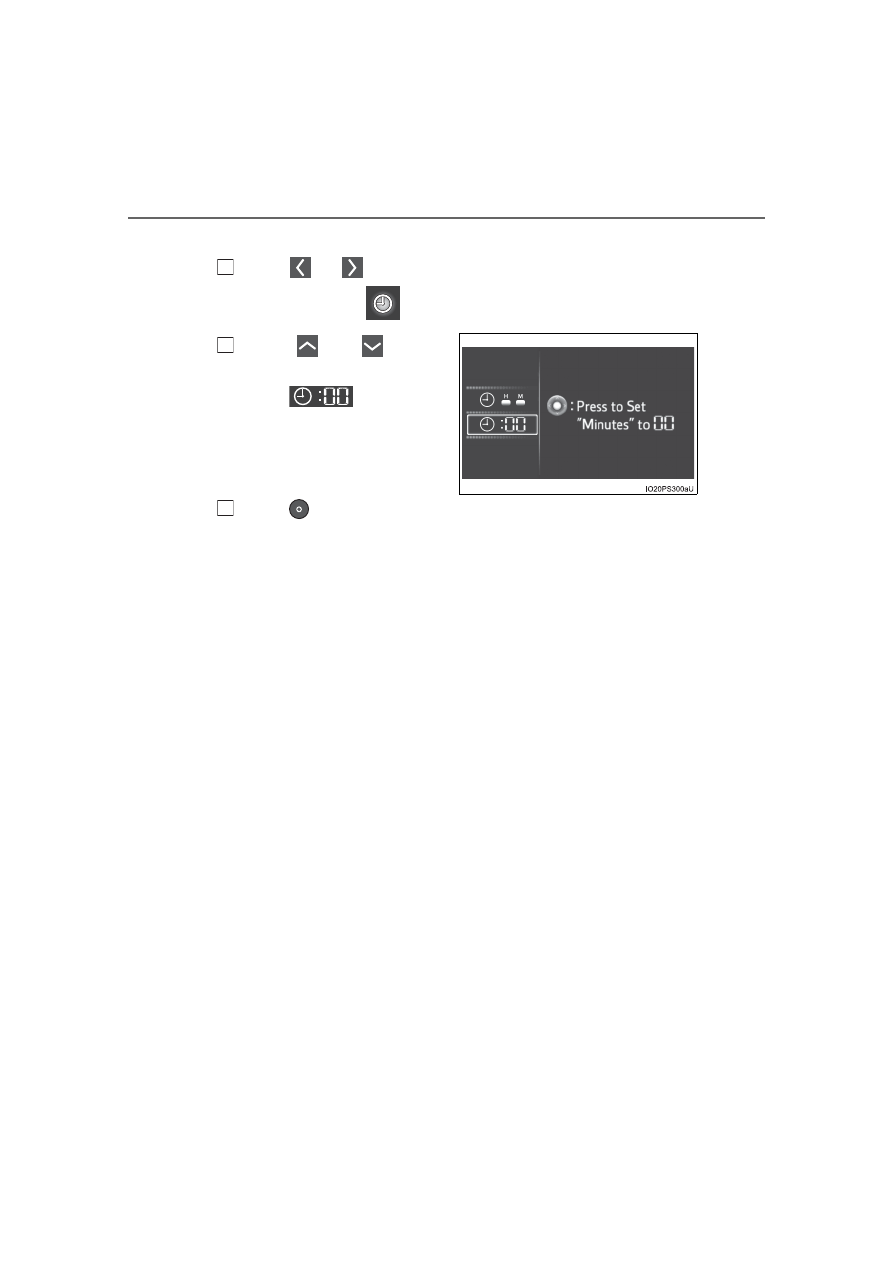

Resetting the minutes display

Press

 or

 of the meter control switches on the steering

wheel and select

.

Press

  or

  of  the

meter  control  switches  and

select

.

Press

.

The minutes display switches to “00”.

*

*

: e.g. 1:00 to 1:29



 1:00

1:30 to 1:59



 2:00

1

2

3

PRIUS PRIME_OM_OM47D71U_(U)

199

3. Instrument cluster

3

Instrument clus

ter

■

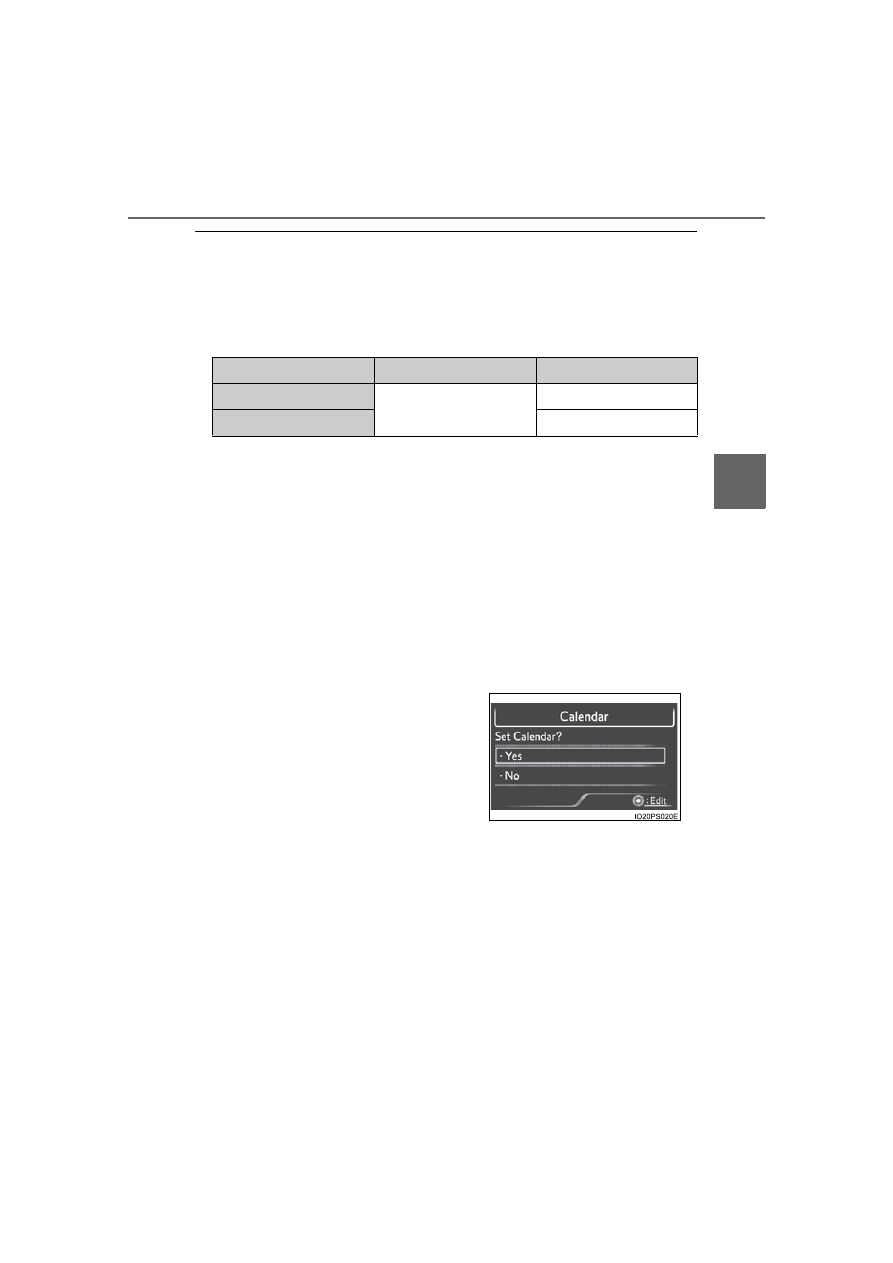

The meters and display illuminate when

The power switch is in ON mode.

■

Adjusting the instrument cluster brightness (



P. 194)

●

The brightness levels that can be selected differ depending on whether the
tail lights are on and surrounding brightness levels, as shown in the table
below.

*

: 22 levels of the brightness are displayed on the setting screen. However,

the brightness setting will be the brightest when other than 1st level (the
darkest) is selected. If other than 1st or 22nd level is selected, when the
tail lights are turned on in a dark place, the instrument cluster brightness
setting will be the selected level.

●

If the taillights are illuminated in a dark environment, the instrument cluster
light dims. However, when the brightness of the instrument cluster is set to
minimum  or  maximum  (1st  or  22nd  level  of  the  instrument  cluster  bright-
ness),  even  if  the  taillights  are  illuminated,  the  instrument  cluster  light  will
not dim.

■

When disconnecting and reconnecting 12-volt battery terminals

The settings of the clock will be reset.

■

Calendar setting

●

Until the calendar setting is completed, the check screen is displayed every
time the power switch is turned to ON mode.

●

After the calendar information is set, it can be changed in the “Meter Cus-
tomize” settings. (



P. 248)

The tail lights are off

The tail lights are on

In a bright place

2 levels

*

2 levels

*

In a dark place

22 levels

If calendar recording is interrupted due to
replacement  of  the  12-volt  battery  or  12-
volt  battery  discharge,  etc.,  when  the
power switch is turned to ON mode after
maintenance,  the  calendar  setting  check
screen  is  automatically  displayed  on  the
multi-information display.

●

If date information is not set, the electric-
ity  and  fuel  consumption  record  cannot
be  stored  correctly.  Also,  the  charging
schedule function can not operate prop-
erly.  When  the  calendar  setting  check
screen is displayed, make sure to com-
plete the calendar setting. (



P. 246)

200

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

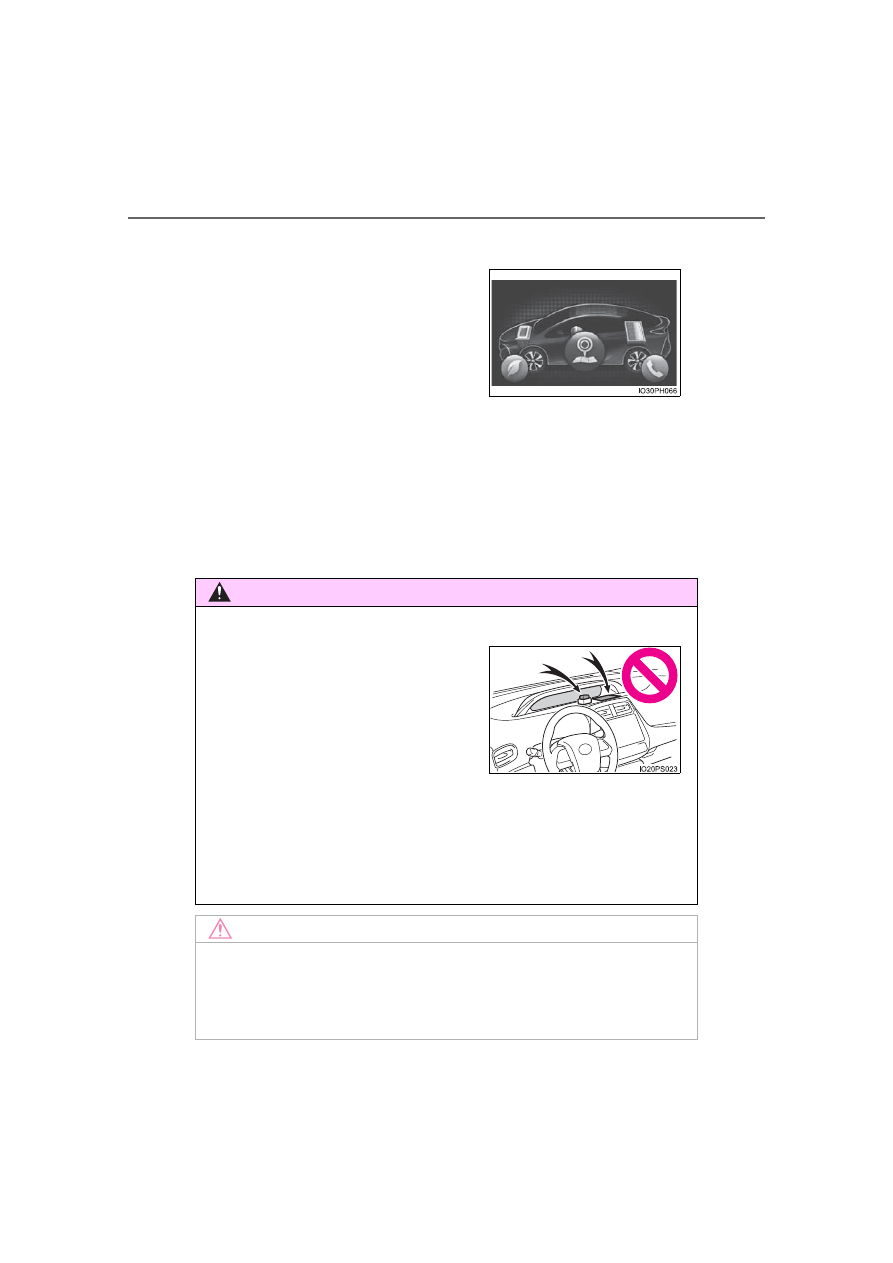

When the menu screen on the navigation system is operated (vehicles
with 11.6-inch display)

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Pop-up display

Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. (



P. 248)

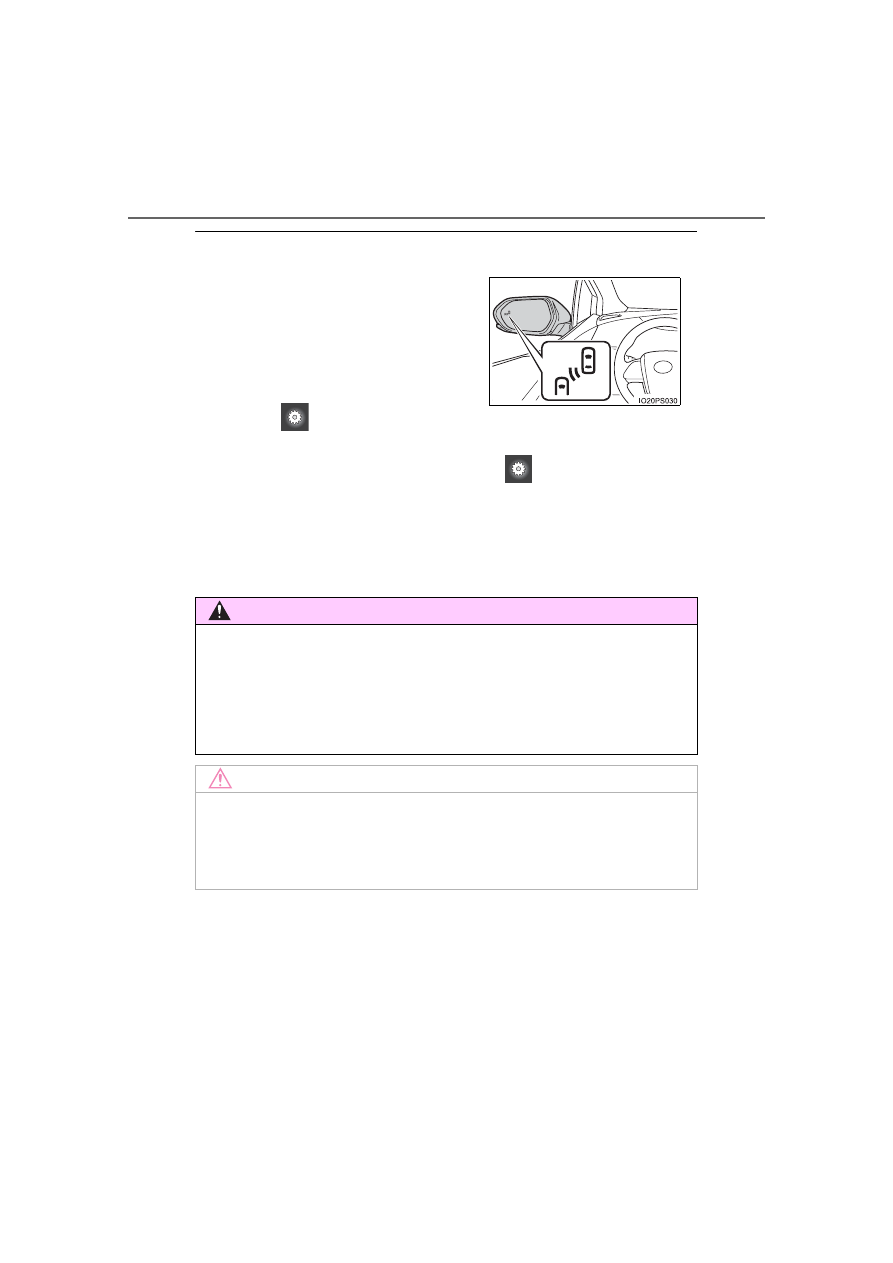

A pop-up display of the menu screen icon
is  displayed  on  the  multi-information  dis-
play.

*

*

: The  pop-up  display  on  the  navigation

system  can  be  turned  off  in  the  “Meter
Customize” settings. (



P. 249)

WARNING

■

To prevent an accident

■

Caution for use while driving

For safety, avoid operating the meter control switch while driving as much
as  possible,  and  do  not  look  continuously  at  the  multi-information  display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.

NOTICE

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

Do not place anything or attach a sticker
in front of the instrument cluster. The item
may  obscure  or  obstruct  the  display,  or
could  reflect  off  the  display,  possibly
causing an accident.

201

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

3

Instrument clus

ter

Warning lights and indicators

The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all indicators and warning lights illuminated.

202

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

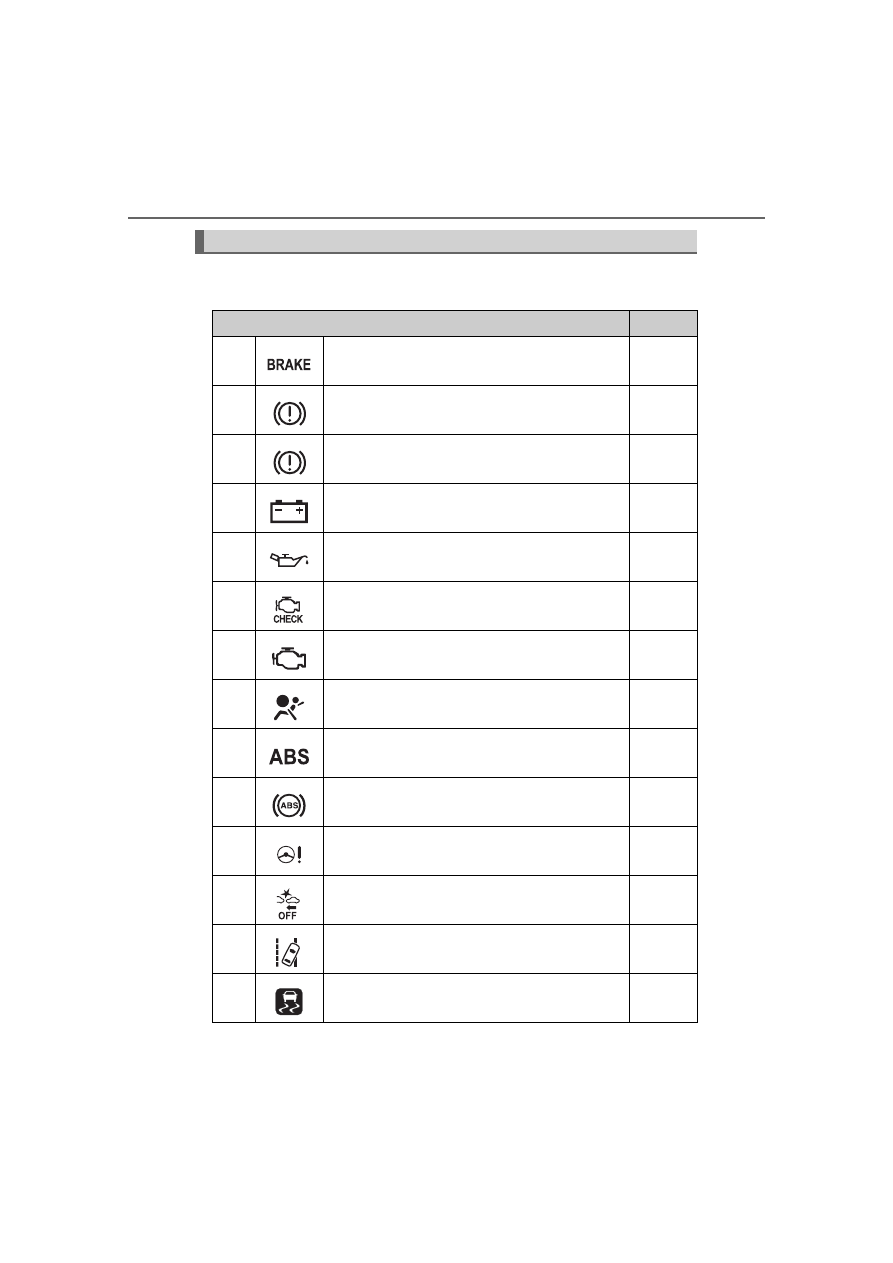

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

Warning lights

Warning lights

Pages

*

1

Brake system warning light (U.S.A.)

P. 674

*

1

Brake system warning light (Canada)
(Red)

P. 674

*

1

Brake system warning light
(Yellow)

P. 674

*

1

Charging system warning light

P. 674

*

1

Low engine oil pressure warning light

P. 674

*

1

Malfunction indicator lamp (U.S.A.)

P. 674

*

1

Malfunction indicator lamp (Canada)

P. 674

*

1

SRS warning light

P. 675

*

1

ABS warning light (U.S.A.)

P. 675

*

1

ABS warning light (Canada)

P. 675

*

1

Electric power steering system warning light
(Red/yellow)

P. 675

*

1, 2

PCS warning light

P. 675

LTA indicator (Orange)

P. 675

*

1

Slip indicator light

P. 676

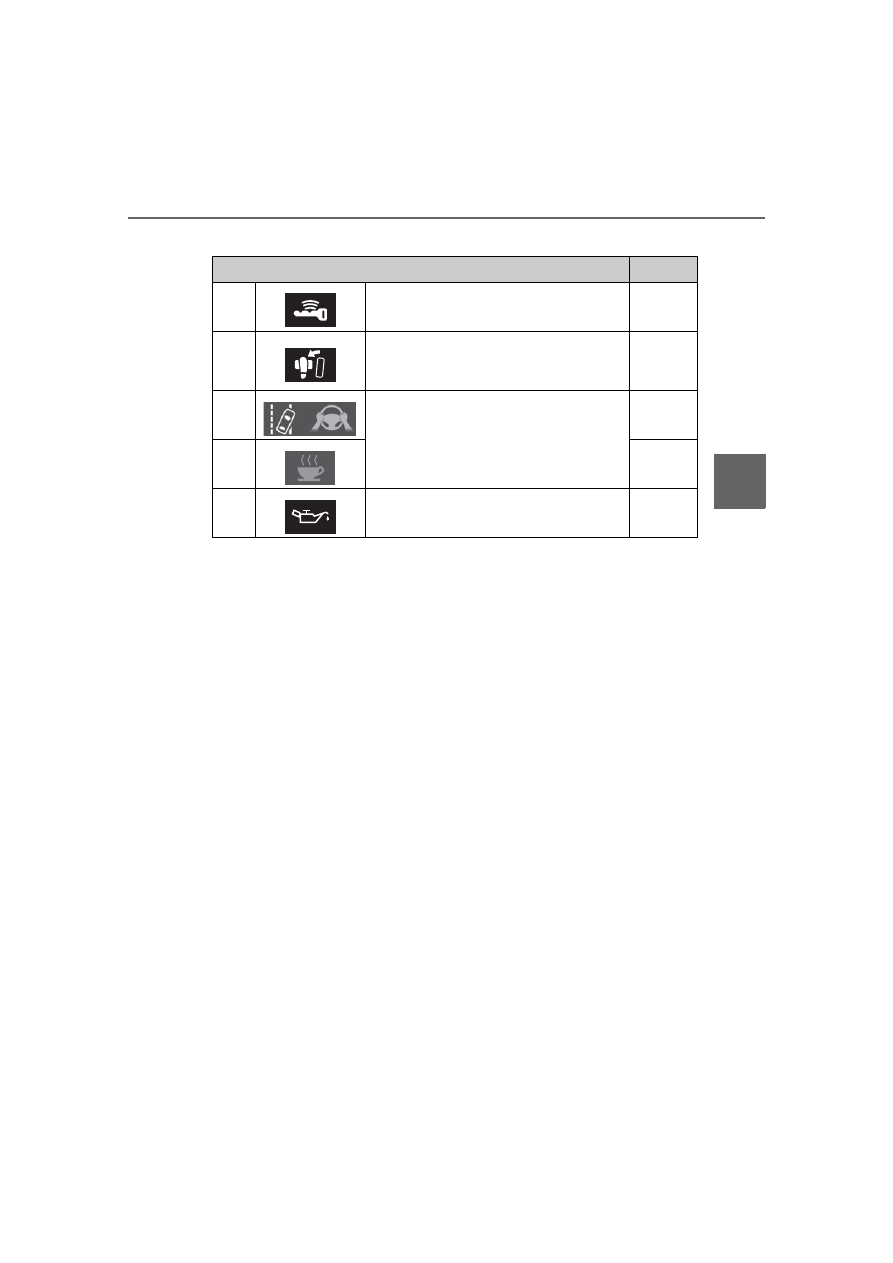

PRIUS PRIME_OM_OM47D71U_(U)

203

3. Instrument cluster

3

Instrument clus

ter

*

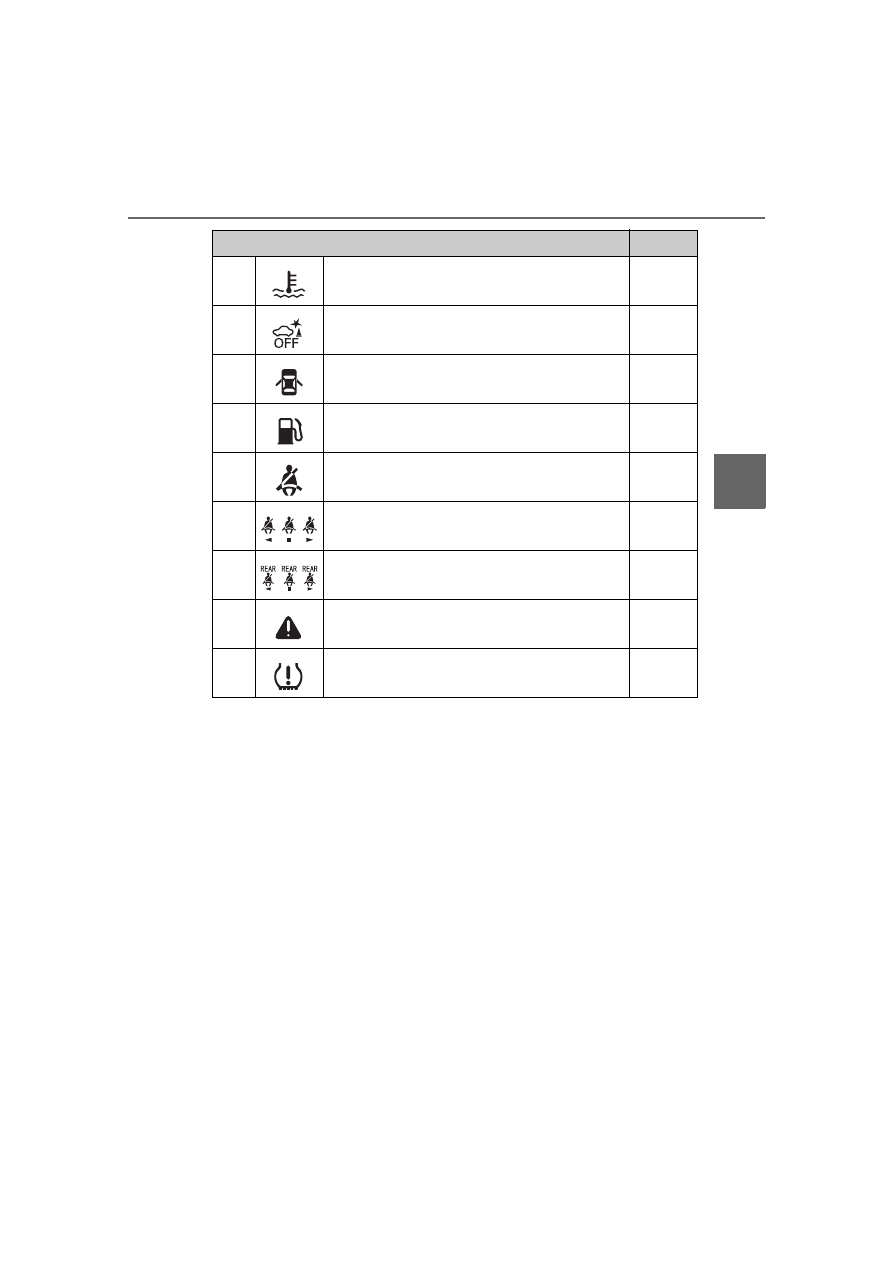

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: The light flashes or illuminates to indicate a malfunction.

*

3

: The light flashes to indicate a malfunction.

*

1

High coolant temperature warning light

P. 676

*

1, 3

PKSB OFF indicator (if equipped)

P. 676

Open door warning light

P. 676

Low fuel level warning light

P. 676

Driver’s  and  front  passenger’s  seat  belt
reminder light

P. 677

Rear passengers’ seat belt reminder light
(U.S.A.)

P. 677

Rear passengers’ seat belt reminder light
(Canada)

P. 677

*

1

Master warning light

P. 677

*

1

Tire pressure warning light

P. 677

Warning lights

Pages

204

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

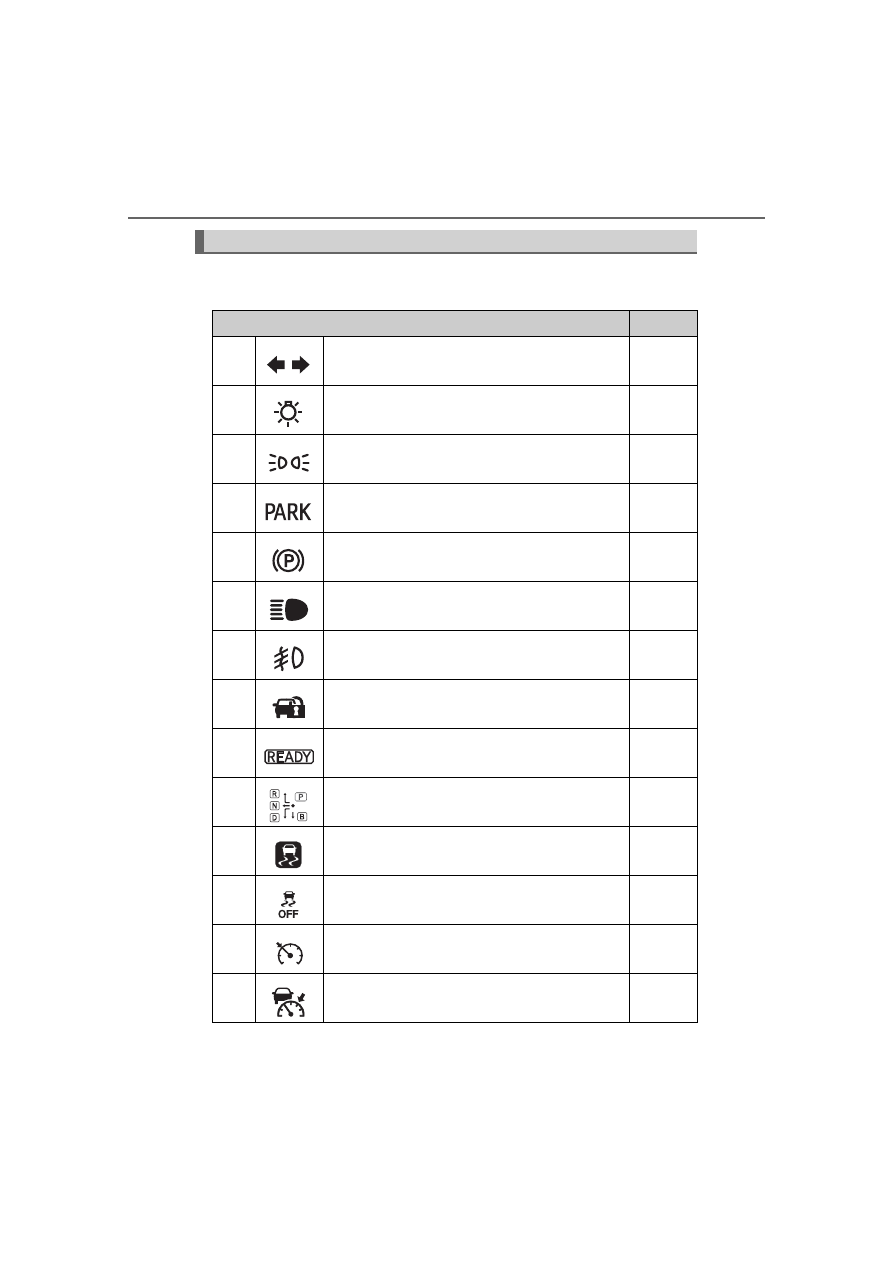

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Indicators

Pages

Turn signal indicator

P. 351

Headlight indicator (U.S.A.)

P. 353

Tail light indicator (Canada)

P. 355

Parking brake indicator (U.S.A.)

P. 352

Parking brake indicator (Canada)

P. 352

Headlight high beam indicator

P. 355

Fog light indicator (if equipped)

P. 363

Security indicator

P. 83

“READY” indicator

P. 338

Shift position indicators

P. 345

*

1, 2

Slip indicator light

P. 502

*

1, 3

VSC OFF indicator

P. 503

Cruise control indicator

P. 425

Dynamic radar cruise control indicator

P. 420

PRIUS PRIME_OM_OM47D71U_(U)

205

3. Instrument cluster

3

Instrument clus

ter

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light comes on when the system is turned off.

*

4

: Depending  on the  operating  condition,  the color  and  illuminating/flashing

state of the light change.

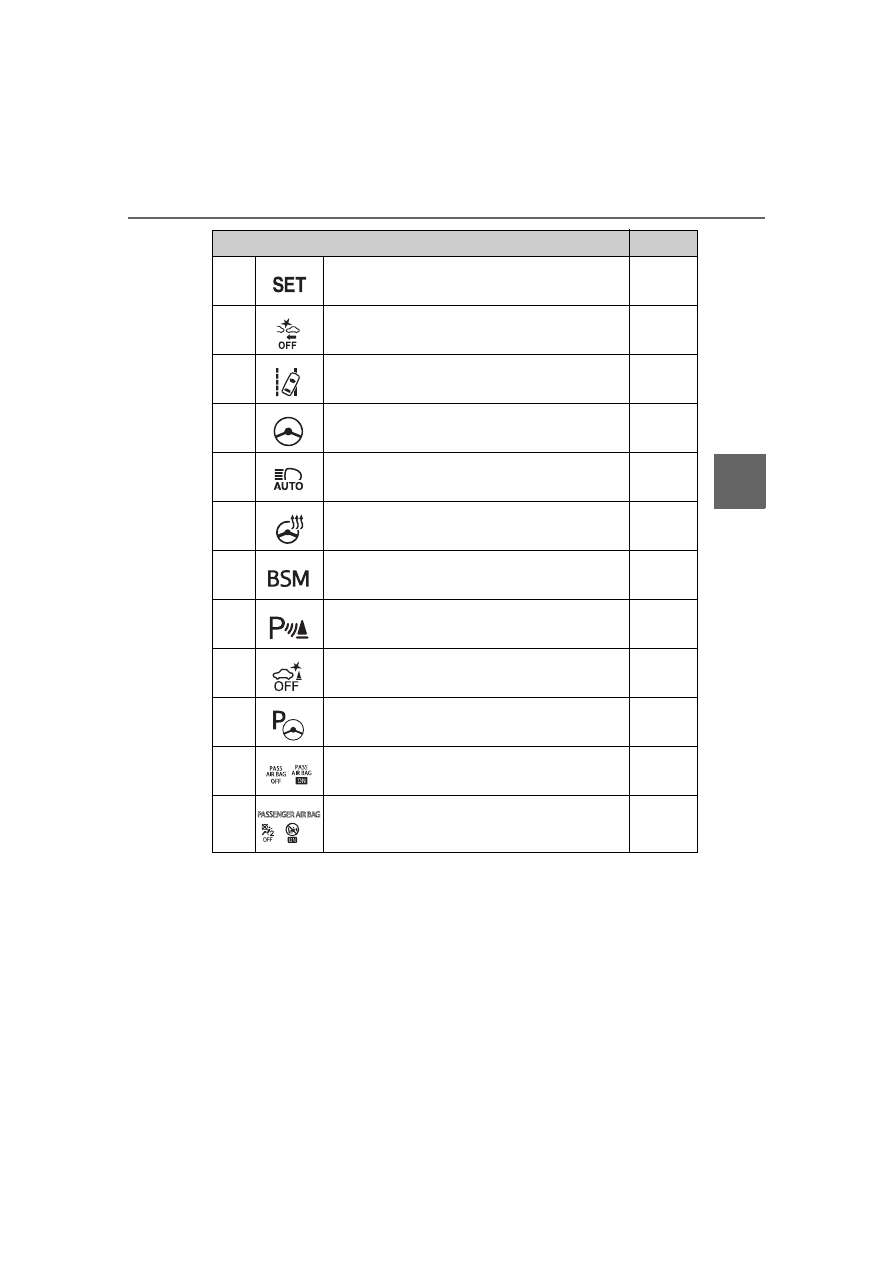

Cruise control “SET” indicator

P. 420

*

1, 3

PCS warning light

P. 388

*

4

LTA indicator

P. 404

Steering control indicator

P. 404

Automatic High Beam indicator

P. 358

Heated steering wheel indicator (if equipped)

P. 540

“BSM” indicator (if equipped)

P. 432

Intuitive parking assist indicator (if equipped)

P. 445

*

1, 3

PKSB OFF indicator (if equipped)

P. 456

*

1

S-APGS indicator (if equipped)

P. 471

*

1

“AIR BAG ON/OFF” indicator (U.S.A.)

P. 50

*

1

“AIR BAG ON/OFF” indicator (Canada)

P. 50

Indicators

Pages

206

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

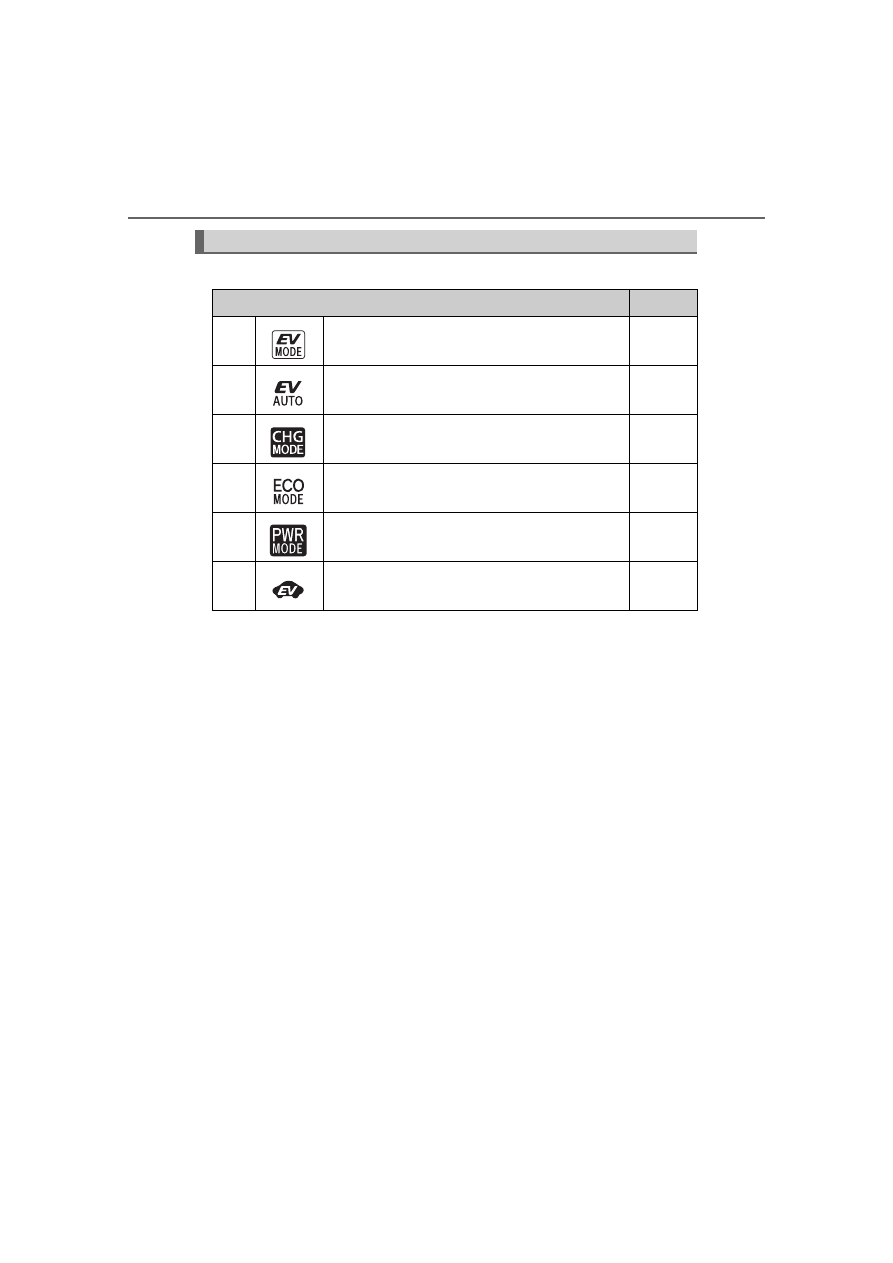

Main display and multi-information display

*

1

: The  displayed  indicator  changes  according  to  the  current  plug-in  hybrid

system operation mode.

*

2

: The displayed indicator changes according to the current driving mode.

Indicators and symbols displayed on the display

Indicators

Pages

*

1

EV drive mode indicator

P. 90

*

1

EV auto mode indicator

P. 90

*

1

Hybrid battery charge mode indicator

P. 91

*

2

“ECO MODE” indicator

P. 430

*

2

“PWR MODE” indicator

P. 430

EV indicator

P. 227

PRIUS PRIME_OM_OM47D71U_(U)

207

3. Instrument cluster

3

Instrument clus

ter

■

Multi-information display (symbol display

*

)

*

: These symbols are displayed along with a message. Also, the symbol dis-

plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.

Symbol display

Pages

Smart key system

P. 338

Brake Override System/
Drive-Start Control/Parking Support
Brake function (if equipped)

P. 678

LTA (Lane Tracing Assist)

P. 408

P. 408

Low engine oil pressure warning
(Canada only)

P. 678

208

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

■

BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (



P. 432)

• When the BSM function is enabled on the

 screen of the multi-infor-

mation display, the power switch is turned to ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view  mirror  indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

●

Indicators are also displayed on the out-
side rear view mirrors.

●

In  order  to  confirm  operation,  the  BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When  the  power  switch  is  in  ON

mode,  the  BSM  function  is  enabled

on the

 screen of the multi-infor-

mation display.

WARNING

■

If a safety system warning light does not come on

Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

NOTICE

■

To prevent damage to the engine and its components

The  engine  may  be  overheating  if  the  high  coolant  temperature  warning
light  comes  on  or  flashes.  In  this  case,  immediately  stop  the  vehicle  in  a
safe place, and check the engine after it has cooled completely. (



P. 721)

209

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

3

Instrument clus

ter

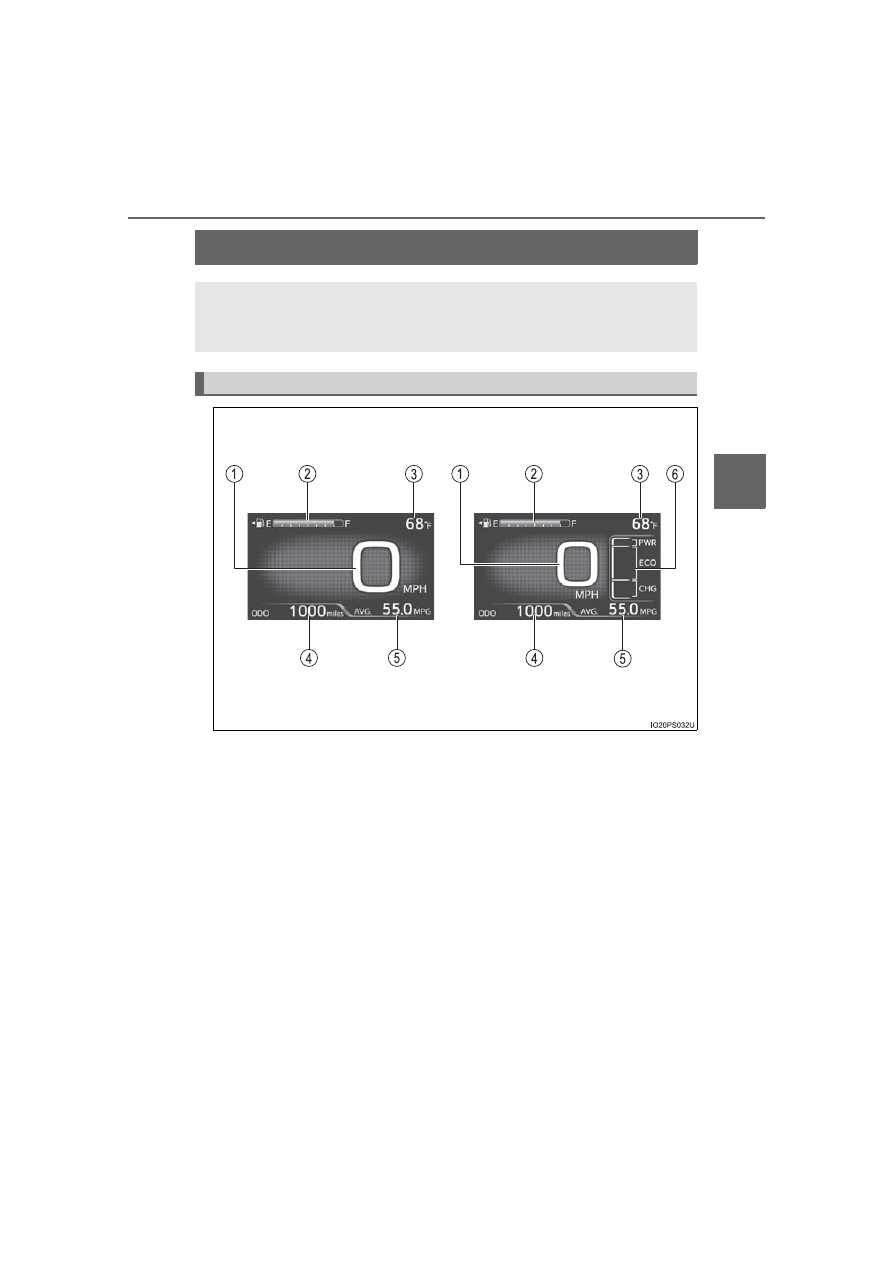

Main display

The units used on the display may differ depending on the target region.

The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.

Display contents (vehicles without RSA [Road Sign Assist])

Simple screen

*

Split screen

*

*

: Refer to P. 215 for details on how to change the screen display.

210

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 37



F (3



C) or less, and then

stops flashing.

Mileage display (odometer/trip meters/driving range)

The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (



P. 213)

Average fuel consumption display

The average  electricity and  fuel  consumption  that is linked  with  the  con-
tents of the mileage display can be displayed. (



P. 213)

Sub-screen

When split screen is selected for the main display, information such as the
Hybrid  System  Indicator and  current  fuel consumption  can be  displayed.
(



P. 215)

1

2

3

4

5

6

PRIUS PRIME_OM_OM47D71U_(U)

211

3. Instrument cluster

3

Instrument clus

ter

The units used on the display may differ depending on the target region.

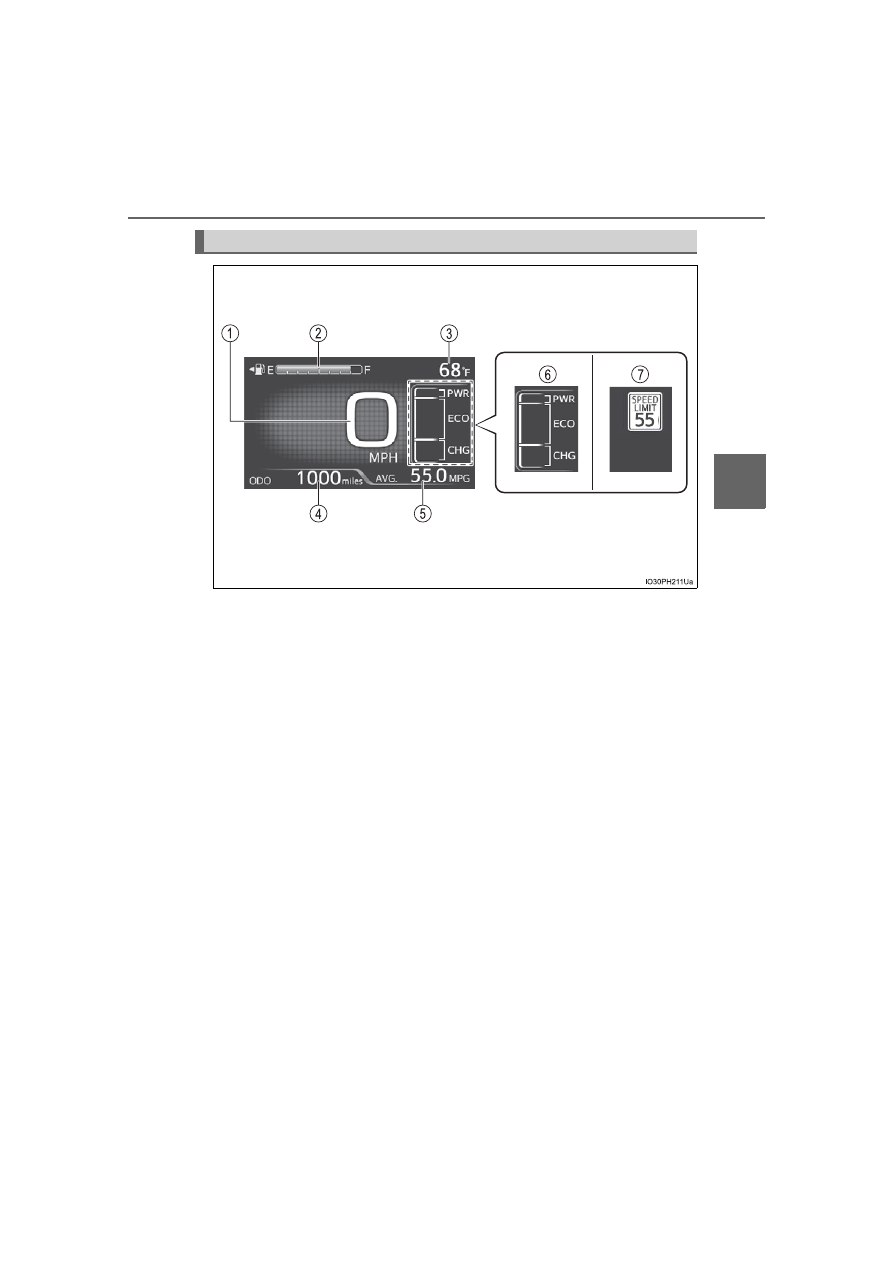

Display contents (vehicles with RSA [Road Sign Assist])

212

PRIUS PRIME_OM_OM47D71U_(U)

3. Instrument cluster

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 37°F (3°C) or less, and then
stops flashing.

Mileage display (odometer/trip meters/driving range)

The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (



P. 213)

Average fuel consumption display

The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. (



P. 213)

Sub-screen (when RSA [Road Sign Assist] is off)

Information  such  as  the  Hybrid  System  Indicator  and  current  fuel  con-
sumption can be displayed. (



P. 216)

Sub-screen (when RSA [Road Sign Assist] is on)

Displays information related to RSA (Road Sign Assist)

*

. (



P. 410)

*

: When RSA (Road Sign Assist) information is displayed in the

 screen

of the multi-information display (



P. 245), RSA (Road Sign Assist) infor-

mation is not displayed on the sub-screen.

1

2

3

4

5

6

7

PRIUS PRIME_OM_OM47D71U_(U)

213

3. Instrument cluster

3

Instrument clus

ter

Each time

 is pressed, the mileage display and fuel consumption

display change in the following order from 1 to 7.

Mileage display
Average  fuel  consumption  dis-
play

After 1 to 7 are displayed, the dis-
plays return to 1.
Use  the  displayed  average  fuel
consumption as a reference.

Switching  the  mileage  display  and  average  fuel  consumption
display

1
2
