1-3. Emergency assistance

LC200_OM_OM60T03U_(U)

Subscribers have the following Safety Connect services available:

●

Automatic Collision Notification

*

Helps drivers receive necessary response from emergency service
providers. (



P. 82)

*

: U.S. Patent No. 7,508,298 B2

●

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (



P. 82)

●

Emergency Assistance Button (SOS)
Connects drivers to response-center support. (



P. 82)

●

Roadside Assistance
Provides drivers various on-road assistance. (



P. 82)

After you have signed the Telematics Subscription Service Agreement
and are enrolled, you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your
Toyota  dealer,  call  the  following  appropriate  Customer  Experience
Center, or push the “SOS” button in your vehicle for further subscrip-
tion details.

• The United States

1-800-331-4331

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

■

Safety Connect Services Information

●

Phone  calls  using  the  vehicles  Bluetooth

®

  technology  will  not  be  possible

when Safety Connect is active and in use.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  required. A  variety  of  subscription  terms  is  available;  charges
vary by subscription term selected and location.

Services

Subscription

81

1-3. Emergency assistance

LC200_OM_OM60T03U_(U)

1

Fo
r safety and securi

ty

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.

For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services will
function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

■

Safety Connect backup battery depletion

An exclusive backup battery is built in to assist the Automatic Collision Notifi-
cation, which is activated when impact above a certain level is applied to the
vehicle, or when the airbags operate. This battery is a primary battery, and
cannot be recharged. The red LED indicator will flash to indicate that the bat-
tery should be replaced.
The backup battery will need to be replaced if the Automatic Collision Notifi-
cation operates for 60 seconds or more. For replacement, consult your Toy-
ota dealer.

When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

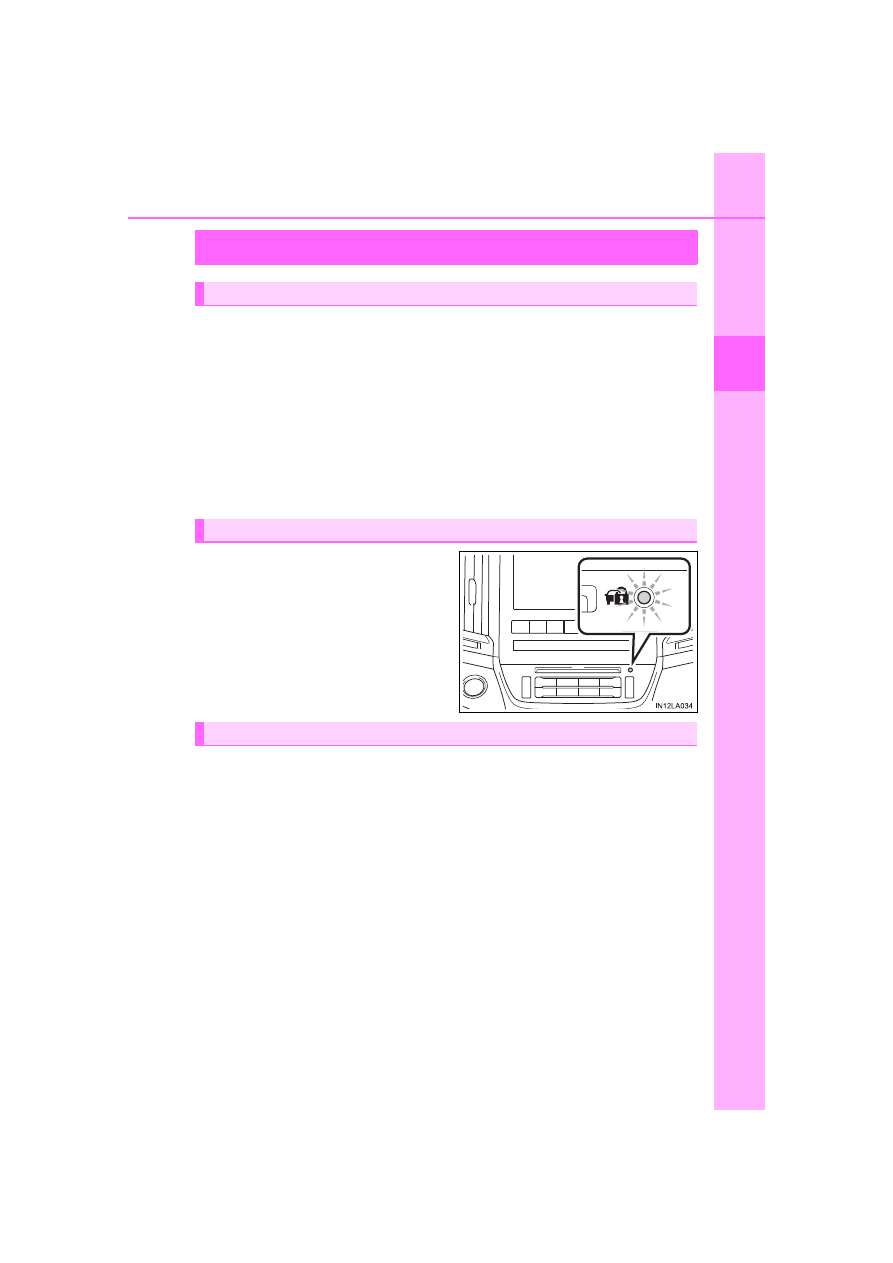

Safety Connect LED light Indicators

82

1-3. Emergency assistance

LC200_OM_OM60T03U_(U)

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

■

Roadside Assistance

Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Roadside Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at Toy-
ota.com in the United States, Toyotapr.com in Puerto Rico and Toy-
ota.ca in Canada.

Safety Connect services

83

1-3. Emergency assistance

LC200_OM_OM60T03U_(U)

1

Fo
r safety and securi

ty

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

84

1-3. Emergency assistance

LC200_OM_OM60T03U_(U)

■

Certification for Safety Connect

85

1-4. Theft deterrent system

LC200_OM_OM60T03U_(U)

1

Fo
r safety and securi

ty

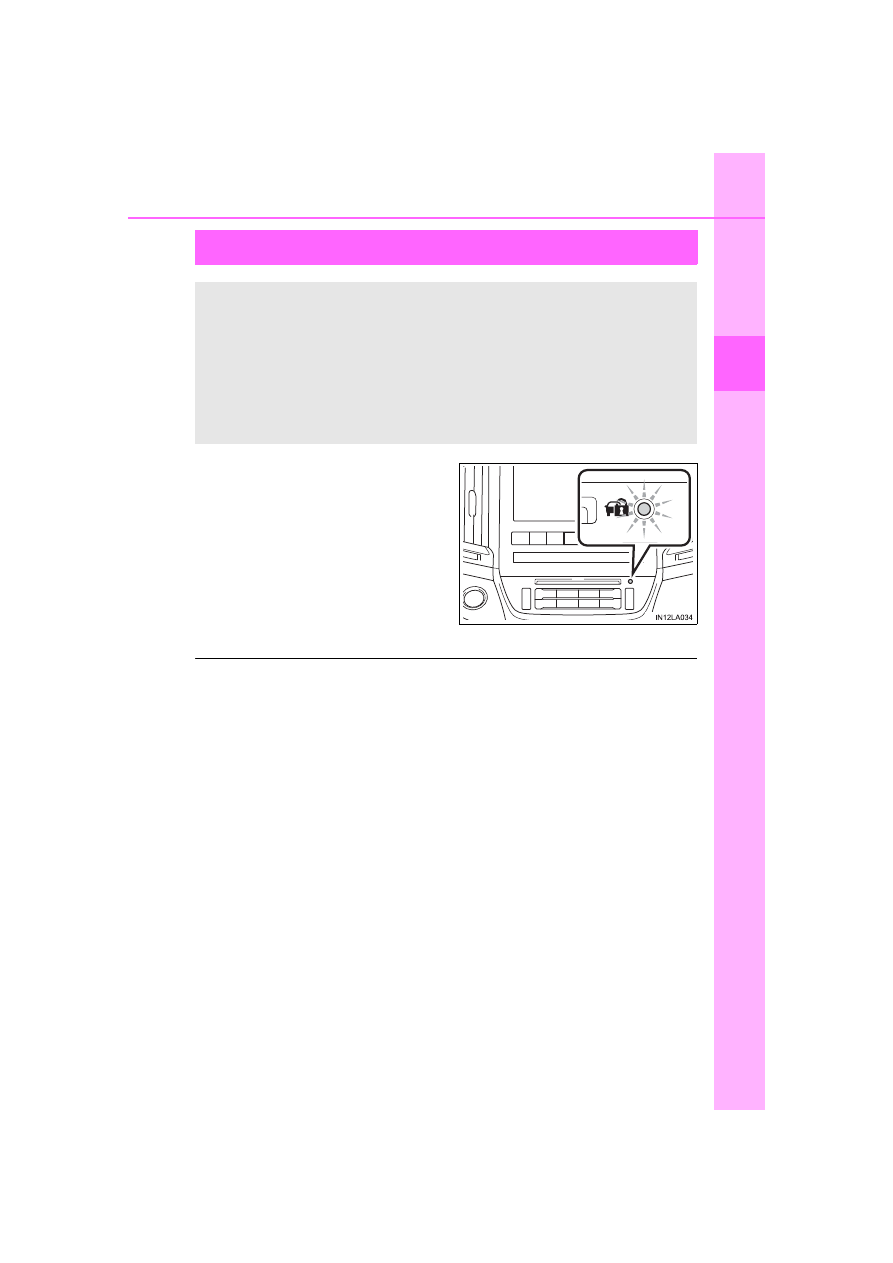

Engine immobilizer system

The  indicator  light  flashes  after
the engine switch has been turned
off  to  indicate  that  the  system  is
operating.
The  indicator  light  stops  flashing
after  the  engine  switch  has  been
turned  to  ACCESSORY  or  IGNI-
TION  ON  mode  to  indicate  that
the system has been canceled.

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.

This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

86

1-4. Theft deterrent system

LC200_OM_OM60T03U_(U)

■

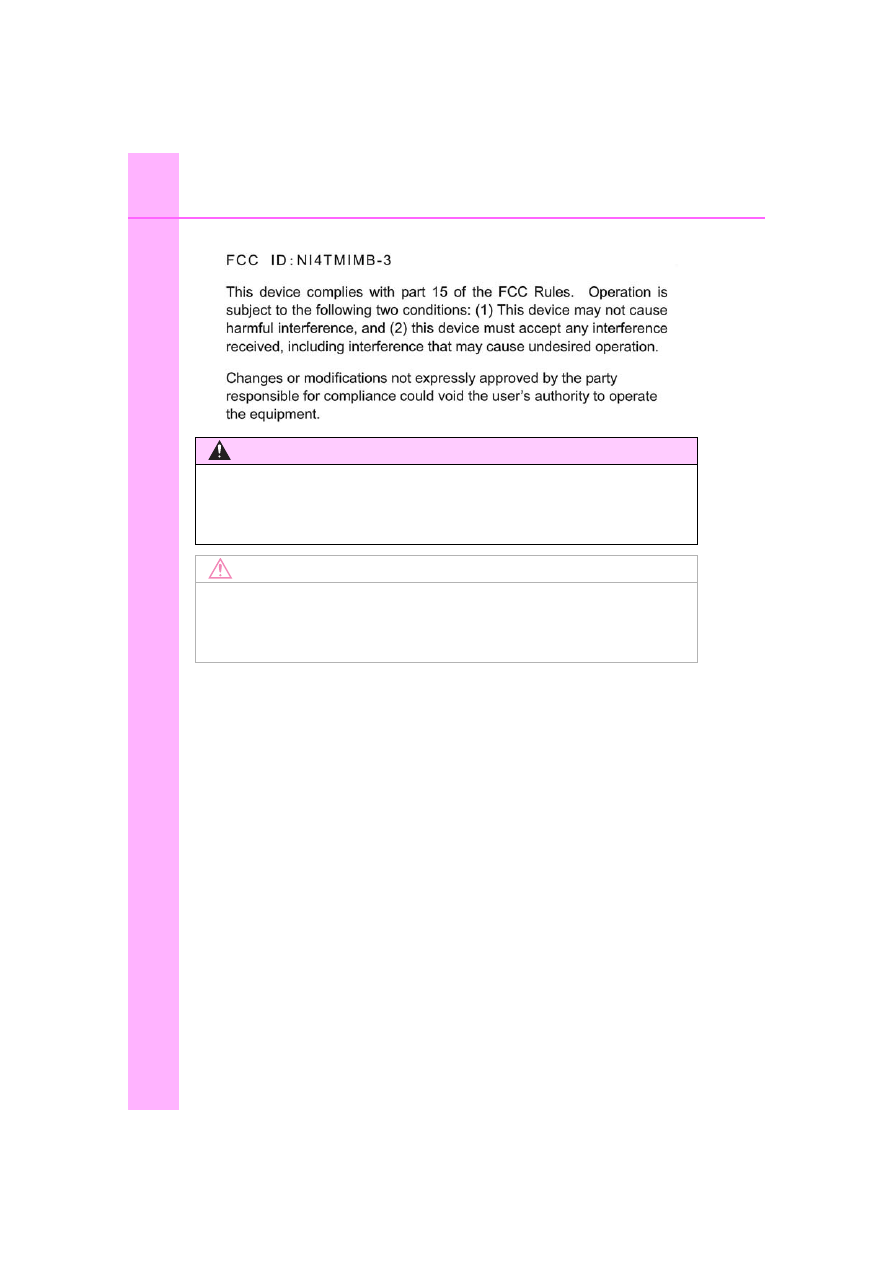

Certifications for the engine immobilizer system

WARNING

■

Certifications for the engine immobilizer system

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

87

1-4. Theft deterrent system

LC200_OM_OM60T03U_(U)

1

Fo
r safety and securi

ty

Alarm

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using
the  entry  function  or  wireless  remote  control.  (The  doors  will  lock
again automatically.)

●

The hood is opened.

●

The battery is reconnected.

Close  the  doors  and  hood,  and
lock  all  the  doors  using  the  entry
function  or  wireless  remote  con-
trol. The  system  will  be  set  auto-
matically after 30 seconds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarms:

●

Unlock the doors using the entry function or wireless remote con-
trol.

●

Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

The alarm

Setting the alarm system

Deactivating or stopping the alarm

88

1-4. Theft deterrent system

LC200_OM_OM60T03U_(U)

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following.

●

Nobody is in the vehicle.

●

The windows and moon roof are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

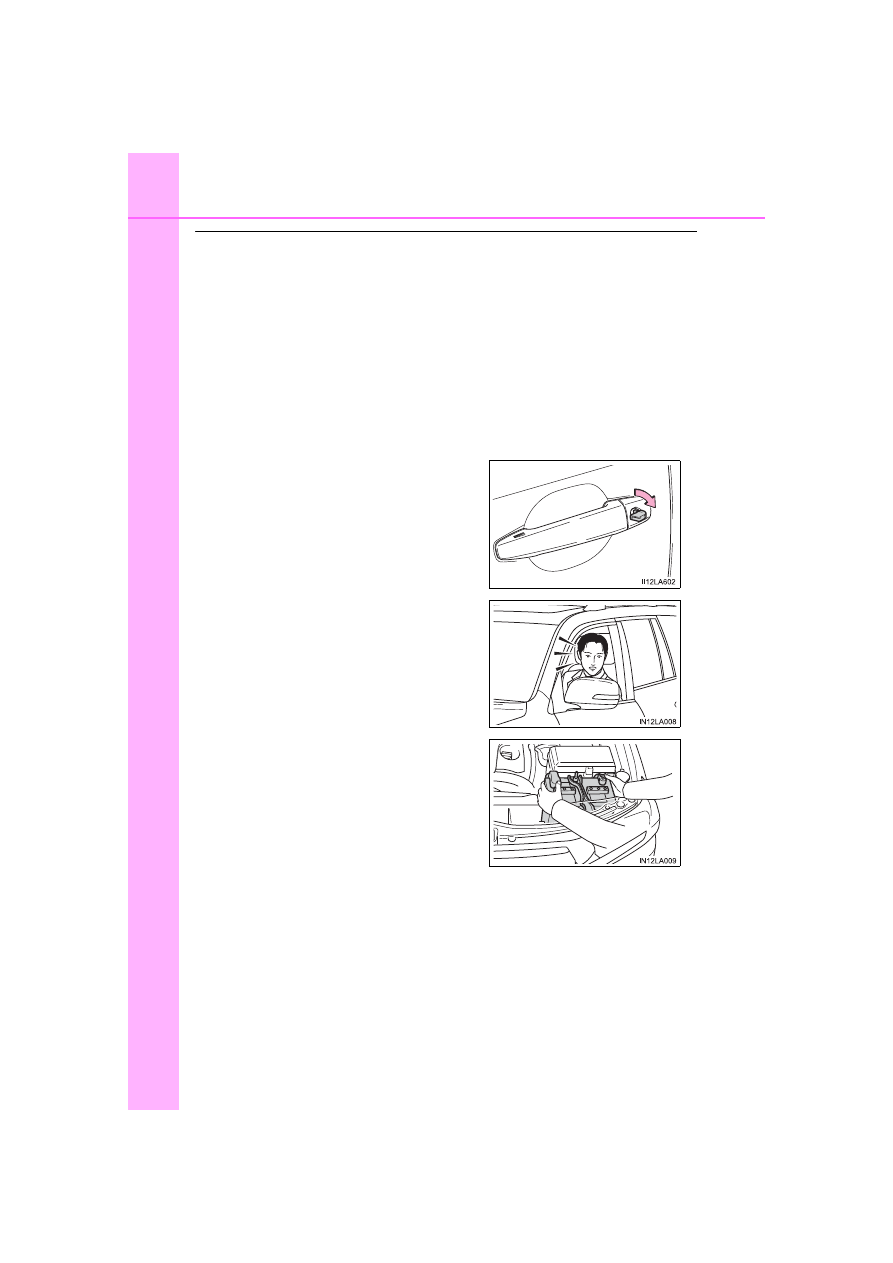

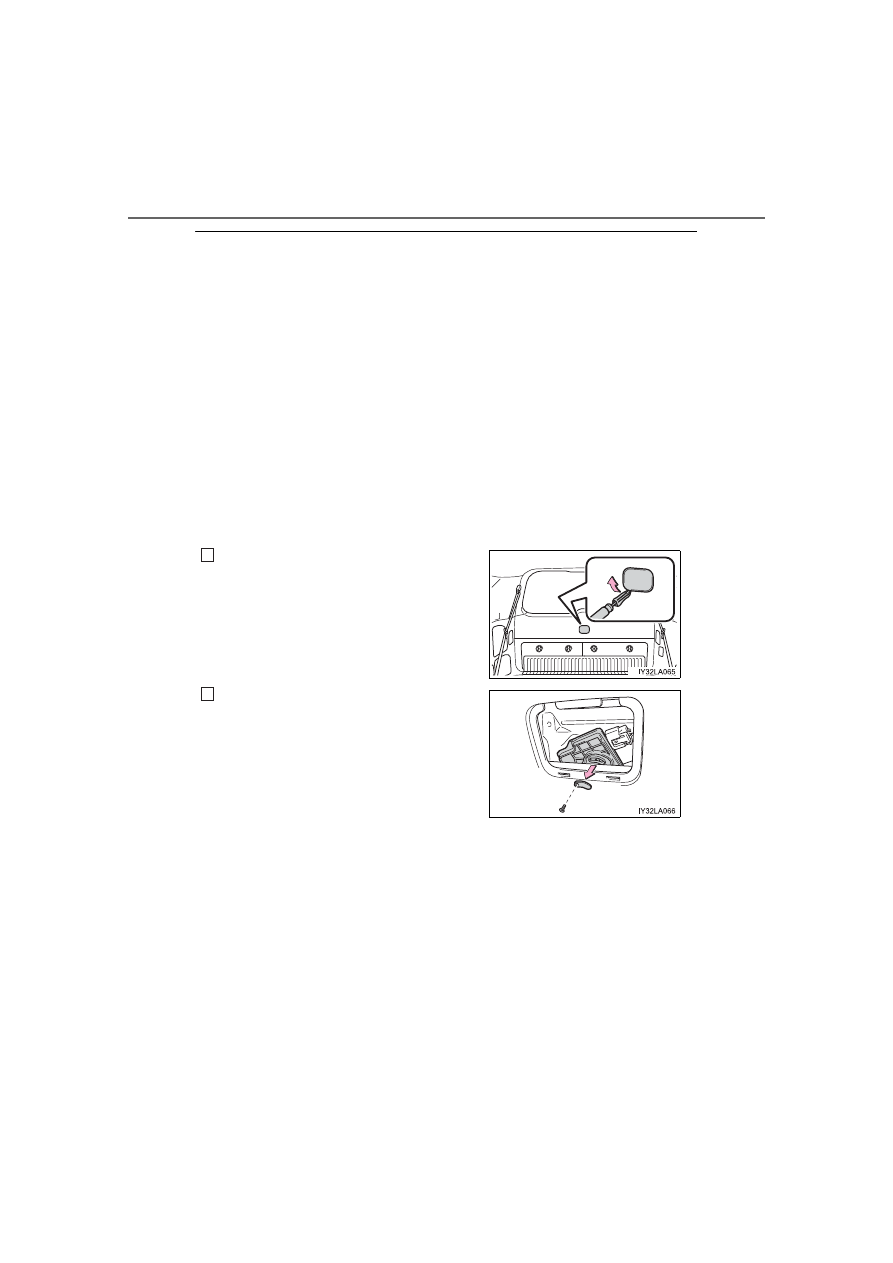

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

●

The  doors  are  unlocked  using  the
mechanical key.

●

A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked. (



P. 563)

89

1-4. Theft deterrent system

LC200_OM_OM60T03U_(U)

1

Fo
r safety and securi

ty

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

90

1-4. Theft deterrent system

LC200_OM_OM60T03U_(U)

91

LC200_OM_OM60T03U_(U)

Instrument cluster

2

2.

Instrument cluster

Warning lights and

indicators .......................... 92

Gauges and meters ............ 97
Multi-information display ... 101
Fuel consumption

information ...................... 110

92

LC200_OM_OM60T03U_(U)

2. Instrument cluster

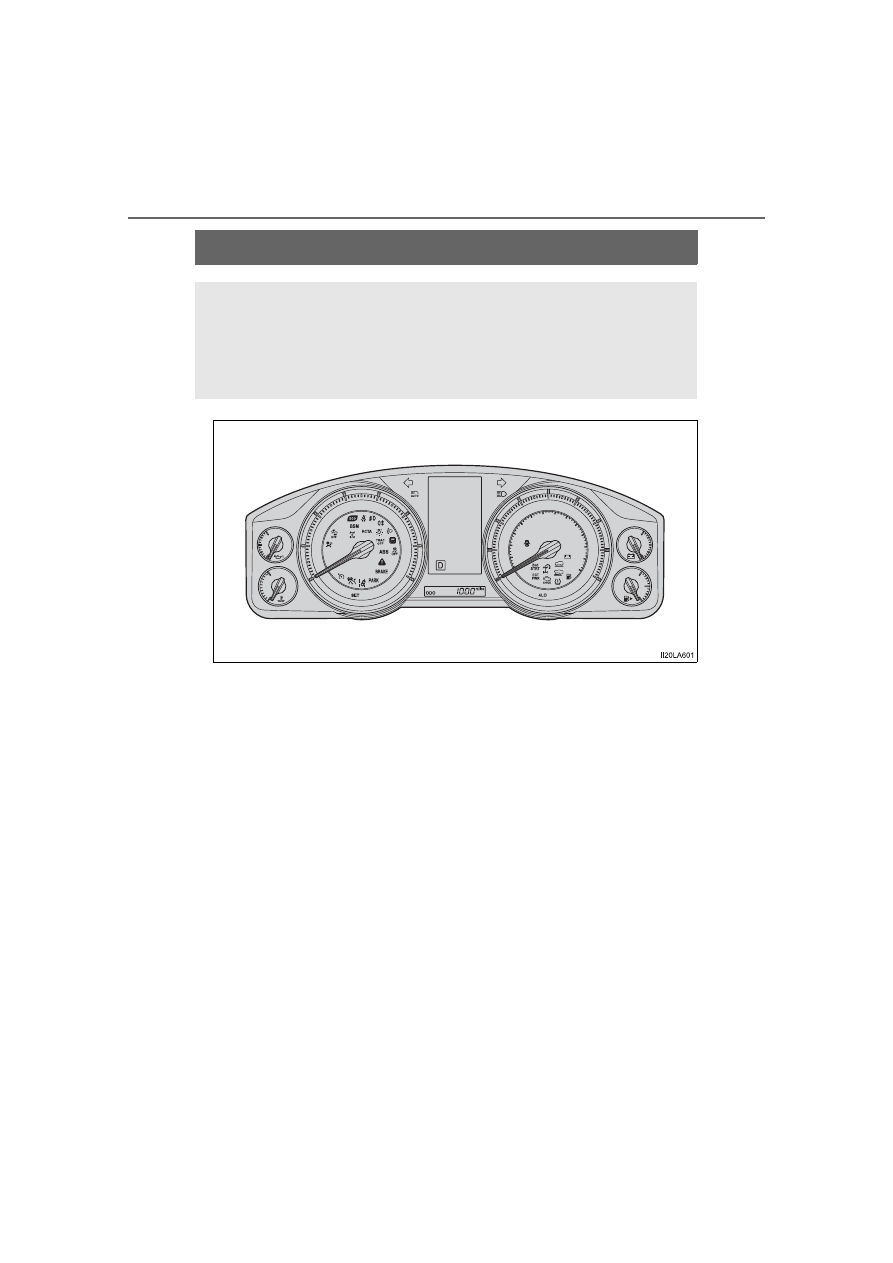

Warning lights and indicators

The units used on the speedometer may differ depending on the tar-
get region.

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration display
all warning lights and indicators illuminated.

LC200_OM_OM60T03U_(U)

93

2. Instrument cluster

2

Instru

me
nt clu

ster

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

*

1

: These  lights  turn  on  when  the  engine  switch  is  turned  to  IGNITION  ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if the lights do not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: The light flashes or illuminates to indicate a malfunction.

*

3

: This light illuminates on the center panel.

*

4

: The light flashes to indicate a malfunction.

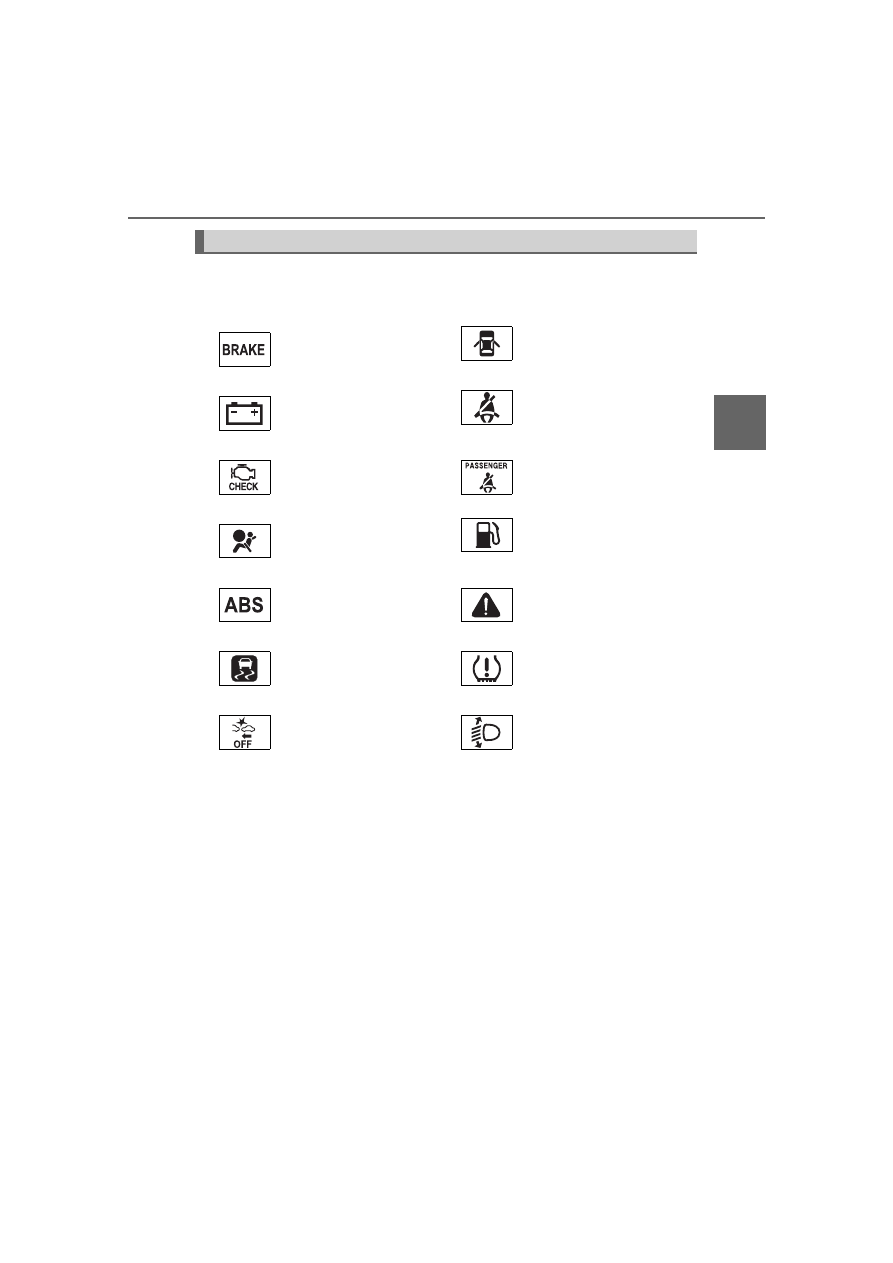

Warning lights

*

1

Brake system warning
light (



P. 530)

Open door warning light
(



P. 532)

*

1

Charging system
warning light (



P. 530)

Driver’s seat belt
reminder light (



P. 532)

*

1

Malfunction indicator
lamp (



P. 530)

*

3

Front passenger’s seat
belt reminder light
(



P. 532)

*

1

SRS warning light
(



P. 530)

Low fuel level warning
light (



P. 532)

*

1

ABS warning light
(



P. 531)

*

1

Master warning light
(



P. 532)

*

1

Slip indicator (



P. 531)

*

1

Tire pressure warning

light (



P. 532)

*

1, 2

(if equipped)

PCS warning light
(



P. 531)

*

1, 4

Automatic headlight
leveling system warning
light (



P. 532)

94

LC200_OM_OM60T03U_(U)

2. Instrument cluster

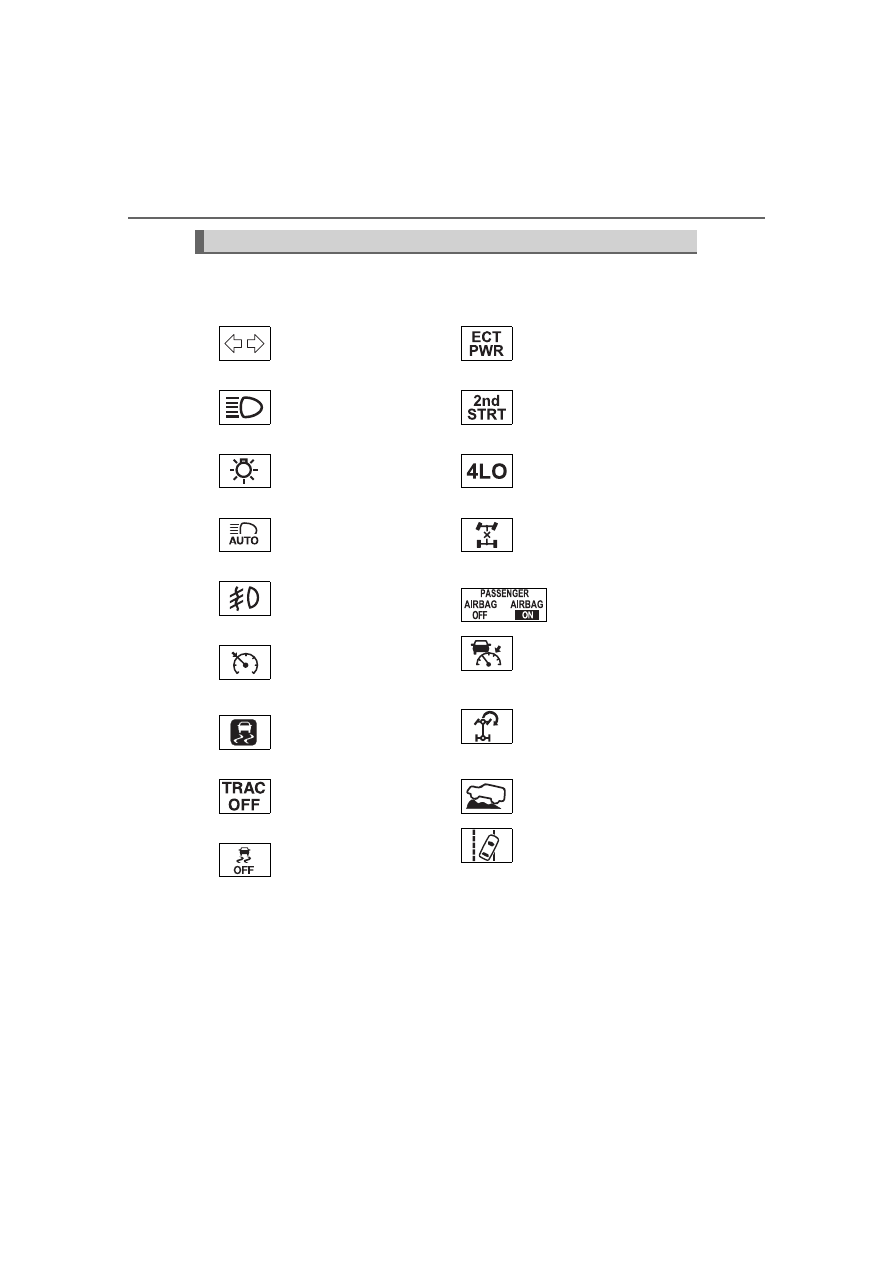

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 224)

Power mode indicator
(



P. 219)

Headlight high beam
indicator (



P. 227)

Second start mode
indicator (



P. 219)

Headlight indicator
(



P. 226)

Low speed four-wheel
drive indicator light
(



P. 300)

Automatic High Beam
indicator (



P. 231)

Center differential lock
indicator (



P. 300)

Fog light indicator
(



P. 235)

*

1, 4

“AIR BAG ON/
OFF” indicator
(



P. 52)

Cruise control indicator
(



P. 276, 289)

(if equipped)

Dynamic radar cruise
control indicator
(



P. 276)

*

1, 2

Slip indicator (



P. 378)

Turn Assist indicator
(



P. 304)

*

1, 3

TRAC OFF indicator
(



P. 379)

*

1

Crawl Control indicator
(



P. 304)

*

1, 3

VSC OFF indicator
(



P. 379)

(if equipped)

LDA indicator (



P. 267)

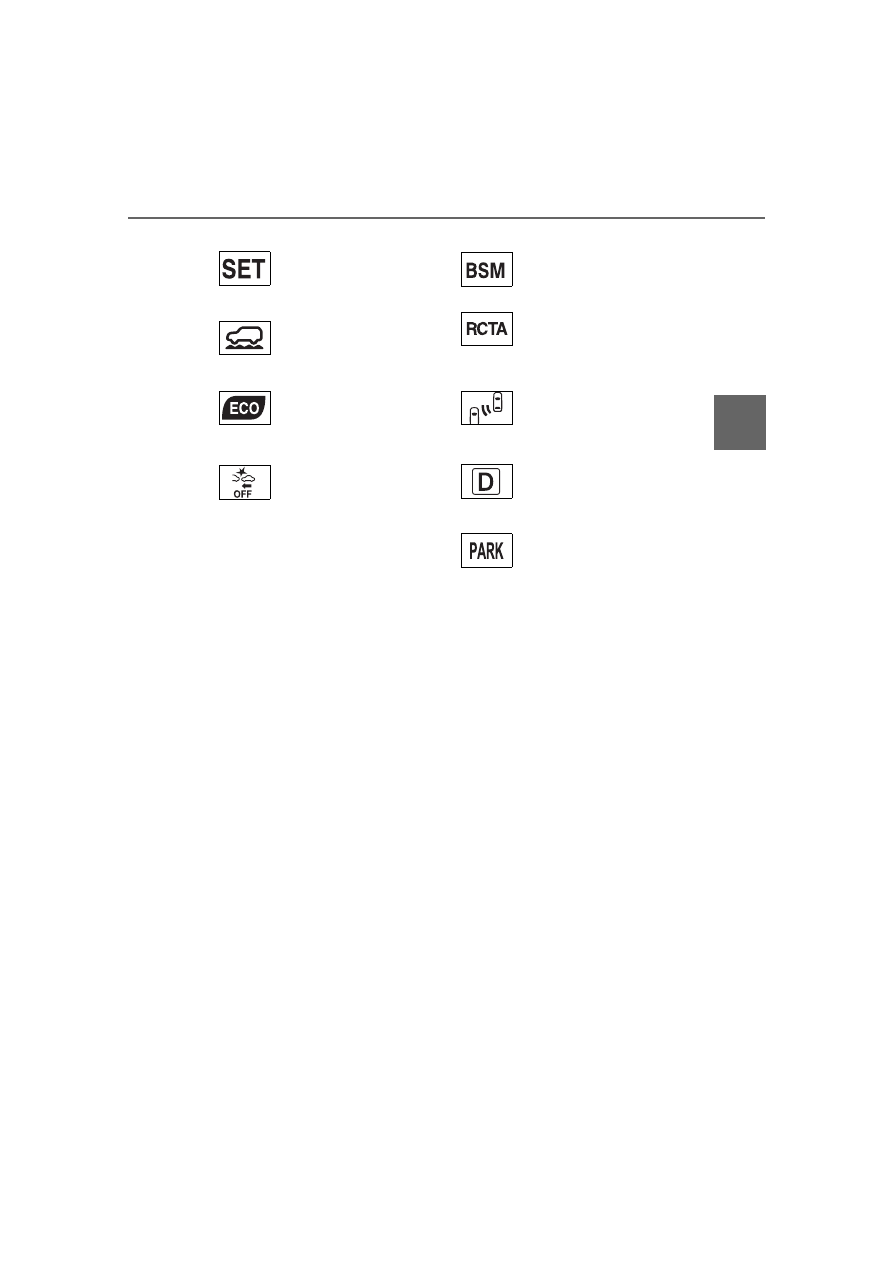

LC200_OM_OM60T03U_(U)

95

2. Instrument cluster

2

Instru

me
nt clu

ster

*

1

: These lights turn on when the engine switch is turned to IGNITION ON

mode to indicate that a system check is being performed. They will turn
off after the engine is on, or after a few seconds. There may be a mal-
function in a system if the lights do not turn on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light turns on when the system is turned off.

*

4

: This light illuminates on the center panel.

*

5

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to IGNITION ON mode while the sys-

tem is set to on.

• When the system is set to on while the engine switch is in IGNITION ON

mode.

If  the  system  is  functioning  correctly,  the  BSM  outside  rear  view  mirror
indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

*

6

: This light illuminates on the outside rear view mirrors.

Cruise control “SET”
indicator (



P. 276, 289)

*

1

(if equipped)

BSM (Blind Spot
Monitor) indicator
(



P. 363)

Multi-terrain Select
indicator (



P. 309)

(if equipped)

RCTA (Rear Cross
Traffic Alert) indicator
(



P. 371)

*

1

Eco Driving Indicator
Light (



P. 96)

*

5, 6

(if equipped)

BSM (Blind Spot
Monitor) outside rear
view mirror indicators
(



P. 363)

*

1, 3

(if equipped)

PCS warning light
(



P. 254)

Shift position and shift
range indicators
(



P. 218)

Parking brake indicator
(



P. 225)

96

LC200_OM_OM60T03U_(U)

2. Instrument cluster

■

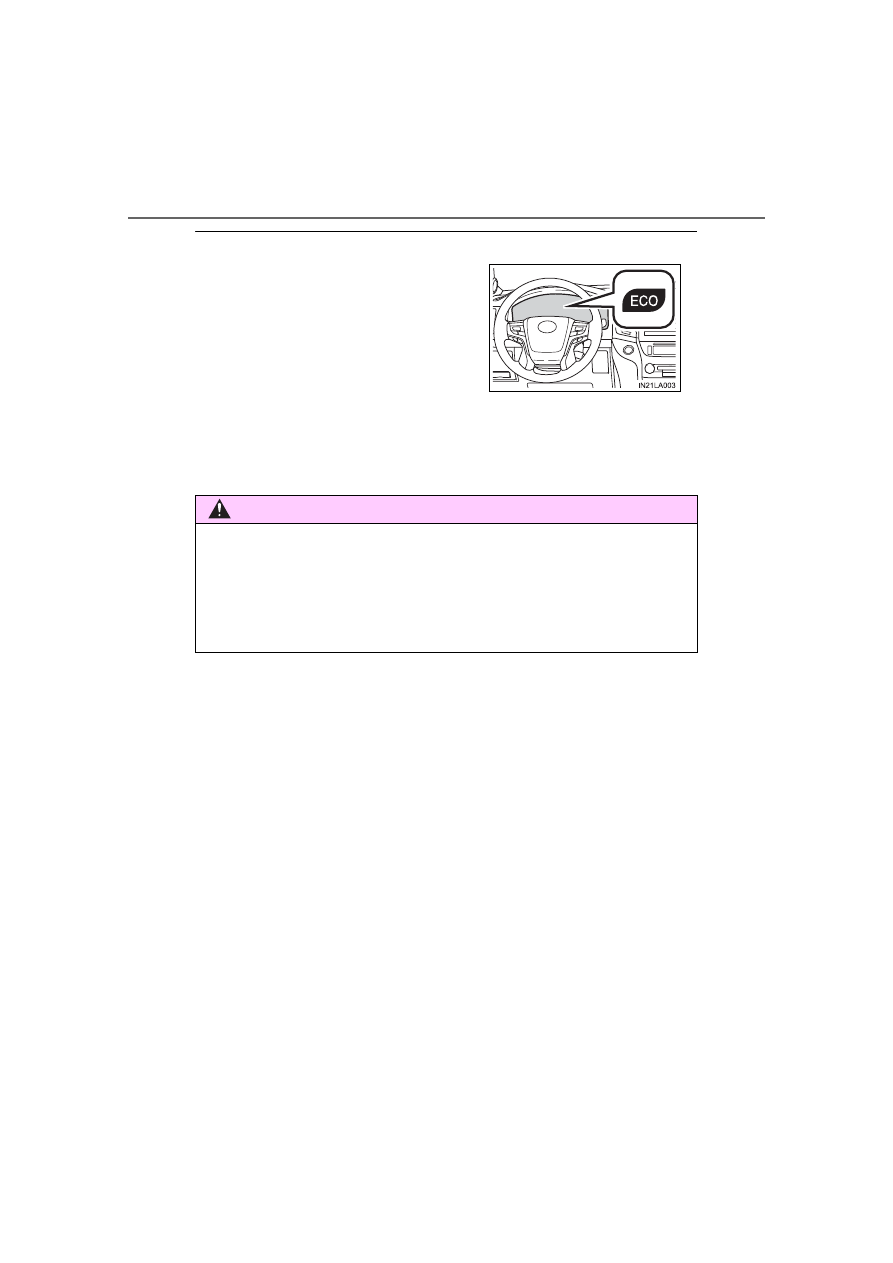

Eco Driving Indicator Light

●

The shift lever is in any position other than D.

●

The vehicle is set to second start mode or power mode. (



P. 218)

●

The vehicle speed is approximately 81 mph (130 km/h) or higher.

●

The Crawl Control is operating. (



P. 304)

During  Eco-Friendly  acceleration  opera-
tion  (Eco  driving),  Eco  Driving  Indicator
Light  will  turn  on.  When  the  acceleration
exceeds  Zone  of  Eco  driving  (



P.  108),

or  when  the  vehicle  is  stopped,  the  light
turns off.
Eco Driving Indicator Light will not operate
in the following conditions:

WARNING

■

If a safety system warning light does not come on

Should  a  safety  system  light  such  as  the  Multi Terrain ABS  and  the  SRS
warning light not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.

97

LC200_OM_OM60T03U_(U)

2. Instrument cluster

2

Instru

me
nt clu

ster

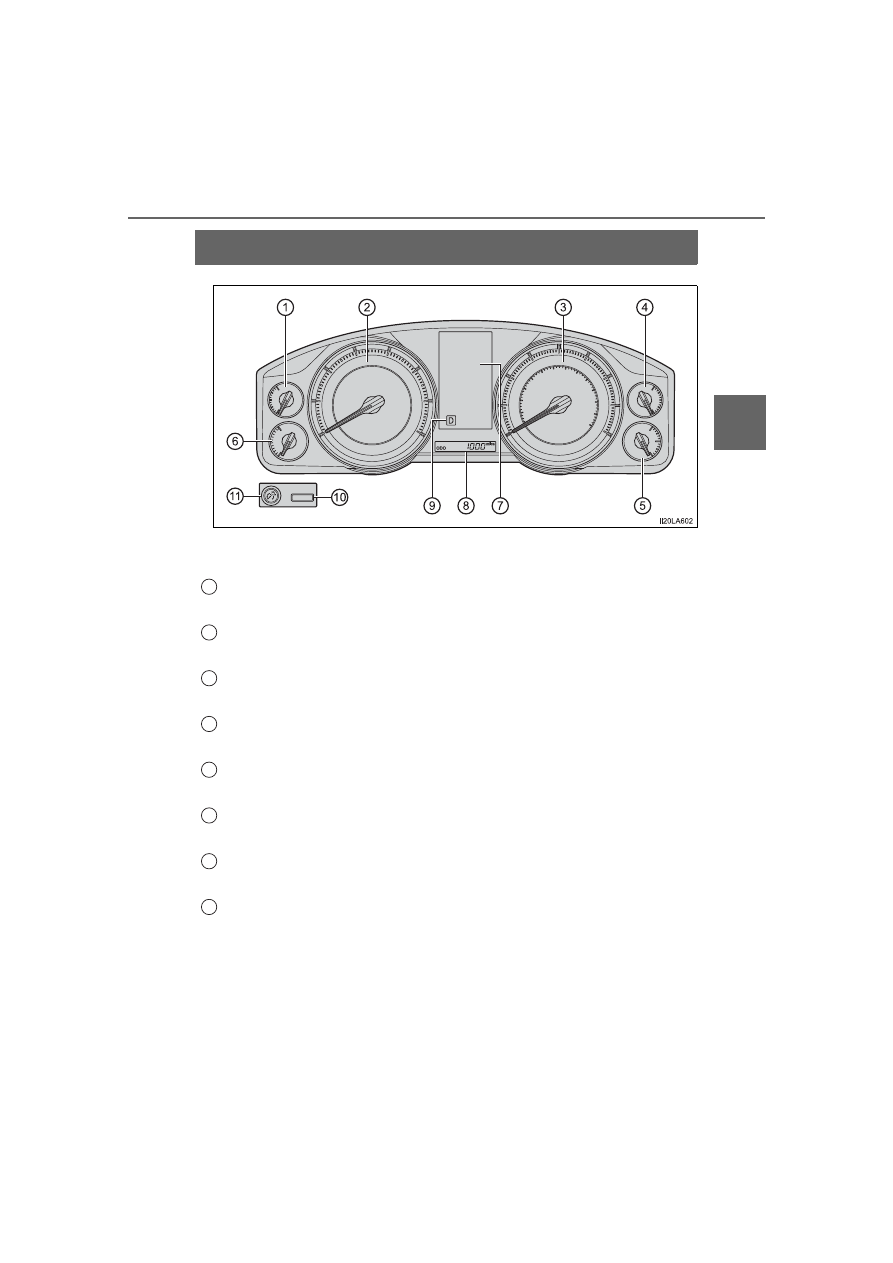

Gauges and meters

The units used on the speedometer may differ depending on the tar-
get region.

Engine oil pressure gauge

Displays the engine oil pressure

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Voltmeter

Displays the charge state

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of driving-related data



P. 101)

Odometer and trip meter display

Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

1

2

3

4

5

6

7

8

98

LC200_OM_OM60T03U_(U)

2. Instrument cluster

Shift position and shift range display

Displays the selected shift position or selected shift range (



P. 218)

Odometer/trip meter display change button

Switches between odometer and trip meter displays

Instrument panel light control dial

The brightness of the instrument panel light can be adjusted

Pressing this button switches between odometer and trip meter.

Odometer
Trip meter A

*

Trip meter B

*

*

: Pushing and holding the button will

reset the trip meter.

The brightness of the instrument panel lights can be adjusted.

Darker
Brighter

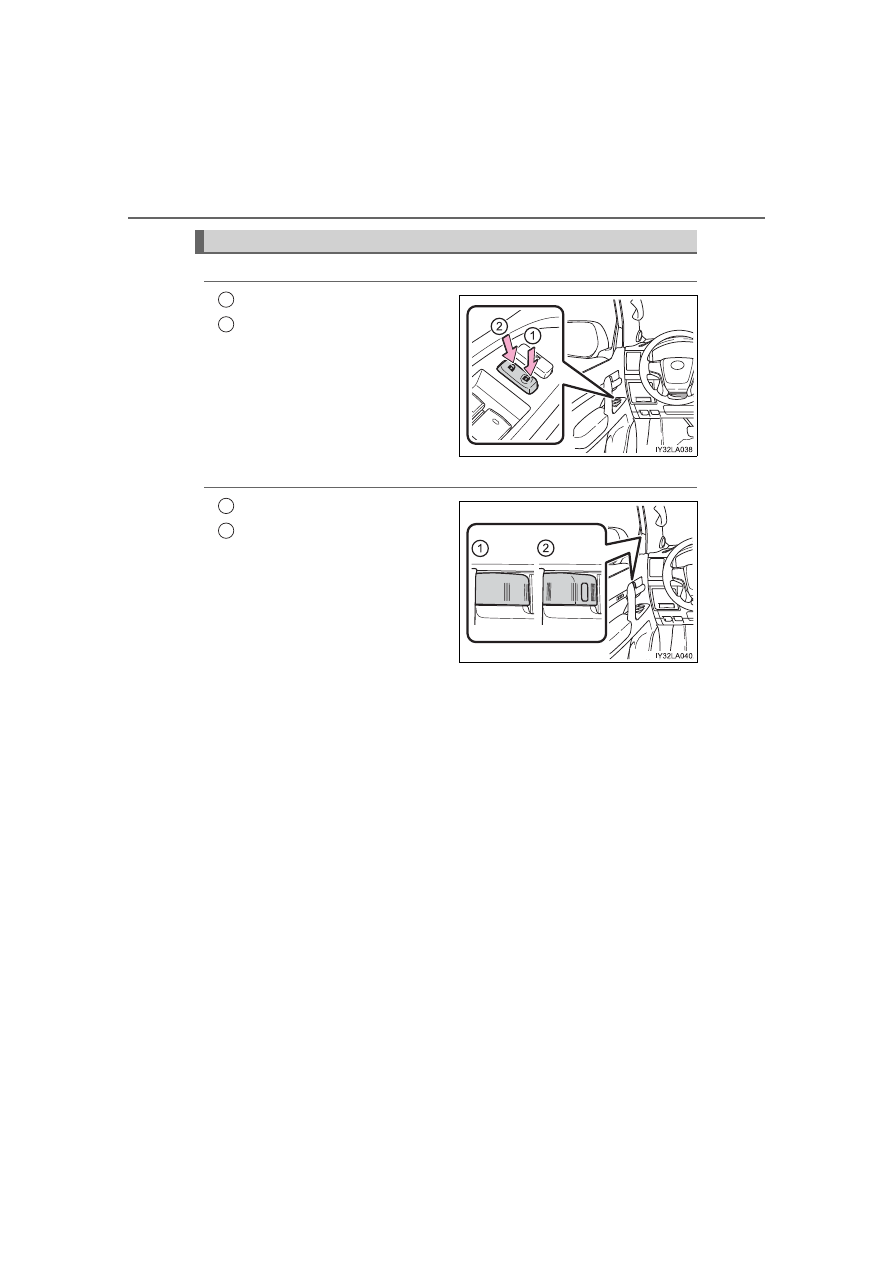

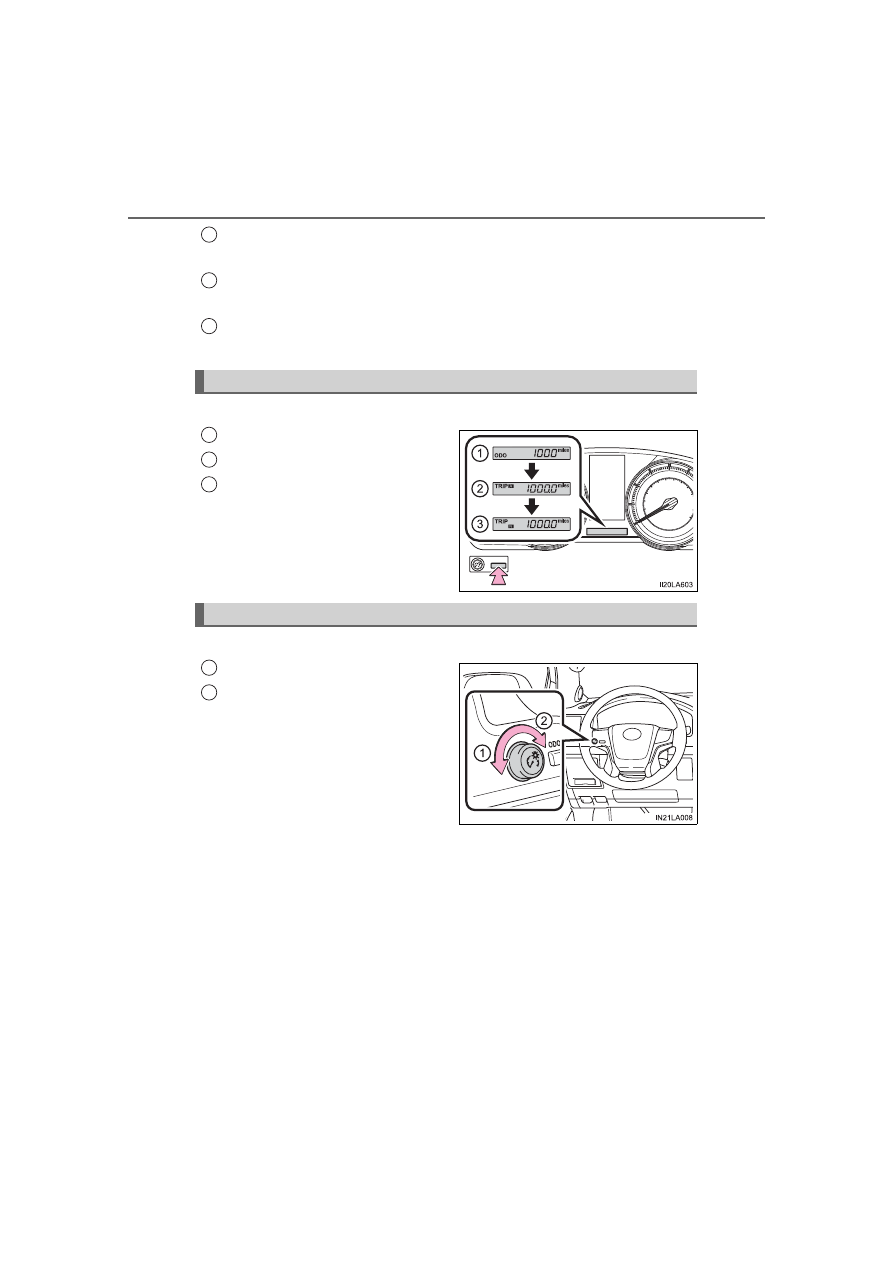

Changing the display

9

10

11

1
2
3

Instrument panel light control

1
2

LC200_OM_OM60T03U_(U)

99

2. Instrument cluster

2

Instru

me
nt clu

ster

■

The meters and display illuminate when

The engine switch is in IGNITION ON mode.

■

The brightness of the instrument panel lights

When  the  tail  lights  are  turned  on,  the  meter’s  brightness  will  be  reduced
slightly  unless  the  meter  brightness  level  adjustment  is  set  to  the  brightest
setting.
If  the  tail  lights  are  turned  on  when  the  surroundings  are  dark,  the  meter’s
brightness  will  reduce  slightly.  However,  when  the  surroundings  are  bright,
such as during the daytime, the meter’s brightness will not be reduced even if
the tail lights are turned on.

■

Customization

The meter display can be customized on the multi-information display.
(Customizable features:



P. 594)

WARNING

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or injury.

100

LC200_OM_OM60T03U_(U)

2. Instrument cluster

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 566)

■

Voltmeter

When the voltmeter indicates 19 V or higher or 9 V or lower while the engine
is running, there may be a battery or charging system malfunction. Have the
vehicle inspected at your Toyota dealer.

■

Engine oil pressure gauge

When the value of the engine oil pressure gauge drops while the engine is
running, stop the vehicle in a safe place immediately and check the amount
of engine oil. (



P. 471)

When  the  oil  pressure  drops  even  though  the  engine  oil  amount  has  not
decreased,  or  if  the  oil  pressure  does  not  increase  when  engine  oil  is
added, contact your Toyota dealer, as there may be a problem with the lubri-
cation system.

101

LC200_OM_OM60T03U_(U)

2. Instrument cluster

2

Instru

me
nt clu

ster

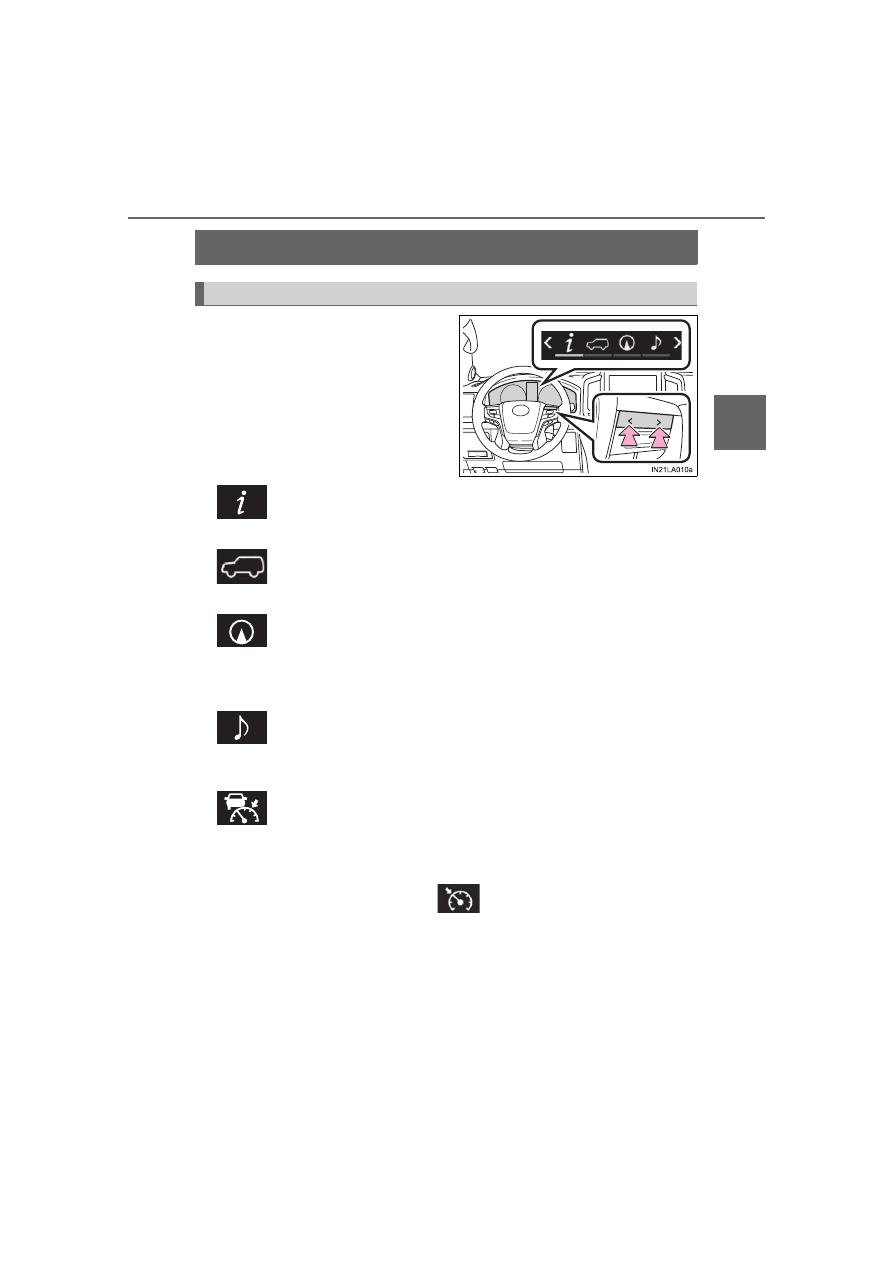

Multi-information display

The  following  information  will  be
displayed  when  a  menu  icon  is
selected. (



P. 103)

Some  of  the  information  may  be
displayed  automatically  depend-
ing on the situation.

 Drive information

Select to display various drive data. (



P. 104)

 Vehicle information display (if equipped)

Select to display the vehicle information. (



P. 106)

 Navigation system-linked display

Select to display the following navigation system-linked information.

• Route guidance
• Compass display (north-up display/heading-up display)

 Audio system-linked display

Select to enable selection of an audio source or track on the display
using the meter control switches.

 Driving assist system information (if equipped)

Select to display the operational status of the following systems:

• Dynamic radar cruise control (



P. 276)

When the vehicle is in constant speed control mode (



P. 285), the

menu icon will change to

.

• LDA (Lane Departure Alert) (



P. 267)

Display contents

102

LC200_OM_OM60T03U_(U)

2. Instrument cluster

 Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (



P. 539)

• When there are no current warning messages, “No Messages” is

displayed.

• When there are multiple warning messages,

 can be used to

switch the displayed warning message.

 Settings display

Select  to  change  the  meter  display  settings  and  the  operation  set-
tings of some vehicle functions. (



P. 106)

LC200_OM_OM60T03U_(U)

103

2. Instrument cluster

2

Instru

me
nt clu

ster

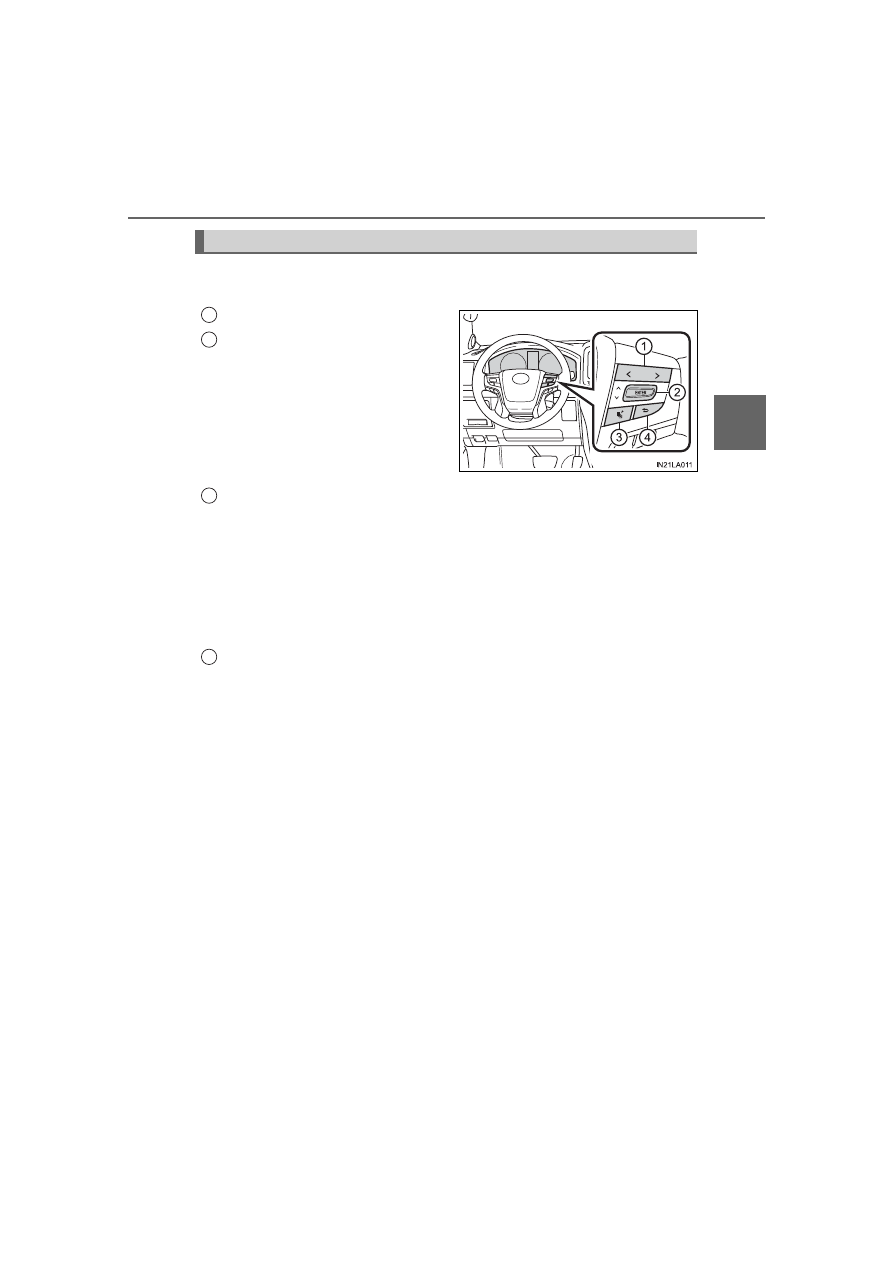

The  multi-information  display  is  operated  using  the  meter  control
switches.

Switching displayed items
Operate up and down:
Switches  screens  and  moves
the cursor
Press:
Enters, moves to next screen

*

,

and turns functions on/off

*

*

: For some functions

Press: Displays the screen registered as the top screen

When no screen has been registered, the drive information screen will be
displayed.

Press and hold: Registers the currently displayed screen as the top
screen

When  the  confirmation  screen  is  displayed,  select  yes  to  register  the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.

Return to the previous screen

Operating the meter control switches

1
2

3

4

104

LC200_OM_OM60T03U_(U)

2. Instrument cluster

Items displayed can be switched by operating

 up and down.

■

Drive information

4  of  the  following  items  can  be  registered  and  displayed  as  the
drive  information  1  and  the  drive  information  2  (2  items  on  each
screen).
Refer to P. 106 for the registration method of the drive information 1
and the drive information 2.

●

Current fuel consumption (bar type/value type)
Displays the current rate of fuel consumption.

●

Average fuel consumption (after reset

*

2

/after start/after refuel)

*

1

Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively.

●

Average vehicle speed (after reset

*

2

/after start)

Displays the average vehicle speed since the function was reset and the
engine was started, respectively.

●

Elapsed time (after reset

*

2

/after start)

Displays the elapsed time since the function was reset and the engine
was started, respectively

●

Distance (driving range/after start)

Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started respectively.

• This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that
displayed.

• When only a small amount of fuel is added to the tank, the display

may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled
without turning the engine switch off, the display may not be updated.

*

1

: Use the displayed average fuel consumption as a reference.

*

2

: The  function  can  be  reset  by  pressing

  for  longer  than  1  second

when the item to reset is displayed. If there is more than one item that can
be reset, the item selection screen will appear.

Drive information

LC200_OM_OM60T03U_(U)

105

2. Instrument cluster

2

Instru

me
nt clu

ster

■

Eco Indicator (Eco Driving Indicator Zone Display)



P. 108

■

Speed

Displays the vehicle speed.

■

Sway warning (if equipped)

Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert) system. The dis-
play is enabled when the operating conditions of the vehicle sway warn-
ing function are met. (



P. 267)

■

Blank screen (display off)

Drive information is not displayed.

106

LC200_OM_OM60T03U_(U)

2. Instrument cluster

Items displayed can be switched by operating

 up and down.

■

Front tire angle (if equipped)

Displays the direction of the front tires.

The tire direction is displayed in 3 stages for both left and right, in

accordance with the angle of the tire.
If a battery terminal is disconnected and reconnected, the display may
be disabled temporarily. After driving the vehicle for a while, the display
will be enabled.

■

Tire inflation pressure

Displays inflation pressure of each tire

The inflation pressure of the spare tire will be displayed.

■

Oil maintenance

Displays  the  remaining  distance  before  the  next  maintenance  is
required.

The  settings  of  some  features  can  be  changed  by  using  the  meter
control switches.

■

Setting procedure

On the setting screen, choose the desired item using

, and

then press

.

• For functions that can be enabled or disabled, the function switches

between on and off each time

 is pressed.

• For  functions  that  allow  to  select  operation  contents,  display  con-

tents, etc., the setting screen is displayed.

Select  the  desired  setting  by  operating

,  and  then  press

.

To stop the selection, press

 to return to the previous screen.

Vehicle information

Settings display

1

2

LC200_OM_OM60T03U_(U)

107

2. Instrument cluster

2

Instru

me
nt clu

ster

■

Setting items

●

 LDA (Lane Departure Alert)

*

Select to set up LDA. (



P. 594)

• Alert sensitivity
• Sway warning
• Sway sensitivity

●

 BSM (Blind Spot Monitor)

*

Select to activate/deactivate BSM. (



P. 594)

• BSM on/off
• RCTA (Rear Cross Traffic Alert) on/off

●

Scheduled maintenance
Select to reset the message indicating maintenance is required.

●

Oil maintenance
Select to reset the engine oil maintenance information

●

Meter settings
Select to set the following items.

• Language

Select to change the language on the display.

• Units

Select to change the unit for measure.

•

 Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light.
(



P. 96)

•

 switch settings

You can register 1 screen as the top screen. To register, press

and hold

 while the desired screen is displayed.

• Drive information 1 and 2

Select to select up to 2 items that will be displayed on a drive
information screen, up to 2 drive information screens can be
set.

• Pop-up display

Select to set the pop-up displays (



P. 108), which may appear

in some situations, on/off.

108

LC200_OM_OM60T03U_(U)

2. Instrument cluster

• Accent color

Select to change the accent colors on the screen, such as the
cursor color.

• Initialization

Select to reset the meter display settings.

*

: If equipped

■

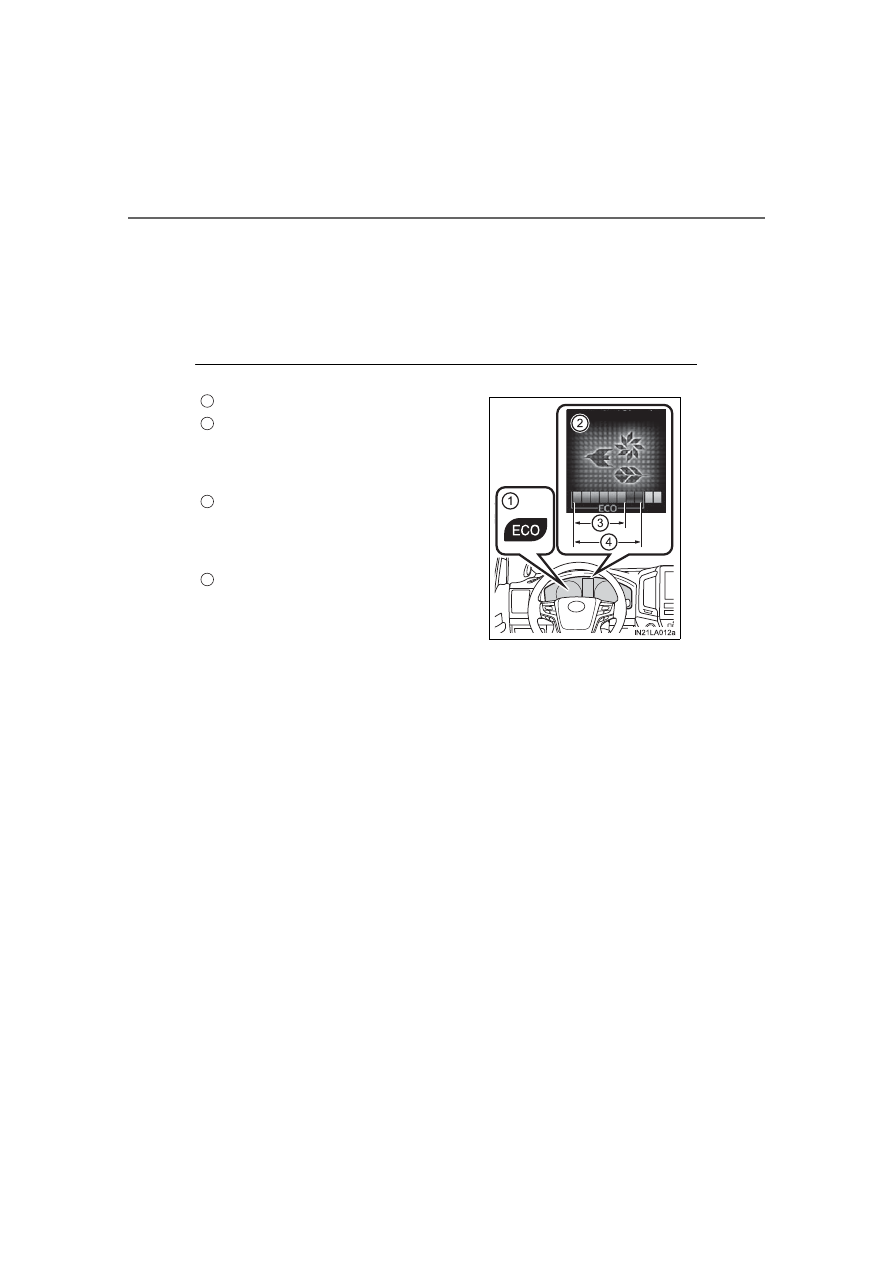

Eco Driving Indicator

■

When disconnecting and reconnecting battery terminals

The drive information will be reset (only items that can be reset manually).

■

Pop-Up display

The pop-up display is displayed on the multi-information display according to
the operating conditions of the following functions:

●

Route guidance display of the navigation system-linked system

●

Incoming call display of the hands-free phone system (if equipped)

The pop-up display function can be disabled.

Eco Driving Indicator Light (



P. 96)

Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco
driving,  the  right  side  of  Eco  Driving
Indicator Zone Display will illuminate.
Zone of Eco driving

1

2

3

4

LC200_OM_OM60T03U_(U)

109

2. Instrument cluster

2

Instru

me
nt clu

ster

■

Tire inflation pressure

●

It may take a few minutes to display the tire inflation pressure after the

engine switch is turned to IGNITION ON mode. It may also take a few

minutes to display the tire inflation pressure after inflation pressure has

been adjusted.

●

“---” may be displayed if the tire information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values

may  also  be  different  from  the  values  measured  using  a  tire  pressure

gauge.

■

When setting up the display

Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P

■

Suspension of the settings display

In  the  following  situations,  the  settings  display  using  the  meter  control
switches will be suspended.

●

When a warning message appears on the multi-information display

●

When the vehicle begins to move

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

WARNING

■

Caution for use while driving

For safety, avoid operating the meter control switch while driving as much
as  possible,  and  do  not  look  continuously  at  the  multi-information  display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.

■

Cautions while setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

110

LC200_OM_OM60T03U_(U)

2. Instrument cluster

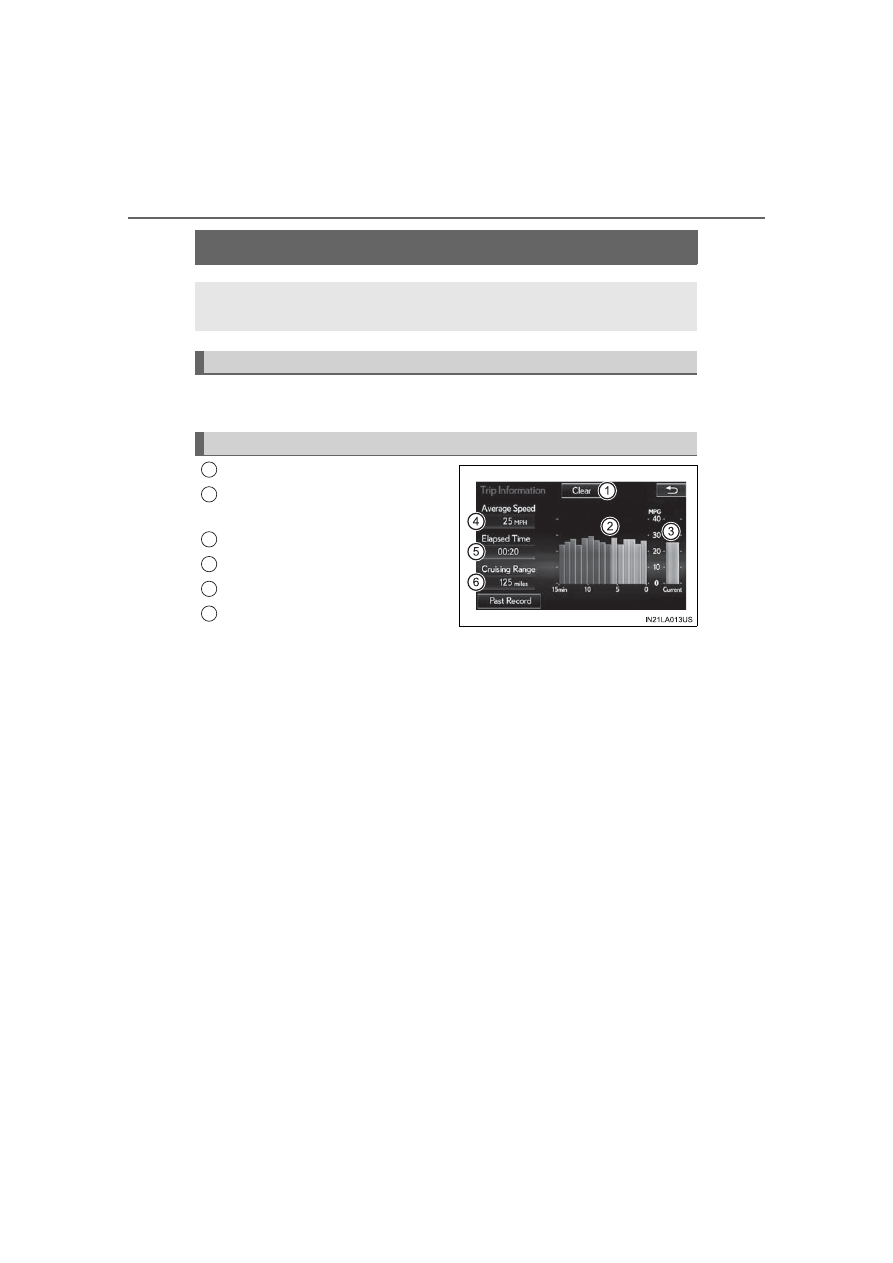

Fuel consumption information

Press the “INFO/APPS” button, and then select “Fuel Consumption”
on the screen.

Reset the trip information data
Previous  fuel  consumption  per
minute
Current fuel consumption
Average vehicle speed
Elapsed time
Cruising range

Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last  turned  to  IGNITION  ON  mode.  Use  the  displayed  average  fuel
consumption as a reference.
These images are examples only, and may vary slightly from actual
conditions.

The fuel consumption information can be displayed on the navi-
gation system or multimedia system screen.

Display the trip information or past record screen

Trip information

1
2

3
4
5
6

LC200_OM_OM60T03U_(U)

111

2. Instrument cluster

2

Instru

me
nt clu

ster

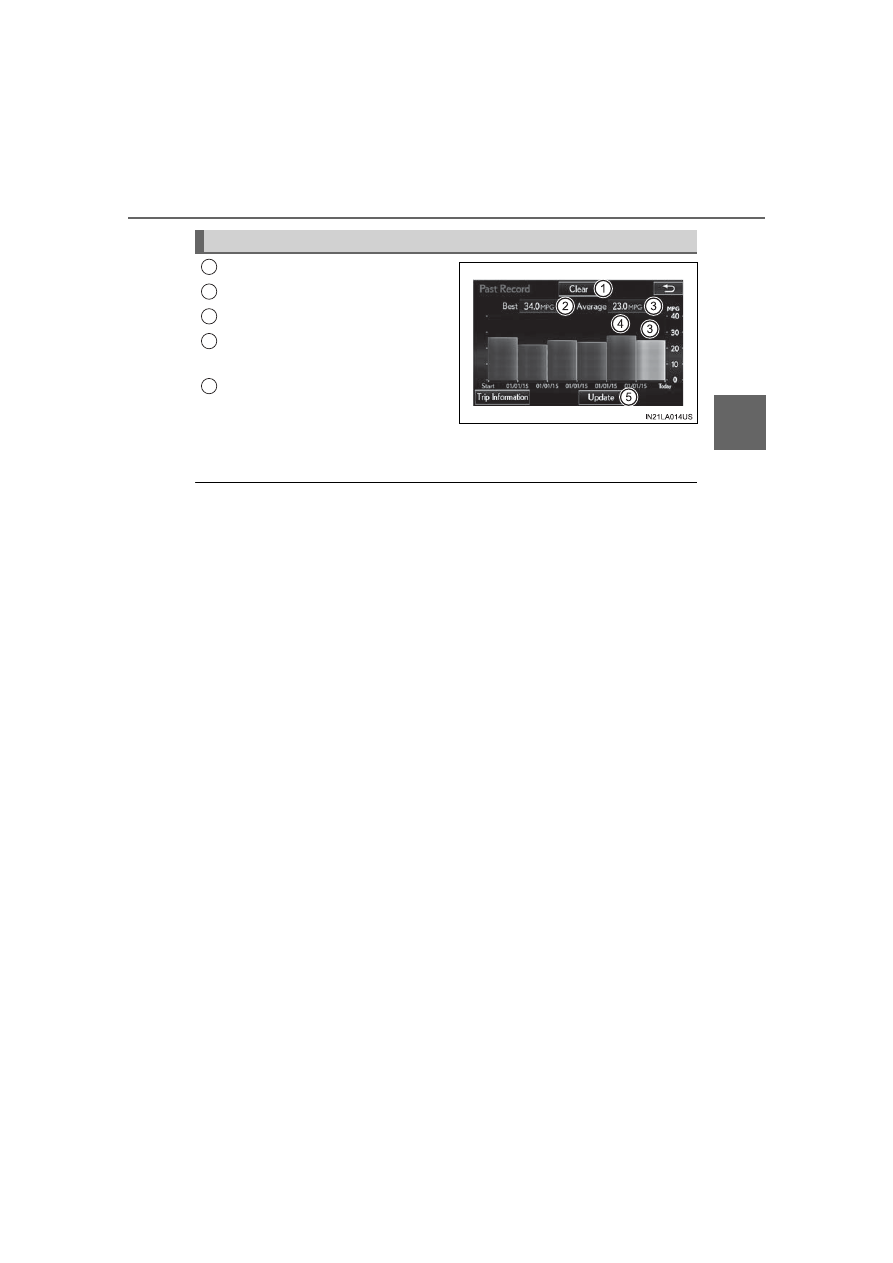

Reset the past record data
Best recorded fuel consumption
Average fuel consumption
Previous

fuel

consumption

record
Update the past record data

These images are examples only, and may vary slightly from actual
conditions.

■

Resetting the data

Selecting “Clear” on the “Trip information” screen will reset the trip informa-
tion data.
Selecting “Clear” on the “Past record” screen will reset the past record data.

■

Updating the past record data

Selecting  “Update”  on  the  “Past  record”  screen  will  update  the  past  record
data.
Also, the average fuel consumption displayed in the multi-information display
will be reset at the same time.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

Past record

1
2
3
4

5

112

LC200_OM_OM60T03U_(U)

2. Instrument cluster

113

LC200_OM_OM60T03U_(U)

3

Operation of

each component

3-1. Key information

Keys .................................. 114

3-2. Opening, closing and

locking the doors

Side doors......................... 118
Back door.......................... 126
Smart key system ............. 138

3-3. Adjusting the seats

Front seats ........................ 145
Rear seats......................... 147
Driving position memory ... 154
Head restraints.................. 158

3-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 161
Inside rear view mirror ...... 163
Outside rear view

mirrors............................. 165

3-5. Opening, closing the

windows and moon roof

Power windows ................. 169
Moon roof.......................... 173

114

LC200_OM_OM60T03U_(U)

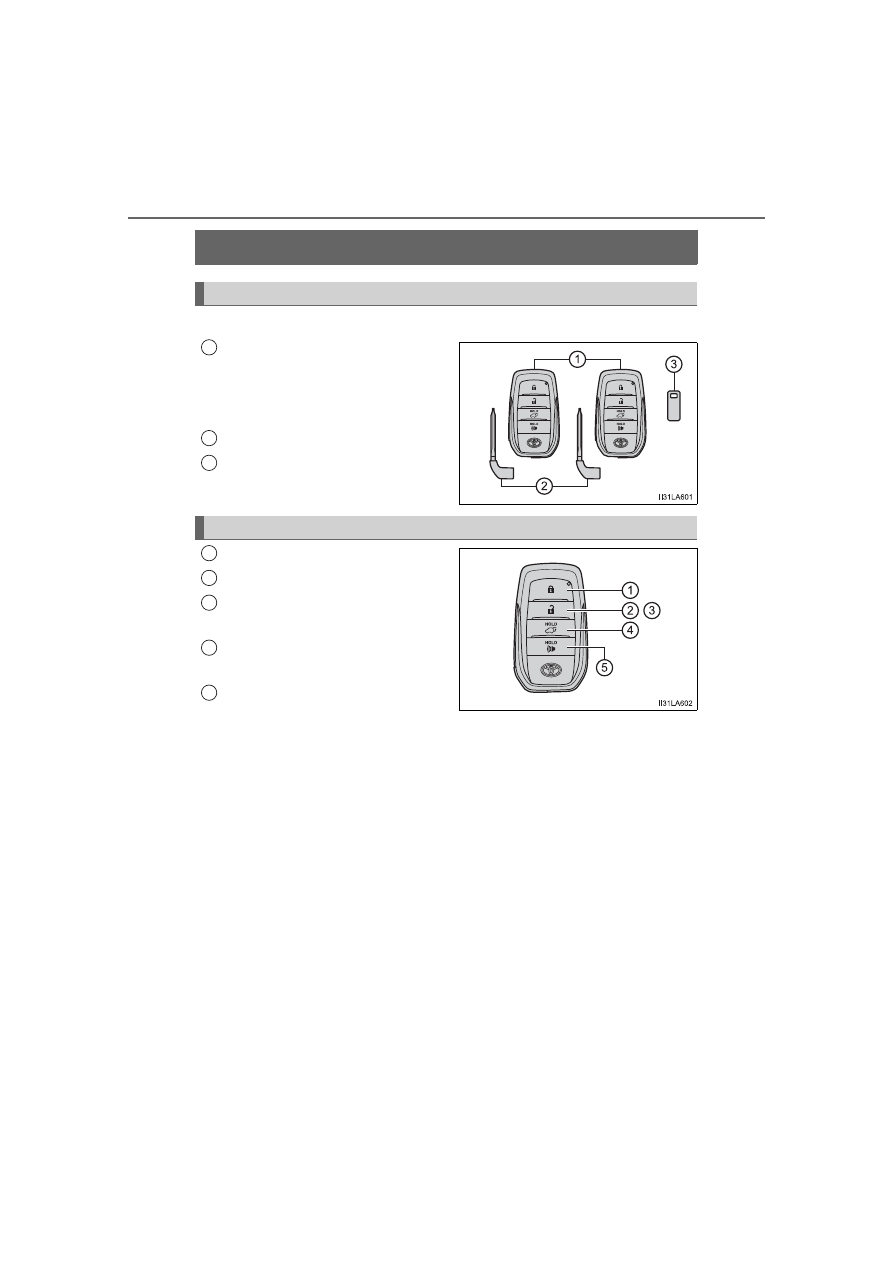

3-1. Key information

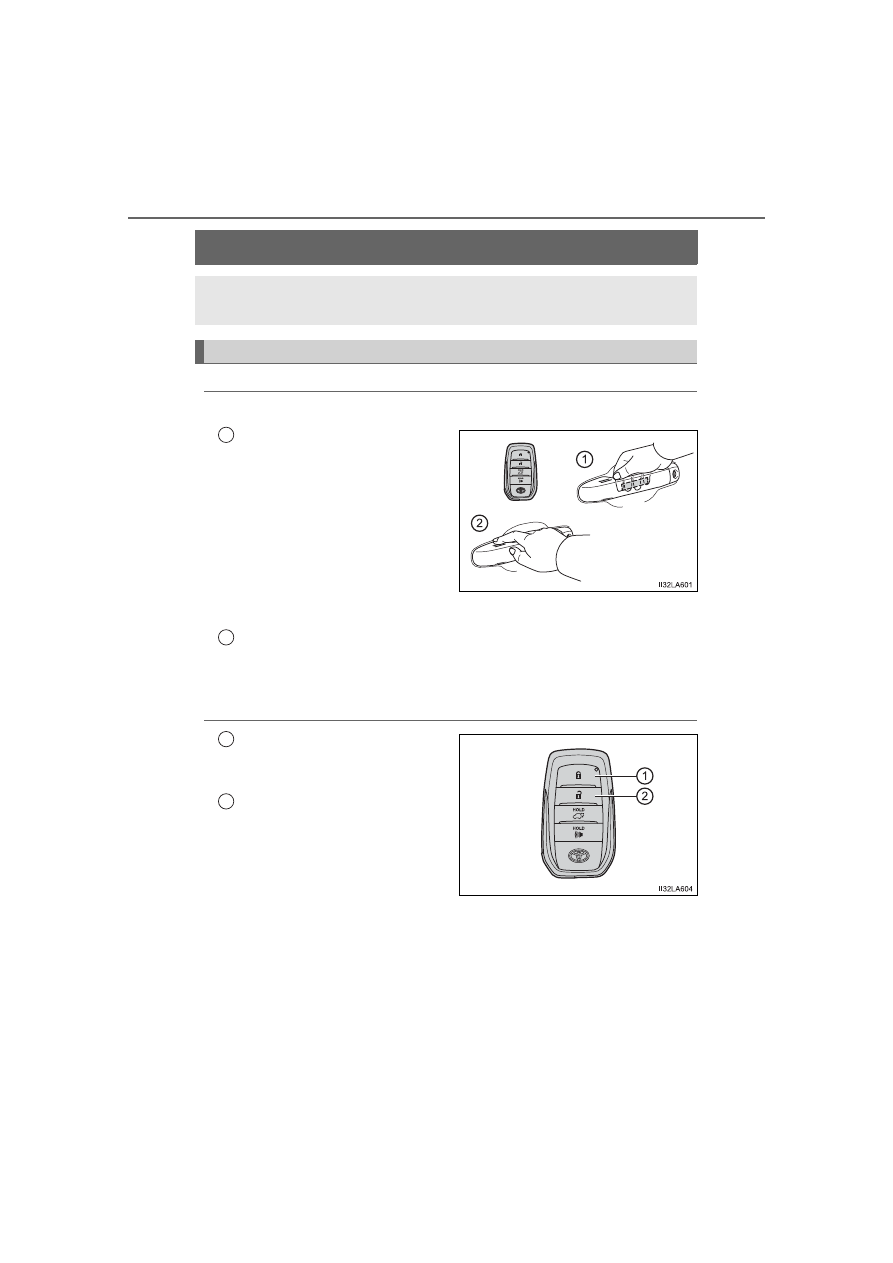

Keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(



P. 138)

• Operating  the  wireless  remote

control function

Mechanical keys
Key number plate

Locks the doors (



P. 118)

Unlocks the doors (



P. 118)

Opens  the  windows  and  moon
roof

*

1

 (



P. 118)

Opens/closes  the  power  back
door*

2

 (



P. 126)

Sounds the alarm (



P. 115)

*

1

: This setting must be customized at

your Toyota dealer.

*

2

: If equipped

The keys

1

2
3

Wireless remote control

1
2
3

4

5

LC200_OM_OM60T03U_(U)

115

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

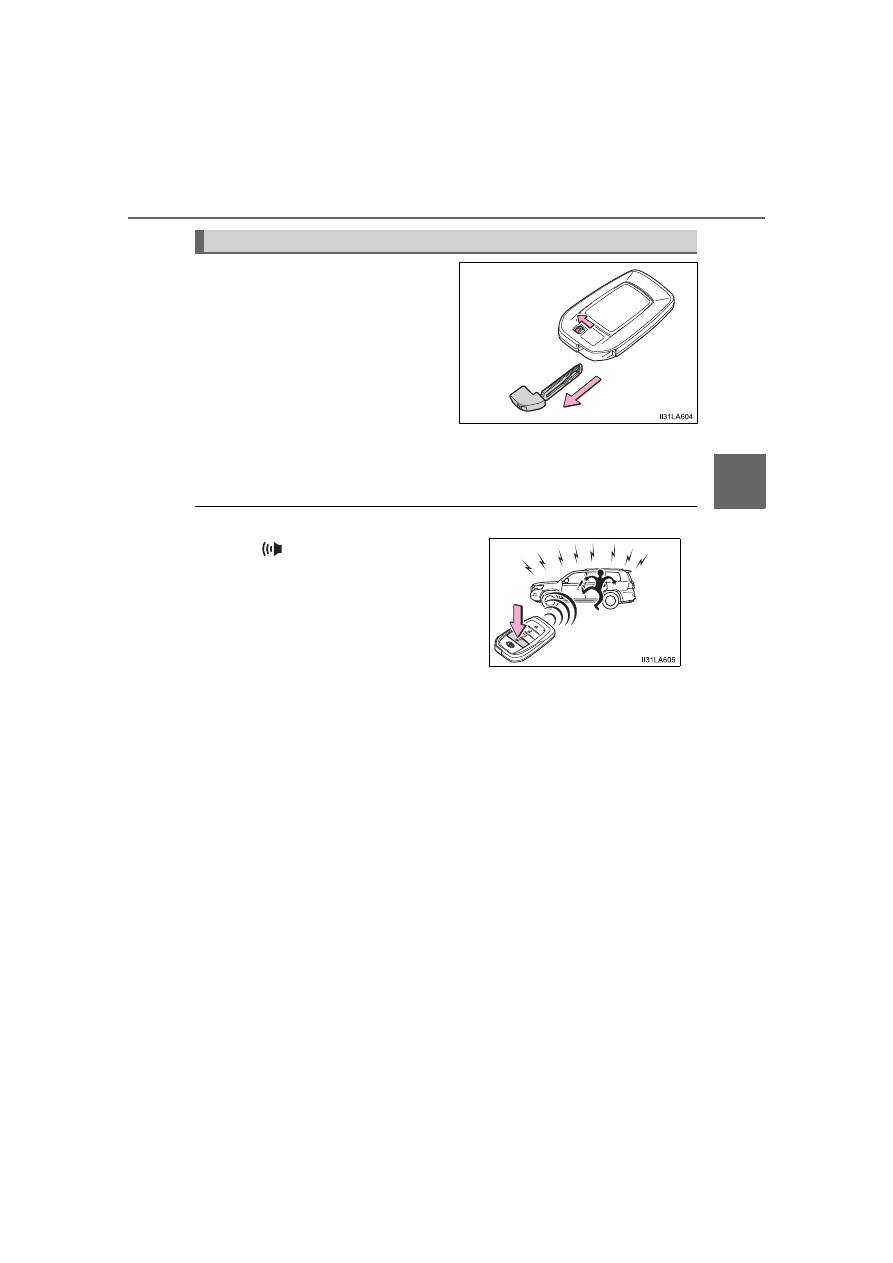

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (



P. 560)

■

Panic mode

■

When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (



P. 418)

Remove the mechanical key for your own use and provide the attendant with
the electronic key only.

■

If you lose your mechanical keys

New  genuine  mechanical  keys  can  be  made  by  your  Toyota  dealer  using
another mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

Using the mechanical key

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

116

LC200_OM_OM60T03U_(U)

3-1. Key information

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any  buttons  on  the  electronic  key  while  inside  the  aircraft  cabin.  If  you  are
carrying an electronic key  in your bag etc., ensure that the buttons  are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops.

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (



P. 499)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

■

Replacing the key battery



P. 499

LC200_OM_OM60T03U_(U)

117

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not disassemble the keys.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers.

●

Do not place the keys near medical electrical equipment such as low-fre-
quency therapy equipment or microwave therapy equipment, and do not
receive medical attention with the keys on your person.

■

Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that were provided with your vehicle.

118

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

Side doors

◆

Smart key system

Carry the electronic key to enable this function.

Grip the driver’s door handle
to  unlock  the  door.  Grip  the
passenger’s  door  handle  to
unlock all the doors.

*

Make  sure  to  touch  the  sensor
on the back of the handle.
The  doors  cannot  be  unlocked
for 3 seconds after the doors are
locked.

*

: The door unlock settings can be changed. (



P. 123)

Touch the lock sensor (the indentation on the upper part or lower
part of the handle) to lock the doors.

Check that the door is securely locked.

◆

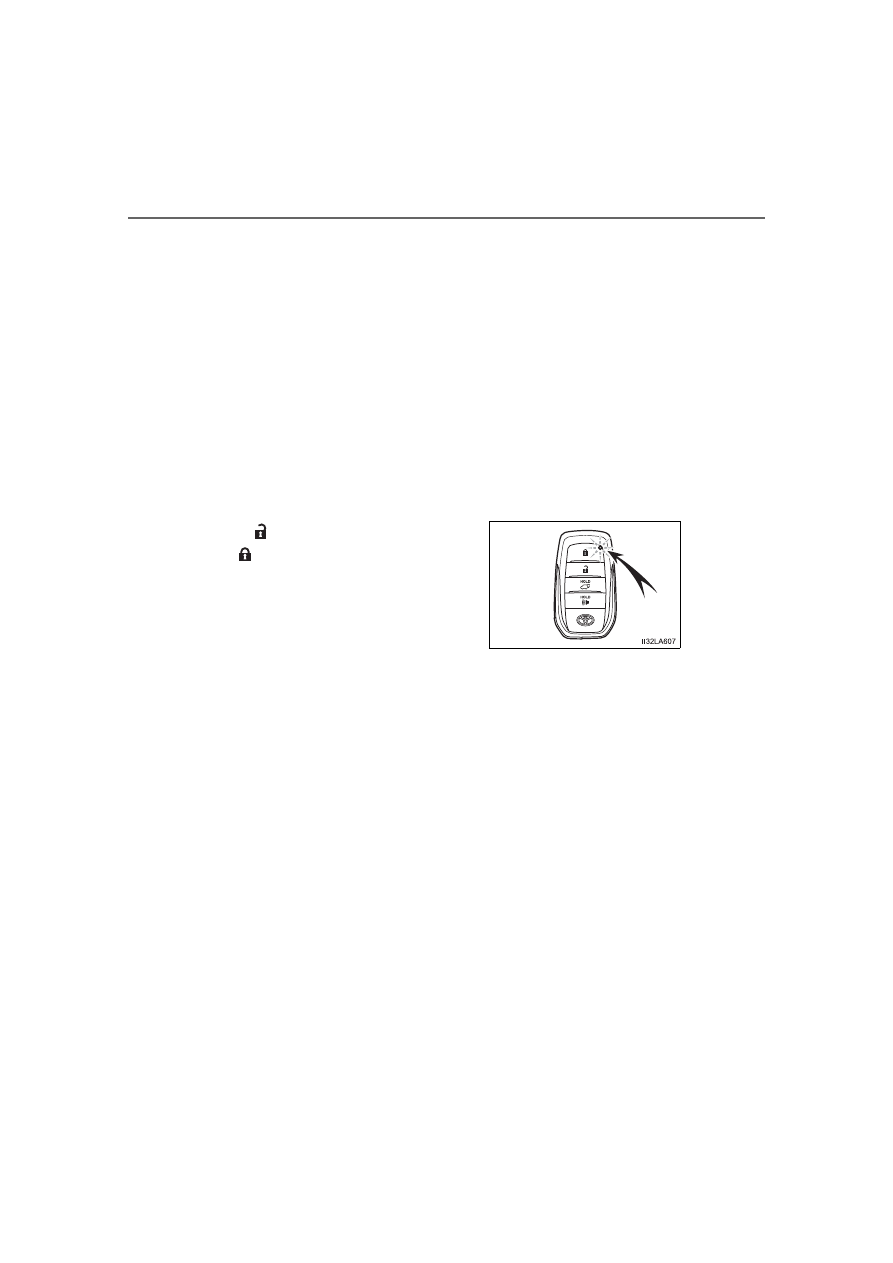

Wireless remote control

Locks all the doors

Check  that  the  door  is  securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s  door.  Pressing  the  but-
ton  again  unlocks  the  other
doors.
Press and hold to open the win-
dows and moon roof.

*

*

: These settings must be customized at your Toyota dealer.

The  vehicle  can  be  locked  and  unlocked  using  the  entry  func-
tion, wireless remote control or door lock switch.

Locking and unlocking the doors from the outside

1

2

1

2

LC200_OM_OM60T03U_(U)

119

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

■

Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: once; Unlocked: twice)
Windows and moon roof: A buzzer sounds to indicate that the windows and
moon roof are operating.

■

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the upper part of
the door handle

■

Door lock buzzer

If  an  attempt  to  lock  the  doors  is  made  when  a  door  is  not  fully  closed,  a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.

■

Setting the alarm

Locking the doors will set the alarm system. (



P. 87)

■

If the smart key system or the wireless remote control does not operate
properly

Use the mechanical key to lock and unlock the doors. (



P. 560)

Replace the battery with a new one if it is depleted. (



P. 499)

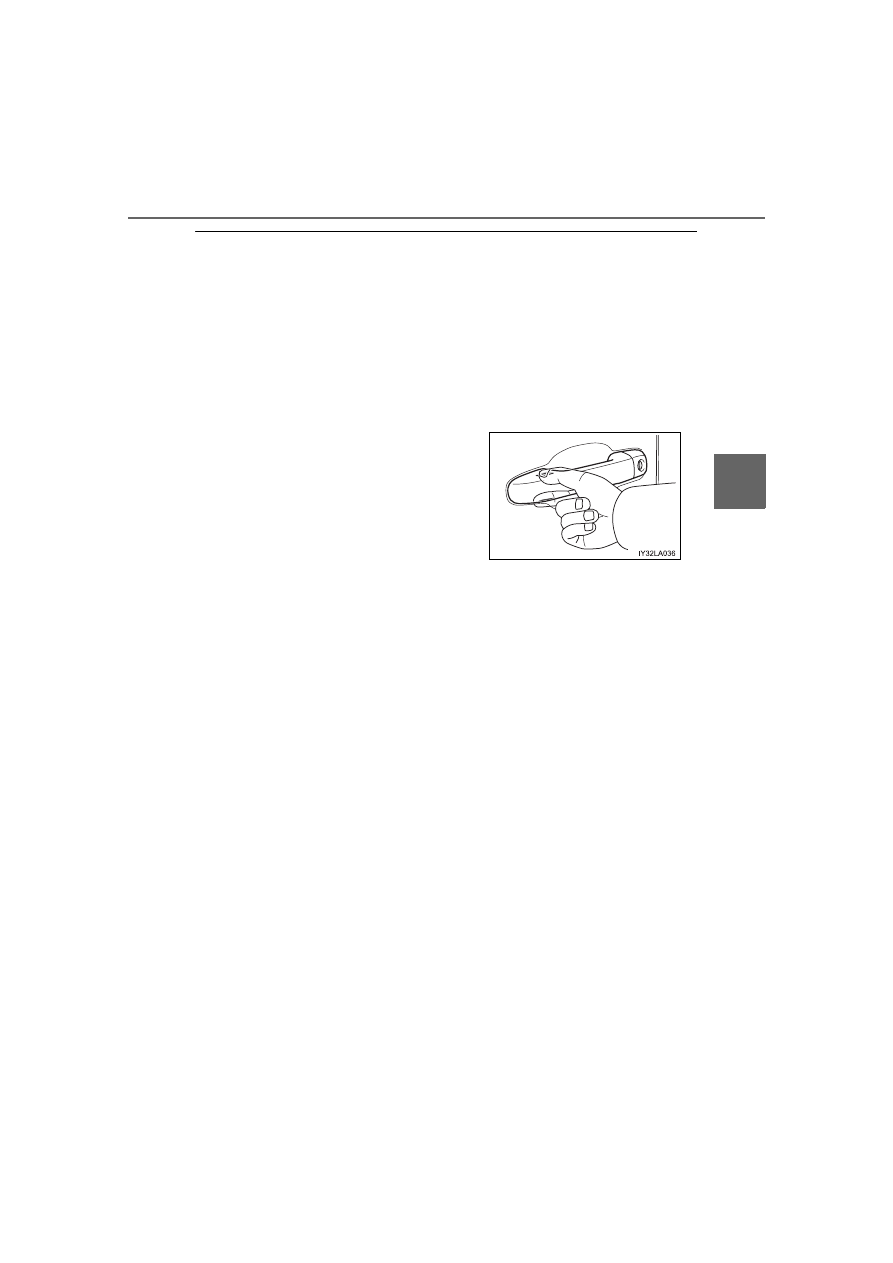

If the door will not lock even when the top-
side sensor area is touched, try touching
both  the  topside  and  underside  sensor
areas at the same time.

120

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

◆

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Locking and unlocking the doors from the inside

1
2

1
2

LC200_OM_OM60T03U_(U)

121

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

Move the inside lock button to the lock position.
Close the door.

The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.

Depending  on  the  position  of  the  electronic  key,  the  key  may  not  be
detected correctly and the door may be locked.

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

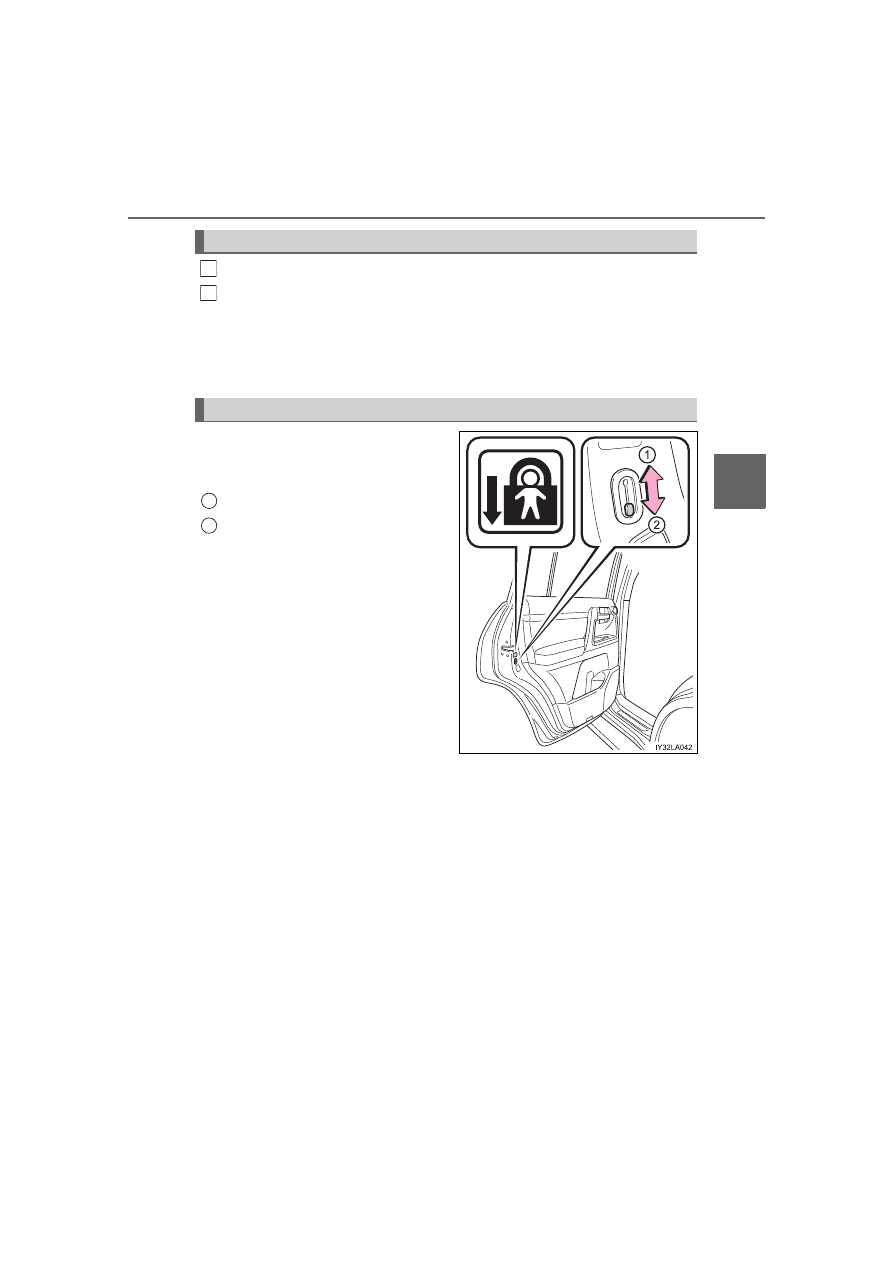

These locks can be set to prevent
children  from  opening  the  rear
doors.  Push  down  on  each  rear
door switch to lock both rear doors.

Locking the driver’s door from the outside without a key

Rear door child-protector lock

1

2

1
2

122

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

The following functions can be set or canceled:

For instructions on customizing, refer to P. 594.

Automatic door locking and unlocking systems

Function

Operation

Shift  position  linked  door
locking function

Shifting  the  shift  lever  out  of  P  locks  all  the
doors.

Shift  position  linked  door
unlocking function

Shifting  the  shift  lever  to  P  unlocks  all  the
doors.

Speed  linked  door  locking
function

All  the  doors  are  locked  when  the  vehicle
speed is approximately 12 mph (20 km/h) or
higher.

Driver’s  door  linked  door
unlocking function

All the doors are unlocked when the driver’s
door is opened within approximately 45 sec-
onds after turning the engine switch off.

LC200_OM_OM60T03U_(U)

123

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

■

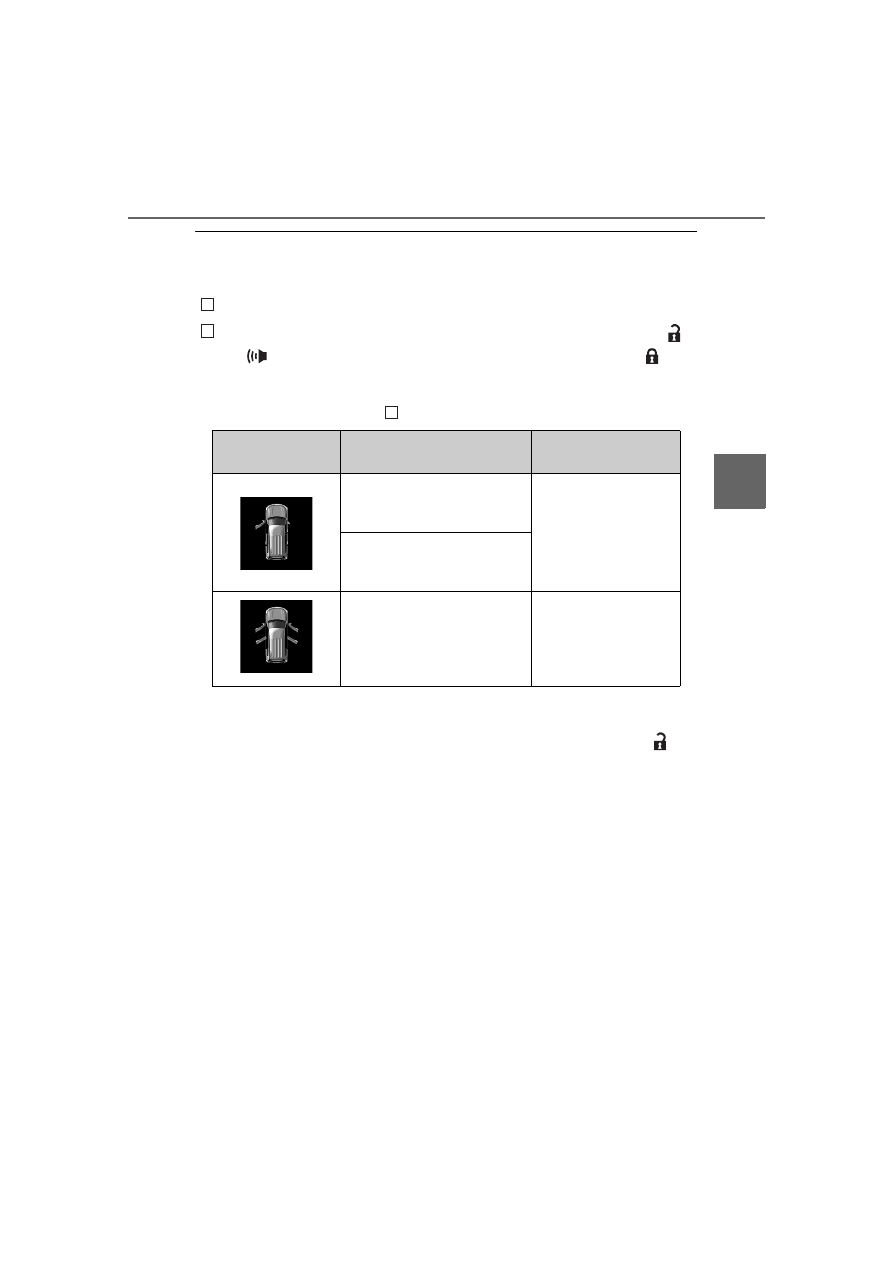

Changing the door unlock function setting

It is possible to set which doors the entry function unlocks using the wireless
remote control.

Turn the engine switch off.

When the indicator light on the key surface is not on, press and hold
or

 for approximately 5 seconds while pressing and holding

.

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step  .)

To  prevent  unintended  triggering  of  the  alarm,  unlock  the  doors  using  the
wireless  remote  control  and  open  and  close  a  door  once  after  the  settings
have been changed. (If a door is not opened within 60 seconds after

 is

pressed, the doors will be locked again and the alarm will automatically be
set.)
In a case that the alarm is triggered, immediately stop the alarm. (



P. 87)

1

2

2

Multi-information

display

Unlocking function

Beep

Holding  the  driver’s  door
handle  unlocks  only  the
driver’s door.

Exterior:  Beeps  3
times
Interior: Pings once

Holding  a  passenger’s  door
handle  unlocks  all  the
doors.

Holding  a  door  handle
unlocks all the doors.

Exterior: Beeps twice
Interior: Pings once

124

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

■

Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.

■

Using the mechanical key

The doors can also be locked and unlocked with the mechanical key.
(



P. 560)

■

Conditions affecting the operation of the smart key system or wireless
remote control



P. 140

■

Customization

Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:



P. 594)

LC200_OM_OM60T03U_(U)

125

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

WARNING

■

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant being thrown
out of the vehicle, resulting in death or serious injury.

●

Ensure that all doors are properly closed and locked.

●

Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.

●

Set the rear door child-protector locks when children are seated in the rear
seats.

126

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

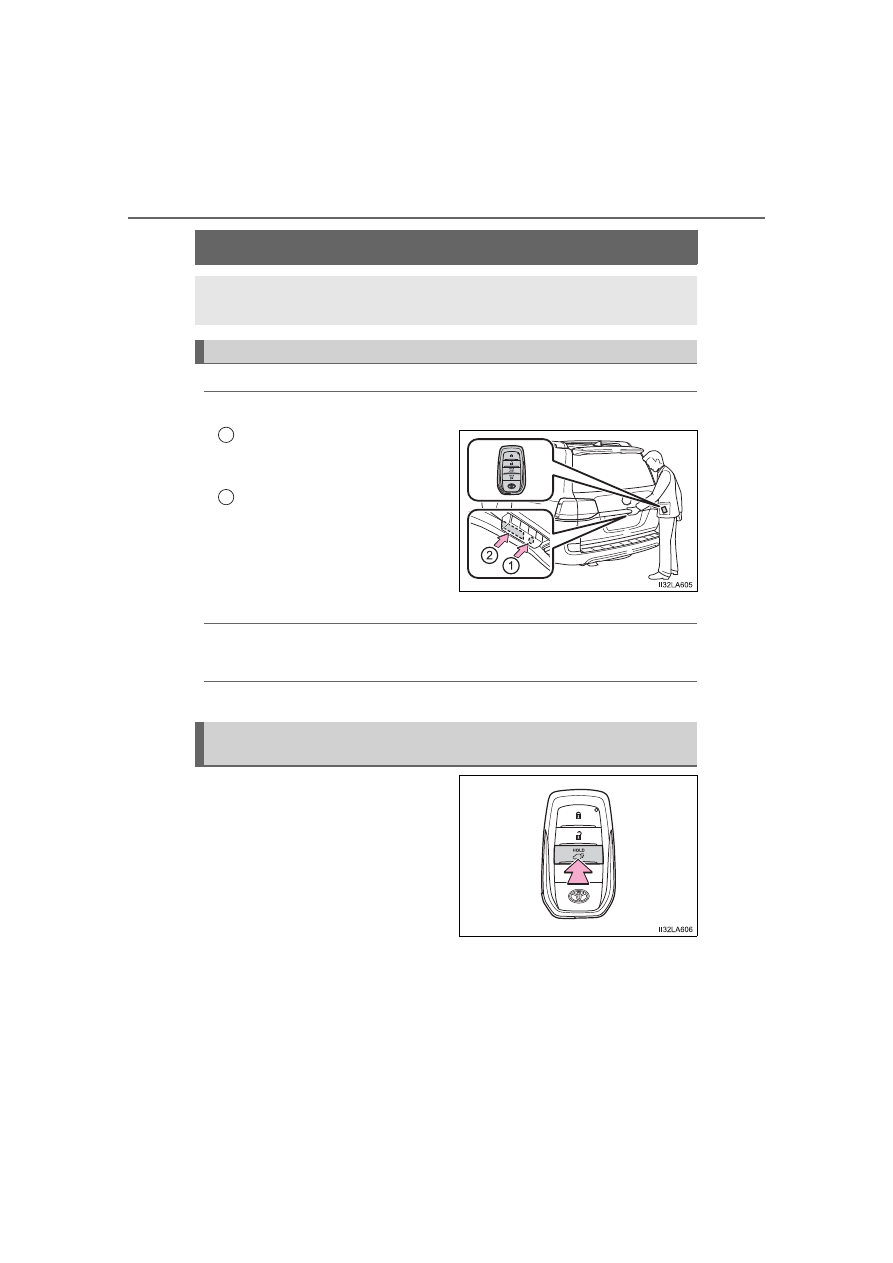

Back door

◆

Smart key system

Carry the electronic key to enable this function.

Locks all the doors

Check  that  the  door  is  securely
locked.

Unlocks all the doors

The  doors  cannot  be  unlocked
for 3 seconds after the doors are
locked.

◆

Wireless remote control



P. 118

◆

Door lock switches



P. 120

Press and hold the switch.

The power back door can be oper-
ated  even  when  the  back  door  is
locked.

*

*

: This setting can be customized so

that the power back door can be
operated only when the back door
is unlocked. (



P. 594)

The  back  door  can  be  locked/unlocked  and  opened  by  the  fol-
lowing procedures.

Locking and unlocking the back door

1

2

Opening/closing the back door with the wireless remote control
(vehicles with power back door)

LC200_OM_OM60T03U_(U)

127

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

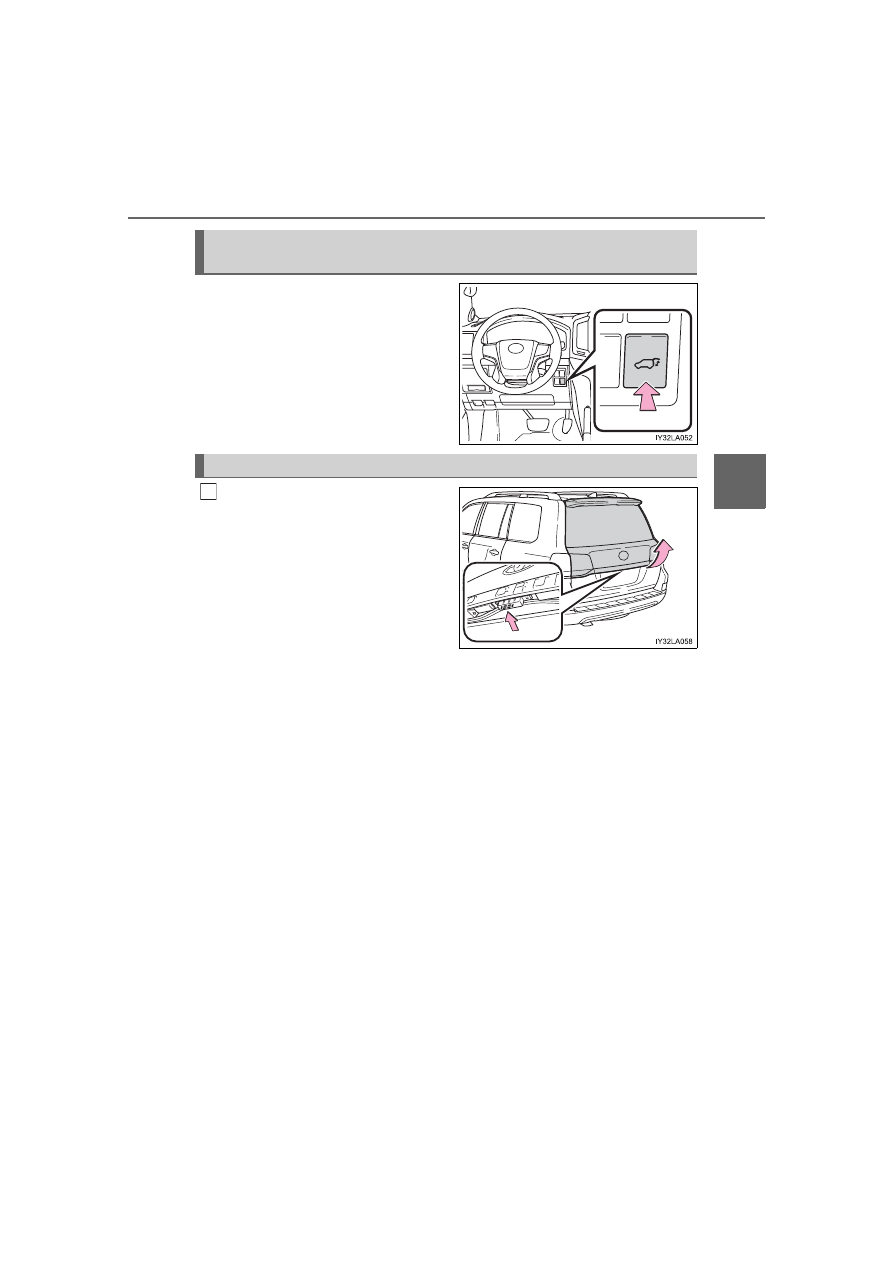

The  power  back  door  can  be
opened/closed  using  the  power
back  door  switch  or  wireless
remote control. (



P. 126)

Push  and  hold  the  switch  to  close
or open.
(A buzzer sounds.)

Open the upper back door



Vehicles  without  power  back
door
When  the  back  door  is
unlocked:  Raise  the  back
door  while  pressing  up  the
back door opener switch.
When  the  back  door  is
locked:  While  carrying  an
electronic key, raise the back
door  while  pressing  up  the
back door opener switch.



Vehicles with power back door
When  the  power  back  door  is  unlocked:  Press  the  back  door
opener switch.
When  the  power  back  door  is  locked:  While  carrying  an  elec-
tronic key, press and hold the back door opener switch.

The upper back door will automatically

*

 open.

*

: Using the customization function, the upper back door can be set to

not  automatically  open,  even  when  the  back  door  opener  switch  is
pressed. (



P. 594)

When the automatic open function is disabled, the upper back door
can  be  opened  by  lifting  it  up  with  the  back  door  opener  switch
pressed and held.

Opening  the  back  door  from  the  inside  (vehicles  with  power
back door)

Opening the back door from the outside

1

128

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

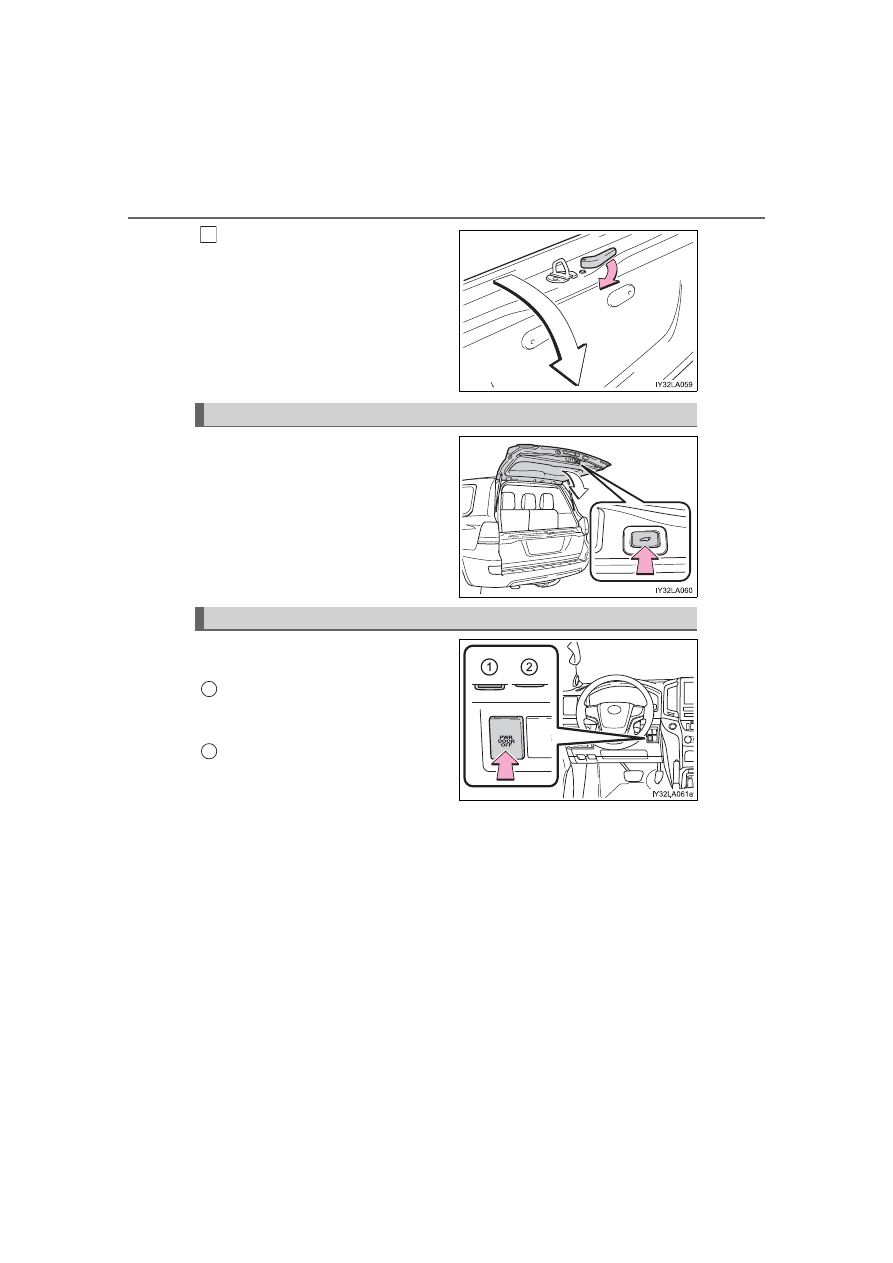

Open the lower back door
Pull the handle.

Pressing  the  switch  closes  upper
back  door  automatically.  (A
buzzer sounds.)

Pressing  the  switch  while  the
upper back door is closing opens it
again.

Turn the main switch off to disable
the power back door system.

On

Orange mark on the switch should
be visible when the switch is on.

Off

The back door cannot be operated
even with the wireless remote con-
trol or power back door switch.

2

Power back door switch (if equipped)

Canceling the power back door system (if equipped)

1

2

LC200_OM_OM60T03U_(U)

129

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

●

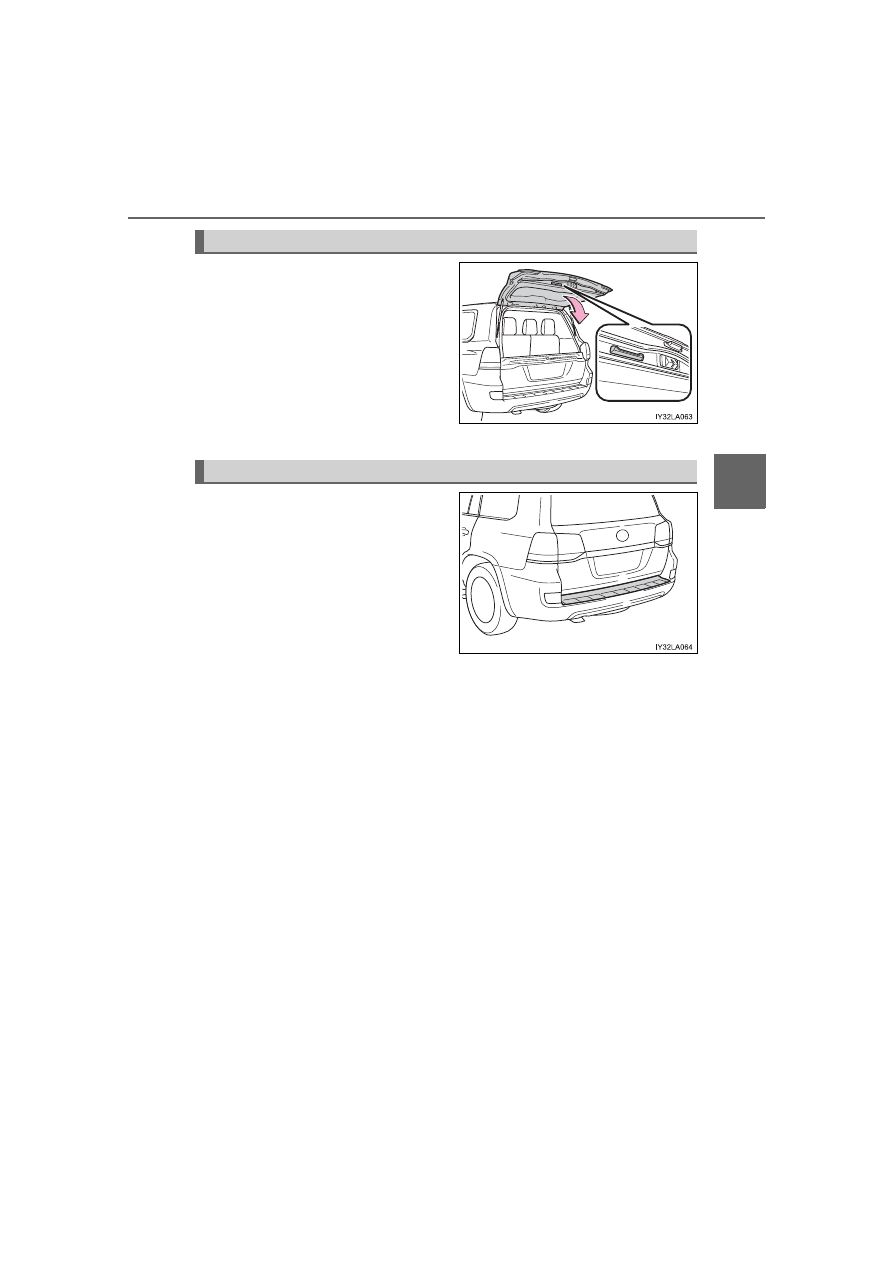

Make sure that the lower side of
the  back  door  is  closed  before
closing  the  upper  side  of  the
back door.

●

Lower  the  back  door  using  the
back  door  handle,  and  make
sure  to  push  the  back  door
down from the outside to close
it.

The  rear  step  bumper  is  for  rear
end protection and easier step-up
loading.

When closing the back door

Rear step bumper

130

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

■

Power back door operating conditions (vehicles with power back door)

●

When the engine switch is off or in accessory mode, the power back door
can be opened and closed if the power back door main switch is on and all
of the following conditions are met.
• The lower back door is closed (only when closing)

*

1

●

When the engine switch is in IGNITION ON mode, the power back door can
be opened and closed if the power back door main switch is on and all of the
following conditions are met.

*

2

• The power back door is unlocked (except when closing)
• The lower back door is closed (only when closing)

*

1

• The vehicle speed is below 1 mph (3 km/h) and the shift lever is in P

*

1

: If the lower back door is opened while the upper back door is in a closing

operation, it automatically opens again.

*

2

: The back door cannot be operated using the wireless remote control.

■

If the back door opener is inoperative

The back door can be operated from the inside.

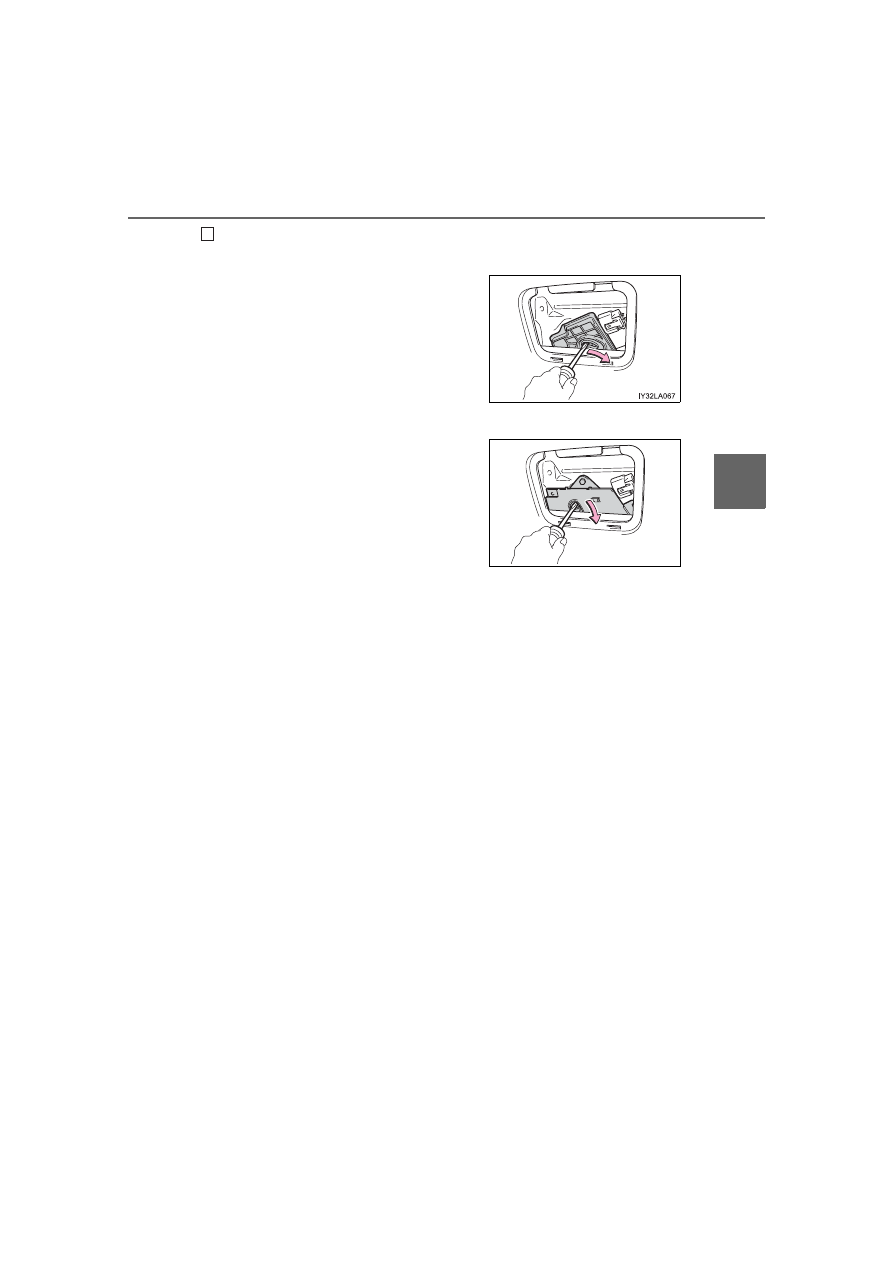

Remove  the  cover  on  the  back  door
trim.
Use a cloth to prevent scratches.

 Remove the screw and cover.
(Vehicle without power back door)

1

2

LC200_OM_OM60T03U_(U)

131

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

Push the lever for the back door motor, open the back door.



Vehicles without power back door



Vehicles with power back door

■

Jam protection function (vehicles with power back door)

If anything obstructs the power back door while it is closing/opening, the back
door will automatically operate in the opposite direction.

■

When re-connecting the battery (vehicles with power back door)

To enable the power back door to operate properly, perform the following:

●

Unlock the back door using the door lock switch

●

Close the back door manually

■

Back door closer (vehicles with power back door)

In  the  event  that  the  upper  side  and  lower  side  of  the  back  door  are  left
slightly open, the back door closer will automatically close them to the fully
closed position.

■

Fall-down protection function (vehicles with power back door)

While the power back door is opening automatically, applying excessive force
to it will stop the opening operation to prevent the power back door from rap-
idly falling down.

3

IY32LA068

132

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

■

Back door reserve lock function (vehicles with power back door)

This  function  is  a  function  which  reserves  locking  of  all  doors,  beforehand,
when the back door is open. When the following procedure is performed, all
the doors except the back door are locked and then back door will also be
locked at the same time it is closed.

Close all doors, except the back door.
Perform any of the following during the automatic closing operation of the
back door.
• Press the lock button on the wireless remote control. (



P. 114)

• Touch the lock sensor on the side door handle with carrying the electronic

key on your person. (



P. 118)

Also, if the back door does not fully close due to the operation of the jam
protection function, etc., while the back door is automatically closing after a
reserve lock operation is performed, the reserve lock function is canceled
and all the doors will unlock.

■

Customization

Settings (e.g. switch operation) can be changed.
(Customizable features



P. 594)

WARNING

■

While driving

●

Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.

●

Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.

●

Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.

■

When children are in the vehicle

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play in the luggage compartment.
If  a  child  is  accidentally  locked  in  the  luggage  compartment,  they  could
have heat exhaustion or other injuries.

●

Do not allow a child to open or close the back door.
Doing  so  may cause  the  back door  to move  unexpectedly,  or  cause  the
child’s hands, head, or neck to be caught by the closing back door.

1

2

LC200_OM_OM60T03U_(U)

133

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

WARNING

■

Operating the back door

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

●

Remove  any  heavy  loads,  such  as  snow  and  ice,  from  the  back  door
before opening it. Failure to do so may cause the back door suddenly shut
again after it is opened.

●

When  opening  or  closing  the  back  door,  thoroughly  check  to  make  sure
the surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.

●

Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

●

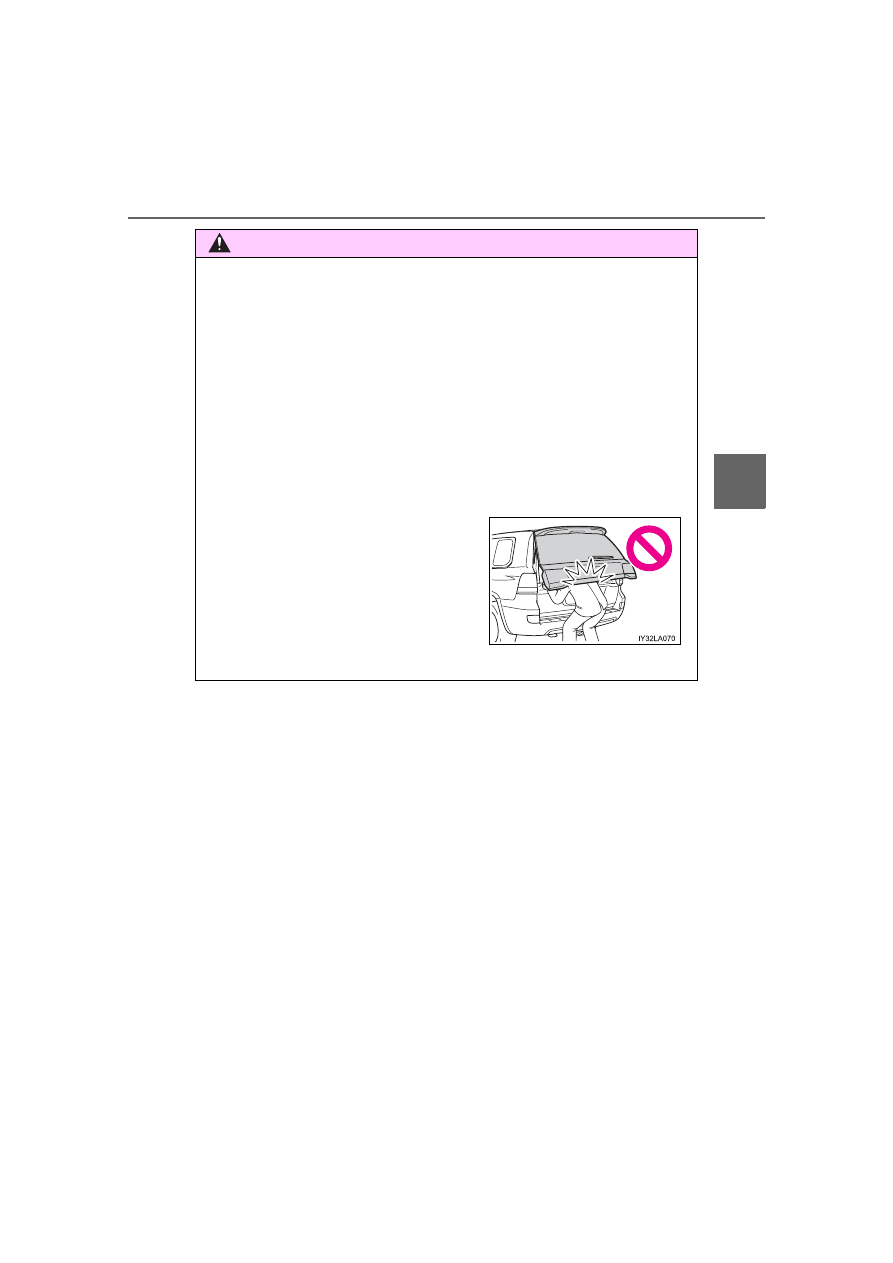

The back door may suddenly shut if it is
not  opened  fully.  It  is  more  difficult  to
open  or  close  the  back  door  on  an
incline  than  on  a  level  surface,  so
beware  of  the  back  door  unexpectedly
opening or closing by itself. Make sure
that  the  back  door  is  fully  open  and
secure  before  using  the  luggage  com-
partment.

134

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

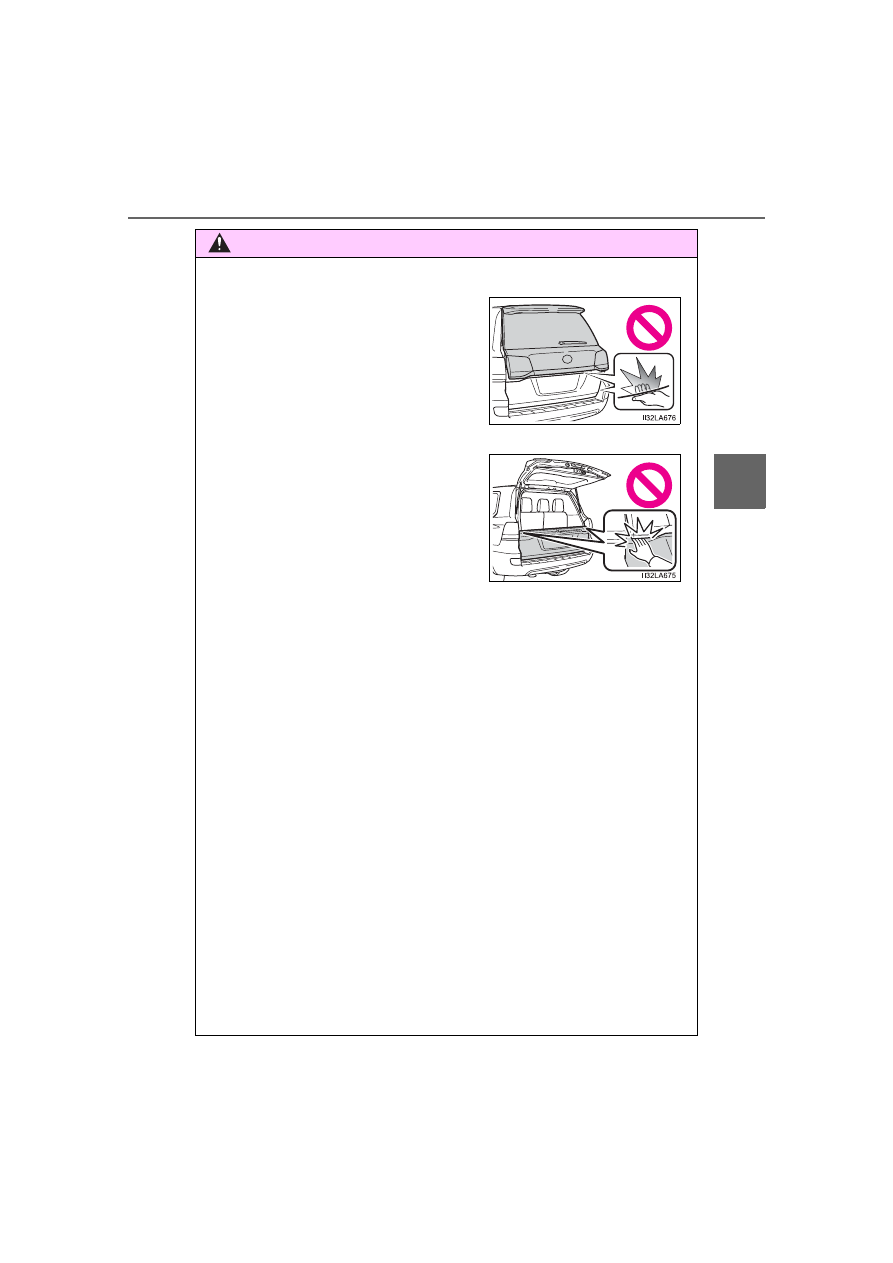

WARNING

●

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.

●

If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.

●

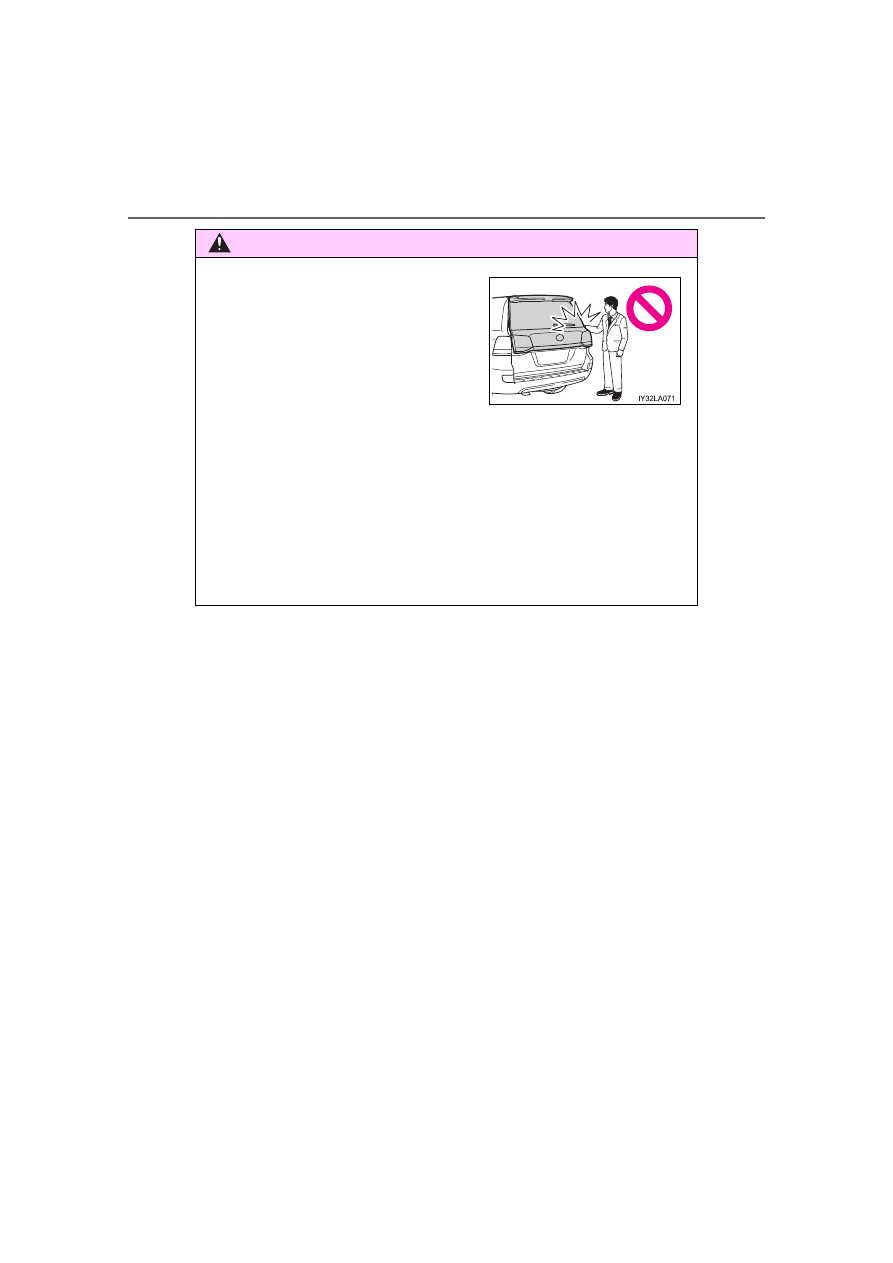

When closing the back door, take extra
care  to  prevent  your  fingers  etc.  from
being caught. Also pay attention to your
personal belongings  such  as bags  and
ties.

●

When closing the back door, make sure
to press it lightly on its outer surface. If
the  back  door  handle  is  used  to  fully
close  the  back  door,  it  may  result  in
hands or arms being caught.

LC200_OM_OM60T03U_(U)

135

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

WARNING

■

Back door closer (vehicles with power back door)

●

Use caution when using the back door closer as it still operates when the
power back door system is cancelled.

■

Power back door (if equipped)

Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury.

●

Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.

●

If the power back door system is turned off with the main switch while the
back door is operating automatically, the automatic operation is stopped.
The back door then has to be operated manually. Take extra care when on
an incline, as the back door may open or close unexpectedly.

●

When  the  back  door  opener  switch  is  pressed  a  second  time  during  an
automatic open operation that was performed by pressing the back door
opener switch, the operation stops and the back door has to be operated
manually. At this time, take extra care, as the back door may open or close
abruptly.

●

If  the  operating  conditions  of  the  power  back  door  are  no  longer  met,  a
buzzer may sound and the back door may stop opening or closing. The
back door then has to be operated manually. Take extra care when on an
incline, as the back door may open or close abruptly.

●

On an incline, the back door may suddenly shut after it opens. Make sure
the back door is fully open and secure.

●

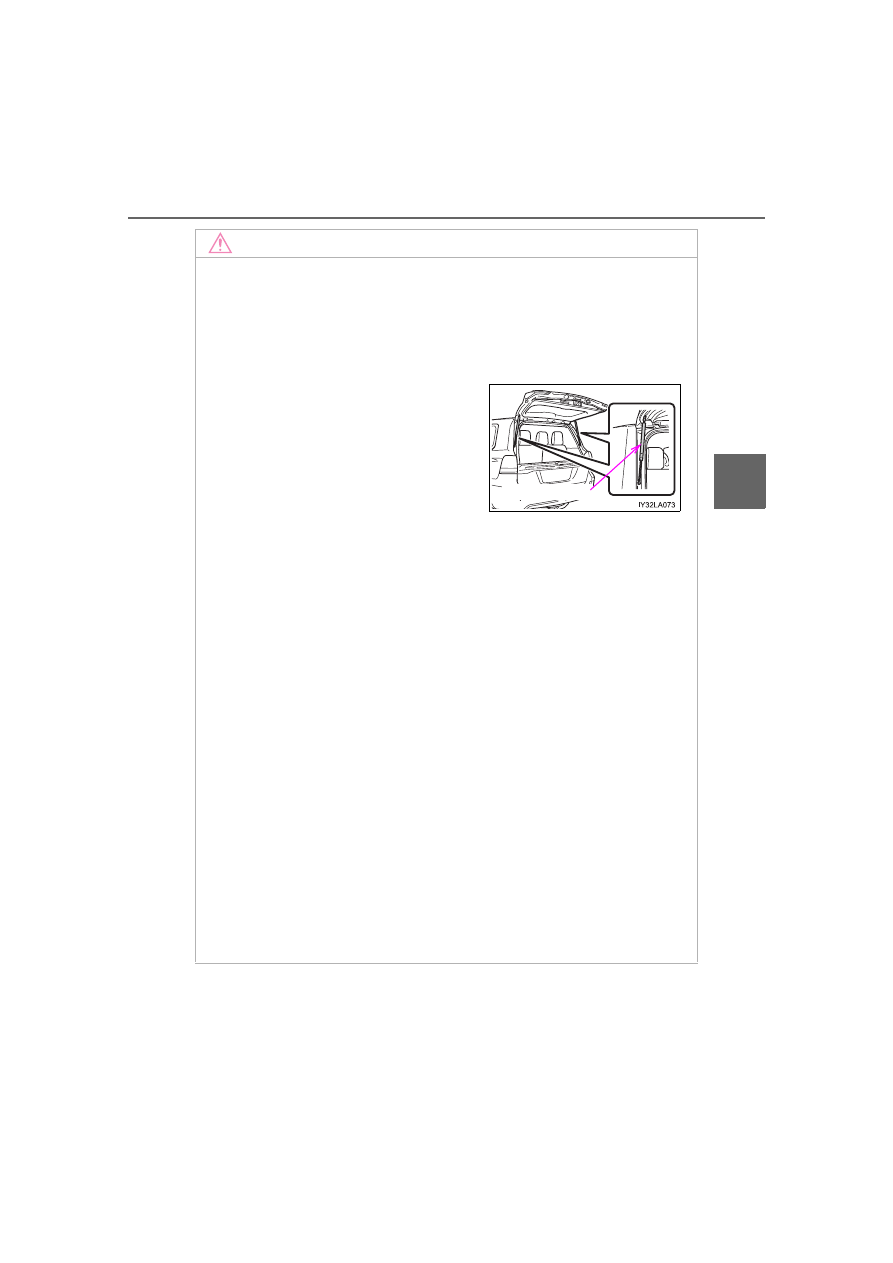

In  the  event  that  the  back  door  is  left
slightly  open,  the  back  door  closer  will
automatically close it to the fully closed
position.  It  takes  several  seconds
before  the  back  door  closer  begins  to
operate. Be careful not to catch fingers
or anything else in the back door, as this
may cause bone fractures or other seri-
ous injuries.

136

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

WARNING

●

In the following situations, the power back door may detect an abnormality
and automatic operation may be stopped. In this case, the back door has
to be operated manually. Take extra care when on an incline, as the back
door may open or close abruptly.
• When the back door contacts an obstacle
• When  the  battery  voltage  suddenly  drops,  such  as  when  the  engine

switch  is  turned  to  the  IGNITION  ON  mode  or  the  engine  is  started
during automatic operation

●

If a bicycle carrier or similar heavy object is attached to the back door, the
power  back  door  may  not  operate,  causing  itself  to  malfunction,  or  the
back  door  may  suddenly  shut  again  after  being  opened,  causing  some-
one’s hands, head or neck to be caught and injured. When installing an
accessory  part  to  the  back  door,  using  a  genuine Toyota  part  is  recom-
mended.

■

Jam protection function (vehicles with power back door)

Observe the following precautions.
Failure to do so may cause death or serious injury.

●

Never use any part of your body to intentionally activate the jam protection
function.

●

The  jam  protection  function  may  not  work  if  something  gets  caught  just
before the back door fully closes. Be careful not to catch fingers or any-
thing else.

●

The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.

LC200_OM_OM60T03U_(U)

137

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

NOTICE

■

Back door damper stays

The  back  door  is  equipped  with  damper  stays  that  hold  the  back  door  in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.

●

Do not place your hand on the damper stay or apply lateral forces to it.

■

To  prevent  back  door  closer  malfunction  (vehicles  with  power  back
door)

Do not apply excessive force to the back door while the back door closer is
operating.

■

To prevent damage to the power back door (if equipped)

●

Make  sure  that  there  is  no  ice  between  the  back  door  and  frame  that
would prevent movement of the back door. Operating the power back door
when excessive load is present on the back door may cause a malfunc-
tion.

●

Do not apply excessive force to the back door while the power back door
is operating.

●

Take care not to damage the sensors (installed on the right and left edges
of the power back door) with a knife or other sharp object. If the sensor is
disconnected, the power back door will not operate in automatic operation.

■

When  operating  the  back  door  reserve  lock  function  (vehicles  with
power back door)

Make sure to carry the electronic key on your person.
If the electronic key is returned inside the vehicle during the closing opera-
tion, it may be locked even if the electronic key is inside the vehicle depend-
ing on the location of electronic key.
Before  leaving  the  vehicle,  make  sure  that  all  the  doors  are  closed  and
locked.

●

Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.

●

Do not touch the damper stay rod with
gloves or other fabric items.

●

Do  not  attach  any  accessories  other
than  genuine  Toyota  parts  to  the  back
door.

Damper stay

138

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

Smart key system

●

Locks and unlocks the side doors (



P. 118)

●

Locks and unlocks the back door (



P. 126)

●

Starts the engine (



P. 211)

■

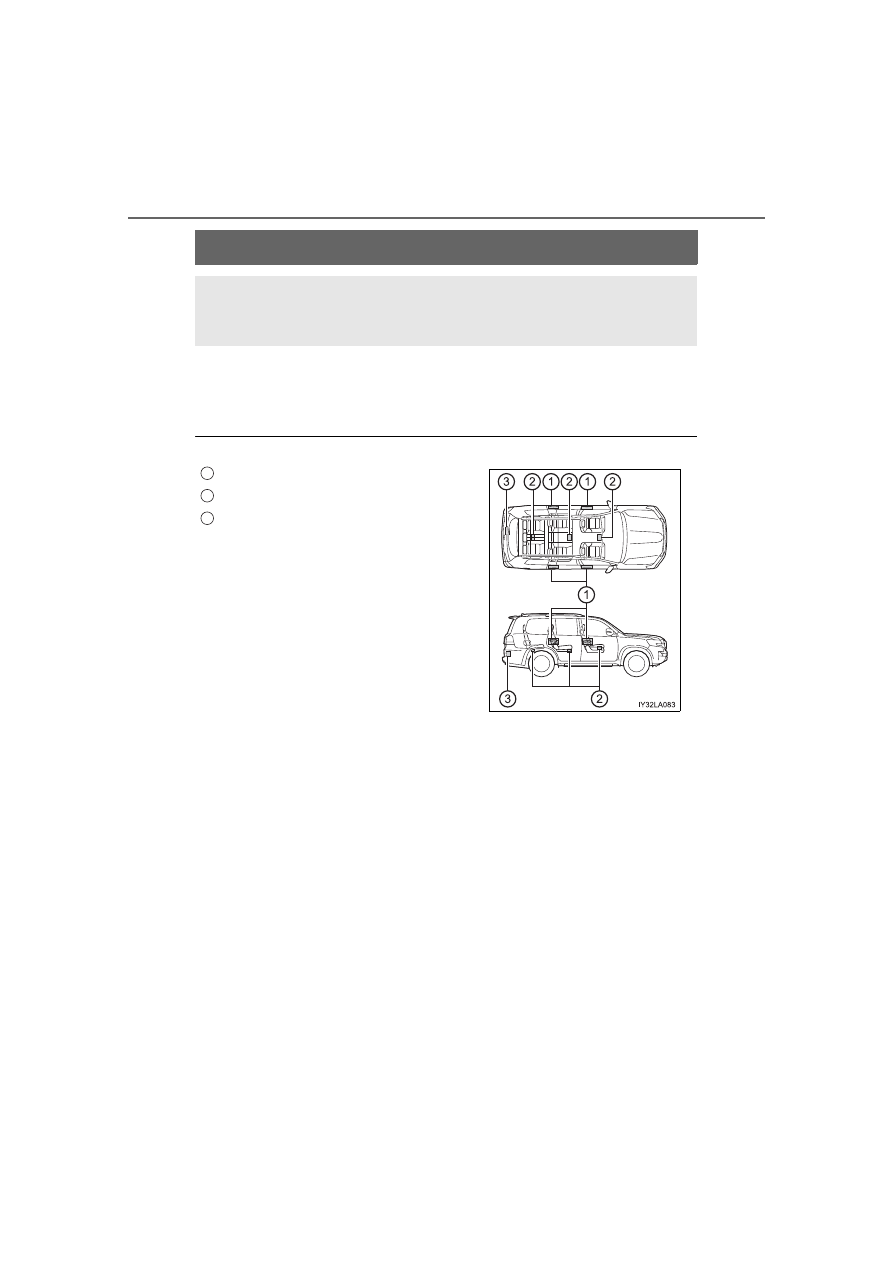

Antenna location

The  following  operations  can  be  performed  simply  by  carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.

Antennas outside the cabin
Antennas inside the cabin
Antenna  outside  the  luggage  compart-
ment

1

2

3

LC200_OM_OM60T03U_(U)

139

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

■

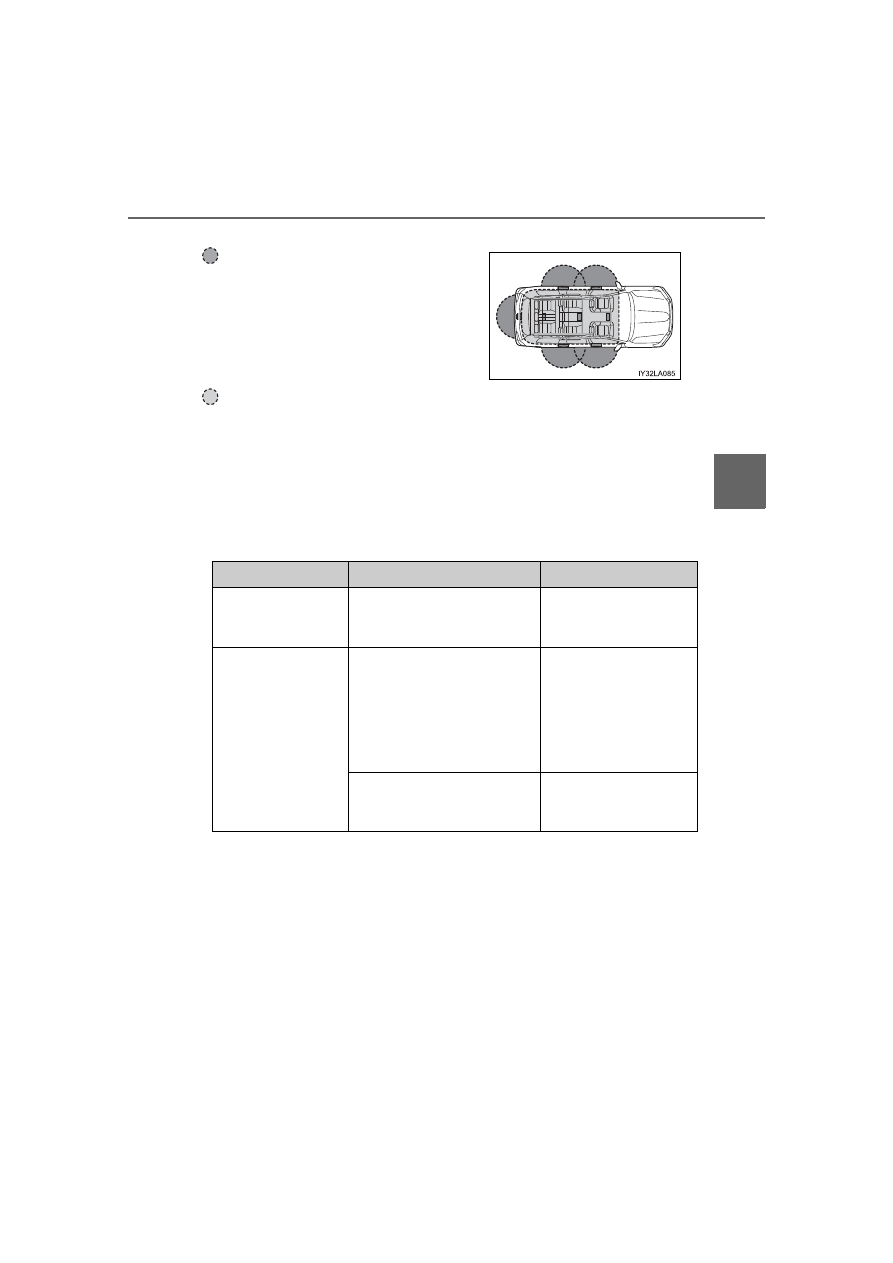

Effective range (areas within which the electronic key is detected)

When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.

■

Alarms and warning indicators

A combination of  exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and  accidents  resulting  from  erroneous  operation.  Take  appropriate  mea-
sures in response to any warning message on the multi-information display.
The following table describes circumstances and correction procedures when
only alarms are sounded.

When locking or unlocking the doors
The system can be operated when the
electronic key is within about 2.3 ft. (0.7
m)  of  either  of  the  outside  front  door
handle.  (Only  the  doors  detecting  the
key can be operated.)

Alarm

Situation

Correction procedure

Exterior

alarm

sounds  once  for  5
seconds

An  attempt  was  made  to
lock the vehicle while a door
is open

Close  all  of  the  doors
and  lock  the  doors
again

Interior alarm pings
continuously

The  engine  switch  was
turned

to  ACCESSORY

mode while the driver’s door
was  open  (or  the  driver’s
door  was  opened  while  the
engine

switch

was

in

ACCESSORY mode)

Turn the engine switch
off  and  close  the
driver’s door

The  engine  switch  was
turned  off  while  the  driver’s
door was open

Close the driver’s door

140

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

■

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic
key battery and the battery from being discharged while the vehicle is not in
operation for a long time.

●

In  the  following  situations,  the  smart  key  system  may  take  some  time  to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

■

Electronic Key Battery-Saving Function

When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

■

Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly.
(Ways of coping:



P. 560)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When  the  electronic  key  is  in  contact  with,  or  is  covered  by  the  following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

Press

 twice while pressing and hold-

ing

.  Confirm  that  the  electronic  key

indicator flashes 4 times.
While the battery-saving mode is set, the
smart  key  system  cannot  be  used.  To
cancel the function, press any of the elec-
tronic key buttons.

LC200_OM_OM60T03U_(U)

141

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

●

When  carrying  the  electronic  key  together  with  the  following  devices  that
emit radio waves
• When carrying a portable radio, cellular phone, cordless phone or other

wireless communication device

• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
rear window

●

When  the  electronic  key  is  placed  near  a  battery  charger  or  electronic
devices

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel or floor, or in the door pock-

ets or glove box when the engine is started or engine switch modes are
changed.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
doors will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.

●

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

●

The  doors may unlock or lock  if a  large  amount  of water  splashes on  the
door handle, such as in the rain or in a car wash, when the electronic key is
within  the  effective  range.  (The  doors  will  automatically  be  locked  after
approximately 60 seconds if the doors are not opened and closed.)

●

Touching the door lock or unlock sensor while wearing gloves may prevent
lock or unlock operation.

●

If the wireless remote control is used to lock the doors when the electronic
key  is  near  the  vehicle,  there  is  a  possibility  that  the  door  may  not  be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

●

When the lock operation is performed using the lock sensor, recognition sig-
nals  will  be  shown  up  to  two  consecutive  times. After  this,  no  recognition
signals will be given.

142

LC200_OM_OM60T03U_(U)

3-2. Opening, closing and locking the doors

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle.
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set electronic key to battery-saving mode to disable the smart key sys-

tem. (



P. 140)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

●

The  lock  sensor  may  not  work  properly  if  it  comes  into  contact  with  ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.

●

If there is another electronic key in the detection area, it may take slightly
longer  to  unlock  the  doors  after  the  door  handle  is  gripped  or  back  door
unlock switch is pressed.

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

■

When the vehicle is not driven for extended periods

●

To prevent theft  of the vehicle, do not  leave the  electronic  key within 6  ft.
(2 m) of the vehicle.

●

The smart key system can be deactivated in advance. (



P. 594)

■

To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)

LC200_OM_OM60T03U_(U)

143

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

■

If the smart key system does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (



P. 560)

●

Starting the engine:



P. 561

■

Customization

Settings (e. g. smart key system) can be changed.
(Customizable features:



P. 594)

■

If the smart key system has been deactivated in a customized setting

●

Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (



P. 118, 560)

●

Starting the engine and changing engine switch modes:



P. 561

●

Stopping the engine:



P. 212

■

Certification for the smart key system
