5-10. Tips for operating the audio/visual system

COROLLA HV_U

5

Audio

■

For U.S. owners

334

5-11. Voice command system operation

COROLLA HV_U

5-11.Voice command system operation

■

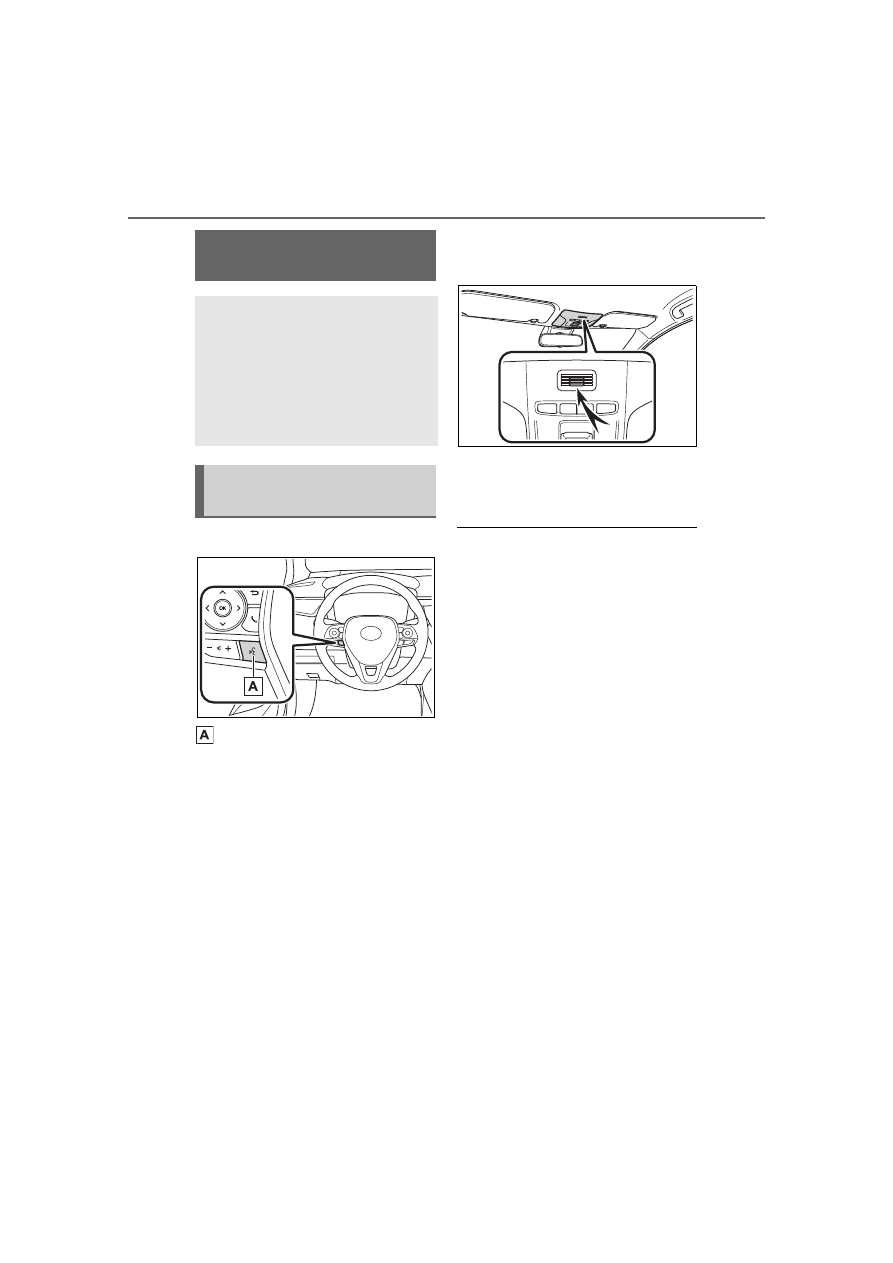

Steering switch

Talk switch



Voice command system

Press the talk switch to start the
voice command system. To can-
cel voice command, press and
hold the talk switch.



When an Apple Car-
Play/Android Auto connec-
tion is established



Press and hold the talk switch
to start Siri/Google Assistant.
To cancel Siri/Google Assis-
tant, press the talk switch.



Press the talk switch to start

the voice command system.

■

Microphone

It is unnecessary to speak
directly into the microphone
when giving a command.

●

Voice commands may not be rec-

ognized if:

• Spoken too quickly.

• Spoken at a low or high volume.

• The windows are open.

• Passengers are talking while

voice commands are spoken.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned towards the microphone.

●

In the following conditions, the

system may not recognize the

command properly and using

voice commands may not be pos-

sible:

• The command is incorrect or

unclear. Note that certain words,

accents or speech patterns may

be difficult for the system to recog-

nize.

• There is excessive background

noise, such as wind noise.

●

Normally, it is necessary to wait

for a beep before saying a com-

mand. To enable the ability to talk

over prompts and say commands

before the beep, enable the voice

prompt interrupt function.

(



P.295)

●

This system may not operate

immediately after the power

Voice command sys-

tem

The voice command sys-
tem enables the radio,
phone dialing, etc. to be
operated using voice com-
mands. Refer to the com-
mand list for samples of
voice commands. (



P.337)

Using the voice command
system

335

5-11. Voice command system operation

COROLLA HV_U

5

Audio

switch is in ACC or ON.

The voice command system is
operated by saying commands
which correspond to a sup-
ported function. To display
examples of commands for sup-
ported functions, select a func-
tion button on the screen after
starting the voice command sys-
tem.

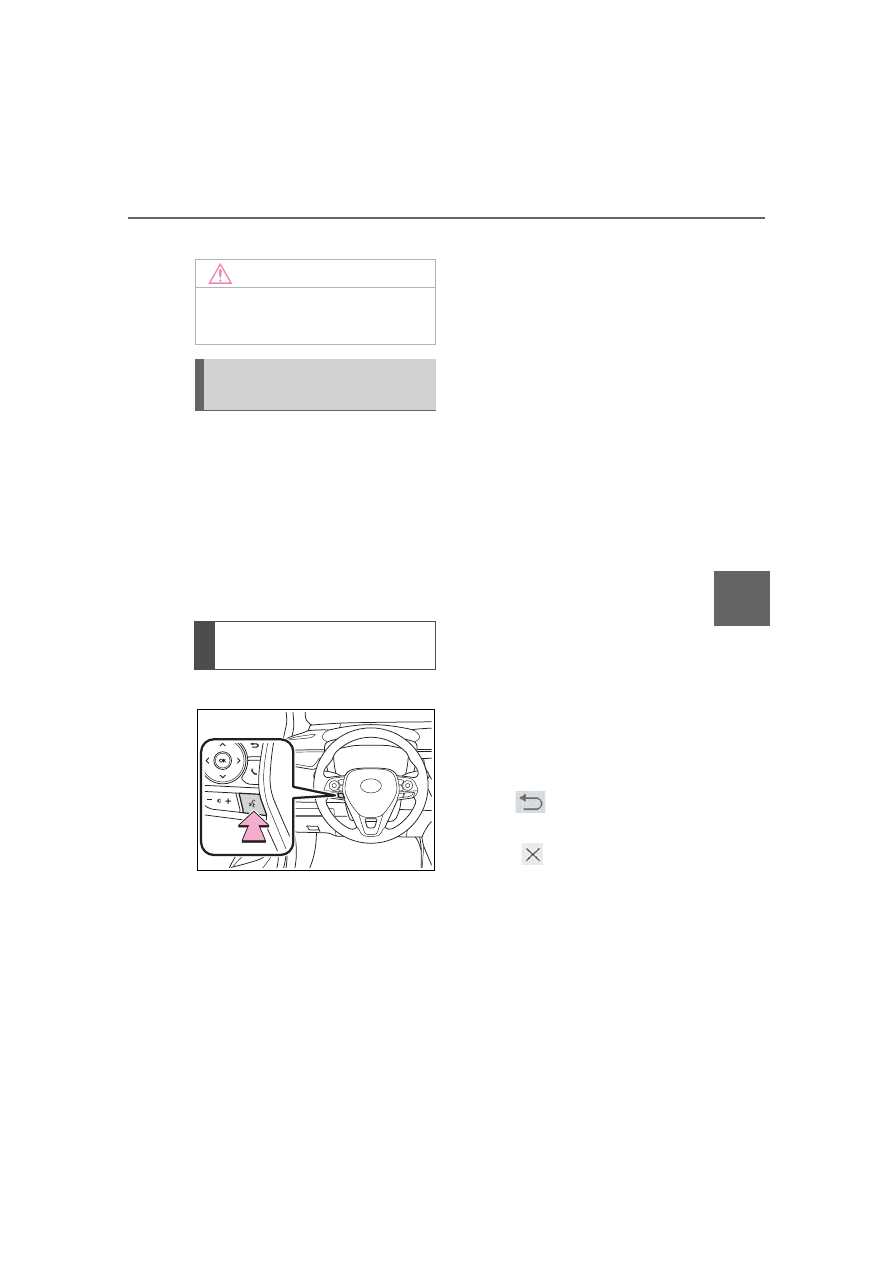

1

Press the talk switch.

Voice guidance for the voice com-

mand system can be skipped by

pressing the talk switch.

2

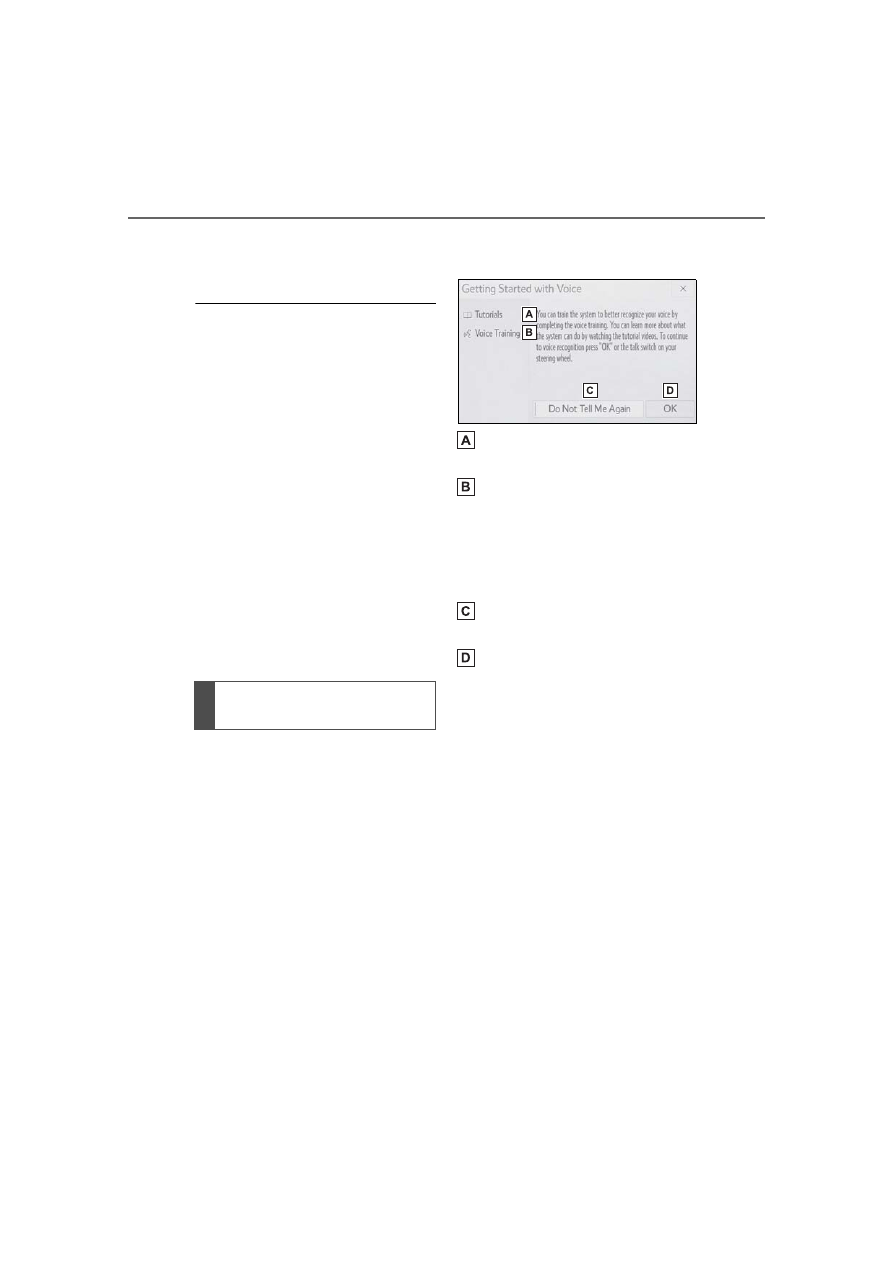

If “Getting Started with Voice”
screen is displayed, select
“OK” or press the talk switch.
(



P.336)

3

After hearing a beep, say a
supported command.



To display sample commands
of the desired function, say
the desired function or select
the desired function button. To
display more commands,
select “More Commands”.



Selecting “Help” or saying
“Help” prompts the voice com-
mand system to offer exam-
ples of commands and
operation methods.



Registered POIs, registered
names in the contacts list etc.,
can be said in the place of the
“<>” next to the commands.
(



P.337)

For example: Say “Find a restau-
rant”, “Call John Smith” etc.



If a desired outcome is not
shown, or if no selections are
available, perform one of the
following to return to the pre-
vious screen:

• Say “Go back”.

• Select

.



To cancel voice recognition,
select

, say “Cancel”, or

press and hold the talk switch.



To perform the voice com-
mand operation again, select
“Start Over” or say “Start
over”.



To suspend voice command
operation, select “Pause” or
say “Pause”. To resume the

NOTICE

Do not touch and put a sharp

object to the microphone. It may

cause failure.

Voice command system
operation

Operation from the main
menu

336

5-11. Voice command system operation

COROLLA HV_U

voice command operation,
select “Resume” or press the
talk switch.

●

If the system does not respond or

the confirmation screen does not

disappear, press the talk switch

and try again.

●

If a voice command cannot be rec-

ognized 3 consecutive times,

voice recognition will be canceled.

●

Voice recognition prompts can be

changed on the voice settings

screen. (



P.295)

This function can be used to cancel

voice guidance by turning the voice

prompts off. When you press the

talk switch while using this setting, a

beep sounds, and then you can

immediately say a command.

●

Some voice guidance can be can-

celed by setting voice prompts to

off. Use this setting when it is

desirable to say a command

immediately after pressing the talk

switch and hearing a beep.

To increase voice recognition
performance, use the “Tutori-
als” and “Voice Training” func-
tions on the “Getting Started
with Voice” screen. These func-
tions are only available when
the vehicle is not moving.
The “Tutorials” and “Voice Train-
ing” functions can also be
started on the voice settings
screen. (



P.295)

1

Press the talk switch.

2

Select the desired item to be
set.

Select to display the voice
command tutorials.
Select to train the voice com-
mand system.

The user will be asked to say 10
sample phrases. This will help the
voice command system adapt to
the user’s accent.

Select to prevent the screen
from being displayed again.
Select to proceed to the
voice command screen.

Increasing the voice rec-
ognition performance

337

5-11. Voice command system operation

COROLLA HV_U

5

Audio

Recognizable voice commands
and their actions are shown
below.



Frequently used commands
are listed in the following
tables.



For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.



The functions available may
vary according to the system
installed.



When an Apple Car-
Play/Android Auto connec-
tion is established, some
commands will become
unavailable.



Voice recognition language
can be changed. (



P.291)

■

Common

■

Top menu

*

: Vehicle must be parked

Command list

Command list overview

Command list

Command

Action

“Help”

Displays exam-
ples of some of
the available
commands

“Go back”

Returns to the
previous screen

“Cancel”

Cancels the
voice command
system

“Start over”

Returns to top
menu screen

“Pause”

Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.

Command

Action

“Show com-
mand examples
for <menu>”

Displays the
command list of
the selected
menu

“More com-
mands”

Displays more
commonly used
commands

“Voice settings”

Displays Voice
Setting screen

“Train my voice”

Displays Train
Voice Recogni-
tion screen

*

338

5-11. Voice command system operation

COROLLA HV_U

■

Phone

*1

*1

:When an Apple CarPlay connec-

tion is established, this voice
commands will be unavailable.

*2

:If the system does not recognize

the name of a contact, create a
voice tag. (



P.360) The name of

a contact can also be recognized
by adding a voice tag.

■

While in a phone call

*

*

: When an Apple CarPlay connec-

tion is established, this voice
commands will be unavailable.

■

While incoming message
notification is displayed

*1, 2

*1

:Full screen message notification

must be turned on within the
phone settings (



P.358)

*2

:When an Apple CarPlay connec-

tion is established, this voice

Command

Action

“Call <con-
tact>”

*2

Places a call to
the specified
contact from the
phone book

“Call <contact>
<phone type>”

*2

Places a call to
the specified
phone type of
the contact from
the phone book

“Dial <phone
number>”

Places a call to
the specified
phone number

“Redial”

Places a call to
the phone num-
ber of the latest
outgoing call

“Call back”

Places a call to
the phone num-
ber of latest
incoming call

“Show recent
calls”

Displays the call
history screen

“Send a mes-
sage to <con-
tact>”

Sends a text
message to
specified con-
tact from the
phone book

Command

Action

“Send <digits>”

Sends DTMF
tones has speci-
fied

“Mute”

Mutes the micro-
phone (far side
cannot hear the
conversation)

“Unmute”

Unmutes the
microphone

Command

Action

“Read message”

Reads the
incoming mes-
sage over the
vehicle speakers

“Ignore”

Ignores the
incoming mes-
sage notification

“Reply”

Initiates sending
a reply to the
incoming mes-
sage

“Call”

Places a call to
the phone num-
ber of incoming
message

339

5-11. Voice command system operation

COROLLA HV_U

5

Audio

commands will be unavailable.

■

Radio

*1

:A station list must be built first

using the radio screen (



P.303)

*2

:Requires a satellite radio sub-

scription

■

Audio

*1

*1

:The audio device must be con-

nected via a USB cable to use

Command

Action

“Tune to <fre-
quency> AM”

Changes the
radio to the
specified AM fre-
quency

“Tune to <fre-
quency> FM”

Changes the
radio to the
specified FM fre-
quency

“Play a <genre>
station”

Changes the
radio to an FM
station of the
specified genre

*1

“Tune to preset
<1-36>”

Changes the
radio to the
specified preset
radio station

“Tune to a
<genre> satel-
lite station”

Changes the
radio to a satel-
lite radio channel
of the specified
genre

*2

“Tune to <satel-
lite channel
name>”

Changes the
radio to the sat-
ellite radio chan-
nel with the
specified name

*2

“Tune to chan-
nel <number> on
XM”

Changes the
radio to a satel-
lite radio channel
of the specified
number

*2

Command

Action

“Play Playlist
<name>”

*2

Plays tracks
from the
selected playlist

“Play Artist
<name>”

*2

Plays tracks
from the
selected artist

“Play Song
<name>”

*2

Plays the
selected track

“Play Album
<name>”

*2

Plays tracks
from the
selected album

“Play Genre
<name>”

*2

Plays tracks
from the
selected genre

“Play Composer
<name>”

*2

Plays tracks
from the
selected com-
poser

“Play Podcast
<name>”

*2

Plays tracks
from the
selected podcast

“Play Audiobook
<name>”

*2

Plays tracks
from the
selected audio-
book

“Audio On”

Turns the
audio/visual sys-
tem on

“Audio Off”

Turns the
audio/visual sys-
tem off

“Change the
audio source to
<source name>”

Sets the source
to the specified
audio mode

340

5-11. Voice command system operation

COROLLA HV_U

the functionality in this section

*2

:When an Apple CarPlay connec-

tion is established, this voice
commands will be unavailable.

■

Toyota apps

*

: When an application is opened

and is in full screen mode, press-
ing the talk switch will start the
voice command system and com-
mands for the currently displayed
application will be available

Commands relating to operation of

the audio/visual system can only be

performed when the audio/visual

system is turned on.

Command

Action

“Launch <appli-
cation name>”

*

Activates the
Toyota apps

341

5-12. Mobile Assistant operation

COROLLA HV_U

5

Audio

5-12.Mobile Assistant operation

●

While a phone call is active, the

Mobile Assistant cannot be used.

●

If using the navigation feature of

the cellular phone, ensure the
active audio source is Bluetooth

®



audio or iPod in order to hear turn

by turn direction prompts.

●

Wait for the listening beeps before

using the Mobile Assistant.

●

The Mobile Assistant may not rec-

ognize commands in the following

situations:

• Spoken too quickly.

• Spoken at a low or high volume.

• The windows are open.

• Passengers are talking while the

Mobile Assistant is being used.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned toward the microphone.

Mobile Assist supports the Siri
Eyes Free Mode and Google
App. The available features and
functions may vary based on the
iOS/Android version installed on
the connected device.



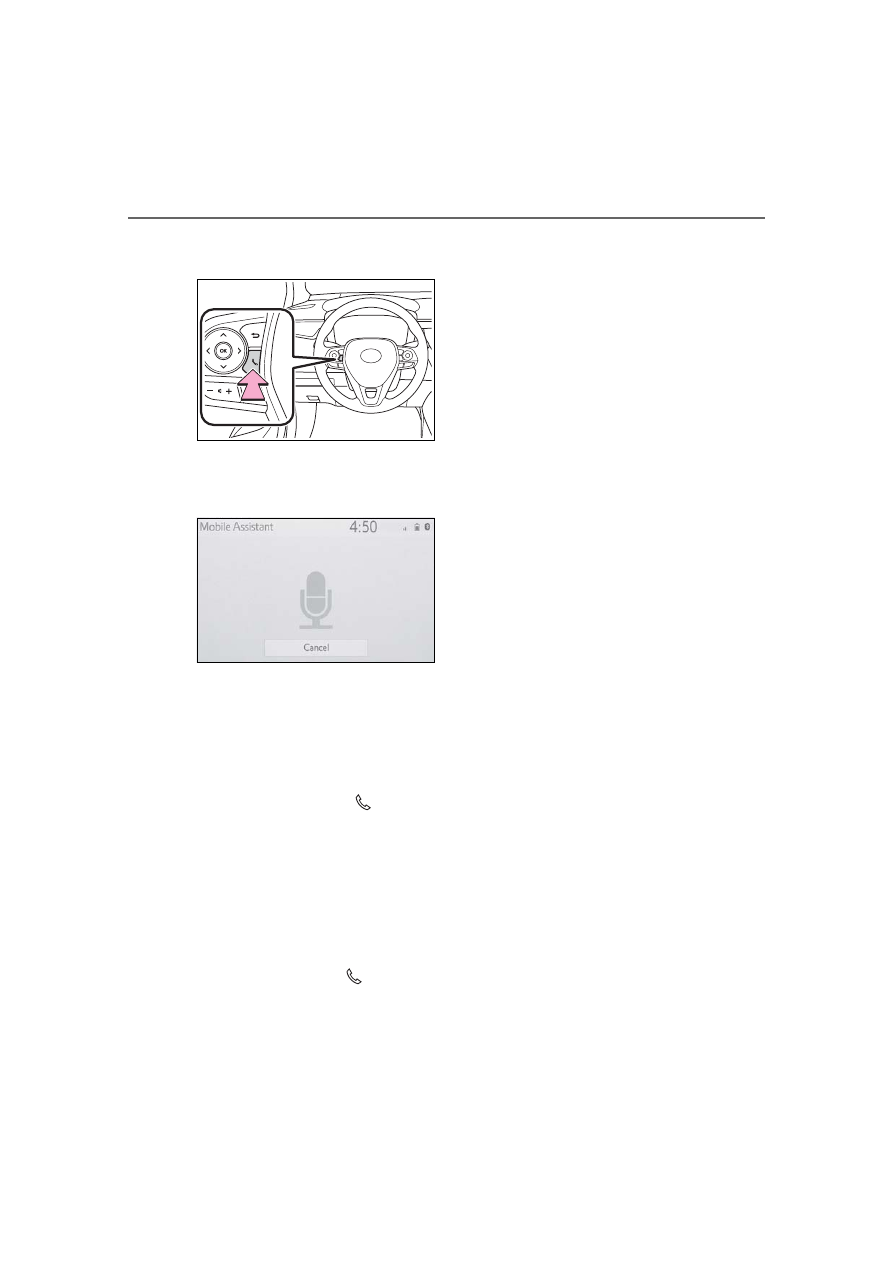

Type A

1

Press and hold the talk
switch on the steering wheel
until Mobile Assistant screen
is displayed.



Type B

1

Press and hold the

 switch

on the steering wheel until

Mobile Assistant

The Mobile Assistant func-
tion is a voice input assist
function. Mobile Assist sup-
ports the Siri Eyes Free
Mode and Google App.
(Google App can be used
only with the corresponding
device.) Instructions can be
spoken into the vehicle
microphone as if speaking a
command to the phone. The
content of the request is
then interpreted by the
phone and the result is out-
put from the vehicle speak-
ers. To operate the Mobile
Assistant, a compatible
device must be registered
and connected to this sys-
tem via Bluetooth

®

.

(



P.268)

When an Apple CarPlay
connection is established,
this function will be unavail-
able.

Connectable devices and
available functions

Mobile Assistant opera-
tion

342

5-12. Mobile Assistant operation

COROLLA HV_U

Mobile Assistant screen is
displayed.

2

The Mobile Assistant can be
used only when the following
screen is displayed.



Type A: To cancel the Mobile
Assistant, select “Cancel” or
press and hold the talk switch
on the steering wheel.
Type B: To cancel the Mobile
Assistant, select “Cancel” or
press and hold the

 switch

on the steering wheel.



Type A: To restart the Mobile
Assistant for additional com-
mands, press the talk switch
on the steering wheel.
Type B: To restart the Mobile
Assistant for additional com-
mands, press the

 switch

on the steering wheel.

• Mobile Assistant can only be

restarted after the system
responds to a voice command.

• After some phone and music

commands, the Mobile Assistant
feature will automatically end to
complete the requested action.



The volume of the Mobile
Assistant can be adjusted
using the “POWER VOLUME”
knob or steering wheel vol-
ume control switches. The
Mobile Assistant and phone
call volumes are synchro-
nized.

343

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

5-13.Phone operation (Hands-free system for cellular phones)

The phone screen can be
reached by the following meth-
ods:



From the “PHONE” button

Press the “PHONE” button.



From the “MENU” button

Press the “MENU” button, then
select “Phone”.

The following functions can be
used on phone operation:



Registering/connecting a
Bluetooth

®

 device (



P.268)



Placing a call using the Blue-
tooth

®

 hands-free system

(



P.348)



Receiving a call using the
Bluetooth

®

 hands-free system

(



P.351)



Talking on the Bluetooth

®



hands-free system (



P.352)

The following function can be
used on message function:

Using the Bluetooth

®

 phone

message function (



P.354)

The following functions can be
made in the system:



Phone settings (



P.358)



Bluetooth

®

 settings (



P.272)

Quick reference

Phone screen operation

Bluetooth

®

 hands-free

system operation

Message function

Setting up a phone

344

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

●

This system is not guaranteed to
operate with all Bluetooth

®



devices.

●

If your cellular phone does not
support Bluetooth

®

, this system

cannot function.

●

In the following conditions, the

system may not function:

• The cellular phone is turned off.

• The current position is outside the

communication area.

• The cellular phone is not con-

nected.

• The cellular phone has a low bat-

tery.

●

Depending on the type of Blue-
tooth

®

 phone, some function is

not available.

●

When using the hands-free sys-
tem or Bluetooth

®

 audio and

Wi-Fi

®

 Hotspot functions at the

same time, the following problems

may occur:

• The Bluetooth

®

 connection may

be cut.

• Noise may be heard on the Blue-

tooth

®

 audio playback.

• A noise may be heard during

phone calls.

●

Bluetooth

®

 uses the 2.4 GHz fre-

quency band. If both a Wi-Fi

®

 con-

nection and Bluetooth

®



connection are being used simul-

taneously, each connection may

be affected.

●

If a Bluetooth

®

 device is attempt-

ing to connect to the vehicle while

another device is connected as a
Bluetooth

®

 audio device or con-

nected using the hands-free sys-
tem or Wi-Fi

®

 Hotspot function,

the communication speed may

decrease or malfunctions may

occur, such as image distortion or
audio skipping. If a Bluetooth

®



device is connected to the system,

the interference it may cause will

be reduced. When carrying a
device with its Bluetooth

®

 connec-

tion enabled, make sure to regis-

ter it to the system and connect it
or disable its Bluetooth

®

 function.

●

When a device is connected via
Bluetooth

®

, the Bluetooth

®

 icon

on the status bar will be displayed

in blue. (



P.256)

Some basics

The hands-free system
enables calls to be made
and received without having
to take your hands off the
steering wheel.

This system supports Blue-
tooth

®

. Bluetooth

®

 is a wire-

less data system that
enables cellular phones to
be used without being con-
nected by a cable or placed
in a cradle.

The operating procedure of
the phone is explained here.

When an Apple CarPlay
connection is established,
phone functions will be per-
formed by Apple CarPlay
instead of the hands-free
system.

WARNING

●

While driving, do not operate a

cellular phone.

345

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

To use the hands-free system
for cellular phones, it is neces-
sary to register a cellular phone
with the system. (



P.268)

■

Connecting a Bluetooth

®



device



Registering an additional
device

1

Display the phone top
screen. (



P.343)

2

Select “Select Device”.

3

Select “Add Device”.

When another Bluetooth

®

 device is

connected, a confirmation screen

will be displayed. To disconnect the
Bluetooth

®

 device, select “Yes”.

4

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.268)



Selecting a registered device

1

Display the phone top
screen. (



P.343)

2

Select “Select Device”.

3

Select the desired device to
be connected.

4

Check that a confirmation
screen is displayed when the
connection is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

■

Bluetooth

®

 phone condition

display

The condition of the Bluetooth

®



phone appears on the upper
right side of the screen.
(



P.257)

WARNING

●

Your audio unit is fitted with
Bluetooth

®

 antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between
themselves and the Bluetooth

®



antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

®



devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

Do not leave your cellular phone

in the vehicle. The temperature

inside may rise to a level that

could damage the phone.

Registering/Connecting a
Bluetooth

®

 phone

346

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

■

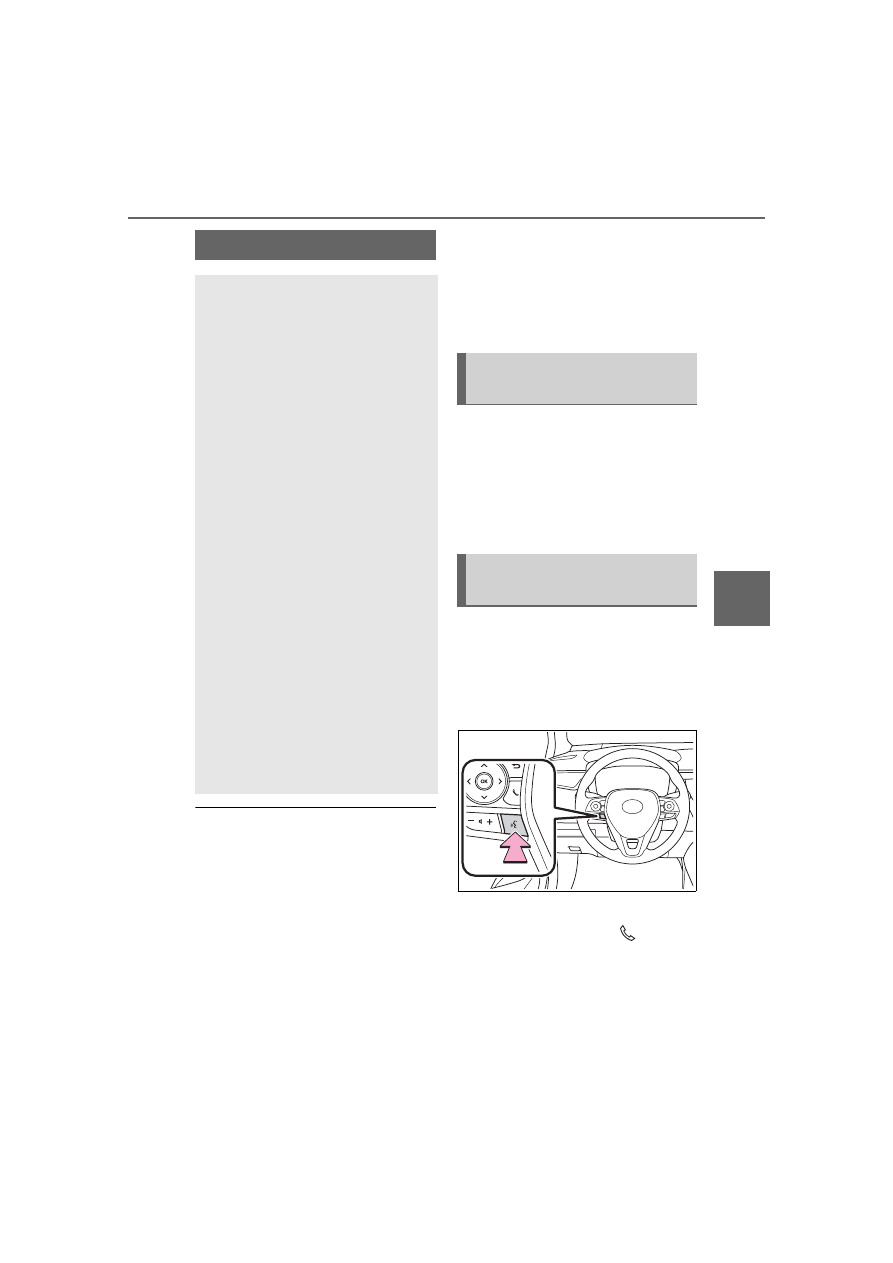

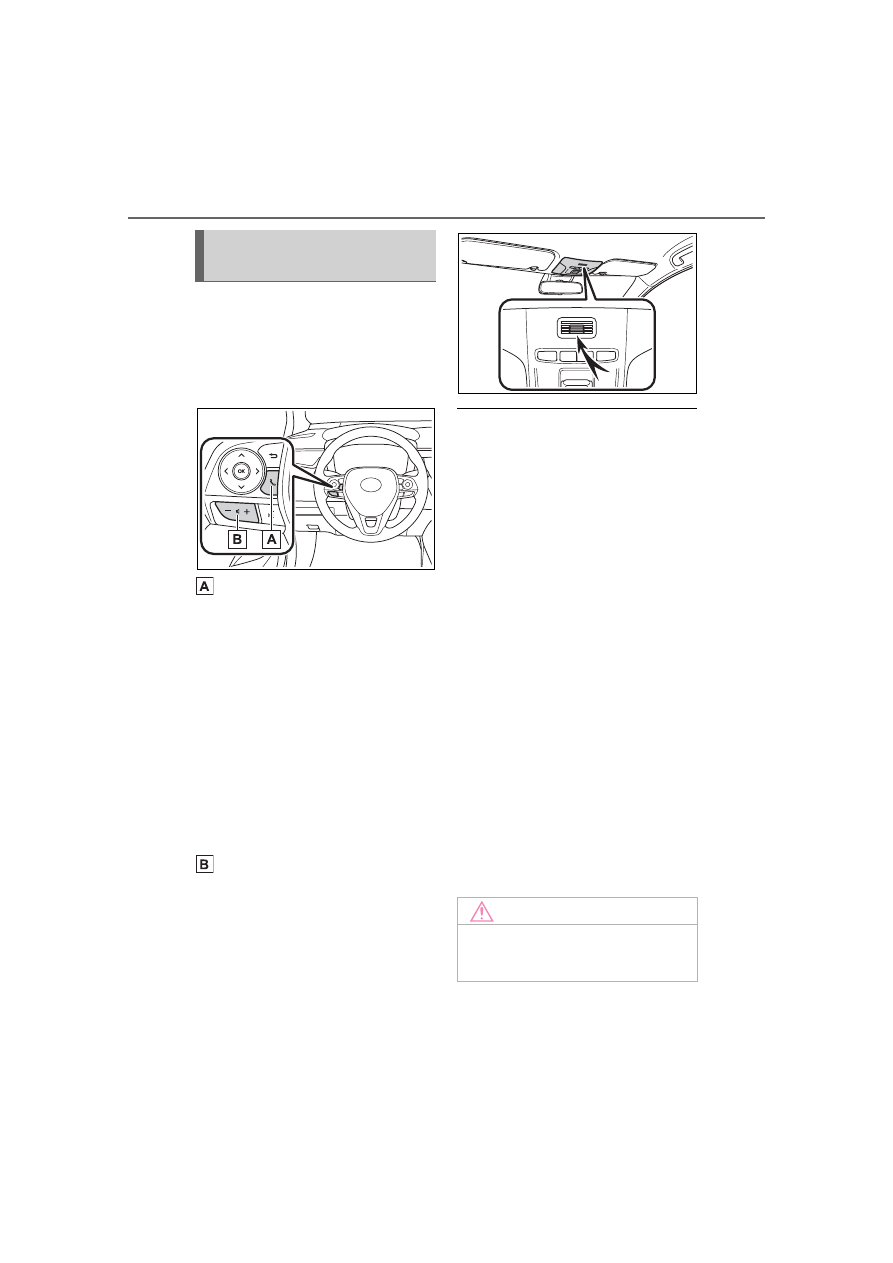

Steering switch

By pressing the phone switch, a
call can be received or ended
without taking your hands off the
steering wheel.

Phone switch

• If the switch is pressed during a

call, the call will end.

• If the switch is pressed when an

incoming call is received, the call
will be answered.

• If the switch is pressed during a

call when a separate incoming
call is waiting, the waiting call will
be answered.

• If the switch is pressed when an

Apple CarPlay connection is
established, the Apple CarPlay
phone application will be dis-
played on the system screen.

Volume control switch

• Press the “+” side to increase the

volume.

• Press the “-” side to decrease the

volume.

■

Microphone

The microphone is used when
talking on the phone.

●

The other party’s voice will be

heard from the front speakers.

The audio/visual system will be

muted during phone calls or when

hands-free voice commands are

used.

●

Talk alternately with the other

party on the phone. If both parties

speak at the same time, the other

party may not hear what has been

said. (This is not a malfunction.)

●

Keep call volume down. Other-

wise, the other party’s voice may

be audible outside the vehicle and

voice echo may increase. When

talking on the phone, speak

clearly towards the microphone.

●

The other party may not hear you

clearly when:

• Driving on an unpaved road.

(Making excessive traffic noise.)

• Driving at high speeds.

• The windows are open.

• The air conditioning vents are

pointed towards the microphone.

• The sound of the air conditioning

fan is loud.

• There is a negative effect on

sound quality due to the phone

and/or network being used.

Using the phone
switch/microphone

NOTICE

Do not touch and put a sharp

object to the microphone. It may

cause failure.

347

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

Press this switch to operate the
voice command system.

The voice command system and
its list of commands can be
operated. (



P.334)

The following data is stored for
every registered phone. When
another phone is connected, the
following registered data cannot
be read:



Contact data



Call history data



Favorites data



Image data



All phone settings



Message settings

When a phone’s registration is

deleted, the above-mentioned data

is also deleted.

A lot of personal data is regis-
tered when the hands-free sys-
tem is used. When selling or
disposing of the vehicle, initial-
ize the data. (



P.294)

The following data in the system
can be initialized:



Contact data



Call history data



Favorites data



Image data



All phone settings



Message settings

Once initialized, the data and set-

tings will be erased. Pay additional

attention when initializing the data.

Voice command system

About the contacts in the
contact list

When selling or disposing
of the vehicle

348

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

1

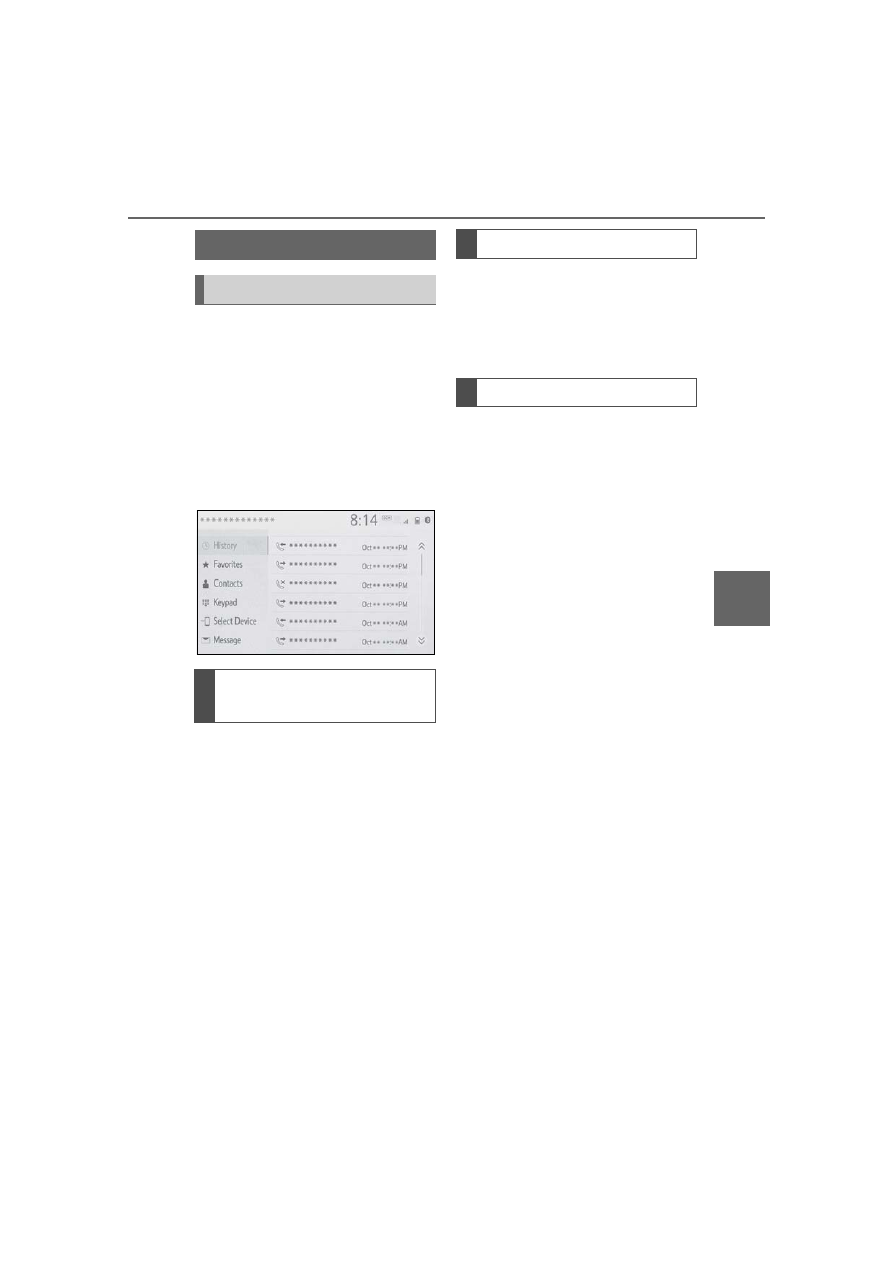

Display the phone top
screen. (



P.343)

2

Select the desired method to
call from.

■

Calling methods from
phone screen



By call history (



P.348)



By favorites (



P.348)



By contacts (



P.349)



By keypad (



P.350)



By message (



P.357)

■

Also the following lists are
available from each func-
tion’s screen



By voice command system
(



P.335)



By home screen (



P.350)

Up to 30 of the latest call history

items (missed, incoming and
outgoing) can be selected.

1

Display the phone top
screen. (



P.343)

2

Select “History” and select
the desired contact.

If the contact which is not regis-

tered on the contact list is selected,

the name is displayed as “Unknown

Contact”. In this case, select the

number to make a call properly.

3

Check that the dialing screen
is displayed.

●

The icons of call type are dis-

played.

: Missed call

: Incoming call

: Outgoing call

●

When making a call to the same

number continuously, only the

most recent call is listed in call his-

tory.

●

When a phone number registered

in the contact list is received, the

name is displayed.

●

Number-withheld calls are also

memorized in the system.

●

International phone calls may not

be made depending on the type of
Bluetooth

®

 phone you have.

●

The list should group together

consecutive entries with the same

phone number and same call

type. For example, two calls from

John’s mobile would be displayed

as follows: John (2)

Calls can be made using regis-
tered contacts which can be

Placing a call using

the Bluetooth

®



hands-free system

After a Bluetooth

®

 phone

has been registered, a call
can be made using the
hands-free system. There
are several methods by
which a call can be made, as
described below.

Calling methods on the
Bluetooth

®

 phone

By call history

By favorites list

349

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

selected from a contact list.
(



P.349)

1

Display the phone top
screen. (



P.343)

2

Select “Favorites” and select
the desired contact.

3

Select the desired number.

4

Check that the dialing screen
is displayed.

Calls can be made by using
contact data which is transferred
from a registered cellular phone.
(



P.360)

Up to 5000 contacts (maximum
of 4 phone numbers, e-mail
addresses and addresses per
contact) can be registered in the
contact list.

1

Display the phone top
screen. (



P.343)

2

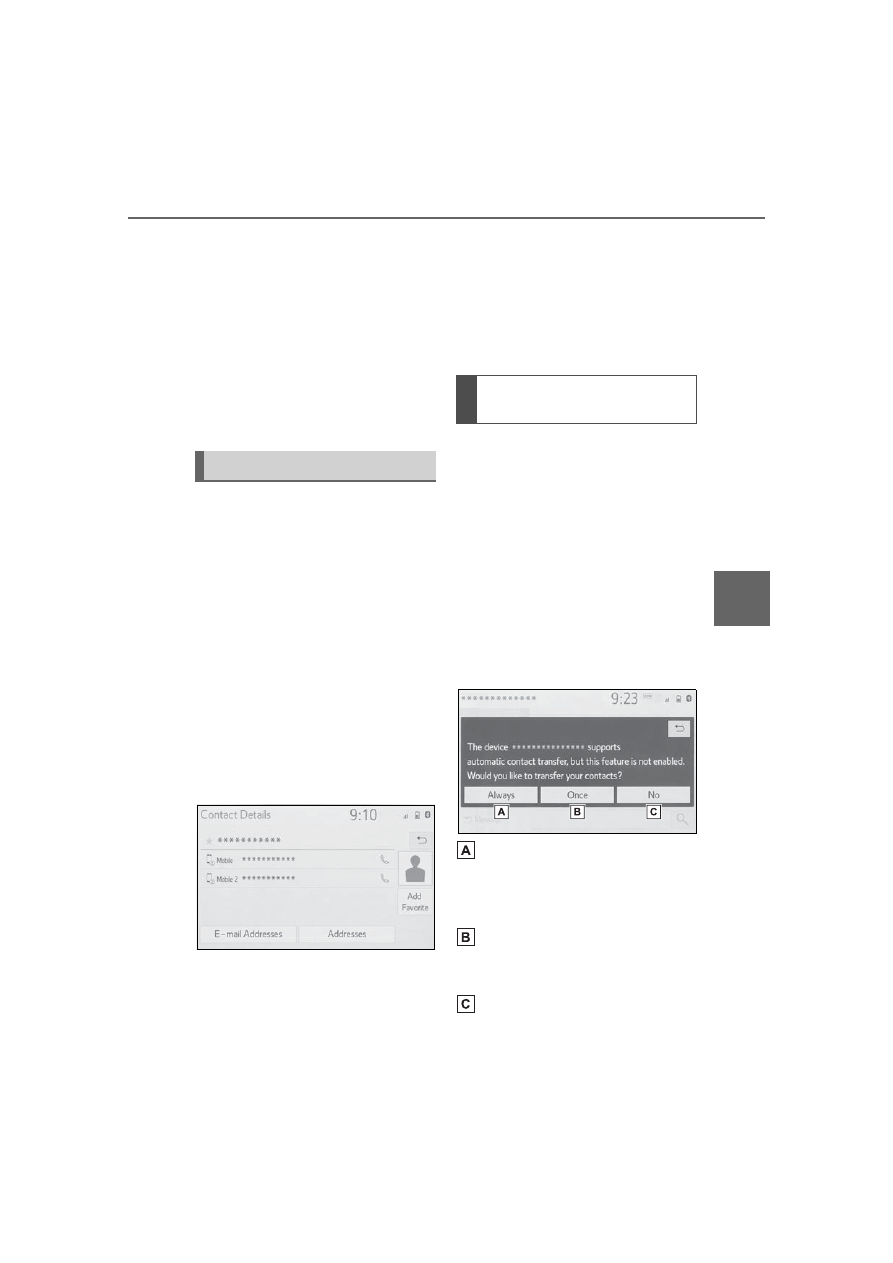

Select “Contacts” and select
the desired contact.

3

Select the desired number.

“Add Favorite”/“Remove Favorite”:

Select to register/remove the con-

tact in the favorites list. (



P.364,

365)
“E-mail Addresses”: Select to dis-

play all registered e-mail addresses

for the contact.
“Addresses”: Select to display all

registered addresses for the con-

tact.

4

Check that the dialing screen
is displayed.

■

For PBAP compatible Blue-
tooth

®

 phones when “Auto-

matic Transfer” is set to on
(



P.360)

Contacts are transferred auto-
matically.

■

For PBAP compatible Blue-
tooth

®

 phones when “Auto-

matic Transfer” is set to off
(



P.360)

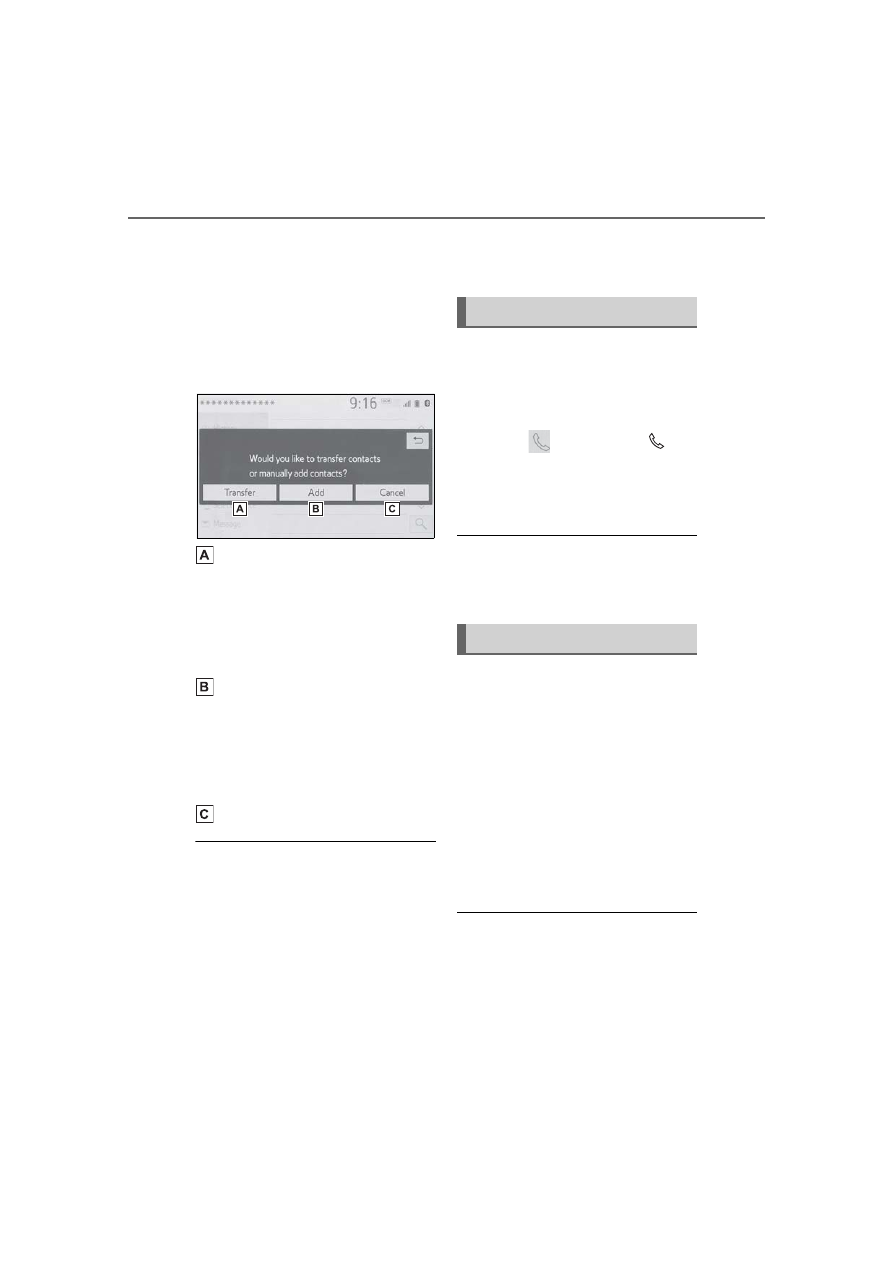

1

Select the desired item.

Select to always transfer all
the contacts from a con-
nected cellular phone auto-
matically.
Select to transfer all the con-
tacts from a connected cellu-
lar phone only once.
Select to cancel transferring.

By contacts list

When the contact list is
empty

350

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

2

Check that a confirmation
screen is displayed when the
operation is complete.

■

For PBAP incompatible but
OPP compatible Blue-
tooth

®

 phones

1

Select the desired item.

Select to transfer the con-
tacts from the connected cel-
lular phone.
Transfer the contact data to
the system using a Blue-
tooth

®

 phone.

Select to add a new contact
manually.
Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step

2

.

(



P.363)

Select to cancel transferring.

●

If your cellular phone is neither

PBAP nor OPP compatible, the

contacts cannot be transferred
using Bluetooth

®

. But the contacts

can be transferred from USB

device. (



P.363)

●

Depending on the type of Blue-
tooth

®

 phone:

• It may be necessary to perform

additional steps on the phone

when transferring contact data.

• The registered image in the con-

tact list may not transfer depend-
ing on the type of Bluetooth

®



phone connected.

1

Display the phone top
screen. (



P.343)

2

Select “Keypad” and enter
the phone number.

3

Select

 or press the



switch on the steering wheel.

4

Check that the dialing screen
is displayed.

Depending on the type of Blue-
tooth

®

 phone being connected, it

may be necessary to perform addi-

tional steps on the phone.

1

Display the home screen.
(



P.262)

2

Select the desired contact.

3

Check that the dialing screen
is displayed.

■

Registering a new contact

1

Select and hold the screen
button to add a contact.

2

Select the desired contact.

3

Select the desired number.

●

If there is no contact in the con-

tacts list, the contacts cannot be

registered at the home screen.

●

The contact cannot be registered

at the home screen while driving.

By keypad

By home screen

351

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

1

Select “Answer” or press the

 switch on the steering

wheel to talk on the phone.

“Decline”: Select to refuse to
receive the call.
To adjust the volume of a received
call: Turn the “POWER VOLUME”
knob, or use the volume control
switch on the steering wheel.

●

The contact image picture can be

displayed only when the vehicle is

not moving.

●

During international phone calls,

the other party’s name or number

may not be displayed correctly

depending on the type of Blue-
tooth

®

 phone you have.

●

The incoming call display mode

can be set. (



P.359)

●

The ringtone that has been set in

the sound settings screen can be

heard when there is an incoming

call. Depending on the type of

Bluetooth

®

 phone, both the sys-

tem and Bluetooth

®

 phone may

ring simultaneously when there is

an incoming call. (



P.358)

Receiving a call using

the Bluetooth

®



hands-free system

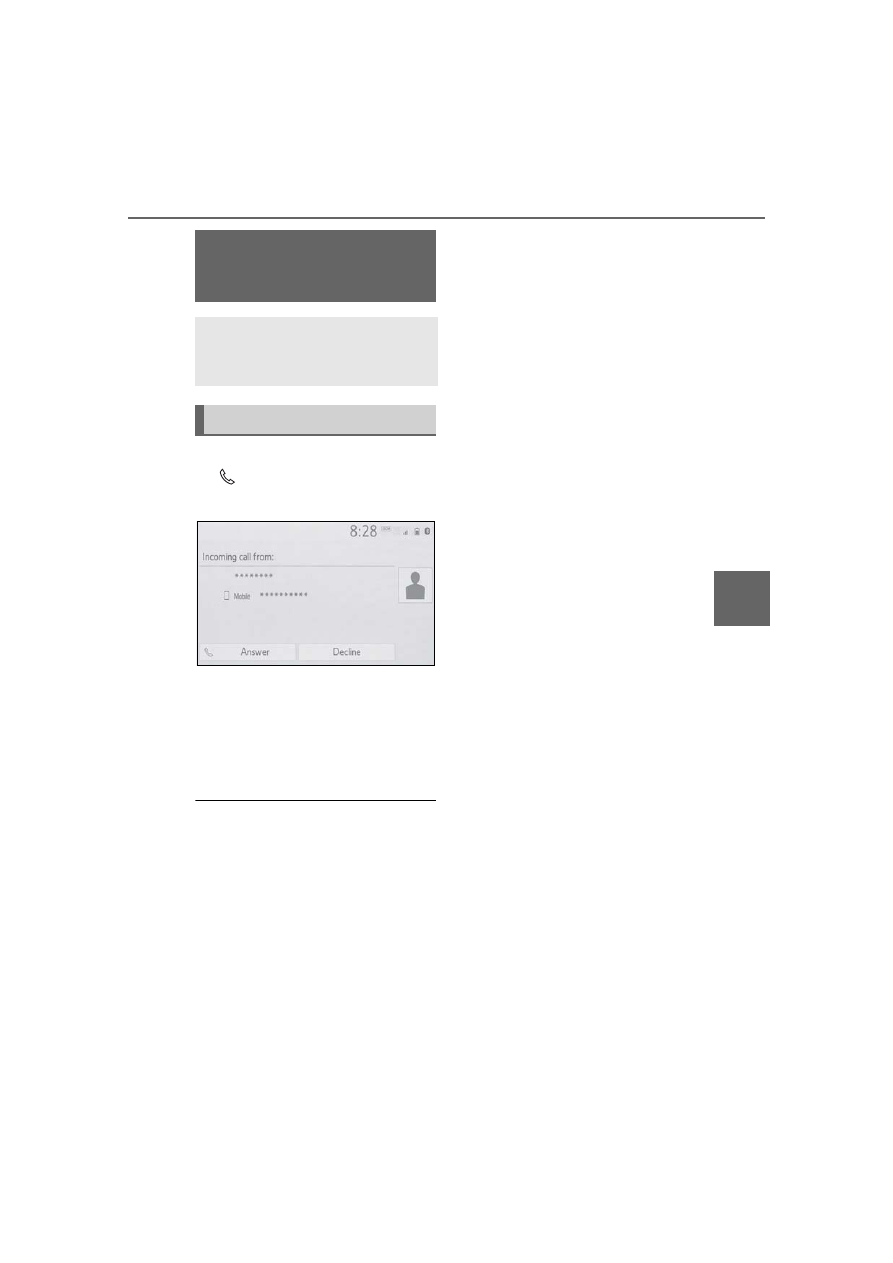

When a call is received, the
following screen is dis-
played with a sound.

Incoming calls

352

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

Select to display the keypad
to send tones. (



P.352)

Select to send tones. This
button only appears when a
number that contains a (w) is
dialed in hands-free mode.
(



P.352)

Select to adjust your voice
volume that the other party
hears from their speaker.
(



P.353)

Select to mute your voice to
the other party.
Select to change handset
modes between hands-free
and cellular phone.
Select to put a call on hold.
To cancel this function, select

“Activate”.
Select to hang up the phone.

●

Changing from hands-free call to

cellular phone call is not possible

while driving.

●

Only when the vehicle is not mov-

ing, the contact image can be dis-

played.

●

When cellular phone call is

changed to hands-free call, the

hands-free screen will be dis-

played and its functions can be

operated on the screen.

●

Changing between cellular phone

call and hands-free call can be

performed by operating the cellu-

lar phone directly.

●

Transferring methods and opera-

tions will be different depending

on the type of cellular phone you

have.

●

For the operation of the cellular

phone, see the manual that

comes with it.

■

By keypad

This operation cannot be per-
formed while driving.

1

Select “0-9”.

2

Enter the desired number.

■

By selecting “Release
Tones”

“Release Tones” appear when a
continuous tone signal (s) con-
taining a (w) is registered in the
contact list.
This operation can be per-
formed while driving.
Select “Release Tones”.

Talking on the Blue-

tooth

®

 hands-free sys-

tem

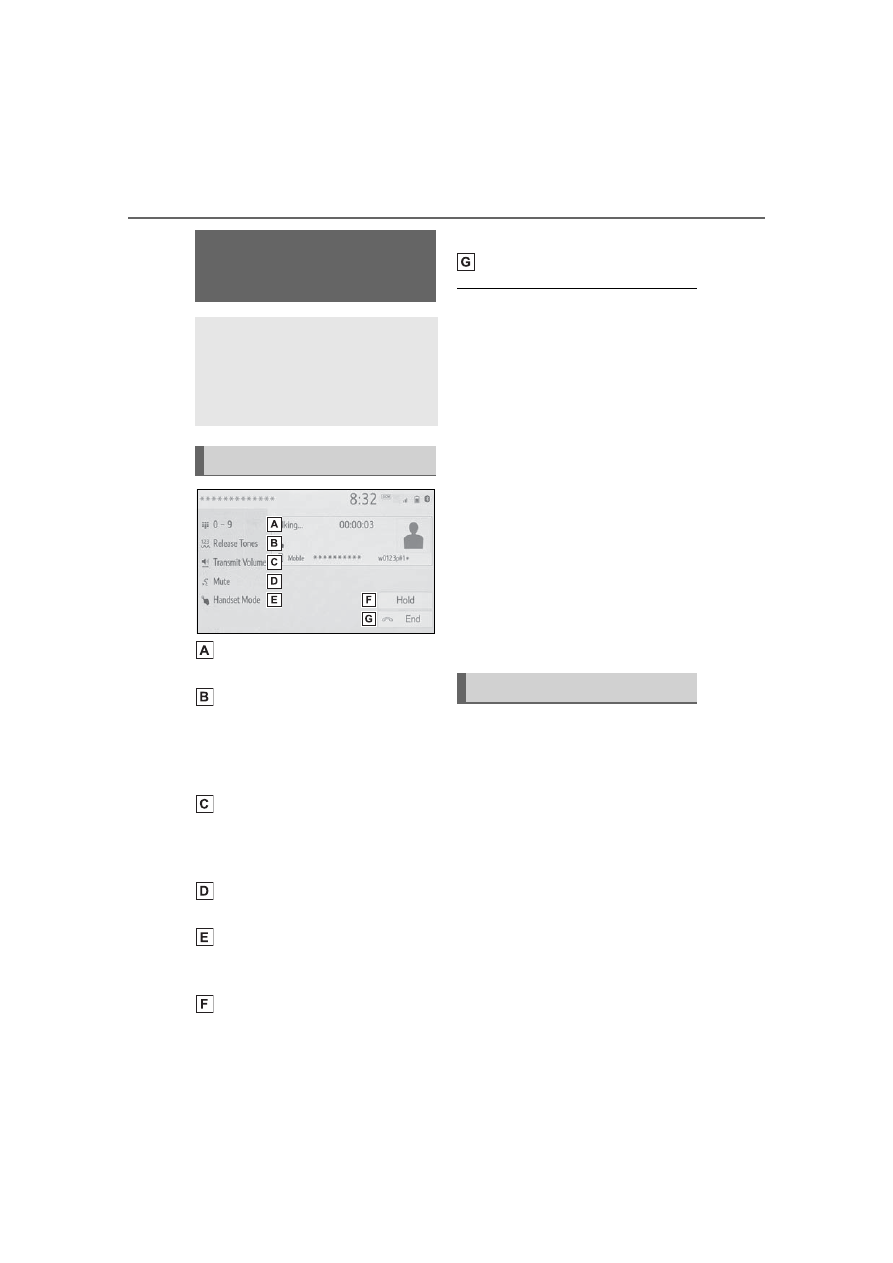

While talking on the phone,
the following screen is dis-
played. The operations out-
lined below can be
performed on this screen.

Call screen operation

Sending tones

353

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

●

A continuous tone signal is a char-

acter string that consists of num-

bers and the characters “p” or “w”.

(e.g. 056133w0123p#1)

●

When the “p” pause tone is used,

the tone data up until the next

pause tone will be automatically

sent after 2 seconds have

elapsed. When the “w” pause tone

is used, the tone data up until the

next pause tone will be automati-

cally sent after a user operation is

performed.

●

Release tones can be used when

automated operation of a phone

based service such as an answer-

ing machine or bank phone ser-

vice is desired. A phone number

with continuous tone signals can

be registered in the contact list.

●

Tone data after a “w” pause tone

can be operated by voice com-

mand during a call.

1

Select “Transmit Volume”.

2

Select the desired level for
the transmit volume.

3

Select

 to display previ-

ous screen.

●

The sound quality of the voice

heard from the other party’s

speaker may be negatively

impacted.

●

“Transmit Volume” is dimmed

when mute is on.



When there are no calls on
hold during a call: “Hold” is
displayed. When selected, the

current call is placed on hold.



When there is no current call,
but there is a call on hold:
“Activate” is displayed. When
selected, the system switches
to the call that was on hold.



When there is another call on
hold during a call: “Swap
Calls” is displayed. When
selected, the current call is
placed on hold, and the sys-
tem switches to the call that
was on hold.

This function may not be available

depending on the type of cellular

phone.

When a call is interrupted by a
third party while talking, the
incoming screen is displayed.

Select “Answer” or press the



switch on the steering wheel to
start talking with the other party.



To refuse to receive the call:
Select “Decline”.



Each time “Swap Calls” is
selected, the party who is on
hold will be switched.

This function may not be available
depending on the type of Bluetooth

®



phone.

Transmit volume setting

Switching calls while a
call is in progress

Incoming call waiting

354

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

1

Display the phone top
screen. (



P.343)

2

Select “Message”.

A confirmation message appears

when the “Automatic Message

Transfer” function is set to off

(



P.366), select “Yes”.

3

Check that the message
screen is displayed.

“Phone”: Select to change to phone

mode.



The account name is dis-
played on the left side of
screen.



Account names are the

names of the accounts that
exist on the currently con-
nected phone.



The following functions can
be used on message function:

• Receiving a message

(



P.354)

• Checking messages

(



P.355)

• Replying to a message (dicta-

tion reply) (



P.356)

• Replying to a message (quick

reply) (



P.356)

• Calling the message sender

(



P.357)

• Message settings (



P.366)

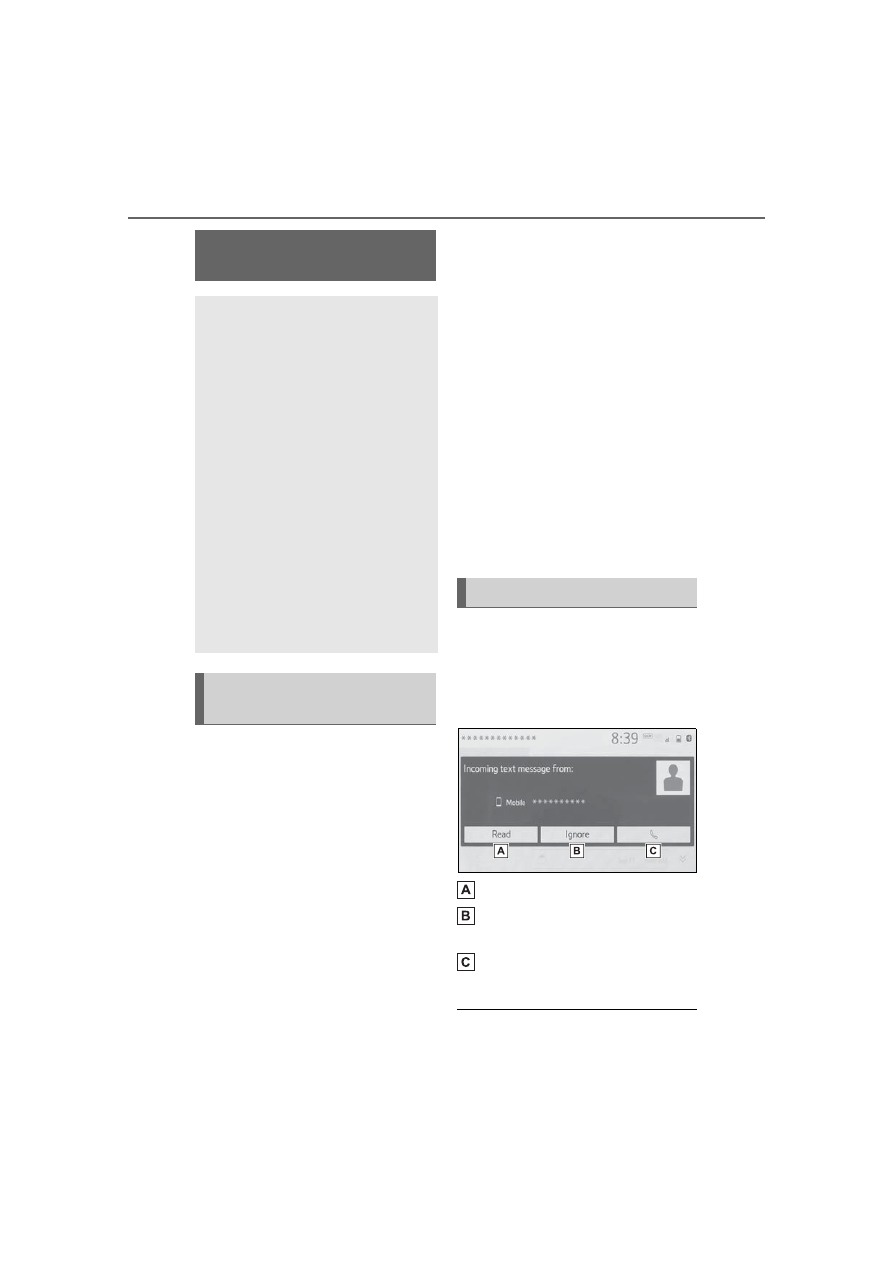

When an e-mail/SMS/MMS is
received, the incoming message
screen pops up with sound and
is ready to be operated on the
screen.

Select to check the message.
Select to not open the mes-
sage.
Select to call the message
sender.

●

Depending on the type of Blue-

Bluetooth

®

 phone

message function

Received messages can be
forwarded from the con-
nected Bluetooth

®

 phone,

enabling checking and
replying using the system.

Depending on the type of
Bluetooth

®

 phone con-

nected, received messages
may not be transferred to
the system.

If the phone does not sup-
port the message function,
this function cannot be
used. Even when the sup-
ported phone is used, reply
function may not be used.

Displaying the message
screen

Receiving a message

355

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

tooth

®

 phone used for receiving

messages, or its registration sta-

tus with the system, some infor-

mation may not be displayed.

●

The pop-up screen is separately

available for incoming e-mail and

SMS/MMS messages under the

following conditions:

E-mail:
• “Incoming E-mail Display” is set to

“Full Screen”. (



P.359)

• “E-mail Notification Pop-up” is set

to on. (



P.359)

SMS/MMS:
• “Incoming SMS/MMS Display” is

set to “Full Screen”. (



P.359)

• “SMS/MMS Notification Pop-up” is

set to on. (



P.359)

●

Depending on the type of Blue-
tooth

®

 phone being connected,

E-Mail function cannot be used via
Bluetooth

®

.

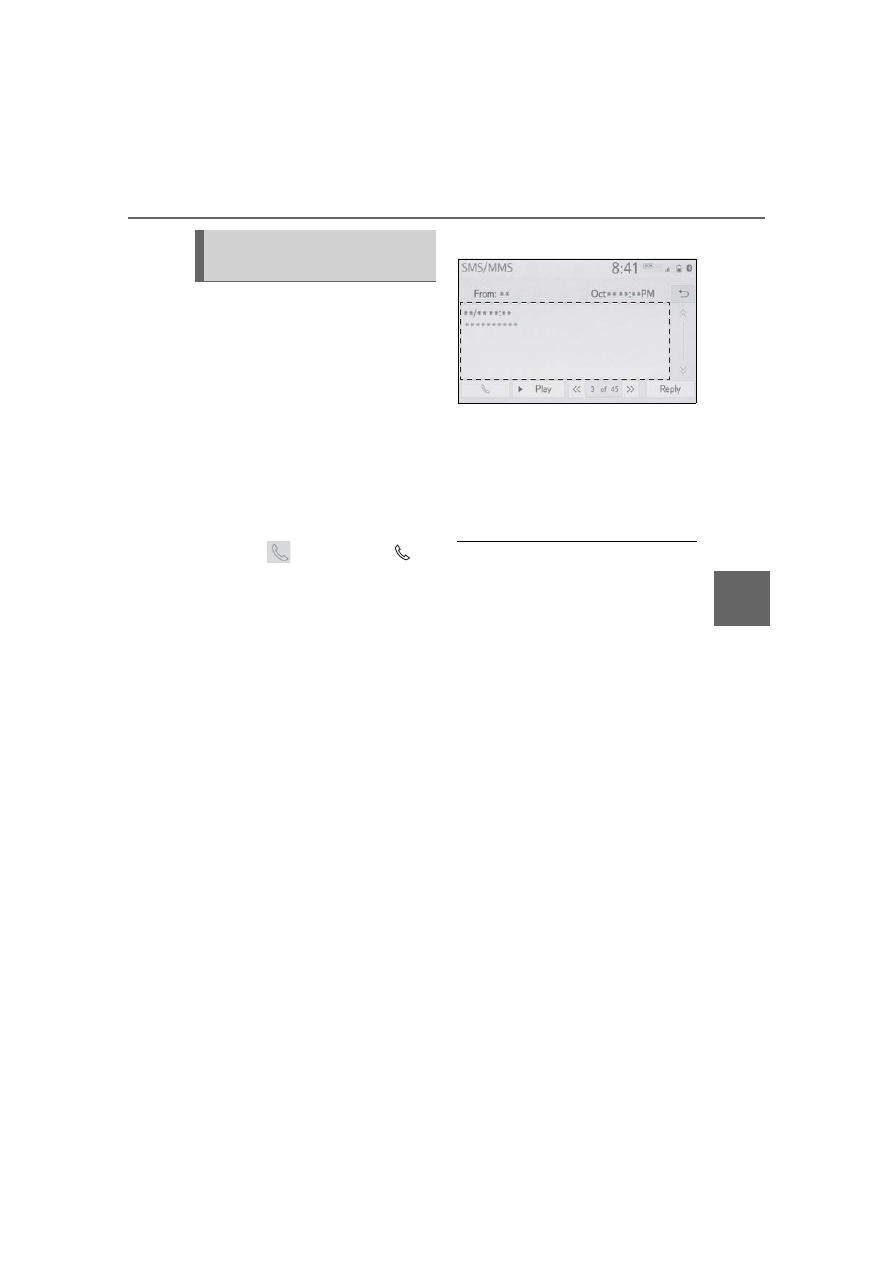

1

Display the message screen.
(



P.354)

2

Select a desired account
name.

3

Select the desired message
from the list.

4

Check that the message is
displayed.

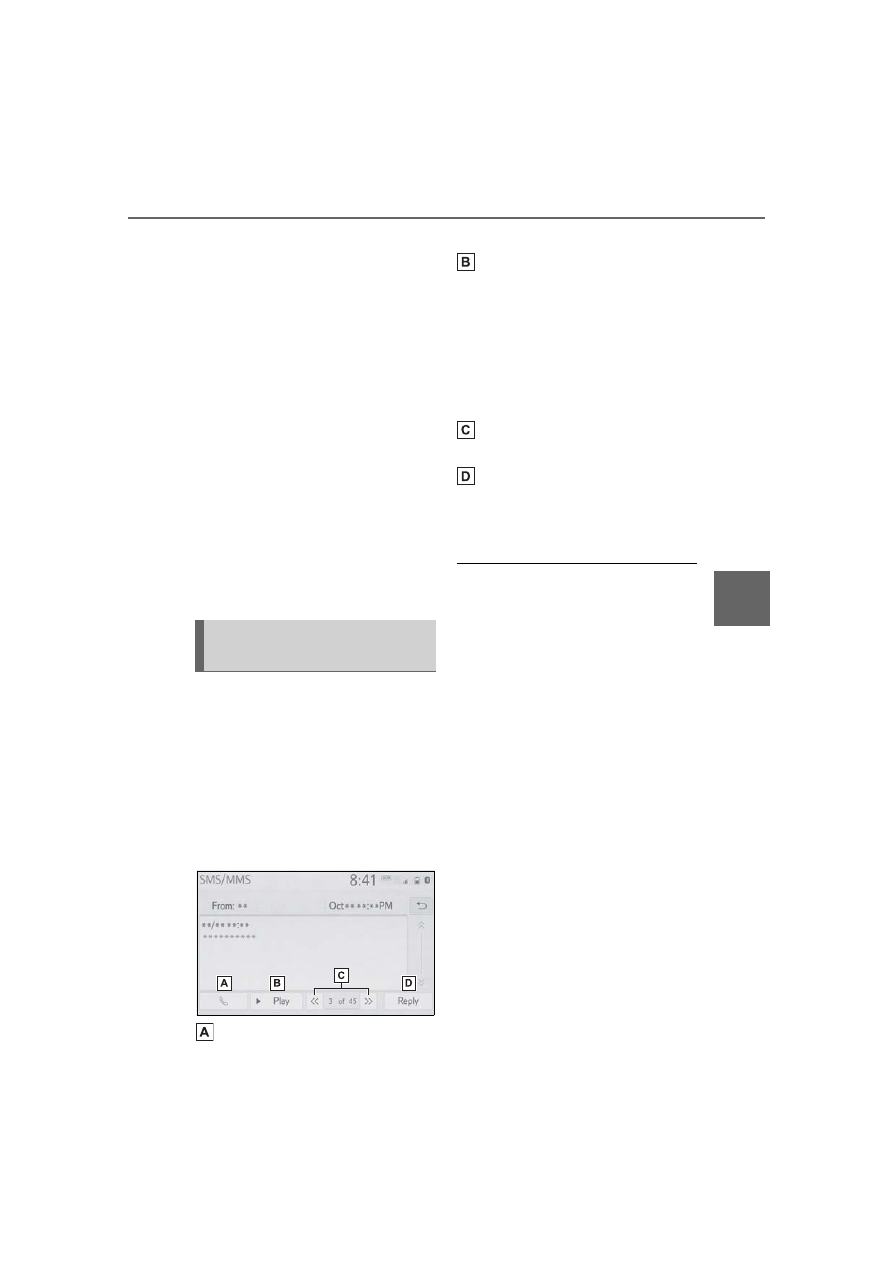

Select to call the message

sender.
Select to have messages
read out.
To cancel this function, select
“Stop”.
When “Automatic Message
Readout” is set to on, mes-
sages will be automatically
read out. (



P.366)

Select to display the previous
or next message.
This function can be chosen
the method to reply mes-
sage with “Dictation” or
“Quick Message”.

●

Reading a text message is not

available while driving.

●

Depending on the type of Blue-
tooth

®

 phone being connected,

this function cannot be used.

●

Depending on the type of Blue-
tooth

®

 phone being connected, it

may be necessary to perform

additional steps on the phone.

●

Messages are displayed in the

appropriate connected Blue-
tooth

®

 phone’s registered mail

address folder. Select the desired

folder to be displayed.

●

Only received messages on the
connected Bluetooth

®

 phone can

be displayed.

●

The text of the message is not dis-

played while driving.

●

Turn the “POWER VOLUME”

knob, or use the volume control

switch on the steering wheel to

adjust the message read out vol-

ume.

●

“Subject:” field is not shown on

SMS case.

●

E-mail only: Select “Mark Unread”

Checking received mes-
sages

356

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

or “Mark Read” to mark mail

unread or read on the message

screen.

This function is available when

“Update Message Read Status on

Phone” is set to on. (



P.366)

*

: If equipped

1

Display the message screen.
(



P.354)

2

Select the desired message
from the list.

3

Select “Reply”.

4

Select “Dictation”.

5

When the “Say Your Mes-
sage” screen is displayed,
speak message that you
want to send.

6

Select “Send” to send mes-
sage.

“Cancel”: Select to cancel sending

the message.
“Retry”: Select to retry speaking

message that you want to send.
While the message is being sent, a

sending message screen is dis-

played.

7

Check that a confirmation
screen is displayed when the
operation is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

15 messages have already

been stored.

1

Display the message screen.
(



P.354)

2

Select the desired message
from the list.

3

Select “Reply”.

4

Select “Quick Message”.

5

Select the desired message.

: Select to edit the message.

(



P.356)

6

Select “Send”.

“Cancel”: Select to cancel sending

the message.
While the message is being sent, a

sending message screen is dis-

played.

7

Check that a confirmation
screen is displayed when the
operation is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

Depending on the type of Blue-
tooth

®

 phone, reply function is not

available.

■

Editing quick reply mes-
sages

This operation cannot be per-
formed while driving.

1

Select

 corresponding to

the desired message to edit.

2

Select “OK” when editing is
completed.

To reset the edited quick reply mes-

sages, select “Default”.

Replying to a message
(dictation reply)

*

Replying to a message
(quick reply)

357

5-13. Phone operation (Hands-free system for cellular phones)

COROLLA HV_U

5

Audio

Calls can be made to an
e-mail/SMS/MMS message
sender’s phone number.
This operation can be per-
formed while driving.

■

Calling from
e-mail/SMS/MMS message
display

1

Display the message screen.
(



P.354)

2

Select the desired message.

3

Select

, or press the



switch on the steering wheel.

If there are 2 or more phone num-

bers, select the desired number.

4

Check that the dialing screen
is displayed.

■

Calling from a number
within a message

Calls can be made to a number
identified in a message’s text
area.
This operation cannot be per-
formed while driving.

1

Display the message screen.
(



P.354)

2

Select the desired message.

3

Select the text area.

Identified phone numbers con-

tained in the message are dis-

played in blue text.

4

Select the desired number.

5

Check that the dialing screen
is displayed.

A series of numbers may be recog-

nized as a phone number. Addition-

ally, some phone numbers may not

be recognized, such as those for

other countries.

■

Calling from the incoming
message screen

For detail, refer to “Receiving a
message”. (



P.354)

Calling the message
sender

358

5-14. Phone settings

COROLLA HV_U

5-14.Phone settings

1

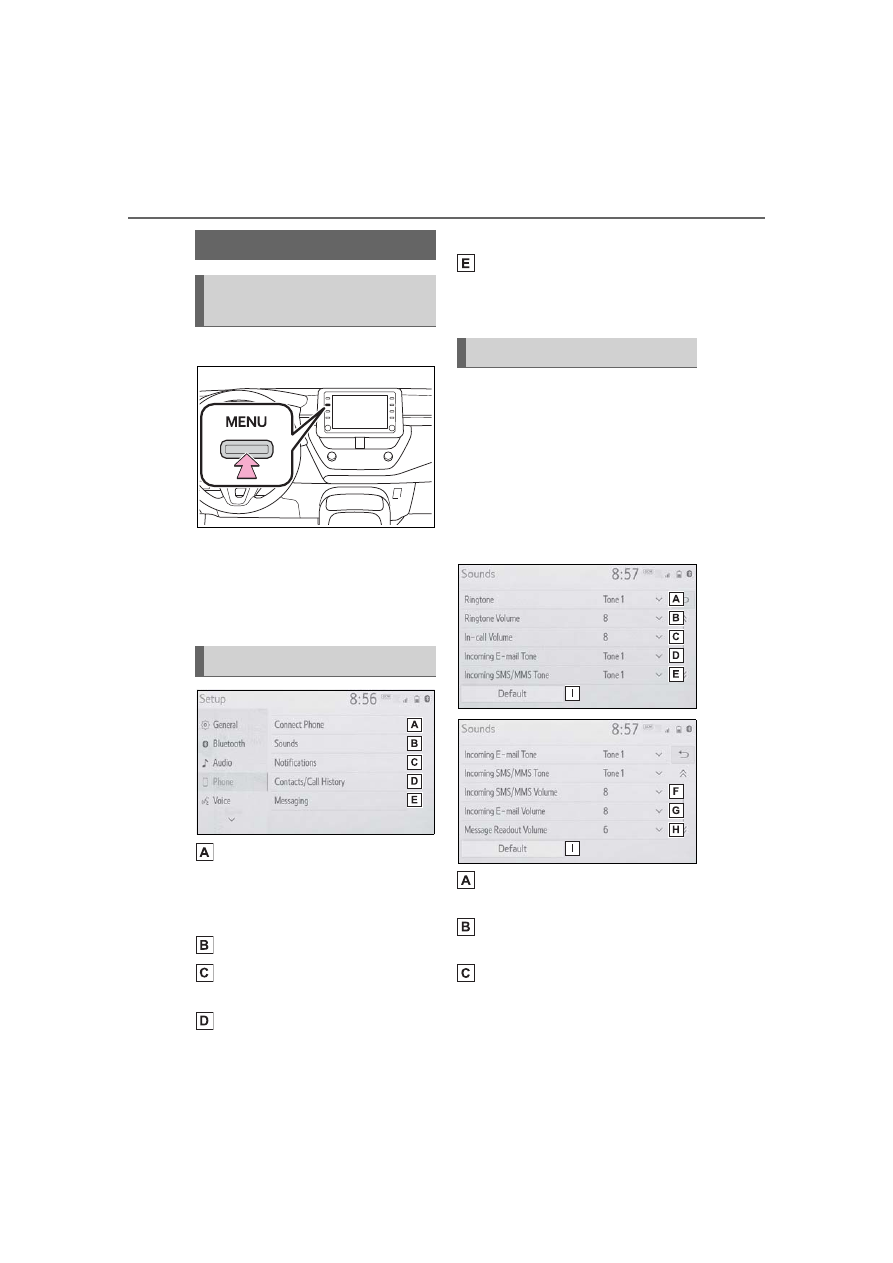

Press the “MENU” button.

2

Select “Setup”.

3

Select “Phone”.

4

Select the desired item to be
set.

Connecting a Bluetooth

®



device and editing the Blue-
tooth

®

 device information

(



P.272, 276)

Sound settings

*

 (



P.358)

Notification settings

*



(



P.359)

Contact/call history settings

*



(



P.360)

Message settings

*

 (



P.366)

*

: This operation cannot be per-

formed while driving.

The call and ringtone volume
can be adjusted. A ringtone can
be selected.

1

Display the phone settings
screen. (



P.358)

2

Select “Sounds”.

3

Select the desired item to be
set.

Select to set the desired ring-
tone.
Select “-” or “+” to adjust the
ringtone volume.
Select “-” or “+” to adjust the
default volume of the other
party’s voice.

Setup

Displaying the phone set-
tings screen

Phone settings screen

Sounds settings screen

359

5-14. Phone settings

COROLLA HV_U

5

Audio

Select to set the desired
incoming e-mail tone.
Select to set the desired
incoming SMS/MMS tone.
Select “-” or “+” to adjust the
incoming SMS/MMS tone
volume.
Select “-” or “+” to adjust the
incoming e-mail tone volume.
Select “-” or “+” to adjust the
message readout volume.
Select to reset all setup
items.

Depending on the type of Blue-
tooth

®

 phone, certain functions may

not be available.

1

Display the phone settings
screen. (



P.358)

2

Select “Notifications”.

3

Select the desired item to be
set.

Select to change the incom-
ing call display.

“Full Screen”: When a call is
received, the incoming call screen
is displayed and can be operated
on the screen.
“Drop-down”: A message is dis-
played at the top of the screen.

Select to set the SMS/MMS
notification pop-up on/off.
Select to change the incom-
ing SMS/MMS display.
“Full Screen”: When an
SMS/MMS message is
received, the incoming
SMS/MMS display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
SMS/MMS message is
received, a message is dis-
played at the top of the

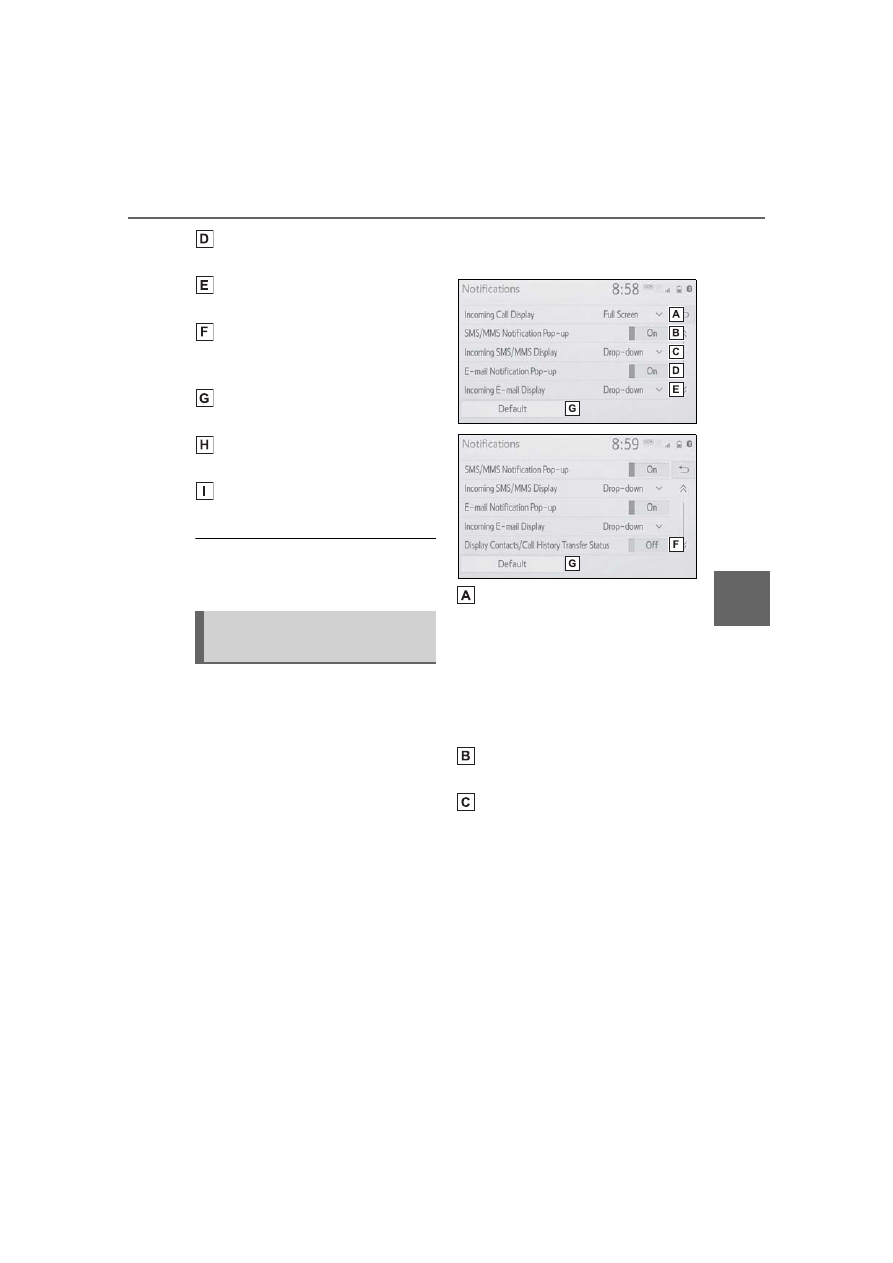

Notifications settings
screen

360

5-14. Phone settings

COROLLA HV_U

screen.
Select to set the e-mail notifi-
cation pop-up on/off.
Select to change the incom-
ing e-mail display.
“Full Screen”: When an
e-mail is received, the incom-
ing e-mail display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
e-mail is received, a mes-
sage is displayed at the top
of the screen.
Select to set display of the
contact/history transfer com-
pletion message on/off.
Select to reset all setup
items.

Depending on the type of Blue-
tooth

®

 phone, these functions may

not be available.

Contacts can be transferred
from a Bluetooth

®

 phone to this

system. Contacts and favorites
can be added, edited and
deleted. Also, the call history
can be deleted.

1

Display the phone settings
screen. (



P.358)

2

Select “Contacts/Call His-
tory”.

3

Select the desired item to be
set.

For PBAP compatible Blue-
tooth

®

 phones: Select to

change the contact/history
transfer settings. (



P.361)

Select to update contacts
from the connected device.
(



P.361)

Select to sort contacts by the
first name or last name field.
Select to add contacts to the
favorites list. (



P.364)

Select to delete contacts
from the favorites list.
(



P.364)

Select to clear the call his-
tory.

*

Select to add new contacts to
the contact list.

*

 (



P.363)

Select to edit contacts in the

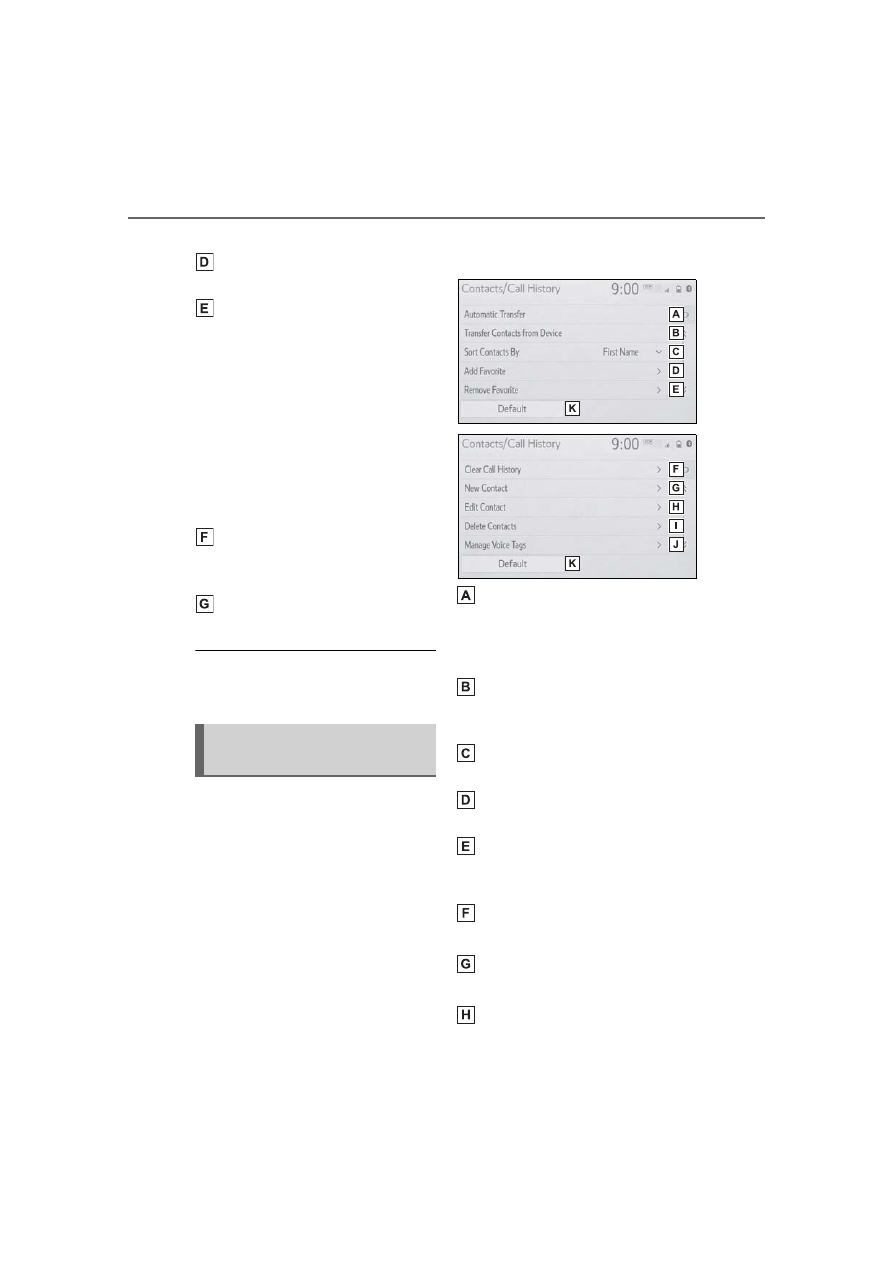

Contacts/Call history set-
tings screen

361

5-14. Phone settings

COROLLA HV_U

5

Audio

contact list.

*

 (



P.364)

Select to delete contacts
from the contact list.

*



(



P.364)

Select to set the voice tags.
(



P.365)

Select to reset all setup
items.

*

: For PBAP compatible Bluetooth

®



phones, this function is available
when “Automatic Transfer” is set
to off. (



P.361)

●

Depending on the type of Blue-
tooth

®

 phone, certain functions

may not be available.

●

Contact data is managed inde-

pendently for every registered

phone. When one phone is con-

nected, another phone’s regis-

tered data cannot be read.

The automatic contact/history
function is available for PBAP
compatible Bluetooth

®

 phones

only.

1

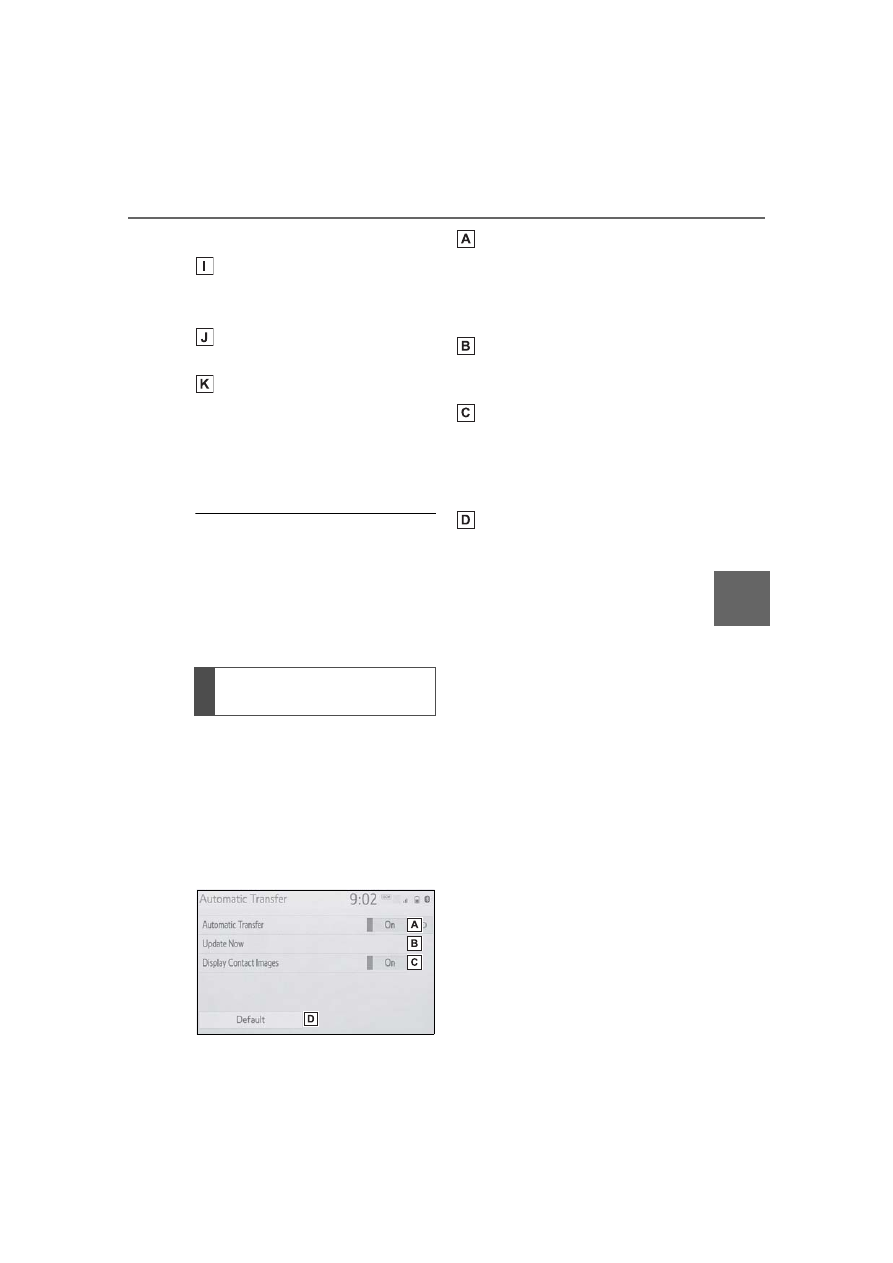

Select “Automatic Transfer”.

2

Select the desired item to be
set.

Select to set automatic con-
tact/history transfer on/off.
When set to on, the phone’s
contact data and history are
automatically transferred.
Select to update contacts
from the connected phone.
(



P.361)

Select to set the transferred
contact image display on/off.
Only when the vehicle is not
moving, the contact image
can be displayed.
Select to reset all setup
items.

■

Updating contacts from
phone

1

Select “Update Now”.

Contacts are transferred automati-

cally.

2

Check that a confirmation
screen is displayed when the
operation is complete.



This operation may be unnec-
essary depending on the type
of Bluetooth

®

 phone.



If another Bluetooth

®

 device

is connected when transfer-
ring contact data, depending
on the phone, the connected
Bluetooth

®

 device may need

to be disconnected.



Depending on the type of
Bluetooth

®

 phone being con-

nected, it may be necessary
to perform additional steps on
the phone.

Setting automatic con-
tact/history transfer

362

5-14. Phone settings

COROLLA HV_U

■

Updating the contacts in a
different way (from the call
history screen)

*

1

Display the phone top
screen. (



P.343)

2

Select “History” and select a
contact not yet registered in
the contact list.

3

Select “Update Contact”.

4

Select the desired contact.

5

Select a phone type for the
phone number.

*

: For PBAP compatible Bluetooth

®



phones, this function is available
when “Automatic Transfer” is set
to off. (



P.360)

When an Android Auto connec-
tion is established, this function
will be unavailable.

*

*

: This function is not made avail-

able in some countries or areas.



When the contact is not regis-
tered

1

Select “Transfer Contacts
from Device”.

2

Select “From Phone (Blue-
tooth)”.

3

Transfer the contact data to
the system using a Blue-
tooth

®

 phone.



This operation may be unnec-
essary depending on the type
of Bluetooth

®

 phone.



To cancel this function, select
“Cancel”.

4

Check that a confirmation
screen is displayed when the
operation is complete.



When the contact is regis-
tered

1

Select “Transfer Contacts
from Device”.

2

Select “From Phone (Blue-
tooth)”.

3

Select “Replace Contacts” or
“Add Contact”.

“Replace Contacts”: Select to trans-

fer the contact from the connected

cellular phone and replace the cur-

rent one.
“Add Contact”: Select to transfer

the desired contact data from the

connected cellular phone to add to

the current one.

4

Transfer the contact data to
the system using a Blue-
tooth

®

 phone.



This operation may be unnec-
essary depending on the type
of Bluetooth

®

 phone.



To cancel this function, select
“Cancel”.

5

Check that a confirmation
screen is displayed when the
operation is complete.

Transfer contacts from
device

From phone (OPP compati-
ble Bluetooth

®

 phones only)

363

5-14. Phone settings

COROLLA HV_U

5

Audio

Backed-up contact data (vCard
formatted) can be transferred
from USB device or Bluetooth

®



phone to this system.

1

Connect a USB device.
(



P.300)

2

Select “Transfer Contacts
from Device”.

3

Select “From USB”.

4

Select “USB 1” or “USB 2”
when the multiple USB
devices are connected. If a
USB device is connected,
skip this procedure.

5

Select “Replace Contacts” or
“Add Contact”. If the contact
is already registered, skip
this procedure.

“Replace Contacts”: Select to trans-

fer the contact from the connected
USB device or Bluetooth

®

 phone

and replace the current one.
“Add Contact”: Select to transfer

the desired contact data from the

connected USB device or Blue-
tooth

®

 phone to add to the current

one.

6

Select a desired file from
vCard file list.

7

Check that a confirmation
screen is displayed when the
operation is complete.

●

Depending on the type of Blue-
tooth

®

 phone used and number of

files, it may take time to display

vCard file lists and download con-

tacts.

●

Downloading may not complete

correctly in the following cases:

• If the power switch is turned off

during downloading.

• If the USB device or Bluetooth

®



phone is removed before down-

loading is complete.

New contact data can be regis-
tered.
Up to 4 numbers per person can
be registered. For PBAP com-
patible Bluetooth

®

 phones, this

function is available when “Auto-
matic Transfer” is set to off.
(



P.360)

1

Select “New Contact”.

2

Enter the name and select
“OK”.

3

Enter the phone number and
select “OK”.

4

Select the phone type for the
phone number.

5

To add another number to
this contact, select “Yes”.

■

Registering a new contact
in a different way (from the
call history screen)

1

Display the phone top
screen. (



P.343)

2

Select “History” and select a
contact not yet registered in
the contact list.

3

Select “Add to Contacts”.

4

Follow the steps in “Register-
ing a new contact to the con-

From USB device

Registering a new contact
to the contacts list

364

5-14. Phone settings

COROLLA HV_U

tacts list” from step

2

.

(



P.363)

For PBAP compatible Blue-
tooth

®

 phones, this function is

available when “Automatic
Transfer” is set to off. (



P.360)

1

Select “Edit Contact”.

2

Select the desired contact.

3

Select

 next to the name

or desired number.

4

Enter the name or the phone
number and select “OK”.

For PBAP compatible Blue-
tooth

®

 phones, this function is

available when “Automatic
Transfer” is set to off. (



P.360)

1

Select “Delete Contacts”.

2

Select the desired contact
and select “Delete”.

3

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and

deleted at the same time.

●

When a Bluetooth

®

 phone is

deleted, the contact data will be

deleted at the same time.

Up to 15 contacts (maximum of
4 numbers per contact) can be
registered in the favorites list.

■

Registering the contacts in
the favorites list

1

Select “Add Favorite”.

2

Select the desired contact to
add to the favorites list.

Dimmed contacts are already

stored as a favorite.

3

Check that a confirmation
screen is displayed when the
operation is complete.



When 15 contacts have
already been registered to the
favorites list

1

When 15 contacts have
already been registered to
the favorites list, a registered
contact needs to be replaced.
Select “Yes” when the confir-
mation screen appears to
replace a contact.

2

Select the contact to be
replaced.

3

Check that a confirmation
screen is displayed when the
operation is complete.

■

Registering contacts in the
favorites list in a different
way (from the contact
details screen)

1

Display the phone top
screen. (



P.343)

2

Select “Contacts” and select
the desired contact.

3

Select “Add Favorite”.

4

Check that a confirmation
screen is displayed when the
operation is complete.

Editing the contact data

Deleting the contact data

Favorites list setting

365

5-14. Phone settings

COROLLA HV_U

5

Audio

■

Deleting the contacts in the
favorites list

1

Select “Remove Favorite”.

2

Select the desired contacts
and select “Remove”.

3

Select “Yes” when the confir-
mation screen appears.

4

Check that a confirmation
screen is displayed when the
operation is complete.

■

Deleting contacts in the
favorites list in a different
way (from the contact
details screen)

1

Display the phone top
screen. (



P.343)

2

Select “Favorites” or “Con-
tacts” and select the desired
contact to delete.

3

Select “Remove Favorite”.

4

Select “Yes” when the confir-
mation screen appears.

5

Check that a confirmation
screen is displayed when the
operation is complete.

Calls can be made by saying the
voice tag of a registered contact
in the contact list. (



P.334)

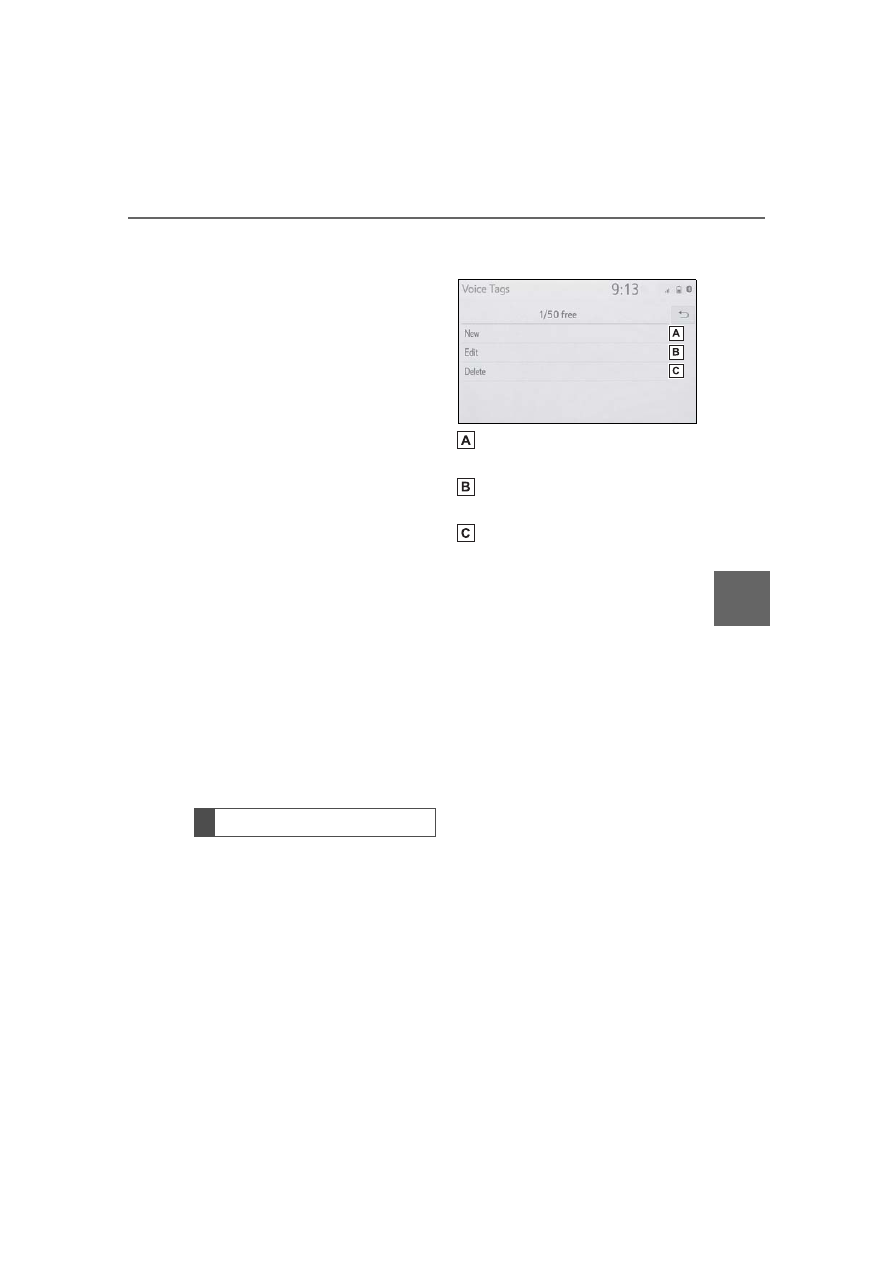

1

Select “Manage Voice Tags”.

2

Select the desired item to be
set.

Select to register a new voice
tag. (



P.365)

Select to edit a voice tag.
(



P.365)

Select to delete a voice tag.
(



P.366)

■

Registering a voice tag

Up to 50 voice tags can be reg-
istered.

1

Select “New”.

2

Select the desired contact to
register a voice tag for.

3

Select “REC” and record a
voice tag.

When recording a voice tag, do so

in a quiet area.
“Play”: Select to play the voice tag.

4

Select “OK” when voice tag
registration is complete.

■

Editing a voice tag

1

Select “Edit”.

2

Select the desired contact to
edit.

3

Follow the steps in “Register-
ing a voice tag” from step

3

.

(



P.365)

Setting voice tags

366

5-14. Phone settings

COROLLA HV_U

■

Deleting the voice tag

1

Select “Delete”.

2

Select the desired contact
and select “Delete”.

3

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and

deleted at the same time.

●

Voice tags are deleted when the

set language of the system is

changed. (



P.291)

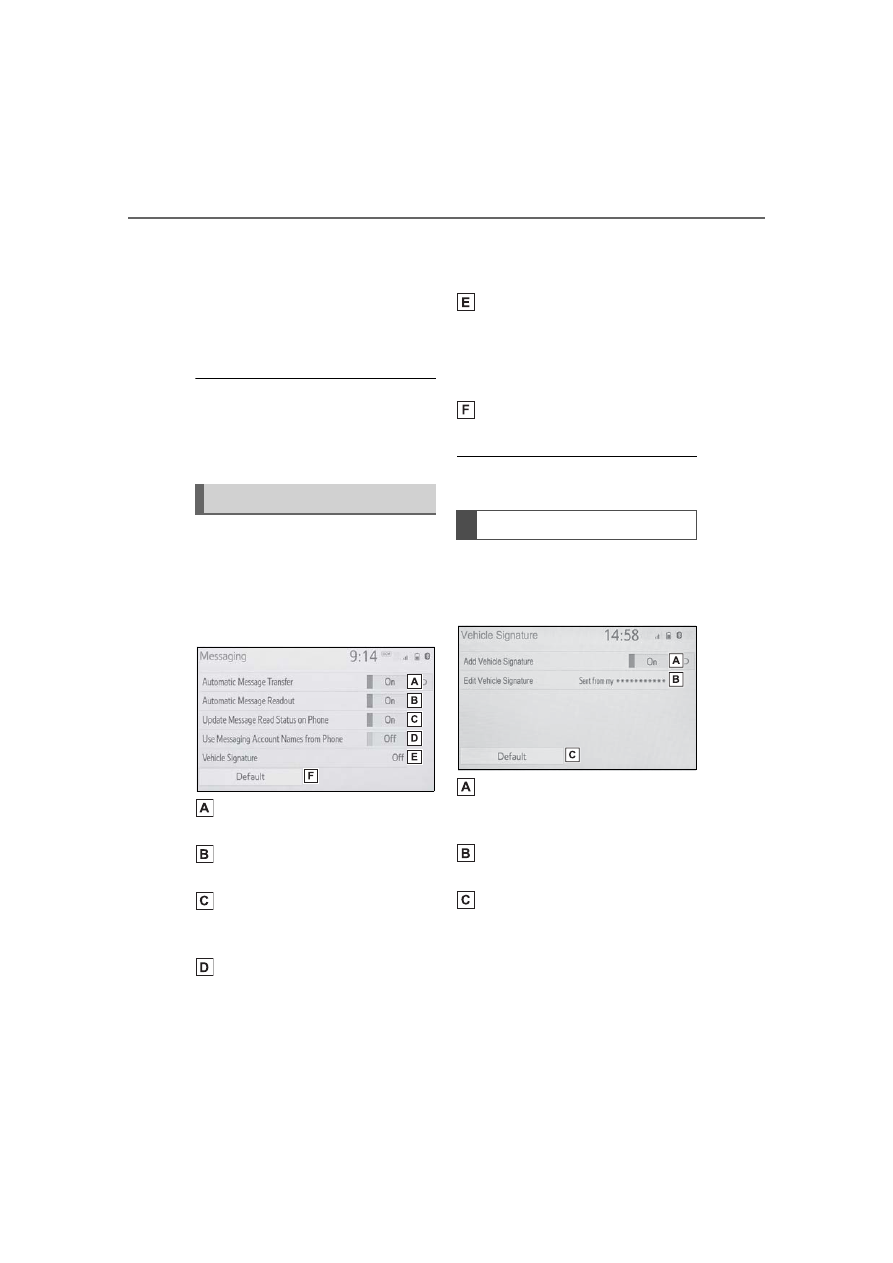

1

Display the phone settings
screen. (



P.358)

2

Select “Messaging”.

3

Select the desired item to be
set.

Select to set automatic mes-
sage transfer on/off.
Select to set automatic mes-
sage readout on/off.
Select to set updating mes-
sage read status on phone
on/off.
Select to set display of mes-
saging account names on the
message screen on/off.
When set to on, messaging

account names used on the
cellular phone will be dis-
played.
Select to set adding the vehi-
cle signature to outgoing
messages on/off.
The vehicle signature can be
edited. (



P.366)

Select to reset all setup
items.

Depending on the phone, these

functions may not be available.

1

Select “Vehicle Signature”.

2

Select the desired item to be
set.

Select to set adding the vehi-
cle signature to outgoing
messages on/off.
Select to edit the vehicle sig-
nature. (



P.366)

Select to reset all setup
items.

■

Editing vehicle signature

1

Select “Edit Vehicle Signa-
ture”.

Message settings screen

Vehicle signature settings

367

5-14. Phone settings

COROLLA HV_U

5

Audio

2

Enter desired signature with
using keyboard.

3

Select “OK”.

4

Select “OK” on the confirma-
tion screen, or select “Edit
Again” when it needs to
amend.

368

5-15. What to do if... (Bluetooth

®

)

COROLLA HV_U

5-15.What to do if... (Bluetooth®)

■

When using the hands-free
system with a Bluetooth

®



device

The hands-free system or Blue-
tooth

®

 device does not work.

■

When registering/connect-
ing a cellular phone

A cellular phone cannot be reg-
istered.

Troubleshooting

If there is a problem with the
hands-free system or a
Bluetooth

®

 device, first

check the table below.

Troubleshooting

Likely cause

Solution

The connected
device may not
be a compatible
Bluetooth

®

 cellu-

lar phone.

For a list of spe-
cific devices
which operation
has been con-
firmed on this
system, check
with your Toyota
dealer or the fol-
lowing website:
https://www.
toyota.com/
audio-
multimedia in the
United States,
https://www.
toyota.ca/
connected in
Canada, and
http://www.
toyotapr.com/
audio-
multimedia in
Puerto Rico

The Bluetooth

®



version of the
connected cellu-
lar phone may
be older than the
specified ver-
sion.

Use a cellular
phone with Blue-
tooth

®

 version

2.0 or higher
(recommended:
Ver. 4.1 +EDR or
higher).
(



P.271)

369

5-15. What to do if... (Bluetooth

®

)

COROLLA HV_U

5

Audio

A Bluetooth

®

 connection can-

not be made.

■

When making/receiving a
call

A call cannot be made/received.

■

When using the phonebook

Phonebook data cannot be
transferred manually/automati-
cally.

Likely cause

Solution

An incorrect
passcode was
entered on the
cellular phone.

Enter the correct
passcode on the
cellular phone.

The registration
operation has
not been com-
pleted on the cel-
lular phone side.

Complete the
registration oper-
ation on the cel-
lular phone
(approve regis-
tration on the
phone).

Old registration
information
remains on
either this sys-
tem or the cellu-
lar phone.

Delete the exist-
ing registration
information from
both this system
and the cellular
phone, then reg-
ister the cellular
phone you wish
to connect to this
system.
(



P.275)

Likely cause

Solution

Another Blue-
tooth

®

 device is

already con-
nected.

Manually con-
nect the cellular
phone you wish
to use to this
system.
(



P.272)

Bluetooth

®

 func-

tion is not
enabled on the
cellular phone.

Enable the Blue-
tooth

®

 function

on the cellular
phone.

Automatic Blue-

tooth

®

 connec-

tion on this

system is set to

off.

Set automatic
Bluetooth

®

 con-

nection on this
system to on
when the power
switch is in ACC
or ON. (



P.277)

Preferred device
settings function
on this system is
set to on.

Set preferred
device settings
function on this
system to off.
(



P.278)

Set the desired
cellular phone to
the highest auto-
matic connec-
tion priority.
(



P.278)

Likely cause

Solution

Your vehicle is in
a

 area.

Move to where

 no longer

appears on the
display.

Likely cause

Solution

370

5-15. What to do if... (Bluetooth

®

)

COROLLA HV_U

Phonebook data cannot be
edited.

■

When using the Bluetooth

®



message function

Messages cannot be viewed.

New message notifications are
not displayed.

Likely cause

Solution

The profile ver-
sion of the con-
nected cellular
phone may not
be compatible
with transferring
phonebook data.

For a list of spe-
cific devices
which operation
has been con-
firmed on this
system, check
with your Toyota
dealer or the fol-
lowing website:
https://www.
toyota.com/
audio-
multimedia in the
United States,
https://www.
toyota.ca/
connected in
Canada, and
http://www.
toyotapr.com/
audio-
multimedia in
Puerto Rico

Automatic con-
tact transfer
function on this
system is set to
off.

Set automatic
contact transfer
function on this
system to on.
(



P.361)

Passcode has
not been entered
on the cellular
phone.

Enter the pass-
code on the cel-
lular phone if
requested
(default pass-
code: 1234).

Transfer opera-
tion on the cellu-
lar phone has
not completed.

Complete trans-
fer operation on
the cellular
phone (approve
transfer opera-
tion on the
phone).

Likely cause

Solution

Automatic con-
tact transfer
function on this
system is set to
on.

Set automatic
contact transfer
function on this
system to off.
(



P.361)

Likely cause

Solution

Message trans-
fer is not enabled
on the cellular
phone.

Enable mes-
sage transfer on
the cellular
phone (approve
message trans-
fer on the
phone).

Automatic trans-
fer function on
this system is set
to off.

Set automatic
transfer function
on this system to
on. (



P.361)

Likely cause

Solution

Notification of
SMS/MMS/E-ma
il reception on
this system is set
to off.

Set notification of
SMS/MMS/E-ma
il reception on
this system to
on. (



P.359)

Automatic mes-
sage transfer
function is not
enabled on the
cellular phone.

Enable auto-
matic transfer
function on the
cellular phone.

371

5-15. What to do if... (Bluetooth

®

)

COROLLA HV_U

5

Audio

■

In other situations

The Bluetooth

®

 connection sta-

tus is displayed at the top of the
screen each time the power
switch is in ACC or ON.

Even though all conceivable
measures have been taken, the
symptom status does not
change.

For details, refer to the owner’s

manual that came with the cellular

phone.

Likely cause

Solution

Connection con-
firmation display
on this system is
set to on.

To turn off the
display, set con-
nection confir-
mation display
on this system to
off. (



P.278)

Likely cause

Solution

The cellular
phone is not
close enough to
this system.

Bring the cellu-
lar phone closer
to this system.

Radio interfer-
ence has
occurred.

Turn off Wi-Fi

®



devices or other
devices that may
emit radio
waves.

The cellular
phone is the
most likely cause
of the symptom.

Turn the cellular
phone off,
remove and rein-
stall the battery
pack, and then
restart the cellu-
lar phone.

Enable the cellu-
lar phone’s Blue-
tooth

®



connection.

Stop the cellular
phone’s security
software and
close all applica-
tions.

Before using an
application
installed on the
cellular phone,
carefully check
its source and
how its opera-
tion might affect
this system.

Likely cause

Solution

372

5-16. Connected Services Overview

COROLLA HV_U

5-16.Connected Services Overview



Audio Plus

Owners of this system should
refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

●

Each function is available in the

following areas:

• Toyota apps is available in the

contiguous United States, Wash-

ington D.C., Alaska, Hawaii,

Puerto Rico and Canada.

• Toyota apps is not available in the

United States Virgin Islands.

• Wi-Fi

®

 Hotspot is available in the

contiguous United States, Wash-

ington D.C.,Alaska and Hawaii.

• Wi-Fi

®

 Hotspot is not available in

Puerto Rico, Canada, and in the

United States Virgin Islands.

• Safety Connect features include:

Automatic Collision Notification,

Emergency Assistance, S.O.S,

Stolen Vehicle Location (available

in the contiguous United States,

Washington D.C., Hawaii, Alaska,

Puerto Rico and Canada) and

Enhanced Roadside Assistance

(available in the contiguous

United States, Washington D.C.,

Alaska, Puerto Rico and Canada).

• Safety Connect is not available in

the United States Virgin Islands.

• Service Connect is available in the

contiguous United States, Wash-

ington D.C., Alaska, Hawaii, the

United States Virgin Islands,

Puerto Rico and Canada.

●

Connected services functionality

is dependent upon network recep-

tion level and signal strength.



The functions included are
classified into the following
four types.

• Type A: Function achieved by

using a smart phone or an
embedded cellular device in the
vehicle (DCM: Data Communica-
tion Module) and the system

• Type B: Function achieved by

using DCM and the system

• Type C: Function achieved by

using DCM

• Type D: Function achieved by

using DCM and a smartphone

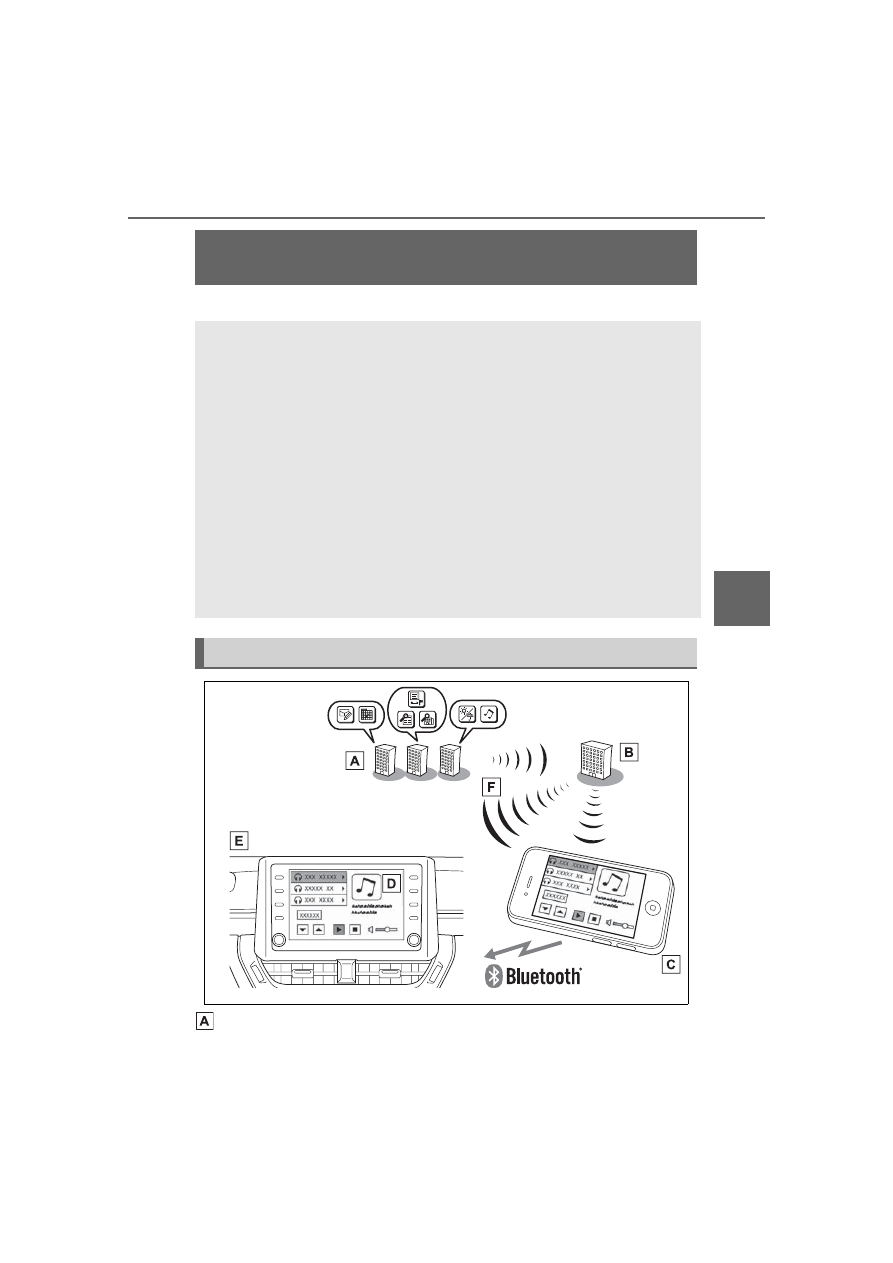

Functional overview

Toyota Connected hotspot
includes Toyota apps,
Wi-Fi

®

 Hotspot, Safety Con-

nect and Service Connect.

Functional overview

Function

Type

Toyota apps

Type A

Wi-Fi

®

 Hotspot

Type B

Safety Connect

Type C

Service Connect

Type D

373

5-16. Connected Services Overview

COROLLA HV_U

5

Audio

*

: If equipped

Content provider

Type A: Function achieved by using a smart
phone or DCM

*

Of the functions included with Connected Services, the Toyota
apps relies on the use of a smart phone or DCM.



Using a smart phone

• Toyota audio multimedia system enables applicable apps

installed on a smart phone to be displayed on and operated from
the screen via a Bluetooth

®

.



Via DCM

• Toyota audio multimedia system enables applicable apps

installed on the system to be displayed on and operated from the
screen.

A few settings must be performed before Toyota apps can be
used. (



P.379)

By using a smart phone or DCM

374

5-16. Connected Services Overview

COROLLA HV_U

Provides contents to the application server.
Application server
Provides applications to the system or a smart phone.

Smart phone

*

Using the Toyota mobile application, communication is relayed
between the system, application server and contents provider.
The smart phone cannot be operated while communicating.
Applications
Display usable content from the content providers on the screen
using the data connection of the connected smart phone or DCM.
System
Content received, via a smart phone or DCM, from content pro-
vider servers is displayed on the screen. The system is equipped
with an application player to run applications.
Via DCM

*

: For known compatible phones, refer to

https://www.toyota.com/connected-services in the United States,
https://www.toyota.ca/connected in Canada, and
http://www.toyotapr.com/connected-services in Puerto Rico.

The required operations to acti-
vate applications and connect a
smart phone to the system, and
the registration steps for the
connected services are
explained in this section.

■

Subscription



Toyota apps does not require
an activation fee or monthly
recurring fees.



Services requiring a separate
contract can also be used.

*

*

: For details, refer to

https://www.toyota.com/
connected-services
or call 1-800-331-4331 in the

United States,
https://www.toyota.ca/connected
or call 1-888-869-6828 in Can-
ada, and
http://www.toyotapr.com/
connected-services
or call 1-877-855-8377 in Puerto
Rico.

■

Availability of function



Toyota apps is available in the
contiguous United States,
Washington D.C., Alaska,
Hawaii, Puerto Rico and Can-
ada.



Toyota apps is not available in
the United States Virgin
Islands.

●

Data usage fees may apply while

Before using the function

375

5-16. Connected Services Overview

COROLLA HV_U

5

Audio

using Toyota apps function. Con-

firm data usage fees before using

this function.

●

For details regarding operation of

the Toyota apps, refer to

https://www.toyota.com/

connected-services

in the United States,

https://www.toyota.ca/connected

in Canada, and

http://www.toyotapr.com/

connected-services

in Puerto Rico.

●

These functions are not made

available in some countries or

areas. Availability of functions of

the Toyota apps is dependent on

network reception level.

■

Initializing personal data

The personal data used in appli-
cations can be reset. (



P.294)

The following personal data can
be deleted and returned to their
default settings:



Downloaded contents



Radio stations that were lis-
tened to

Once initialized, the data and set-

tings will be erased. Pay much

attention when initializing the data.

■

Settings required to use
Toyota mobile application

Perform the settings in the fol-
lowing order.

1

Download the Toyota mobile
application to your smart
phone or the system.

2

Open the Toyota mobile
application on your smart
phone and follow instruc-
tions. Bluetooth

®

 Pairing is

required.

In order to use Toyota mobile appli-

cation, the following must first be

performed:



Register a Bluetooth

®

 phone

with the hands-free system.
(



P.268)

●

Applications can only be used

when the Toyota mobile applica-

tion has been downloaded to your

smart phone or the system, and

the application is running.

●

Toyota mobile application opera-

tional procedures can also be con-

firmed by visiting

https://www.toyota.com/

connected-services

in the United States,

https://www.toyota.ca/connected

in Canada, and

http://www.toyotapr.com/

connected-services

in Puerto Rico.

●

If a Toyota mobile application is

used while iPod audio/video is

being played back, system opera-

tion may become unstable.

Preparation before using
Toyota mobile application

376

5-16. Connected Services Overview

COROLLA HV_U

*

: If equipped

■

Subscription

After you have signed the
Telematics Subscription Service
Agreement and are enrolled,
you can begin receiving ser-
vices. A variety of subscription
terms are available. Contact
your Toyota dealer, or call
1-800-331-4331 in the United
States, 1-888-869-6828 in Can-
ada, and 1-877-855-8377 in
Puerto Rico, for further sub-
scription details. (



P.374)

■

Availability of functions



Wi-Fi

®

 Hotspot is available in

the contiguous United States,
Washington D.C., Alaska and
Hawaii.



Wi-Fi

®

 Hotspot is not avail-

able in Puerto Rico, Canada,
and in the United States Vir-
gin Islands.

Type B: Function

achieved by using

DCM and the system

*

The functionality of Wi-Fi

®



Hotspot is made possible
through the shared work of
the DCM and the system.

This service is available by
subscription and supported
by the Toyota response cen-
ter, which operates 24 hours
a day, 7 days a week.

For details about Wi-Fi

®



Hotspot:



P.280

Before using the function

377

5-16. Connected Services Overview

COROLLA HV_U

5

Audio

*

: If equipped

*

: If equipped

Service Connect uses DCM to
collect and transmit vehicle data
that allows Toyota to provide:



Vehicle Health Report (VHR)
(Safety Recalls, Service Cam-
paigns, Current Vehicle
Alerts, Required Mainte-
nance, and Vehicle Condition
Status)



Maintenance Notifications



Vehicle Alert Notifications

■

Availability of function



Service Connect is available
in the contiguous United
States, Washington D.C.,
Alaska, Hawaii, the United
States Virgin Islands, Puerto
Rico and Canada.

Type C: Function

achieved by using

DCM

*

The functionality of Safety
Connect is made possible
by the use of a DCM.

For details, (



P.73)

Type D: Function

achieved by using

DCM and a smart-

phone

*

The functionality of Service
Connect is made possible
by the use of a DCM and a
smartphone.

For details about these ser-
vices, refer to
https://www.toyota.com/
connected-services.

Service Connect

378

5-16. Connected Services Overview

COROLLA HV_U

●

Availability of functions of the Ser-

vice Connect is dependent on net-

work reception level.

379

5-17. Connected Services Operation

COROLLA HV_U

5

Audio

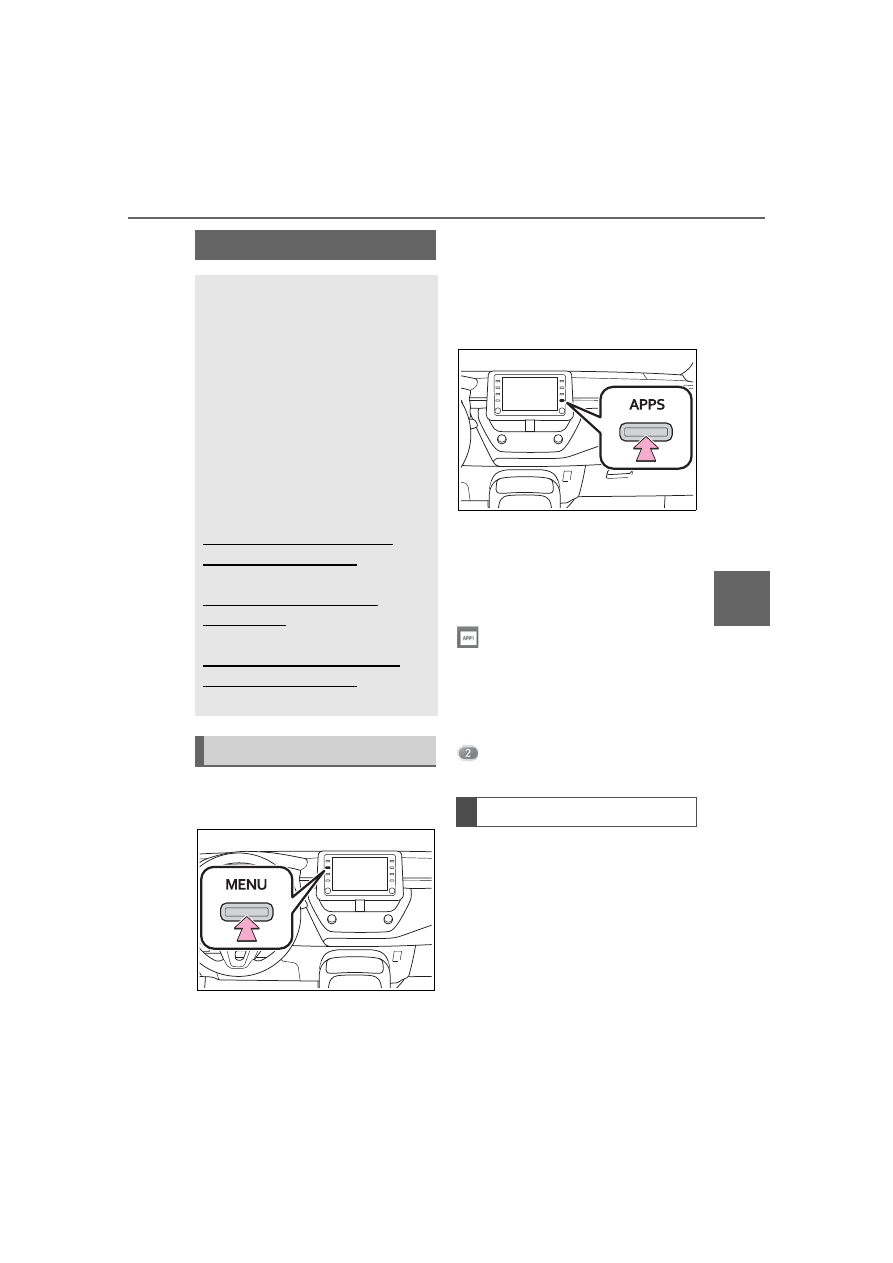

5-17.Connected Services Operation



From the “MENU” button

1

Press the “MENU” button.

2

Select “Apps”.

3

Follow the steps in “From the
“APPS” button” from step

3

.

(



P.379)



From the “APPS” button

1

Press the “APPS” button.

2

Select “Apps”.

If a specific application screen is

displayed, select “Apps” again.

3

Select the desired application
screen button.

: Select to activate an applica-

tion.
“Update”: Select to update the

applications. (



P.379)

“App Catalog”: Select to change the

order of the applications. (



P.380)

: Displays the number of new

notifications for the application

When the Toyota apps is acti-
vated, an application may need
to be updated. To update an
application, it is necessary to
download update data and
install it.

■

Downloading update

If an update is available,
“Update” can be selected.

Toyota apps

Toyota apps is a function
that enables certain apps
installed on a smart phone
or the system to be dis-
played on and operated
from the system screen.
Before the Toyota apps can
be used, some setup needs
to be performed. (



P.375)

For details about the func-
tions and services provided
by each application, refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/
connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.

Using Toyota apps

Updating an application

380

5-17. Connected Services Operation

COROLLA HV_U

1

Select “Update” on the appli-
cation screen. (



P.379)

2

Check that downloading
starts.

“Download in Background”: Select

to operate other functions while

downloading.
“Cancel”: Select to cancel updating.

3

Check that downloading is
complete.

“Later”: Select to install later. When

this screen button is selected, the

screen will return to the last dis-

played screen. To install the update

data: (



P.380)

“See Detail”: Select to display

detailed information on the update

data.
“Install”: Select to install the update

data. Follow the steps “Installing

the update data” from step

2

.

(



P.380)

■

Installing the update data

After the downloading is com-
plete, “Update” will be changed
to “Install”.

1

Select “Install” on the appli-
cation screen. (



P.379)

2

Select “Continue”.

“Later”: Select to postpone the

installation of the update data and

go back to the previous screen.

3

Check that installing is
started.

“Install in Background”: Select to

operate other functions while

installing.

4

Select “OK” after the install-
ing is complete.

The Toyota apps cannot be oper-

ated while installing.

Order of the applications can be
changed.

1

Display the application
screen. (



P.379)

2

Select “App Catalog”.

3

Select the desired application
to be moved.

4

Select “<<” or “>>” to move
the application, and then
select the done button.

When problems occur with start-
ing the application player, a
message will appear on the
screen. Referring to the follow-
ing items, identify the problem
and take the suggested correc-
tive action.



“When it is safe and legal to
do so, please ensure your
mobile application is running
and logged in on your phone.”

The Toyota mobile application can-
not be connected to Bluetooth

®



SPP.
Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the

Reordering the applica-
tions

If a message appears on
the screen

381

5-17. Connected Services Operation

COROLLA HV_U

5

Audio

phone is Bluetooth

®

 SPP compati-

ble or not, and then activate the
Toyota mobile application.



“Installation failed, please try
again”

Installation can be attempted again
by changing to the application
screen and pressing the “Install”
switch.



“Application download error.
Please try again later.”

Downloading can be attempted
again by checking the communica-
tion status, changing to the applica-
tion screen and pressing the
“Download” switch again.



“Download error, some mobile
application functions may not
work as expected. Please
reinitiate the download pro-
cess.”

The Toyota mobile application can-
not be connected to Bluetooth

®



SPP.
Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the
phone is Bluetooth

®

 SPP compati-

ble or not, and then activate the
Toyota mobile application.
Please ensure your Toyota mobile
application is running and logged in
on your phone while vehicle is not
moving.



“To use the services, mobile
application needs to be run-
ning on your phone. For more
information, please visit toy-
ota.com or call
1-800-331-4331 in the United
States, 1-888-869-6828 in
Canada, and 1-877-855-8377
in Puerto Rico.”

The Toyota mobile application can-
not be connected to Bluetooth

®



SPP.
Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the
phone is Bluetooth

®

 SPP compati-

ble or not, and then activate the
Toyota mobile application.



“Communication unsuccess-
ful. Please try again.”

Communication was disconnected.
After a few moments, retry the
operation.

A keyword can be entered to an
application by the software key-
board or voice recognition func-
tion. For details about the
functions and services provided
by each application, refer to
https://www.toyota.com/

Entering keyword opera-
tion

382

5-17. Connected Services Operation

COROLLA HV_U

connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.
The keyboard layout can be
changed. (



P.291)

1

Display the application
screen. (



P.379)

2

Select the desired application
screen button.

3

Select the character entering
space.

4

Enter a search term, and
then select “OK”.

5

Entering characters will be
reflected on the character
entering space.

For details on operating the key-

board:



P.263

1

Display the application
screen. (



P.379)

2

Select the desired application
screen button.

3

Press the talk switch.
(



P.334)

4

Say the desired keyword.

Completion of the keyword will be

detected automatically.

5

Search results will be dis-
played on the screen.

Entering a keyword using
the software keyboard

Entering a keyword using
the voice recognition func-
tion

383

5-18. Toyota apps settings

COROLLA HV_U

5

Audio

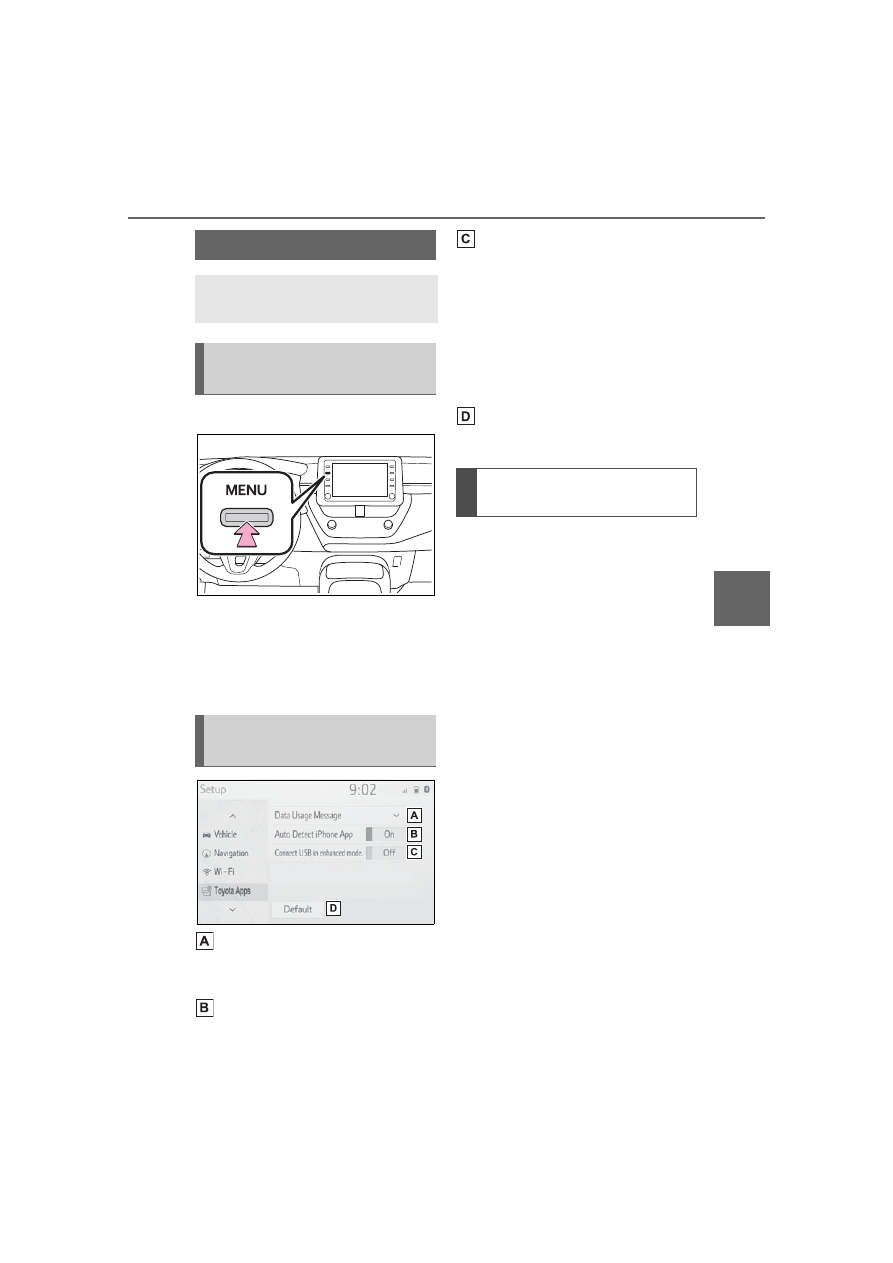

5-18.Toyota apps settings

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Toyota apps”.

4

Select the desired items to
be set.

Select to set the pop up
reminder for smart phone
data usage. (



P.381)

Select to detect iPhone app
automatically on/off.

Select to set the enhanced
mode with connecting USB
device on/off.

When an iPhone is connected while
this setting is set to “On”, communi-
cation with devices connected to
other USB ports may not be possi-
ble. Also, depending on the device,
charging may not be possible.

Select to reset all setup
items.

The data use notification
pop-up, which indicates that the
system will use an internet con-
nection, can be enabled/dis-
abled.

1

Display the Toyota apps set-
tings screen. (



P.383)

2

Select “Data Usage Mes-
sage”.

3

Change the setting as
desired.

Setup

The settings of Toyota apps
can be changed.

Displaying the Toyota
apps settings screen

Toyota apps settings
screen

Data use notification
pop-up settings

384

5-18. Toyota apps settings

COROLLA HV_U

385

COROLLA HV_U

6

6

Interior

 featur

es

Interior features

.

6-1. Using the air conditioning

system and defogger

Automatic air conditioning

system.......................

386

Heated steering wheel/seat

heaters ......................

393

6-2. Using the interior lights

Interior lights list ..........

395

6-3. Using the storage features

List of storage features

..................................

397

Trunk features .............

400

6-4. Other interior features

Other interior features .

401

Garage door opener....

411

386

6-1. Using the air conditioning system and defogger

COROLLA HV_U

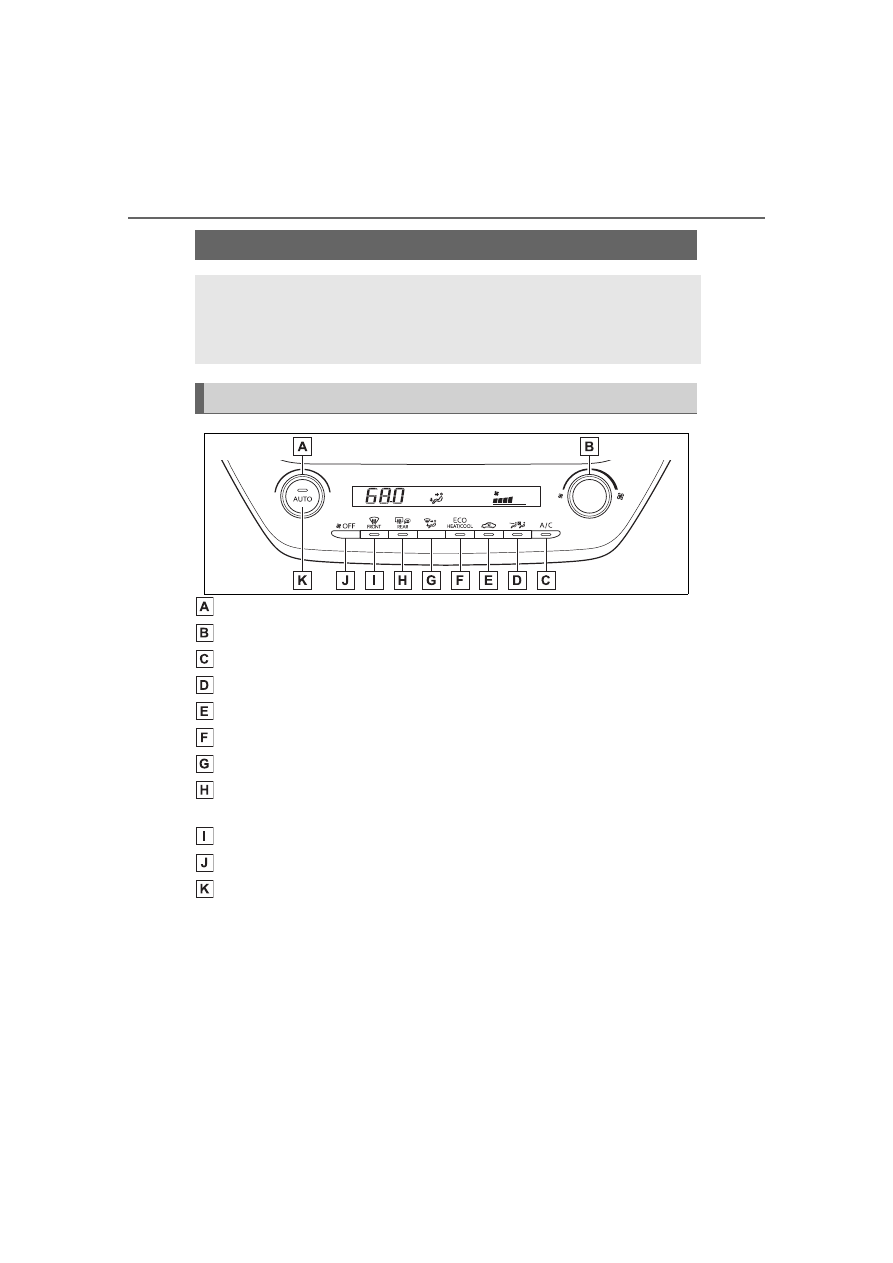

6-1.Using the air conditioning system and defogger

Temperature control switch
Fan speed control switch
“A/C” switch
S-FLOW mode switch
Outside/recirculated air mode switch
Eco air conditioning mode switch
Airflow mode control switch
Rear window defogger and outside rear view mirror defoggers
switch
Windshield defogger switch
Off switch
Automatic mode switch

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

■

Setting the fan speed

To adjust the fan speed, turn the
fan speed control switch clock-

Automatic air conditioning system

Air outlets are automatically selected and fan speed is auto-
matically adjusted according to the set temperature setting.
Also, the display and button positions will differ depending on
the type of the system.

Air conditioning controls

387

6-1. Using the air conditioning system and defogger

COROLLA HV_U

6

Interior

 featur

es

wise (increase) or counterclock-
wise (decrease).

Pressing the off switch to turns off
the fan.

■

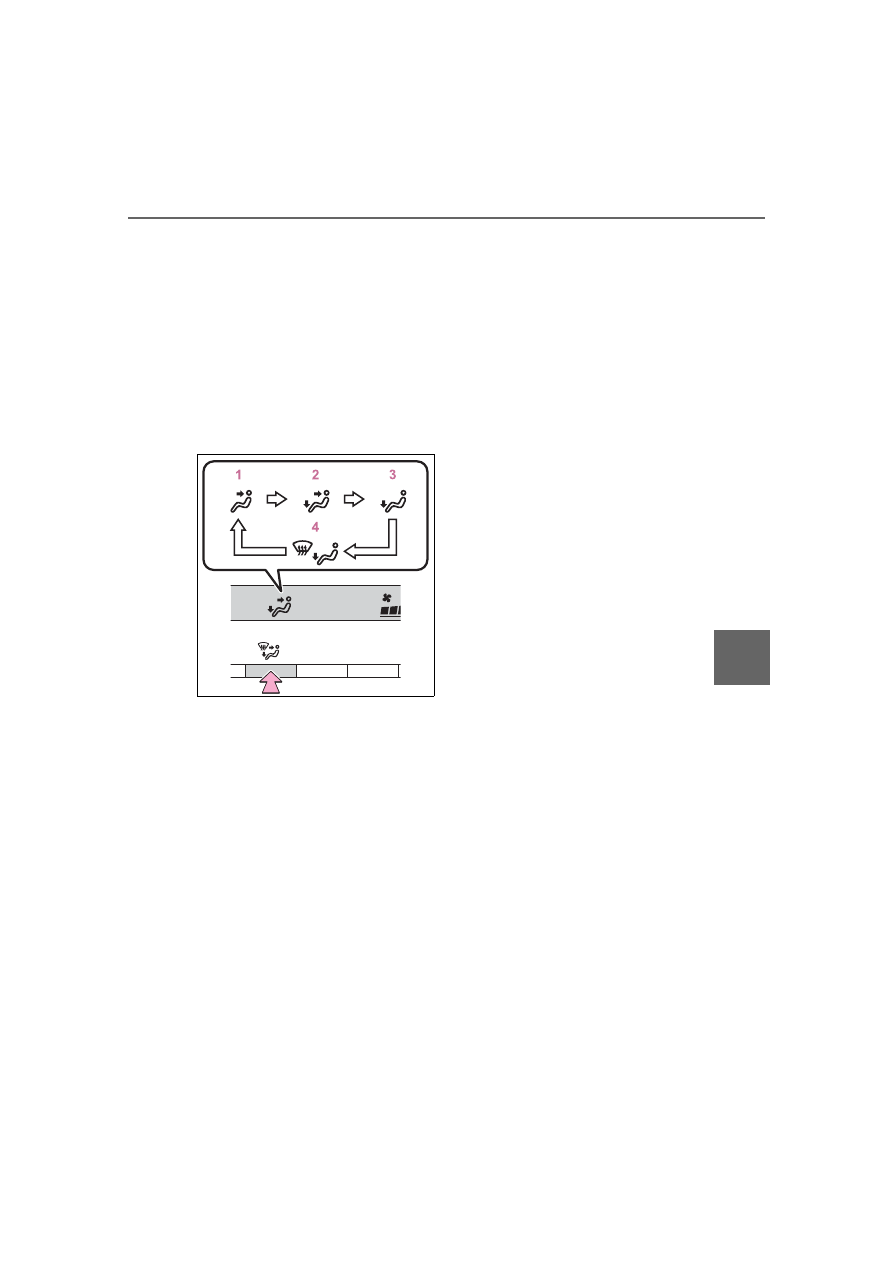

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Upper body

2

Upper body and feet

3

Feet

4

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode modes each time the switch
is operated.
When recirculated air mode is
selected, the indicator illuminates

on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch.

388

6-1. Using the air conditioning system and defogger

COROLLA HV_U

The defoggers will automatically
turn off after a while.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan
speed, etc.
Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally. This may also reduce fuel

consumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

Eco air conditioning mode

When Eco drive mode is selected

using the driving mode select

switch, eco air conditioning mode

turns on.
When a drive mode other than Eco

drive mode is selected, eco air con-

ditioning mode may turn off.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Turn off eco air conditioning mode

(



P.388)

• Adjust the fan speed

• Turn off Eco drive mode (



P.239)

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

389

6-1. Using the air conditioning system and defogger

COROLLA HV_U

6

Interior

 featur

es

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.454

■

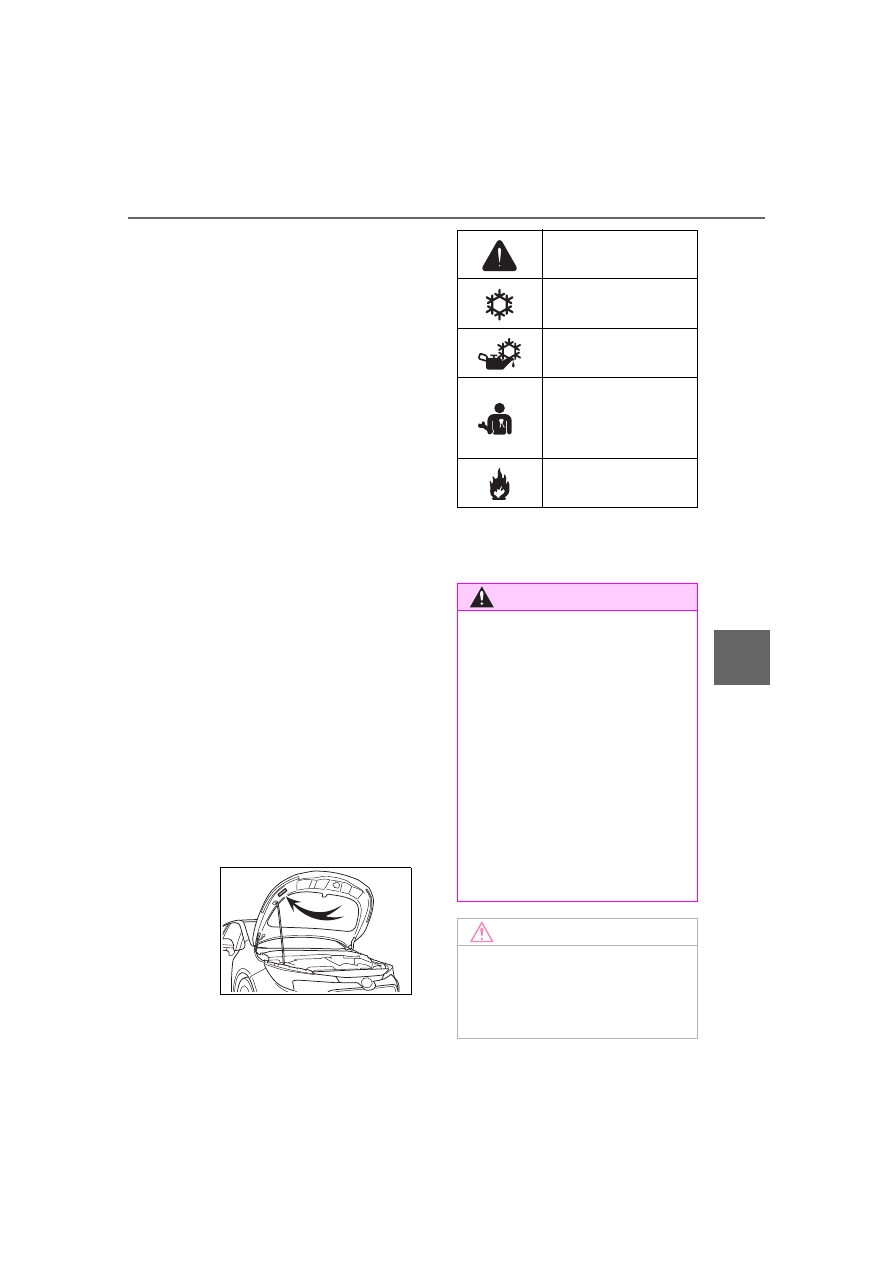

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

(



P.544)

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the outside rear view

mirror surfaces, as they can

become very hot and burn you.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

390

6-1. Using the air conditioning system and defogger

COROLLA HV_U

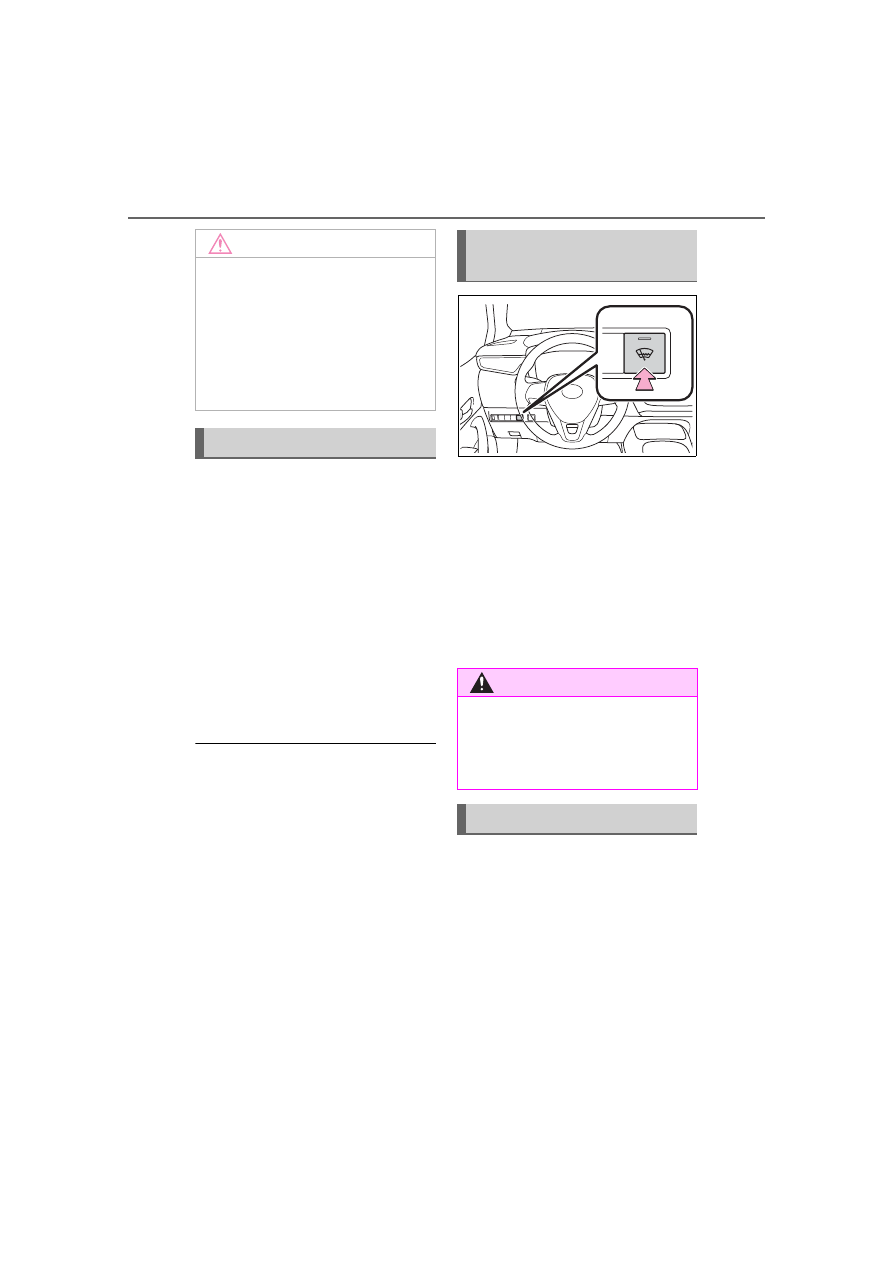

1

Press the automatic mode
switch.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the off switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch pressed.

Prevent ice from building up on
the windshield and wiper
blades.

When the windshield wiper de-icer
switch is on, the indicator illumi-
nates on the windshield wiper
de-icer switch.
The windshield wiper de-icer will
automatically turn off after a period
of time.

In S-FLOW mode, priority for the
airflow is given to the front
seats, reducing the airflow and
air conditioning effect on the
rear seats.
The following S-FLOW modes
are available:



Automatic S-FLOW mode

In this mode, when a passenger

NOTICE

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Using automatic mode

Windshield wiper de-icer
(if equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper de-icer is on.

S-FLOW mode

391

6-1. Using the air conditioning system and defogger

COROLLA HV_U

6

Interior

 featur

es

is judged to be in a rear seat,
S-FLOW mode will be automati-
cally disabled.

When the S-FLOW mode is on, the
indicator illuminates on the
S-FLOW mode switch.
To enable/disable S-FLOW mode
and enter manual S-FLOW mode,
press the S-FLOW mode switch.



Manual S-FLOW mode

When the S-FLOW mode switch
is pressed, S-FLOW mode will
be manually enabled/ disabled.

When the S-FLOW mode is on, the
indicator illuminates on the
S-FLOW mode switch.

Operation in S-FLOW mode dif-
fers according to the following
conditions:



Priority is given to the driver’s
seat only when:



Automatic S-FLOW mode

When no passengers are judged to
be in the front passenger seat or
rear seats.



Manual S-FLOW mode

When no passenger is judged to be
in the front passenger seat.



Priority is given to the front
seats when:

Manual S-FLOW mode is selected
or no passengers are judged to be
in the rear seats when in automatic
S-FLOW mode.



S-FLOW mode will be dis-
abled when:

A passenger is judged to be in a
rear seat when in automatic
S-FLOW mode.

Depending on the set tempera-
ture, operation in S-FLOW
mode  may not change as
described above.

■

How the system judges if a pas-

senger is in the vehicle when in

S-FLOW mode

In S-FLOW mode, the system

judges if a passenger is in the vehi-

cle as follows:
• Front passenger seat:
A passenger is judged to be in the

front passenger seat when the sys-

tem detects an object on the front

passenger seat, fastening of the

front passenger seat belt or the

opening and closing of the front pas-

senger door. (However, when only

opening and closing of the front pas-

senger door is detected, the system

will judge that a passenger is not in

the front passenger seat after the

vehicle speed reaches approxi-

mately 12 mph [20 km/h] or more.)
• Rear seats (automatic S-FLOW

mode only):

A passenger is judged to be in a

rear seat when the system detects

the opening and closing of a rear

door.
If a passenger is judged to be in the

vehicle, the system will retain the

judgement for a certain amount of

time after the power switch is turned

off.

■

Operation of automatic S-FLOW

mode

When the system is operating in

automatic S-FLOW mode, if a rear

door is opened and then closed,

S-FLOW mode will be disabled. To

enable S-FLOW mode, press the

S-FLOW mode switch. (In this case,

the system will operate in manual

392

6-1. Using the air conditioning system and defogger

COROLLA HV_U

S-FLOW mode.)

■

Changing from manual S-FLOW

mode to automatic S-FLOW

mode

1

Press the S-FLOW mode switch

to disable S-FLOW mode.

2

Turn the power switch off.

3

Wait for 60 minutes or more and

change the power switch to ON.

■

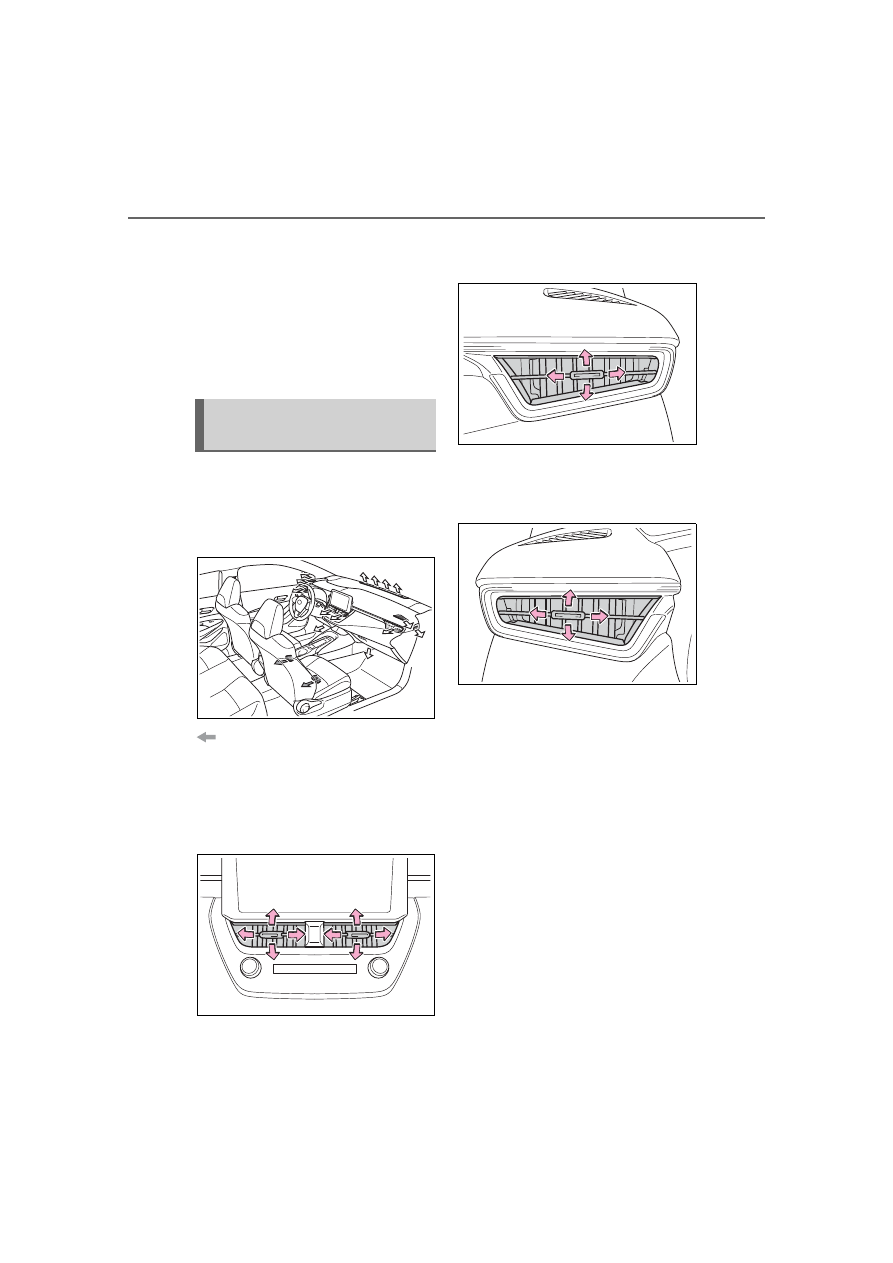

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

:If equipped

■

Adjusting the position of
and opening and closing
the air outlets



Front center

Direct air flow to the left or right, up

or down



Front right-hand side

Direct air flow to the left or right, up
or down



Front left-hand side

Direct air flow to the left or right, up
or down

Air outlet layout and oper-
ations

393

6-1. Using the air conditioning system and defogger

COROLLA HV_U

6

Interior

 featur

es

*

: If equipped

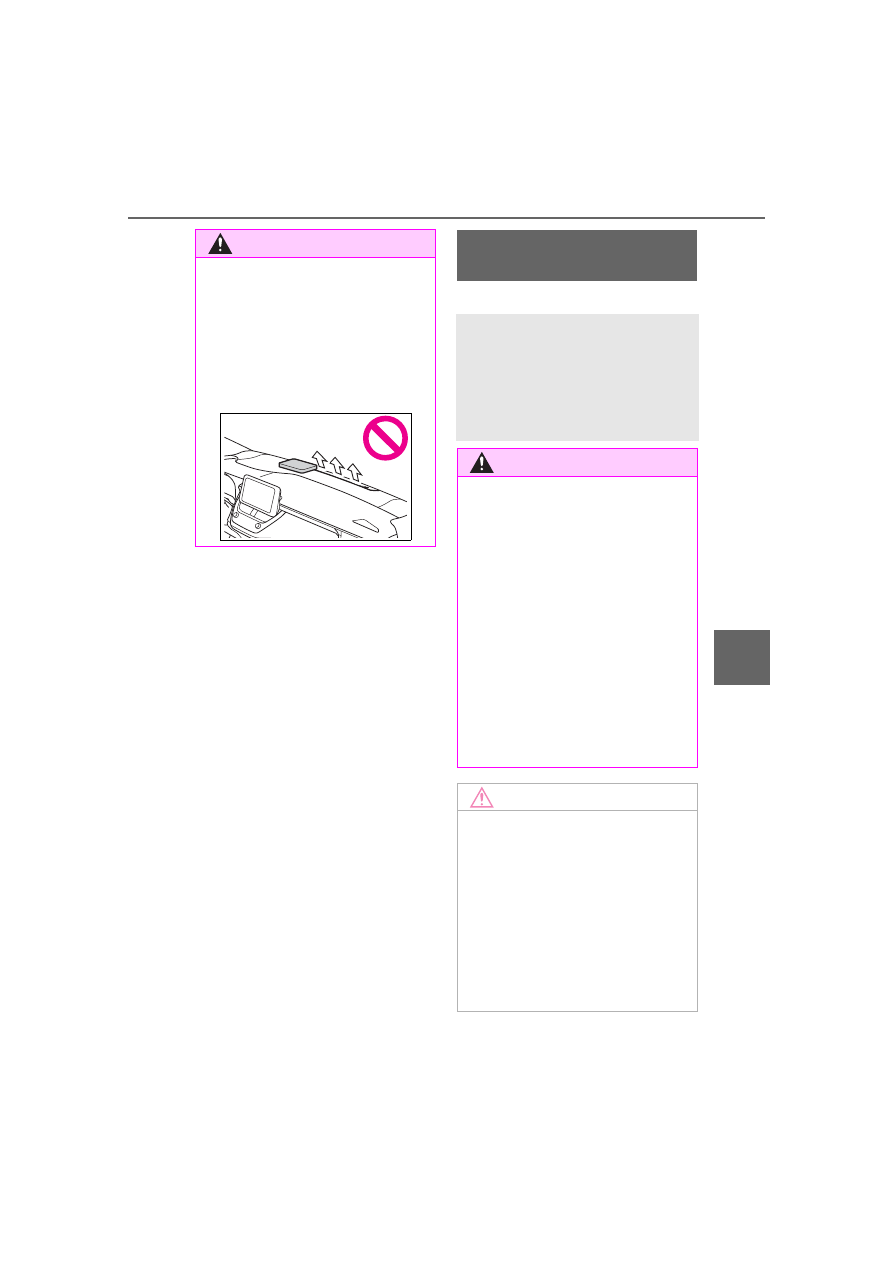

WARNING

■

To prevent the windshield

defogger from operating

improperly

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

Heated steering

wheel

*

/seat heaters

*



Heated steering wheel

Warms up the grip of the
steering wheel



Seat heaters

Warm up the seat upholstery

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent 12-volt battery dis-

charge

Do not use the functions when the

hybrid system is off.

394

6-1. Using the air conditioning system and defogger

COROLLA HV_U

■

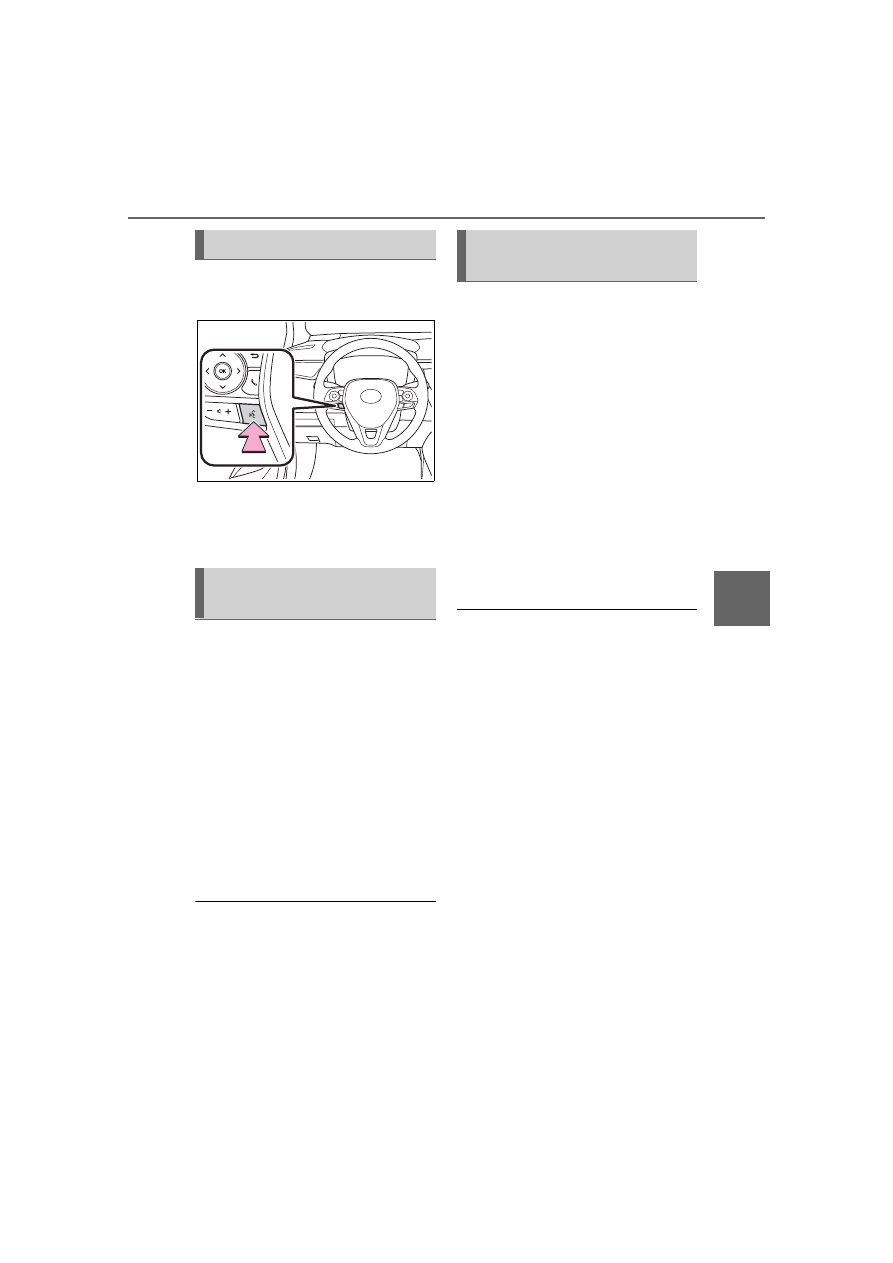

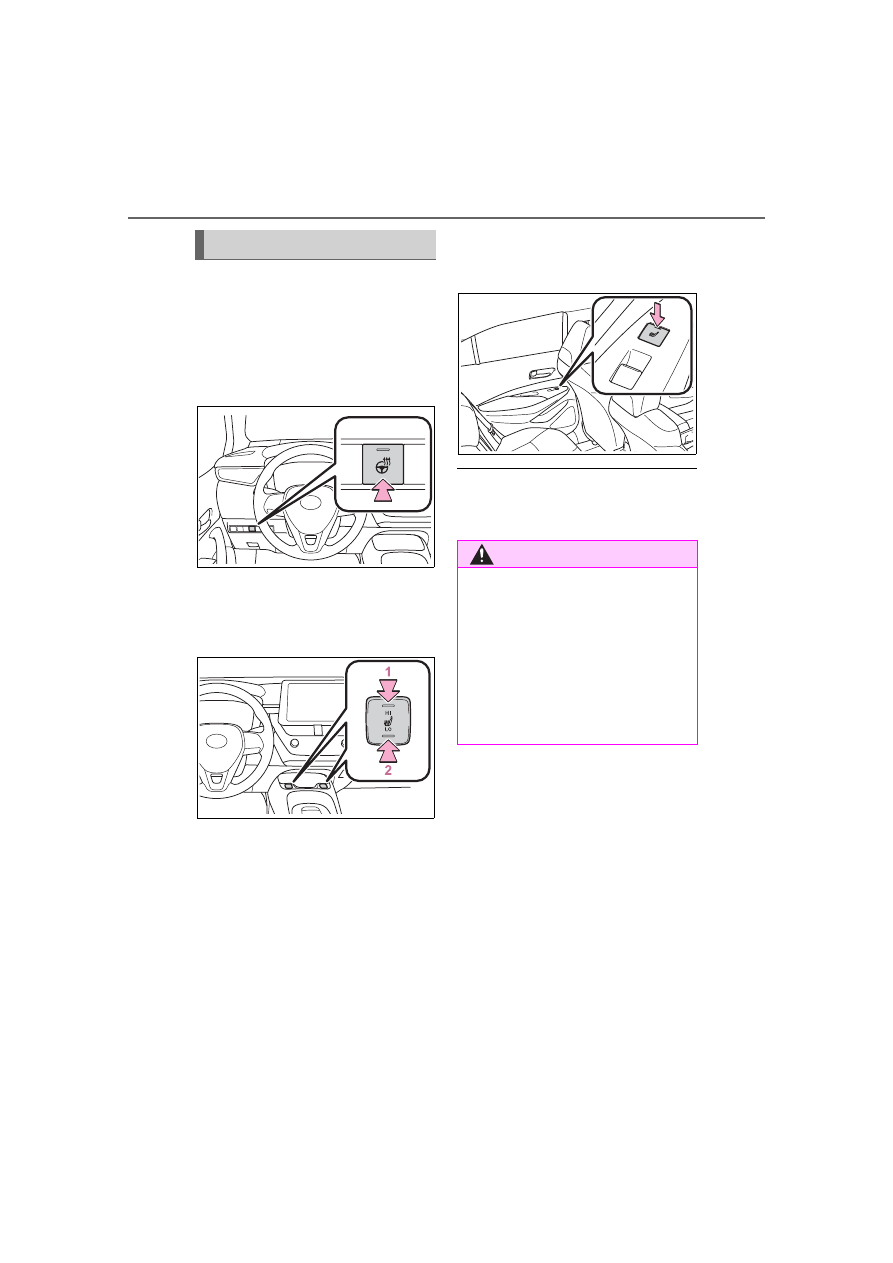

Heated steering wheel

Turns heated steering wheel
on/off

When the heated steering wheel is
on, the indicator illuminates on the
heated steering wheel switch.

■

Seat heaters



Front

Turns seat heaters on/off

1

High temperature

2

Low temperature

When the seat heater is on, the
indicator illuminates on the seat
heater switch.
When not in use, put the switch in
the neutral position. The indicator
will turn off.



Rear

Turns seat heaters on/off

When the seat heater is on, the
indicator illuminates on the seat
heater switch.

■

The heated steering wheel and

seat heaters can be used when

The power switch is in ON.

Operation instructions

WARNING

■

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

395

6-2. Using the interior lights

COROLLA HV_U

6

Interior

 featur

es

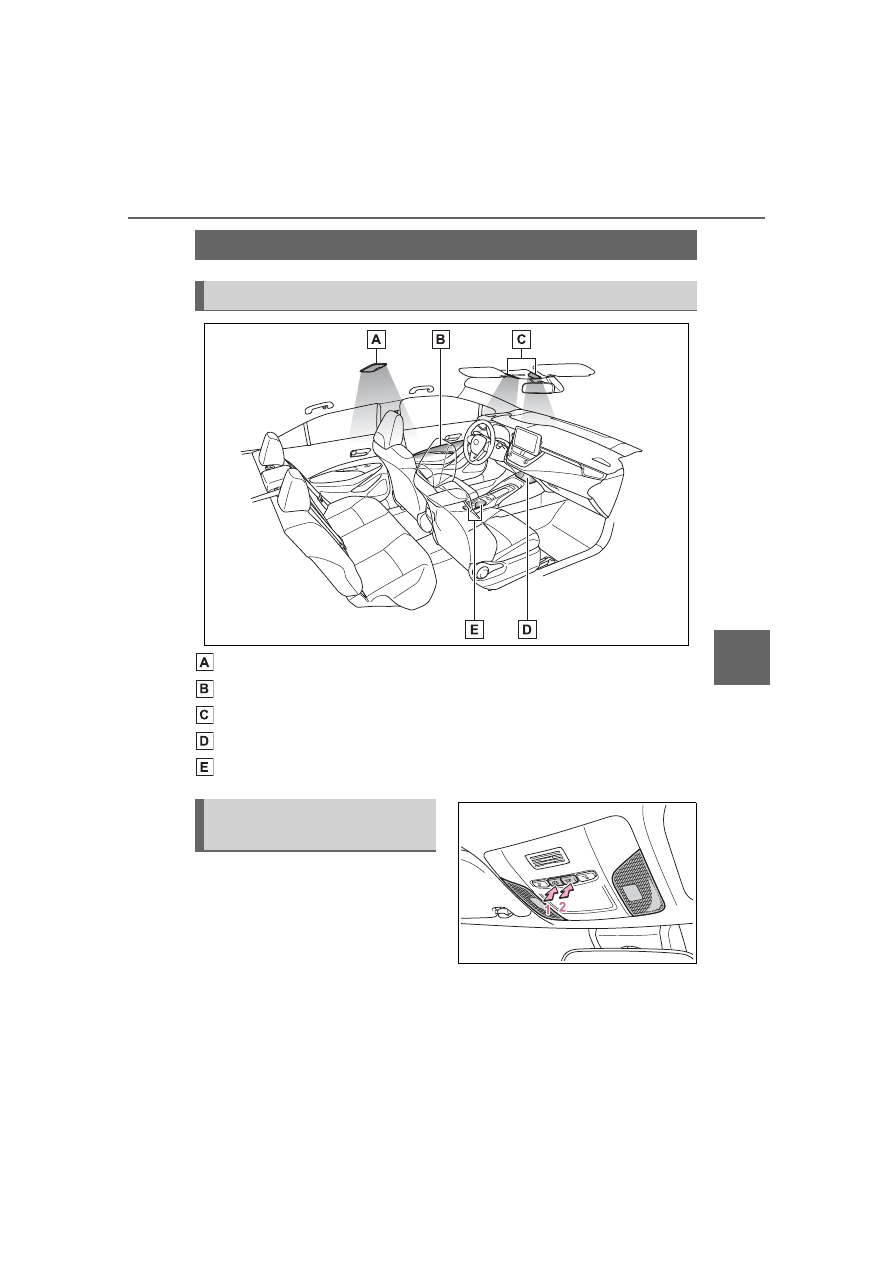

6-2.Using the interior lights

Rear interior light (



P.396)

Door trim lights (if equipped)
Front interior/personal lights (



P.395)

Center tray light (if equipped)
Cup holder lights (if equipped)

■

Front

1

Turns the door position on/off

When a door is opened while the
door position is on, the lights turn
on.

Interior lights list

Location of the interior lights

Operating the interior
lights

396

6-2. Using the interior lights

COROLLA HV_U

2

Turns the lights on/off

■

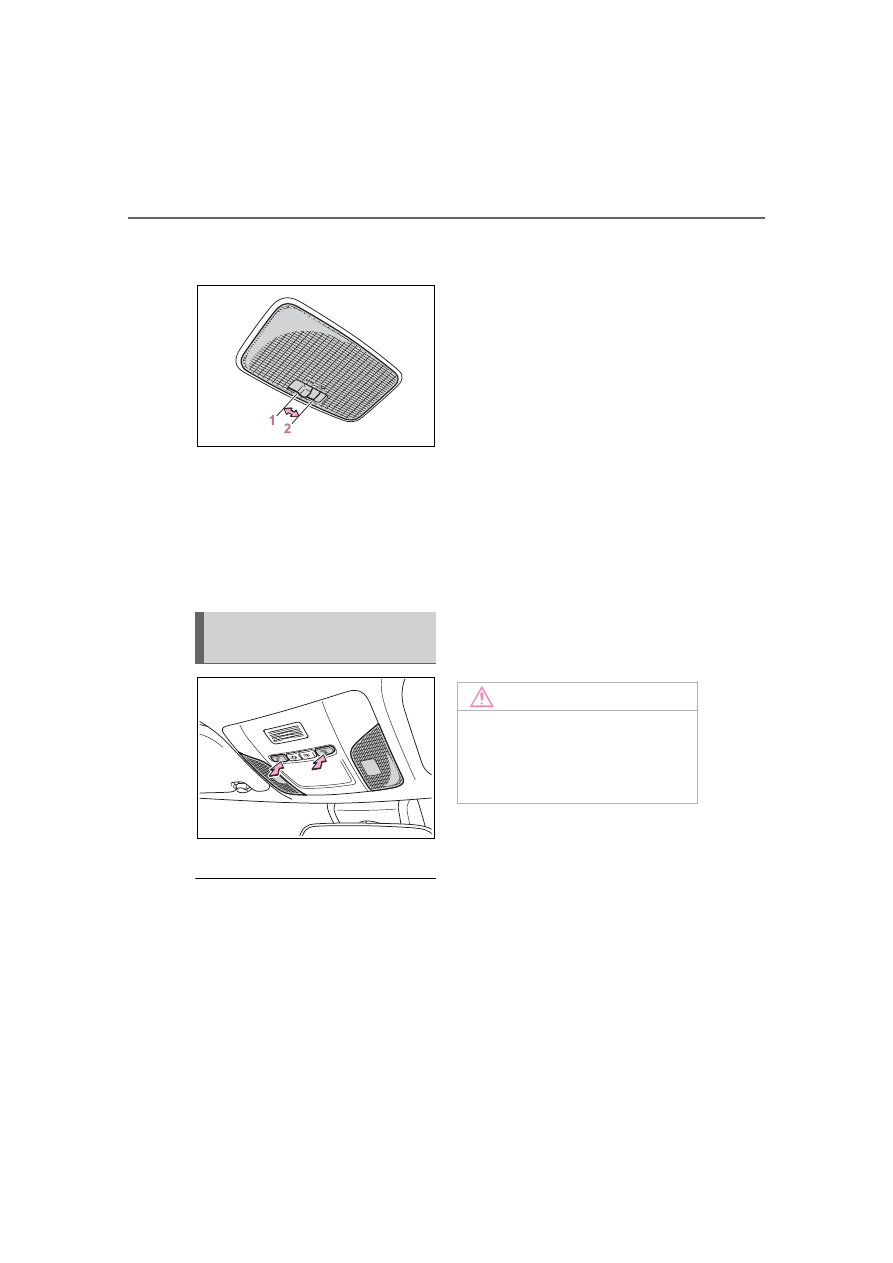

Rear

1

Turns the door position on

The rear interior light turns on/off
together the front interior lights.
When a door is opened while the
front and rear interior light door
position is on, the lights turn on.

2

Turns the light on

Turns the lights on/off

■

Illuminated entry system

The lights automatically turn on/off

according to the power switch

mode, the presence of the elec-

tronic key, whether the doors are

locked/unlocked, and whether the

doors are open/closed.

■

To prevent the 12-volt battery

from being discharged

If the interior lights remain on when

the power switch is turned off, the

lights will go off automatically after

20 minutes.

■

The interior lights may turn on

automatically when

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the interior lights will

turn on automatically.

The interior lights will turn off auto-

matically after approximately 20

minutes.

The interior lights can be turned off

manually. However, in order to help

prevent further collisions, it is rec-

ommended that they be left on until

safety can be ensured.

(The interior lights may not turn on

automatically depending on the

force of the impact and conditions of

the collision.)

■

Customization

Some functions can be customized.

(



P.544)

Operating the personal
lights

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the hybrid

system is off.
