When driving with the gasoline
engine stopped, a sound, which
changes in accordance with the
driving speed, will be played in
order to warn people nearby of
the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
22 mph (35 km/h).

■

Vehicle proximity notification

system

In the following cases, the vehicle

proximity notification system may be

difficult for surrounding people to

hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the vehicle proximity notifi-

cation system is installed on the

front of the vehicle, it may be more

difficult to hear from the rear of the

vehicle compared to the front.

Vehicle proximity notifica-
tion system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

COROLLA HV_U

For safety and secu

rity

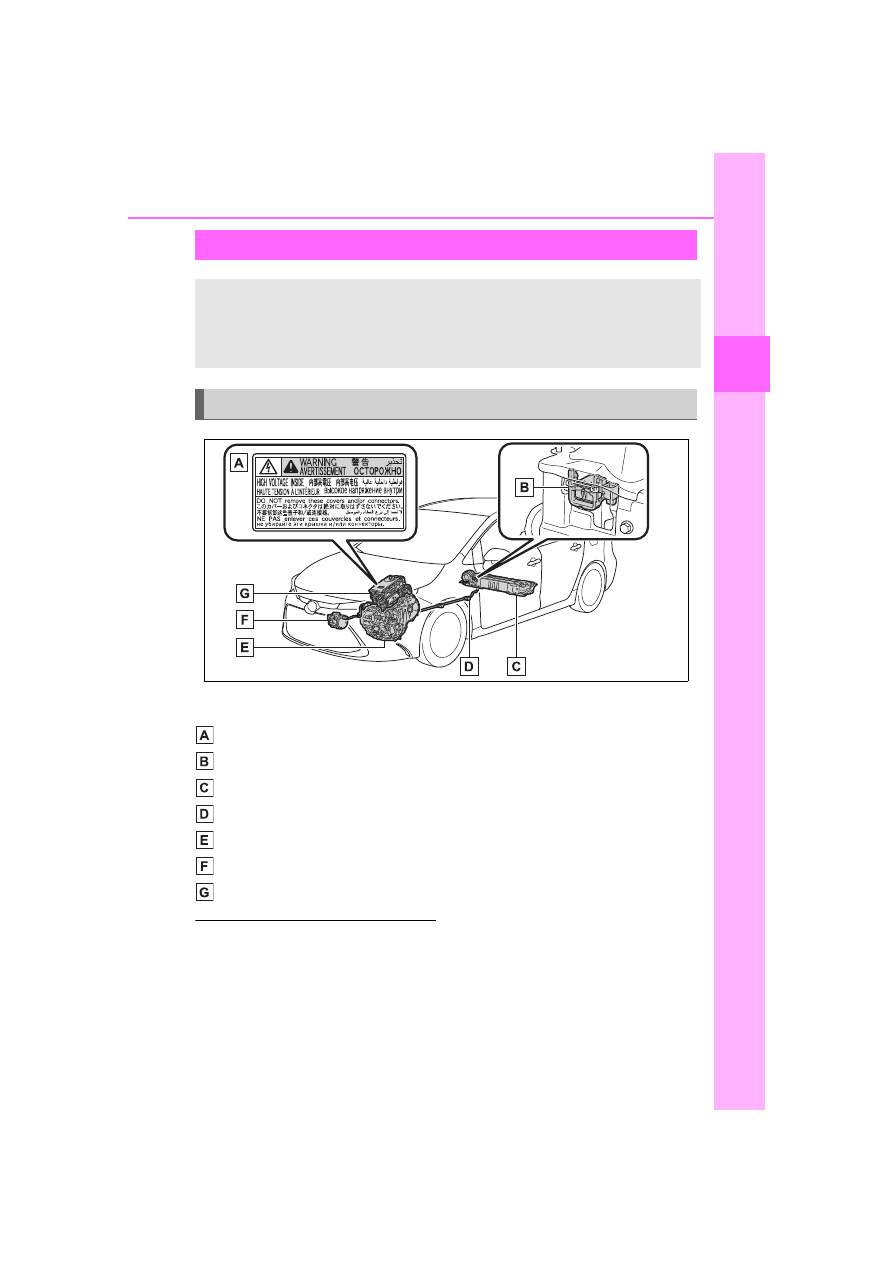

The illustration is an example for explanation and may differ from the actual
item.

Warning label
Service plug
Hybrid battery (traction battery)
High voltage cables (orange)
Electric motor (traction motor)
Air conditioning compressor
Power control unit

■

Running out of fuel

When the vehicle has run out of fuel

and the hybrid system cannot be

started, refuel the vehicle with at

least enough gasoline to make the

low fuel level warning light (

go off. If there is only a small

amount of fuel, the hybrid system

may not be able to start. (The stan-

dard amount of fuel is about 2.0 gal.

[7.6 L, 1.7 Imp. gal.] when the vehi-

cle is on a level surface. This value

may vary when the vehicle is on a

slope. Add extra fuel when the vehi-

cle is inclined.)

Hybrid system precautions

Take care when handling the hybrid system, as it is a high
voltage system (about 600 V at maximum) as well as contains
parts that become extremely hot when the hybrid system is
operating. Obey the warning labels attached to the vehicle.

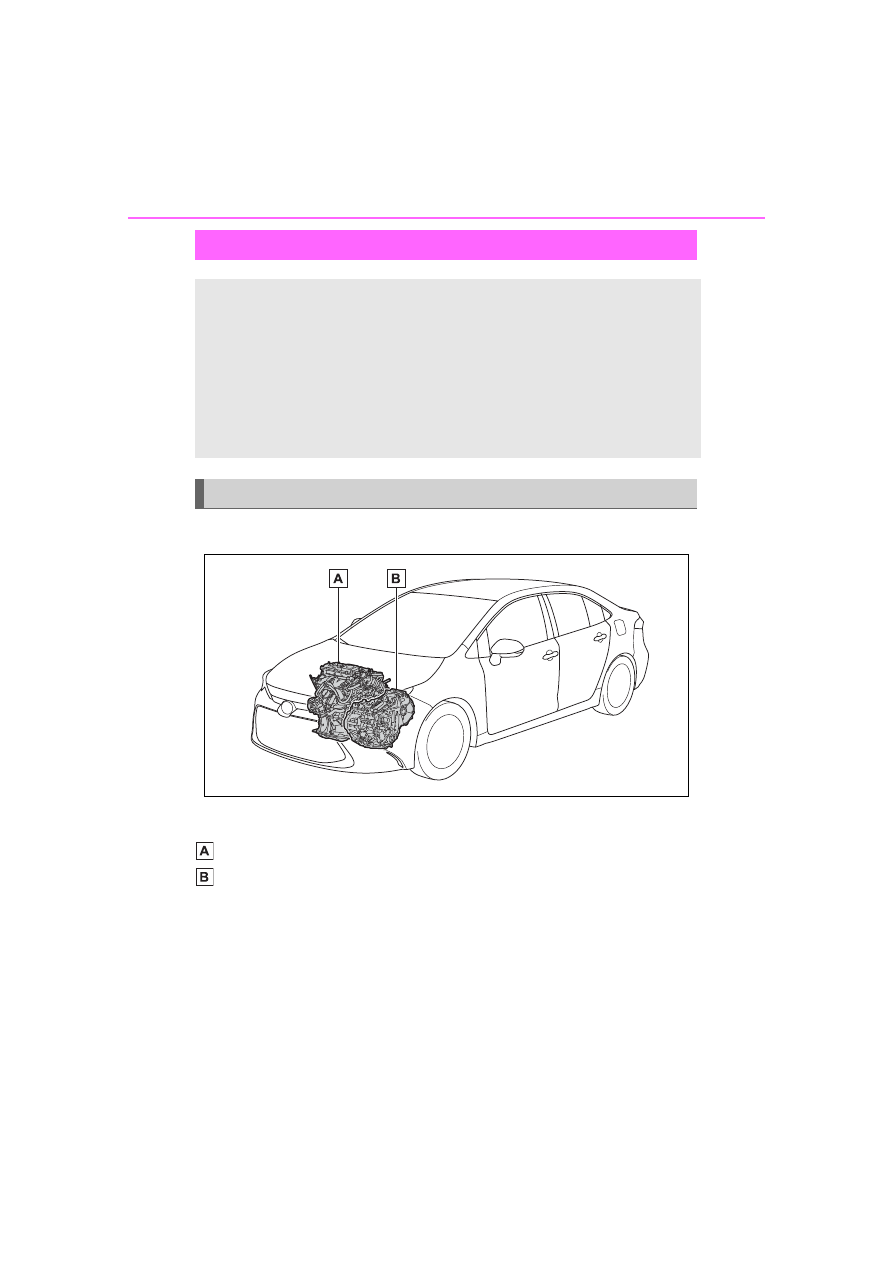

System components

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

COROLLA HV_U

■

Electromagnetic waves

●

High voltage parts and cables on

hybrid vehicles incorporate elec-

tromagnetic shielding, and there-

fore emit approximately the same

amount of electromagnetic waves

as conventional gasoline pow-

ered vehicles or home electronic

appliances.

●

Your vehicle may cause sound

interference in some third

party-produced radio parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery)

has a limited service life. The lifes-

pan of the hybrid battery (traction

battery) can change in accordance

with driving style and driving condi-

tions.

■

Starting the hybrid system in an

extremely cold environment

When the hybrid battery (traction

battery) is extremely cold (below

approximately -22°F [-30°C]) under

the influence of the outside tem-

perature, it may not be possible to

start the hybrid system. In this case,

try to start the hybrid system again

after the temperature of the hybrid

battery increases due to the outside

temperature increasing, etc.

WARNING

■

High voltage precautions

This vehicle has high voltage DC

and AC systems as well as a

12-volt system. DC and AC high

voltage is very dangerous and

can cause severe burns and elec-

tric shock that may result in death

or serious injury.

●

Never touch, disassemble,

remove or replace the high volt-

age parts, cables or their con-

nectors.

●

The hybrid system will become

hot after starting as the system

uses high voltage. Be careful of

both the high voltage and the

high temperature, and always

obey the warning labels

attached to the vehicle.

●

Never try to open the service

plug access hole located under

the right side of the rear seat.

The service plug is used only

when the vehicle is serviced

and is subject to high voltage.

■

Road accident cautions

Observe the following precautions

to reduce the risk of death or seri-

ous injury:

●

Pull your vehicle off the road,

apply the parking brake, shift

the shift lever to P, and turn the

hybrid system off.

●

Do not touch the high voltage

parts, cables and connectors.

●

If electric wires are exposed

inside or outside your vehicle,

an electric shock may occur.

Never touch exposed electric

wires.

●

If a fire occurs in the hybrid

vehicle, leave the vehicle as

soon as possible. Never use a

fire extinguisher that is not

meant for electric fires. Using

even a small amount of water

may be dangerous.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

COROLLA HV_U

For safety and secu

rity

WARNING

●

If your vehicle needs to be

towed, do so with the front

wheels raised. If the wheels

connected to the electric motor

(traction motor) are on the

ground when towing, the motor

may continue to generate elec-

tricity. This may cause a fire.

(

P.473)

●

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

●

Nickel-Metal hydride battery: If

a fluid leak occurs, do not touch

the fluid as it may be strong

alkaline electrolyte from the

hybrid battery (traction battery).

If it comes into contact with your

skin or eyes, wash it off immedi-

ately with a large amount of

water or, if possible, boric acid

solution. Seek immediate medi-

cal attention.

●

Lithium-ion battery: Do not

touch the battery if liquid is leak-

ing from or adhering to it.

If electrolyte (carbonic-based

organic electrolyte) from the

hybrid battery (traction battery)

comes into contact with the

eyes or skin, it could cause

blindness or skin wounds. In the

unlikely event that it comes into

contact with the eyes or skin,

wash it off immediately with a

large amount of water, and seek

immediate medical attention.

●

Lithium-ion battery: If electrolyte

is leaking from the hybrid bat-

tery (traction battery), do not

approach the vehicle.

Even in the unlikely event that

the hybrid battery (traction bat-

tery) is damaged, the internal

construction of the battery will

prevent a large amount of elec-

trolyte from leaking out. How-

ever, any electrolyte that does

leak out will give off a vapor.

This vapor is an irritant to skin

and eyes and could cause acute

poisoning if inhaled.

●

Lithium-ion battery: Do not bring

burning or high-temperature

items close to the electrolyte.

The electrolyte may ignite and

cause a fire.

■

Hybrid battery (traction bat-

tery)

●

Lithium-ion battery: Your vehicle

contains a sealed lithium-ion

battery.

●

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through Toyota dealer. Do not

dispose of the battery yourself.

Unless the battery is properly col-

lected, the following may occur,

resulting in death or serious

injury:
• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

COROLLA HV_U

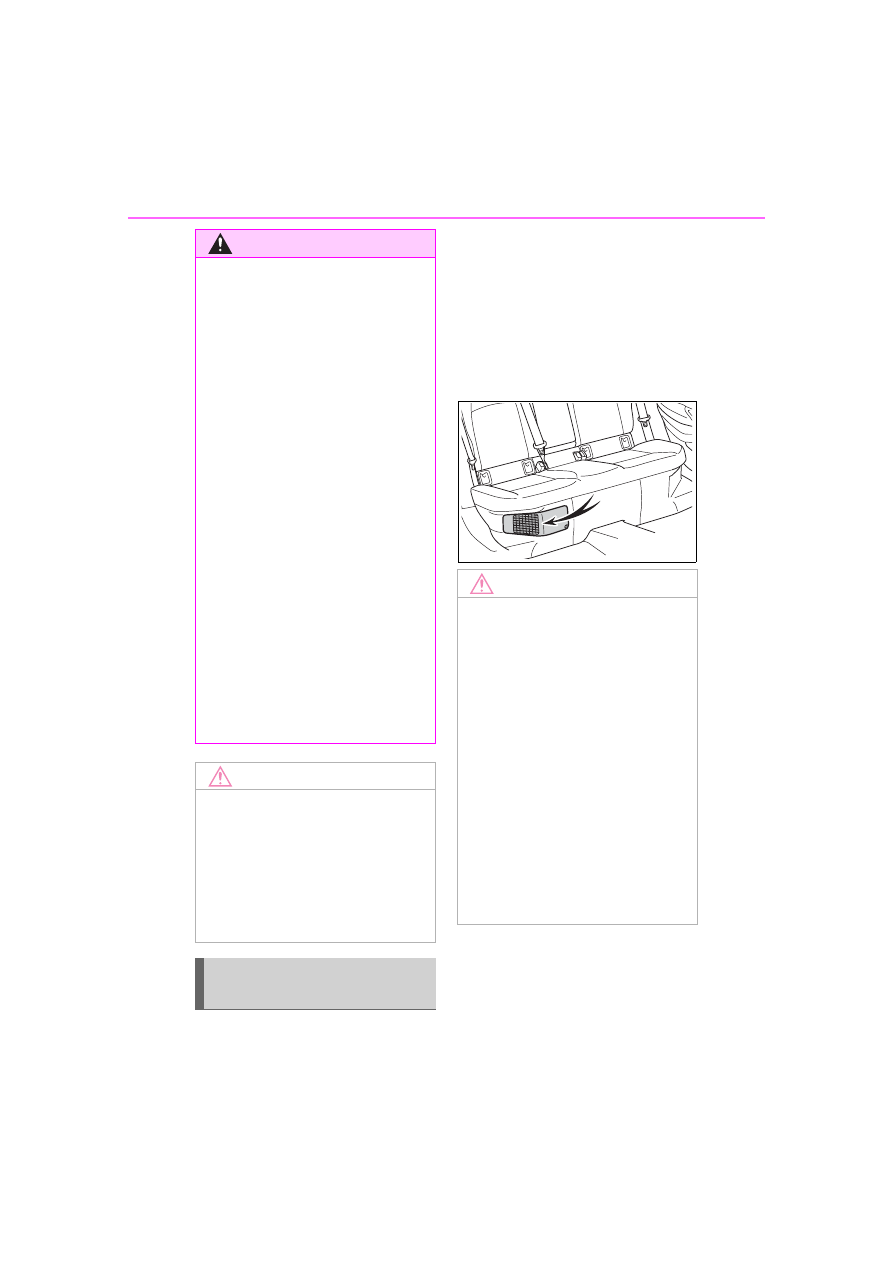

There is an air intake vent under

the right side of the rear seat for
the purpose of cooling the
hybrid battery (traction battery).
If the vent becomes blocked, the
hybrid battery may overheat,
charging/discharging of the
hybrid battery (traction battery)
may become limited.

WARNING

• The hybrid battery is intended to

be used exclusively with your

hybrid vehicle. If the hybrid bat-

tery is used outside of your

vehicle or modified in any way,

accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

●

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the hybrid bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vent

Do not carry large amounts of

water such as water cooler bottles

in the vehicle. If water spills onto

the hybrid battery (traction bat-

tery), the battery may be dam-

aged. Have the vehicle inspected

by your Toyota dealer.

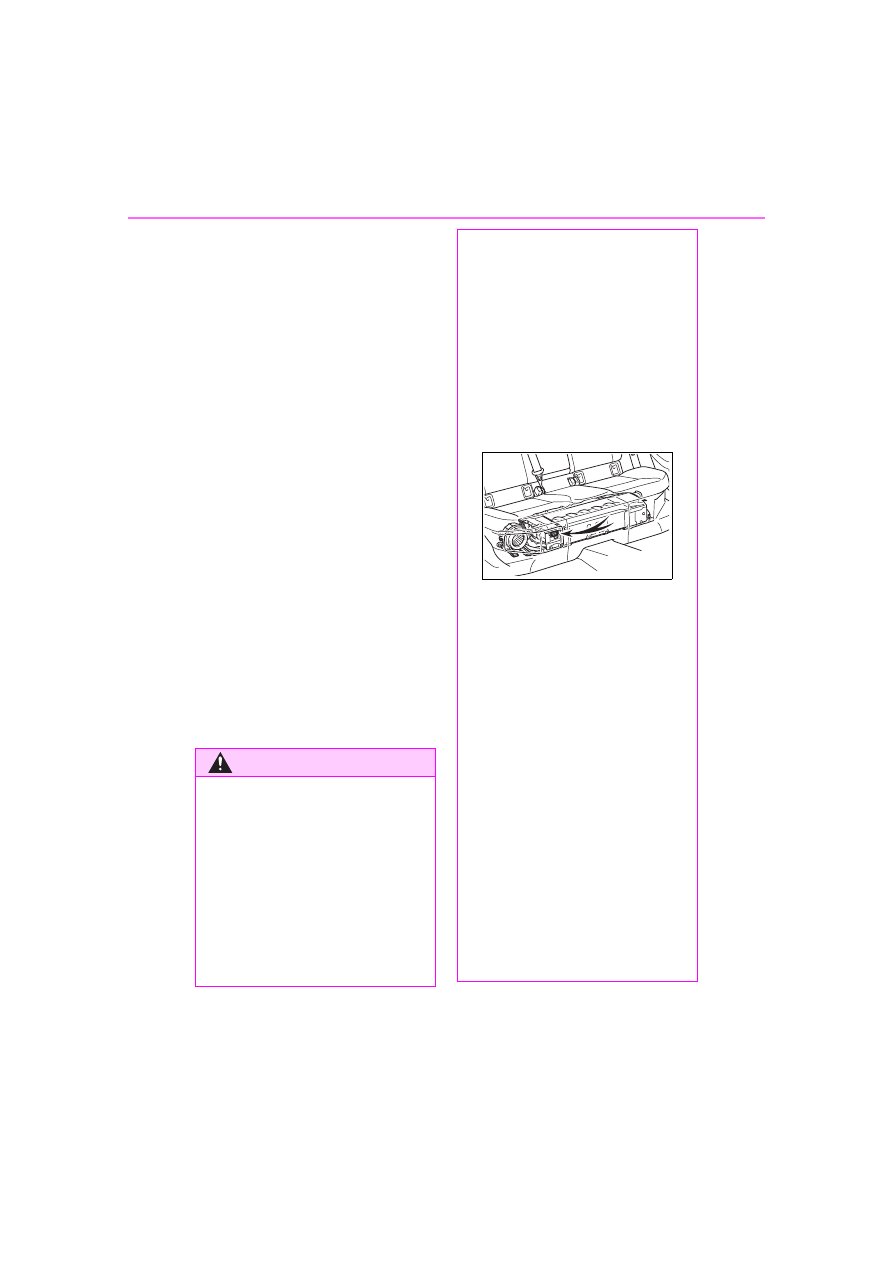

Hybrid battery (traction
battery) air intake vent

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vent

●

Make sure that the air intake

vent is not blocked, such as by

a seat cover, plastic cover, or

luggage. If the vent is blocked,

charging/discharging of the

hybrid battery (traction battery)

may become limited, possibly

leading to a malfunction.

●

Clean the air intake vent regu-

larly to prevent the hybrid bat-

tery (traction battery) from

overheating.

●

Do not allow liquid or foreign

material to enter the air intake

vent as this may cause a short

circuit and damage the hybrid

battery (traction battery).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4. Hybrid system

COROLLA HV_U

For safety and secu

rity

When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.

A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.
If a warning message is shown
on the multi-information display,
read the message and follow the
instructions.

■

If a warning light comes on, a

warning message is displayed,

or the 12-volt battery is discon-

nected

The hybrid system may not start. In

this case, try to start the system

again. If the “READY” indicator does

not come on, contact your Toyota

dealer.

NOTICE

●

A filter is installed to the air

intake vent. When the filter

remains noticeably dirty even

after cleaning the air intake

vent, filter cleaning or replace-

ment is recommended. Refer to

P.455 for details on how to clean

the filters.

Emergency shut off sys-
tem

Hybrid warning message

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-5. Theft deterrent system

COROLLA HV_U

1-5.Theft deterrent system

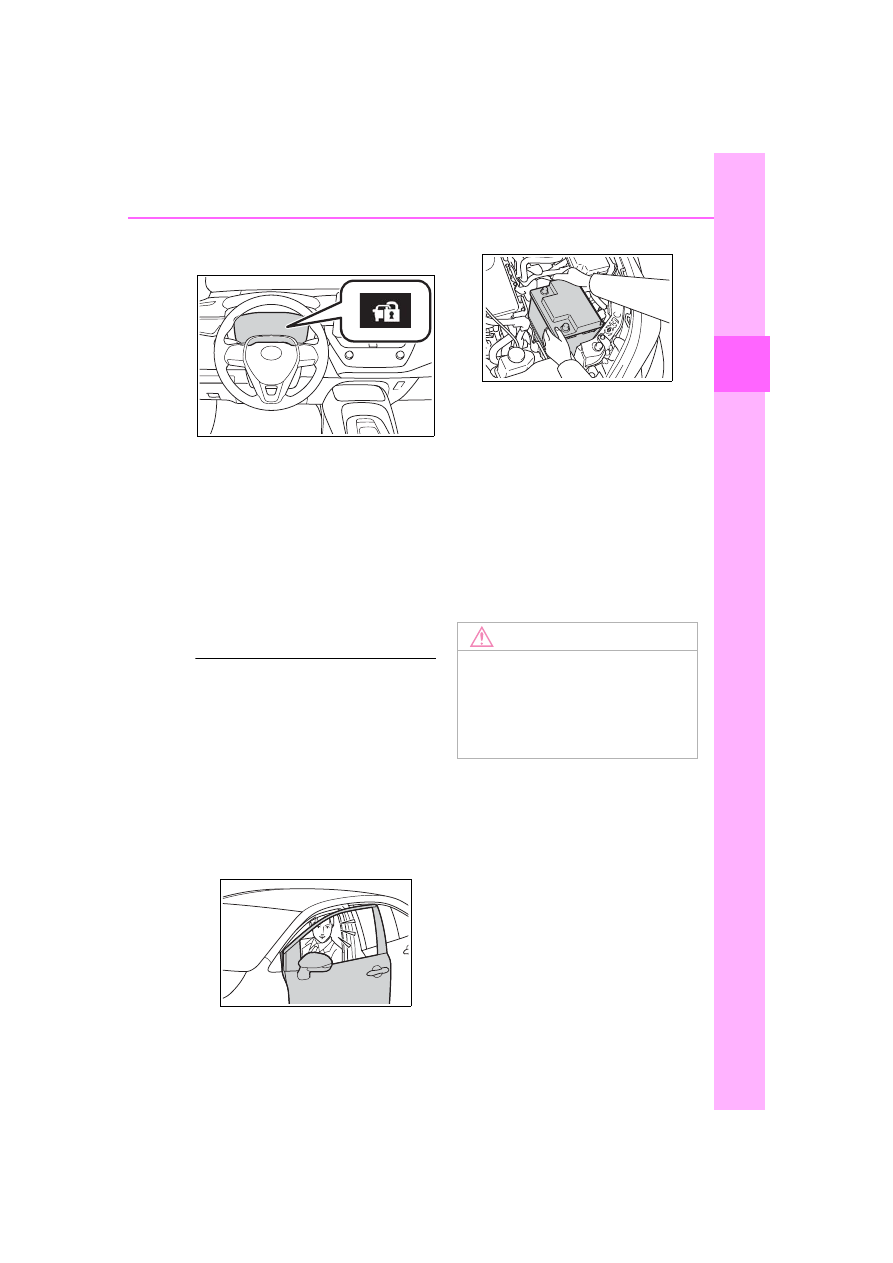

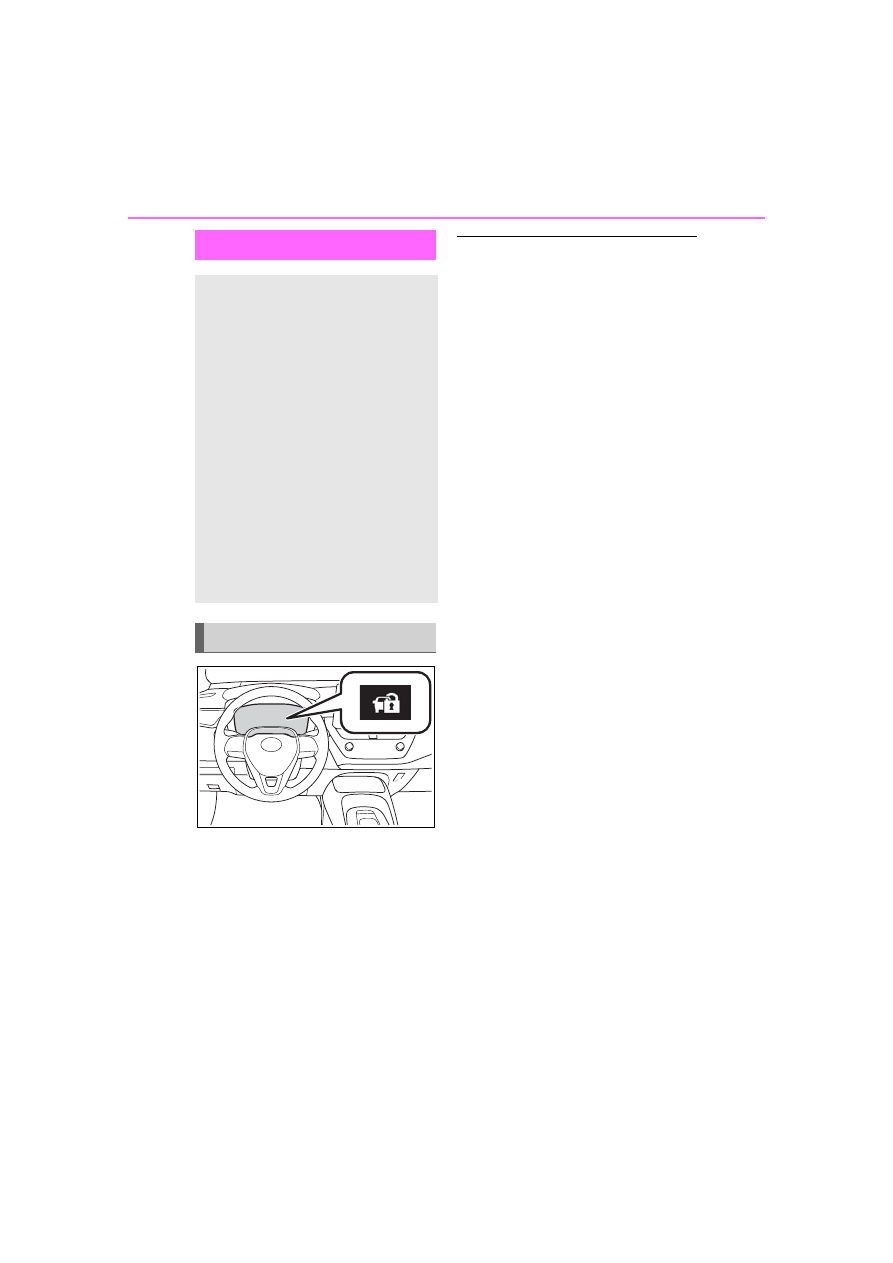

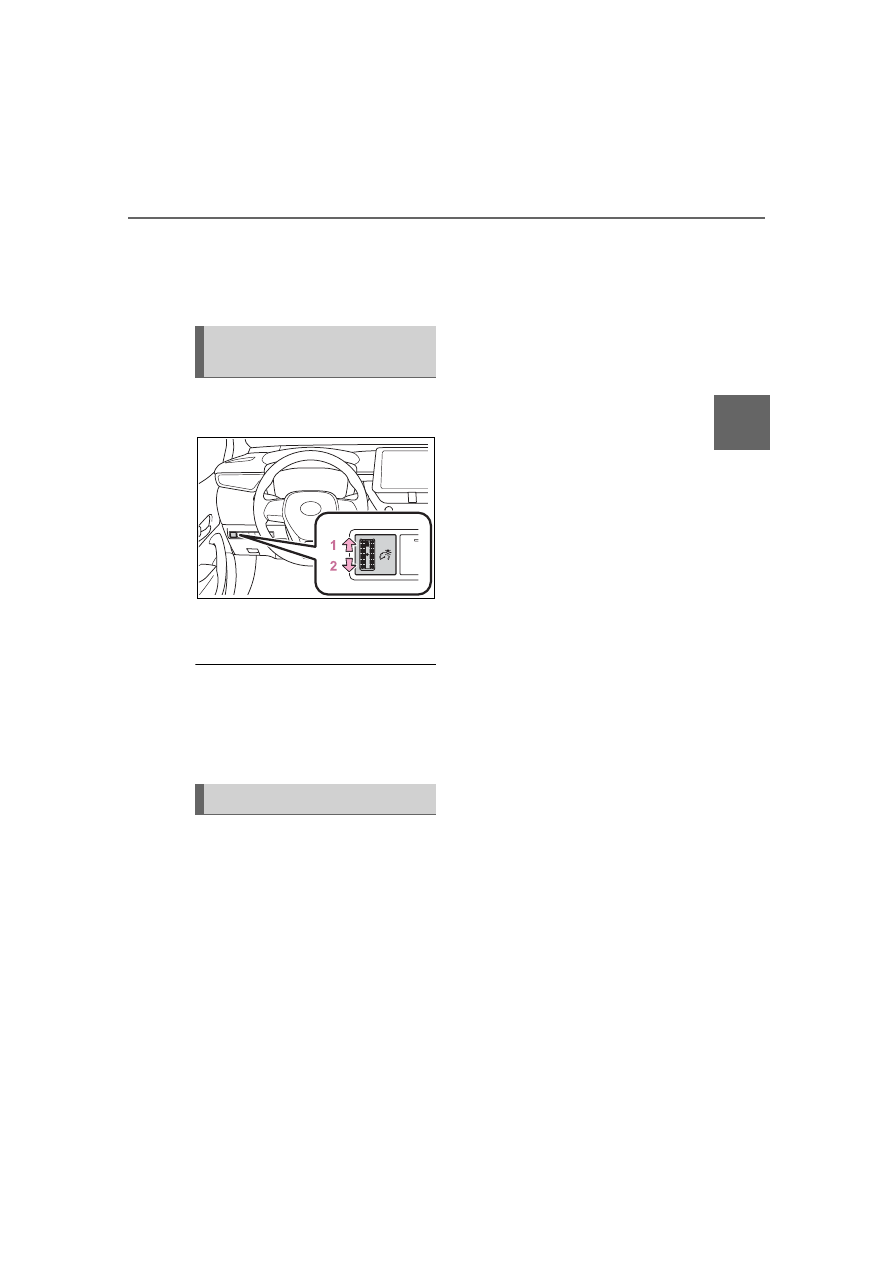

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a mainte-

nance-free type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-5. Theft deterrent system

COROLLA HV_U

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors, trunk and
hood, and lock all the doors.
The system will set automati-
cally after 30 seconds.

The indicator light changes from

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

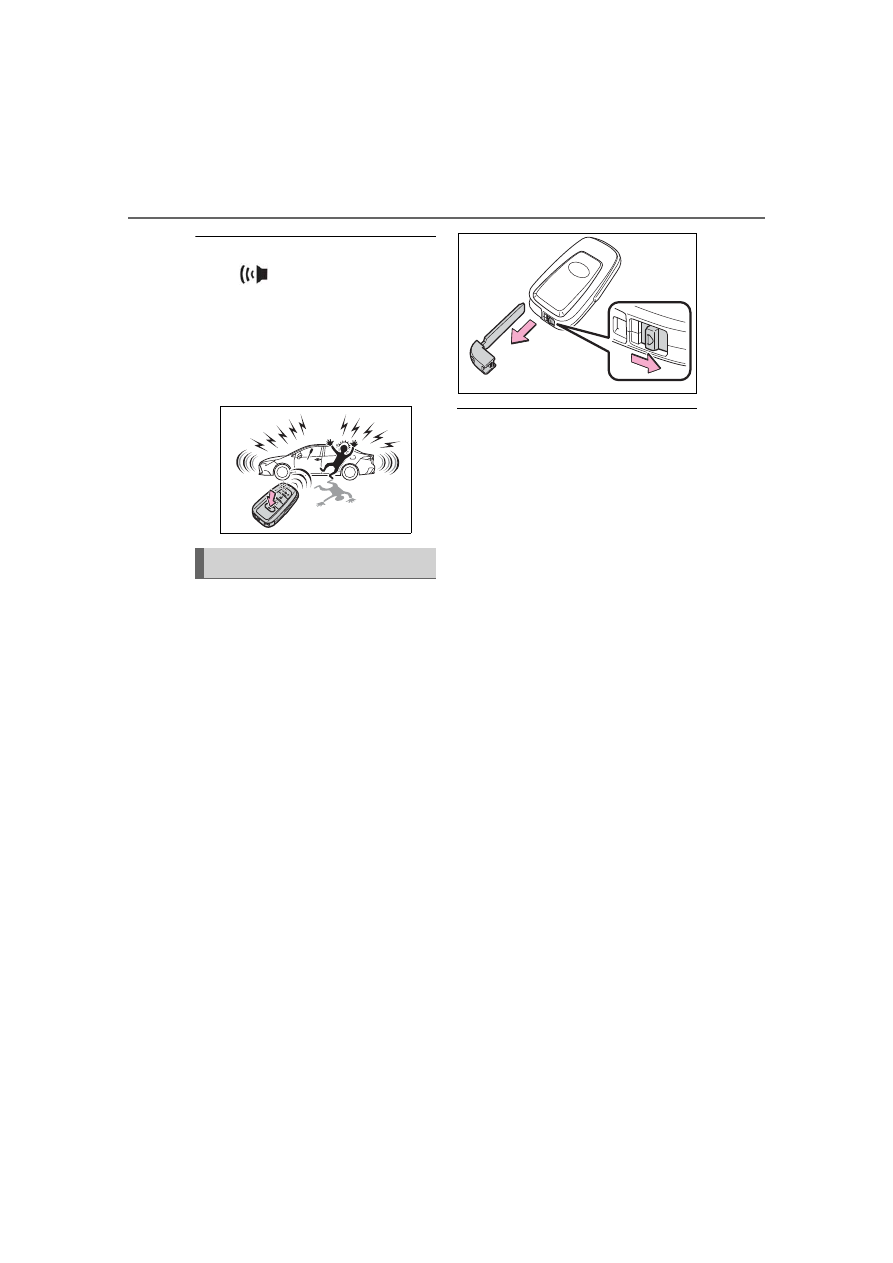

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door or trunk is
unlocked or opened in any
way other than using the
entry function, wireless
remote control or mechani-
cal key. (The doors will lock
again automatically.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-5. Theft deterrent system

COROLLA HV_U

For safety and secu

rity

being on to flashing when the sys-
tem is set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door, the trunk or hood, or

unlocks the vehicle using a door

lock switch or inside lock button.

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (

P.515)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

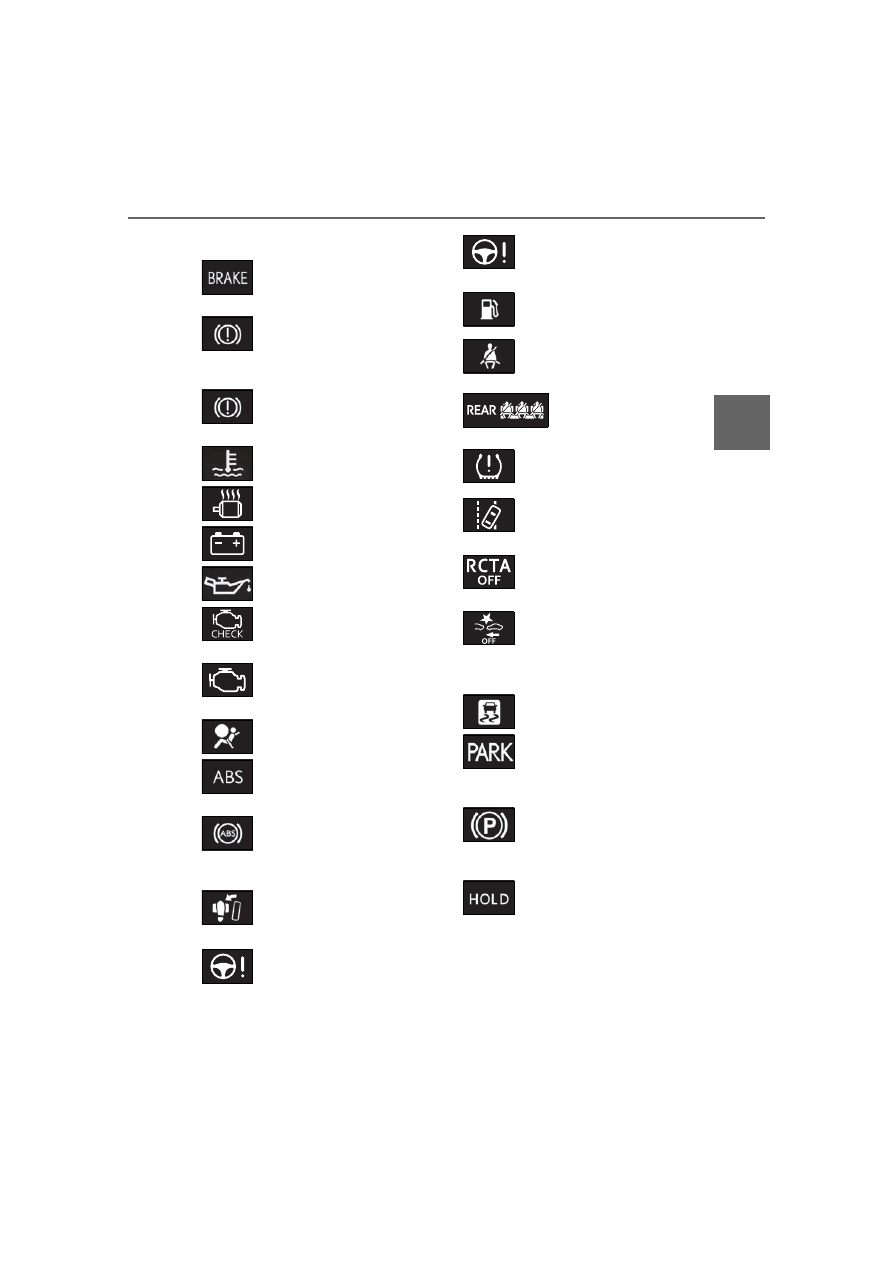

vehicle’s systems.

:These lights come on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.

(U.S.A.)

Brake system warning
light

(



(Red)

(Canada)

Brake system warning
light

(



(Yellow)

Brake system warning
light

(



High coolant temperature
warning light

(



Hybrid system overheat
warning light

(



Charging system warning
light

(



Low engine oil pressure
warning light

(



(U.S.A.)

Malfunction indicator
lamp

(

(Canada)

Malfunction indicator
lamp

(

SRS warning light

(

(U.S.A.)

ABS warning light

(

(Canada)

ABS warning light

(

Brake Override System
warning light/Drive-Start
Control warning light

(

(Red)

Electric power steering
system warning light

(

(Yellow)

Electric power steering
system warning light

(



Low fuel level warning
light (

Driver’s and front passen-
ger’s seat belt reminder
light (

Rear passengers’
seat belt reminder
lights (



P.482)

Tire pressure warning
light

(if equipped)

(



P.482)

(Orange)

LTA indicator (



P.482)

(Flashes)

RCTA OFF indicator

(if

equipped) (

P.483)

(Flashes

or illumi-

nates)

PCS warning light

(



P.483)

Slip indicator

(



P.483)

(Flashes)

(U.S.A.)

Parking brake indicator
(



P.484)

(Flashes)
(Canada)

Parking brake indicator
(



P.484)

(Flashes)

Brake hold operated indi-
cator

(

P.484)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA HV_U

There may be a malfunction in a
system if the lights do not come
on, or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the

multi-information display.

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

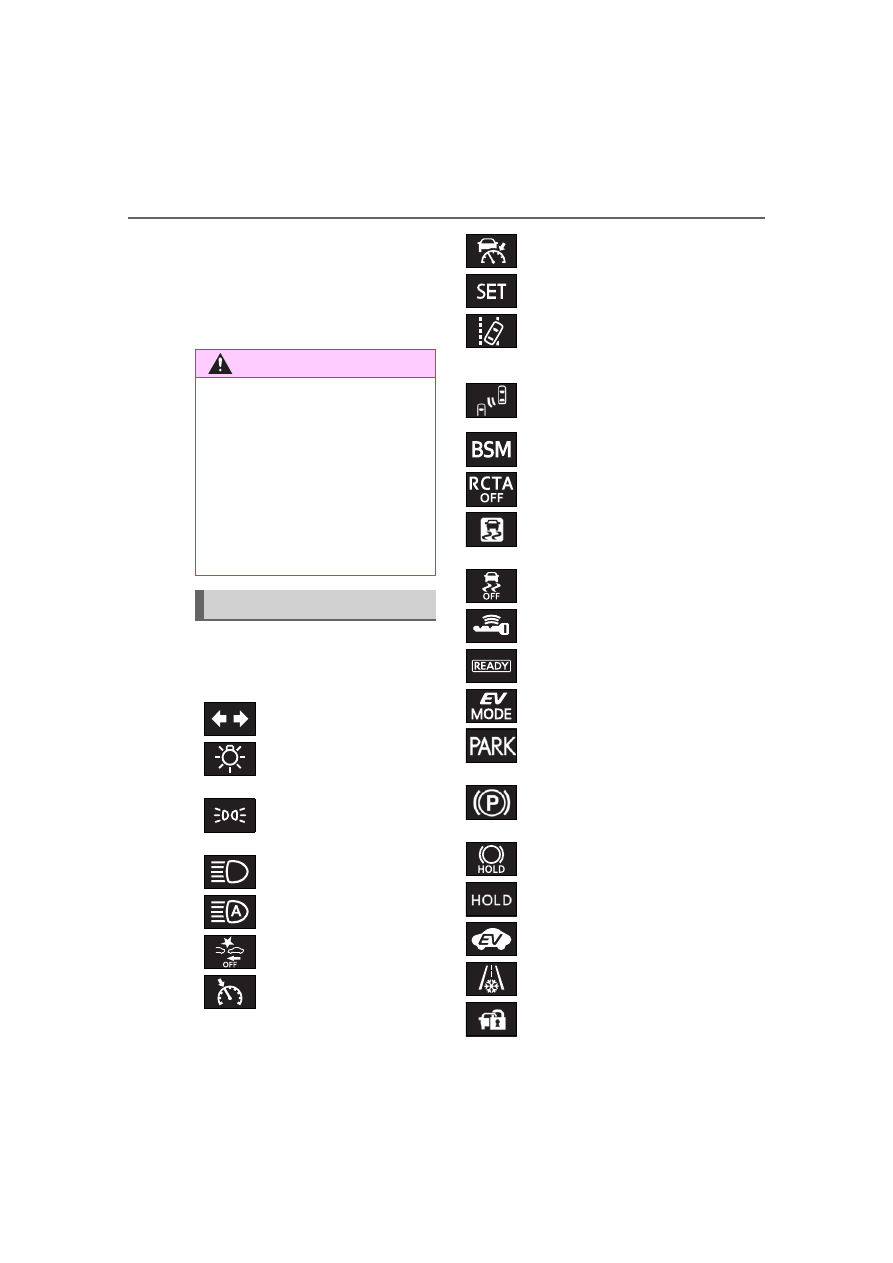

Indicators

Turn signal indicator
(



P.166)

(U.S.A.)

Headlight indicator
(



P.173)

(Canada)

Tail light indicator
(



P.173)

Headlight high beam indi-
cator (

P.175)

Automatic High Beam
indicator (

P.175)

PCS warning light

*1, 2

(



P.191)

Cruise control indicator
(



Dynamic radar cruise con-
trol indicator (



Cruise control “SET” indi-
cator (



LTA indicator (



P.202)

BSM outside rear view
mirror indicators

*4, 5

(if

equipped) (



P.221)

BSM indicator (if
equipped) (



P.221)

RCTA OFF indicator

*1, 2

(if equipped) (



P.226)

(Flashes)

Slip indicator

(

P.241)

VSC OFF indicator

*1, 2

(

P.241)

Smart key system indica-
tor

(

“READY” indicator
(

EV drive mode indicator
(

P.162)

(U.S.A.)

Parking brake indicator
(

P.167)

(Canada)

Parking brake indicator
(

P.167)

Brake hold standby indi-
cator

(



P.170)

Brake hold operated indi-
cator

(



P.170)

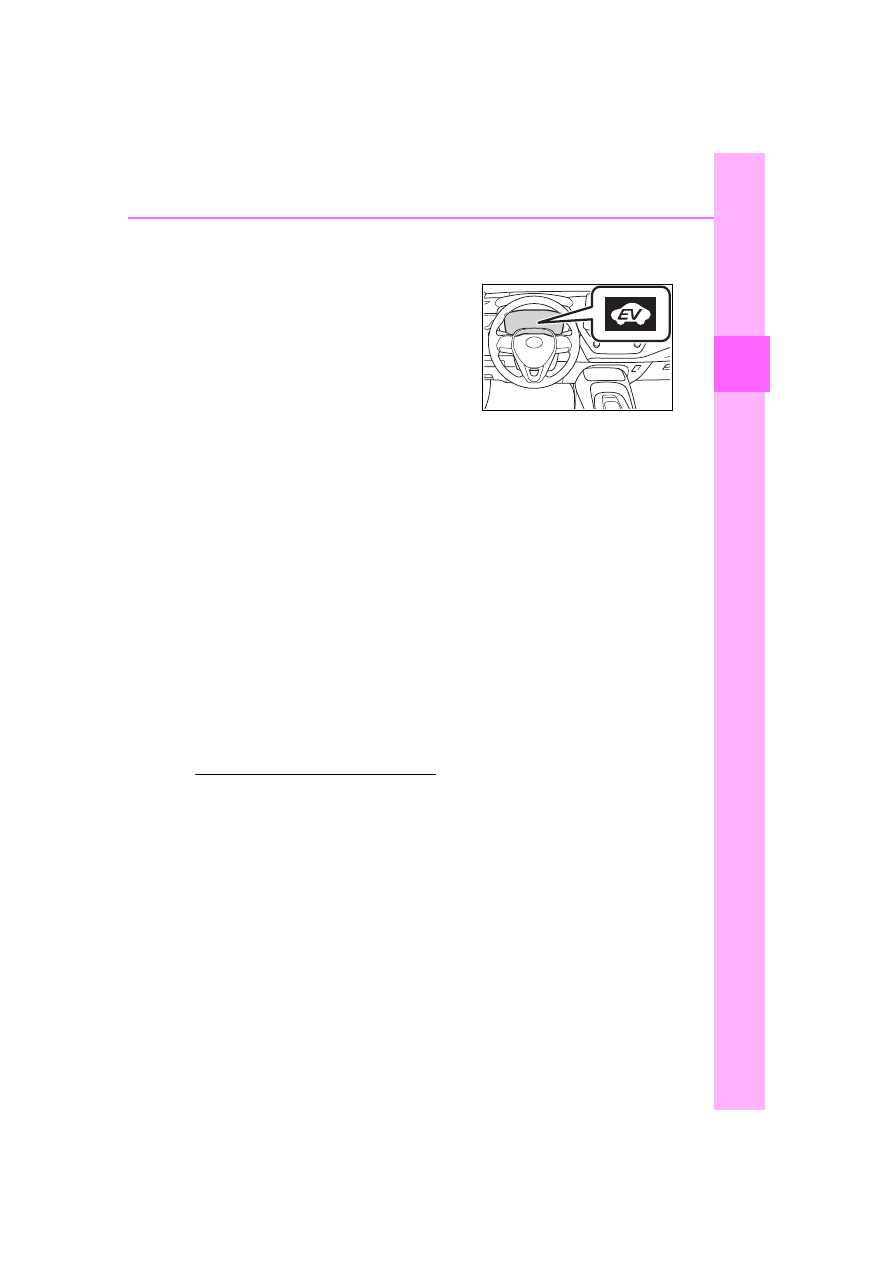

EV indicator (

P.81)

Low outside temperature
indicator

(

P.98)

Security indicator (



P.88,

90)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

:These lights come on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.
There may be a malfunction in a
system if the lights do not come
on, or turn off. Have the vehicle
inspected by your Toyota dealer.

:This light comes on when the

system is turned off.

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

:In order to confirm operation, the

BSM outside rear view mirror
indicators illuminate in the follow-
ing situations:

• When the power switch is in

ON, the BSM function is
enabled on

of the

multi-information display.

• When the BSM function is

enabled on

of the

multi-information display, the
power switch is turned to ON.

If the system is functioning cor-
rectly, the BSM outside rear view
mirror indicators will turn off after a
few seconds.

If the BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a mal-
function in the system.
If this occurs, have the vehicle
inspected by your Toyota dealer.

:This light illuminates on the out-

side rear view mirrors.

:This light illuminates on the

multi-information display.

:When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

:This light illuminates on the cen-

ter panel.

“AIR BAG ON/OFF”
indicator

*1, 8

(



P.41)

Eco drive mode indicator
(



P.239)

Power mode indicator
(



P.239)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA HV_U

■

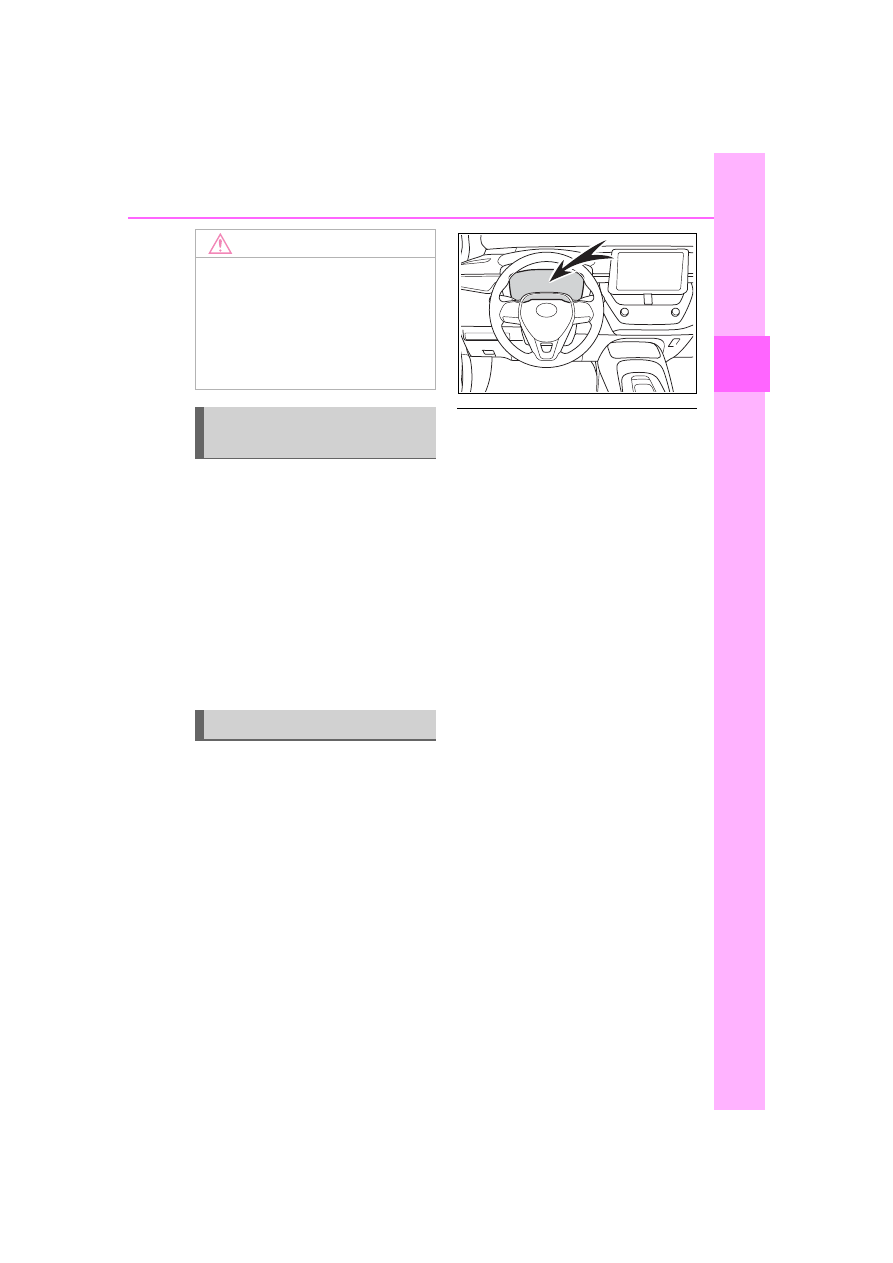

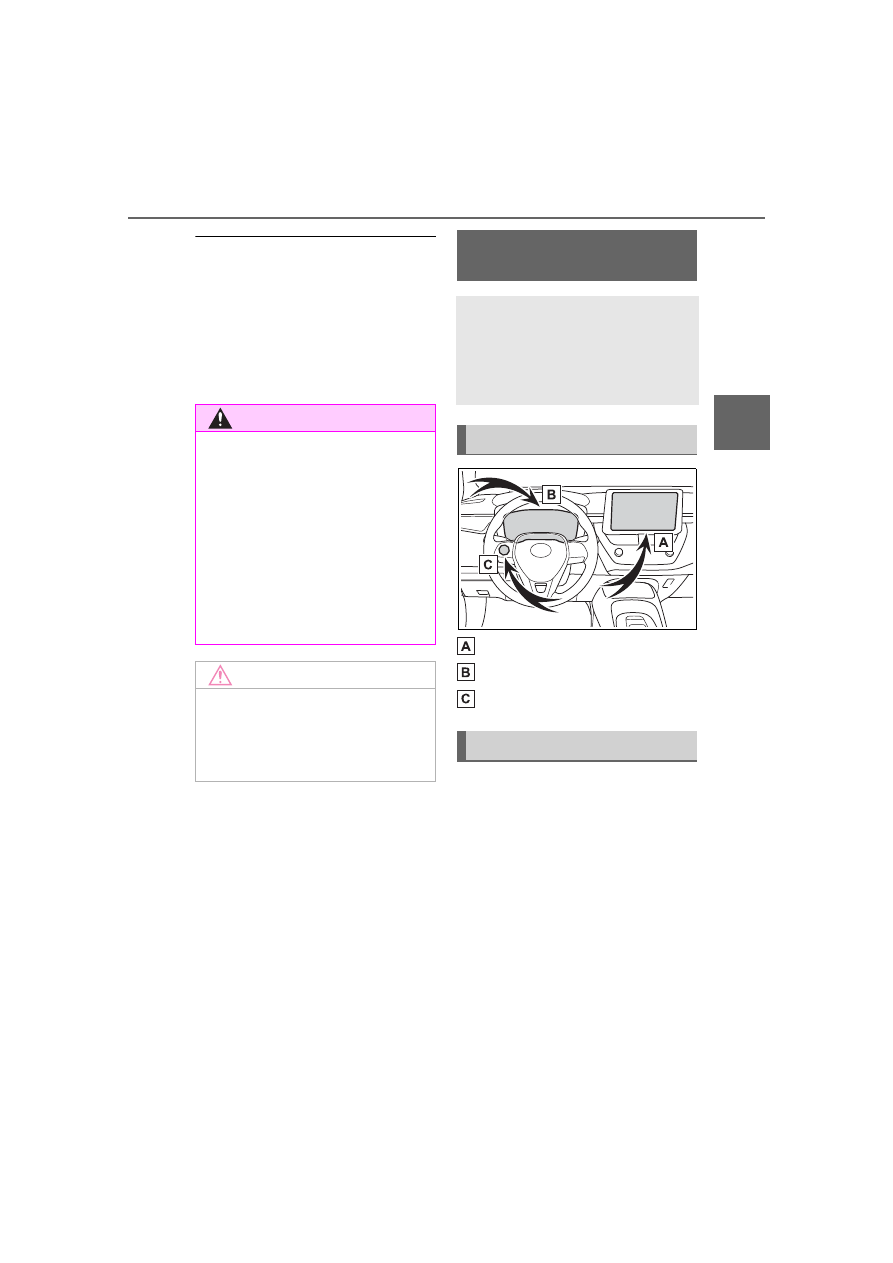

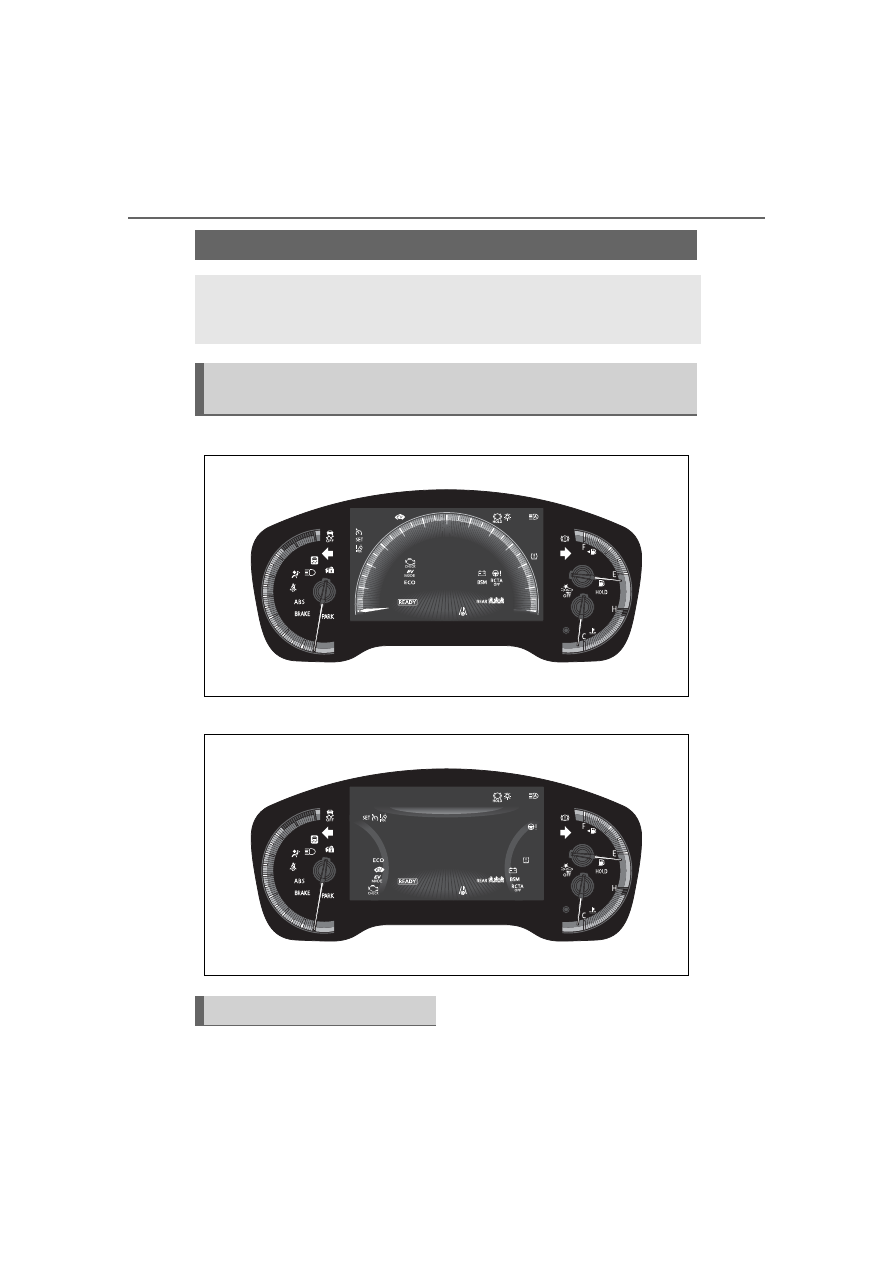

Locations of gauges and meters



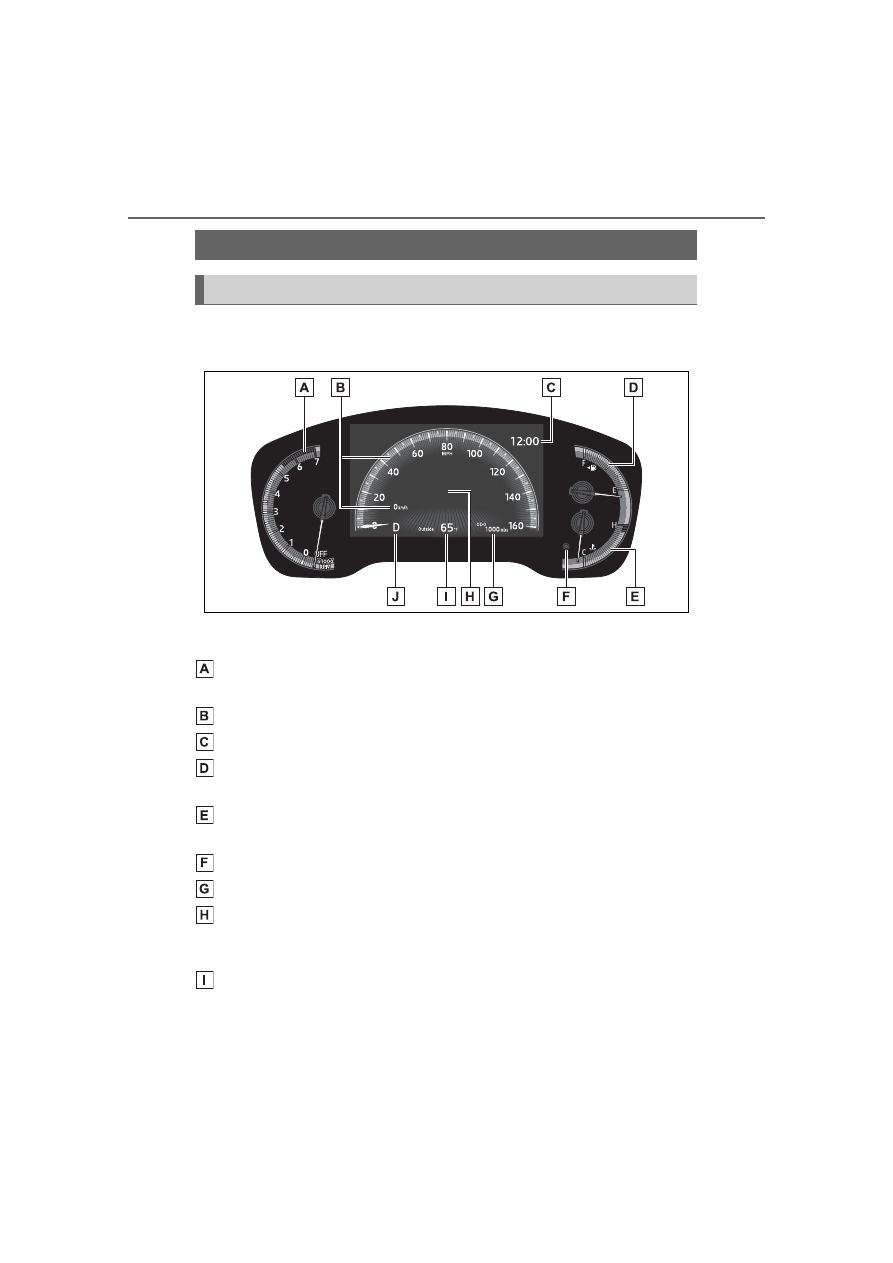

Analog speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Clock (

P.101)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

Odometer and trip meter display (



Multi-information display

Presents the driver with a variety of vehicle data (



P.103)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Gauges and meters

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

Shift position indicator (

P.164)



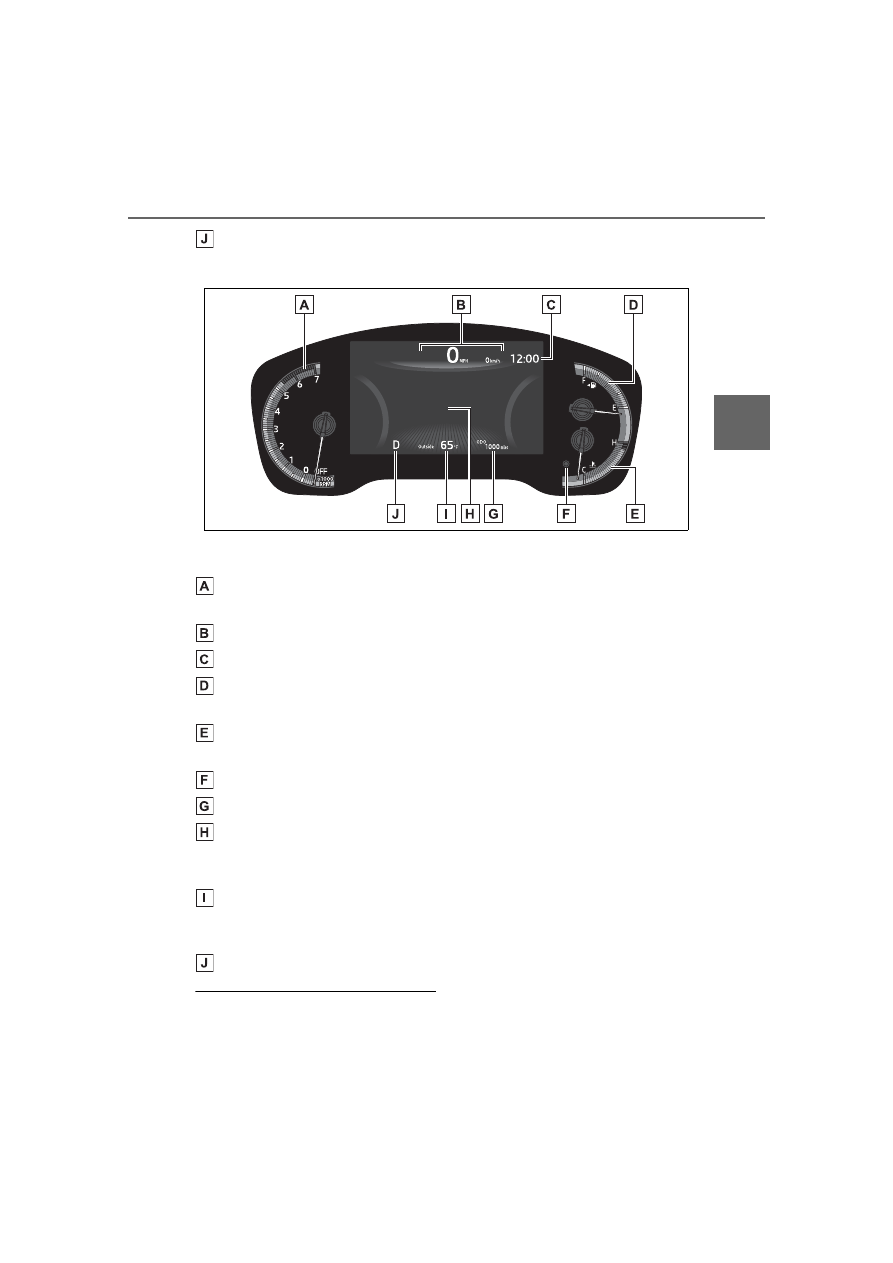

Digital speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Clock (

P.101)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

Odometer and trip meter display (



Multi-information display

Presents the driver with a variety of vehicle data (



P.103)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Shift position indicator (

P.164)

■

Engine speed

On hybrid vehicles, engine speed is

precisely controlled in order to help

improve fuel efficiency and reduce

exhaust emissions etc.

There are times when the engine

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

2-1. Instrument cluster

COROLLA HV_U

speed that is displayed may differ

even when vehicle operation and

driving conditions are the same.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

P.103

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



■

Changing the display

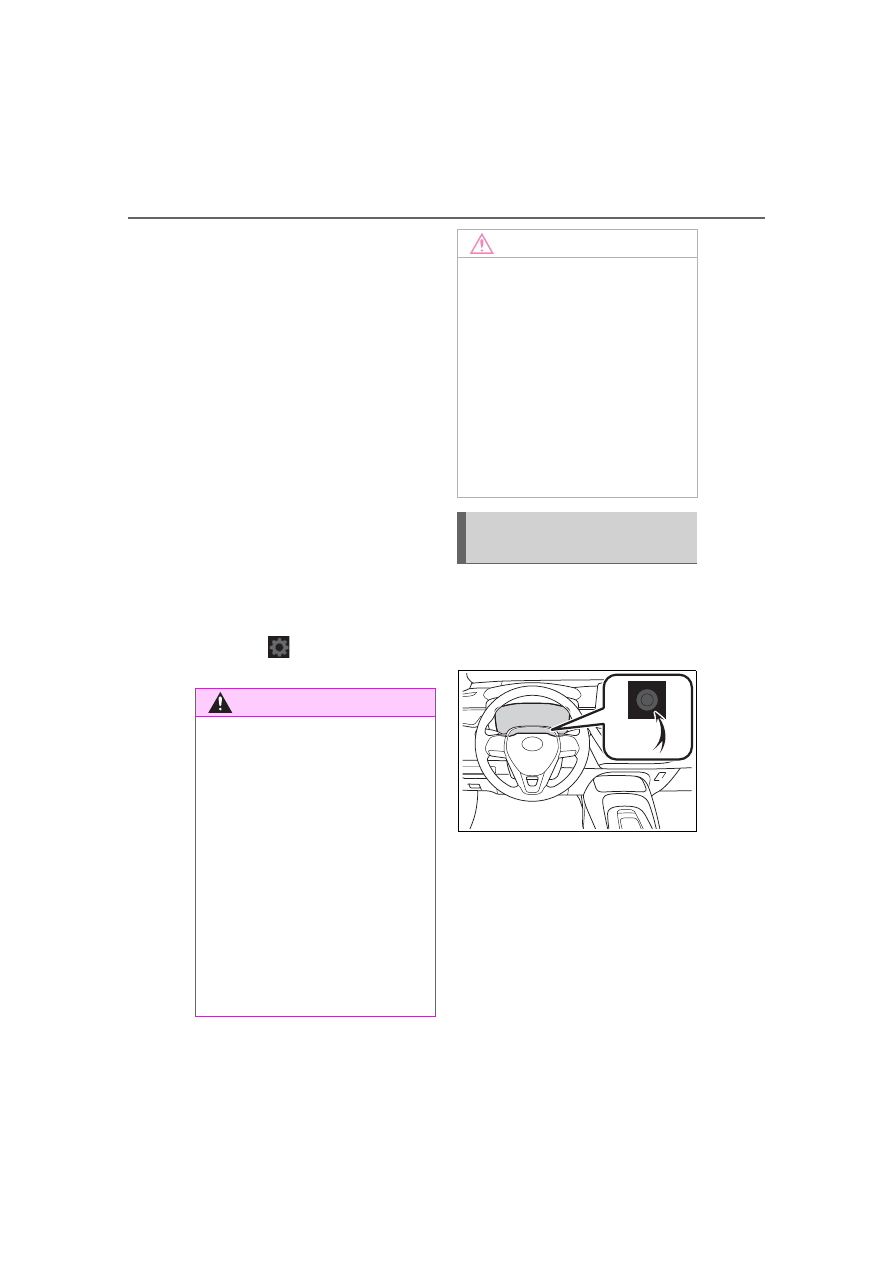

Press the display change button
until the desired item is dis-
played.

■

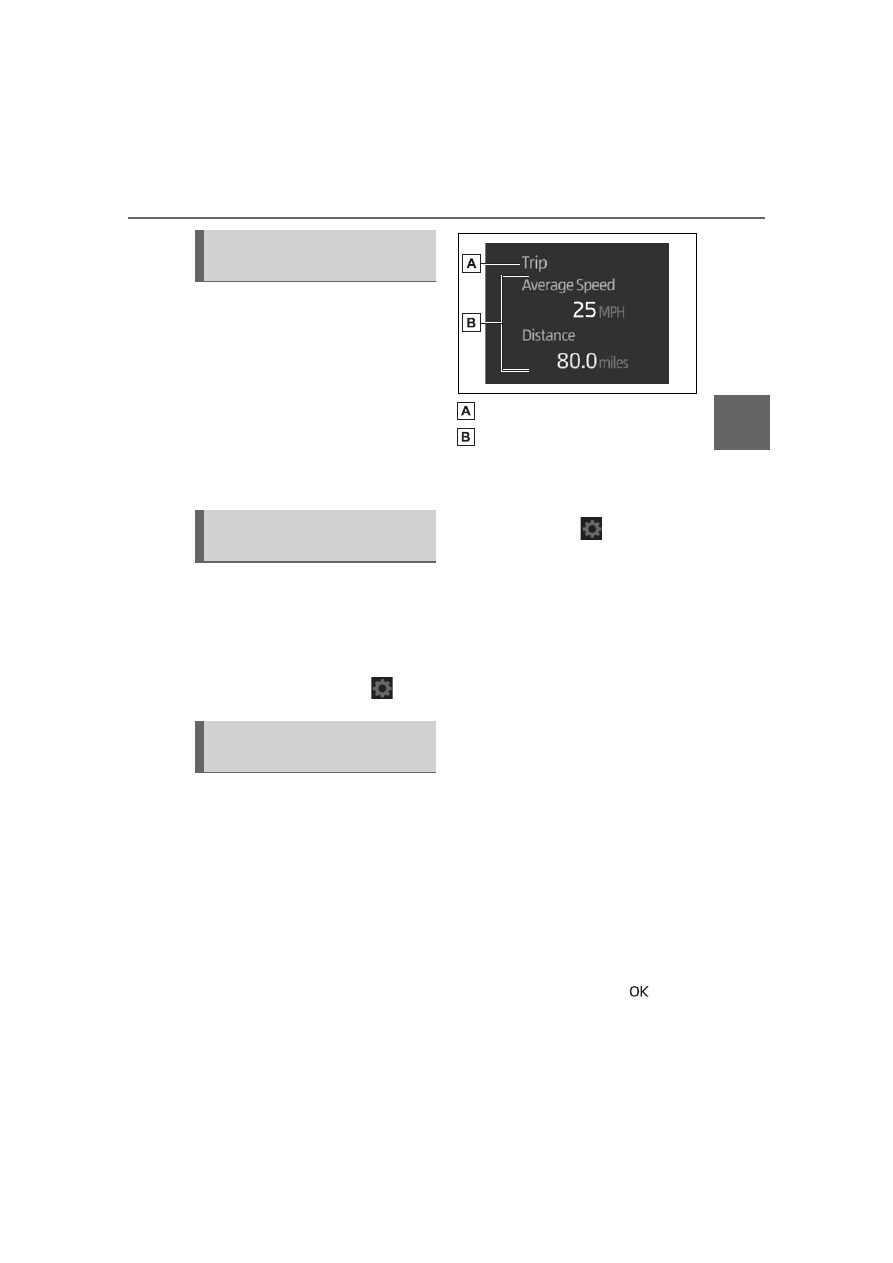

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.517)

Odometer and trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

101

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Instrument panel light bright-

ness adjustment

The brightness of the instrument

panel lights can be adjusted sepa-

rately for when the tail lights are on

and off.

■

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

■

Setting the clock to be
adjusted automatically by
GPS (Audio [for
U.S.A.]/Audio Plus)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to on.

■

Adjusting the clock manu-
ally



Audio (except for U.S.A.)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00



Audio (for U.S.A.)/Audio Plus

Press the “MENU” button.

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

102

2-1. Instrument cluster

COROLLA HV_U

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to off.

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00

■

Setting the time zone
(Audio [for U.S.A.]/Audio
Plus)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Time Zone”.

Select the desired time zone.

■

Setting daylight saving time
(Audio [for U.S.A.]/Audio
Plus)

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Daylight Saving
Time” then on/off.

■

Changing the clock
between 12-hour/24-hour
format

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

■

Clock settings screen (Audio

[for U.S.A.]/Audio Plus)

If “Clock : 00” is displayed when

is selected on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

103

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

■

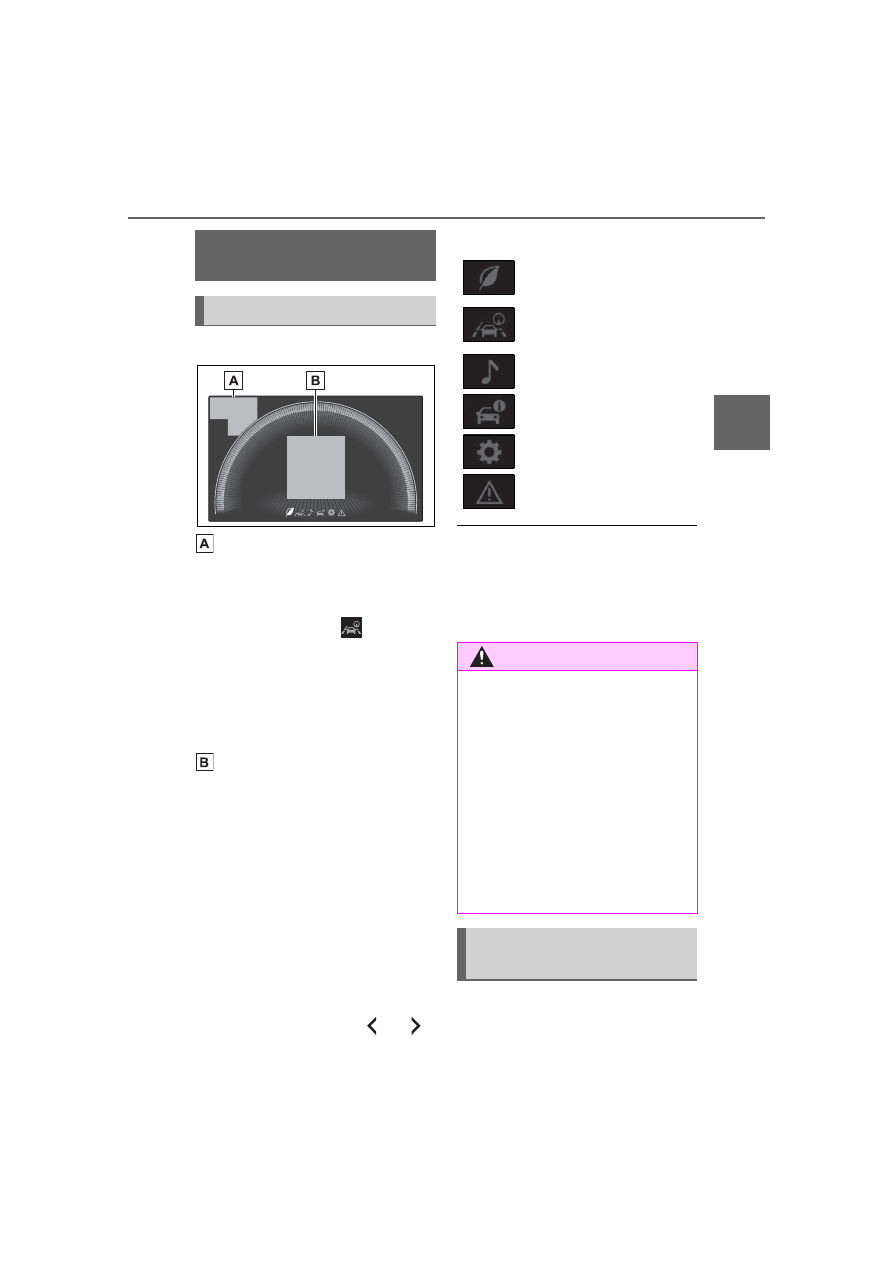

Display

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist)
• Dynamic radar cruise control with

full-speed range

• RSA (Road Sign Assist) (if

equipped) (



P.218)

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays
are also displayed in certain situa-
tions.

■

Menu icons

The menu icons will be dis-
played by pressing the

meter control switch.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is
operated using the meter control

Multi-information dis-

play

Display and menu icons

Driving information display
(



P.104)

Driving support system
information display
(



P.107)

Audio system-linked dis-
play (

P.107)

Vehicle information dis-
play (

P.107)

Settings display (



Warning message display
(



WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures

P.100

Changing the meter dis-
play

-------------------------------------------------------------------------------------------------------------------------------------------------------------

104

2-1. Instrument cluster

COROLLA HV_U

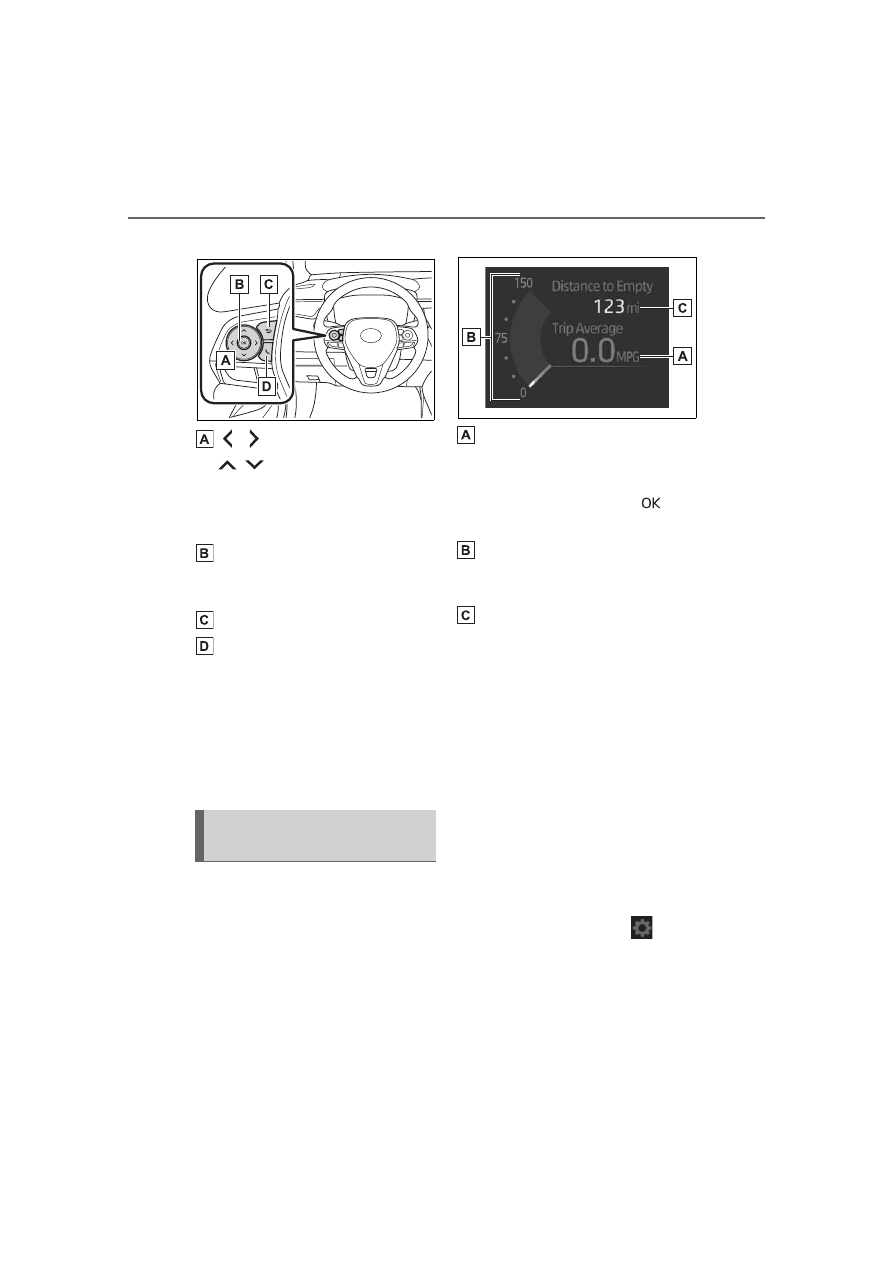

switches.

: Select menu icons

: Change displayed

content, scroll up/down the
screen and move the cursor
up/down
Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Display items



Fuel economy



Hybrid System Indicator/ECO
Accelerator Guidance/Eco
score

■

Fuel economy

Use the displayed values as a ref-

erence only.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the

meter control switch.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Driving range

Displays driving range with remain-
ing fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the power
switch off. If the vehicle is refueled
without turning the power switch off,
the display may not be updated.

The average fuel economy dis-
play can be changed in

(





Average fuel economy (after
start)

Displays the average fuel con-

Content of driving infor-
mation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

105

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

sumption since hybrid system start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

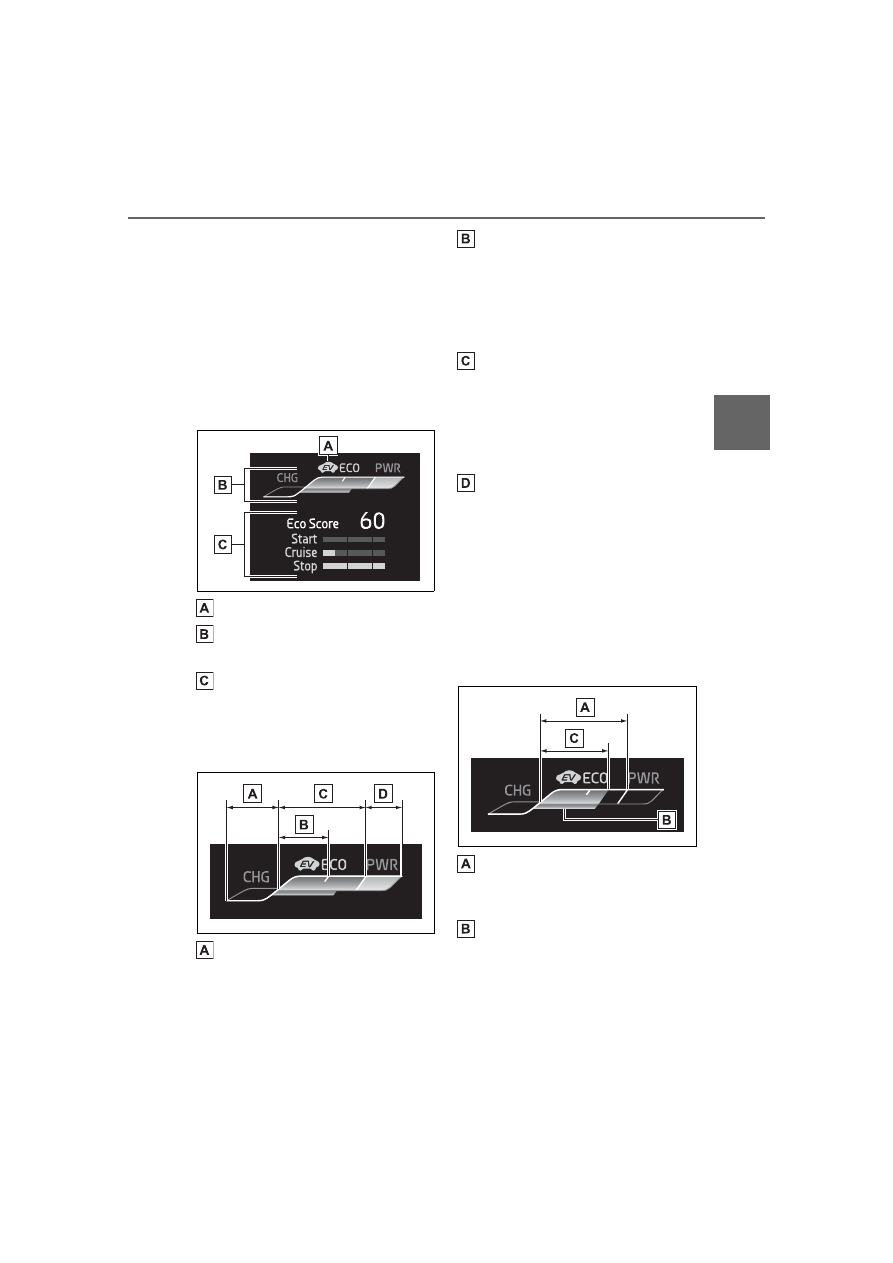

Hybrid System Indica-
tor/ECO Accelerator Guid-
ance/Eco score

EV indicator (



P.81)

Hybrid System Indicator/ECO
Accelerator Guidance
Eco score



Hybrid System Indicator

Displays hybrid system output or
regeneration level.

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the bar display within
Eco area, more Eco-friendly driv-
ing can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

: When used in this manual, regen-

eration refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.



ECO Accelerator Guidance

Eco area

Indicates that the vehicle is being
driven in an Eco-friendly manner.

Zone of Eco acceleration

Displayed as a blue bar, and rep-
resents an estimated suitable
accelerator pedal operation range
for the current driving conditions,
such as starting off or cruising.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

106

2-1. Instrument cluster

COROLLA HV_U

This display changes according to
situation, such as when starting off
or cruising.

Current accelerator pedal
operation

Displayed as a green bar when
within the Eco area.
Eco-friendly acceleration can be
achieved by keeping the accelera-
tor pedal operation display within
the range indicated by the blue bar.
(

P.147)



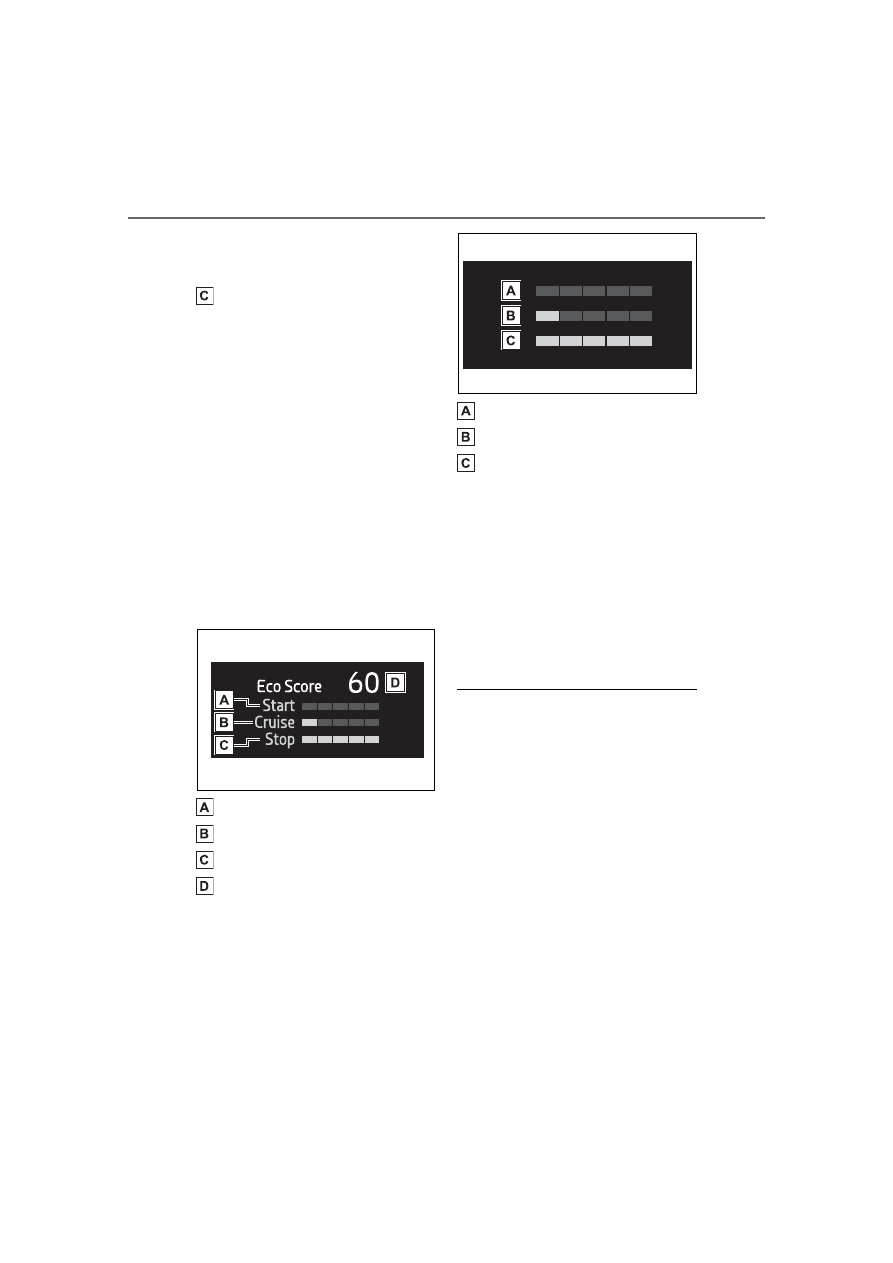

Eco score

The following 3 Eco driving meth-
ods are evaluated in 5 levels:
Smooth start-off acceleration, driv-
ing without sudden acceleration,
and smooth stopping. When the
vehicle is stopped, an Eco score
out of 100 points will be displayed.

Eco start status
Eco cruise status
Eco stop status
Score result

How to read the bar display

Not yet evaluated
Low
High

• After the hybrid system is started,

the Eco score will not be dis-
played until the vehicle speed
exceeds approximately 12 mph
(20 km/h).

• The Eco score will be reset each

time the hybrid system is started.

• When the hybrid system is

stopped, the total score of the
current trip will be displayed.

■

Hybrid System Indicator is dis-

played when

The Hybrid System Indicator is dis-

played in the following situations:

●

The “READY” indicator is illumi-

nated.

●

The shift lever is in D or B.

■

The ECO Accelerator Guid-

ance/Eco score will not operate

when

The ECO Accelerator Guidance/Eco

score will not operate in the follow-

ing situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

107

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(

P.197)



Dynamic radar cruise control
with full-speed range
(

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Display items



Drive information



Energy monitor (



P.109)

■

Drive information

Displays drive information such as
the following:

Drive information type
Drive information items

Displays the following depend-
ing on which drive information
type and drive information items
were selected in

. (



After start

• Distance: Displays the distance

driven since hybrid system start

• Elapsed time: Displays the

elapsed time since hybrid system
start

• Average vehicle speed: Displays

the average vehicle speed since
hybrid system start



After reset

• Distance: Displays the distance

driven since the display was
reset

• Elapsed time: Displays the

elapsed time since the display
was reset

• Average vehicle speed: Displays

the average vehicle speed since
the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

Driving support system
information display

Audio system-linked dis-
play

Vehicle information dis-
play

-------------------------------------------------------------------------------------------------------------------------------------------------------------

108

2-1. Instrument cluster

COROLLA HV_U

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Speedometer display (7-inch
display)

Select to set the display of the
speedometer to analog/digital.



EV indicator

Select to enable/disable the EV
indicator.



Select to change the displayed con-
tent of the following:
• Hybrid system indicator
Select to display/not display the
Eco Accelerator Guidance.
(

P.105)

• Fuel economy display
Select to change the average fuel
consumption display between after
start/after reset. (

P.104)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Display contents
Select to display/not display the

energy monitor. (

P.109)

• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Current trip result display

Select to change the displayed
information about the current trip,
measured from when the hybrid
system was started until it was
stopped, between drive informa-
tion/eco score. (The information will
be displayed temporarily when the
hybrid system is stopped.)



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the following
meter control switches



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed

P.544

Settings display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

109

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

Audio system screen
Multi-information display
Meter control switches

■

Audio system screen



Audio without DCM/Audio
Plus without DCM

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Energy mon-
itor” is displayed, select “Energy”.



Audio with DCM/Audio Plus
with DCM

Press the “MENU” button.

WARNING

■

Cautions during setting up

the display

If the hybrid system is operating

while changing certain settings on

the settings display, ensure that

the vehicle is parked in a place

with adequate ventilation. In a

closed area such as a garage,

exhaust gases including harmful

carbon monoxide (CO) may col-

lect and enter the vehicle. This

may lead to death or a serious

health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Energy monitor/con-

sumption screen

You can view the status of
your hybrid system on the
multi-information display
and the audio system
screen.

System components

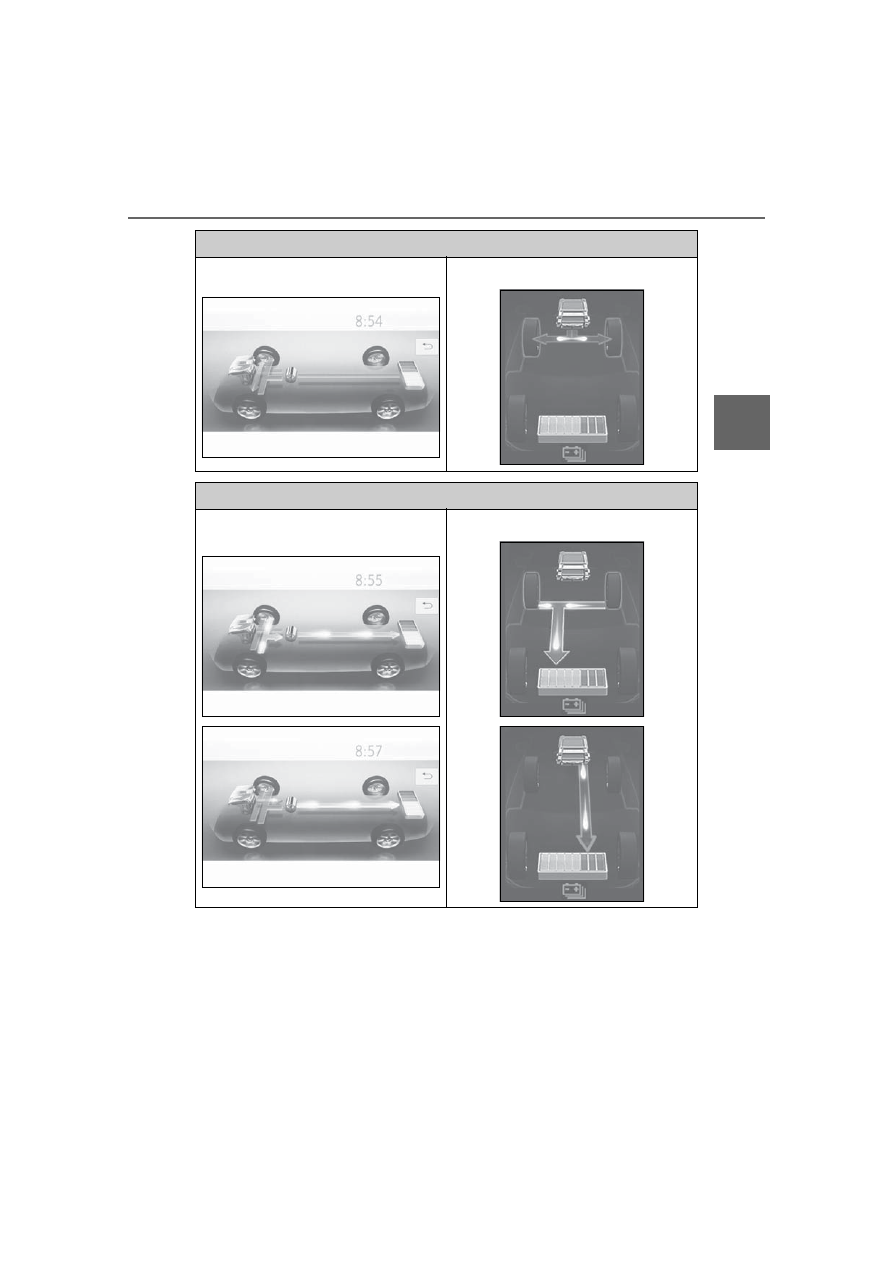

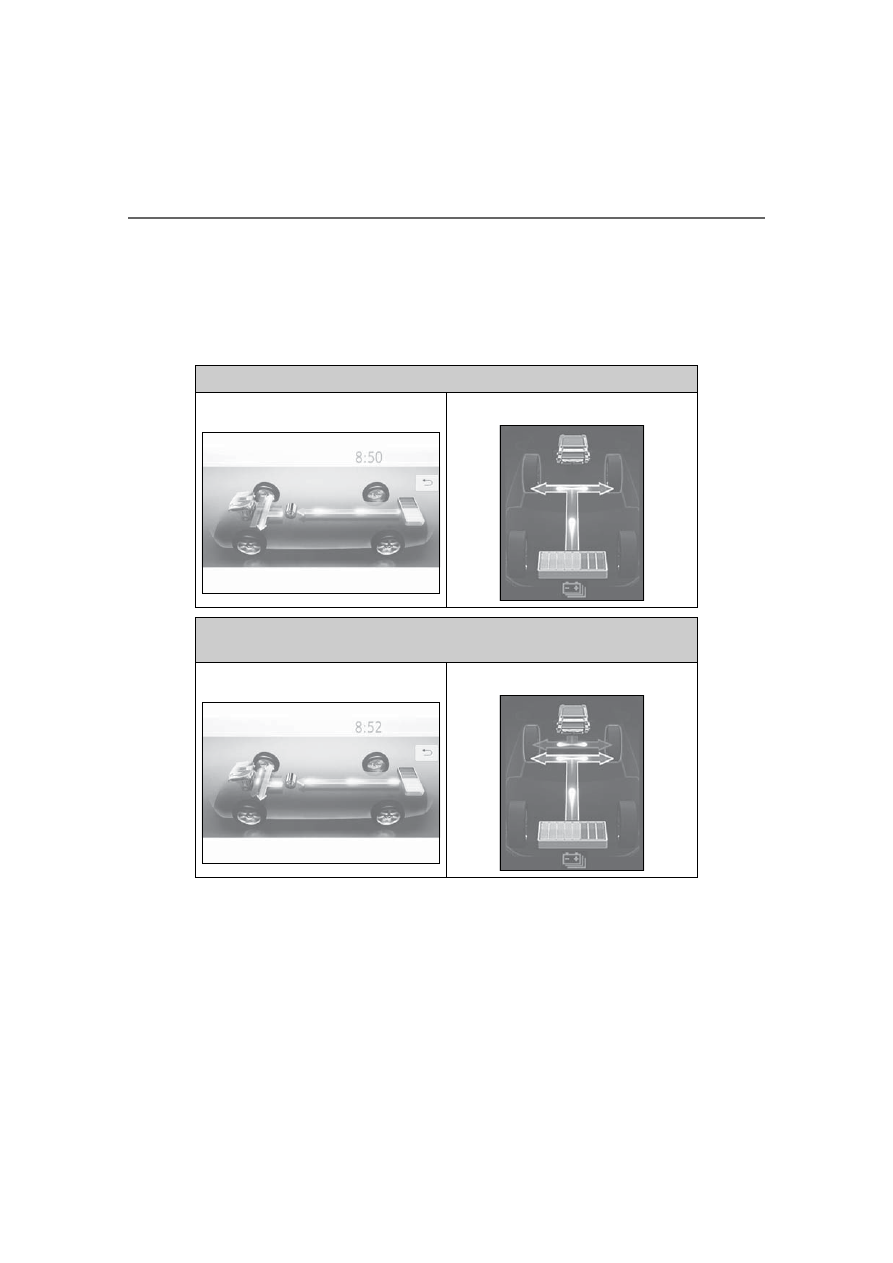

Energy monitor

-------------------------------------------------------------------------------------------------------------------------------------------------------------

112

2-1. Instrument cluster

COROLLA HV_U

These images are examples only, and may vary slightly from actual condi-
tions.

■

Hybrid battery (traction bat-
tery) status



Audio system screen

Low
High



Multi-information display

Low

High

These images are examples only,
and may vary slightly from actual
conditions.

■

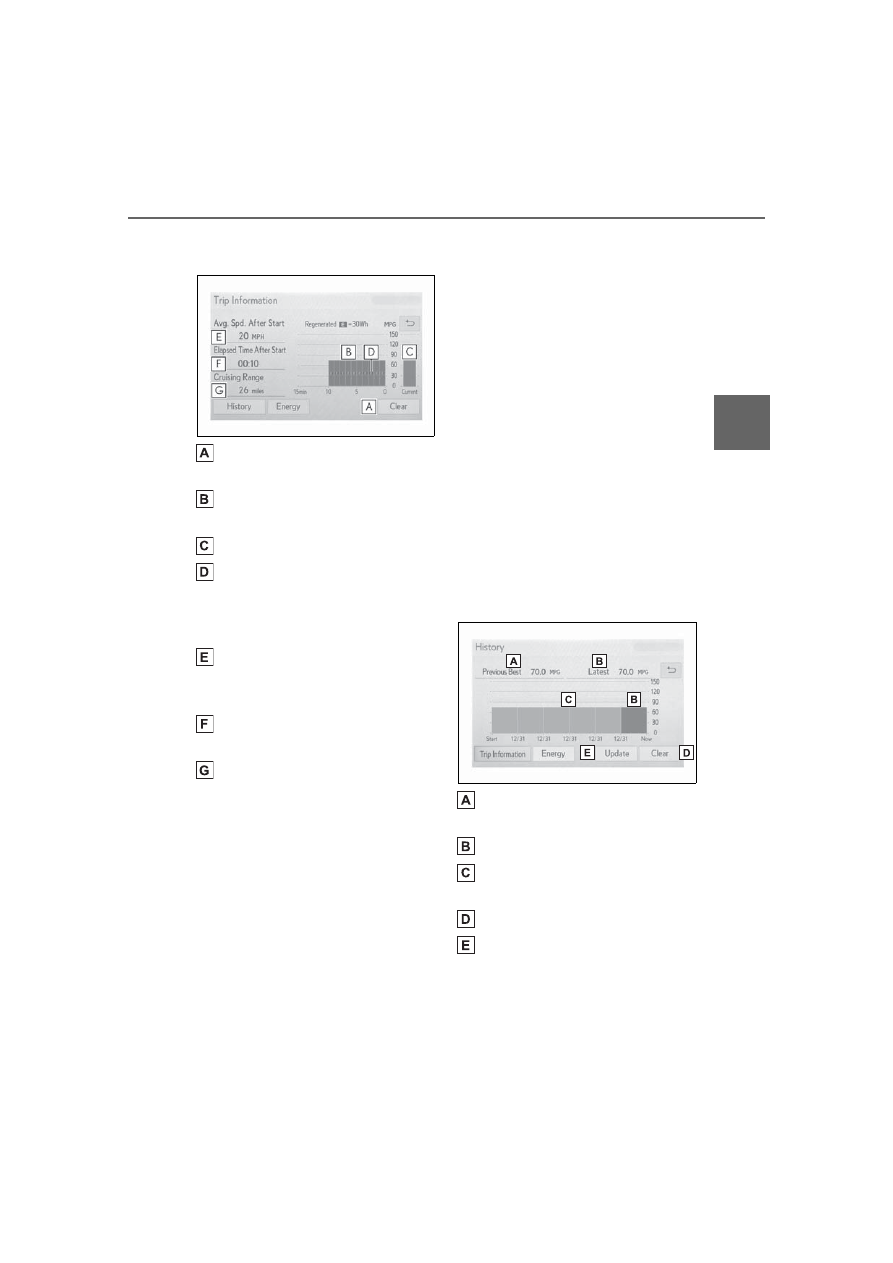

Trip information



Audio without DCM/Audio
Plus without DCM

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.



Audio with DCM/Audio Plus
with DCM

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Trip Informa-

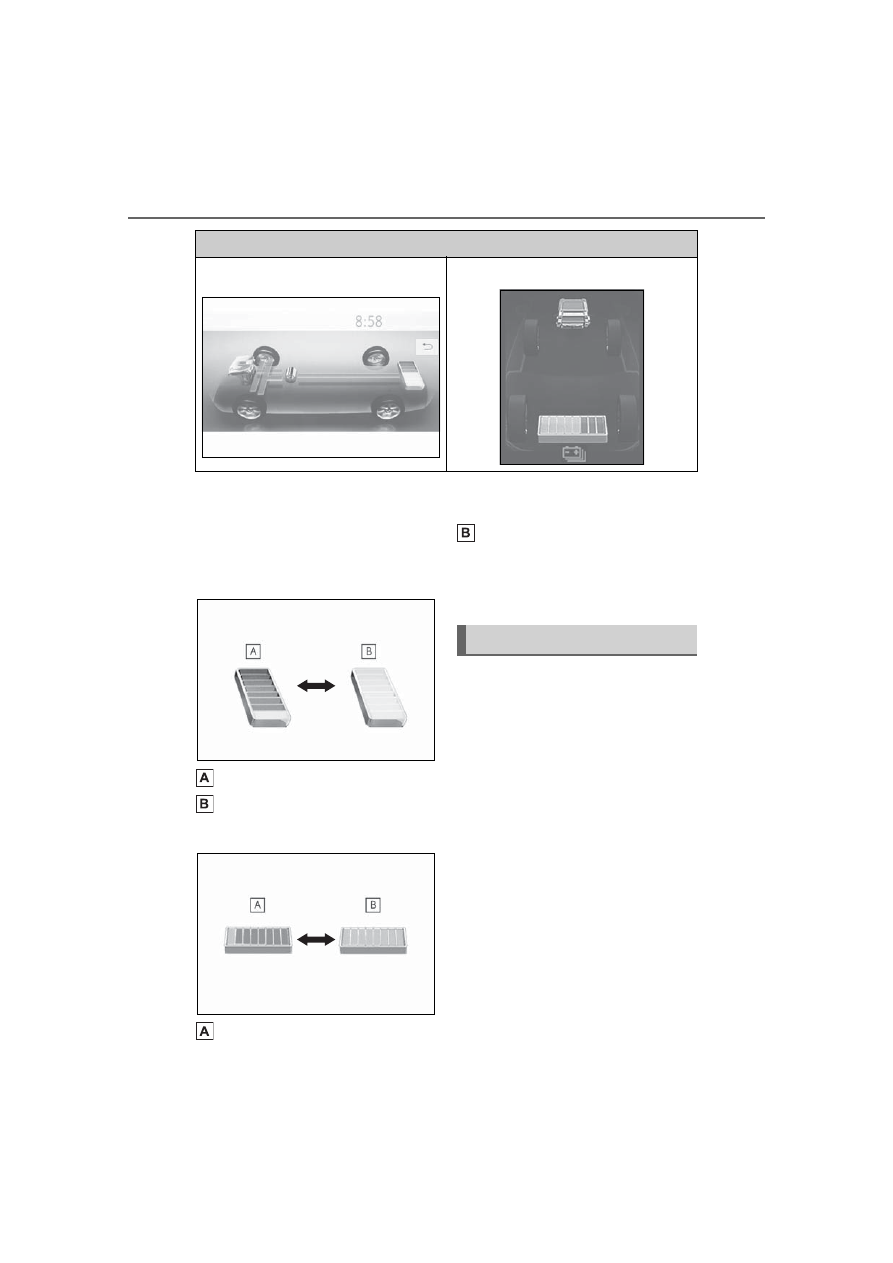

When there is no energy flow

Audio system screen

Multi-information display

Consumption

-------------------------------------------------------------------------------------------------------------------------------------------------------------

113

2-1. Instrument cluster

COROLLA HV_U

Vehicle

statu

s information an

d in
dicator

tion” is displayed, select “Trip Infor-
mation”.

Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes

One symbol indicates 30 Wh. Up to
5 symbols are shown.

Average vehicle speed since
the hybrid system was
started.
Elapsed time since the hybrid
system was started.
Cruising range

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
power switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

The image is an example only, and
may vary slightly from actual condi-
tions.

■

History



Audio without DCM/Audio
Plus without DCM

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

If a screen other than “History” is
displayed, select “History”.



Audio with DCM/Audio Plus
with DCM

Press the “MENU” button.

Select “Info” on the “Menu”
screen.

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “History” is
displayed, select “History”.

Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Resetting the history data
Updating the latest fuel con-
sumption data

The average fuel consumption
history is divided by color into
past averages and the average

-------------------------------------------------------------------------------------------------------------------------------------------------------------

115

COROLLA HV_U

Before driv

ing

Before driving

3-1. Key information

Keys ............................

116

3-2. Opening, closing and

locking the doors

Doors ..........................

119

Trunk ...........................

123

Smart key system .......

125

3-3. Adjusting the seats

Front seats ..................

133

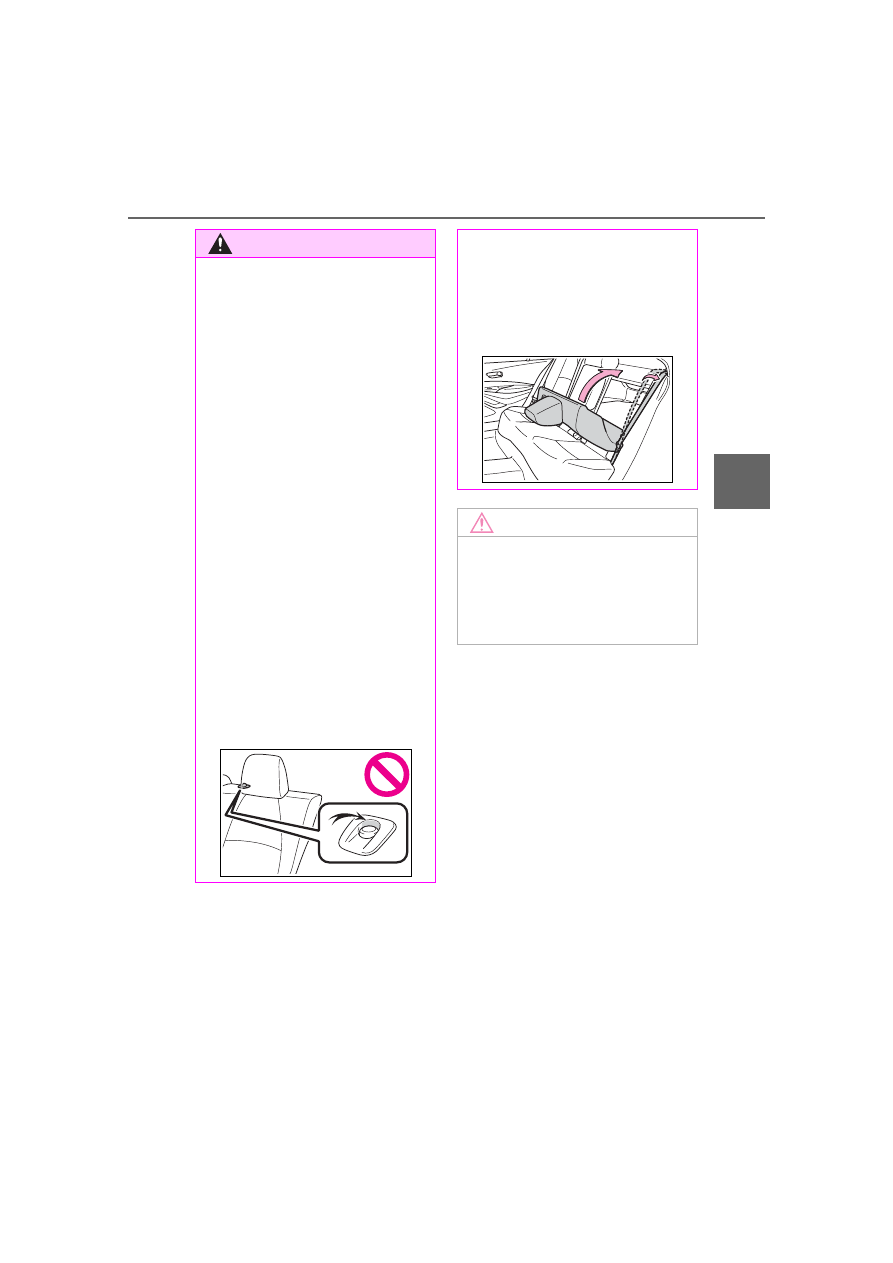

Rear seats...................

134

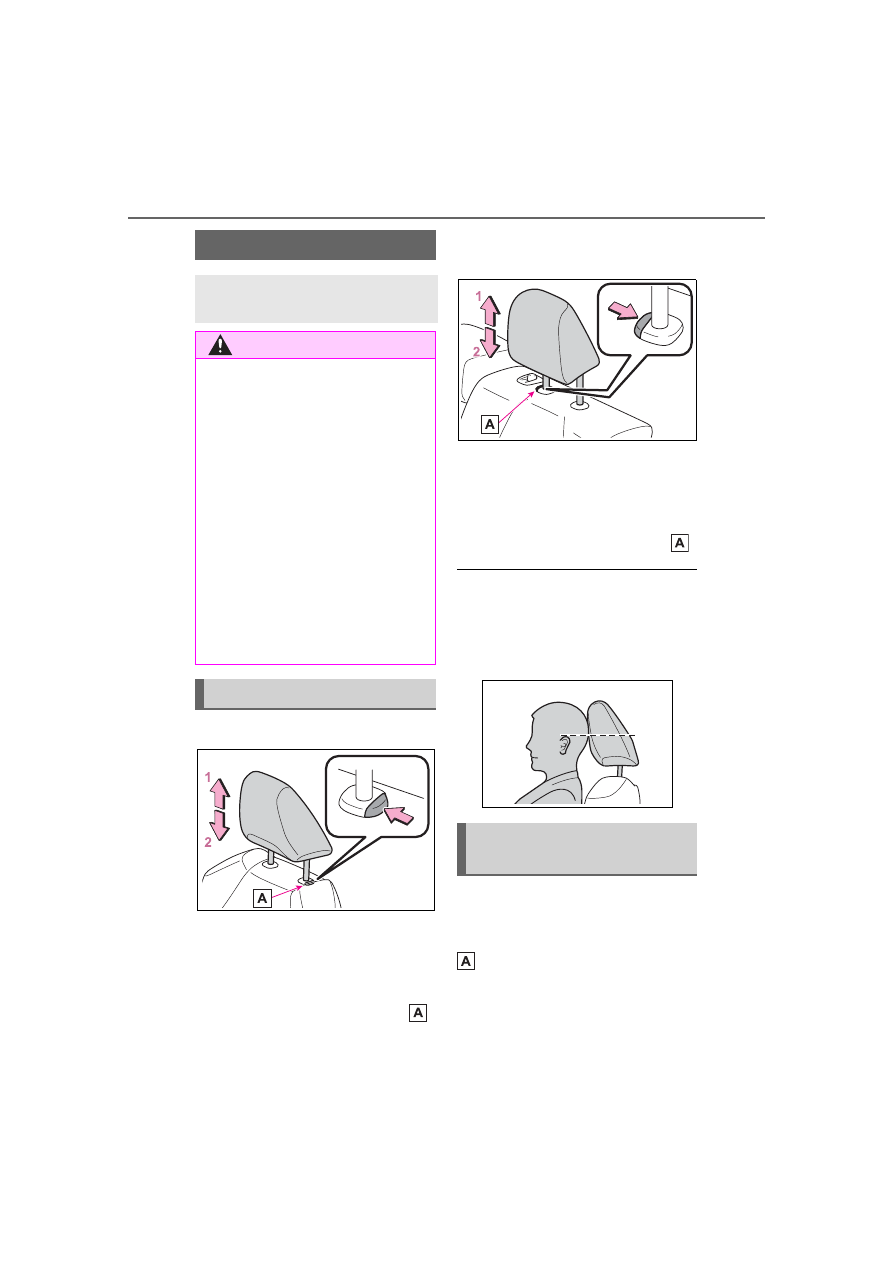

Head restraints............

136

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

138

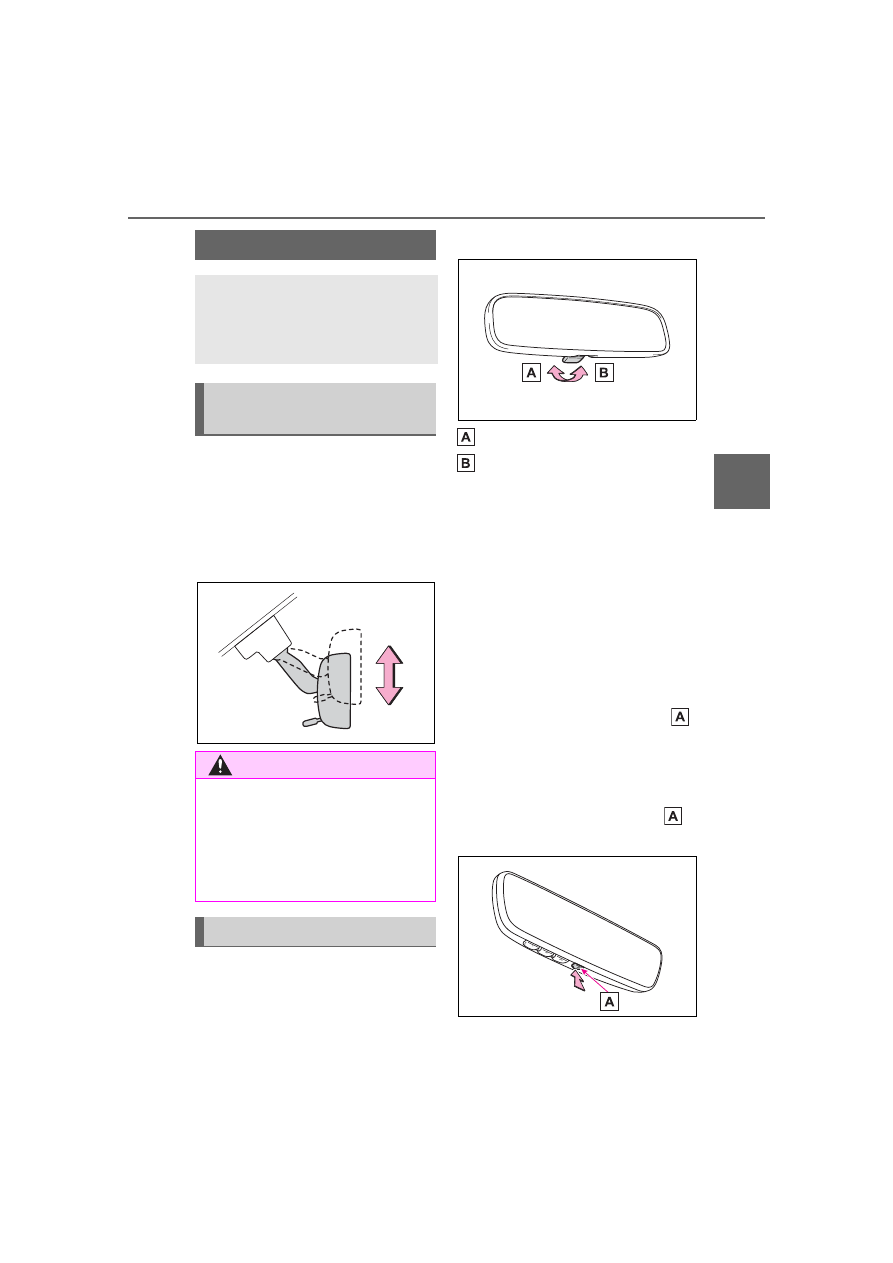

Inside rear view mirror

..................................

139

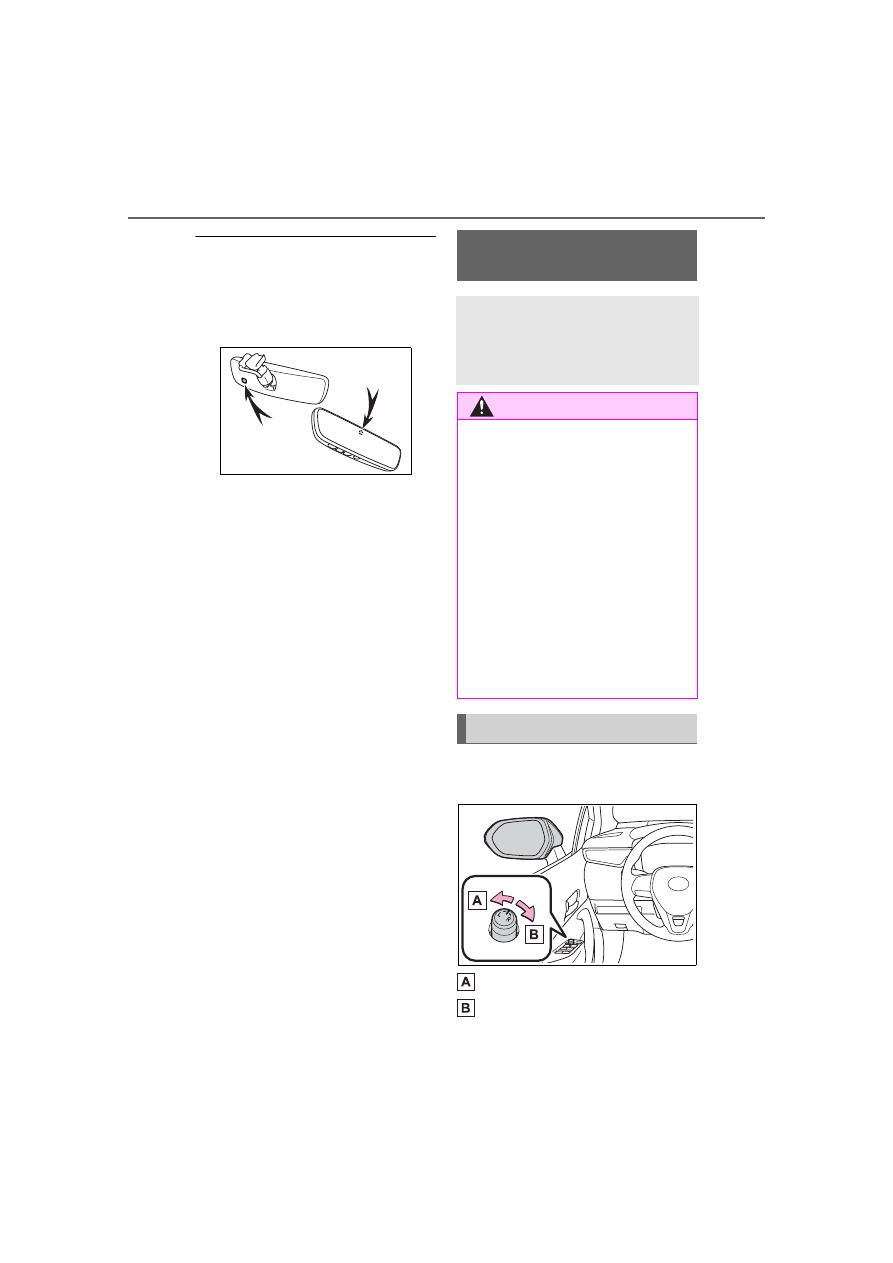

Outside rear view mirrors

..................................

140

3-5. Opening and closing the

windows

Power windows ...........

142

-------------------------------------------------------------------------------------------------------------------------------------------------------------

116

3-1. Key information

COROLLA HV_U

3-1.Key information

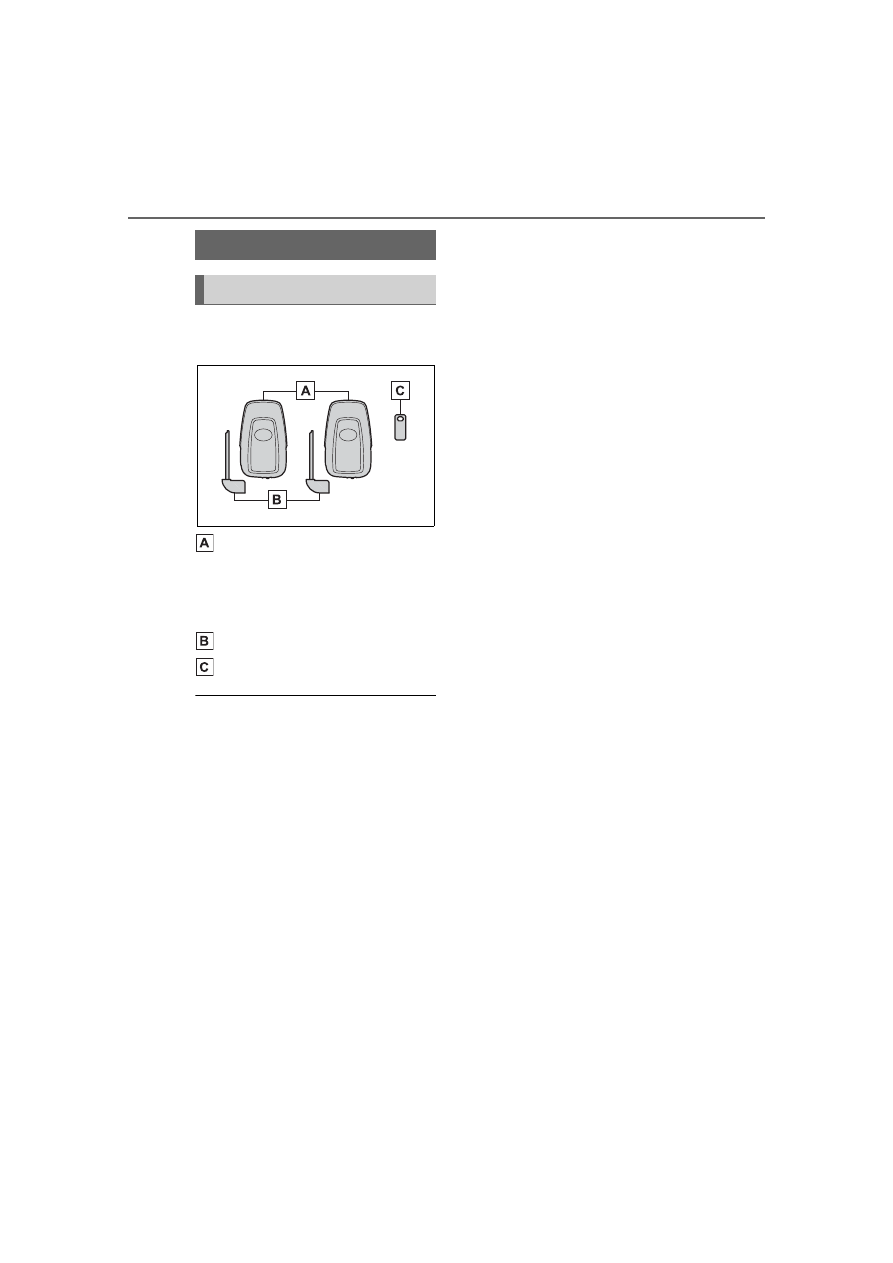

The following keys are provided
with the vehicle.

Electronic keys

• Operating the smart key system

(

P.125)

• Operating the wireless remote

control function (



P.117)

Mechanical keys
Key number plate

■

When riding in an aircraft

When bringing an electronic key

onto an aircraft, make sure you do

not press any buttons on the elec-

tronic key while inside the aircraft

cabin. If you are carrying an elec-

tronic key in your bag, etc., ensure

that the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the electronic key

to emit radio waves that could inter-

fere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

hybrid system is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.127)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary. (

P.459)

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

Replacing the battery



P.459

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the

multi-information display

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

Keys

The keys

-------------------------------------------------------------------------------------------------------------------------------------------------------------

117

3-1. Key information

COROLLA HV_U

Before driv

ing

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

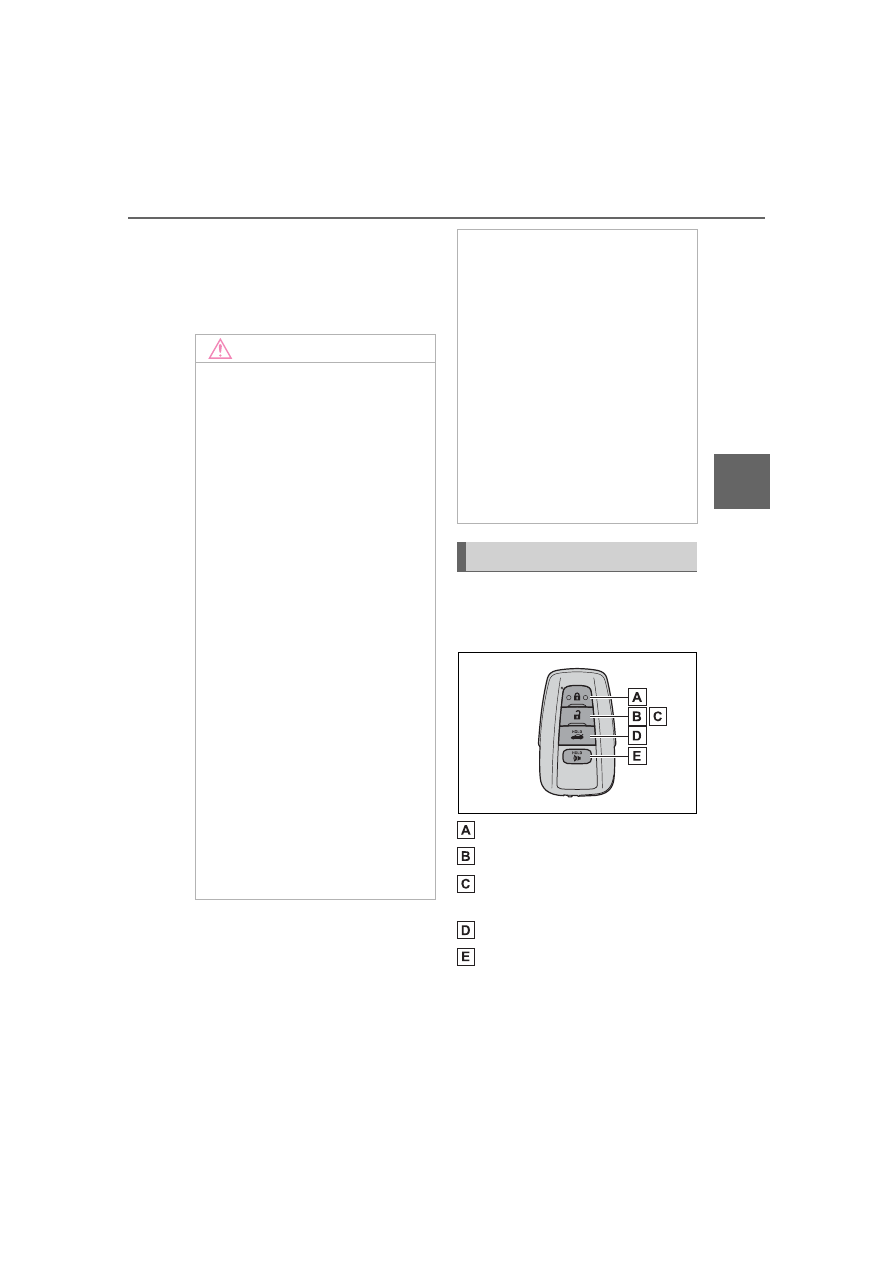

The keys are equipped with the
following wireless remote con-
trol:

Locks the doors (



Unlocks the doors (

Opens the windows

(



Opens the trunk (



P.124)

Sounds the alarm (



P.118)

: This setting must be customized

at your Toyota dealer.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems

P.511

■

When an electronic key is lost

P.510

Wireless remote control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

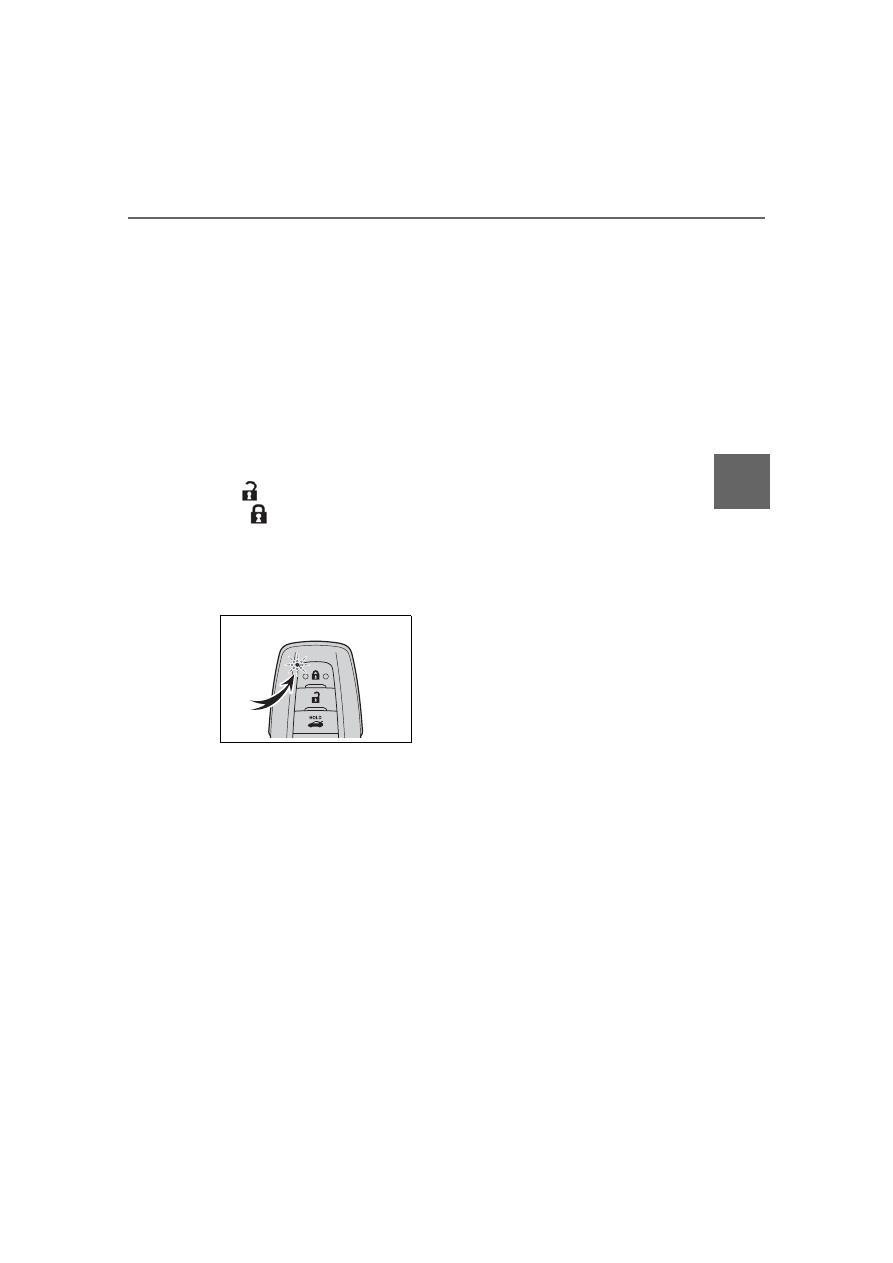

118

3-1. Key information

COROLLA HV_U

■

Panic mode

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the electronic key.

To take out the mechanical key,
slide the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be
inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key,
store it in the electronic key.
Carry the mechanical key
together with the electronic key.
If the electronic key battery is
depleted or the entry function
does not operate properly, you
will need the mechanical key.
(

■

If you lose your mechanical

keys



P.510

■

If a wrong key is used

The key cylinder rotates freely, iso-

lated from the internal mechanism.

Using the mechanical key

-------------------------------------------------------------------------------------------------------------------------------------------------------------

119

3-2. Opening, closing and locking the doors

COROLLA HV_U

Before driv

ing

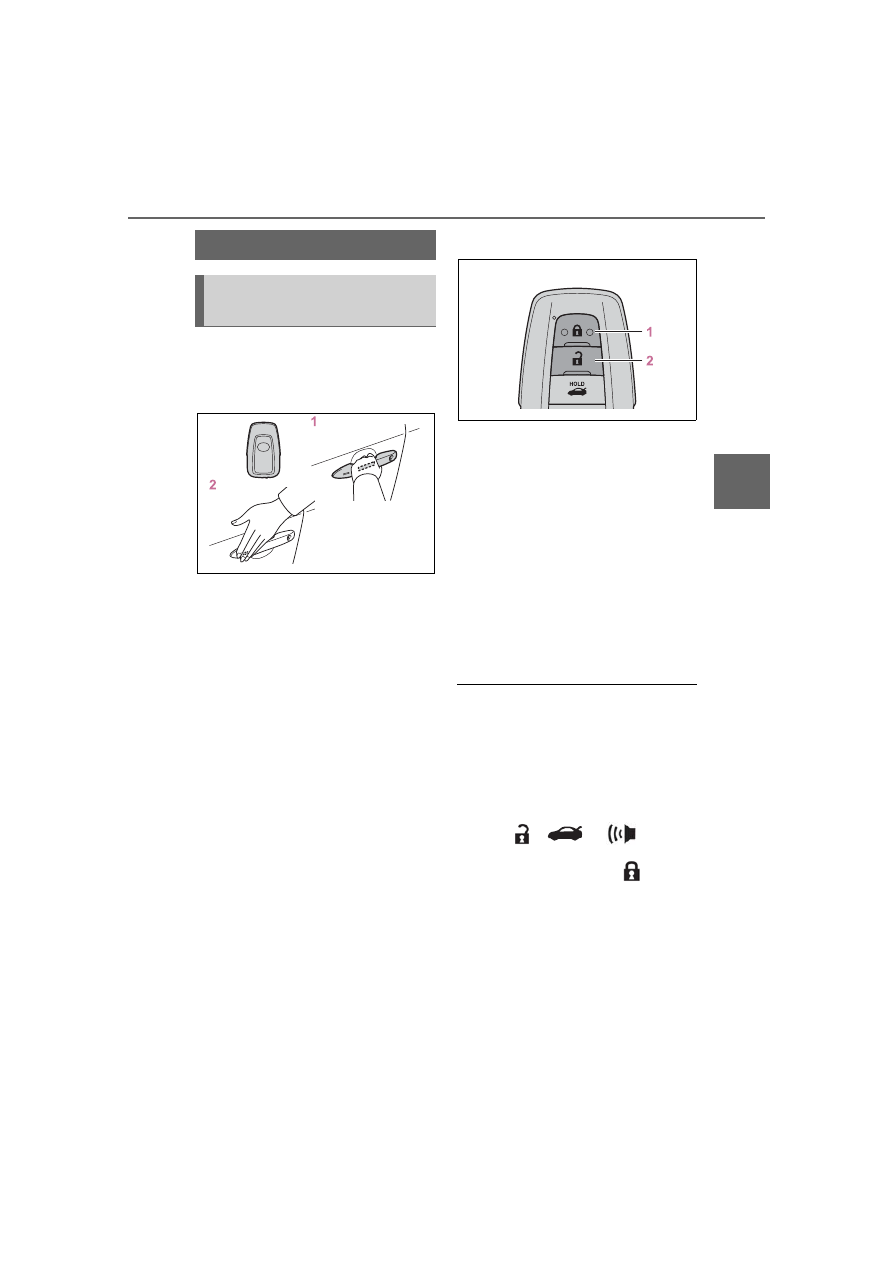

3-2.Opening, closing and locking the doors

■

Smart key system

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
the front passenger’s door
handle to unlock all the
doors.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

: The door unlock settings can be

changed. (



P.119, 544)

Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.

Check that the door is securely
locked.

■

Wireless remote control

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Press and hold to open the win-
dows.

: This setting must be customized

at your Toyota dealer.

■

Switching the door unlock func-

tion

It is possible to set which doors the

entry function unlocks using the

wireless remote control.

Turn the power switch off.

When the indicator light on the

key surface is not on, press and
hold

for

approximately 5 seconds while
pressing and holding

The setting changes each time an

operation is performed, as shown

below. (When changing the setting

continuously, release the buttons,

wait for at least 5 seconds, and

repeat step

Doors

Unlocking and locking the
doors from the outside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

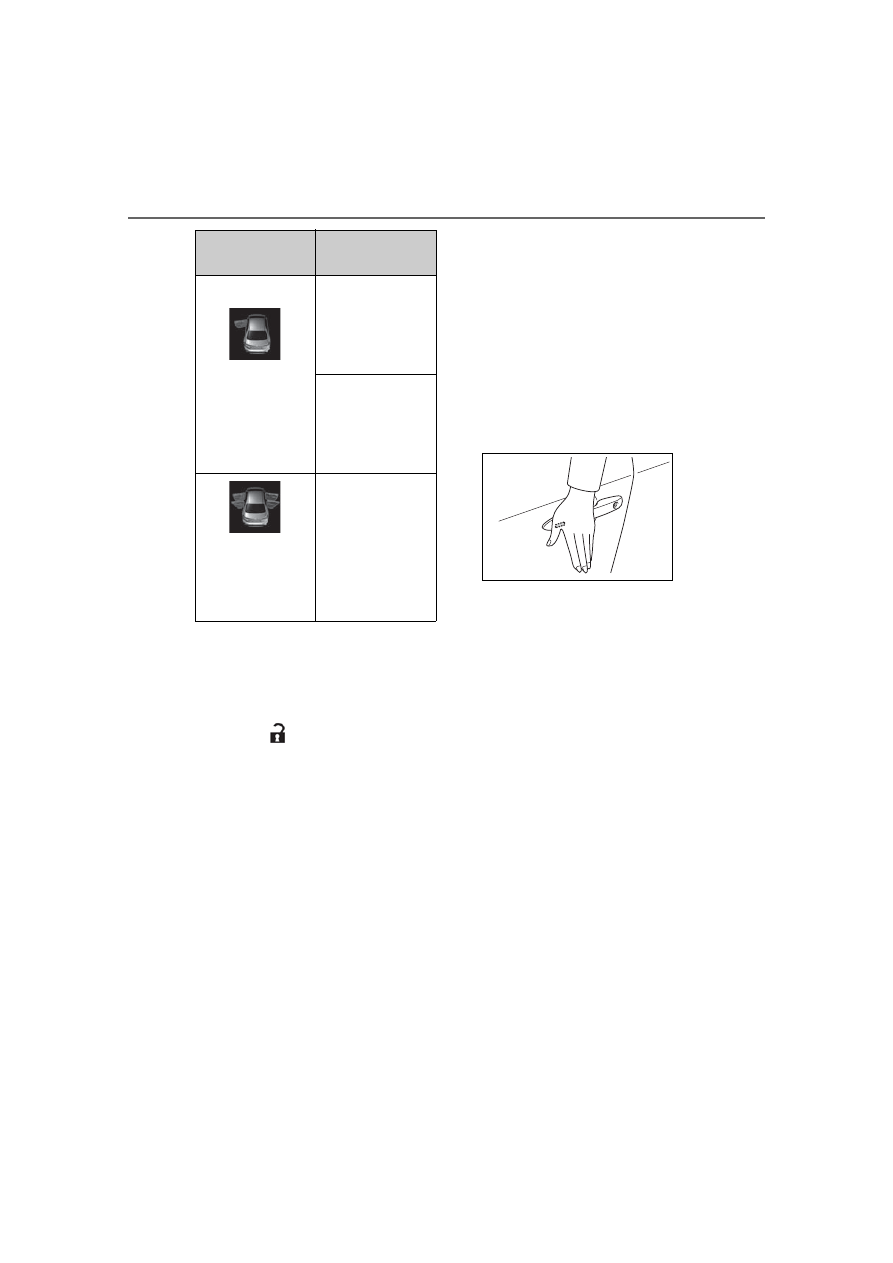

120

3-2. Opening, closing and locking the doors

COROLLA HV_U

To prevent unintended triggering of

the alarm, unlock the doors using

the wireless remote control and

open and close a door once after

the settings have been changed. (If

a door is not opened within 60 sec-
onds after

is pressed, the doors

will be locked again and the alarm

will automatically be set.)

In case that the alarm is triggered,

immediately stop the alarm. (



P.91)

■

Operation signals

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the entry

function or wireless remote control.

(Locked: Once; Unlocked: Twice)
A buzzer sounds to indicate that the

windows are operating.

■

Security feature

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again.

■

When the door cannot be

locked by the lock sensor on

the surface of the front door

handle

If the doors cannot be locked by

touching the lock sensor with a fin-

ger, touch the lock sensor with the

palm of your hand.
If you are wearing gloves, remove

them.

■

Door lock buzzer

If an attempt to lock the doors using

the entry function or wireless remote

control is made when a door is not

fully closed, a buzzer will sound

continuously for 5 seconds. Fully

close the door to stop the buzzer,

and lock the doors again.

■

Alarm

Locking the doors will set the alarm

system. (



P.90)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



P.127

■

If the smart key system or the

wireless remote control does

not operate properly

Use the mechanical key to lock and

unlock the doors. (

Replace the key battery with a new

one if it is depleted. (

P.459)

■

If the 12-volt battery is dis-

charged

The doors cannot be locked and

unlocked using the smart key sys-

Multi-informa-

tion display/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door
handle unlocks
only the driver’s
door.

Holding the front
passenger’s
door handle
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding either
front door handle
unlocks all the
doors.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

121

3-2. Opening, closing and locking the doors

COROLLA HV_U

Before driv

ing

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



■

Customization

Some functions can be customized.

(

■

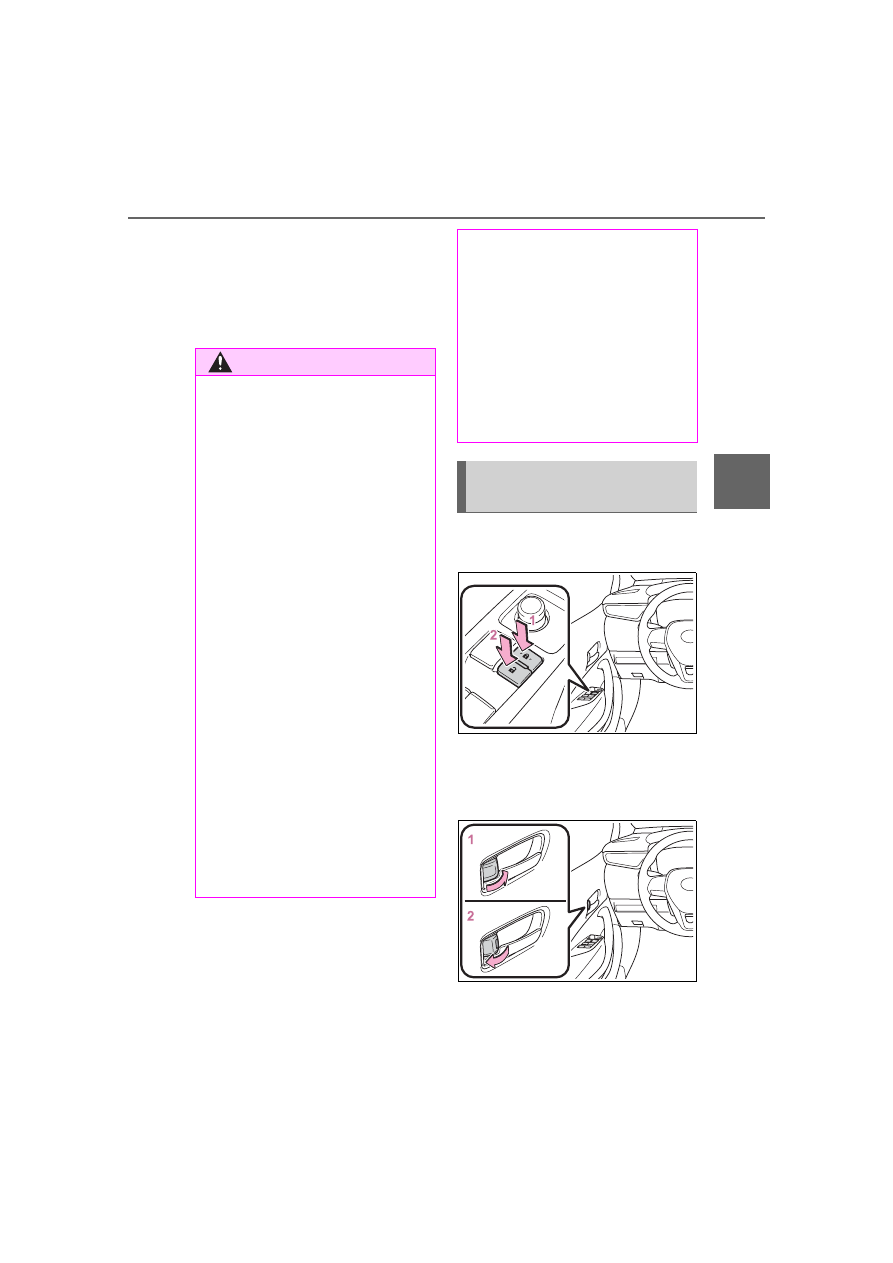

Door lock switches (to
lock/unlock)

Locks all the doors

Unlocks all the doors

■

Inside lock buttons

Locks the door

Unlocks the door

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

being thrown out of the vehicle,

resulting in death or serious injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside door han-

dle while driving.

Be especially careful of the front

doors, as the doors may be

opened even if the inside lock

buttons are in the locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control and operating

the power windows

Operate the power windows after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the windows. Also, do

not allow children to operate the

wireless remote control. It is pos-

sible for children and other pas-

sengers to get caught in the

power windows.

Unlocking and locking the
doors from the inside

-------------------------------------------------------------------------------------------------------------------------------------------------------------

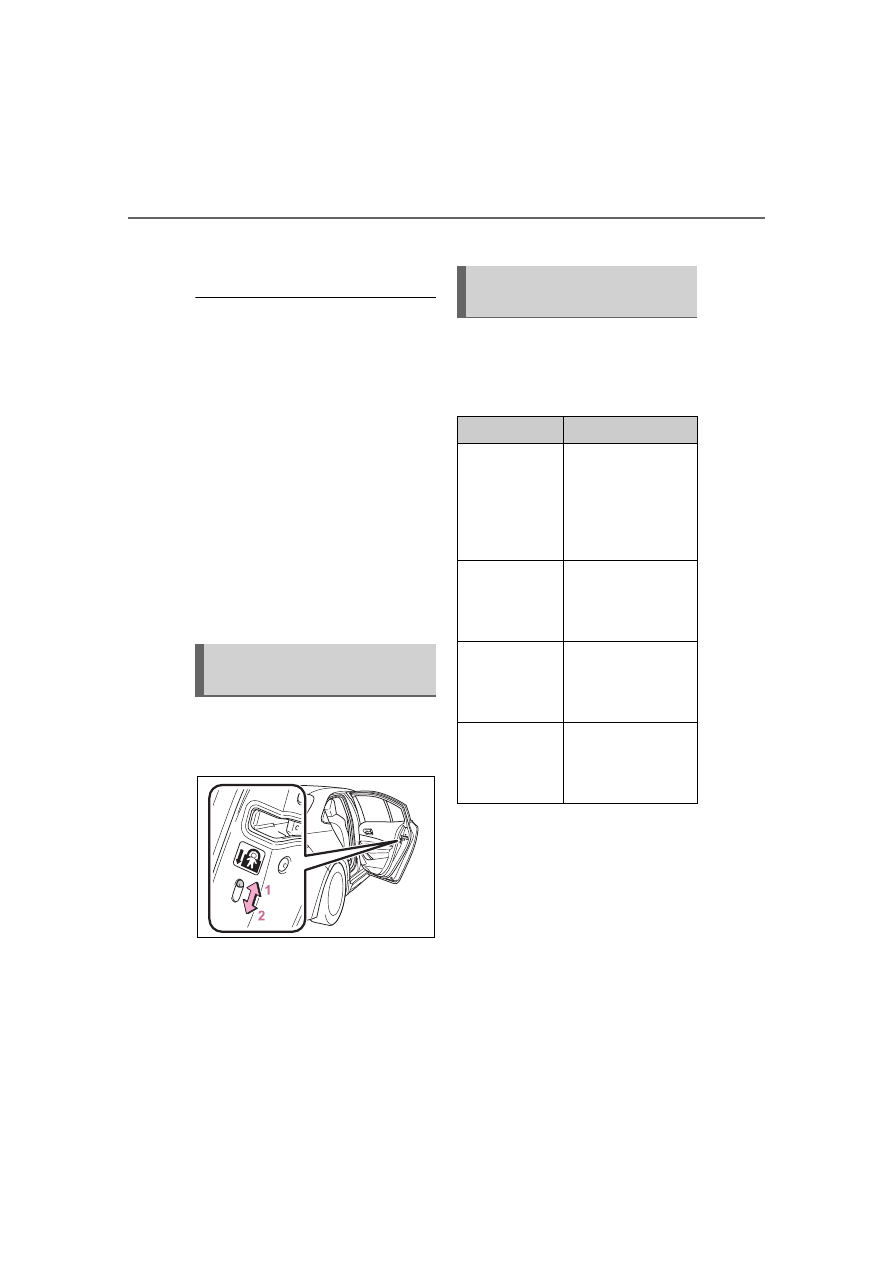

122

3-2. Opening, closing and locking the doors

COROLLA HV_U

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

Move the inside lock button to

the lock position.

Close the door.

The door cannot be locked if the

power switch is in ACC or ON, or

the electronic key is left inside the

vehicle.
The key may not be detected cor-

rectly and the door may be locked.

■

Open door warning buzzer

If a door or the trunk is not fully

closed, a buzzer will sound when

the vehicle speed reaches 3 mph (5

km/h).
The open door(s) or trunk is indi-

cated on the multi-information dis-

play.

The door cannot be opened
from inside the vehicle when
lock is set.

Unlock

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear

door switch to lock both rear doors.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.544.

Rear door child-protector
lock

Automatic door locking
and unlocking systems

Function

Operation

Speed linked
door locking
function

All doors are auto-
matically locked
when vehicle
speed is approxi-
mately 12 mph (20
km/h) or higher.

Shift position
linked door
locking func-
tion

All doors are auto-
matically locked
when shifting the
shift lever out of P.

Shift position
linked door
unlocking
function

All doors are auto-
matically unlocked
when shifting the
shift lever to P.

Driver’s door
linked door
unlocking
function

All doors are auto-
matically unlocked
when driver’s door
is opened.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

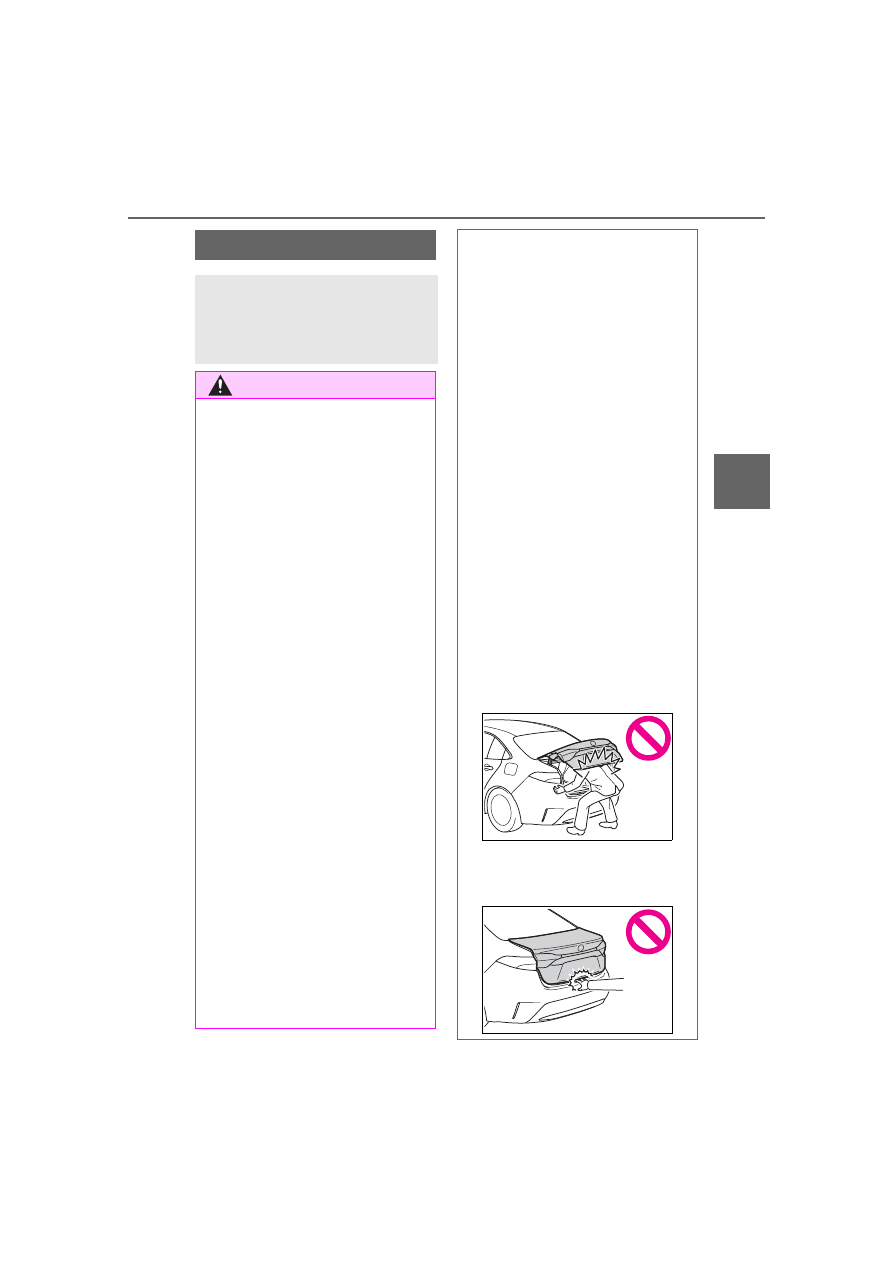

123

3-2. Opening, closing and locking the doors

COROLLA HV_U

Before driv

ing

Trunk

The trunk can be opened
using the trunk opener,
entry function or wireless
remote control.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before driving

●

Make sure that the trunk lid is

fully closed. If the trunk lid is not

fully closed, it may open unex-

pectedly while driving and hit

near-by objects or luggage in

the trunk may be thrown out,

causing an accident.

●

Do not allow children to play in

the trunk.

If a child is accidentally locked

in the trunk, they could suffer

from heat exhaustion, suffoca-

tion or other injuries.

●

Do not allow a child to open or

close the trunk lid.

Doing so may cause the trunk

lid to open unexpectedly, or

cause the child’s hands, head,

or neck to be caught by the

closing trunk lid.

■

Important points while driving

Never let anyone sit in the trunk.

In the event of sudden braking or

a collision, they are susceptible to

death or serious injury.

■

Using the trunk

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in serious injury.

●

Remove any heavy loads, such

as snow and ice, from the trunk

lid before opening it. Failure to

do so may cause the trunk lid to

suddenly shut again after it is

opened.

●

When opening or closing the

trunk lid, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the trunk is about to

open or close.

●

Use caution when opening or

closing the trunk lid in windy

weather as it may move

abruptly in strong wind.

●

The trunk lid may suddenly shut

if it is not opened fully. It is more

difficult to open or close the

trunk lid on an incline than on a

level surface, so beware of the

trunk lid unexpectedly opening

or closing by itself. Make sure

that the trunk lid is fully open

and secure before using the

trunk.

●

When closing the trunk lid, take

extra care to prevent your fin-

gers etc. from being caught.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

3-2. Opening, closing and locking the doors

COROLLA HV_U

■

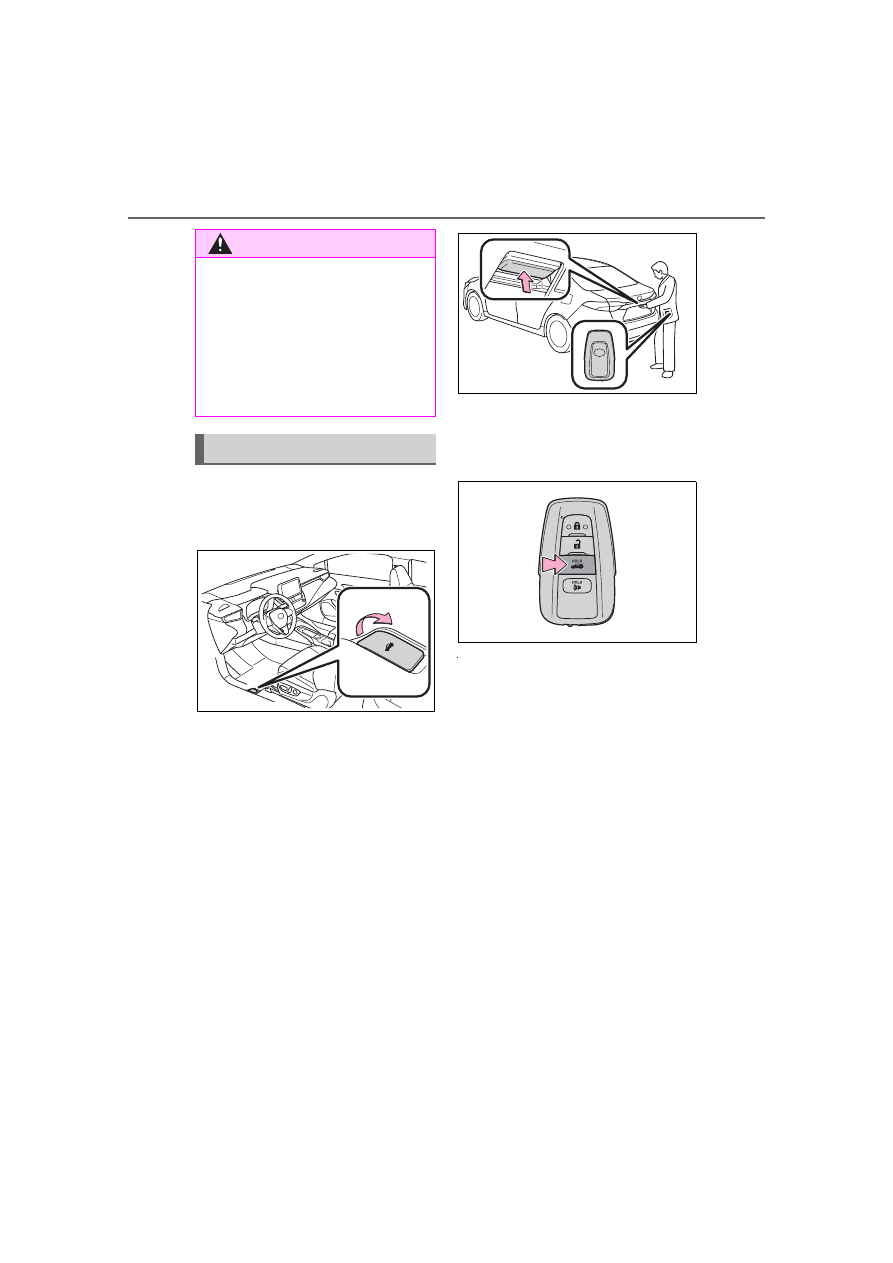

Trunk opener

Pull the lever upward to release
the trunk lid.

■

Trunk release button

While carrying the electronic
key, press the button on the
trunk lid.
When all the doors are unlocked
using one of the following meth-
ods, the trunk can be opened
without the electronic key:



Entry function



Wireless remote control



Door lock switches



Automatic door unlocking sys-
tem



Mechanical key

■

Wireless remote control

Press and hold the switch.

A buzzer sounds.

■

Trunk light

●

The trunk light turns on when the

trunk is opened.

●

If the trunk light is left on when the

power switch is turned off, the light

will go off automatically after 20

minutes.

■

Function to prevent the trunk

being locked with the electronic

key inside

●

When all doors are locked, closing

the trunk lid with the electronic key

left inside the trunk will sound an

alarm.

In this case, the trunk lid can be

opened pressing the trunk release

button on the trunk lid.

●

If the spare electronic key is put in

the trunk with all the doors locked,

the key confinement prevention

function is activated so the trunk

can be opened. In order to pre-

vent theft, take all electronic keys

WARNING

●

When closing the trunk lid,

make sure to press it lightly on

its outer surface.

●

Do not attach any accessories

other than genuine Toyota parts

to the trunk lid. Such additional

weight on the trunk lid may

cause the lid to suddenly shut

again after it is opened.

Opening the trunk

-------------------------------------------------------------------------------------------------------------------------------------------------------------

125

3-2. Opening, closing and locking the doors

COROLLA HV_U

Before driv

ing

with you when leaving the vehicle.

●

If the electronic key is put in the

trunk with all the doors locked, the

key may not be detected depend-

ing on the location of the key and

the surrounding radio wave condi-

tions. In this case, the key con-

finement prevention function

cannot be activated, causing the

doors to lock when the trunk is

closed. Make sure to check where

the key is before closing the trunk.

●

The key confinement prevention

function cannot be activated if any

one of the doors is unlocked. In

this case, open the trunk using the

trunk opener.

■

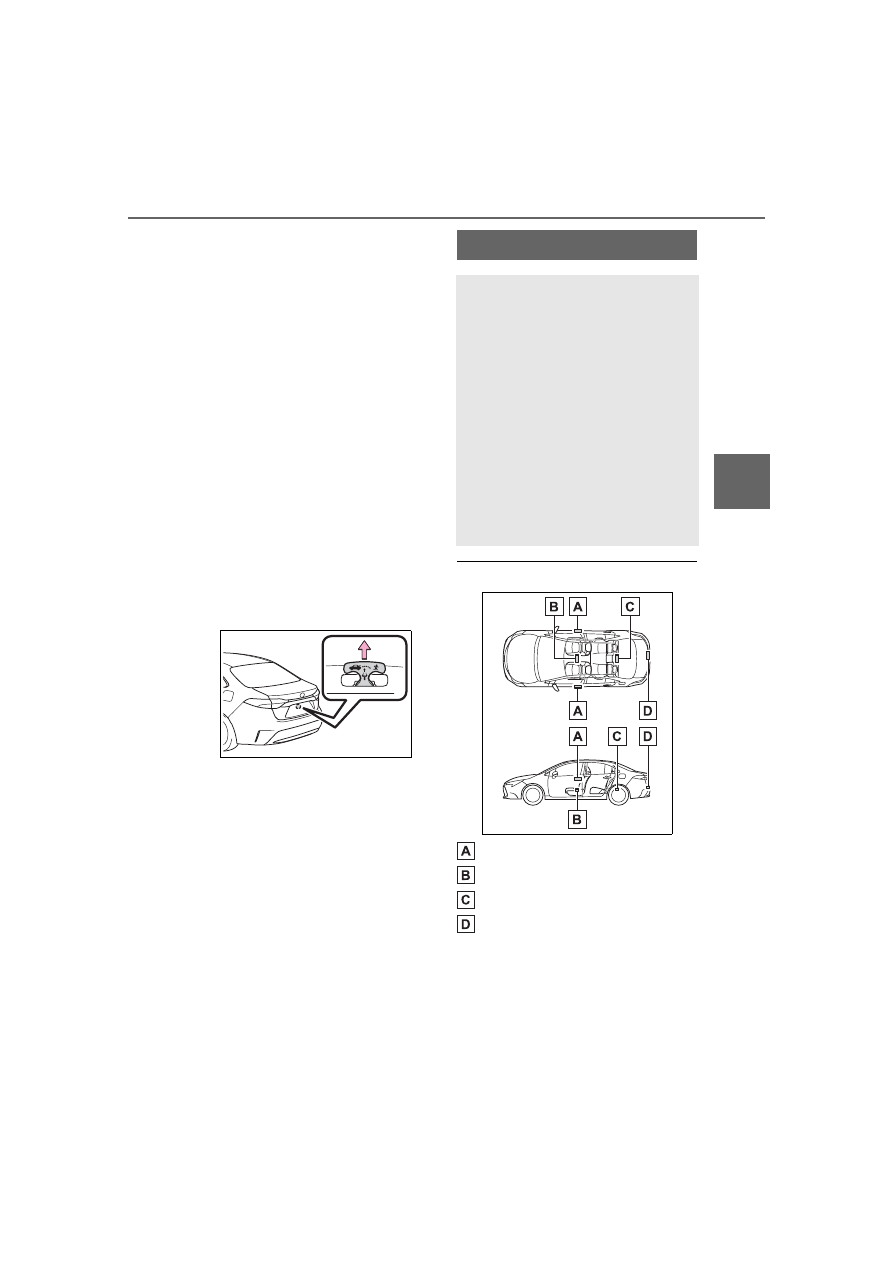

Internal trunk release lever

The trunk lid can be opened by pull-

ing up the glow-in-the-dark lever

located on the inside of the trunk lid.
The lever will continue to glow for

some time after the trunk lid is

closed.

■

If the smart key system or the

wireless remote control does

not operate properly

Replace the key battery with a new

one if it is depleted. (



P.459)

■

Open door warning buzzer

P.122

■

Customization

Some functions can be customized.

(

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the
doors (



Opens the trunk (

P.124)



Starts the hybrid system
(

P.157)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

3-2. Opening, closing and locking the doors

COROLLA HV_U

■

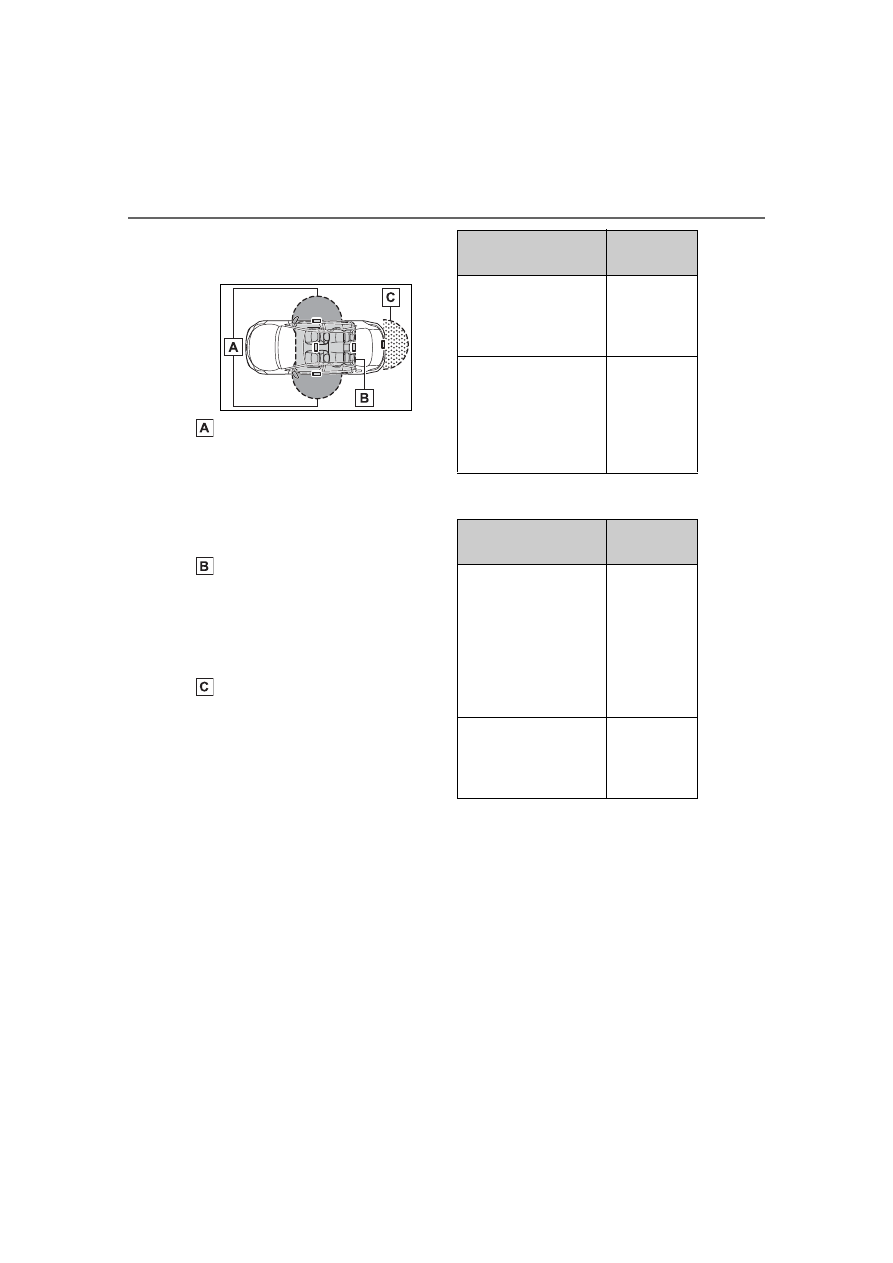

Effective range (areas within

which the electronic key is

detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of either of the front out-
side door handles. (Only the doors
detecting the key can be operated.)

When starting the hybrid system
or changing power switch
modes

The system can be operated when
the electronic key is inside the vehi-
cle.

When opening the trunk

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of the trunk release but-
ton.

■

Alarms and warning messages

A combination of exterior and inte-

rior buzzers as well as warning mes-

sages shown on the

multi-information display are used to

prevent theft of the vehicle and acci-

dents resulting from erroneous

operation. Take appropriate mea-

sures based on the displayed mes-

sage. (

When only an alarm sounds, cir-

cumstances and correction proce-

dures are as follows.

●

Exterior buzzer sounds once for 5

seconds

●

Interior buzzer sounds continu-

ously

■

Battery-saving function

The battery-saving function will be

activated in order to prevent the

electronic key battery and the

12-volt battery from being dis-

charged while the vehicle is not

operated for a long time.

●

In the following situations, the

smart key system may take some

time to unlock the doors.

• The electronic key has been left

within approximately 11 ft. (3.5 m)

of the outside of the vehicle for 2

minutes or longer.

• The smart key system has not

Situation

Correction

procedure

An attempt was
made to lock the
vehicle while a door
was open.

Close all of
the doors
and lock the
doors again.

The trunk was closed
while the electronic
key was still inside
the trunk and all the
doors were locked.

Retrieve the
electronic
key from the
trunk and
close the
trunk lid.

Situation

Correction

procedure

The power switch
was turned to ACC
while the driver’s
door was open (or
the driver’s door was
opened while the
power switch was in
ACC).

Turn the
power
switch off
and close
the driver’s
door.

The power switch
was turned to off
while the driver’s
door was open.

Close the
driver’s door

-------------------------------------------------------------------------------------------------------------------------------------------------------------

127

3-2. Opening, closing and locking the doors

COROLLA HV_U

Before driv

ing

been used for 5 days or longer.

●

If the smart key system has not

been used for 14 days or longer,

the doors cannot be unlocked

from any door except the driver’s

door. In this case, hold the driver’s

door handle, or use the wireless

remote control or mechanical key

to unlock the doors.

■

Electronic key battery-saving

function

When battery-saving mode is set,

battery depletion is minimized by

stopping the electronic key from

receiving radio waves.

Press

twice while pressing and

holding

. Confirm that the elec-

tronic key indicator flashes 4 times.
While the battery-saving mode is

set, the smart key system cannot be

used. To cancel the function, press

any of the electronic key buttons.

■

Conditions affecting operation

The smart key system uses weak

radio waves. In the following situa-

tions, the communication between

the electronic key and the vehicle

may be affected, preventing the

smart key system, wireless remote

control and immobilizer system from

operating properly.

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone, cordless phone or

other wireless communication

device

●

When the electronic key is in con-

tact with, or is covered by the fol-

lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that

emit radio waves) are being used

nearby

●

When carrying the electronic key

together with the following devices

that emit radio waves

• Another vehicle’s electronic key or

a wireless key that emits radio

waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window

●

When the electronic key is placed

near a battery charger or elec-

tronic devices

●

When the vehicle is parked in a

pay parking spot where radio

waves are emitted

If the doors cannot be

locked/unlocked using the smart key

system, lock/unlock the doors by

performing any of the following:

●

Bring the electronic key close to

either front door handle and oper-

ate the entry function.

●

Operate the wireless remote con-

trol.

If the doors cannot be

locked/unlocked using the above

methods, use the mechanical key.

(



If the hybrid system cannot be

started using the smart key system,

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

3-2. Opening, closing and locking the doors

COROLLA HV_U

refer to P.512.

■

Note for the entry function

●

Even when the electronic key is

within the effective range (detec-

tion areas), the system may not

operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-

dle, near the ground, or in a high

place when the doors are locked

or unlocked.

• The electronic key is near the

ground or in a high place, or too

close to the center of the rear

bumper when the trunk is opened.

• The electronic key is on the instru-

ment panel, rear package tray or

floor, or in the door pockets or

glove box when the hybrid system

is started or power switch modes

are changed.

●

Do not leave the electronic key on

top of the instrument panel or near

the door pockets when exiting the

vehicle. Depending on the radio

wave reception conditions, it may

be detected by the antenna out-

side the cabin and the door will

become lockable from the outside,

possibly trapping the electronic

key inside the vehicle.

●

As long as the electronic key is

within the effective range, the

doors may be locked or unlocked

by anyone. However, only the

doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not

inside the vehicle, it may be possi-

ble to start the hybrid system if the

electronic key is near the window.

●

The doors may unlock or lock if a

large amount of water splashes on

the door handle, such as in the

rain or in a car wash when the

electronic key is within the effec-

tive range. (The doors will auto-

matically be locked after

approximately 60 seconds if the

doors are not opened and closed.)

●

If the wireless remote control is

used to lock the doors when the

electronic key is near the vehicle,

there is a possibility that the door

may not be unlocked by the entry

function. (Use the wireless remote

control to unlock the doors.)

●

If the doors have been locked

from outside of the vehicle and are

then not unlocked using the wire-

less remote control or smart key

system, the hybrid system cannot

be started using the smart key

system. (However, if the doors

have been locked from inside the

vehicle, the hybrid system can be

started using the smart key sys-

tem.)

If it is necessary to start the hybrid

system, it can be started using the

procedure in “If the electronic key

dose not operate properly”

(



P.512).

●

Touching the door lock or unlock

sensor while wearing gloves may

prevent lock or unlock operation.

●

When the lock operation is per-

formed using the lock sensor, rec-

ognition signals will be shown up

to two consecutive times. After

this, no recognition signals will be

given.

●

If the door handle becomes wet

while the electronic key is within

the effective range, the door may

lock and unlock repeatedly. In that

case, follow the following correc-

tion procedures to wash the vehi-

cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from

the vehicle. (Take care to ensure

that the key is not stolen.)

• Set the electronic key to bat-

tery-saving mode to disable the

smart key system. (



P.127)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

message may be shown on the

multi-information display and a

buzzer will sound outside the vehi-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

3-2. Opening, closing and locking the doors

COROLLA HV_U

Before driv

ing

cle. To turn off the alarm, lock all

the doors.

●

The lock sensor may not work

properly if it comes into contact

with ice, snow, mud, etc. Clean

the lock sensor and attempt to

operate it again.

●

A sudden handle operation or a

handle operation immediately

after entering the effective range

may prevent the doors from being

unlocked. Touch the door unlock

sensor and check that the doors

are unlocked before pulling the

door handle again.

●

If there is another electronic key in

the detection area, it may take

slightly longer to unlock the doors

after the door handle is gripped.

■

When the vehicle is not driven

for extended periods

●

To prevent theft of the vehicle, do

not leave the electronic key within

6 ft. (2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



●

Setting the electronic key to bat-

tery-saving mode helps to reduce

key battery depletion. (



P.127)

■

To operate the system properly

●

Make sure to carry the electronic

key when operating the system.

Do not get the electronic key too

close to the vehicle when operat-

ing the system from the outside of

the vehicle.

Depending on the position and hold-

ing condition of the electronic key,

the key may not be detected cor-

rectly and the system may not oper-

ate properly. (The alarm may go off

accidentally, or the door lock pre-

vention function may not operate.)

●

Do not leave the electronic key

inside the trunk.

The key confinement prevention

function may not operate, depend-

ing on the location of the key (the

inside edge of the trunk), condi-

tions (inside a metal bag, close to

metallic objects) and the radio

waves in the surrounding area.

(



P.124)

■

If the smart key system does

not operate properly

●

Locking and unlocking the doors:



P.511

●

Starting the hybrid system:



P.512

■

Customization

Some functions can be customized.

(



■

If the smart key system has

been deactivated in a custom-

ized setting

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (

P.119, 511)

●

Starting the hybrid system and

changing power switch modes:



P.512

●

Stopping the hybrid system:



P.159

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

3-2. Opening, closing and locking the doors

COROLLA HV_U

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

keep away from the smart key

system antennas. (



P.125)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your Toy-

ota dealer for details, such as

the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

133

3-3. Adjusting the seats

COROLLA HV_U

Before driv

ing

3-3.Adjusting the seats



Manual seat

Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Lumbar support adjustment
switch

(driver’s side only)

: If equipped



Power seat (driver’s side
only)

Seat position adjustment
switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Lumbar support adjustment
switch

: If equipped

Front seats

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

134

3-3. Adjusting the seats

COROLLA HV_U

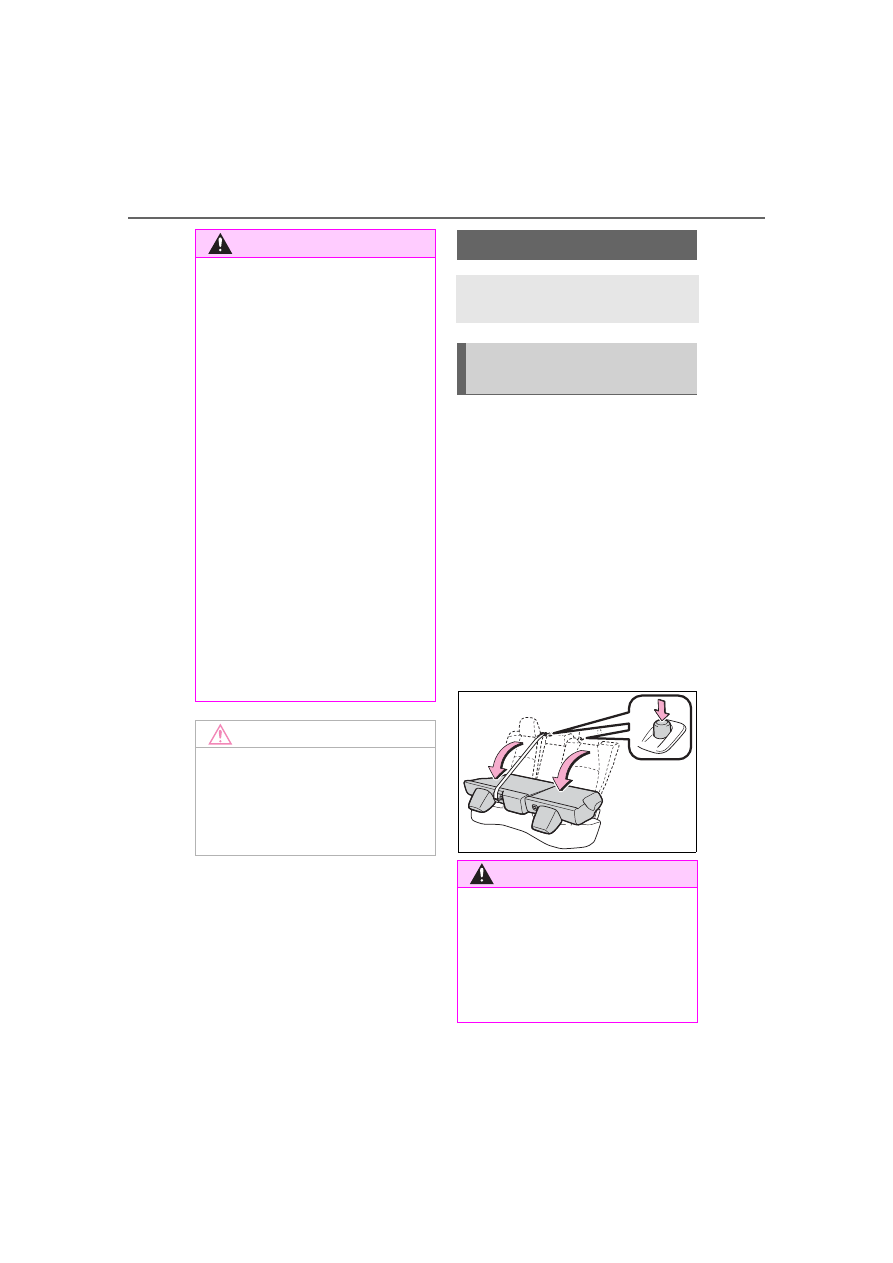

Move the front seats forward.
(

P.133)

Stow the rear armrest.
(
