Pictorial index

Pictorial index

■

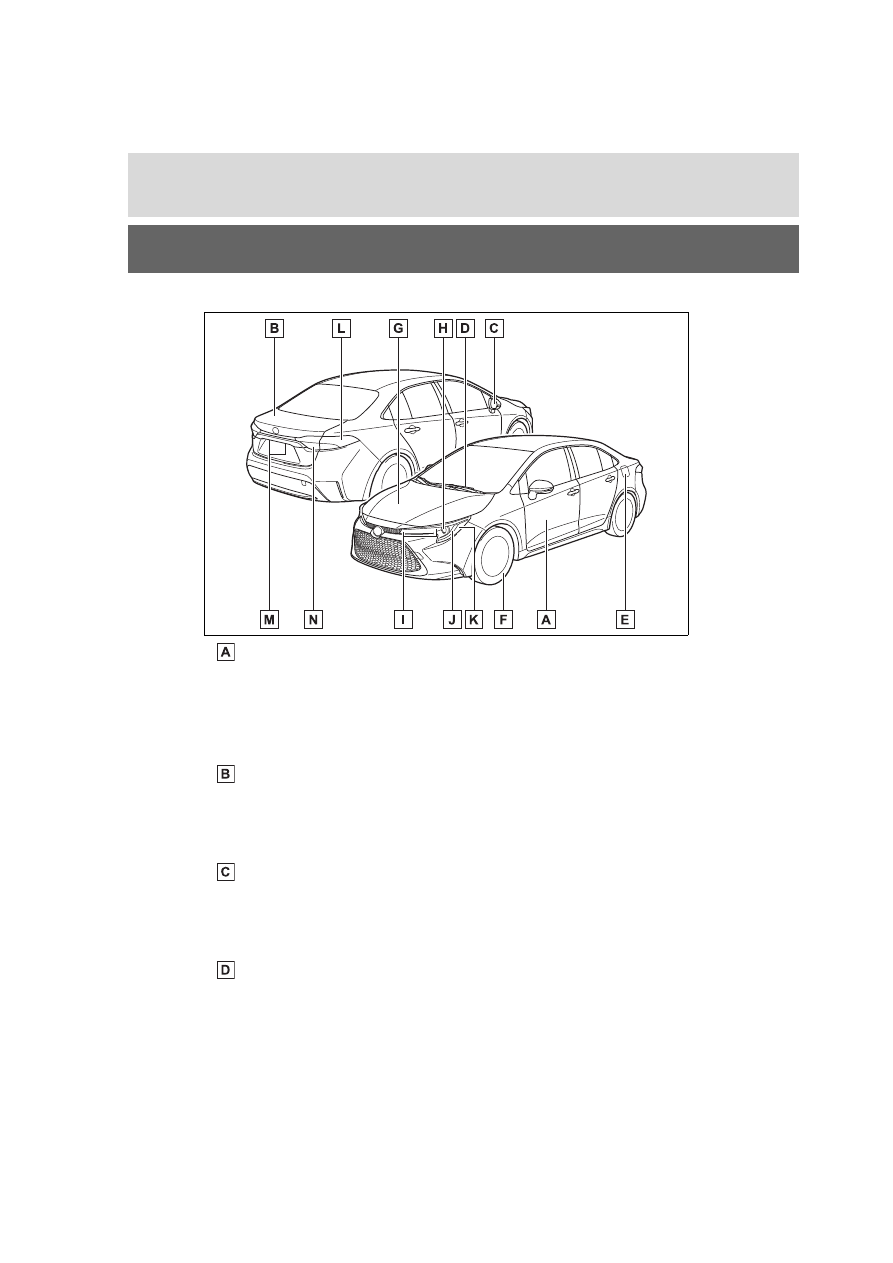

Exterior

Doors................................................................................... P.119

Locking/unlocking ................................................................ P.119
Opening/closing the side windows....................................... P.142
Locking/unlocking by using the mechanical key .................. P.511
Warning messages .............................................................. P.122

Trunk ................................................................................... P.123

Opening from inside............................................................. P.124
Opening from outside........................................................... P.124
Warning messages .............................................................. P.125

Outside rear view mirrors ................................................. P.140

Adjusting the mirror angle .................................................... P.140
Folding the mirrors ............................................................... P.141
Defogging the mirrors .......................................................... P.387

Windshield wipers.............................................................. P.178

Precautions for winter season.............................................. P.247

To prevent freezing (windshield wiper de-icer)

*

.................... P.390

14

Pictorial index

COROLLA HV_U

Fuel filler door .................................................................... P.180

Refueling method................................................................. P.181
Fuel type/fuel tank capacity ................................................. P.525

Tires..................................................................................... P.441

Tire size/inflation pressure ................................................... P.529
Winter tires/tire chains ......................................................... P.247

Checking/rotation/tire pressure warning system

*

................. P.441

Coping with flat tires..................................................... P.490, 501

Hood.................................................................................... P.432

Opening ............................................................................... P.432
Engine oil ............................................................................. P.526
Coping with overheating ...................................................... P.517

Headlights/daytime running lights ................................... P.173

Turn signal lights/parking lights....................................... P.173

Parking lights

*

.................................................................... P.173

Front side marker lights .................................................... P.173

Stop lights/tail lights/rear side marker lights/turn signal lights
P.173

License plate lights............................................................ P.173

Back-up lights

Shifting the shift position to R .............................................. P.164

*

: If equipped

Light bulbs of the exterior lights for driving

(Replacing method: P.463, Watts: P.530)

15

Pictorial index

COROLLA HV_U

■

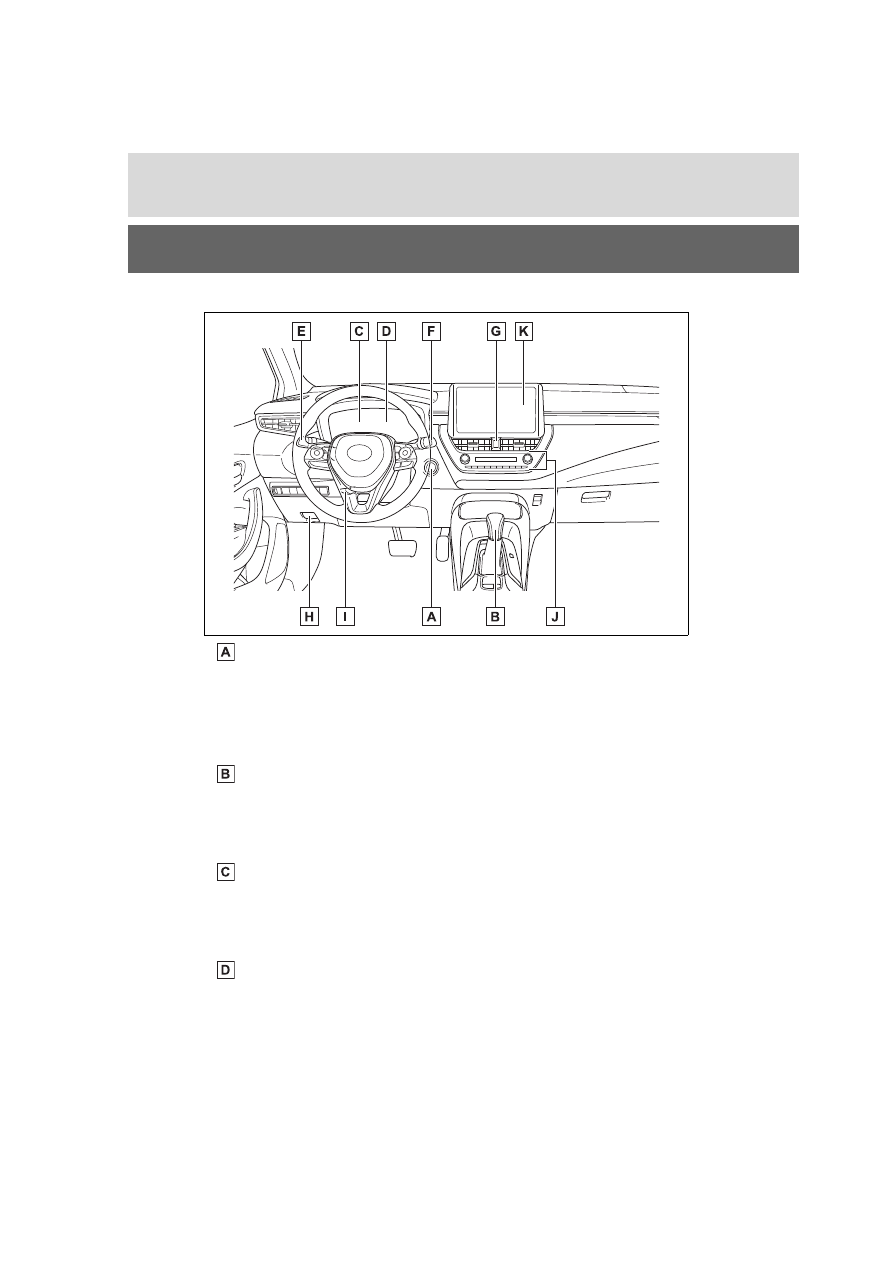

Instrument panel

Power switch ...................................................................... P.157

Starting the hybrid system/changing the modes .................. P.157
Emergency stop of the hybrid system.................................. P.471
When the hybrid system will not start .................................. P.509
Warning messages .............................................................. P.487

Shift lever............................................................................ P.164

Changing the shift position................................................... P.164
Precautions for towing ......................................................... P.473
When the shift lever does not move..................................... P.165

Meters ................................................................................... P.98

Reading the meters/adjusting the instrument panel light ....... P.98
Warning lights/indicator lights ................................................ P.94
When a warning light turns on ............................................. P.478

Multi-information display .................................................. P.103

Display ................................................................................. P.103
Energy monitor..................................................................... P.109

16

Pictorial index

COROLLA HV_U

When a warning message is displayed................................ P.487

Turn signal lever................................................................. P.166
Headlight switch ................................................................ P.173

Headlights/parking lights/tail lights/side marker lights/daytime run-
ning lights............................................................................. P.173

Windshield wiper and washer switch............................... P.178

Usage................................................................................... P.178
Adding washer fluid.............................................................. P.440

Emergency flasher switch................................................. P.470

Hood lock release lever..................................................... P.432

Tilt and telescopic steering lock release lever................ P.138

Air conditioning system .................................................... P.386

Usage................................................................................... P.386
Rear window defogger ......................................................... P.387

Audio................................................................................... P.253
Audio Plus

*

*

: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-

UAL”.

17

Pictorial index

COROLLA HV_U

■

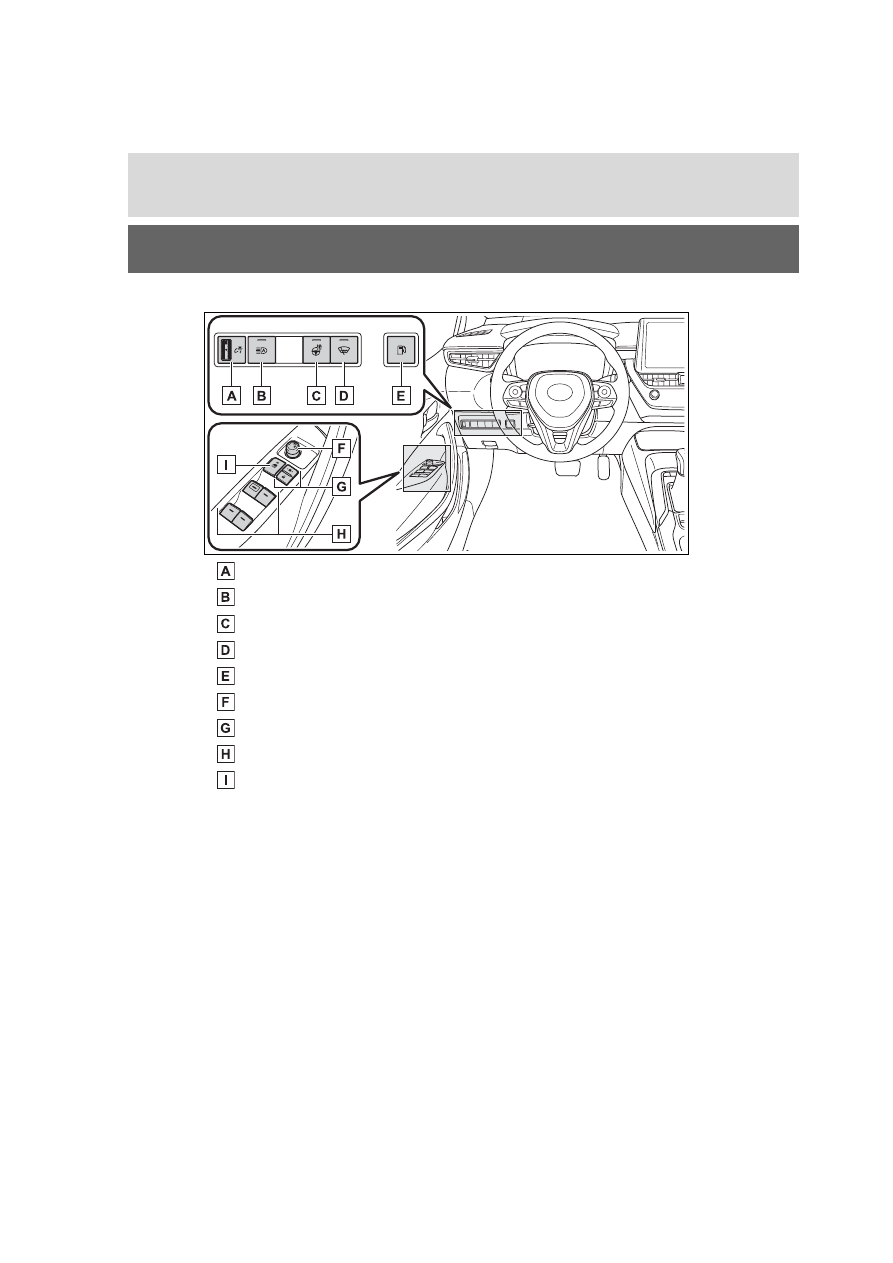

Switches

Instrument panel light control dial ................................... P.101

Automatic High Beam switch ........................................... P.175

Heated steering wheel switch

*

.......................................... P.394

Windshield wiper de-icer switch

*

..................................... P.390

Fuel filler door opener switch........................................... P.181

Outside rear view mirror switch ....................................... P.140

Door lock switches ............................................................ P.121

Power window switches.................................................... P.142

Window lock switch ........................................................... P.144

*

: If equipped

18

Pictorial index

COROLLA HV_U

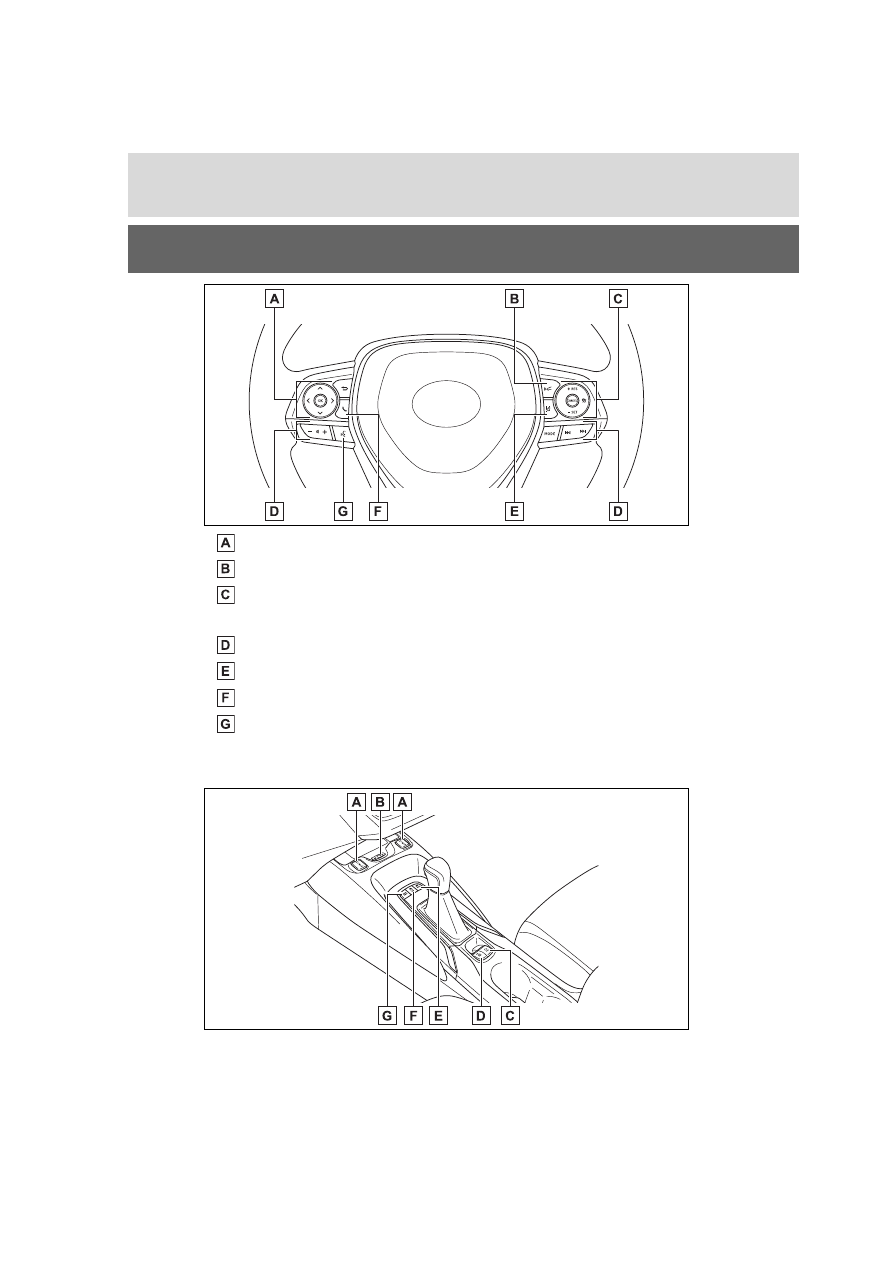

Meter control switches ...................................................... P.103

Vehicle-to-vehicle distance switch................................... P.213

Cruise control switches

Dynamic radar cruise control with full-speed range ............. P.207

Audio remote control switches

*

....................................... P.319

LTA (Lane Tracing Assist) switch ..................................... P.197

Phone switch

*

..................................................................... P.346

Talk switch

*

......................................................................... P.334

*

: Vehicles with Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYS-

TEM OWNER’S MANUAL”.

19

Pictorial index

COROLLA HV_U

Seat heater switches

*

........................................................ P.394

Wireless charger switch

*

................................................... P.402

Brake hold switch .............................................................. P.170

Parking brake switch ......................................................... P.167

Precautions for winter season.............................................. P.248

EV drive mode switch........................................................ P.162

VSC OFF switch  ................................................................ P.241

Driving mode select switch............................................... P.239

*

: If equipped

20

Pictorial index

COROLLA HV_U

■

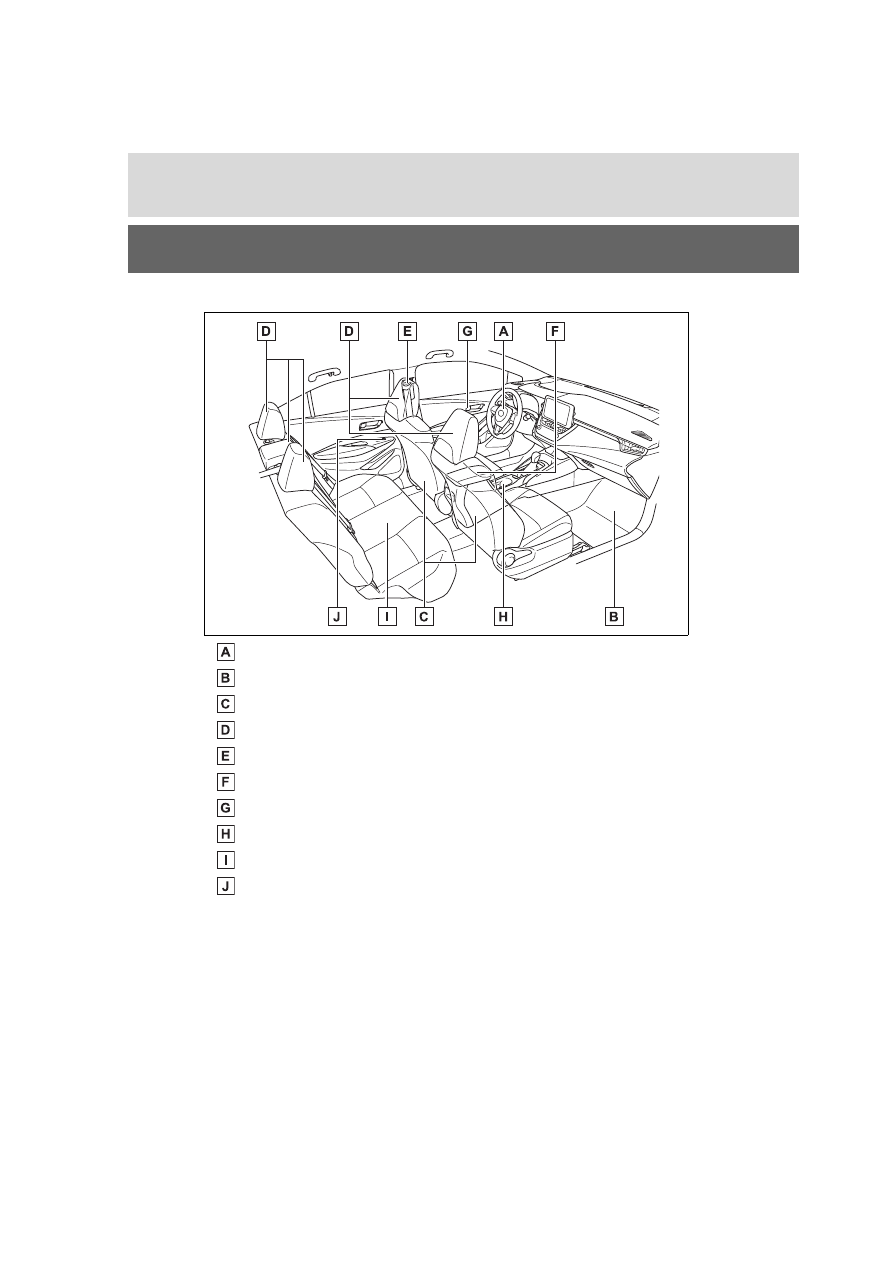

Interior

SRS airbags.......................................................................... P.31

Floor mats............................................................................. P.24

Front seats.......................................................................... P.133

Head restraints................................................................... P.136

Seat belts .............................................................................. P.27

Console box ....................................................................... P.399

Inside lock buttons ............................................................ P.121

Cup holders ........................................................................ P.398

Rear seats........................................................................... P.134

Rear seat heater switches

*

................................................ P.394

*

: If equipped

21

Pictorial index

COROLLA HV_U

■

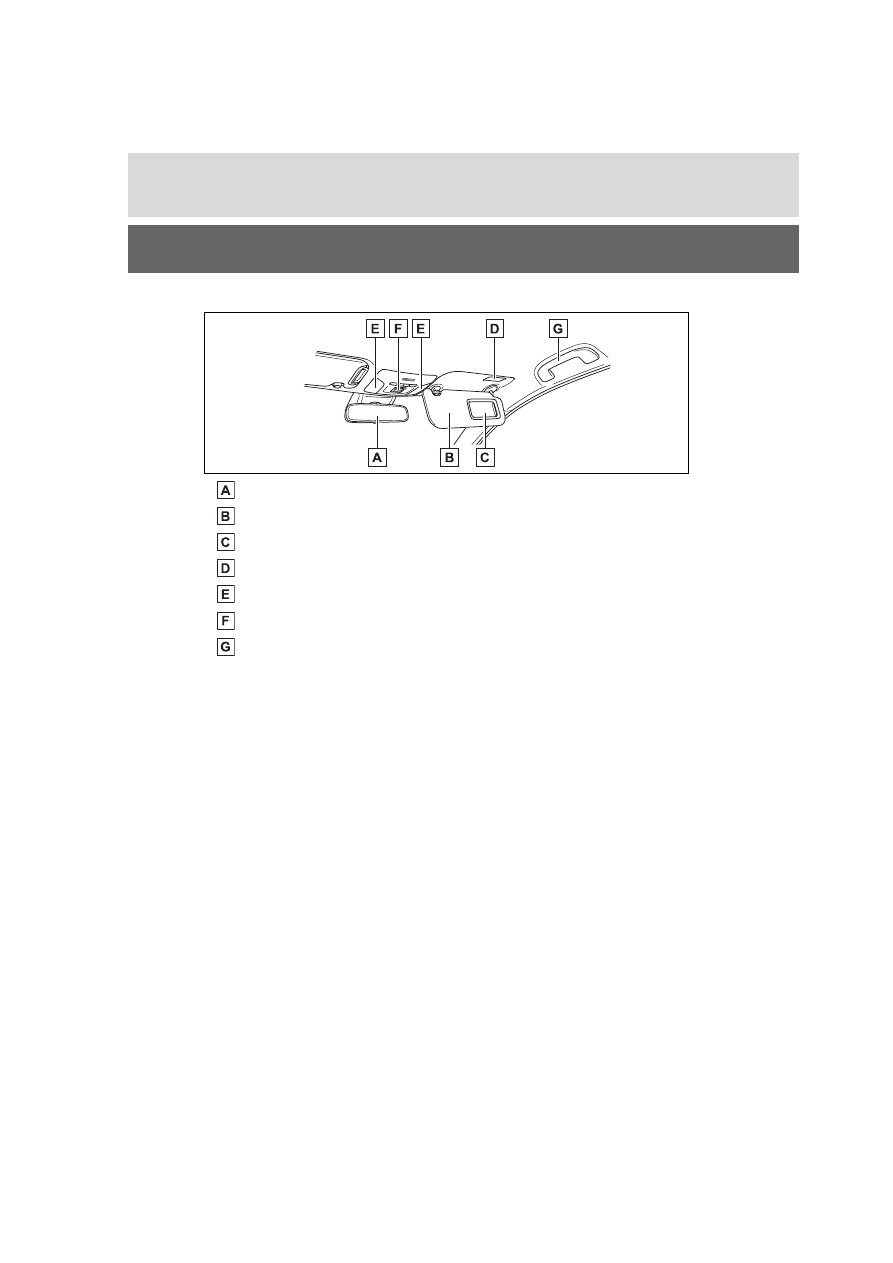

Ceiling

Inside rear view mirror ...................................................... P.139

Sun visors........................................................................... P.409

Vanity mirrors..................................................................... P.409

Vanity lights........................................................................ P.409

Interior lights/personal lights ........................................... P.395

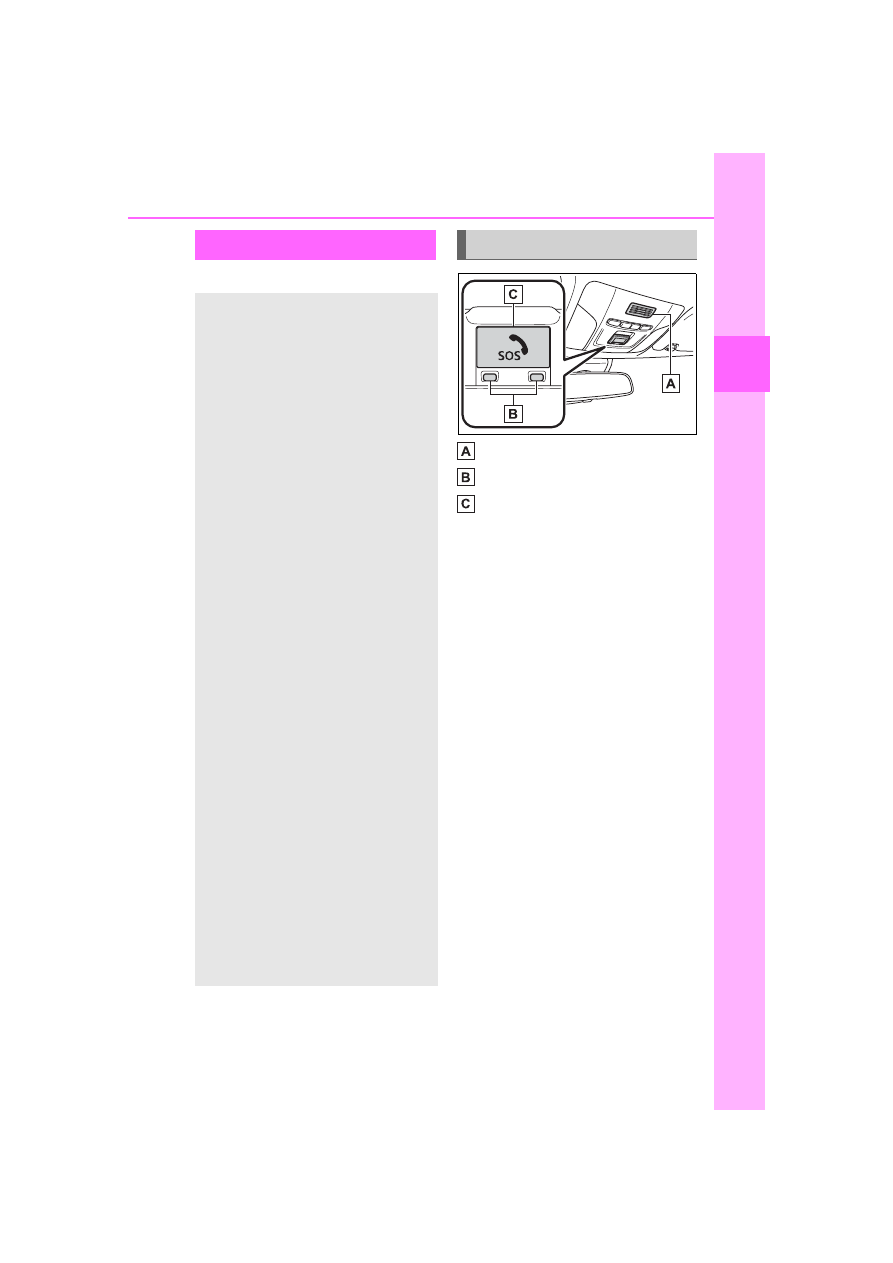

“SOS” button

*

....................................................................... P.73

Assist grips ........................................................................ P.410

*

: If equipped

22

Pictorial index

COROLLA HV_U

23

COROLLA HV_U

1

1

For safety and secu

rity

For safety and security

.

1-1. For safe use

Before driving.................

24

For safe driving ..............

25

Seat belts .......................

27

SRS airbags...................

31

Front passenger occupant

classification system ....

41

Exhaust gas precautions

.....................................

46

1-2. Child safety

Riding with children........

47

Child restraint systems...

48

1-3. Emergency assistance

Safety Connect ..............

73

1-4. Hybrid system

Hybrid system features ..

80

Hybrid system precautions

.....................................

83

1-5. Theft deterrent system

Immobilizer system ........

88

Alarm..............................

90

24

1-1. For safe use

COROLLA HV_U

1-1.For safe use

Use only floor mats designed
specifically for vehicles of the
same model and model year as
your vehicle. Fix them securely
in place onto the carpet.

1

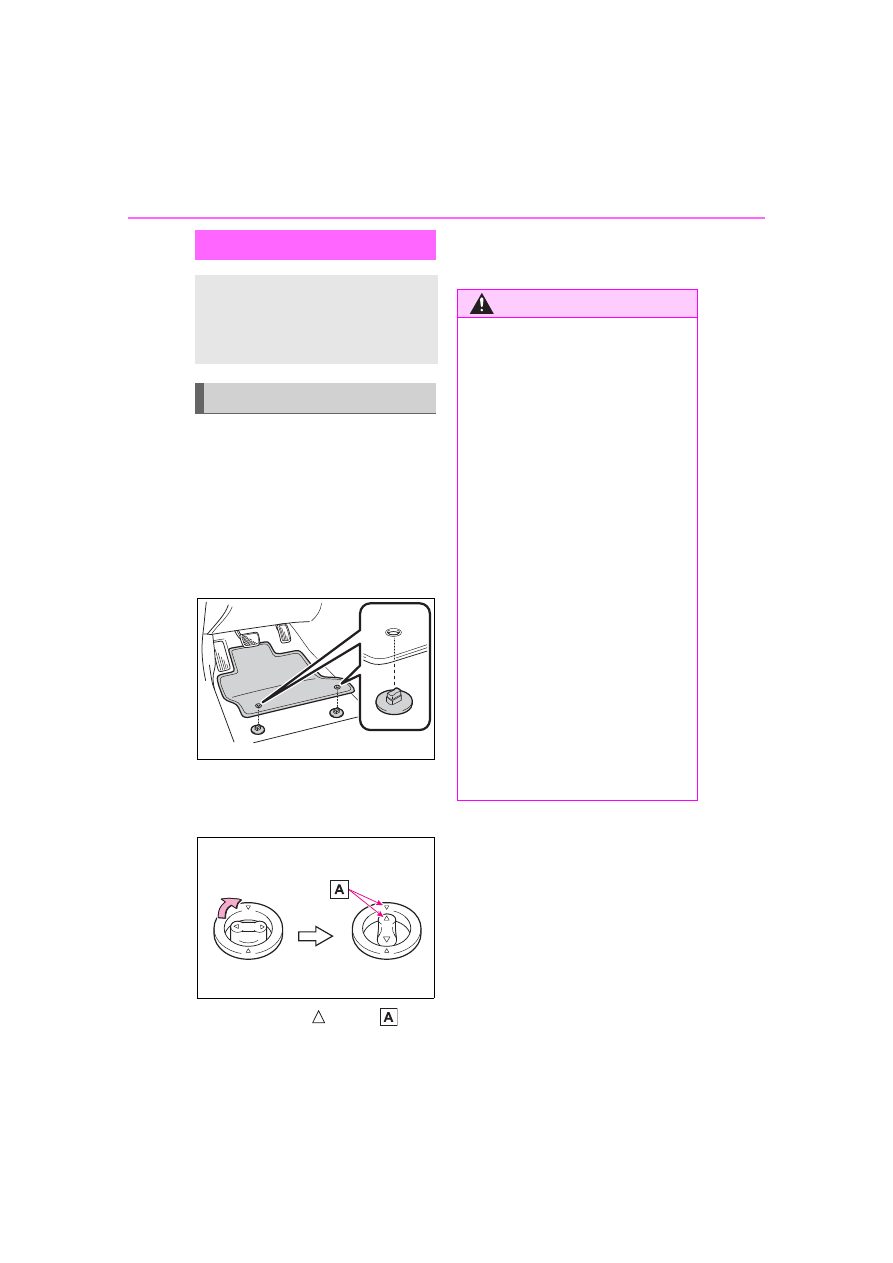

Insert the retaining hooks
(clips) into the floor mat eye-
lets.

2

Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.

Always align the

 marks

.

The shape of the retaining hooks
(clips) may differ from that shown in
the illustration.

Before driving

Observe the following
before starting off in the
vehicle to ensure safety of
driving.

Floor mat

WARNING

Observe the following precau-

tions.

Failure to do so may cause the

driver’s floor mat to slip, possibly

interfering with the pedals while

driving. An unexpectedly high

speed may result or it may

become difficult to stop the vehi-

cle. This could lead to an acci-

dent, resulting in death or serious

injury.

■

When installing the driver’s

floor mat

●

Do not use floor mats designed

for other models or different

model year vehicles, even if

they are Toyota Genuine floor

mats.

●

Only use floor mats designed

for the driver’s seat.

●

Always install the floor mat

securely using the retaining

hooks (clips) provided.

●

Do not use two or more floor

mats on top of each other.

●

Do not place the floor mat bot-

tom-side up or upside-down.

25

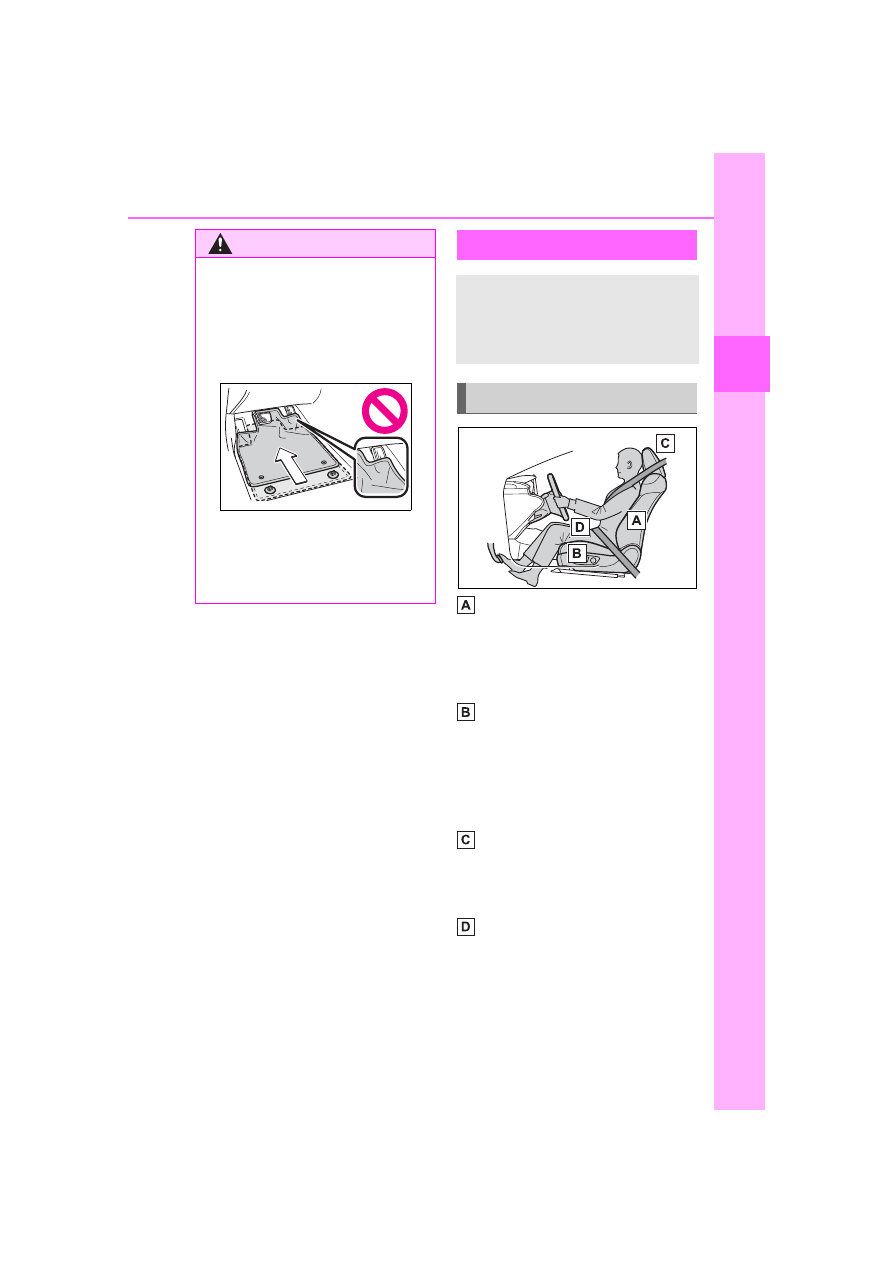

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (



P.133)

Adjust the seat so that you
can depress the pedals fully
and so that your arms bend
slightly at the elbow when
gripping the steering wheel.
(



P.133)

Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (



P.136)

Wear the seat belt correctly.
(



P.27)

WARNING

■

Before driving

●

Check that the floor mat is

securely fixed in the correct

place with all the provided

retaining hooks (clips). Be espe-

cially careful to perform this

check after cleaning the floor.

●

With the hybrid system stopped

and the shift lever in P, fully

depress each pedal to the floor

to make sure it does not inter-

fere with the floor mat.

For safe driving

For safe driving, adjust the
seat and mirror to an appro-
priate position before driv-
ing.

Correct driving posture

26

1-1. For safe use

COROLLA HV_U

Make sure that all occupants are
wearing their seat belts before
driving the vehicle. (



P.27)

Use a child restraint system
appropriate for the child until the
child becomes large enough to
properly wear the vehicle’s seat
belt. (



P.48)

Make sure that you can see
backward clearly by adjusting
the inside and outside rear view
mirrors properly. (



P.139, 140)

WARNING

■

For safe driving

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Do not adjust the position of the

driver’s seat while driving.

Doing so could cause the driver

to lose control of the vehicle.

●

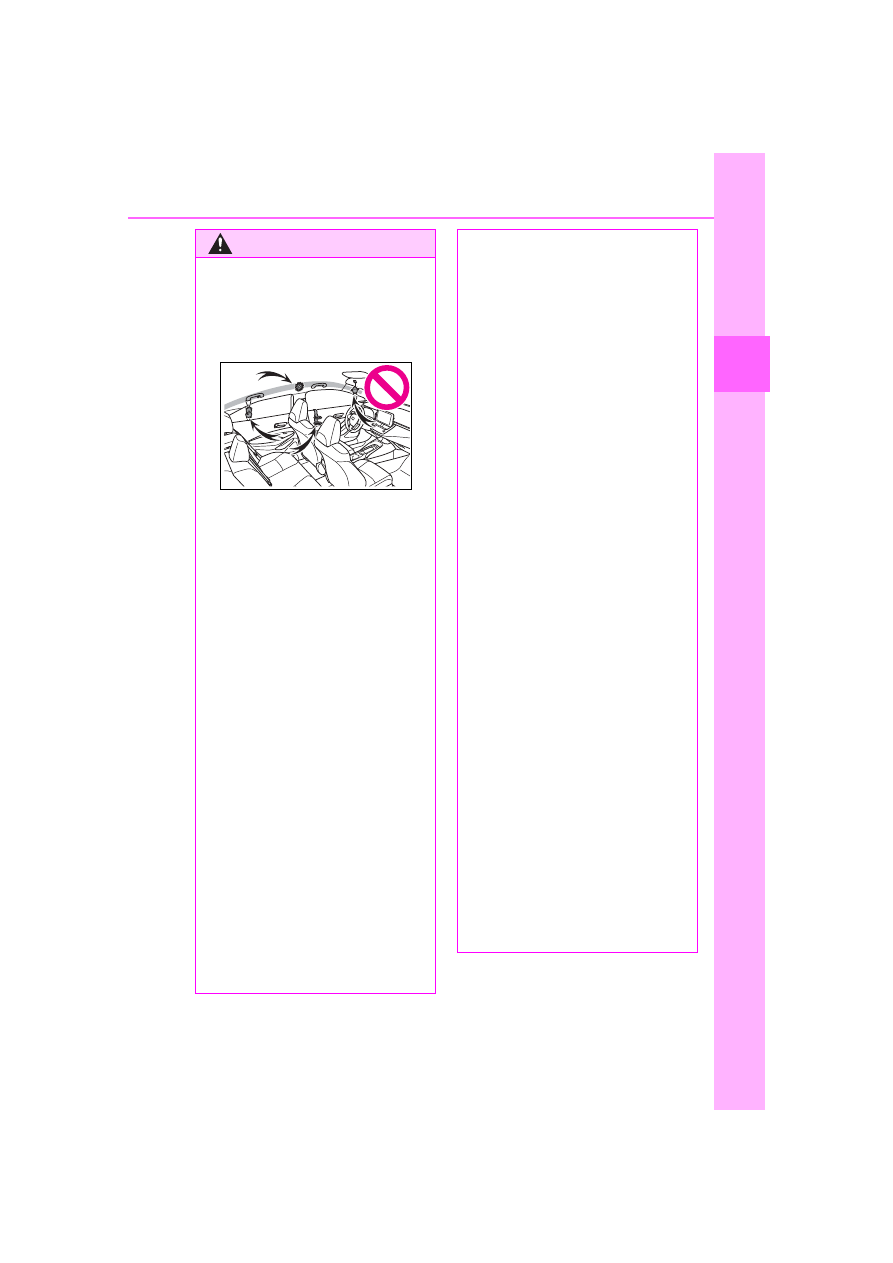

Do not place a cushion between

the driver or passenger and the

seatback.

A cushion may prevent correct

posture from being achieved,

and reduce the effectiveness of

the seat belt and head restraint.

●

Do not place anything under the

front seats.

Objects placed under the front

seats may become jammed in

the seat tracks and stop the

seat from locking in place. This

may lead to an accident and the

adjustment mechanism may

also be damaged.

●

Always observe the legal speed

limit when driving on public

roads.

●

When driving over long dis-

tances, take regular breaks

before you start to feel tired.

Also, if you feel tired or sleepy

while driving, do not force your-

self to continue driving and take

a break immediately.

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

●

When adjusting the seat posi-

tion, do not put your hands

under the seat or near the mov-

ing parts to avoid injury. Fingers

or hands may become jammed

in the seat mechanism.

Correct use of the seat
belts

Adjusting the mirrors

27

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

Seat belts

Make sure that all occu-
pants are wearing their seat
belts before driving the
vehicle.

WARNING

Observe the following precautions

to reduce the risk of injury in the

event of sudden braking, sudden

swerving or an accident.

Failure to do so may cause death

or serious injury.

■

Wearing a seat belt

●

Ensure that all passengers wear

a seat belt.

●

Always wear a seat belt prop-

erly.

●

Each seat belt should be used

by one person only. Do not use

a seat belt for more than one

person at once, including chil-

dren.

●

Toyota recommends that chil-

dren be seated in the rear seat

and always use a seat belt

and/or an appropriate child

restraint system.

●

To achieve a proper seating

position, do not recline the seat

more than necessary. The seat

belt is most effective when the

occupants are sitting up straight

and well back in the seats.

●

Do not wear the shoulder belt

under your arm.

●

Always wear your seat belt low

and snug across your hips.

■

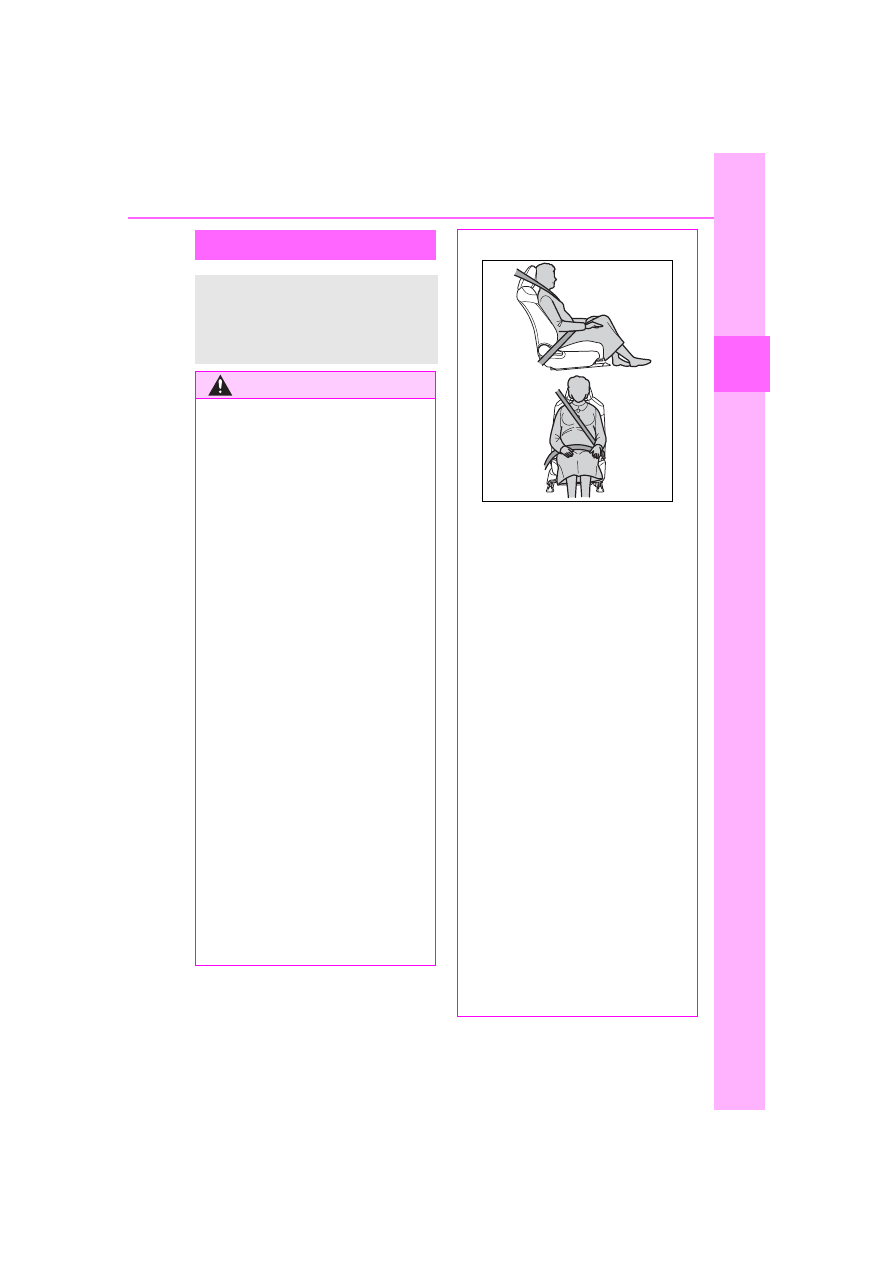

Pregnant women

Obtain medical advice and wear

the seat belt in the proper way.

(



P.28)

Women who are pregnant should

position the lap belt as low as

possible over the hips in the same

manner as other occupants,

extending the shoulder belt com-

pletely over the shoulder and

avoiding belt contact with the

rounding of the abdominal area.
If the seat belt is not worn prop-

erly, not only the pregnant

woman, but also the fetus could

suffer death or serious injury as a

result of sudden braking or a colli-

sion.

■

People suffering illness

Obtain medical advice and wear

the seat belt in the proper way.

(



P.28)

■

When children are in the vehi-

cle



P.63

■

Seat belt damage and wear

●

Do not damage the seat belts

by allowing the belt, plate, or

buckle to be jammed in the

door.

28

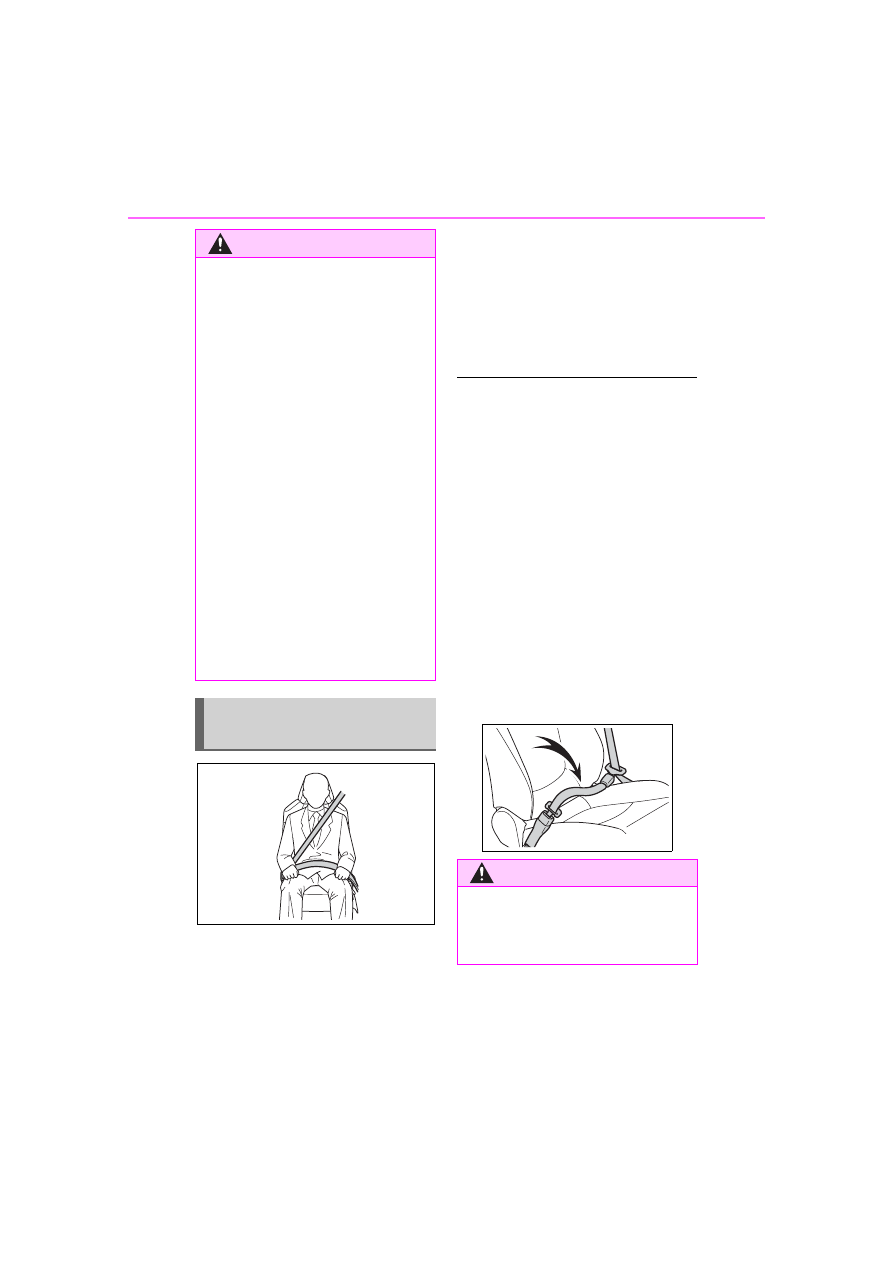

1-1. For safe use

COROLLA HV_U



Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.



Position the lap belt as low as
possible over the hips.



Adjust the position of the
seatback. Sit up straight and
well back in the seat.



Do not twist the seat belt.

■

Child seat belt usage

The seat belts of your vehicle were

principally designed for persons of

adult size.

●

Use a child restraint system

appropriate for the child, until the

child becomes large enough to

properly wear the vehicle’s seat

belt. (



P.48)

●

When the child becomes large

enough to properly wear the vehi-

cle’s seat belt, follow the instruc-

tions regarding seat belt usage.

(



P.27)

■

Seat belt extender

If your seat belts cannot be fastened

securely because they are not long

enough, a personalized seat belt

extender is available from your Toy-

ota dealer free of charge.

WARNING

●

Inspect the seat belt system

periodically. Check for cuts,

fraying, and loose parts. Do not

use a damaged seat belt until it

is replaced. Damaged seat belts

cannot protect an occupant

from death or serious injury.

●

Ensure that the belt and plate

are locked and the belt is not

twisted.

If the seat belt does not function

correctly, immediately contact

your Toyota dealer.

●

Replace the seat assembly,

including the belts, if your vehi-

cle has been involved in a seri-

ous accident, even if there is no

obvious damage.

●

Do not attempt to install,

remove, modify, disassemble or

dispose of the seat belts. Have

any necessary repairs carried

out by your Toyota dealer. Inap-

propriate handling may lead to

incorrect operation.

Correct use of the seat
belts

WARNING

■

Using a seat belt extender

●

Do not wear the seat belt

extender if you can fasten the

seat belt without the extender.

29

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

1

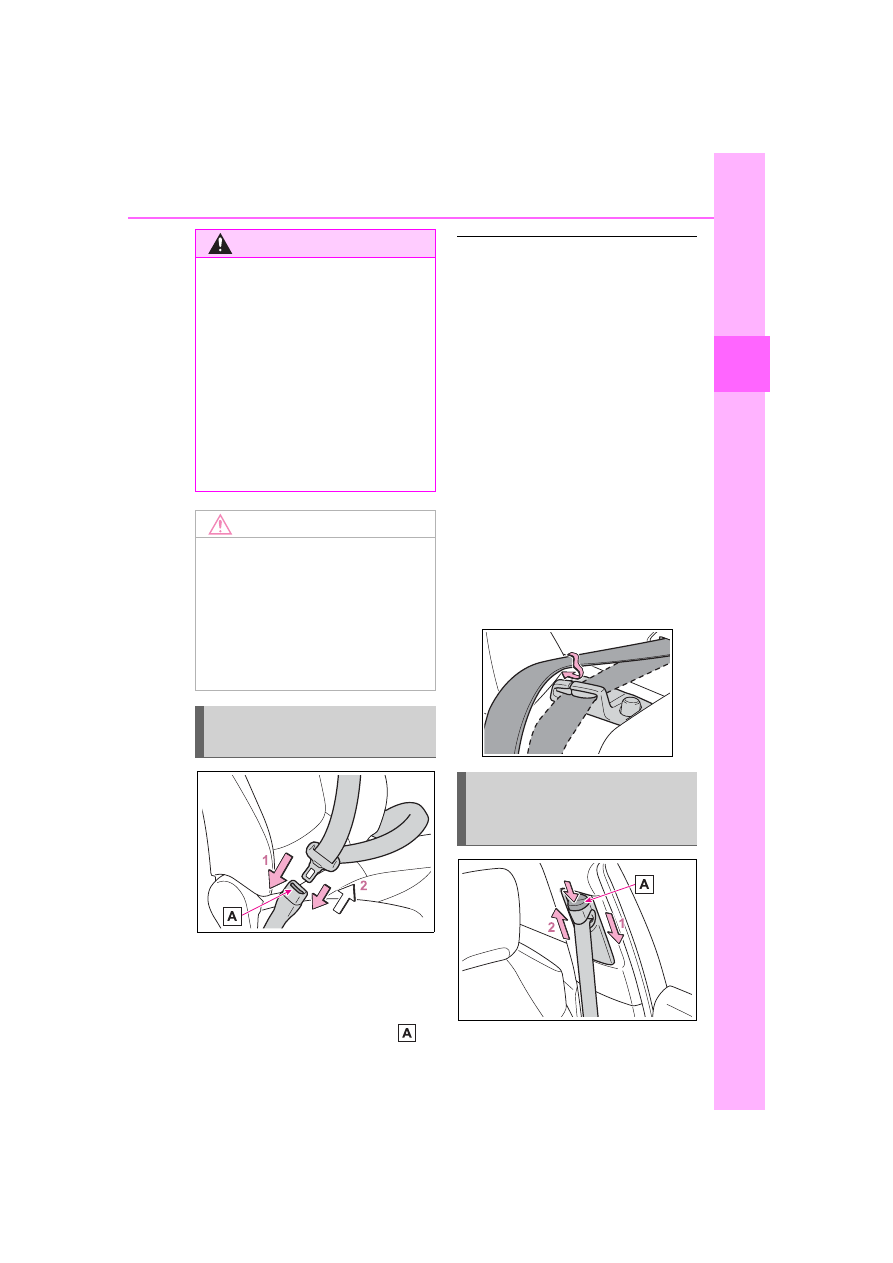

To fasten the seat belt, push
the plate into the buckle until
a click sound is heard.

2

To release the seat belt,
press the release button  .

■

Emergency locking retractor

(ELR)

The retractor will lock the belt during

a sudden stop or on impact. It may

also lock if you lean forward too

quickly. A slow, easy motion will

allow the belt to extend so that you

can move around fully.

■

Automatic locking retractor

(ALR)

When a passenger’s shoulder belt is

completely extended and then

retracted even slightly, the belt is

locked in that position and cannot

be extended. This feature is used to

hold the child restraint system

(CRS) firmly. To free the belt again,

fully retract the belt and then pull the

belt out once more. (



P.48)

■

Rear seat belt

Use the seat belt after passing it

through the guide if the seat belt

comes free from the guide.

1

Push the seat belt shoulder

WARNING

●

Do not use the seat belt

extender when installing a child

restraint system because the

belt will not securely hold the

child restraint system, increas-

ing the risk of death or serious

injury in the event of an acci-

dent.

●

The personalized extender may

not be safe on another vehicle,

when used by another person,

or at a different seating position

other than the one originally

intended.

NOTICE

■

When using a seat belt

extender

When releasing the seat belt,

press on the buckle release but-

ton on the extender, not on the

seat belt.

This helps prevent damage to the

vehicle interior and the extender

itself.

Fastening and releasing
the seat belt

Adjusting the seat belt
shoulder anchor height
(front seats)

30

1-1. For safe use

COROLLA HV_U

anchor down while pressing
the release button  .

2

Push the seat belt shoulder
anchor up while pressing the
release button  .

Move the height adjuster up and
down as needed until you hear a
click.

The pretensioners help the seat
belts to quickly restrain the
occupants by retracting the seat
belts when the vehicle is sub-
jected to certain types of severe
frontal or side collision or a vehi-
cle rollover.

The pretensioners do not activate

in the event of a minor frontal
impact, a minor side impact or a
rear impact.

■

Replacing the belt after the pre-

tensioner has been activated

If the vehicle is involved in multiple

collisions, the pretensioner will acti-

vate for the first collision, but will not

activate for the second or subse-

quent collisions.

WARNING

■

Adjustable shoulder anchor

Always make sure the shoulder

belt is positioned across the cen-

ter of your shoulder. The belt

should be kept away from your

neck, but not falling off your shoul-

der. Failure to do so could reduce

the amount of protection in an

accident and cause death or seri-

ous injuries in the event of a sud-

den stop, sudden swerve or

accident.

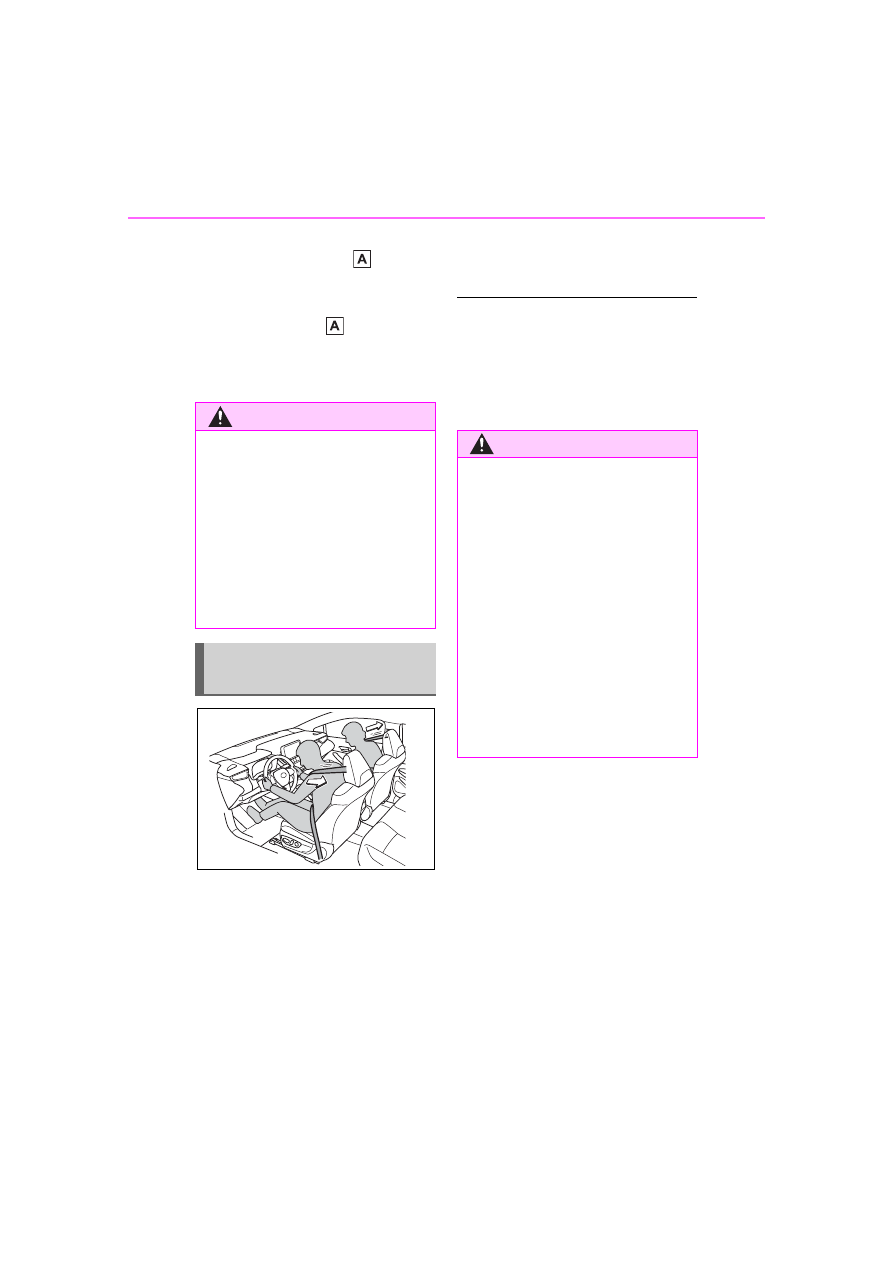

Seat belt pretensioners
(front seats)

WARNING

■

Seat belt pretensioners

●

Do not place anything, such as

a cushion, on the front passen-

ger’s seat. Doing so will

disperse the passenger’s

weight, which prevents the sen-

sor from detecting the passen-

ger’s weight properly. As a

result, the seat belt pretensioner

for the front passenger’s seat

may not activate in the event of

a collision.

●

If the pretensioner has acti-

vated, the SRS warning light will

come on. In that case, the seat

belt cannot be used again and

must be replaced at your Toyota

dealer.

31

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

■

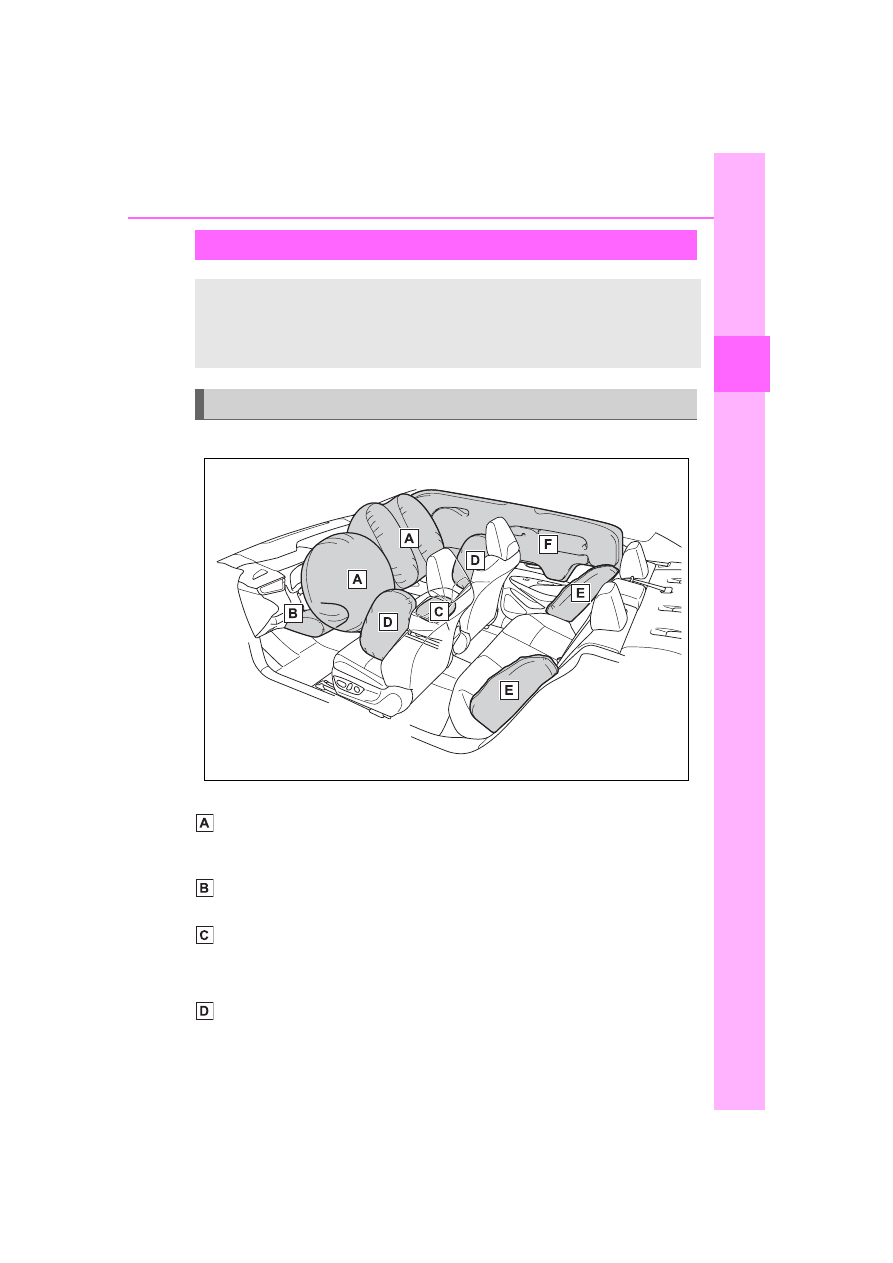

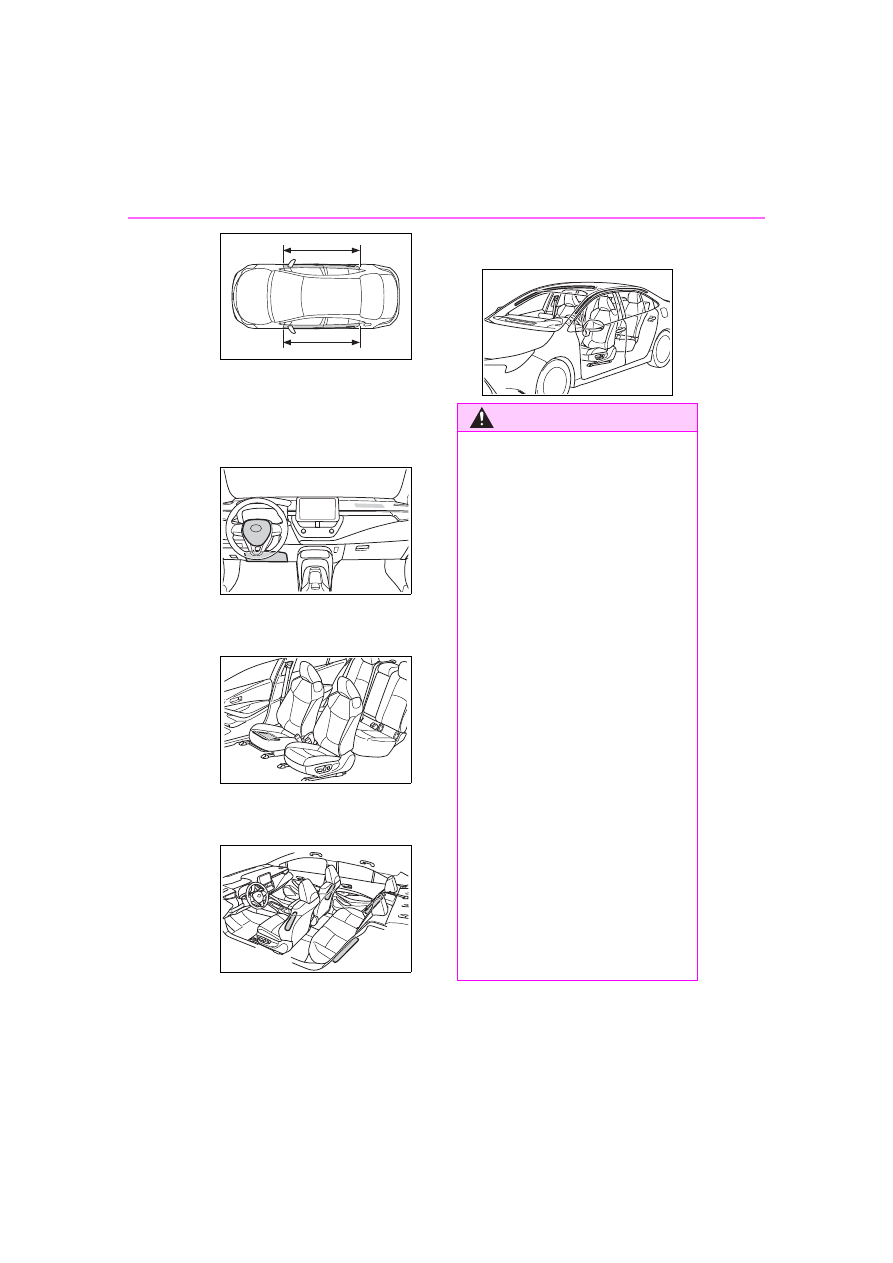

Location of the SRS airbags



SRS front airbags

SRS driver airbag/front passenger airbag

Can help protect the head and chest of the driver and front passenger from
impact with interior components

SRS knee airbag

Can help provide driver protection

SRS seat cushion airbag

Can help restrain the front passenger



SRS side and curtain shield airbags

SRS front side airbags

Can help protect the torso of the front seat occupants

SRS airbags

The SRS airbags inflate when the vehicle is subjected to cer-
tain types of severe impacts that may cause significant injury
to the occupants. They work together with the seat belts to
help reduce the risk of death or serious injury.

SRS airbag system

32

1-1. For safe use

COROLLA HV_U

SRS rear side airbags

Can help protect the torso of occupants in the rear outer seats

SRS curtain shield airbags

• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the

event of vehicle rollover

■

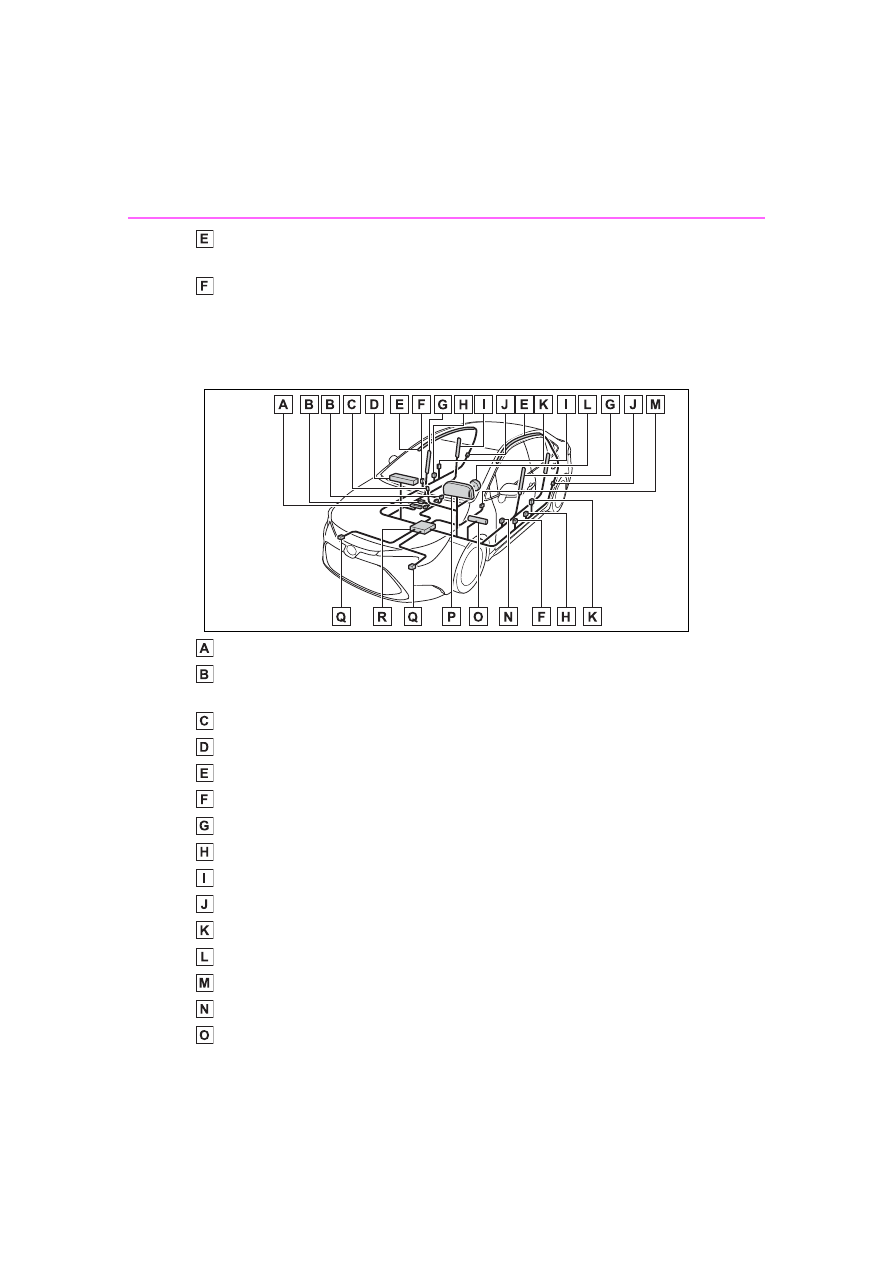

SRS airbag system components

Seat cushion airbag
Front passenger occupant classification system (ECU and sen-
sors)
“AIR BAG ON” and “AIR BAG OFF” indicator lights
Front passenger airbag
Curtain shield airbags
Side impact sensors (front doors)
Front side airbags
Seat belt pretensioners and force limiters
Rear side airbags
Side impact sensors (rear)
Side impact sensors (front)
Driver airbag
Driver’s seat belt buckle switch
Driver’s seat position sensor
Driver’s knee airbag

33

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

SRS warning light
Front impact sensors
Airbag sensor assembly

Your vehicle is equipped with ADVANCED AIRBAGS designed
based on the US motor vehicle safety standards (FMVSS208). The
airbag sensor assembly (ECU) controls airbag deployment based on
information obtained from the sensors etc. shown in the system
components diagram above. This information includes crash sever-
ity and occupant information. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to
help restrain the motion of the occupants.

■

If the SRS airbags deploy

(inflate)

●

Slight abrasions, burns, bruising

etc., may be sustained from SRS

airbags, due to the extremely high

speed deployment (inflation) by

hot gases.

●

A loud noise and white powder will

be emitted.

●

Parts of the airbag module (steer-

ing wheel hub, airbag cover and

inflator) as well as the front seats,

parts of the front and rear pillars,

and roof side rails, may be hot for

several minutes. The airbag itself

may also be hot.

●

The windshield may crack.

●

The hybrid system will be stopped

and fuel supply to the engine will

be stopped. (



P.87)

●

The brakes and stop lights will be

controlled automatically. (



P.241)

●

The interior lights will turn on auto-

matically. (



P.396)

●

The emergency flashers will turn

on automatically. (



P.470)

●

For Safety Connect subscribers, if

any of the following situations

occur, the system is designed to

send an emergency call to the

response center, notifying them of

the vehicle’s location (without

needing to push the “SOS” button)

and an agent will attempt to speak

with the occupants to ascertain

the level of emergency and assis-

tance required. If the occupants

are unable to communicate, the

agent automatically treats the call

as an emergency and helps to dis-

patch the necessary emergency

services. (



P.73)

• An SRS airbag is deployed.

• A seat belt pretensioner is acti-

vated.

• The vehicle is involved in a severe

rear-end collision.

■

SRS airbag deployment condi-

tions (SRS front airbags)

●

The SRS front airbags will deploy

in the event of an impact that

exceeds the set threshold level

(the level of force corresponding

to an approximately 12 - 18 mph

[20 - 30 km/h] frontal collision with

a fixed wall that does not move or

deform).

However, this threshold velocity will

be considerably higher in the follow-

ing situations:

• If the vehicle strikes an object,

such as a parked vehicle or sign

pole, which can move or deform

on impact

• If the vehicle is involved in an

underride collision, such as a colli-

sion in which the front of the vehi-

cle “underrides”, or goes under,

the bed of a truck

34

1-1. For safe use

COROLLA HV_U

●

Depending on the type of collision,

it is possible that only the seat belt

pretensioners will activate.

●

The SRS front airbags for the front

passenger will not activate if there

is no passenger sitting in the front

passenger seat. However, the

SRS front airbags for the front

passenger may deploy if luggage

is put in the seat, even if the seat

is unoccupied.

●

The SRS seat cushion airbag on

the front passenger seat will not

operate if the occupant is not

wearing a seat belt.

■

SRS airbag deployment condi-

tions (SRS side and curtain

shield airbags)

●

The SRS side and curtain shield

airbags will deploy in the event of

an impact that exceeds the set

threshold level (the level of force

corresponding to the impact force

produced by an approximately

3300 lb. [1500 kg] vehicle colliding

with the vehicle cabin from a

direction perpendicular to the

vehicle orientation at an approxi-

mate speed of 12 - 18 mph [20 -

30 km/h]).

●

Both SRS curtain shield airbags

may deploy in the event of a

severe side collision.

●

Both SRS curtain shield airbags

will deploy in the event of vehicle

rollover.

●

Both SRS curtain shield airbags

may also deploy in the event of a

severe frontal collision.

■

Conditions under which the

SRS airbags may deploy

(inflate), other than a collision

The SRS front airbags and SRS

side and curtain shield airbags may

also deploy if a serious impact

occurs to the underside of your vehi-

cle. Some examples are shown in

the illustration.

●

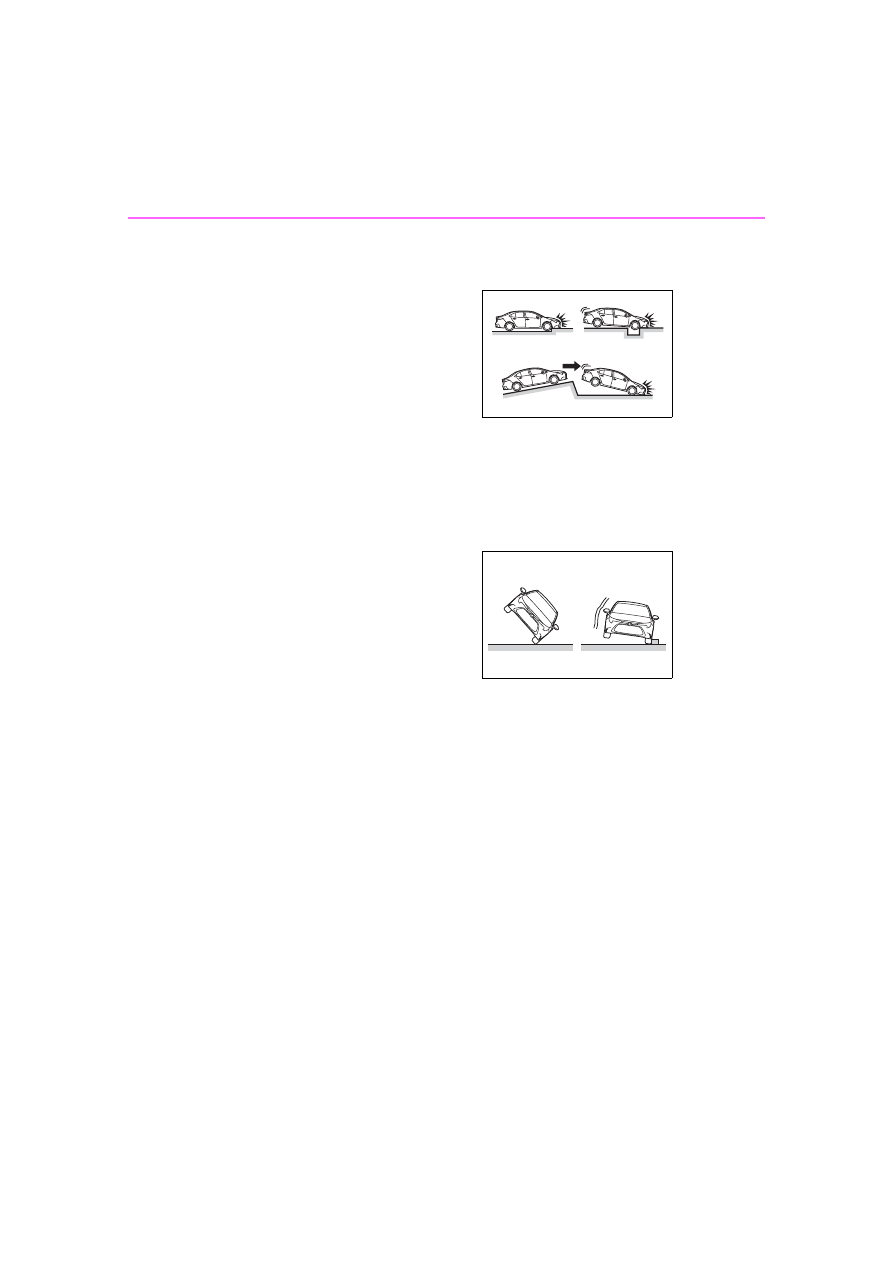

Hitting a curb, edge of pavement

or hard surface

●

Falling into or jumping over a deep

hole

●

Landing hard or falling

The SRS curtain shield airbags may

also deploy under the situations

shown in the illustration.

●

The angle of vehicle tip-up is mar-

ginal.

●

The vehicle skids and hits a curb

stone.

■

Types of collisions that may not

deploy the SRS airbags (SRS

front airbags)

The SRS front airbags do not gener-

ally inflate if the vehicle is involved

in a side or rear collision, if it rolls

over, or if it is involved in a

low-speed frontal collision. But,

whenever a collision of any type

causes sufficient forward decelera-

tion of the vehicle, deployment of

the SRS front airbags may occur.

●

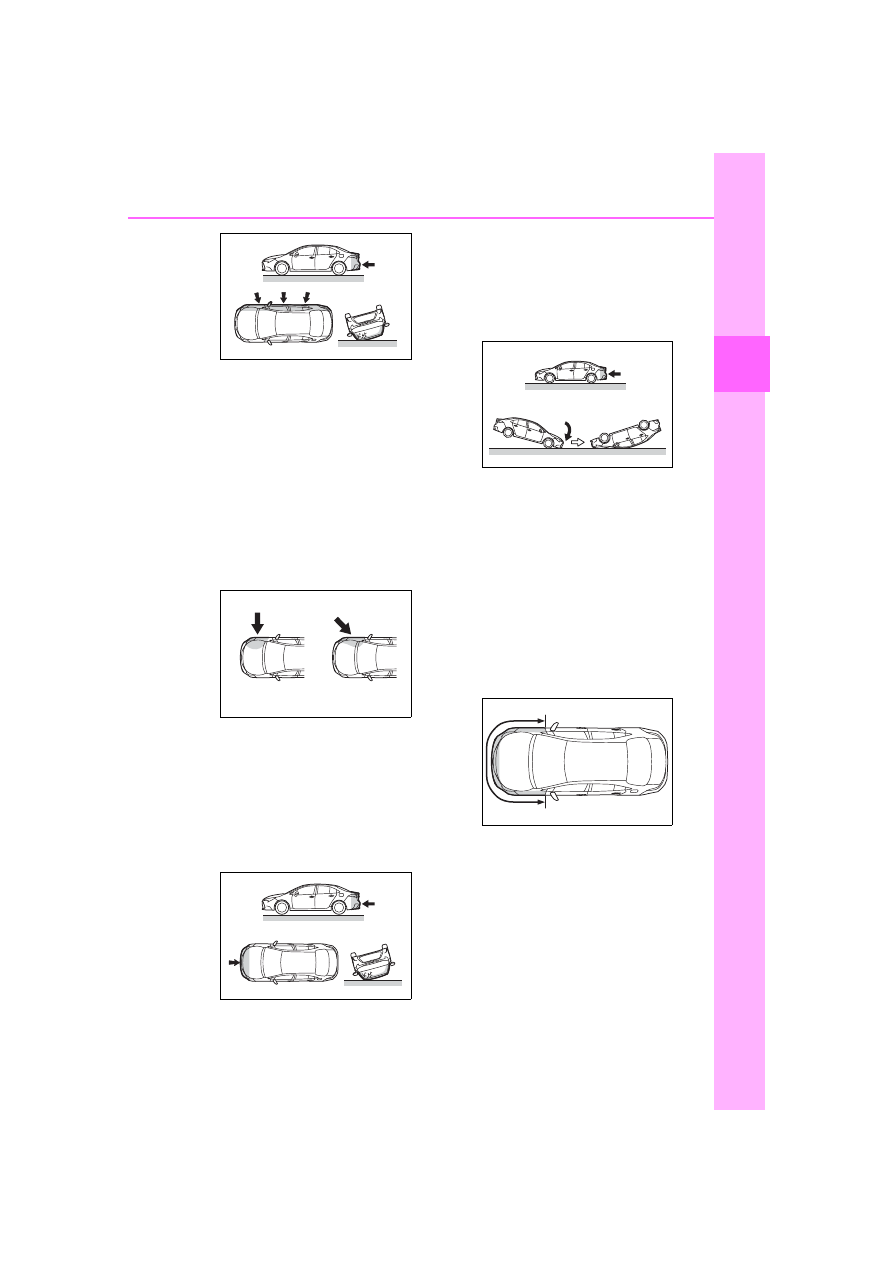

Collision from the side

●

Collision from the rear

●

Vehicle rollover

35

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

■

Types of collisions that may not

deploy the SRS airbags (SRS

side and curtain shield airbags)

The SRS side and curtain shield air-

bags may not activate if the vehicle

is subjected to a collision from the

side at certain angles, or a collision

to the side of the vehicle body other

than the passenger compartment.

●

Collision from the side to the vehi-

cle body other than the passenger

compartment

●

Collision from the side at an angle

The SRS side airbags do not gener-

ally inflate if the vehicle is involved

in a frontal or rear collision, if it rolls

over, or if it is involved in a

low-speed side collision.

●

Collision from the front

●

Collision from the rear

●

Vehicle rollover

The SRS curtain shield airbags do

not generally inflate if the vehicle is

involved in a rear collision, if it

pitches end over end, or if it is

involved in a low-speed side or

low-speed frontal collision.

●

Collision from the rear

●

Pitching end over end

■

When to contact your Toyota

dealer

In the following cases, the vehicle

will require inspection and/or repair.

Contact your Toyota dealer as soon

as possible.

●

Any of the SRS airbags have

been inflated.

●

The front of the vehicle is dam-

aged or deformed, or was

involved in an accident that was

not severe enough to cause the

SRS front airbags to inflate.

●

A portion of a door or its surround-

ing area is damaged, deformed or

has had a hole made in it, or the

vehicle was involved in an acci-

dent that was not severe enough

to cause the SRS side and curtain

shield airbags to inflate.

36

1-1. For safe use

COROLLA HV_U

●

The pad section of the steering

wheel, dashboard near the front

passenger airbag or lower portion

of the instrument panel is

scratched, cracked, or otherwise

damaged.

●

The seat cushion surface is

scratched, cracked, or otherwise

damaged.

●

The surface of the seats with the

SRS side airbag is scratched,

cracked, or otherwise damaged.

●

The portion of the front pillars, rear

pillars or roof side rail garnishes

(padding) containing the SRS cur-

tain shield airbags inside is

scratched, cracked, or otherwise

damaged.

WARNING

■

SRS airbag precautions

Observe the following precautions

regarding the SRS airbags.

Failure to do so may cause death

or serious injury.

●

The driver and all passengers in

the vehicle must wear their seat

belts properly.

The SRS airbags are supple-

mental devices to be used with

the seat belts.

●

The SRS driver airbag deploys

with considerable force, and

can cause death or serious

injury especially if the driver is

very close to the airbag. The

National Highway Traffic Safety

Administration (NHTSA)

advises:

Since the risk zone for the driver’s

airbag is the first 2 - 3 in. (50 - 75

mm) of inflation, placing yourself

10 in. (250 mm) from your driver

airbag provides you with a margin

of safety. This distance is mea-

sured from the center of the steer-

ing wheel to your breastbone. If

you sit less than 10 in. (250 mm)

away now, you can change your

driving position in several ways:
• Move your seat to the rear as

far as you can while still reach-

ing the pedals comfortably.

37

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

WARNING

• Slightly recline the back of the

seat.

Although vehicle designs vary,

many drivers can achieve the

10 in. (250 mm) distance, even

with the driver seat all the way

forward, simply by reclining the

back of the seat somewhat. If

reclining the back of your seat

makes it hard to see the road,

raise yourself by using a firm,

non-slippery cushion, or raise

the seat if your vehicle has that

feature.

• If your steering wheel is adjust-

able, tilt it downward. This

points the airbag toward your

chest instead of your head and

neck.

The seat should be adjusted as

recommended by NHTSA above,

while still maintaining control of

the foot pedals, steering wheel,

and your view of the instrument

panel controls.

●

If the seat belt extender has

been connected to the front

seat belt buckles but the seat

belt extender has not also been

fastened to the latch plate of the

seat belt, the SRS front airbags

will judge that the driver and

front passenger are wearing the

seat belt even though the seat

belt has not been connected. In

this case, the SRS front airbags

may not activate correctly in a

collision, resulting in death or

serious injury in the event of a

collision. Be sure to wear the

seat belt with the seat belt

extender.

●

The SRS front passenger air-

bag also deploys with consider-

able force, and can cause death

or serious injury especially if the

front passenger is very close to

the airbag. The front passenger

seat should be as far from the

airbag as possible with the seat-

back adjusted, so the front pas-

senger sits upright.

38

1-1. For safe use

COROLLA HV_U

WARNING

●

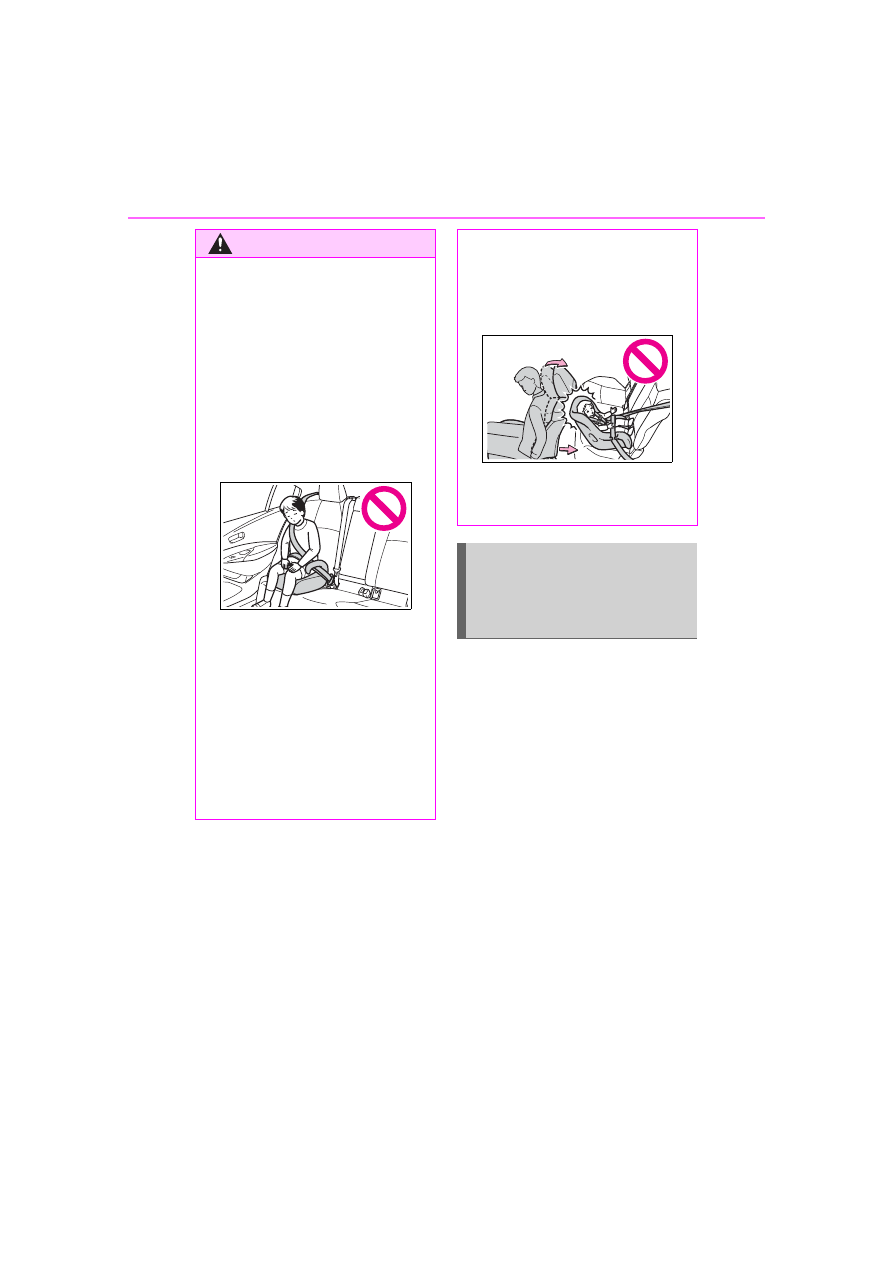

Improperly seated and/or

restrained infants and children

can be killed or seriously injured

by a deploying airbag. An infant

or child who is too small to use

a seat belt should be properly

secured using a child restraint

system. Toyota strongly recom-

mends that all infants and chil-

dren be placed in the rear seats

of the vehicle and properly

restrained. The rear seats are

safer for infants and children

than the front passenger seat.

(



P.48)

●

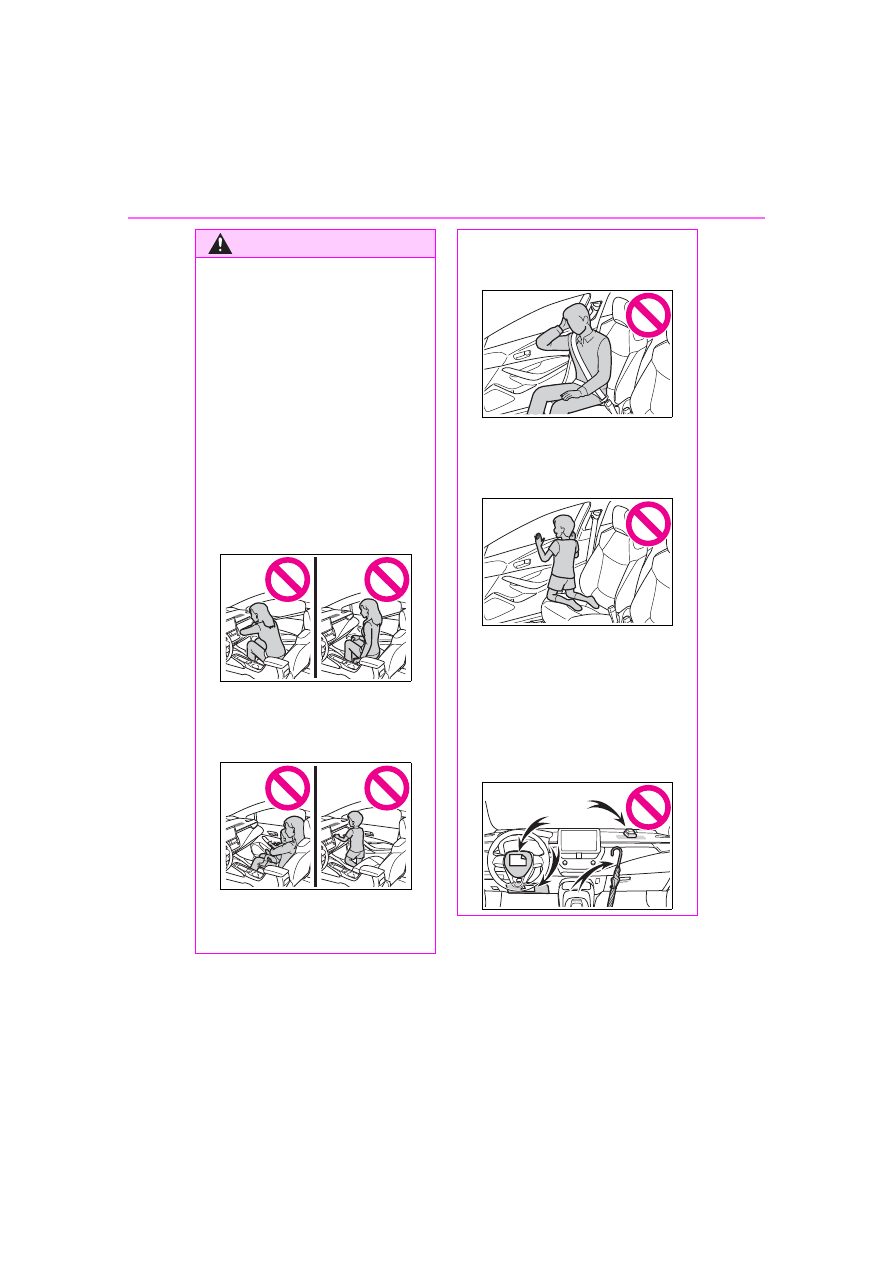

Do not sit on the edge of the

seat or lean against the dash-

board.

●

Do not allow a child to stand in

front of the SRS front passenger

airbag unit or sit on the knees of

a front passenger.

●

Do not allow the front seat occu-

pants to hold items on their

knees.

●

Do not lean against the door,

the roof side rail or the front,

side and rear pillars.

●

Do not allow anyone to kneel on

the passenger seats toward the

door or put their head or hands

outside the vehicle.

●

Do not attach anything to or

lean anything against areas

such as the dashboard, steering

wheel pad and lower portion of

the instrument panel.

These items can become pro-

jectiles when the SRS driver,

front passenger and knee air-

bags deploy.

39

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

WARNING

●

Do not attach anything to areas

such as a door, windshield, side

windows, front or rear pillar, roof

side rail and assist grip. (Except

for the speed limit label



P.492)

●

Do not hang hangers or other

hard objects on the coat hooks.

All of these items could become

projectiles and may cause

death or serious injury, should

the SRS curtain shield airbags

deploy.

●

If a vinyl cover is put on the area

where the SRS driver’s knee

airbag will deploy, be sure to

remove it.

●

Do not use seat accessories

which cover the parts where the

SRS side airbags and SRS seat

cushion airbag inflate as they

may interfere with inflation of

the SRS airbags. Such acces-

sories may prevent the side air-

bags and seat cushion airbag

from activating correctly, disable

the system or cause the side

airbags and seat cushion airbag

to inflate accidentally, resulting

in death or serious injury.

●

Do not strike or apply significant

levels of force to the area of the

SRS airbag components or the

front doors.

Doing so can cause the SRS

airbags to malfunction.

●

Do not touch any of the compo-

nent parts immediately after the

SRS airbags have deployed

(inflated) as they may be hot.

●

If breathing becomes difficult

after the SRS airbags have

deployed, open a door or win-

dow to allow fresh air in, or

leave the vehicle if it is safe to

do so. Wash off any residue as

soon as possible to prevent skin

irritation.

●

If the areas where the SRS air-

bags are stored, such as the

steering wheel pad and front

and rear pillar garnishes, are

damaged or cracked, have

them replaced by your Toyota

dealer.

●

Do not place anything, such as

a cushion, on the front passen-

ger’s seat. Doing so will

disperse the passenger’s

weight, which prevents the sen-

sor from detecting the passen-

ger’s weight properly. As a

result, the SRS front airbags for

the front passenger may not

deploy in the event of a colli-

sion.

■

Modification and disposal of

SRS airbag system compo-

nents

Do not dispose of your vehicle or

perform any of the following modi-

fications without consulting your

Toyota dealer. The SRS airbags

may malfunction or deploy

(inflate) accidentally, causing

death or serious injury.

●

Installation, removal, disassem-

bly and repair of the SRS air-

bags

40

1-1. For safe use

COROLLA HV_U

WARNING

●

Repairs, modifications, removal

or replacement of the steering

wheel, instrument panel, dash-

board, seats or seat upholstery,

front, side and rear pillars, roof

side rails, front door panels,

front door trims or front door

speakers

●

Modifications to the front door

panel (such as making a hole in

it)

●

Repairs or modifications of the

front fender, front bumper, or

side of the occupant compart-

ment

●

Installation of a grille guard (bull

bars, kangaroo bar, etc.), snow

plows, winches or roof luggage

carrier

●

Modifications to the vehicle’s

suspension system

●

Installation of electronic devices

such as mobile two-way radios

and CD players

●

Modifications to your vehicle for

a person with a physical disabil-

ity

41

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

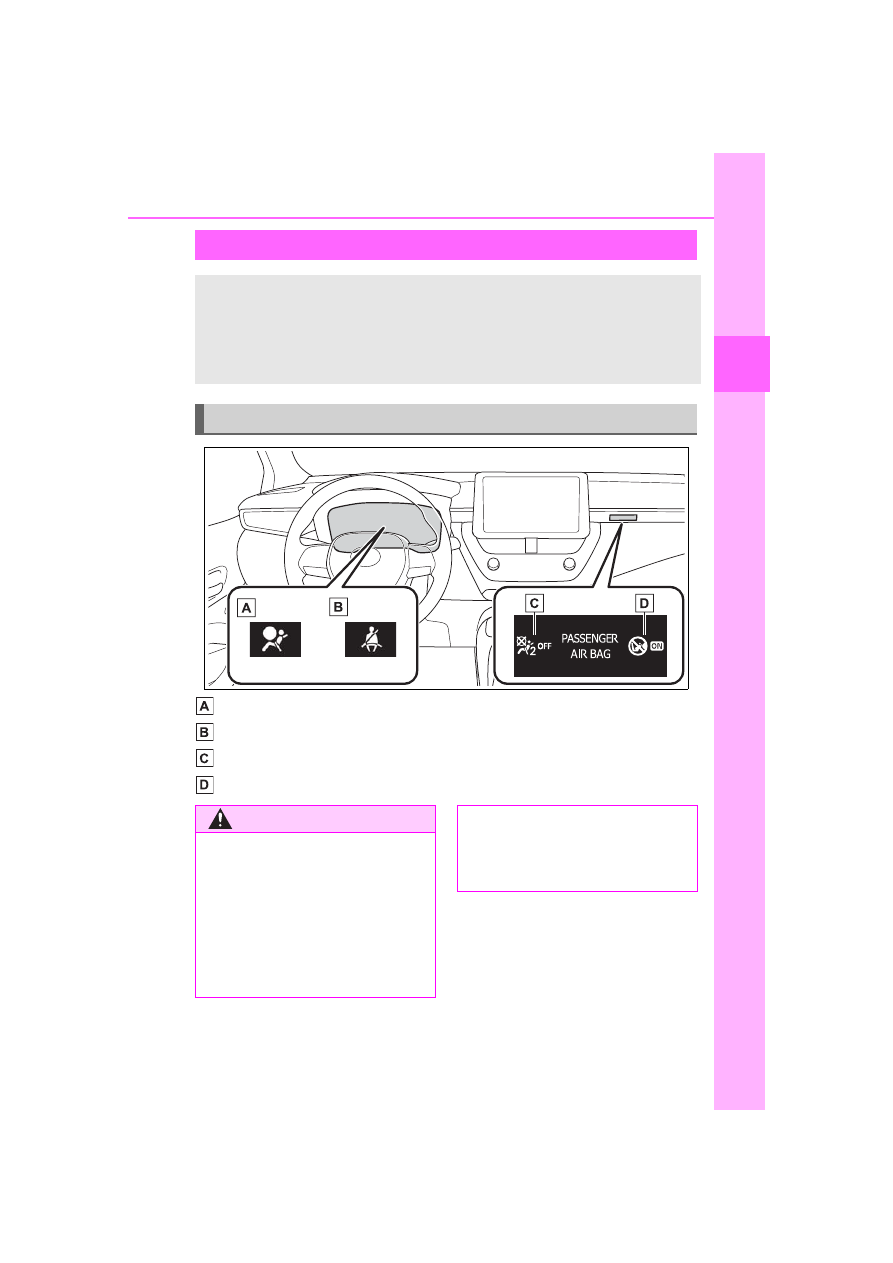

SRS warning light
Front passenger seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant
classification system. This system detects the conditions of
the front passenger seat and activates or deactivates the front
passenger airbag and seat cushion airbag in the front passen-
ger side.

System components

WARNING

■

Front passenger occupant

classification system precau-

tions

Observe the following precautions

regarding the front passenger

occupant classification system.

Failure to do so may cause death

or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s

seat belt latch plate has not

been left inserted into the

buckle before someone sits in

the front passenger seat.

42

1-1. For safe use

COROLLA HV_U

WARNING

●

Make sure the “AIR BAG OFF”

indicator light is not illuminated

when using the seat belt

extender for the front passenger

seat. If the “AIR BAG OFF” indi-

cator light is illuminated, discon-

nect the extender tongue from

the seat belt buckle, and recon-

nect the seat belt. Reconnect

the seat belt extender after

making sure the “AIR BAG ON”

indicator light is illuminated. If

you use the seat belt extender

while the “AIR BAG OFF” indi-

cator light is illuminated, the

SRS airbags for the front pas-

senger may not activate, which

could cause death or serious

injury in the event of a collision.

●

Do not apply a heavy load to the

front passenger seat or equip-

ment (e.g. seatback pocket).

●

Do not put weight on the front

passenger seat by putting your

hands or feet on the front pas-

senger seat seatback from the

rear passenger seat.

●

Do not let a rear passenger lift

the front passenger seat with

their feet or press on the seat-

back with their legs.

●

Do not put objects under the

front passenger seat.

●

Do not recline the front passen-

ger seatback so far that it

touches the rear seat. This may

cause the “AIR BAG OFF” indi-

cator light to be illuminated,

which indicates that the SRS

airbags for the front passenger

will not activate in the event of a

severe accident. If the seatback

touches the rear seat, return the

seatback to a position where it

does not touch the rear seat.

Keep the front passenger seat-

back as upright as possible

when the vehicle is moving.

Reclining the seatback exces-

sively may lessen the effective-

ness of the seat belt system.

●

If an adult sits in the front pas-

senger seat, the “AIR BAG ON”

indicator light is illuminated. If

the “AIR BAG OFF” indicator is

illuminated, ask the passenger

to sit up straight, well back in

the seat, feet on the floor, and

with the seat belt worn correctly.

If the “AIR BAG OFF” indicator

still remains illuminated, either

ask the passenger to move to

the rear seat, or if that is not

possible, move the front pas-

senger seat fully rearward.

●

When it is unavoidable to install

a forward-facing child restraint

system on the front passenger

seat, install the child restraint

system on the front passenger

seat in the proper order.

(



P.50)

●

Do not modify or remove the

front seats.

●

Do not kick the front passenger

seat or subject it to severe

impact. Otherwise, the SRS

warning light may come on to

indicate a malfunction of the

front passenger occupant clas-

sification system. In this case,

contact your Toyota dealer

immediately.

43

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

■

Adult

*1

■

Child

*4

WARNING

●

Child restraint systems installed

on the rear seat should not con-

tact the front seatbacks.

●

Do not use a seat accessory,

such as a cushion and seat

cover, that covers the seat

cushion surface.

●

Do not modify or replace the

upholstery of the front seat.

Condition and operation in the front passenger occupant
classification system

Indicator/warning

light

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG ON”

SRS warning light

Off

Front passenger’s seat belt

reminder light

Off

*2

 or flashing

*3

Devices

Front passenger airbag

Activated

Seat cushion airbag in the front

passenger side

Activated

*2

 or

deactivated

*3

Indicator/warning

light

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF” or

“AIR BAG ON”

*4

SRS warning light

Off

Front passenger’s seat belt

reminder light

Off

*2

 or flashing

*3

Devices

Front passenger airbag

Deactivated or

activated

*4

Seat cushion airbag in the front

passenger side

Deactivated or

activated

*4, 2

44

1-1. For safe use

COROLLA HV_U

■

Child restraint system with infant

*5

■

Unoccupied

■

There is a malfunction in the system

*1

:The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may not recognize
him/her as an adult depending on his/her physique and posture.

*2

:In the event the front passenger is wearing a seat belt.

*3

:In the event the front passenger does not wear a seat belt.

*4

:For some children, child in seat, child in booster seat or child in convert-

Indicator/warning

light

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF”

*6

SRS warning light

Off

Front passenger’s seat belt

reminder light

Off

*2

 or flashing

*3

Devices

Front passenger airbag

Deactivated

Seat cushion airbag in the front

passenger side

Indicator/warning

light

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF”

SRS warning light

Off

Front passenger’s seat belt

reminder light

Devices

Front passenger airbag

Deactivated

Seat cushion airbag in the front

passenger side

Indicator/warning

light

“AIR BAG ON” and “AIR BAG

OFF” indicator lights

“AIR BAG OFF”

SRS warning light

On

Front passenger’s seat belt

reminder light

Devices

Front passenger airbag

Deactivated

Seat cushion airbag in the front

passenger side

45

1-1. For safe use

COROLLA HV_U

1

For safety and secu

rity

ible seat, the system may not recognize him/her as a child. Factors
which may affect this can be the physique or posture.

*5

:Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. (



P.48)

*6

:In case the indicator light is not illuminated, consult this manual on how

to install the child restraint system properly. (



P.48)

46

1-1. For safe use

COROLLA HV_U

Exhaust gas precau-

tions

Harmful substance to the
human body is included in
exhaust gases if inhaled.

WARNING

Exhaust gases include harmful

carbon monoxide (CO), which is

colorless and odorless. Observe

the following precautions.

Failure to do so may cause

exhaust gases enter the vehicle

and may lead to an accident

caused by light-headedness, or

may lead to death or a serious

health hazard.

■

Important points while driving

●

Keep the trunk lid closed.

●

If you smell exhaust gases in

the vehicle even when the trunk

lid is closed, open the windows

and have the vehicle inspected

at your Toyota dealer as soon

as possible.

■

When parking

●

If the vehicle is in a poorly venti-

lated area or a closed area,

such as a garage, stop the

hybrid system.

●

Do not leave the vehicle with

the hybrid system on for a long

time.

If such a situation cannot be

avoided, park the vehicle in an

open space and ensure that

exhaust fumes do not enter the

vehicle interior.

●

Do not leave the hybrid system

operating in an area with snow

build-up, or where it is snowing.

If snowbanks build up around

the vehicle while the hybrid sys-

tem is operating, exhaust gases

may collect and enter the vehi-

cle.

■

Exhaust pipe

The exhaust system needs to be

checked periodically. If there is a

hole or crack caused by corro-

sion, damage to a joint or abnor-

mal exhaust noise, be sure to

have the vehicle inspected and

repaired by your Toyota dealer.

47

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

1-2.Child safety

Riding with children

Observe the following pre-
cautions when children are
in the vehicle.
Use a child restraint system
appropriate for the child,
until the child becomes
large enough to properly
wear the vehicle’s seat belt.



It is recommended that chil-
dren sit in the rear seats to
avoid accidental contact
with the shift lever, wiper
switch, etc.



Use the rear door child-pro-
tector lock or the window
lock switch to avoid children
opening the door while driv-
ing or operating the power
window accidentally.
(



P.122, 144)



Do not let small children
operate equipment which
may catch or pinch body
parts, such as the power
window, hood, trunk, seats,
etc.

WARNING

■

When children are in the vehi-

cle

Never leave children unattended

in the vehicle, and never allow

children to have or use the key.
Children may be able to start the

vehicle or shift the vehicle into

neutral. There is also a danger

that children may injure them-

selves by playing with the win-

dows or other features of the

vehicle. In addition, heat build-up

or extremely cold temperatures

inside the vehicle can be fatal to

children.

48

1-2. Child safety

COROLLA HV_U

Points to remember: P.48
Child restraint system: P.50
When using a child restraint sys-
tem: P.52
Child restraint system compati-
bility for each seating position
(for Puerto Rico): P.54
Child restraint system installa-
tion method
• Fixed with a seat belt: P.59
• Fixed with a child restraint

LATCH anchor (except for
Puerto Rico): P.64

• Fixed with an ISOFIX lower

anchorage (for Puerto Rico):
P.66

• Using an anchor bracket (for

top tether strap) (except for
Puerto Rico): P.68

• Using a top tether anchorage

(for Puerto Rico): P.70

The laws of all 50 states of the
U.S.A. as well as Canada now
require the use of child restraint
systems.



Prioritize and observe the
warnings, as well as the laws
and regulations for child
restraint systems.



Use a child restraint system
until the child becomes large
enough to properly wear the
vehicle’s seat belt.



Choose a child restraint sys-
tem that suits your vehicle
and is appropriate to the age
and size of the child.

Child restraint sys-

tems

Before installing a child
restraint system in the vehi-
cle, there are precautions
that need to be observed,
different types of child
restraint systems, as well as
installation methods, etc.,
written in this manual.

Use a child restraint system
when riding with a small child
that cannot properly use a
seat belt. For the child’s
safety, install the child
restraint system to a rear seat.
Be sure to follow the installa-
tion method that is in the oper-
ation manual enclosed with
the restraint system.

Table of contents

Points to remember

WARNING

■

When a child is riding

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

49

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

WARNING

●

For effective protection in auto-

mobile accidents and sudden

stops, a child must be properly

restrained, using a seat belt or

child restraint system which is

correctly installed. For installa-

tion details, refer to the opera-

tion manual enclosed with the

child restraint system. General

installation instruction is pro-

vided in this manual.

●

Toyota strongly urges the use of

a proper child restraint system

that conforms to the weight and

size of the child, installed on the

rear seat. According to accident

statistics, the child is safer when

properly restrained in the rear

seat than in the front seat.

●

Holding a child in your or some-

one else’s arms is not a substi-

tute for a child restraint system.

In an accident, the child can be

crushed against the windshield

or between the holder and the

interior of the vehicle.

■

Handling the child restraint

system

If the child restraint system is not

properly fixed in place, the child or

other passengers may be seri-

ously injured or even killed in the

event of sudden braking, sudden

swerving, or an accident.

●

If the vehicle were to receive a

strong impact from an accident,

etc., it is possible that the child

restraint system has damage

that is not readily visible. In

such cases, do not reuse the

restraint system.

●

For Puerto Rico: Depending on

the child restraint system, instal-

lation may be difficult or impos-

sible. In those cases, check

whether the child restraint sys-

tem is suitable for installment in

the vehicle. (



P.54) Be sure to

install and observe the usage

rules after carefully reading the

child restraint system fixing

method in this manual, as well

as the operation manual

enclosed with the child restraint

system.

●

Except for Puerto Rico: Make

sure you have complied with all

installation instructions provided

with the child restraint system

manufacturer and that the sys-

tem is properly secured.

●

Keep the child restraint system

properly secured on the seat

even if it is not in use. Do not

store the child restraint system

unsecured in the passenger

compartment.

●

If it is necessary to detach the

child restraint system, remove it

from the vehicle or store it

securely in the trunk.

50

1-2. Child safety

COROLLA HV_U

■

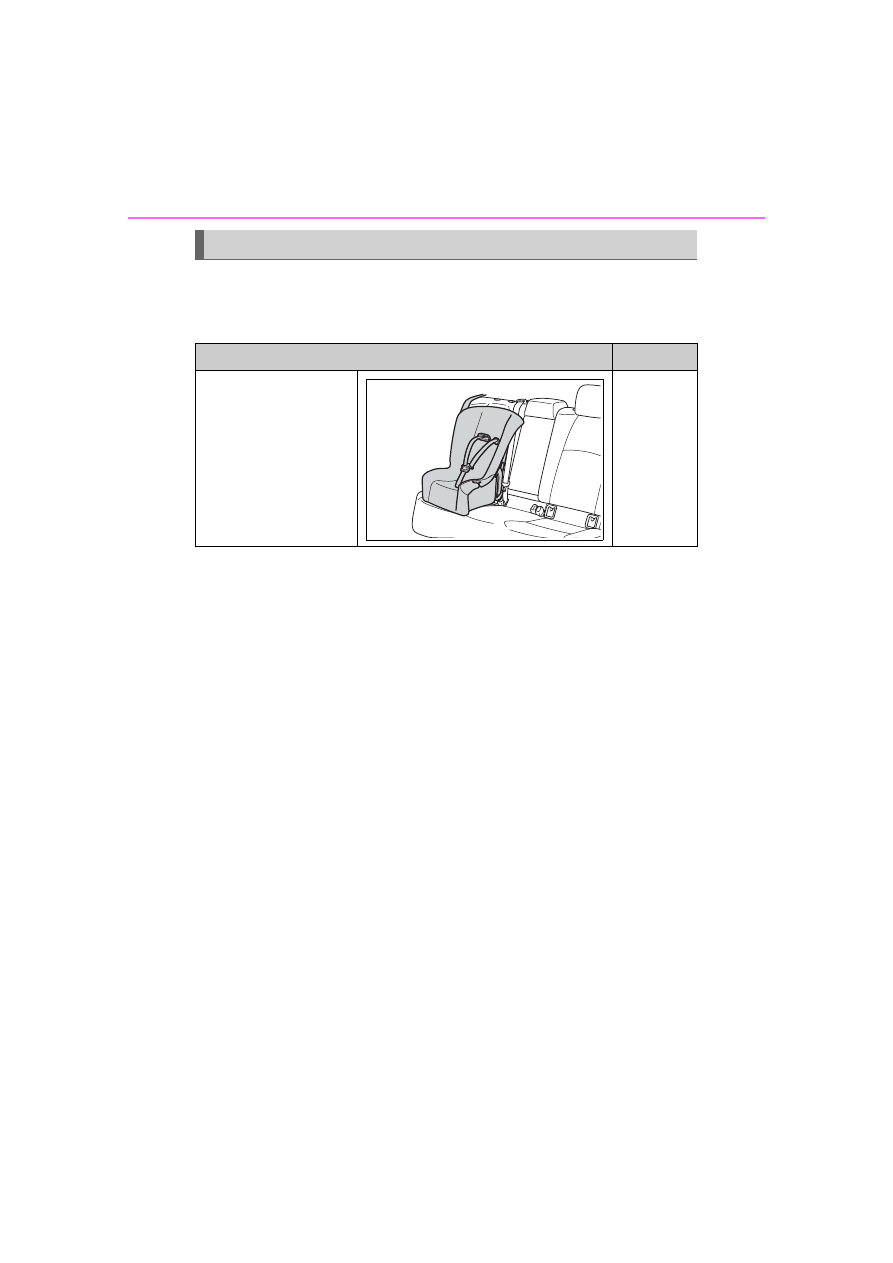

Types of child restraint system installation methods

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.

Child restraint system

Installation method

Page

Seat belt attachment

P.59

51

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

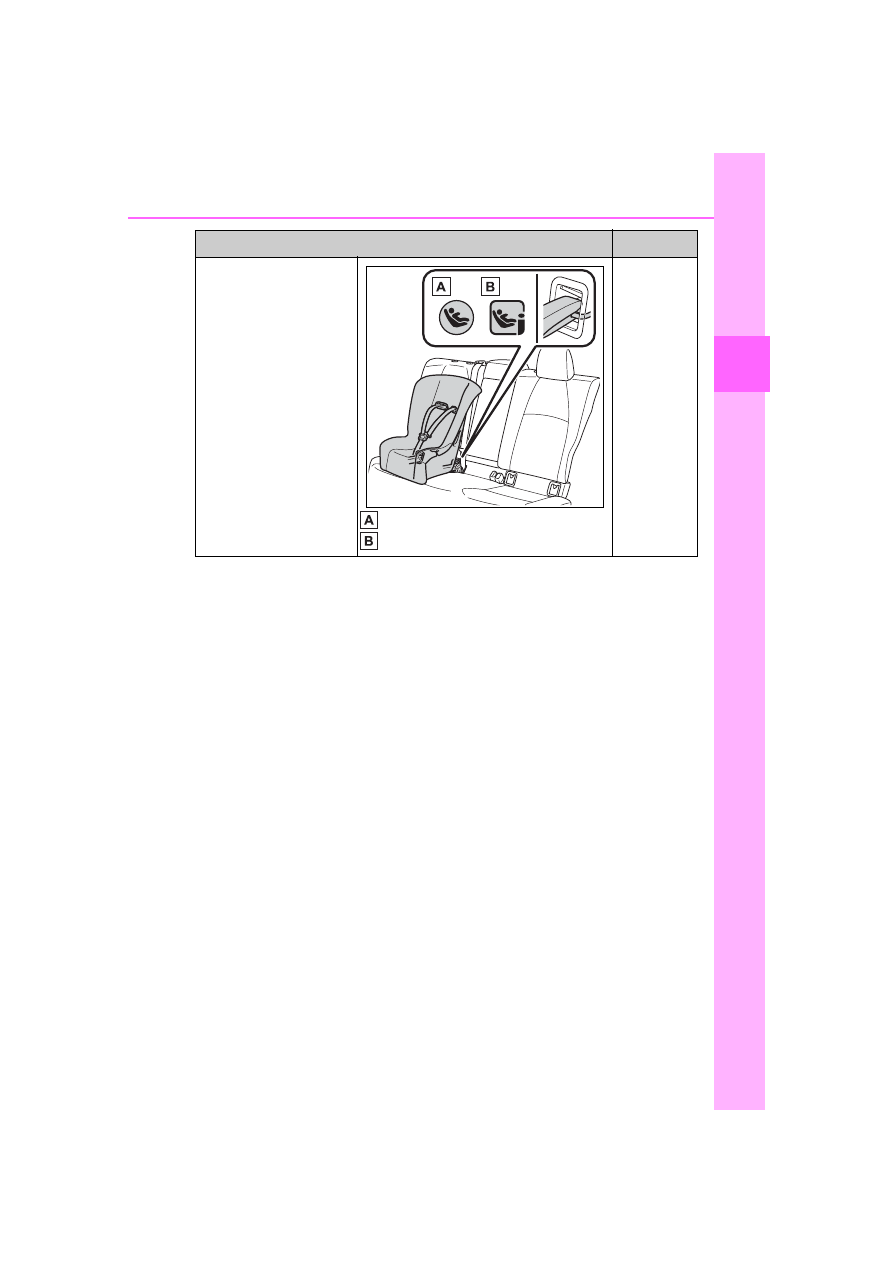

Except for Puerto Rico:

Child restraint LATCH

anchors attachment

For Puerto Rico:

ISOFIX lower anchor-

age attachment

 Except for Puerto Rico
 For Puerto Rico

P.64, 66

Installation method

Page

52

1-2. Child safety

COROLLA HV_U

■

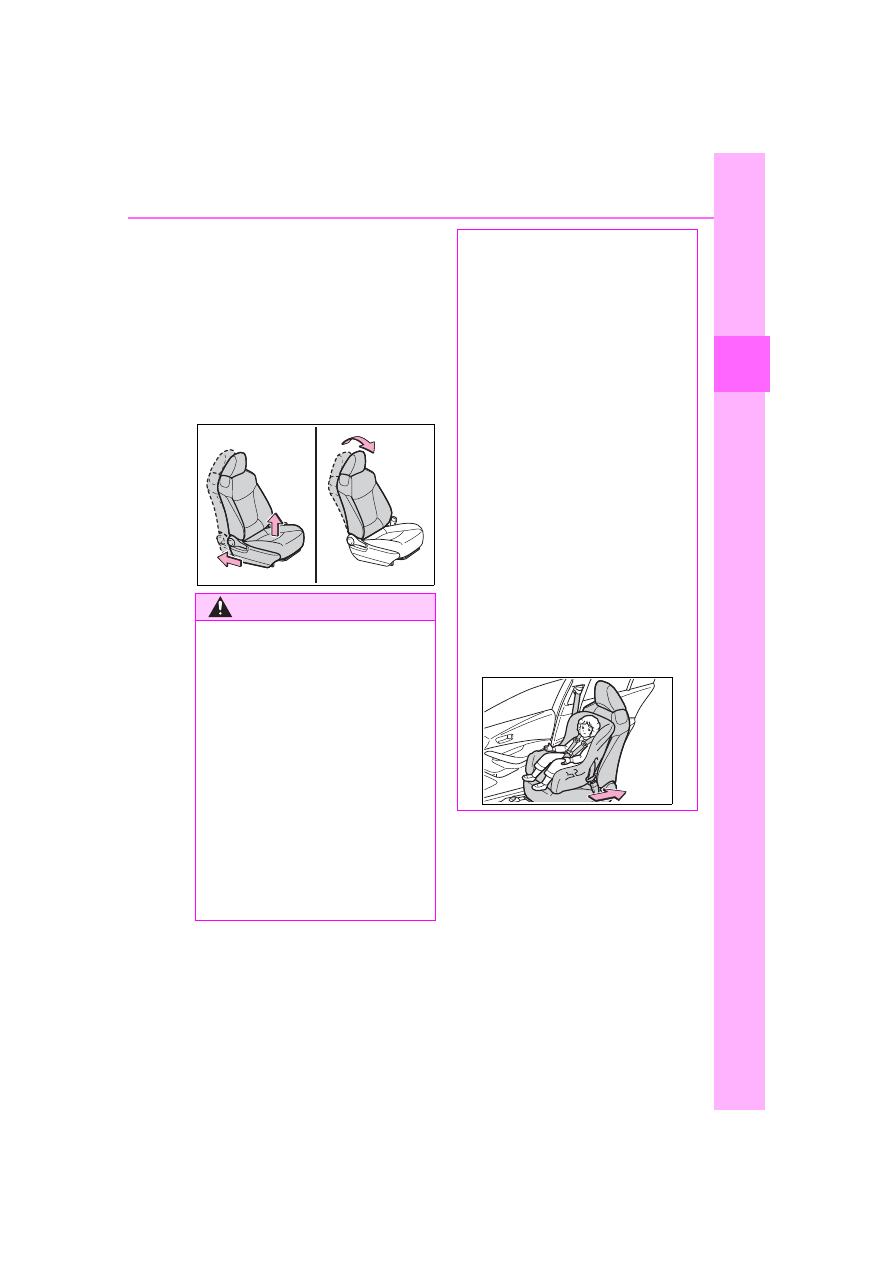

When installing a child
restraint system to a front
passenger seat

For the safety of a child, install a
child restraint system to a rear
seat. When installing a child
restraint system to a front pas-
senger seat is unavoidable,
adjust the seat as follows and

install the child restraint system:



Move the front seat fully rear-
ward.



If the passenger seat height
can be adjusted, Adjust the
seat height to the upper most
position.



Adjust the seatback angle to
the most upright position.

If there is a gap between the child
seat and the seatback, adjust the

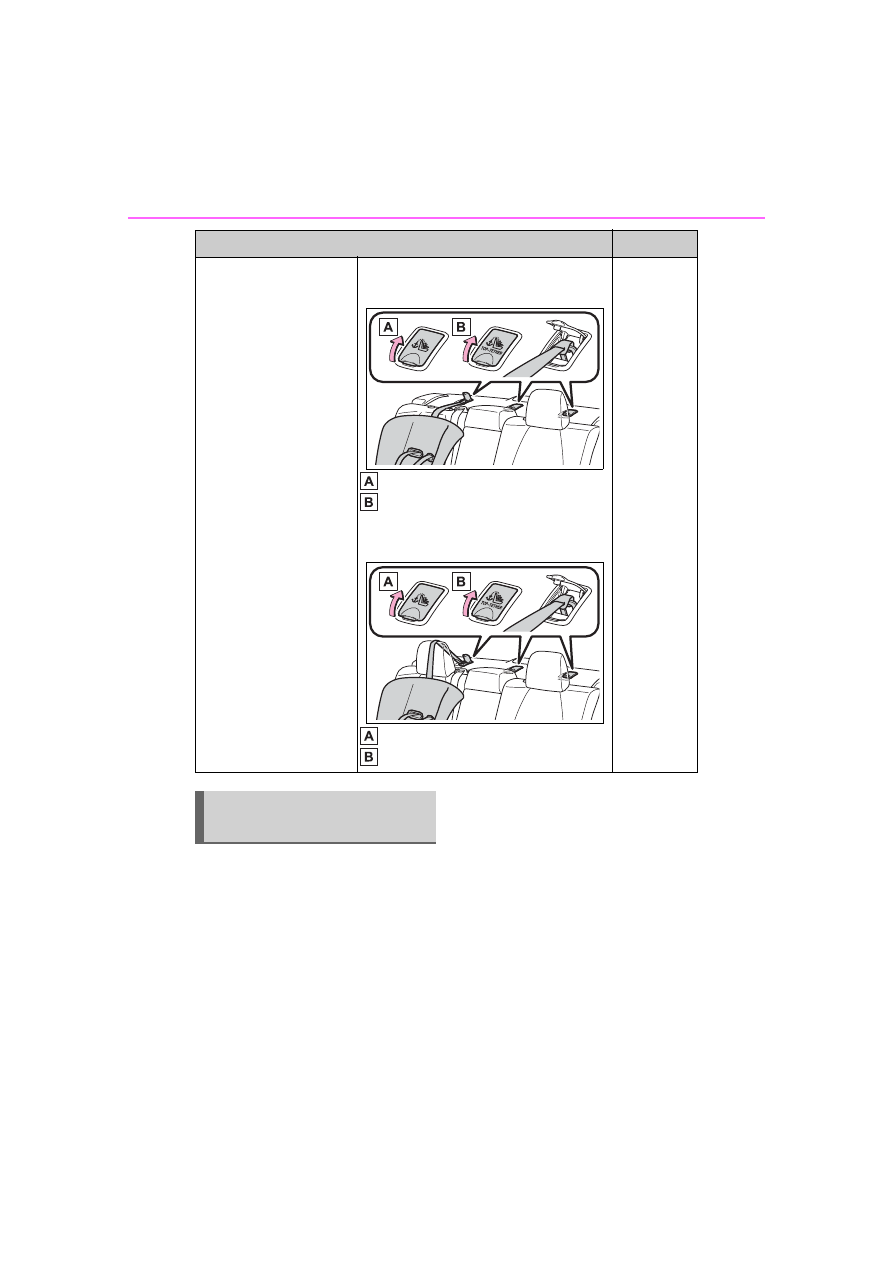

Except for Puerto Rico:

Anchor brackets (for

top tether strap) attach-

ment

For Puerto Rico:

Top tether anchorage

attachment

Seats with an adjustable type head
restraint:

 Except for Puerto Rico
 For Puerto Rico

Seats with an integrated type head
restraint:

 Except for Puerto Rico
 For Puerto Rico

P.68, 70

Installation method

Page

When using a child
restraint system

53

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

seatback angle until good contact is
achieved.



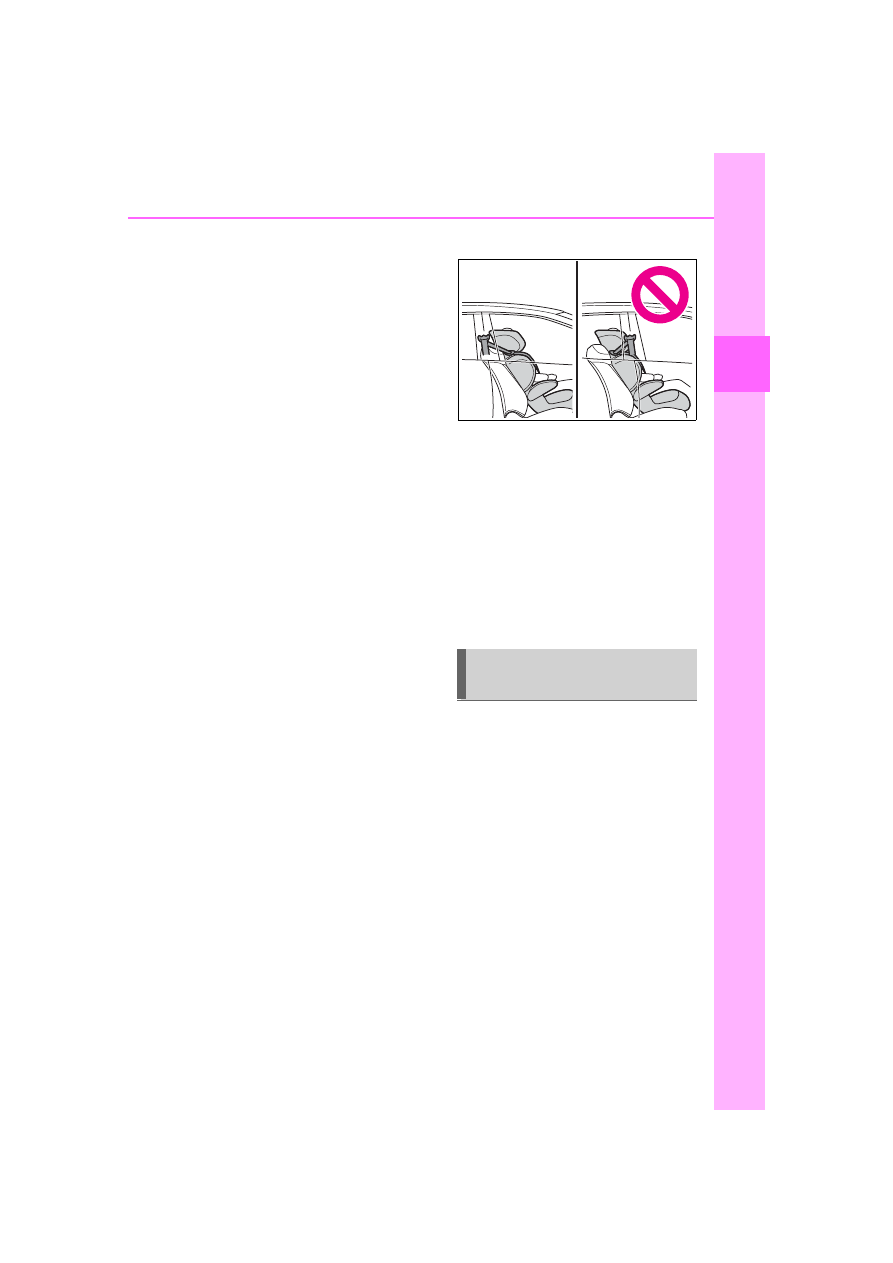

If the head restraint interferes
with the child restraint system
installation and the head
restraint can be removed,
remove the head restraint.

Otherwise, put the head restraint in
the upper most position.

WARNING

■

When using a child restraint

system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Never install a rear-facing child

restraint system on the front

passenger seat even if the “AIR

BAG OFF” indicator light is illu-

minated. In the event of an acci-

dent, the force of the rapid

inflation of the front passenger

airbag can cause death or seri-

ous injury to the child if the

rear-facing child restraint sys-

tem is installed on the front pas-

senger seat.

●

A forward-facing child restraint

system may be installed on the

front passenger seat only when

it is unavoidable. A child

restraint system that requires a

top tether strap should not be

used in the front passenger seat

since there is no top tether strap

anchor for the front passenger

seat.

●

A forward-facing child restraint

system may be installed on the

front passenger seat only when

it is unavoidable. When install-

ing a forward-facing child

restraint system on the front

passenger seat, adjust the seat-

back angle to the most upright

position, move the seat to the

rearmost position, and raise the

seat to the upper most position,

even if the “AIR BAG OFF” indi-

cator light is illuminated. If the

head restraint interferes with the

child restraint system installa-

tion and the head restraint can

be removed, remove the head

restraint.

54

1-2. Child safety

COROLLA HV_U

■

Child restraint system com-
patibility for each seating
position

Compatibility of each seating
position with child restraint sys-
tems (



P.56) displays the type

of child restraint systems that
can be used and possible seat-
ing positions for installation
using symbols.
Also, the recommended child
restraint system that is suitable
for your child can be selected.
Otherwise, check [Recom-
mended child restraint systems
and Compatibility table] for rec-
ommended child restraint sys-
tems. (



P.58)

Check the selected child

WARNING

●

Do not allow the child to lean

his/her head or any part of

his/her body against the door or

the area of the seat, front or rear

pillars, or roof side rails from

which the SRS side airbags or

SRS curtain shield airbags

deploy even if the child is

seated in the child restraint sys-

tem. It is dangerous if the SRS

side and curtain shield airbags

inflate, and the impact could

cause death or serious injury to

the child.

●

When a booster seat is

installed, always ensure that the

shoulder belt is positioned

across the center of the child’s

shoulder. The belt should be

kept away from the child’s neck,

but not so that it could fall off the

child’s shoulder.

●

Use child restraint system suit-

able to the age and size of the

child and install it to the rear

seat.

●

If the driver’s seat interferes

with the child restraint system

and prevents it from being

attached correctly, attach the

child restraint system to the

right-hand rear seat.

●

Adjust the front passenger seat

so that it does not interfere with

the child restraint system.

Child restraint system
compatibility for each
seating position (for
Puerto Rico)

55

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

restraint system together with
the following [Before confirming
the compatibility of each seating
position with child restraint sys-
tems].

■

Before confirming the com-
patibility of each seating
position with child restraint
systems

1

Checking the child restraint
system standards.
Use a child restraint system
that conforms to UN(ECE)
R44

*1

 or UN(ECE) R129

*1, 2

.

The following approval mark
is displayed on child restraint
systems which are con-
formed.
Check for an approval mark
attached to the child restraint
system.

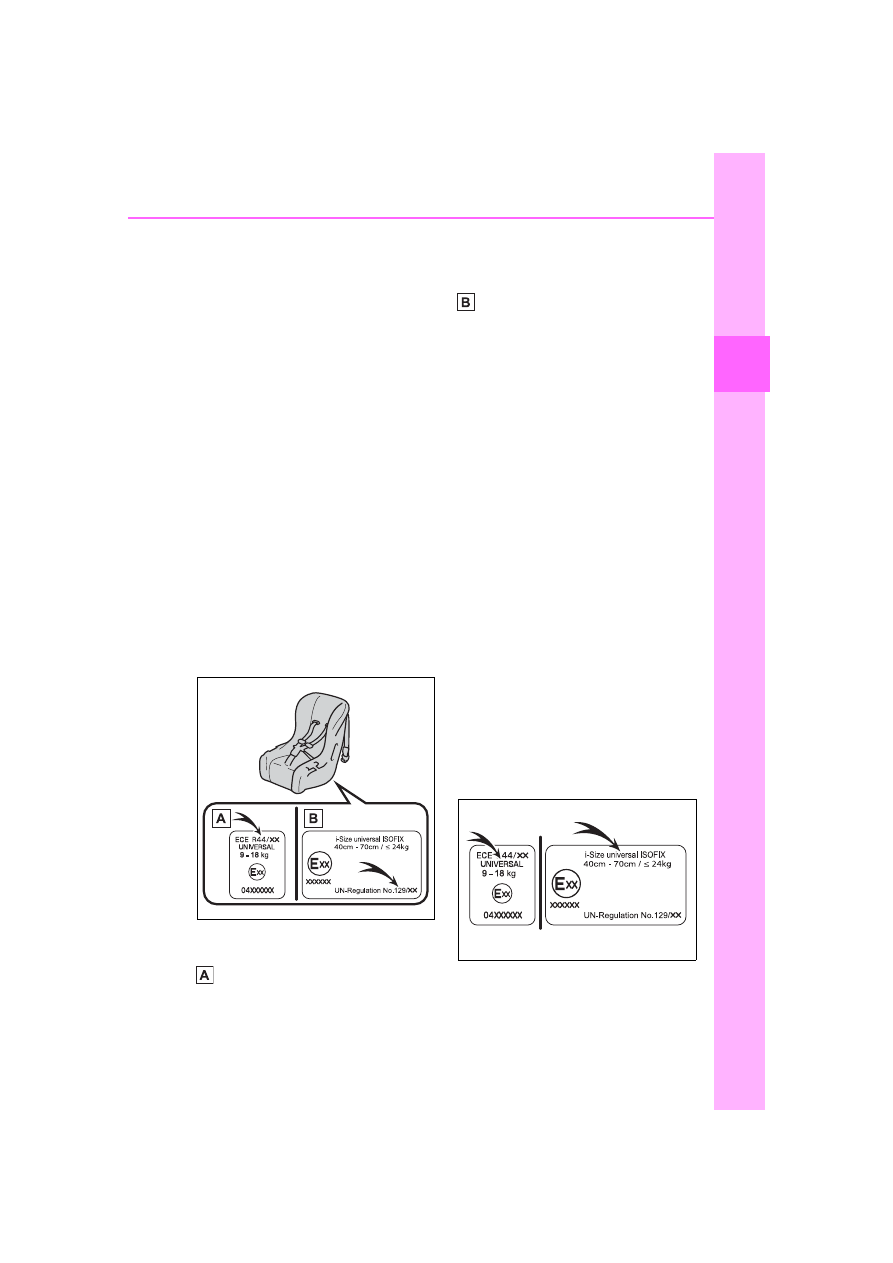

Example of the displayed regulation
number

UN(ECE) R44 approval
mark

*3

The weight range of the child

who is applicable for an
UN(ECE) R44 approval mark
is indicated.
UN(ECE) R129 approval
mark

*3

The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval
mark is indicated.

2

Checking the category of the
child restraint system.
Check the approval mark of
the child restraint system for
which of the following catego-
ries the child restraint system
is suitable.
Also, if there are any uncer-
tainties, check the user’s
guide included with the child
restraint system or contact
the retailer of the child
restraint system.

• “universal”
• “semi-universal”
• “restricted”
• “vehicle specific”

*1

:UN(ECE) R44 and UN(ECE)

R129 are U.N. regulations for
child restraint systems.

*2

:The child restraint systems men-

56

1-2. Child safety

COROLLA HV_U

tioned in the table may not be
available outside of the EU area.

*3

:The displayed mark may differ

depending on the product.

■

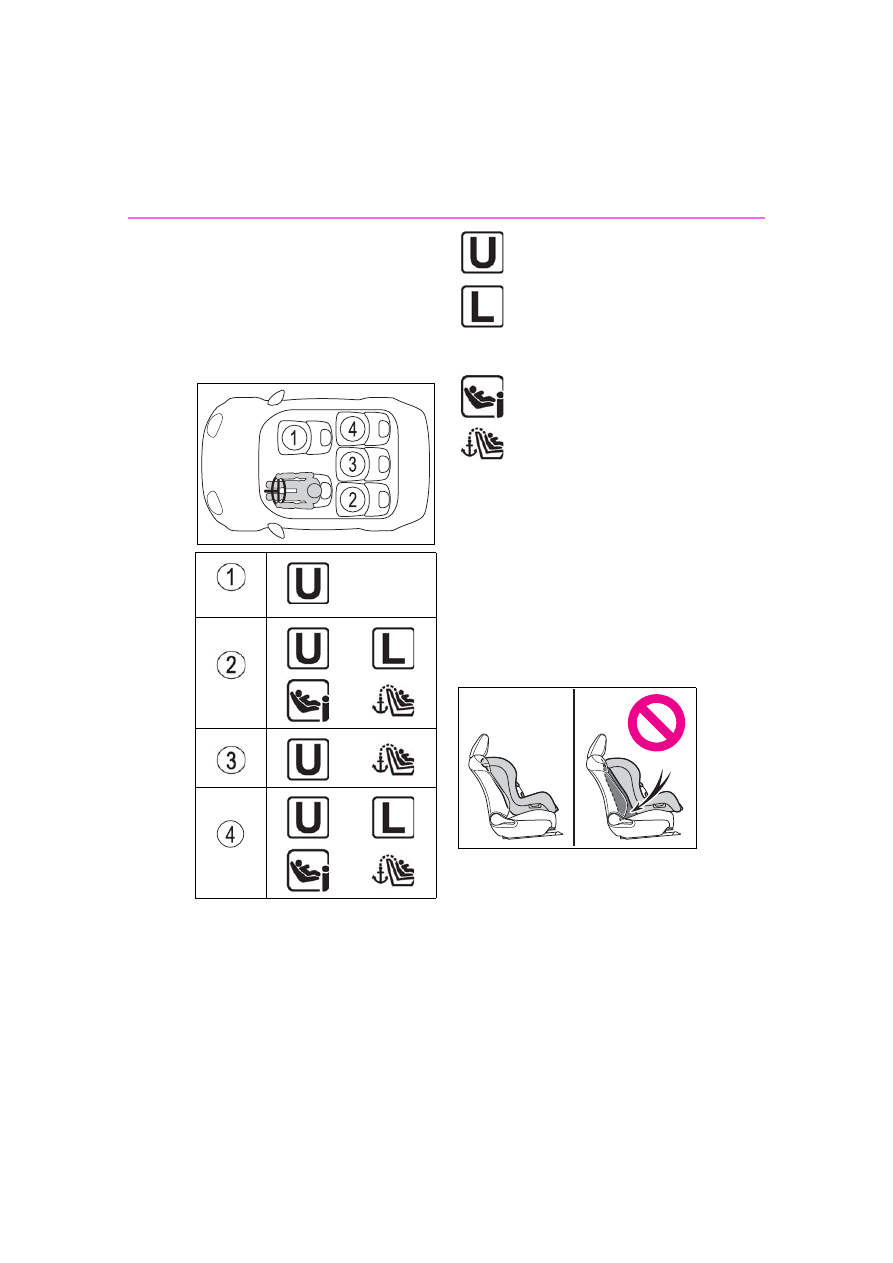

Compatibility of each seat-
ing position with child
restraint systems

*1

:Move the front seat fully rear-

ward. If the passenger seat
height can be adjusted, move it
to the upper most position.

*2

:Adjust the seatback angle to the

most upright position. When
installing a forward-facing child
seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.

*3

:If the head restraint interferes

with your child restraint system,
and the head restraint can be
removed, remove the head
restraint.
Otherwise, put the head restraint
in the upper most position.

*1, 2, 3

*3

*3

Suitable for “universal” cate-
gory child restraint system
fixed with the seat belt.
Suitable for child restraint
systems given on recom-
mended child restraint sys-
tems and compatibility table
(



P.58).

Suitable for i-Size and ISO-
FIX child restraint system.

Includes a top tether anchor-
age point.

57

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

■

Detail information for child restraint systems installation

*

: When it is unavoidable to install a rear-facing child restraint system on the

front passenger seat, a child restraint system can be installed it the PAS-
SENGER AIR BAG OFF indicator lamp is lit.

ISOFIX child restraint systems are divided into different “fixture”. The
child restraint system can be used in the seating positions for “fix-
ture” mentioned in the table above. For kind of “fixture” relation, con-
firm the following table.
If your child restraint system has no kind of “fixture” (or if you cannot
find information in the table below), please refer to the child restraint
system “vehicle list” for compatibility information or ask the retailer of
your child seat.

Seating position

Seat position number

Vehicle with front pas-

senger occupant

detection system

Passenger airbag indi-

cator light

ON

OFF

*

Seating position suitable for

universal belted (Yes/No)

Yes

Forward fac-

ing only

Yes

Yes

Yes

Yes

i-Size seating position

(Yes/No)

No

No

Yes

No

Yes

Seating position suitable for

lateral fixture (L1/L2/No)

No

No

No

No

No

Suitable rearward facing fix-

ture (R1/R2X/R2/R3/No)

No

No

R1,

R2X,

R2

No

R1,

R2X,

R2

Suitable forward facing fix-

ture (F2X/F2/F3/No)

No

No

F2X,

F2, F3

No

F2X,

F2, F3

Suitable junior seat fixture

(B2/B3/No)

No

No

B2, B3

No

B2, B3

58

1-2. Child safety

COROLLA HV_U

■

Recommended child restraint systems and Compatibility
table

*

: When it is unavoidable to install a rear-facing child restraint system on the

front passenger seat, a child restraint system can be installed it the PAS-
SENGER AIR BAG OFF indicator lamp is lit.

The child restraint systems mentioned in the table may not be avail-

Fixture

Description

F3

Full-height, forward-facing child restraint systems

F2

Reduced-height forward-facing child restraint systems

F2X

Reduced-height forward-facing child restraint systems

R3

Full-size, rearward-facing child restraint systems

R2

Reduced-size, rearward-facing child restraint systems

R2X

Reduced-size, rearward-facing child restraint systems

R1

Rearward-facing infant seat

L1

Left lateral-facing (carrycot) infant seat

L2

Right lateral-facing (carrycot) infant seat

B2

Junior seat

B3

Junior seat

Mass groups

Recom-

mended

Child

Restraint

System

Seating position

Vehicle with front pas-

senger occupant

detection system

Passenger airbag indi-

cator light

ON

OFF

*

0, 0+
Up to 28 lb.
(13 kg)

MIDI 2
(Yes/No)

No

No

Yes

No

Yes

I
20 to 39 lb.
(9 to 18 kg)

MIDI 2
(Yes/No)

No

No

Yes

No

Yes

59

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

able outside the LATIN area.
When securing some types of
child restraint systems in rear
seat, it may not be possible to
properly use the seat belts in
positions next to the child
restraint without interfering with
it or affecting seat belt effective-
ness. Be sure your seat belt fits
snugly across your shoulder and
low on your hips. If it does not,
or if it interferes with the child
restraint, move to a different
position. Failure to do so may
result in death or serious injury.



When installing a child
restraint in the rear seats,
adjust the front seat so that it
does not interfere with the
child or child restraint system.



When installing a child seat
with support base, if the child
seat interferes with the seat-
back when latching it into the
support base, adjust the seat-
back rearward until there is no
interference.



If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the seat
cushion forward.



When installing a junior seat,
if the child in your child
restraint system is in a very
upright position, adjust the
seatback angle to the most
comfortable position. And if
the seat belt shoulder anchor
is ahead of the child seat belt
guide, move the seat cushion
forward.

A child restraint system for a
small child or baby must itself be
properly restrained on the seat
with the lap portion of the
lap/shoulder belt.

■

Installing child restraint
system using a seat belt
(child restraint lock func-
tion belt)

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.
For Puerto Rico: If the child
restraint system on hand is not
within the “universal” category

Child restraint system
fixed with a seat belt

60

1-2. Child safety

COROLLA HV_U

(or the necessary information is
not in the table), refer to the
“Vehicle List” provided by the
child restraint system maker for
various possible installation
positions, or check the compati-
bility after asking the retailer of
the child seat. (



P.55, 56)

■

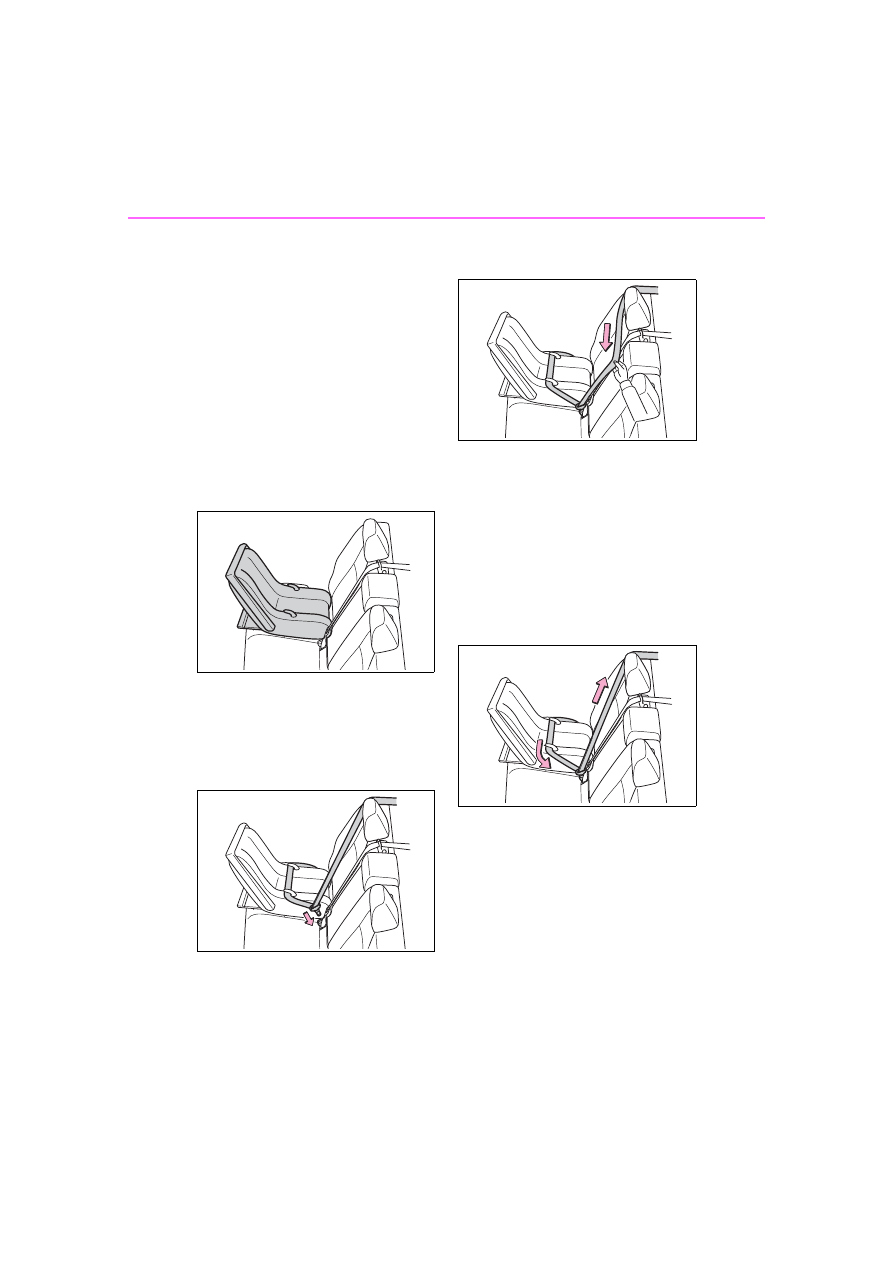

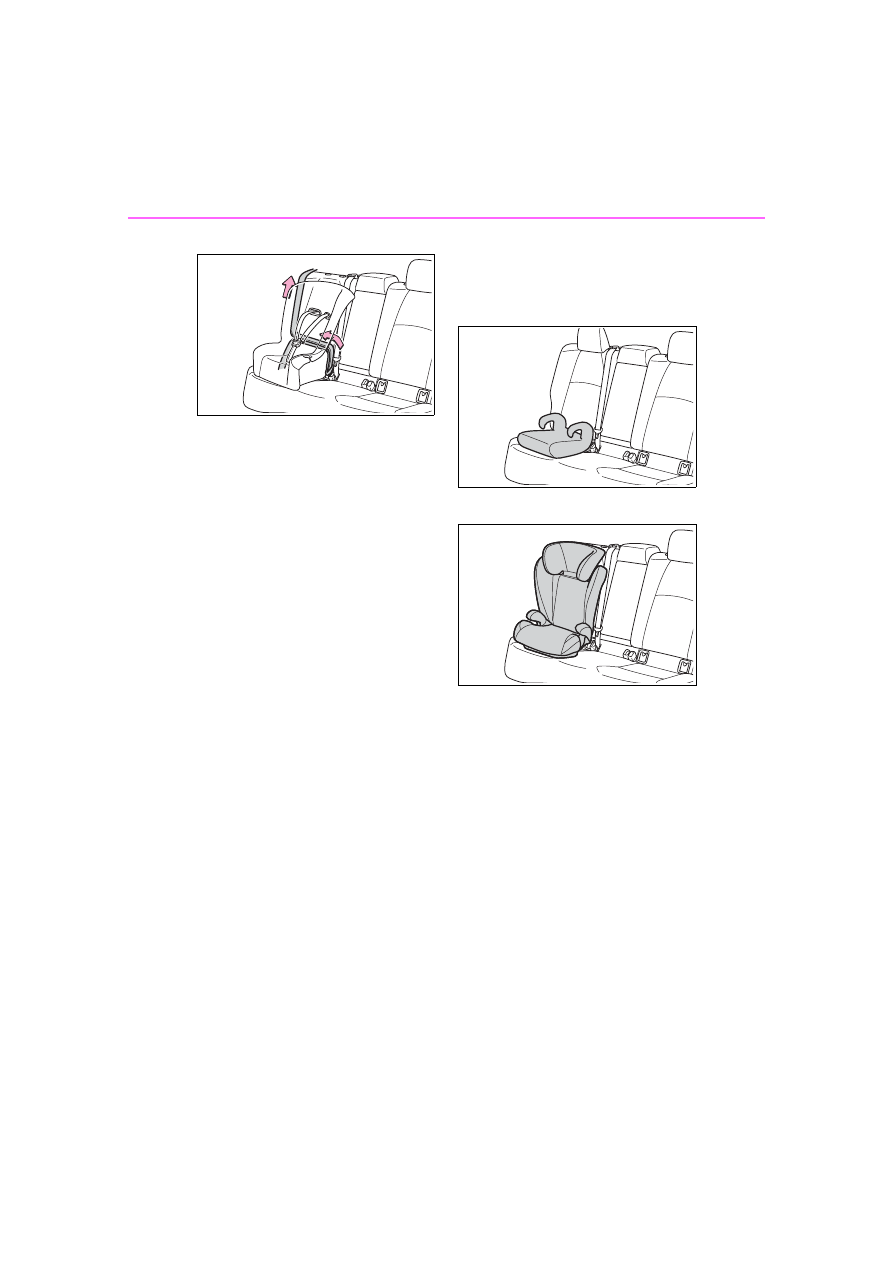

Rear-facing



 Infant

seat/convertible seat

1

Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.

2

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

3

Fully extend the shoulder belt
and allow it to retract to put it

in lock mode. In lock mode,
the belt cannot be extended.

4

While pushing the child
restraint system down into
the rear seat, allow the shoul-
der belt to retract until the
child restraint system is
securely in place.

After the shoulder belt has

retracted to a point where there is

no slack in the belt, pull the belt to

check that it cannot be extended.

5

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.63)

■

Forward-facing



 Convert-

ible seat

1

If installing the child restraint
system to the front passen-
ger seat is unavoidable, refer
to P.52for the front passenger
seat adjustment.

61

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

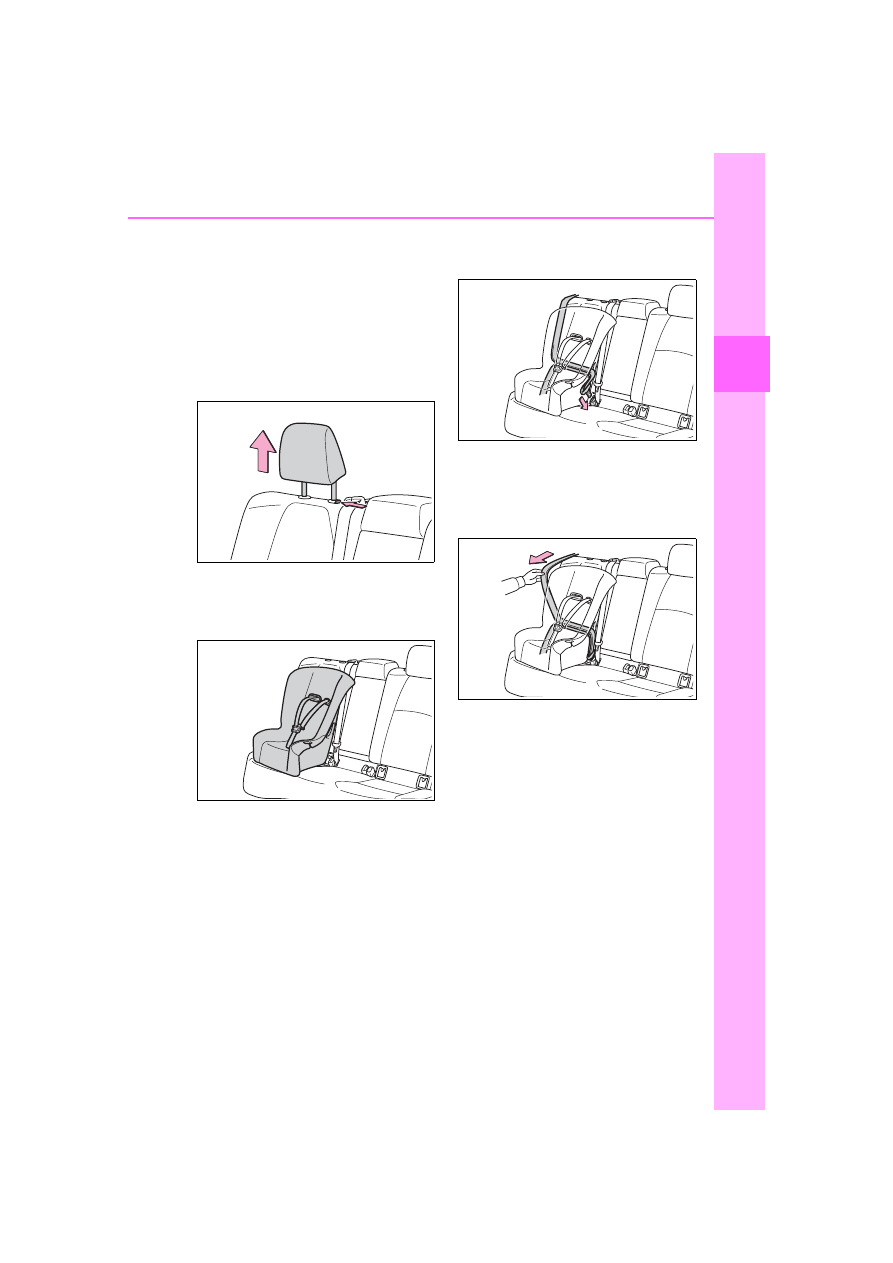

2

If the head restraint interferes
with your child restraint sys-
tem, and the head restraint
can be removed, remove the
head restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.136)

3

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.

4

Run the seat belt through the
child restraint system and
insert the plate into the

buckle. Make sure that the
belt is not twisted.

5

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

6

While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely in
place.

After the shoulder belt has

retracted to a point where there is

no slack in the belt, pull the belt to

62

1-2. Child safety

COROLLA HV_U

check that it cannot be extended.

7

If the child restraint has a top
tether strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
tether strap to latch onto the
top tether strap anchor.
(



P.68)

8

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.63)

■

Booster seat

1

If installing the child restraint
system to the front passen-
ger seat is unavoidable, refer
to P.52for the front passenger
seat adjustment.

2

High back type: If the head
restraint interferes with your
child restraint system, and
the head restraint can be
removed, remove the head
restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.136)

3

Place the child restraint sys-
tem on the seat facing the
front of the vehicle.



Booster type



High back type

4

Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Check that the shoulder belt is cor-

rectly positioned over the child’s

shoulder and that the lap belt is as

63

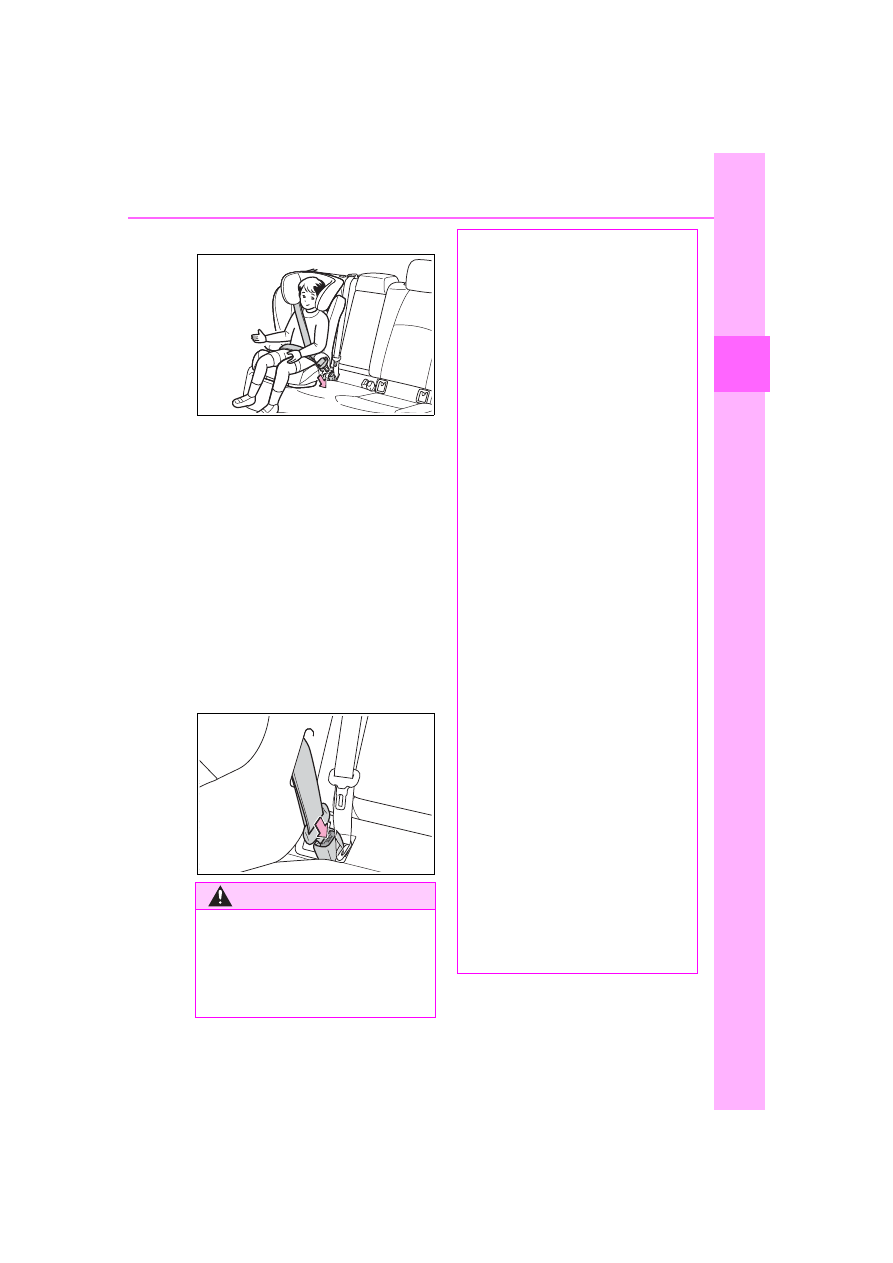

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

low as possible. (



P.27)

■

Removing a child restraint
system installed with a seat
belt

Press the buckle release button
and fully retract the seat belt.

When releasing the buckle, the
child restraint system may spring
up due to the rebound of the seat
cushion. Release the buckle while
holding down the child restraint
system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Do not allow children to play

with the seat belt. If the seat belt

becomes twisted around a

child’s neck, it may lead to

choking or other serious injuries

that could result in death.

If this occurs and the buckle

cannot be unfastened, scissors

should be used to cut the belt.

●

Ensure that the belt and plate

are securely locked and the

seat belt is not twisted.

●

Shake the child restraint system

left and right, and forward and

backward to ensure that it has

been securely installed.

●

After securing a child restraint

system, never adjust the seat.

●

When a booster seat is

installed, always ensure that the

shoulder belt is positioned

across the center of the child’s

shoulder. The belt should be

kept away from the child’s neck,

but not so that it could fall off the

child’s shoulder.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

64

1-2. Child safety

COROLLA HV_U

■

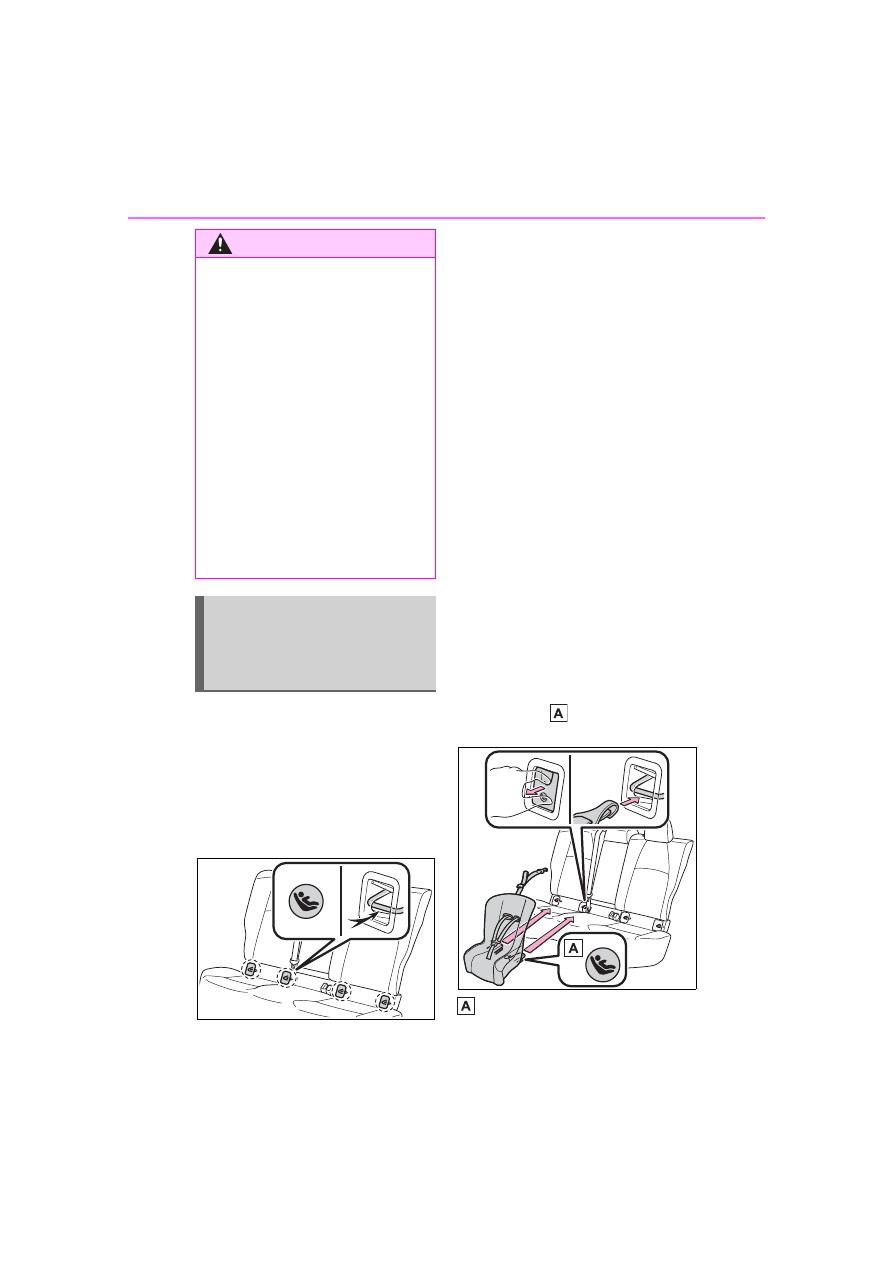

Child restraint LATCH
anchors

LATCH anchors are provided for
the outboard rear seat. (Marks
displaying the location of the
anchors are attached to the
seats.)

■

When installing in the rear
outboard seats

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.

1

If the head restraint interferes
with your child restraint sys-
tem, and the head restraint
can be removed, remove the
head restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.136)



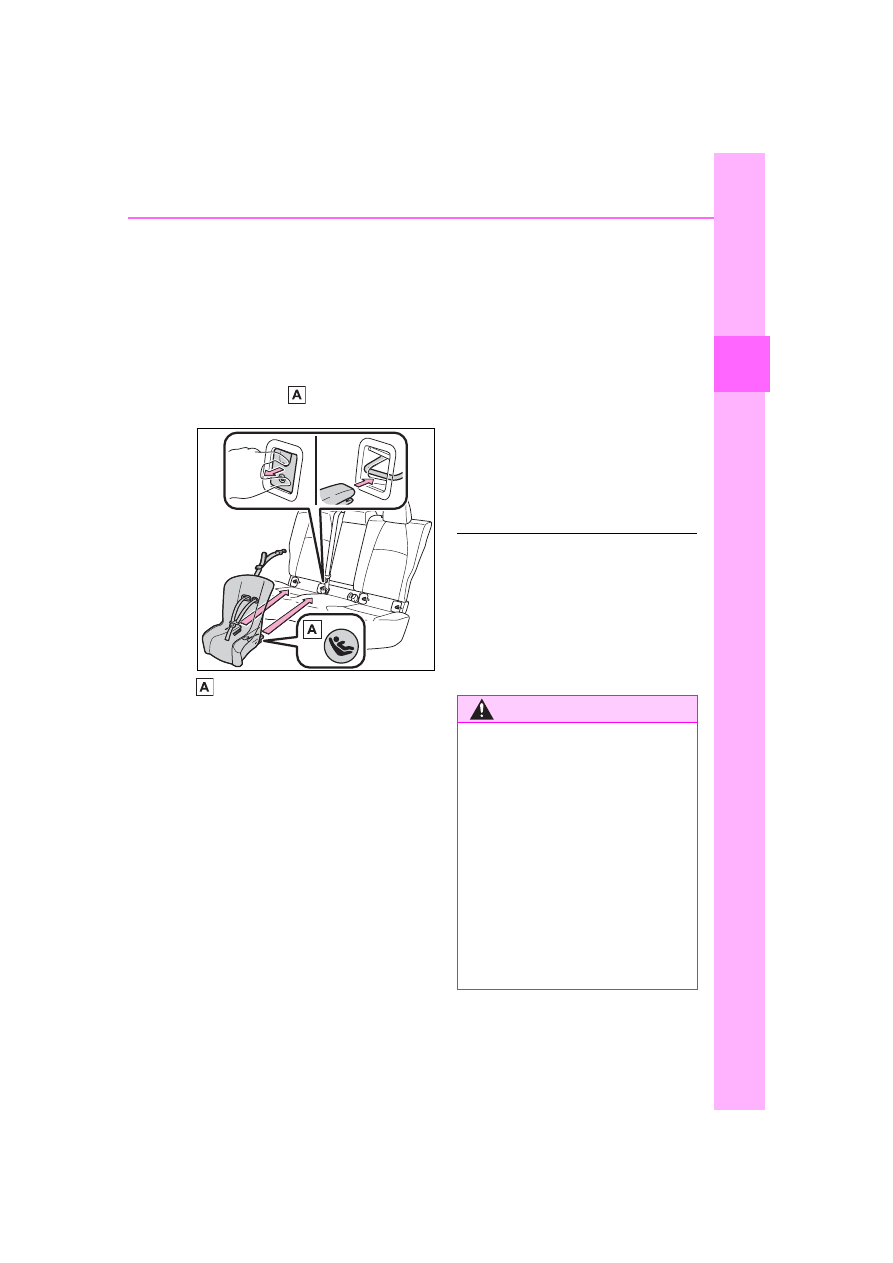

With flexible lower attach-
ments

2

Remove the anchor covers,
and install the child restraint
system to the seat.

The bars are installed behind the

anchor covers.
For owners in Canada:

The symbol on a child restraint sys-
tem indicates

 the presence of a

lower connector system.

Canada only

WARNING

■

When installing a booster

seat

To prevent the belt from going into

ALR lock mode, do not fully

extend the shoulder belt. ALR

mode causes the belt to tighten

only. This could cause injury or

discomfort to the child. (



P.29)

■

Do not use a seat belt

extender

If a seat belt extender is used

when installing a child restraint

system, the seat belt will not

securely hold the child restraint

system, which could cause death

or serious injury to the child or

other passengers in the event of

sudden braking, sudden swerv-

ing or an accident.

Child restraint system
fixed with a child restraint
LATCH anchor (except for
Puerto Rico)

65

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity



With rigid lower attachments

2

Remove the anchor covers,
and install the child restraint
system to the seat.

The bars are installed behind the

anchor covers.
For owners in Canada:

The symbol on a child restraint sys-
tem indicates

 the presence of a

lower connector system.

Canada only

3

If the child restraint has a top
tether strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
tether strap to latch onto the
top tether strap anchor.
(



P.68)

4

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.63)

■

When installing in the rear
center seat

There are no LATCH anchors
behind the rear center seat.

However, the inboard LATCH
anchors of the outboard seats,
which are 15.6 in. (396 mm)
apart, can be used if the child
restraint system manufacturer’s
instructions permit use of those
anchors with the anchor spacing
stated.
Child restraint systems with rigid
lower attachments cannot be
installed in the center seat. This
type of child restraint system
can only be installed in the out-
board seat.

■

Laws and regulations pertain-

ing to anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming

to FMVSS213 or CMVSS213 speci-

fications can be used.

This vehicle is designed to conform

to SAE J1819.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

When using the LATCH

anchors, be sure that there are

no foreign objects around the

anchors and that the seat belt is

not caught behind the child

restraint system.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

66

1-2. Child safety

COROLLA HV_U

■

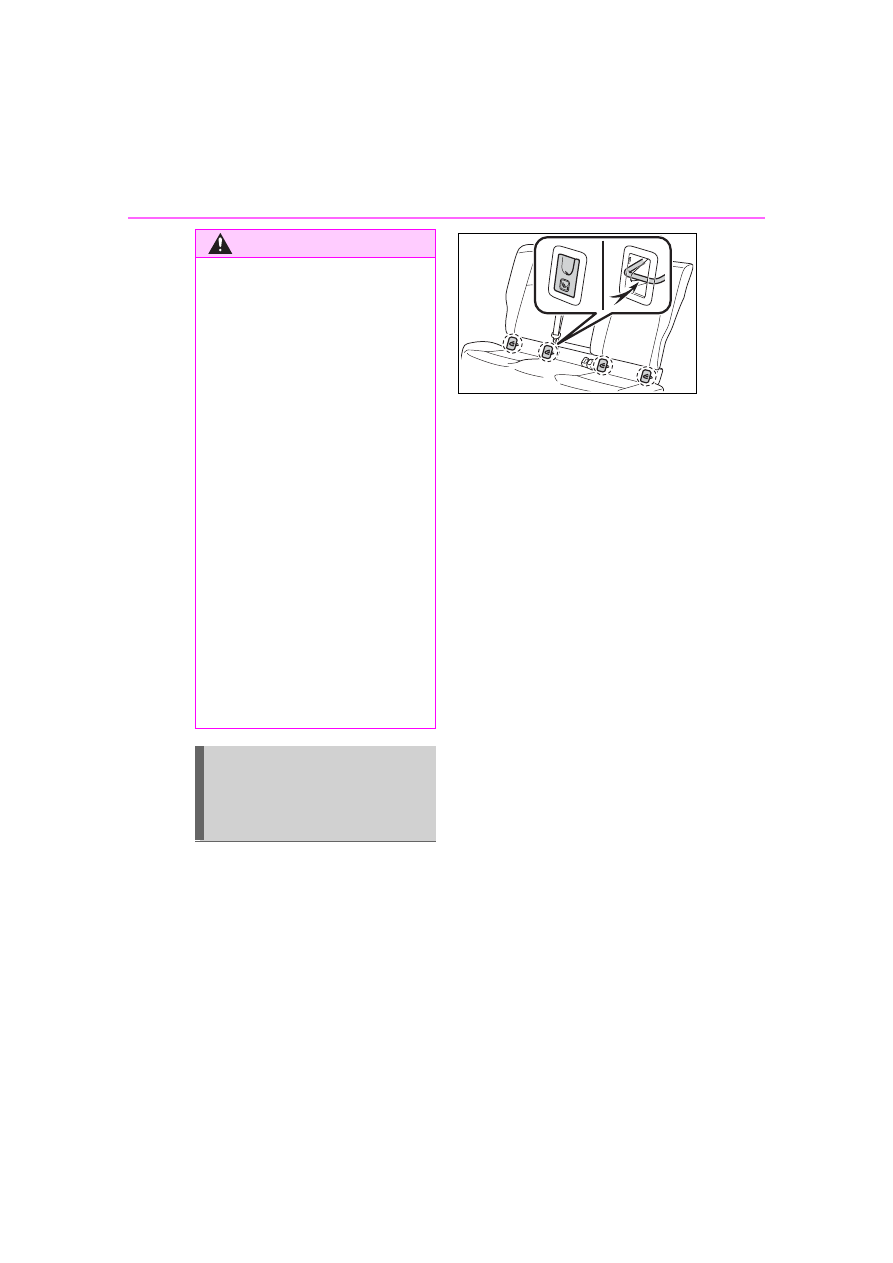

ISOFIX lower anchorages
(ISOFIX child restraint sys-
tem)

Lower anchorages are provided
for the outboard rear seats.
(Marks displaying the location of
the anchorages are attached to
the seats.)

■

When installing in the rear
outboard seats

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.
If the child restraint system on
hand is not within the “universal”
category (or the necessary infor-
mation is not in the table), refer
to the “Vehicle List” provided by
the child restraint system maker
for various possible installation
positions, or check the compati-
bility after asking the retailer of
the child seat. (



P.55, 56)

1

If the head restraint interferes
with your child restraint sys-
tem, and the head restraint
can be removed, remove the
head restraint.
Otherwise, put the head
restraint in the upper most
position. (



P.136)



With flexible lower attach-
ments

2

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind the

WARNING

●

Never attach two child restraint

system attachments to the

same anchor. In a collision, one

anchor may not be strong

enough to hold two child

restraint system attachments

and may break. If the LATCH

anchors are already in use, use

the seat belt to install a child

restraint system in the center

seat.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

Child restraint system
fixed with an ISOFIX lower
anchorage (for Puerto
Rico)

67

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

anchorage covers.



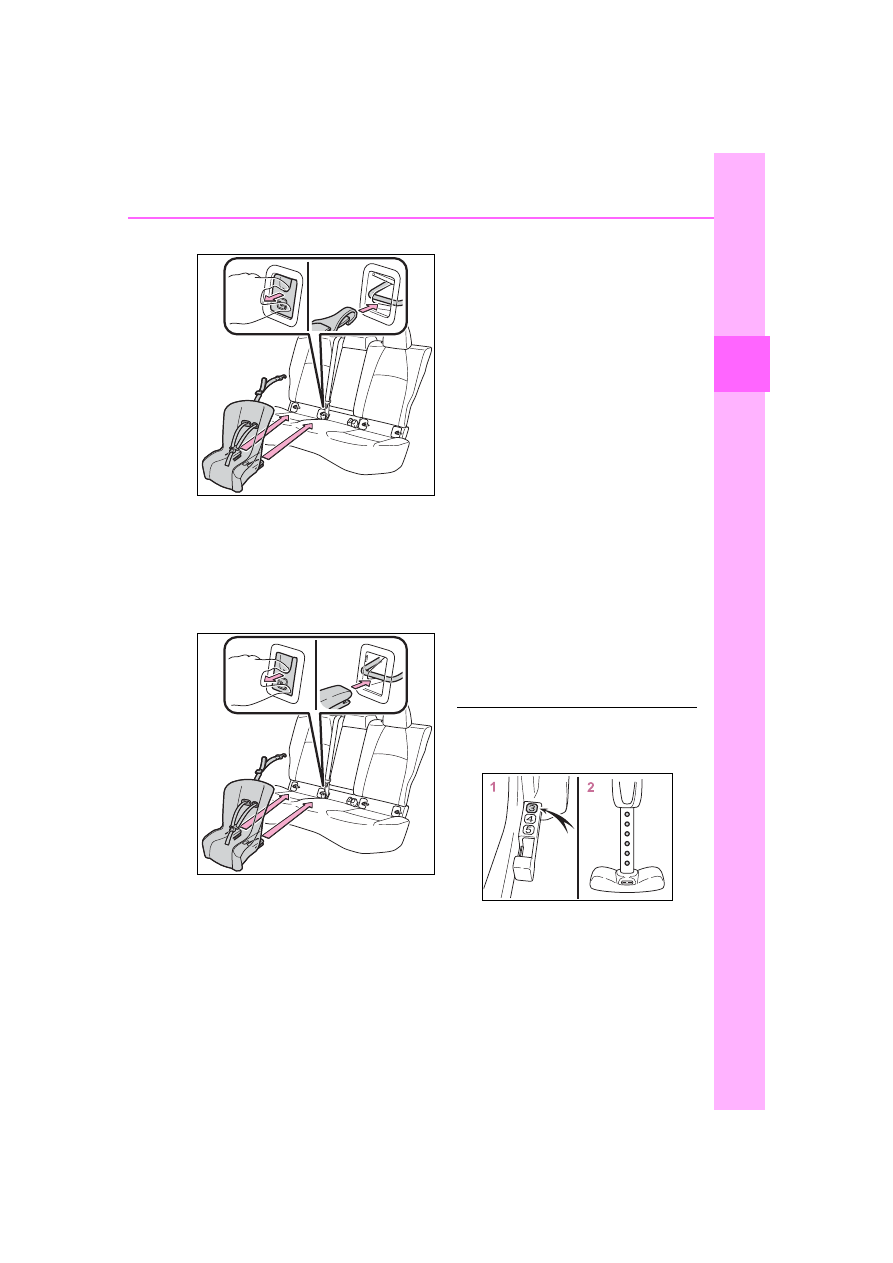

With rigid lower attachments

2

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind the

anchorage covers.

3

If the child restraint has a top
strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
strap to latch onto the top
strap anchorage. (



P.68)

4

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.63)

■

When installing in the rear
center seat

There are no lower anchorages
behind the rear center seat.
However, the inboard lower
anchorages of the outboard
seats, which are 15.6 in. (396
mm) apart, can be used if the
child restraint system manufac-
turer’s instructions permit use of
those anchorages with the
anchorage spacing stated.
Child restraint systems with rigid
lower attachments cannot be
installed in the center seat. This
type of child restraint system
can only be installed in the out-
board seat.

■

When using a “MIDI 2”

Adjust the support leg and ISOFIX

connectors as follows:

1

Lock the ISOFIX connectors
where number 3 can be seen.

2

Lock the support leg where 6
holes can be seen.

68

1-2. Child safety

COROLLA HV_U

■

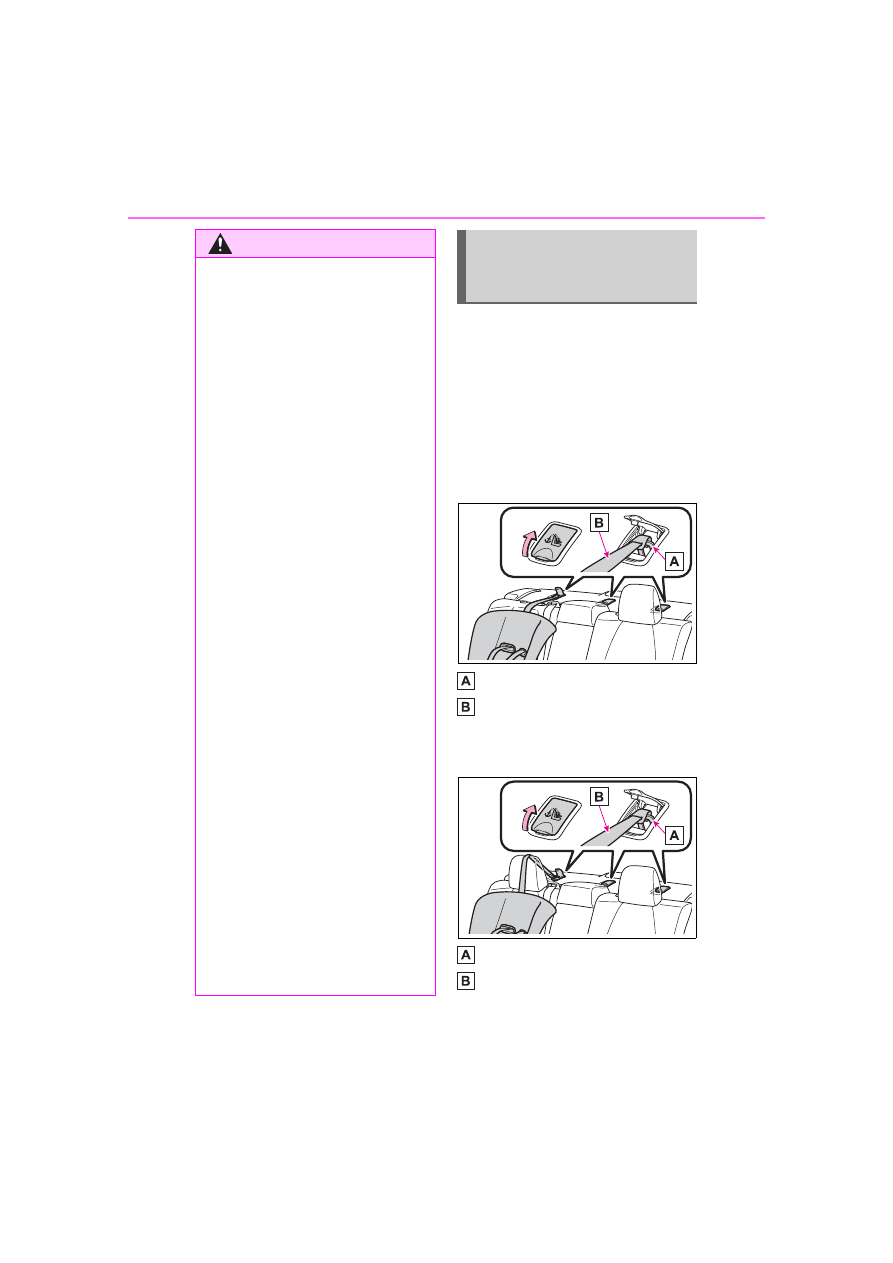

Anchor brackets (for top
tether strap)

Anchor brackets are provided
for each rear seat.
Use anchor brackets when fix-
ing the top tether strap.



Seats with an adjustable type
head restraint

Anchor brackets
Top tether strap



Seats with an integrated type
head restraint

Anchor brackets
Top tether strap

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

When using the lower anchor-

ages, be sure that there are no

foreign objects around the

anchorages and that the seat

belt is not caught behind the

child restraint system.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Never attach two child restraint

system attachments to the

same anchorage. In a collision,

one anchorage may not be

strong enough to hold two child

restraint system attachments

and may break. If the lower

anchorages are already in use,

use the seat belt to install a

child restraint system in the cen-

ter seat.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

Using an anchor bracket
(for top tether strap)
(except for Puerto Rico)

69

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

■

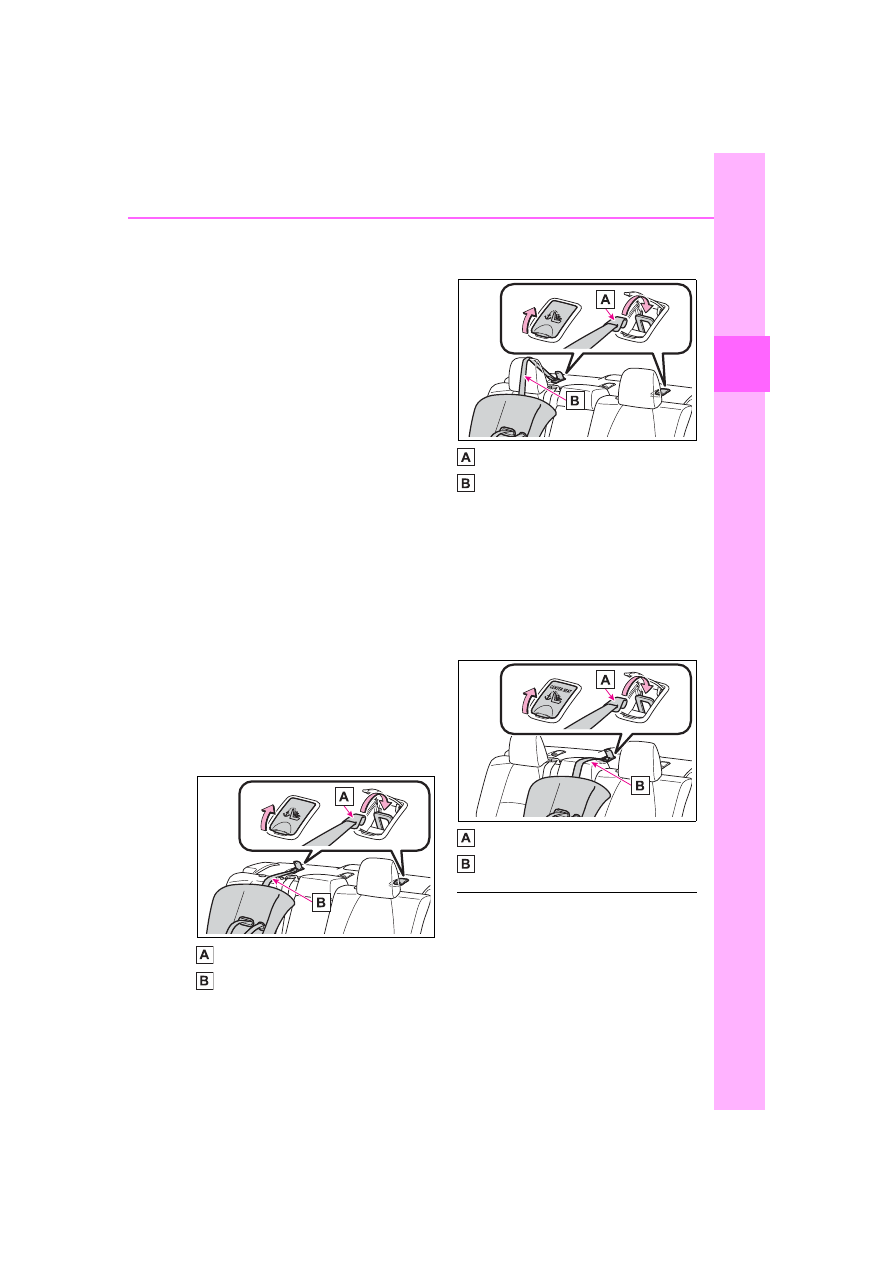

Fixing the top tether strap
to the anchor bracket

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.



Rear outboard seats

1

Adjust the head restraint to
the upmost position.

If the head restraint interferes with

your child restraint system, and the

head restraint can be removed,

remove the head restraint.

Otherwise, put the head restraint in

the upper most position. (



P.136)

2

Open the anchor bracket
cover, latch the hook onto the
anchor bracket and tighten
the top tether strap.

Make sure the top tether strap is

securely latched.  (



P.63)

When installing the child restraint

system with the head restraint

being raised, be sure to have the

top tether strap pass underneath

the head restraint.



Seats with an adjustable type
head restraint

Hook
Top tether strap



Seats with an integrated type
head restraint

Hook
Top tether strap



Rear center seat

Latch the hook onto the anchor
bracket and tighten the top
tether strap.

Make sure the top tether strap is
securely latched.  (



P.63)

Hook
Top tether strap

■

Laws and regulations pertain-

ing to anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming

to FMVSS213 or CMVSS213 speci-

fications can be used.

This vehicle is designed to conform

to SAE J1819.

70

1-2. Child safety

COROLLA HV_U

■

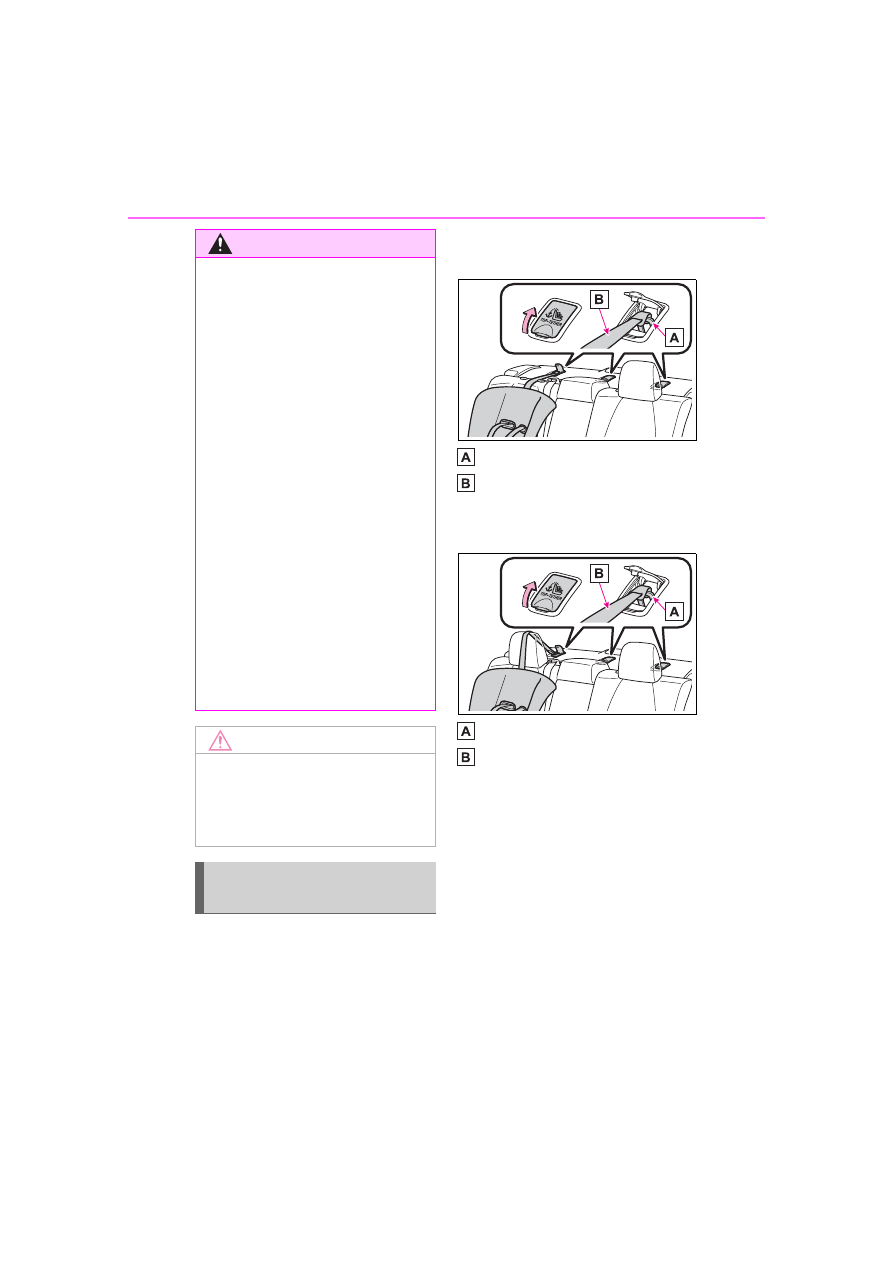

Top tether anchorages

Top tether anchorages are pro-
vided for each rear seat.
Use top tether anchorages
when fixing the top strap.



Seats with an adjustable type
head restraint

Top tether anchorages
Top strap



Seats with an integrated type
head restraint

Top tether anchorages
Top strap

■

Fixing the top strap to the
top tether anchorages

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.



Rear outboard seats

1

Adjust the head restraint to
the upmost position.

If the head restraint interferes with

your child restraint system, and the

head restraint can be removed,

remove the head restraint.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top tether

strap and make sure that the

belt is not twisted.

●

Do not attach the top tether

strap to anything other than the

anchor bracket.

●

After securing a child restraint

system, never adjust the seat.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Outboard rear seats: When

installing the child restraint sys-

tem with the head restraint

being raised, after the head

restraint has been raised and

then the anchor bracket has

been fixed, do not lower the

head restraint.

NOTICE

■

Anchor brackets (for top

tether strap)

When not in use, make certain to

close the lid. If it remains open,

the lid may be damaged.

Using a top tether anchor-
age (for Puerto Rico)

71

1-2. Child safety

COROLLA HV_U

1

For safety and secu

rity

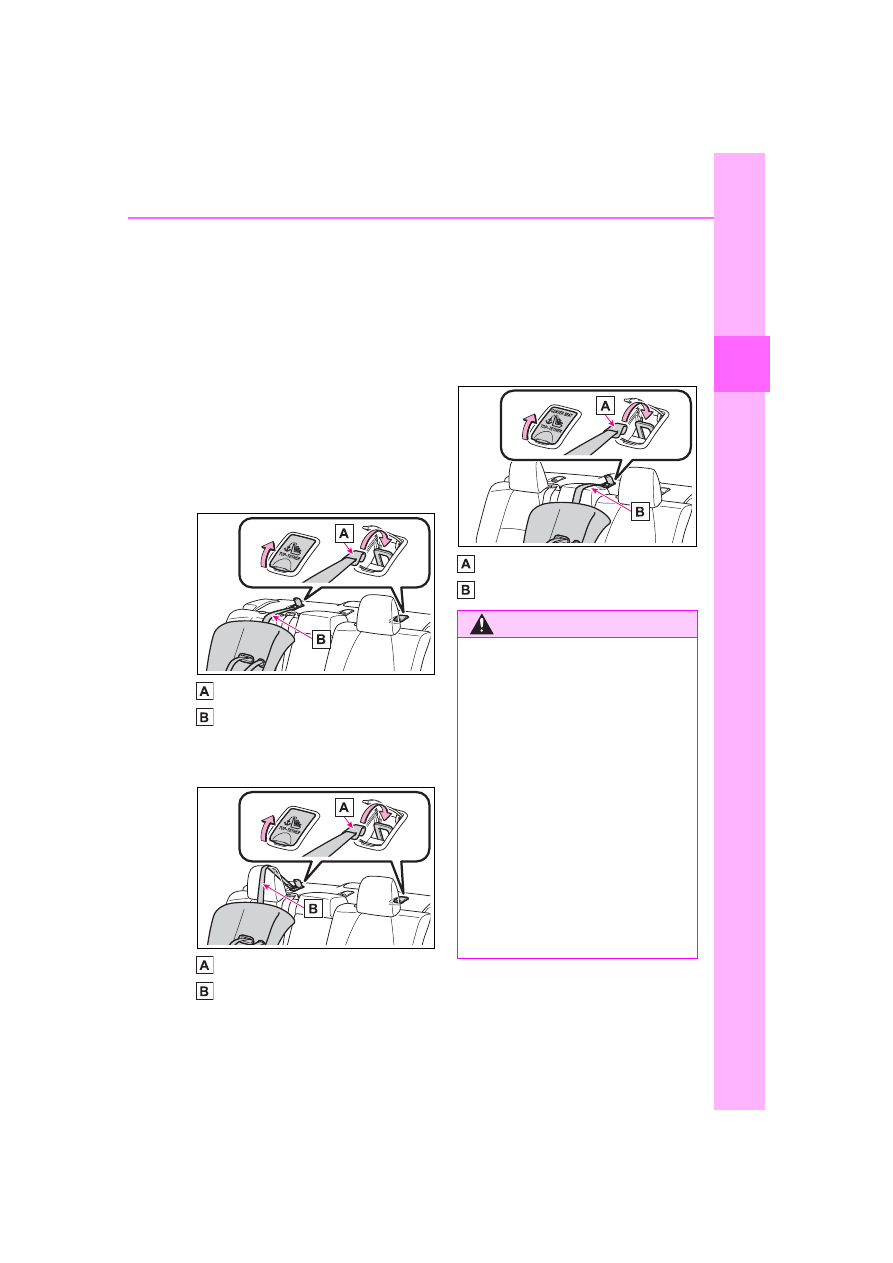

Otherwise, put the head restraint in

the upper most position. (



P.136)

2

Open the top tether anchor-
age cover, latch the hook
onto the top tether anchorage
and tighten the top strap.

Make sure the top strap is securely

latched.  (



P.63)

When installing the child restraint

system with the head restraint

being raised, be sure to have the

top strap pass underneath the head

restraint.



Seats with an adjustable type
head restraint

Hook
Top strap



Seats with an integrated type
head restraint

Hook
Top strap



Rear center seat

Latch the hook onto the top
tether anchorage and tighten
the top strap.

Make sure the top strap is securely
latched.  (



P.63)

Hook
Top strap

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top strap and

make sure that the belt is not

twisted.

●

Do not attach the top strap to

anything other than the top

tether anchorages.

●

After securing a child restraint

system, never adjust the seat.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

72

1-2. Child safety

COROLLA HV_U

WARNING

●

Outboard rear seats: When

installing the child restraint sys-

tem with the head restraint

being raised, after the head

restraint has been raised and

then the top tether anchorage

has been fixed, do not lower the

head restraint.

NOTICE

■

Top tether anchorages

When not in use, make certain to

close the lid. If it remains open,

the lid may be damaged.

73

1-3. Emergency assistance

COROLLA HV_U

1

For safety and secu

rity

1-3.Emergency assistance

*

: If equipped

Microphone
LED light indicators
“SOS” button

Safety Connect

*

Safety Connect is a sub-
scription-based telematics
service that uses Global
Positioning System (GPS)
data and embedded cellular
technology to provide
safety and security features
to subscribers. Safety Con-
nect is supported by Toy-
ota’s designated response
center, which operates 24
hours per day, 7 days per
week.

Safety Connect service is
available by subscription on
select, telematics hard-
ware-equipped vehicles.

By using the Safety Connect
service, you are agreeing to
be bound by the Telematics
Subscription Service Agree-
ment and its Terms and
Conditions, as in effect and
amended from time to time,
a current copy of which is
available at Toyota.com in
the United States, Toy-
otapr.com in Puerto Rico
and Toyota.ca in Canada. All
use of the Safety Connect
service is subject to such
then-applicable Terms and
Conditions.

System components

74

1-3. Emergency assistance

COROLLA HV_U

■

Certification

75

1-3. Emergency assistance

COROLLA HV_U

1

For safety and secu

rity

76

1-3. Emergency assistance

COROLLA HV_U

Subscribers have the following
Safety Connect services avail-
able:



Automatic Collision Notifica-
tion

*

Helps drivers receive necessary
response from emergency service
providers. (



P.78)

*

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle
theft. (



P.78)



Emergency Assistance Button

(“SOS”)

Connects drivers to response-cen-
ter support. (



P.78)



Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (



P.78)

After you have signed the
Telematics Subscription Service
Agreement and are enrolled,
you can begin receiving ser-
vices.
A variety of subscription terms

Services

Subscription
