Toyota Corolla Hatchback (2020 year). Manual in english - part 3

130

4-1. Before driving

COROLLA H/B_U

4-1.Before driving

■

Starting the engine



P.142

■

Driving



Continuously variable trans-
mission

1

With the brake pedal
depressed, shift the shift
lever to D. (



P.147)

2

If the parking brake is in man-
ual mode, release the park-
ing brake. (



P.154)

3

Gradually release the brake
pedal and gently depress the
accelerator pedal to acceler-
ate the vehicle.



Manual transmission

1

While depressing the clutch
pedal, shift the shift lever to
1. (



P.151)

2

If the parking brake is in man-
ual mode, release the park-
ing brake. (



P.154)

3

Gradually release the clutch
pedal. At the same time, gen-
tly depress the accelerator
pedal to accelerate the vehi-
cle.

■

Stopping



Continuously variable trans-
mission

1

With the shift lever in D,
depress the brake pedal.

2

If necessary, set the parking
brake.

If the vehicle is to be stopped for an

extended period of time, shift the

shift lever to P. (



P.147)



Manual transmission

1

While depressing the clutch
pedal, depress the brake
pedal.

2

If necessary, set the parking
brake.

If the vehicle is to be stopped for an

extended period of time, shift the

shift lever to N. (



P.151)

■

Parking the vehicle



Continuously variable trans-
mission

1

With the shift lever in D,
depress the brake pedal to
stop the vehicle completely.

2

Set the parking brake
(



P.154), shift the shift lever

to P. (



P.147)

Check the parking brake indicator

is illuminated.

3

Press the engine switch to
stop the engine.

4

Slowly release the brake
pedal.

5

Lock the door, making sure
that you have the key on your
person.

If parking on a hill, block the wheels

Driving the vehicle

The following procedures
should be observed to
ensure safe driving:

Driving procedure

131

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

as needed.



Manual transmission

1

While depressing the clutch
pedal, depress the brake
pedal.

2

If the parking brake is in man-
ual mode, set the parking
brake. (



P.154)

Check that the parking brake indi-

cator is illuminated.

3

Shift the shift lever to N.
(



P.151)

If parking on a hill, shift the shift

lever to 1 or R and block the wheels

as needed.

4

Press the engine switch to
stop the engine.

5

Slowly release the brake
pedal.

6

Lock the door, making sure
that you have the key on your
person.

■

Starting off on a steep
uphill



Continuously variable trans-
mission

1

Make sure that the parking
brake is set and shift the shift
lever to D.

2

Gently depress the accelera-
tor pedal.

3

Release the parking brake.



Manual transmission

1

Make sure that the parking
brake is set and shift the shift
lever to 1.

2

Lightly depress the accelera-
tor pedal at the same time as
gradually releasing the clutch
pedal.

3

Release the parking brake.

■

Driving in the rain

●

Drive carefully when it is raining,

because visibility will be reduced,

the windows may become

fogged-up, and the road will be

slippery.

●

Drive carefully when it starts to

rain, because the road surface will

be especially slippery.

●

Refrain from high speeds when

driving on an expressway in the

rain, because there may be a

layer of water between the tires

and the road surface, preventing

the steering and brakes from

operating properly.

■

Engine speed while driving

(vehicles with a continuously

variable transmission)

In the following conditions, the

engine speed may become high

while driving. This is due to auto-

matic up-shifting control or

down-shifting implementation to

meet driving conditions. It does not

indicate sudden acceleration.

●

The vehicle is judged to be driving

uphill or downhill

●

When the accelerator pedal is

released

●

When the brake pedal is

depressed while sport mode is

selected

■

Restraining the engine output

(Brake Override System)

●

When the accelerator and brake

pedals are depressed at the same

time, the engine output may be

restrained.

●

A warning message is displayed

on the multi-information display

132

4-1. Before driving

COROLLA H/B_U

while the system is operating.

■

Restraining sudden start

(Drive-Start Control [vehicles

with a continuously variable

transmission])

●

When the following unusual oper-

ation is performed, the engine out-

put may be restrained.

• When the shift lever is shifted from

R to D, D to R, N to R, P to D, or P

to R (D includes M) with the accel-

erator pedal depressed, a warning

message appears on the

multi-information display. If a

warning message is shown on the

multi-information display, read the

message and follow the instruc-

tion.

• When the accelerator pedal is

depressed too much while the

vehicle is in reverse.

●

While Drive-Start Control is being

activated, your vehicle may have

trouble escaping from the mud or

fresh snow. In such case, deacti-

vate TRAC (



P.242) to cancel

Drive-Start Control so that the

vehicle may become able to

escape from the mud or fresh

snow.

■

Breaking in your new Toyota

To extend the life of the vehicle,

observing the following precautions

is recommended:

●

For the first 186 miles (300 km):

Avoid sudden stops.

●

For the first 621 miles (1000 km):

• Do not drive at extremely high

speeds.

• Avoid sudden acceleration.

• Do not drive continuously in low

gears.

• Do not drive at a constant speed

for extended periods.

■

Operating your vehicle in a for-

eign country

Comply with the relevant vehicle

registration laws and confirm the

availability of the correct fuel.

(



P.511)

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When starting the vehicle

(vehicles with a continuously

variable transmission)

Always keep your foot on the

brake pedal while stopped with

the engine running. This prevents

the vehicle from creeping.

■

When driving the vehicle

●

Do not drive if you are unfamil-

iar with the location of the brake

and accelerator pedals to avoid

depressing the wrong pedal.

• Accidentally depressing the

accelerator pedal instead of the

brake pedal will result in sudden

acceleration that may lead to an

accident.

• When backing up, you may twist

your body around, leading to a

difficulty in operating the pedals.

Make sure to operate the pedals

properly.

• Make sure to keep a correct

driving posture even when mov-

ing the vehicle only slightly. This

allows you to depress the brake

and accelerator pedals properly.

• Depress the brake pedal using

your right foot. Depressing the

brake pedal using your left foot

may delay response in an emer-

gency, resulting in an accident.

133

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

WARNING

●

Do not drive the vehicle over or

stop the vehicle near flammable

materials.

The exhaust system and

exhaust gases can be

extremely hot. These hot parts

may cause a fire if there is any

flammable material nearby.

●

During normal driving, do not

turn off the engine. Turning the

engine off while driving will not

cause loss of steering or brak-

ing control, but the power assist

to these systems will be lost.

This will make it more difficult to

steer and brake, so you should

pull over and stop the vehicle as

soon as it is safe to do so.

However, in the event of an

emergency, such as if it

becomes impossible to stop the

vehicle in the normal way:



P.460

●

Use engine braking (downshift)

to maintain a safe speed when

driving down a steep hill.

Using the brakes continuously

may cause the brakes to over-

heat and lose effectiveness.

(



P.147, 151)

●

Do not adjust the positions of

the steering wheel, the seat, or

the inside or outside rear view

mirrors while driving.

Doing so may result in a loss of

vehicle control.

●

Always check that all passen-

gers’ arms, heads or other parts

of their body are not outside the

vehicle.

●

Do not drive in excess of the

speed limit. Even if the legal

speed limit permits it, do not

drive over 85 mph (140 km/h)

unless your vehicle has

high-speed capability tires. Driv-

ing over 85 mph (140 km/h)

may result in tire failure, loss of

control and possible injury. Be

sure to consult a tire dealer to

determine whether the tires on

your vehicle are high-speed

capability tires or not before

driving at such speeds.

■

When driving on slippery

road surfaces

●

Sudden braking, acceleration

and steering may cause tire

slippage and reduce your ability

to control the vehicle.

●

Sudden acceleration, engine

braking due to shifting, or

changes in engine speed could

cause the vehicle to skid.

●

After driving through a puddle,

lightly depress the brake pedal

to make sure that the brakes

are functioning properly. Wet

brake pads may prevent the

brakes from functioning prop-

erly. If the brakes on only one

side are wet and not functioning

properly, steering control may

be affected.

■

When shifting the shift lever

●

Vehicles with a continuously

variable transmission: Do not let

the vehicle roll backward while a

forward driving position is

selected, or roll forward while

the shift lever is in R.

Doing so may cause the engine

to stall or lead to poor brake and

steering performance, resulting

in an accident or damage to the

vehicle.

134

4-1. Before driving

COROLLA H/B_U

WARNING

●

Vehicles with a continuously

variable transmission: Do not

shift the shift lever to P while the

vehicle is moving.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Do not shift the shift lever to R

while the vehicle is moving for-

ward.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Do not shift the shift lever to a

driving position while the vehicle

is moving backward.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Moving the shift lever to N while

the vehicle is moving will disen-

gage the engine from the trans-

mission. Engine braking is not

available when N is selected.

●

Vehicles with a continuously

variable transmission: Be care-

ful not to shift the shift lever with

the accelerator pedal

depressed. Shifting the shift

lever to any positions other than

P or N may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident and

result in death or serious injury.

■

If you hear a squealing or

scraping noise (brake pad

wear indicators)

Have the brake pads checked and

replaced by your Toyota dealer as

soon as possible.

Rotor damage may result if the

pads are not replaced when

needed.

It is dangerous to drive the vehicle

when the wear limits of the brake

pads and/or those of the brake

discs are exceeded.

■

When the vehicle is stopped

●

Do not race the engine.

If the vehicle is in any gear other

than P (continuously variable

transmission) or N, the vehicle

may accelerate suddenly and

unexpectedly, causing an acci-

dent.

●

Vehicles with a continuously

variable transmission: In order

to prevent accidents due to the

vehicle rolling away, always

keep depressing the brake

pedal while the engine is run-

ning, and apply the parking

brake as necessary.

●

If the vehicle is stopped on an

incline, in order to prevent acci-

dents caused by the vehicle roll-

ing forward or backward, always

depress the brake pedal and

securely apply the parking

brake as needed.

●

Avoid revving or racing the

engine.

Running the engine at high

speed while the vehicle is

stopped may cause the exhaust

system to overheat, which could

result in a fire if combustible

material is nearby.

■

When the vehicle is parked

●

Do not leave glasses, cigarette

lighters, spray cans, or soft

drink cans in the vehicle when it

is in the sun.

Doing so may result in the fol-

lowing:

• Gas may leak from a cigarette

lighter or spray can, and may

lead to a fire.

135

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

WARNING

• The temperature inside the

vehicle may cause the plastic

lenses and plastic material of

glasses to deform or crack.

• Soft drink cans may fracture,

causing the contents to spray

over the interior of the vehicle,

and may also cause a short cir-

cuit in the vehicle’s electrical

components.

●

Do not leave cigarette lighters in

the vehicle. If a cigarette lighter

is in a place such as the glove

box or on the floor, it may be lit

accidentally when luggage is

loaded or the seat is adjusted,

causing a fire.

●

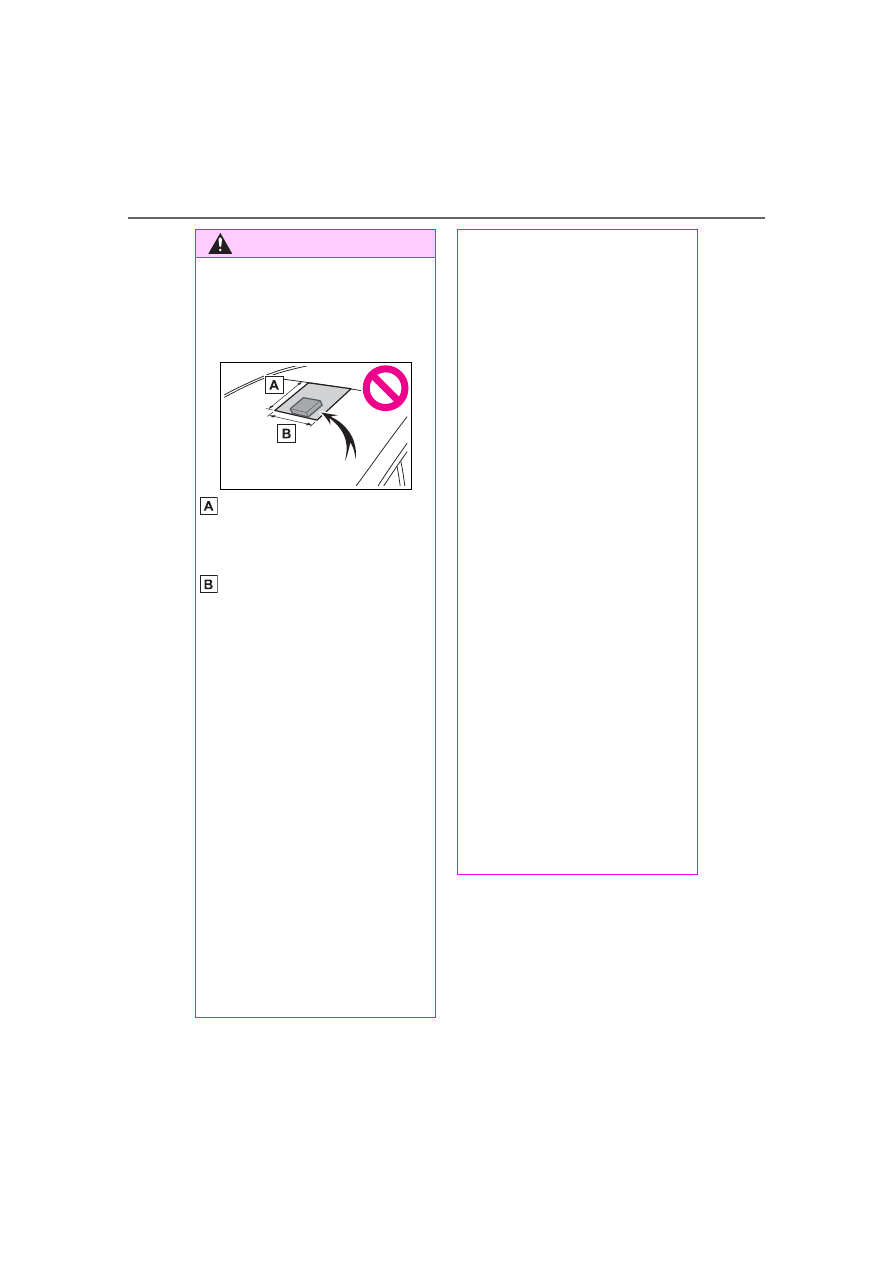

Do not attach adhesive discs to

the windshield or windows. Do

not place containers such as air

fresheners on the instrument

panel or dashboard. Adhesive

discs or containers may act as

lenses, causing a fire in the

vehicle.

●

Do not leave a door or window

open if the curved glass is

coated with a metallized film

such as a silver-colored one.

Reflected sunlight may cause

the glass to act as a lens, caus-

ing a fire.

●

Always apply the parking brake,

shift the shift lever to P (vehicles

with a continuously variable

transmission), stop the engine

and lock the vehicle.

Do not leave the vehicle unat-

tended while the engine is run-

ning.

If the vehicle is parked with the

shift lever in P but the parking

brake is not set, the vehicle may

start to move, possibly leading

to an accident.

●

Do not touch the exhaust pipes

while the engine is running or

immediately after turning the

engine off.

Doing so may cause burns.

■

When taking a nap in the vehi-

cle

Always turn the engine off. Other-

wise, if you accidentally move the

shift lever or depress the acceler-

ator pedal, this could cause an

accident or fire due to engine

overheating. Additionally, if the

vehicle is parked in a poorly venti-

lated area, exhaust gases may

collect and enter the vehicle, lead-

ing to death or a serious health

hazard.

■

When braking

●

When the brakes are wet, drive

more cautiously.

Braking distance increases

when the brakes are wet, and

this may cause one side of the

vehicle to brake differently than

the other side. Also, the parking

brake may not securely hold the

vehicle.

●

If the brake booster device does

not operate, do not follow other

vehicles closely and avoid hills

or sharp turns that require brak-

ing.

In this case, braking is still pos-

sible, but the brake pedal

should be depressed more

firmly than usual. Also, the brak-

ing distance will increase. Have

your brakes fixed immediately.

●

Do not pump the brake pedal if

the engine stalls.

Each push on the brake pedal

uses up the reserve for the

power-assisted brakes.

136

4-1. Before driving

COROLLA H/B_U

WARNING

●

The brake system consists of 2

individual hydraulic systems; if

one of the systems fails, the

other will still operate. In this

case, the brake pedal should be

depressed more firmly than

usual and the braking distance

will increase. Have your brakes

fixed immediately.

■

If the vehicle becomes stuck

Do not spin the wheels exces-

sively when a driven wheel is up

in the air, or the vehicle is stuck in

sand, mud, etc. This may damage

the driveline components or pro-

pel the vehicle forward or back-

ward, causing an accident.

NOTICE

■

When driving the vehicle

(vehicles with a continuously

variable transmission)

●

Do not depress the accelerator

and brake pedals at the same

time during driving, as this may

restrain the engine output.

●

Do not use the accelerator

pedal or depress the accelera-

tor and brake pedals at the

same time to hold the vehicle on

a hill.

■

When driving the vehicle

(vehicles with a manual trans-

mission)

●

Do not depress the accelerator

and brake pedals at the same

time during driving, as this may

restrain the engine output.

●

Do not shift gears unless the

clutch pedal is fully depressed.

After shifting, do not release the

clutch pedal abruptly. Doing so

may damage the clutch, trans-

mission and gears.

●

Observe the following precau-

tions.

Failure to do so may cause

excessive premature wear or

damage to the clutch, eventu-

ally making it difficult to acceler-

ate and start off from a stop.

Have the vehicle inspected by

your Toyota dealer.

• Do not rest your foot on the

clutch pedal or depress it any

time other than when shifting.

Doing so may cause clutch trou-

ble.

• Do not use any gear other than

the 1st gear when starting off

and moving forward.

Doing so may damage the

clutch.

• Do not use the clutch pedal to

adjust vehicle speed.

Doing so may damage the

clutch.

• When stopping the vehicle with

the shift lever in a position other

than N, make sure to fully

depress the clutch pedal and

stop the vehicle using the

brakes.

●

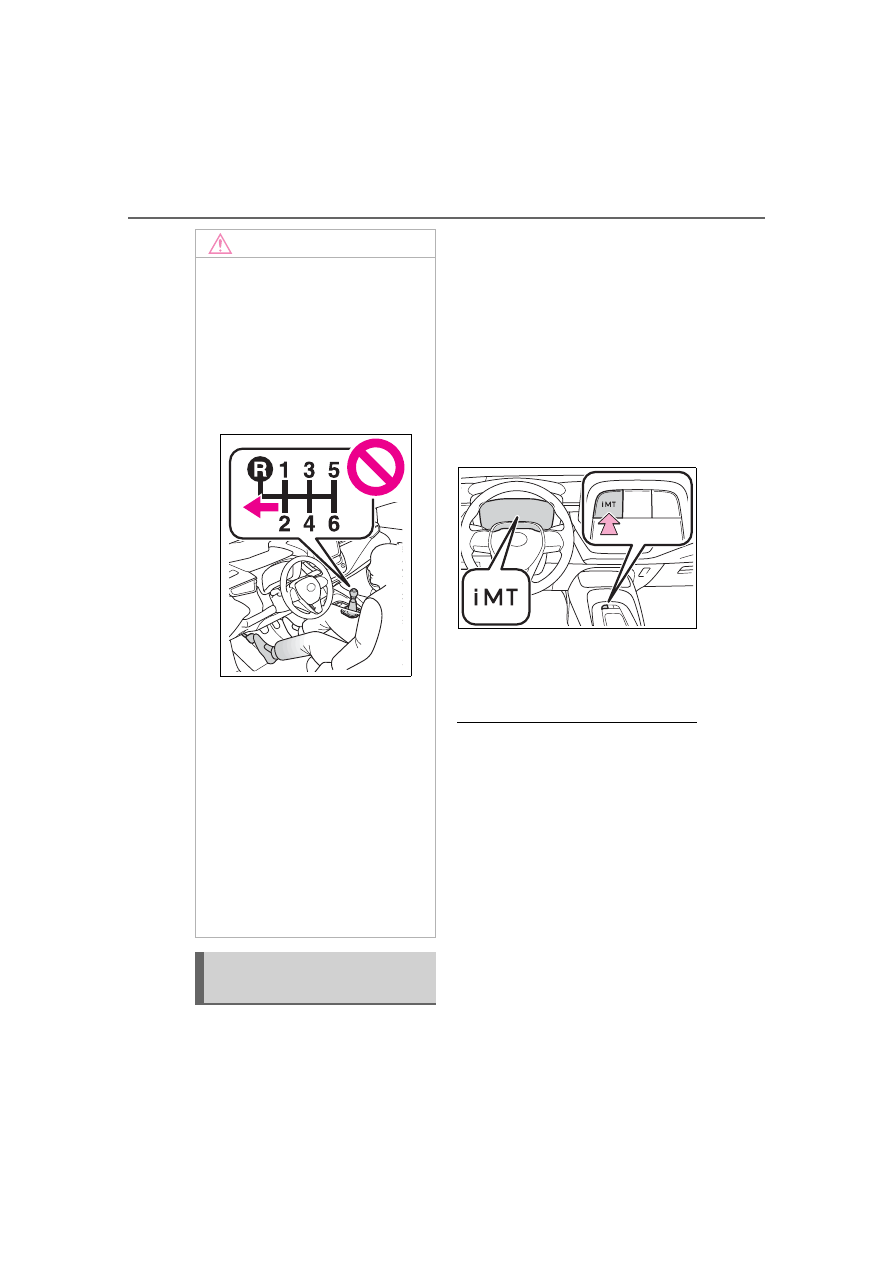

Do not shift the shift lever to R

without the vehicle completely

stopped.

Doing so may damage the

clutch, transmission and gears.

■

When parking the vehicle

(vehicles with a continuously

variable transmission)

Always set the parking brake and

shift the shift lever to P. Failure to

do so may cause the vehicle to

move or the vehicle may acceler-

ate suddenly if the accelerator

pedal is accidentally depressed.

137

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

NOTICE

■

Avoiding damage to vehicle

parts

●

Do not turn the steering wheel

fully in either direction and hold

it there for an extended period

of time.

Doing so may damage the

power steering motor.

●

When driving over bumps in the

road, drive as slowly as possible

to avoid damaging the wheels,

underside of the vehicle, etc.

■

If you get a flat tire while driv-

ing

A flat or damaged tire may cause

the following situations. Hold the

steering wheel firmly and gradu-

ally depress the brake pedal to

slow down the vehicle.

●

It may be difficult to control your

vehicle.

●

The vehicle will make abnormal

sounds or vibrations.

●

The vehicle will lean abnor-

mally.

Information on what to do in case

of a flat tire (



P.479,490)

■

When encountering flooded

roads

Do not drive on a road that has

flooded after heavy rain etc.

Doing so may cause the following

serious damage to the vehicle:

●

Engine stalling

●

Short in electrical components

●

Engine damage caused by

water immersion

In the event that you drive on a

flooded road and the vehicle

becomes flooded or stuck in mud

or sand, be sure to have your Toy-

ota dealer check the following:

●

Brake function

●

Changes in the quantity and

quality of the engine oil, tran-

saxle fluid, clutch fluid, differen-

tial oil, etc.

●

Lubricant condition for the bear-

ings and suspension joints

(where possible), and the func-

tion of all joints, bearings, etc.

138

4-1. Before driving

COROLLA H/B_U

Cargo capacity depends on the
total weight of the occupants.
(Cargo capacity) = (Total load
capacity) — (Total weight of
occupants)
Steps for Determining Correct
Load Limit —
(1) Locate the statement “The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined
weight of the driver and passen-
gers that will be riding in your
vehicle.
(3) Subtract the combined
weight of the driver and passen-
gers from XXX kg or XXX lbs.
(4) The resulting figure equals
the available amount of cargo
and luggage load capacity.
For example, if the “XXX”
amount equals 1400 lbs. and
there will be five 150 lb passen-
gers in your vehicle, the amount
of available cargo and luggage
load capacity is 650 lbs. (1400 −

750 (5



 150) = 650 lbs.)

(5) Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity calcu-
lated in Step 4.
(6) If your vehicle will be towing
a trailer, load from your trailer
will be transferred to your vehi-
cle. Consult this manual to
determine how this reduces the
available cargo and luggage
load capacity of your vehicle.
(



P.510)

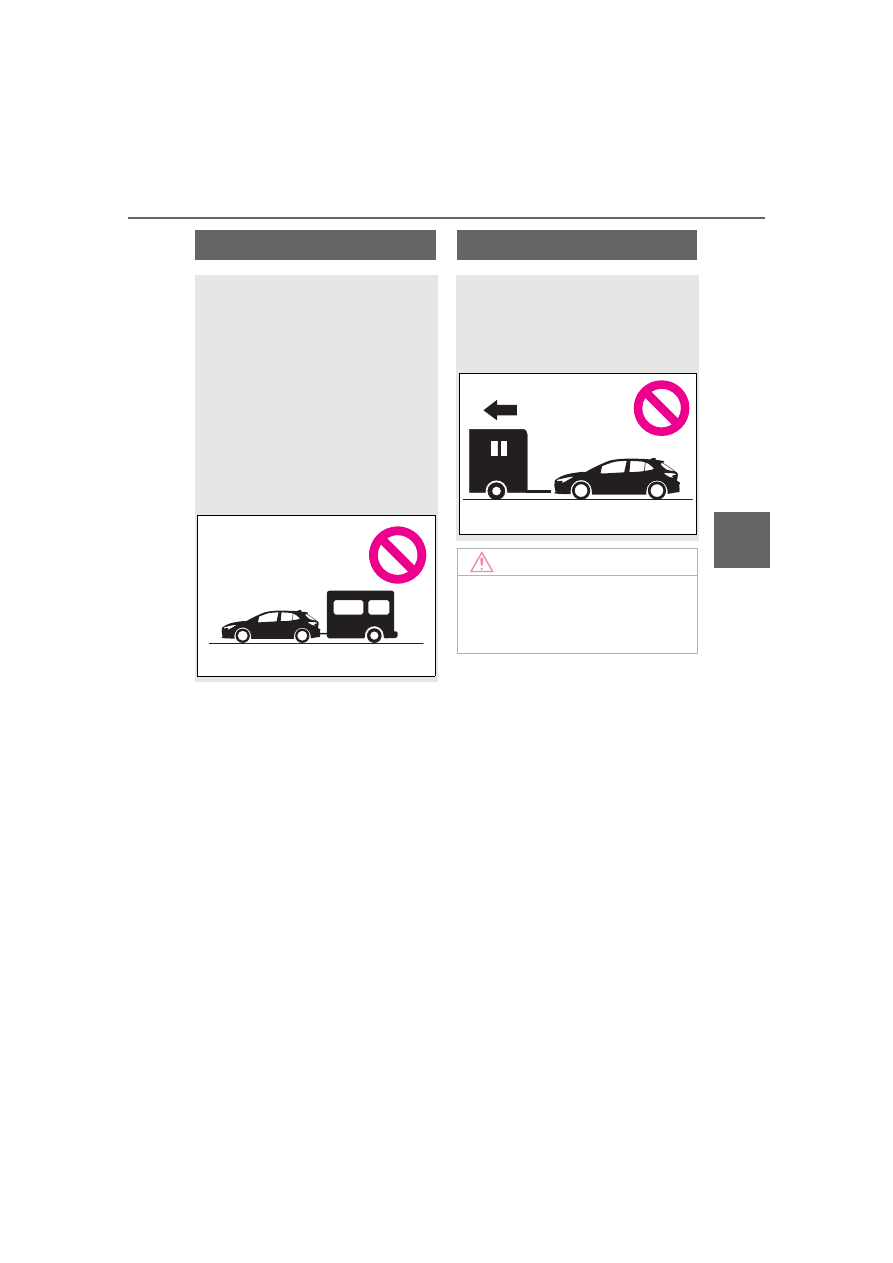

Toyota does not recommend towing
a trailer with your vehicle. Your
vehicle is not designed for trailer
towing.

Cargo capacity
Total load capacity (vehicle
capacity weight) (



P.510)

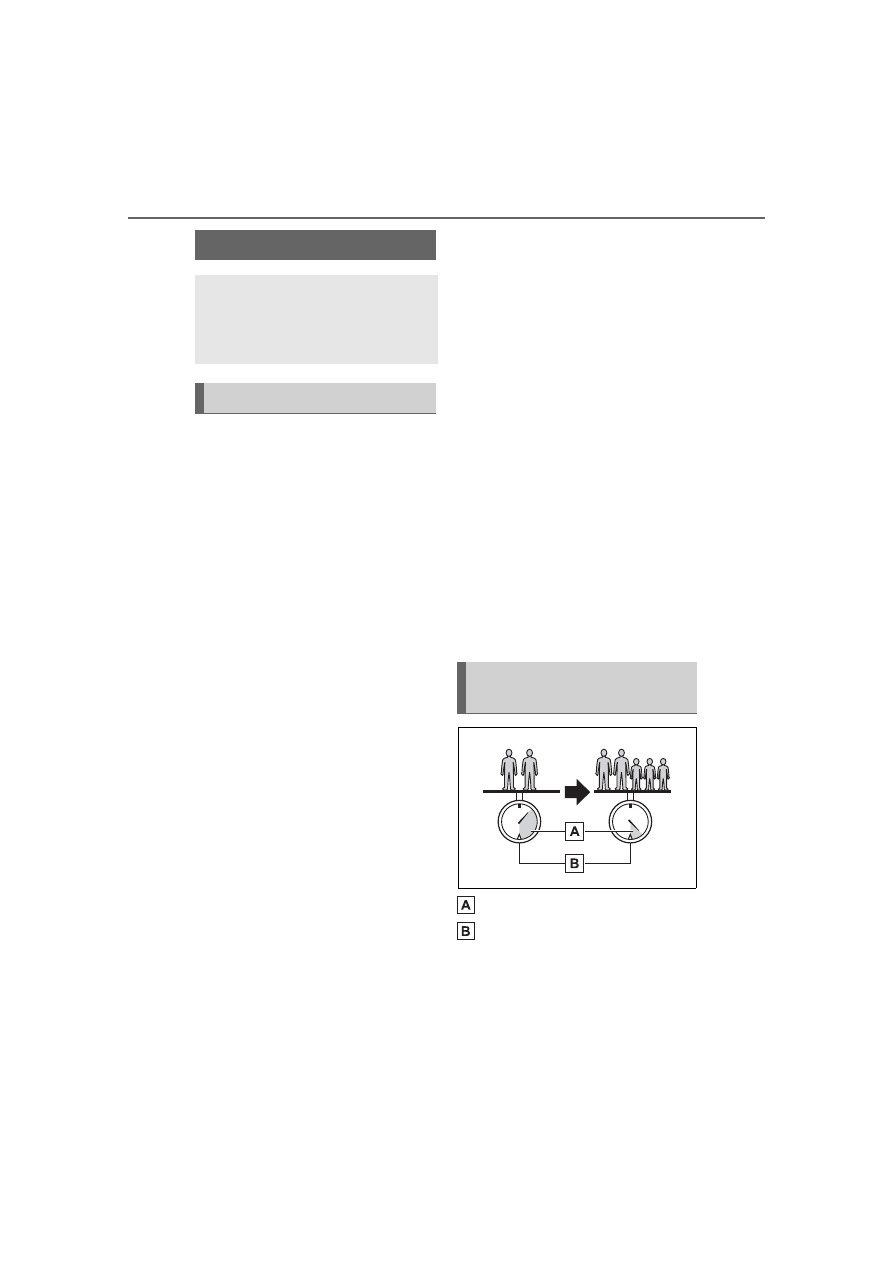

When 2 people with the com-
bined weight of A lb. (kg) are rid-
ing in your vehicle, which has a

Cargo and luggage

Take notice of the following
information about storage
precautions, cargo capacity
and load:

Capacity and distribution

Calculation formula for
your vehicle

139

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

total load capacity (vehicle
capacity weight) of B lb. (kg),
the available amount of cargo
and luggage load capacity will
be C lb. (kg) as follows:

B

*2

 lb. (kg) - A

*1

 lb. (kg) = C

*3

 lb.

(kg)

*1

:A =Weight of people

*2

:B =Total load capacity

*3

:C =Available cargo and luggage

load

In this condition, if 3 more passen-
gers with the combined weight of D
lb. (kg) get on, the available cargo
and luggage load will be reduced E
lb. (kg) as follows:

C lb. (kg) - D

*4

 lb. (kg) = E

*5

 lb.

(kg)

*4

:D =Additional weight of people

*5

:E =Available cargo and luggage

load

As shown in the example above,
if the number of occupants
increases, the cargo and lug-
gage load will be reduced by an
amount that equals the
increased weight due to the
additional occupants. In other
words, if an increase in the num-
ber of occupants causes an
excess of the total load capacity
(combined weight of occupants
plus cargo and luggage load),
you must reduce the cargo and
luggage on your vehicle.

WARNING

■

Things that must not be car-

ried in the luggage compart-

ment

The following things may cause a

fire if loaded in the luggage com-

partment:

●

Receptacles containing gaso-

line

●

Aerosol cans

■

Storage precautions

Observe the following precau-

tions.

Failure to do so may prevent the

pedals from being depressed

properly, may block the driver’s

vision, or may result in items hit-

ting the driver or passengers, pos-

sibly causing an accident.

●

Stow cargo and luggage in the

luggage compartment when-

ever possible.

●

Do not place cargo or luggage

in or on the following locations.

• At the feet of the driver

• On the front passenger or rear

seats (when stacking items)

• On the luggage cover

• On the instrument panel

• On the dashboard

●

Secure all items in the occupant

compartment.

■

Capacity and distribution

●

Do not exceed the maximum

axle weight rating or the total

vehicle weight rating.

140

4-1. Before driving

COROLLA H/B_U

■

Total load capacity and seating

capacity

These details are also described on

the tire and loading information

label. (



P.445)

WARNING

●

Even if the total load of occu-

pant’s weight and the cargo

load is less than the total load

capacity, do not apply the load

unevenly. Improper loading may

cause deterioration of steering

or braking control which may

cause death or serious injury.

Vehicle load limits

Vehicle load limits include
total load capacity, seating
capacity, towing capacity
and cargo capacity.



Total load capacity (vehicle
capacity weight):



P.510

Total load capacity means the
combined weight of occupants,
cargo and luggage.



Seating capacity: 5 occu-
pants (Front 2, Rear 3)

Seating capacity means the max-
imum number of occupants
whose estimated average weight
is 150 lb. (68 kg) per person.



Towing capacity

Toyota does not recommend tow-
ing a trailer with your vehicle.



Cargo capacity

Cargo capacity may increase or
decrease depending on the
weight and the number of occu-
pants.

WARNING

■

Overloading the vehicle

Do not overload the vehicle.

It may not only cause damage to

the tires, but also degrade steer-

ing and braking ability, resulting in

an accident.

141

4-1. Before driving

COROLLA H/B_U

4

Dr

iv

ing

Trailer towing

Toyota does not recom-
mend towing a trailer with
your vehicle. Toyota also
does not recommend the
installation of a tow hitch or
the use of a tow hitch carrier
for a wheelchair, scooter,
bicycle, etc. Your vehicle is
not designed for trailer tow-
ing or for the use of tow
hitch mounted carriers.

Dinghy towing

Your vehicle is not designed
to be dinghy towed (with 4
wheels on the ground)
behind a motor home.

NOTICE

■

To avoid serious damage to

your vehicle

Do not tow your vehicle with the

four wheels on the ground.

142

4-2. Driving procedures

COROLLA H/B_U

4-2.Driving procedures

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.154)

The parking brake indicator will

come on.

2

Check that the shift lever is
set in P (continuously vari-
able transmission) or N
(manual transmission).

3

Firmly depress the brake
pedal (continuously variable
transmission) or clutch pedal
(manual transmission).

 and a message will be dis-

played on the multi-information dis-

play.

If it is not displayed, the engine

cannot be started.

4

Press the engine switch
shortly and firmly.

When operating the engine switch,

one short, firm press is enough. It is

not necessary to press and hold the

switch.
The engine will crank until it starts

or for up to 30 seconds, whichever

is less.
Continue depressing the brake

pedal (continuously variable trans-

mission) or clutch pedal (manual

transmission) until the engine is

completely started.
The engine can be started from any

engine switch mode.

■

If the engine does not start

●

The engine immobilizer system

may not have been deactivated.

(



P.64)

Contact your Toyota dealer.

●

If a message related to start-up is

shown on the multi-information

display, read the message and fol-

low the instructions.

■

If the battery is discharged

The engine cannot be started using

the smart key system. Refer to

P.502to restart the engine.

■

Electronic key battery depletion



P.98

■

Conditions affecting operation



P.109

■

Notes for the entry function



P.110

■

Steering lock function

●

After turning the engine switch off

and opening and closing the

doors, the steering wheel will be

locked due to the steering lock

function. Operating the engine

switch again automatically can-

cels the steering lock.

●

When the steering lock cannot be

released, “Push Engine Switch

while Turning Steering Wheel in

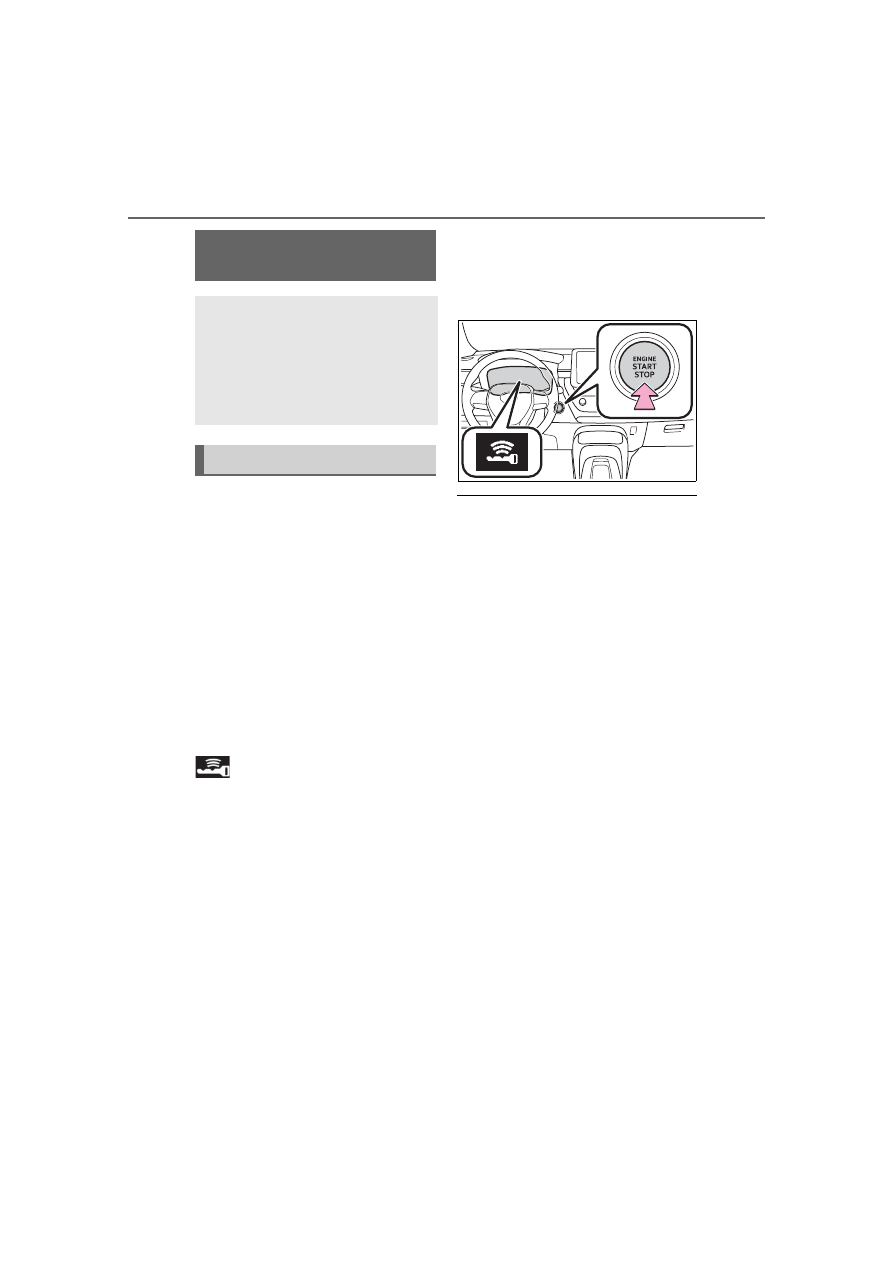

Engine (ignition)

switch

Performing the following
operations when carrying
the electronic key on your
person starts the engine or
changes engine switch
modes.

Starting the engine

143

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

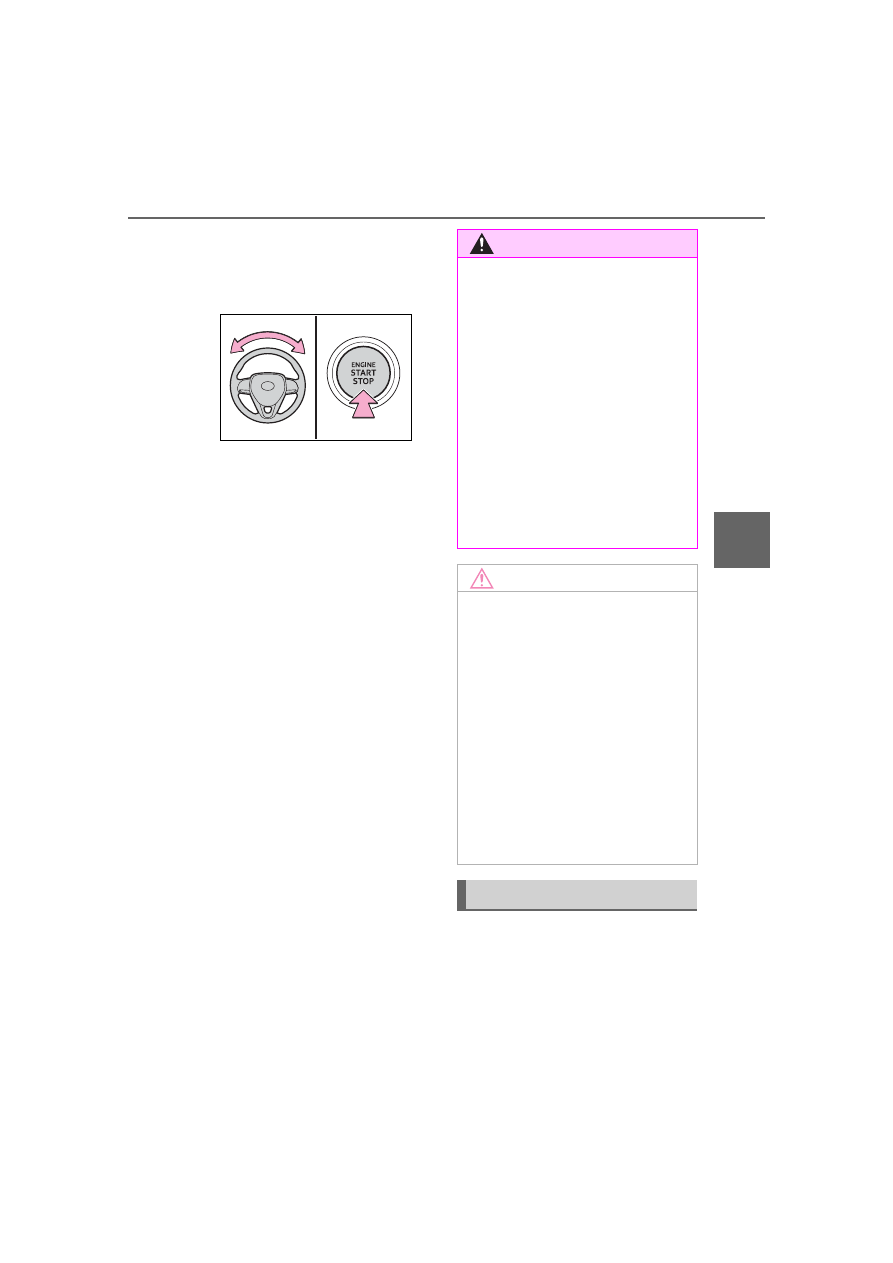

Either Direction” will be displayed

on the multi-information display.

Press the engine switch shortly

and firmly while turning the steer-

ing wheel left and right.

●

To prevent the steering lock motor

from overheating, operation of the

motor may be suspended if the

engine is turned on and off repeat-

edly in a short period of time. In

this case, refrain from operating

the engine switch. After about 10

seconds, the steering lock motor

will resume functioning.

■

Electronic key battery



P.450

■

Operation of the engine switch

●

If the switch is not pressed shortly

and firmly, the engine switch

mode may not change or the

engine may not start.

●

If attempting to restart the engine

immediately after turning the

engine switch off, the engine may

not start in some cases. After turn-

ing the engine switch off, please

wait a few seconds before restart-

ing the engine.

■

Customization

If the smart key system has been

deactivated in a customized setting,

refer to P.500.



Continuously variable trans-
mission

1

Stop the vehicle completely.

WARNING

■

When starting the engine

Always start the engine while sit-

ting in the driver’s seat. Do not

depress the accelerator pedal

while starting the engine under

any circumstances.

Doing so may cause an accident

resulting in death or serious injury.

■

Caution while driving

If engine failure occurs while the

vehicle is moving, do not lock or

open the doors until the vehicle

reaches a safe and complete

stop. Activation of the steering

lock in this circumstance may lead

to an accident, resulting in death

or serious injury.

NOTICE

■

When starting the engine

●

Do not race a cold engine.

●

If the engine becomes difficult to

start or stalls frequently, have

your vehicle checked by your

Toyota dealer immediately.

■

Symptoms indicating a mal-

function with the engine

switch

If the engine switch seems to be

operating somewhat differently

than usual, such as the switch

sticking slightly, there may be a

malfunction. Contact your Toyota

dealer immediately.

Stopping the engine

144

4-2. Driving procedures

COROLLA H/B_U

2

Set the parking brake
(



P.154), and shift the shift

lever to P.

Check the parking brake indicator

is illuminated.

3

Press the engine switch.

The engine will stop, and the meter

display will be extinguished.

4

Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown
on the multi-information dis-
play.



Manual transmission

1

Stop the vehicle completely.

2

If the parking brake is in man-
ual mode, set the parking
brake. (



P.154)

Check the parking brake indicator

is illuminated.

3

Shift the shift lever to N.
(



P.151)

4

Press the engine switch.

The engine will stop, and the meter

display will be extinguished.

5

Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown
on the multi-information dis-
play.

■

Automatic engine shut off fea-

ture

●

The vehicle is equipped with a

feature that automatically shuts off

the engine when the shift lever is

in P (continuously variable trans-

mission) or the parking brake is

set (manual transmission) with the

engine running for an extended

period.

●

The engine will automatically shut

off after approximately 1 hour if it

has been left running while the

shift lever is in P (continuously

variable transmission) or the park-

ing brake is set (manual transmis-

sion).

●

The timer for the automatic engine

shut off feature will reset if the

brake pedal (continuously variable

transmission) or the clutch pedal

(manual transmission) is

depressed, or if the shift lever is in

a position other than P (continu-

ously variable transmission) or the

parking brake is released (man-

ual transmission).

●

After the vehicle is parked, if the

door is locked with the door lock

switch (



P.103) from the inside or

the mechanical key (



P.500) from

the outside, the automatic engine

shut off feature will be disabled.

The timer for the automatic engine

shut off feature will be re-enabled

if the driver’s door is opened.

WARNING

■

Stopping the engine in an

emergency

●

If you want to stop the engine in

an emergency while driving the

vehicle, press and hold the

engine switch for more than 2

seconds, or press it briefly 3

times or more in succession.

(



P.460)

However, do not touch the

engine switch while driving

except in an emergency. Turn-

ing the engine off while driving

will not cause loss of steering or

braking control, but the power

assist to these systems will be

lost. This will make it more diffi-

cult to steer and brake, so you

should pull over and stop the

vehicle as soon as it is safe to

do so.

145

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

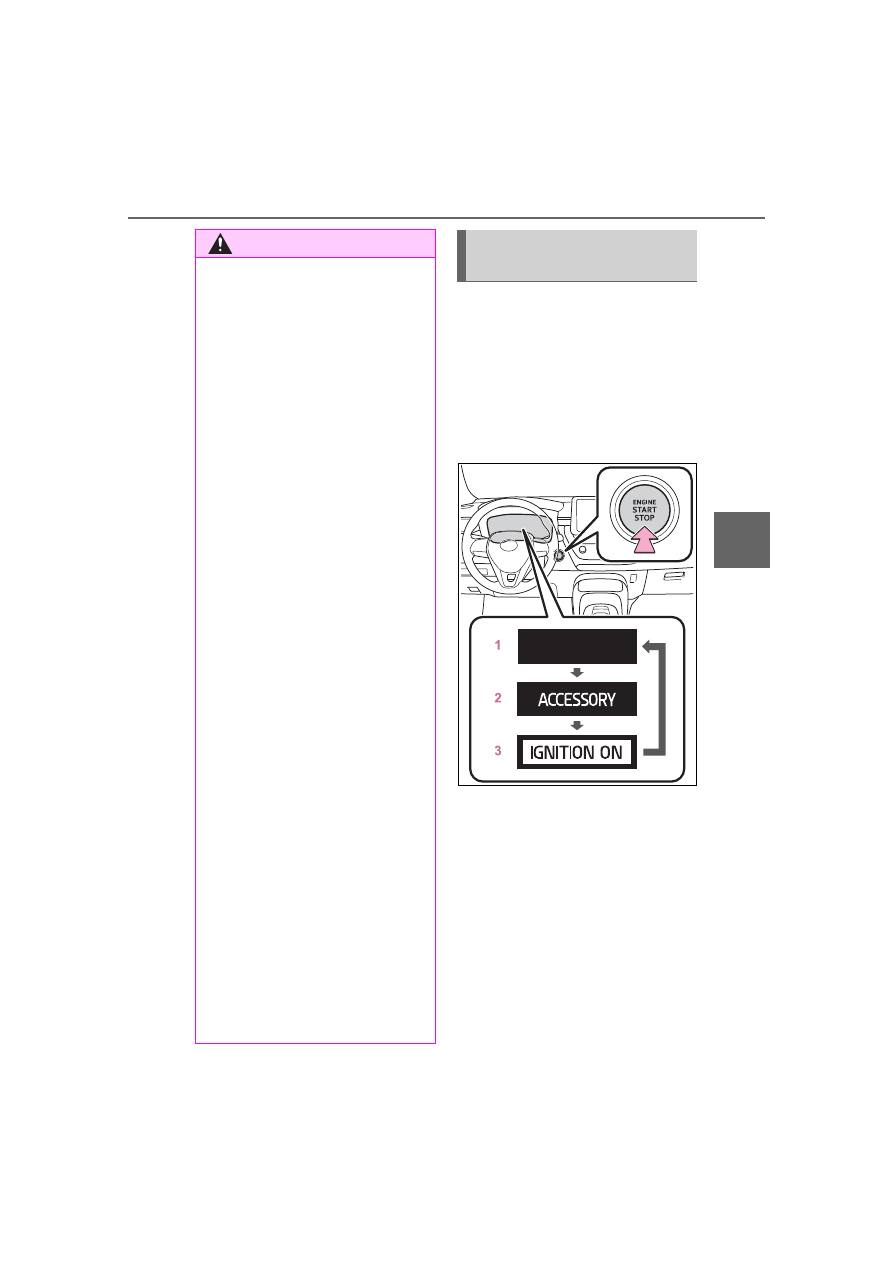

Modes can be changed by
pressing the engine switch with
brake pedal (continuously vari-
able transmission) or clutch
pedal (manual transmission)
released. (The mode changes
each time the switch is
pressed.)

1

OFF

*

The emergency flashers can be
used.

2

ACC

Some electrical components such
as the audio system can be used.
“ACCESSORY” will be displayed
on the multi-information display.

3

ON

All electrical components can be
used.
“IGNITION ON” will be displayed on

WARNING

●

If the engine switch is operated

while the vehicle is running, a

warning message will be shown

on the multi-information display

and a buzzer sounds.

●

Vehicles with a continuously

variable transmission: To restart

the engine after performing an

emergency shutdown, shift the

shift lever to N and then press

the engine switch.

●

Vehicles with a manual trans-

mission: To restart the engine

after performing an emergency

shutdown, depress the clutch

pedal and then press the engine

switch.

■

When parking

Exhaust gases include harmful

carbon monoxide (CO), which is

colorless and odorless. Observe

the following precautions.
Failure to do so may cause

exhaust gases to enter the vehicle

and may lead to an accident

caused by light-headedness, or

may lead to death or a serious

health hazard.

●

If the vehicle is in a poorly venti-

lated area or a closed area,

such as a garage, stop the

engine.

●

Do not leave the vehicle with

the engine running for a long

time. If such a situation cannot

be avoided, park the vehicle in

an open space and ensure that

exhaust fumes do not enter the

vehicle interior.

●

Do not leave the engine running

in an area with snow build-up,

or where it is snowing. If snow-

banks build up around the vehi-

cle while the engine is running,

exhaust gases may collect and

enter the vehicle.

Changing engine switch
modes

146

4-2. Driving procedures

COROLLA H/B_U

the multi-information display.

*

: Vehicles with a continuously vari-

able transmission: If the shift
lever is in a position other than P
when turning off the engine, the
engine switch will be turned to
ACC, not to off.

■

Auto power off function

Continuously variable transmission:

If the vehicle is left in ACC for more

than 20 minutes or ON (the engine

is not running) for more than an

hour with the shift lever in P, the

engine switch will automatically turn

off. However, this function cannot

entirely prevent battery discharge.

Do not leave the vehicle with the

engine switch in ACC or ON for long

periods of time when the engine is

not running.
Manual transmission: If the vehicle

is left in ACC for more than 20 min-

utes or ON (the engine is not run-

ning) for more than an hour, the

engine switch will automatically turn

off. However, this function cannot

entirely prevent battery discharge.

Do not leave the vehicle with the

engine switch in ACC or ON for long

periods of time when the engine is

not running.

If the engine is stopped with the
shift lever in a position other
than P, the engine switch will not
be turned off but instead be
turned to ACC. Perform the fol-
lowing procedure to turn the
switch off:

1

Check that the parking brake
is set.

2

Shift the shift lever to P.

3

Check that “ACCESSORY” is
displayed on the multi-infor-
mation display and press the
engine switch shortly and
firmly.

4

Check that “ACCESSORY”
or “IGNITION ON” on the
multi-information display are
off.

NOTICE

■

To prevent battery discharge

●

Do not leave the engine switch

in ACC or ON for long periods of

time without the engine running.

●

If “ACCESSORY” or “IGNITION

ON” is displayed on the

multi-information display, the

engine switch is not off. Exit the

vehicle after turning the engine

switch off.

When stopping the engine
with the shift lever in a
position other than P
(vehicles with a continu-
ously variable transmis-
sion)

NOTICE

■

To prevent battery discharge

Do not stop the engine when the

shift lever is in a position other

than P. If the engine is stopped in

another shift lever position, the

engine switch will not be turned

off but instead be turned to ACC

mode. If the vehicle is left in ACC,

battery discharge may occur.

147

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

*

: If equipped

*

: To improve fuel efficiency and

reduce noise, shift the shift lever
to D for normal driving.

■

To protect the continuously

variable transmission

If the continuously variable trans-

mission fluid temperature is high,

“Transmission Oil Temp. High Stop

in a safe place and See owner’s

manual” will be displayed on the

multi-information display and the

vehicle will go into transmission pro-

tection mode automatically. Have

the vehicle inspected by your Toyota

dealer.

■

When driving with dynamic

radar cruise control with

full-speed range activated

Even when switching the driving

mode to sport mode with the intent

of enabling engine braking, engine

braking will not occur because

dynamic radar cruise control with

full-speed range will not be can-

celed. (



P.240)

■

Restraining sudden start

(Drive-Start Control)



P.132

■

G AI-SHIFT

G AI-SHIFT automatically selects a

suitable gear for sporty driving

according to driver’s input and driv-

ing conditions. G AI-SHIFT operates

automatically when the shift lever is

in D and sport mode is selected for

the driving mode. (Selecting normal

mode or shifting the shift lever to the

M position cancels this function.)

■

After recharging/reconnecting

the battery



P.504

Continuously variable

transmission

*

Select the shift position
depending on your purpose
and situation.

Shift position purpose
and functions

Shift posi-

tion

Objective or function

P

Parking the vehi-

cle/starting the engine

R

Reversing

N

Neutral

(Condition in which the

power is not transmit-

ted)

D

Normal driving

*

M

10-speed sport sequen-

tial shiftmatic mode

driving (



P.150)

WARNING

■

When driving on slippery

road surfaces

Do not accelerate or shift the shift

gears suddenly.

Sudden changes in engine brak-

ing may cause the vehicle to spin

or skid, resulting in an accident.

148

4-2. Driving procedures

COROLLA H/B_U

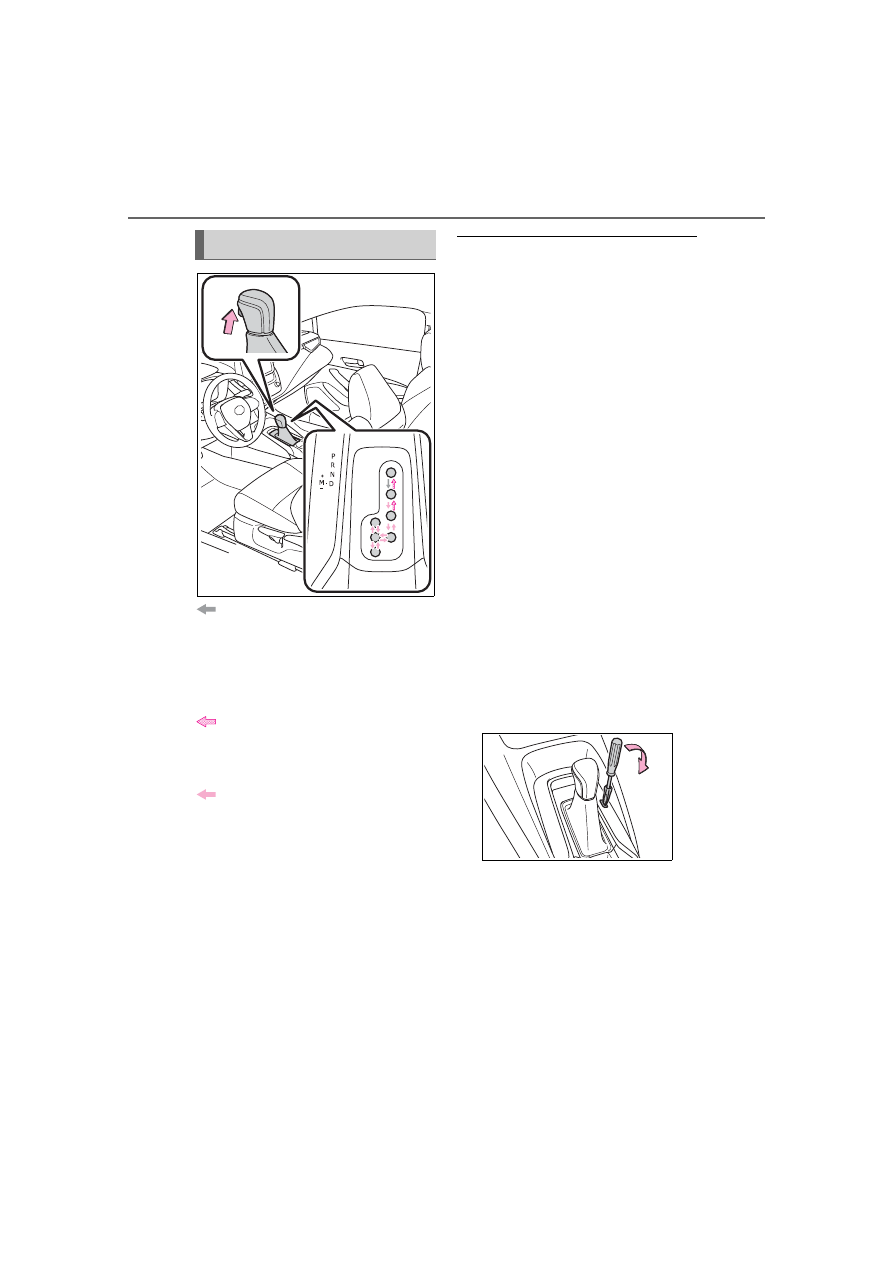

:While the engine switch is in

ON and the brake pedal
depressed

*

, shift the shift lever

while pushing the shift release
button on the shift knob.

:Shift the shift lever while

pushing the shift release button
on the shift knob.

:Shift the shift lever normally.

When shifting the shift lever
between P and D, make sure that
the vehicle is completely stopped
and the brake pedal is depressed.

*

: For the vehicle be able to be

shifted from P, the brake pedal
must be depressed before the
shift release button is pushed. If
the shift release button is pushed
first, the shift lock will not be
released.

■

Shift lock system

The shift lock system is a system to

prevent accidental operation of the

shift lever in starting.

The shift lever can be shifted from P

only when the engine switch is in

ON and the brake pedal is being

depressed.

■

If the shift lever cannot be

shifted from P

First, check whether the brake pedal

is being depressed.

If the shift lever cannot be shifted

with your foot on the brake pedal,

there may be a problem with the

shift lock system. Have the vehicle

inspected by your Toyota dealer

immediately.

The following steps may be used as

an emergency measure to ensure

that the shift lever can be shifted.

Releasing the shift lock:

1

Set the parking brake.

2

Turn the engine switch off.

3

Depress the brake pedal.

4

Ply the cover up with a flathead

screwdriver or equivalent tool.

To prevent damaging the cover,

wrap the tip of the flathead

screwdriver with a tape.

5

Press and hold the shift lock

override button and then push

the button on the shift knob.

The shift lever can be shifted while

Shifting the shift lever

149

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

the button is pressed.



P.240

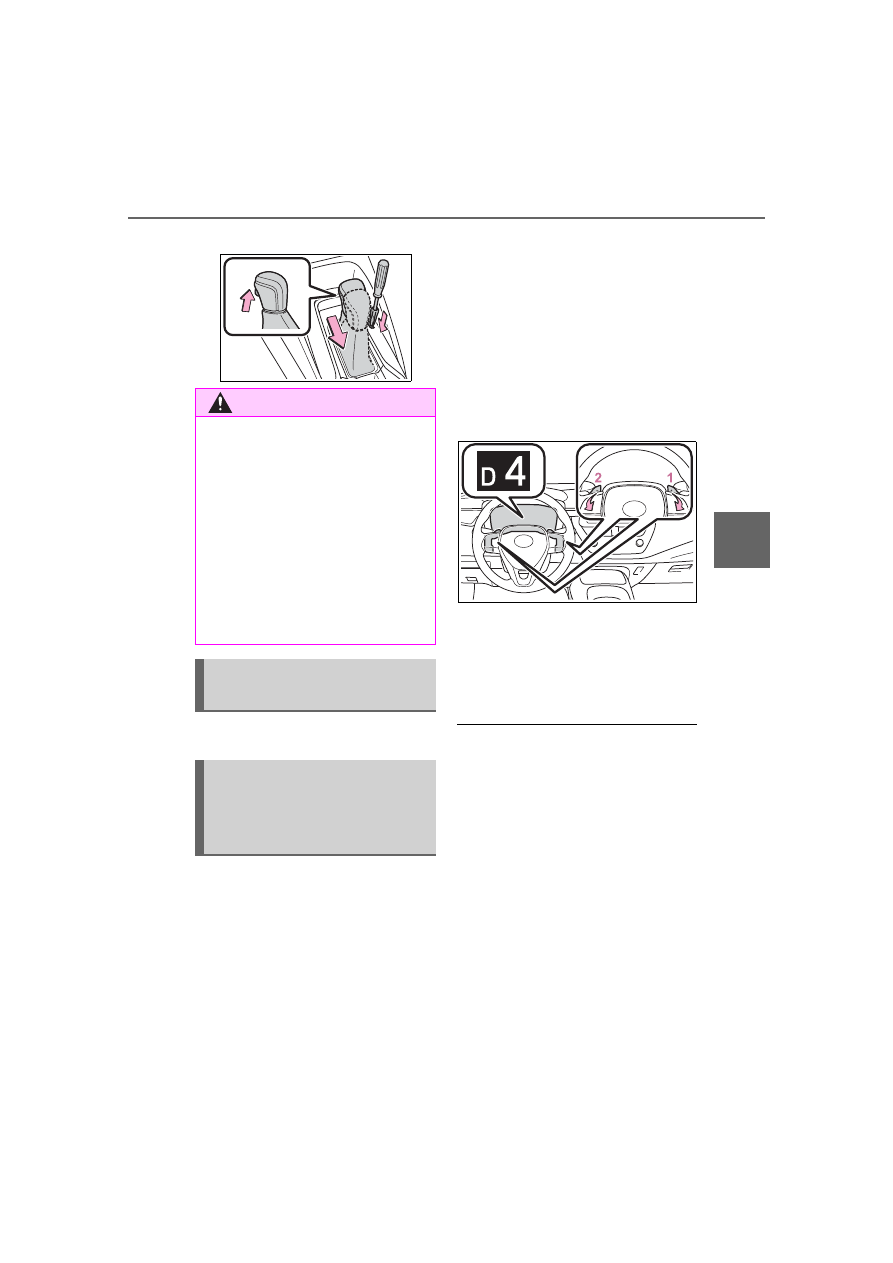

To drive using temporary shift
range selection, operate the “-”
or “+” paddle shift switch.
When the “-” paddle shift switch
is operated, the shift range
switches to a range that enables
engine braking force that is suit-
able to driving conditions. When
the “+” paddle shift switch is

operated, the shift range
switches to a range that is one
range higher than the current
range.
Changing the shift range allows
restriction of the highest gear,
preventing unnecessary upshift-
ing and enabling the level of
engine braking force to be
selected.

1

Upshifting

2

Downshifting

The selected shift range, from D1 to
D10, will be displayed on the
multi-information display.

■

Gear step functions

●

You can choose from 10 levels of

engine braking force.

●

A lower gear step will provide

greater engine braking force than

a higher gear step, and the engine

speed will also increase.

■

Deactivation of temporary

10-speed Sport Sequential

Shiftmatic mode (vehicles with

paddle shift switches)

In the following situations, tempo-

rary 10-speed Sport Sequential

Shiftmatic mode will be deactivated:

●

When the vehicle is stopped

●

If the accelerator pedal is

depressed continuously for more

than a certain amount of time

WARNING

■

To prevent an accident when

releasing the shift lock

Before pressing the shift lock

override button, make sure to set

the parking brake and depress the

brake pedal.

If the accelerator pedal is acci-

dentally depressed instead of the

brake pedal when the shift lock

override button is pressed and the

shift lever is shifted out of P, the

vehicle may suddenly start, possi-

bly leading to an accident result-

ing in death or serious injury.

Selecting the driving
mode

Selecting shift ranges in
the D position (vehicles
with paddle shift
switches)

150

4-2. Driving procedures

COROLLA H/B_U

while in one gear range

●

If the accelerator pedal is

depressed abruptly and heavily

●

When the shift lever is shifted to a

position other than D

●

When the “+” paddle shift switch is

operated for a certain amount of

time continuously

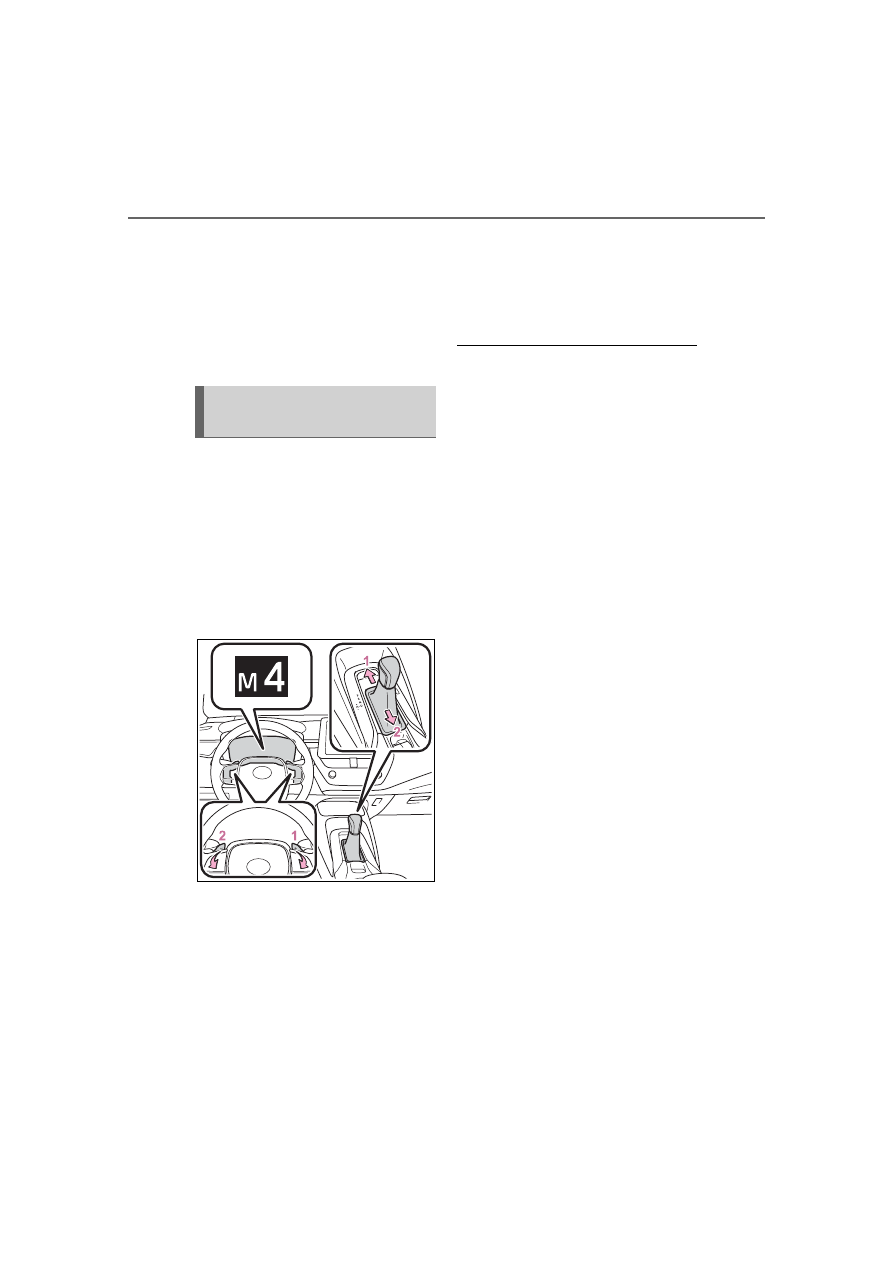

To enter 10-speed sport
sequential shiftmatic mode, shift
the shift lever to M position.
Gear steps can then be selected
by operating the shift lever or
paddle shift switches (if
equipped), allowing you to drive
in the gear step of your choos-
ing.

1

Upshifting

2

Downshifting

The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M10, will be displayed on the
multi-information display.

However, even when in the M
position, the gear steps will be
automatically changed if the
engine speed is too high, or too
low.

■

Gear step functions

●

You can choose from 10 levels of

engine braking force.

●

A lower gear step will provide

greater engine braking force than

a higher gear step, and the engine

speed will also increase.

■

When the vehicle comes to a

stop with the shift lever in the M

position

●

The transmission will automati-

cally downshift to M1 once the

vehicle is stopped.

●

After a stop, the vehicle will start

off in M1.

●

When the vehicle is stopped, the

transmission is set at M1.

■

Downshifting restriction warn-

ing buzzer

To help ensure safety and driving

performance, downshifting opera-

tion may sometimes be restricted. In

some circumstances, downshifting

may not be possible even when the

shift lever or paddle shift switch (if

equipped) is operated. (A buzzer

will sound twice.)

■

If the 10-speed sport sequential

shiftmatic mode indicator does

not come on even after shifting

the shift lever to M

This may indicate a malfunction in

the continuously variable transmis-

sion system. Have the vehicle

inspected by your Toyota dealer

immediately.

(In this situation, the transmission

will operate in the same manner as

when the shift lever is in D.)

Changing gears in the M
position

151

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

*

: If equipped

■

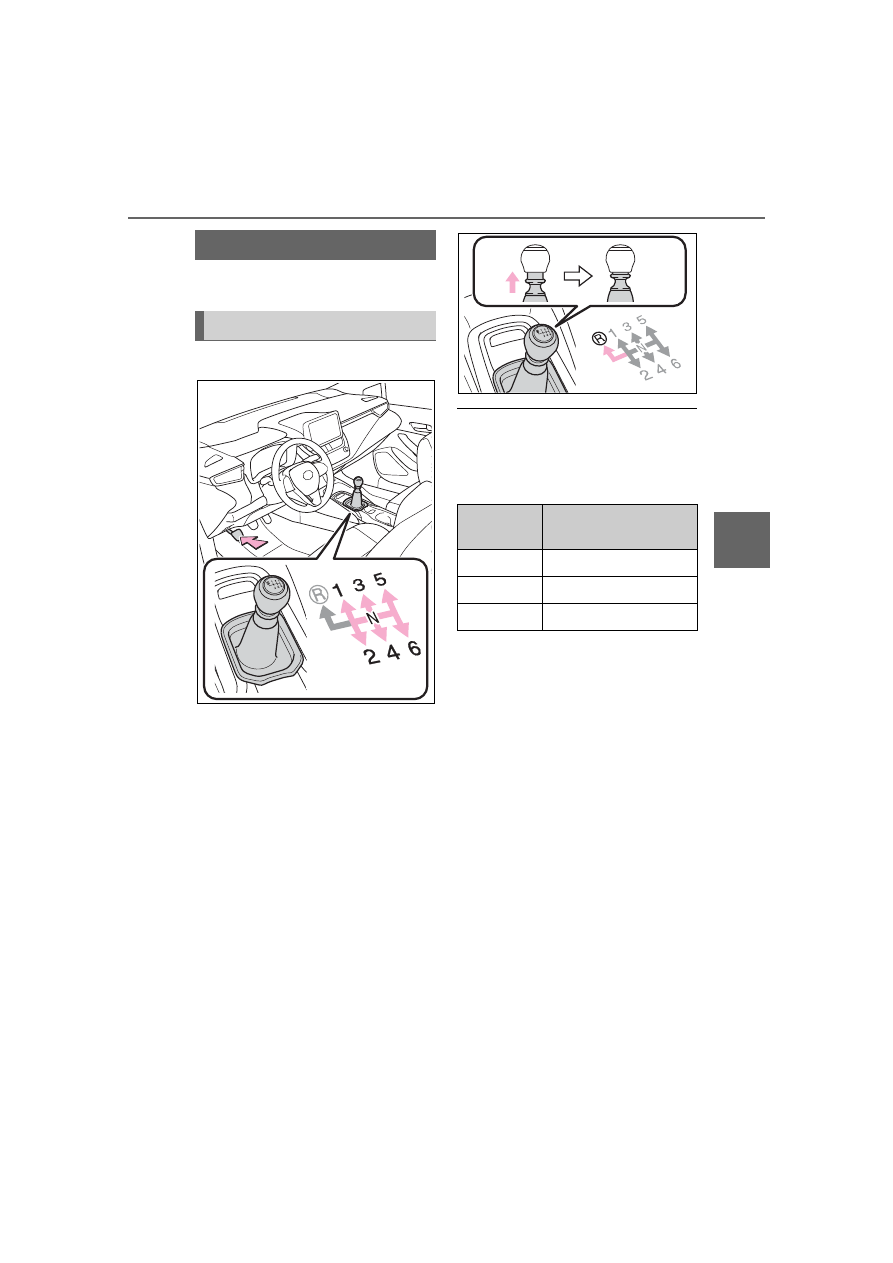

Shifting the shift lever

1

Depress the clutch pedal
firmly.

2

Shift the shift lever to the
desired gear.

Make sure to only shift gears

sequentially.

3

Gradually release the clutch
pedal.

■

Shifting the shift lever to R

Shift the shift lever to R while lift-
ing up the ring section.

■

Maximum allowable speeds

Observe the following maximum

allowable speeds in each gear when

maximum acceleration is necessary.

Manual transmission

*

Operating instructions

Shift posi-

tion

Maximum speed

mph (km/h)

1

34 (56)

2

60 (96)

3

89 (144)

152

4-2. Driving procedures

COROLLA H/B_U

The iMT optimally controls the

engine speed to suit the driver’s
operation of the clutch pedal
and shift lever, helping the driver
to shift gears more smoothly.
Additionally, when the clutch
pedal is operated, the iMT helps
reduce shift shock, allowing for
lighter shift operations when
driving on a winding road or
incline.
Press the “iMT” switch.

The “iMT” indicator will illuminate in
green.
Press the switch again to cancel
iMT.

■

The iMT may not operate when

In the following situations, iMT may

not operate. However, this does not

indicate a malfunction.

●

The clutch pedal is not fully

depressed

●

The clutch pedal is not fully

released, such as if a foot is rest-
ing on the clutch pedal

*

●

Shift operation is performed after

the vehicle has been coasting with

the shift lever in N

●

The shift lever is not operated for

a long time after the clutch pedal

is depressed

*

: After the shift lever is moved,

unless your foot is completely
removed from the clutch pedal,

NOTICE

■

To prevent damage to the

vehicle

When shifting gears, observe the

following precautions. Failure to

do so may cause damage to the

engine, manual transmission,

and/or clutch.

●

Do not shift the shift lever to R

without depressing the clutch

pedal.

●

Do not lift up the ring section

except when shifting the lever to

R.

●

Shift the shift lever to R only

when the vehicle is stationary.

●

Do not rest your hand on or hold

the shift lever any time other

than when shifting.

●

In order to not cause the engine

to overrev, make sure to only

shift gears sequentially.

●

Do not release the clutch pedal

suddenly.

iMT (Intelligent Manual
Transmission)

153

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

the iMT may not operate and the
engine speed may not be con-
trolled optimally for the next gear
change.
To enable the iMT, release the
clutch pedal completely and then
depress it again before operating
the shift lever.

■

If the “iMT” indicator illumi-

nates in amber

The iMT may be temporarily

unavailable or malfunctioning. Have

the vehicle inspected at your Toyota

dealer.

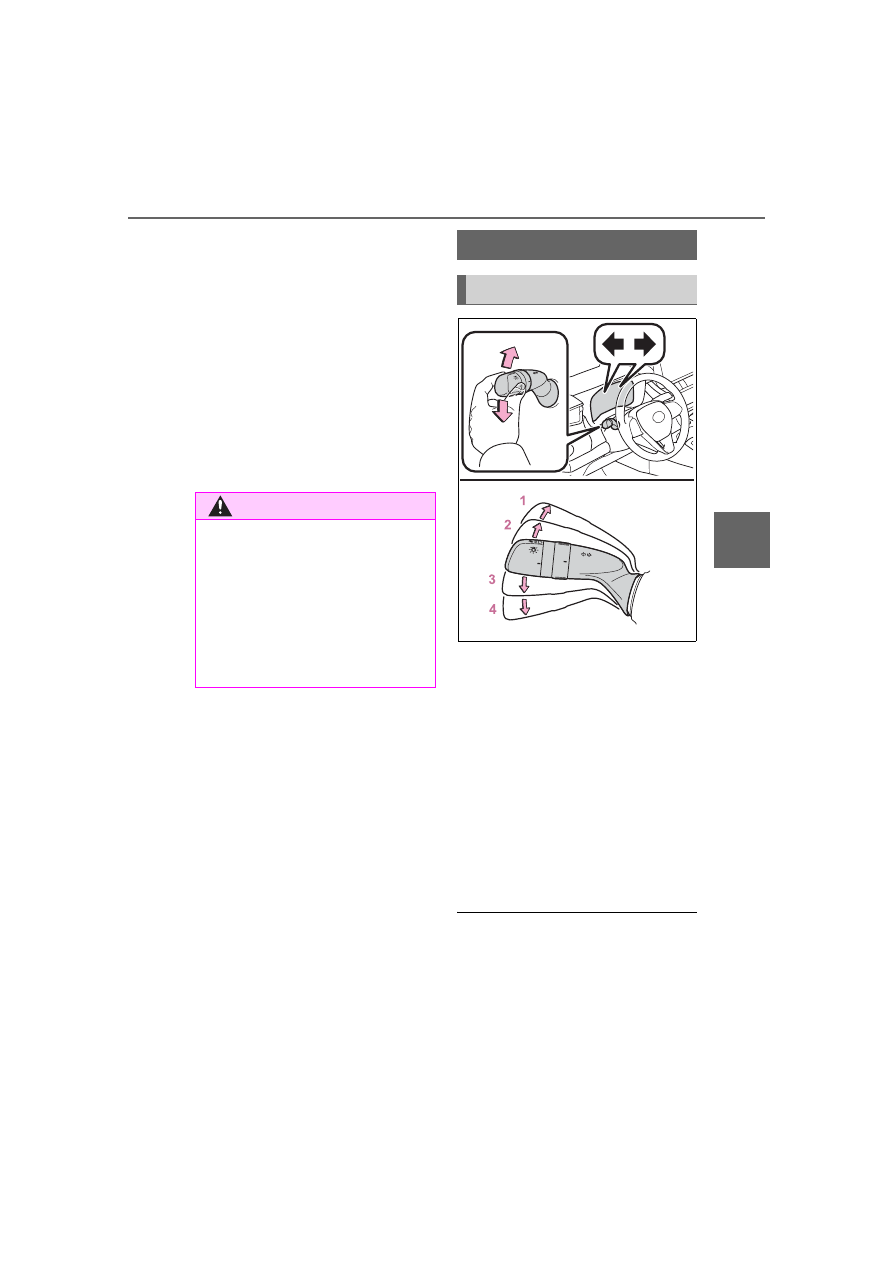

1

Right turn

2

Lane change to the right
(move the lever partway and
release it)

The right hand signals will flash 3
times.

3

Lane change to the left
(move the lever partway and
release it)

The left hand signals will flash 3
times.

4

Left turn

■

Turn signals can be operated

when

The engine switch is in ON.

■

If the indicator flashes faster

than usual

Check that a light bulb in the front or

rear turn signal lights has not

WARNING

■

Limitations of the iMT

iMT is not a system that prevents

shift lever operation error or

engine overrevving.

Depending on the situation, iMT

may not operate normally and the

shift position may not be changed

smoothly. Overly relying on iMT

may cause an unexpected acci-

dent.

Turn signal lever

Operating instructions

154

4-2. Driving procedures

COROLLA H/B_U

burned out.

■

Customization

Some functions can be customized.

(



P.531)

■

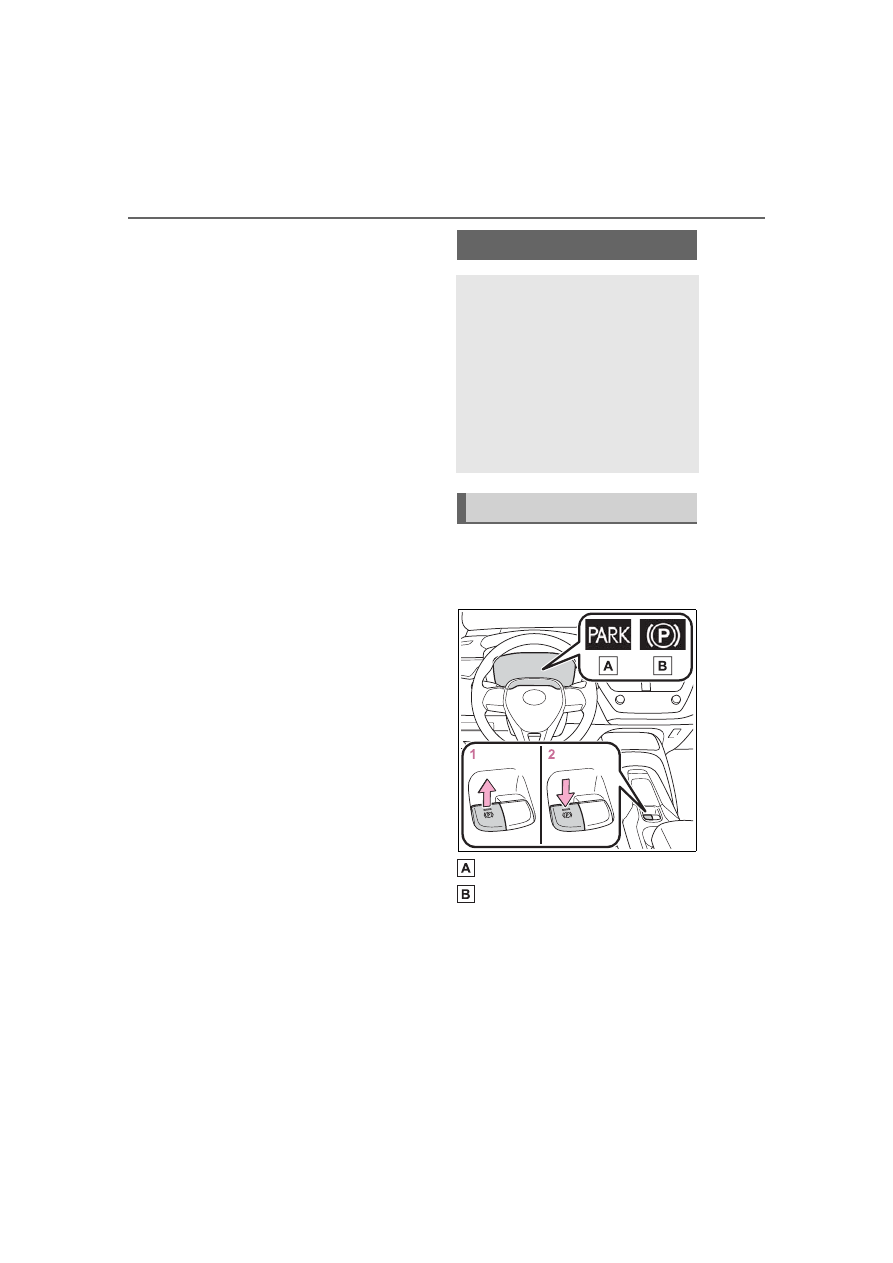

Using the manual mode

The parking brake can be set
and released manually.

U.S.A.
Canada

1

Pull the switch to set the
parking brake

The parking brake indicator light
and parking brake light will turn on.
Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-

Parking brake

The parking brake can be
set or released automati-
cally or manually.

In automatic mode, the
parking brake can be set or
released automatically.
Also, even in automatic
mode, the parking brake can
be set or released manually.

Operating instructions

155

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

ing brake while driving.

2

Push the switch to release
the parking brake

• Operate the parking brake switch

while depressing the brake pedal.

• Using the parking brake auto-

matic release function, the park-
ing brake can be released by
depressing the accelerator pedal.
When using this function, slowly
depress the accelerator pedal.

Make sure that the parking brake
indicator light and parking brake
light turn off.

■

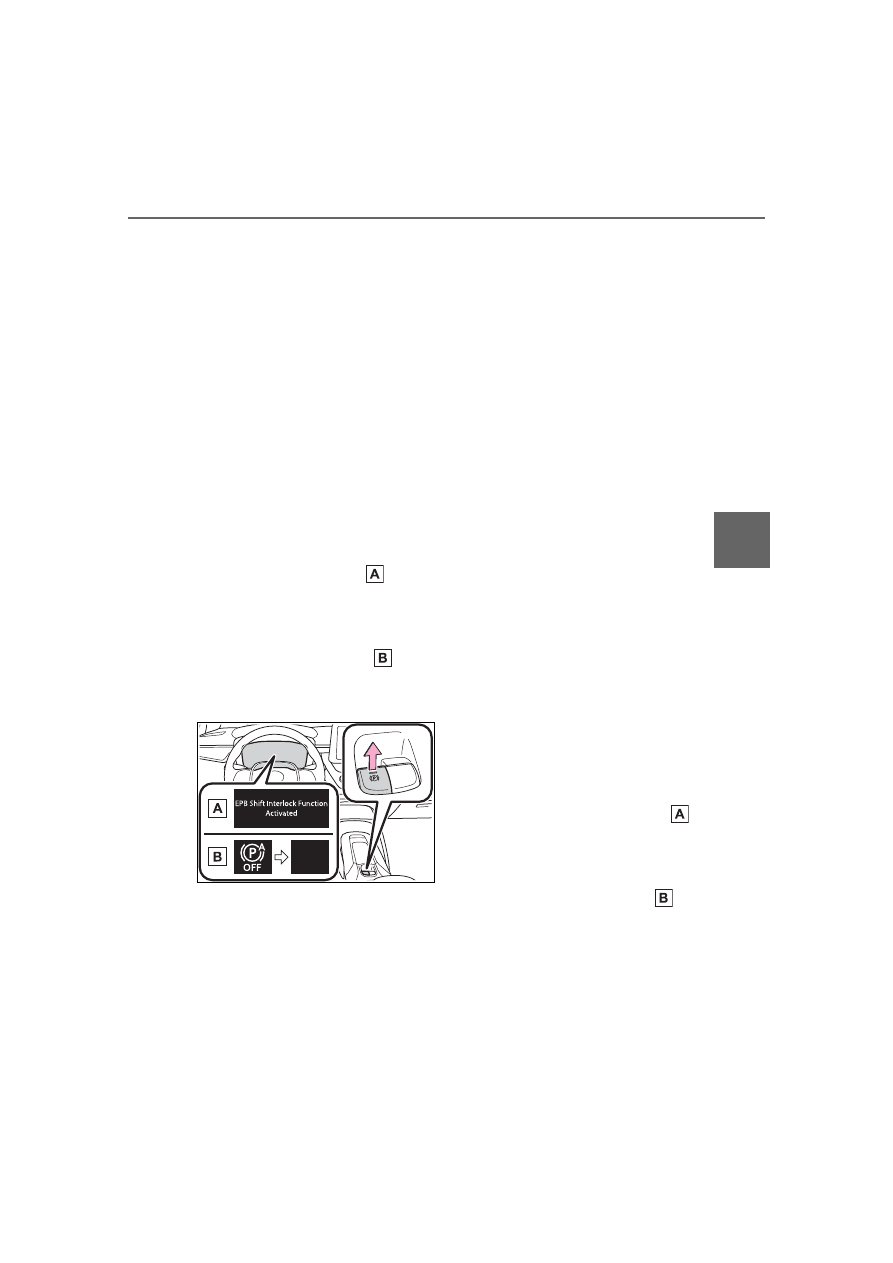

Turning automatic mode on

While the vehicle is stopped,
pull and hold the parking brake
switch until a message   is
shown on the multi-information
display (vehicles with a continu-
ously variable transmission) or
auto EPB OFF indicator   turn
off (vehicles with a manual
transmission)

When the automatic mode is
turned on, the parking brake
operates as follows.



Vehicles with a continuously
variable transmission



When the shift lever is moved
out of P, the parking brake will

be released, and the parking
brake indicator light and park-
ing brake light will turn off.



When the shift lever is moved
into P, the parking brake will
be set, and the parking brake
indicator light and parking
brake light will turn on.

Operate the shift lever with the
vehicle stopped and the brake
pedal depressed.

The parking brake may not operate
automatically if the shift lever is
moved quickly.
In this case, it is necessary to oper-
ate the parking brake switch.
(



P.154)



Vehicles with a manual trans-
mission

When the engine is off, the park-
ing brake will be set, and the
parking brake indicator light and
parking brake light turn on.

■

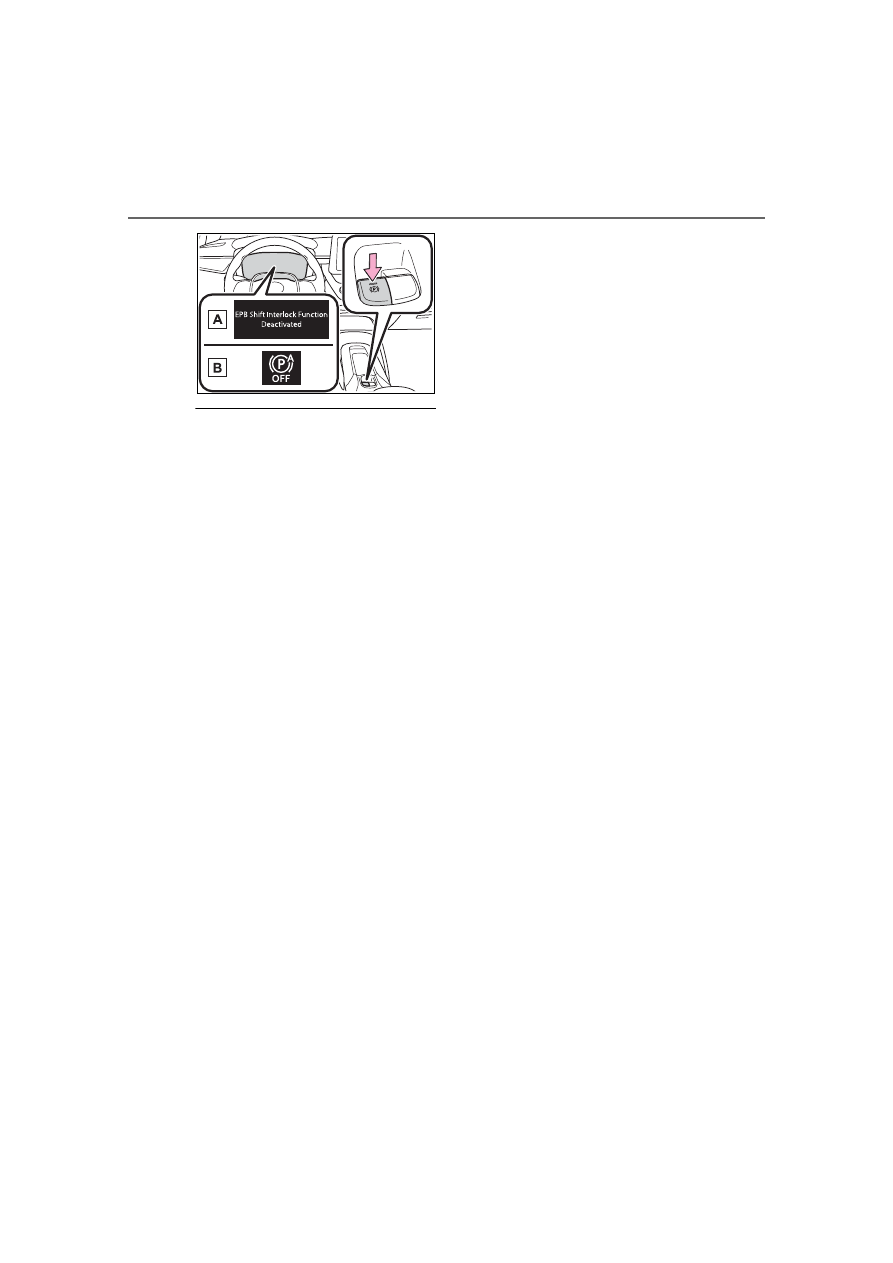

Turning automatic mode off

While the vehicle is stopped and
depressing the brake pedal,
press and hold the parking
brake switch until a message
is shown on the multi-informa-
tion display (vehicles with a con-
tinuously variable transmission)
or auto EPB OFF indicator
comes on (vehicles with a man-
ual transmission)

156

4-2. Driving procedures

COROLLA H/B_U

■

Parking brake operation

●

When the engine switch is not in

ON, the parking brake cannot be

released using the parking brake

switch.

●

When the engine switch is not in

ON, automatic mode (automatic

brake setting and releasing [vehi-

cles with a continuously variable

transmission]) is not available.

■

Parking brake automatic

release function

The parking brake is automatically

released when slowly depress the

accelerator pedal.

The parking brake will be released

automatically under the following

conditions:

●

The driver’s door is closed

●

The driver is wearing the seat belt

●

The shift lever is a forward or

reverse position.

●

The malfunction indicator light or

brake system warning light is not

illuminated.

If the automatic release function

does not operate, manually release

the parking brake.

■

If “Parking Brake Temporarily

Unavailable” is displayed on

the multi-information display

If the parking brake is operated

repeatedly over a short period of

time, the system may restrict opera-

tion to prevent overheating. If this

happens, refrain from operating the

parking brake. Normal operation will

return after about 1 minute.

■

If “Parking Brake Unavailable”

is displayed on the multi-infor-

mation display

Operate the parking brake switch. If

the message does not disappear

after operating the switch several

times, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

■

Parking brake operation sound

When the parking brake operates, a

motor sound (whirring sound) may

be heard. This does not indicate a

malfunction.

■

Parking brake operation

●

Depending on the engine switch

mode, the parking brake indicator

light and parking brake light will

turn on and stay on as described

below:

ON: Comes on until the parking

brake is released.

Not in ON: Stays on for approxi-

mately 15 seconds.

●

When the engine switch is turned

off with the parking brake set, the

parking brake indicator light and

parking brake light will stay on for

about 15 seconds. This does not

indicate a malfunction.

■

When the parking brake switch

malfunctions

Automatic mode (automatic brake

setting and releasing) will be turned

on automatically.

■

Parking the vehicle



P.130

■

Parking brake engaged warning

buzzer

A buzzer will sound if the vehicle is

driven with the parking brake

engaged. “Parking Brake ON” is dis-

played on the multi-information dis-

play.

157

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

■

If the brake system warning

light comes on



P.468

■

Usage in winter time



P.246

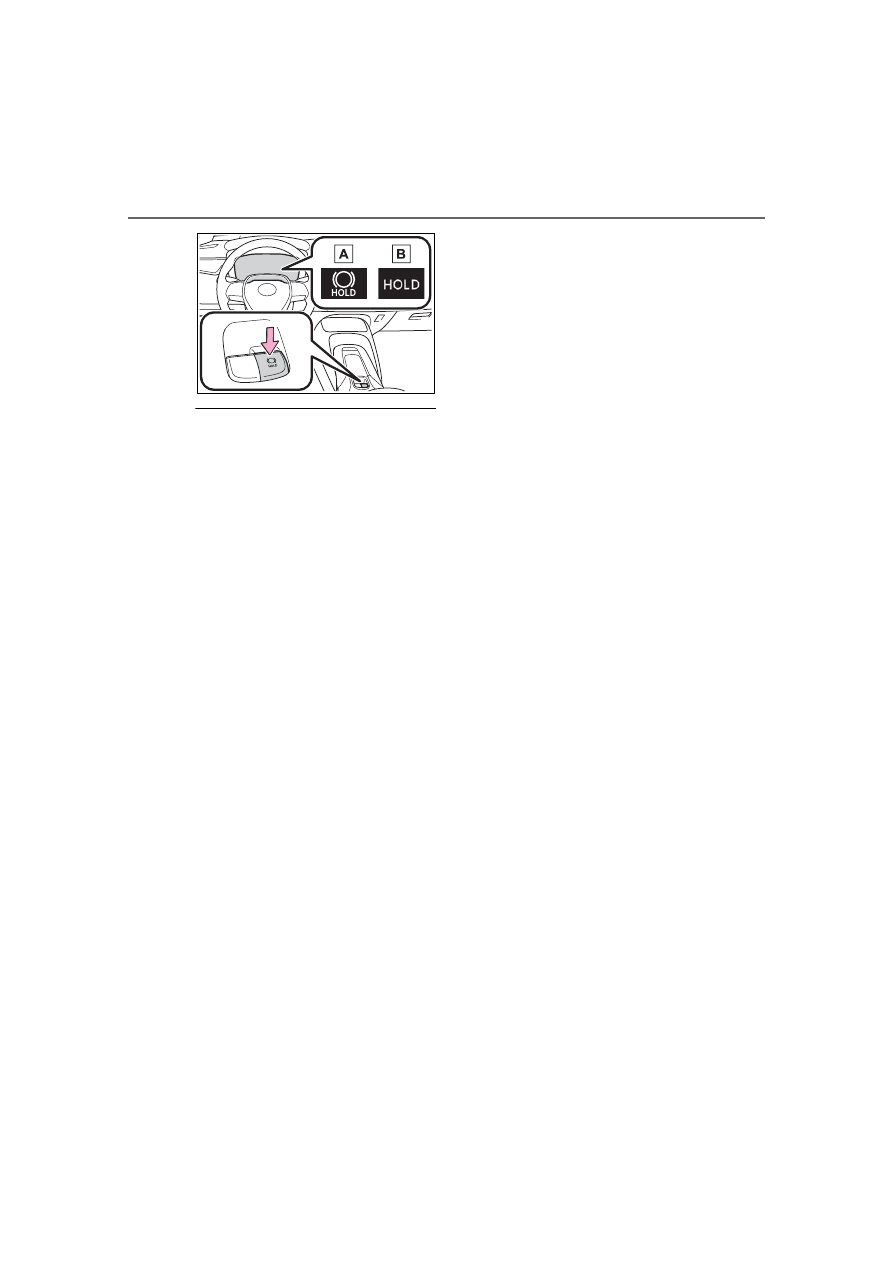

Turn the brake hold system on

The brake hold standby indicator
(green)

 comes on. While the

system is holding the brake, the
brake hold operated indicator (yel-
low)

 comes on.

WARNING

■

When parking the vehicle

Do not leave a child in the vehicle

alone. The parking brake may be

released unintentionally and there

is the danger of the vehicle mov-

ing that may lead to an accident

resulting in death or serious injury.

■

Parking brake switch

Do not set any objects near the

parking brake switch.

Objects may interfere with the

switch and may lead the parking

brake to unexpectedly operate.

NOTICE

■

When parking the vehicle

Before you leave the vehicle, set

the parking brake, shift the shift

lever to P (continuously variable

transmission) or N (manual trans-

mission) and make sure that the

vehicle does not move.

■

When the system malfunc-

tions

Stop the vehicle in a safe place

and check the warning messages.

■

When the parking brake can-

not be released due to a mal-

function

Driving the vehicle with the park-

ing brake set will lead to brake

components overheating, which

may affect braking performance

and increase brake wear.
Have the vehicle inspected by

your Toyota dealer immediately if

this occurs.

Brake Hold



Continuously variable trans-
mission

The brake hold system keeps the
brake applied when the shift lever
is in D, M or N with the system on
and the brake pedal has been
depressed to stop the vehicle.
The system releases the brake
when the accelerator pedal is
depressed with the shift lever in
D or M to allow smooth start off.



Manual transmission

The brake hold system keeps the
brake applied when the shift lever
is in a forward driving position or
N with the system on and the
brake pedal has been depressed
to stop the vehicle. The system
releases the brake when the
accelerator pedal is depressed
with the shift lever in a forward
driving position to allow smooth
start off.

Enabling the system

158

4-2. Driving procedures

COROLLA H/B_U

■

Brake hold system operating

conditions

The brake hold system cannot be

turned on in the following condi-

tions:

●

The driver’s door is not closed.

●

The driver is not wearing the seat

belt.

If any of the conditions above are

detected when the brake hold sys-

tem is enabled, the system will turn

off and the brake hold standby indi-

cator light will go off. In addition, if

any of the conditions are detected

while the system is holding the

brake, a warning buzzer will sound

and a message will be shown on the

multi-information display. The park-

ing brake will then be set automati-

cally.

■

Brake hold function

●

If the brake pedal is left released

for a period of about 3 minutes

after the system has started hold-

ing the brake, the parking brake

will be set automatically. In this

case, a warning buzzer sounds

and a message is shown on the

multi-information display.

●

To turn the system off while the

system is holding the brake, firmly

depress the brake pedal and

press the button again.

●

The brake hold function may not

hold the vehicle when the vehicle

is on a steep incline. In this situa-

tion, it may be necessary for the

driver to apply the brakes. A warn-

ing buzzer will sound and the

multi-information display will

inform the driver of this situation. If

a warning message is shown on

the multi-information display, read

the message and follow the

instructions.

■

When the parking brake is set

automatically while the system

is holding the brakes

Perform any of the following opera-

tions to release the parking brake.

●

Depress the accelerator pedal.

(The parking brake will not be

released automatically if the seat

belt is not fastened.)

●

Operate the parking brake switch

with the brake pedal depressed.

Make sure that the parking brake

indicator light goes off. (



P.154)

■

When an inspection at your

Toyota dealer is necessary

When the brake hold standby indi-

cator (green) does not illuminate

even when the brake hold switch is

pressed with the brake hold system

operating conditions met, the sys-

tem may be malfunctioning. Have

the vehicle inspected at your Toyota

dealer.

■

If “Brake Hold Malfunction

Press Brake to Deactivate Visit

Your Dealer” or “Brake Hold

Malfunction Visit Your Dealer”

is displayed on the multi-infor-

mation display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Warning messages and buzzers

Warning messages and buzzers are

used to indicate a system malfunc-

tion or to inform the driver of the

need for caution. If a warning mes-

sage is shown on the multi-informa-

tion display, read the message and

follow the instructions.

159

4-2. Driving procedures

COROLLA H/B_U

4

Dr

iv

ing

■

If the brake hold operated indi-

cator flashes



P.474

WARNING

■

When the vehicle is on a

steep incline

When using the brake hold sys-

tem on a steep incline exercise

caution. The brake hold function

may not hold the vehicle in such a

situation.

■

When stopped on a slippery

road

The system cannot stop the vehi-

cle when the gripping ability of the

tires has been exceeded. Do not

use the system when stopped on

a slippery road.

NOTICE

■

When parking the vehicle

The brake hold system is not

designed for use when parking

the vehicle for a long period of

time. Turning the engine switch off

while the system is holding the

brake may release the brake,

which would cause the vehicle to

move. When operating the engine

switch, depress the brake pedal,

shift the shift lever to P (continu-

ously variable transmission) or N

(manual transmission) and set the

parking brake.

160

4-3. Operating the lights and wipers

COROLLA H/B_U

4-3.Operating the lights and wipers

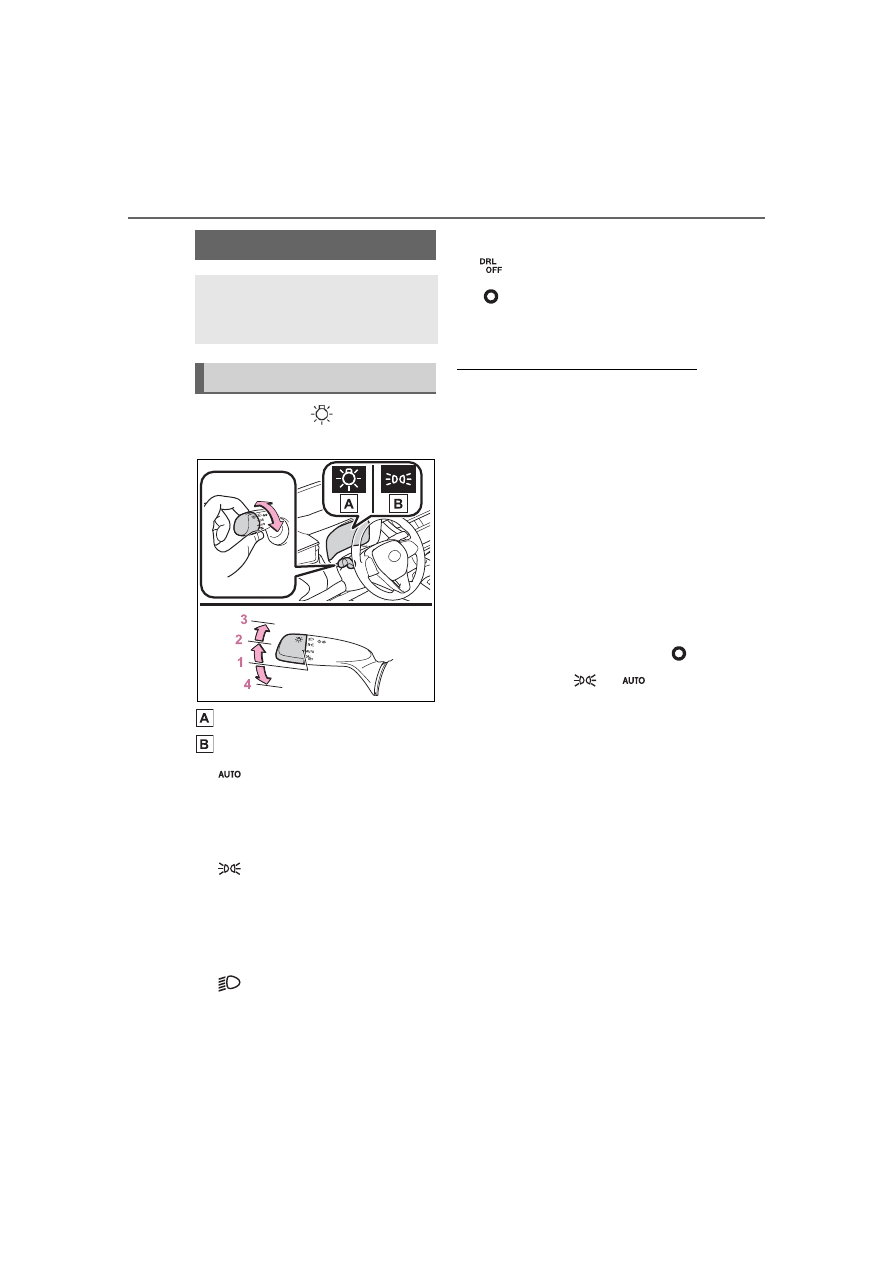

Operating the

 switch

turns on the lights as follows:

U.S.A.
Canada

1

 The headlights, daytime

running lights (



P.160) and

all the lights listed above turn
on and off automatically.

2

 The side marker, park-

ing, tail, license plate, instru-
ment panel lights, and
daytime running lights
(



P.160) turn on.

3

The headlights and all

lights listed above (except
daytime running lights) turn

on.

4

 (U.S.A.) Off

 (Canada) The daytime

running lights turn on.
(



P.160)

■

AUTO mode can be used when

The engine switch is in ON.

■

Daytime running light system

●

The daytime running lights illumi-

nate using the same lights as the

headlights and illuminate darker

than the headlights.

●

To make your vehicle more visible

to other drivers during daytime

driving, the daytime running lights

turn on automatically when all of

the following conditions are met.

(The daytime running lights are

not designed for use at night.)

• The engine is running

• The parking brake is released
• The headlight switch is in the

(Canada only),

 or

*

posi-

tion

*

: When the surroundings are bright

The daytime running lights remain

on after they illuminate, even if the

parking brake is set again.

●

For the U.S.A.: Daytime running

lights can be turned off by operat-

ing the switch.

●

Compared to turning on the head-

lights, the daytime running light

system offers greater durability

and consumes less electricity, so

it can help improve fuel economy.

Headlight switch

The headlights can be oper-
ated manually or automati-
cally.

Operating instructions

161

4-3. Operating the lights and wipers

COROLLA H/B_U

4

Dr

iv

ing

■

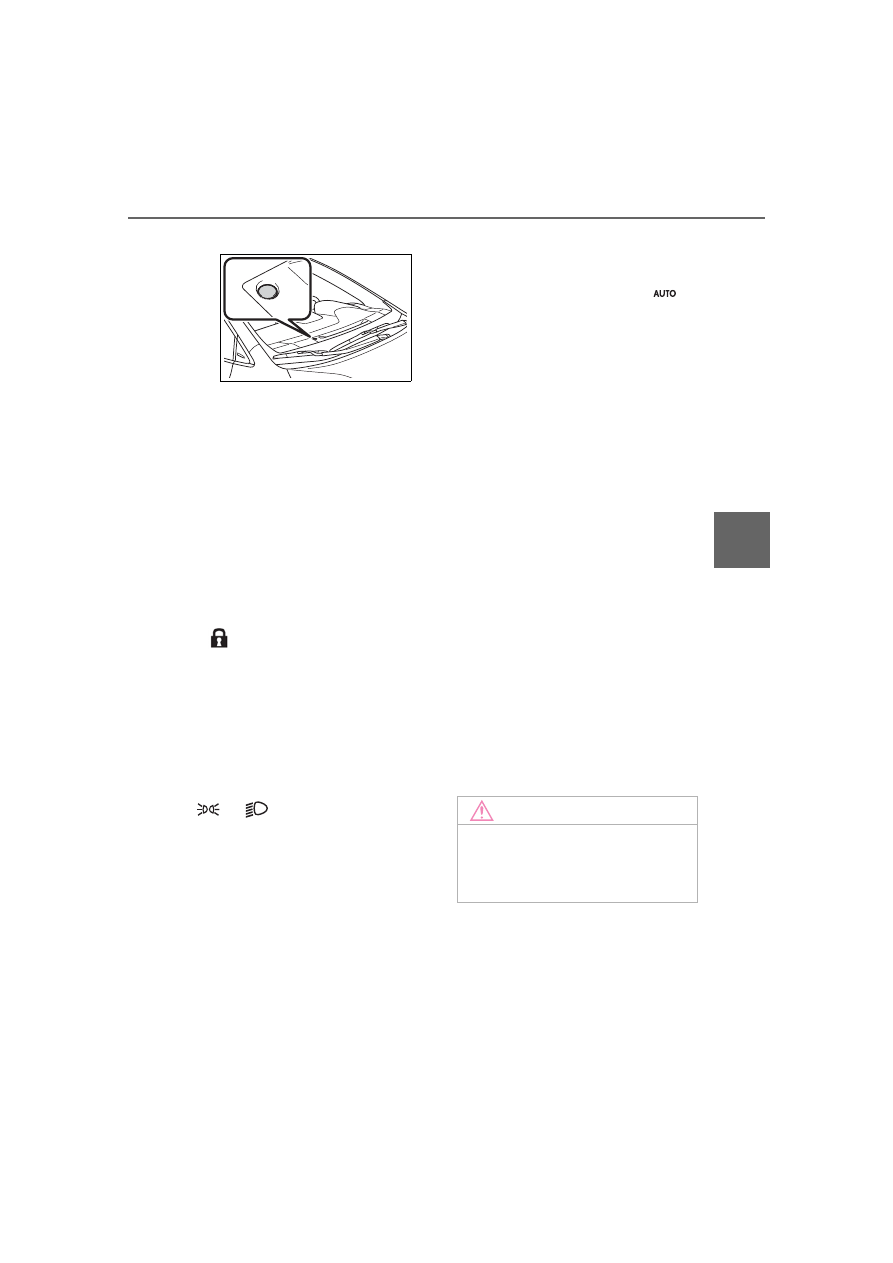

Headlight control sensor

The sensor may not function prop-

erly if an object is placed on the sen-

sor, or anything that blocks the

sensor is affixed to the windshield.

Doing so interferes with the sensor

detecting the level of ambient light

and may cause the automatic head-

light system to malfunction.

■

Automatic light off system

●

When the headlights are on: The

headlights and tail lights turn off

30 seconds after the driver’s door

is opened and closed if the engine

switch is turned to ACC or OFF.

(The lights turn off immediately if

 on the key is pressed after all

the doors are closed.)

●

When only the tail lights are on:

The tail lights turn off automati-

cally if the engine switch is turned

to ACC or OFF and the driver’s

door is opened.

To turn the lights on again, turn the

engine switch to ON, or turn the light

switch off once and then back to

 or

.

■

Light reminder buzzer

A buzzer sounds when the engine

switch is turned to OFF or ACC and

the driver’s door is opened while the

lights are turned on.

■

Automatic headlight leveling

system (if equipped)

The level of the headlights is auto-

matically adjusted according to the

number of passengers and the load-

ing condition of the vehicle to

ensure that the headlights do not

interfere with other road users.

■

Windshield wiper linked head-

light illumination

When driving during daytime with
the headlight switch turned to

, if

the windshield wipers are used, the

headlights will turn on automatically

after several seconds to help

enhance the visibility of your vehi-

cle.

■

Battery-saving function

In order to prevent the battery of the

vehicle from discharging, if the

headlights and/or tail lights are on

when the engine switch is turned off

the battery saving function will oper-

ate and automatically turn off all the

lights after approximately 20 min-

utes. When the engine switch is

turned to ON, the battery-saving

function will be disabled.

When any of the following are per-

formed, the battery-saving function

is canceled once and then reacti-

vated. All the lights will turn off auto-

matically 20 minutes after the

Battery- saving function has been

reactivated:

●

When the headlight switch is oper-

ated

●

When a door is opened or closed

■

Customization

Some functions can be customized.

(



P.531)

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer

than necessary when the engine

is not running.

162

4-3. Operating the lights and wipers

COROLLA H/B_U

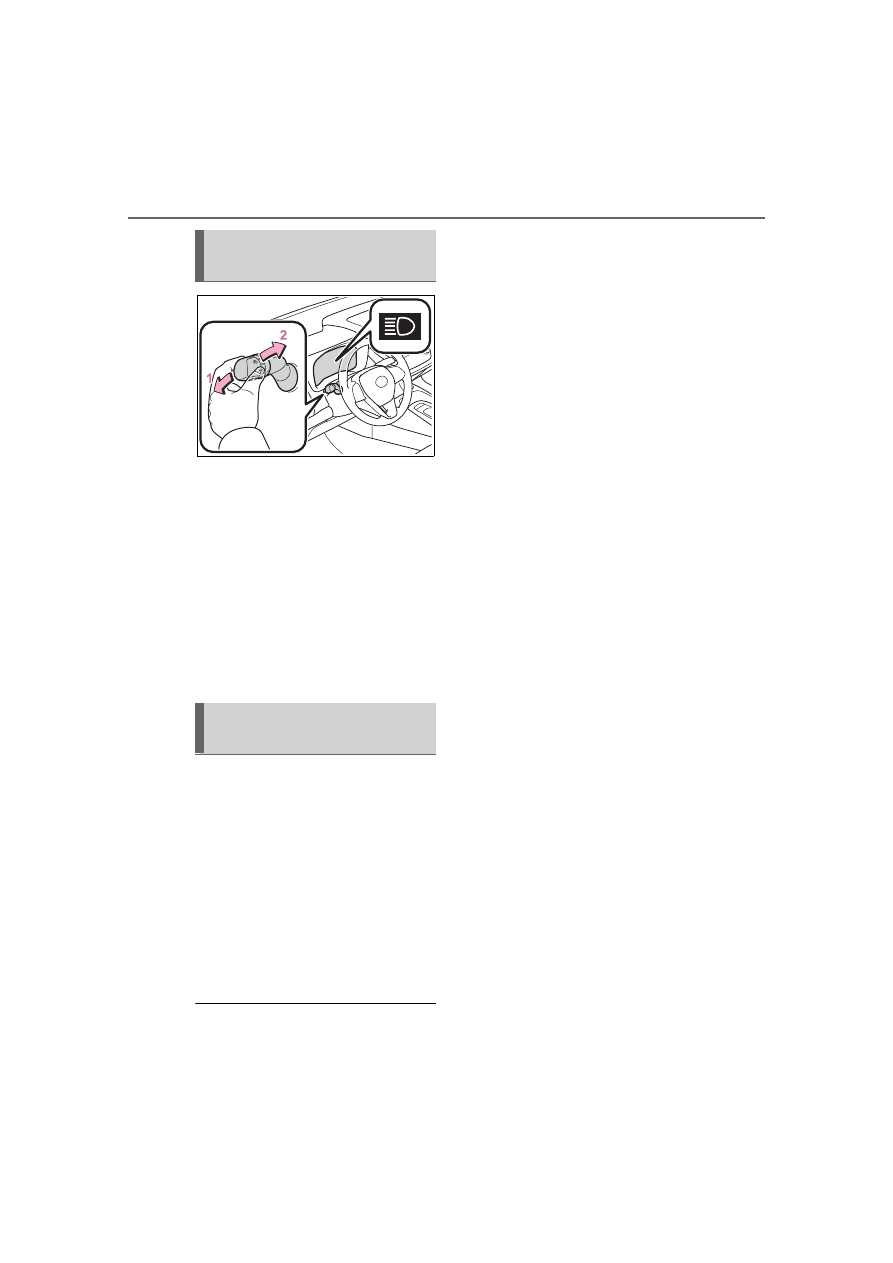

1

With the headlights on, push
the lever away from you to
turn on the high beams.

Pull the lever toward you to the
center position to turn the high
beams off.

2

Pull the lever toward you and
release it to flash the high
beams once.

You can flash the high beams with
the headlights on or off.

AFS (Adaptive Front-lighting
System) secures excellent visi-
bility at intersections and on
curves by automatically adjust-
ing the direction of the light axis
of the headlights according to
vehicle speed and the degree of
the tire’s angle as controlled by
steering input.

AFS operates at speeds of approxi-
mately 6 mph (10 km/h) or higher.

■

Customization

Some functions can be customized.

(



P.531)

Turning on the high beam
headlights

AFS (Adaptive Front-light-
ing System) (if equipped)

163

4-3. Operating the lights and wipers

COROLLA H/B_U

4

Dr

iv

ing

*

: If equipped

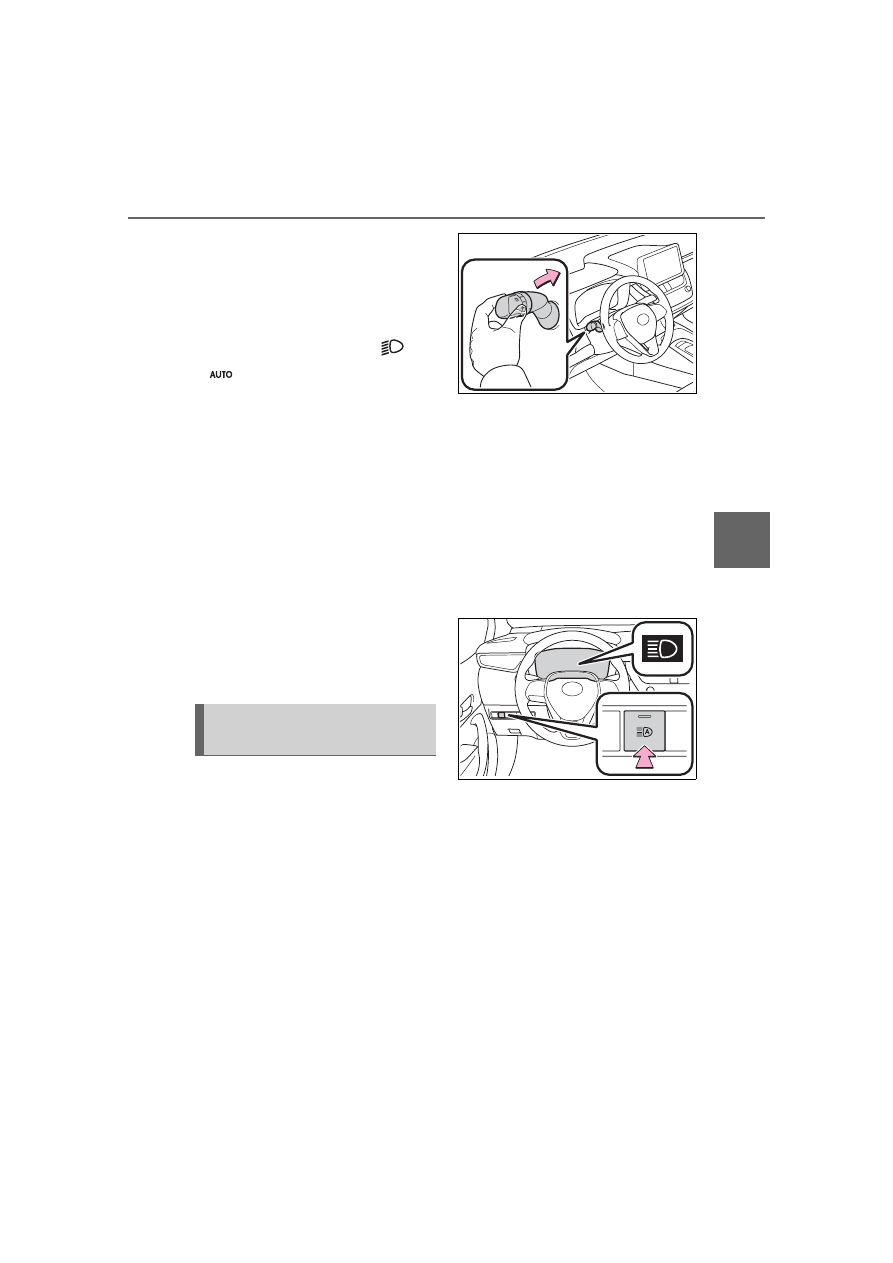

1

Press the Automatic High
Beam switch.

2

Push the lever away from
you with the headlight switch

in the

 or

 position.

The Automatic High Beam indicator

will come on when the system is

operating.

■

Conditions to turn the high

beams on/off automatically

●

When all of the following condi-

tions are met, the high beams will

be turned on automatically (after

approximately 1 second):

• The vehicle speed is approxi-

mately 21 mph (34 km/h) or more.

• The area ahead of the vehicle is

dark.

• There are no vehicles ahead with

headlights or tail lights turned on.

• There are few streetlights on the

road ahead.

●

If any of the following conditions

are met, the high beams will turn

off automatically:

• The vehicle speed is below

approximately 17 mph (27 km/h).

• The area ahead of the vehicle is

not dark.

• Vehicles ahead have their head-

lights or tail lights turned on.

• There are many streetlights on the

road ahead.

■

Camera sensor detection infor-

mation

●

The high beams may not be auto-

matically turned off in the following

situations:

• When a vehicle suddenly appears

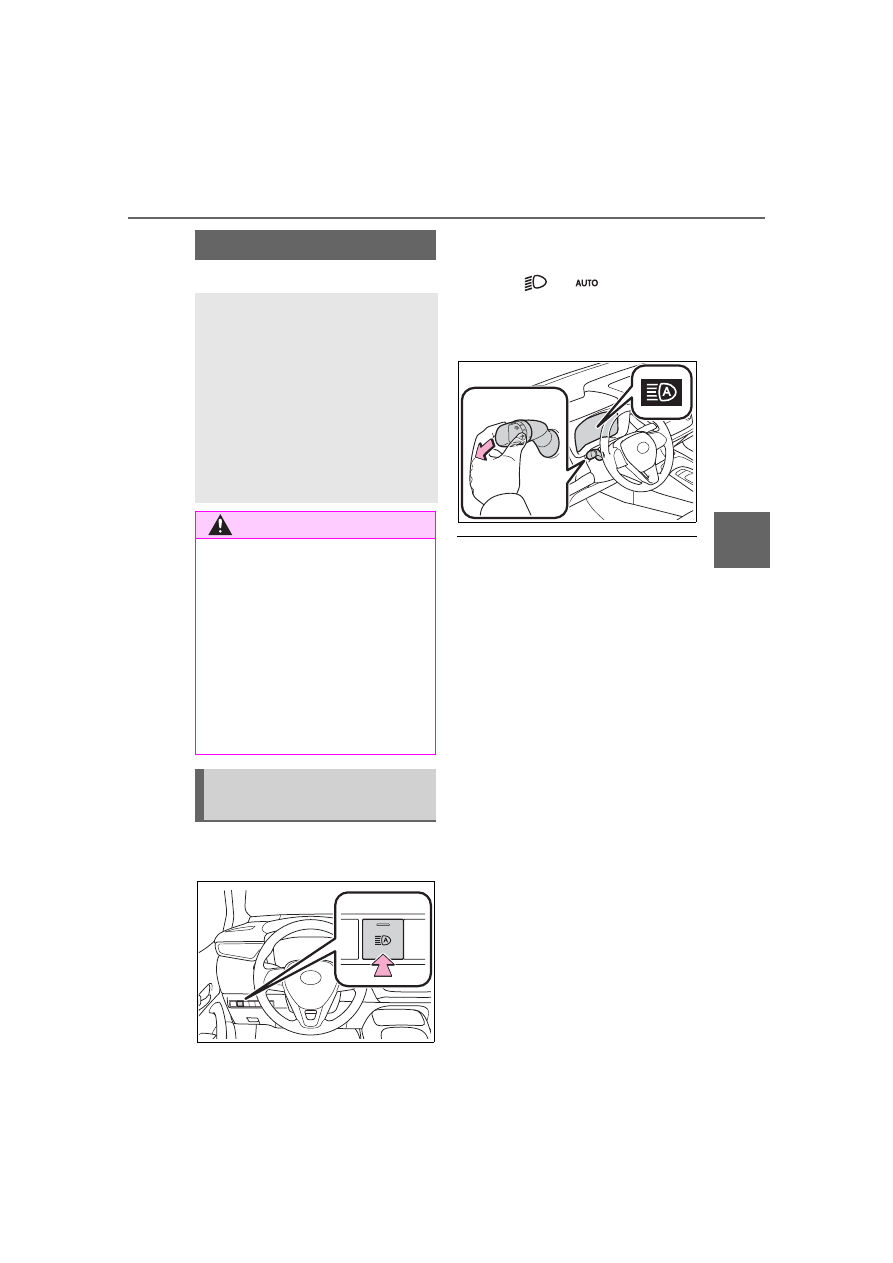

Automatic High Beam

*

The Automatic High Beam
uses a camera sensor
located behind the upper
portion of the windshield to
assess the brightness of the
lights of vehicles ahead,
streetlights, etc., and auto-
matically turns the high
beams on or off as neces-
sary.

WARNING

■

Limitations of the Automatic

High Beam

Do not overly rely on the Auto-

matic High Beam. Always drive

safely, taking care to observe your

surroundings and turning the high

beams on or off manually if nec-

essary.

■

To prevent incorrect opera-

tion of the Automatic High

Beam system

Do not overload the vehicle.

Activating the Automatic
High Beam

164

4-3. Operating the lights and wipers

COROLLA H/B_U

from around a curve

• When the vehicle is cut in front of

by another vehicle

• When vehicles ahead cannot be

detected due to repeated curves,

road dividers or roadside trees

• When vehicles ahead appear in a

faraway lane on a wide road

• When the lights of vehicles ahead

are not on

●

The high beams may be turned off

if a vehicle ahead that is using fog

lights without its headlights turned

on is detected.

●

House lights, street lights, traffic

signals, and illuminated billboards

or signs and other reflective

objects may cause the high

beams to change to the low

beams, or the low beams to

remain on.

●

The following factors may affect

the amount of time taken for the

high beams to turn on or off:

• The brightness of the headlights,

fog lights, and tail lights of vehi-

cles ahead

• The movement and direction of

vehicles ahead

• When a vehicle ahead only has

operational lights on one side

• When a vehicle ahead is a

two-wheeled vehicle

• The condition of the road (gradi-

ent, curve, condition of the road

surface, etc.)

• The number of passengers and

amount of luggage in the vehicle

●

The high beams may turn on or off

unexpectedly.

●

Bicycles or similar vehicles may

not be detected.

●

In the following situations the sys-

tem may not be able to correctly

detect the surrounding brightness

level. This may cause the low

beams to remain on or the high

beams to flash or dazzle pedestri-

ans or vehicles ahead. In such a

case, it is necessary to manually

switch between the high and low

beams.

• When driving in inclement weather

(heavy rain, snow, fog, sand-

storms, etc.)

• When the windshield is obscured

by fog, mist, ice, dirt, etc.

• When the windshield is cracked or

damaged

• When the camera sensor is

deformed or dirty

• When the temperature of the cam-

era sensor is extremely high

• When the surrounding brightness

level is equal to that of headlights,

tail lights or fog lights

• When headlights or tail lights of

vehicles ahead are turned off,

dirty, changing color, or not aimed

properly

• When the vehicle is hit by water,

snow, dust, etc. from a preceding

vehicle

• When driving through an area of

intermittently changing brightness

and darkness

• When frequently and repeatedly

driving ascending/descending

roads, or roads with rough, bumpy

or uneven surfaces (such as

stone-paved roads, gravel roads,

etc.)

• When frequently and repeatedly

taking curves or driving on a wind-

ing road

• When there is a highly reflective

object ahead of the vehicle, such

as a sign or mirror

• When the back of a preceding

vehicle is highly reflective, such as

a container on a truck

• When the vehicle’s headlights are

damaged or dirty, or are not aimed

properly

• When the vehicle is listing or titling

due to a flat tire, a trailer being

towed, etc.

• When the headlights are changed

between the high beams and low

beams repeatedly in an abnormal

manner

• When the driver believes that the

high beams may be flashing or

dazzling pedestrians or other driv-

ers

165

4-3. Operating the lights and wipers

COROLLA H/B_U

4

Dr

iv

ing

■

Temporarily lowering sensor

sensitivity

The sensitivity of the sensor can be

temporarily lowered.

1

Turn the engine switch off while

the following conditions are met.

●

The headlight switch is in

 or

.

●

The headlight switch lever is in

high beam position.

●

Automatic High Beam switch is

on.

2

Turn the engine switch to ON.

3

Within 30 seconds after step

2

,

repeat pulling the headlight

switch lever to the original posi-

tion then pushing it to the high

beam position quickly 10 times,

then leave the lever in high beam

position.

4

If the sensitivity is changed, the

Automatic High Beam indicator

is turn on and off 3 times.

Automatic High Beam (headlights)

may turn on even when the vehicle

is stopped.

■

Switching to the low beams

Pull the lever to its original posi-
tion.

The Automatic High Beam indicator
will turn off.
Push the lever away from you to
activate the Automatic High Beam
system again.

■

Switching to the high
beams

Press the Automatic High Beam
switch.

The Automatic High Beam indicator
will turn off and the high beam indi-
cator will turn on.
Press the switch to activate the
Automatic High Beam system
again.

Turning the high beams
on/off manually

166

4-3. Operating the lights and wipers

COROLLA H/B_U

*

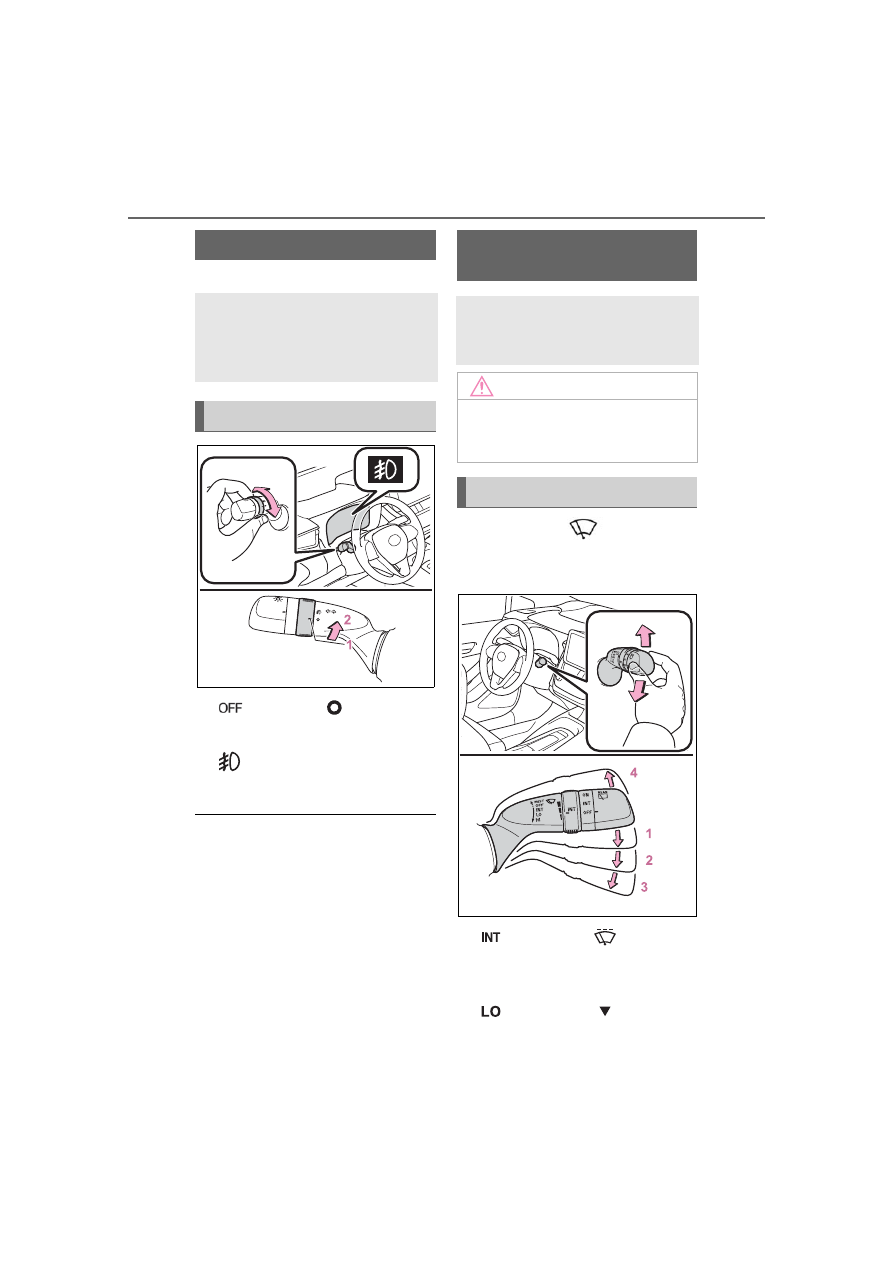

: If equipped

1

(U.S.A) or

(Canada)

Turns the front fog lights off

2

 Turns the front fog lights

on

■

Fog lights can be used when

The headlights are on in low beam.

Operating the

 lever oper-

ates the wipers or washer as fol-
lows.

1

 (U.S.A.) or

 (Canada)

Intermittent windshield wiper
operation

2

 (U.S.A.) or

 (Canada)

Low speed windshield wiper

Fog light switch

*

The fog lights secure excel-
lent visibility in difficult driv-
ing conditions, such as in
rain and fog.

Operating instructions

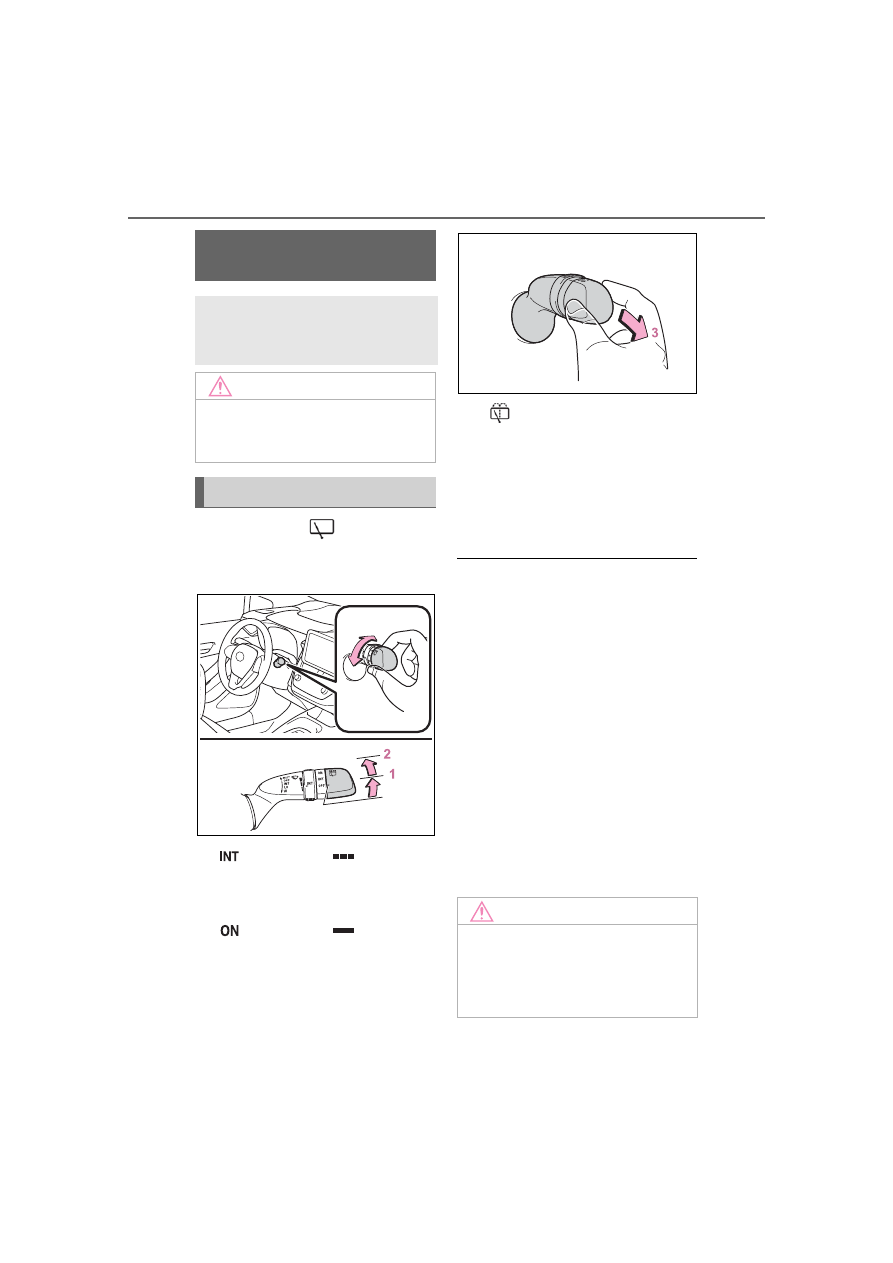

Windshield wipers and

washer

Operating the lever can use
the windshield wipers or the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they

may damage the windshield.

Operating the wiper lever

167

4-3. Operating the lights and wipers

COROLLA H/B_U

4

Dr

iv

ing

operation

3

 (U.S.A.) or

 (Canada)

High speed windshield wiper
operation

4

 (U.S.A.) or

 (Canada)

Temporary operation

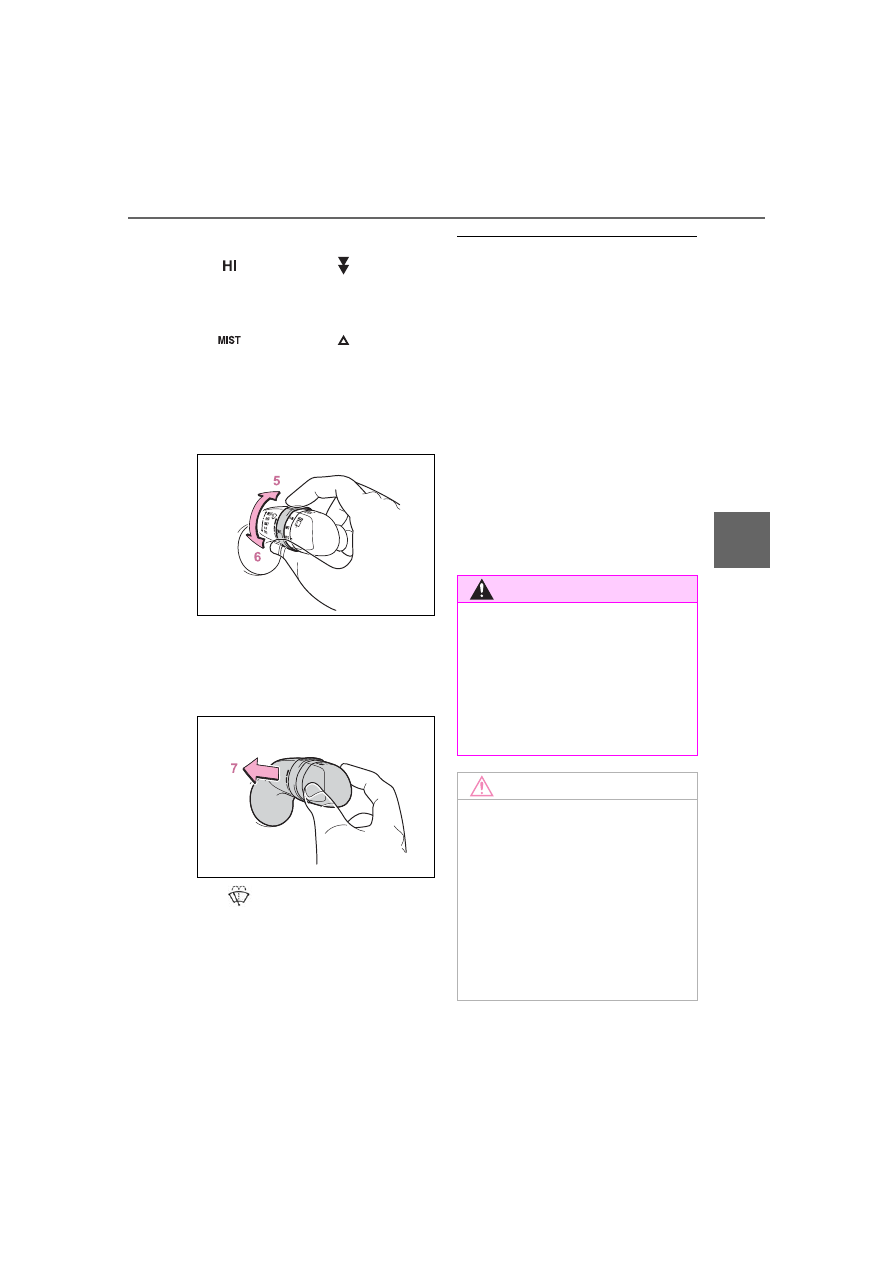

Wiper intervals can be adjusted
when intermittent operation is
selected.

5

Increases the intermittent
windshield wiper frequency

6

Decreases the intermittent
windshield wiper frequency

7

Washer/wiper dual

operation

Pulling the lever operates the wip-
ers and washer.
Wipers will automatically operate a
couple of times after the washer
squirts.

■

The windshield wiper and

washer can be operated when

The engine switch is in ON.

■

If no windshield washer fluid

sprays

Check that the washer nozzles are

not blocked if there is washer fluid in

the windshield washer fluid reser-

voir.

■

When stopping the engine in an

emergency while driving

If the windshield wipers are operat-

ing when the engine is stopped, the

windshield wipers will operate in

high speed operation. After the vehi-

cle is stopped, operation will return

to normal when the engine switch is

turned to ON, or operation will stop

when the driver’s door is opened.

WARNING

■

Caution regarding the use of

washer fluid

When it is cold, do not use the

washer fluid until the windshield

becomes warm. The fluid may

freeze on the windshield and

cause low visibility. This may lead

to an accident, resulting in death

or serious injury.

NOTICE

■

When the washer fluid tank is

empty

Do not operate the switch continu-

ally as the washer fluid pump may

overheat.

■

When a nozzle becomes

blocked

In this case, contact your Toyota

dealer. Do not try to clear it with a

pin or other object. The nozzle will

be damaged.

168

4-3. Operating the lights and wipers

COROLLA H/B_U

Operating the

 switch

operates the rear wiper as fol-
lows:

1

 (U.S.A.) or

 (Canada)

Intermittent window wiper
operation

2

 (U.S.A.) or

 (Canada)

Normal window wiper opera-
tion

3

Washer/wiper dual

operation

Pushing the lever operates the
wiper and washer.
The wiper will automatically operate
a couple of times after the washer
squirts.

■

The rear window wiper and

washer can be operated when

The engine switch is in ON.

■

If no windshield washer fluid

sprays

Check that the washer nozzle is not

blocked if there is washer fluid in the

windshield washer fluid reservoir.

■

Back door opening linked rear

window wiper stop function

When the rear window wiper are

operating, if a back door is opened

while the vehicle is stopped, opera-

tion of the rear window wiper will be

stopped to prevent anyone near the

vehicle from being sprayed by water

from the wiper. When the back door

is closed, wiper operation will

resume.

Rear window wiper

and washer

Operating the lever can use
the rear window wiper or the
washer.

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may

damage the rear window.

Operating instructions

NOTICE

■

When the washer fluid tank is

empty

Do not operate the switch continu-

ally as the washer fluid pump may

overheat.

169

4-3. Operating the lights and wipers

COROLLA H/B_U

4

Dr

iv

ing

NOTICE

■

When a nozzle becomes

blocked

In this case, contact your Toyota

dealer.

Do not try to clear it with a pin or

other object. The nozzle will be

damaged.

170

4-4. Refueling

COROLLA H/B_U

4-4.Refueling



Turn the engine switch off and
ensure that all the doors and
windows are closed.



Confirm the type of fuel.

■

Fuel types



P.518

■

Fuel tank opening for unleaded

gasoline

To help prevent incorrect fueling,

your vehicle has a fuel tank opening

that only accommodates the spe-

cial nozzle on unleaded fuel pumps.

■

If the malfunction indicator

lamp illuminates

The malfunction indicator lamp may

illuminate erroneously if refueling is

performed repeatedly when the fuel

tank is nearly full.

Opening the fuel tank

cap

Perform the following steps
to open the fuel tank cap:

Before refueling the vehi-
cle

WARNING

■

When refueling the vehicle

Observe the following precautions

while refueling the vehicle. Failure

to do so may result in death or

serious injury.

●

After exiting the vehicle and

before opening the fuel door,

touch an unpainted metal sur-

face to discharge any static

electricity. It is important to dis-

charge static electricity before

refueling because sparks result-

ing from static electricity can

cause fuel vapors to ignite while

refueling.

●

Always hold the grips on the

fuel tank cap and turn it slowly

to remove it.

A whooshing sound may be

heard when the fuel tank cap is

loosened. Wait until the sound

cannot be heard before fully

removing the cap. In hot

weather, pressurized fuel may

spray out the filler neck and

cause injury.

●

Do not allow anyone that has

not discharged static electricity

from their body to come close to

an open fuel tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that

are harmful if inhaled.

●

Do not smoke while refueling

the vehicle.

Doing so may cause the fuel to

ignite and cause a fire.

●

Do not return to the vehicle or

touch any person or object that

is statically charged.

This may cause static electricity

to build up, resulting in a possi-

ble ignition hazard.

■

When refueling

Observe the following precautions

to prevent fuel overflowing from

the fuel tank:

●

Securely insert the fuel nozzle

into the fuel filler neck.

●

Stop filling the tank after the fuel

nozzle automatically clicks off.

171

4-4. Refueling

COROLLA H/B_U

4

Dr

iv

ing

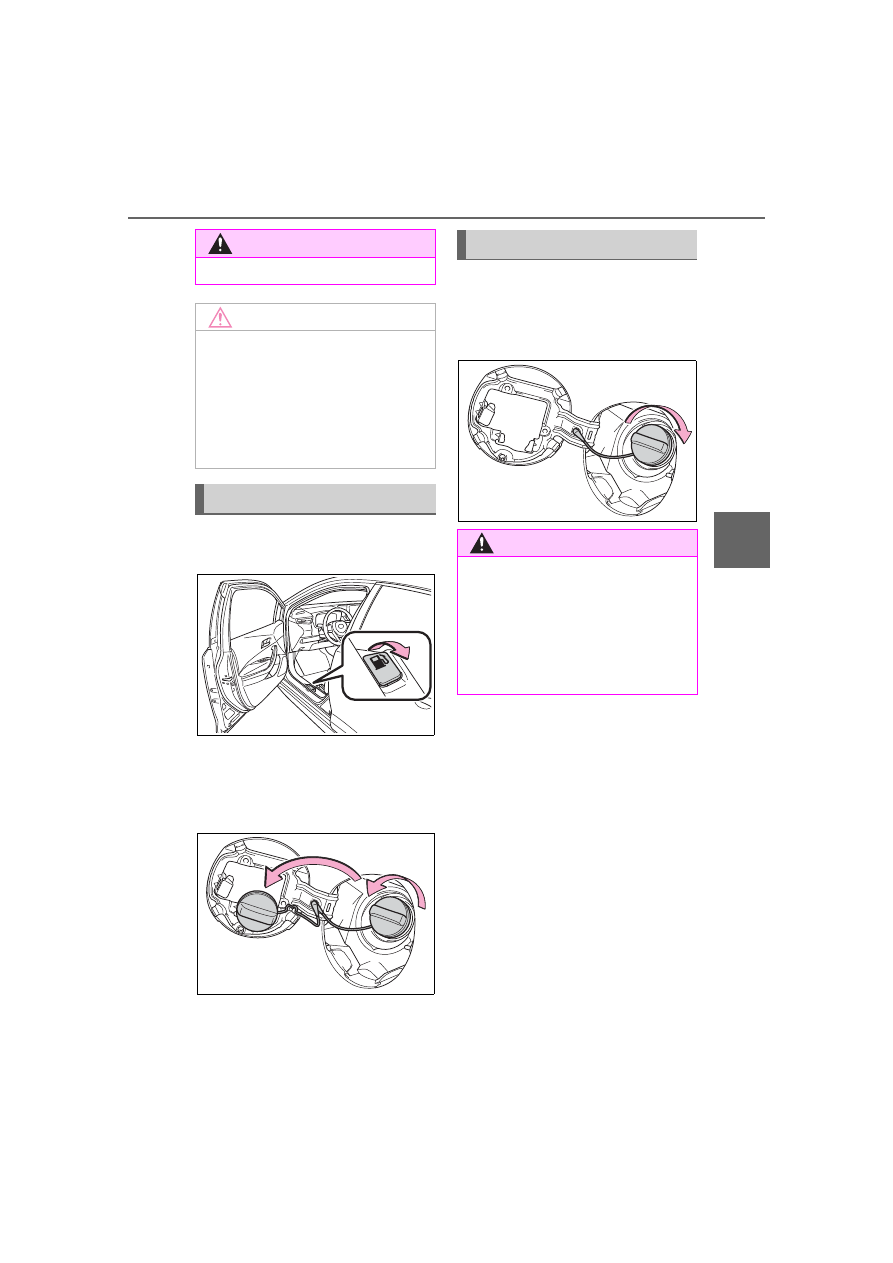

1

Pull up the opener to open
the fuel filler door.

2

Turn the fuel tank cap slowly
and remove it, then hang it
on the back of the fuel filler
door.

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.

WARNING

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.

Doing so may damage the vehi-

cle, such as causing the emission

control system to operate abnor-

mally or damaging fuel system

components or the vehicle’s

painted surface.

Opening the fuel tank cap

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank

cap

Do not use anything but a genu-

ine Toyota fuel tank cap designed

for your vehicle. Doing so may

cause a fire or other incident

which may result in death or seri-

ous injury.

172

4-5. Using the driving support systems

COROLLA H/B_U

4-5.Using the driving support systems

■

PCS (Pre-Collision System)



P.178

■

LTA (Lane Tracing Assist)

*



P.186

*

: If equipped

■

LDA (Lane Departure Alert
with steering control)

*



P.196

*

: If equipped

■

AHB (Automatic High
Beam)

*



P.163

*

: If equipped

■

RSA (Road Sign Assist)

*



P.224

*

: If equipped

■

Dynamic radar cruise con-
trol with full-speed range

*



P.204

*

: If equipped

■

Dynamic radar cruise con-
trol

*



P.214

*

: If equipped

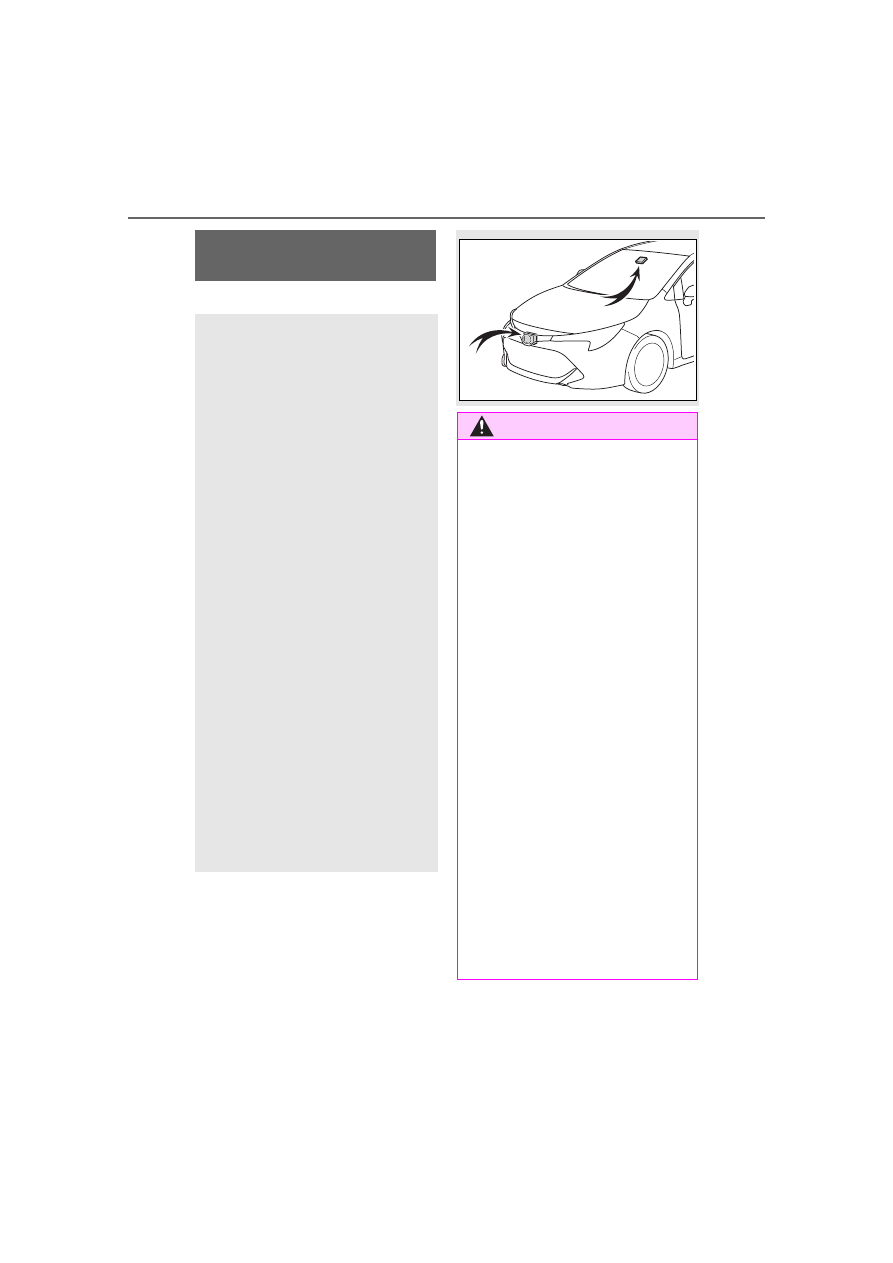

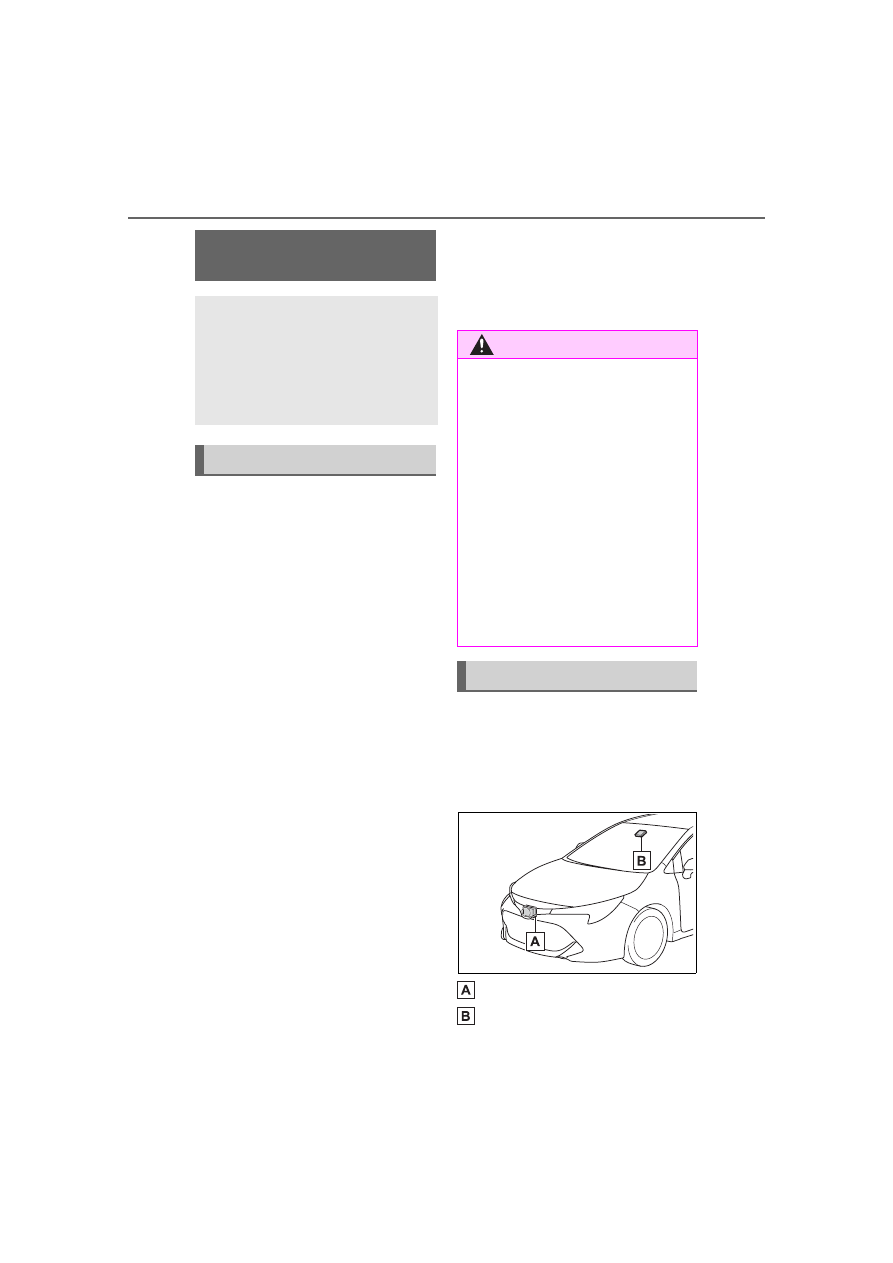

Two types of sensors, located
behind the front grille and wind-
shield, detect information neces-
sary to operate the drive assist
systems.

Radar sensor
Front camera

Toyota Safety Sense

2.0

The Toyota Safety Sense 2.0
consists of the following
drive assist systems and
contributes to a safe and
comfortable driving experi-
ence:

Driving assist system

WARNING

■

Toyota Safety Sense 2.0

The Toyota Safety Sense 2.0 is

designed to operate under the

assumption that the driver will

drive safely, and is designed to

help reduce the impact to the

occupants and the vehicle in the

case of a collision or assist the

driver in normal driving condi-

tions.

As there is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely.

Sensors

173

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

WARNING

■

To avoid malfunction of the

radar sensor

Observe the following precau-

tions.
Otherwise, the radar sensor may

not operate properly, possibly

leading to an accident resulting in

death or serious injury.

●

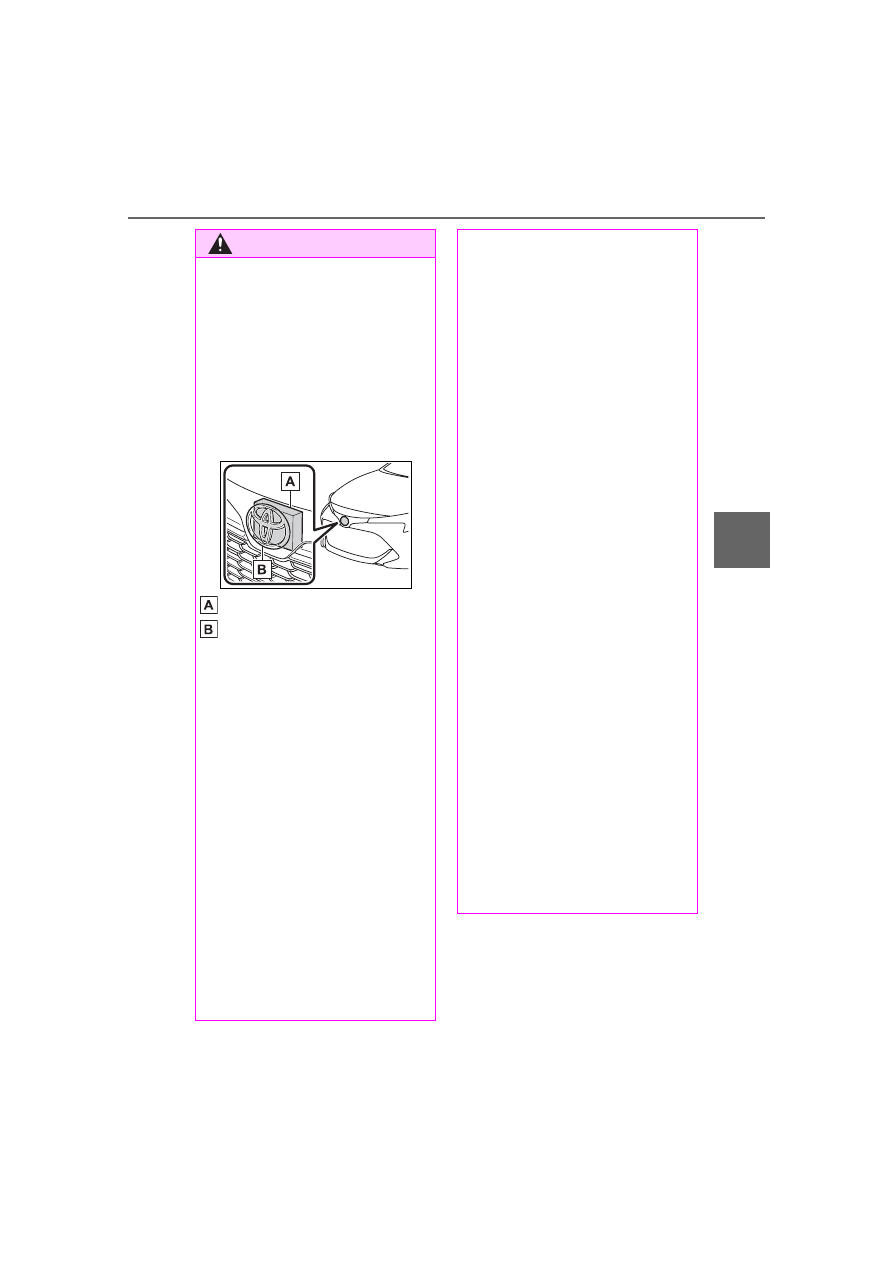

Keep the radar sensor and the

radar sensor cover clean at all

times.

Radar sensor
Radar sensor cover

If the front of the radar sensor or
the front or back of the radar sen-
sor cover is dirty or covered with
water droplets, snow, etc., clean
it.
Clean the radar sensor and radar
sensor cover with a soft cloth to
avoid damaging them.

●

Do not attach accessories,

stickers (including transparent

stickers) or other items to the

radar sensor, radar sensor

cover or surrounding area.

●

Do not subject the radar sensor

or its surrounding area to a

strong impact.

If the radar sensor, front grille,

or front bumper has been sub-

jected to a strong impact, have

the vehicle inspected by your

Toyota dealer.

●

Do not disassemble the radar

sensor.

●

Do not modify or paint the radar

sensor or radar sensor cover.

●

In the following cases, the radar

sensor must be recalibrated.

Contact your Toyota dealer for

details.

• When the radar sensor or front

grille are removed and installed,

or replaced

• When the front bumper is

replaced

■

To avoid malfunction of the

front camera

Observe the following precau-

tions.

Otherwise, the front camera may

not operate properly, possibly

leading to an accident resulting in

death or serious injury.

●

Keep the windshield clean at all

times.

• If the windshield is dirty or cov-

ered with an oily film, water

droplets, snow, etc., clean the

windshield.

• If a glass coating agent is

applied to the windshield, it will

still be necessary to use the

windshield wipers to remove

water droplets, etc. from the

area of the windshield in front of

the front camera.

• If the inner side of the wind-

shield where the front camera is

installed is dirty, contact your

Toyota dealer.

174

4-5. Using the driving support systems

COROLLA H/B_U

WARNING

●

Do not attach objects, such as

stickers, transparent stickers,

etc., to the outer side of the

windshield in front of the front

camera (shaded area in the

illustration).

From the top of the windshield
to approximately 0.4 in. (1 cm)
below the bottom of the front
camera
Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm]
to the right and left from the
center of the front camera)

●

If the part of the windshield in

front of the front camera is

fogged up or covered with con-

densation, or ice, use the wind-

shield defogger to remove the

fog, condensation, or ice.

(



P.388)

●

If water droplets cannot be

properly removed from the area

of the windshield in front of the

front camera by the windshield

wipers, replace the wiper insert

or wiper blade.

●

Do not attach window tint to the

windshield.

●

Replace the windshield if it is

damaged or cracked.

After replacing the windshield,

the front camera must be recali-

brated. Contact your Toyota

dealer for details.

●

Do not allow liquids to contact

the front camera.

●

Do not allow bright lights to

shine into the front camera.

●

Do not dirty or damage the front

camera.

When cleaning the inside of the

windshield, do not allow glass

cleaner to contact the lens of

the front camera. Also, do not

touch the lens.

If the lens is dirty or damaged,

contact your Toyota dealer.

●

Do not subject the front camera

to a strong impact.

●

Do not change the installation

position or direction of the front

camera or remove it.

●

Do not disassemble the front

camera.

●

Do not modify any components

of the vehicle around the front

camera (inside rear view mirror,

etc.) or ceiling.

●

Do not attach any accessories

to the hood, front grille or front

bumper that may obstruct the

front camera. Contact your Toy-

ota dealer for details.

●

If a surfboard or other long

object is to be mounted on the

roof, make sure that it will not

obstruct the front camera.

●

Do not modify the headlights or

other lights.

175

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

■

Certification



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico



For vehicles sold in Canada

176

4-5. Using the driving support systems

COROLLA H/B_U

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in

the system.

●

In the following situations, perform the actions specified in the table. When

the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

Situation

Actions

When the area around a sensor is
covered with dirt, moisture (fogged
up, covered with condensation, ice,
etc.), or other foreign matter

To clean the part of the windshield in
front of the front camera , use the
windshield wipers or the windshield
defogger of the air conditioning sys-
tem (



P.388).

177

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

●

In the following situations, if the situation has changed (or the vehicle has

been driven for some time) and the normal operating conditions are

detected, the message will disappear and the system will become opera-

tional.

If the message does not disappear, contact your Toyota dealer.

• When the temperature around the radar sensor is outside of the opera-

tional range, such as when the vehicle is in the sun or in an extremely cold

environment

• When the front camera cannot detect objects in front of the vehicle, such

as when driving in the dark, snow, or fog, or when bright lights are shining

into the front camera

When the temperature around the
front camera is outside of the opera-
tional range, such as when the vehi-
cle is in the sun or in an extremely
cold environment

If the front camera is hot, such as
after the vehicle had been parked in
the sun, use the air conditioning sys-
tem to decrease the temperature
around the front camera.
If a sunshade was used when the
vehicle was parked, depending on its
type, the sunlight reflected from the
surface of the sunshade may cause
the temperature of the front camera
to become excessively high.

If the front camera is cold, such after
the vehicle is parked in an extremely
cold environment, use the air condi-
tioning system to increase the tem-
perature around the front camera.

The area in front of the front camera
is obstructed, such as when the
hood is open or a sticker is attached
to the part of the windshield in front
of the front camera.

Close the hood, remove the sticker,
etc. to clear the obstruction.

Situation

Actions

178

4-5. Using the driving support systems

COROLLA H/B_U

The system can detect the fol-
lowing:



Vehicles



Bicyclists



Pedestrians

■

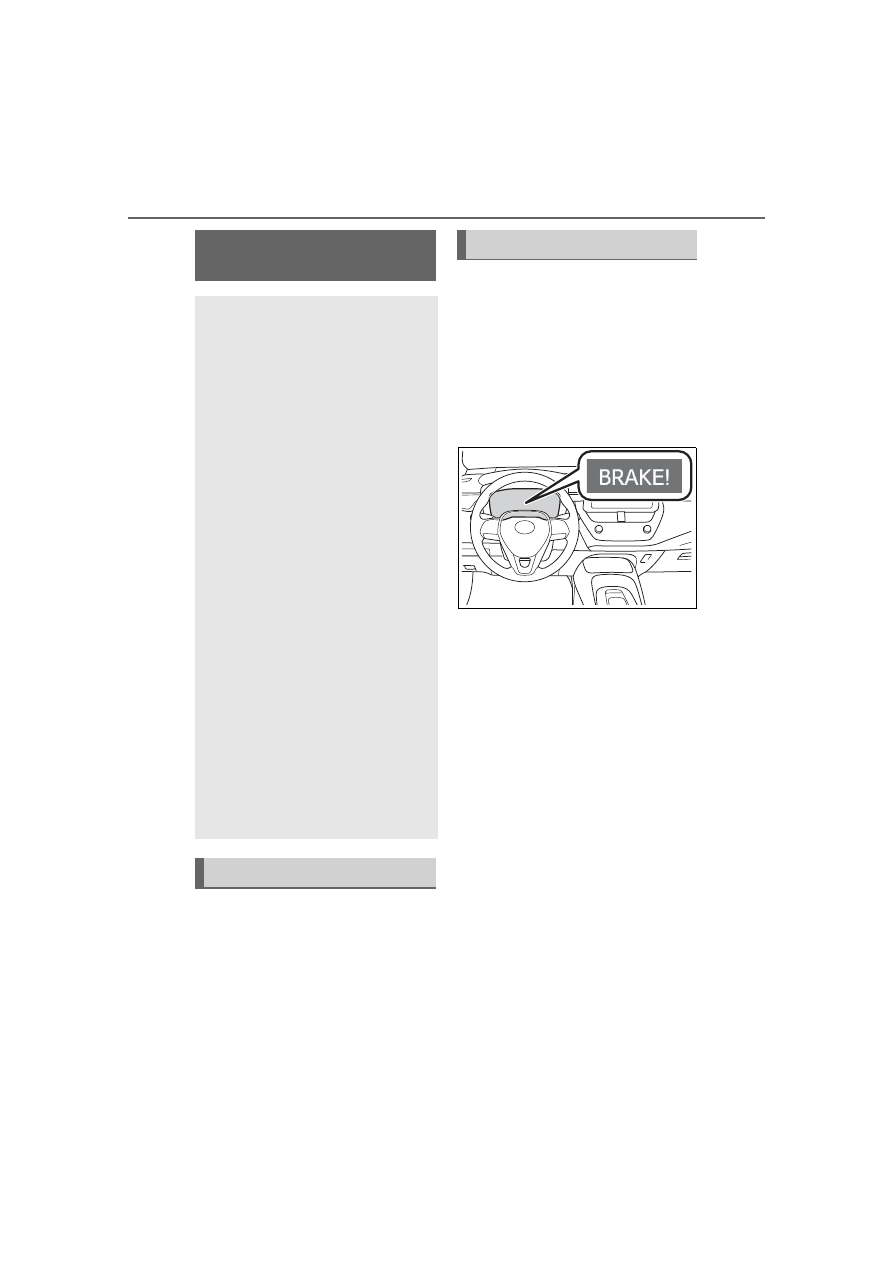

Pre-collision warning

When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the
multi-information display to urge
the driver to take evasive action.

■

Pre-collision brake assist

When the system determines
that the possibility of a frontal
collision is high, the system
applies greater braking force in
relation to how strongly the
brake pedal is depressed.

■

Pre-collision braking

If the system determines that
the possibility of a frontal colli-
sion is extremely high, the
brakes are automatically applied
to help avoid the collision or
reduce the impact of the colli-
sion.

PCS (Pre-Collision Sys-

tem)

The pre-collision system
uses a radar sensor and
front camera to detect
objects (



P.178) in front of

the vehicle. When the sys-
tem determines that the
possibility of a frontal colli-
sion with an object is high, a
warning operates to urge
the driver to take evasive
action and the potential
brake pressure is increased
to help the driver avoid the
collision. If the system
determines that the possi-
bility of a frontal collision
with an object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the col-
lision.

The pre-collision system
can be disabled/enabled
and the warning timing can
be changed. (



P.180)

Detectable objects

System functions

179

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

WARNING

■

Limitations of the pre-colli-

sion system

●

The driver is solely responsible

for safe driving. Always drive

safely, taking care to observe

your surroundings.

Do not use the pre-collision sys-

tem instead of normal braking

operations under any circum-

stances. This system will not

prevent collisions or lessen col-

lision damage or injury in every

situation. Do not overly rely on

this system. Failure to do so

may lead to an accident, result-

ing in death or serious injury.

●

Although this system is

designed to help avoid a colli-

sion or help reduce the impact

of the collision, its effectiveness

may change according to vari-

ous conditions, therefore the

system may not always be able

to achieve the same level of

performance.

Read the following conditions

carefully. Do not overly rely on

this system and always drive

carefully.

• Conditions under which the sys-

tem may operate even if there is

no possibility of a collision:



P.182

• Conditions under which the sys-

tem may not operate prop-

erly:



P.183

●

Do not attempt to test the oper-

ation of the pre-collision system

yourself.

Depending on the objects used

for testing (dummies, card-

board objects imitating detect-

able objects, etc.), the system

may not operate properly, possi-

bly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking

function is operating, a large

amount of braking force will be

applied.

●

If the vehicle is stopped by the

operation of the pre-collision

braking function, the pre-colli-

sion braking function operation

will be canceled after approxi-

mately 2 seconds. Depress the

brake pedal as necessary.

●

The pre-collision braking func-

tion may not operate if certain

operations are performed by the

driver. If the accelerator pedal is

being depressed strongly or the

steering wheel is being turned,

the system may determine that

the driver is taking evasive

action and possibly prevent the

pre-collision braking function

from operating.

●

In some situations, while the

pre-collision braking function is

operating, operation of the func-

tion may be canceled if the

accelerator pedal is depressed

strongly or the steering wheel is

turned and the system deter-

mines that the driver is taking

evasive action.

●

If the brake pedal is being

depressed, the system may

determine that the driver is tak-

ing evasive action and possibly

delay the operation timing of the

pre-collision braking function.

■

When to disable the pre-colli-

sion system

In the following situations, disable

the system, as it may not operate

properly, possibly leading to an

accident resulting in death or seri-

ous injury:

●

When the vehicle is being towed

180

4-5. Using the driving support systems

COROLLA H/B_U

■

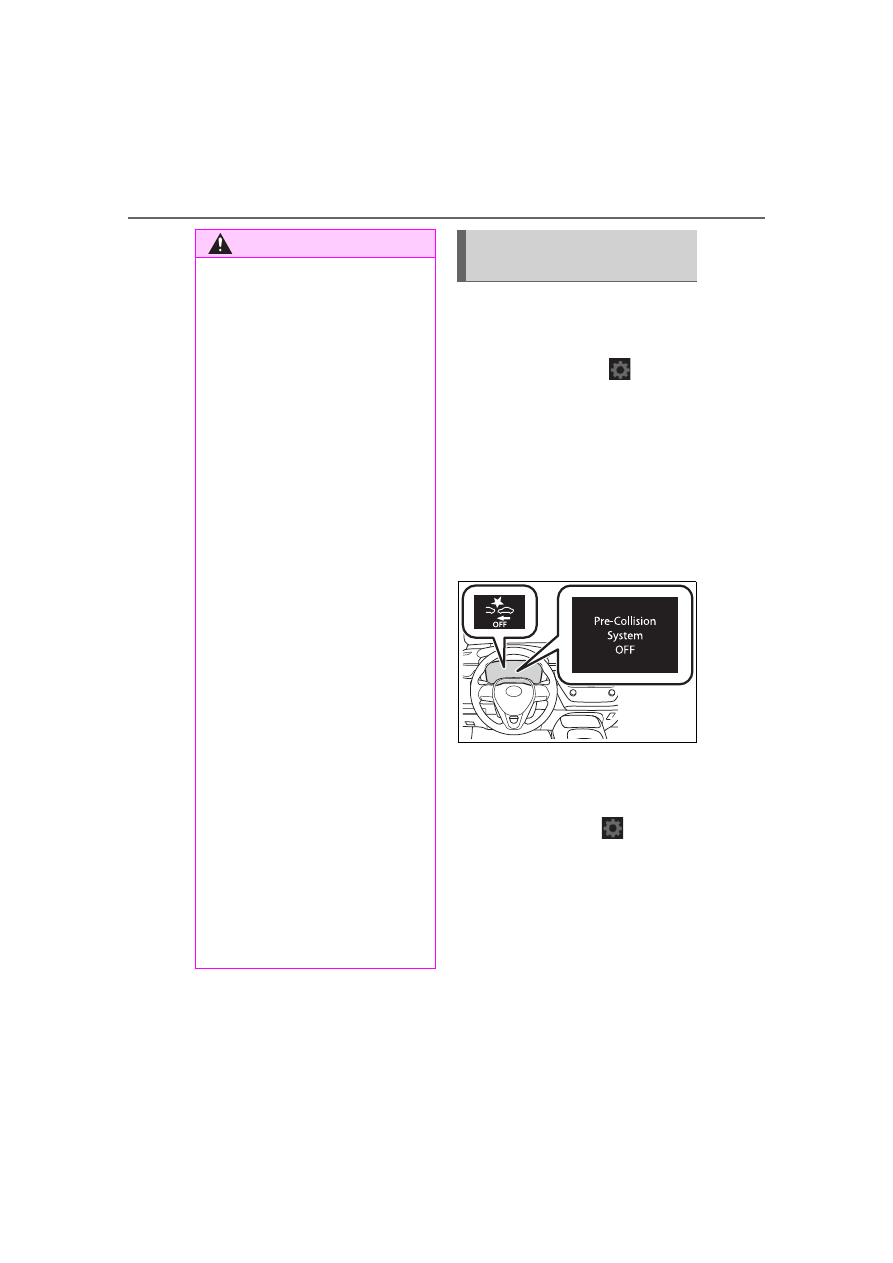

Enabling/disabling the
pre-collision system

The pre-collision system can be
enabled/disabled on



(



P.531) of the multi-informa-

tion display.

The system is automatically
enabled each time the engine
switch is turned to ON.

If the system is disabled, the
PCS warning light will turn on
and a message will be displayed
on the multi-information display.

■

Changing the pre-collision
warning timing

The pre-collision warning timing
can be changed on



(



P.531) of the multi-informa-

tion display.

The warning timing setting is
retained when the engine switch is
turned off. However, if the pre-colli-
sion system is disabled and
re-enabled, the operation timing will
return to the default setting (mid-
dle).

WARNING

●

When your vehicle is towing

another vehicle

●

When transporting the vehicle

via truck, boat, train or similar

means of transportation

●

When the vehicle is raised on a

lift with the engine running and

the tires are allowed to rotate

freely

●

When inspecting the vehicle

using a drum tester such as a

chassis dynamometer or speed-

ometer tester, or when using an

on vehicle wheel balancer

●

When a strong impact is applied

to the front bumper or front

grille, due to an accident or

other reasons

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tires of a size other than

specified are installed

●

When tire chains are installed

●

When a compact spare tire or

an emergency tire puncture

repair kit is used

●

If equipment (snow plow, etc.)

that may obstruct the radar sen-

sor or front camera is temporar-

ily installed to the vehicle

Changing settings of the
pre-collision system

181

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

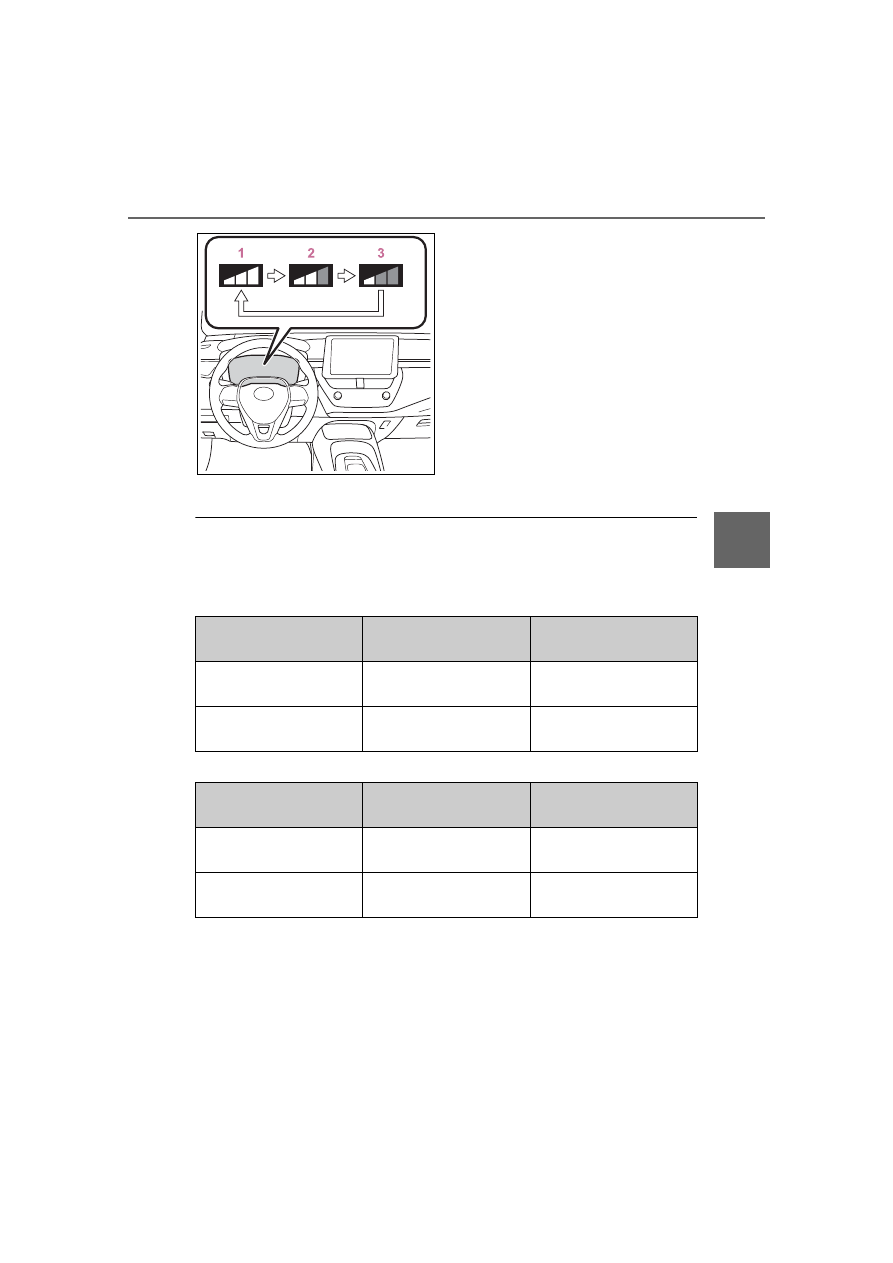

1

Early

2

Middle

This is the default setting.

3

Late

■

Operational conditions

The pre-collision system is enabled and the system determines that the pos-

sibility of a frontal collision with a detected object is high.

Each function is operational at the following speed:

●

Pre-collision warning

●

Pre-collision brake assist

●

Pre-collision braking

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 7 to 110 mph

(10 to 180 km/h)

Approx. 7 to 110 mph

(10 to 180 km/h)

Bicyclists and pedestri-

ans

Approx. 7 to 50 mph (10

to 80 km/h)

Approx. 7 to 50 mph (10

to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 20 to 110 mph

(30 to 180 km/h)

Approx. 20 to 110 mph

(30 to 180 km/h)

Bicyclists and pedestri-

ans

Approx. 20 to 50 mph

(30 to 80 km/h)

Approx. 20 to 50 mph

(30 to 80 km/h)

182

4-5. Using the driving support systems

COROLLA H/B_U

The system may not operate in the following situations:

●

If a battery terminal has been disconnected and reconnected and then the

vehicle has not been driven for a certain amount of time

●

If the shift lever is in R

●

When the VSC OFF indicator is illuminated (only the pre-collision warning

function will be operational)

■

Object detection function

The system detects objects based

on their size, profile, motion, etc.

However, an object may not be

detected depending on the sur-

rounding brightness and the motion,

posture, and angle of the detected

object, preventing the system from

operating properly. (



P.183)

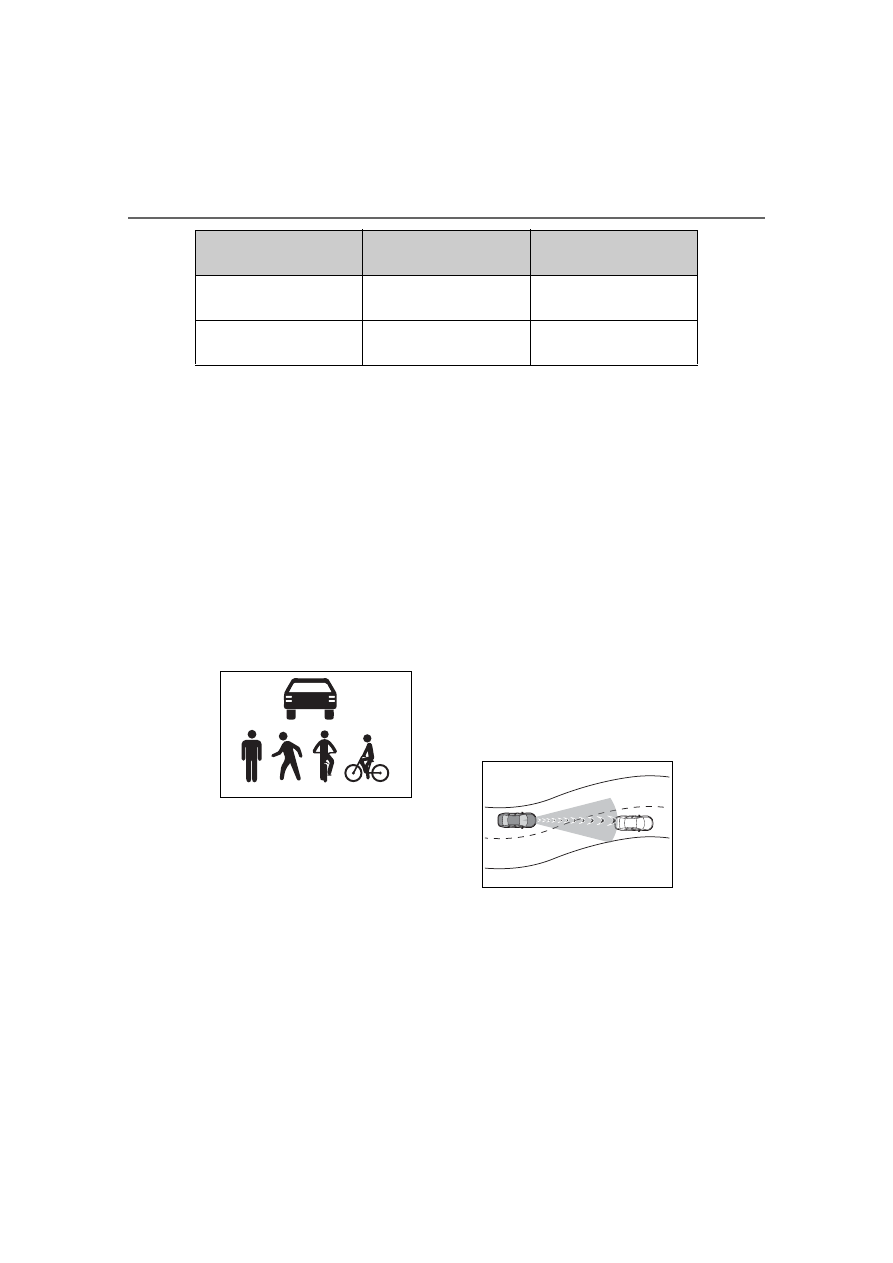

The illustration shows an image of

detectable objects.

■

Cancelation of the pre-collision

braking

If either of the following occur while

the pre-collision braking function is

operating, it will be canceled:

●

The accelerator pedal is

depressed strongly.

●

The steering wheel is turned

sharply or abruptly.

■

Conditions under which the

system may operate even if

there is no possibility of a colli-

sion

●

In some situations such as the fol-

lowing, the system may determine

that there is a possibility of a fron-

tal collision and operate.

• When passing a detectable object,

etc.

• When changing lanes while over-

taking a detectable object, etc.

• When approaching a detectable

object in an adjacent lane or on

the roadside, such as when

changing the course of travel or

driving on a winding road

• When rapidly closing on a detect-

able object, etc.

• When approaching objects on the

roadside, such as detectable

objects, guardrails, utility poles,

trees, or walls

• When there is a detectable object

or other object by the roadside at

the entrance of a curve

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 7 to 110 mph

(10 to 180 km/h)

Approx. 7 to 110 mph

(10 to 180 km/h)

Bicyclists and pedestri-

ans

Approx. 7 to 50 mph (10

to 80 km/h)

Approx. 7 to 50 mph (10

to 80 km/h)

183

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

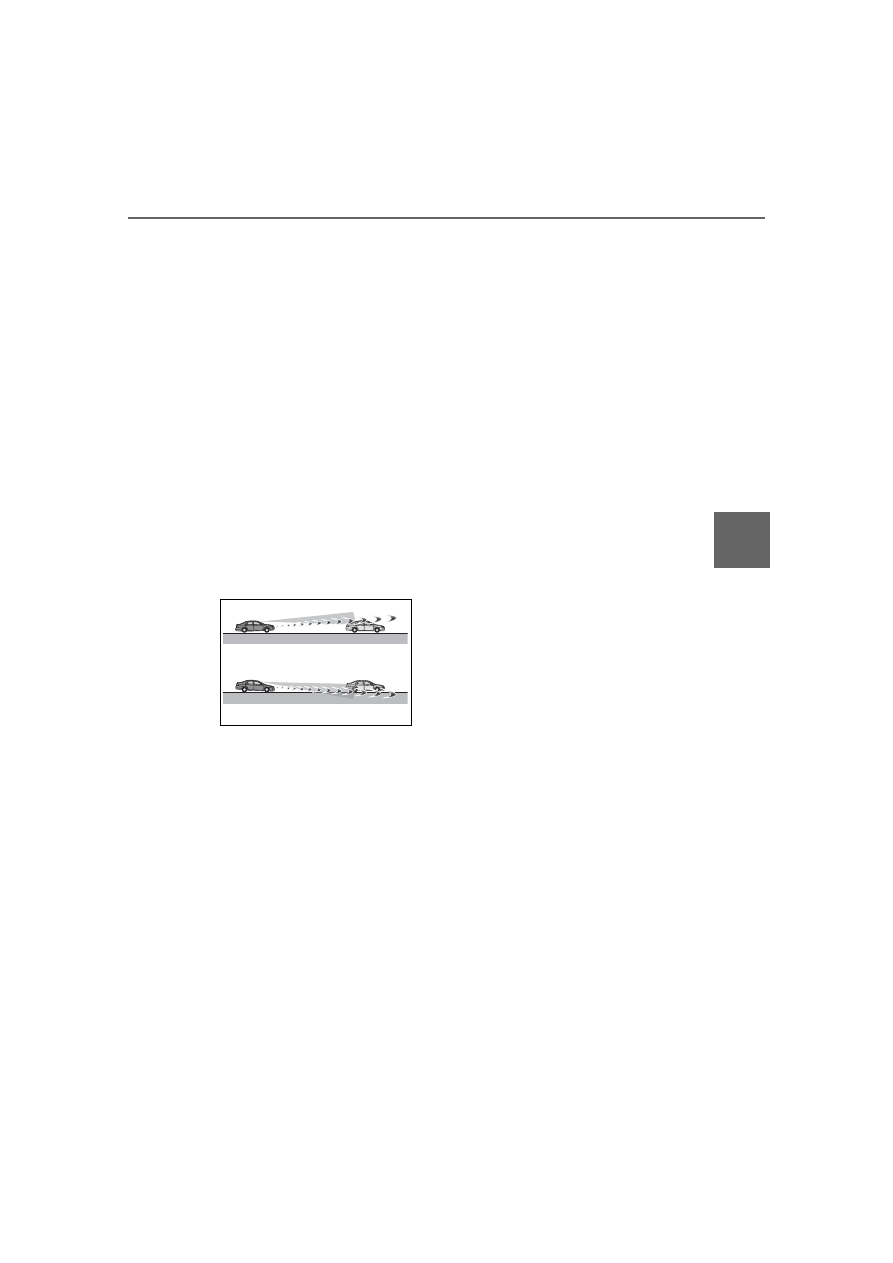

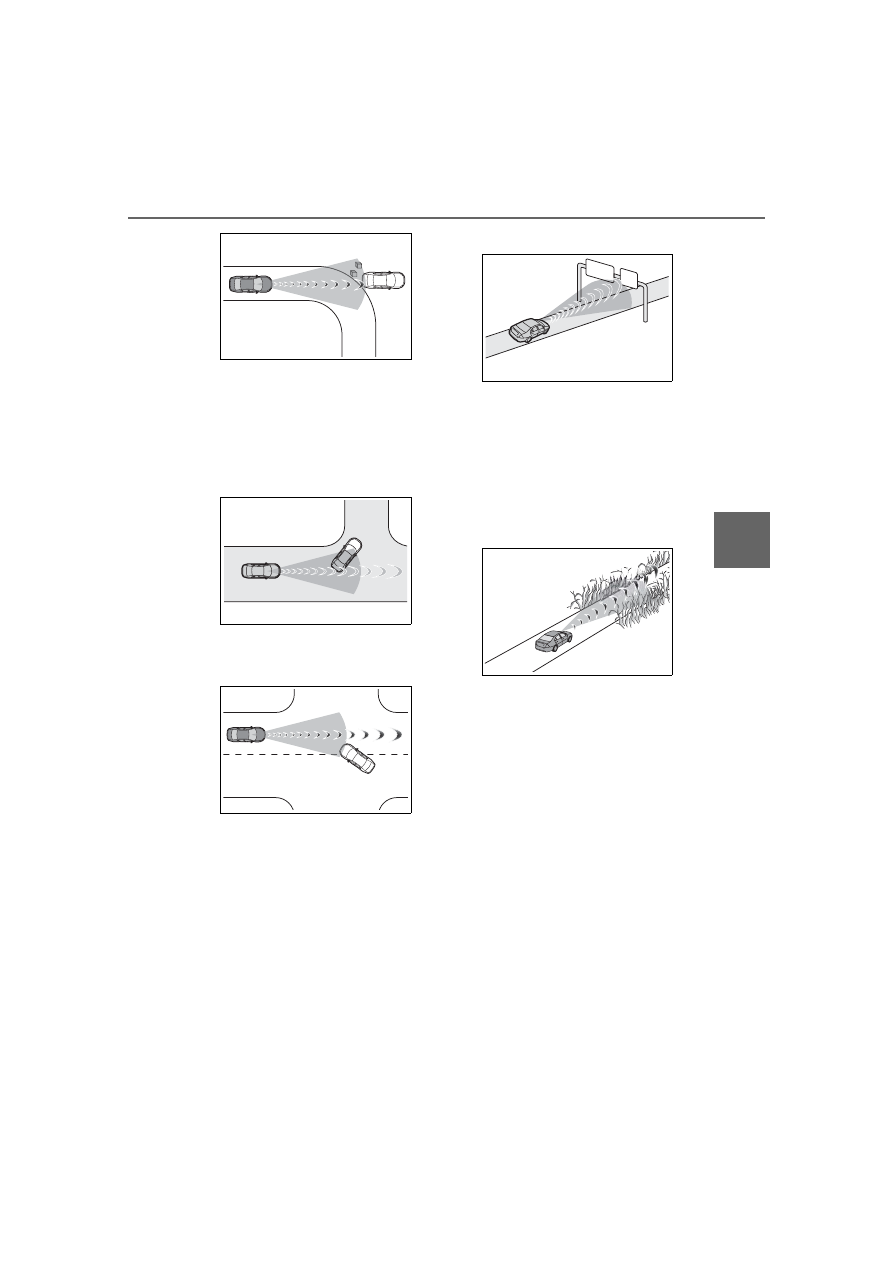

• When there are patterns or paint

in front of your vehicle that may be

mistaken for a detectable object

• When the front of your vehicle is

hit by water, snow, dust, etc.

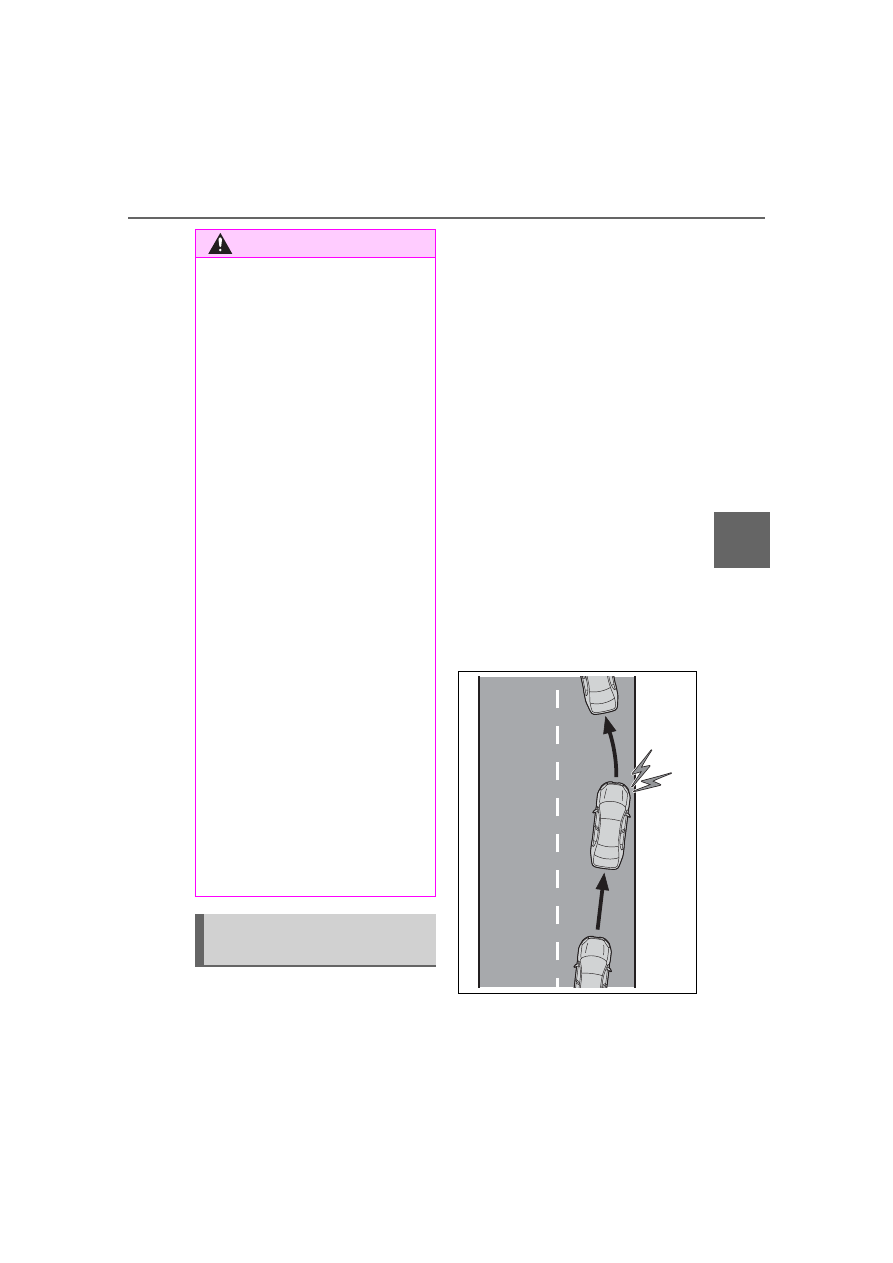

• When overtaking a detectable

object that is changing lanes or

making a right/left turn

• When passing a detectable object

in an oncoming lane that is

stopped to make a right/left turn

• When a detectable object

approaches very close and then

stops before entering the path of

your vehicle

• If the front of your vehicle is raised

or lowered, such as when on an

uneven or undulating road surface

• When driving on a road sur-

rounded by a structure, such as in

a tunnel or on an iron bridge

• When there is a metal object

(manhole cover, steel plate, etc.),

steps, or a protrusion in front of

your vehicle

• When passing under an object

(road sign, billboard, etc.)

• When approaching an electric toll

gate barrier, parking area barrier,

or other barrier that opens and

closes

• When using an automatic car

wash

• When driving through or under

objects that may contact your

vehicle, such as thick grass, tree

branches, or a banner

• When driving through steam or

smoke

• When driving near an object that

reflects radio waves, such as a

large truck or guardrail

• When driving near a TV tower,

broadcasting station, electric

power plant, or other location

where strong radio waves or elec-

trical noise may be present

■

Situations in which the system

may not operate properly

●

In some situations such as the fol-

lowing, an object may not be

detected by the radar sensor and

front camera, preventing the sys-

tem from operating properly:

• When a detectable object is

approaching your vehicle

• When your vehicle or a detectable

object is wobbling

• If a detectable object makes an

abrupt maneuver (such as sudden

184

4-5. Using the driving support systems

COROLLA H/B_U

swerving, acceleration or deceler-

ation)

• When your vehicle approaches a

detectable object rapidly

• When a detectable object is not

directly in front of your vehicle

• When a detectable object is near

a wall, fence, guardrail, manhole

cover, vehicle, steel plate on the

road, etc.

• When a detectable object is under

a structure

• When part of a detectable object

is hidden by an object, such as

large baggage, an umbrella, or

guardrail

• When multiple detectable objects

are close together

• If the sun or other light is shining

directly on a detectable object

• When a detectable object is a

shade of white and looks

extremely bright

• When a detectable object appears

to be nearly the same color or

brightness as its surroundings

• If a detectable object cuts or sud-

denly emerges in front of your

vehicle

• When the front of your vehicle is

hit by water, snow, dust, etc.

• When a very bright light ahead,

such as the sun or the headlights

of oncoming traffic, shines directly

into the front camera

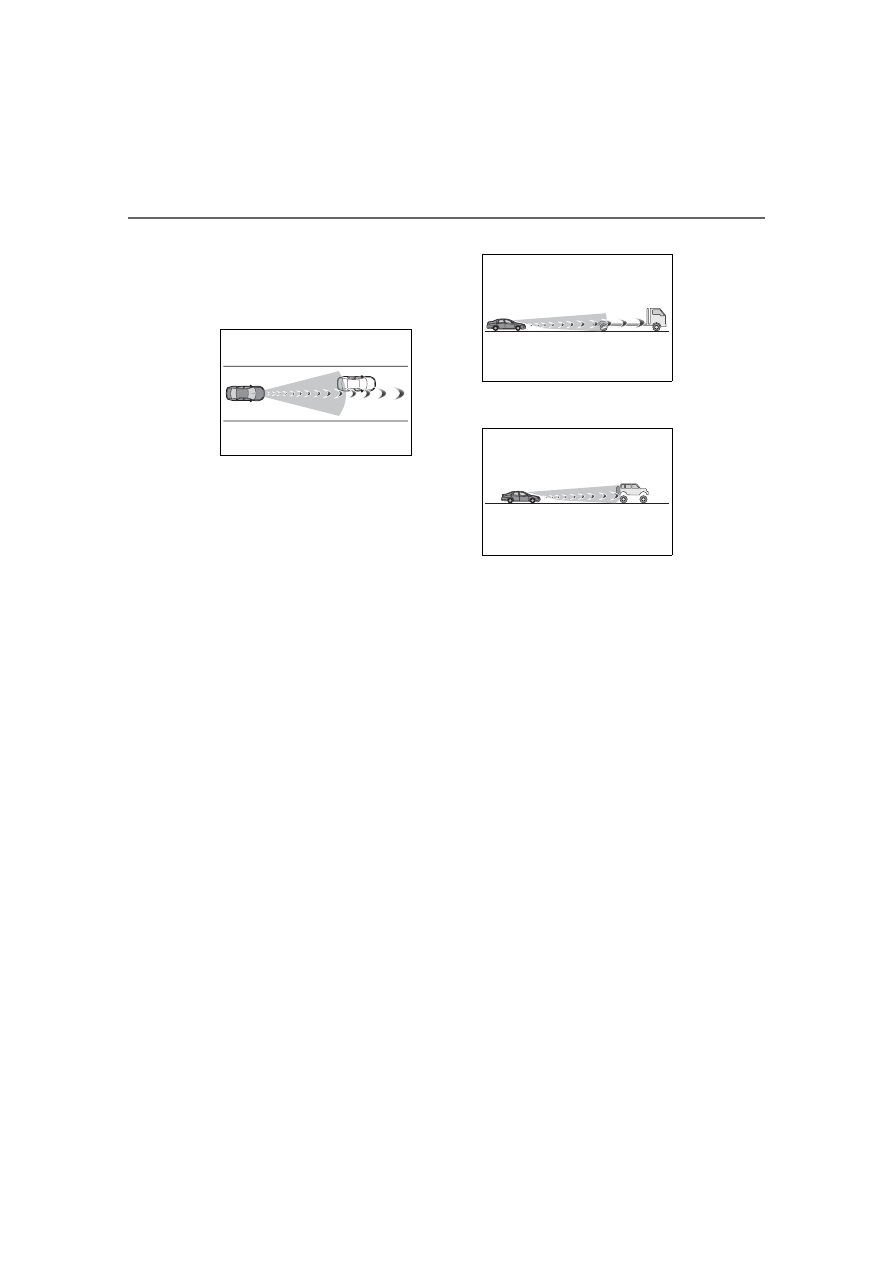

• When approaching the side or

front of a vehicle ahead

• If a vehicle ahead is a motorcycle

• If a vehicle ahead is narrow, such

as a personal mobility vehicle

• If a preceding vehicle has a small

rear end, such as an unloaded

truck

• If a preceding vehicle has a low

rear end, such as a low bed trailer

• If a vehicle ahead has extremely

high ground clearance

• If a vehicle ahead is carrying a

load which protrudes past its rear

bumper

• If a vehicle ahead is irregularly

shaped, such as a tractor or side

car

• If a vehicle ahead is a child sized

bicycle, a bicycle that is carrying a

large load, a bicycle ridden by

more than one person, or a

uniquely shaped bicycle (bicycle

with a child seat, tandem bicycle,

etc.)

• If a pedestrian/or the riding height

of a bicyclist ahead is shorter than

approximately 3.2 ft. (1 m) or taller

than approximately 6.5 ft. (2 m)

• If a pedestrian/bicyclist is wearing

oversized clothing (a rain coat,

long skirt, etc.), making their sil-

houette obscure

• If a pedestrian is bending forward

or squatting or bicyclist is bending

forward

• If a pedestrian/bicyclist is moving

fast

• If a pedestrian is pushing a

stroller, wheelchair, bicycle or

other vehicle

• When driving in inclement weather

such as heavy rain, fog, snow or a

sandstorm

185

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

• When driving through steam or

smoke

• When the surrounding area is dim,

such as at dawn or dusk, or while

at night or in a tunnel, making a

detectable object appear to be

nearly the same color as its sur-

roundings

• When driving in a place where the

surrounding brightness changes

suddenly, such as at the entrance

or exit of a tunnel

• After the engine has started the

vehicle has not been driven for a

certain amount of time

• While making a left/right turn and

for a few seconds after making a

left/right turn

• While driving on a curve and for a

few seconds after driving on a

curve

• If your vehicle is skidding

• If the front of the vehicle is raised

or lowered

• If the wheels are misaligned

• If a wiper blade is blocking the

front camera

• The vehicle is being driven at

extremely high speeds.

• When driving on a hill

• If the radar sensor or front camera

is misaligned

●

In some situations such as the fol-

lowing, sufficient braking force

may not be obtained, preventing

the system from performing prop-

erly:

• If the braking functions cannot

operate to their full extent, such as

when the brake parts are

extremely cold, extremely hot, or

wet

• If the vehicle is not properly main-

tained (brakes or tires are exces-

sively worn, improper tire inflation

pressure, etc.)

• When the vehicle is being driven

on a gravel road or other slippery

surface

■

If VSC is disabled

●

If VSC is disabled (



P.242), the

pre-collision brake assist and

pre-collision braking functions are

also disabled.

●

The PCS warning light will turn on

and “VSC Turned OFF Pre-Colli-

sion Brake System Unavailable”

will be displayed on the

multi-information display.

186

4-5. Using the driving support systems

COROLLA H/B_U

*

: If equipped

LTA (Lane Tracing

Assist)

*

When driving on highways
and freeways with white
(yellow) lane lines, this
function alerts the driver
when the vehicle might
depart from its lane or
course

*

 and provides assis-

tance by operating the
steering wheel to keep the
vehicle in its lane or
course

*

. Furthermore, the

system provides steering
assistance when dynamic
radar cruise control with
full-speed range is operat-
ing to keep the vehicle in its
lane.

The LTA system recognizes
white (yellow) lane lines or a
course

*

 using the front cam-

era. Additionally, it detects
preceding vehicles using
the front camera and radar.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

WARNING

■

Before using LTA system

●

Do not rely solely upon the LTA

system. The LTA system does

not automatically drive the vehi-

cle or reduce the amount of

attention that must be paid to

the area in front of the vehicle.

The driver must always assume

full responsibility for driving

safely by paying careful atten-

tion to the surrounding condi-

tions and operating the steering

wheel to correct the path of the

vehicle. Also, the driver must

take adequate breaks when

fatigued, such as from driving

for a long period of time.

●

Failure to perform appropriate

driving operations and pay care-

ful attention may lead to an

accident, resulting in death or

serious injury.

●

When not using the LTA system,

use the LTA switch to turn the

system off.

■

Situations unsuitable for LTA

system

In the following situations, use the

LTA switch to turn the system off.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

187

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

WARNING

●

Vehicle is driven on a road sur-

face which is slippery due to

rainy weather, fallen snow,

freezing, etc.

●

Vehicle is driven on a snow-cov-

ered road.

●

White (yellow) lines are difficult

to see due to rain, snow, fog,

dust, etc.

●

Vehicle is driven in a temporary

lane or restricted lane due to

construction work.

●

Vehicle is driven in a construc-

tion zone.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been

excessively worn, or when the

tire inflation pressure is low.

●

When tires of a size other than

specified are installed.

●

Vehicle is driven in traffic lanes

other than that highways and

freeways.

●

During emergency towing.

■

Preventing LTA system mal-

functions and operations per-

formed by mistake

●

Do not modify the headlights or

place stickers, etc. on the sur-

face of the lights.

●

Do not modify the suspension

etc. If the suspension etc. needs

to be replaced, contact your

Toyota dealer.

●

Do not install or place anything

on the hood or grille. Also, do

not install a grille guard (bull

bars, kangaroo bar, etc.).

●

If your windshield needs

repairs, contact your Toyota

dealer.

■

Conditions in which functions

may not operate properly

In the following situations, the

functions may not operate prop-

erly and the vehicle may depart

from its lane. Drive safely by

always paying careful attention to

your surroundings and operate

the steering wheel to correct the

path of the vehicle without relying

solely on the functions.

●

When the follow-up cruising dis-

play is displayed (



P.192) and

the preceding vehicle changes

lanes. (Your vehicle may follow

the preceding vehicle and also

change lanes.)

●

When the follow-up cruising dis-

play is displayed (



P.192) and

the preceding vehicle is sway-

ing. (Your vehicle may sway

accordingly and depart from the

lane.)

●

When the follow-up cruising dis-

play is displayed (



P.192) and

the preceding vehicle departs

from its lane. (Your vehicle may

follow the preceding vehicle and

depart from the lane.)

●

When the follow-up cruising dis-

play is displayed (



P.192) and

the preceding vehicle is being

driven extremely close to the

left/right lane line. (Your vehicle

may follow the preceding vehi-

cle and depart from the lane.)

188

4-5. Using the driving support systems

COROLLA H/B_U

WARNING

●

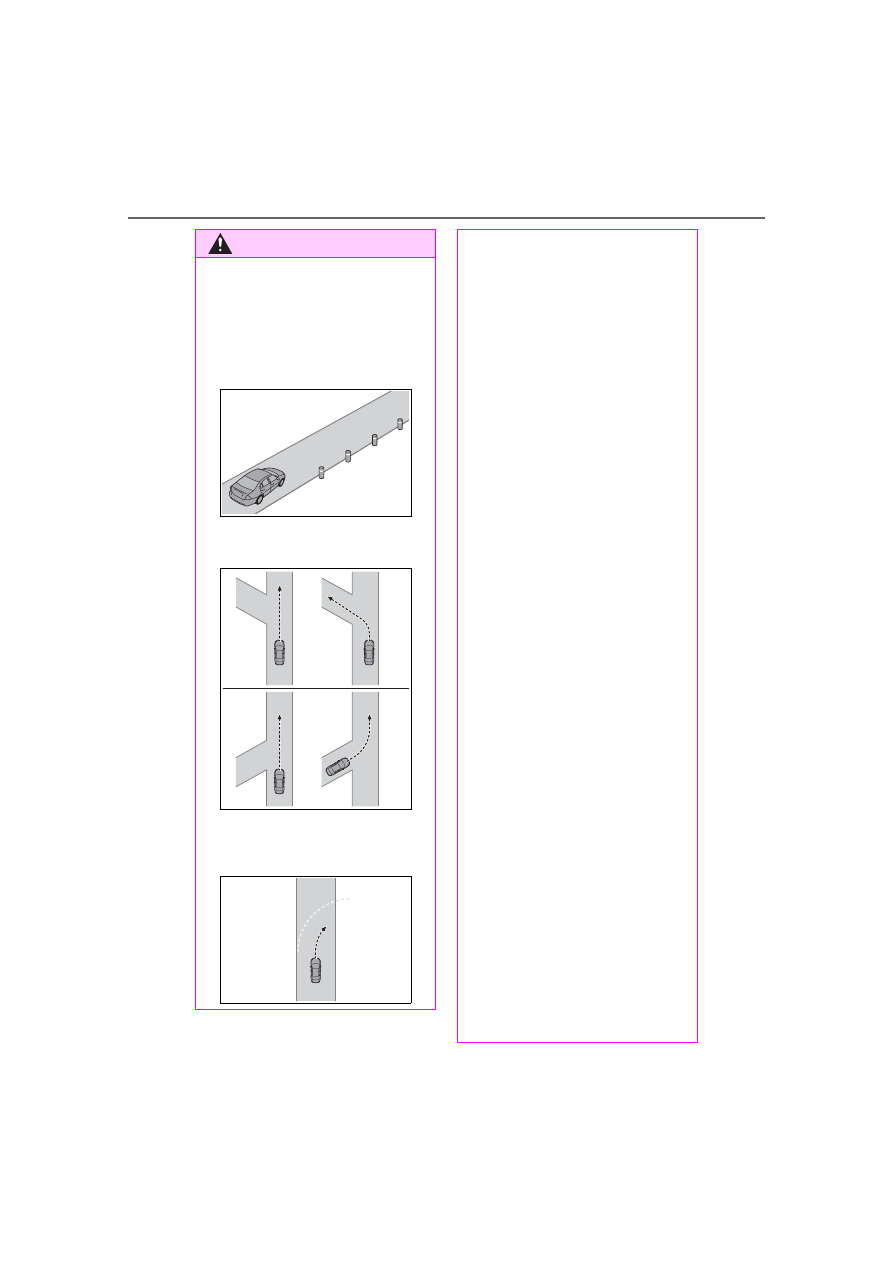

Vehicle is being driven around a

sharp curve.

●

Objects or patterns that could

be mistaken for white (yellow)

lines are present on the side of

the road (guardrails, reflective

poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white

(yellow) lines, etc. are present

due to road repair.

●

There are shadows on the road

that run parallel with, or cover,

the white (yellow) lines.

●

The vehicle is driven in an area

without white (yellow) lines,

such as in front of a tollgate or

checkpoint, or at an intersec-

tion, etc.

●

The white (yellow) lines are

cracked, “Botts’ dots”, “Raised

pavement marker” or stones are

present.

●

The white (yellow) lines cannot

be seen or are difficult to see

due to sand, etc.

●

The vehicle is driven on a road

surface that is wet due to rain,

puddles, etc.

●

The traffic lines are yellow

(which may be more difficult to

recognize than lines that are

white).

●

The white (yellow) lines cross

over a curb, etc.

●

The vehicle is driven on a bright

surface, such as concrete.

●

If the edge of the road is not

clear or straight.

●

The vehicle is driven on a sur-

face that is bright due to

reflected light, etc.

●

The vehicle is driven in an area

where the brightness changes

suddenly, such as at the

entrances and exits of tunnels,

etc.

●

Light from the headlights of an

oncoming vehicle, the sun, etc.

enters the camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road

which tilts left or right, or a wind-

ing road.

189

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

■

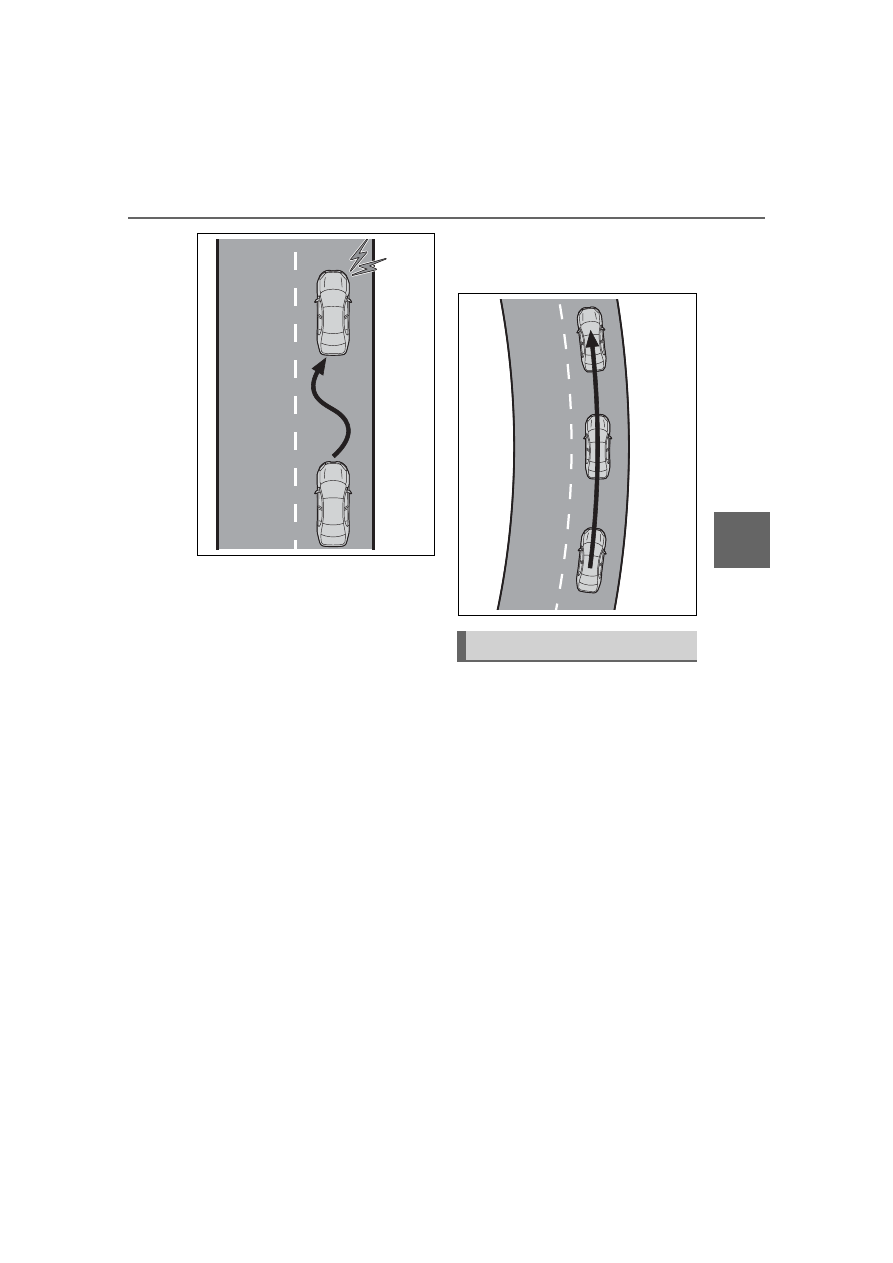

Lane departure alert func-
tion

When the system determines

that the vehicle might depart
from its lane or course

*

, a warn-

ing is displayed on the
multi-information display, and a
warning buzzer will sound to
alert the driver.

When the warning buzzer sounds,
check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
Vehicles with a BSM: When the
system determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the lane departure
alert will operate even if the turn
signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Steering assist function

When the system determines

WARNING

●

The vehicle is driven on an

unpaved or rough road.

●

The traffic lane is excessively

narrow or wide.

●

The vehicle is extremely tilted

due to carrying heavy luggage

or having improper tire pres-

sure.

●

The distance to the preceding

vehicle is extremely short.

●

The vehicle is moving up and

down a large amount due to

road conditions during driving

(poor roads or road seams).

●

When driving in a tunnel or at

night with the headlights off or

when a headlight is dim due to

its lens being dirty or it being

misaligned.

●

The vehicle is struck by a cross-

wind.

●

The vehicle is affected by wind

from a vehicle driven in a

nearby lane.

●

The vehicle has just changed

lanes or crossed an intersec-

tion.

●

Tires which differ by structure,

manufacturer, brand or tread

pattern are used.

●

Snow tires, etc. are equipped.

●

The vehicle is being driven at

extremely high speeds.

Functions included in LTA
system

190

4-5. Using the driving support systems

COROLLA H/B_U

that the vehicle might depart
from its lane or course

*

, the sys-

tem provides assistance as nec-
essary by operating the steering
wheel in small amounts for a
short period of time to keep the
vehicle in its lane.

If the system detects that the steer-
ing wheel has not been operated
for a fixed amount of time or the
steering wheel is not being firmly
gripped, a warning is displayed on
the multi-information display and
the function is temporarily can-
celed.
Vehicles with a BSM: When the
system determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the steering assist
function will operate even if the turn
signals are operating.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

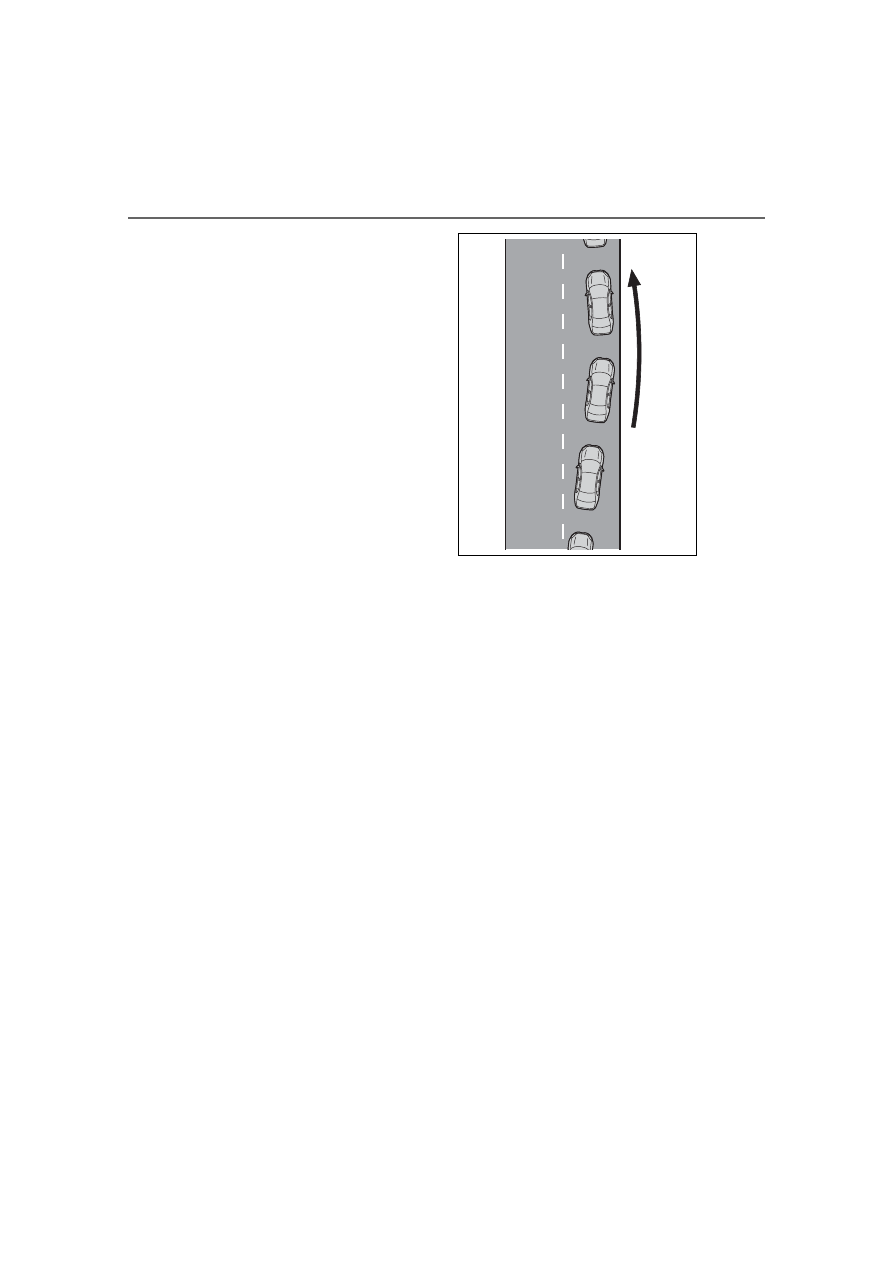

Vehicle sway warning func-
tion

When the vehicle is swaying
within a lane, the warning
buzzer will sound and a mes-
sage will be displayed on the
multi-information display to alert
the driver.

191

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing

■

Lane centering function

This function is linked with
dynamic radar cruise control
with full-speed range and pro-
vides the required assistance by
operating the steering wheel to
keep the vehicle in its current
lane.

When dynamic radar cruise control
with full-speed range is not operat-
ing, the lane centering function
does not operate.
In situations where the white (yel-
low) lane lines are difficult to see or
are not visible, such as when in a
traffic jam, this function will operate
to help follow a preceding vehicle
by monitoring the position of the
preceding vehicle.
If the system detects that the steer-
ing wheel has not been operated
for a fixed amount of time or the
steering wheel is not being firmly
gripped, a warning is displayed on

the multi-information display and
the function is temporarily can-
celed.

Press the LTA switch to turn the
LTA system on.

The LTA indicator illuminates and a
message is displayed on the
multi-information display.
Press the LTA switch again to turn
the LTA system off.
When the LTA system is turned on
or off, operation of the LTA system
continues in the same condition the
next time the engine is started.

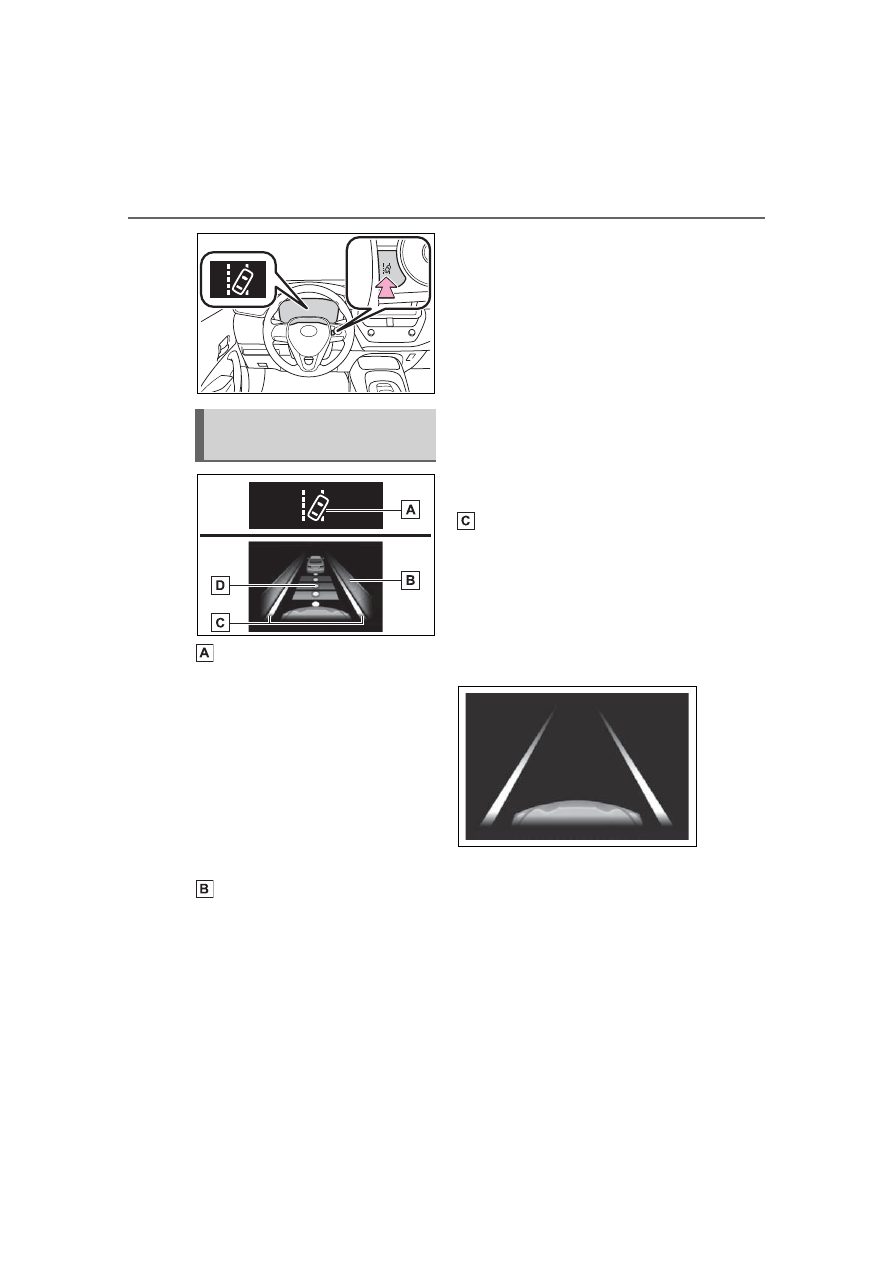

Turning LTA system on

192

4-5. Using the driving support systems

COROLLA H/B_U

LTA indicator

The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white: LTA system is
operating.
Illuminated in green: Steering wheel
assistance of the steering assist
function or lane centering function
is operating.
Flashing in orange: Lane departure
alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-informa-
tion display is switched to the driv-
ing assist system information
screen.
Indicates that steering wheel assis-
tance of the steering assist function

or lane centering function is operat-
ing.
Both outer sides of the lane are dis-
played: Indicates that steering
wheel assist of the lane centering
function is operating.
One outer side of the lane is dis-
played: Indicates that steering
wheel assist of the steering assist
function is operating.
Both outer sides of the lane are
flashing: Alerts the driver that their
input is necessary to stay in the
center of the lane (lane centering
function).

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing assist system information
screen.



Inside of displayed lines is
white

Indicates that the system is rec-
ognizing white (yellow) lines or a
course

*

. When the vehicle

departs from its lane, the white
line displayed on the side the
vehicle departs from flashes
orange.

Indications on multi-infor-
mation display

193

4-5. Using the driving support systems

COROLLA H/B_U

4

Dr

iv

ing



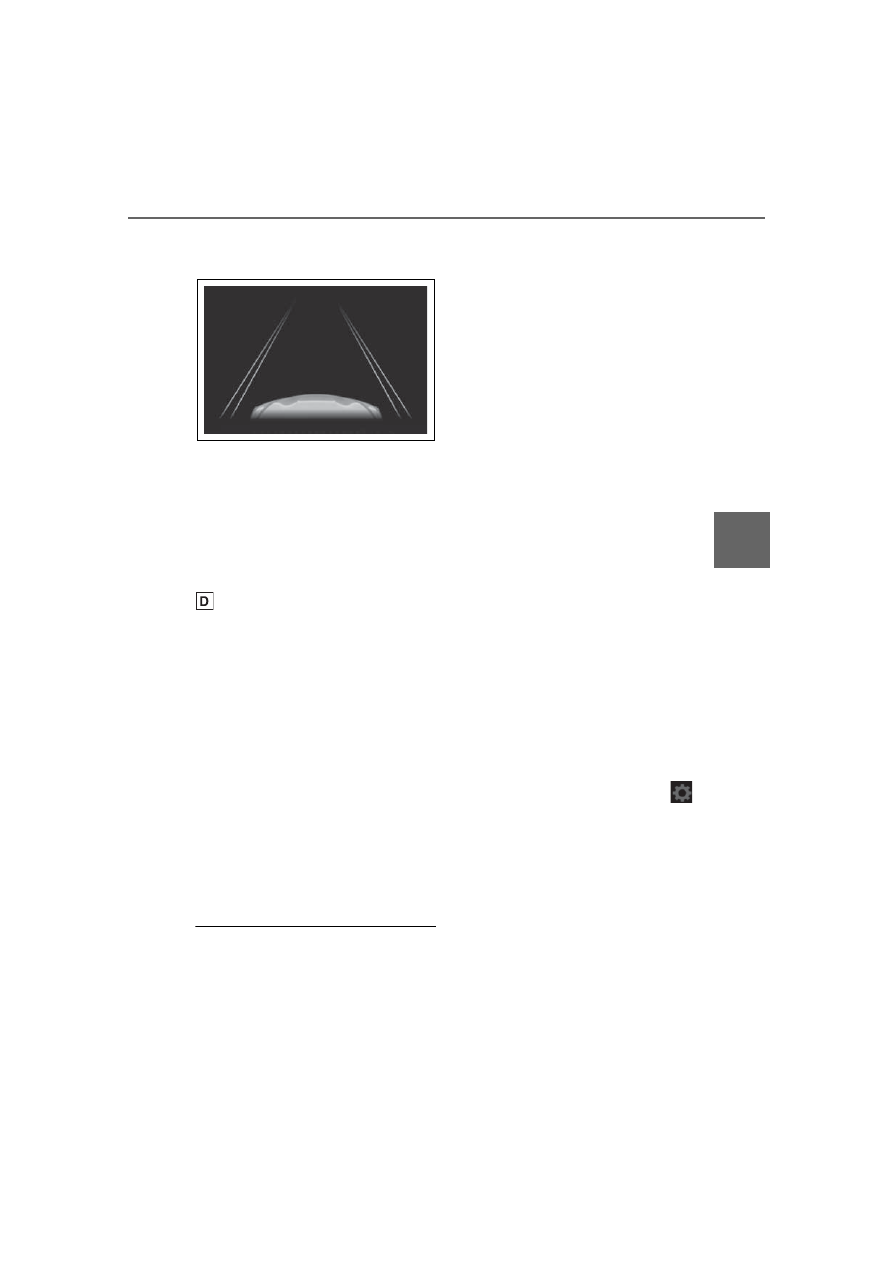

Inside of displayed lines is
black

Indicates that the system is not
able to recognize white (yellow)
lines or a course* or is tempo-
rarily canceled.

*

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

Follow-up cruising display

Displayed when the multi-informa-
tion display is switched to the driv-
ing assist system information
screen.
Indicates that steering assist of the
lane centering function is operating
by monitoring the position of a pre-
ceding vehicle.
When the follow-up cruising display
is displayed, if the preceding vehi-
cle moves, your vehicle may move
in the same way. Always pay care-
ful attention to your surroundings
and operate the steering wheel as
necessary to correct the path of the
vehicle and ensure safety.

■

Operation conditions of each

function

●

Lane departure alert function

This function operates when all of
the following conditions are met.
• LTA is turned on.

• Vehicle speed is approximately 32

mph (50 km/h) or more.

*1

• System recognizes white (yellow)

lane lines or a course

*2

. (When a

white [yellow] line or course

*2

 is

recognized on only one side, the

system will operate only for the

recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Vehicle with BSM: Except when

another vehicle is in the lane on

the side where the turn signal was

operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.195)

*1

:The function operates even if the

vehicle speed is less than
approximately 32 mph (50 km/h)
when the lane centering function
is operating.

*2

:Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

●

Steering assist function

This function operates when all of
the following conditions are met in
addition to the operation conditions
for the lane departure alert function.
• Setting for “Steering Assist” in



of the multi-information display is

set to “ON”. (



P.531)

• Vehicle is not accelerated or

decelerated by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.195)

●

Vehicle sway warning function

This function operates when all of
